Page 1
THIS PRODUCT CONFORMS TO BSEN 716-2008
Fig 2

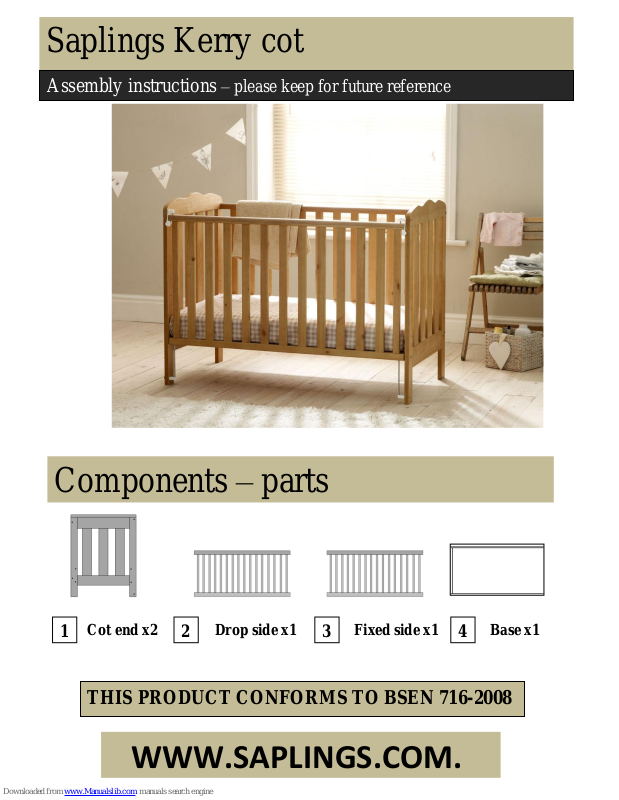

Saplings Kerry cot
Assembly instructions – please keep for future reference
Components – parts
1 2 3
4
Cot end x2
Drop side x1
Fixed side x1
Base x1
WWW.SAPLINGS.COM.
Page 2
Fig 3
Components–fittings please check all fittings are present
Assembly instructions
Stage 1 fixed side to ends
Secure fixed side (part 3) to
the cot ends (part 1) using
the bolts (part G) and nuts
(part B) as in (fig. 1 & 2)
Fig 1
Fig 2
Stage 2 bases to ends
Place the mattress base
(part 4) in position (Fig. 3).
(Making sure this way up
sticker in on top of base)
Using the bolts (part G) and
barrel nuts, (part B) secure
to end. (See fig 3)
Page 3
REQUIRED TOOLS:
Flat bladed screwdriver (not included)
Fix the bottom (part D) rail
support securely to the end
using the furniture bolts (part
A) as shown (fig 4)
Holding the drop side rail (part
2) push the rod through the
top rail and into bottom rail
and into the bottom bracket
Fix the top rail support (part E)
and gravity catch (marked left
or right) as shown
(fig.4).ensure that drop side is
correct way up.
Drop side
Assembly instructions
Fig 4
Safety point: the lowest position
is the safest and the base should
always be used in that position as
soon as the baby is old enough to sit
up
Page 4
All bolts should now be tightened securely (using the Allen key provided). All
bolts should also be checked regularly and retightened as necessary as they may
work loose with wear. If they are loose, they could trap parts of the body, or
clothing (e.g. strings, necklaces, ribbons for babies dummies), which could
Pose a risk of strangulation.
The thickness of the mattress chosen shall be such that the internal height
(surface of the mattress to the upper edge of the bed frame) is at least
500millimetres in the lowest position of the bed base and at least 200
millimetres in the highest position of the bed base.
RECOMMENDATION:
The recommended size of mattress for this cot is 120 x 60 centimetres.
For correct and safe fitting, the length and width of the mattress shall be such
that the gap between the mattress and the sides and ends does not exceed
30mm
WARNING:
Be aware of the risk of open fires and other sources of strong heat, such as
electric bar fires, gas fires, etc. in the nearby vicinity of the cot
Warning: Do not use the cot if any part is broken, torn or missing and use
Only spare parts approved by the manufacturer.
Warning: Do not leave anything in the cot or place the cot close to another
Product, which could provide a foothold or present a danger of
Suffocation
Or strangulation, e.g. strings, blind/curtain cords, etc.
Warning: Do not use more than one mattress in the cot.
To prevent injury from falls that when the child is able to climb
Out of the
Cot, the cot shall no longer be used for that child
Cleaning instructions
Clean by wiping with a damp Cloth and drying with a soft clean cloth.
Do not use abrasives, bleach, alcohol or
Ammonia-based household polishes
Recommendation
To prevent injury from falls that when the child is able to climb out of the
cot, the cot shall no
Longer be used for that child.
If you need help or have missing or damaged parts, call the customer helpline:
01952 550022
Safety and care advice
