Sapido RM-1802 User Manual

User Manual

ADSL 2+
Modem Router

Wireless N ADSL 2+
Modem Router

RM-1802

Networking

http://www.sapido.com.tw/ User Manual v1.0.0 2

Table of Contents

Safe Seating Gestures ..............................................................................................................6

CE Statement of Conformity..................................................................................................6

Chapter 1 Introduction......................................................................................................7

1.1 Overview...........................................................................................................7

1.2 Features.............................................................................................................7

1.3 Specifications....................................................................................................9

1.3.1 Views of Product Appearance...............................................................11

1.3.2 LED Indicator Status Description........................................................12

1.4 System Requirements....................................................................................13

1.5 WAN Network Plug and Play........................................................................13

1.6 Get Your IP Automatically & Manually.......................................................14

1.6.1 Network Testing .....................................................................................17

1.6.2 Testing with Internet Browser..............................................................17

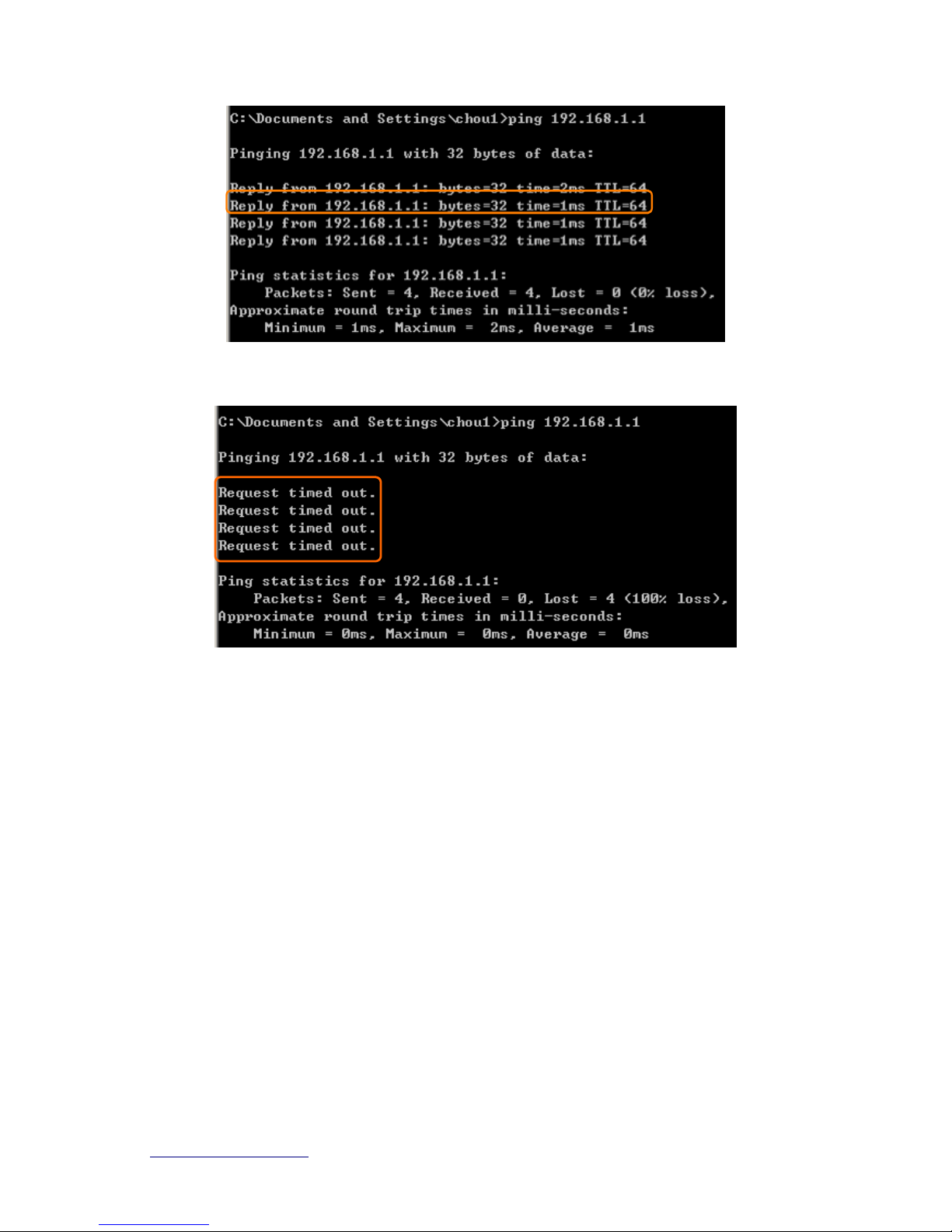

1.6.2.1 Testing with DOS (Windows XP Platform) .................................17

Chapter 2 Hardware Installation ...................................................................................20

Chapter 3 Configuration .................................................................................................21

3.1 WAN Configuration.......................................................................................21

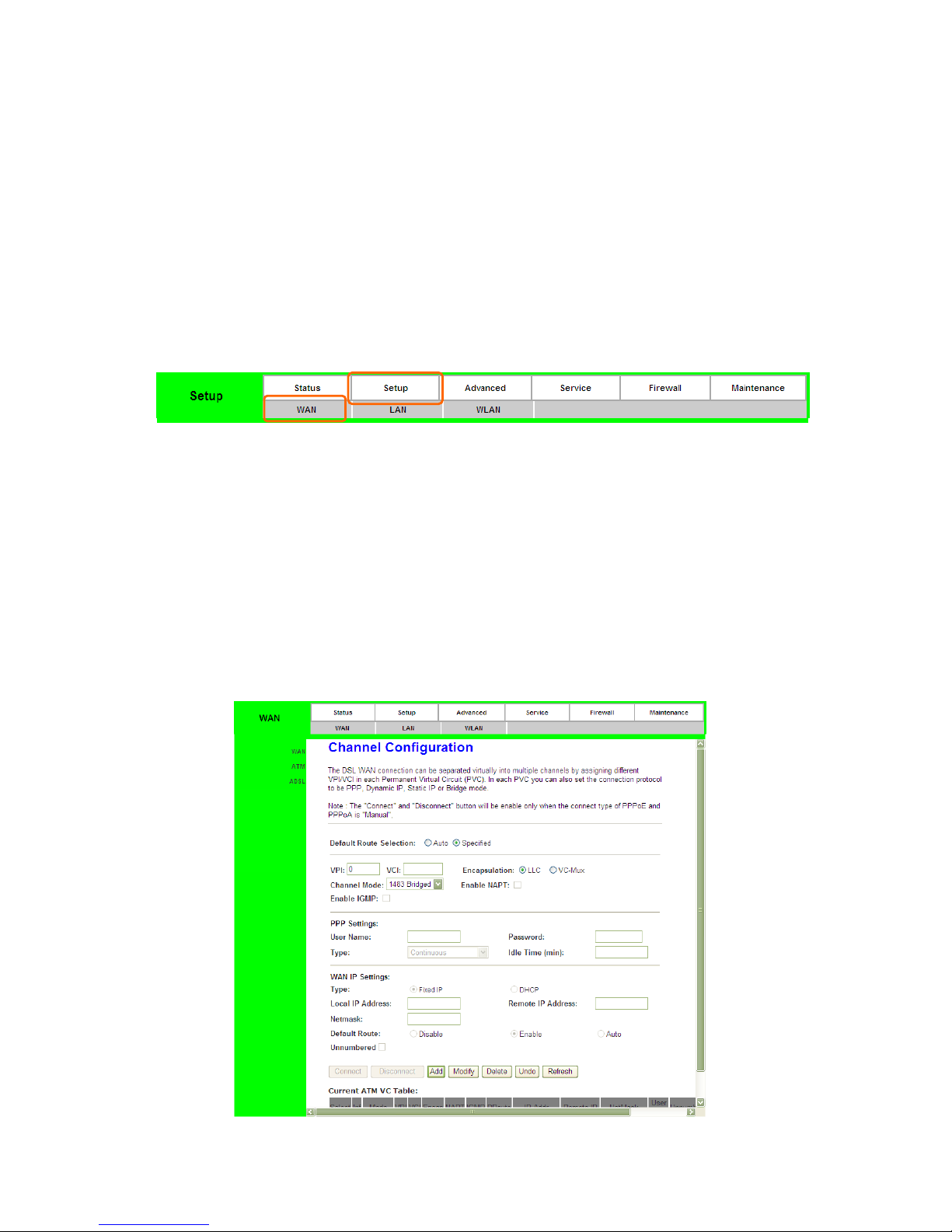

3.1.1 WAN........................................................................................................21

3.1.1.1 WAN................................................................................................21

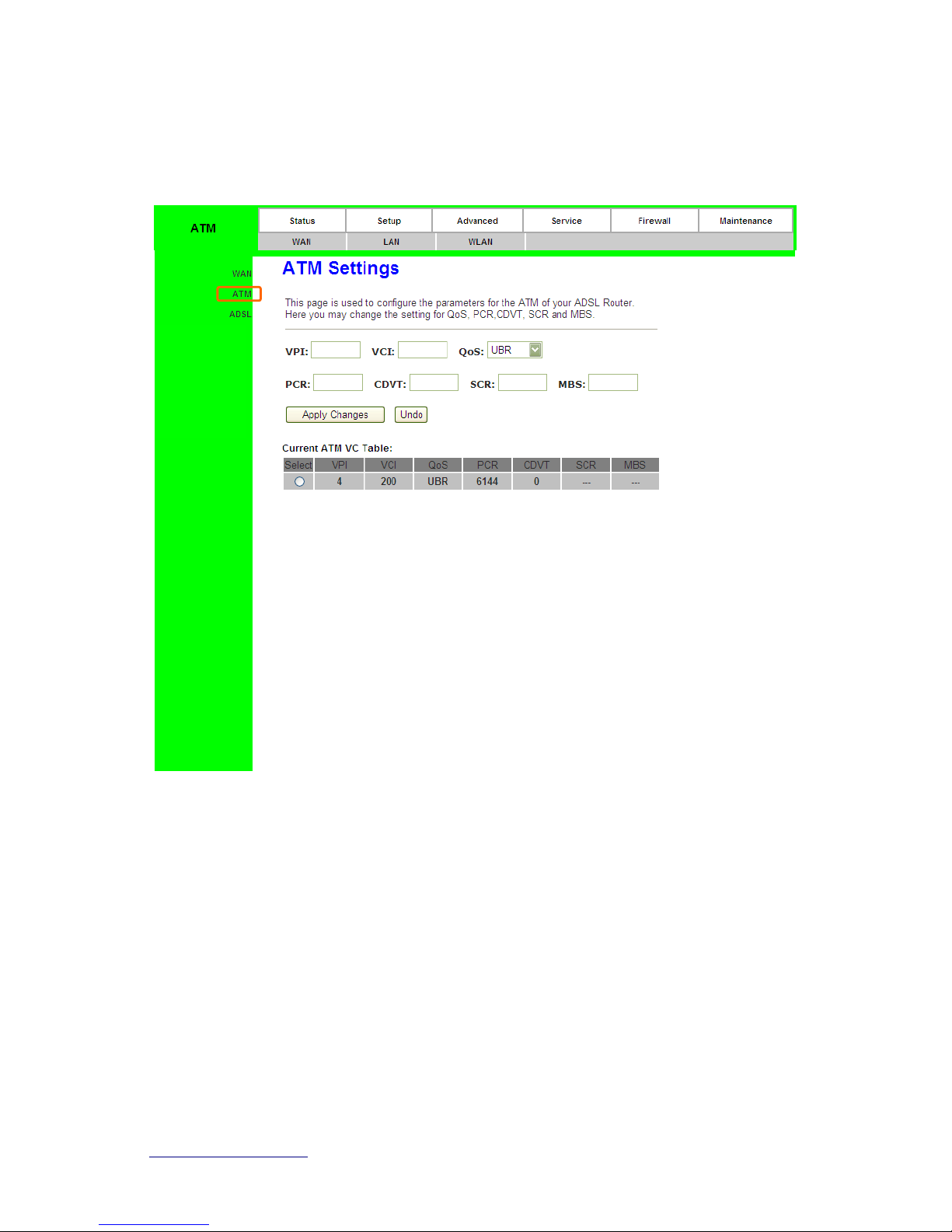

3.1.1.2 ATM ................................................................................................22

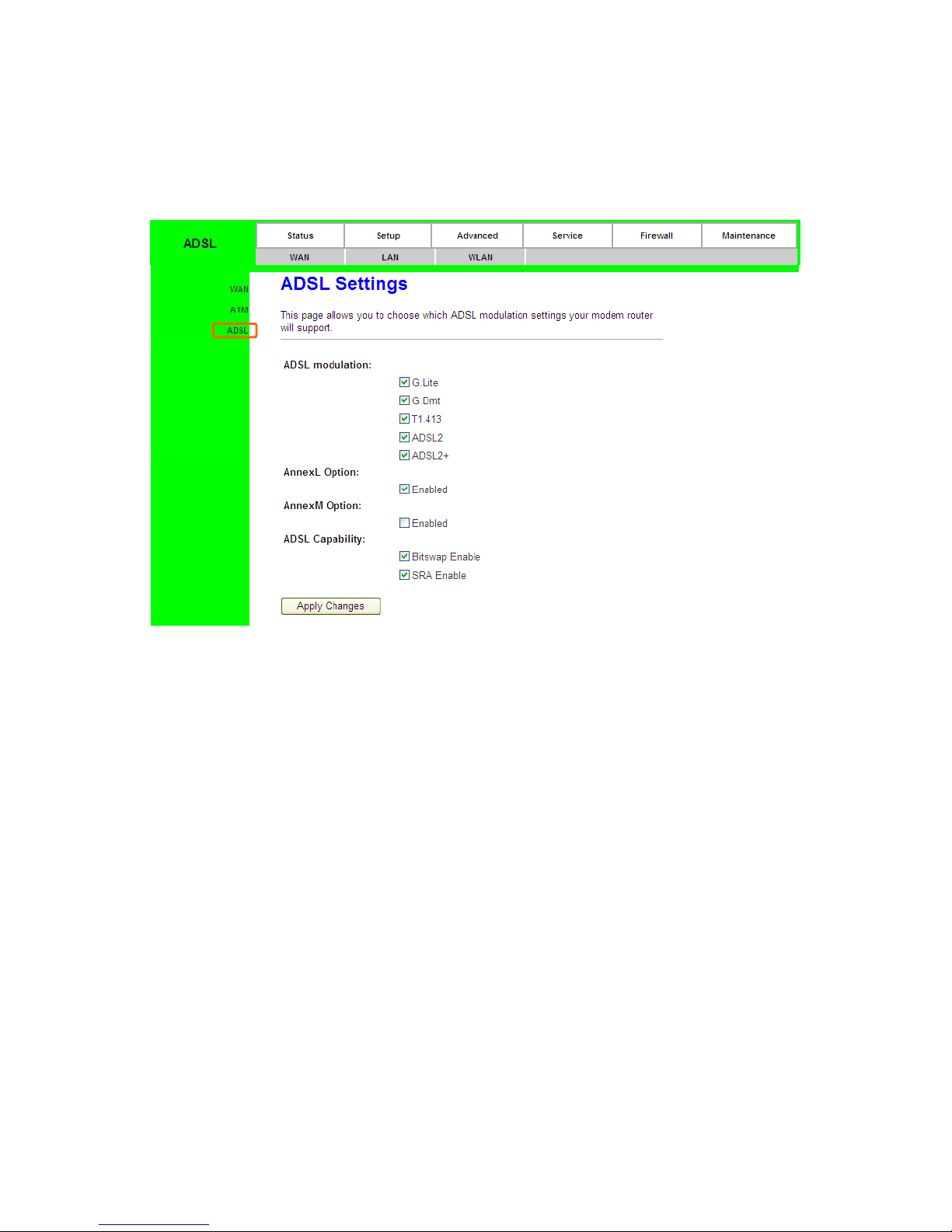

3.1.1.3 ADSL...............................................................................................23

3.2 LAN configuration.........................................................................................24

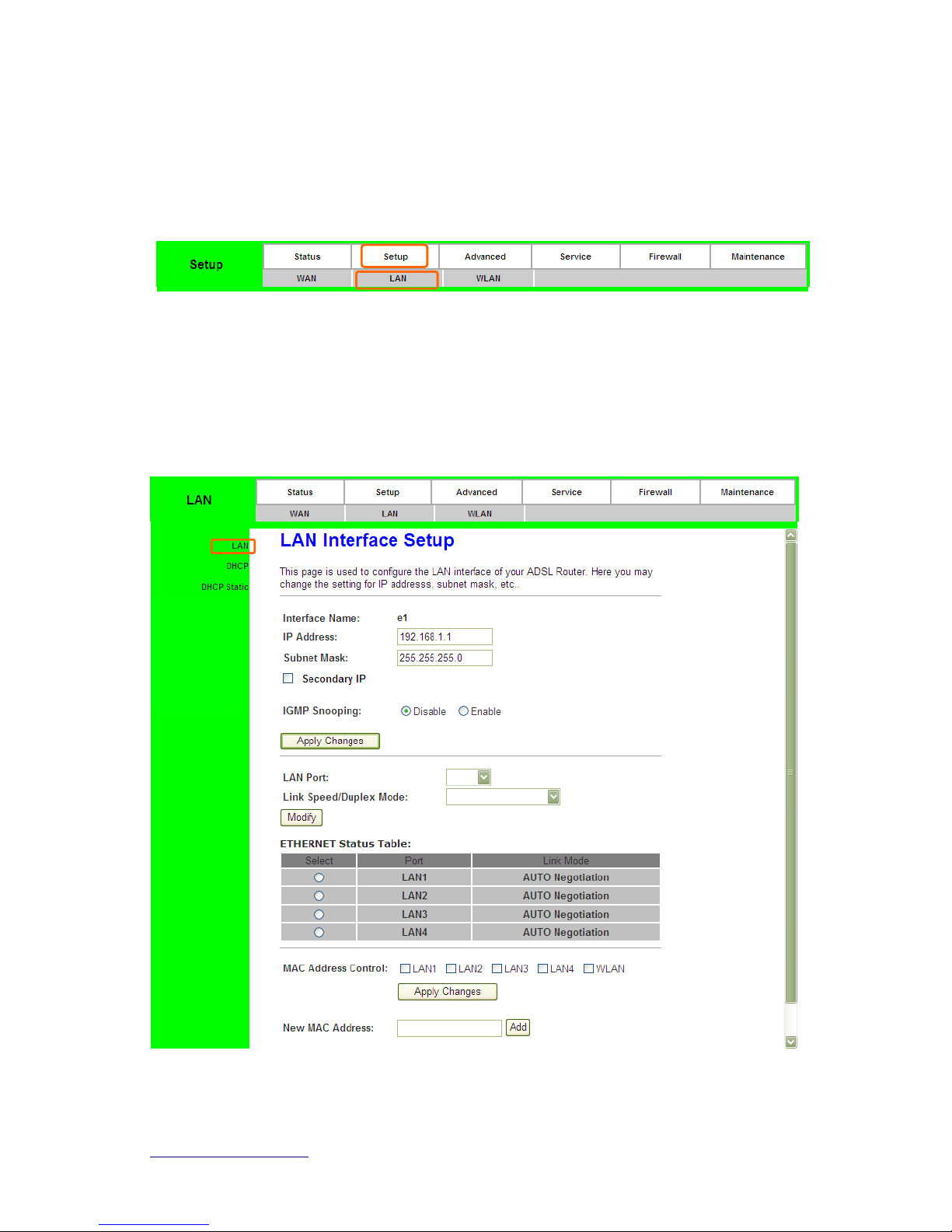

3.2.1 LAN.........................................................................................................24

3.2.1.1 LAN.................................................................................................24

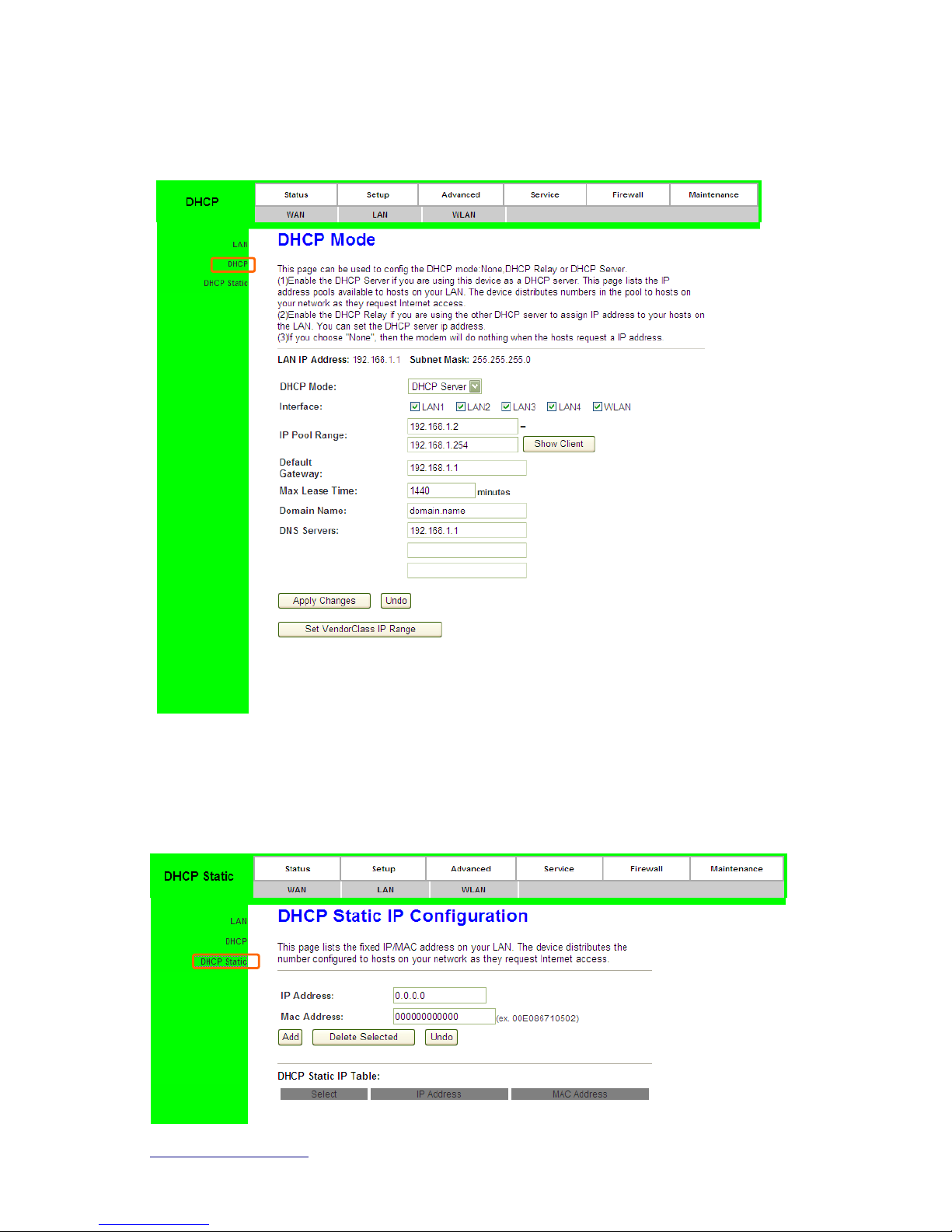

3.2.1.2 DHCP..............................................................................................25

3.2.1.3 DHCP Static....................................................................................25

3.3 WLAN Configuration....................................................................................26

3.3.1 WLAN.....................................................................................................26

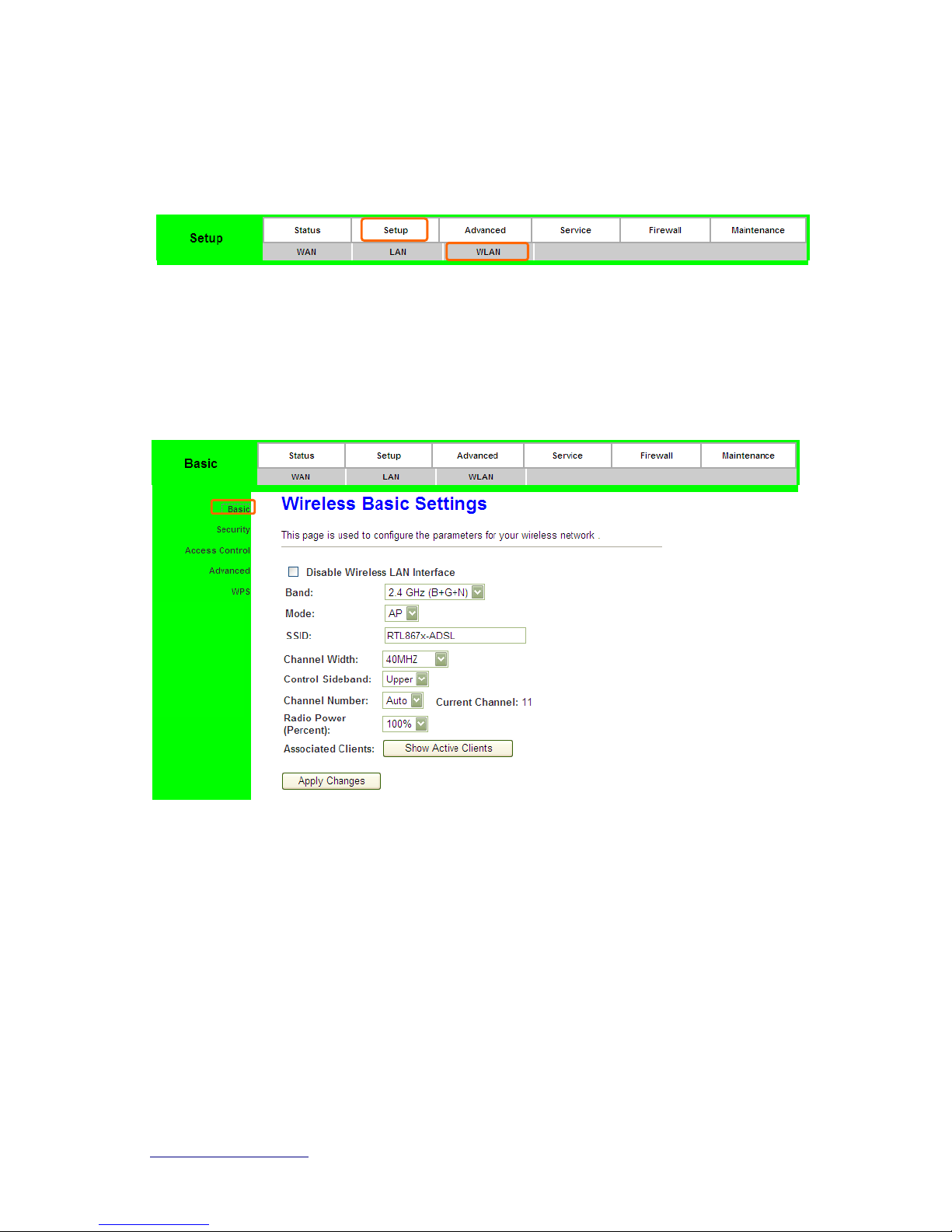

3.3.1.1 Basic ................................................................................................26

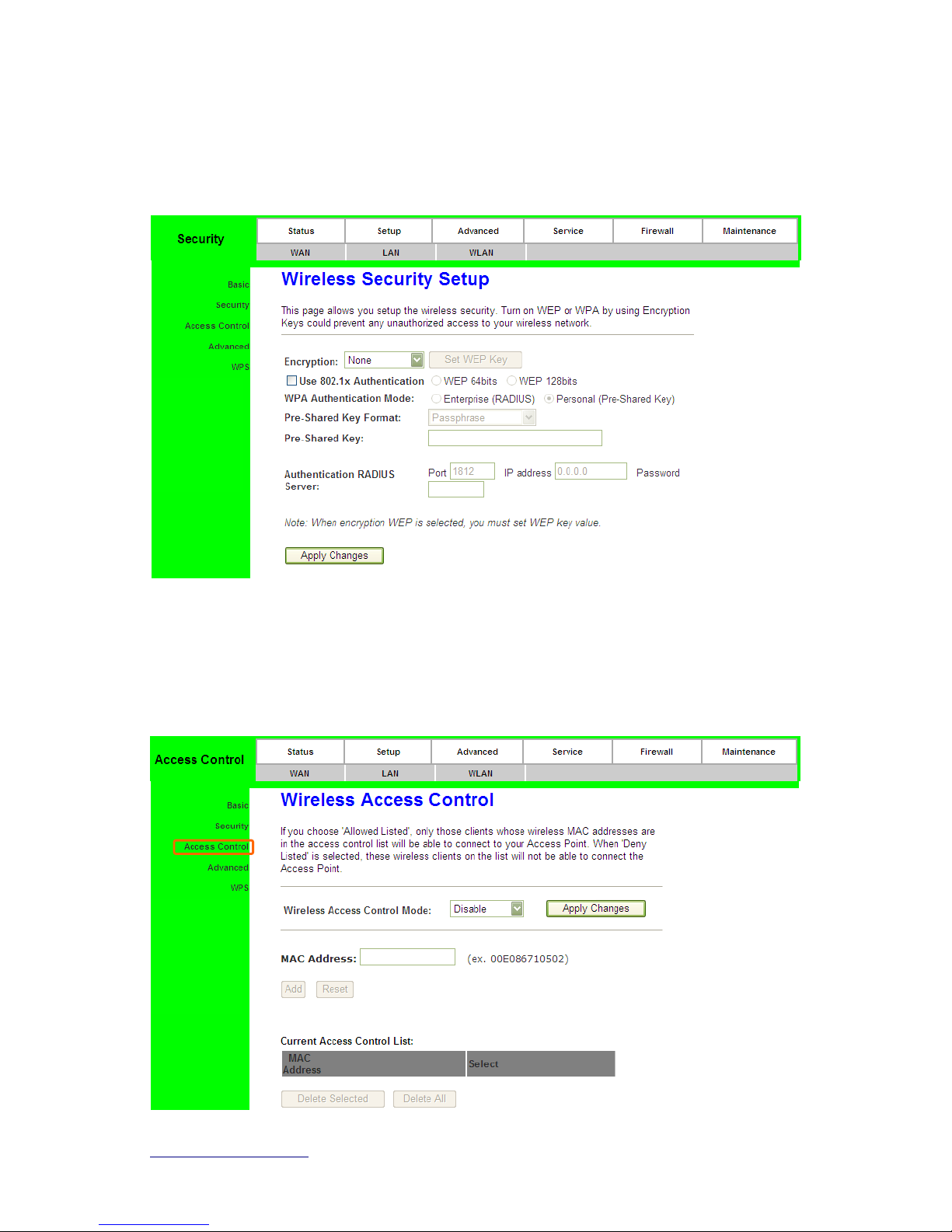

3.3.1.2 Security...........................................................................................27

3.3.1.3 Access Control................................................................................27

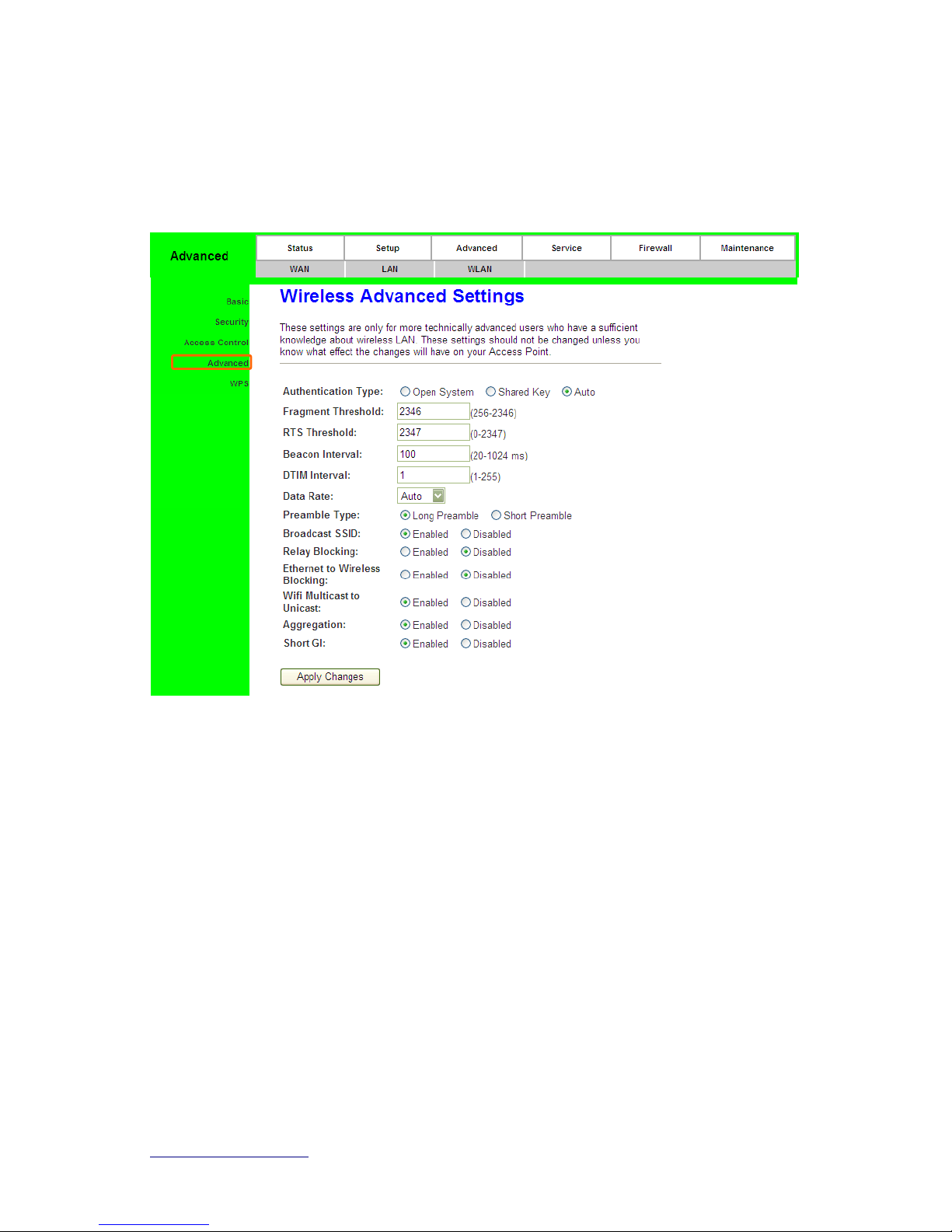

3.3.1.4 Advanced ........................................................................................28

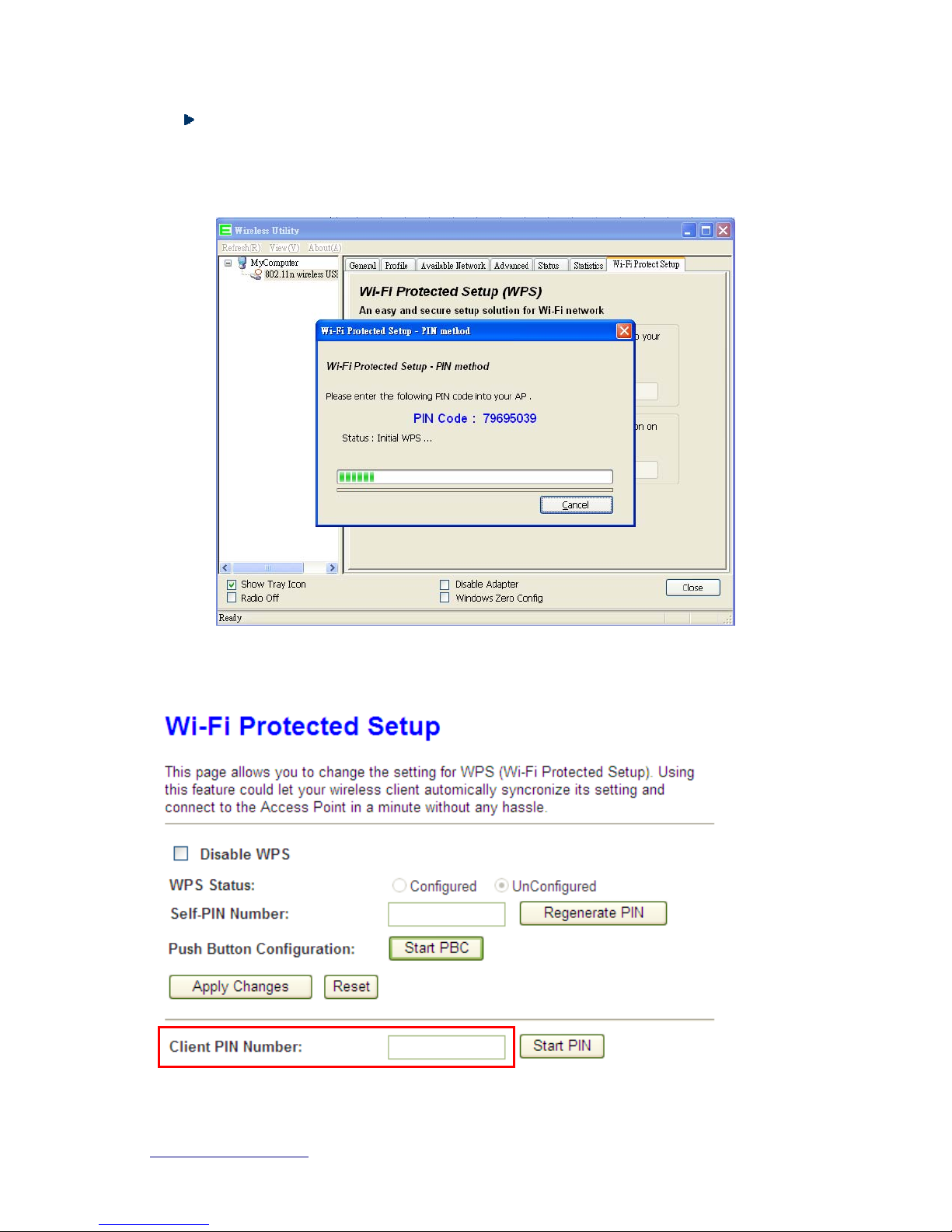

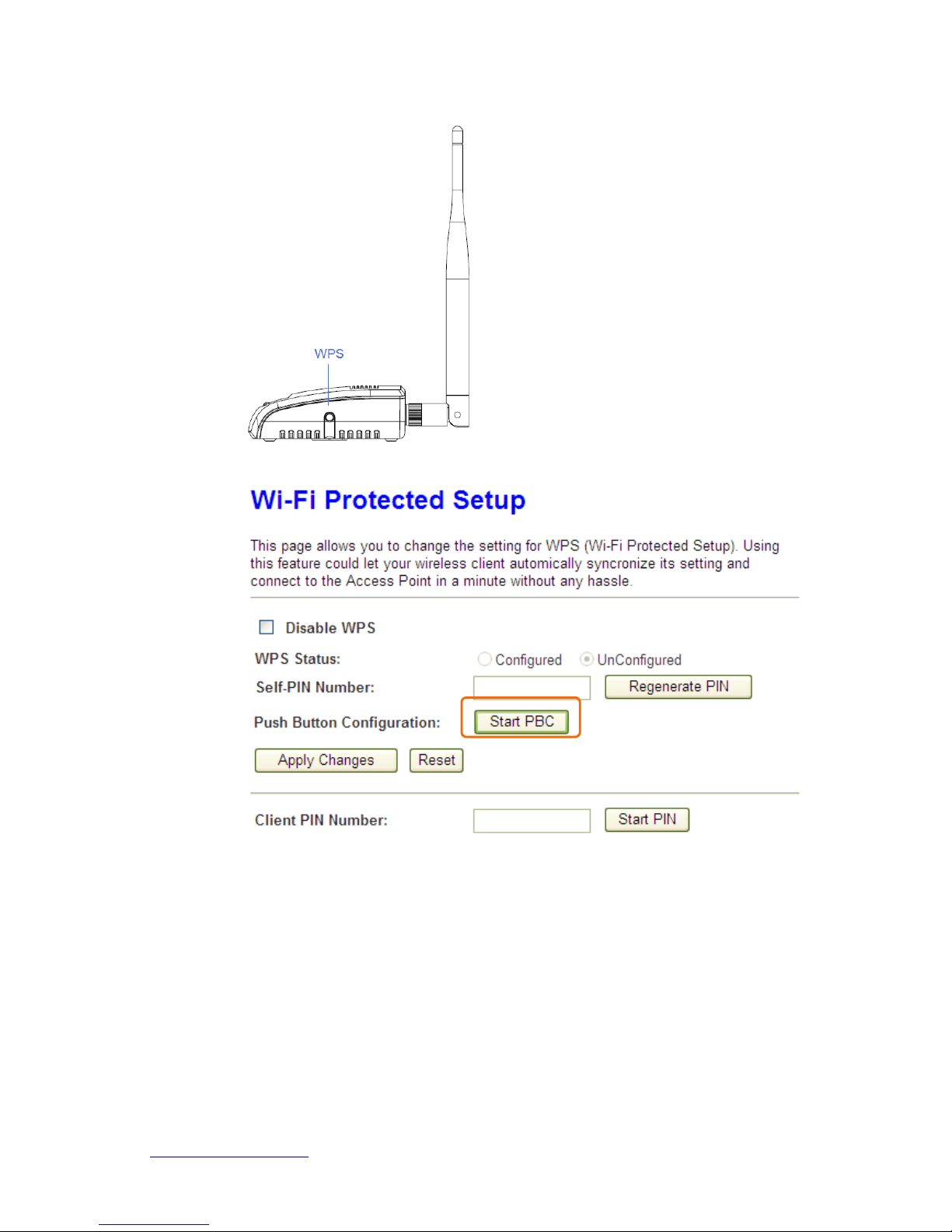

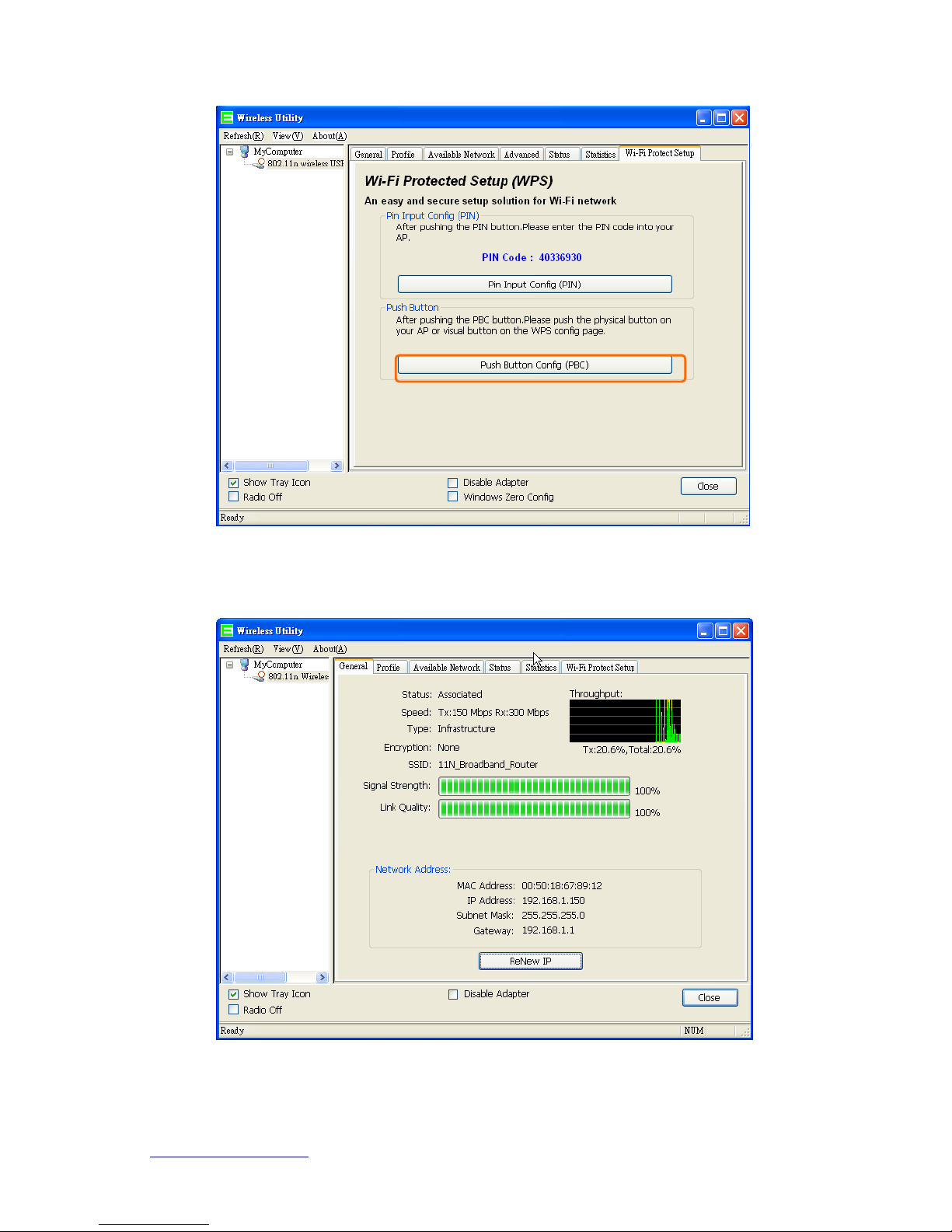

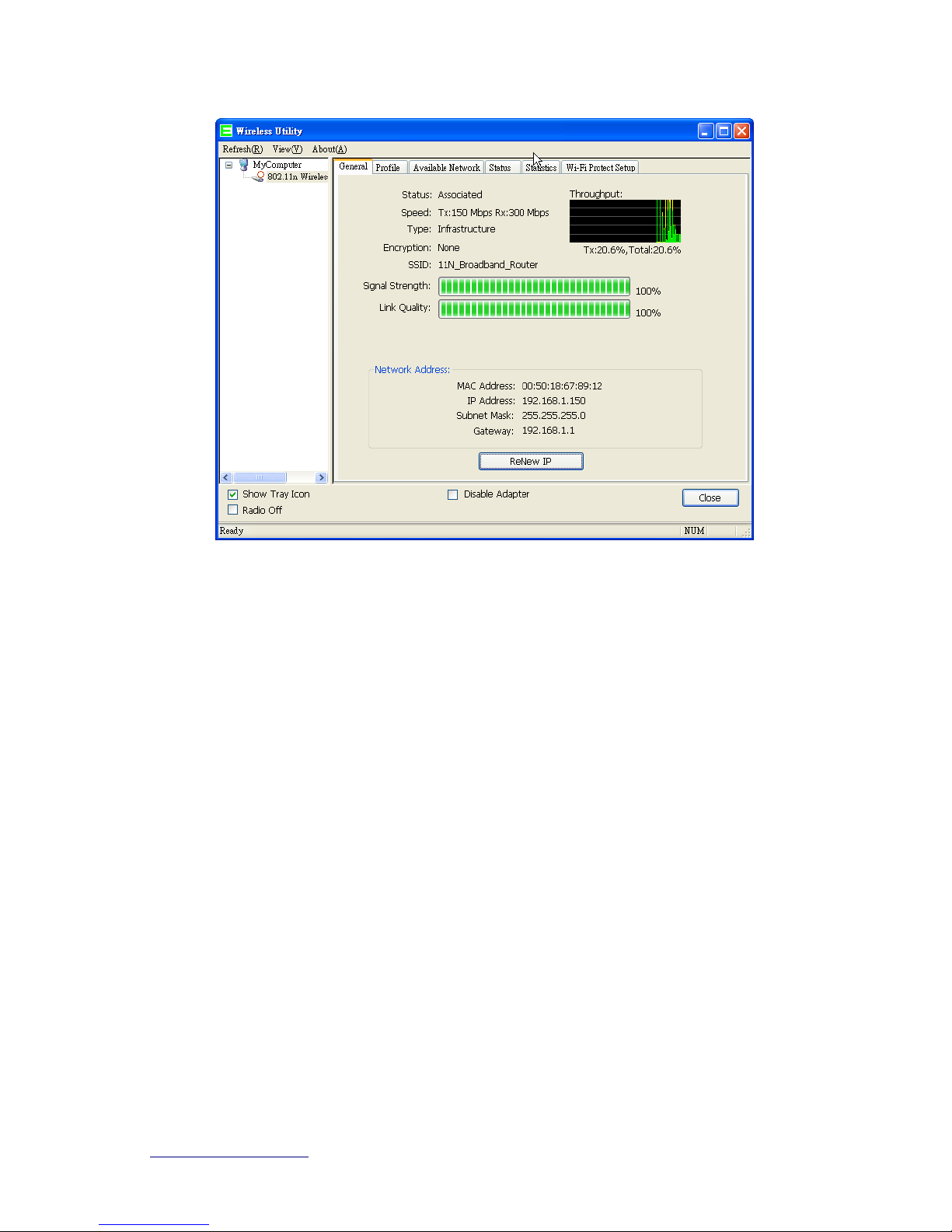

3.3.1.5 WPS.................................................................................................29

3.4 NAT .................................................................................................................33

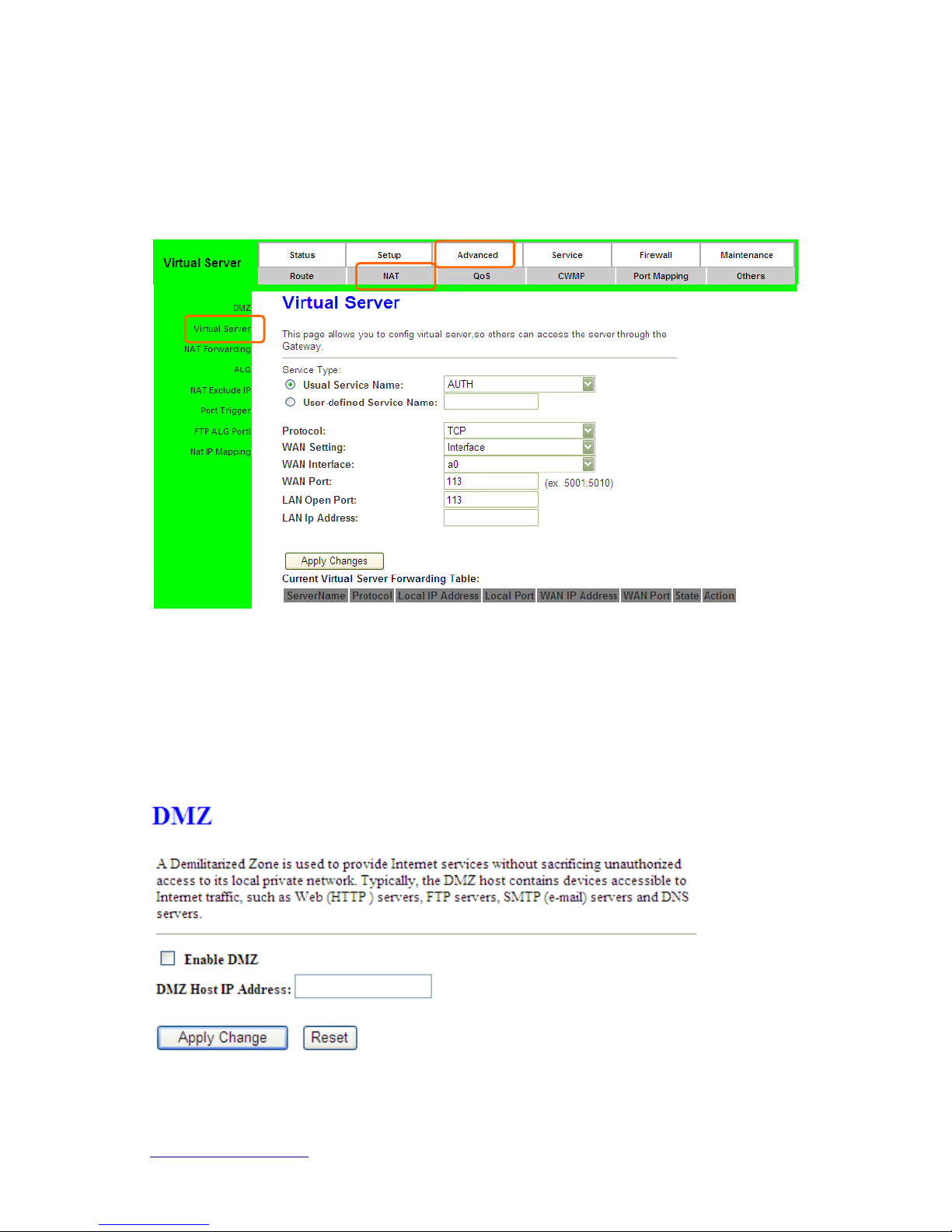

3.4.1 Visual Server ..........................................................................................34

3.4.2 Visual DMZ ............................................................................................34

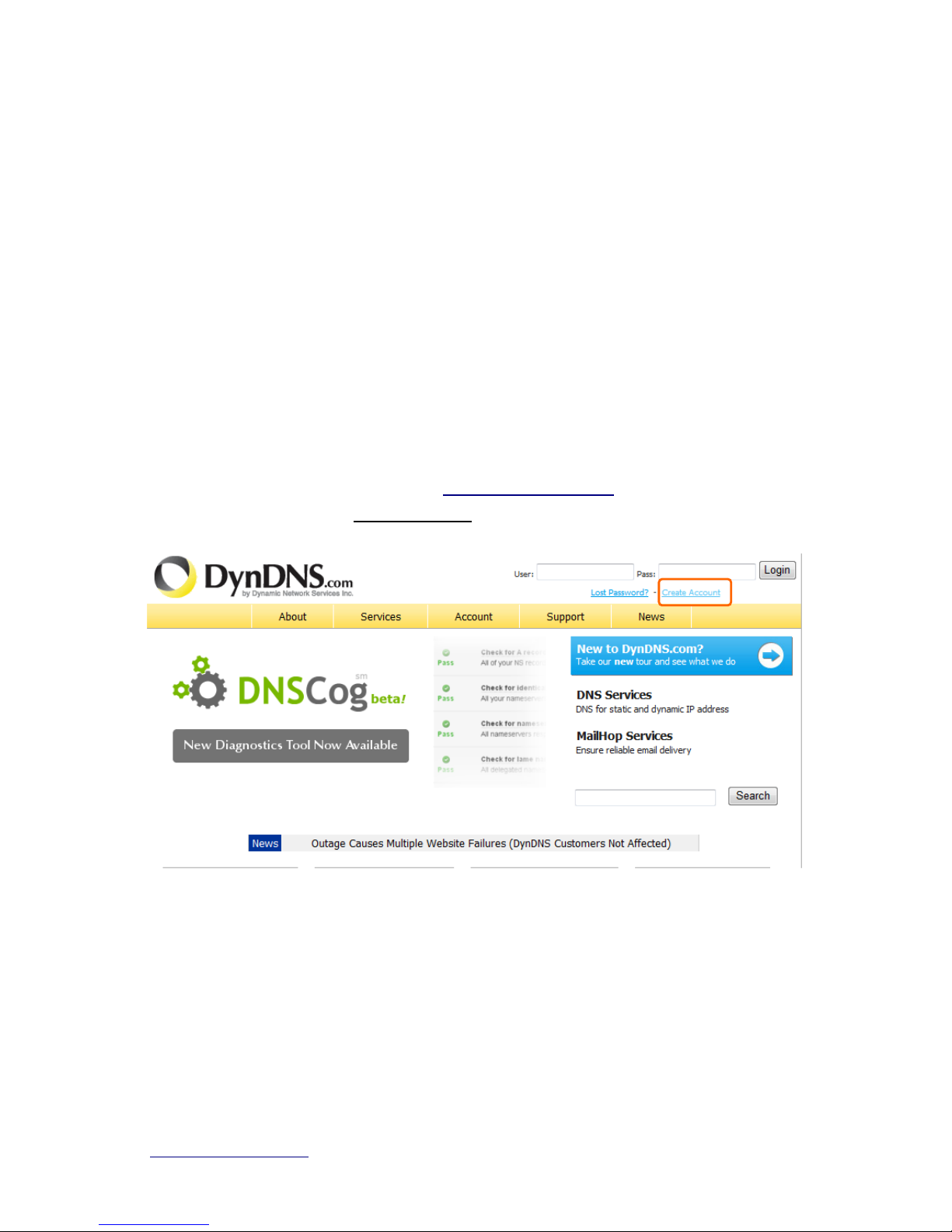

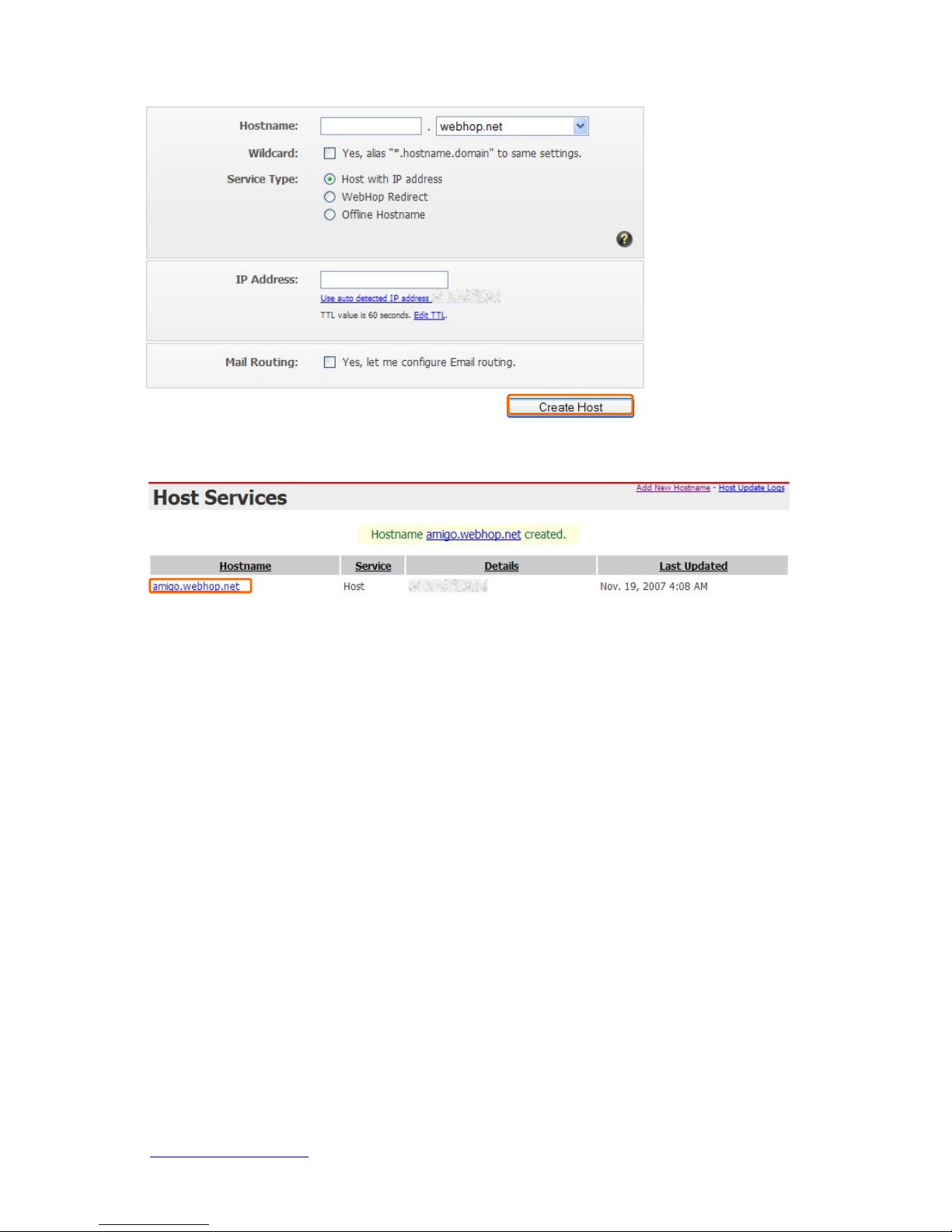

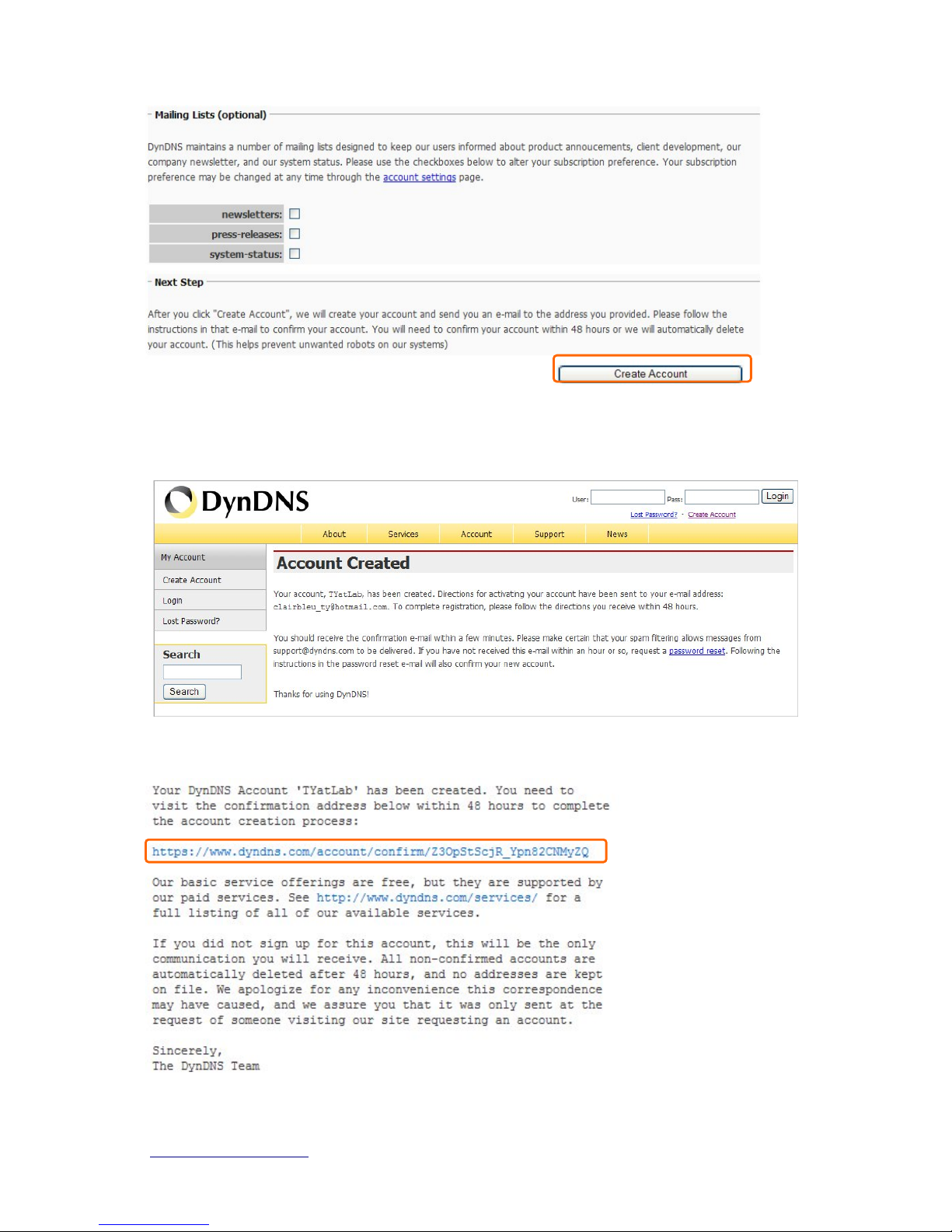

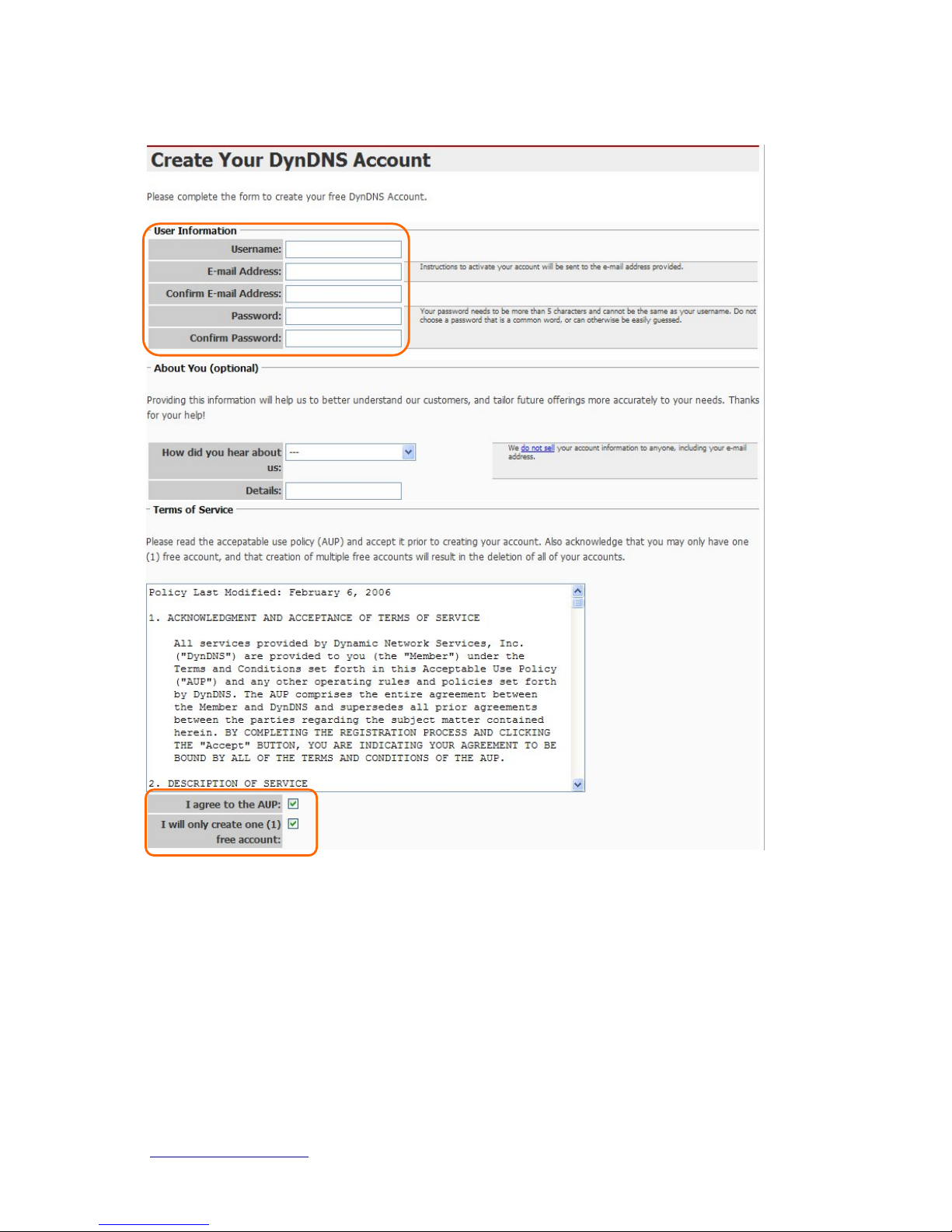

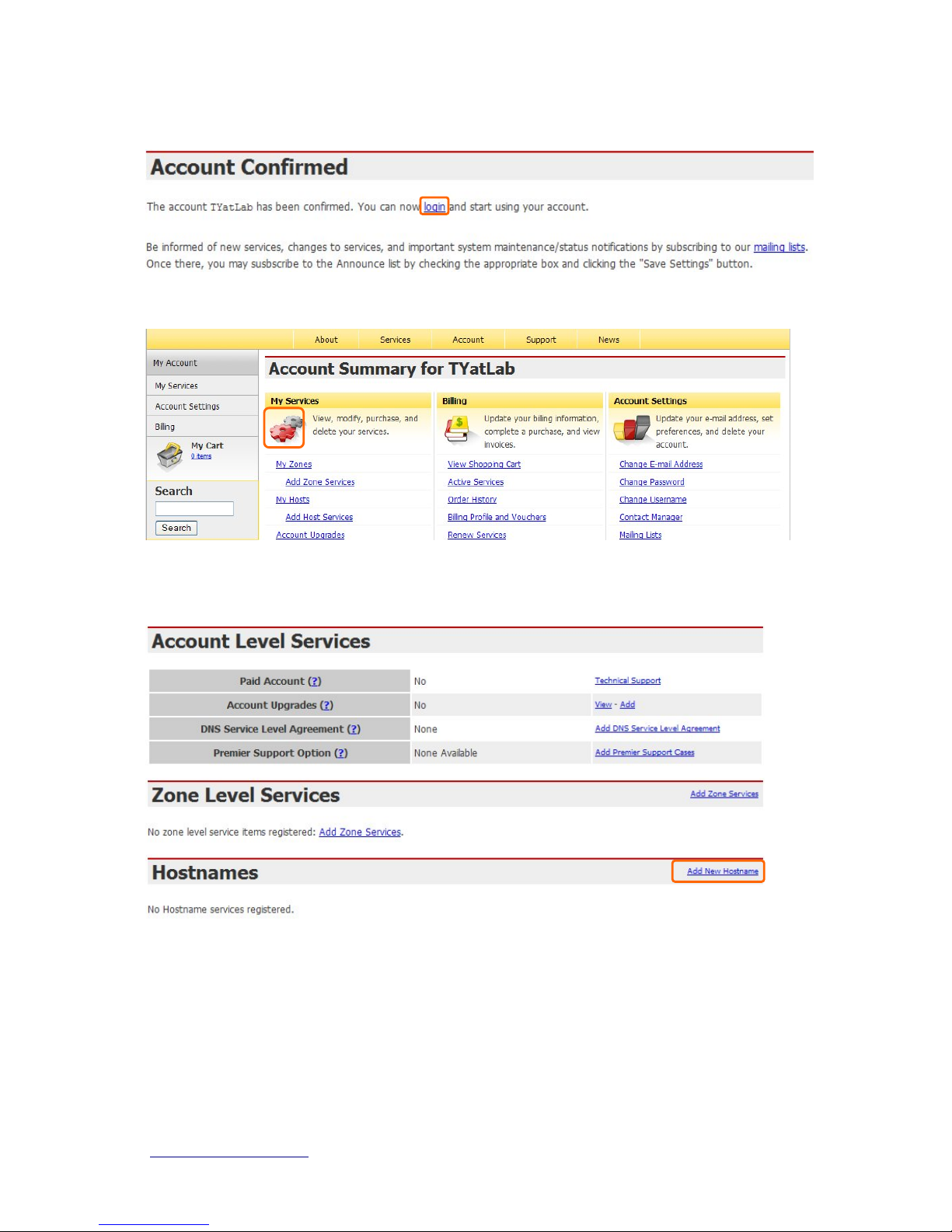

Chapter 4 DDNS Service Application............................................................................36

http://www.sapido.com.tw/ User Manual v1.0.0 3

Chapter 5 Q & A..............................................................................................................41

5.1 Installation......................................................................................................41

5.2 LED .................................................................................................................41

5.3 IP Address.......................................................................................................41

5.4 OS Setting.......................................................................................................42

5.5 ADSL2/2+ Broadband Router Setup ...........................................................43

5.6 Wireless LAN..................................................................................................45

5.7 Support............................................................................................................47

5.8 Others..............................................................................................................48

Chapter 6 Appendices......................................................................................................49

6.1 Operating Systems.........................................................................................49

6.2 Browsers..........................................................................................................49

6.3 Communications Regulation Information...................................................49

http://www.sapido.com.tw/ User Manual v1.0.0 4

FCC Statement

Federal Communication Commission Interference Statement This equipment has
been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

1. The device complies with Part 15 of the FCC rules. Operation is subject to the

following conditions:

2. This device may not cause harmful interference, and this device must accept any

interference received, including interference that may cause undesired
operation.

3. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF

radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.

4. This Transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

5. Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user authority to operate the
equipment.

IMPORTANT NOTE

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance20cm between the radiator & your body.

http://www.sapido.com.tw/ User Manual v1.0.0 5

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.

National Restrictions

Frequency range - 2400.0 - 2483.5 MHz

Country Country Reason/remark
Bulgaria none

General authorization required for outdoor use
and public service.

France

Outdoor use limited to 10
mW e.i.r.p. within the
band 2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4
GHz band has been ongoing in recent years to
allow current relaxed regulation. Full
implementation planned 2012.

Italy none

If used outside of own premises, general
authorization is required.

Luxembourg none

General authorization required for network and
service supply (not for spectrum).

Norway Implemented

This subsection does not apply for the
geographical area within a radius of 20 km from

the centre of Ny-Ålesund.
Russian
Federation

none Only for indoor applications.

Note: Please don’t use the product outdoors in France

CE Statement of Conformity

Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of "Council Directive on the Approximation of the Laws
of the Member Sates relating to Electromagnetic Compatibility" (89/336/EEC; 92/31/EEC;
93/68/EEC). The Declaration of Conformity can be found at the Sapido regional website.

www.sapidotech.de

CE Information of Disposal

The electric and electronic equipment or unit which is labeled with crossed-out wheeled bin
may not be disposed of with household waste. This mark is based on European Directive
2002/96/EC (for Waste Electric and Electronic Equipment=WEEE).
Please take it to the designated collection facilities. We will ensure the proper recycling, reuse
and other forms of recovery of WEEE. WEEE has the potential effects on the environment
and human health as a result of the presence of hazardous substances. You can contribute to
eliminate these effects by your cooperation.

http://www.sapido.com.tw/ User Manual v1.0.0 6

Safe Seating Gestures

You should follow the manufacturer’s instructions for adjusting the backrest to fit your body
properly.

An adjustable chair that provides firm, comfortable support is best.
Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor.
The back of the chair should support your lower back (lumbar region).

CE Statement of Conformity

Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of “Council Directive on the Approximation of the Laws
of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC;
93/68/EEC)

http://www.sapido.com.tw/ User Manual v1.0.0 7

Chapter 1 Introduction

1.1 Overview

RM-1802 is a high speed ADSL2+ Wireless Router designed for home and SOHO. It is
ADSL2 and ADSL2+ compliant, and supports 24Mbps downstream which is three times fast
than traditional ADSL. Users can connect Internet via ADSL line provided by ISP. In the near
side, PC or device can connect RM-1802 via Ethernet or Wi-Fi with IEEE 802.11n.

RM-1802 is easy-to-use, high efficiency and secure. RM-1802 provides not only high speed
ADSL2+ but also wired and wireless for users to choose. RM-1802 has entity WPS button for
user to connect easily and securely. In security , RM-1802 has NAT, Firewall, and ACL…etc to
protect users in LAN. Moreover, RM-1802 has encryptions way, WEP, WPA, WPA2, to
prevent any unauthorized access to wireless network.

1.2 Features

 High speed Internet connection

ADSL2/2+ Broadband Router is ITU-T ADSL2 and ADSL2+ compliant and provides high
speed Internet connection. Furthermore, ADSL2/2+ Broadband Router can auto detect
connect parameter to meet each ISP.

 Wired/Wireless All-in-one

Not only Ethernet (wired), ADSL2/2+ Broadband Router also has 802.11n Wi-Fi
(wireless) for user to choose.

 Rigorous Security mechanism

ADSL2/2+ Broadband Router provides Wireless Security, NAT, ACL Firewall…etc
security mechanism to make sure that the data of user in network are protected
securely.

 High Quality connection

With QoS, the data in network is reordered to make sure the fluency of network
application or service, like VoIP, Skype, IPTV or online game.

 One Touch Encrypted Wireless connection

ADSL2/2+ Broadband Router has entity WPS button to make wireless connecting more
easy. All user should do is just One Touch.

 Easy to configure and manage

With convenient Web-based UI, user can configure easily and browse system

http://www.sapido.com.tw/ User Manual v1.0.0 8

information and status. ADSL2/2+ Broadband Router also provide remote management
like SNMP, Telnet, TFTP, TR-069.

http://www.sapido.com.tw/ User Manual v1.0.0 9

1.3 Specifications

Item Specification

Key Components

Main Processor

Realtek RTL8672-vK ADSL2/2+ with RTL8271B AFE

Flash

2Mbytes Serial Flash

RAM

8Mbytes SDRAM

Wireless Chip

Realtek RTL8188RE 802.11b/g/n 1T1R

Ethernet Controller

Realtek RTL8305N 5-Port 10/100Mbps Switch Controller

Interfaces

ADSL Port

1 x RJ-11 for ADSL line connection

LAN Port

4 x 10/100Mbps RJ-45 with auto MDI/MDIX

Wireless

Wireless Standards

IEEE 802.11b/g/n

Antenna

External 3dBi x1

Peak Gain of the
Antenna

2.27dBi @ 2.45GHz

Other Physical

LED Indicators

Power x1
ADSL x1
LAN x4
Wireless / WPS x1

Buttons

Reboot button / Reset button – one sec for reboot / ten

seconds for restore to factory default setting。
WPS button – When WPS button pushed，system will

enter WPS mode。Power button: power on/off

http://www.sapido.com.tw/ User Manual v1.0.0 10

Operation Requirement

Operating Temp. 0°C~40°C (32°F~104°F)
Storage Temp. -20°C~70°C (-4°F~158°F)
Operating Humidity 10% to 85% Non-Condensing
Storage Humidity 5% to 90% Non-Condensing

Power Supply

Power Adapter DC12V/1A

Note: 1. Firmware Upgrade available through download.

http://www.sapido.com.tw/ User Manual v1.0.0 11

1.3.1 Views of Product Appearance

Power Plug

Power Adapter DC12V/1A

RJ-11

RJ-11 ADSL port for connecting to ADSL line

Reset Button

Press “Reset” button over 10 seconds. When status indicator turns from
flashing to solid, the process is completed. All settings are back to default.

Ethernet Port

4 RJ-45 Ethernet 10/100 Ports

Power button

Power on/off device

http://www.sapido.com.tw/ User Manual v1.0.0 12

1.3.2 LED Indicator Status Description

LED Function

Color Statu

s

Description

Power x 1

Power indication

Green

On Power is being applied to this product

On Connected to DSLAM successfully

Blinking
120ms

Training with DSLAM

ADSL x 1

ADSL port activity

Green

Blinking
30ms

ADSL interface Tx/Rx activity

On Connected at 100Mbps

Green

Blinking
30ms

100Mbps Tx/Rx activity

On Connected at 10Mbps

LAN x 4

LAN port activity

Green

Blinking
120ms

10Mbps Tx/Rx activity

On Wireless is active

Green

Blinking
30ms

Wireless data is transmitting/receiving

Wireless / WPS

x 1

Wireless activity

&

WPS status

Reddish

Orange

Blinking
120ms

WPS function in progress

http://www.sapido.com.tw/ User Manual v1.0.0 13

1.4 System Requirements

To begin with ADSL2/2+ Broadband Router, you must have the following minimum system
requirements. If your system can’t correspond to the following requirements, you might get
some unknown troubles on your system.

One Ethernet (10 BASE-T or 10/100 BASE-TX) network interface card.
PC and at least one web browser software installed (E.g.: Internet Explorer 5.0,

Netscape Navigator 7.x, Apple Safari 2.03 or higher version).
At lease one 802.11b, 802.11g, or 802.11n wireless adapter for wireless clients.
Recommended OS: Windows 2000, Windows XP, Windows Vista, Windows 7 / Linux.

1.5 WAN Network Plug and Play

 WAN Type auto-detection：

 When using Ethernet auto-connection:

 Auto-detection mode only applies on PPPoE, DHCP, PPTP and L2TP.
 Router will detect WAN type and load the settings from last time or display

corresponding page for user to input information.

 If there is no setting from user, the router will load the default settings.

If there is no setting from user, it will detect ISP and load corresponding settings.

http://www.sapido.com.tw/ User Manual v1.0.0 14

1.6 Get Your IP Automatically & Manually

After ADSL2/2+ Broadband Router connected with your computer, please make sure your IP
is in the automatic IP position or you adjust it manually in order to activate the Internet
network from home to Internet. If you don’t know how to enter the settings, please follow the
steps as below.

Step 1. Go to Start>Settings> Network Connections and then select Local Area
Connection.

Step 2. Click on Properties

http://www.sapido.com.tw/ User Manual v1.0.0 15

Step 3. Double click on Internet Protocol (TCP/IP).

Step 4-1. For getting IP automatically if you are one of the users under ADSL2/2+ Broadband
Router, please skip Use the following IP address and then select Obtain an IP address
automatically and Obtain DNS server address automatically and then click on OK button.
