Sapido RB-1602 User Manual

http://www.sapido.com.tw/ User Manual 1.0

1

http://www.sapido.com.tw/ User Manual 1.0

2

FCC Statement

Federal Communication Commission Interference Statement This equipment has
been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

1. The device complies with Part 15 of the FCC rules. Operation is subject to the
following conditions:

2. This device may not cause harmful interference, and this device must accept any
interference received, including interference that may cause undesired
operation.

3. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.

4. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.

5. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.

IMPORTANT NOTE

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance20cm between the radiator & your body.

http://www.sapido.com.tw/ User Manual 1.0

3

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.

National Restrictions

Frequency range - 2400.0 - 2483.5 MHz

Country Country Reason/remark
Bulgaria none

General authorization required for outdoor use
and public service.

France

Outdoor use limited to 10
mW e.i.r.p. within the
band 2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4
GHz band has been ongoing in recent years to
allow current relaxed regulation. Full
implementation planned 2012.

Italy none

If used outside of own premises, general
authorization is required.

Luxembourg none

General authorization required for network and
service supply (not for spectrum).

Norway Implemented

This subsection does not apply for the
geographical area within a radius of 20 km from

the centre of Ny-Ålesund.
Russian
Federation

none Only for indoor applications.

Note: Please don’t use the product outdoors in France

CE Statement of Conformity

Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of "Council Directive on the Approximation of the Laws
of the Member Sates relating to Electromagnetic Compatibility" (89/336/EEC; 92/31/EEC;
93/68/EEC). The Declaration of Conformity can be found at the Sapido regional website.

www.sapidotech.de

CE Information of Disposal

The electric and electronic equipment or unit which is labeled with crossed-out wheeled bin
may not be disposed of with household waste. This mark is based on European Directive
2002/96/EC (for Waste Electric and Electronic Equipment=WEEE).

Please take it to the designated collection facilities. We will ensure the proper recycling, reuse
and other forms of recovery of WEEE. WEEE has the potential effects on the environment
and human health as a result of the presence of hazardous substances. You can contribute to
eliminate these effects by your cooperation.

http://www.sapido.com.tw/ User Manual 1.0

4

Safe Seating Gestures

You should follow the manufacturer’s instructions for adjusting the backrest to fit your body
properly.

An adjustable chair that provides firm, comfortable support is best.
Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor.

The back of the chair should support your lower back (lumbar region).

http://www.sapido.com.tw/ User Manual 1.0

5

Copyright Statement

The products, including accessories and software are the property of SAPIDO Technology Inc.
It is prohibited to reproduced, transcribed, transmitted and stored without authorization from
SAPIDO. SAPIDO may update, revise, and change the contents of this manual without
further notice. Users can visit the official website for reference. After reviewing this manual, if
you have any problem or suggestion. You are welcome to contact us. Our Technical Support
Engineer will reply related problem as soon as possible.

All trademarks and trade names are the properties of their respective owners.

Copyright© 2010

All Right Reserved by SAPIDO.

Warranty

One-Year Warranty is provided for consumer products. This warranty is subject to the
conditions and limitations set forth herein. ("We") warrants and tests the Product to be free
from defects in material and workmanship and to conform to published specifications. During
the warranty period, should the Product fail under normal use in the recommended
environment due to improper workmanship or materials, we will repair the Product or replace
it with a comparable one. This warranty is for a specific period of time from the date of
purchase. Proof of date of purchase is required. We will inspect the Product and make the
decision regarding repair or replacement. We reserve the right to provide a functionally
equivalent refurbished replacement Product.
This warranty does not apply to Product failure due to：

1. accident, abuse, and mishandling

2. any software against product manual

3. improper installation

4. any unfitted replacement

5. over allowable environment

6. alteration

7. improper usage

8. wires or parts oxidized

http://www.sapido.com.tw/ User Manual 1.0

6

Table of Contents

Chapter 1

Introduction ...............................................................................................................10

1.1

Overview ....................................................................................................................10

Features.......................................................................................................................................10

1.2

Specifications............................................................................................................11

1.2.1

Six Views of Product Appearance ..................................................................11

1.2.2

LED Indicator Status Description ...................................................................12

1.3

System Requirements ..............................................................................................12

1.4

WAN Network Plug and Play....................................................................................13

1.5

Get Your IP Automatically or Setup IP Manually....................................................13

1.5.1

Network Testing................................................................................................16

1.5.2

Testing with Internet Browser.........................................................................16

Chapter 2

Hardware Installation................................................................................................19

2.1

Diagram of Connecting Hardware to SAPIDO Light N+ Broadband Router .......19

2.1.1

Hardware Connection and Application for Router Mode.............................19

2.1.2

Hardware Connection and Application for AP Mode....................................20

2.1.3

Hardware Connection and Application for Wi-Fi AP Mode ..........................20

Chapter 3

One Button Setup......................................................................................................21

3.1

One Button Setup configuration for Router Mode ................................................21

3.2

One Button Setup configuration for AP Mode .......................................................24

3.3

One Button Setup configuration for WiFi AP Mode...............................................25

Chapter 4

Basic Setup................................................................................................................28

4.1

Router Mode ..............................................................................................................28

4.1.1

Switch to Router Mode ....................................................................................28

4.1.2

Administrator Setup Instruction .....................................................................28

4.2

AP Mode.....................................................................................................................29

4.2.1

Switch to AP Mode...........................................................................................29

4.3

WiFi AP Mode ............................................................................................................30

4.3.1

Switch to WiFi AP Mode...................................................................................30

Chapter 5

Advanced Configuration for Router Mode .............................................................31

5.1

IP Configuration ........................................................................................................31

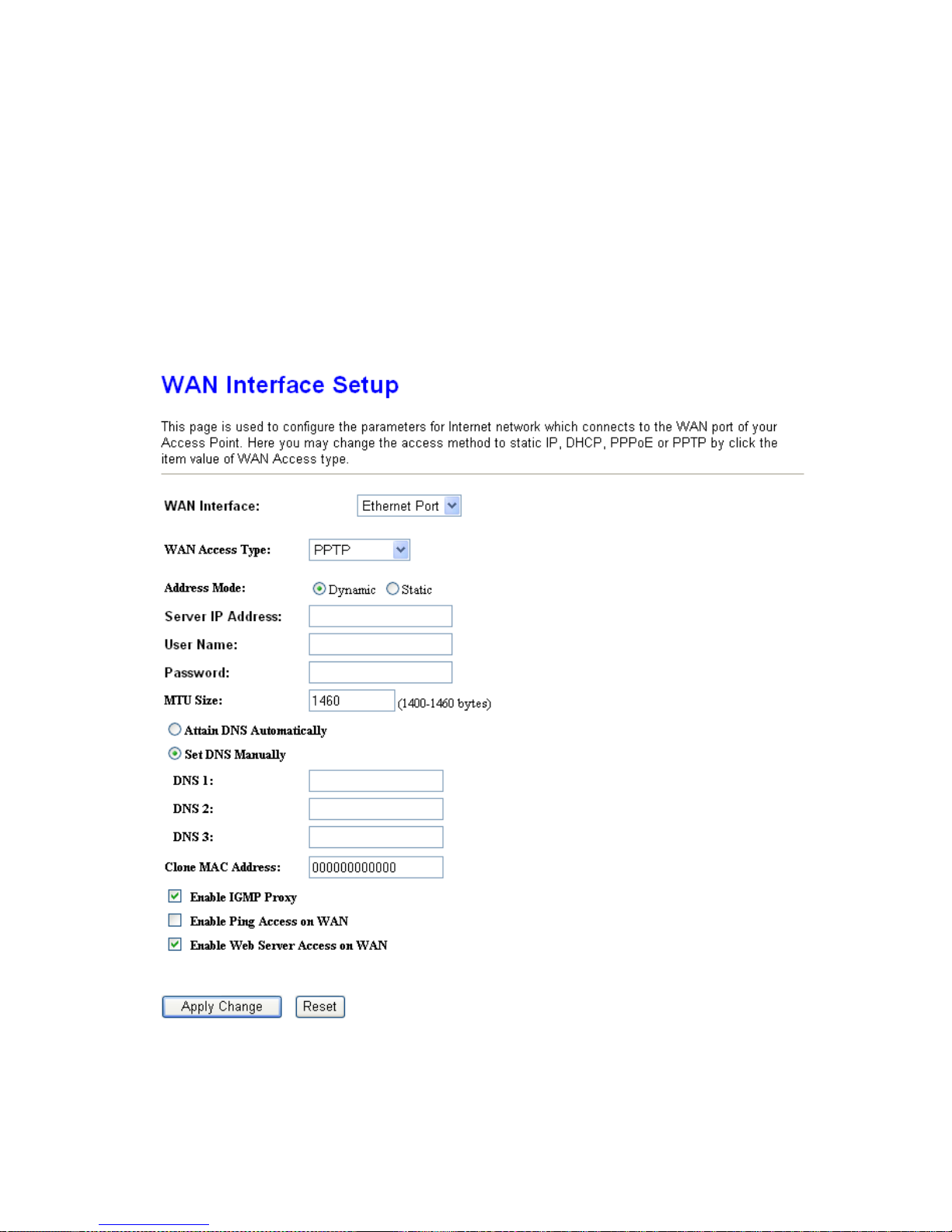

5.1.1

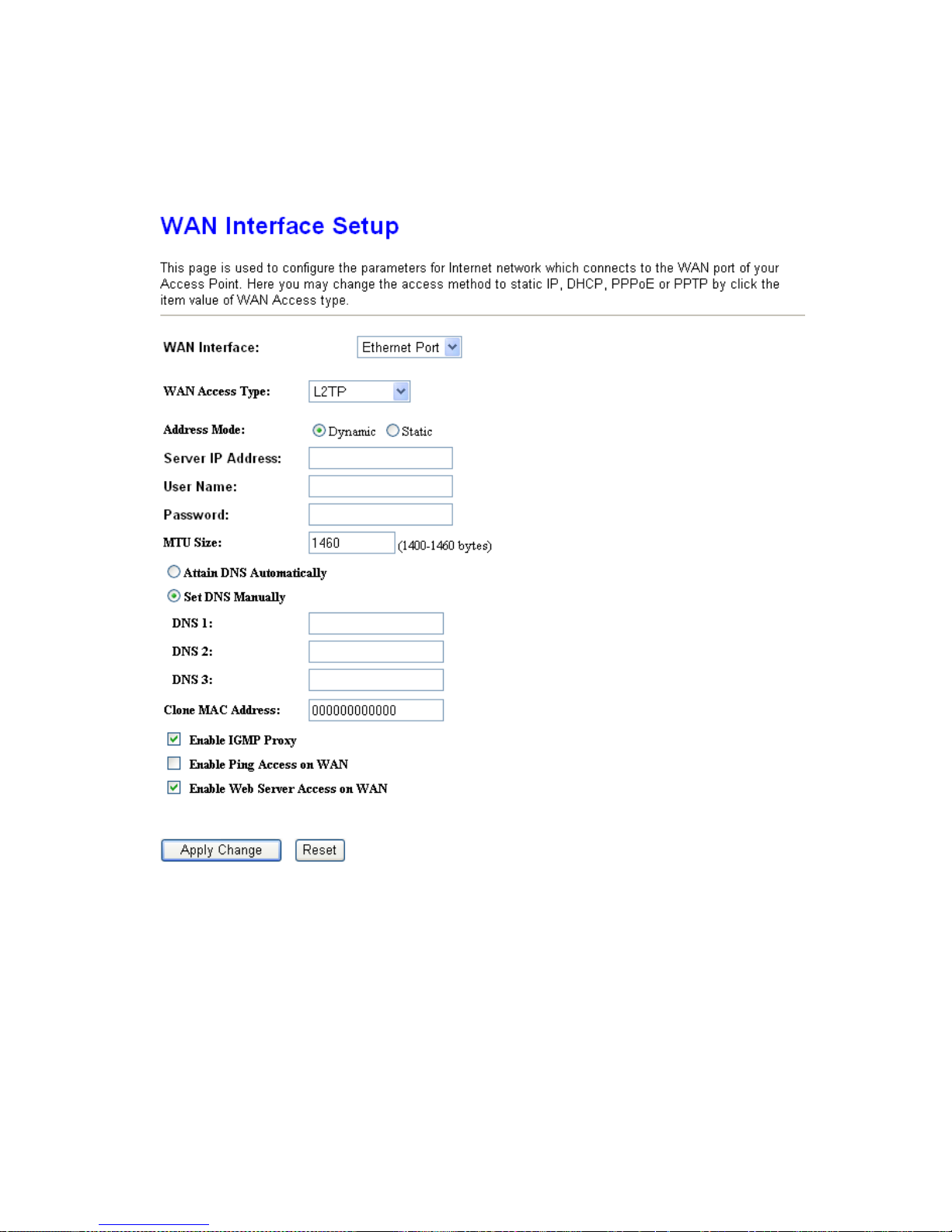

WAN...................................................................................................................31

5.1.2

LAN Interface Setup.........................................................................................45

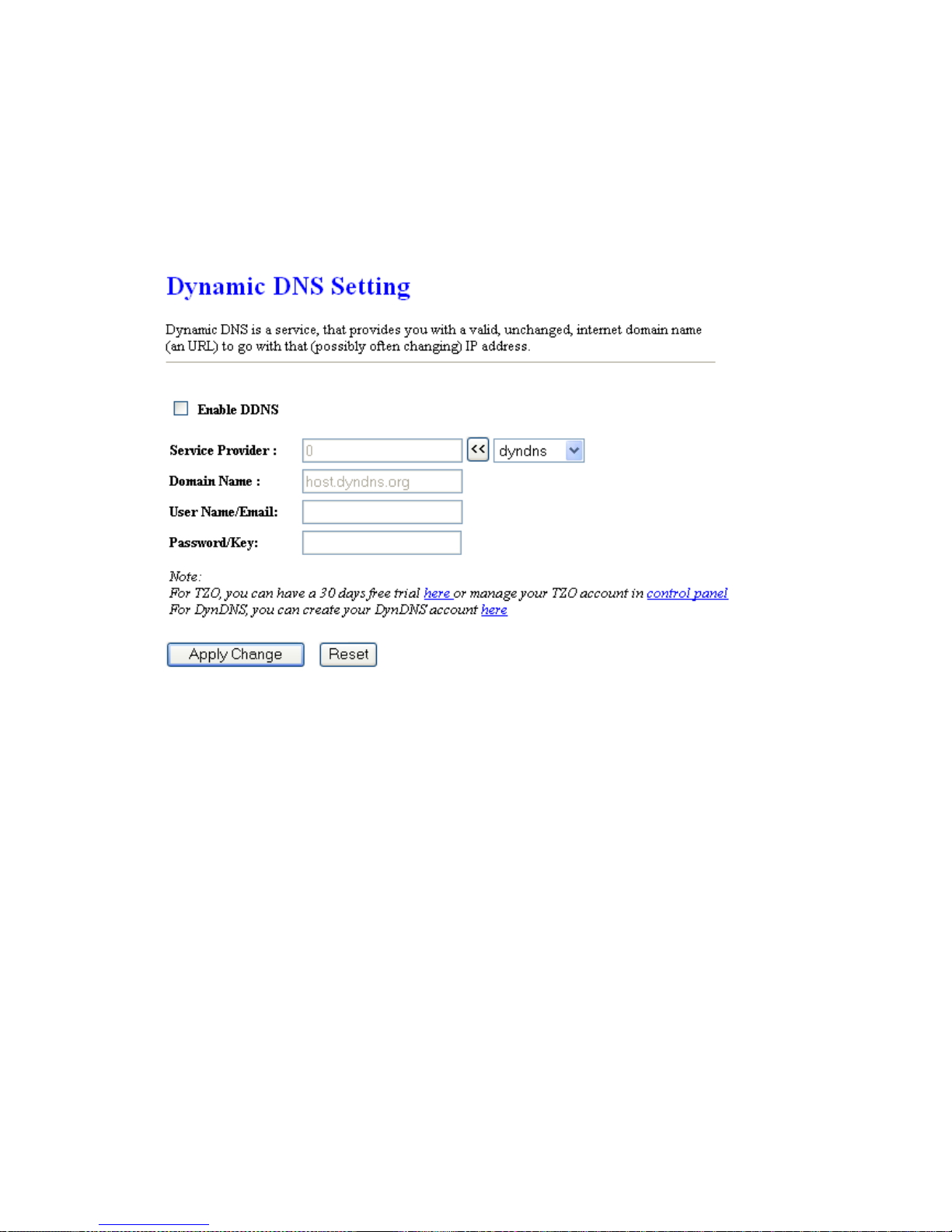

5.1.3

Dynamic DNS Setting.......................................................................................47

5.2

Wireless Setup ..........................................................................................................48

5.2.1

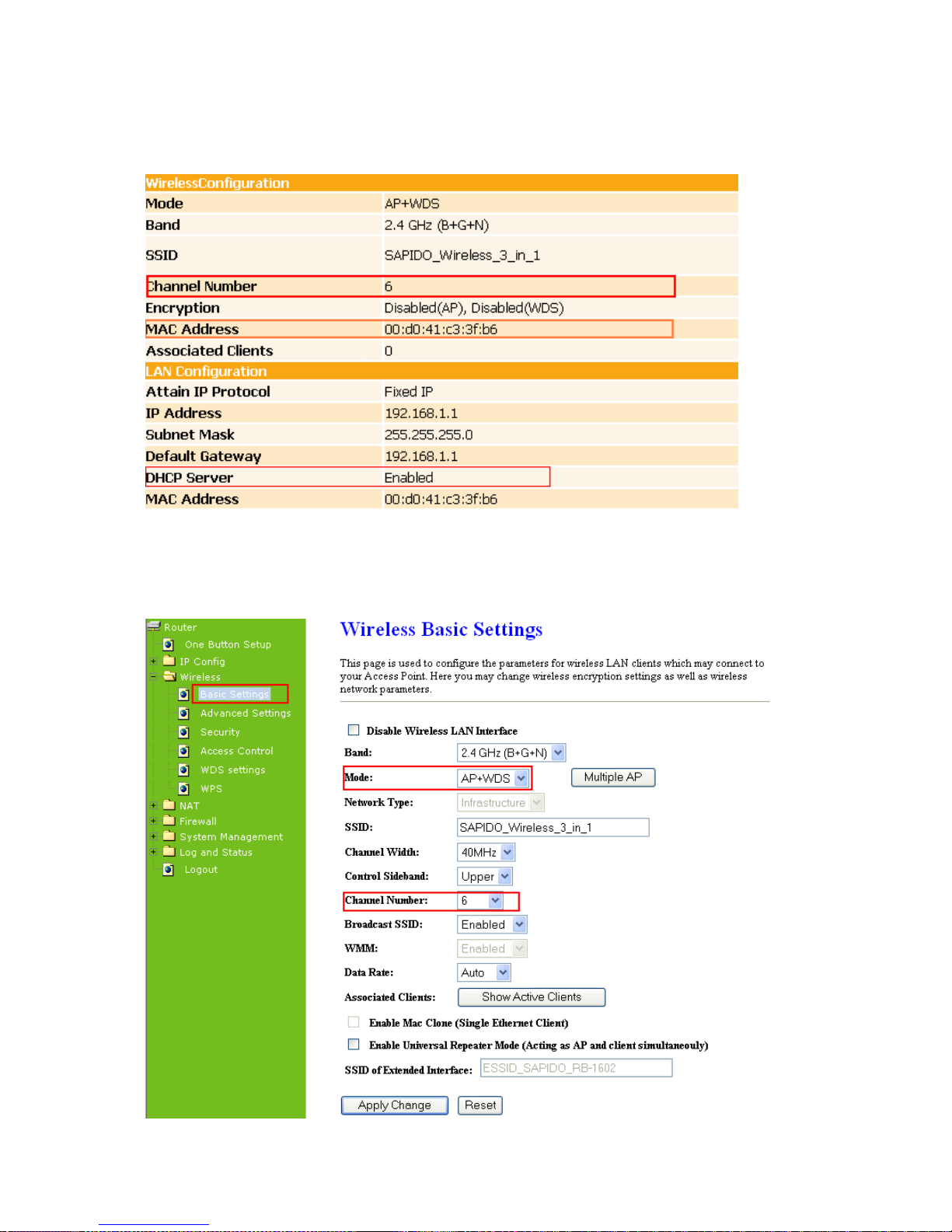

Wireless Basic Settings...................................................................................49

5.2.2

Wireless Advanced Settings ...........................................................................53

http://www.sapido.com.tw/ User Manual 1.0

7

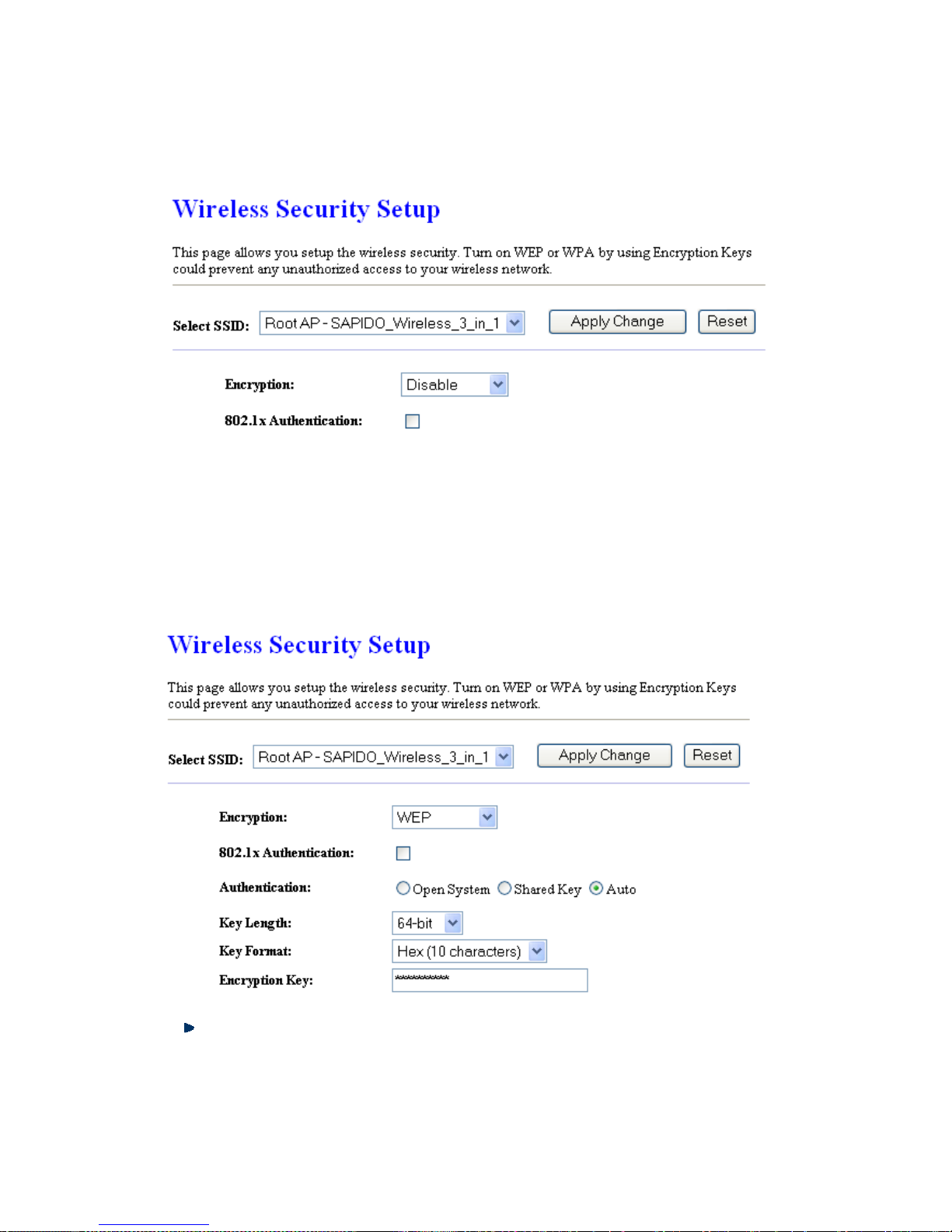

5.2.3

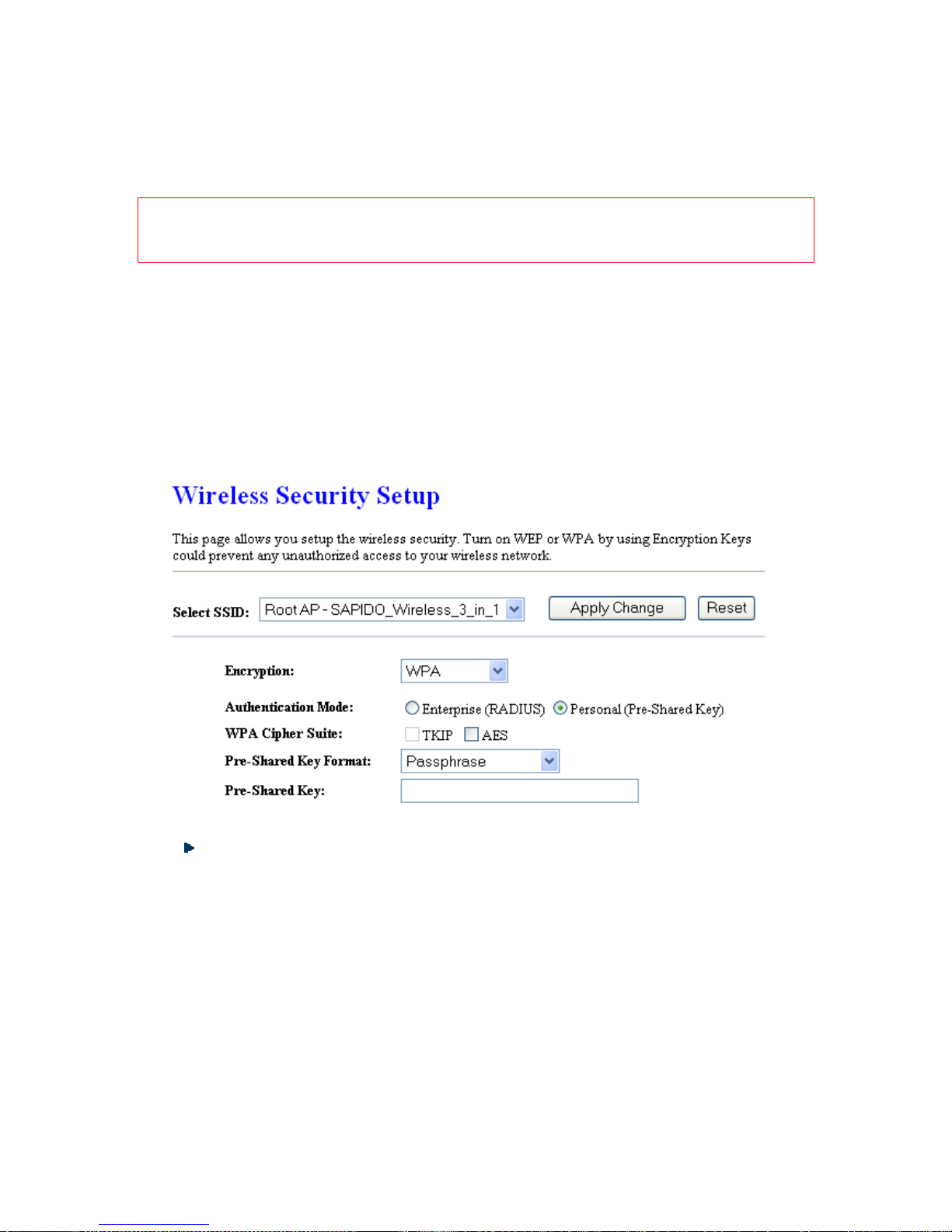

Wireless Security Setup ..................................................................................55

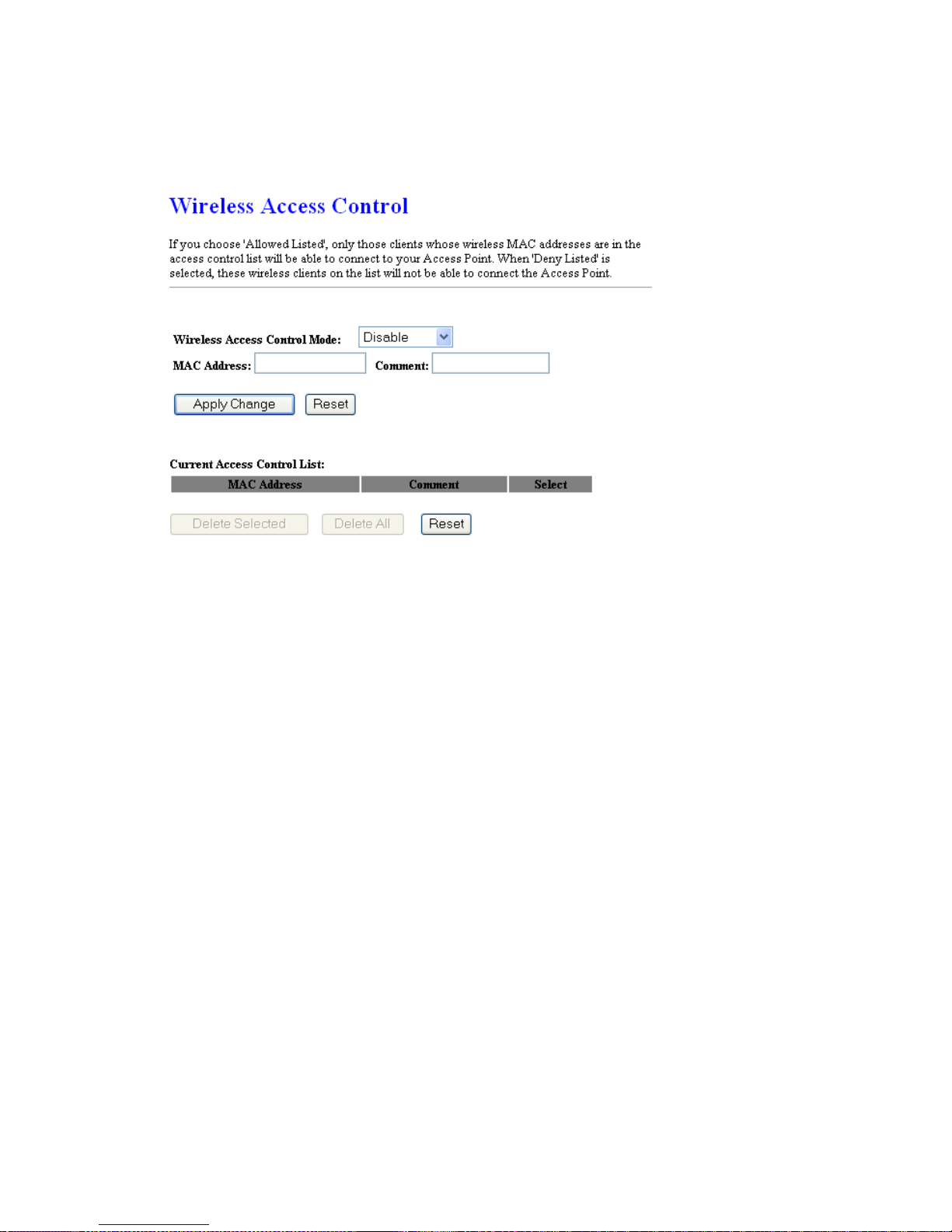

5.2.4

Wireless Access Control .................................................................................57

5.2.5

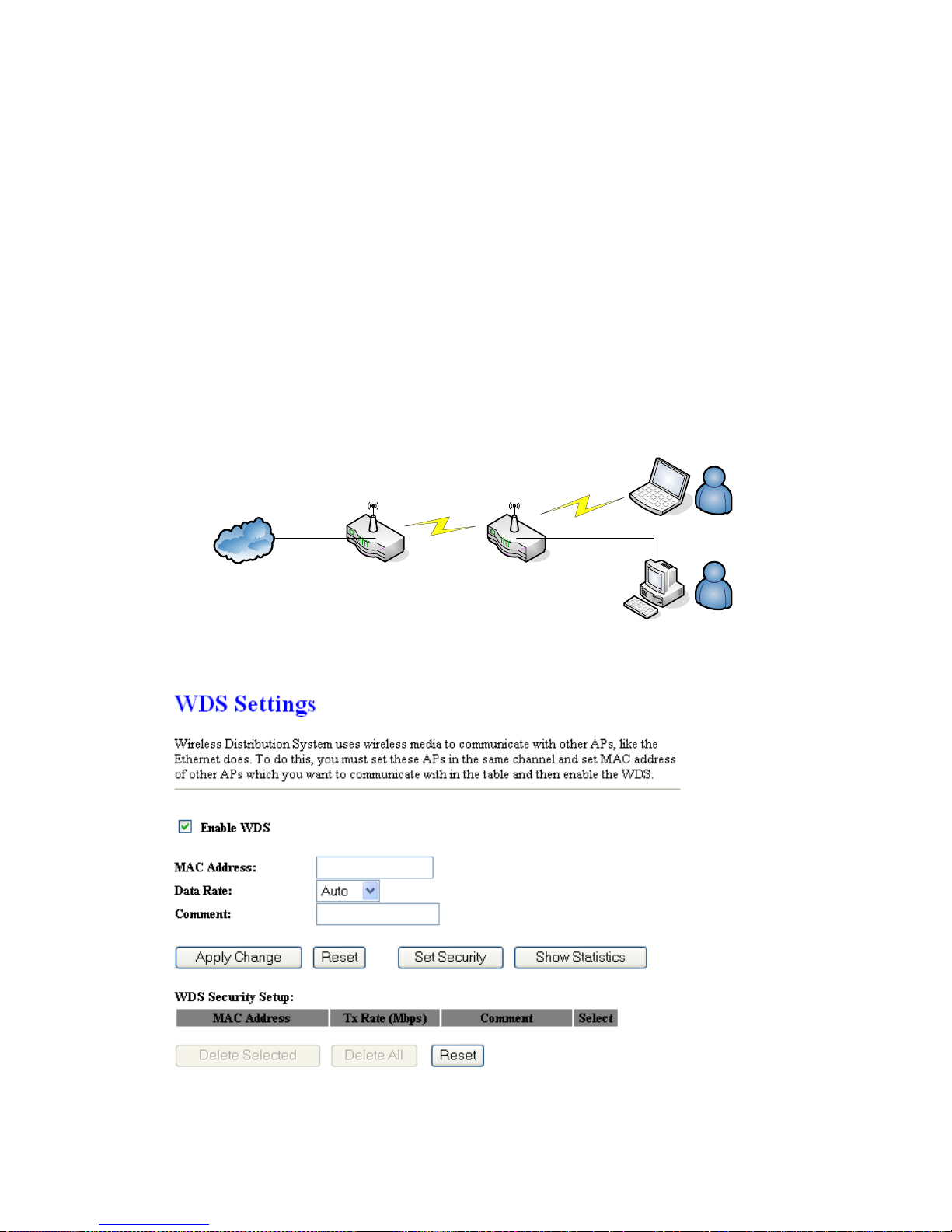

WDS Settings....................................................................................................58

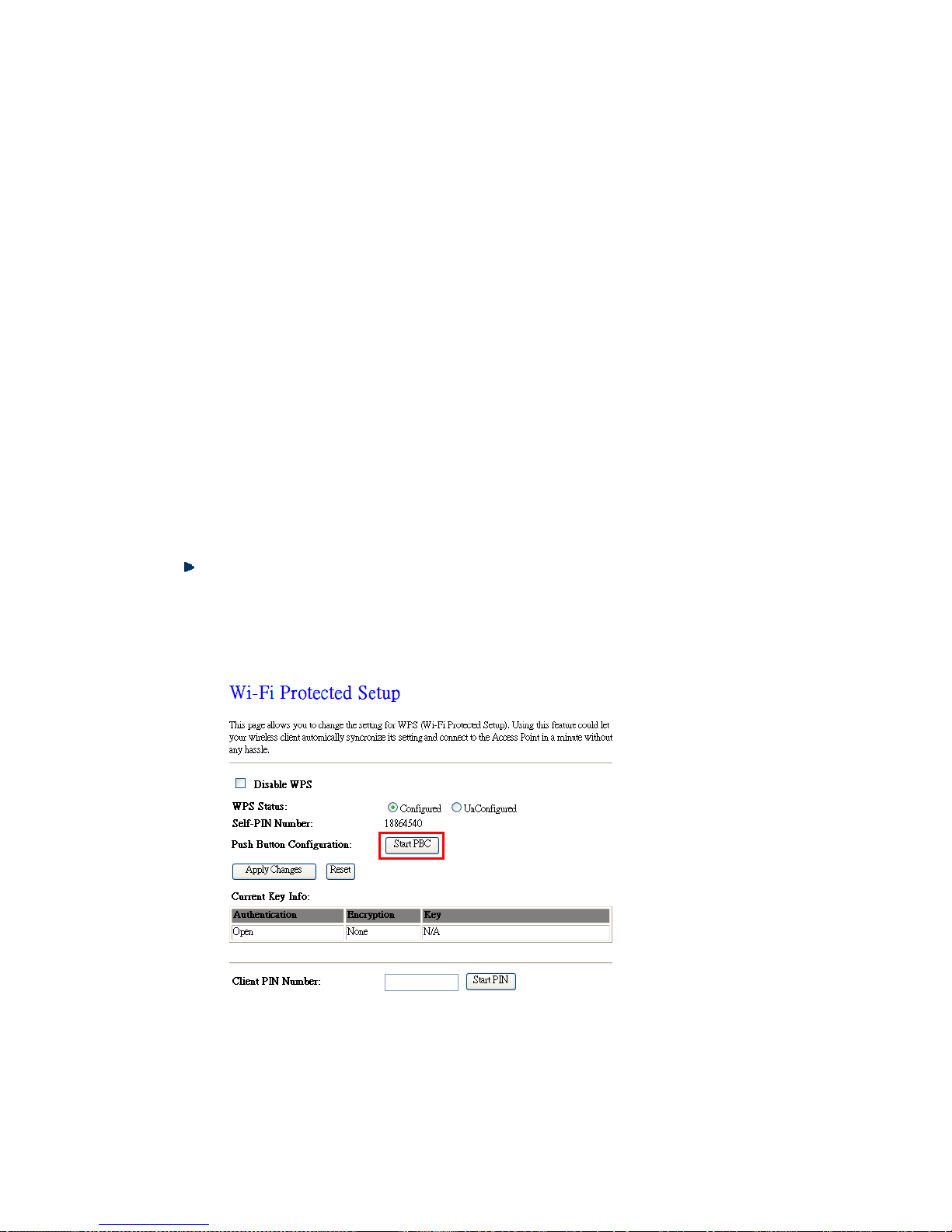

5.2.6

WPS ...................................................................................................................63

5.3

NAT.............................................................................................................................66

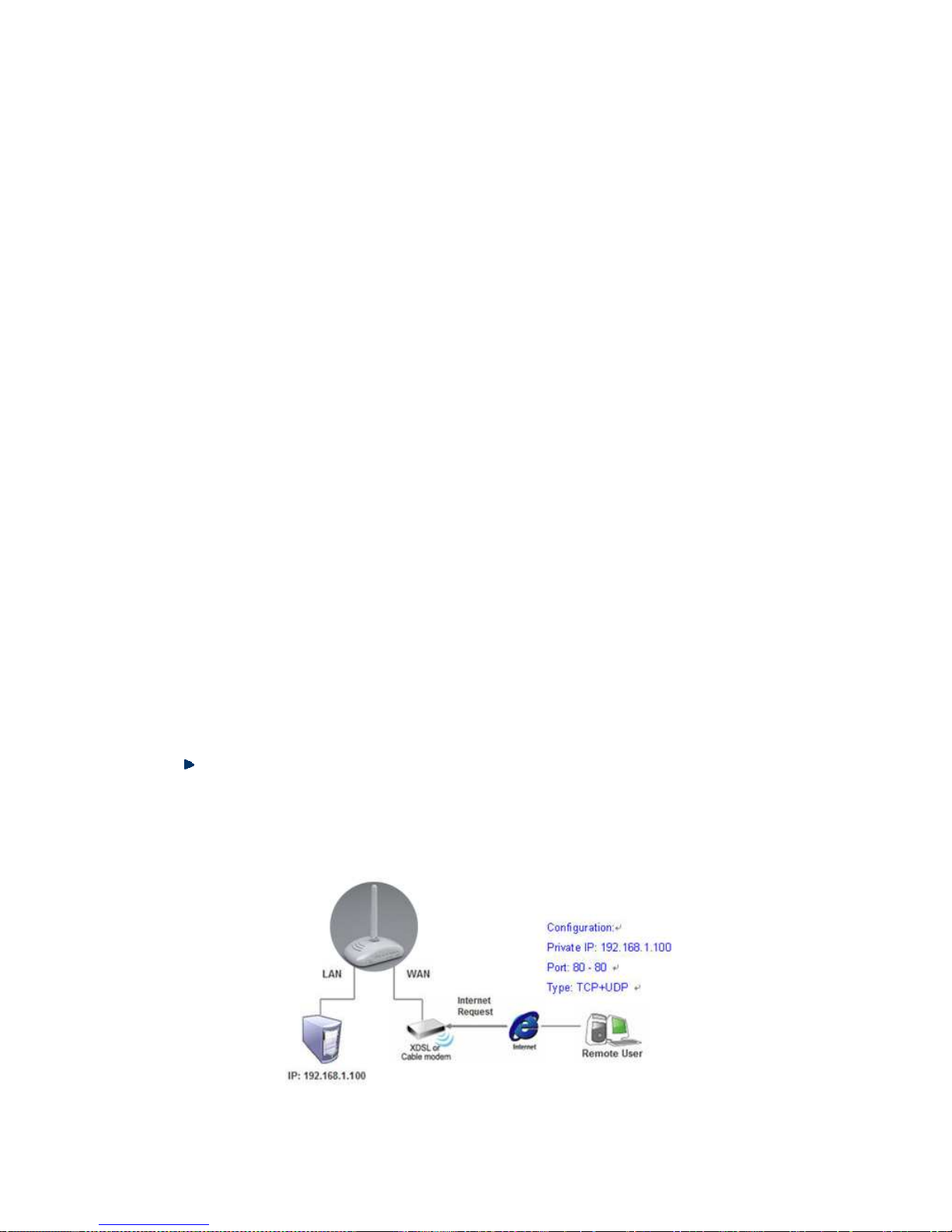

5.3.1

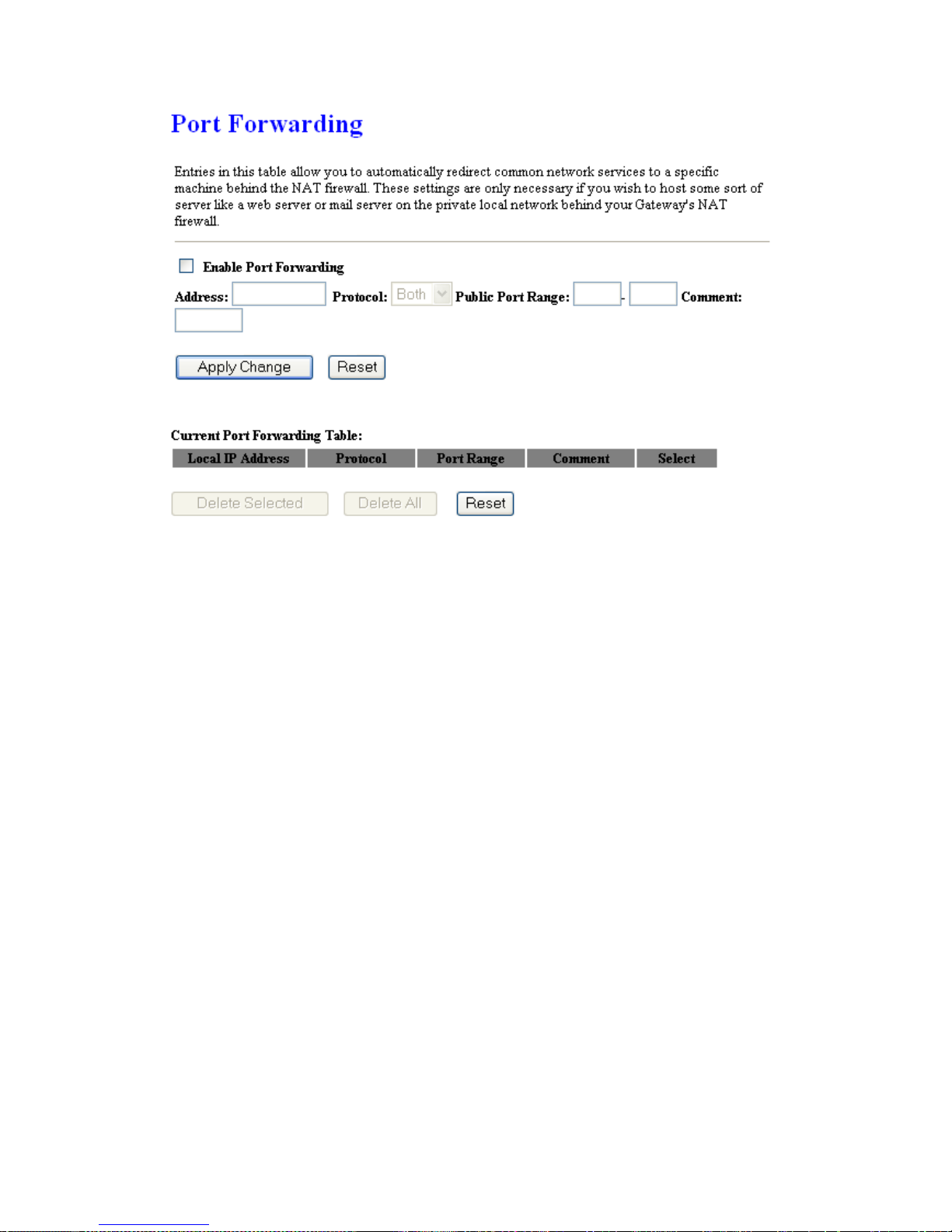

Visual Server.....................................................................................................66

5.3.2

Visual DMZ........................................................................................................69

5.4

Firewall.......................................................................................................................70

5.4.1

Port Filtering.....................................................................................................70

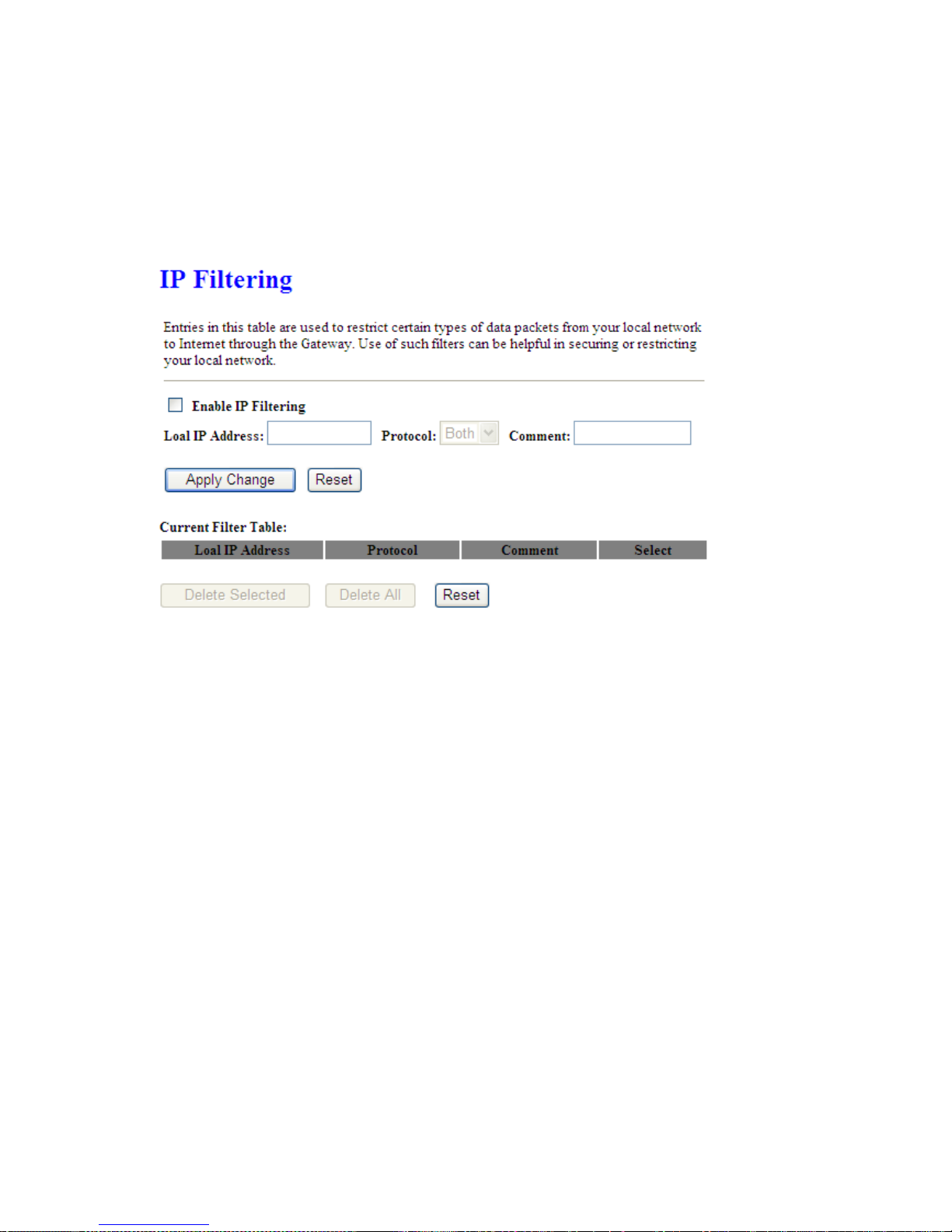

5.4.2

IP Filtering.........................................................................................................72

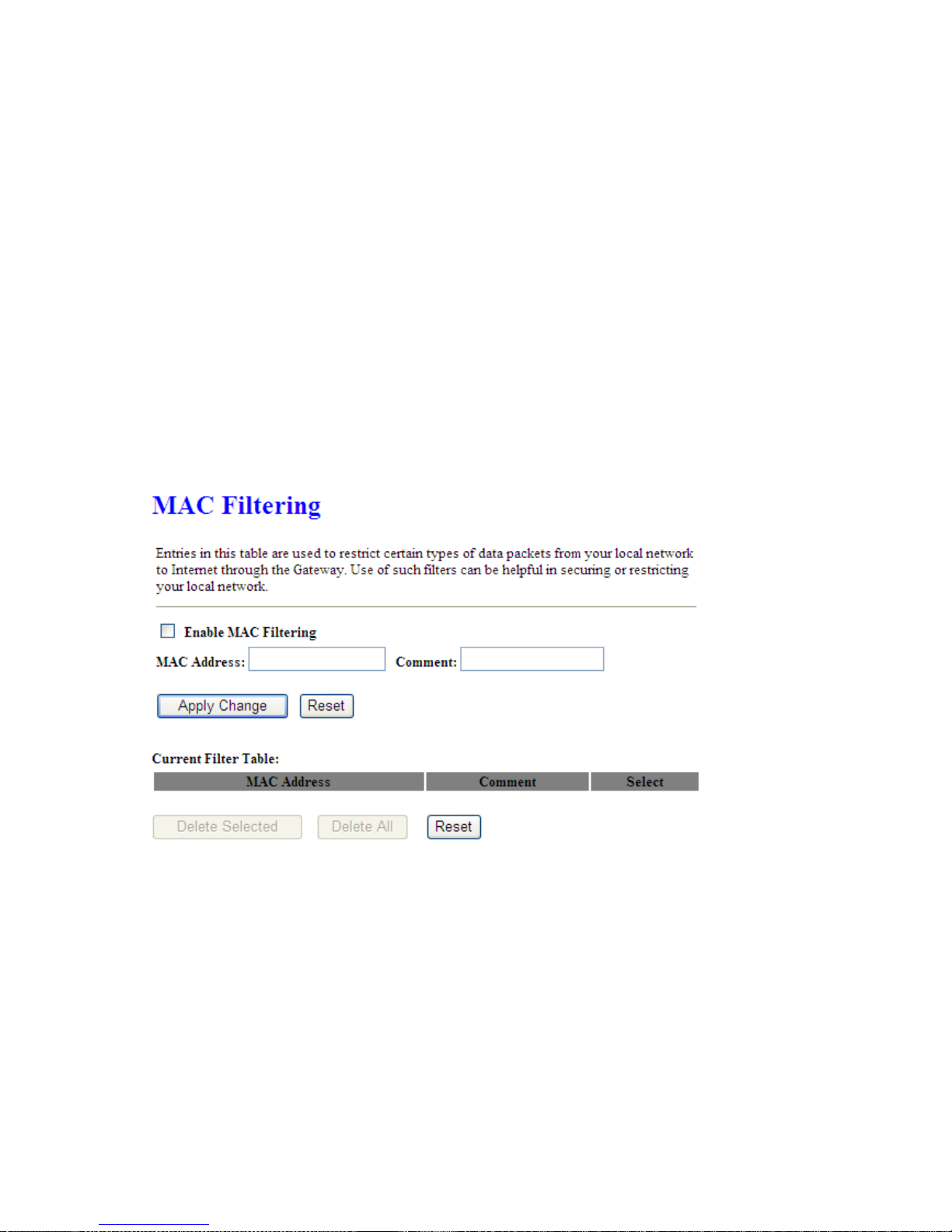

5.4.3

MAC Filtering....................................................................................................73

5.4.4

URL Filtering.....................................................................................................74

5.5

System Management ................................................................................................76

5.5.1

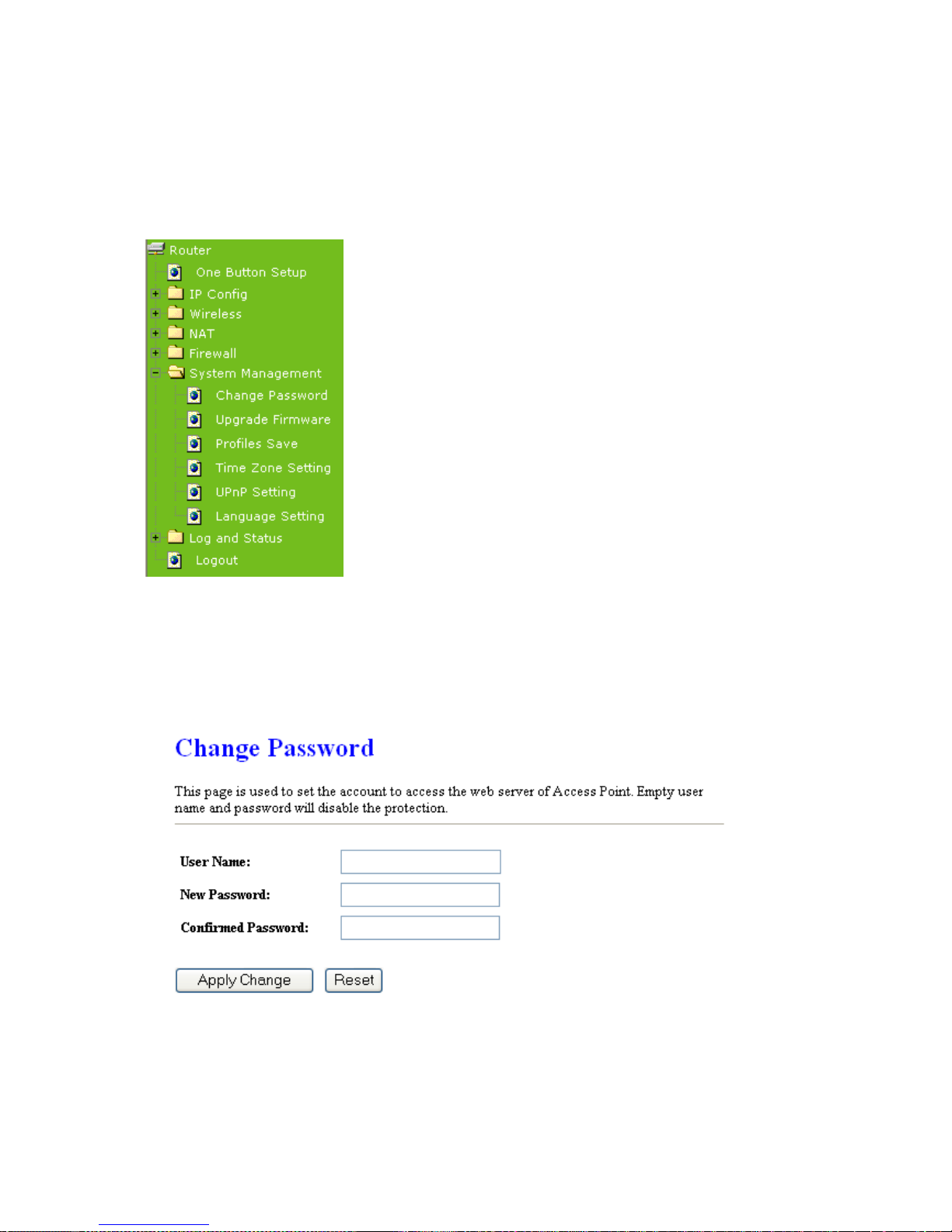

Change Password ............................................................................................76

5.5.2

Upgrade Firmware............................................................................................77

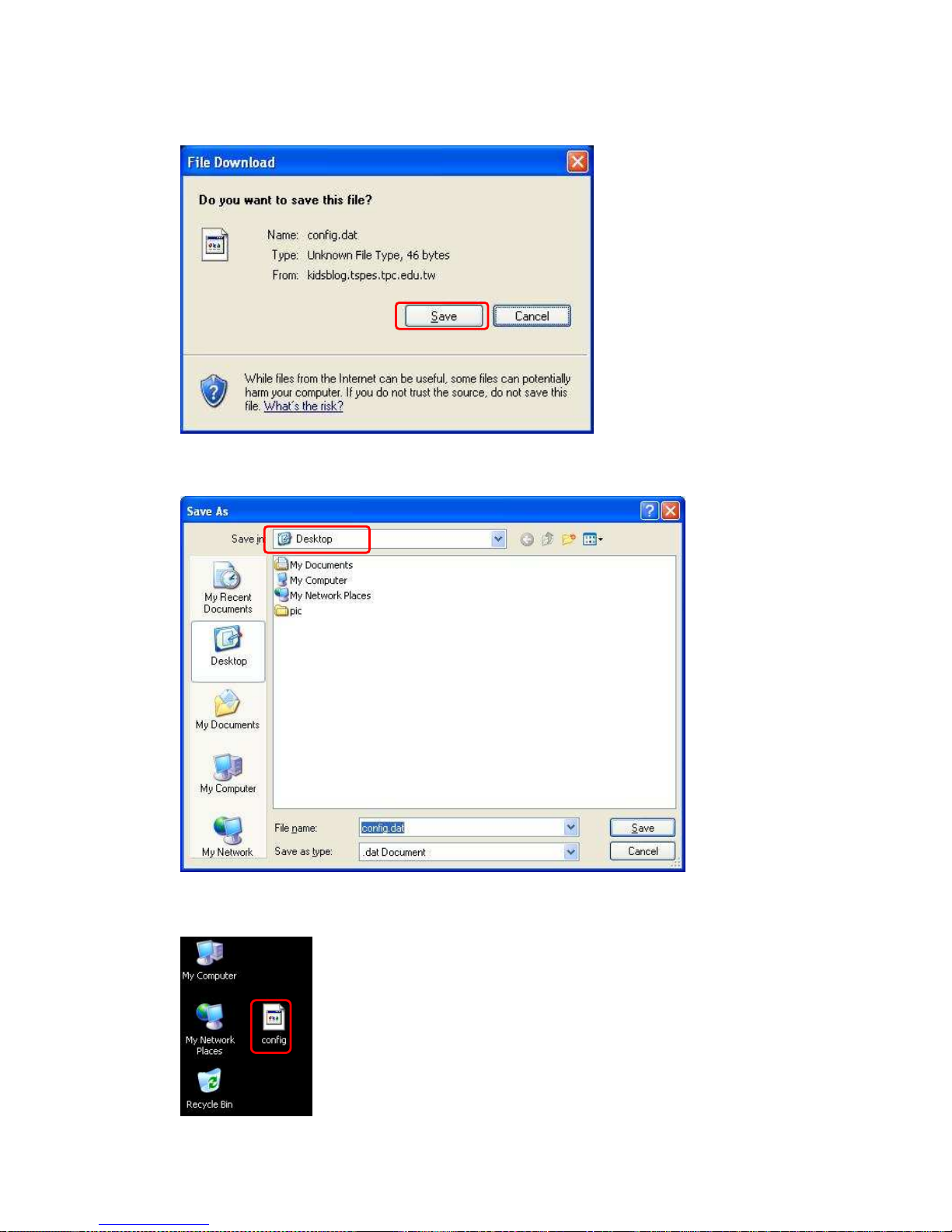

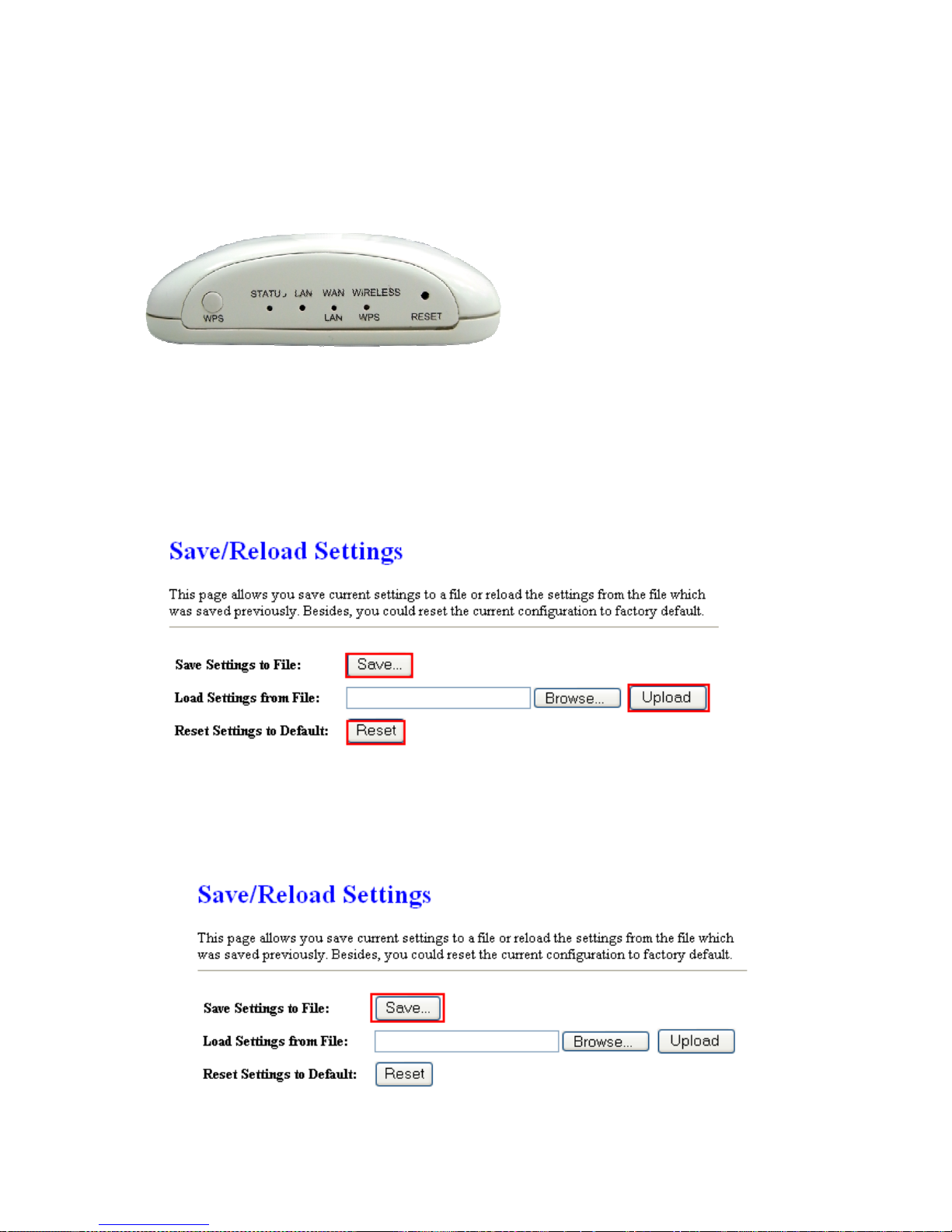

5.5.3

Save / Reload Settings.....................................................................................78

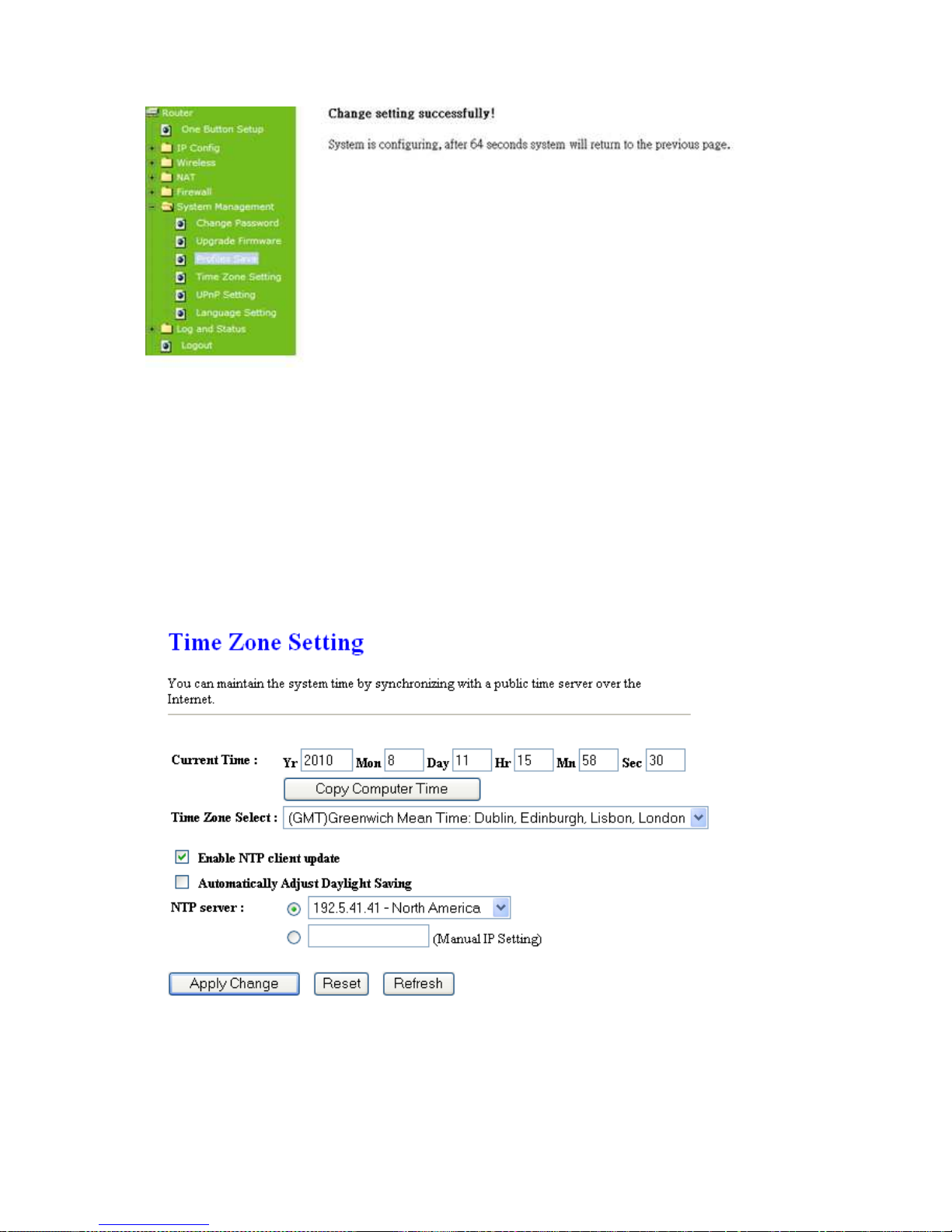

5.5.4

Time Zone Setting ............................................................................................82

5.5.5

UPnP Setting.....................................................................................................83

5.6

Log & Status..............................................................................................................84

5.6.1

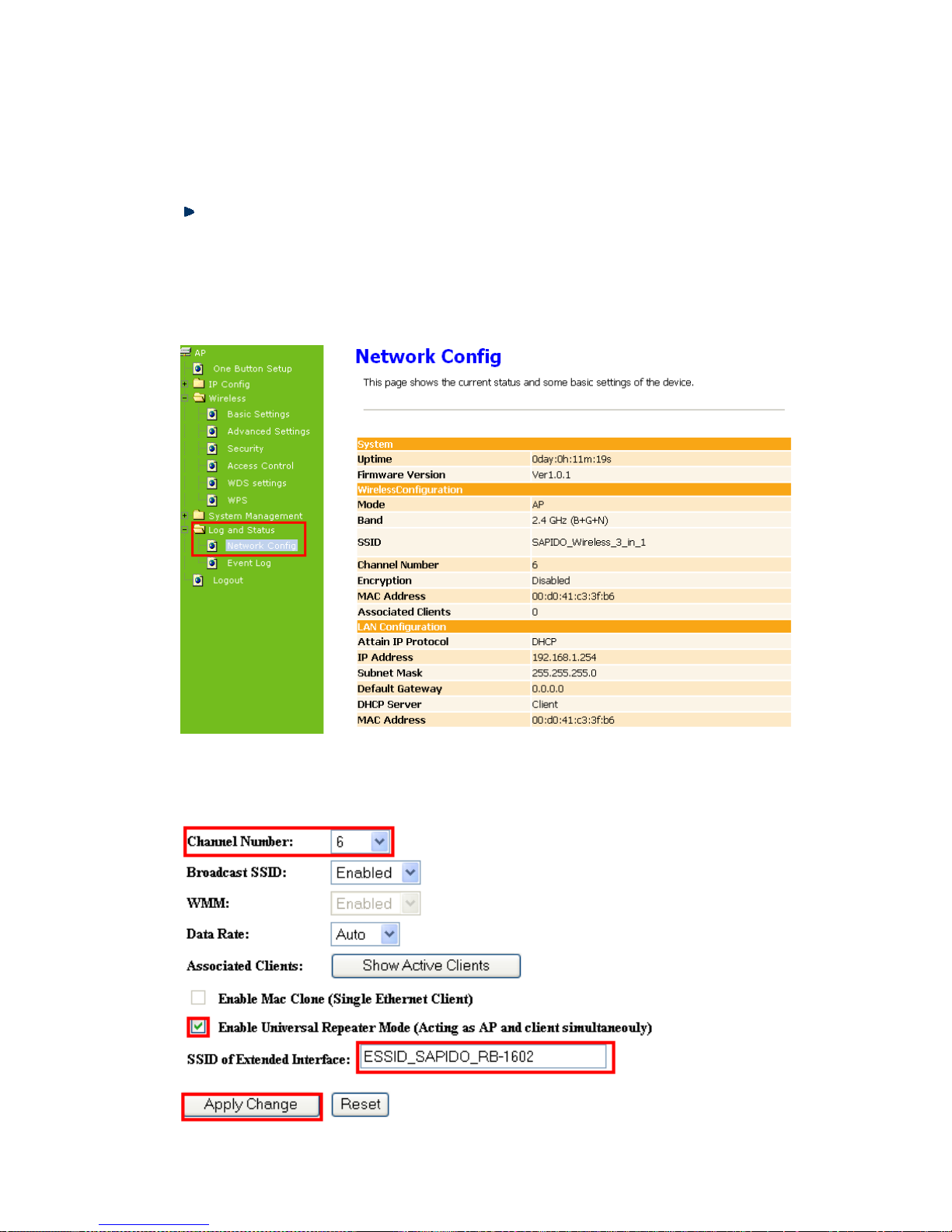

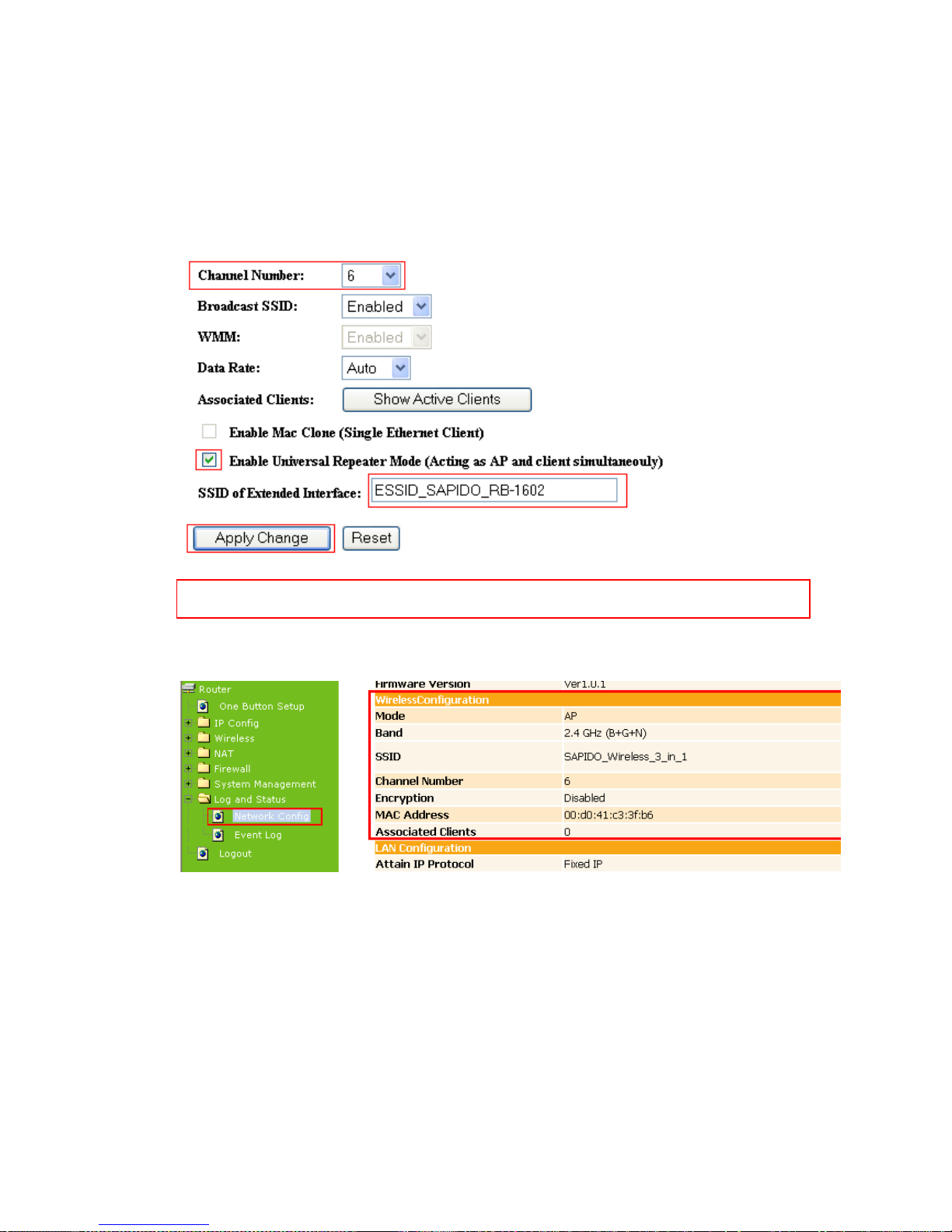

Network Config.................................................................................................85

5.6.2

Event Log..........................................................................................................86

5.7

Logout........................................................................................................................87

Chapter 6

Advance Configuration for AP Mode ......................................................................88

6.1

IP Configuration ........................................................................................................88

6.1.1

LAN Setup.........................................................................................................88

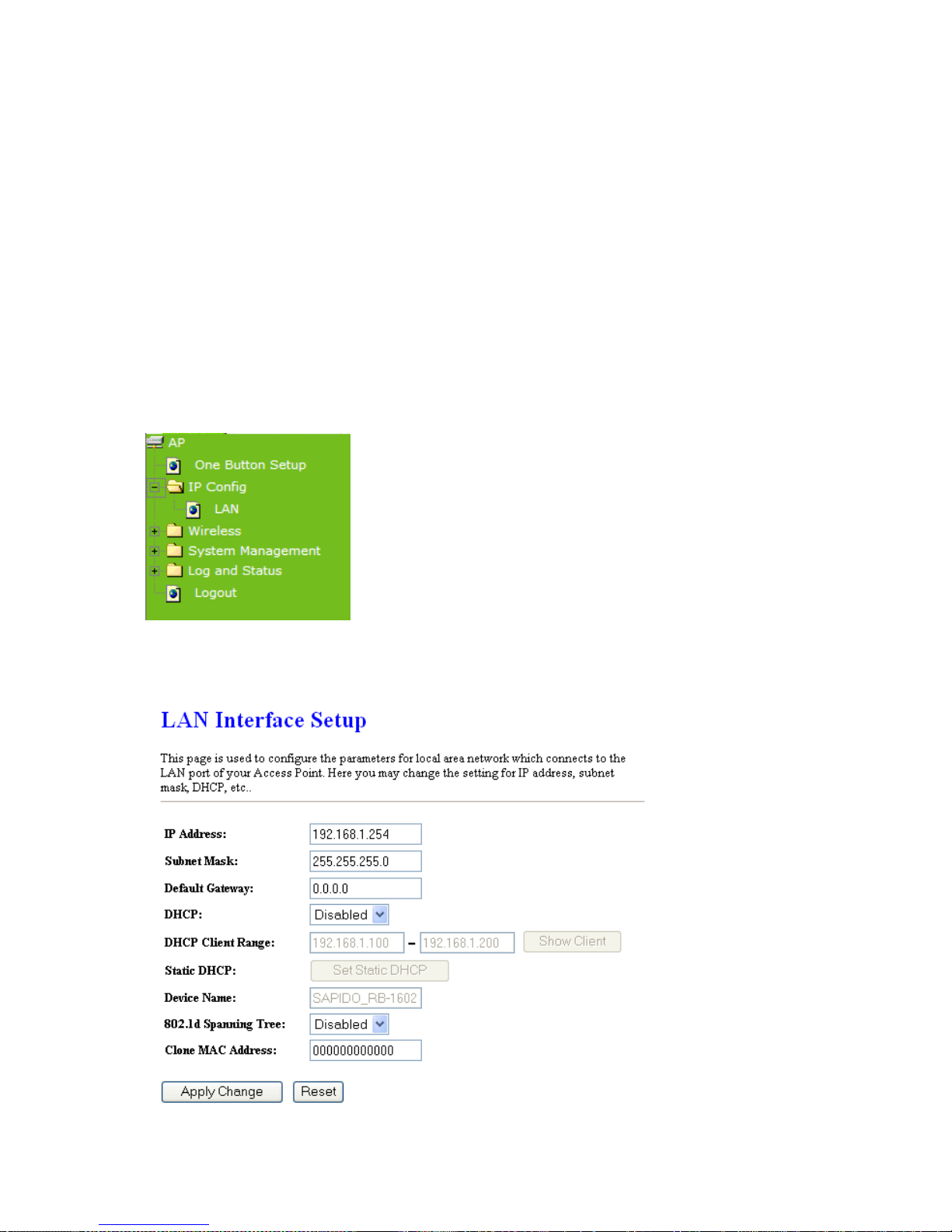

6.1.2

LAN Interface Setup.........................................................................................88

6.2

Wireless Setup ..........................................................................................................90

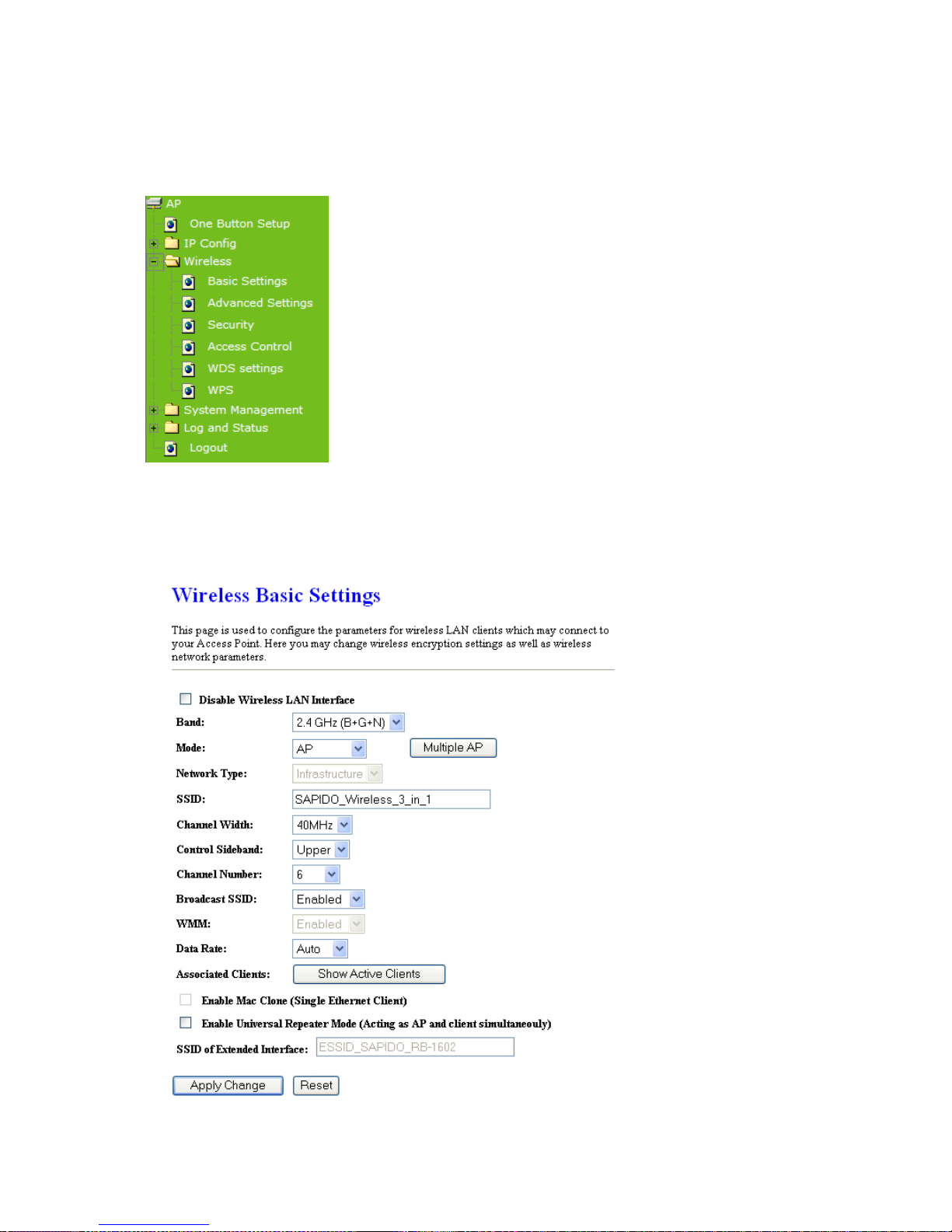

6.2.1

Wireless Basic Settings...................................................................................90

6.2.2

Wireless Advanced Settings ...........................................................................95

6.2.3

Wireless Security Setup ..................................................................................97

6.2.4

Wireless Access Control ...............................................................................100

6.2.5

WDS Settings..................................................................................................101

6.2.6

WPS .................................................................................................................106

6.3

System Management ..............................................................................................110

6.3.1

Change Password ..........................................................................................111

6.3.2

Upgrade Firmware.......................................................................................... 111

6.3.3

Save / Reload Settings...................................................................................113

6.3.4

Time Zone Setting ..........................................................................................117

http://www.sapido.com.tw/ User Manual 1.0

8

6.3.5

UPnP Setting...................................................................................................118

6.4

Log & Status............................................................................................................119

6.4.1

Network Config...............................................................................................119

6.4.2

Event Log........................................................................................................120

6.5

Logout......................................................................................................................121

Chapter 7

Advance Configuration for WiFi AP Mode............................................................122

7.1

IP Configuration ......................................................................................................122

7.1.1

LAN Setup.......................................................................................................122

7.1.2

LAN Interface Setup.......................................................................................122

7.2

Wireless Setup ........................................................................................................124

7.2.1

Wireless Basic Settings.................................................................................125

7.2.2

Wireless Advanced Settings .........................................................................129

7.2.3

Wireless Site Survey......................................................................................131

7.2.4

Wireless Security Setup ................................................................................131

7.2.5

Wireless Access Control ...............................................................................134

7.2.6

WPS .................................................................................................................135

7.3

System Management ..............................................................................................139

7.3.1

Change Password ..........................................................................................140

7.3.2

Upgrade Firmware..........................................................................................140

7.3.3

Save / Reload Settings...................................................................................142

7.3.4

Time Zone Setting ..........................................................................................146

7.3.5

UPnP Setting...................................................................................................148

7.4

Log & Status............................................................................................................149

7.4.1

Network Config...............................................................................................149

7.4.2

Event Log........................................................................................................150

7.5

Logout......................................................................................................................151

Chapter 8

DDNS Service Application......................................................................................152

8.1

Installation ...............................................................................................................158

8.2

LED...........................................................................................................................158

8.3

IP Address................................................................................................................159

8.4

OS Setting................................................................................................................159

8.5

SAPIDO Light N+ Broadband Router Setup.........................................................161

8.6

Wireless LAN...........................................................................................................163

8.7

Support ....................................................................................................................165

8.8

Others.......................................................................................................................166

Chapter 9

Appendices..............................................................................................................167

9.1

Operating Systems .................................................................................................167

9.2

Browsers..................................................................................................................167

http://www.sapido.com.tw/ User Manual 1.0

9

9.3

Communications Regulation Information ............................................................167

http://www.sapido.com.tw/ User Manual 1.0

10

Chapter 1 Introduction

1.1 Overview

SAPIDO Light N+ Broadband Router might be small in size, but is huge in functionality. It

supports multiple operation modes, including Access Point (AP) mode, Router mode, and
WiFi AP mode. You can switch among these modes easily by using its 3-way configuration
switch.

Features

 Small in size but huge in functionality
 Three modes to be switched; Router, AP and WiFi AP
 WPS button one press to complete the connection and encryption.

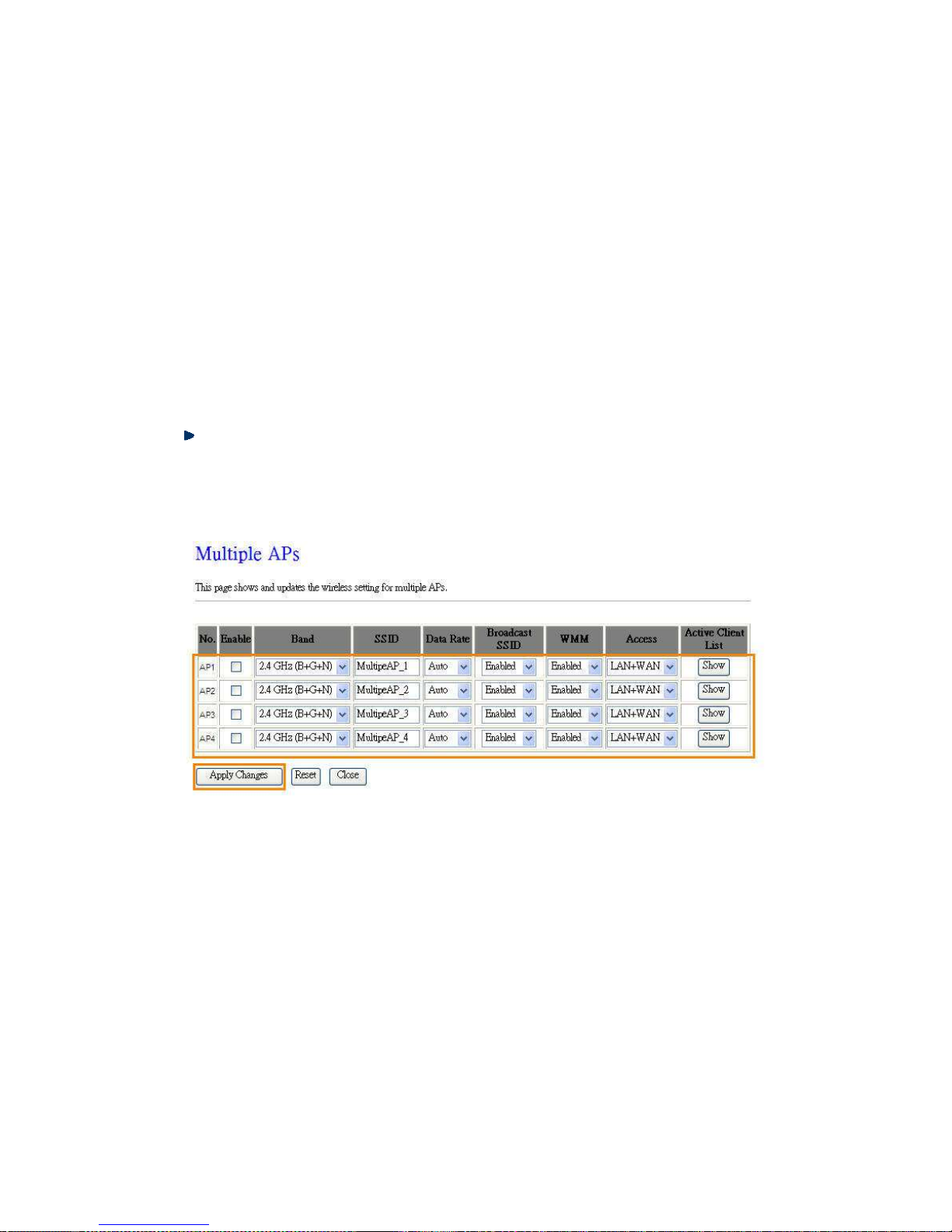

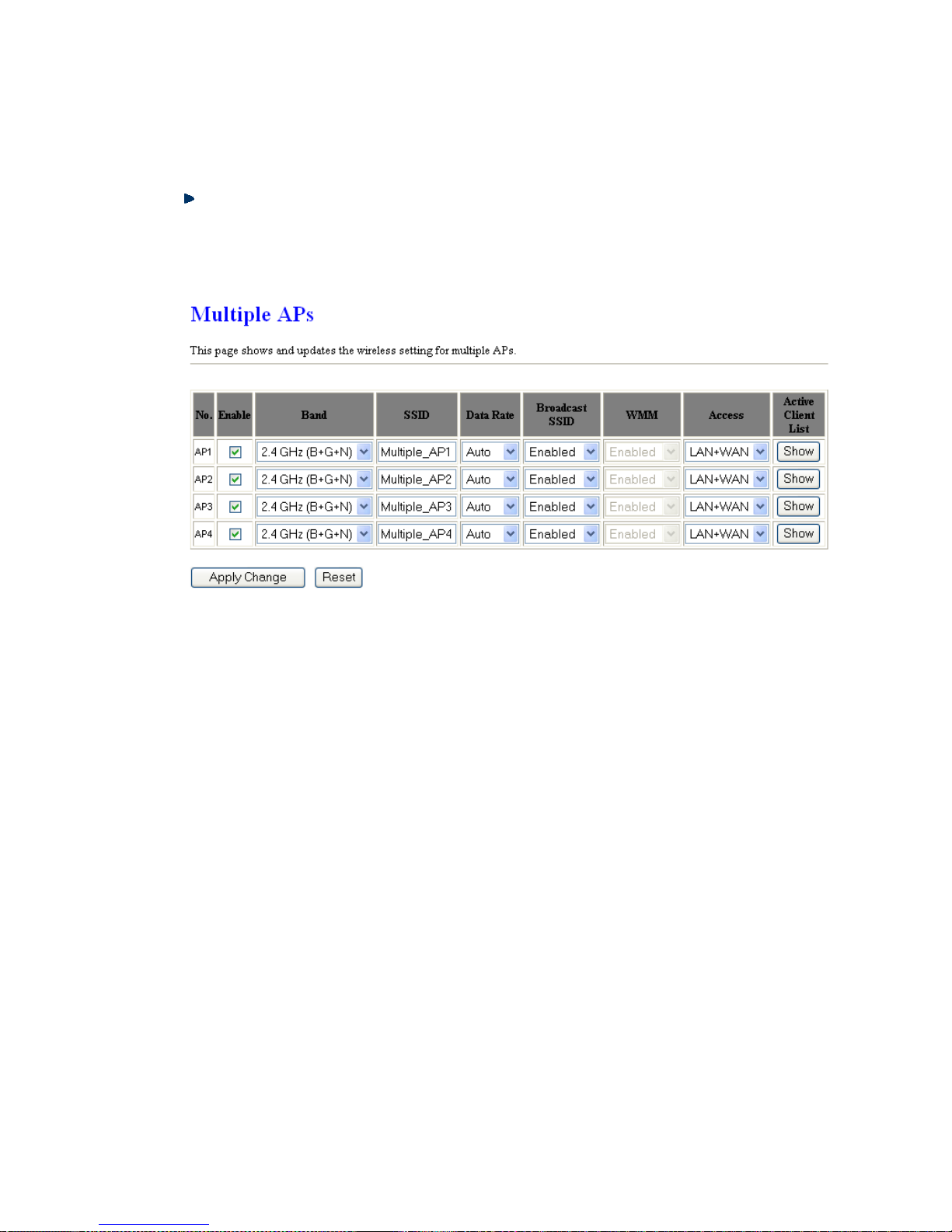

 Multiple APs Supported

http://www.sapido.com.tw/ User Manual 1.0

11

1.2 Specifications

WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX
LAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX
Wireless Built-in Mini PCI

Interface

Slide Switch Router / AP / WiFi AP mode exchange function.
Web-Base Windows IE / Linux Firefox / MAC Safari
WAN Protocol PPPoE / PPTP / Static IP/ Dynamic IP/ L2TP

WLAN

WDS / WEP Key / WPA / WPA-PSK / WPA2 / WPA2-PSK / MAC Access

Control /Hidden SSID
Routing UPnP / DHCP / DNS / WINS / DDNS
NAT Virtual Server / Virtual DMZ

Function

Firewall MAC Filter / URL Filter / SPI / DoS Protection / IP Packet Filter

Others

Operation
Requirement

Operating Temp. 0°C~45°C (32°F~113°F)

Storage Temp. -20°C~70°C (-14°F~158°F)

Operating Humidity 10% to 85% Non-Condensing

Storage Humidity 5% to 90% Non-Condensing

Dimension 88mm (L) x 58mm (W) x 26.5mm (H)

Application

Power Power Adapter DC5V/0.5A with mini-USB B type male connector

1.2.1 Six Views of Product Appearance

Power Plug

Power Adapter DC5V/0.5A with mini-USB B type male connector

http://www.sapido.com.tw/ User Manual 1.0

12

Operation Mode
Switch

Router, AP, and WiFi AP operation modes

Reset Button

Press “Reset” button over 10 seconds. When status indicator turns from
flashing to solid, the process is completed. All settings are back to default.

Ethernet Port

2 RJ-45 Ethernet 10/100 Ports

1.2.2 LED Indicator Status Description

Status

LED Indicator

Solid Flashing

STATUS Operation OK Green: Reset / Firmware updates in progress
LAN RJ-45 Plugged in Transmitting Data
WAN RJ-45 Plugged in Transmitting Data

WIRELESS & WPS Operation OK

Green: Transmitting Data
Orange: WPS enabled

POWER Operation OK Power on

1.3 System Requirements

To begin with RB-1602, you must have the following minimum system requirements. If your
system can’t correspond to the following requirements, you might get some unknown troubles
on your system.

XDSL/Cable Modem and broadband Internet Account.
One Ethernet (10 BASE-T or 10/100 BASE-TX) network interface card.
CP/IP and at least one web browser software installed (E.g.: Internet Explorer 5.0,

Netscape Navigator 7.x, Apple Safari 2.03 or higher version).

At lease one 802.11g (54Mbps) or one 802.11b (11Mbps) wireless adapter for wireless

mobile clients.

Recommended OS: Windows / Linux/ Mac.

http://www.sapido.com.tw/ User Manual 1.0

13

1.4 WAN Network Plug and Play

 WAN Type auto-detection：

 When using Ethernet auto-connection:

 Auto-detection mode only applies on PPPoE, DHCP, PPTP and L2TP.
 Router will detect WAN type and load the settings from last time or display

corresponding page for user to input information.

 If there is no setting from user, the router will load the default settings.

If there is no setting from user, it will detect ISP and load corresponding settings.

1.5 Get Your IP Automatically or Setup IP Manually

Step 1. Go to Start>Settings> Network Connections and then select Local Area
Connection.

http://www.sapido.com.tw/ User Manual 1.0

14

Step 2. Click on Properties

Step 3. Double click on Internet Protocol (TCP/IP).

Step 4-1. Select Obtain an IP address automatically and Obtain DNS server address
automatically and then click on OK.

http://www.sapido.com.tw/ User Manual 1.0

15

Step 4-2. To setup IP manually, please select Use the following IP address. And the
following default setting of SAPIDO Light N+ Broadband Router:

 IP Address: 192.168.1.10 (as your Print Server for example)
 Subnet Mask: 255.255.255.0
 Default Gateway: 192.168.1.1

Note: If you configure your computer’s IP Address manually, it needs to be on the same network segment.

For example:
 IP Address: 192.168.1.xxx (xxx can be any number between 2 and 253, but it can’t be

repeated, we use 100 to be the example.)

 Subnet Mask: 255.255.255.0
 Gateway: 192.168.1.1 (this is the IP address of SAPIDO Light N+ Broadband Router in

Router Mode)

 DNS: 192.168.1.1 (use N+ Broadband Router’s IP address or make on your own one)

Note: IP address and Default gateway cannot be the same.

http://www.sapido.com.tw/ User Manual 1.0

16

1.5.1 Network Testing

There are two ways to test your Network status on Internet. They are “Testing with Internet

Browser” and “Testing with Dos”.

1.5.2 Testing with Internet Browser

Open an Internet Browser, such as Internet Explore or Netscape. Input a valid web address,

for example,

http://www.yahoo.com

in the web address blank and then press enter. If the

website appears, that means your Internet works regularly.

http://www.sapido.com.tw/ User Manual 1.0

17

1.5.2.1 Testing with DOS (Windows XP Platform)

Step 1. Go to start -> Run.

Step 2. Input cmd in the blank, and then click OK. The Command Prompt window appears.

Step 3. Input ipconfig in the flashing area then press enter. You will get an IP Address

192.168.1.100, for example, and Default Gateway equally.

Step 4. Ping a legal WAN Address such as 192.168.1.1. If Internet works, it will show Reply
from 192.168.1.1: bytes = 32 time = 3ms TTL =64, for example.

http://www.sapido.com.tw/ User Manual 1.0

18

If it can’t work, it will show Request timed out.

http://www.sapido.com.tw/ User Manual 1.0

19

Chapter 2 Hardware Installation

2.1 Diagram of Connecting Hardware to

SAPIDO Light N+ Broadband Router

SAPIDO Light N+ Broadband Router supports multiple operation modes, including Access

Point (AP) mode, Router mode, and WiFi AP mode. You can switch among these modes
easily by using slide switch.

Warning: Before sliding the switch modes, please power-off the router firstly. Moreover, please stay over 5

seconds between power-off / power-on condition.

2.1.1 Hardware Connection and Application for Router Mode

When switching SAPIDO Light N+ Broadband Router to Router Mode, there will be one WAN
port and one LAN port, the administrator can do the Quick Setup including WAN Setup, LAN
Setup, Wireless Setup, Time Server Setup, Password Setup, Firewall Setup, QoS Setup.

http://www.sapido.com.tw/ User Manual 1.0

20

2.1.2 Hardware Connection and Application for AP Mode

Under AP Mode, it supports 2 LAN ports as Bridge, and user can connect to SAPIDO Light
N+ Broadband Router via LAN port. The administrator can set up quickly, including LAN
Setup, Wireless Setup, Time Server Setup, and Password Setup.

2.1.3 Hardware Connection and Application for Wi-Fi AP Mode

As WiFi AP Mode, SAPIDO Light N+ Broadband Router will be a bridge and supports a
wireless LAN. The administrator can set up quickly, including LAN Setup, Wireless Setup,
Time Server Setup, and Password Setup.

http://www.sapido.com.tw/ User Manual 1.0

21

Chapter 3 One Button Setup

The advanced One Button Setup provides users a simple way to set up the complicated
network. Instead of numbers of IPs to be memorized, you just need to fill in some necessary
information and then enjoy the secured internet by clicking the “Finished” button.

3.1 One Button Setup configuration for Router Mode

Step 1. Please switch to Router mode and plug in power.

The default UPnP of SAPIDO Light N+ Broadband Router is ON.

http://www.sapido.com.tw/ User Manual 1.0

22

Step 2. Click the Internet Gateway Device to open the login page.

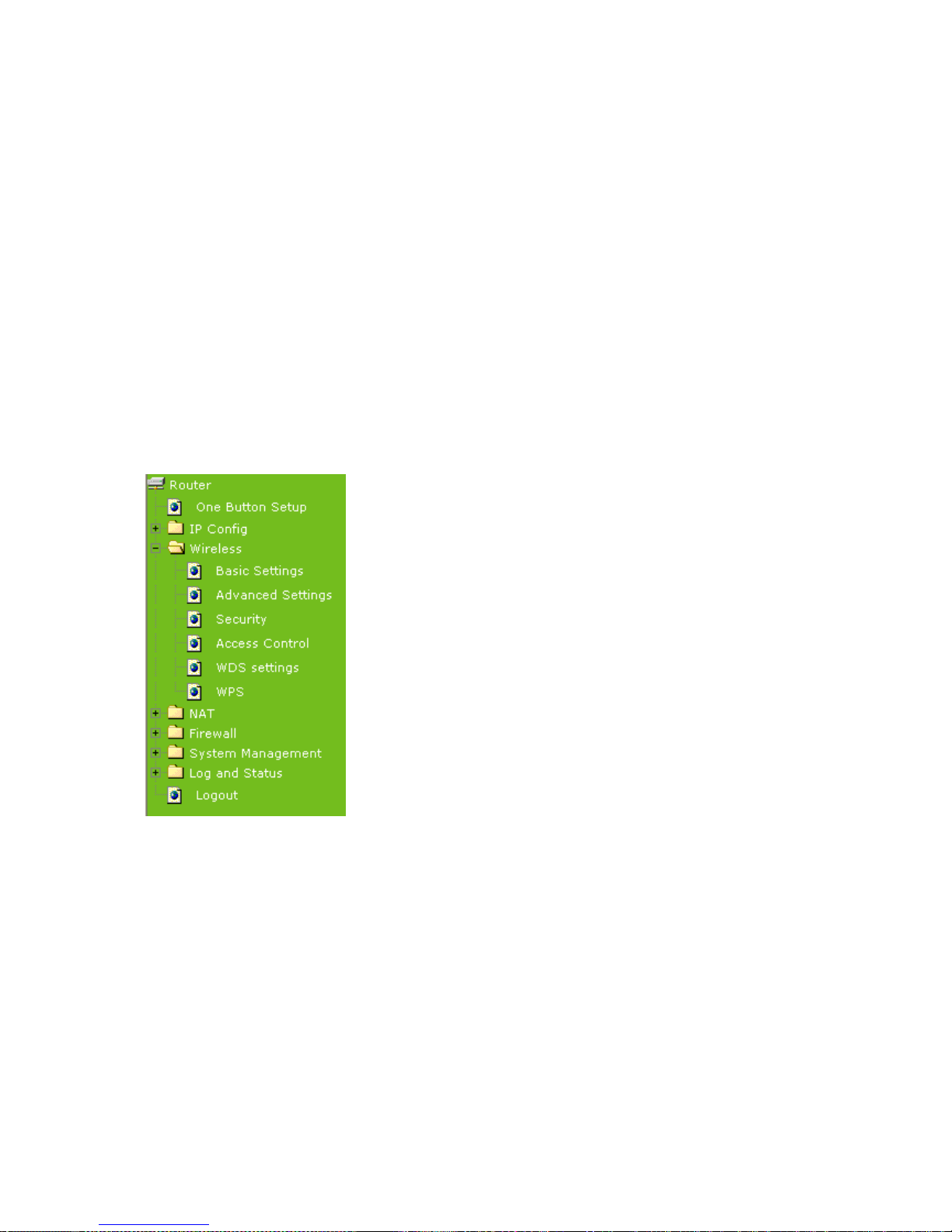

Step 3. Click One Button Setup on the left of the main menu under router mode.

http://www.sapido.com.tw/ User Manual 1.0

23

Time Zone Select: Select your time zone from the Time Zone drop-down list.
Change Password: For changing password, please fill the password information into

the blank.

Device Name: Name your device here. The default is 11N_Mini_Router.

Note: System will automatically copy the last 6 numbers of this device’s MAC address after your device name.

WAN Interface Setup: Select the WAN Interface from the drop-down list.
WAN Type Setup: Please choose the access type.
Wireless Setup: Fill in the ESSID if it is blank, and your prefer Encryption type. The

default is 11N_Mini_Router.

http://www.sapido.com.tw/ User Manual 1.0

24

Finished: Click finished button to complete the setting.

3.2 One Button Setup configuration for AP Mode

Step 1. Please switch to AP mode and plug in power.

Step 2. Click the Internet Gateway Device to open the login page.

Step 3. Click One Button Setup on the left of the main menu under AP mode.

http://www.sapido.com.tw/ User Manual 1.0

25

Time Zone Select: Select your time zone from the Time Zone drop-down list.
Change Password: For changing password, please fill the password information into

the blank.

Device Name: Name your device here. The default is 11N_Mini_Router.

Note: System will automatically copy the last 6 numbers of this device’s MAC address after your device name.

Wireless Setup: Define the SSID, and Encryption type.
Finished: Please click finished button to complete the setting.

3.3 One Button Setup configuration for WiFi AP Mode

Step 1.

Please switch to WiFi AP mode and plug in power.

http://www.sapido.com.tw/ User Manual 1.0

26

Step 2. Click the Internet Gateway Device to open the login page.

Step 3.

Click One Button Setup on the left of the main menu under WiFi AP mode.

http://www.sapido.com.tw/ User Manual 1.0

27

Time Zone Select: Select your time zone from the Time Zone drop-down list.
Change Password: For changing password, please fill the password information into

the blank.

Device Name: Name your device here. The default is 11N_Mini_Router.

Note: System will automatically copy the last 6 numbers of this device’s MAC address after your device name.

Wireless Site Survey Setting: Select the preferred AP for connection, and the

encryption type.
Extended Wireless Setup: Define the ESSID, and Encryption type.
Finished: Please click finished button to complete the setting.

Note: One Button Setup is not completed unless users finish all settings and click Finished button.

http://www.sapido.com.tw/ User Manual 1.0

28

Chapter 4 Basic Setup

4.1 Router Mode

Under Router Mode, the 11n Mobile Router provides a Router/AP function. User can get IP
address assigned by ISP wired or wirelessly. It also supports NAT and DHCP functions that
enable multiple computers to share an Internet connection at the same time.

4.1.1 Switch to Router Mode

Switch to AP mode and plug in power.

Note: 1. Before sliding the switch modes, please power-off the router firstly. Moreover, please stay over 5 seconds

between power-off / power-on condition.

2. Switching the mode while power is on will make the router crush, and cause the hardware damage and
information lost.

4.1.2 Administrator Setup Instruction

Make sure to switch the mode into Router Mode, then open a Microsoft Internet Explorer,
Mozilla Firefox or Apple Safari browser, and enter

http://192.168.1.1

(Default Gateway) into

browser’s blank.

Note: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address

automatically or not. If you don’t know how to do it, please refer to “1.5 Get your IP Automatically &

Manually”.

http://www.sapido.com.tw/ User Manual 1.0

29

The default values for User Name and Password are admin (all in lowercase letters). Click

Login to enter.

4.2 AP Mode

Under AP Mode, the SAPIDO Light N+ Broadband Router supports 2 LAN ports as Bridge,
and user can connect to this Router via LAN port and provide the lower level wired or wireless
internet connections. NAT function is disabled under AP mode. The SAPIDO Light N+
Broadband Router connects the upper level device only through the Ethernet port and gets its
assigned IP address. If not, the SAPIDO Light N+ Broadband Router will use the default IP or
assigned by the user.

4.2.1 Switch to AP Mode

Switch to AP mode and plug in power.

Note: 1. Before sliding the switch modes, please power-off the router firstly. Moreover, please stay over 5 seconds

between power-off / power-on condition.

2. Switching the mode while power is on will make the router crush, and cause the hardware damage and
information lost.

http://www.sapido.com.tw/ User Manual 1.0

30

4.3 WiFi AP Mode

As WiFi AP Mode, SAPIDO Light N+ Broadband Router will be a bridge and support a
wireless LAN. NAT function is disabled under WiFi AP mode. The SAPIDO Light N+
Broadband Router connects the upper level device wirelessly and gets its assigned IP
address. If not, the SAPIDO Light N+ Broadband Router will use the default IP or assigned by
the user.

4.3.1 Switch to WiFi AP Mode

Switch to WiFi AP mode and plug in power.

Note: 1. Before sliding the switch modes, please power-off the router firstly. Moreover, please stay over 5 seconds

between power-off / power-on condition.

2. Switching the mode while power is on will make the router crush, and cause the hardware damage and
information lost.

http://www.sapido.com.tw/ User Manual 1.0

31

Chapter 5 Advanced Configuration for Router Mode

5.1 IP Configuration

This function allows you to add routing rules into 11N Mini Router. It is useful if you connect
several computers behind SAPIDO Light N+ Broadband Router to share the same
connection to Internet.

5.1.1 WAN

Select WAN under the IP Config menu. SAPIDO Light N+ Broadband Router supports 3
interfaces and 4 access types. Follow the instructions below for each to set up accordingly.

Choose your WAN Interface and WAN type, and click Next, its associated settings will show
up.

http://www.sapido.com.tw/ User Manual 1.0

32

5.1.1.1 WAN Interface– Ethernet Port

If you are using an Ethernet cable to connect the Internet, please select Ethernet port.

5.1.1.2 WAN Interface– Wireless

If you are connecting the internet via wireless, please select Wireless and its associated
settings will show up underneath at the same time.

You can see a list of available Wireless networks. Select you preferred one to connect and
the Encryption type form the drop-down list.

http://www.sapido.com.tw/ User Manual 1.0

33

http://www.sapido.com.tw/ User Manual 1.0

34

5.1.1.3 WAN Access Type – Static IP

If you applied for a Static IP connection type from ISP, please follow the steps to set up your
WAN connection.

1. IP Address

Input your IP Address supplied by ISP. If you don’t know, please check with your ISP.

2. Subnet Mask

Input Subnet Mask, normally it is 255.255.255.0.

3. Default Gateway

Input ISP Default Gateway Address. If you don’t know, please check with your ISP.

4. MTU Size

MTU stands for Maximum Transmission Unit. For Static IP connection, the default MTU

http://www.sapido.com.tw/ User Manual 1.0

35

should be provided by computer operating systems (OS). Advanced users can set the MTU
manually for increasing the internet performance. The largest number allowed by Ethernet at
the network layer is 1500 byte

5. DNS

If ISP provides you DNS information, please select Attain DNS automatically, otherwise
select Set DNS Manually and input the DNS information into the blank.

6. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

7. Enable IGMP Proxy

The Internet Group Management Protocol (IGMP) is a communication protocol used to
manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and
adjacent multicast routers to establish multicast group memberships. You can choose to
enable IGMP Proxy to provide service.

8. Enable Ping Access on WAN

Select Enable Ping Access on WAN, will make WAN IP address response to any ping
request from Internet users. It is a common way for hacker to ping public WAN IP address, to
see is there any WAN IP address available.

9. Enable Web Server Access on WAN

This option is to enable Web Server Access function on WAN.

10. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

36

5.1.1.4 WAN Access Type – Dynamic IP

If your WAN access type is Dynamic IP, please complete the settings as following
instructions.

1. Host Name

The host name is optional; but if your ISP requires you to input a specific host name, please
put it in, for example, SAPIDO Light N+ Broadband Router applied from ISP. Generally, Cable
Modem will provide the hostname information.

2. MTU Size

MTU stands for Maximum Transmission Unit. For Static IP connection, the default MTU
should be provided by computer operating systems (OS). Advanced users can set the MTU
manually for increasing the internet performance. The largest number is 1492 byte

3. DNS

http://www.sapido.com.tw/ User Manual 1.0

37

If ISP provides you DNS information, please select Attain DNS automatically, otherwise
select Set DNS Manually and input the DNS information into the blank.

4. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

5. Enable IGMP Proxy

The Internet Group Management Protocol (IGMP) is a communication protocol used to
manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and
adjacent multicast routers to establish multicast group memberships. You can choose to
enable IGMP Proxy to provide service.

6. Enable Ping Access on WAN

Select Enable Ping Access on WAN, will make WAN IP address response to any ping
request from Internet users. It is a common way for hacker to ping public WAN IP address, to
see is there any WAN IP address available.

7. Enable Web Server Access on WAN

This option is to enable Web Server Access function on WAN.

8. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

38

5.1.1.5 WAN Access Type – PPPoE

If you applied for a PPPoE connection type from ISP, please follow the steps to set up your
WAN connection.

1. User Name

Input your user name supplied by ISP. If you don’t know, please check with your ISP.

2. Password

Input your Password supplied by ISP.

3. Service Name

Input the service name supplied by ISP.

http://www.sapido.com.tw/ User Manual 1.0

39

4. Connection Type

It has three types: Continuous, Connect on Demand, and Manual.

5. Idle Time

It is the time of inactivity before disconnecting your PPPoE session. Enter an Idle Time (in
minutes) to define a maximum period of time for which the Internet connect is maintained
during inactivity. If the connection is inactive for longer than the defined Idle Time, then the
connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this
feature.

6. MTU Size

MTU stands for Maximum Transmission Unit. For PPPoE connection, the default MTU should
be provided by computer operating systems (OS). Advanced users can set the MTU
manually for increasing the internet performance. The largest number allowed by Ethernet at
the network layer is 1492 byte

7. DNS

If ISP provides you DNS information, please select Attain DNS automatically, otherwise
select Set DNS Manually and input the DNS information into the blank.

8. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

9. Enable IGMP Proxy

The Internet Group Management Protocol (IGMP) is a communications protocol used to
manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and
adjacent multicast routers to establish multicast group memberships. You can choose to
enable IGMP Proxy to provide service.

10. Enable Ping Access on WAN

Select Enable Ping Access on WAN, will make WAN IP address response to any ping
request from Internet users. It is a common way for hacker to ping public WAN IP address, to
see is there any WAN IP address available.

11. Enable Web Server Access on WAN

This option is to enable Web Server Access function on WAN.

http://www.sapido.com.tw/ User Manual 1.0

40

12. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

5.1.1.6 WAN Access Type – PPTP

If you have applied for a PPTP connection type from ISP, please follow the steps to set up
your WAN connection.

1. IP Address

Input your IP Address supplied by ISP. If you don’t know, please check with your ISP.

http://www.sapido.com.tw/ User Manual 1.0

41

2. Subnet Mask

Input Subnet Mask, normally it is 255.255.255.0.

3. Server IP Address

Input your Server IP Address supplied by ISP. If you don’t know, please check with your ISP.

4. User Name

Input the PPTP Account supplied by ISP, for example. If you don’t know, please check with
your ISP.

5. Password

Input the Password supplied by ISP.

6. MTU Size

MTU stands for Maximum Transmission Unit. For PPPoE connection, the default MTU should
be provided by computer operating systems (OS). Advanced users can set the MTU
manually for increasing the internet performance. The largest number allowed is 1460 byte

7. Request MPPE Encryption

Microsoft Point-to-Point Encryption (MPPE) encrypts data in Point-to-Point Protocol

(PPP)-based dial-up connections or Point-to-Point Tunneling Protocol (PPTP) virtual private
network (VPN) connections. 128-bit key (strong), 56-bit key, and 40-bit key (standard) MPPE
encryption schemes are supported. MPPE provides data security for the PPTP connection
that is between the VPN client and the VPN server.

8. DNS

If ISP provides you DNS information, please select Attain DNS automatically, otherwise
select Set DNS Manually and input the DNS information into the blank.

9. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

10. Enable IGMP Proxy

The Internet Group Management Protocol (IGMP) is a communications protocol used to
manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and
adjacent multicast routers to establish multicast group memberships. You can choose to
enable IGMP Proxy to provide service.

http://www.sapido.com.tw/ User Manual 1.0

42

11. Enable Ping Access on WAN

Select Enable Ping Access on WAN, will make WAN IP address response to any ping
request from Internet users. It is a common way for hacker to ping public WAN IP address, to
see is there any WAN IP address available.

12. Enable Web Server Access on WAN

This option is to enable Web Server Access function on WAN.

13. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

43

5.1.1.7 WAN Access Type – L2TP

If you have applied for a L2TP connection type from ISP, please follow the steps to set up
your WAN connection.

1. Server IP Address

Input your Server IP Address supplied by ISP. If you don’t know, please check with your ISP.

2. User Name

Input the L2TP Account.

3. Password

Input the Password.

http://www.sapido.com.tw/ User Manual 1.0

44

4. MTU Size

MTU stands for Maximum Transmission Unit. For PPPoE connection, the default MTU should
be provided by computer operating systems (OS). Advanced users can set the MTU
manually for increasing the internet performance. The largest number allowed is 1460 byte

5. DNS

If ISP provides you DNS information, please select Attain DNS automatically, otherwise
select Set DNS Manually and input the DNS information into the blank.

6. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

7. Enable IGMP Proxy

The Internet Group Management Protocol (IGMP) is a communications protocol used to
manage the membership of Internet Protocol multicast groups. IGMP is used by IP hosts and
adjacent multicast routers to establish multicast group memberships. You can choose to
enable IGMP Proxy to provide service.

8. Enable Ping Access on WAN

Select Enable Ping Access on WAN, will make WAN IP address response to any ping
request from Internet users. It is a common way for hacker to ping public WAN IP address, to
see is there any WAN IP address available.

9. Enable Web Server Access on WAN

This option is to enable Web Server Access function on WAN.

10. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

45

5.1.2 LAN Interface Setup

Use this page to set up the local IP address and subnet mask for your router. Please select
LAN Interface Setup under the IP Config menu and follow the instructions below to enter
the LAN setting page to configure the settings you want.

1. IP Address

The default value of LAN IP address is 192.168.1.1 for this router.

2. Subnet Mask

Input Subnet Mask, normally it is 255.255.255.0.

3. Default Gateway

Input ISP Default Gateway Address. If you don’t know, please check with your ISP.

4. DHCP

Enable or disable DHCP services. The DHCP server will automatically allocate an unused IP
address from the IP address pool to the requesting computer if enabled.

http://www.sapido.com.tw/ User Manual 1.0

46

5. DHCP Client Range

Define the DHCP client range and then the DHCP server will assign an IP to the requesting
computer from this range. The Show Client will display every assigned IP address, MAC
address, and expired time. The default range is 192.168.1.100 - 192.168.1.200.

6. 802.1d Spanning Tree

IEEE 802.1d Spanning Tree Protocol (STP) is a link layer network protocol that ensures a

loop-free topology for any bridged LAN. The main purpose of STP is to ensure that you do not
create loops when you have redundant paths in your network. Loops are deadly to a network.

7. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

8. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

47

5.1.3 Dynamic DNS Setting

Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static
hostname. Please configure the dynamic DNS below. Please select DDNS under the IP
Config menu, and follow the instructions below to enter the DDNS setting page to configure
the settings you want.

1. Enable / Disable DDNS

Select enable to use DDNS function. Each time your IP address to WAN is changed, and the
information will be updated to DDNS service provider automatically.

2. Service Provider

Choose correct Service Provider from drop-down list, here including DynDNS, TZO,
ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish embedded in 11N Mini Router.

3. Domain Name

This field represents the host name you register to Dynamic-DNS service and expect to
export to the world.

4. User Name /Email

User name is used as an identity to login Dynamic-DNS service.

http://www.sapido.com.tw/ User Manual 1.0

48

5. Password /Key

Password is applied to login Dynamic-DNS service.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the setting on this page.

5.2 Wireless Setup

SAPIDO Light N+ Broadband Router enables fastest 300 Mbps IEEE802.11g wireless
transmissions and keeps compatibility with existing IEEE 802.11n devices. SAPIDO Light N+
Broadband Router complies with IEEE 802.11b/g standard. Please select Wireless under the
main menu.

http://www.sapido.com.tw/ User Manual 1.0

49

5.2.1 Wireless Basic Settings

Follow the instructions to configure the Wireless settings.

1. Disable Wireless LAN Interface

Select Disable Wireless LAN Interface to turn off the wireless function.

2. Band

This field indicates the 802.11x interface mode. For example, “2.4GHz(G)” prevents the

802.11b clients from accessing the router. “2.4GHz(B+G)” allows both 802.11b and 802.11g

clients to access the router. There are 6 options, 2.4 GHz (B/G/N/B+G/G+N/B+G+N) from the
drop down list.

http://www.sapido.com.tw/ User Manual 1.0

50

3. Mode

Select AP, WDS, or AP+WDS to allow or disallow the wireless operation.

Multiple APs

Click Multiple APs to set up 4 different SSIDs to deploy a shared WLAN. Users can add
or limit the properties for each SSID, increasing the flexibility and efficiency of the
network.

(1.) Enable: check it for enable or not.
(2.) Band: select the frequency from the drop down list.
(3.) SSID: please enter different SSID in each class.
(4.) Data Rate: please select the data transmission rate.
(5.) Access: defined the access type.

a. LAN+WAN: the client can access to the Internet and connect to 11N Mobile
router’s GUI to setup.

b. WAN: the client can only access to the Internet.

(6.) Active Client List: display the properties of the client which is connecting

successfully.

(7.) Apply Changes: Please click Apply Changes to initiate or click Reset to cancel.

4. Network Type：：：：

Please select “Infrastructure” or “Ad hoc.” The default is “Infrastructure.” The selection is
disabled when wireless mode is selected to AP.

http://www.sapido.com.tw/ User Manual 1.0

51

5. SSID：：：：

Please input your wireless network name. Default is “11N_Mini_Router”.

6. Channel Width

Please select “20MHZ” or “40MHZ” channel width to change the transmission channels.

7. ControlSideband

Setting the Sideband "Upper" or "lower.”

8. Channel Number

Please select your wireless network channel. There are Auto, 2~11.

9. Broadcast SSID

Enable or disable the SSID broadcast function. Disable this feature can provide more security
of your WLAN.

10. Data Rate

Rate at which data can be communicated (bps); auto, 1M, 2M, 5.5M, 11M, 6M, 9M, 12M, 18M,
24M, 36M, 48M or 54M to be selected from the drop-down list.

11. Associated Clients

Check the WiFi ISP connectors and the connecting status.

12. Enable Mac Clone (Single Ethernet Client)

Copy the MAC Address for identity of some ISPs.

13. Enable Universal Repeater Mode (Acting as AP and Client simultaneously)

Enable Universal Repeater Mode, SAPIDO Light N+ Broadband Router will act as a
wireless AP and AP client at the same time, and able to link to another AP.. It uses AP client
function to connect to a Root AP (any AP) and uses AP function to service all wireless
stations within its coverage. All the stations within the coverage of SAPIDO Light N+
Broadband Router can be bridged to the Root AP. It can help user to extend the coverage of
wireless network.

How to Enable URM (Universal Repeater Mode)
User could enable URM in wireless basic setting page as shown in following figures.
Step 1. Get back to menu “Network Config” and write down the SSID, channel and

http://www.sapido.com.tw/ User Manual 1.0

52

security.

Step 2. Setting the same SSID, channel and security you got form “Network Config”
and Click on Apply Changes to save the setting

Note: The DHCP server should be disabled under menu “LAN Interface Setup” and then the URM could be

enabled.

Step 3. Check the AP connectors and the Wireless connecting status.

14. SSID of Extended Interface

When mode is set to “AP” and Universal Repeater Mode is enabled, user should input SSID
of another AP (the upper level device) in the field of SSID of Extended Interface.

15. Apply Changes & Reset

Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all
the input data.

http://www.sapido.com.tw/ User Manual 1.0

53

5.2.2 Wireless Advanced Settings

Please follow the instructions to configure the Wireless settings.

1. Fragment Threshold

To identify the maximum length of packet, the overflow packet length wil be fragmentized.
The allowed range is 256-2364, and default length is 2346 bytes.

2. RTS Threshold

This value should remain at its default setting of 2347. The range is 0~2347. Should you
encounter inconsistent data flow, only minor modifications are recommended. If a network
packet is smaller than the present RTS threshold size, the RTS/CTS mechanism will not be
enabled. The router sends Request to Send (RTS) frames to a particular receiving station
and negotiates the sending of a data frame. After receiving an RTS, the wireless station
responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.
Fill the range from 0 to 2347 into this blank.

3. Beacon Interval

Beacons are packets sent by an access point to synchronize a wireless network. Specify a
beacon interval value. The allowed setting range is 20-1024 ms.

http://www.sapido.com.tw/ User Manual 1.0

54

4. Preamble Type

The preamble (also called “a header”) is a section of data at the head of a packet that
contains information that wireless devices need when they send and receive packets. Short
preambles improve throughput performance, but some wireless devices require long
preambles. Select the suitable preamble as short or long preamble.

5. IAPP

Inter Access Point Protocol. Allow seamless roaming between Access Points in your
wireless network. Coupled with superior RF performance

6. Protection

Select to enable the wireless protection or not.

7. Aggregation

Data aggregation can reduce the amount of data routed through the network, and increasing
throughput.

8. Short GI

Enabling the Short Guard Interval increases the wireless transmission.

9. RF Output Power

User can adjust the RF output power to get the best wireless connection. There are 5 power
types available: 100%, 70%, 50%, 35%, and 15%.

10. Apply Changes & Reset

Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

55

5.2.3 Wireless Security Setup

4 encryption types can be selected here, please follow the instructions below for each.

1. Encryption – WEP

Enabling WEP can protect your data from eavesdroppers. If you do not need this feature,
select “None” to skip the following setting. SAPIDO Light N+ Broadband Router supports
both 64-bit and 128-bit encryption using the Wired Equivalent Privacy (WEP) algorithm.
Select the type of encryption you want to use (64 or 128 bit) and configure one to four WEP
Keys. The “1280bit” method is more secure than the “64-bit”.

802.1x Authentication

Enable 802.1x Authentication so that a wireless node must be authenticated before it
can gain access to other LAN resources.

http://www.sapido.com.tw/ User Manual 1.0

56

Key Length: For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals
leading by 0x can be entered. For 128bits WEP key, either 13 ASCII characters or 26
hexadecimal digits leading by 0x can be entered.

Note: 128 bits WEP is most secure, but has more encryption/decryption overhead. Note that all wireless devices

must support the same WEP encryption bit size and have the same key. Four keys can be entered here, but
only one key can be selected at a time. The keys can be entered in ASCII or Hexadecimal. Select the item
from drop-down list you wish to use.

Encryption Key: At most four keys can be set. A WEP key is either 10 or 26
hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in
the WEP drop-down list.

2. Encryption – WPA (WPA, WPA2 & WPA2 Mixed)

The WPA, WPA2 & WPA2 Mixed encrypt each frame transmitted from the radio using the
pre-shared key (PSK) which entered from this panel or a key got dynamically through 802.1x.

WPA Authentication Mode

Enterprise (RADIUS): Please input the port, IP address, and password of
authentication RADIUS Server.

Personal (Pre-Shared Key): Pre-Shared Key type is coding in ASCII, and the
length is between 8 to 63 characters. If the coding is in Hex, the key length is 64
characters.

3. Apply Changes & Reset

Click on Apply Changes

to save the setting data. Or you may click on Reset to clear all the

input data.

http://www.sapido.com.tw/ User Manual 1.0

57

5.2.4 Wireless Access Control

With the MAC address, you may allow or disallow the access to your AP.

1. Wireless Access Control Mode

“Allowed Listed” means only the MAC address listed on the allowed list can access to your
wireless network.

“Deny Listed” means the listed MAC Address are not allowed to link to your wireless
network.

“Disable” for function disuse.

2. MAC Address

Please input the allowed or denied MAC address, for example, 001122334455.

3. Comment

You may input the comments for the set MAC Address.

4. Apply Changes & Reset

Click on “Apply Change” to save the setting data. Or you may click on “Reset” to clear all the
input data.

5. Current Access Control List

In this list, all the MAC info you input will be displayed.

http://www.sapido.com.tw/ User Manual 1.0

58

6. Delete Selected and Delete All

Click on “Delete Selected” to erase the selected MAC address. Click on “Delete All” to erase
all the entered MAC Address.

5.2.5 WDS Settings

WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless

bridging in which only WDS APs communicate with each other (without allowing for wireless
clients or stations to access them), and/or wireless repeating in which APs communicate both
with each other and with wireless stations (at the expense of half the throughput).

Internet

AP Router

WDS

AP Router

WDS

Wireless Connection

Wired Connection

Please follow the instructions to setup WDS connections.

http://www.sapido.com.tw/ User Manual 1.0

59

Step 1. Check the MAC address and Channel number of the device you want to setup
WDS with 11N Mini Router.

Step 2. Get back to the menu “Wireless Basic Settings” of 11N Mini Router. Select
AP+WDS mode, and then select the Channel Number. Click Apply Changes to save the

setting data.

http://www.sapido.com.tw/ User Manual 1.0

60

Step 3. Enter the WDS Settings page, select Enable WDS, and then input the MAC
address of the paired device. Click Apply Changes to save the setting data.

Step 4. When the time counts down to 0, you will see the MAC address of the paired
device displaying on Current WDS AP List.

Step 5. Head back to LAN Interface, disable DHCP option, and then click Apply Changes
to save the setting data.

http://www.sapido.com.tw/ User Manual 1.0

61

Step 6. Doing the same way to setup the MAC address in the paired device. Launch the
UT to the menu “WDS settings” of the paired device, and input router’s MAC address. Click

Apply Changes to save the setting data.

Step 7. After initiating the paired device, please check Local Area Connections. Click

Supports to check out the IP address which is assigned by the paired device.

Input the MAC address here.

http://www.sapido.com.tw/ User Manual 1.0

62

Step 8. You can input http://192.168.9.9 in IE browser to enter the GUI page of the paired
device and make sure the connection.

http://www.sapido.com.tw/ User Manual 1.0

63

5.2.6 WPS

Wi-Fi Protected Setup (WPS) is an easy way to establish a secured wireless network

between SAPIDO Light N+ Broadband Router and wireless card. Users do not need to
manually entering a creative, yet predictable security key on both Wi-Fi devices to prevent
unwanted access to their wireless network. With WPS, it can automatically configure a
wireless network with a network name (SSID) and strong WPA data encryption and
authentication.

WPS can be enabled by 2 methods:

1. PBC (Push button configuration) Method, in which the user simply has to push a
button, either an actual or a virtual one, on both WPS devices to connect.

2. PIN (Personal Identification Number) Method, in which a PIN has to be taken either
from a sticker label or from the web interface of the WPS device. This PIN will then be
entered in the AP or client WPS device to connect.

Please follow instructions below to enable the WPS function.

Start PBC:

(1.) Press the WPS button from SAPIDO Light N+ Broadband Router or click Start

PBC from menu “Wi-Fi Protected Setup”, and waiting for the WPS wireless card
setting.

http://www.sapido.com.tw/ User Manual 1.0

64

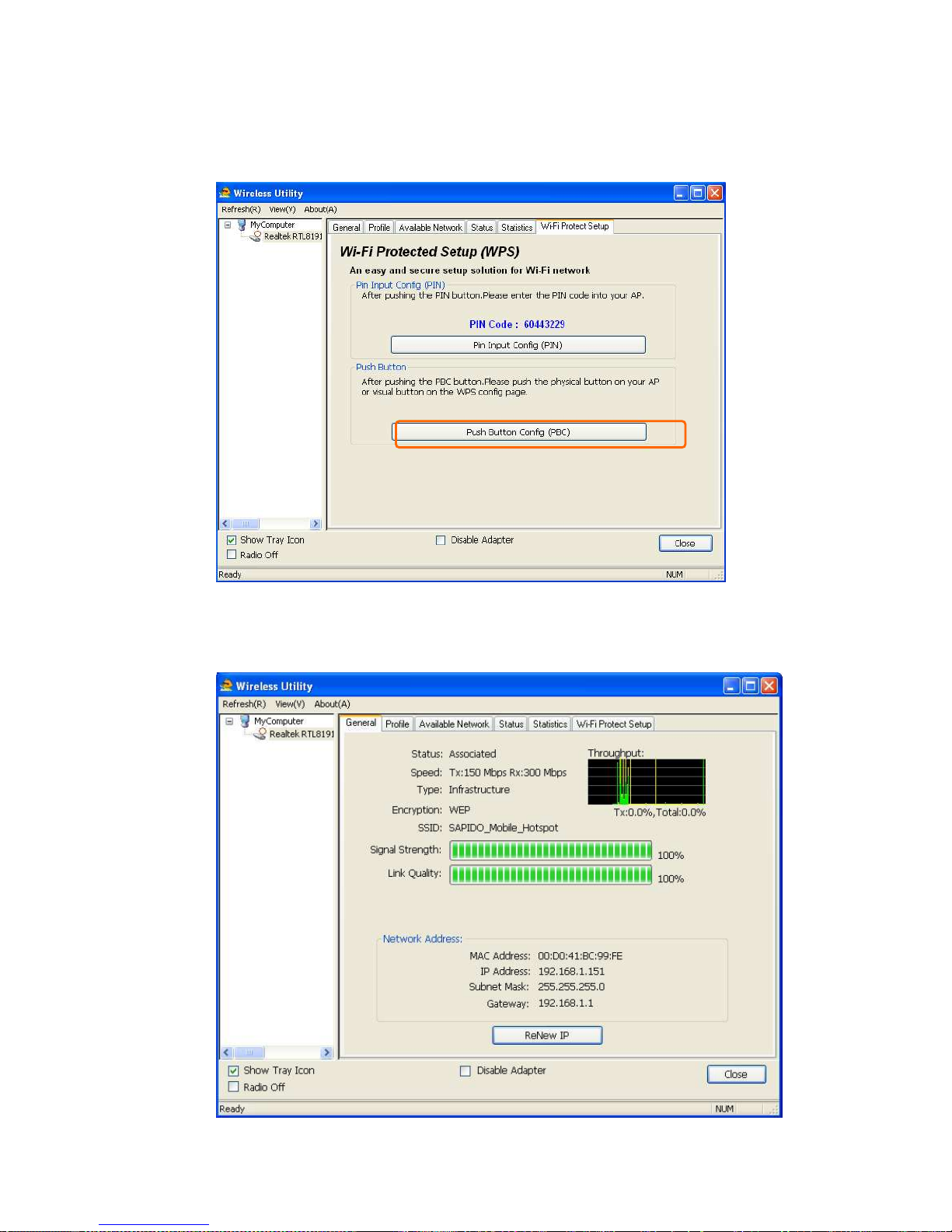

(2.) Open the “Wireless Utility” of your wireless card, and click its “PBC” button, to

start auto pairing.

(3.) While scanning is successful, the information of the wireless card appears in the

windows below.

http://www.sapido.com.tw/ User Manual 1.0

65

Start PIN:

(1.) Open the “Wireless Utility” of your wireless card. Follow its PIN instruction to get

a new PIN number. Write it down.

(2.) Open menu “Wi-Fi Protected Setup” of 11N Mini Router, input the PIN number

from the wireless card then click Start PIN.

Enter the PIN Code you got
from the wireless card.

http://www.sapido.com.tw/ User Manual 1.0

66

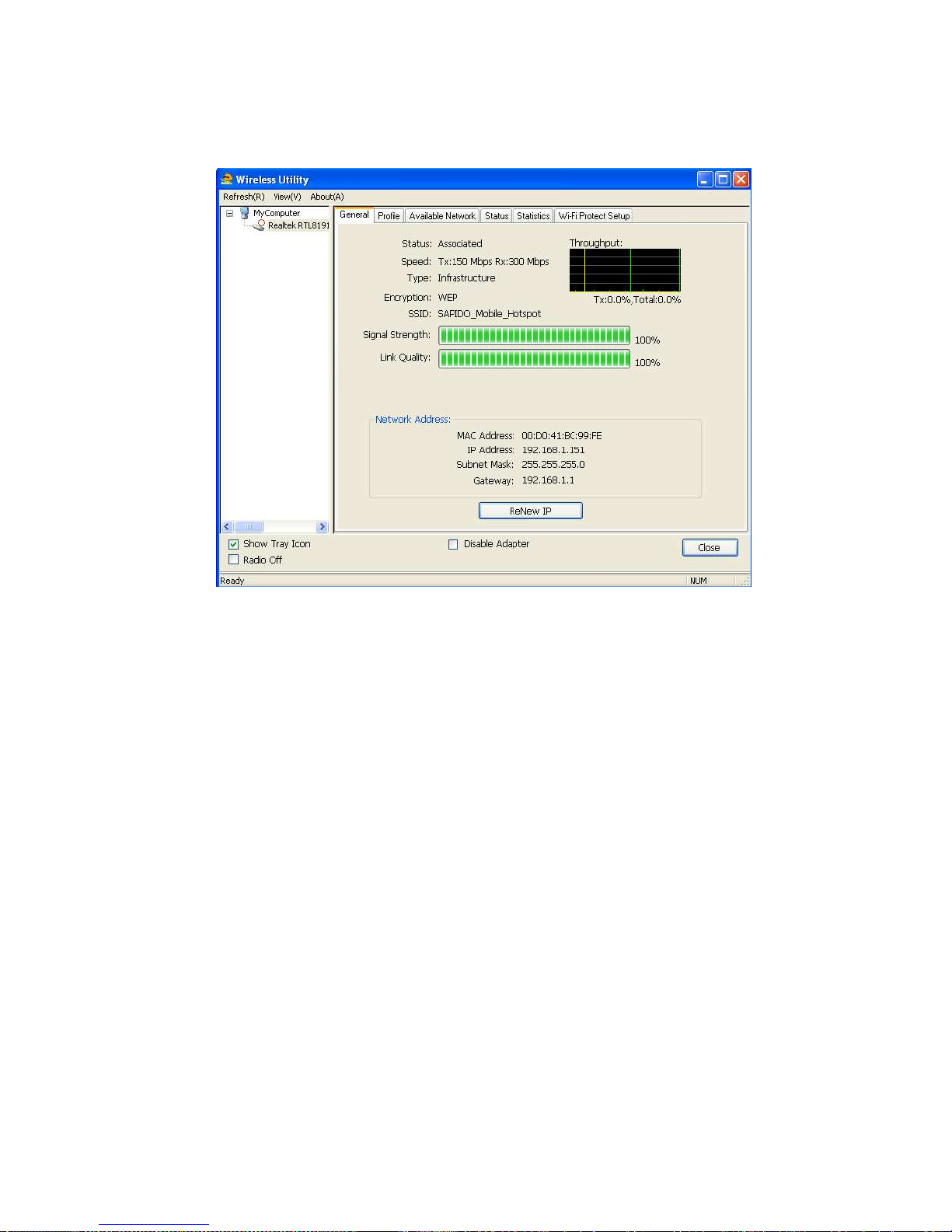

(3.) Back to “Wireless Utility” and press the “Start PIN” button to complete the

auto-paring process.

5.3 NAT

NAT is a method of mapping one or more IP addresses and/or services ports into different
specified services, where NAT stands for Network Address Translation. It allows the internal
IP addresses of many computers on a Local Area Network (LAN) to be translated to one
public address, saving users’ cost. It also plays a security role by obscuring the true IP
addresses of important machines from potential hackers on the Internet. For convenience, we
called a router having the NAT facility as a NAT-enabled router.

5.3.1 Visual Server

To offer services, like WWW, FTP, provided by a server in your local network accessible for
outside users, you should specify a local IP address to the server. Then, add the IP address
and network protocol type, port number, and name of the service in the following list. Based
on the list, the gateway will forward service request from outside users to the corresponding
local server.

http://www.sapido.com.tw/ User Manual 1.0

67

1. Enable Port Forwarding

Enable Port Forwarding to allow an external user to reach a port within a private LAN.

2. IP Address

Specify the private IP address of the internal host offering the service.

3. Protocol

Specify the transport layer protocol (TCP or UDP).

4. Port Range

Enter the Start and End ports in the range you'd like to forward. If you're just forwarding 1 port,
set them both equal. For example 80-80 or 20-22。

5. Comment

You can add comments for this port forwarding rule.

6. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

7. Current Port Forwarding Table

http://www.sapido.com.tw/ User Manual 1.0

68

It will display all port forwarding regulation you made.

8. Delete Selected & Delete All

Click Delete Selected will delete the selected item. Click Delete All will delete all items in this
table.

9. Reset

You can click Reset to cancel.

Port Forwarding

The following figure shows the ip forwarding configuration of your web on a local area
network. The web server is located on 192.168.1.100, forwarding port is 80, and type is
TCP+UDP.

http://www.sapido.com.tw/ User Manual 1.0

69

5.3.2 Visual DMZ

Virtual DMZ allows you to expose one computer to Internet, so that all inbound packets will be
redirected to the computer you set. It is useful while you run some applications that use
uncertain incoming ports. Please use it carefully.

1. Enable DMZ

Check Enable to apply Virtual DMZ for the Router.

2. DMZ Host IP Address

This field stands for the destination IP address that you like to redirect the matched packet to.

3. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

70

5.4 Firewall

The Firewall function helps to protect your local network against attacks from outside. It also
provides a way of restricting users on the local network from accessing the Internet.
Additionally, it can filter out specific packets to trigger the router to place an outgoing
connection.

5.4.1 Port Filtering

This function allows users to filter and manage specific ports; to limit the use of certain
applications to transmit through a specific port. Port filtering helps users to improve the
security of your network.

1. Enable Port Filtering

http://www.sapido.com.tw/ User Manual 1.0

71

Check Enable Port Filtering to start the service.

2. Port Range

Enter the Start and End ports in the range you'd like them to be filtered.

3. Protocol

Please select the protocol type of the port.

4. Comment

You can add comments for this Port Filtering rule.

5. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

6. Current Filter Table

It will display all ports that are filtering now.

7. Delete Selected & Delete All

Click Delete Selected will delete the selected item. Click Delete All will delete all items in this
table.

8. Reset

You can click Reset to cancel.

Port Filtering

The following figure shows a user limits some applications to use the 80 port.

*All clients inside the local area network can’t open the 80 port through this router.

http://www.sapido.com.tw/ User Manual 1.0

72

5.4.2 IP Filtering

Use IP Filter to deny LAN IP addresses from accessing the Internet. You can deny specific
port numbers or all ports for the specific IP address.

1. Enable IP Filtering

Check enable or disable to apply IP Filter function.

2. Local IP Address

Please enter the IP address that needs to be filtered.

3. Protocol

Please select the protocol type of the IP address.

4. Comment

You can add comments for this regulation.

5. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

6. Current Filter Table

http://www.sapido.com.tw/ User Manual 1.0

73

It will display all IP addresses that are filtering now.

7. Delete Selected & Delete All

Click Delete Selected will delete the selected item. Click Delete All will delete all items in this
table.

8. Reset

You can click Reset to cancel.

5.4.3 MAC Filtering

Use MAC filters to deny LAN computers by their MAC addresses from accessing the Internet.
You can manually add a MAC address that is currently connected to 11N Mini Router.

1. Enable MAC Filtering

Check enable or disable to apply MAC Filter function.

2. MAC Address

Enter the MAC address manually that you want to filter.

3. Comment

You can add comments for this MAC Filtering rule.

http://www.sapido.com.tw/ User Manual 1.0

74

4. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

5. Current Filter Table

It will display all MAC addresses that are filtering now.

6. Delete Selected & Delete All

Click Delete Selected will delete the selected item. Click Delete All will delete all items in this
table.

7. Reset

You can click Reset to cancel.

5.4.4 URL Filtering

Keyword based URL (Uniform Resource Locator) filtering allows you to define one or more
keywords that should not appear in URL’s. Any URL containing one or more of these
keywords will be blocked. This is a policy independent feature i.e. it cannot be associated to
ACL rules. This feature can be independently enabled / disabled, but works only if firewall is
enabled.

http://www.sapido.com.tw/ User Manual 1.0

75

1. Enable URL Filtering

Check enable or disable to apply URL filter function.

2. URL Address

Enter the URL address into this blank to apply filter blocking, example: “www.yahoo

.com.

3. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

4. Current Filter table

Shows all filtered URL information.

5. Delete Selected & Delete All

Click Delete Selected will delete the selected item. Click Delete All will delete all items in this
table.

6. Reset

You can click Reset to cancel.

Note: URL Filtering cannot work when the Visual Server is enabled. Please disable Visual Server before activate

filter.

http://www.sapido.com.tw/ User Manual 1.0

76

5.5 System Management

SAPIDO Light N+ Broadband Router provides system management including password
changing, firmware upgrade, time setting, user’s account setting and other detail settings.
Following is detail explanation for each.

5.5.1 Change Password

Users can set or change their password in this section.

1. New Password

Enter the new password you want to change.

http://www.sapido.com.tw/ User Manual 1.0

77

2. New Password (Confirm)

Enter the new password again for confirming.

3. Apply & Cancel

Click Apply to continue or Cancel to clear the settings on this page.

Note: 1. Only the password can be changed, the user name for administrator is admin and not to be changed.

2. If you forget administrator’s password, please reset 11N WLAN Mobile Server Router to default setting by
pressing the “Reset” button on the rear panel over 5 seconds. And the password will return to admin.

5.5.2 Upgrade Firmware

There is certain risk while upgrading firmware. Upgrading firmware is not recommended
unless the significant faulty is found. You can upgrade the firmware of SAPIDO Light N+
Broadband Router on this page. Make sure the firmware you want to use is on the local hard
drive of the computer. Click Upgrade Firmware to proceed.

1. Update Firmware

Click on Browse… button to search your local hard drive and locate the firmware to be
used for update.

2. Upload & Reset:

Click Upload to upgrade the firmware or Reset to restore to factory default Settings

Note: 1. To prevent the firmware upgrading interrupted by other wireless signals and caused failure. We

recommend using wired connection to do the upgrading.

2. Before upgrading the firmware, please remove any USB device which connected with this router.

3.

The firmware upgrade will not remove your previous settings.

Reset button:

On the back of this router, there is a reset button. If you can not login the administrator page

http://www.sapido.com.tw/ User Manual 1.0

78

by forgetting your password; or the router has problem you can’t solve. You can push the
reset button for 5 seconds with a stick. The router will reboot and all settings will be restored
to factory default settings. If the problem still exists, you can visit our web site to see if there is
any firmware for download to solve the problem.

5.5.3 Save / Reload Settings

To back up the current configuration setting or load the backup data, also you can restore
SAPIDO Light N+ Broadband Router to default setting by this function.

1. Save Settings To File

Step 1. Click on Save button for saving the configuration setting into assigned

location.

http://www.sapido.com.tw/ User Manual 1.0

79

A pop window will show up and ask to save config.dat file.

Step 2. Please select the location, for example: the desktop.

Step 3. The file you just saved will appear on the desktop.

http://www.sapido.com.tw/ User Manual 1.0

80

2. Load Settings From File

Step 1. Click on “Browse…” button for searching the saving configuration from hard

drive, and then click on Upload button to load all the settings into the router.

Step 2. Select the config.dat file.

Step 3. Click Upload to retrieve.

Step 4. When you see the screen below, the updating is completed. Please click OK to

http://www.sapido.com.tw/ User Manual 1.0

81

return to the main menu.

3. Reset Setting to Default

After you have tried other methods for troubleshooting your network, you may choose to
restore SAPIDO Light N+ Broadband Router to the factory default settings.

When you see the screen below, the resetting is completed. Please click OK and return to the
main menu.

http://www.sapido.com.tw/ User Manual 1.0

82

5.5.4 Time Zone Setting

The System time is the time used by SAPIDO Light N+ Broadband Router for scheduling
services. You can manually set the time or connect to a NTP (Network Time Protocol) server.
If a NTP server is set, you will only need to set the time zone. If you manually set the time,
you may also set Daylight Saving dates and the system time will automatically adjust on
those dates.

1. Current Time

Users can input the time manually.

http://www.sapido.com.tw/ User Manual 1.0

83

2. Time Zone Select
Select your time zone location from the drop-down list.

3. Enable NTP client update

Check to enable NTP client update.

4. Automatically Adjust Daylight Saving

If you are in daylight saving time area, please enable this item.

5. NTP server

Please select the NTP server from the pull-down list, or you can enter the NTP server IP
address manually.

6. Apply Changes & Reset & Refresh

Please click on Apply Changes to save the setting data. Or you may click on Reset to clear
all the input data. Or you may click on Refresh to update the system time on the screen.

7. NTP Server Type & Default NTP Server

Choose “General Time Server” and select the NTP Server from the drop-down list or
choose “Customized Time Server” and enter the server by manual.

5.5.5 UPnP Setting

UPnP (Univsersal Plug and Play) allows users to connect their UPnP-enabled Mini Router,
printer server and other devices right to the network with zero-configuration, meaning easier
setup for installing the device on the network. The automatic discovery feature enables the
device to obtain an IP address, present and describe itself to other devices and PCs on the
network without having to install drivers, but to configure and use those devices.

http://www.sapido.com.tw/ User Manual 1.0

84

After enabling UPNP, click My Network Places, and user can open the web GUI by just
clicking on the Internet Gateway Device icon.

5.6 Log & Status

SAPIDO Light N+ Broadband Router provides the log list and connection status for user to
check.

http://www.sapido.com.tw/ User Manual 1.0

85

5.6.1 Network Config

Network Configuration shows the firmware version and the connection status of LAN, WAN
and Wireless.

http://www.sapido.com.tw/ User Manual 1.0

86

5.6.2 Event Log

SAPIDO Light N+ Broadband Router provides system logs for review.

1. Enable Log

Select Enable Log to record the system log

2. system all, wireless & DoS
Select Wireless, DoS or system all to record

3. Enable Remote Log

You may choose to enable the remote event log or not.

4. Log Server IP Address

Please input the log server IP Address.

5. Apply Changes & Refresh & Clear

Click on Apply Changes to save the setting data. Click on Refresh to renew the system time,
or on Clear to clear all the record.

http://www.sapido.com.tw/ User Manual 1.0

87

After clicking Apply Changes to record the event log, it will be shown as the example

below.

5.7 Logout

Click Logout on the bottom menu to exit and go back to GUI login home page.

http://www.sapido.com.tw/ User Manual 1.0

88

Chapter 6 Advance Configuration for AP Mode

6.1 IP Configuration

This function allows you to add routing rules into 11N Mini Router, including LAN and Site
Survey.

6.1.1 LAN Setup

Use this page to set up the local IP address and subnet mask for your router. Please select
LAN under the IP Config menu and follow the instructions below to enter the LAN setting
page to configure the settings you want.

6.1.2 LAN Interface Setup

http://www.sapido.com.tw/ User Manual 1.0

89

1. IP Address
The default value of LAN IP address is 192.168.1.254 for this router.

2. Subnet Mask
Input Subnet Mask, normally it is 255.255.255.0.

3. Default Gateway

Input ISP Default Gateway Address. If you don’t know, please check with your ISP.

4. DHCP

Enable or disable DHCP services. The DHCP server will automatically allocate an unused IP
address from the IP address pool to the requesting computer if enabled.

5. DHCP Client Range

Define the DHCP client range and then the DHCP server will assign an IP to the requesting
computer from this range. The Show Client will display every assigned IP address, MAC
address, and expired time. The default range is 192.168.1.100 - 192.168.1.200.

6. 802.1d Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP) is a link layer network protocol that ensures a

loop-free topology for any bridged LAN. The main purpose of STP is to ensure that you do not
create loops when you have redundant paths in your network. Loops are deadly to a network.

7. Clone MAC Address

Copy the MAC address from the device you had registered to your ISP if your ISP asks for
the specific MAC Address.

8. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

90

6.2 Wireless Setup

Please select Wireless under the main menu.

6.2.1 Wireless Basic Settings

Follow the instructions to configure the Wireless settings.

http://www.sapido.com.tw/ User Manual 1.0

91

1. Disable Wireless LAN Interface
Select Disable Wireless LAN Interface to turn off the wireless function.

2. Band

This field indicates the 802.11x interface mode. For example, “2.4GHz(G)” prevents the

802.11b clients from accessing the router. “2.4GHz(B+G)” allows both 802.11b and 802.11g
clients to access the router. There are 6 options, 2.4 GHz (B/G/N/B+G/G+N/B+G+N) from the
drop down list.

3. Mode

Select AP, WDS, or AP+WDS to allow or disallow the wireless operation.

Multiple APs

Click Multiple APs to set up 4 different SSIDs to deploy a shared WLAN. Users can add
or limit the properties for each SSID, increasing the flexibility and efficiency of the
network.

(1.) Enable: check it for enable or not.
(2.) Band: select the frequency from the drop down list.
(3.) SSID: please enter different SSID in each class.
(4.) Data Rate: please select the data transmission rate.
(5.) Access: defined the access type.

a. LAN+WAN: the client can access to the Internet and connect to 11N Mobile
Router’s GUI to setup.

b. WAN: the client can only access to the Internet.

http://www.sapido.com.tw/ User Manual 1.0

92

(6.) Active Client List: display the properties of the client which is connecting

successfully.

(7.) Apply Changes: Please click Apply Changes to initiate or click Reset to cancel.

4. Network Type：：：：

Please select “Infrastructure” or “Ad hoc.” The default is “Infrastructure.” The selection is
disabled when wireless mode is selected to AP.

5. SSID：：：：

Please input your wireless network name. Default is “11N_Mini_Router”.

6. Channel Width
Please select “20MHZ” or “40MHZ” channel width to change the transmission channels.

7. ControlSideband
Setting the Sideband "Upper" or "Lower.”

8. Channel Number

Please select your wireless network channel. There are Auto, 2~11.

9. Broadcast SSID

Enable or disable the SSID broadcast function. Disable this feature can provide more security
of your WLAN.

10. Data Rate

Rate at which data can be communicated (bps); auto, 1M, 2M, 5.5M, 11M, 6M, 9M, 12M, 18M,
24M, 36M, 48M or 54M to be selected from the drop-down list.

11. Associated Clients

Check the WiFi ISP connectors and the connecting status.

12. Enable Mac Clone (Single Ethernet Client)

Copy the MAC Address for identity of some ISPs.

13. Enable Universal Repeater Mode (Acting as AP and Client simultaneously)

Enable Universal Repeater Mode, SAPIDO Light N+ Broadband Router will act as a
wireless AP and AP client at the same time, and able to link to another AP.. It uses AP client
function to connect to a Root AP (any AP) and uses AP function to service all wireless

http://www.sapido.com.tw/ User Manual 1.0

93

stations within its coverage. All the stations within the coverage of SAPIDO Light N+
Broadband Router can be bridged to the Root AP. It can help user to extend the coverage of
wireless network.

How to Enable URM (Universal Repeater Mode)
User could enable URM in wireless basic setting page as shown in following figures.
Step 1. Get back to menu “Network Config” and write down the SSID, channel and

security.

Step 2. Setting the same SSID, channel and security you got form “Network Config”

and Click on Apply Changes to save the setting

http://www.sapido.com.tw/ User Manual 1.0

94

Note: The DHCP server should be disabled under menu “LAN Interface Setup” and then the URM could be

enabled.

Step 3. Check the AP connectors and the Wireless connecting status.

14. SSID of Extended Interface

When mode is set to “AP” and Universal Repeater Mode is enabled, user should input SSID
of another AP (the upper level device) in the field of SSID of Extended Interface.

15. Apply Changes & Reset

Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all
the input data.

http://www.sapido.com.tw/ User Manual 1.0

95

6.2.2 Wireless Advanced Settings

Please follow the instructions to configure the Wireless settings.

1. Fragment Threshold

To identify the maximum length of packet, the overflow packet length wil be fragmentized.
The allowed range is 256-2364, and default length is 2346 bytes.

2. RTS Threshold

This value should remain at its default setting of 2347. The range is 0~2347. Should you
encounter inconsistent data flow, only minor modifications are recommended. If a network
packet is smaller than the present RTS threshold size, the RTS/CTS mechanism will not be
enabled. The router sends Request to Send (RTS) frames to a particular receiving station
and negotiates the sending of a data frame. After receiving an RTS, the wireless station
responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.
Fill the range from 0 to 2347 into this blank.

3. Beacon Interval

Beacons are packets sent by an access point to synchronize a wireless network. Specify a
beacon interval value. The allowed setting range is 20-1024 ms.

http://www.sapido.com.tw/ User Manual 1.0

96

4. Preamble Type

The preamble (also called “a header”) is a section of data at the head of a packet that
contains information that wireless devices need when they send and receive packets. Short
preambles improve throughput performance, but some wireless devices require long
preambles. Select the suitable preamble as short or long preamble.

5. IAPP

Inter Access Point Protocol. Allow seamless roaming between Access Points in your
wireless network. Coupled with superior RF performance

6. Protection

Select to enable the wireless protection or not.

7. Aggregation

Data aggregation can reduce the amount of data routed through the network, and increasing
throughput.

8. Short GI

Enabling the Short Guard Interval increases the wireless transmission.

9. RF Output Power

User can adjust the RF output power to get the best wireless connection. There are 5 power
types available: 100%, 70%, 50%, 35%, and 15%.

10. Apply Changes & Reset

Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

97

6.2.3 Wireless Security Setup

4 encryption types can be selected here, please follow the instructions below for each.

1. Encryption – WEP

Enabling WEP can protect your data from eavesdroppers. If you do not need this feature,
select “None” to skip the following setting. SAPIDO Light N+ Broadband Router supports
both 64-bit and 128-bit encryption using the Wired Equivalent Privacy (WEP) algorithm.
Select the type of encryption you want to use (64 or 128 bit) and configure one to four WEP
Keys. The “1280bit” method is more secure than the “64-bit”.

Use 802.1x Authentication
Enable 802.1x Authentication so that a wireless node must be authenticated before it

can gain access to other LAN resources.

http://www.sapido.com.tw/ User Manual 1.0

98

Key Length: For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals
leading by 0x can be entered. For 128bits WEP key, either 13 ASCII characters or 26
hexadecimal digits leading by 0x can be entered.

Note: 128 bits WEP is most secure, but has more encryption/decryption overhead. Note that all wireless devices

must support the same WEP encryption bit size and have the same key. Four keys can be entered here, but
only one key can be selected at a time. The keys can be entered in ASCII or Hexadecimal. Select the item
from drop-down list you wish to use.

Encryption Key: At most four keys can be set. A WEP key is either 10 or 26
hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in
the WEP drop-down list.

2. Encryption – WPA (WPA, WPA2 & WPA2 Mixed)

The WPA, WPA2 & WPA2 Mixed encrypt each frame transmitted from the radio using the
pre-shared key (PSK) which entered from this panel or a key got dynamically through

802.1x.
WPA Authentication Mode

Enterprise (RADIUS): Please input the port, IP address, and password of
authentication RADIUS Server.

Personal (Pre-Shared Key): Pre-Shared Key type is coding in ASCII, and the
length is between 8 to 63 characters. If the coding is in Hex, the key length is 64
characters.

http://www.sapido.com.tw/ User Manual 1.0

99

3. Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the
input data.

http://www.sapido.com.tw/ User Manual 1.0

100

6.2.4 Wireless Access Control

With the MAC address, you may allow or disallow the access to your AP.

1. Wireless Access Control Mode

“Allowed Listed” means only the MAC address listed on the allowed list can access to your
wireless network.

“Deny Listed” means the listed MAC Address are not allowed to link to your wireless
network.

“Disable” for function disuse.

2. MAC Address

Please input the allowed or denied MAC address, for example, 001122334455.

3. Comment

You may input the comments for the set MAC Address.

4. Apply Changes & Reset

Click on “Apply Change” to save the setting data. Or you may click on “Reset” to clear all the
input data.

5. Current Access Control List

In this list, all the MAC info you input will be displayed.
