SAPIDO GR-1736 User Manual

Download

Comment

You can add comments for this regulation.

Apply Changes & Reset

Current Filter Table Delete Selected & Delete

All Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data.

It will display all ports that are filtering now.

Click Delete Selected will delete the selected item. Click Delete All

will delete all items in this table.

You can click Reset to cancel.

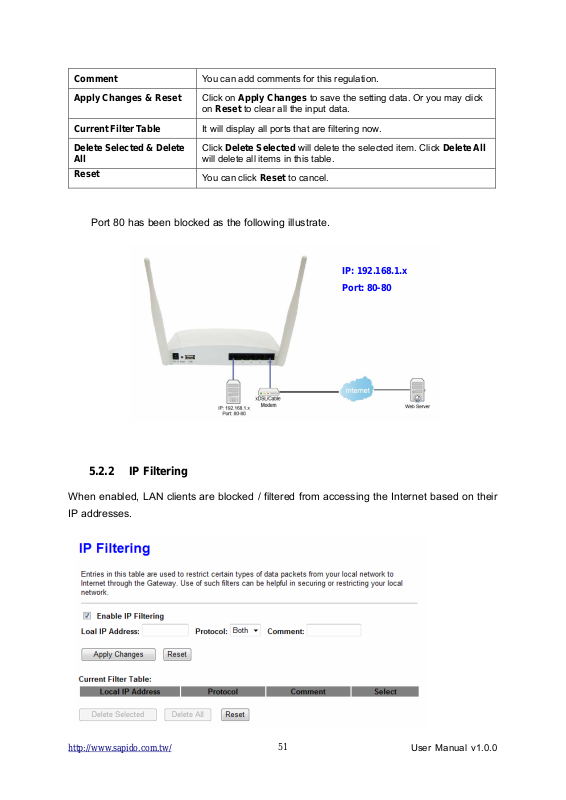

Port 80 has been blocked as the following illustrate.

IP: 192.168.1.x Port: 80-80

5.2.2 IP Filtering

When enabled, LAN clients are blocked / filtered from accessing the Internet based on their

IP addresses.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable IP Filtering Local IP Address Protocol Comment Apply Changes & Reset

Current Filter Table Delete Selected & Delete

All Reset

Please select Enable IP Filtering to filter IP addresses.

Please enter the IP address that needs to be filtered.

Please select the protocol type of the IP address

You can add comments for this regulation.

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data.

It will display all ports that are filtering now.

Click Delete Selected will delete the selected item. Click Delete All

will delete all items in this table.

You can click Reset to cancel.

5.2.3 MAC Filtering

When enabled, filtering will be based on the MAC address of LAN computers. Any computer

with its MAC address on this list will be blocked from accessing the Internet.

Item Description Enable MAC Filtering MAC Address Comment Apply Changes & Reset

Current Filter Table Delete Selected & Delete

http://www.sapido.com.tw/ User Manual v1.0.0

Please select Enable MAC Filtering to filter MAC addresses.

Please enter the MAC address that needs to be filtered.

You can add comments for this regulation.

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data.

It will display all ports that are filtering now.

Click Delete Selected will delete the selected item. Click Delete All

All Reset

will delete all items in this table.

You can click Reset to cancel.

5.2.4 URL Filtering

URL Filtering is used to restrict users to access specific websites in internet

Item Description Enable URL Filtering URL Address Apply Changes & Reset

Current Filter Table Delete Selected & Delete

All Reset

Notes: This function will not be in effect when the Virtual Server is enabled. Please disable Virtual Server before

activate the URL Filtering function.

Please select Enable MAC Filtering to filter MAC addresses

Please enter the MAC address that needs to be filtered.

Click on Apply Changes to save the setting data. Or you may click on

Reset to clear all the input data.

It will display all ports that are filtering now.

Click Delete Selected will delete the selected item. Click Delete All

will delete all items in this table.

You can click Reset to cancel.

5.2.5 QoS

The QoS can let you classify Internet application traffic by source/destination IP address and

port number.

To assign priority for each type of application and reserve bandwidth can let you have a better

experience in using critical real time services like Internet phone, video conference …etc.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable QoS

Automatic uplink speed / Manual Uplink Speed

Automatic downlink speed / Manual Downlink Speed

QoS Rule Advance Setting: Address Type Local IP Address

MAC Address Mode

Bandwidth Comment

Check “Enable QoS” to enable QoS function for the WAN port. You also can uncheck “Enable QoS” to disable QoS function for the WAN port.

Set the uplink speed by manual to assign the download or upload bandwidth by the unit of Kbps or check the Automatic uplink speed.

Set the downlink speed by manual to assign the download or upload bandwidth by the unit of Kbps or check the Automatic downlink speed.

Set QoS by IP Address or MAC address

Set local IP Address if the address type is by IP Address

Set MAC Address if the address type is by MAC Address

Select Guaranteed minimum bandwidth or Restricted maximum

bandwidth

Key in the bandwidth.

Write your comment here.

http://www.sapido.com.tw/ User Manual v1.0.0

Apply Changes & Reset

5.2.6 Denial of Service

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data.

Item Description

Enable DoS Prevention

Check “ prevention. You also can uncheck ““

disable DoS function.

Enable DoS Prevention” to enable DoS function for

Enable DoS Prevention” to

5.2.7 VLAN Settings

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description

Tag VID Priority

CIF

Add VLAN tag to packet

Set VLAN ID（1~4096）

It indicates the frame priority level. Values are from 0 (best effort) to 7 (highest); 1 represents the lowest priority

Enable or Disable CIF

5.3 Server Setup

5.3.1 FTP

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable FTP Server Enable Anonymous to

WAN FTP Server Port Idle Connection Time-Out

5.3.2 Webcam server

FTP server start or stop

Agree anonymous account login to FTP server

Allow user access device FTP server from WAN side（internet）

Default FTP server port is 21

FTP process should have an idle timeout, which will terminate the process and close the control connection if the server is inactive (i.e., no command or data transfer in progress) for a long period of time

http://www.sapido.com.tw/ User Manual v1.0.0

1. USB port information

Show Link webcam information

2. Enabling webcam

Enable or disable the webcam

3. Control from the WAN side

Whether to allow viewing webcam images from the WAN

4. Port webcam

5. Connection port view webcam

6. View live webcam video watch

7. Record Setup

Recording interval

How often take an image

Video Storage

Providing native USB storage device and a remote FTP server for storing images

taken

http://www.sapido.com.tw/ User Manual v1.0.0

image format

Provide two formats AVI and JPG

remote FTP location

If the captured image saved to a remote FTP location, be Zhen into a remote FTP

location

Remote FTP Port

FTP port used by remote

remote FTP login account

remote FTP Password

folder location remote FTP Login

maximum amount of shooting：How many files in one folder

Note：a JPG file size is about 13KB, and AVI file size is about 45127KB

(when maximum recording frames is 1000), file size may vary due to

webcam models have different sizes

http://www.sapido.com.tw/ User Manual v1.0.0

Chapter 6 Advanced Setup

You can find advanced settings in this section.

Router Mode only.

AP Mode only.

WiFi AP Mode only.

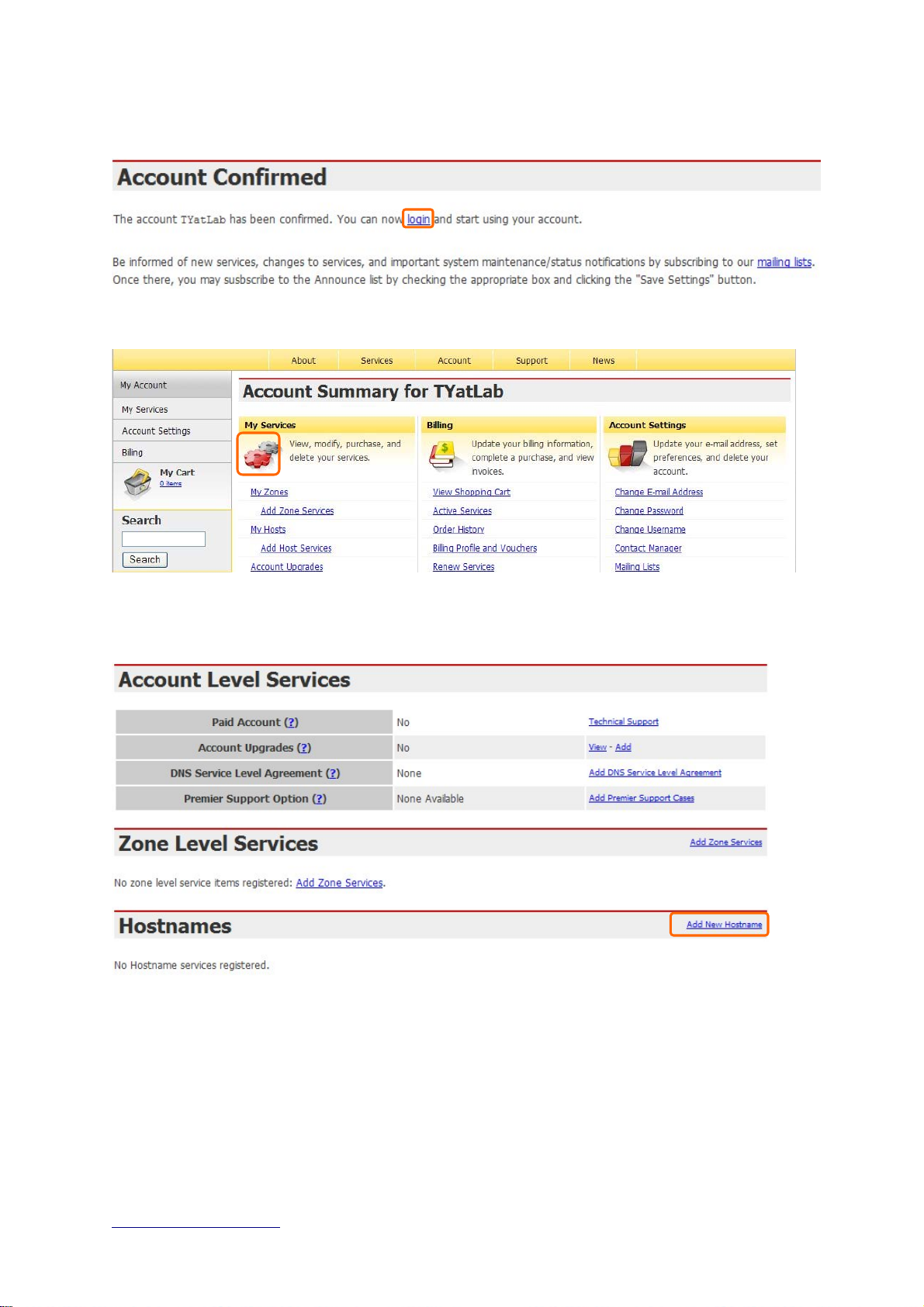

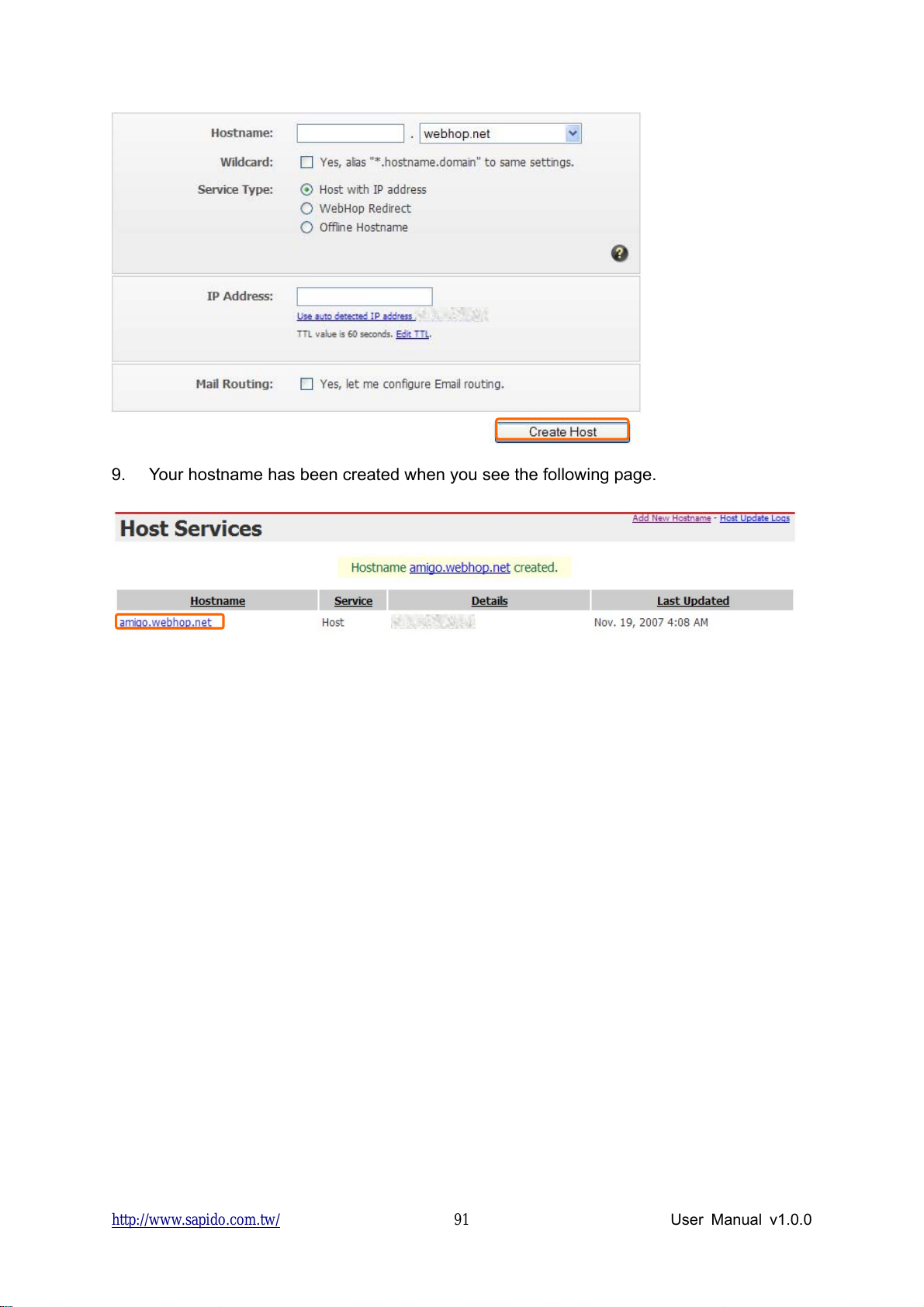

6.1 Dynamic DNS Setting

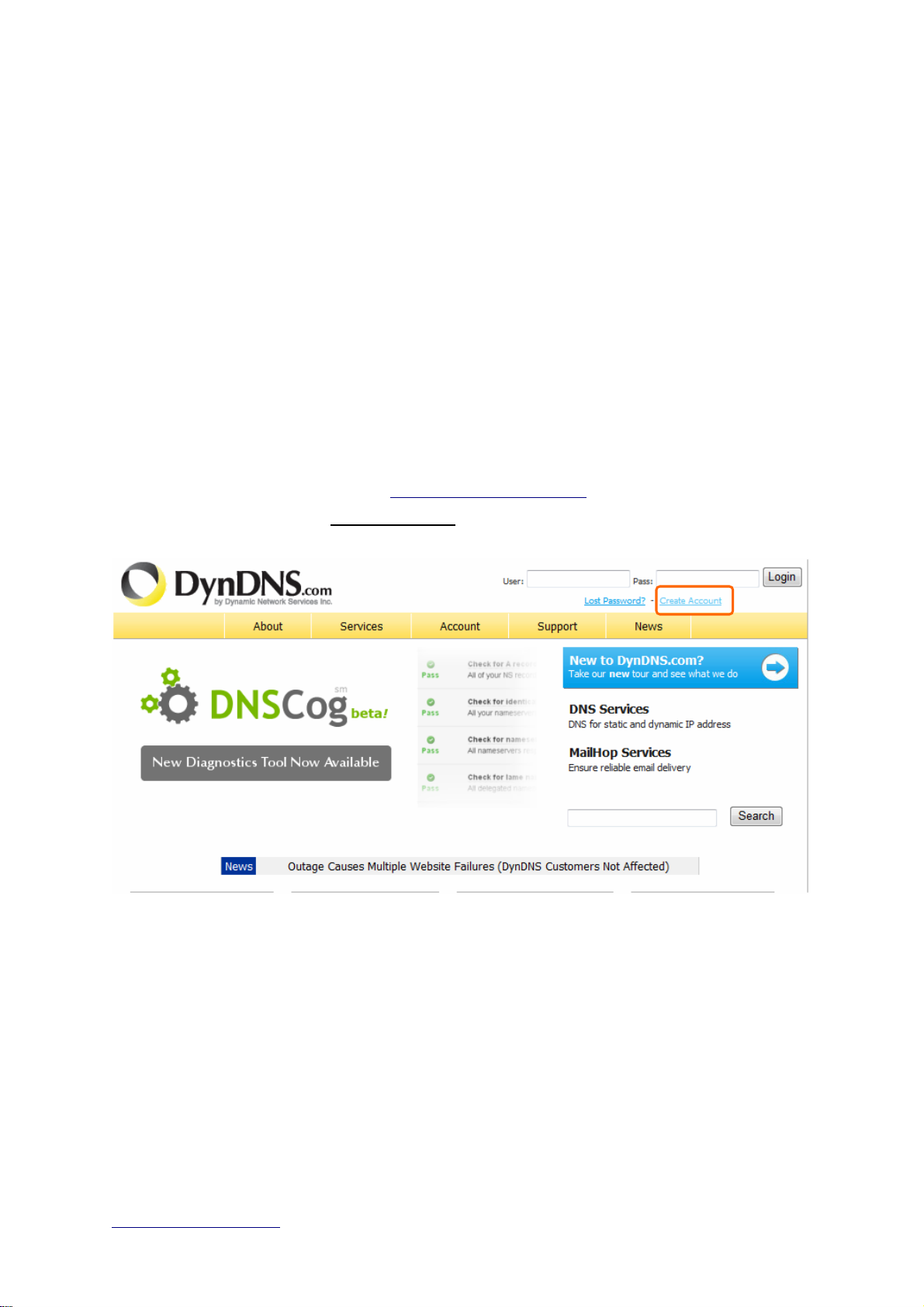

You can assign a fixed host and domain name to a dynamic Internet IP address. Each time

the router boots up, it will re-register its domain-name-to-IP-address mapping with the DDNS

service provider. This is the way Internet users can access the router through a domain name

instead of its IP address.

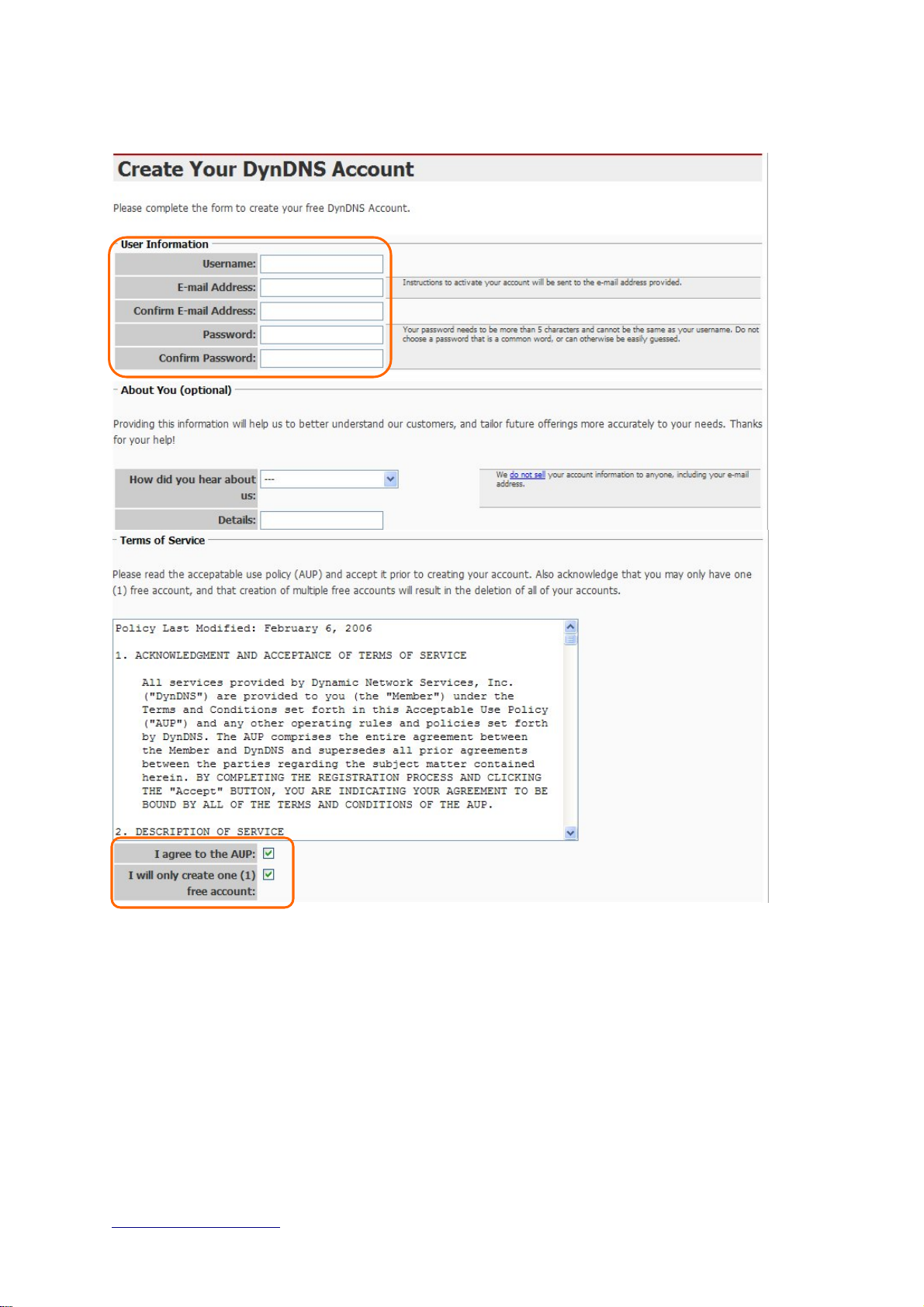

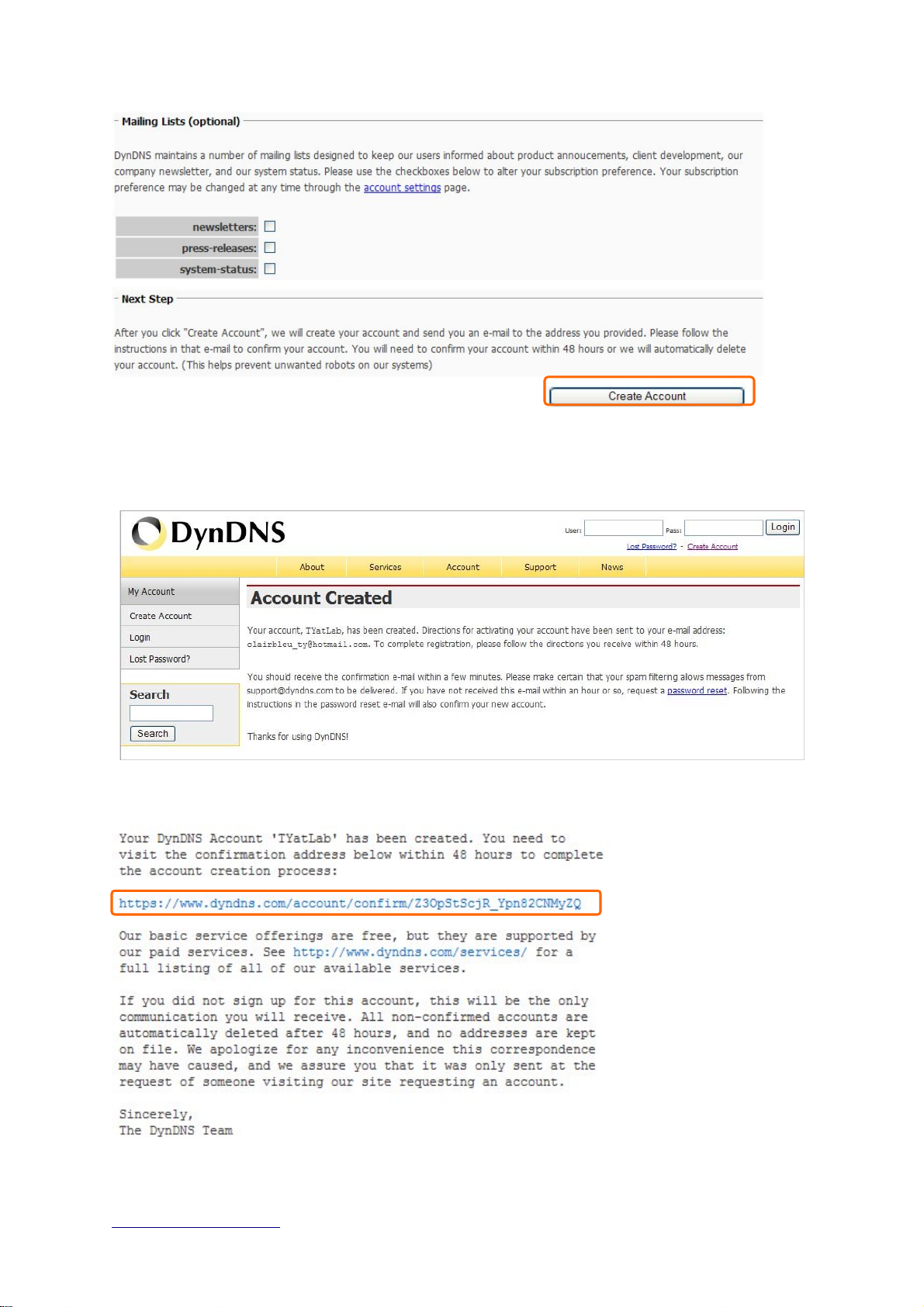

Note: make sure that you have registered with a DDNS service provider before enabling this feature.

Please enter Domain Name, User Name/Email, and Password/Key. After entering, click on

Apply Changes to save the setting, or you may click on Reset to clear all the input data.

Item Description Enable/Disable DDNS

Service Provider

http://www.sapido.com.tw/ User Manual v1.0.0

Select enable to use DDNS function. Each time your IP address to WAN is changed, and the information will be updated to DDNS service provider automatically.

Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish embedded in GS293d.

User Name/Email

User name is used as an identity to login Dynamic-DNS service.

Password/Key Apply Changes & Reset

Password is applied to login Dynamic-DNS service.

Click on Apply Changes to save the setting data. Or you may click on

Reset to clear all the input data.

6.2 Wireless Advanced Setup

In Advanced Settings page, more 802.11 related parameters are tunable.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Fragment Threshold

RTS Threshold

Beacon Interval

Preamble Type

IAPP

To identify the maxima length of packet, the over length packet will be fragmentized. The allowed range is 256-2346, and default length is

2346.

This value should remain at its default setting of 2347. The range is 0~2347. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the present RTS threshold size, the RTS/CTS mechanism will not be enabled. The router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. Fill the range from 0 to 2347 into this blank.

Beacons are packets sent by an access point to synchronize a wireless network. Specify a beacon interval value. The allowed setting range is 20-1024 ms..

PLCP is Physical layer convergence protocol and PPDU is PLCP protocol data unit during transmission, the PSDU shall be appended to a PLCP preamble and header to create the PPDU. It has 2 options: Long Preamble and Short Preamble.

Inter-Access Point Protocol is a recommendation that describes an optional extension to IEEE 802.11 that provides wireless access-point communications among multivendor systems.

Protection Aggregation

Short GI

RF Output Power

http://www.sapido.com.tw/ User Manual v1.0.0

Please select to enable wireless protection or not.

Enable this function will combine several packets to one and transmit it. It can reduce the problem when mass packets are transmitting.

Users can get better wireless transmission efficiency when they enable this function.

Users can adjust RF output power to get the best wireless network environment. Users can choose from 100%, 70%, 50%, 35%, and

15%.

Apply Changes & Reset

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data.

6.2.1 Wireless Site Survey

This function provides users to search existing wireless APs or wireless base stations from

ISP. You can connect to a wireless AP manually in Wi-Fi AP mode. The designed AP will

appear on SSID column in Wireless Basic Setup page.

Please click on Refresh to refresh the list. Click Connect after select an existing AP to

connect.

6.2.2 WPS

This page allows user to change the setting for WPS (Wi-Fi Protected Setup). Using this

feature could let your wireless client atomically synchronize it’s setting and connect to the

Access Point in a minute without any hassle. GS293d could support both Self-PIN or PBC

modes, or use the WPS button (at real panel) to easy enable the WPS function.

PIN model, in which a PIN has to be taken either from a sticker label or from the web

interface of the WPS device. This PIN will then be entered in the AP or client WPS device to

connect.

PBC model, in which the user simply has to push a button, either an actual or a virtual one,

on both WPS devices to connect.

Please follow instructions below to enable the WPS function.

1. Setup Wireless LAN with WPS PIN :

(1). Get the WPS PIN number from wireless card and write it down.

http://www.sapido.com.tw/ User Manual v1.0.0

(2). Fill in the PIN number from the wireless card in Client PIN Number field, and then

click “Start PIN”.

(3). Click PIN from Adapter Utility to complete the WPS process with the wireless

router.

http://www.sapido.com.tw/ User Manual v1.0.0

2. Start PBC:

(1). Press the WPS button (A) from GS293d and wait for Wireless/WPS LED light (B)

changed into orange.

(2). Press the WPS button (C) from the adapter until the setup window shows up.

(3). Open a web browser to check the internet connection.

Please also refer to section 4.1.1 WPS setup for more details.

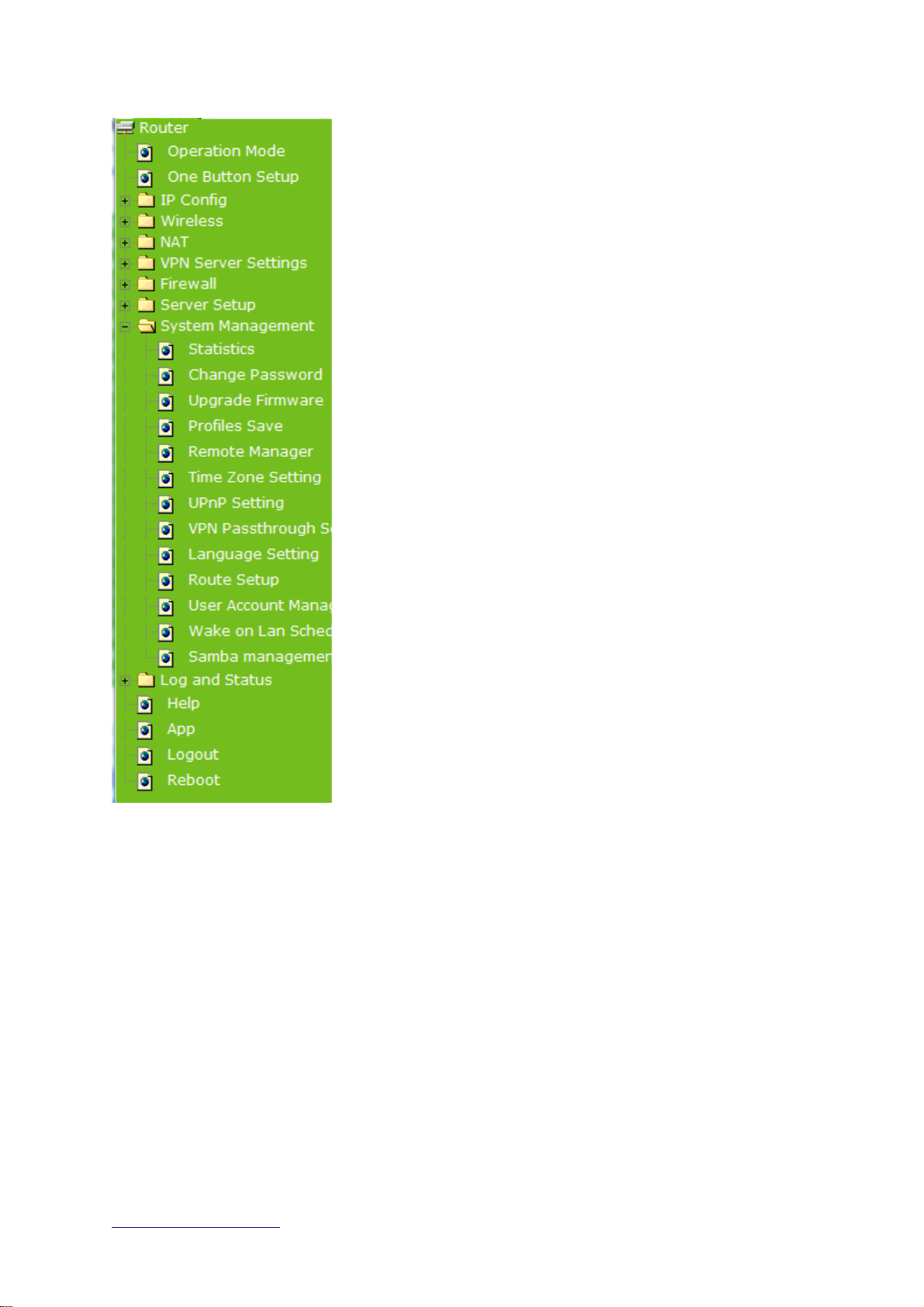

6.3 System Management

This section including Change Password, Firmware Upgrade, Profiles Save, Time Zone Setting, UPnP Setting, VPN Passthrough Setting, and Language Setting. It is easy and

helpful for users making more detailed settings.

http://www.sapido.com.tw/ User Manual v1.0.0

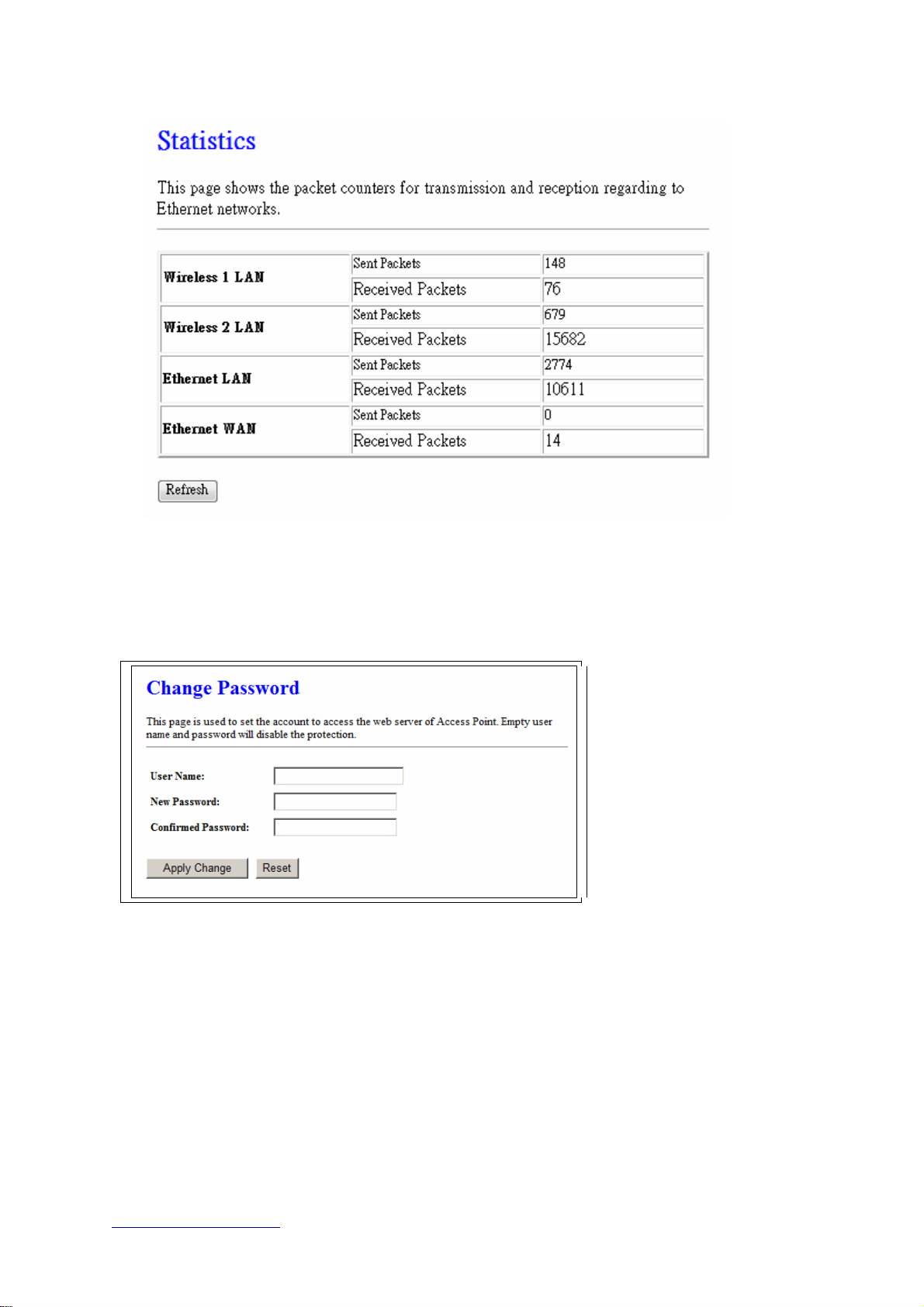

6.3.1 Statistics

It shows the packet counters for transmission and reception regarding to Ethernet

networks

http://www.sapido.com.tw/ User Manual v1.0.0

6.3.2 Change Password

Users can set or change user name and password used for accessing the web management

interface in this section.

Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the

input data.

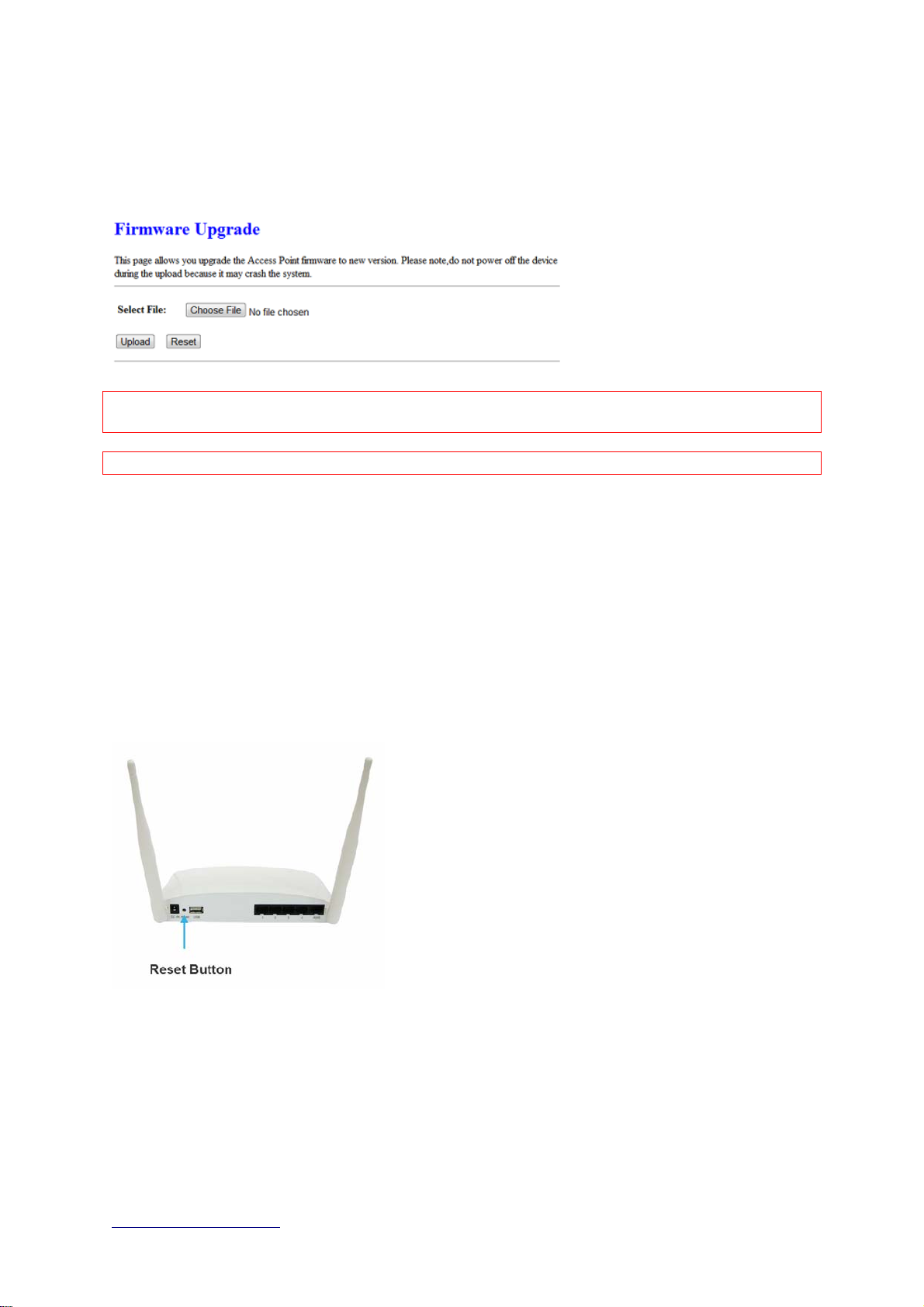

6.3.3 Firmware Upgrade

This function can upgrade the firmware of the router. There is certain risk while doing

firmware upgrading. Firmware upgrade is not recommended unless the significant faulty is

found and published on official website. If you feel the router has unusual behaviors and is

not caused by the ISP and environment. You can check the website

http://www.sapido.com.tw/ User Manual v1.0.0

(http://www.amigo.com.tw) to see if there is any later version of firmware. Download the

firmware to your computer, click Browser and point to the new firmware file. Click Upload to

upgrade the firmware. You can’t make any move unless the machine reboot completely.

Caution: To prevent that firmware upgrading is interrupted by other wireless signals and causes failure.

We recommend users to use wired connection during upgrading.

Note: The firmware upgrade will not remove your previous settings.

λ Reset button:

On the front of this router, there is a reset button. If you cannot login the administrator page by

forgetting your password; or the router has problem you can’t solve. You can push the reset

button for 5 seconds with a stick. The router will reboot and all settings will be restored to

factory default settings. If the problem still exists, you can visit our web site to see if there is

any firmware for download to solve the problem.

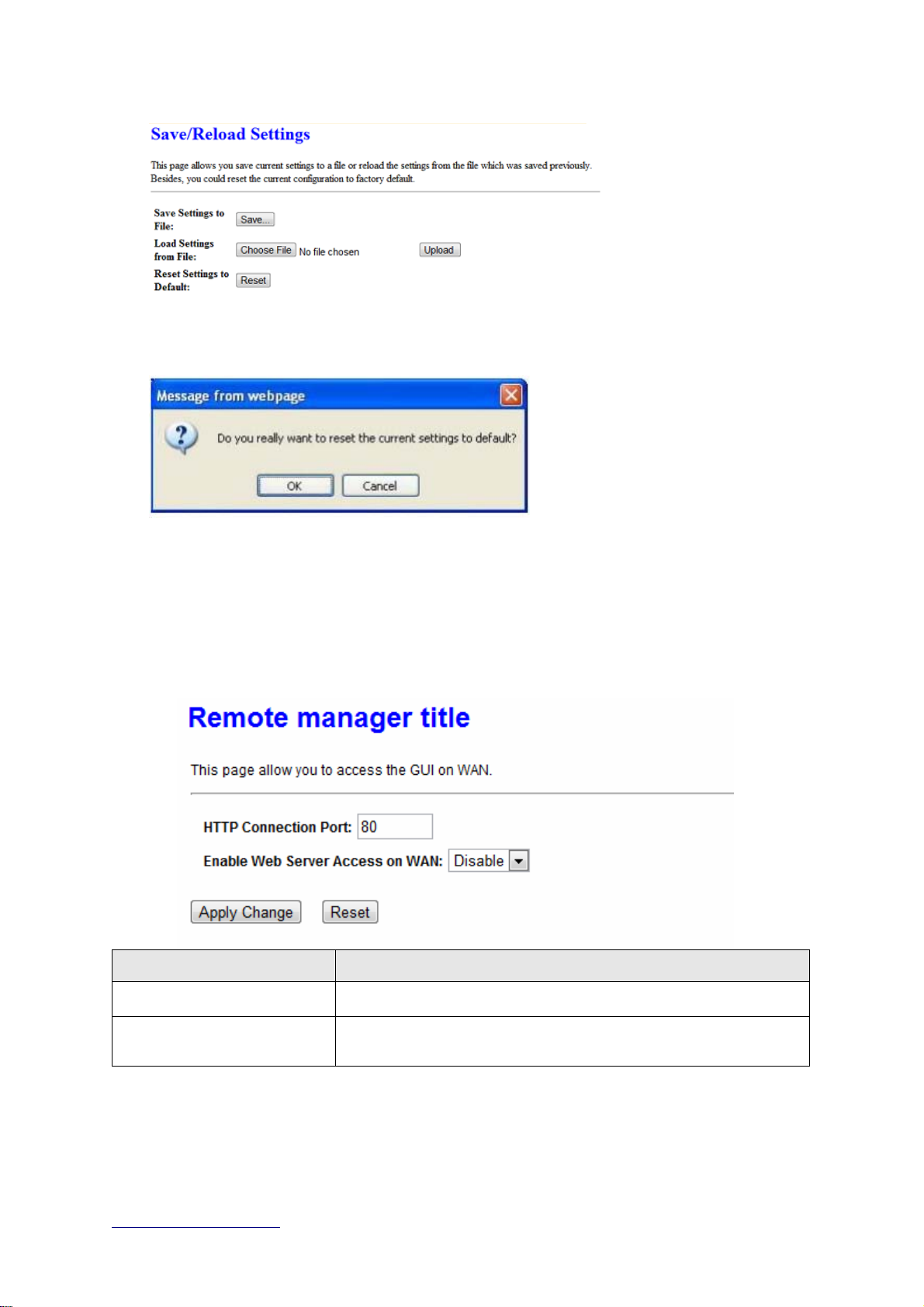

6.3.4 Profile Save

Users can create a backup file that contains current router settings. This backup file can be

used to restore router settings. This is especially useful in the event you need to reset the

router to its default settings.

http://www.sapido.com.tw/ User Manual v1.0.0

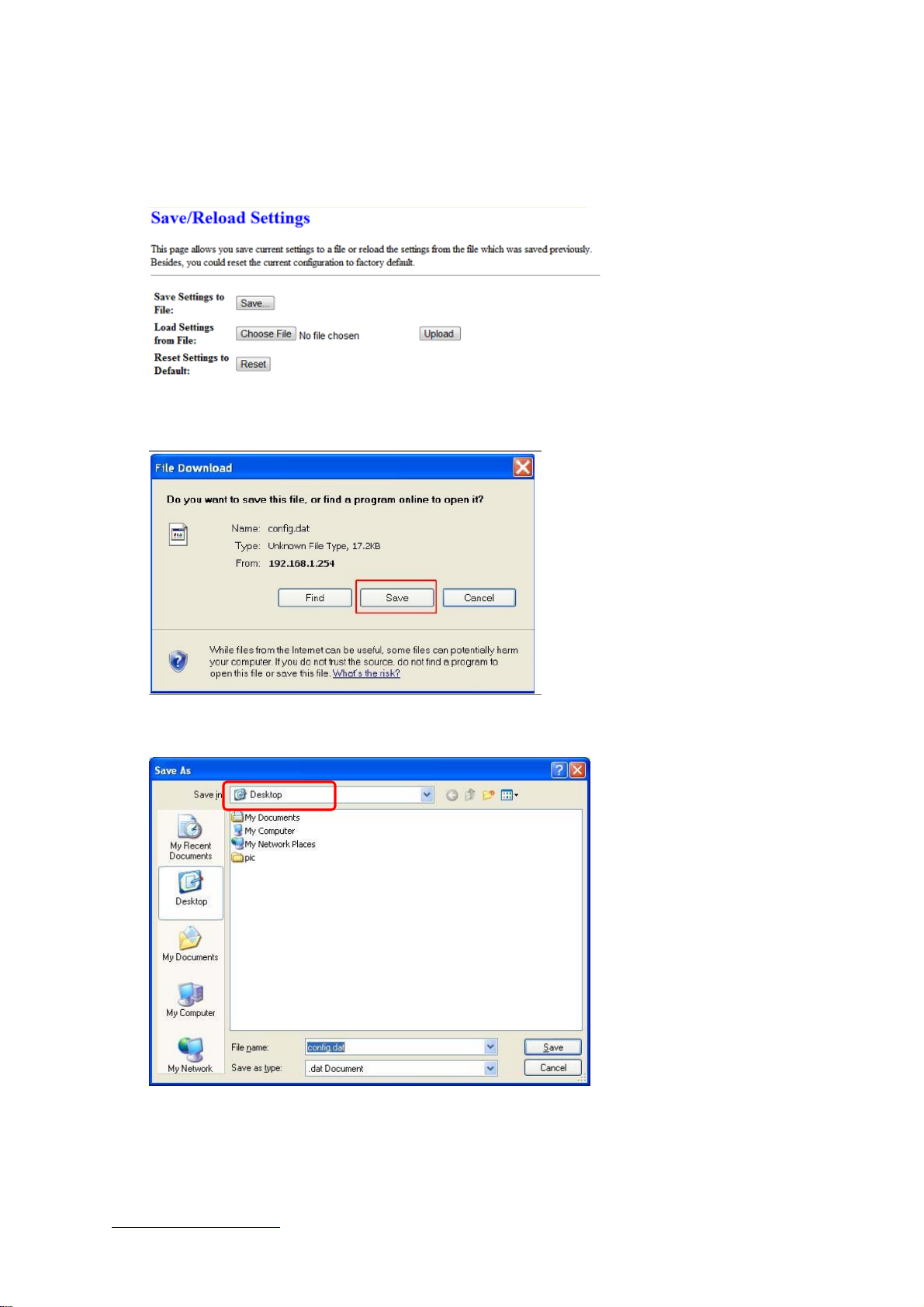

1. Save Configuration

(1). Click Save

(2). Please click “Save” to save the configuration to your computer.

(3). Select the location which you want to save file, then click Save.

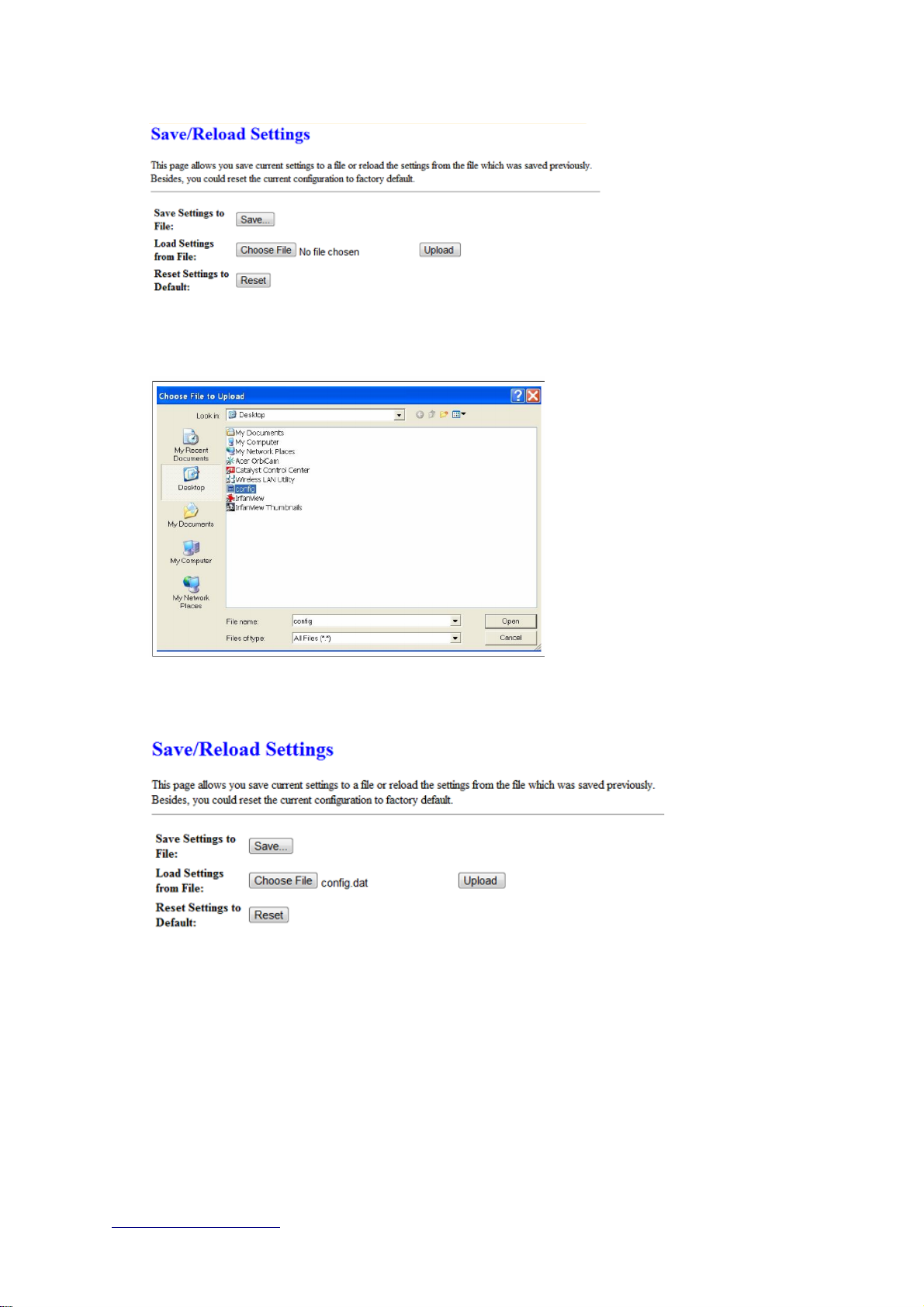

2. Load configuration file

(1). Click Choose File

http://www.sapido.com.tw/ User Manual v1.0.0

(2). Select configuration file then click Open

(3). Click Upload to upload configuration file to GS293d.

(4). After 90 seconds, GS293d will reboot automatically.

3. Reload factory default setting

(1). Please click Reset

http://www.sapido.com.tw/ User Manual v1.0.0

(2). Please click OK to start reload factory default setting to GS293d.

(3). After 90 seconds, GS293d will reboot automatically.

6.3.5 Remote Manager

Item Description

HTTP Connection Port

Enable Web Server Access on WAN

Users can access GUI by this port，default is 80

Allow user access GUI from WAN side

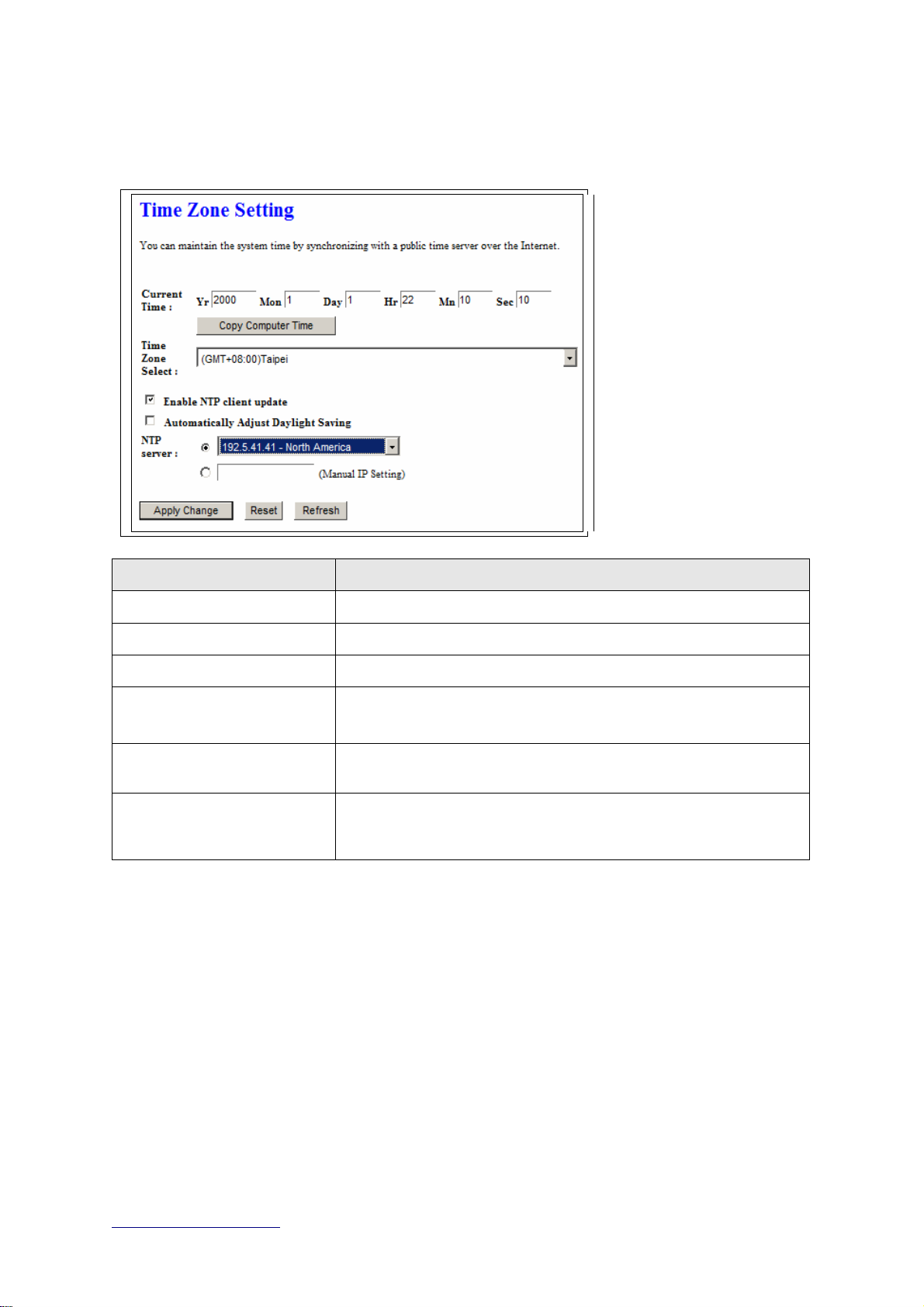

6.3.6 Time Zone Setting

http://www.sapido.com.tw/ User Manual v1.0.0

Users can synchronize the local clock on the router to an available NTP server (optional). To

complete this setting, enable NTP client update and select the correct Time Zone.

Item Description Current Time Time Zone Select Enable NTP client update Automatically Adjust

Daylight Saving NTP Server

Apply Changes & Reset & Refresh

Users can input the time manually.

Please select the time zone.

Please select to enable NTP client update or not.

Please select to enable Automatically Adjust Daylight Saving or not.

Please select the NTP server from the pull-down list, or you can enter the NTP server IP address manually.

Please click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Or you may click on Refresh to update the system time on the screen.

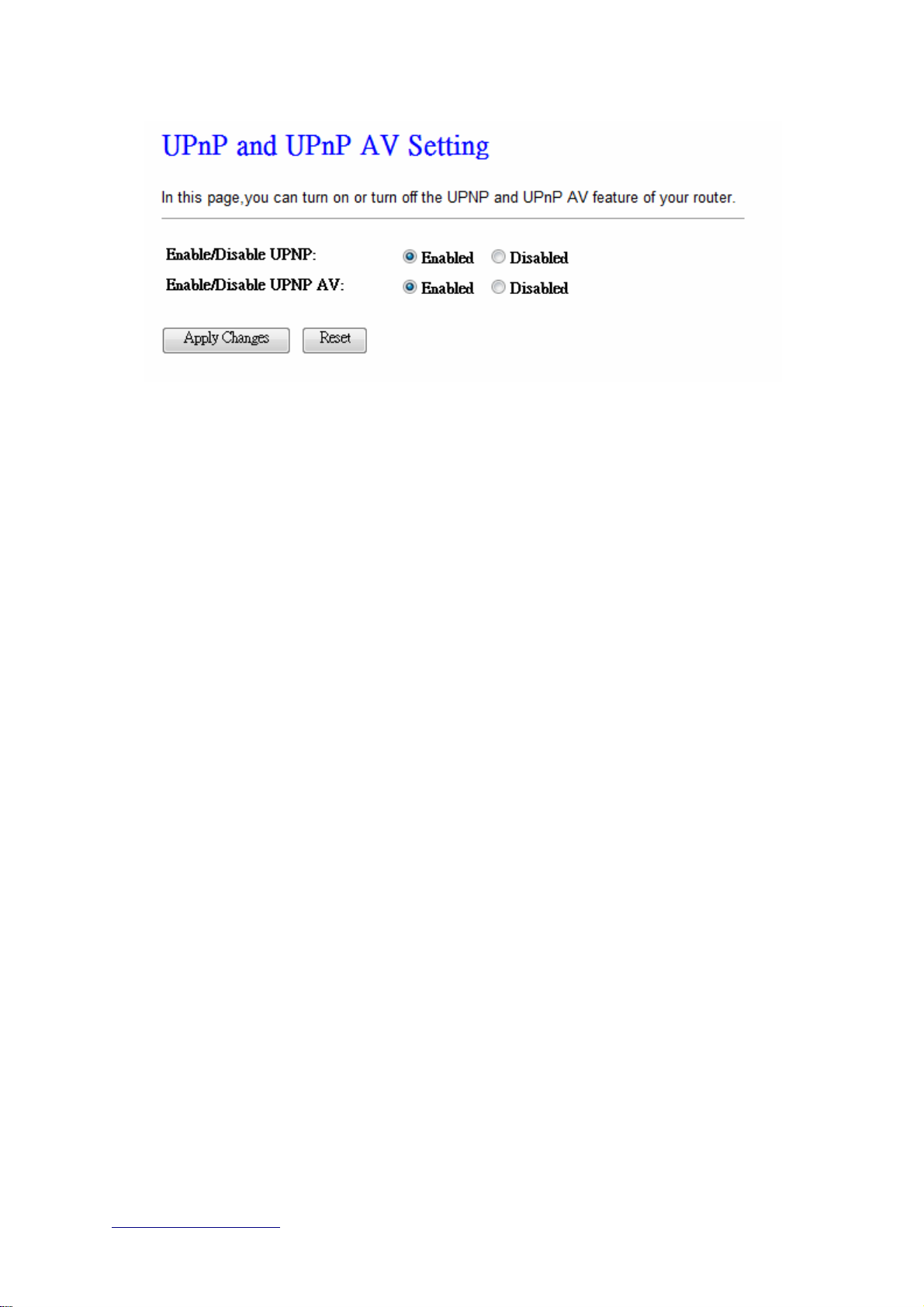

6.3.7 UPnP Setting

http://www.sapido.com.tw/ User Manual v1.0.0

z UPNP

Universal Plug and Play (UPnP) is a standard of networking protocols promulgated by

the UPnP Forum. The goals of UPnP are to allow devices to connect seamlessly and

to simplify the implementation of networks in the home (data sharing, communications,

and entertainment) and in corporate environments for simplified installation of

computer components. GS293d supports UPnP function, and can cooperate with

other UPnP devices. When you activate UPnP, please click My Network Places. Users

will see an Internet Gateway Device icon. By click the icon, users can enter the GUI of

the router. If you do not wish to use UPnP, you can disable it.

z UPNP A V

A UPnP AV media server is the UPnP-server that provides media library information

and streams media-data (like audio/video/picture/files) to UPnP-clients on the network.

It is a computer system or a similar digital appliance that stores digital media, such as

photographs, movies, or music and shares these with other devices. User can plug in

USB disk to product USB port and use UPnP AV client to play USB disk media-data

(like audio/video/picture/files)

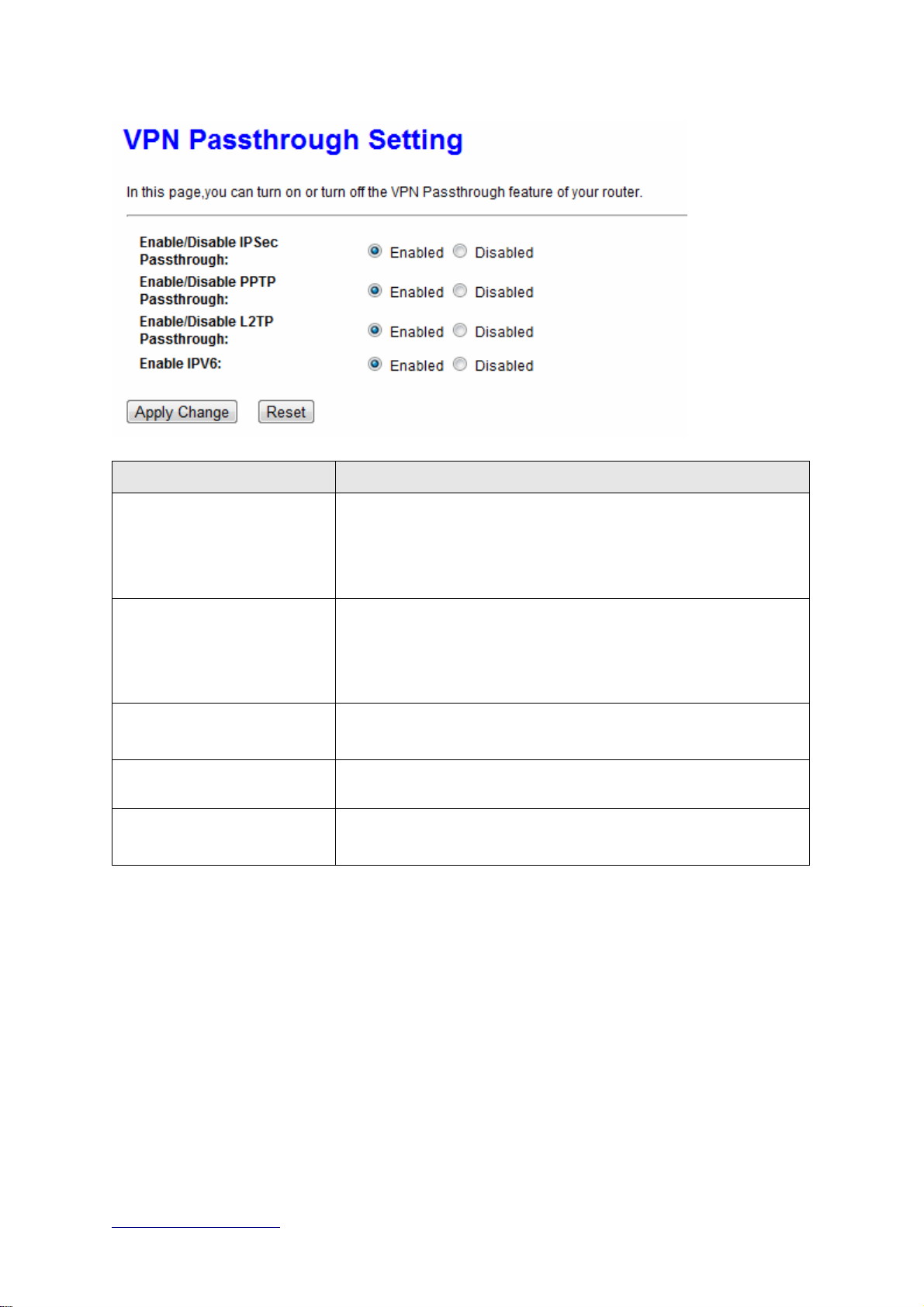

6.3.8 VPN Passthrough Setting

Virtual Private Networking (VPN) is typically used for work-related networking. For VPN

tunnels, the router supports IPSec, Pass-through, PPTP Pass-through, and L2TP

Pass-through.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description IPSec Pass-through

PPTP Pass-through

L2TP Pass-through

IPV6 Pass-through

Apply Changes & Reset & Refresh

Internet Protocol Security (IPSec) is a suite of protocols used to

implement secure exchange of packets at the IP layer. To allow

IPSec tunnels to pass through the router, IPSec Pass-through is

enabled by default. To disable IPSec Pass-through , select Disable

Point-to-Point Tunneling Protocol is the method used to enable

VPN sessions to a Windows NT 4.0 or 2000 server. To allow PPTP

tunnels to pass through the router, PPTP Pass-through is enabled

by default. To disable PPTP Pass-through, select Disable.

To allow the L2TP network traffic to be forwarded to its destination

without the network address translation tasks.

Allow IPV6 packet to be forwarded to its destination without the network address translation tasks.

Please click on Apply Changes to save the setting data. Or you

may click on Reset to clear all the input data.

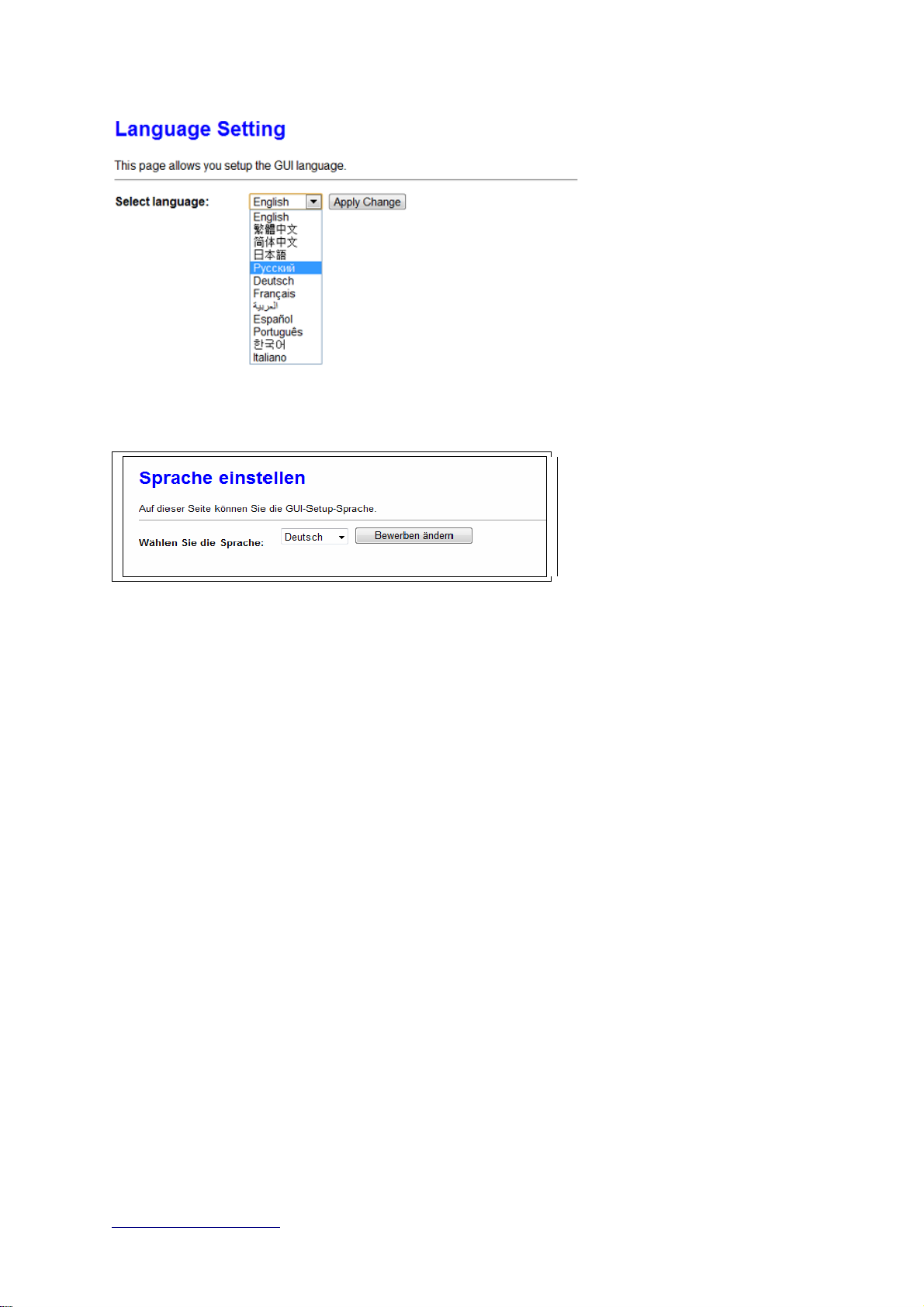

6.3.9 Language Setting

The GS293d provide 12 languages for Web GUI. You can select the language interface from

the dropdown list and by following steps.

http://www.sapido.com.tw/ User Manual v1.0.0

When you see the screen message change to the selected language, the setup is completed.

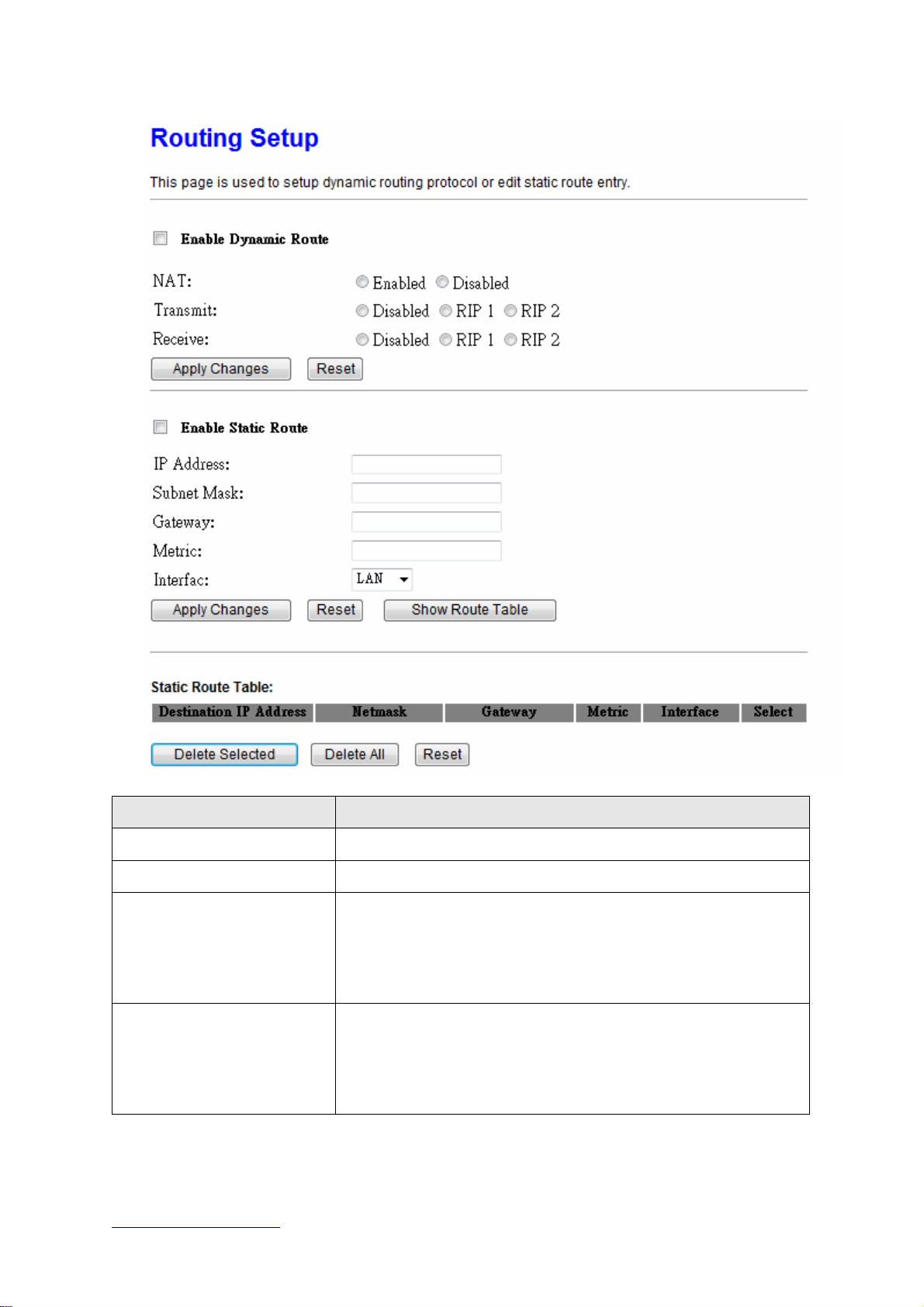

6.3.10 Routing Setup

Dynamic routing is is a distance-vector routing protocol, which employs the hop count as a

routing metric. RIP prevents routing loops by implementing a limit on the number of hops allowed

in a path from the source to a destination. The maximum number of hops allowed for RIP is 15

Static routing is a data communication concept describing one way of configuring path

selection of routers in computer networks. It is the type of routing characterized by the absence of

communication between routers regarding the current topology of the network.This is achieved by

manually adding routes to the router routing table.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable Dynamic Route NA T Transmit

Receive

Enable or Disable dynamic route

Enable or Disable NAT function

There are 3 options：

1. Disable：do not send any RIP packet out

2. Send RIP1 packet out

3. Send RIP2 packet out

There are 3 options：

4. Disable：do not receive any RIP packet

5. Only receive RIP1 packet

6. Only receive RIP2 packet

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable Static Route IP Address Subnet Mask Gateway Metric Interface

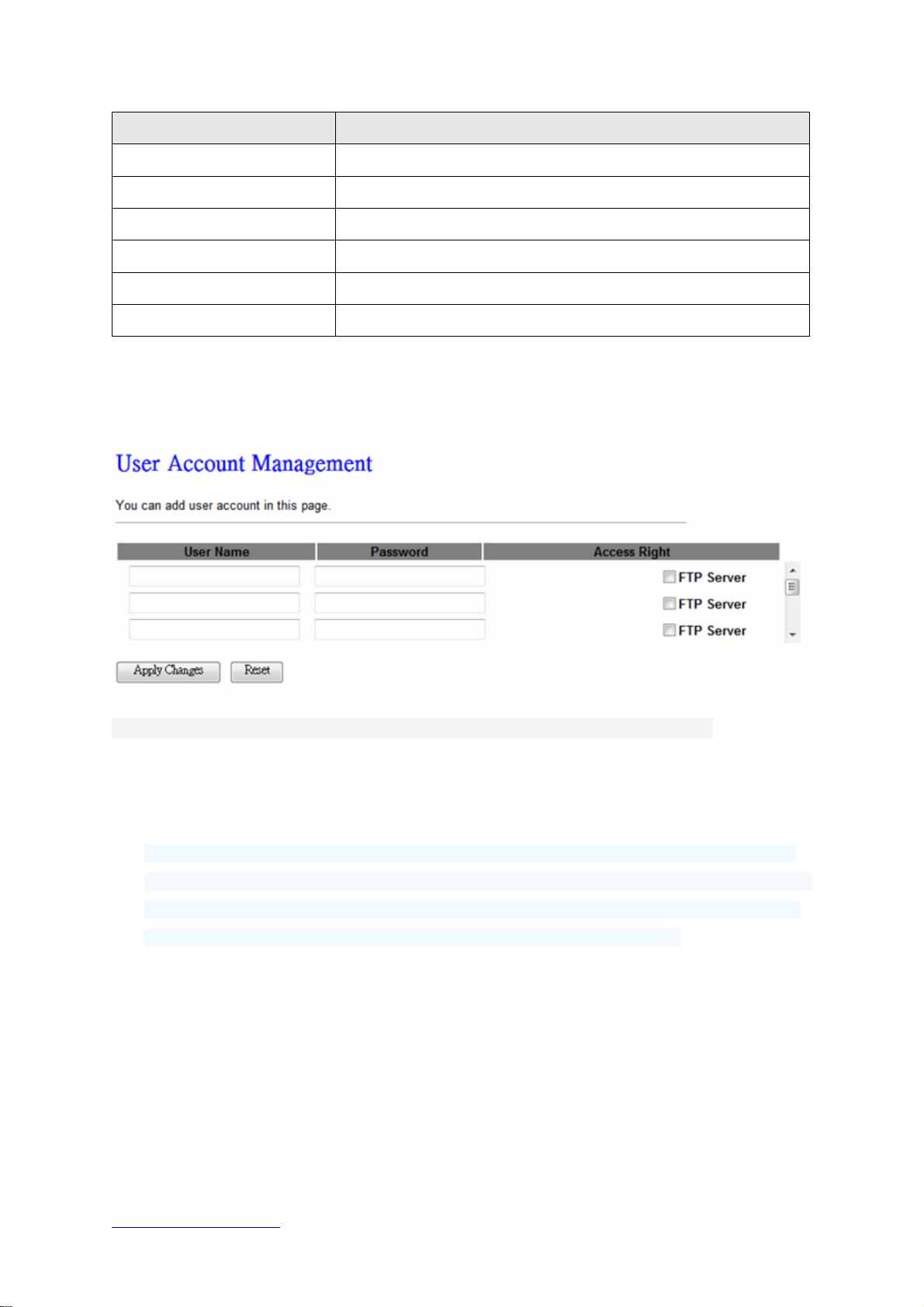

6.3.11 User Account Settings

Enable or Disable dynamic route

Destination IP address

Destination IP subnet mask

Gateway IP address for destination

Metric number on router’s routing table

Static route rule for LAN or WAN interface

Set user log on locally used by the FTP server shares account, password

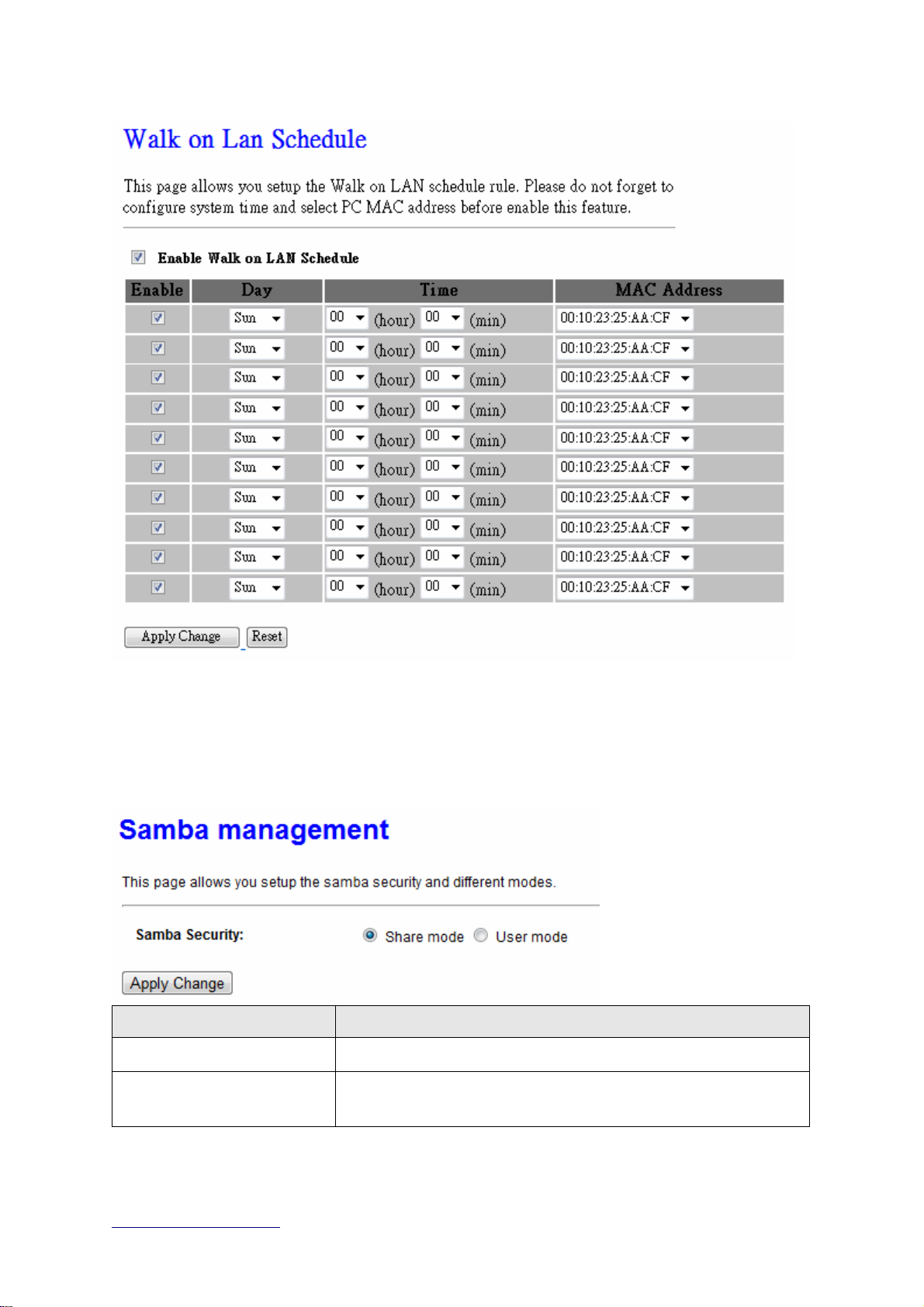

6.3.12 Walk on LAN Schedule

Switch your computer ON through your LAN or the Internet . To support WOL you must have a

computer with Motherboard that supports WOL, as well as a Network Controller (NIC) supporting

this function. Most of the newer Motherboard (circa 2002 and On), have an On Board NIC that

supports WOL. Otherwise you need to install a PCI NIC that is WOL capable.

http://www.sapido.com.tw/ User Manual v1.0.0

6.3.13 Samba 模式管理

Item Description

Share mode User mode

User can access USB disk without account and password

User need account to access USB disk（login account is “admin”， password is not necessary）.

http://www.sapido.com.tw/ User Manual v1.0.0

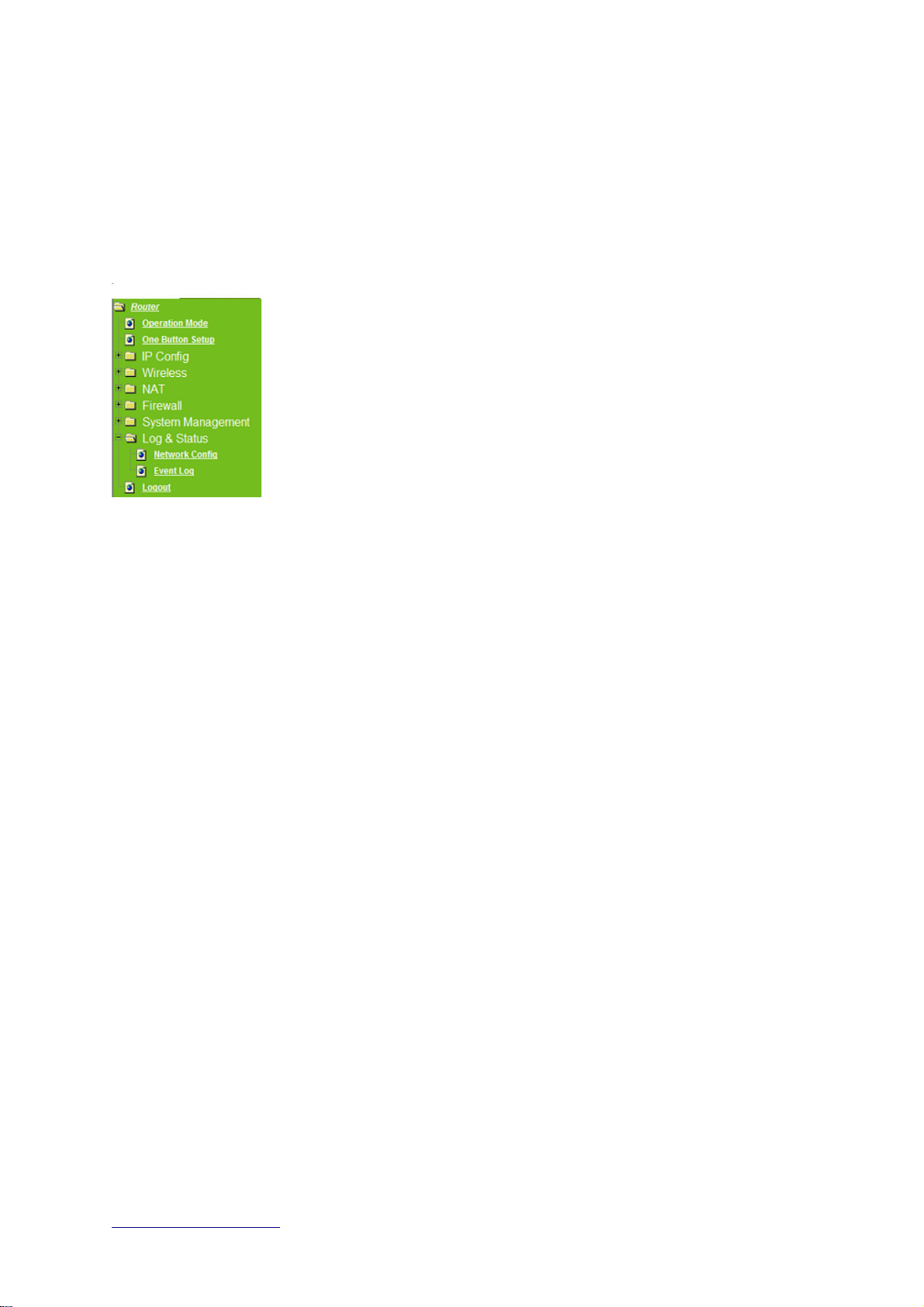

6.4 Log & Status

The category provides Network Config and Event Log status for users to know the operation

status.

6.4.1 Network Config

Users can check the Internet status under this category, including Firmware version, Wireless

setting, Connecting Time, WAN, TCP/IP …information.

http://www.sapido.com.tw/ User Manual v1.0.0

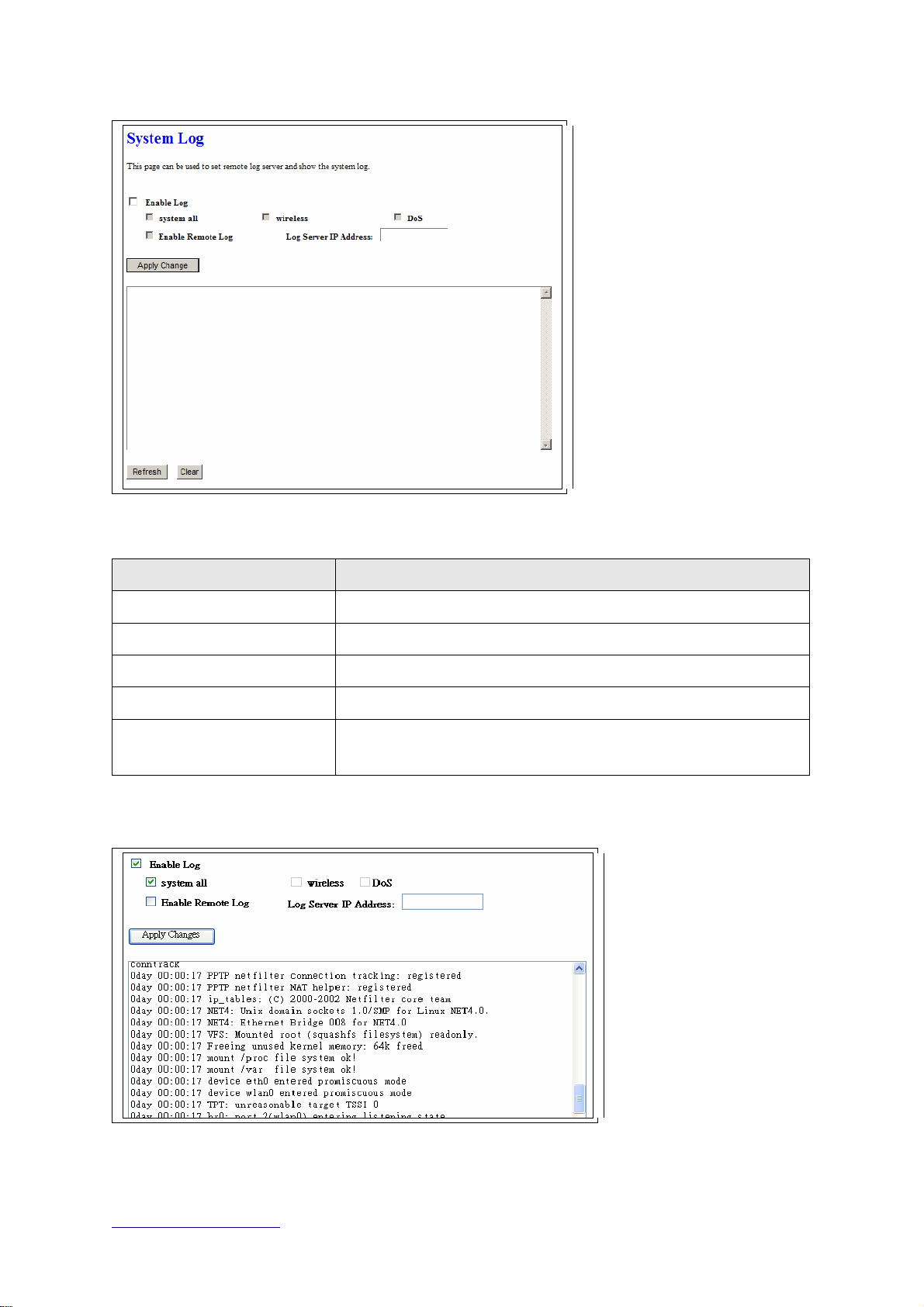

6.4.2 Event Log

You may enable the event log feature here.

http://www.sapido.com.tw/ User Manual v1.0.0

Item Description Enable Log System all, Wireless, & DoS Enable Remote Log Log Server IP Address Apply Changes & Refresh &

Clear

You may choose to enable Event Log or not.

Please select the event you want to record.

You may choose to enable the remote event log or not.

Please input the log server IP Address.

Click on Apply Changes to save the setting data. Click on Refresh to renew the system time, or on Clear to clear all the record.

* The following figure is an example when users click Apply Changes to record the event log.

http://www.sapido.com.tw/ User Manual v1.0.0

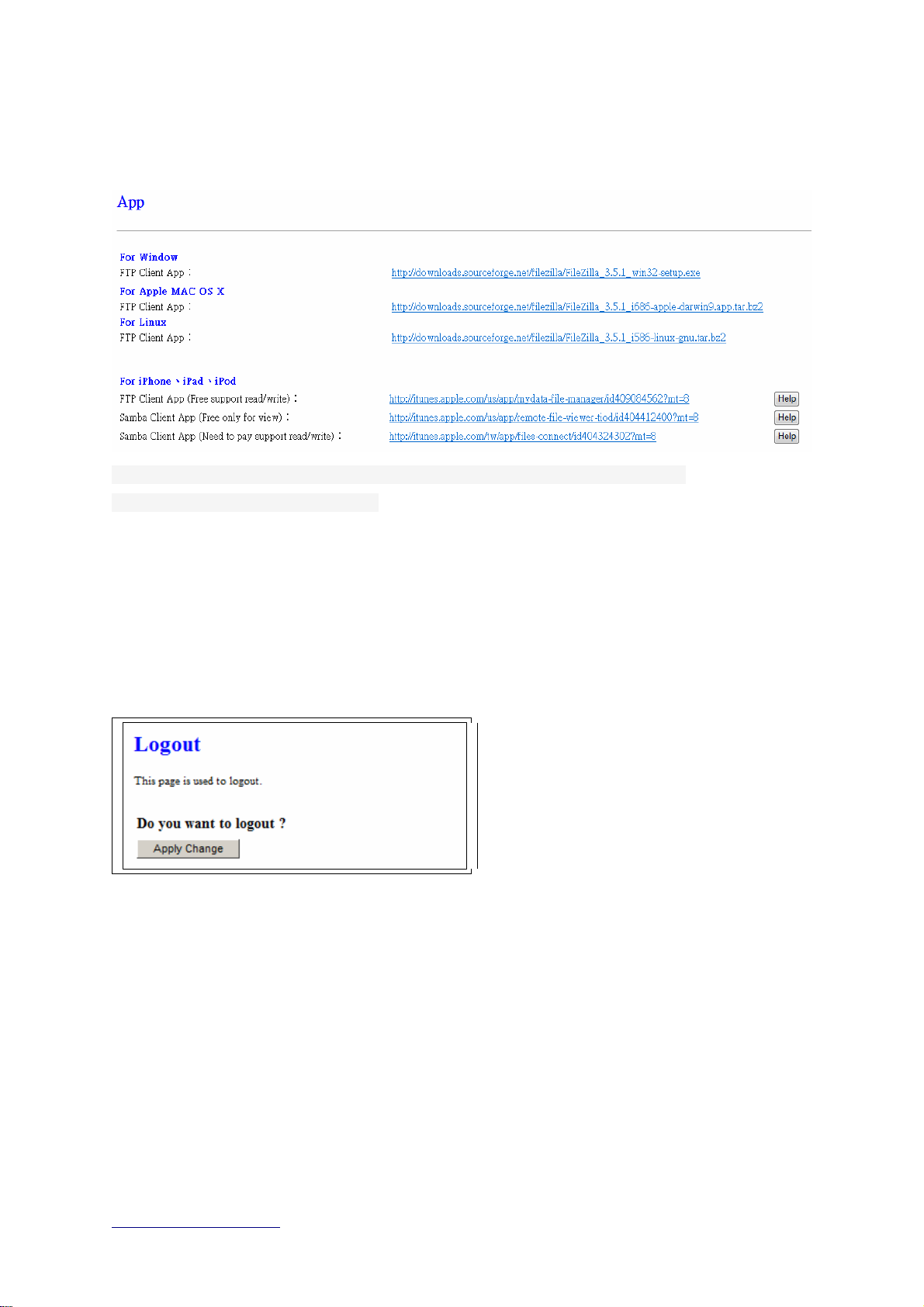

6.6 App

Hyperlinks provide users quick and convenient for users to download with a

third-party software on the machine

6.5 Logout

This function logs out the user.

http://www.sapido.com.tw/ User Manual v1.0.0

Chapter 7 Samba Server

The GS293d is able to act as a Samba server to share the file on USB storage in local

network.

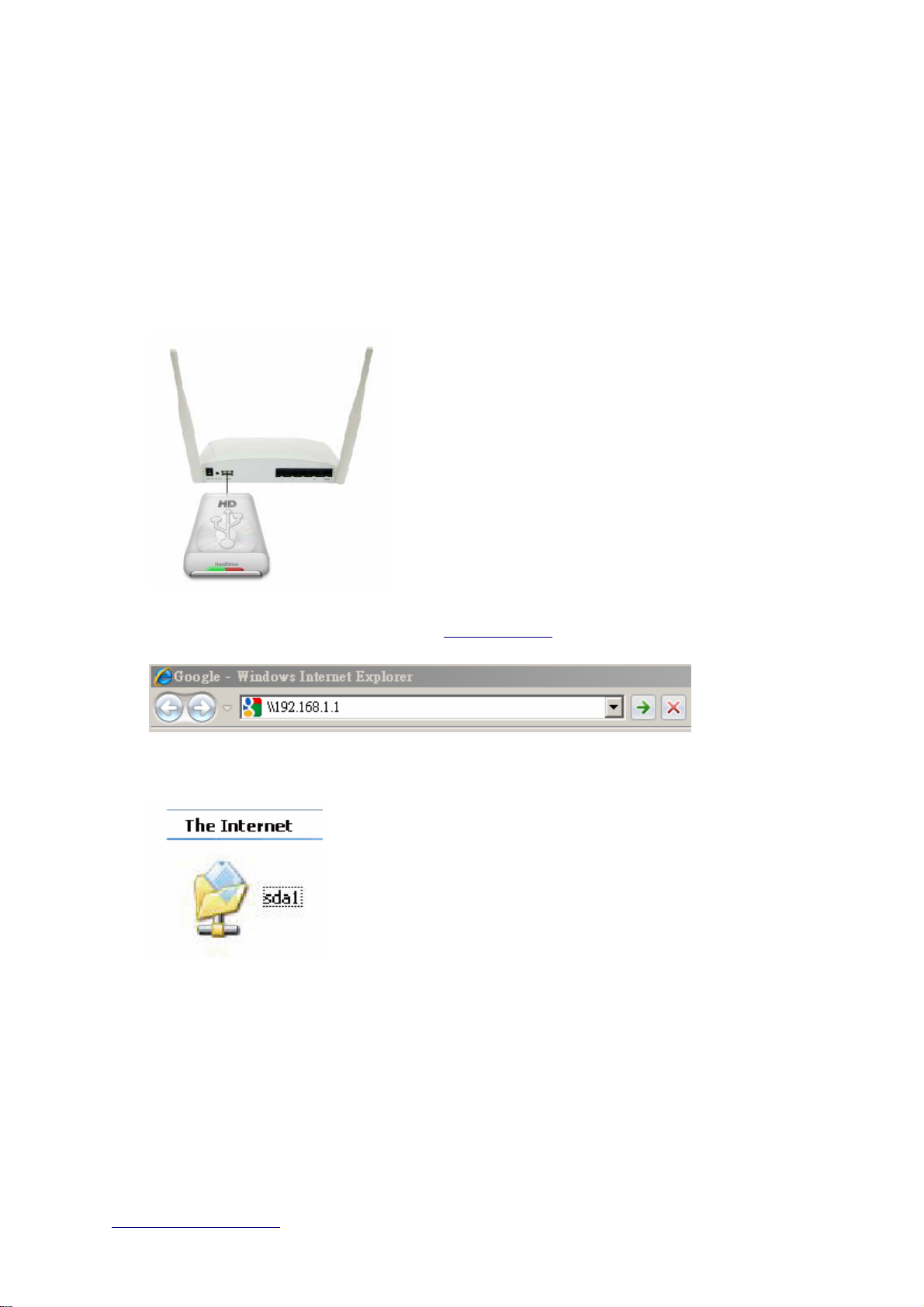

7.1 How to use GS293d as a Samba server

1. Plug in the USB hard disk/Flash.

2. Star your web browser and input

3. Star “My Computer” and you will find a folder named “sda1”.

\\192.168.1.1.

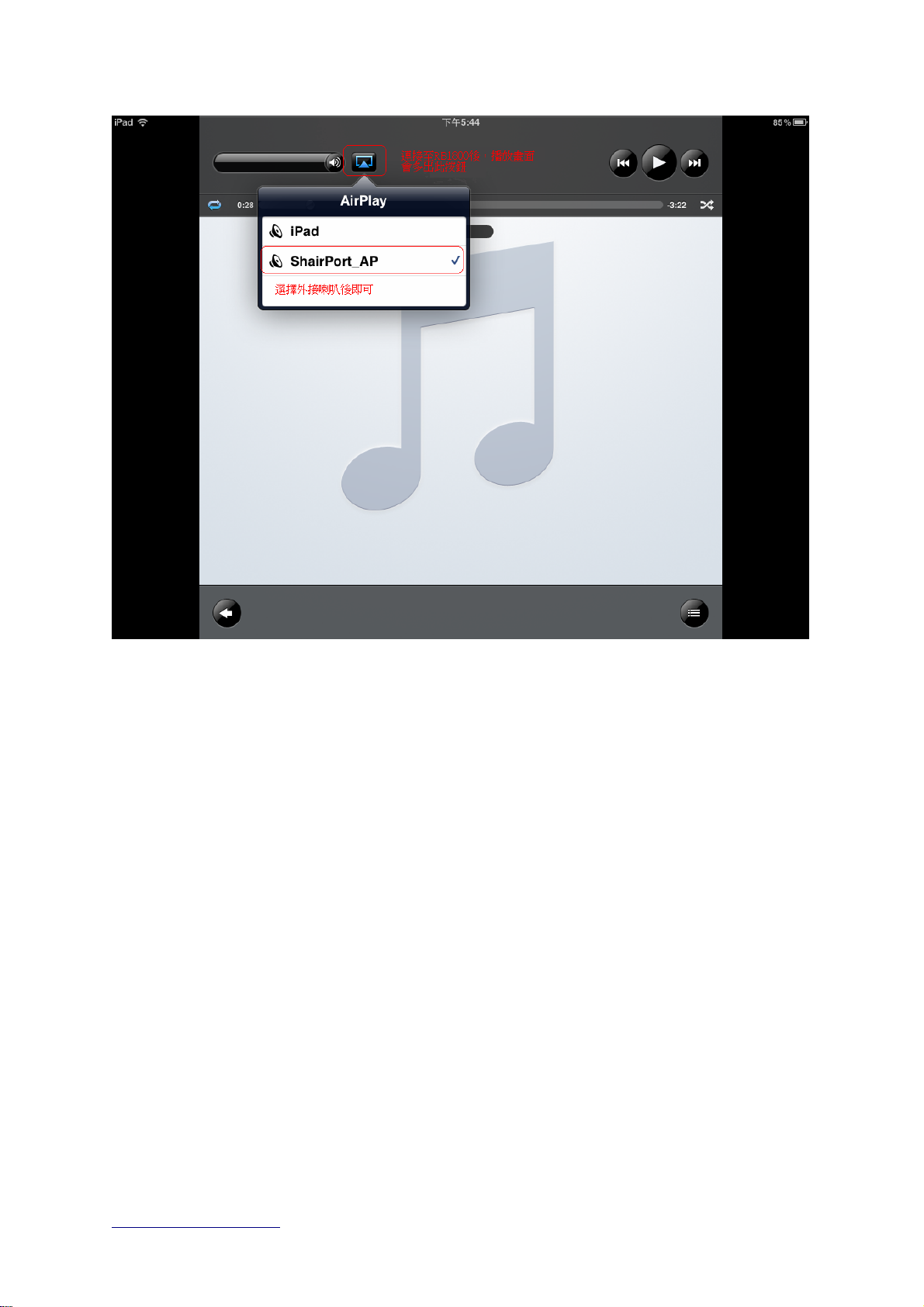

7.2 Air play

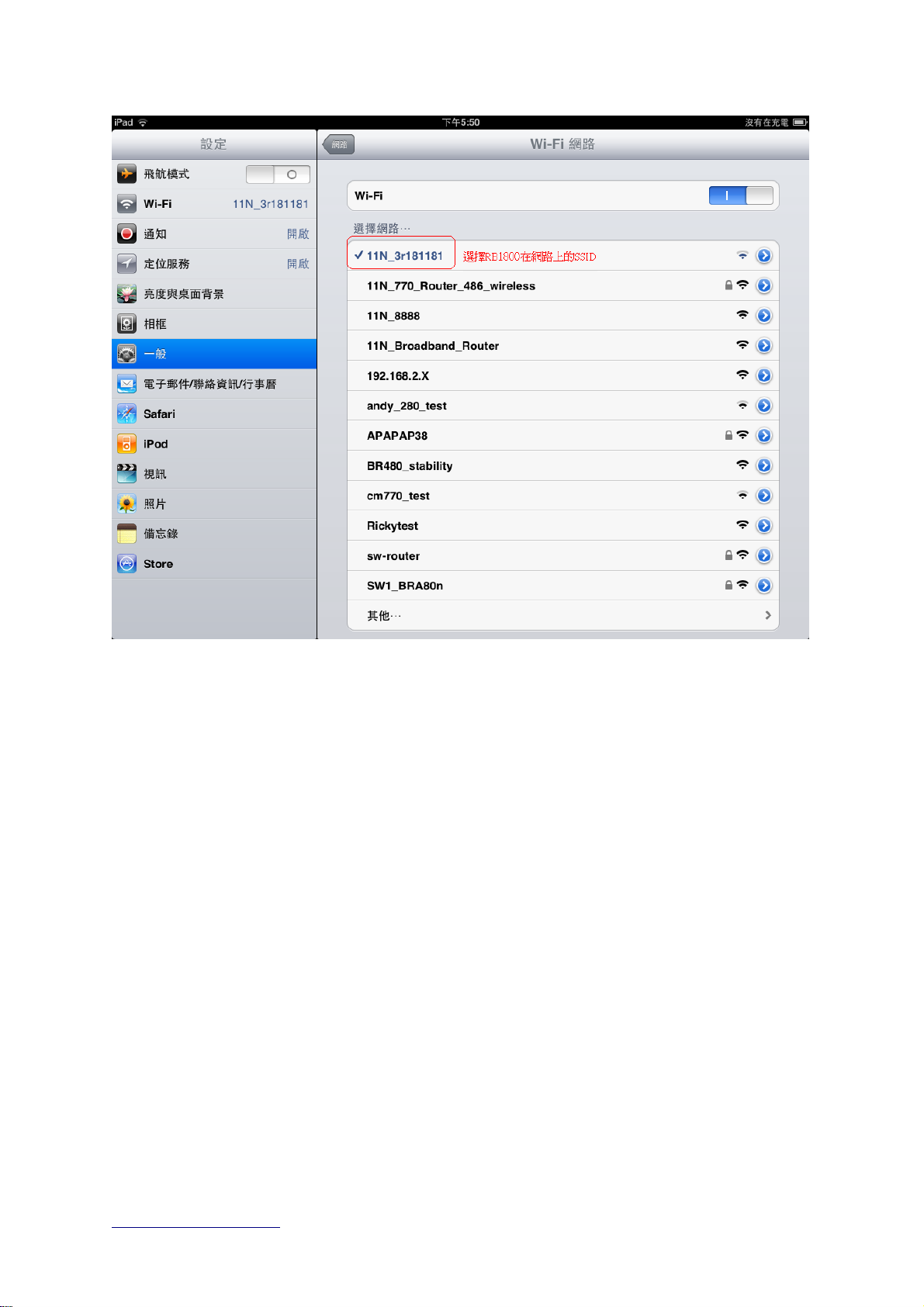

z Connect device to router

http://www.sapido.com.tw/ User Manual v1.0.0

z Execute ipod

http://www.sapido.com.tw/ User Manual v1.0.0

7.3 Printer Server

To add an LPR port

1. Open Printers and Faxes.

2. Double-click Add Printer to open the Add Printer Wizard, and then click Next.

3. Click Local printer attached to this computer, clear the Automatically detect and install my Plug and Play printer check box, and then click Next.

4. Click Create a new port, and then click LPR Port.

If LPR Port is not available, click Cancel to stop the wizard. To add the LPR port, you need to install the optional networking component, Print Services for Unix. For more information, click Related Topics.

5. Click Next, and then provide the following information:

• In Name or address of server providing LPD, type the Domain Name System (DNS) name or

Internet Protocol (IP) address of the host for the printer you are adding. The host may be the

http://www.sapido.com.tw/ User Manual v1.0.0

direct-connect TCP/IP printing device or the UNIX computer to which the printing device is

connected. The DNS name can be the name specified for the host in the Hosts file.

• In Name of printer or print queue on that server, type the name of the printer as it is identified

by the host, which is either the direct-connect printer itself or the UNIX computer.

6. Follow the instructions on the screen to finish installing the TCP/IP printer.

Notes

• To open Printers and Faxes, click Start, and then click Printers and Faxes.

• The Line Printer Remote (LPR) port is best suited to servers that need to communicate with host

computers (such as UNIX or VAX computers) by way of RFC 1179.

• A network-connected printer must have a card that supports LPD for LPR printing to work properly.

• You can also add ports using the Print Server Properties dialog box. For more information,

click Related Topics.

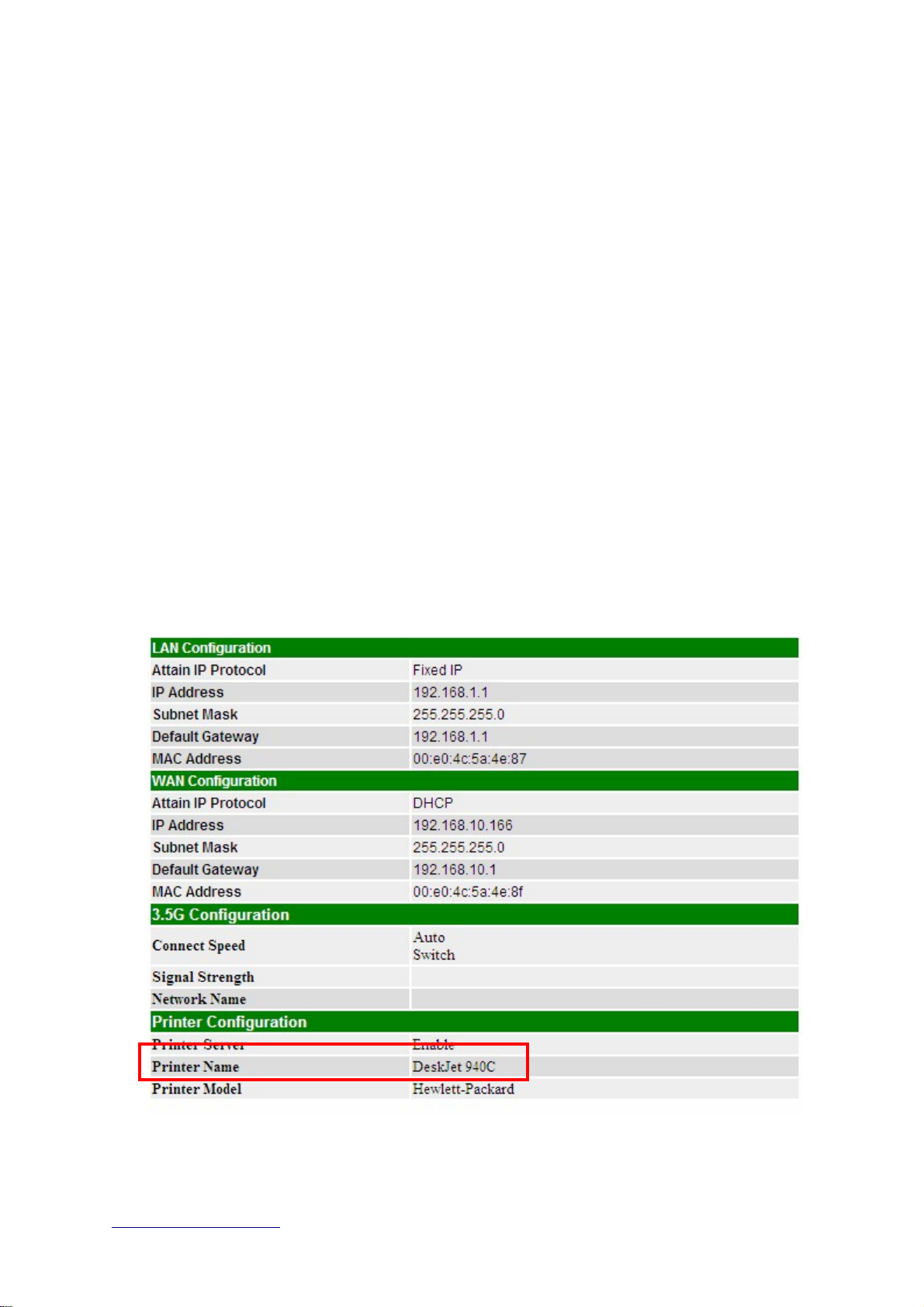

• Please refer DUT/Network Config page to get name of printer

http://www.sapido.com.tw/ User Manual v1.0.0

Chapter 8 DDNS Service Application

DDNS is a service changes the dynamic IP to the static IP. The settings of DDNS can solve

the problem of being given the different IP by router every time. After setting the Router, your

host name would correspond to your dynamic IP. Moreover, via the host name application, it

could be easier for you to use FTP, Webcam and Printer remotely.

Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static host

name. Please configure the dynamic DNS below. Please select Dynamic DNS under the IP Config folder, and follow the instructions below to enter the Dynamic DNS page to configure

the settings you want.

If you don’t have a DDNS account, please follow the steps to complete your DDNS with

Dynamic IP settings.

1. First access the Internet and fill

web browser, then click Create Account

http://www.dyndns.com/ into the address field of your

http://www.sapido.com.tw/ User Manual v1.0.0

2. Fill in the form as required, and then click on Create Account button.

http://www.sapido.com.tw/ User Manual v1.0.0

3. When you got this account created message, close it, and check your mailbox. You

would get a mail from DynDNS website.

4. Click on the indicated address within your mail to confirm.

http://www.sapido.com.tw/ User Manual v1.0.0

5. Click on login.

6. Click My Services after logging in.

7. Click Add New Hostname.

8. Put in your favorite hostname and service type, and then click Create Host after

finished.

http://www.sapido.com.tw/ User Manual v1.0.0

9. Your hostname has been created when you see the following page.

http://www.sapido.com.tw/ User Manual v1.0.0

Chapter 9 Q & A

9.1 Installation

1. Q: Where is the XDSL Router installed on the network?

A: In a typical environment, the Router is installed between the XDSL line and the LAN.

Plug the XDSL Router into the XDSL line on the wall and Ethernet port on the Hub

(switch or computer).

2. Q: Why does the throughput seem slow?

A: To achieve maximum throughput, verify that your cable doesn’t exceed 100 meter. If

you have to do so, we advise you to purchase a bridge to place it in the middle of the

route in order to keep the quality of transmitting signal. Out of this condition you

would better test something else.

z Verify network traffic does not exceed 37% of bandwidth.

z Check to see that the network does not exceed 10 broadcast messages per

second.

z Verify network topology and configuration.

9.2 LED

1. Why doesn’t GS293d power up?

A: Check if the output voltage is suitable, or check if the power supply is out of order.

2. The Internet browser still cannot find or connect to GS293d after verifying the IP address and LAN cable, the changes cannot be made, or password is lost.

A: In case GS293d is inaccessible; you can try to restore its factory default settings.

Please press the “Reset” button and keep it pressed for over 7 seconds and the light

of STATUS will vanish. The LEDs will flash again when reset is successful.

3. Why does GS293d shut down unexpectedly?

A: Re-plug your power adapter. Then, check the STATUS indicator; if it is off, the

internal flash memory is damaged. For more help, please contact with your provider.

9.3 IP Address

http://www.sapido.com.tw/ User Manual v1.0.0

1. Q: What is the default IP address of the router for LAN port?

A: The default IP address is 192.168.1.1 with subnet mask 255.255.255.0

2. Q: I don't know my WAN IP.

A: There are two ways to know.

Way 1: Check with your Internet Service Provider.

Way 2: Check the setting screen of GS293d. Click on Status & Log item to select

Network Configuration on the Main Menu. WAN IP is shown on the WAN

interface.

3. How can I check whether I have static WAN IP Address?

A: Consult your ISP to confirm the information, or check Network Configuration in

GS293d ’s Main Menu.

4. Will the Router allow me to use my own public IPs and Domain, or do I have to use the IPs provided by the Router?

A: Yes, the Router mode allows for customization of your public IPs and Domain.

9.4 OS Setting

1. Why can’t my computer work online after connecting to GS293d?

A: It’s possible that your Internet protocol (TCP/IP) was set to use the following IP

address. Please do as the following steps. (Windows 2000 & XP) Start＞Settings＞ Network and Dial-up Connections＞double click on Internet Protocol(TCP/IP)＞ select obtain IP address automatically＞ Click on OK button. Then, open Internet

browser for testing. If you still can’t go online, please test something else below.

z Verify network configuration by ensuring that there are no duplicate IP

addresses.

z Power down the device in question and ping the assigned IP address of the

device. Ensure no other device responds to that address.

z Check that the cables and connectors or use another LAN cable.

2. Q: Why can't I connect to the router's configuration utility?

http://www.sapido.com.tw/ User Manual v1.0.0

A: Possible Solution 1: Make sure that your Ethernet connect properly and securely.

Make sure that you've plugged in the power cord.

Possible Solution 2: Make sure that your PC is using an IP address within the range

of 192.168.1.2 to 192.168.1.254. Make sure that the address of the subnet mask is

255.255.255.0. If necessary, the Default Gateway data should be at 192.168.1.1. To

verify these settings, perform the following steps:

Windows 2000, or XP Users:

1. Click on Windows Start > click on Run > input cmd > click on OK button.

2. At the DOS prompt, type ipconfig/all.

3. Check the IP Address, Subnet Mask, Default Gateway data. Is this data

correct? If the data isn't correct. Please input ipconfig/release > press Enter > input ipconfig/renew > press Enter.

Possible Solution 3: Verify the connection setting of your Web browser and verify that

the HTTP Proxy feature of your Web browser is disabled. Make these verifications so

that your Web browser can read configuration pages inside your router. Launch your

Web browser.

Internet Explorer Users:

1. Click on Tools > Internet Options > Connections tab.

2. Select never dial a connection, click on Apply button, and then click on OK

button.

3. Click on Tools and then click on Internet Options.

4. Click on Connections and then click on LAN Settings.

5. Make sure none of the check boxes are selected and click on OK button.

6. Click on OK button.

Netscape Navigator Users:

1. Click on Edit > Preferences > double-click Advanced in the Category window.

2. Click on Proxies > select Direct connection to the Internet > click on OK button.

3. Click on Edit again and then click on Preferences.

4. Under category, double-click on Advanced and then click on Proxies.

5. Select Direct connection to the Internet and click on OK button.

6. Click on OK button.

3. Q: Web page hangs, corrupt downloads, or nothing but junk characters is being displayed on the screen. What do I need to do?

http://www.sapido.com.tw/ User Manual v1.0.0

A: Force your NIC to 10Mbps or half duplex mode, and turn off the "Auto-negotiate"

feature of your NIC as a temporary measure. (Please look at the Network Control

Panel, in your Ethernet Adapter's Advanced Properties tab.)

4. Q: Why can't I connect to the Web Configuration?

A: you can remove the proxy server settings in your web browser.

9.5 GS293d Setup

1. Q: Why does GS293d’s setup page shut down unexpectedly?

A: If one of the pages appears incompletely in GS293d ’s setup pages, please click on

Logout item on the Main Menu before shutting it down. Don’t keep it working. Then,

close Internet browser and open it again for going back to the previous page.

2. Q: I don’t know how to configure DHCP.

A: DHCP is commonly used in the large local network. It allows you to manage and

distribute IP addresses from 2 to 254 throughout your local network via GS293d .

Without DHCP, you would have to configure each computer separately. It’s very

troublesome. Please Open Internet browser > Input 192.168.1.1 in the website blank field > Select DHCP Server under the IP Config Menu. For more information,

please refer to 3.3.2 (Router Mode) or 4.3.1 (AP Mode).

3. Q: How do I upgrade the firmware of GS293d ?

A: Periodically, a new Flash Code is available for GS293d on your product supplier’s

website. Ideally, you should update GS293d ’s Flash Code using Firmware Upgrade on the System Management menu of GS293d Settings.

4. Q: Why is that I can ping to outside hosts, but cannot access Internet websites?

A: Check the DNS server settings on your PC. You should get the DNS servers settings

from your ISP. If your PC is running a DHCP client, remove any DNS IP address

setting. As the router assign the DNS settings to the DHCP-client-enabled PC.

5. Q: GS293d couldn’t save the setting after click on Apply button?

A: GS293d will start to run after the setting finished applying, but the setting isn’t written

into memory. Here we suggest if you want to make sure the setting would be written

into memory, please reboot the device via Reboot under System Management directory.

http://www.sapido.com.tw/ User Manual v1.0.0

9.6 Wireless LAN

1. Q: Why couldn’t my wireless notebook work on-line after checking?

A: Generally, Wireless networks can sometimes be very complicated to set up,

particularly if you're dealing with encryption and products from different vendors. Any

number of variables can keep your workstations from talking to each other. Let's go

over some of more common ones.

For starters, verify that your router and your workstation are using the same SSID

descriptions. SSID acts as a password when a mobile device tries to connect to the

wireless network. The SSID also differentiates one WLAN from another, so all

access points and all devices attempting to connect to a specific WLAN must use the

same SSID. A workstation will not be permitted to connect to the network unless it

can provide this unique identifier. This is similar to the function of your network's

Workgroup or Domain name.

When you're experiencing conductivity problems, it is always best to keep things

simple. So next you are going to do is that, please disable any WEP encryption you

might have configured.

Successful implementation of encryption also includes the use of a shared key. A

HEX key is the most common, but other formats are also used. This key identifies

the workstation to the router as a trusted member of this network. Different

manufacturers can implement this key technology in ways that might prevent them

from working correctly with another vendor's products. So pay attention to detail is

going to be the key to a successful installation.

Next make sure the router and the NIC are configured to use the same

communications channel. There are normally 11 of them, and the default channel

can also vary from vendor to vendor. You might also want to confirm that the router

has DHCP services enabled and an address pool configured. If not, the NIC won't be

able to pick up an IP address. I have run across a few access points that offer DHCP

services but do not assign all of the needed IP information to the NIC. As a result, I

was able to connect to the network, but could not browse the web. The point is, don't

assume anything. Verify for yourself that all of the required settings are being

received by the workstation.

Finally, you might want to keep the system you're trying to configure in the same

room as the router, at least during the initial configuration, in order to minimize

potential interference from concrete walls or steel beams.

http://www.sapido.com.tw/ User Manual v1.0.0

2. Q: My PC can’t locate the Wireless Access Point.

A: Check the following:

z Your PC is set to Infrastructure Mode. (Access Points are always in Infrastructure

Mode.)

z The SSID on your PC and the Wireless Access Point are the same. Remember

that the SSID is case-sensitive. So, for example “Workgroup” does NOT match

“workgroup”.

z Both your PC and the Wireless Access Point must have the same setting for

WEP. The default setting for the Wireless Router is disabled, so your wireless

station should also have WEP disabled.

z If WEP is enabled on the Wireless Router, your PC must have WEP enabled,

and the key must match.

z If the Wireless Router’s Wireless screen is set to Allow LAN access to selected

Wireless Stations only, then each of your Wireless stations must have been

selected, or access will be blocked.

z To see if radio interference is causing a problem, see if connection is possible

when close to the Wireless Access Point. Remember that the connection range

can be as little as 100 feet in poor environments.

3. Q: Wireless connection speed is very slow.

A: The wireless system will connect at highest possible speed, depending on the

distance and the environment. To obtain the highest possible connection speed, you

can experiment with following:

z Access Point location: Try adjusting the location and orientation of the Access

Point.

z Wireless Channel: If interference is the problem, changing to another channel

may show a marked improvement.

z Radio Interference: Other devices may be causing interference. You can

experiment by switching other devices off, and see if this helps. Any “noisy”

devices should be shielded or relocated.

z RF Shielding: Your environment may tend to block transmission between the

wireless stations. This will mean high access speed is only possible when close

to the Access Point.

4. Q: Some applications do not run properly when using the Wireless Router.

http://www.sapido.com.tw/ User Manual v1.0.0

A: The Wireless Router processes the data passing through it, so it is not transparent.

Use the Special Application feature to allow the use of Internet applications which do

not function correctly. If this does solve the problem, you can use the DMZ function.

This should work with almost every application, but:

z It is a security risk, since the firewall is disabled.

z Only one (1) PC can use this feature.

5. Q: I can’t connect to the Wireless Router to configure it.

A: Check the following:

z The Wireless Router is properly installed, LAN connections are OK, and it is

powered ON.

z Make sure that your PC and the Wireless Router are on the same network

segment.

z If your PC is set to “Obtain an IP Address automatically” (DHCP client), restart it.

z If your PC uses a Fixed (Static) IP address, make sure that it is using an IP

Address within the range 192.168.1.129 to 192.168.1.253 and thus compatible

with the Wireless Router’s default IP Address of 192.168.1.254. Also, the

Network Mask should be set to 255.255.255.0 to match the Wireless Router. In

Windows, you can check these settings by using Control Panel ~ Network to

check the Properties for the TCP/IP protocol.

6. Q: The WinXP wireless interface couldn’t communicate the WEP with GS293d’s wireless interface.

A: The default WEP of WinXP is Authentication Open System - WEP, but the WEP of

GS293d is only for Shared Key - WEP, it caused both sides couldn’t communicate. Please select the WEP of WinXP from Authentication Open System to Pre-shared Key - WEP, and then the WEP wireless interface between WinXP and GS293d

would be communicated.

9.7 Support

1. Q: What is the maximum number of IP addresses that the XDSL Router will support?

A: The Router will support to 253 IP addresses with NAT mode.

5. Q: Is the Router cross-platform compatible?

A: Any platform that supports Ethernet and TCP/IP is compatible with the Router.

http://www.sapido.com.tw/ User Manual v1.0.0

9.8 Others

1. Q: Why does the router dial out for PPPoE mode very often?

A: Normally some of game, music or anti-virus program will send out packets that

trigger the router to dial out, you can close these programs. Or you can set the idle

time to 0, then control to dial out manually.

2. Q: What can I do if there is already a DHCP server in LAN?

A: If there are two DHCP servers existing on the same network, it may cause conflict

and generate trouble. In this situation, we suggest to disable DHCP server in router

and configure your PC manually.

9.9 USB Device

1. Q: How many USB devices can be connected to the Product?

A: GS293d has 2 USB ports.

http://www.sapido.com.tw/ User Manual v1.0.0

Chapter 10 Appendices

10.1 Operating Systems

1. Microsoft：Windows 2000, XP, Vista, Windows 7.

2. Apple：Mac OS X 10.4.7, Leopard and the following related versions.

3. Linux：Redhat 9, Fedora 6 & 7, Ubuntu 7.04 and the following related versions.

10.2 Browsers

1. Internet Explorer ver. 6 and 7 and the following related versions.

2. FireFox ver. 2.0.0.11 and the following related versions.3.

3. Safari ver. 3.04 and the following related versions.

10.3 Communications Regulation Information

Should any consumers need to learn more information, services and supports, please contact

the supplier of your product directly.

http://www.sapido.com.tw/ User Manual v1.0.0

100

SAPIDO GR-1736 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
