Sapido GR-1733 User Manual
http://www.sapido.com.tw/ User Manual v1.0.0
1
http://www.sapido.com.tw/ User Manual v1.0.0
2
FCC Statement
Federal Communication Commission Interference Statement This equipment has
been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to the
following conditions:
2. This device may not cause harmful interference, and this device must accept any
interference received, including interference that may cause undesired
operation.
3. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
4. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
5. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
IMPORTANT NOTE
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance20cm between the radiator & your body.
http://www.sapido.com.tw/ User Manual v1.0.0
3
CE Mark Warning
This is a class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take adequate measures.
National Restrictions
Frequency range - 2400.0 - 2483.5 MHz
Country Country Reason/remark
Bulgaria none
General authorization required for outdoor use
and public service.
France
Outdoor use limited to 10
mW e.i.r.p. within the
band 2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4
GHz band has been ongoing in recent years to
allow current relaxed regulation. Full
implementation planned 2012.
Italy none
If used outside of own premises, general
authorization is required.
Luxembourg none
General authorization required for network and
service supply (not for spectrum).
Norway Implemented
This subsection does not apply for the
geographical area within a radius of 20 km from
the centre of Ny-Ålesund.
Russian
Federation
none Only for indoor applications.
Note: Please don’t use the product outdoors in France
CE Statement of Conformity
Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of "Council Directive on the Approximation of the Laws
of the Member Sates relating to Electromagnetic Compatibility" (89/336/EEC; 92/31/EEC;
93/68/EEC). The Declaration of Conformity can be found at the Sapido regional website.
www.sapidotech.de
CE Information of Disposal
The electric and electronic equipment or unit which is labeled with crossed-out wheeled bin
may not be disposed of with household waste. This mark is based on European Directive
2002/96/EC (for Waste Electric and Electronic Equipment=WEEE).
Please take it to the designated collection facilities. We will ensure the proper recycling, reuse
and other forms of recovery of WEEE. WEEE has the potential effects on the environment
and human health as a result of the presence of hazardous substances. You can contribute to
eliminate these effects by your cooperation.
http://www.sapido.com.tw/ User Manual v1.0.0
4
Table of Contents
Chapter 1
Introduction .................................................................................................................7
1.1
Specifications..............................................................................................................7
1.2
Product Appearance...................................................................................................8
Chapter 2
System and Network Setup......................................................................................10
2.1
Build Network Connection .......................................................................................10
2.1.1
Router Mode......................................................................................................10
2.1.2
AP Mode............................................................................................................11
2.1.3
Wi-Fi AP Mode...................................................................................................11
2.2
Connecting SAPIDO GR-1733..................................................................................11
2.3
Network setup ...........................................................................................................12
2.3.1
Windows 2000...................................................................................................13
2.3.2
Windows XP......................................................................................................14
2.3.3
Windows Vista / Windows 7 ............................................................................15
2.4
Router IP Address Lookup.......................................................................................16
2.4.1
Log into Web GUI .............................................................................................17
Chapter 3
Internet Connection ..................................................................................................19
3.1
Plug and Play.............................................................................................................19
3.1.1
Smart Phone /iPhone Internet sharing plug and play ..................................19
3.2
Router Mode- Using as a broadband router...........................................................20
3.2.1
WAN Interface- Ethernet Port..........................................................................21
3.2.1.1 Static IP ................................................................................................................21
3.2.1.2 DHCP Client .........................................................................................................23
3.2.1.3 PPPoE...................................................................................................................24
3.2.1.4 PPTP.....................................................................................................................26
3.2.1.5 L2TP......................................................................................................................27
3.2.1.6 Advance function ................................................................................................29
3.2.2
WAN Interface- 3G USB dongle.......................................................................29
3.2.3
WAN Interface- Wireless..................................................................................31
3.3
AP Mode-Using as a Access Point..........................................................................32
3.4
WiFi AP Mode- Using as a Network Converter.......................................................34
Chapter 4
Wireless Setup ..........................................................................................................37
4.1
Wireless Setup ..........................................................................................................37
4.1.1
Setup Wireless LAN by WPS button...............................................................37
4.1.2
Wireless Basic Setup from Web GUI..............................................................39
4.1.2.1 Multiple APs.........................................................................................................41

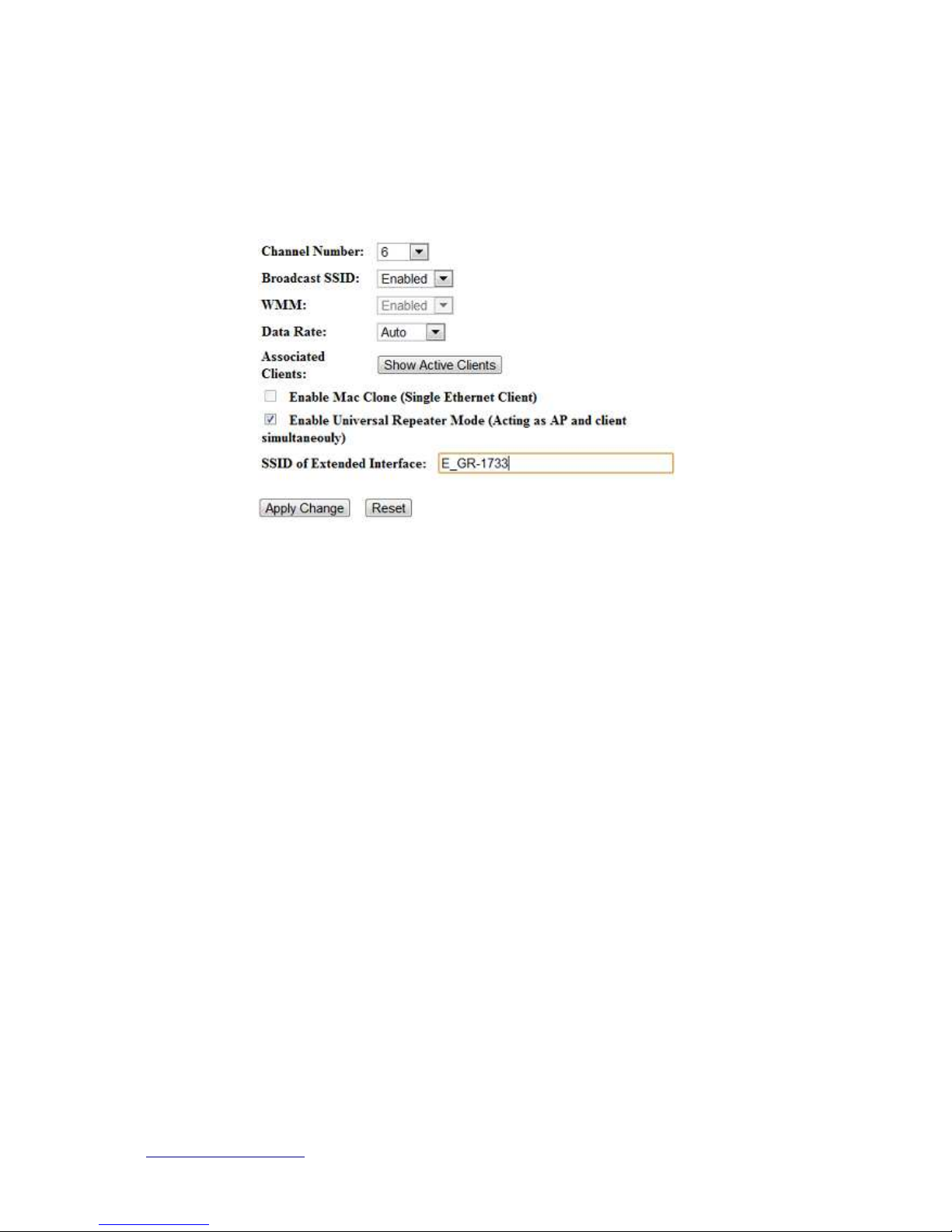

4.1.2.2 Enable Universal Repeater Mode.......................................................................42
4.2
Wireless Security Setup ...........................................................................................43
http://www.sapido.com.tw/ User Manual v1.0.0
5
4.3
Wireless Access Control..........................................................................................46
Chapter 5
Router Mode Security Setup....................................................................................48
5.1
NAT.............................................................................................................................48
5.1.1

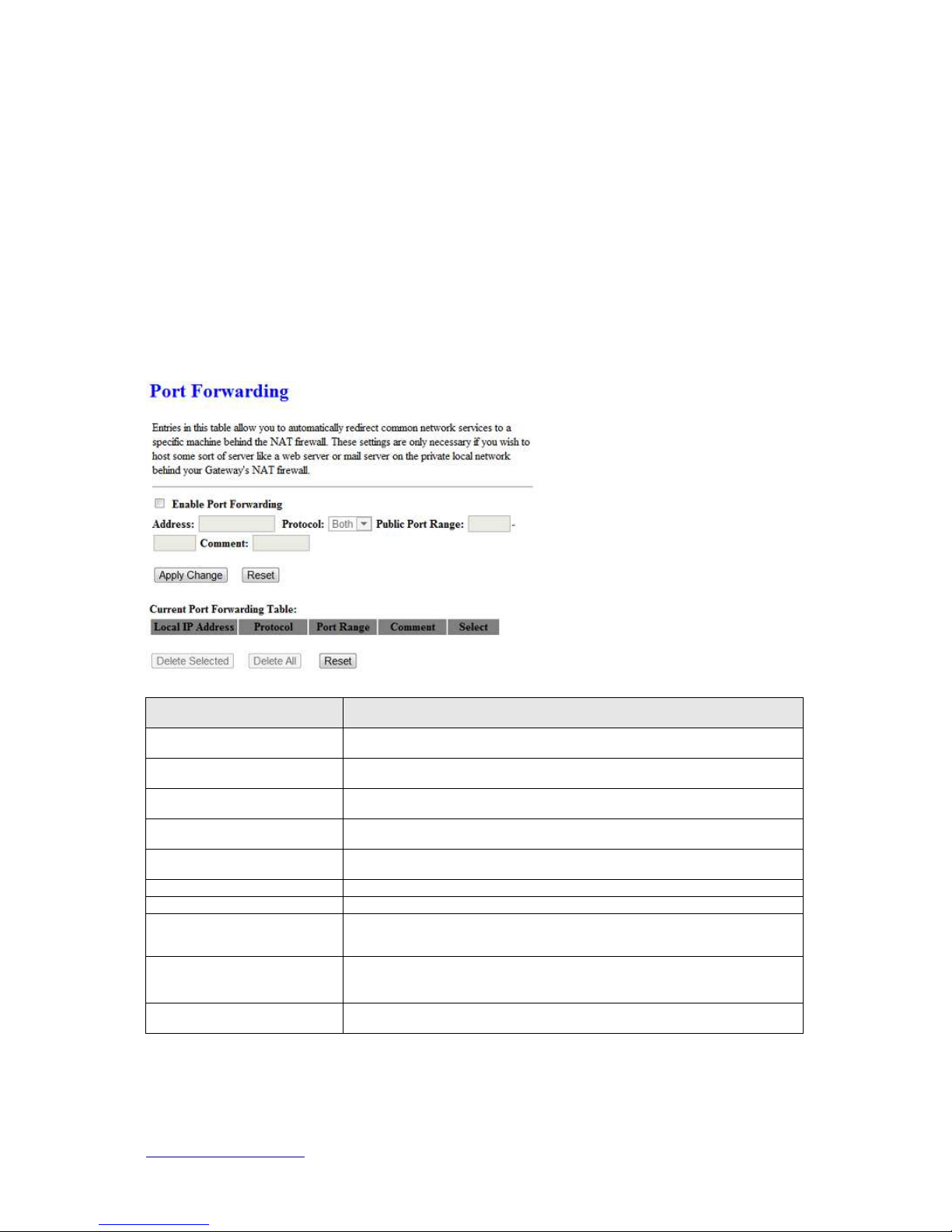

Virtual Server....................................................................................................48
5.1.2
Virtual DMZ........................................................................................................49
5.2

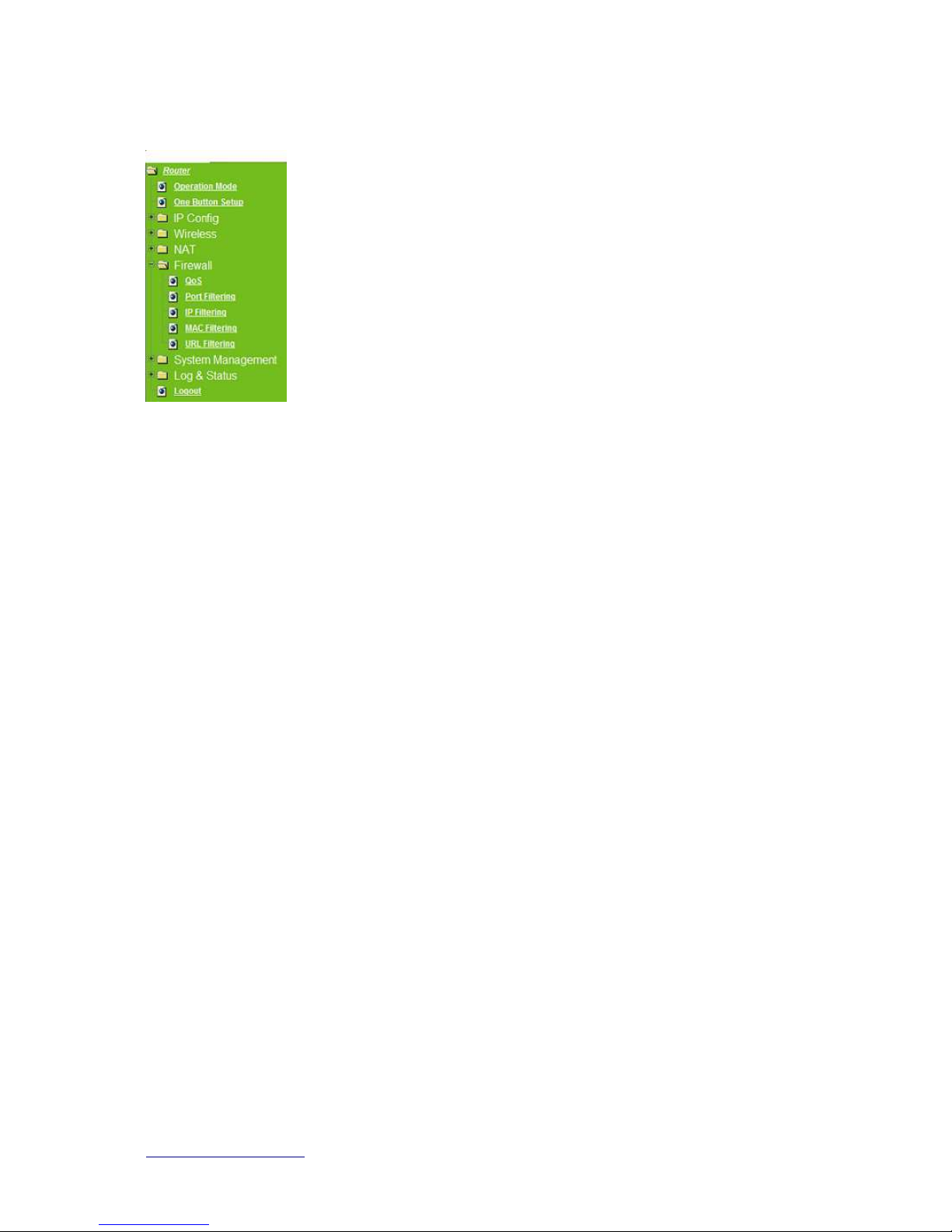

Firewall.......................................................................................................................50
5.2.1
QoS....................................................................................................................50
5.2.2
Port Filtering.....................................................................................................52
5.2.3
IP Filtering.........................................................................................................53
5.2.4
MAC Filtering....................................................................................................54
5.2.5

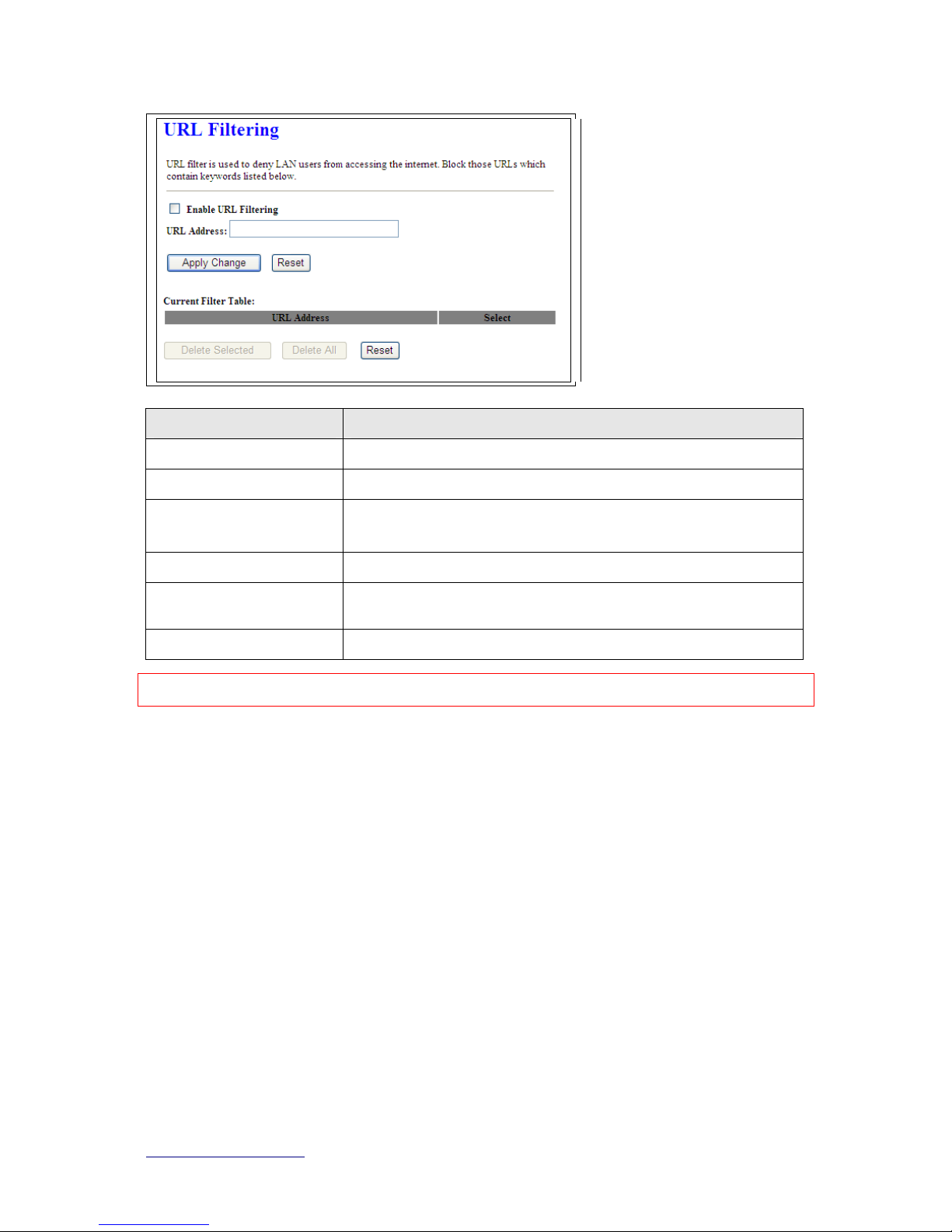

URL Filtering.....................................................................................................54
Chapter 6
Advanced Setup........................................................................................................56
6.1
Dynamic DNS Setting .............................................................................56
6.2
Wireless Advanced Setup ........................................................................................57
6.2.1

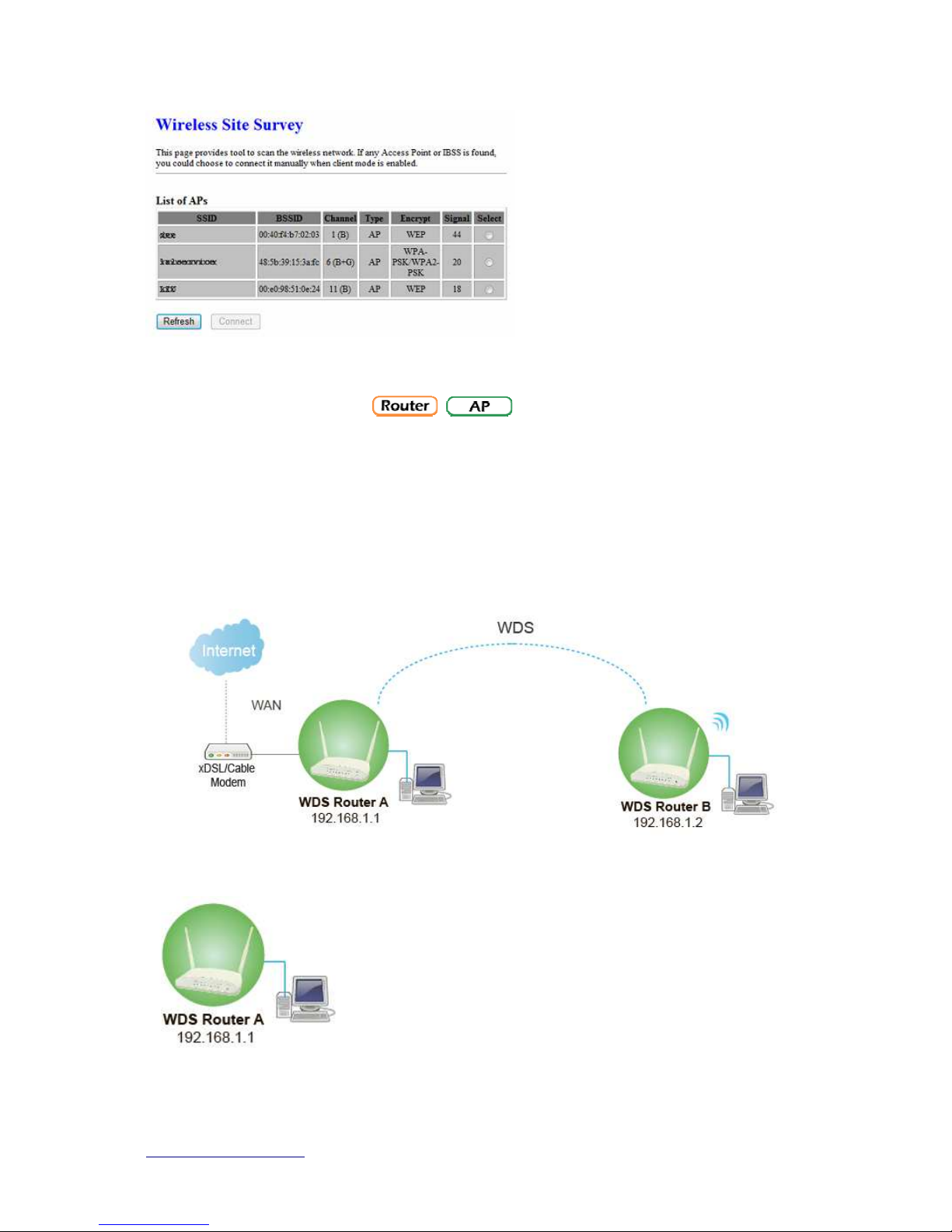

Wireless Site Survey ....................................................................58
6.2.2

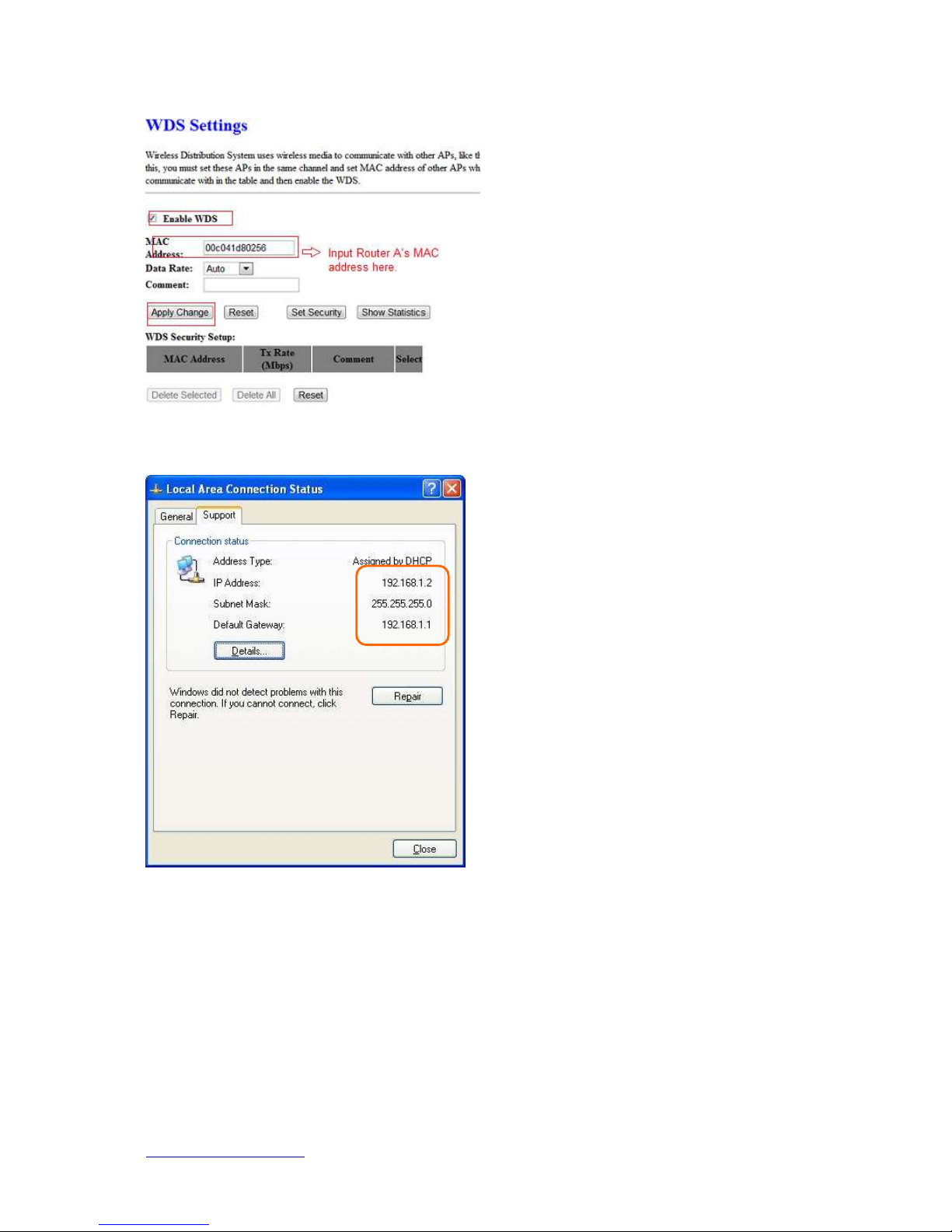

WDS Settings ..............................................................59
6.2.3

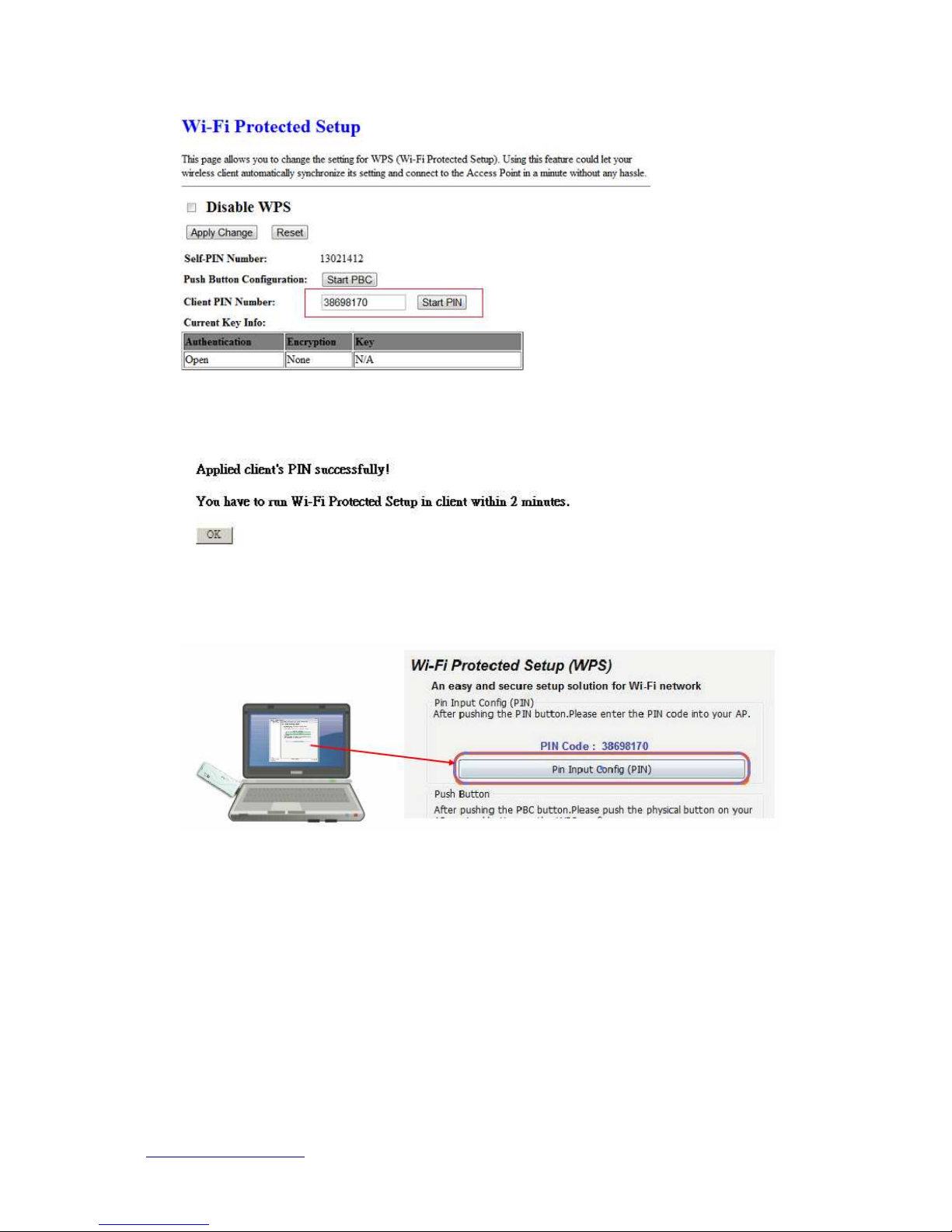

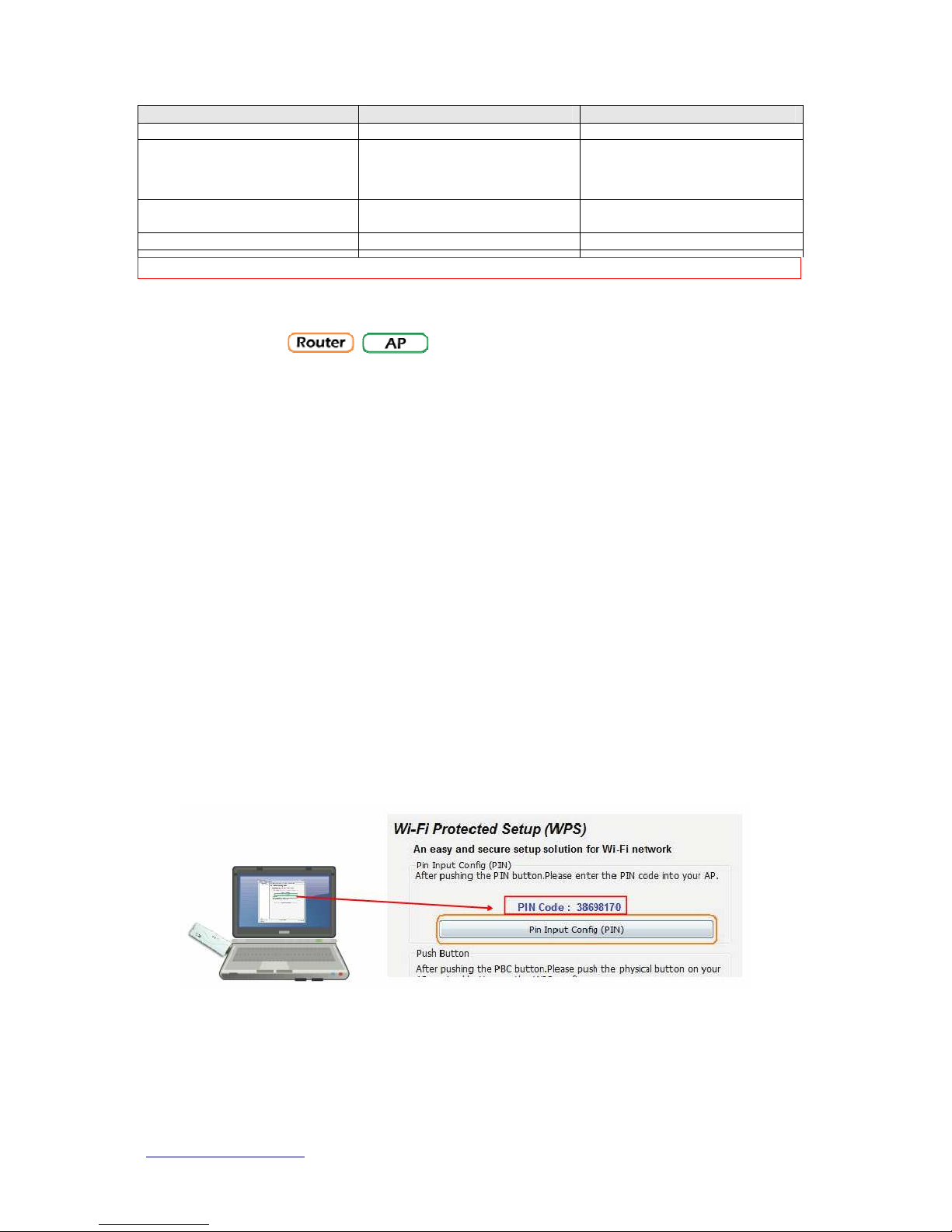

WPS ...............................................................................63
6.3
System Management ................................................................................................65
6.3.1

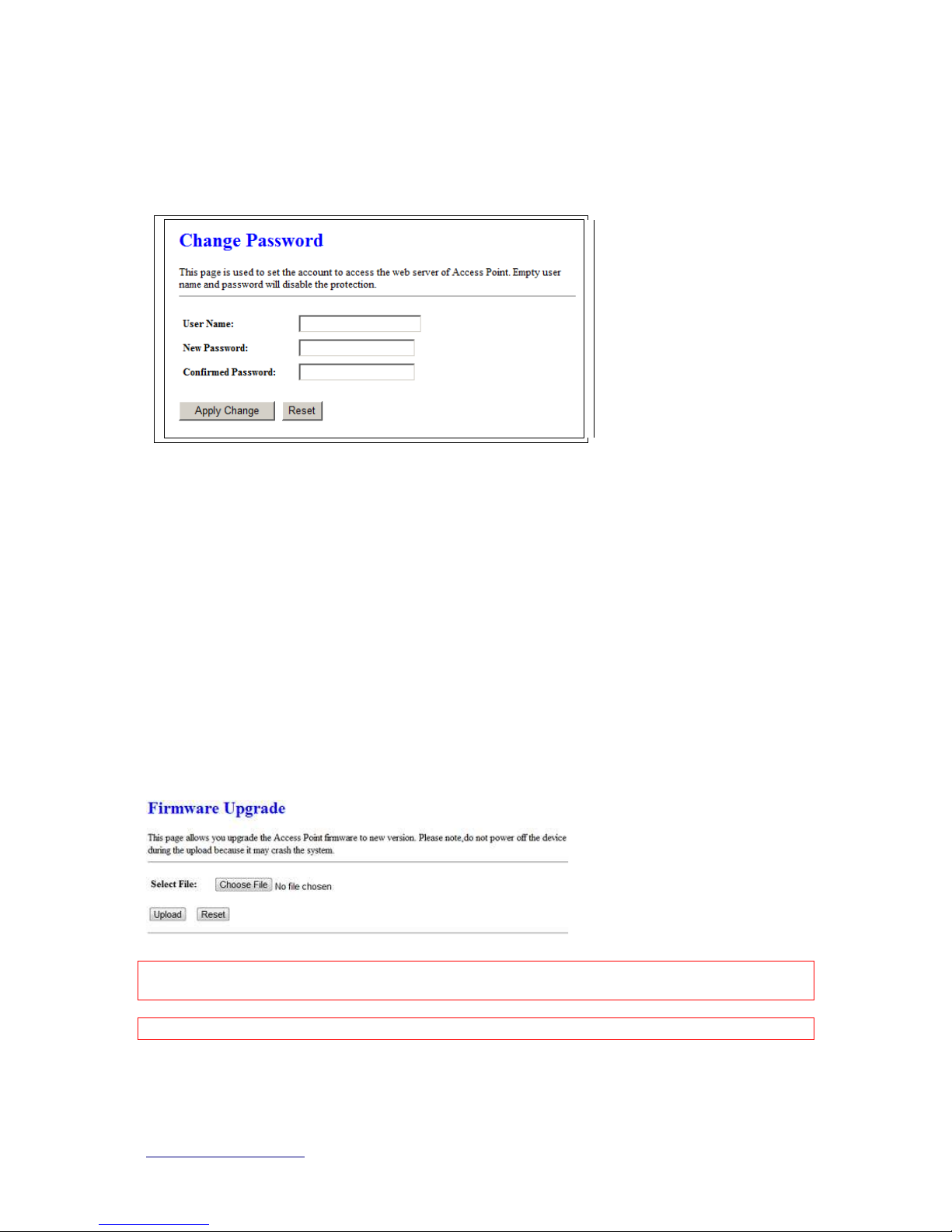

Change Password ............................................................................................66
6.3.2
Firmware Upgrade............................................................................................66
6.3.3

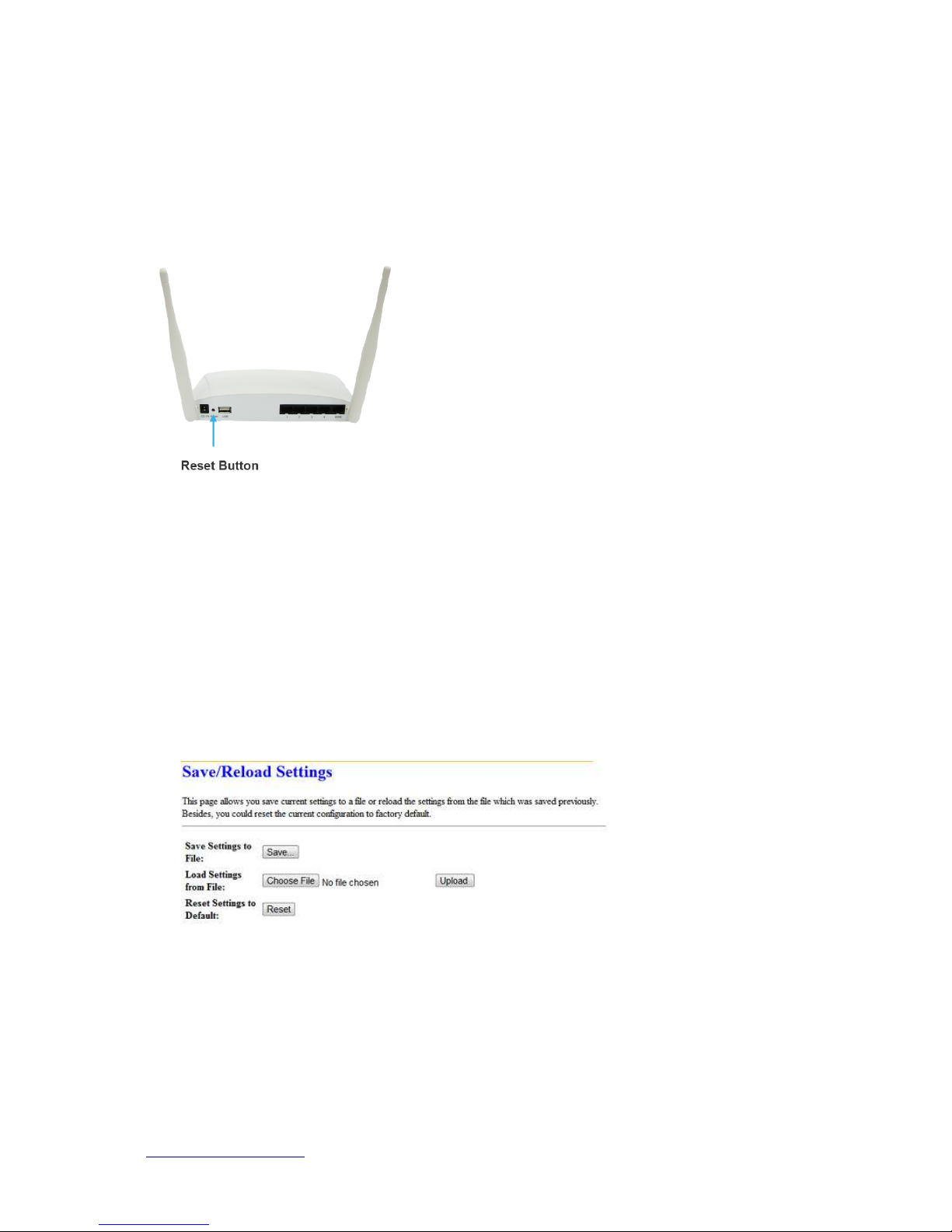

Profile Save.......................................................................................................67
6.3.4

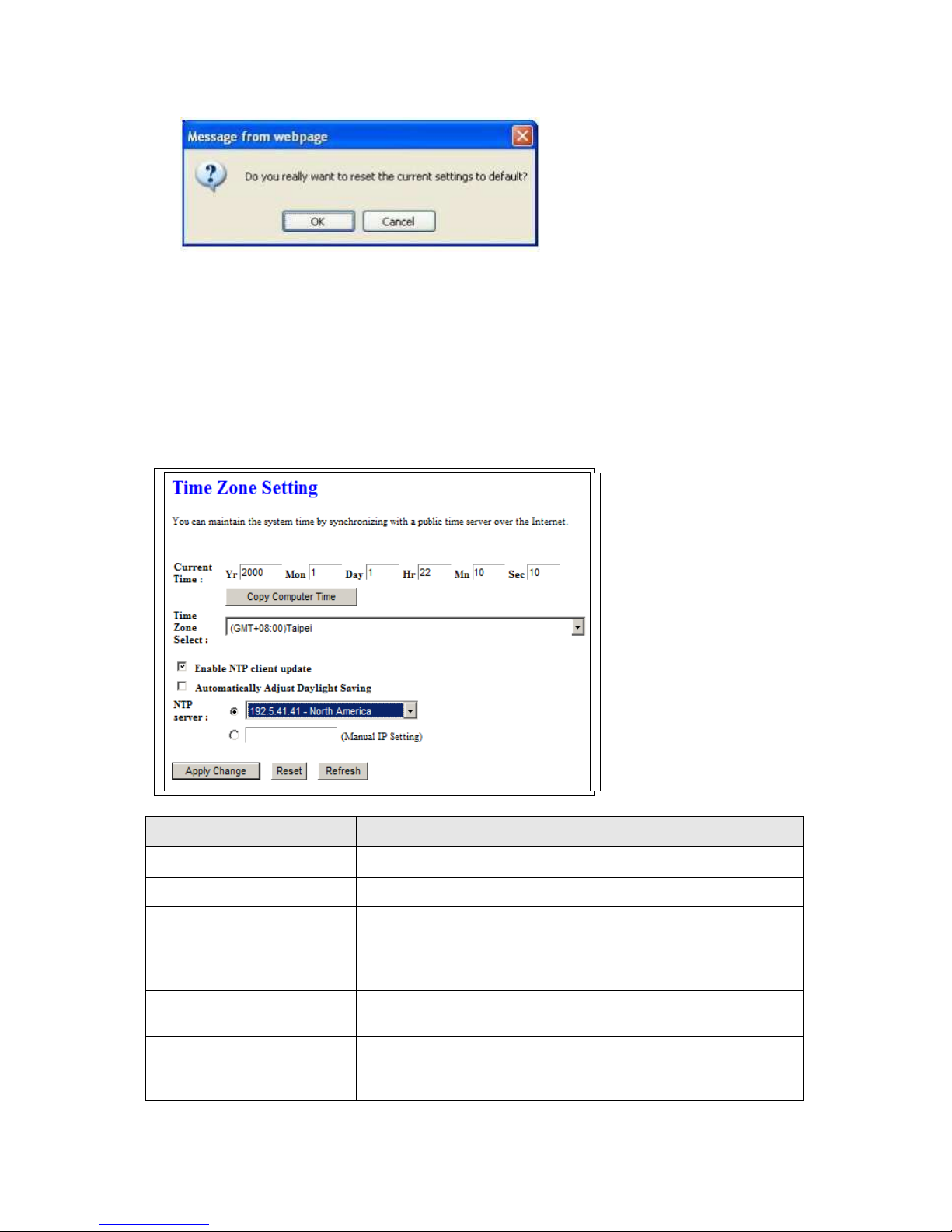

Time Zone Setting ............................................................................................70
6.3.5
UPnP Setting.....................................................................................................71
6.3.6
VPN Passthrough Setting................................................................................71
6.3.7
Language Setting .............................................................................................72
6.4
Log & Status..............................................................................................................72
6.4.1

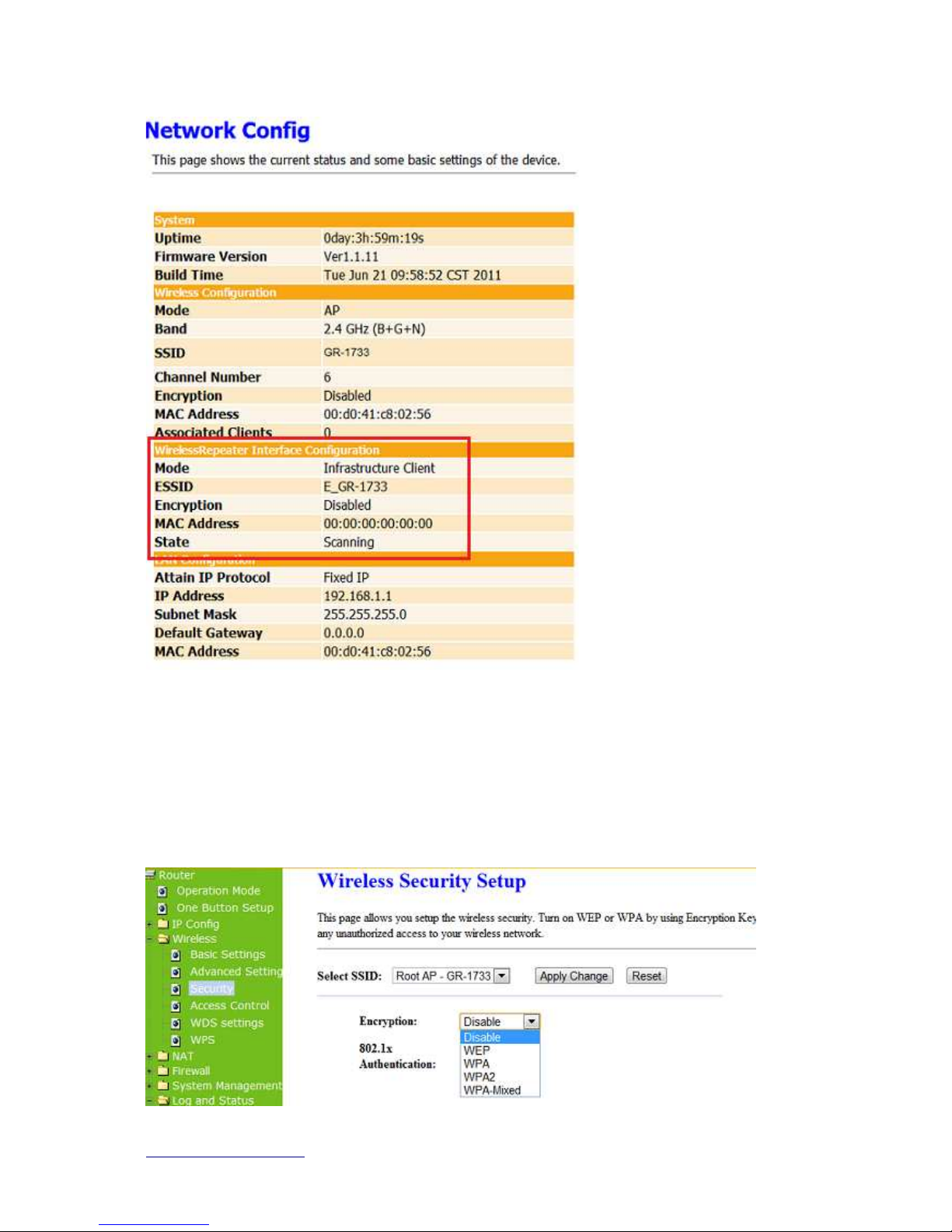

Network Config.................................................................................................73
6.4.2

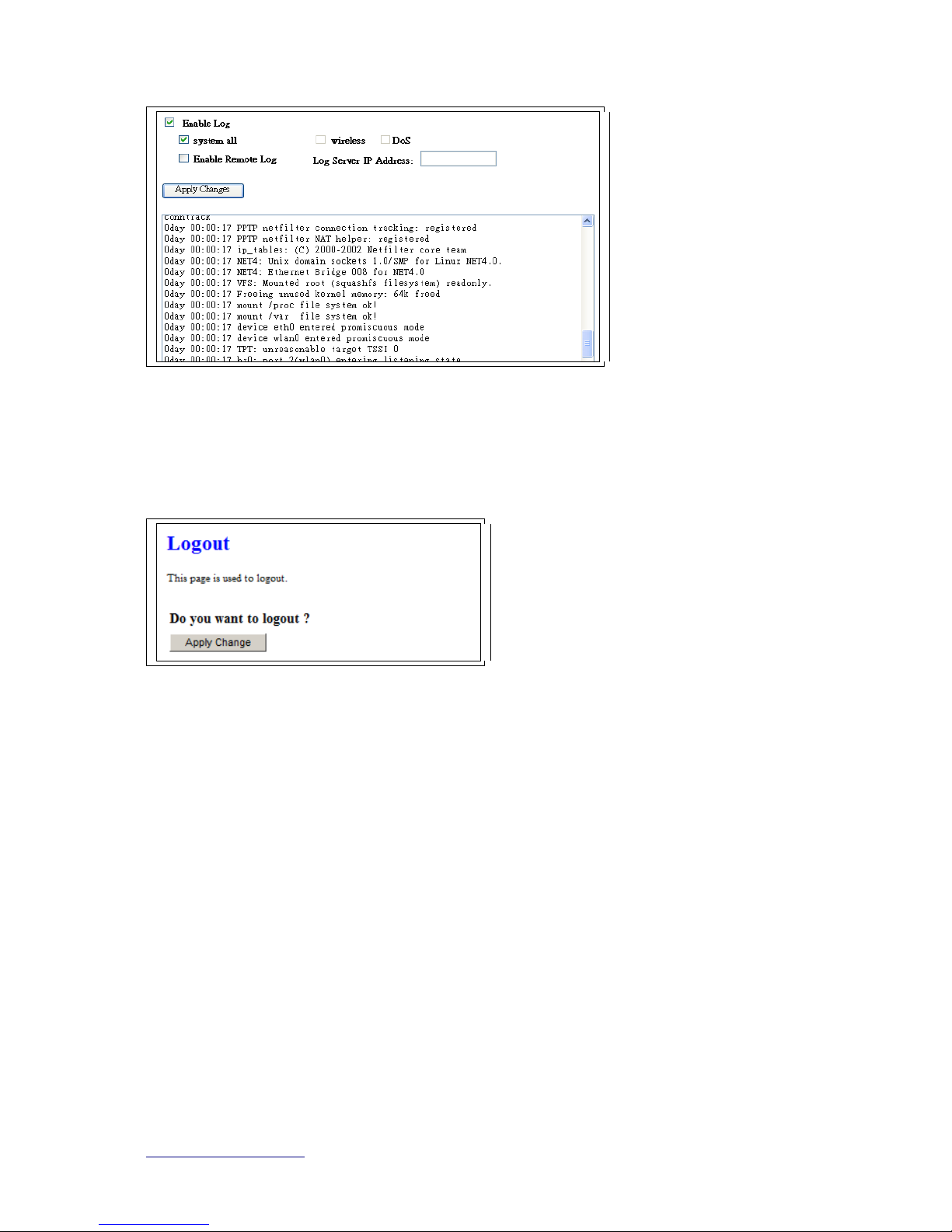

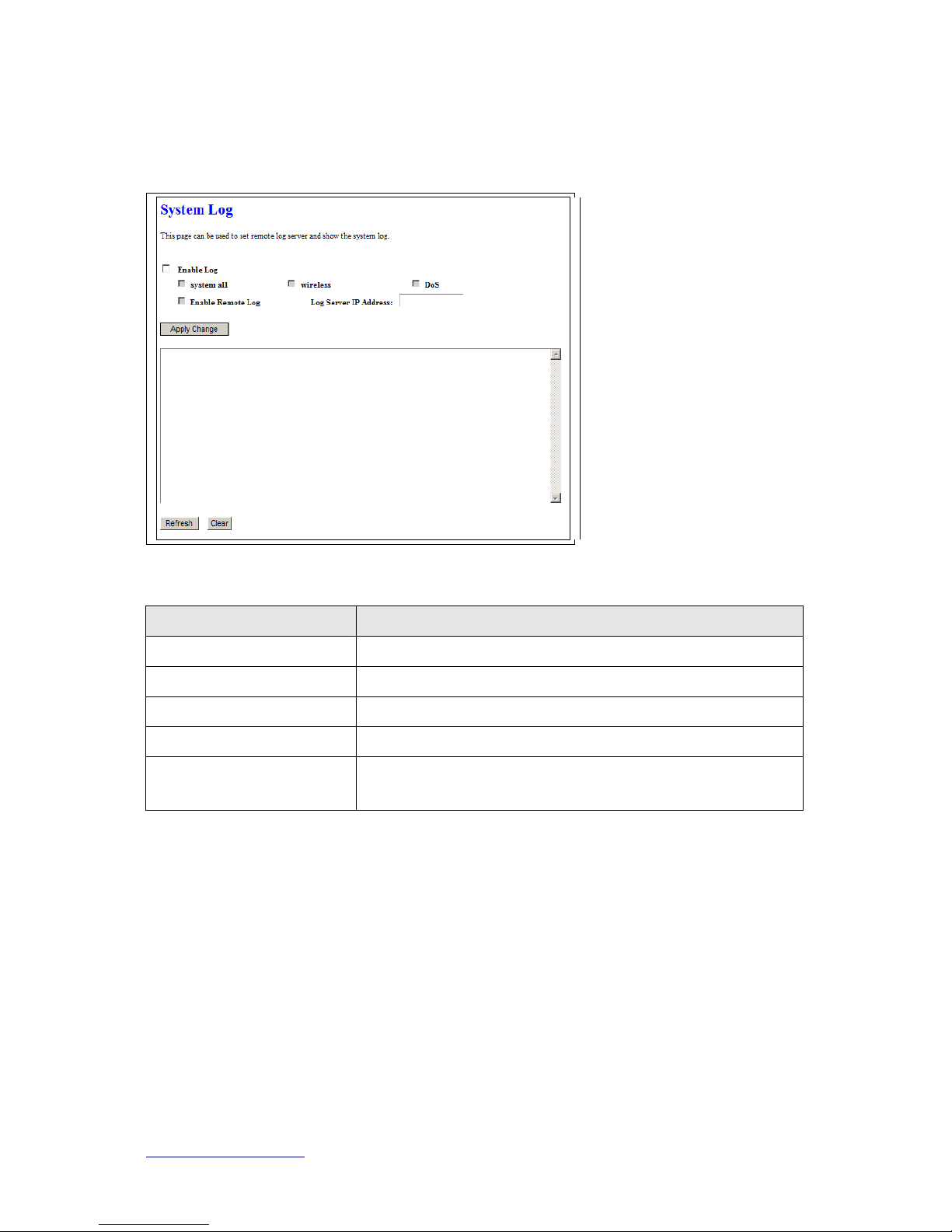

Event Log..........................................................................................................74
6.5
Logout........................................................................................................................75
Chapter 7
Samba Server ............................................................................................................76
7.1
How to use SAPIDO GR-1733 as a Samba server..................................................76
Chapter 8

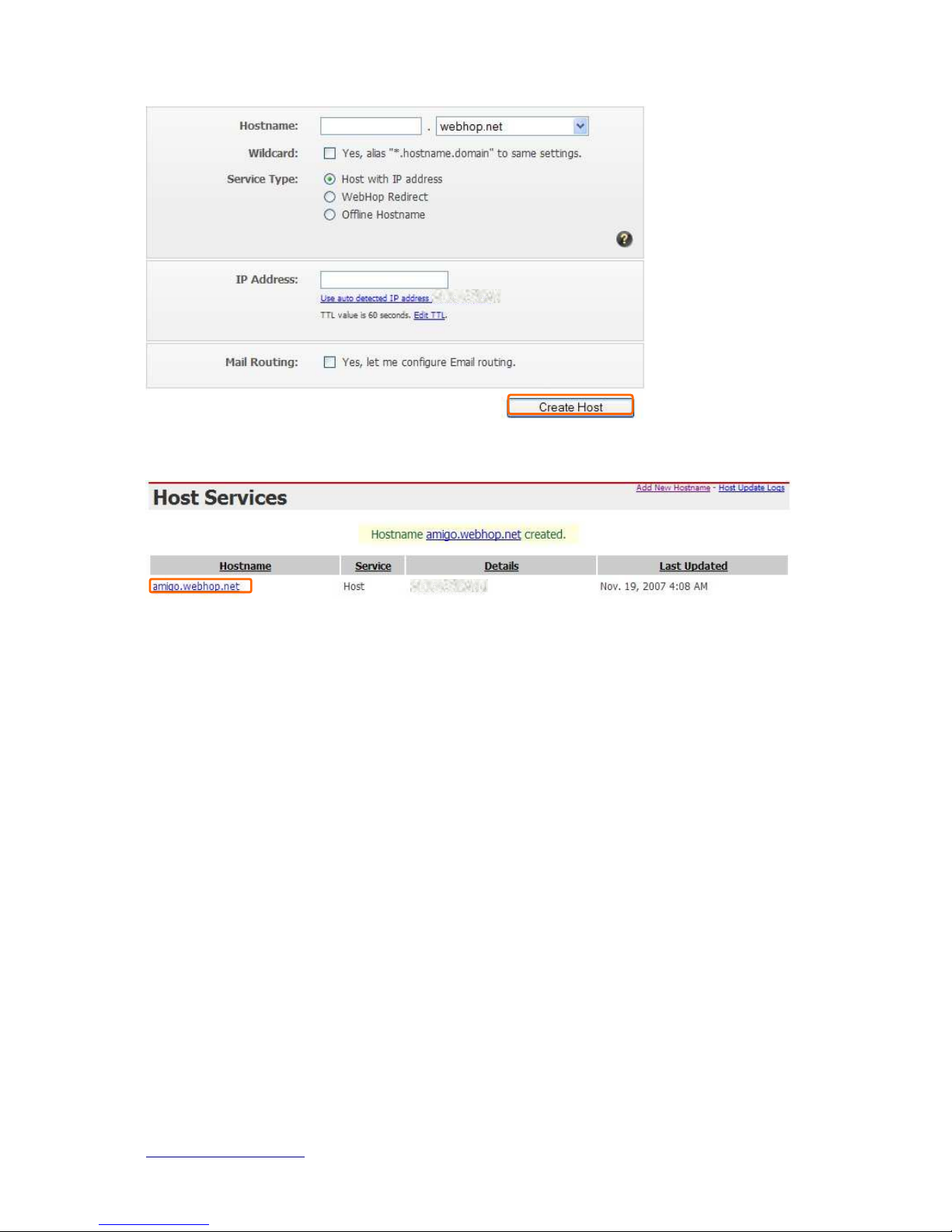

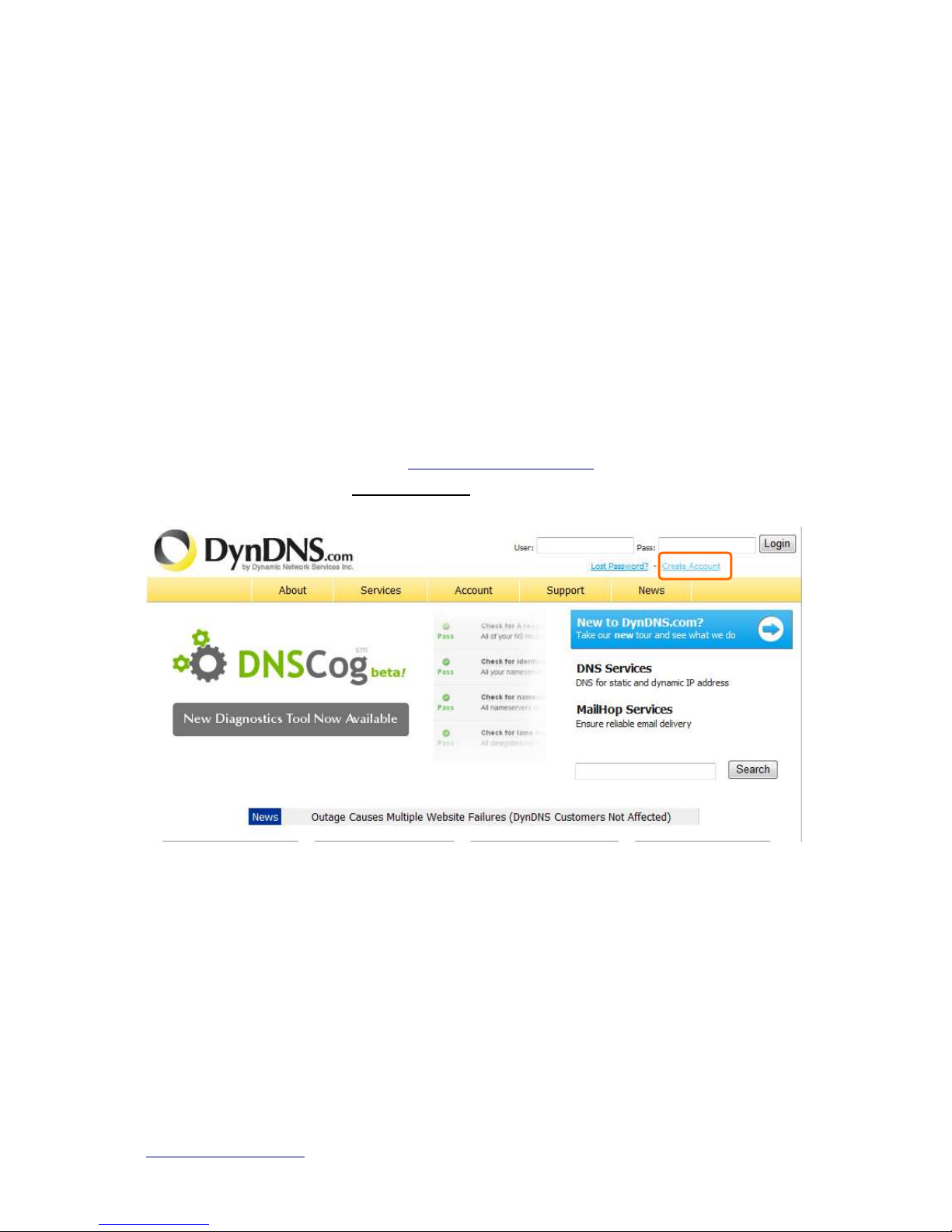

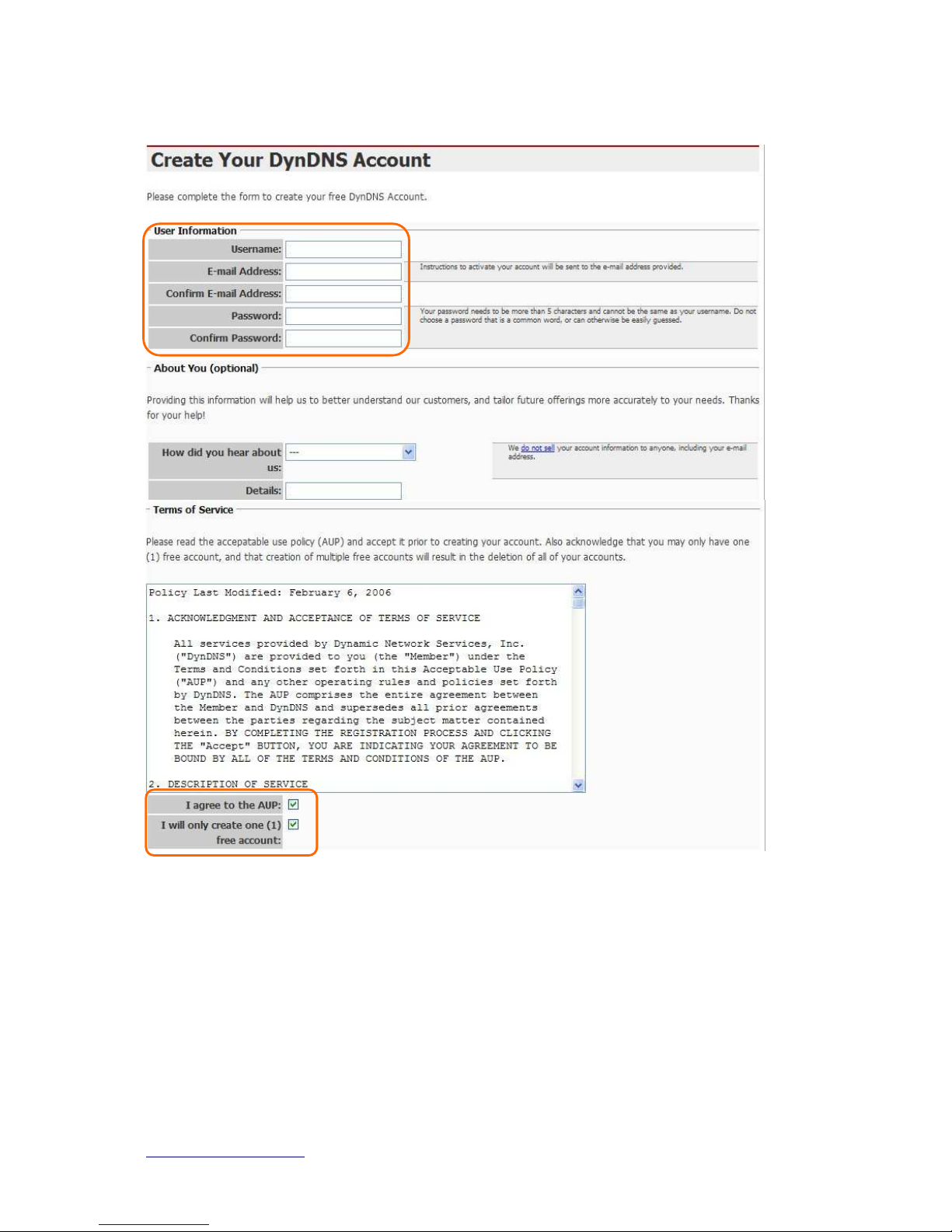

DDNS Service Application........................................................................................77
Chapter 9
Q & A ..........................................................................................................................82
9.1
Installation .................................................................................................................82
9.2
LED.............................................................................................................................82
9.3
IP Address..................................................................................................................82
9.4
OS Setting..................................................................................................................83
9.5
SAPIDO GR-1733 Setup............................................................................................85
http://www.sapido.com.tw/ User Manual v1.0.0
6
9.6
Wireless LAN.............................................................................................................86
9.7
Support ......................................................................................................................88
9.8
Others.........................................................................................................................89
9.9
USB Device................................................................................................................89
Chapter 10 Appendices................................................................................................................90
10.1
Operating Systems ...................................................................................................90
10.2
Browsers....................................................................................................................90
10.3
Communications Regulation Information..............................................................90
http://www.sapido.com.tw/ User Manual v1.0.0
7
Chapter 1 Introduction
1.1 Specifications
Network
Standards Mobile (External): 3G/4G USB Modem
WLAN: IEEE 802.11n, 802.11g, 802.11b
WAN: xDSL/Cable Modem
Data Rate 3G/4G: Depending on actual service speed
WiFi: 802.11n (Max 300Mbps), 802.11g (Max 54Mps),
802.11b (Max 11Mbps)
LAN: 802.3/802.3u (10/100Mbps)
Frequency Range 2.412~2.484GHz
Wireless Security WEP 64 or 128 bit/WPA/WPA2/WPA2 Mixed,
WPS (PBC/PIN),
WDS, Multiple APs
Session 100,000
Firewall MAC Address Filtering, URL Filtering, IP/Port Based Filtering
UPnP, DHCP, DDNS, DNS
Operation Modes Router, AP, WiFi AP
Network Features NAT: DMZ Host, Port-Redirection / Virtual server / VPN pass-trough
Hardware
Antenna 5 dBi x2 (External)
WAN 1 x 10/100/1000Mbps RJ45, with auto MDI/MDIX
LAN 4 x 10/100/1000Mbps RJ45, with auto MDI/MDIX
LED Indicator Power, Status, WAN, LAN (1~4), Wireless/WPS
Power Adapter DC 12V
Operating Temperature Operating: 0ºC ~40ºC (32ºF ~104ºF)
Storage: -20ºC ~70ºC (-4ºF ~158ºF)
Humidity Operating: 10% to 85% Non-Condensing
Storage: 5% to 90% Non-Condensing
Dimension 198 x 107 x 39 mm (4.65 x 2.75 x 0.98 inch) (Antenna not included)
Management Web GUI, Firmware upgrade via web
http://www.sapido.com.tw/ User Manual v1.0.0
8
1.2 Product Appearance
λλλλ The Front
LED Indicator Status Description:
Status
LED Indicator
Solid Flashing
Power
Operation OK -
Status
System ready Reset / Firmware updates in progress
WAN
Ethernet connected Transmitting Data
LAN (1~4)
Ethernet connected Transmitting Data
WIRELESS & WPS
Operation OK
Green: Transmitting Data
Orange: WPS enabled
λλλλ The Rear
http://www.sapido.com.tw/ User Manual v1.0.0
9
Power DC Jack
DC 12V power in
Reset Button
Press for back to factory default
USB Port
For 3G/4G modem only
Ethernet Port (LAN 1~4)
RJ-45 Ethernet 10/100/1000 Ports
Ethernet Port (WAN)
RJ-45 Ethernet 10/100/1000 Port
http://www.sapido.com.tw/ User Manual v1.0.0
10
Chapter 2 System and Network Setup
The SAPIDO GR-1733 is an easy to setup and wireless device for various application and
environment, especially for large installs such as hotels, offices space, warehouses,
hot-spots and more.
To begin with SAPIDO GR-1733, you must have the following minimum system requirements.
If your system can’t correspond to the following requirements, you might get some unknown
troubles on your system.
λλλλ Internet Account for XDSL/Cable Modem, or 3G.
λλλλ One Ethernet (10 BASE-T, 10/100 BASE-TX or 10/100/1000 BASE-TX) network
interface card.
λλλλ TCP/IP and at least one web browser software installed (E.g.: Internet Explorer 6.0,
Netscape Navigator 7.x, Apple Safari 2.03 or higher version).
λλλλ At lease one 802.11g (54Mbps) or one 802.11b (11Mbps) wireless adapter for wireless
mobile clients.
λλλλ Recommended OS: WinXP, Visata or Win7 / Linux.
2.1 Build Network Connection
Administrator can manage the settings for WAN, LAN, Wireless Network, NTP, password,
User Accounts, Firewall, etc.
Please confirm the network environment or the purpose before setting this product.
2.1.1 Router Mode
Switch to router mode through web GUI when the first setup.
http://www.sapido.com.tw/ User Manual v1.0.0
11
2.1.2 AP Mode
Switch to AP mode, if a router is already set at the house, and you want to make the wireless
LAN communication.
2.1.3 Wi-Fi AP Mode
Switch to WiFi AP Mode when you connect to the internet wirelessly through PC and wireless
device without wireless LAN function equipped.
2.2 Connecting SAPIDO GR-1733
Prepare the followings before the connection:
λλλλ PC or Notebook for setup
λλλλ Ethernet cable or 3G modem
http://www.sapido.com.tw/ User Manual v1.0.0
12
1. Make sure you are under “Router Mode”.
2. Connect SAPIDO GR-1733 to xDSL/ Cable modem with the Ethernet cable, WAN to
LAN.
3. Turn on your Computer.
2.3 Network setup
http://www.sapido.com.tw/ User Manual v1.0.0
13
After the network connection is built, the next step is setup the router with proper network
parameters, so it can work properly in your network environment. Before you connect to the
wireless router and start configuration procedures, your computer must be able to get an IP
address from the wireless router automatically (use dynamic IP address). If it’s set to use
static IP address, or you’re unsure, please follow the below instructions to configure your
computer with dynamic IP address:
If the operating system of your computer is….
Windows 2000 - please go to section 2.3.1
Windows XP - please go to section 2.3.2
Windows Vista/Win7 - please go to section 2.3.3
2.3.1 Windows 2000
Click “Start” button (it should be located at lower-left corner of your computer), then click
control panel. Double-click Network and Dial-up Connections icon, double click Local Area
Connection, and Local Area Connection Properties window will appear. Select “Internet
Protocol (TCP/IP)”, then click “Properties”.
1. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
http://www.sapido.com.tw/ User Manual v1.0.0
14
2.3.2 Windows XP
1. Click “Start” button (it should be located at lower-left corner of your computer), then
click control panel. Double-click Network and Internet Connections icon, click Network
Connections, then double-click Local Area Connection, Local Area Connection Status
window will appear, and then click “Properties”.
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
http://www.sapido.com.tw/ User Manual v1.0.0
15
2.3.3 Windows Vista / Windows 7
1. Click “Start” button (it should be located at lower-left corner of your computer), then
click control panel. Click View Network Status and Tasks, and then click Manage Network
Connections. Right-click Local Area Network, then select “Properties”. Local Area
Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”,
and then click “Properties”.
http://www.sapido.com.tw/ User Manual v1.0.0
16
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.4 Router IP Address Lookup
After the IP address setup was completed, please clicks “start” → “run” at the bottom-lower
corner of your desktop:
http://www.sapido.com.tw/ User Manual v1.0.0
17
Input “cmd”, and then click “OK”.
Input “ipconfig”, then press “Enter” key. Please check the IP address followed by “Default
Gateway” (In this example, the gateway IP address of router is 192.168.1.1)
NOTE: If the IP address of Gateway is not displayed, or the address followed by ‘IP Address’ begins with
“169.x.x.x”, please recheck network connection between your computer and router, and / or go to the
beginning of this chapter, to recheck every step of network setup procedure.
2.4.1 Log into Web GUI
After your computer obtained an IP address from wireless router, please start your web
browser, and input the IP address of the wireless router in address bar, and the following
message should be shown. Please click “admin” to login the SAPIDO GR-1733.
Enter the User name and Password in to the blank and then Click Login. The default values
for User Name and Password are admin (all in lowercase letters).
http://www.sapido.com.tw/ User Manual v1.0.0
18
http://www.sapido.com.tw/ User Manual v1.0.0
19
Chapter 3 Internet Connection
This Chapter describes how to setup SAPIDO GR-1733 to the internet. The SAPIDO
GR-1733 is delivered with the following factory default parameters.
Default IP address: 192.168.1.1 (Router Mode)
192.168.1.254 (AP Mode)
192.168.1.254 (WiFi AP Mode)
Default IP subnet mask: 255.255.255.0
Web login user name: admin
Web login password: admin
3.1 Plug and Play
The SAPIDO GR-1733 supports four types of Internet connection method: 3G modem card,
wire or wireless connection via xDSL/Cable modem. Just connect the 3G modem card or
Ethernet cable to SAPIDO GR-1733, the router will recognize it automatically.
3.1.1 Smart Phone /iPhone Internet sharing plug and play
With SAPIDO GR-1733, you can build an instant 802.11n wireless broadband sharing
environment with your iPhone, Windows Mobile or Google smart phone. During the time you
can still answer calls, send SMS and charge your phone.
Step 1. Connect iPhone/Smart phone with
SAPIDO GR-1733 via USB cable.
http://www.sapido.com.tw/ User Manual v1.0.0
20
Step 2. Select “USB Tethering” as connection
type.
Step 3. Click on “Done”.
Step 4. Wait few seconds for pairing. When
WAN LED on, the Internet is ready to
access.
Note: 1. iPhone:
(1) Due to difference in 3G service bundled in various carriers, please check your 3G service
supports Internet tethering.
(2) Enable Internet Tethering on iPhone 3GS / iPhone 4, and set up the screen lock to never
to prevent the sharing is interrupted unexpected by the iPhone screen lock feature.
2. Google Android Phone: please turn on "USB modem mode” when connecting router.
3. Window Mobile Phone: please enable “USB to PC” function.
3.2 Router Mode- Using as a broadband router
http://www.sapido.com.tw/ User Manual v1.0.0
21
1. Open a Web browser, and enter
http://192.168.1.1
(Default Gateway) into the blank.
2. Enter the User name and Password into the blank and then click Login. The default
values for User Name and Password are admin (all in lowercase letters).
3.2.1 WAN Interface- Ethernet Port
The WAN access type is depended on the service that you contract with the provider. The
SAPIDO GR-1733 provides five selections for the WAN access type, Static IP, DHCP Client,
PPPoE, PPTP and L2TP. Check with your ISP if you don’t know the WAN type.
3.2.1.1 Static IP
Select WAN under the IP Config menu, and choose Ethernet Port for the WAN Interface. Its
http://www.sapido.com.tw/ User Manual v1.0.0
22
associated setting will show up.
Item Description
WAN Access Type Select “Static IP”
IP Address
Enter the IP address which is provided by your ISP.
Subnet Mask
Please enter the Subnet Mask address
Default Gateway
Input ISP Default Gateway Address, .
DNS
Input DNS information which is provided by your ISP
http://www.sapido.com.tw/ User Manual v1.0.0
23
Backup select
Select 3G as a back up solution or none.
Clone Mac Address
Some ISPs require MAC address registration. In this case, enter
the MAC address registered to the provider to "Clone MAC
Address"
Apply Change & Reset Click on Apply Change to save the setting date, or you may click
on Reset to clear all the input data.
3.2.1.2 DHCP Client
Item Description
WAN Access Type Select "DHCP Client"
http://www.sapido.com.tw/ User Manual v1.0.0
24
Host Name
You can keep the default as the host name, or input a specific
name if required by your ISP.
DNS Select Attain DNS Automatically. Or select Set DNS Manually,
if you want to specify the DNS, and enter the DNS provided by your
ISP in DNS 1 2 3.
Backup select
Select 3G as a back up solution or none.
Clone Mac Address
Some ISPs require MAC address registration. In this case, enter
the MAC address registered to the provider to "Clone MAC
Address"
Apply Change & Reset Click on Apply Change to save the setting date, or you may click
on Reset to clear all the input data.
3.2.1.3 PPPoE
http://www.sapido.com.tw/ User Manual v1.0.0
25
Item Description
WAN Access Type Select "PPPoE"
User Name
Input your user name provided by your ISP. If you don’t know,
please check with your ISP.
Password
Input the password provided by your ISP.
Service Name
Input the service name provided by your ISP.
Connection Type Three types for select: Continues, Connect on Demand, and
Manual.
DNS Select Attain DNS Automatically. Or select Set DNS Manually,
if you want to specify the DNS, and enter the DNS provided by your
ISP in DNS 1 2 3.
Backup select
Select 3G as a back up solution or none.
Clone Mac Address
Some ISPs require MAC address registration. In this case, enter
the MAC address registered to the provider to "Clone MAC
Address"
Apply Change & Reset Click on Apply Change to save the setting date, or you may click
on Reset to clear all the input data.
http://www.sapido.com.tw/ User Manual v1.0.0
26
3.2.1.4 PPTP
Item Description
WAN Access Type Select "PPTP"
Server IP Address
Input your server IP address provided by your ISP. If you don’t
know, please check with your ISP.
http://www.sapido.com.tw/ User Manual v1.0.0
27
User Name
Input PPTP account provided by your ISP.
Password
Input the password provided by your ISP.
DNS Select Attain DNS Automatically. Or select Set DNS Manually, if
you want to specify the DNS, and enter the DNS provided by your
ISP in DNS 1 2 3.
Backup select
Select 3G as a back up solution or none.
Clone Mac Address
Some ISPs require MAC address registration. In this case, enter
the MAC address registered to the provider to "Clone MAC
Address"
Apply Change & Reset Click on Apply Change to save the setting date, or you may click
on Reset to clear all the input data.
3.2.1.5 L2TP
