SANYO VPC-MZ1EX, VPC-MZ1E, VPC-MZ1 PARTS LIST

Page 1

6. PARTS LIST

index

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

CABINET AND CHASSIS PARTS 1

1 636 061 9197 CABINET FRONT-SX212/E 2 636 061 4215 DEC GRIP-SX212/J 3 636 062 8540 SPACER FRONT-SX212 4 636 061 4208 DEC FLASH-SX212/J 5 636 063 0222 SHILED TAPE-SX212/J 6 636 061 4079 ASSY,COVER LENS-SX212/J 7 636 061 5328 SPACER COVER LENS B-212/J 8 636 061 5311 SPACER COVER LENS A-212/J 9 636 061 4130 CABINET FRONT INNER-212/J 10 645 045 9214 MICROPHONE 11 636 061 5281 HOLDER MIC-SX212/J 12 636 062 8502 ADHESIVE TAPE FRONT A-212 13 636 062 8519 ADHESIVE TAPE FRONT B-212 14 636 062 9974 SPACER A-SX212/J 15 636 061 4277 LEVER COVER LENS-SX212/J 16 636 062 8564 SPRING COVER LENS B-SX212 17 645 046 9121 ASSY,MOTOR 18 636 061 1221 COMPL PWB,SY-2 19 636 061 4192 COVER JACK-SX212/J 20 636 061 4154 CABINET LEFT-SX212/J

21 645 037 0274 PAD(L=15) 22 636 063 2745 SPACER UNIT-SX212/J 23 645 048 6586 UNIT,CONTROL PANEL 24 636 061 9159 ASSY,CABINET TOP-SX212/E 25 636 061 4260 KNOB FUNCTION-SX212/J 26 636 061 4307 SLIDE FUNCTION-SX212/J 27 636 061 3447 HOLDER MONITOR-SX212/J 28 636 062 9004 SPACER HL MONITOR-SX212/J 29 645 045 8590 LCD(ALP228CGXC0) 30 636 061 4291 SPACER MONTOR-SX212/J 31 636 061 9180 CABINET BACK-SX212/E 32 636 061 4222 DEC MONITOR-SX212/J 33 636 061 5175 ASSY,COVER EYE-SX212/J 34 636 063 1298 SPACER MIC-SX212 101 411 177 6502 SCR S-TPG PAN PCS 1.7X4 102 411 176 7005 SCR S-TPG PAN PCS 1.7X5.0 103 411 175 6504 SCR S-TPG PAN PCS 1.7X4.0 104 412 060 9501 SPECIAL SCREW-1.7X2.5 105 411 175 8904 SCR PAN PCS 1.7X3.5 106 411 177 8407 SCR S-TPG PAN PCS 1.7X3 107 411 177 8100 SCR S-TPG PAN PCS 1.7X2.5

104

107

22 14

106

105

101

103

101

102

101

SX212/J Parts List-1

101

N.S.P.: Not available as service parts.

Page 2

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

CABINET AND CHASSIS PARTS 2

1 645 046 9480 LENS(ASSY),R127A 2 636 062 9813 SPACER LENS-SX212/J 3 645 037 6412 OPTICAL FILTER 4 636 057 0696 SPACER 5 409 502 6501 IC ICX274AQ-C 6 636 061 5298 MOUNTING,LENS 7 636 061 5304 SPACER INSULATOR 8 636 060 9785 SHILED TAPE SX212 9 636 061 0361 COMPL PWB,CA-1 10 636 061 1238 COMPL PWB,PW-1 11 645 046 9343 ASSY,LAMP,SX212

(Included in COMPL PWB PW-1)

12 636 061 3768 HOLDER FLASH-SX212/J,

(Included in COMPL PWB PW-1) 13 636 061 4178 COVER BATTETY-SX212/J 14 636 061 4161 CAP BATT TERMINAL-SX212/J 15 636 062 9738 ASSY,HOLDER CV BATT-SX212 16 636 061 4253 HOLDER COVER BATT-SX212/J 17 636 063 1533 ASSY,HOLDER BATT B-SX212J (SV)

19 645 045 9290 FLEXIBLE FLAT CABLE 20 636 061 3812 STAND-SX212/J, STAND 21 636 061 5335 SPACER SPEAKER A-SX212/J 22 645 045 9207 SPEAKER,8 23 636 061 3775 HOLDER SPEAKER-SX212/J 24 636 061 3744 HOLDER LENS-SX212/J 25 645 041 3148 PAD(L=12) 26 636 061 3454 HOLDER CHASSIS-SX212/J 27 636 061 8893 SPACER CHASSIS M-SX212/J 28 636 061 3829 SHAFT CARD-SX212/J 29 636 061 3683 COVER CARD-SX212/J 30 636 061 3751 HOLDER CARD-SX212/J 31 636 061 3836 SHAFT STRAP-SX212/J 32 636 061 1214 COMPL PWB,SY-1 33 636 061 1207 COMPL PWB,CA-3 34 636 061 5342 SPACER SPEAKER B-SX212/J 101 411 177 6502 SCR S-TPG PAN PCS 1.7X4 105 411 175 8904 SCR PAN PCS 1.7X3.5 107 411 177 8100 SCR S-TPG PAN PCS 1.7X2.5 108 411 182 3701 SCRS-TPG PAN PCS 1.7X5

18 636 061 0354 COMPL PWB,CA-2,VPC-MZ1 ONLY 18 636 061 0385 COMPL PWB,CA-2,EXCEPT VPC-MZ1

101

105

107

101

107

101

107

108

101

SX212/J Parts List-2

N.S.P.: Not available as service parts.

Page 3

ELECTRICAL PARTS

index

Note:

1. Materials of Capacitors and Resistors are abbreviated as follows ; Resistors Capacitors MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor OXIDE-MT Oxide Metallized Film Resistor TA-SOLD Tantalum Solid Capacitor

AL-SOLID Aluminum Solid Capacitor NP-ELECT Non-Polarized Electrolytic Capacitor OS-SOLID Aluminum Solid Capacitors with Organic

2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.

DL-ELECT Double Layered Electrolytic Capacitor

F ............1% G ............2% J ............5% K ............10%

M ..........20% N ..........30% Z ..........+80% ~ -20%

3. Capacitors

F P : pF

U :

4. Inductors

H MH : mH

UH :

5. N.S.P. : Not available as service parts.

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

COMPL PWB,CA-1

636 061 0361

(SEMICONDUCTORS)

Q9001 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R Q9002 405 153 6709 TR 2SC3931-D

(INTEGRATED CIRCUITS)

IC901 409 446 8708 IC CXD3400N IC902 409 446 8708 IC CXD3400N

(DIODES)

D9001 407 113 5609 DIODE DSH015 OR 407 134 7200 DIODE MA141K D9002 407 198 9905 DIODE MA727 D9003 407 222 4807 LED SML-521MUW, D9004 407 205 2707 LED SML-310LT, D9005 407 198 9905 DIODE MA727

(CAPACITORS)

C9001 403 320 5500 CERAMIC 1U Z 25V C9002 403 312 6805 CERAMIC 0.1U Z 16V C9003 403 283 6309 CERAMIC 1U Z 10V C9004 403 311 7605 CERAMIC 2200P K 50V C9005 403 283 6309 CERAMIC 1U Z 10V C9006 403 283 6309 CERAMIC 1U Z 10V C9007 403 311 3409 CERAMIC 0.01U K 16V C9008 403 311 3409 CERAMIC 0.01U K 16V C9009 403 312 6805 CERAMIC 0.1U Z 16V C9010 403 320 5500 CERAMIC 1U Z 25V C9011 403 312 6805 CERAMIC 0.1U Z 16V C9012 403 312 6805 CERAMIC 0.1U Z 16V C9013 403 312 6805 CERAMIC 0.1U Z 16V C9014 403 312 6805 CERAMIC 0.1U Z 16V C9015 403 283 6309 CERAMIC 1U Z 10V C9016 403 283 6309 CERAMIC 1U Z 10V C9017 403 332 8209 CERAMIC 10U M 16V C9018 403 312 6805 CERAMIC 0.1U Z 16V C9019 403 312 6805 CERAMIC 0.1U Z 16V C9020 403 332 8209 CERAMIC 10U M 16V C9021 403 332 8209 CERAMIC 10U M 16V C9022 403 320 5500 CERAMIC 1U Z 25V C9023 403 312 6805 CERAMIC 0.1U Z 16V

(RESISTORS)

R9001 401 224 8900 MT-GLAZE 100K JA 1/16W R9002 401 261 5900 MT-FILM 330 DU 1/16W R9003 401 261 3906 MT-FILM 2.2K DU 1/16W R9004 401 225 7902 MT-GLAZE 220 JA 1/16W R9005 401 225 7902 MT-GLAZE 220 JA 1/16W R9006 401 225 7902 MT-GLAZE 220 JA 1/16W R9007 401 225 7902 MT-GLAZE 220 JA 1/16W R9008 401 225 7902 MT-GLAZE 220 JA 1/16W R9009 401 225 7902 MT-GLAZE 220 JA 1/16W R9010 401 225 7902 MT-GLAZE 220 JA 1/16W R9011 401 225 7902 MT-GLAZE 220 JA 1/16W

R9012 401 224 9402 MT-GLAZE 1.0M JA 1/16W R9013 401 224 9006 MT-GLAZE 10K JA 1/16W R9014 401 240 9004 MT-GLAZE 3.9 JA 1/16W R9015 401 225 0903 MT-GLAZE 82K JA 1/16W R9016 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9017 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9018 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9019 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9020 401 224 8801 MT-GLAZE 100 JA 1/16W R9021 401 225 0200 MT-GLAZE 3.3K JA 1/16W R9022 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9023 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9024 401 225 1306 MT-GLAZE 470 JA 1/16W

(CONNECTORS)

CN901 645 045 4424 SOCKET,26P (N.S.P) CN902 645 027 5340 PLUG,3P (N.S.P)

COMPL PWB,CA-2

636 061 0354 VPC-MZ1 ONLY 636 061 0385 EXCEPT VPC-MZ1

(SEMICONDUCTORS)

Q1011 405 115 7201 TR DTC144EE Q1012 405 129 3107 TR UMD3N Q1013 405 115 7201 TR DTC144EE Q1015 405 115 5702 TR DTA144EE Q1041 405 115 7201 TR DTC144EE Q1301 405 129 2001 TR UMH2N Q1421 405 115 5702 TR DTA144EE Q1422 405 115 7201 TR DTC144EE Q1501 405 129 2100 TR UMT1N Q1502 405 129 2308 TR UMZ1N OR 405 106 4806 TR XP4601 Q1503 405 129 2308 TR UMZ1N OR 405 106 4806 TR XP4601 Q1507 405 102 6705 TR 2SA1745-7 OR 405 102 8303 TR 2SA1745-6 Q1508 405 115 7201 TR DTC144EE Q1601 405 115 6907 TR DTC114EE Q1602 405 102 6705 TR 2SA1745-7 OR 405 102 8303 TR 2SA1745-6 Q1621 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R Q1622 405 115 5702 TR DTA144EE Q1623 405 129 2209 TR UMX1N OR 405 106 4707 TR XP4501 Q9101 405 115 7201 TR DTC144EE Q9103 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R

(INTEGRATED CIRCUITS)

IC102 410 405 7700 IC LC98600BF-TJ9 (N.S.P.) BGA TYPE IC106 409 502 3807 IC HY57V641620HGT-H

Semiconductive Electrolytic Capacitor

Page 4

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

IC107 409 502 3807 IC HY57V641620HGT-H IC111 409 486 8201 IC IMIC6002AT IC121 409 506 1106 IC 28700212B,VPC-MZ1 ONLY OR 409 506 1908 IC 28701212A,EXCEPT VPC-MZ1 IC138 409 327 6502 IC TC7W32FU IC139 409 149 5301 IC TC7S00F IC146 409 471 4201 IC SN74LV245ADB IC147 409 471 4201 IC SN74LV245ADB IC148 409 471 4102 IC SN74LV244ADB IC149 409 471 4102 IC SN74LV244ADB IC152 409 427 4101 IC TK15405M IC160 409 301 5507 IC TC7S08FU IC161 409 395 5902 IC TC7SH00FU IC162 409 432 2505 IC LMV321M7X IC163 409 432 2505 IC LMV321M7X IC164 409 432 2505 IC LMV321M7X IC165 409 471 4003 IC SN74LV273ADB IC166 409 407 0505 IC TK11331BM IC911 409 506 3100 IC AD9849KST IC914 409 407 0505 IC TK11331BM IC915 409 155 7702 IC TC4S66F

(DIODES)

D1501 407 109 4609 DIODE MA728 D1601 407 134 7408 DIODE MA141WK OR 407 130 4401 DIODE DAN202U D1602 407 149 0807 DIODE 1SS355 D1603 407 188 9809 DIODE MA742

(OSC)

X1101 645 023 3951 OSC,CRYSTAL 14.31818MHZ OR 645 040 0049 OSC,CRYSTAL 14.31818MHZ

(INDUCTORS)

L1010 645 020 1875 INDUCTOR,1500 OHM L1011 645 020 1875 INDUCTOR,1500 OHM L1012 645 036 5393 INDUCTOR,1000 OHM L1083 645 020 1912 INDUCTOR,240 OHM L1085 645 020 1912 INDUCTOR,240 OHM L1101 645 020 1912 INDUCTOR,240 OHM L1102 645 020 1899 INDUCTOR,68 OHM L1104 645 020 1899 INDUCTOR,68 OHM L1501 645 021 1737 INDUCTOR,47U J OR 645 043 5898 INDUCTOR,47U J L1502 645 035 7190 INDUCTOR,33U J L1601 645 016 0349 INDUCTOR,600 OHM L1603 645 016 0349 INDUCTOR,600 OHM L1604 645 016 0349 INDUCTOR,600 OHM

(CAPACITORS)

C1001 403 348 1300 CERAMIC 0.047U K 10V C1005 403 343 8700 CERAMIC 1U M 12V C1007 403 343 8700 CERAMIC 1U M 12V C1008 403 338 4403 CERAMIC 0.1U K 16V C1011 403 338 4403 CERAMIC 0.1U K 16V C1012 403 338 4403 CERAMIC 0.1U K 16V C1014 403 283 6309 CERAMIC 1U Z 10V C1015 403 343 8700 CERAMIC 1U M 12V C1027 403 329 6508 TA-SOLID 10U M 6.3V C1028 403 329 6508 TA-SOLID 10U M 6.3V C1029 403 329 6508 TA-SOLID 10U M 6.3V C1032 403 312 6805 CERAMIC 0.1U Z 16V C1033 403 312 6805 CERAMIC 0.1U Z 16V C1034 403 312 6805 CERAMIC 0.1U Z 16V C1035 403 312 6805 CERAMIC 0.1U Z 16V C1037 403 312 6805 CERAMIC 0.1U Z 16V C1038 403 312 6805 CERAMIC 0.1U Z 16V C1039 403 312 6805 CERAMIC 0.1U Z 16V C1041 403 312 6805 CERAMIC 0.1U Z 16V C1042 403 312 6805 CERAMIC 0.1U Z 16V C1045 403 312 6805 CERAMIC 0.1U Z 16V C1046 403 312 6805 CERAMIC 0.1U Z 16V C1047 403 312 6805 CERAMIC 0.1U Z 16V C1048 403 312 6805 CERAMIC 0.1U Z 16V C1049 403 329 6508 TA-SOLID 10U M 6.3V C1051 403 312 6805 CERAMIC 0.1U Z 16V C1052 403 312 6805 CERAMIC 0.1U Z 16V C1053 403 312 6805 CERAMIC 0.1U Z 16V C1054 403 312 6805 CERAMIC 0.1U Z 16V C1055 403 312 6805 CERAMIC 0.1U Z 16V C1057 403 312 6805 CERAMIC 0.1U Z 16V

C1058 403 312 6805 CERAMIC 0.1U Z 16V C1059 403 312 6805 CERAMIC 0.1U Z 16V C1061 403 346 2309 CERAMIC 0.1U K 10V C1062 403 346 2309 CERAMIC 0.1U K 10V C1063 403 346 2309 CERAMIC 0.1U K 10V C1064 403 346 2309 CERAMIC 0.1U K 10V C1065 403 346 2309 CERAMIC 0.1U K 10V C1066 403 346 2309 CERAMIC 0.1U K 10V C1067 403 346 2309 CERAMIC 0.1U K 10V C1071 403 346 2309 CERAMIC 0.1U K 10V C1072 403 346 2309 CERAMIC 0.1U K 10V C1073 403 346 2309 CERAMIC 0.1U K 10V C1074 403 346 2309 CERAMIC 0.1U K 10V C1075 403 346 2309 CERAMIC 0.1U K 10V C1076 403 346 2309 CERAMIC 0.1U K 10V C1077 403 346 2309 CERAMIC 0.1U K 10V C1081 403 329 6508 TA-SOLID 10U M 6.3V C1082 403 329 6508 TA-SOLID 10U M 6.3V C1083 403 312 6805 CERAMIC 0.1U Z 16V C1086 403 329 6508 TA-SOLID 10U M 6.3V C1090 403 311 4505 CERAMIC 1000P K 50V C1091 403 311 4505 CERAMIC 1000P K 50V C1093 403 311 4505 CERAMIC 1000P K 50V C1101 403 311 3409 CERAMIC 0.01U K 16V C1102 403 311 3409 CERAMIC 0.01U K 16V C1103 403 311 3409 CERAMIC 0.01U K 16V C1104 403 312 6805 CERAMIC 0.1U Z 16V C1105 403 329 6508 TA-SOLID 10U M 6.3V C1201 403 283 6309 CERAMIC 1U Z 10V C1421 403 312 6805 CERAMIC 0.1U Z 16V C1422 403 329 6508 TA-SOLID 10U M 6.3V C1423 403 312 6805 CERAMIC 0.1U Z 16V C1424 403 312 6805 CERAMIC 0.1U Z 16V C1501 403 334 3806 CERAMIC 10U K 6.3V C1502 403 311 7506 CERAMIC 22P J 50V C1508 403 311 5007 CERAMIC 33P J 50V C1510 403 312 6805 CERAMIC 0.1U Z 16V C1511 403 343 3101 CERAMIC 1U K 6.3V C1512 403 345 3802 TA-SOLID 22U M 4V C1513 403 345 4205 TA-SOLID 47U M 6.3V C1517 403 312 6805 CERAMIC 0.1U Z 16V C1519 403 334 3806 CERAMIC 10U K 6.3V C1602 403 345 4304 TA-SOLID 22U M 10V C1603 403 329 6508 TA-SOLID 10U M 6.3V C1604 403 345 4205 TA-SOLID 47U M 6.3V C1611 403 312 6805 CERAMIC 0.1U Z 16V C1621 403 283 6309 CERAMIC 1U Z 10V C1622 403 346 2309 CERAMIC 0.1U K 10V C1623 403 283 6309 CERAMIC 1U Z 10V C1624 403 283 6309 CERAMIC 1U Z 10V C1625 403 319 3609 CERAMIC 330P K 50V C1626 403 343 8700 CERAMIC 1U M 12V C1627 403 311 3409 CERAMIC 0.01U K 16V C1628 403 344 0505 CERAMIC 0.033U K 10V C1629 403 325 6304 CRAMIC 0.22U K 10V C1630 403 283 6309 CERAMIC 1U Z 10V C1631 403 283 6309 CERAMIC 1U Z 10V C1632 403 319 3609 CERAMIC 330P K 50V C1633 403 346 2309 CERAMIC 0.1U K 10V C1634 403 311 3409 CERAMIC 0.01U K 16V C1635 403 283 6309 CERAMIC 1U Z 10V C1636 403 283 6309 CERAMIC 1U Z 10V C1637 403 283 6309 CERAMIC 1U Z 10V C1638 403 343 8700 CERAMIC 1U M 12V C1639 403 343 8700 CERAMIC 1U M 12V C1640 403 329 6508 TA-SOLID 10U M 6.3V C9102 403 283 6309 CERAMIC 1U Z 10V C9103 403 283 6309 CERAMIC 1U Z 10V C9104 403 311 3409 CERAMIC 0.01U K 16V C9105 403 343 3101 CERAMIC 1U K 6.3V C9106 403 311 3409 CERAMIC 0.01U K 16V C9107 403 343 3101 CERAMIC 1U K 6.3V C9108 403 312 6805 CERAMIC 0.1U Z 16V C9109 403 311 3409 CERAMIC 0.01U K 16V C9111 403 346 2309 CERAMIC 0.1U K 10V C9112 403 207 0307 CERAMIC 1U Z 16V C9114 403 320 5302 CERAMIC 0.15U K 25V

Page 5

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

C9115 403 346 2309 CERAMIC 0.1U K 10V C9116 403 346 2309 CERAMIC 0.1U K 10V C9117 403 346 2309 CERAMIC 0.1U K 10V C9119 403 346 2309 CERAMIC 0.1U K 10V C9120 403 345 4304 TA-SOLID 22U M 10V C9121 403 346 2309 CERAMIC 0.1U K 10V C9122 403 311 3409 CERAMIC 0.01U K 16V C9123 403 346 2309 CERAMIC 0.1U K 10V C9124 403 311 3409 CERAMIC 0.01U K 16V C9127 403 345 4304 TA-SOLID 22U M 10V C9148 403 346 2309 CERAMIC 0.1U K 10V C9149 403 346 2309 CERAMIC 0.1U K 10V

(RESISTORS)

R1007 401 261 4903 MT-FILM 820 DU 1/16W R1008 401 261 6402 MT-FILM 200 DU 1/16W R1009 401 105 0603 MT-GLAZE 10K JA 1/16W R1010 401 224 9006 MT-GLAZE 10K JA 1/16W R1011 401 261 5108 MT-FILM 1.0K DU 1/16W R1012 401 261 4507 MT-FILM 1.5K DU 1/16W R1013 401 225 1405 MT-GLAZE 47K JA 1/16W R1014 401 225 1405 MT-GLAZE 47K JA 1/16W R1021 401 224 9006 MT-GLAZE 10K JA 1/16W R1022 401 262 3905 MT-FILM 24 DD 1/16W R1023 401 225 1405 MT-GLAZE 47K JA 1/16W R1024 401 262 3905 MT-FILM 24 DD 1/16W R1025 401 166 2905 MT-FILM 1.5K DU 1/16W R1026 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1027 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1028 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1029 401 224 9006 MT-GLAZE 10K JA 1/16W R1030 401 224 8900 MT-GLAZE 100K JA 1/16W R1046 401 224 9006 MT-GLAZE 10K JA 1/16W R1047 401 224 9006 MT-GLAZE 10K JA 1/16W R1048 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1050 401 224 9006 MT-GLAZE 10K JA 1/16W R1053 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1056 401 105 0603 MT-GLAZE 10K JA 1/16W R1057 401 105 0603 MT-GLAZE 10K JA 1/16W R1058 401 105 0603 MT-GLAZE 10K JA 1/16W R1061 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1081 401 037 5004 MT-GLAZE 0.000 ZA 1/10W R1090 401 224 9006 MT-GLAZE 10K JA 1/16W R1091 401 224 9006 MT-GLAZE 10K JA 1/16W R1092 401 224 9006 MT-GLAZE 10K JA 1/16W R1093 401 224 9006 MT-GLAZE 10K JA 1/16W R1101 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1102 401 224 8801 MT-GLAZE 100 JA 1/16W R1104 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1201 401 225 8107 MT-GLAZE 10 JA 1/16W R1202 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1327 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1328 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1419 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1420 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1425 401 224 9006 MT-GLAZE 10K JA 1/16W R1426 401 224 8900 MT-GLAZE 100K JA 1/16W R1427 401 225 1405 MT-GLAZE 47K JA 1/16W R1428 401 224 9006 MT-GLAZE 10K JA 1/16W R1429 401 224 9006 MT-GLAZE 10K JA 1/16W R1430 401 224 9006 MT-GLAZE 10K JA 1/16W R1432 401 224 9006 MT-GLAZE 10K JA 1/16W R1433 401 224 9006 MT-GLAZE 10K JA 1/16W R1434 401 224 9006 MT-GLAZE 10K JA 1/16W R1502 401 224 9006 MT-GLAZE 10K JA 1/16W R1507 401 261 9908 MT-FILM 91 DD 1/16W R1508 401 261 9908 MT-FILM 91 DD 1/16W R1509 401 261 6402 MT-FILM 200 DU 1/16W R1510 401 226 2401 MT-GLAZE 560 JA 1/16W R1511 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1512 401 225 3805 MT-GLAZE 1.5K JA 1/16W R1513 401 261 6105 MT-FILM 390 DU 1/16W R1514 401 261 5108 MT-FILM 1.0K DU 1/16W R1515 401 261 5108 MT-FILM 1.0K DU 1/16W R1516 401 261 3807 MT-FILM 2.0K DU 1/16W R1519 401 225 2006 MT-GLAZE 680 JA 1/16W R1522 401 225 3805 MT-GLAZE 1.5K JA 1/16W R1523 401 105 5806 MT-GLAZE 56 JA 1/16W

R1526 401 261 9601 MT-FILM 68 DD 1/16W R1527 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1530 401 226 2401 MT-GLAZE 560 JA 1/16W R1531 401 226 2401 MT-GLAZE 560 JA 1/16W R1534 401 224 8900 MT-GLAZE 100K JA 1/16W R1602 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1604 401 225 1207 MT-GLAZE 4.7K JA 1/16W R1605 401 225 1207 MT-GLAZE 4.7K JA 1/16W R1606 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1607 401 224 9303 MT-GLAZE 1K JA 1/16W R1610 401 037 5004 MT-GLAZE 0.000 ZA 1/10W R1621 401 224 9006 MT-GLAZE 10K JA 1/16W R1622 401 224 9006 MT-GLAZE 10K JA 1/16W R1623 401 224 9006 MT-GLAZE 10K JA 1/16W R1624 401 224 9204 MT-GLAZE 15K JA 1/16W R1625 401 224 9501 MT-GLAZE 2.2K JA 1/16W R1626 401 224 9006 MT-GLAZE 10K JA 1/16W R1627 401 225 0408 MT-GLAZE 330K JA 1/16W R1628 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1629 401 225 0408 MT-GLAZE 330K JA 1/16W R1630 401 225 0408 MT-GLAZE 330K JA 1/16W R1631 401 225 0200 MT-GLAZE 3.3K JA 1/16W R1632 401 225 0200 MT-GLAZE 3.3K JA 1/16W R1634 401 235 1402 MT-GALZE 1.2K JA 1/16W R1636 401 224 9006 MT-GLAZE 10K JA 1/16W R1637 401 105 7909 MT-GLAZE 0.000 ZA 1/16W R1639 401 224 9303 MT-GLAZE 1K JA 1/16W R1640 401 225 0606 MT-GLAZE 5.6K JA 1/16W R1641 401 225 0408 MT-GLAZE 330K JA 1/16W R1642 401 224 9501 MT-GLAZE 2.2K JA 1/16W R1643 401 224 9006 MT-GLAZE 10K JA 1/16W R1644 401 224 9808 MT-GLAZE 220K JA 1/16W R1645 401 225 2105 MT-GLAZE 12K JA 1/16W R1646 401 229 7205 MT-GLAZE 18K JA 1/16W R9101 401 224 8900 MT-GLAZE 100K JA 1/16W R9108 401 225 0606 MT-GLAZE 5.6K JA 1/16W R9109 401 224 9006 MT-GLAZE 10K JA 1/16W R9111 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9112 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9113 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9114 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9115 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9116 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9129 401 226 5402 MT-GLAZE 56 JA 1/16W R9130 401 226 5402 MT-GLAZE 56 JA 1/16W R9131 401 226 5402 MT-GLAZE 56 JA 1/16W R9132 401 226 5402 MT-GLAZE 56 JA 1/16W R9133 401 226 5402 MT-GLAZE 56 JA 1/16W R9134 401 226 5402 MT-GLAZE 56 JA 1/16W R9135 401 226 5402 MT-GLAZE 56 JA 1/16W R9136 401 226 5402 MT-GLAZE 56 JA 1/16W R9137 401 226 5402 MT-GLAZE 56 JA 1/16W R9138 401 226 5402 MT-GLAZE 56 JA 1/16W R9139 401 226 5402 MT-GLAZE 56 JA 1/16W R9140 401 226 5402 MT-GLAZE 56 JA 1/16W R9141 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9142 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9143 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9144 401 224 9006 MT-GLAZE 10K JA 1/16W R9147 401 105 7909 MT-GLAZE 0.000 ZA 1/16W

(CONNECTORS)

CN101 645 035 5400 PLUG,PWB-PWB 30P (N.S.P) CN102 645 021 5131 PLUG,PWB-PWB 30P (N.S.P) CN103 645 035 5455 SOCKET,26P (N.S.P) CN104 645 035 5455 SOCKET,26P (N.S.P) CN105 645 040 4788 SOCKET,8P (N.S.P) CN141 645 046 9305 PLUG,CARD 50P (N.S.P) CN911 645 042 8074 SOCKET,FFC 26P (N.S.P)

(MISCELLANEOUS)

636 062 6881 SPACER CA2,SIDE-B SX212/J 636 062 8533 HEAT SINK RUBBER -SX212 636 062 8991 SPACER HOLDER CF-SX212/J 645 046 9299 HOLDER,CF(NORMAL)

Page 6

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

COMPL PWB,CA-3

636 061 1207

(SEMICONDUCTORS)

Q1704 405 102 5500 TR 2SB1218A-R OR 405 137 2000 TR 2SA1576A-R Q5101 405 129 2308 TR UMZ1N Q5102 405 148 7100 TR CPH6401 Q5103 405 148 6905 TR CPH3303 Q5104 405 115 7201 TR DTC144EE Q5105 405 129 2308 TR UMZ1N Q5106 405 150 5200 TR CPH5703 Q5107 405 092 1100 TR 2SA1577-P OR 405 092 1209 TR 2SA1577-Q OR 405 092 1407 TR 2SA1577-R Q5108 405 115 6907 TR DTC114EE Q5109 405 129 2308 TR UMZ1N Q5110 405 129 2308 TR UMZ1N Q5111 405 115 7201 TR DTC144EE Q5112 405 148 3904 TR CPH3209 Q5113 405 129 3008 TR UMD2N Q5114 405 129 3008 TR UMD2N Q5115 405 129 3008 TR UMD2N Q5116 405 129 8409 TR UMC2N Q5117 405 129 3008 TR UMD2N Q5118 405 129 3008 TR UMD2N Q5119 405 115 5207 TR 2SC4617 R Q5120 405 092 1100 TR 2SA1577-P OR 405 092 1209 TR 2SA1577-Q OR 405 092 1407 TR 2SA1577-R Q5121 405 115 6907 TR DTC114EE Q5122 405 157 1403 TR 2SA2018 Q5123 405 115 7805 TR DTC114WE Q9501 405 131 0408 TR DTC115EUA Q9502 405 131 0408 TR DTC115EUA Q9503 405 129 2803 TR UMH10N

(INTEGRATED CIRCUITS)

IC172 409 467 3409 IC LV4137W IC173 409 468 1602 IC TK11333BM IC181 409 446 7305 IC TPA301D-SOL008-P-0150 IC511 409 417 8300 IC LA5627W IC512 409 301 5507 IC TC7S08FU IC951 409 451 8700 IC MPC17AT85MTA IC952 409 451 8700 IC MPC17AT85MTA IC953 409 373 0509 IC LB1846M IC981 409 407 6903 IC LB1930M

(DIODES)

D1801 407 149 0807 DIODE 1SS355 D5101 407 201 2701 DIODE RB051L-40 D5102 407 187 8704 ZENER DIODE UDZ27B D5103 407 203 5809 DIODE F02J9 D5104 407 203 5809 DIODE F02J9 D5105 407 203 5809 DIODE F02J9 D5106 407 149 0807 DIODE 1SS355 D5107 407 162 8507 DIODE DAN222

(OSC)

X1701 645 025 6004 OSC,CRYSTAL 3.579545MHZ

(VARIABLE RESISTORS)

VR511 645 028 2249 VR,SEMI,3.3K S VR512 645 028 2201 VR,SEMI,2.2K S VR513 645 019 5143 VR,SEMI,1K S VR514 645 019 5143 VR,SEMI,1K S VR921 645 019 5150 VR,SEMI,10K S

(INDUCTORS)

L1702 645 004 2478 INDUCTOR,10U J L5101 645 037 0625 INDUCTOR,4.7U M L5102 645 037 0601 INDUCTOR,10U M L5103 645 046 1927 INDUCTOR,6.8U M L5104 645 037 1523 INDUCTOR,10U K L5105 645 037 1523 INDUCTOR,10U K L5106 645 037 1530 INDUCTOR,47U K L5107 645 037 1530 INDUCTOR,47U K L5108 645 037 1530 INDUCTOR,47U K L5109 645 037 1530 INDUCTOR,47U K L5110 645 037 1523 INDUCTOR,10U K

(TRANSFORMERS)

T5101 645 046 1897 TRANS,POWER,PULSE

C1701 403 344 0505 CERAMIC 0.033U K 10V C1702 403 346 2309 CERAMIC 0.1U K 10V C1703 403 311 3409 CERAMIC 0.01U K 16V C1710 403 317 1904 CERAMIC 6800P K 25V C1713 403 311 3409 CERAMIC 0.01U K 16V C1714 403 317 2208 CERAMIC 16P K 50V C1715 403 332 9503 CERAMIC 1U M 6.3V C1716 403 311 3409 CERAMIC 0.01U K 16V C1717 403 347 9406 CERAMIC 0.22U Z 10V C1718 403 335 4802 CERAMIC 0.33U K 6.3V C1719 403 338 4403 CERAMIC 0.1U K 16V C1720 403 338 0405 CERAMIC 0.47U K 25V C1728 403 338 0405 CERAMIC 0.47U K 25V C1729 403 338 0405 CERAMIC 0.47U K 25V C1730 403 338 0405 CERAMIC 0.47U K 25V C1740 403 338 4403 CERAMIC 0.1U K 16V C1741 403 332 9503 CERAMIC 1U M 6.3V C1743 403 332 9503 CERAMIC 1U M 6.3V C1745 403 332 9503 CERAMIC 1U M 6.3V C1746 403 332 9503 CERAMIC 1U M 6.3V C1748 403 358 3202 CERAMIC 10U K 6.3V C1751 403 332 8209 CERAMIC 10U M 16V C1752 403 332 9503 CERAMIC 1U M 6.3V C1753 403 332 9503 CERAMIC 1U M 6.3V C1754 403 332 9503 CERAMIC 1U M 6.3V C1756 403 358 3202 CERAMIC 10U K 6.3V C1778 403 332 8209 CERAMIC 10U M 16V C1810 403 332 9503 CERAMIC 1U M 6.3V C1811 403 332 9503 CERAMIC 1U M 6.3V C1812 403 332 9503 CERAMIC 1U M 6.3V C1813 403 332 9503 CERAMIC 1U M 6.3V C5101 403 155 2309 CERAMIC 4700P K 50V C5102 403 338 4403 CERAMIC 0.1U K 16V C5103 403 343 3101 CERAMIC 1U K 6.3V C5104 403 343 3101 CERAMIC 1U K 6.3V C5105 403 155 1807 CERAMIC 0.01U K 25V C5106 403 342 7506 CERAMIC 1000P J 50V C5107 403 342 7506 CERAMIC 1000P J 50V C5108 403 155 1807 CERAMIC 0.01U K 25V C5109 403 343 3101 CERAMIC 1U K 6.3V C5110 403 338 4403 CERAMIC 0.1U K 16V C5111 403 155 1807 CERAMIC 0.01U K 25V C5112 403 320 0604 CERAMIC 220P J 25V C5113 403 335 1405 CERAMIC 10U K 6.3V C5114 403 367 6607 POS-SOLID 47U M 6.3V C5115 403 276 1304 CERAMIC 1000P K 50V C5116 403 335 1405 CERAMIC 10U K 6.3V C5117 403 335 1405 CERAMIC 10U K 6.3V C5118 403 343 3101 CERAMIC 1U K 6.3V C5119 403 309 2407 CERAMIC 82P J 50V C5120 403 335 1405 CERAMIC 10U K 6.3V C5121 403 340 1803 CERAMIC 1U M 25V C5123 403 327 0300 CERAMIC 10U Z 25V C5124 403 279 5002 CERAMIC 4700P K 25V C5125 403 343 3101 CERAMIC 1U K 6.3V C5126 403 367 6607 POS-SOLID 47U M 6.3V C5127 403 320 0604 CERAMIC 220P J 25V C5129 403 325 7608 CERAMIC 1U K 16V C5130 403 325 7608 CERAMIC 1U K 16V C5132 403 325 7608 CERAMIC 1U K 16V C5133 403 323 6009 CERAMIC 10U M 16V C5134 403 325 7608 CERAMIC 1U K 16V C5135 403 343 3101 CERAMIC 1U K 6.3V C5136 403 333 3708 CERAMIC 10U M 10V C5137 403 323 6009 CERAMIC 10U M 16V C5138 403 345 3901 CERAMIC 3.3U M 6.3V C5140 403 325 7608 CERAMIC 1U K 16V C5141 403 343 3101 CERAMIC 1U K 6.3V C5143 403 352 7305 CERAMIC 4.7U K 6.3V C5144 404 081 5303 ELECT140U A 330V C5145 403 335 1405 CERAMIC 10U K 6.3V C5146 403 345 3901 CERAMIC 3.3U M 6.3V C9500 403 312 6805 CERAMIC 0.1U Z 16V C9501 403 311 3409 CERAMIC 0.01U K 16V C9502 403 311 3409 CERAMIC 0.01U K 16V C9503 403 311 3409 CERAMIC 0.01U K 16V

(CAPACITORS)

Page 7

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

C9504 403 314 7404 CERAMIC 3300P K 50V C9505 403 312 6805 CERAMIC 0.1U Z 16V C9506 403 314 7404 CERAMIC 3300P K 50V C9507 403 311 3409 CERAMIC 0.01U K 16V C9508 403 311 3409 CERAMIC 0.01U K 16V C9509 403 311 3409 CERAMIC 0.01U K 16V C9510 403 312 6805 CERAMIC 0.1U Z 16V C9511 403 312 6805 CERAMIC 0.1U Z 16V C9534 403 312 6805 CERAMIC 0.1U Z 16V C9802 403 358 3202 CERAMIC 10U K 6.3V

(RESISTORS)

R1702 401 261 3906 MT-FILM 2.2K DU 1/16W R1703 401 261 2602 MT-FILM 10K DU 1/16W R1704 401 261 6105 MT-FILM 390 DU 1/16W R1706 401 261 9304 MT-FILM 15K DD 1/16W R1708 401 261 2602 MT-FILM 10K DU 1/16W R1710 401 226 2401 MT-GLAZE 560 JA 1/16W R1713 401 226 2401 MT-GLAZE 560 JA 1/16W R1714 401 226 2401 MT-GLAZE 560 JA 1/16W R1719 401 228 4502 MT-GLAZE 2.2 JA 1/16W R1730 401 262 4508 MT-FILM 30K DD 1/16W R1735 401 261 8703 MT-FILM 22K DD 1/16W R1736 401 261 4309 MT-FILM 1.2K DU 1/16W R1737 401 261 2602 MT-FILM 10K DU 1/16W R1801 401 225 2105 MT-GLAZE 12K JA 1/16W R1802 401 224 9808 MT-GLAZE 220K JA 1/16W R1803 401 225 2105 MT-GLAZE 12K JA 1/16W R1811 401 225 1405 MT-GLAZE 47K JA 1/16W R1812 401 274 9704 MT-GLAZE 24K DC 1/16W R1813 401 224 9006 MT-GLAZE 10K JA 1/16W R5101 401 224 9303 MT-GLAZE 1K JA 1/16W R5102 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5103 401 224 9303 MT-GLAZE 1K JA 1/16W R5104 401 258 0406 MT-GLAZE 120K DC 1/16W R5105 401 258 9300 MT-GLAZE 220K DC 1/16W R5106 401 258 9300 MT-GLAZE 220K DC 1/16W R5107 401 258 0406 MT-GLAZE 120K DC 1/16W R5108 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5109 401 224 9303 MT-GLAZE 1K JA 1/16W R5110 401 258 9102 MT-GLAZE 5.6K DC 1/16W R5111 401 258 0406 MT-GLAZE 120K DC 1/16W R5112 401 258 9300 MT-GLAZE 220K DC 1/16W R5113 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5114 401 274 9704 MT-GLAZE 24K DC 1/16W R5115 401 263 1702 MT-GLAZE 1.2K DC 1/16W R5116 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5117 401 235 1402 MT-GALZE 1.2K JA 1/16W R5118 401 225 1603 MT-GLAZE 390 JA 1/16W R5119 401 225 8008 MT-GLAZE 330 JA 1/16W R5120 401 225 1306 MT-GLAZE 470 JA 1/16W R5121 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5122 401 224 9006 MT-GLAZE 10K JA 1/16W R5123 401 224 8900 MT-GLAZE 100K JA 1/16W R5124 401 224 9303 MT-GLAZE 1K JA 1/16W R5125 401 224 9303 MT-GLAZE 1K JA 1/16W R5126 401 262 1000 MT-GLAZE 33K DC 1/16W R5127 401 269 3908 MT-GLAZE 4.7K DC 1/16W R5128 401 226 5501 MT-GLAZE 120 JA 1/16W R5130 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5131 401 235 1402 MT-GALZE 1.2K JA 1/16W R5132 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5133 401 224 9006 MT-GLAZE 10K JA 1/16W R5134 401 224 8900 MT-GLAZE 100K JA 1/16W R5135 401 225 0101 MT-GLAZE 27K JA 1/16W R5136 401 224 9303 MT-GLAZE 1K JA 1/16W R5137 401 224 9303 MT-GLAZE 1K JA 1/16W R5139 401 275 5903 MT-GLAZE 10 DD 1/16W R5140 401 262 2502 MT-GLAZE 68 DD 1/16W R5141 401 283 7104 MT-GLAZE 100 DC 1/16W R5143 401 226 5501 MT-GLAZE 120 JA 1/16W R5144 401 226 5501 MT-GLAZE 120 JA 1/16W R5145 401 235 1402 MT-GALZE 1.2K JA 1/16W R5146 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5147 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5148 401 224 9006 MT-GLAZE 10K JA 1/16W R5149 401 225 1405 MT-GLAZE 47K JA 1/16W R5150 401 225 1405 MT-GLAZE 47K JA 1/16W

R5151 401 225 1405 MT-GLAZE 47K JA 1/16W R5153 401 262 1000 MT-GLAZE 33K DC 1/16W R5154 401 262 1307 MT-GLAZE 2.4K DC 1/16W R5156 401 262 1000 MT-GLAZE 33K DC 1/16W R5157 401 263 1900 MT-GLAZE 3.3K DC 1/16W R5158 401 262 0607 MT-GLAZE 22K DC 1/16W R5159 401 224 8900 MT-GLAZE 100K JA 1/16W R5160 401 258 6606 MT-GLAZE 10K DC 1/16W R5161 401 225 1405 MT-GLAZE 47K JA 1/16W R5162 401 224 8900 MT-GLAZE 100K JA 1/16W R5163 401 224 9006 MT-GLAZE 10K JA 1/16W R5164 401 225 0507 MT-GLAZE 33K JA 1/16W R5166 401 240 9509 MT-GLAZE 820 JA 1/16W R5167 401 240 9509 MT-GLAZE 820 JA 1/16W R5168 401 224 9600 MT-GLAZE 2.7K JA 1/16W R5169 401 225 0705 MT-GLAZE 56K JA 1/16W R5170 401 225 1702 MT-GLAZE 39K JA 1/16W R5171 401 224 9006 MT-GLAZE 10K JA 1/16W R5173 401 037 5004 MT-GLAZE 0.000 ZA 1/10W R5174 401 224 8900 MT-GLAZE 100K JA 1/16W R5175 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5176 401 237 2407 MT-GLAZE 270K JA 1/16W R5177 401 225 0200 MT-GLAZE 3.3K JA 1/16W R5178 401 224 8900 MT-GLAZE 100K JA 1/16W R5179 401 225 1306 MT-GLAZE 470 JA 1/16W R5180 401 225 1306 MT-GLAZE 470 JA 1/16W R5181 401 225 1306 MT-GLAZE 470 JA 1/16W R5185 401 258 6606 MT-GLAZE 10K DC 1/16W R9201 401 224 9006 MT-GLAZE 10K JA 1/16W R9501 401 203 3803 MT-GLAZE 1 JA 1/16W R9502 401 203 3803 MT-GLAZE 1 JA 1/16W R9503 401 224 8900 MT-GLAZE 100K JA 1/16W R9505 401 225 0606 MT-GLAZE 5.6K JA 1/16W R9506 401 225 0606 MT-GLAZE 5.6K JA 1/16W R9507 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9508 401 225 0705 MT-GLAZE 56K JA 1/16W R9509 401 038 0008 MT-GLAZE 200 JA 1/10W R9510 401 038 0008 MT-GLAZE 200 JA 1/10W R9511 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9512 401 225 0705 MT-GLAZE 56K JA 1/16W R9542 401 224 7804 MT-GLAZE 2.7 JA 1/16W R9543 401 224 8900 MT-GLAZE 100K JA 1/16W R9545 401 224 7804 MT-GLAZE 2.7 JA 1/16W R9546 401 037 5004 MT-GLAZE 0.000 ZA 1/10W R9801 401 224 9006 MT-GLAZE 10K JA 1/16W R9802 401 224 9006 MT-GLAZE 10K JA 1/16W R9803 401 037 5004 MT-GLAZE 0.000 ZA 1/10W

(PROTECTORS)

PR511 423 028 0904 FUSE 32V 2A PR512 423 028 1307 FUSE 32V 1.5A PR513 423 028 1307 FUSE 32V 1.5A PR981 423 028 0904 FUSE 32V 2A

(CONNECTORS)

CN171 645 045 4417 SOCKET,24P (N.S.P) CN172 645 024 8184 PLUG,26P (N.S.P) CN173 645 024 8184 PLUG,26P (N.S.P) CN175 645 025 1320 PLUG,2P (N.S.P) CN531 645 005 6901 PLUG,SIDE-ZR-SM3 (N.S.P) CN951 645 045 4400 SOCKET,18P (N.S.P) CN981 645 002 2876 PLUG,2P (N.S.P)

(MISCELLANEOUS)

636 062 4375 SPACER FL CONDENCER-SX212

COMPL PWB,PW-1

636 061 1238

(SEMICONDUCTORS)

Q5001 405 115 5207 TR 2SC4617 R Q5002 405 129 2308 TR UMZ1N Q5003 405 148 7100 TR CPH6401 Q5004 405 148 6905 TR CPH3303 Q5005 405 129 2704 TR UMH9N Q5006 405 148 6905 TR CPH3303 Q5007 405 153 4606 TR 2SA2013 Q5008 405 129 2308 TR UMZ1N Q5009 405 148 7100 TR CPH6401

Page 8

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

Q5010 405 148 6905 TR CPH3303 Q5011 405 115 6907 TR DTC114EE Q5012 405 157 1403 TR 2SA2018 Q5013 405 129 2902 TR UMH11N Q5014 405 129 2308 TR UMZ1N Q5015 405 148 3904 TR CPH3209 Q5016 405 157 1403 TR 2SA2018 Q5019 405 129 2308 TR UMZ1N Q5020 405 148 7100 TR CPH6401 Q5021 405 157 1403 TR 2SA2018 Q5022 405 115 6907 TR DTC114EE Q5401 405 115 7508 TR DTC123JE Q5402 405 115 6907 TR DTC114EE Q5405 405 150 6603 TR CPH3210 Q5406 405 150 5002 TR CPH3109 Q5407 405 115 5207 TR 2SC4617 R Q5409 405 158 0306 TR CY25AAJ-8

(INTEGRATED CIRCUITS)

IC501 409 417 8300 IC LA5627W IC502 409 466 6203 IC TK73200

(DIODES)

D5001 407 205 5203 DIODE RB521S-30 D5002 407 201 2701 DIODE RB051L-40 D5003 407 209 1706 DIODE RB081L-20 D5004 407 201 2701 DIODE RB051L-40 D5005 407 210 9401 DIODE RB491D D5006 407 203 5601 DIODE RB461F D5007 407 210 5403 DIODE RB551V-30 D5009 407 205 5203 DIODE RB521S-30 D5402 407 202 0300 DIODE F1F16 D5403 407 122 2606 DIODE SFPM-64 D5404 407 202 0102 DIODE F1SN4 D5405 407 199 4503 DIODE CR08AS-8-T1 D5407 407 162 8507 DIODE DAN222 D5410 407 162 8507 DIODE DAN222

(VARIABLE RESISTORS)

VR501 645 028 2249 VR,SEMI,3.3K S VR502 645 028 2201 VR,SEMI,2.2K S VR503 645 028 2201 VR,SEMI,2.2K S VR504 645 028 2201 VR,SEMI,2.2K S VR505 645 028 2201 VR,SEMI,2.2K S

(INDUCTORS)

L5001 645 037 1530 INDUCTOR,47U K L5002 645 036 7496 INDUCTOR,4.7U M L5003 645 037 0625 INDUCTOR,4.7U M L5004 645 046 1941 INDUCTOR,10U M L5005 645 037 0625 INDUCTOR,4.7U M L5006 645 037 1523 INDUCTOR,10U K L5008 645 037 0625 INDUCTOR,4.7U M L5009 645 037 1523 INDUCTOR,10U K L5010 645 030 5887 INDUCTOR,1000 OHM L5012 645 037 1523 INDUCTOR,10U K L5401 645 036 4938 INDUCTOR,10U M

(TRANSFORMERS)

T5401 645 032 8831 TRANS,STEP UP T5402 645 031 6951 TRANS,STEP UP

(CAPACITORS)

C5001 403 155 2309 CERAMIC 4700P K 50V C5002 403 338 4403 CERAMIC 0.1U K 16V C5003 403 343 3101 CERAMIC 1U K 6.3V C5004 403 343 3101 CERAMIC 1U K 6.3V C5005 403 169 2807 CERAMIC 330P J 50V C5006 403 338 4403 CERAMIC 0.1U K 16V C5007 403 155 1807 CERAMIC 0.01U K 25V C5008 403 155 1807 CERAMIC 0.01U K 25V C5009 403 335 4703 CERAMIC 0.22U K 6.3V C5010 403 342 7506 CERAMIC 1000P J 50V C5011 403 342 7506 CERAMIC 1000P J 50V C5012 403 155 1807 CERAMIC 0.01U K 25V C5013 403 343 3101 CERAMIC 1U K 6.3V C5014 403 325 6304 CRAMIC 0.22U K 10V C5015 403 155 1807 CERAMIC 0.01U K 25V C5016 403 335 1405 CERAMIC 10U K 6.3V C5017 403 320 0604 CERAMIC 220P J 25V C5018 403 367 6607 POS-SOLID 47U M 6.3V C5019 403 283 5708 CERAMIC 2200P K 50V C5020 403 367 6607 POS-SOLID 47U M 6.3V

C5021 403 367 6607 POS-SOLID 47U M 6.3V C5022 403 338 2904 CERAMIC 0.47U K 10V C5023 403 338 4403 CERAMIC 0.1U K 16V C5024 403 276 1304 CERAMIC 1000P K 50V C5025 403 335 1405 CERAMIC 10U K 6.3V C5026 403 335 1405 CERAMIC 10U K 6.3V C5027 403 335 1405 CERAMIC 10U K 6.3V C5028 403 320 0604 CERAMIC 220P J 25V C5029 403 367 6607 POS-SOLID 47U M 6.3V C5030 403 276 1304 CERAMIC 1000P K 50V C5031 403 335 1405 CERAMIC 10U K 6.3V C5032 403 335 1405 CERAMIC 10U K 6.3V C5033 403 343 3101 CERAMIC 1U K 6.3V C5034 403 309 2407 CERAMIC 82P J 50V C5035 403 343 3101 CERAMIC 1U K 6.3V C5036 403 335 1405 CERAMIC 10U K 6.3V C5037 403 335 1405 CERAMIC 10U K 6.3V C5038 403 279 5002 CERAMIC 4700P K 25V C5039 403 343 3101 CERAMIC 1U K 6.3V C5040 403 335 1405 CERAMIC 10U K 6.3V C5043 403 335 1405 CERAMIC 10U K 6.3V C5044 403 320 0604 CERAMIC 220P J 25V C5045 403 333 3708 CERAMIC 10U M 10V C5046 403 279 5002 CERAMIC 4700P K 25V C5047 403 333 3708 CERAMIC 10U M 10V C5048 403 343 3101 CERAMIC 1U K 6.3V C5401 403 367 6607 POS-SOLID 47U M 6.3V C5403 403 350 2005 CERAMIC 0.15U K 10V C5404 403 276 1304 CERAMIC 1000P K 50V C5406 403 343 3101 CERAMIC 1U K 6.3V C5407 403 276 1007 CERAMIC 0.01U K 16V C5409 403 284 7701 CERAMIC 0.033U Z 16V C5410 403 341 4407 CERAMIC 0.047U K 350V C5411 403 330 5903 CERAMIC 0.01U K 500V C5414 403 279 5002 CERAMIC 4700P K 25V

(RESISTORS)

R5001 401 224 9303 MT-GLAZE 1K JA 1/16W R5002 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5003 401 224 9303 MT-GLAZE 1K JA 1/16W R5004 401 258 0406 MT-GLAZE 120K DC 1/16W R5005 401 258 9300 MT-GLAZE 220K DC 1/16W R5006 401 258 9300 MT-GLAZE 220K DC 1/16W R5007 401 258 0406 MT-GLAZE 120K DC 1/16W R5008 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5009 401 224 9303 MT-GLAZE 1K JA 1/16W R5010 401 224 9303 MT-GLAZE 1K JA 1/16W R5011 401 262 2304 MT-GLAZE 1.0K DC 1/16W R5012 401 262 5206 MT-GLAZE 1.5K DC 1/16W R5013 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5014 401 258 0406 MT-GLAZE 120K DC 1/16W R5015 401 258 9300 MT-GLAZE 220K DC 1/16W R5016 401 258 9102 MT-GLAZE 5.6K DC 1/16W R5017 401 258 0406 MT-GLAZE 120K DC 1/16W R5018 401 258 9300 MT-GLAZE 220K DC 1/16W R5019 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5020 401 262 2304 MT-GLAZE 1.0K DC 1/16W R5021 401 262 5206 MT-GLAZE 1.5K DC 1/16W R5022 401 224 9303 MT-GLAZE 1K JA 1/16W R5023 401 235 1402 MT-GALZE 1.2K JA 1/16W R5024 401 225 1603 MT-GLAZE 390 JA 1/16W R5025 401 225 8008 MT-GLAZE 330 JA 1/16W R5026 401 225 1306 MT-GLAZE 470 JA 1/16W R5027 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5028 401 224 9006 MT-GLAZE 10K JA 1/16W R5029 401 224 8900 MT-GLAZE 100K JA 1/16W R5030 401 224 9303 MT-GLAZE 1K JA 1/16W R5031 401 283 8903 MT-FILM 0.22 FA 1/4W R5032 401 224 9303 MT-GLAZE 1K JA 1/16W R5033 401 262 1000 MT-GLAZE 33K DC 1/16W R5034 401 269 3908 MT-GLAZE 4.7K DC 1/16W R5035 401 224 8900 MT-GLAZE 100K JA 1/16W R5036 401 224 9303 MT-GLAZE 1K JA 1/16W R5037 401 224 9006 MT-GLAZE 10K JA 1/16W R5038 401 224 9303 MT-GLAZE 1K JA 1/16W R5039 401 262 5602 MT-GLAZE 56K DC 1/16W R5040 401 263 2006 MT-GLAZE 8.2K DC 1/16W R5041 401 257 4009 MT-GLAZE 68K DC 1/16W

Page 9

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

R5042 401 235 1402 MT-GALZE 1.2K JA 1/16W R5043 401 225 1603 MT-GLAZE 390 JA 1/16W R5044 401 225 8008 MT-GLAZE 330 JA 1/16W R5045 401 225 1306 MT-GLAZE 470 JA 1/16W R5046 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5047 401 224 9006 MT-GLAZE 10K JA 1/16W R5048 401 224 8900 MT-GLAZE 100K JA 1/16W R5049 401 224 9303 MT-GLAZE 1K JA 1/16W R5050 401 224 9303 MT-GLAZE 1K JA 1/16W R5051 401 262 1000 MT-GLAZE 33K DC 1/16W R5052 401 269 3908 MT-GLAZE 4.7K DC 1/16W R5053 401 224 8900 MT-GLAZE 100K JA 1/16W R5054 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5055 401 235 1402 MT-GALZE 1.2K JA 1/16W R5056 401 226 5501 MT-GLAZE 120 JA 1/16W R5057 401 226 5501 MT-GLAZE 120 JA 1/16W R5058 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5059 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5060 401 224 9006 MT-GLAZE 10K JA 1/16W R5061 401 224 8900 MT-GLAZE 100K JA 1/16W R5062 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5063 401 224 9303 MT-GLAZE 1K JA 1/16W R5064 401 262 1000 MT-GLAZE 33K DC 1/16W R5065 401 262 1703 MT-GLAZE 2.7K DC 1/16W R5066 401 225 8008 MT-GLAZE 330 JA 1/16W R5067 401 225 1603 MT-GLAZE 390 JA 1/16W R5068 401 235 1402 MT-GALZE 1.2K JA 1/16W R5069 401 225 1306 MT-GLAZE 470 JA 1/16W R5070 401 261 1508 MT-GLAZE 4.3K JA 1/16W R5071 401 224 9006 MT-GLAZE 10K JA 1/16W R5072 401 224 8900 MT-GLAZE 100K JA 1/16W R5073 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5074 401 224 9303 MT-GLAZE 1K JA 1/16W R5075 401 262 1000 MT-GLAZE 33K DC 1/16W R5076 401 262 1703 MT-GLAZE 2.7K DC 1/16W R5401 401 224 9303 MT-GLAZE 1K JA 1/16W R5408 401 229 3900 MT-GLAZE 180 JA 1/16W R5409 401 224 9105 MT-GLAZE 150 JA 1/16W R5410 401 225 7902 MT-GLAZE 220 JA 1/16W R5411 401 224 9006 MT-GLAZE 10K JA 1/16W R5412 401 227 2400 MT-GLAZE 15 JA 1/16W R5413 401 224 9006 MT-GLAZE 10K JA 1/16W R5414 401 224 9303 MT-GLAZE 1K JA 1/16W R5417 402 078 4407 MT-GLAZE 10M FKG 1/8W R5418 401 226 5402 MT-GLAZE 56 JA 1/16W R5419 401 262 1208 MT-GLAZE 82K DC 1/16W R5422 402 079 0200 MT-GLAZE 220K JKG 1/8W R5423 401 225 0309 MT-GLAZE 33 JA 1/16W R5424 401 226 5402 MT-GLAZE 56 JA 1/16W R5425 402 077 7409 MT-GLAZE 100K JKG 1/8W R5426 401 225 9005 MT-GLAZE 470K JA 1/16W R5429 401 224 9006 MT-GLAZE 10K JA 1/16W R5470 401 225 1306 MT-GLAZE 470 JA 1/16W R5471 401 225 1306 MT-GLAZE 470 JA 1/16W R5472 401 225 7902 MT-GLAZE 220 JA 1/16W

(PROTECTORS)

PR501 423 028 0904 FUSE 32V 2A PR503 423 029 3706 FUSE 32V 2.5A PR504 423 028 0904 FUSE 32V 2A PR505 423 028 1307 FUSE 32V 1.5A

(CONNECTORS)

CN501 645 009 9892 SOCKET,PWB-PWB 30(N.S.P)

(MISCELLANEOUS)

636 061 3768 HOLDER FLASH-SX212/J, HOLDER_FLASH 645 046 9343 ASSY,LAMP,SX212

COMPL PWB,SY-1

636 061 1214

(SEMICONDUCTORS)

Q3001 405 138 5703 TR DTA124EUA OR 405 119 1007 TR UN5112 OR 405 078 6105 TR 2SA1677

(INTEGRATED CIRCUITS)

IC301 410 412 1906 IC UPD780022AGK-B38-9ET IC302 409 383 1008 S-8423NFS IC303 410 298 3605 IC S-8324A50MC-EPE

IC311 409 432 2505 IC LMV321M7X

(DIODES)

D3001 407 149 0807 DIODE 1SS355 D3003 407 210 5403 DIODE RB551V-30 D3010 407 220 5905 DIODE HN1D01FU D3011 407 220 5905 DIODE HN1D01FU D3012 407 220 5905 DIODE HN1D01FU D3013 407 220 5905 DIODE HN1D01FU D3014 407 220 5905 DIODE HN1D01FU D3015 407 220 5905 DIODE HN1D01FU D5201 407 190 3703 DIODE RB050L-40-TE25

(OSC)

X3001 645 034 8006 OSC,CERAMIC 4.00MHZ X3002 645 034 7993 OSC,CRYSTAL 32.768KHZ

(INDUCTORS)

L3001 645 010 0987 INDUCTOR,100U K L5202 645 021 5315 INDUCTOR,110 OHM

(CAPACITORS)

C3001 403 324 3502 DL-ELECT 0.1F Z 5.5V C3002 403 283 6309 CERAMIC 1U Z 10V C3003 403 312 6805 CERAMIC 0.1U Z 16V C3004 403 312 6805 CERAMIC 0.1U Z 16V C3005 403 312 6805 CERAMIC 0.1U Z 16V C3006 403 345 4304 TA-SOLID 22U M 10V C3007 403 283 6309 CERAMIC 1U Z 10V C3008 403 312 6805 CERAMIC 0.1U Z 16V C3010 403 311 7506 CERAMIC 22P J 50V C3012 403 283 6309 CERAMIC 1U Z 10V C3013 403 311 4505 CERAMIC 1000P K 50V C3014 403 312 6805 CERAMIC 0.1U Z 16V C3015 403 311 7506 CERAMIC 22P J 50V C3016 403 312 6805 CERAMIC 0.1U Z 16V C3017 403 332 8209 CERAMIC 10U M 16V C3018 403 322 3504 CERAMIC 22U Z 10V C3019 403 312 6805 CERAMIC 0.1U Z 16V C3101 403 346 2309 CERAMIC 0.1U K 10V C3102 403 283 6309 CERAMIC 1U Z 10V C3103 403 311 5601 CERAMIC 1500P K 50V C3104 403 346 2309 CERAMIC 0.1U K 10V C3106 403 283 6309 CERAMIC 1U Z 10V

(RESISTORS)

R3001 401 224 9303 MT-GLAZE 1K JA 1/16W R3002 401 224 9303 MT-GLAZE 1K JA 1/16W R3006 401 224 8900 MT-GLAZE 100K JA 1/16W R3007 401 224 8900 MT-GLAZE 100K JA 1/16W R3008 401 224 9006 MT-GLAZE 10K JA 1/16W R3010 401 224 9006 MT-GLAZE 10K JA 1/16W R3012 401 225 1405 MT-GLAZE 47K JA 1/16W R3013 401 258 9300 MT-GLAZE 220K DC 1/16W R3014 401 258 9300 MT-GLAZE 220K DC 1/16W R3017 401 225 0408 MT-GLAZE 330K JA 1/16W R3022 401 225 1405 MT-GLAZE 47K JA 1/16W R3023 401 225 1405 MT-GLAZE 47K JA 1/16W R3024 401 225 1405 MT-GLAZE 47K JA 1/16W R3027 401 224 9006 MT-GLAZE 10K JA 1/16W R3028 401 224 9006 MT-GLAZE 10K JA 1/16W R3029 401 224 9006 MT-GLAZE 10K JA 1/16W R3030 401 225 1405 MT-GLAZE 47K JA 1/16W R3033 401 225 1306 MT-GLAZE 470 JA 1/16W R3035 401 225 1405 MT-GLAZE 47K JA 1/16W R3036 401 225 1306 MT-GLAZE 470 JA 1/16W R3037 401 229 3900 MT-GLAZE 180 JA 1/16W R3038 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R3041 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R3042 401 258 9300 MT-GLAZE 220K DC 1/16W R3043 401 258 9300 MT-GLAZE 220K DC 1/16W R3050 401 225 0507 MT-GLAZE 33K JA 1/16W R3051 401 225 0507 MT-GLAZE 33K JA 1/16W R3052 401 225 0507 MT-GLAZE 33K JA 1/16W R3053 401 225 0507 MT-GLAZE 33K JA 1/16W R3054 401 225 0507 MT-GLAZE 33K JA 1/16W R3055 401 225 0507 MT-GLAZE 33K JA 1/16W R3061 401 225 0507 MT-GLAZE 33K JA 1/16W R3062 401 225 0507 MT-GLAZE 33K JA 1/16W R3101 401 224 9501 MT-GLAZE 2.2K JA 1/16W R3102 401 235 1402 MT-GALZE 1.2K JA 1/16W R3103 401 229 7205 MT-GLAZE 18K JA 1/16W R3104 401 225 2105 MT-GLAZE 12K JA 1/16W

Page 10

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

index

R3105 401 225 0705 MT-GLAZE 56K JA 1/16W R3106 401 224 8900 MT-GLAZE 100K JA 1/16W R3107 401 224 8801 MT-GLAZE 100 JA 1/16W

(SWITCHES)

S3001 645 029 5911 SWITCH,SLIDE 1P-3T, S3002 645 024 3851 SWITCH,PUSH, S3003 645 024 3851 SWITCH,PUSH,

(PROTECTORS)

PR301 423 028 1505 FUSE 32V 1A PR302 423 028 1505 FUSE 32V 1A

(JACK)

JK521 645 027 7030 SOCKET,DC

(CONNECTORS)

CN301 645 035 5424 SOCKET,PWB-PWB 30(N.S.P) CN302 645 038 4103 PLUG,3P (N.S.P) CN303 645 044 8515 SOCKET,FPC 24P (N.S.P) CN305 645 037 7822 PLUG,3P (N.S.P) CN310 645 037 7778 PLUG,2P (N.S.P)

COMPL PWB,SY-2

636 061 1221

(WIRE)

JW351 636 062 3095 ASSY,WIRE SY1&SY2-SX212 (N.S.P.)

(SWITCHES)

S3501 645 037 3138 SWITCH,DETECTOR 1P-1T, S3502 645 037 3121 SWITCH,DETECTOR 1P-1T,

(CONNECTOR)

CN351 645 038 4103 PLUG,3P (N.S.P)

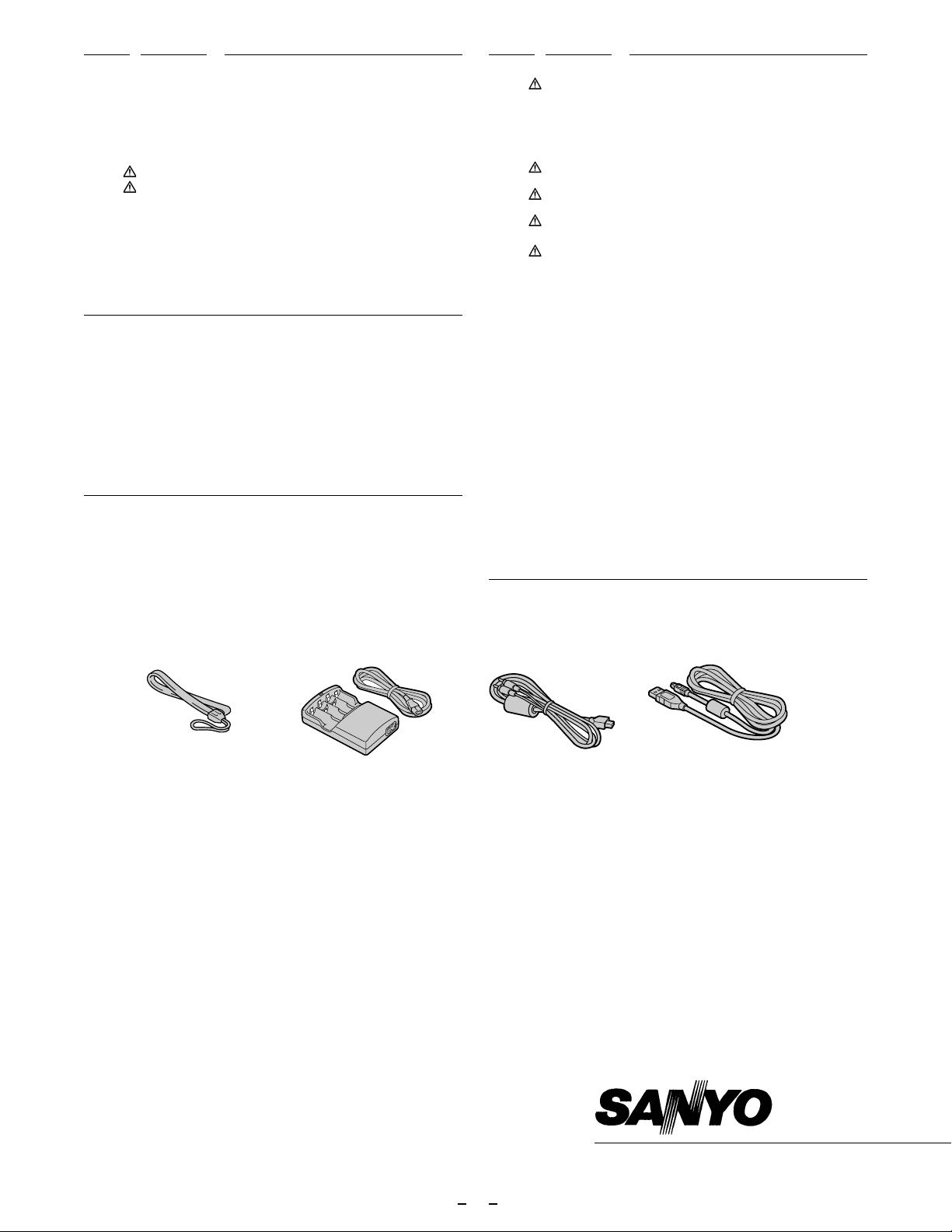

ACCESSORIES AND PACKING MATERIALS

9125 645 047 8789 BATTERY,RECHARGE,COMPOSITE

(two batteries in one composite ) 9124 645 046 8797 CABLE,DSC USB (Refer to Fig.4) 9123 645 046 8810 CABLE,DSC VIDEO (Refer to Fig.3) 9130 645 037 2339 CARD,CF (COMPACT FLASH 8MB) OR 645 048 5190 CARD,CF (COMPACT FLASH 8MB) 9119 645 048 2632 BATTERY CHAGER (Refer to Fig.2)

(without CORD POWER) 9120 645 036 4129 CORD,POWER-1.2MK,VPC-MZ1EX ONLY

(Refer to Fig.2)(without BATTERY CHAGER) OR 645 036 7434 CORD,POWER-1.2MK,VPC-MZ1E ONLY

(Refer to Fig.2)(without BATTERY CHAGER) OR 645 036 9896 CORD,POWER-1.8MK,VPC-MZ1 ONLY

(Refer to Fig.2)(without BATTERY CHAGER) 9126 645 046 7837 DISC,CD-ROM CEL SUSP54 E

(Sanyo Software Pack 5.4 For Digital Cameras)

(N.S.P.) 9127 645 043 5546 DISC,CD-ROM MGI PS3 (PhotoSuite) (N.S.P.) 9112 636 062 0094 INSTRUCTION MANUAL CAMERA

(English, German, French, Spanish) 9113 636 062 1541 INSTRUCTION MANUAL SHEET FOR PDF

(English, German, French, Spanish) 9114 636 063 2509 INSTRUCTION MANUAL

(Sanyo Software Pack 5.4 For Digital Cameras)

(English) 9115 636 062 9158 INSTRUCTION MANUAL FOR PANORAMA 9118 636 056 1007 STRAP HAND-SR662/J (Refer to Fig.1)

636 061 5465 CARTON CASE INNER-SX212/E,

VPC-MZ1E ONLY

636 061 5489 CARTON CASE INNER-SX212/U,VPC-MZ1 ONLY 636 061 5472 CARTON CASE INNER-SX212EX,

VPC-MZ1EX ONLY

636 060 6036 CUSHION SHEET-SX354/JO 636 061 4703 REINFORCEMENT PAD,A-212/J (BOTTOM) 636 060 4384 REINFORCEMENT PAD,B-114EX (TOP)

FIG.1 FIG.2 FIG.3

FIG.4

June/ '01 / 3580 MI Printed in Japan

SANYO Electric Co.,Ltd. Osaka, Japan

Page 11

OVERALLWIRING

index

Page 12

index

Page 13

Jun./ '01/ 3,580 MI Printed in Japan

index

SANYO Electric Co., Ltd. Osaka, Japan
