SANYO VPC-J1EX, VPC-J1 TROUBLESHOOTING GUIDE

Download

Page 1

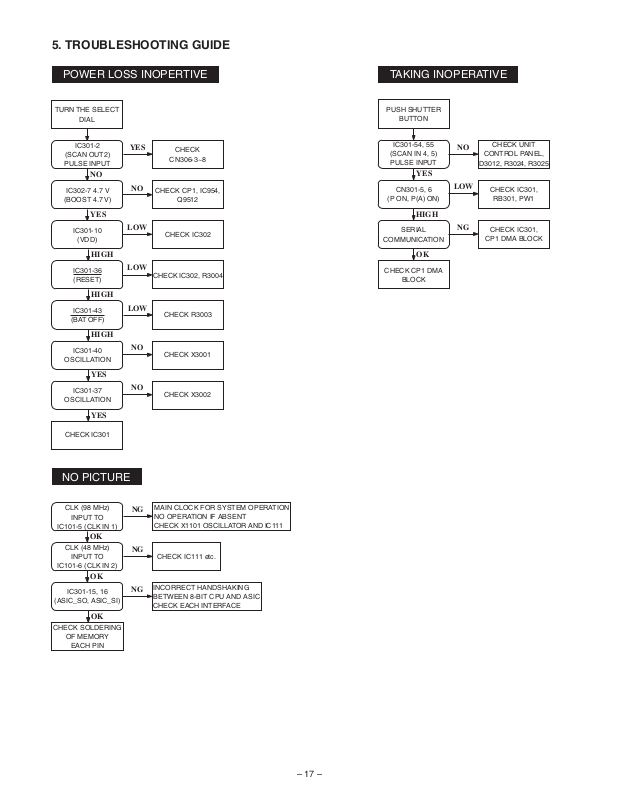

5. TROUBLESHOOTING GUIDE

POWER LOSS INOPERTIVE

TURN THE SELECT

DIAL

IC301-2 (SCAN OUT2) PULSE INPUT

IC302-7 4.7 V

(BOOST 4.7 V)

YES

IC301-10

(VDD)

HIGH

IC301-36 (RESET)

HIGH

IC301-43

(BAT OFF)

HIGH

IC301-40

OSCILLATION

YES

IC301-37

OSCILLATION

YES

CHECK CP1, IC954,

LOW

CHECK IC302, R3004

LOW

CHECK R3003

CHECK X3001

CHECK X3002

CHECK

CN306-3~8

Q9512

CHECK IC302

TAKING INOPERATIVE

PUSH SHUTTER

BUTTON

IC301-54, 55 (SCAN IN 4, 5) PULSE INPUT

YES

CN301-5, 6

(P ON, P(A) ON)

HIGH

SERIAL

COMMUNICATION

CHECK CP1 DMA

BLOCK

CONTROL PANEL,

D3012, R3024, R3025

LOW

CP1 DMA BLOCK

CHECK UNIT

CHECK IC301,

RB301, PW1

CHECK IC301,

CHECK IC301

NO PICTURE

CLK (98 MHz)

INPUT TO

IC101-5 (CLK IN 1)

CLK (48 MHz)

INPUT TO

IC101-6 (CLK IN 2)

IC301-15, 16

(ASIC_SO, ASIC_SI)

CHECK SOLDERING

OF MEMORY

EACH PIN

MAIN CLOCK FOR SYSTEM OPERATION

NO OPERATION IF ABSENT CHECK X1101 OSCILLATOR AND IC111

CHECK IC111 etc.

INCORRECT HANDSHAKING

BETWEEN 8-BIT CPU AND ASIC CHECK EACH INTERFACE

– 17 –

Page 2

6. PARTS LIST

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

CABINET & CHASSIS PARTS 1

1 636 068 5604 DEC FRONT-SX711/J 2 636 068 5475 ADHESIVE DEC FR A-SX711/J 3 636 068 5482 ADHESIVE DEC FR B-SX711/J 4 636 068 5529 CABINET FRONT-SX711/J 5 636 068 5611 DEC SELF-SX711/J 6 636 068 5635 DEC GRIP-SX711/J 7 636 068 5826 SPACER CABI FRONT-SX711/J 8 636 068 5499 ADHESIVE DEC FLASH-SX711 9 636 068 5628 DEC FLASH-SX711/J 10 636 068 5574 COVER LENS-SX711/J 11 636 068 5765 HOLDER COVER LENS-SX711/J 12 636 069 5566 SPACER COVER LENS-SX711/J 13 636 068 6045 DEC LENS B-SX711/J 14 636 068 6038 DEC LENS A-SX711/J 15 636 069 2084 ADHESIVE DEC LENS-SX711/J 16 636 068 6052 DEC VF-SX711/J 17 636 070 4244 SPACER WIRE TB1-SX711/J 18 636 070 5845 CABI FRONT INNER-SX711/J 19 636 069 0943 COMPL PWB,CA-1 20 636 068 5789 LEVER COVER LENS-SX711/J

N.S.P.: Not available as service parts.

21 636 069 0998 COMPL PWB,TB-2 22 645 057 9073 ASSY,MOTOR(SX711/J) 23 645 057 6089 FLEXIBLE FLAT CABLE 24 636 069 0981 COMPL PWB,TB-1 25 636 069 3623 SPACER TB1-SX711/J 26 636 068 5567 CABINET LEFT-SX711/J 27 636 068 5710 HOLDER SPEAKER-SX711/J 28 645 057 8700 SPEAKER,8 29 636 068 5598 COVER JACK-SX711/J 30 636 070 7719 ASSY,SHIELD MIC2-SX711/J 31 636 068 5550 CABINET TOP-SX711/J 32 636 068 5772 HOLDER REFLECTOR-SX711/J 33 636 068 5796 REFLECTOR LED-SX711/J 34 636 068 5857 SPACER MONITOR-SX711/J 35 636 068 5833 SPACER UNIT CONTROL-SX711 36 636 071 1693 SHIELD TAPE BACK3-SX711/J 37 645 057 9035 UNIT,CONTROL PANEL-SX711 38 636 070 9577 SPACER MIC-SX711/J 1 39 645 057 8717 MICROPHONE 40 636 064 8753 HOLDER MIC-SX212/J 41 636 068 5536 CABINET BACK-SX711/J

106

101

106

109

108

101

102

105

108

101

108

N.S.P.

101

N.S.P.

107

103

N.S.P.

105

104

SX711/J Parts List-1

104

105

Page 3

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

42 636 068 5673 DEC MONITOR-SX711/J 43 636 068 7981 FLEXIBLE PWB,711 CA1-CP1 101 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5 102 412 060 9501 SPECIAL SCREW-1.7X2.5 103 412 063 1106 SPECIAL SCREW-1.7X3.5 104 412 064 8708 SPECIAL SCREW-1.7X4.5 105 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0 106 411 176 6909 SCR S-TPG PAN PCS 1.7X5.0 107 411 018 3509 SCR PAN PCS 1.7X4.0 108 412 064 4908 SPECIAL SCREW-1.7X2.5 109 411 176 6701 SCR S-TPG PAN PCS 1.7X2.5

CABINET & CHASSIS PARTS 2

1 636 069 0950 COMPL PWB,ST-1 2 636 068 7974 FLEXIBLE PWB,711 CP1-ST1 3 636 068 5840 SPACER ST1-SX711/J 4 636 068 5758 HOLDER TERMINAL-SX711/J 5 645 058 1076 ASSY,LAMP,SX711 6 636 068 5741 HOLDER FLASH-SX711/J 7 636 069 0967 COMPL PWB,ST-2 8 636 068 5864 STAND-SX711/J 9 636 069 0974 COMPL PWB,ST-3 10 636 069 4101 SPACER F CON-SX711/J 11 636 069 3630 SPACER WIRE-SX711/J 12 636 068 5727 HOLDER BATT F-SX711/J

13 636 069 5931 LABEL CAUTION BATT-711/J 14 636 068 6250 SPRING BATT EJECT-SX711/J 15 636 068 7837 ASSY,HOLDER COV BATT-711J 16 636 068 5581 COVER BATTERY-SX711/J 17 636 066 7150 LEVER BATT LOCK-SX612/J 18 636 068 5680 HOLDER PWB-SX711/J 19 636 068 6243 SPRING LEVER BATT-SX711/J 20 636 068 5734 HOLDER BATT B-SX711/J 21 636 066 7211 TERMINAL BATTERY A-612/J 22 636 069 5559 ASSY,WIRE JW502&BATTERY- (N.S.P.) 23 636 069 5504 ASSY,WIRE JW501&BATTERY (N.S.P.) 24 636 068 5819 SPACER HOLDER BAT-SX711/J 25 636 069 4996 SPACER CP1-SX711/J 26 636 069 0929 COMPL PWB,CP-1 27 636 068 5697 HOLDER USB-SX711/J 28 645 059 7923 PAD(L=7) 29 636 070 4237 SPACER HOLDER MONITOR-711 30 636 068 5703 HOLDER MONITOR-SX711/J 31 636 069 4972 SPACER LCD-SX711/J 32 636 068 9091 ASSY,WIRE JW172&LCDBLA (N.S.P.) 33 636 068 9084 ASSY,WIRE JW171&LCDBLA (N.S.P.) 34 645 057 0957 LCD 35 636 070 7405 SPACER FPC-SX711/J 101 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5 110 411 175 5705 SCR PAN PCS 1.7X3

N.S.P.: Not available as service parts.

101

N.S.P.

110

101

(N.S.P.)

101

110

(N.S.P.)

SX711/J Parts List-2

101

Page 4

ELECTRICAL PARTS

Note:

1. Materials of Capacitors and Resistors are abbreviated as follows ; Resistors Capacitors MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor OXIDE-MT Oxide Metallized Film Resistor TA-SOLD Tantalum Solid Capacitor

2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.

F ............1% G ............2% J ............5% K ............10%

M ..........20% N ..........30% Z ..........+80% ~ -20%

3. Capacitors

FP : pF

U :

4. Inductors

H MH : mH

UH :

5. N.S.P. : Not available as service parts.

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

COMPL PWB,CP-1

636 069 0929

VA131 408 050 0504 VARISTOR AVR-M1005C080MT VA132 408 050 0504 VARISTOR AVR-M1005C080MT

Q1304 405 168 3700 TR DTC144EM Q1305 405 167 0304 TR EMD3 Q1306 405 166 9506 TR EMH2 Q1431 405 168 3700 TR DTC144EM Q1432 405 167 7303 TR UMD12N Q1501 405 166 9605 TR EMT1 Q1502 405 168 3908 TR EMZ1 Q1503 405 102 6705 TR 2SA1745-7 OR 405 102 8303 TR 2SA1745-6 Q1504 405 168 3700 TR DTC144EM Q1701 405 173 3009 TR 12A01SS Q1702 405 168 3700 TR DTC144EM Q3001 405 168 4004 TR DTA114EM Q3002 405 115 6709 TR DTC123EE Q3003 405 168 3809 TR DTA144EM Q3004 405 168 3700 TR DTC144EM Q9301 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R Q9302 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R Q9510 405 092 2107 TR 2SC4097-R Q9511 405 168 9504 TR DTC115EM Q9512 405 148 7100 TR CPH6401 Q9513 405 168 9504 TR DTC115EM

IC101 410 472 1502 IC KS6U2U1715CBP (N.S.P.) IC103 409 541 5107 IC K4S283233F-MN1L (N.S.P.) IC105 409 479 6009 IC TC7MH273FK IC106 409 479 6009 IC TC7MH273FK IC111 409 540 3708 IC BU2389KN-E2 IC121 409 548 9801 IC 62600711G IC151 409 528 6301 IC TK15465STB IC172 409 446 9309 IC NJM2125F IC301 410 479 6005 IC UPD780023AGB-G19-8EU OR 410 469 0501 IC UPD78F0034AGB-G19-8EU IC302 409 530 6900 IC S-8424BAAFT IC931 409 529 5808 IC AD9847AKST IC932 409 505 9400 IC TK11130CS IC934 409 446 8708 IC CXD3400N IC935 409 446 8708 IC CXD3400N IC951 409 512 9806 IC LB8649FN IC954 409 526 4002 IC XC9104D095M

D1001 407 210 1900 DIODE 1SS400 D1501 407 109 4609 DIODE MA728 D1701 407 221 4105 DIODE MA2SD19 D1901 407 210 1900 DIODE 1SS400

(VARISTORS)

(SEMICONDUCTORS)

(INTEGRATED CIRCUITS)

(DIODES)

AL-SOLID Aluminum Solid Capacitor NP-ELECT Non-Polarized Electrolytic Capacitor OS-SOLID Aluminum Solid Capacitors with Organic

Semiconductive Electrolytic Capacitor

DL-ELECT Double Layered Electrolytic Capacitor

D3001 407 205 2806 DIODE RB520S-30 D3002 407 229 9409 LED SML-311DT D3003 407 229 9409 LED SML-311DT D3004 407 229 9409 LED SML-311DT D3005 407 222 4807 LED SML-521MUW D3010 407 227 3102 DIODE EMP11 D3011 407 227 3102 DIODE EMP11 D3012 407 227 3102 DIODE EMP11 D3013 407 227 3102 DIODE EMP11 D9301 407 198 9905 DIODE MA727 D9302 407 113 5609 DIODE DSH015 OR 407 134 7200 DIODE MA141K OR 407 220 7305 DIODE MA142K-G OR 407 153 7205 DIODE MA142K D9501 407 201 2701 DIODE RB051L-40

(OSCILLATORS)

X1101 645 053 8780 OSC,CRYSTAL 28.63636MHZ X3001 645 046 1415 OSC,CERAMIC 4.00MHZ X3002 645 054 3791 OSC,CRYSTAL 32.768KHZ

(FILTERS)

XF101 645 057 0551 FILTER,EMI 1000000PF XF111 645 057 0551 FILTER,EMI 1000000PF XF931 645 057 0551 FILTER,EMI 1000000PF

(INDUCTORS)

L1001 645 020 1912 INDUCTOR,240 OHM L1040 645 037 1523 INDUCTOR,10U K L1051 645 037 1530 INDUCTOR,47U K L1101 645 020 1912 INDUCTOR,240 OHM L1103 645 020 1899 INDUCTOR,68 OHM L1301 645 037 4340 INDUCTOR,1000 OHM L1302 645 037 4340 INDUCTOR,1000 OHM L1303 645 037 4340 INDUCTOR,1000 OHM L1501 645 035 7190 INDUCTOR,33U J L1701 645 037 1523 INDUCTOR,10U K L1702 645 037 1523 INDUCTOR,10U K L1703 645 037 1523 INDUCTOR,10U K L1704 645 037 1523 INDUCTOR,10U K L1705 645 053 8872 INDUCTOR,100U K L1901 645 041 1977 INDUCTOR,330 OHM L1902 645 041 1977 INDUCTOR,330 OHM L9301 645 020 1912 INDUCTOR,240 OHM L9302 645 053 8872 INDUCTOR,100U K L9303 645 020 1882 INDUCTOR,1800 OHM L9501 645 058 0918 INDUCTOR,10U M

(CAPACITORS)

C1026 403 312 6805 CERAMIC 0.1U Z 16V C1028 403 312 6805 CERAMIC 0.1U Z 16V C1030 403 312 6805 CERAMIC 0.1U Z 16V C1032 403 312 6805 CERAMIC 0.1U Z 16V C1034 403 312 6805 CERAMIC 0.1U Z 16V C1037 403 312 6805 CERAMIC 0.1U Z 16V C1039 403 312 6805 CERAMIC 0.1U Z 16V C1040 403 346 2309 CERAMIC 0.1U K 10V C1042 403 312 6805 CERAMIC 0.1U Z 16V

Page 5

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

C1044 403 312 6805 CERAMIC 0.1U Z 16V C1046 403 312 6805 CERAMIC 0.1U Z 16V C1048 403 312 6805 CERAMIC 0.1U Z 16V C1051 403 346 2309 CERAMIC 0.1U K 10V C1052 403 369 0306 CERAMIC 1U Z 4V C1053 403 375 0307 CERAMIC 4.7U K 4V C1054 403 312 6805 CERAMIC 0.1U Z 16V C1055 403 346 2309 CERAMIC 0.1U K 10V C1056 403 346 2309 CERAMIC 0.1U K 10V C1061 403 312 6805 CERAMIC 0.1U Z 16V C1063 403 312 6805 CERAMIC 0.1U Z 16V C1064 403 283 6309 CERAMIC 1U Z 10V C1065 403 312 6805 CERAMIC 0.1U Z 16V C1067 403 312 6805 CERAMIC 0.1U Z 16V C1068 403 283 6309 CERAMIC 1U Z 10V C1071 403 312 6805 CERAMIC 0.1U Z 16V C1072 403 375 0307 CERAMIC 4.7U K 4V C1073 403 347 9406 CERAMIC 0.22U Z 10V C1074 403 347 9406 CERAMIC 0.22U Z 10V C1075 403 347 9406 CERAMIC 0.22U Z 10V C1076 403 347 9406 CERAMIC 0.22U Z 10V C1101 403 312 6805 CERAMIC 0.1U Z 16V C1102 403 309 8102 CERAMIC 5P C 50V C1103 403 332 9503 CERAMIC 1U M 6.3V C1104 403 312 6805 CERAMIC 0.1U Z 16V C1105 403 309 8102 CERAMIC 5P C 50V C1106 403 309 8409 CERAMIC 10P D 50V C1201 403 332 9503 CERAMIC 1U M 6.3V C1306 403 332 9503 CERAMIC 1U M 6.3V C1501 403 311 5007 CERAMIC 33P J 50V C1502 403 369 0306 CERAMIC 1U Z 4V C1503 403 332 9503 CERAMIC 1U M 6.3V C1504 403 345 3802 TA-SOLID 22U M 4V C1505 403 345 4205 TA-SOLID 47U M 6.3V C1506 403 332 9503 CERAMIC 1U M 6.3V C1507 403 311 7506 CERAMIC 22P J 50V C1701 403 332 9503 CERAMIC 1U M 6.3V C1702 403 332 9503 CERAMIC 1U M 6.3V C1704 403 332 9503 CERAMIC 1U M 6.3V C1705 403 332 9503 CERAMIC 1U M 6.3V C1706 403 334 3806 CERAMIC 10U K 6.3V C1707 403 332 9503 CERAMIC 1U M 6.3V C1708 403 332 9503 CERAMIC 1U M 6.3V C1709 403 332 9503 CERAMIC 1U M 6.3V C1710 403 332 9503 CERAMIC 1U M 6.3V C1711 403 332 9503 CERAMIC 1U M 6.3V C1712 403 334 3806 CERAMIC 10U K 6.3V C1713 403 334 3806 CERAMIC 10U K 6.3V C1714 403 332 9503 CERAMIC 1U M 6.3V C1715 403 332 9503 CERAMIC 1U M 6.3V C1716 403 332 9503 CERAMIC 1U M 6.3V C1717 403 332 9503 CERAMIC 1U M 6.3V C1901 403 358 3202 CERAMIC 10U K 6.3V C1903 403 358 3202 CERAMIC 10U K 6.3V C1904 403 311 4505 CERAMIC 1000P K 50V C1905 403 311 4505 CERAMIC 1000P K 50V C3001 403 369 0306 CERAMIC 1U Z 4V C3002 403 312 6805 CERAMIC 0.1U Z 16V C3003 403 312 6805 CERAMIC 0.1U Z 16V C3004 403 312 6805 CERAMIC 0.1U Z 16V C3005 403 368 7702 TA-SOLID 15U M 6.3V C3006 403 369 0306 CERAMIC 1U Z 4V C3007 403 312 6805 CERAMIC 0.1U Z 16V C3008 403 309 8607 CERAMIC 18P J 50V C3010 403 369 0306 CERAMIC 1U Z 4V C3011 403 311 4505 CERAMIC 1000P K 50V C3012 403 312 6805 CERAMIC 0.1U Z 16V C3013 403 309 8607 CERAMIC 18P J 50V C3014 403 312 6805 CERAMIC 0.1U Z 16V C9301 403 320 5500 CERAMIC 1U Z 25V C9302 403 312 6805 CERAMIC 0.1U Z 16V C9303 403 283 6309 CERAMIC 1U Z 10V C9305 403 283 6309 CERAMIC 1U Z 10V C9306 403 311 3409 CERAMIC 0.01U K 16V C9307 403 312 6805 CERAMIC 0.1U Z 16V C9308 403 312 6805 CERAMIC 0.1U Z 16V C9309 403 312 6805 CERAMIC 0.1U Z 16V C9310 403 283 6309 CERAMIC 1U Z 10V

C9311 403 312 6805 CERAMIC 0.1U Z 16V C9312 403 312 6805 CERAMIC 0.1U Z 16V C9313 403 283 6309 CERAMIC 1U Z 10V C9314 403 332 9503 CERAMIC 1U M 6.3V C9316 403 311 3409 CERAMIC 0.01U K 16V C9317 403 332 9503 CERAMIC 1U M 6.3V C9318 403 311 3409 CERAMIC 0.01U K 16V C9319 403 332 9503 CERAMIC 1U M 6.3V C9320 403 332 9503 CERAMIC 1U M 6.3V C9322 403 311 3409 CERAMIC 0.01U K 16V C9323 403 346 2309 CERAMIC 0.1U K 10V C9324 403 320 5500 CERAMIC 1U Z 25V C9326 403 269 2806 CERAMIC 0.15U K 25V C9327 403 346 2309 CERAMIC 0.1U K 10V C9328 403 346 2309 CERAMIC 0.1U K 10V C9329 403 346 2309 CERAMIC 0.1U K 10V C9331 403 346 2309 CERAMIC 0.1U K 10V C9332 403 345 4304 TA-SOLID 22U M 10V C9333 403 346 2309 CERAMIC 0.1U K 10V C9334 403 311 3409 CERAMIC 0.01U K 16V C9335 403 346 2309 CERAMIC 0.1U K 10V C9336 403 311 3409 CERAMIC 0.01U K 16V C9337 403 345 4205 TA-SOLID 47U M 6.3V C9338 403 346 2309 CERAMIC 0.1U K 10V C9339 403 346 2309 CERAMIC 0.1U K 10V C9340 403 352 7305 CERAMIC 4.7U K 6.3V C9341 403 311 4505 CERAMIC 1000P K 50V C9342 403 311 4505 CERAMIC 1000P K 50V C9343 403 312 6805 CERAMIC 0.1U Z 16V C9344 403 312 6805 CERAMIC 0.1U Z 16V C9345 403 312 6805 CERAMIC 0.1U Z 16V C9501 403 344 0505 CERAMIC 0.033U K 10V C9502 403 344 0505 CERAMIC 0.033U K 10V C9503 403 344 0505 CERAMIC 0.033U K 10V C9504 403 344 0505 CERAMIC 0.033U K 10V C9505 403 312 6805 CERAMIC 0.1U Z 16V C9506 403 312 6805 CERAMIC 0.1U Z 16V C9507 403 312 6805 CERAMIC 0.1U Z 16V C9508 403 311 7506 CERAMIC 22P J 50V C9509 403 312 6805 CERAMIC 0.1U Z 16V C9510 403 312 6805 CERAMIC 0.1U Z 16V C9511 403 378 3602 POS-SOLID 33U M 10V C9512 403 312 6805 CERAMIC 0.1U Z 16V C9513 403 378 3602 POS-SOLID 33U M 10V C9514 403 358 3202 CERAMIC 10U K 6.3V C9515 403 344 0505 CERAMIC 0.033U K 10V C9516 403 358 3202 CERAMIC 10U K 6.3V C9517 403 344 0505 CERAMIC 0.033U K 10V C9518 403 344 0505 CERAMIC 0.033U K 10V

(RESISTOR PACKS)

RB101 645 037 4371 R-NETWORK 220X4 1/32W OR 645 047 6112 R-NETWORK 220X4 1/32W RB102 645 037 4371 R-NETWORK 220X4 1/32W OR 645 047 6112 R-NETWORK 220X4 1/32W RB103 645 037 4371 R-NETWORK 220X4 1/32W OR 645 047 6112 R-NETWORK 220X4 1/32W RB104 645 037 4371 R-NETWORK 220X4 1/32W OR 645 047 6112 R-NETWORK 220X4 1/32W RB105 645 037 4371 R-NETWORK 220X4 1/32W OR 645 047 6112 R-NETWORK 220X4 1/32W RB141 645 028 0719 R-NETWORK 10KX4 1/32W OR 645 036 0978 R-NETWORK 10KX4 1/32W RB301 645 032 8886 R-NETWORK 47KX4 1/32W OR 645 032 8879 R-NETWORK 47KX4 1/32W RB931 645 028 0696 R-NETWORK 100X4 1/32W OR 645 029 5782 R-NETWORK 100X4 1/32W RB932 645 028 0696 R-NETWORK 100X4 1/32W OR 645 029 5782 R-NETWORK 100X4 1/32W RB933 645 028 0696 R-NETWORK 100X4 1/32W OR 645 029 5782 R-NETWORK 100X4 1/32W

(RESISTORS)

R1001 401 224 9006 MT-GLAZE 10K JA 1/16W R1002 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1004 401 224 9006 MT-GLAZE 10K JA 1/16W R1005 401 224 9006 MT-GLAZE 10K JA 1/16W R1008 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1009 401 224 9006 MT-GLAZE 10K JA 1/16W R1010 401 224 9303 MT-GLAZE 1K JA 1/16W

Page 6

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

R1011 401 224 9006 MT-GLAZE 10K JA 1/16W R1012 401 224 8801 MT-GLAZE 100 JA 1/16W R1013 401 225 7902 MT-GLAZE 220 JA 1/16W R1014 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1015 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1021 401 225 7902 MT-GLAZE 220 JA 1/16W R1022 401 225 7902 MT-GLAZE 220 JA 1/16W R1023 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1031 401 225 1900 MT-GLAZE 68 JA 1/16W R1033 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1051 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1052 401 261 3401 MT-FILM 3.6K DU 1/16W R1053 401 261 5108 MT-FILM 1.0K DU 1/16W R1054 401 225 8503 MT-GLAZE 1.8K JA 1/16W R1055 401 261 5108 MT-FILM 1.0K DU 1/16W R1056 401 261 6303 MT-FILM 180 DU 1/16W R1061 401 224 9006 MT-GLAZE 10K JA 1/16W R1062 401 224 9006 MT-GLAZE 10K JA 1/16W R1063 401 225 1405 MT-GLAZE 47K JA 1/16W R1064 401 224 9006 MT-GLAZE 10K JA 1/16W R1067 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1068 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1072 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1102 401 224 8801 MT-GLAZE 100 JA 1/16W R1103 401 225 1801 MT-GLAZE 47 JA 1/16W R1104 401 225 1801 MT-GLAZE 47 JA 1/16W R1105 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1106 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1111 401 261 5306 MT-FILM 470 DU 1/16W R1307 401 224 9006 MT-GLAZE 10K JA 1/16W R1309 401 224 9006 MT-GLAZE 10K JA 1/16W R1311 401 225 3805 MT-GLAZE 1.5K JA 1/16W R1312 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1313 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1350 401 225 1108 MT-GLAZE 27 JA 1/16W R1359 401 225 1108 MT-GLAZE 27 JA 1/16W R1431 401 224 9006 MT-GLAZE 10K JA 1/16W R1432 401 224 9006 MT-GLAZE 10K JA 1/16W R1433 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1435 401 224 9006 MT-GLAZE 10K JA 1/16W R1437 401 224 9006 MT-GLAZE 10K JA 1/16W R1501 401 261 7102 MT-FILM 150 DU 1/16W R1502 401 261 7102 MT-FILM 150 DU 1/16W R1503 401 235 1402 MT-GALZE 1.2K JA 1/16W R1504 401 225 3805 MT-GLAZE 1.5K JA 1/16W R1505 401 261 6105 MT-FILM 390 DU 1/16W R1506 401 261 5108 MT-FILM 1.0K DU 1/16W R1507 401 261 5108 MT-FILM 1.0K DU 1/16W R1508 401 261 4101 MT-FILM 2.7K DU 1/16W R1509 401 225 2006 MT-GLAZE 680 JA 1/16W R1510 401 226 5402 MT-GLAZE 56 JA 1/16W R1511 401 261 9601 MT-FILM 68 DD 1/16W R1512 401 224 9006 MT-GLAZE 10K JA 1/16W R1513 401 224 8900 MT-GLAZE 100K JA 1/16W R1601 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1701 401 224 9006 MT-GLAZE 10K JA 1/16W R1702 401 261 2602 MT-FILM 10K DU 1/16W R1703 401 261 8703 MT-FILM 22K DD 1/16W R1704 401 261 2602 MT-FILM 10K DU 1/16W R1705 401 224 9808 MT-GLAZE 220K JA 1/16W R1706 401 261 9106 MT-FILM 12K DD 1/16W R1707 401 261 8505 MT-FILM 47K DD 1/16W R1708 401 261 9106 MT-FILM 12K DD 1/16W R1709 401 261 3203 MT-FILM 3K DU 1/16W R1711 401 225 0507 MT-GLAZE 33K JA 1/16W R1712 401 261 2602 MT-FILM 10K DU 1/16W R1713 401 261 2602 MT-FILM 10K DU 1/16W R1714 401 224 8900 MT-GLAZE 100K JA 1/16W R1715 401 224 9006 MT-GLAZE 10K JA 1/16W R1717 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1901 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1905 401 224 9006 MT-GLAZE 10K JA 1/16W R2501 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R3001 401 225 8503 MT-GLAZE 1.8K JA 1/16W R3002 401 224 9303 MT-GLAZE 1K JA 1/16W R3003 401 224 8900 MT-GLAZE 100K JA 1/16W R3004 401 224 8900 MT-GLAZE 100K JA 1/16W R3006 401 258 7009 MT-GLAZE 150K DC 1/16W

R3007 401 258 7009 MT-GLAZE 150K DC 1/16W R3008 401 225 1405 MT-GLAZE 47K JA 1/16W R3009 401 225 0408 MT-GLAZE 330K JA 1/16W R3011 401 224 9006 MT-GLAZE 10K JA 1/16W R3012 401 225 1405 MT-GLAZE 47K JA 1/16W R3016 401 225 1405 MT-GLAZE 47K JA 1/16W R3017 401 225 1405 MT-GLAZE 47K JA 1/16W R3018 401 225 1405 MT-GLAZE 47K JA 1/16W R3019 401 225 1405 MT-GLAZE 47K JA 1/16W R3020 401 225 1405 MT-GLAZE 47K JA 1/16W R3021 401 225 1405 MT-GLAZE 47K JA 1/16W R3022 401 225 1405 MT-GLAZE 47K JA 1/16W R3023 401 225 1405 MT-GLAZE 47K JA 1/16W R3024 401 225 1405 MT-GLAZE 47K JA 1/16W R3025 401 225 1405 MT-GLAZE 47K JA 1/16W R3026 401 224 9006 MT-GLAZE 10K JA 1/16W R3027 401 224 9006 MT-GLAZE 10K JA 1/16W R3028 401 224 9006 MT-GLAZE 10K JA 1/16W R3029 401 224 9006 MT-GLAZE 10K JA 1/16W R3030 401 225 1405 MT-GLAZE 47K JA 1/16W R3032 401 225 1405 MT-GLAZE 47K JA 1/16W R3033 401 229 3900 MT-GLAZE 180 JA 1/16W R3034 401 229 3900 MT-GLAZE 180 JA 1/16W R3035 401 229 3900 MT-GLAZE 180 JA 1/16W R3036 401 240 9509 MT-GLAZE 820 JA 1/16W R3037 401 225 7902 MT-GLAZE 220 JA 1/16W R3038 401 224 8900 MT-GLAZE 100K JA 1/16W R3039 401 224 9006 MT-GLAZE 10K JA 1/16W R9301 401 224 8900 MT-GLAZE 100K JA 1/16W R9302 401 261 5900 MT-FILM 330 DU 1/16W R9303 401 261 3906 MT-FILM 2.2K DU 1/16W R9304 401 224 9402 MT-GLAZE 1.0M JA 1/16W R9305 401 240 9509 MT-GLAZE 820 JA 1/16W R9306 401 240 9004 MT-GLAZE 3.9 JA 1/16W R9307 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9312 401 224 9006 MT-GLAZE 10K JA 1/16W R9313 401 285 1308 MT-GLAZE 1.3K JA 1/16W R9314 401 225 1801 MT-GLAZE 47 JA 1/16W R9315 401 234 4800 MT-GLAZE 3.3 JA 1/16W R9316 401 234 4800 MT-GLAZE 3.3 JA 1/16W R9317 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9318 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9320 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9501 401 291 6908 MT-FILM 0.47 FA 1/4W R9503 401 261 8901 MT-FILM 27K DD 1/16W R9504 401 261 8901 MT-FILM 27K DD 1/16W R9506 401 261 3302 MT-FILM 3.3K DU 1/16W R9507 401 224 8801 MT-GLAZE 100 JA 1/16W R9508 401 224 8801 MT-GLAZE 100 JA 1/16W R9509 401 301 0308 MT-FILM 0.56 FA 1/4W R9511 401 261 8505 MT-FILM 47K DD 1/16W R9512 401 301 1701 MT-GLAZE 200K DC 1/16W R9513 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R9514 401 037 5004 MT-GLAZE 0.000 ZA 1/10W R9515 401 224 9006 MT-GLAZE 10K JA 1/16W R9516 401 224 9006 MT-GLAZE 10K JA 1/16W R9517 401 224 9006 MT-GLAZE 10K JA 1/16W R9518 401 224 9006 MT-GLAZE 10K JA 1/16W R9519 401 225 1405 MT-GLAZE 47K JA 1/16W R9520 401 225 3805 MT-GLAZE 1.5K JA 1/16W

(CONNECTORS)

CN102 645 055 9068 SOCKET,FPC 39P (N.S.P) CN103 645 054 0455 SOCKET,FPC 22P (N.S.P) CN105 645 054 4163 SOCKET,8P CN143 645 057 4740 SOCKET,CARD(SD)12 CN171 645 056 8688 SOCKET,FPC 33P (N.S.P) CN306 645 057 4658 SOCKET,FPC 27P (N.S.P) CN931 645 057 4658 SOCKET,FPC 27P (N.S.P) CN951 645 057 4672 SOCKET,FPC 18P (N.S.P)

COMPL PWB,CA-1

636 069 0943

(SEMICONDUCTORS)

Q9001 405 153 6709 TR 2SC3931-D (N.S.P)

Page 7

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

C9002 403 381 6607 CERAMIC 0.68U K 16V (N.S.P)

(CAPACITORS)

C9003 403 381 6607 CERAMIC 0.68U K 16V (N.S.P) C9004 403 381 6607 CERAMIC 0.68U K 16V (N.S.P) C9005 403 381 6607 CERAMIC 0.68U K 16V (N.S.P) C9006 403 381 6904 CERAMIC 0.22U K 25V (N.S.P) C9008 403 374 8809 CERAMIC 1U Z 25V (N.S.P) C9009 403 374 8809 CERAMIC 1U Z 25V (N.S.P)

(RESISTORS)

R9001 401 224 8801 MT-GLAZE 100 JA 1/16W (N.S.P) R9002 401 225 0200 MT-GLAZE 3.3K JA 1/16W (N.S.P) R9003 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P) R9004 401 225 0903 MT-GLAZE 82K JA 1/16W (N.S.P) R9005 401 226 1503 MT-GLAZE 0.000 ZA 1/16W (N.S.P)

(CONNECTORS)

CN901 645 057 4658 SOCKET,FPC 27P (N.S.P)

(MISCELLANEOUS)

409 541 2809 IC ICX451DQF-C (N.S.P.) 636 069 2091 MOUNTING,LENS (N.S.P.) 636 069 2329 SPRING COMP (N.S.P.) 636 070 2134 SPACER (N.S.P.) 645 057 0612 OPTICAL FILTER (N.S.P.) 645 057 1169 LENS(ASSY),K196 (N.S.P.) 411 170 4604 SCR TPG PAN PCS 1.4X3 (N.S.P.)

R1808 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1809 401 225 0507 MT-GLAZE 33K JA 1/16W R1811 401 225 0705 MT-GLAZE 56K JA 1/16W R1812 401 235 1402 MT-GALZE 1.2K JA 1/16W R1813 401 224 9501 MT-GLAZE 2.2K JA 1/16W R1814 401 225 2105 MT-GLAZE 12K JA 1/16W R1815 401 229 7205 MT-GLAZE 18K JA 1/16W R1816 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R1817 401 224 9006 MT-GLAZE 10K JA 1/16W R6001 401 225 1603 MT-GLAZE 390 JA 1/16W R6002 401 225 7902 MT-GLAZE 220 JA 1/16W R6003 401 224 9105 MT-GLAZE 150 JA 1/16W R9801 401 224 9006 MT-GLAZE 10K JA 1/16W R9802 401 224 9006 MT-GLAZE 10K JA 1/16W

(CONNECTORS)

CN181 645 037 7778 PLUG,2P (N.S.P) CN601 645 056 9777 SOCKET,FPC 22P (N.S.P) CN981 645 025 1320 PLUG,2P (N.S.P)

(MISCELLANEOUS)

636 068 9077 ASSY,WIRE TB1&TB2-SX711(N.S.P.) 636 070 7085 SPACER TB1 B-SX711/J (N.S.P.)

COMPL PWB,TB-2

636 069 0998

COMPL PWB,TB-1

636 069 0981

(BATTERY)

Z3001 645 051 6009 BATTERY,RECHARGE

(SEMICONDUCTORS)

Q1802 405 168 3809 TR DTA144EM Q1803 405 102 5609 TR 2SD1819A-R OR 405 092 4101 TR 2SC4081-R Q6001 405 115 6709 TR DTC123EE Q6002 405 115 6709 TR DTC123EE Q6003 405 115 6709 TR DTC123EE

(INTEGRATED CIRCUITS)

IC181 409 526 6402 IC BH6410KN IC182 409 505 9400 IC TK11130CS IC183 409 432 2505 IC LMV321M7X IC981 409 407 6903 IC LB1930M

(DIODES)

D1802 407 210 1900 DIODE 1SS400 D6001 407 230 1201 LED SML311EBT D6002 407 205 2707 LED SML-310LT D6003 407 230 1102 LED SML311BBT

(CAPACITORS)

C1801 403 343 8700 CERAMIC 1U M 12V C1804 403 312 6805 CERAMIC 0.1U Z 16V C1805 403 346 2309 CERAMIC 0.1U K 10V C1806 403 369 0306 CERAMIC 1U Z 4V C1808 403 346 2309 CERAMIC 0.1U K 10V C1809 403 329 6508 TA-SOLID 10U M 6.3V C1810 403 375 0307 CERAMIC 4.7U K 4V C1811 403 332 9503 CERAMIC 1U M 6.3V C1812 403 332 9503 CERAMIC 1U M 6.3V C1813 403 364 5306 CERAMIC 2.2U K 6.3V C1814 403 332 9503 CERAMIC 1U M 6.3V C1815 403 332 9503 CERAMIC 1U M 6.3V C1816 403 332 9503 CERAMIC 1U M 6.3V C1818 403 346 2309 CERAMIC 0.1U K 10V C1819 403 346 2309 CERAMIC 0.1U K 10V C1821 403 311 5601 CERAMIC 1500P K 50V C1822 403 346 2309 CERAMIC 0.1U K 10V C1823 403 312 6805 CERAMIC 0.1U Z 16V C1824 403 369 0306 CERAMIC 1U Z 4V C1825 403 332 9503 CERAMIC 1U M 6.3V C1826 403 311 3409 CERAMIC 0.01U K 16V C9801 403 358 3202 CERAMIC 10U K 6.3V

(RESISTORS)

R1802 401 225 0903 MT-GLAZE 82K JA 1/16W R1803 401 225 1009 MT-GLAZE 2.2M JA 1/16W R1804 401 224 9006 MT-GLAZE 10K JA 1/16W R1805 401 235 1402 MT-GALZE 1.2K JA 1/16W R1807 401 226 1503 MT-GLAZE 0.000 ZA 1/16W

S6501 645 051 5385 SWITCH,PUSH 1P-1TX1

(SWITCHES)

S6502 645 049 1108 SWITCH,PUSH 1P-1TX1

(CONNECTORS)

CN651 645 038 4103 PLUG,3P (N.S.P)

COMPL PWB,ST-1

636 069 0950

(SEMICONDUCTORS)

Q5001 405 163 3606 TR CPH3409 Q5003 405 137 2000 TR 2SA1576A-R Q5004 405 115 5207 TR 2SC4617 R Q5005 405 165 1204 TR EMD2 Q5006 405 157 1403 TR 2SA2018 Q5008 405 170 6409 TR DTA114YM Q5009 405 115 5207 TR 2SC4617 R Q5010 405 162 3805 TR CPH3413 Q5011 405 167 1509 TR TFDC640P Q5015 405 167 4906 TR CPH5809 Q5016 405 137 2000 TR 2SA1576A-R Q5017 405 169 4508 TR DTC114EM Q5018 405 167 4906 TR CPH5809 Q5019 405 173 3009 TR 12A01SS Q5020 405 165 1105 TR EMH11 Q5021 405 115 5207 TR 2SC4617 R Q5022 405 115 5108 TR 2SA1774 R Q5023 405 169 4508 TR DTC114EM Q5401 405 115 7508 TR DTC123JE Q5402 405 169 4508 TR DTC114EM Q5405 405 147 9709 TR CPH3205 Q5407 405 152 5406 TR 3LN01S-TL Q5409 405 169 1408 TR CY25BAH-8F-T13 Q5410 405 115 5207 TR 2SC4617 R Q5412 405 175 5704 TR SSM6L05FU

(INTEGRATED CIRCUITS)

IC501 409 540 6600 IC BD9733KN

(DIODES)

D5005 407 223 2604 DIODE CRS06 D5006 407 228 4009 DIODE SD833-04 D5007 407 228 4009 DIODE SD833-04 D5010 407 218 7508 ZENER DIODE UDZS16B OR 407 187 8407 ZENER DIODE UDZ16B D5012 407 228 4009 DIODE SD833-04 D5013 407 203 5809 DIODE F02J9 D5014 407 203 5809 DIODE F02J9 D5402 407 229 9508 DIODE F1P8 D5403 407 228 5402 DIODE CRG02 D5404 407 229 8709 DIODE CMC01 D5405 407 231 1507 THYRISTOR CR05BS-8

Page 8

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

D5407 407 162 8507 DIODE DAN222

(VARIABLE RESISTORS)

VR501 645 048 4759 VR,SEMI,3.3K S

(INDUCTORS)

L5001 645 053 8872 INDUCTOR,100U K L5002 645 037 1530 INDUCTOR,47U K L5004 645 037 1523 INDUCTOR,10U K L5005 645 059 1068 INDUCTOR,4.7U M L5006 645 059 1365 INDUCTOR,3.5U M L5007 645 058 7986 INDUCTOR,4.7U M L5010 645 058 0932 INDUCTOR,10U M L5013 645 041 1953 INDUCTOR,100 OHM L5014 645 041 1953 INDUCTOR,100 OHM L5015 645 041 1977 INDUCTOR,330 OHM L5017 645 058 0932 INDUCTOR,10U M L5018 645 037 1530 INDUCTOR,47U K L5021 645 053 4362 FILTER,EMI 1000000PF L5022 645 053 4362 FILTER,EMI 1000000PF

(TRANSFORMERS)

T5001 645 058 0956 TRANS,POWER,PULSE T5401 645 057 5976 TRANS,STEP UP

(CAPACITORS)

C5001 403 340 8901 CERAMIC 0.082U K 10V C5002 403 311 3409 CERAMIC 0.01U K 16V C5003 403 346 2309 CERAMIC 0.1U K 10V C5004 403 315 6406 CERAMIC 180P J 25V C5005 403 348 9108 CERAMIC 0.47U K 6.3V C5006 403 346 2309 CERAMIC 0.1U K 10V C5007 403 311 1801 CERAMIC 1U K 10V C5008 403 346 2309 CERAMIC 0.1U K 10V C5009 403 346 2309 CERAMIC 0.1U K 10V C5011 403 343 3101 CERAMIC 1U K 6.3V C5012 403 317 1904 CERAMIC 6800P K 25V C5013 403 311 7704 CERAMIC 4700P K 25V C5014 403 314 7404 CERAMIC 3300P K 50V C5015 403 311 3409 CERAMIC 0.01U K 16V C5016 403 378 3602 POS-SOLID 33U M 10V C5020 403 376 8807 CERAMIC 2.2U K 25V C5021 403 379 0907 CERAMIC 10U M 16V C5022 403 325 0500 CERAMIC 2.2U K 16V C5023 403 311 1801 CERAMIC 1U K 10V C5024 403 341 4803 CERAMIC 10U K 10V C5025 403 358 3202 CERAMIC 10U K 6.3V C5027 403 376 4205 CERAMIC 1.5U K 10V C5029 403 358 3202 CERAMIC 10U K 6.3V C5030 403 343 3101 CERAMIC 1U K 6.3V C5033 403 314 7404 CERAMIC 3300P K 50V C5034 403 379 0006 POS-SOLID 47U M 6.3V C5037 403 343 3101 CERAMIC 1U K 6.3V C5038 403 317 1904 CERAMIC 6800P K 25V C5039 403 379 0006 POS-SOLID 47U M 6.3V C5045 403 325 0500 CERAMIC 2.2U K 16V C5047 403 311 7704 CERAMIC 4700P K 25V C5060 403 311 4505 CERAMIC 1000P K 50V C5071 403 358 3202 CERAMIC 10U K 6.3V C5074 403 379 0006 POS-SOLID 47U M 6.3V C5075 403 311 7605 CERAMIC 2200P K 50V C5076 403 325 6304 CERAMIC 0.22U K 10V C5078 403 364 5306 CERAMIC 2.2U K 6.3V C5079 403 343 3101 CERAMIC 1U K 6.3V C5080 403 340 6907 CERAMIC 1U K 16V C5081 403 379 0006 POS-SOLID 47U M 6.3V C5082 403 343 3101 CERAMIC 1U K 6.3V C5084 403 376 9804 CERAMIC 0.033U K 16V C5089 403 343 3101 CERAMIC 1U K 6.3V C5401 403 379 0006 POS-SOLID 47U M 6.3V C5403 403 376 9804 CERAMIC 0.033U K 16V C5404 403 311 4505 CERAMIC 1000P K 50V C5406 403 311 3409 CERAMIC 0.01U K 16V C5407 403 317 1904 CERAMIC 6800P K 25V C5409 403 347 9109 CERAMIC 0.033U Z 16V C5410 403 341 4407 CERAMIC 0.047U K 350V C5411 403 357 3302 CERAMIC 0.01U K 630V C5413 403 317 1904 CERAMIC 6800P K 25V

(RESISTORS)

R5001 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5002 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5004 401 261 2602 MT-FILM 10K DU 1/16W

R5006 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5007 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5008 401 224 9303 MT-GLAZE 1K JA 1/16W R5009 401 224 9402 MT-GLAZE 1.0M JA 1/16W R5010 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5012 401 224 9303 MT-GLAZE 1K JA 1/16W R5014 401 224 8900 MT-GLAZE 100K JA 1/16W R5015 401 225 0903 MT-GLAZE 82K JA 1/16W R5016 401 224 8900 MT-GLAZE 100K JA 1/16W R5017 401 225 0507 MT-GLAZE 33K JA 1/16W R5018 401 224 9303 MT-GLAZE 1K JA 1/16W R5019 401 258 7009 MT-GLAZE 150K DC 1/16W R5020 401 261 2602 MT-FILM 10K DU 1/16W R5021 401 224 8900 MT-GLAZE 100K JA 1/16W R5022 401 224 9006 MT-GLAZE 10K JA 1/16W R5024 401 225 8008 MT-GLAZE 330 JA 1/16W R5025 401 225 8008 MT-GLAZE 330 JA 1/16W R5026 401 224 9006 MT-GLAZE 10K JA 1/16W R5027 401 258 7009 MT-GLAZE 150K DC 1/16W R5028 401 261 8703 MT-FILM 22K DD 1/16W R5029 401 224 8900 MT-GLAZE 100K JA 1/16W R5030 401 224 9303 MT-GLAZE 1K JA 1/16W R5031 401 261 8703 MT-FILM 22K DD 1/16W R5032 401 261 2404 MT-FILM 8.2K DU 1/16W R5033 401 261 4309 MT-FILM 1.2K DU 1/16W R5034 401 261 7102 MT-FILM 150 DU 1/16W R5039 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5040 401 261 9106 MT-FILM 12K DD 1/16W R5042 401 261 9304 MT-FILM 15K DD 1/16W R5043 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5044 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5052 401 224 8900 MT-GLAZE 100K JA 1/16W R5053 401 224 9907 MT-GLAZE 22K JA 1/16W R5055 401 224 9303 MT-GLAZE 1K JA 1/16W R5056 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5057 401 261 9601 MT-FILM 68 DD 1/16W R5066 401 261 8703 MT-FILM 22K DD 1/16W R5067 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5068 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5069 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5071 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5075 401 261 5306 MT-FILM 470 DU 1/16W R5076 401 261 9601 MT-FILM 68 DD 1/16W R5080 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5084 401 225 1405 MT-GLAZE 47K JA 1/16W R5091 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5093 401 224 9303 MT-GLAZE 1K JA 1/16W R5094 401 261 8703 MT-FILM 22K DD 1/16W R5095 401 261 2800 MT-FILM 5.1K DU 1/16W R5096 401 261 6105 MT-FILM 390 DU 1/16W R5097 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5098 401 224 9907 MT-GLAZE 22K JA 1/16W R5103 401 224 9006 MT-GLAZE 10K JA 1/16W R5104 401 305 6009 MT-GLAZE 0.1 JF 1/8W R5105 401 224 8900 MT-GLAZE 100K JA 1/16W R5106 401 225 0507 MT-GLAZE 33K JA 1/16W R5107 401 224 9006 MT-GLAZE 10K JA 1/16W R5108 401 224 9006 MT-GLAZE 10K JA 1/16W R5109 401 258 7009 MT-GLAZE 150K DC 1/16W R5110 401 225 8008 MT-GLAZE 330 JA 1/16W R5111 401 225 8008 MT-GLAZE 330 JA 1/16W R5112 401 224 8900 MT-GLAZE 100K JA 1/16W R5113 401 258 0406 MT-GLAZE 120K DC 1/16W R5117 401 225 1702 MT-GLAZE 39K JA 1/16W R5119 401 226 1503 MT-GLAZE 0.000 ZA 1/16W R5406 401 224 9105 MT-GLAZE 150 JA 1/16W R5408 401 229 3900 MT-GLAZE 180 JA 1/16W R5409 401 224 9501 MT-GLAZE 2.2K JA 1/16W R5413 401 224 9006 MT-GLAZE 10K JA 1/16W R5414 401 224 9303 MT-GLAZE 1K JA 1/16W R5417 402 078 4407 MT-GLAZE 10M FKG 1/8W R5418 401 226 5402 MT-GLAZE 56 JA 1/16W R5419 401 261 7300 MT-FILME 82K DD 1/16W R5420 401 261 2602 MT-FILM 10K DU 1/16W R5422 402 079 0200 MT-GLAZE 220K JKG 1/8W R5424 401 225 7902 MT-GLAZE 220 JA 1/16W R5425 402 077 7409 MT-GLAZE 100K JKG 1/8W R5429 401 225 1306 MT-GLAZE 470 JA 1/16W

Page 9

LOCATION PARTS NO. DESCRIPTION

LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

R5430 401 235 1402 MT-GALZE 1.2K JA 1/16W R5431 401 224 9006 MT-GLAZE 10K JA 1/16W R5432 401 225 8107 MT-GLAZE 10 JA 1/16W R5433 401 225 1900 MT-GLAZE 68 JA 1/16W R5434 401 237 2308 MT-GLAZE 910 JA 1/16W R5435 401 261 1902 MT-GLAZE 91 JA 1/16W

(PROTECTORS)

PR501 423 028 0904 FUSE 32V 2A PR502 423 028 0904 FUSE 32V 2A PR503 423 028 0904 FUSE 32V 2A PR504 423 028 0904 FUSE 32V 2A PR505 423 028 1505 FUSE 32V 1A

(JACKS)

JK501 645 027 7030 SOCKET,DC

(CONNECTORS)

CN501 645 055 9068 SOCKET,FPC 39P (N.S.P)

PACKING MATERIALS

1 636 070 9331 REINFORCEMENT PAD,A-711/J 2 636 069 9274 REINFORCEMENT PAD,B 711/U 3 636 070 9973 REINFORCEMENT PAD,C-711/U 4 636 069 9298 REINFORCEMENT PAD,D 711/U 5 636 070 9935 POLY SHEET AIR -SX711/J 6 636 069 9243 CARTON CASE INNER-SX711/U,VPC-J1 ONLY 6 636 069 9489 CARTON CASE INNER-SX711EX,

VPC-J1EX ONLY 636 060 6036 CUSHION SHEET-SX354/JO 636 069 9304 REINFORCEMENT PAD-SX711/U

COMPL PWB,ST-2

636 069 0967

T5502 645 051 8294 TRANS,STEP UP

(TRANSFORMERS)

(MISCELLANEOUS)

636 069 5511 ASSY,WIRE JW541&551-SX711(N.S.P) 636 069 5528 ASSY,WIRE JW542&552-SX711(N.S.P)

COMPL PWB,ST-3

636 069 0974

(CAPACITORS)

C5512 404 092 0809 ELECT 120U A 300V

(MISCELLANEOUS)

636 070 4183 ASSY,WIRE JW543&553-SX711(N.S.P) 636 070 4190 ASSY,WIRE JW544&554-SX711(N.S.P)

ACCESSORIES

645 055 4988 CABLE,DSC A/V SX612 (#1) 645 059 6148 CABLE,DSC USB,SX781 (#2) 636 069 5337 STRAP HAND-SX711/J (#3) 645 056 9005 BATTERY CHARGER 645 056 9036 BATTERY,RECHARGE 636 069 9441 CASE SOFT-SX711/U 645 057 1503 CORD,POWER-1.2MK,VPC-J1EX ONLY 645 057 1510 CORD,POWER-1.9MK,VPC-J1 ONLY

645 058 3278 DISC,CD-ROM SSP 711 EX (N.S.P.) 9112 636 069 5795 INSTRUCTION MANUAL,CAMERA (English) 9113 636 069 5801 INSTRUCTION MANUAL,

Sanyo Sofware Pack 6.4 (English)

9114 636 069 4460 INSTRUCTION MANUAL,

About the PDF-format Instruction Manuals (English/French/Spanish/German)

9115 636 068 2399 INSTRUCTION MANUAL,PHOTO

Photo Explorer ver.7.0 (English) 9151 645 058 8082 CARD,MEMORY (SD 16MB) OR 645 061 3357 CARD,MEMORY (SD 16MB)

(#1) (#2) (#3)

CABLE,DSC A/V

STRAP HANDCABLE,DSC USB
