INSTRUCTION MANUAL

VPC-HD1EX VPC-HD1E

Digital Movie Camera

Important note

This manual explains how to safely operate the VPC-HD1EX, VPC-HD1E and VPC-HD1. Any information regarding only one of these products will be labeled as such.

Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “ Keep this manual in a safe place for later reference.

VPC-HD1

SAFETY MANUAL”.

Warning

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

FOR AMERICAN USERS

The following advisory is included in accordance with the laws of the State of California (USA):

WARNING:

This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash

hands after handling.

i This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

h Consult the dealer or an experienced radio/TV technician for help.

i Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model number: VPC-HD1 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

i English

FOR CANADIAN USERS

i This Class B digital apparatus complies with Canadian ICES-003.

FOR EU USERS

Note:

iThis symbol mark and recycle system apply only to EU

countries and do not apply to countries in other areas of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

Symbols used in this manual

HINT Points giving some extended instructions or special points to pay

CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information.

You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 163) and “TROUBLESHOOTING” (page 170).

attention to.

English ii

GETTING UP AND RUNNING

Preparing the camera

1 Insert the card.

Card slot cover

Card slot

Card

2 Connect the cable adaptor to the camera, and connect the AC

adaptor.

Supplied cable adaptor

Supplied AC adaptor

To power outlet

iii English

Supplied power cord

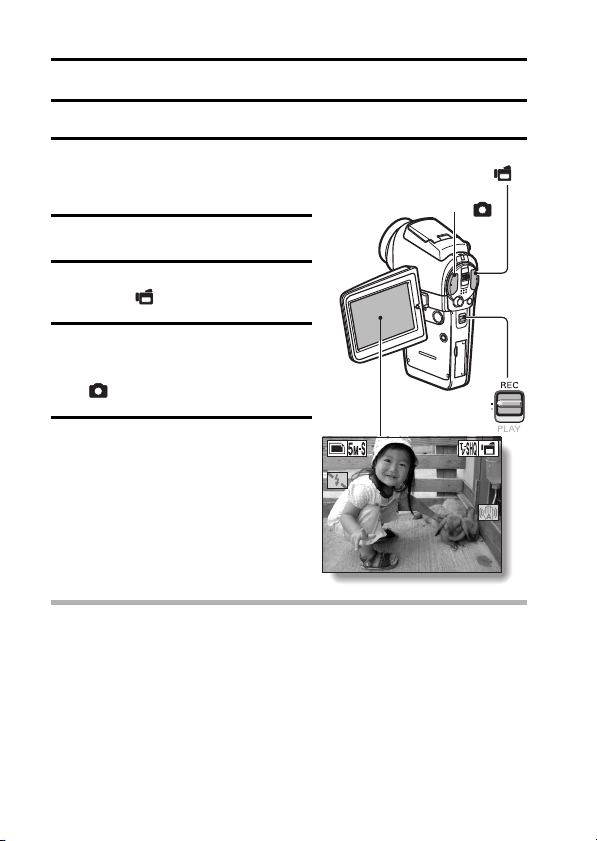

Shooting

00:10:15

F3.5 1/30

kVideo clip recording

1 Open the monitor unit, and

press the ON/OFF button for at least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the video clip

recording button [ ].

h Recording begins. h To stop recording, press

the video clip recording button again.

kStill image

photography

1 Open the monitor unit, and

press the ON/OFF button for at least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the still image

shooting button [ ].

h The image is captured.

Video clip recording

button [ ]

Still image shooting

button [ ]

ON/OFF button

Main switch

24 00:10:15

F3.5

F3.5 1/30

1/30

00:10:15

English iv

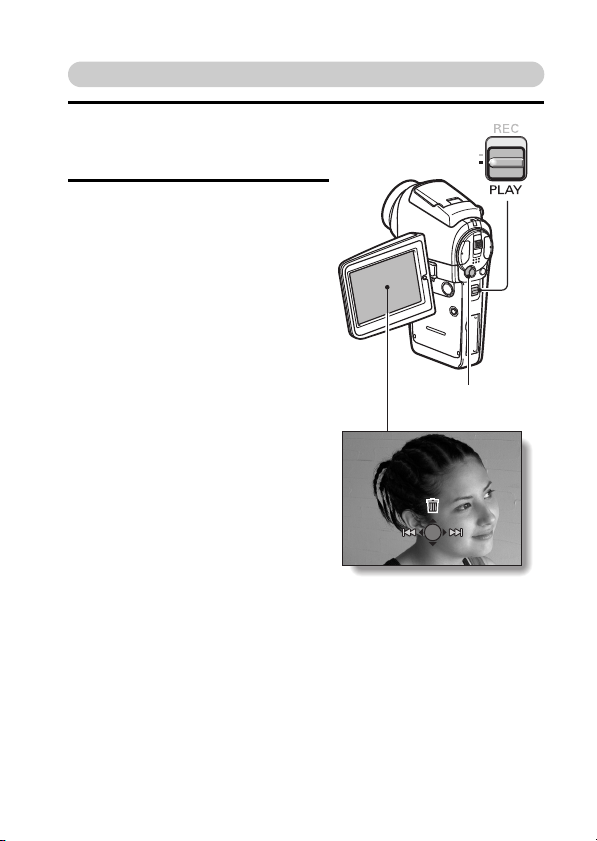

Playback

kVideo clip playback

Set the main switch to PLAY.

h The display switches to the

Playback Screen.

h Toggle the SET button to

the left or right to display the video clip you wish to play back.

h Video clips are indicated by

a video clip pattern along the top and bottom of the screen.

2 Press the SET button.

h Playback of the selected

video clip begins.

h When the main switch is

moved to REC, the display changes to the Shooting Screen.

kStill image playback

Set the main switch to PLAY.

h The display switches to the

Playback Screen.

h To view other images,

toggle the SET button to the left or right.

h When the main switch is

moved to REC, the display changes to the Shooting Screen.

Main switch

SET button

Video clip pattern

<Example: After recording a

video clip>

When you are finished using the camera...

Press the ON/OFF button for at least 1 second to turn the camera off.

v English

QUICK SEARCH BY OPERATION

Your camera has an abundance of convenient features and functions. From creating precisely the photo you want, to viewing images using various techniques, you can locate the exact operation for your purposes in the following table.

Basic operation

Getting started shooting/recording

• “Recording video clips” on page 42

• “Shooting single shots” on page 46

• “SEQUENTIAL SHOTS” on page 52

• “Audio recording” on page 56

Optimize the photo quality

Shooting/recording

• “VIDEO CLIP MODE (IMAGE QUALITY) SETTING” on page 71

• “STILL IMAGE MODE (RESOLUTION) SETTING” on page 72

Wide-screen video recording (HD mode)

• “RECORDING IN THE HD MODE” on page 54

Convenient

functions

Log the date and time of your photos

• “DATE AND TIME SETTING” on page 36

Zoom in on the subject

• “USING THE ZOOM” on page 60

Close-up photography

• “FOCUS RANGE” (super macro mode) on page 79

Reduce video clip flicker

• “FLICKER-REDUCTION” on page 128

Set the camera’s color/contrast characteristics

• “ADJUST THE IMAGE QUALITY” on page 127

Additional functions

For more accurate focus

• “FOCUS RANGE” (manual focus) on page 79

Set the focus to a narrow range

• “FOCUS AREA SETTING” on page 81

1 English

Basic operation

Capture fast-moving subjects

• “SCENE SELECT” (sports mode) on page 73

Shoot in dark conditions

• “EXPOSURE CORRECTION” on page 63

• “SHOOTING WITH THE FLASH” on page 61

• “SCENE SELECT” (night view mode/fireworks mode/lamp mode) on page 73

Photographing people

• “SCENE SELECT” (por trait mode/night view mode) on page 73

• “FILTERS” (cosmetic filter) on page 76

• “SHOOTING WITH THE FLASH” (red-eye reduction) on page 61

Photographing landscapes

• “SCENE SELECT” (landscape mode) on page 73

Take a self-photo

• “SELF-TIMER” on page 86

Shooting/recording

Convenient

functions

Increase the camera’s sensitivity

• “ISO SENSITIVITY” on page 83

Make images lighter or darker

• “EXPOSURE CORRECTION” on page 63

Change the color of the images

• “FILTERS” (monochrome filter/ sepia filter) on page 76

Additional functions

Measure the brightness of a specific area

• “LIGHT-MEASURING MODE SETTING” on page 82

Adjust the camera’s sensitivity

• “ISO SENSITIVITY” on page 83

For a more precise exposure setting

• “EXPOSURE SETTING” (manual exposure control) on page 74

Make white appear natural

• “WHITE BALANCE” on page 84

English 2

QUICK SEARCH BY OPERATION

Basic operation

Getting started viewing images

• “Playing back a video clip” on page 43

• “Viewing still images” on page 48

Playback

• “Audio playback” on page 58

Slideshow playback

• “PLAYBACK METHOD” on page 93

Adjust the monitor brightness

• “MONITOR BRIGHTNESS” on page 130

Playback on a TV

• “CONNECTING TO A TV” on page 149

Search for image/audio data

• “9-image display playback” on page 49

Delete data

• “ERASING DATA” on page 97

Delete a part of a video clip and join video clips

• “EDITING VIDEO CLIPS” on page 102

Specify the number of prints, index print, and date imprint

• “PRINT SETTINGS” on page 109

View the settings that were in effect when the image/audio data

Data managing/processing

was recorded

• “DISPLAYING IMAGE PROPERTIES (INFORMATION SCREEN)” on page 117

Convenient

functions

Adjust the speaker volume

• “PLAYBACK VOLUME” on page 94

Search for image/ audio data

• “9-image display playback” on page 49

Magnify an image

• “Magnifying (zooming in) the image” on page 50

Adjust the speaker volume

• “PLAYBACK VOLUME” on page 94

Protect images from accidental erasure

• “IMAGE PROTECT” on page 95

Format a card

• “FORMATTING A CARD” on page 142

Additional functions

Smooth out video clip playback

• “SMOOTH PLAYBACK” on page 116

Change the angle of view

• “ROTATE IMAGE” on page 99

Set the TV system

• “TV OUTPUT SETTING” on page 133

3 English

CONTENTS

QUICK SEARCH BY OPERATION ........................................................1

CONTENTS ............................................................................................4

CHECKING THE INCLUDED ACCESSORIES ......................................7

GETTING THE MOST OUT OF YOUR CAMERA ................................11

SYSTEM MAP ......................................................................................14

 SETUP

PARTS NAMES ....................................................................................15

INSTALLING THE CARD .....................................................................20

PREPARING THE DOCKING STATION ..............................................22

PREPARING THE REMOTE CONTROL UNIT ....................................23

PREPARING THE POWER ..................................................................26

TURNING THE CAMERA ON AND OFF ..............................................30

OPERATION BUTTONS ......................................................................34

DATE AND TIME SETTING .................................................................36

 BASIC OPERATION

BEFORE TAKING PICTURES .............................................................39

VIDEO CLIP RECORDING AND PLAYBACK ......................................42

CAPTURING AND PLAYING BACK STILL IMAGES ...........................46

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP ..........51

SEQUENTIAL SHOTS ..........................................................................52

RECORDING IN THE HD MODE .........................................................54

AUDIO RECORDING AND PLAYBACK ...............................................56

SHOOTING AND PLAYBACK WITH THE REMOTE

CONTROL UNIT ..............................................................................59

USING THE ZOOM ..............................................................................60

SHOOTING WITH THE FLASH ............................................................61

EXPOSURE CORRECTION .................................................................63

English 4

CONTENTS

 SHOOTING

DISPLAYING THE SHOOTING SETTING SCREENS ........................ 65

VIDEO CLIP MODE (IMAGE QUALITY) SETTING ............................. 71

STILL IMAGE MODE (RESOLUTION) SETTING ................................ 72

SCENE SELECT .................................................................................. 73

EXPOSURE SETTING ........................................................................ 74

FILTERS .............................................................................................. 76

MOTION COMPENSATION (IMAGE STABILIZER) ............................ 77

FOCUS RANGE ................................................................................... 79

FOCUS AREA SETTING ..................................................................... 81

LIGHT-MEASURING MODE SETTING ............................................... 82

ISO SENSITIVITY ................................................................................ 83

WHITE BALANCE ................................................................................ 84

SELF-TIMER ........................................................................................ 86

SEQUENTIAL SHOTS MODE SETTING ............................................. 87

 PLAYBACK

DISPLAYING THE PLAYBACK SETTING SCREENS ........................ 89

PLAYBACK METHOD ......................................................................... 93

PLAYBACK VOLUME .......................................................................... 94

IMAGE PROTECT ............................................................................... 95

ERASING DATA .................................................................................. 97

ROTATE IMAGE .................................................................................. 99

CHANGING IMAGE SIZE (RESIZE) .................................................. 100

EXTRACTING A STILL IMAGE FROM A VIDEO CLIP ..................... 101

EDITING VIDEO CLIPS ..................................................................... 102

PRINT SETTINGS ............................................................................. 109

SMOOTH PLAYBACK ....................................................................... 116

DISPLAYING IMAGE PROPERTIES (INFORMATION SCREEN) ....117

5 English

 OPTION SETTINGS

DISPLAYING THE OPTION SCREEN ...............................................118

OPERATION SOUNDS ......................................................................121

HELP DISPLAY ..................................................................................123

POST-VIEW SETTING .......................................................................124

WIND NOISE REDUCTION ................................................................125

NOISE-REDUCTION FUNCTION ......................................................126

ADJUST THE IMAGE QUALITY .........................................................127

FLICKER-REDUCTION ......................................................................128

DIGITAL ZOOM SETTING .................................................................129

MONITOR BRIGHTNESS ..................................................................130

ADJUST THE VOLUME OF AN EXTERNAL MICROPHONE ............131

SCREEN LANGUAGE ........................................................................132

TV OUTPUT SETTING .......................................................................133

POWER SAVE FUNCTION ................................................................137

FILE NO. RESET FUNCTION ............................................................139

FORMATTING A CARD .....................................................................142

RESETTING THE CAMERA SETTINGS ............................................144

CHECKING THE REMAINING CARD MEMORY ...............................145

CHECKING THE REMAINING BATTERY PACK CHARGE ..............147

 OTHER DEVICES AND CONNECTIONS

CONNECTING TO A TV .....................................................................149

DIRECT PRINTING ............................................................................153

CONNECTING AN EXTERNAL MICROPHONE ................................162

 APPENDICES

COMMONLY ASKED QUESTIONS ...................................................163

TROUBLESHOOTING ........................................................................170

SPECIFICATIONS ..............................................................................180

HINTS FOR TAKING PICTURES .......................................................190

English 6

CHECKING THE INCLUDED ACCESSORIES

i Handstrap and camera case:

1 set

i Li-ion battery pack: 1 i Docking station

Dedicated S-AV interface cable: 1iDedicated

Dedicated component cable: 1

i SANYO Software Pack

(CD-ROM): 2

cable: 1

AC adaptor and power cord: 1

USB interface

: 1

7 English

i Remote control unit: 1 i Lithium battery (CR2025) for

i Lens cap and strap: 1 i Cable adaptor: 1

remote control unit: 1

i Microphone connection

cable: 1

i “SAFETY MANUAL”

(safety precautions booklet) Please read this booklet carefully before using the digital camera.

i Core for external

microphone: 1

i Quick Guide

English 8

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories

k Handstrap

k Lens cap

9 English

k Camera case

Media cards that can be used with this camera

The type of card that can be inserted into and used with this camera is:

i SD Memory Card

English 10

GETTING THE MOST OUT OF YOUR CAMERA

00:00:49

F3.5 1/40

Your camera is a digital movie camera with the ability to shoot and play back video clips with high image quality. Video clips can be recorded at a 60 fps frame rate with a 16:9 aspect ratio, and in addition, video clips recorded at 30 fps can be played back at 60 fps. Of course, your camera captures highquality still images, as you would expect, and you can even capture still images while recording a video clip. The docking station makes it simple to connect other devices to your camera, providing you with the double advantages of both high functionality and ease of use.

Wide-screen recording and playback (HD mode) (page 54)

In addition to the standard recording mode (normal mode, 4:3 aspect ratio), your camera can both record and play back video clips in the wide-screen mode with a 16:9 aspect ratio (HD mode).

33 00:02:27

F3.5 1/40

<Normal Mode Shooting

Screen>

11 English

Press the HD/NORM button

33 00:00:49

F3.5

F3.5 1/40

1/40

<HD Mode Shooting

Screen>

00:00:49

Very high image quality with 60 fps shooting (page 71)

Compared to the standard 30 fps TV images, the movement of even fastmoving subjects will appear smooth and even in the video clips you record at 60 fps.

VIDEO CLIP MPEG4 640x480 60fps HR

Capture still shots while recording a video clip (page 51)

Suppose that while you’re recording a video clip, there’s a scene you’d like to keep as a still photo. Your camera makes it possible to record the still photo without interrupting the video clip recording.

Still image shooting

button []

Video clip recording

button []

33 00:01:13

F3.5 1/40

English 12

GETTING THE MOST OUT OF YOUR CAMERA

Docking station for easy connection

The docking station simplifies those complicated connections to your TV or computer. Just set the camera in the docking station, and you can view your photos on your TV or computer right away.

Docking station

Printer

Dedicated USB interface cable

To AC adaptor

13 English

Dedicated component cable

Dedicated S-AV interface cable

Computer

SYSTEM MAP

You can connect the camera to various devices to expand its capabilities.

Remote control unit

Cable adaptor

Docking station

i Card reader

i Card reader i DPOF-compatible printer

i DPOF-compatible printer i Photo shop

i Photo shop

Separately sold or commercially available SD Memory Card

Computer

Printer

AC adaptor (supplied)

Battery charger (optional)

English 14

SETUP

PARTS NAME S

Camera

Front

Flash

i Extends when the flash

button [?] is pressed.

External

microphone

jack [MIC]

Flash button

[?]

Speaker

Battery cover

lock

Flash unit

Lens

Remote control sensor

Monitor unit

Strap holder

Charge

indicator

Stereo

microphone

15 English

Monitor unit

ON/OFF button

English 16

PARTS NAMES Rear

button [ ]

Monitor

ON/OFF button

HD/NORM button

Sequential/

single button

[O/]

Bottom

Tripod stand hole h Open the

monitor unit before mounting the camera on a tripod.

Multi-indicatorStill image shooting

Video clip recording button []

Zoom switch

Main switch

Card slot cover

SET button

Docking station terminal

MENU button

17 English

Docking station

Front

Rear

Docking station terminal

Operation mode button []

DC IN terminal

COMPONENT terminal

USB/AV terminal

English 18

PARTS NAMES

Remote control unit

1 Still image shooting button 2 Video clip recording button 3 SET button 4 Works the same as toggling SET

button to the left

5 Works the same as toggling SET

button up or pushing zoom switch toward the [T] ([]]) side

6 Works the same as toggling SET

button to the right

Works the same as toggling SET button down or pushing zoom switch toward the [W] ([

8 CH button 9 MENU button

* Operation shortcuts are not available from the remote control unit.

1 (inoperative) 2 (inoperative) 3 SET button 4 Works the same as toggling SET

button to the left

5 Works the same as toggling SET

button up

6 Works the same as toggling SET

button to the right

7 Works the same as toggling SET

button down

8 CH button 9 MENU button

]) side

Cable adaptor

Docking station terminal

USB/AV terminal * The dedicated component

cable (supplied) cannot be connected to the USB/AV terminal.

DC IN terminal

19 English

INSTALLING THE CARD

Be sure to format a newly purchased card or one that was used in another device before using it in your camera (page 142). If an unformatted card is used, the card itself may become unusable.

1 Open the card slot cover, and

insert the card in the card slot.

Card slot cover

2 Insert the card all the way in.

h Firmly insert the card until it

clicks into place.

3 Close the card slot cover.

Card slot Card

English 20

INSTALLING THE CARD

h To remove the card, press it down, and then release. The card will

protrude slightly, and you can then pull it out.

CAUTION Do not attempt to forcibly remove the card.

i Doing so may damage the card or the stored data.

If the multi-indicator is flashing red...

i Never remove the card when the multi-indicator is flashing red, as doing so

may result in loss of data stored in the card.

21 English

PREPARING THE DOCKING STATION

The supplied docking station is used to connect your camera to a computer, printer or TV, as well as to charge the battery pack installed in the camera.

1 Connect the docking station to a power outlet.

h Use the supplied AC adaptor and power cord.

Docking station

DC IN terminal

Supplied AC adaptor

Supplied power cord

To power outlet

English 22

PREPARING THE REMOTE CONTROL UNIT

The remote control unit can be used to take pictures and play them back with the camera.

Insert the battery

Install the supplied battery (CR2025) in the remote control unit.

1 Pull out the battery case.

Battery case

2 Insert the supplied battery.

h Wipe the battery with a soft, dry

cloth before inserting it.

h Insert the batter y with the (+) mark

facing upward.

3 Reinsert the battery case.

Battery for remote control unit

23 English

How to use the remote control unit

The remote control unit can be used at an angle that is displaced 15 degrees horizontally from the remote control sensor on the front of the camera, at a distance of up to 7 meters. When operating the remote control unit, remove any object that may obstruct the path between it and the remote control sensor.

Remote control sensor

At a distance of up to 7 meters

15° horizontally

To AC adaptor

Infrared emitter

CAUTION

i If the remote control unit is operated in sunlight or under inverter lighting,

the remote control receiving range may become shorter. This is a characteristic of the infrared remote control unit and is not a defect. To avoid this malfunction when operating the remote control unit, take care to shield the remote control sensor from strong light.

English 24

PREPARING THE REMOTE CONTROL UNIT

Changing the remote control code

The remote control unit will also work with other Sanyo cameras that can be operated by infrared remote control. When more than one camera is present, it is recommended to change the remote control code to ensure that only the intended camera operates when the remote control unit is used. The remote control code is set to “RC CODE 1” at the time of purchase.

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Hold down the CH button and press the [J] button for about 3

seconds.

3 Press a button on the remote control unit and check that the camera

is receiving correctly.

h The remote control codes are retained even if the batteries in the

remote control unit or camera are replaced.

h If the remote control codes for the remote control unit and the camera

and do not match, the remote control unit cannot be used to operate the camera.

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Hold down the CH button and press the [I] button for about 3

seconds.

25 English

PREPARING THE POWER

Please charge the supplied battery pack before using it. Power to the camera can also be supplied from a power outlet if the docking station or the cable adaptor is used.

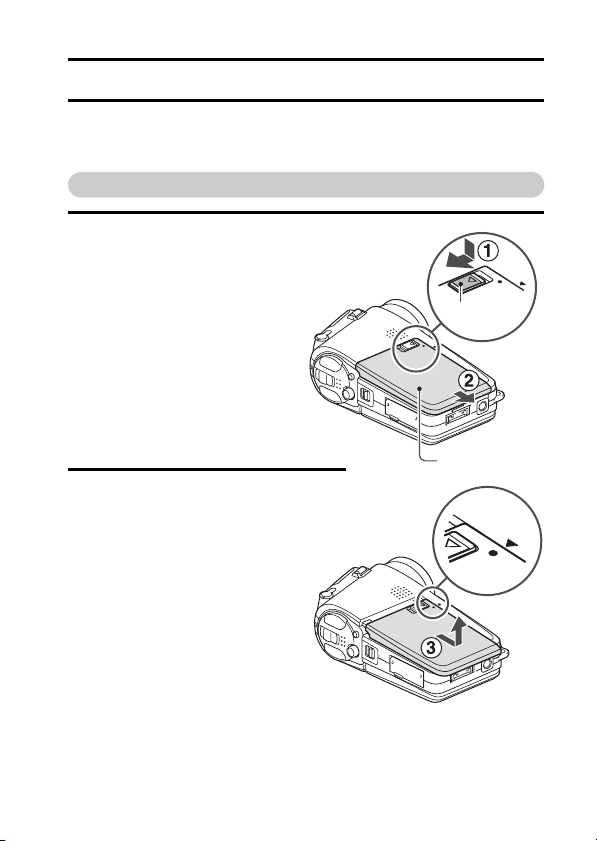

Charging the battery pack

1 While pressing the battery

cover lock, slide it (1), and pull out the battery cover toward the bottom of the camera (2).

2 Open the battery cover (3).

h The battery cover comes off.

Battery cover lock

Battery cover

English 26

PREPARING THE POWER

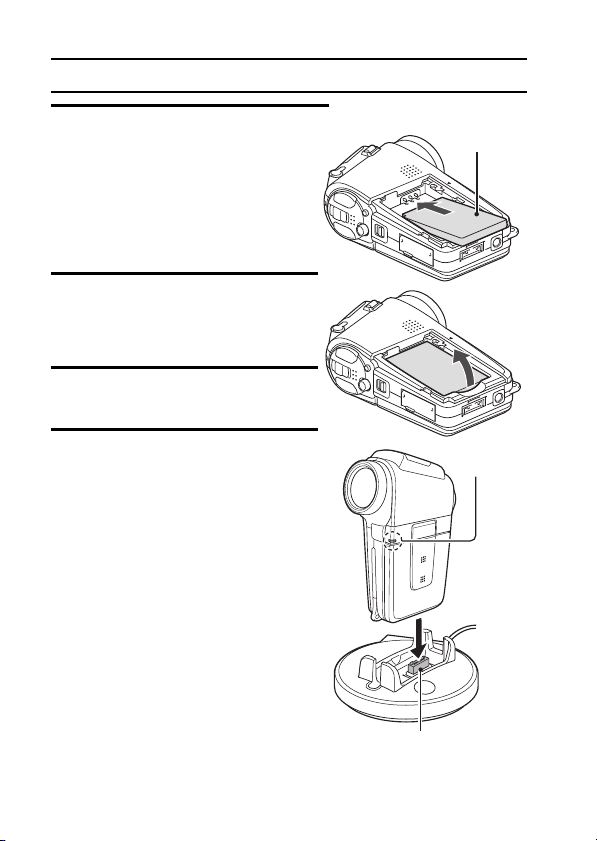

3 Insert the battery pack.

h Take care that it is positioned

correctly.

4 Close the battery cover.

h Raise the edge of the battery pack

to remove it.

5 Prepare the docking station

(page 22).

6 Close the camera’s monitor unit,

and set the camera in the docking station.

h Set the camera securely, making

sure that the camera is correctly oriented in relation to the terminal contacts in the docking station.

h Charging begins when the camera

is set in the docking station.

h During charging, the charge

indicator is lit red. When charging is completed, the charge indicator turns off.

h If the charge indicator flashes red,

it indicates that the battery pack is defective or the camera is not correctly set in the docking station. Reset the camera correctly in the docking station.

h The charging time is approx. 90

minutes.

Battery pack

Charge indicator

Docking station terminal

27 English

CAUTION Using the camera when it is set in the docking station...

i You can photograph and view images while the camera is set in the

docking station. The battery pack can be charged when the camera is in the playback mode, but not in the shooting mode.

Do not charge the battery pack battery pack immediately after the camera has been in continuous use for a long time

i The battery pack becomes hot when the camera is used continuously for a

long time. If you attempt to charge the battery pack in this state, the charge indicator may flash red and it may not be possible to charge the battery pack. Wait until the battery pack has cooled down before attempting to charge it.

HINT About the internal backup battery

i This camera’s internal battery serves to maintain the date and time

settings, as well as the shooting settings. The backup battery will be fully charged when the battery pack is kept in the camera continuously for about 2 days. In the fully charged state, the backup battery will maintain the camera settings for about 7 days.

When not using the camera for a long time, remove the battery pack.

i A small amount of power is still used even if the camera is turned off, and it

is therefore recommended that the battery pack be removed from the camera if it is not going to be used for a long time. Note that when the battery pack is removed for a long period, the time and date settings may be cleared. Before using your camera again, be sure to confirm that the camera settings are correct.

English 28

PREPARING THE POWER

When using a power outlet

Power to the camera can be supplied from a power outlet if the docking station or the cable adaptor is used.

Using the docking station

Use the supplied power cord to connect the docking station to a power outlet, and set the camera in the docking station.

Using the cable adaptor

Connect the cable adaptor to the camera, and use the supplied power cord to connect the cable adaptor to a power outlet.

Supplied cable adaptor

To power outlet

29 English

Supplied AC adaptor

Supplied power cord

TURNING THE CAMERA ON AND OFF

Turning on the camera

1 Set the main switch.

To shoot pictures:

Set to REC

To play back images:

Set to PLAY

2 Open the monitor unit.

3 Press the ON/OFF button for at

least 1 second.

h The camera turns on, and an

image appears on the monitor.

Main switch

Recording Playback

Monitor unit

ON/OFF button

Monitor

English 30

TURNING THE CAMERA ON AND OFF

Turning on the camera when the power save (sleep) function is active

In order to preserve battery pack power, the power save (sleep) function will automatically turn off the camera after one minute of no use during shooting, or five minutes of no use during playback (factory-preset setting).

i When the power save function is active, you can restore the power by any

of the following methods:

h Move the main switch. h Press the ON/OFF button. h Press the still image shooting/video clip recording button. h Press the SET or MENU button. h Press the zoom switch. h Press the flash button [?]. h Press the HD/NORM button. h Press the sequential/single button [O/].

After the power save function has been active for about 1 hour, the camera will switch to the standby mode. In this case, you can restore the power by pressing the ON/OFF button, or by closing and then opening the monitor unit.

i When the AC adaptor is connected, the power save function will become

active about 10 minutes after the camera is turned on (factory-preset setting).

i The user can specify the time elapsed before the power save function is

activated (page 137).

i When the camera is connected to a computer or printer, the power save

function becomes active after about 12 hours.

Turning off the camera

1 Press the ON/OFF button for at least 1 second.

h The camera turns off.

31 English

HINT

00:02:27

To immediately activate the power save function

i Press the ON/OFF button briefly to active the power save function.

About the standby mode

i To turn off the camera only briefly, you can close the monitor unit to put the

camera in the standby mode. The standby mode uses almost no power. When the monitor unit is opened again, the camera turns on immediately and you are ready to shoot or view images without any delay.

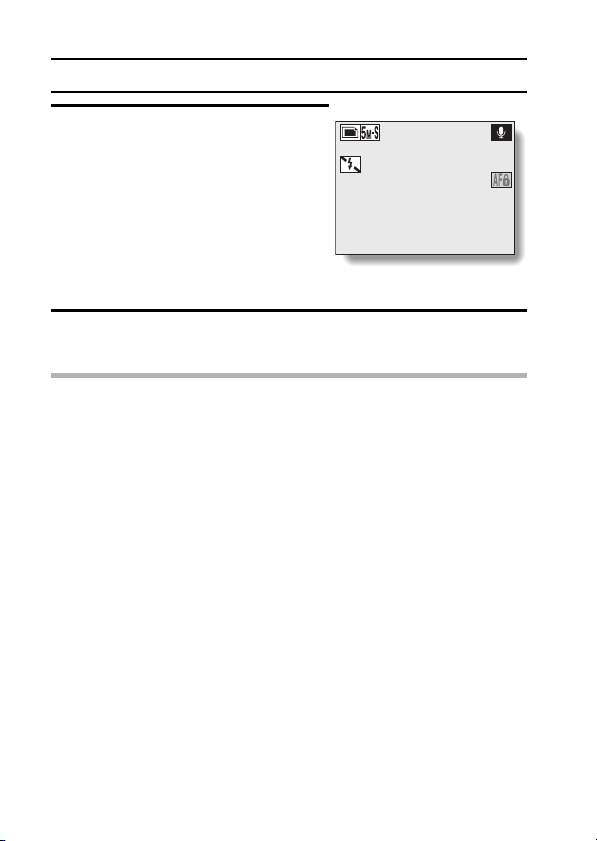

If the date and time setting has been completed (page 36)...

i The current time is shown on the monitor when the camera is turned on.

CAUTION If the K icon appears...

i When a picture is taken, the date and time it was captured are recorded

with it. If the date and time settings have not been completed (page 36), the date and time cannot be recorded with the captured images. For this reason, immediately after the camera is turned on, the “SET DATE AND TIME” reminder briefly appears, after which the K icon is shown on the Shooting Screen. To have the date and time recorded with the images, please complete this setting before capturing images.

SET DATE AND TIME

00:02:27

00:02:2733

English 32

TURNING THE CAMERA ON AND OFF

Caution when using the monitor

i If an image is continuously displayed for an extended period of time, it may

result in a burn-in* effect on a part of the camera’s monitor. To prevent burn-in, it is recommended that you avoid prolonged display of a still image or paused image.

* Burn-in: A phenomenon whereby the faint outline of a static image

i The colors of images as viewed on the camera’s monitor may appear

slightly different depending on the angle of view. Prolonged exposure of the monitor to direct sunlight or leaving the camera in a high-temperature environment (such as in a car) are conditions that may adversely affect the color display and which should therefore be avoided.

i If the monitor is exposed to strong light, it may result in an abnormal

brightness in a part of the image. This is not a failure of the monitor. You can reduce this phenomenon by shielding the monitor from light with your hand or by adjusting the angle of the monitor unit. Note that this phenomenon does not in any way affect the recorded images.

appears to remain on the screen.

33 English

OPERATION BUTTONS

The procedures to change the camera settings, choose images, etc., are performed by using the SET button to control the monitor display. This operation is used very frequently, so it is best to become familiar with it right away.

1 Turn on the camera.

2 Press the MENU button.

h The Menu Screen appears.

To select the icon above, toggle the SET button up.

VIDEO CLIP MPEG4 640x480 30fps SHQ

To select the icon below, toggle the SET button down.

SET button

MENU button

PHOTO RESOLUTION 2592x1944 (5M-S)

SCENE SELECT FULL AUTO

English 34

OPERATION BUTTONS

To select the icon to the right, toggle the SET button to the right.

To select the icon to the left, toggle the SET button to the left.

Press the SET button. The selected icon moves to the left end of the lineup.

VIDEO CLIP MPEG4 640x480 60fps HR

35 English

DATE AND TIME SETTING

The camera will record the date and time an image or audio recording is taken so that you can display them during playback. Therefore, before capturing images, make sure the correct date and time are set.

Example: To set the clock to 7:30 p.m. on December 24, 2006

1 Display the Option Screen (page 118).

2 Select the clock set icon C, and

press the SET button.

h The Clock Set Screen appears. h The current date and time settings

are shown. h Follow the procedures below to

enable or disable the date display

during playback, to set the display

format for the date, and to set the

date and time. h To return to the Option Screen,

press the MENU button, or select

“EXIT” and press the SET button.

CLOCK SET

DATE

TIME

DISP

EXIT

English 36

2006/01/01

00:00

Y / M / D

DATE AND TIME SETTING

3 Set the date.

1 Select “DATE”. 2 Press the SET button.

h The Set Date Screen appears.

3 Set the date to “2006/12/24”.

h The date is set in the following

order: Set the year → Set the month → Set the day.

h Toggle the SET button left or

right to select year, month or day. Toggle the SET button up or down to increase or decrease the number.

4 Press the SET button.

4 Set the clock.

1 Select “TIME”. 2 Press the SET button.

h The Set Time Screen appears.

3 Set the time to “19:30”.

h The time is set in the following

order: Set the hour → Set the minute.

h A 24-hour clock is used for the

time display.

4 Press the SET button.

5 Set the order in which the date is

displayed during playback.

1 Select “DISP”. 2 Press the SET button.

h The Set Date Format Screen

appears.

3 Toggle the SET button up or down.

h Toggle the SET button up to

change the displayed date order as follows:

year/month/day → month/day/year → day/month/year → DISP OFF (no display)

CLOCK SET

DATE

CLOCK SET

TIME

CLOCK SET

DISP

2006/12/24

19:30

Y / M / D

Toggle the SET button down to change it in the reverse order.

37 English

h If “DISP OFF” is selected, the date the image was captured is not

shown during playback.

4 Press the SET button.

6 Select “EXIT”, and press the SET button.

h The date and time setting is completed, and you are returned to the

Option Screen. h To return to the Shooting or Playback Screen, press the MENU button.

HINT

i Under normal conditions, while the battery pack is being replaced, an

internal battery will maintain the date and time settings. However, there is a small chance the settings may be lost (The backup will last for about 7 days). It is recommended to check that the date and time settings are still correct after replacing the battery pack and before shooting or recording of any type (follow steps 1 and 2).

To correct the date and time settings

i After steps 1 and 2, select the line of the setting that you want to change,

press the SET button, and follow the steps in the respective paragraphs above to change the setting.

English 38

BASIC OPERATION

BEFORE TAKING PICTURES

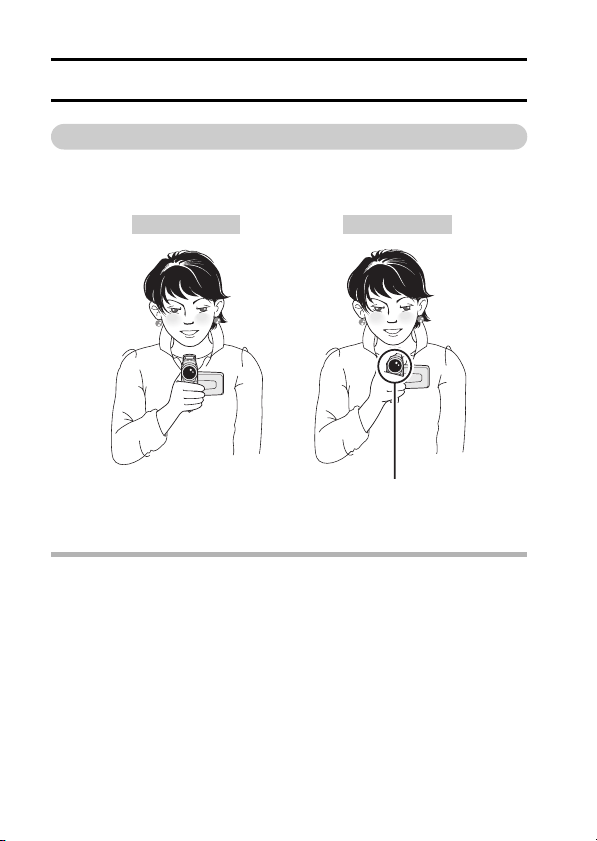

How to hold the camera

Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable.

Correct hold Incorrect hold

A finger is blocking the lens or flash.

Make sure that the lens and flash are not blocked by your fingers or the strap.

HINT

i Images captured in the still image shooting mode can be rotated when

they are played back (page 99).

i When the optical zoom is used or when the autofocus is operating, the

image may appear to waver, but this is not a malfunction.

39 English

Using the autofocus

The autofocus will work in almost all situations; however, there are certain conditions that may cause the autofocus function to not work properly. If the autofocus function is not working properly, set the focus range to capture images (page 79).

k Conditions that may cause incorrect focus

The following examples are some of the situations where the autofocus function may not work.

i Subjects with low contrast, very bright

subjects at the center of the image or dark subjects or locations

Use the focus-lock function to lock the focus on an object with contrast at the same distance as the desired subject.

i Subjects without vertical lines

Use the focus-lock function to lock the focus while framing the subject vertically, then re-orient the camera to compose a horizontally framed image.

The following examples are some of the situations where the autofocus function may work, but not as desired.

i When both near and far objects are

present

Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture.

English 40

BEFORE TAKING PICTURES

i Fast-moving subjects

Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture.

Hints for taking pictures

Muting the operation sounds

i The operation sounds that are generated, for example, when the still image

shooting button, MENU button or SET button is pressed, as well as the audio guidance when you switch the mode, can be muted (page 121).

Where is the image and audio data saved?

i All the image and sound data is recorded on the card installed in the

camera.

Taking pictures in backlight conditions...

i When taking pictures with the light coming from behind the subject, due to

the characteristics of the lens, light lines or ghost patterns (flare phenomenon) may appear in the captured image. In this situation, it is recommended that you avoid taking pictures with the subject lit from behind.

While the image data is being recorded...

i While the multi-indicator is flashing red, the image data is being written to

the memory, during which time it is not possible to capture another image. Another image can be captured after the flashing red indicator turns off. However, even when the multi-indicator is flashing red, depending on the camera’s internal memory remaining capacity, in some cases the next image can be captured about 2 seconds after shooting.

Checking the last image shot (instant review)

i After shooting a picture, you can immediately view it by pressing the SET

button once.

i During instant review of a video clip, normal play, reverse play and pause,

etc. are available (page 44).

i If you wish to delete the image (for a video clip, it must be in the pause or

stop mode), toggle the SET button up to access the delete function.

i You can view other images while the instant review display is showing by

toggling the SET button to the left or right.

i Cancel the instant review display by toggling the SET button down.

41 English

VIDEO CLIP RECORDING AND PLAYBACK

00:00:15

Recording video clips

1 Turn on the camera.

If the monitor unit is closed

→

Open the monitor unit. If the camera is in the power save mode OFF button.

→

Press the ON/

2 Set the main switch to

REC.

3 Press the video clip

recording button [].

h Recording begins.

4 End the recording.

h Press the video clip

recording button again to stop recording.

Monitor unit

Video clip recording

button [ ]

Main switch

00:00:15

Recording time

English 42

VIDEO CLIP RECORDING AND PLAYBACK

Playing back a video clip

5 Set the main switch to PLAY.

h The video clip just recorded is

shown on the monitor.

6 Press the SET button.

h Playback of the video clip begins.

<Example: After recording a

video clip: Normal mode>

Main switch

SET button

<Example: After recording a

video clip: HD mode>

43 English

To do this... Do this

Normal forward playback Press the SET button.

Stop playback During playback, toggle the SET button down.

Pause

During forward

playback

During reverse

playback

During forward

playback

During reverse

playback

Forward

playback

Reverse

playback

speed

To play back

one image at

a time (single-

frame step)

Slow

playback

accelerate

playback

Return to normal playback

Adjusting the volume

During playback, press the SET button or toggle the SET button up. During accelerated playback, toggle the SET button up.

After pausing playback, toggle the SET button to the right.

After pausing playback, toggle the SET button to the left.

After pausing playback, press and hold the SET button to the right.

After pausing playback, press and hold the SET button to the left.

During forward playback, toggle the SET button to the right. * The playback speed changes each time the

SET button is toggled to the right, as follows: Normal playback Toggle the SET button to the left to resume normal playback speed.

During forward playback, toggle the SET button to the left. * The playback speed changes each time the

SET button is toggled to the left, as follows: 15x ← 10x ← 5x Toggle the SET button to the right to resume normal playback speed.

Press the SET button.

Louder: During playback, push the zoom

Softer: During playback, push the zoom

→

2x → 5x → 10x → 15x

switch toward the [T] side.

switch toward the [W] side.

When you are finished using the camera...

i Press the ON/OFF button to turn the camera off.

English 44

VIDEO CLIP RECORDING AND PLAYBACK

HINT Adjusting the monitor brightness

i While the Shooting Screen is active, You can quickly access the screen for

adjusting the brightness of the monitor by pressing the MENU button for at least 1 second.

The focus can be locked.

i The autofocus can be set to a fixed focus during video clip recording if you

toggle the SET button up. When the autofocus is fixed, the p icon appears on the monitor.

i When the focus range (page 79) setting is changed, the focus lock is

released.

The data for a video clip is very large.

i Therefore, be aware that if the video clip is uploaded to a computer to be

played back, the computer may not be able to play back the video fast enough, making it appear jerky. (The video will always be displayed properly on the monitor or a television.)

When the remaining card memory becomes 10 percent or less of the total card capacity...

i The remaining memory icon [10% ] appears on the monitor. i Depending on the card, shooting may end even before the possible

shooting time indicated.

Display the video clip playback point

i During video clip playback, press the MENU button for at least 1 second to

display a bar showing the current playback point in the video clip.

i Press the MENU button for about 1 second to cancel the bar.

CAUTION During video clip playback, the sound of a motor is audible...

i During recording, the sound of the optical zoom movement or autofocus

movement was recorded. This is not a malfunction.

If no audio is heard...

i The audio is not played back when the video clip is played back in the

frame-by-frame, fast playback or reverse playback mode.

45 English

CAPTURING AND PLAYING BACK STILL IMAGES

F3.5 1/40

Shooting single shots

1 Press the ON/OFF button to

turn the camera on.

2 Set the main switch to REC.

3 Press the still image shooting

button [ ]. 1 Press the still image

shooting button halfway.

h The autofocus operates,

and the image is focused (focus lock).

2 Continue to gently press

the still image shooting button all the way.

h The shutter releases and

the image is captured.

h You can view the captured

image on the monitor by keeping the still image shooting button depressed when you capture the image (post-view [page 124]).

Aperture

Main switch

Still image shooting

F3.5

F3.5 1/40

1/40

Target mark

Shutter speed

button [ ]

English 46

CAPTURING AND PLAYING BACK STILL IMAGES

HINT What is the camera focusing on?

A target mark & on the monitor shows the

area the camera is focusing on.

The camera automatically determines the correct focus by measuring from 5 different focus points within the shooting area. If the target mark is at a position that is different from the point you wish to focus on, you can refocus, for example, by changing the shooting angle.

i The large target mark appears when

the camera focuses on a wide area in the center of the screen.

The shutter speed and aperture are displayed

When the camera focuses and the target mark appears, at the same time, the

shutter speed and aperture settings are also displayed. You can use them as a reference when shooting.

If the camera shake icon > appears...

i During still image shooting, if the shutter speed is slow and the possibility

that the image may be blurred due to camera shake becomes high, the camera shake icon may appear on the monitor. In this case, use a tripod to stabilize the camera when shooting, or set the flash operation mode to automatic (page 61).

i When shooting with the scene select function set to the fireworks +

mode, the camera shake icon always appears, but this is normal.

Target mark

F3.5 1/40

Shutter speed

Aperture

47 English

Viewing still images

100-0001

1 Set the main switch to PLAY.

h An image is displayed on the

monitor.

2 Select the image you wish to

view.

To display the previous image, toggle the SET button to the left. To display the next image, toggle the SET button to the right. h For video clips and audio data,

press the SET button to start playback.

Main switch

SET button

100-0001

English 48

CAPTURING AND PLAYING BACK STILL IMAGES

9-image display playback

1 Set the main switch to PLAY.

2 Push the zoom switch toward

the [W] ([P]) side.

h The 9-image display appears.

3 Select the image to play back.

h Toggle the SET button up,

down, left or right to move the orange frame to the desired image, and press the SET button. Instead of pressing the SET button, you can push the zoom switch toward the [T] ([]]) side to show the image full screen.

Video clip

101

Main switch

Zoom switch

SET button

Orange frame

Still image

0002 00030001

0005 00060004

0008 00090007

Audio data

Folder number

HINT

i The 9-image multi-playback display can also be accessed by selecting P

on the Playback Setting Screen.

Image number

49 English

Magnifying (zooming in) the image

113%

MOVE 100% ZOOM I/O

PRESS SHUTTER TO SAVE

1 Display the image that you want to magnify.

h For a video clip, pause playback at the place you want to magnify.

2 Push the zoom switch toward the [T]

([]]) side.

h Magnification is enabled. h The image is magnified, and the

central portion of image is displayed.

h Toggle the SET button to view

different parts of the magnified image.

To magnify:

Magnification increases each time the zoom switch is pushed toward the [T] ([]]) side.

To return to normal size:

Magnification decreases each time the zoom switch is pushed toward the [W] ([P]) side.

h Press the SET button to return to

the normal (100%) view.

HINT The magnified portion of the image can be saved as a separate image.

i Press the still image shooting button. The magnified portion is saved as a

new still image.

ZOOM

MOVE

MOVE 100%

100%

ZOOM I/O

PRESS SHUTTER TO SAVE

113%

English 50

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP

00:00:09

You can capture a still image (a single shot) while recording a video clip.

1 Press the ON/OFF button for at

least 1 second to turn the camera on.

Video clip recording

button [ ]

Still image shooting button

[]

2 Set the main switch to REC.

3 Press the video clip recording

button [ ].

4 When you see a scene you’d like

to capture as a still image, press the still image shooting button [].

5 End the recording.

h Press the video clip recording

button to stop recording.

CAUTION

When shooting a still image while recording a video clip, the flash does not operate.

i i

When shooting a still image while recording a video clip, the display briefly pauses, and then returns to the video clip display after the still image is captured.

If the still image resolution is set to v, it automatically changes to r and the image is captured.

If the video clip mode is set to T and the still image resolution is set to A, the resolution automatically changes to

It is not possible to shoot a still image while recording a video clip when the remaining video clip recording time is 10 seconds or less.

[

and the image is captured.

Main switch

00:00:09

51 English

SEQUENTIAL SHOTS

Your camera is capable of capturing both standard sequential shots and auto bracket shots (sequential images as the exposure changes). The procedure below explains how to take standard sequential shots. For information concerning auto bracket shots, please see page 87.

1 Press the ON/OFF button for at

least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the sequential/single

button [O/].

h The camera switches to the

sequential shots mode, and the sequential shots icon P appears on the monitor.

h Each time the sequential/

single button is pressed, the camera switches between the single shot mode and the sequential shots mode.

4 Press the still image shooting

button.

h Shooting begins. Shooting

continues as long as the still image shooting button is kept pressed.

h The maximum number of

sequential shots is 3.

Still image shooting button

Sequential shots icon

Sequential/ single button [O/]

26 00:01:40

F3.5 1/18

[]

English 52

SEQUENTIAL SHOTS

5 Release the still image shooting button.

h Shooting ends. h The playback procedure for images in a sequential shots series is the

same as for single-shot still images (page 48).

HINT About the focus during sequential shots shooting

i When sequential shots are captured, the autofocus operates when the still

image shooting button is pressed halfway, fixing the focus.

i Sequential shots shooting at a resolution of v is not possible. If the

resolution is set to v, it automatically changes to s.

Can the self-timer and/or flash be used?

i The self-timer and flash do not operate when shooting sequential shots.

53 English

RECORDING IN THE HD MODE

F3.5 1/31

00:00:28

In addition to the standard video clip recording mode (normal mode, aspect ratio 4:3), your camera can also record video clips in the wide-screen mode (HD mode) with an aspect ratio of 16:9.

Switching between the normal mode and HD mode

1 Press the ON/OFF button for at

least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the HD/NORM button.

h The monitor display changes to

the 16:9 aspect ratio HD mode.

h Each time the HD/NORM

button is pressed, the mode switches between the HD mode and the normal mode.

4 Press the video clip recording

button [ ].

HD/NORM button

19 00:00:28

F3.5

F3.5 1/31

1/31

00:00:28

English 54

RECORDING IN THE HD MODE

F3.5 1/8

00:00:28

Outline of the HD Mode Shooting Screen

In the HD mode, the lighter area on the screen indicates the recording area.

Normal mode capture area

HD mode

19 00:00:28

F3.5

F3.5 1/8

1/8

00:00:28

capture area

55 English

AUDIO RECORDING AND PLAYBACK

Your camera can make audio recordings and play them back.

Audio recording

1 Set the main switch to REC.

2 Press the MENU button.

h The menu display appears.

VIDEO CLIP MPEG4 640x480 30fps SHQ

3 From the video clip mode menu,

select the audio memo icon <, and press the SET button.

h The audio recording mode is

enabled.

h The menu display is canceled if

the MENU button is pressed.

Remaining time

12 00:10:15

F3.5 1/40

English 56

AUDIO RECORDING AND PLAYBACK

4 Press the video clip recording

button.

h Audio recording begins. During

recording, < appears in the monitor. It is not necessary to continue pressing the video clip recording button while shooting.

h The maximum time for recording a

continuous audio memo is about 13 hours.

5 End the recording.

h Press the video clip recording button again to stop recording.

HINT You can capture a still image during an audio recording

i Note, however, that if the resolution in the still image mode is set to k, it

automatically changes to r and the image is captured.

00:09:45

57 English

Audio playback

1 Display the desired audio data.

2 Play back the recording.

Start forward playback:

Press the SET button.

Pause: During playback, press the

SET button, or toggle the SET button up. During fast forward or fast reverse, toggle the SET button up.

Stop playback:

During playback, toggle the SET button down.

Fast forward/fast reverse:

h Fast forward/fast reverse playback is possible at 2x (forward only),

5x, 10x and 15x.

h Toggle the SET button to the left or right during playback to

activate fast forward/fast reverse.

h The playback speed changes each time the SET button is toggled

to the left or right.

Fast forward (toggle the SET button to the right)

2x → 5x → 10x → 15x * Toggle the SET button to the left to return to normal speed.

Fast reverse (toggle the SET button to the left)

15x ← 10x ← 5x * Toggle the SET button to the right to return to normal speed.

CAUTION If no audio is heard...

i The audio is not played back when the audio memo is played back in the

fast playback or fast reverse mode.

00:00:00

English 58

SHOOTING AND PLAYBACK WITH THE REMOTE CONTROL UNIT

The remote control sensor on your camera makes it possible to capture images and play them back using the supplied remote control unit.

1 Prepare the remote control unit (page 23).

2 Turn the camera on, and set the main switch to REC or PLAY.

h Set the main switch to REC for shooting, or to PLAY for playback.

3 Aim the remote control unit at the camera’s remote control sensor.

h Open the monitor unit.

4 Press the buttons on the remote control unit to operate the camera.

59 English

USING THE ZOOM

Your camera has two zoom functions: optical zoom and digital zoom. You can specify whether or not the digital zoom is enabled (page 129).

1 Point the camera lens at the

subject.

2 Press [T] or [W] on the zoom

switch to compose the desired image.

[T]: Zoom in on the subject. [W]: Zoom out. h When the zoom switch is

pressed, the zoom bar appears on the monitor.

h When moving the optical zoom,

press the zoom switch lightly to zoom slowly, and press more strongly to zoom quickly.

h When the optical zoom factor is at

maximum, zooming stops temporarily. When the zoom switch is pressed toward the [T] side again, the mode changes to the digital zoom mode and zooming continues.

3 Take the picture.

For video clip recording, see page 42. For shooting single shots, see page 46. For shooting sequential shots, see page 52.

Monitor

When both optical and digital zoom are enabled

Digital zoom (yellow)

When optical zoom only is enabled

Zoom switch

Zoom bar

Magnification

Optical zoom

Poin ter

English 60

SHOOTING WITH THE FLASH

The flash is used not only for taking pictures where there is insufficient light, but also when the subject is in shade or in backlight conditions. Your camera’s flash has four modes of operation (automatic flash mode, forced flash mode, flash off mode, and red-eye reduction mode). Select the flash mode that is appropriate for the surrounding conditions. The flash can be enabled only when taking single-shot still images.

1 Set the main switch to REC.

2 Press the flash button to

extend the flash.

h The flash setting appears

on the monitor.

No flash indication:

The camera will detect the subject brightness and use the flash only when required. In a backlight situation, if only the center of the image is very dark, the flash will operate to compensate (auto flash).

61 English

Flash button

12 00:00:15

F3.5 1/40

Flash setting

m:The flash will operate with every image captured regardless

of the conditions. Use this setting under backlight conditions, when the subject is in shade, under fluorescent lighting conditions, etc. (forced flash).

l:The flash will not operate even in dark situations. Use this

setting when capturing an image in a location where flash photography is prohibited, or when shooting a night landscape scene (flash off).

J:The digital camera will detect the subject brightness and use

the flash only when required. At this time the flash will operate in a manner that reduces the red reflection (“redeye”) in the subject’s eyes (red-eye reduction).

3 Press the flash button to set the flash mode.

h Each time the flash button is pressed, the flash mode changes. h Display the icon for the desired flash mode.

4 Press the still image shooting button.

h The picture is snapped and the flash operates according to the

selected mode.

HINT

i The flash cannot be used during video clip recording or in the sequential

shots mode.

English 62

EXPOSURE CORRECTION

When capturing images, you can make the image lighter or darker.

1 Set the main switch to REC.

h If the Shooting Setting

Screen is displayed, press the MENU button to exit it.

2 While the Shooting Screen is

displayed, toggle the SET button to the right.

h The exposure correction bar

appears.

3 Toggle the SET button to the

left or right to adjust the exposure.

h The exposure setting

numerical value is shown at the left end of the exposure bar.

h The exposure can be set to a

value from –1.8EV to +1.8EV.

h The exposure correction bar

is canceled when the MENU button or the SET button is pressed.

12 00:00:15

Main switch

SET button

MENU button

63 English

Exposure correction bar

Pointe r

HINT The exposure correction setting is canceled in the following cases:

i When the pointer is set to the center position. i When the Option Screen is accessed. i When the main switch is set to PLAY. i After the power is turned off.

Can’t access the exposure correction bar?

i The exposure correction is not available when the ISO sensitivity (page 83)

is set to w.

English 64

SHOOTING PAGE 1 (BASIC SETTINGS)

DISPLAYING THE SHOOTING SETTING SCREENS

The Shooting Setting Screens are used to adjust your camera’s shooting settings. The Shooting Setting Screens are organized into two displays: PAG E 1 and PAGE 2. The PAGE 1 settings (page 67) cover the basic shooting settings, and the PAGE 2 settings (page 69) provide you with more detailed settings.

1 Turn on the camera (page 30).

2 Set the main switch to REC.

3 Press the MENU button.

h The Shooting Setting Screen

appears.

h Pressing the MENU button

again will cancel the Shooting Setting Screen.

65 English

Main switch

MENU button

VIDEO CLIP MPEG4 640x480 30fps SHQ

SWITCHING THE PAGE

Switch from PAG E 1 to PAGE 2, or vice versa, depending on how you wish to use your camera.

1 Display a Shooting Setting Screen.

2 Toggle the SET button to the left.

h The Shooting Setting Screen PAGE

changes.

h Each time the SET button is toggled

to the left, the PAGE changes.

PAGE indication

VIDEO CLIP MPEG4 640x480 30fps SHQ

<Example: Shooting Setting

Screen: PAGE 1>

IMAGE STABILIZER VIDEO VIEW

<Example: Shooting Setting

Screen: PAGE 2>

English 66

DISPLAYING THE SHOOTING SETTING SCREENS

Overview of the Shooting Setting Screens

PAG E 1

VIDEO CLIP MPEG4 640x480 30fps SHQ

67 English

Video clip mode menu (page 71) <In the normal mode>

b: Record at 640 × 480 pixels,

30 frames per second, very high image quality.

T: Record at 640 × 480 pixels,

60 frames per second.

a: Record at 640 × 480 pixels,

30 frames per second, high image quality.

d: Record at 320 × 240 pixels,

15 frames per second.

<: Make an audio recording.

U: Record at 1,280 × 720 pixels,

30 frames per second, very high image quality.

V: Record at 1,280 × 720 pixels,

30 frames per second, high image quality.

<: Make an audio recording.

Still image mode menu (page 72)

r: Shoot image at 2,592 × 1,944

resolution (about 5 million pixels [normal compression])

Shoot image at 3,680 × 2,760

resolution (about 10 million pixels)

s: Shoot image at 2,592 × 1,944

resolution (about 5 million pixels [low compression])

Shoot image at 1,600 × 1,200

resolution (about 2 million pixels)

Shoot image at 1,280 × 960 resolution (about 1.2 million pixels)

Shoot image at 640 × 480 resolution (about 300,000 pixels)

3 Scene select menu (page 73)

=: Full auto photography

a: Sports photography >: Portrait photography

+: Landscape photography

* When you specify multiple functions that cannot be simultaneously enabled,

the function which was last set becomes the active setting, and the other settings accordingly change automatically.

/: Night view photography +: Fireworks photography Q: Lamp photography

4 Manual exposure setting

menu (page 74)

@: The exposure is set

automatically.

T: Set the shutter speed and ND

filter settings.

g: Set the aperture size and ND

filter settings.

,: Set the aperture size, shutter

speed and ND filter settings.

5 Filter menu (page 76)

&: No filter %: Cosmetic filter selected W: Monochrome filter selected

,: Sepia filter selected

6 In the single-shot/video clip

recording modes: Self-timer menu (page 86)

N: Self-timer off

Shooting begins 2 seconds

after the still image shooting button or video clip recording button is pressed.

Shooting begins 10 seconds

after the still image shooting button or video clip recording button is pressed.

6 In the sequential shots mode:

Sequential shots mode menu (page 87)

Appears only in the sequential shots mode.

P: Standard sequential shots

’: AE shift sequential shots

(auto bracket series)

7 Option icon (page 118)

h Displays the Option Screen.

8 PAGE display (page 66) 9 Help display (page 123) 0 Remaining battery power

(page 147)

English 68

DISPLAYING THE SHOOTING SETTING SCREENS PAG E 2

IMAGE STABILIZER VIDEO VIEW

69 English

1 Image stabilizer menu

(page 77)

p: Shoot using the video clip

field of view display.

q: Shoot using the still image

field of view display.

]: Image stabilizer function off

2 Focus menu (page 79)

-: All ranges mode

*: Normal mode

-: Manual mode +: Super macro (close-up)

mode

Focus mode men

K: 5-point range finder focus

setting

C: Spot focus setting

4 Light-measuring mode (EXP

MEASURE) menu (page 82)

n: Multi-section light-

measuring setting

W: Center-weighted light-

measuring setting

Y: Spot light-measuring

setting

5 ISO sensitivity menu

(page 83)

t: Auto sensitivity

(corresponds to ISO 50 to

200)

*: Corresponds to ISO 50

u: Corresponds to ISO 100 v: Corresponds to ISO 200 w: Corresponds to ISO 400

u (page 81)

6 White balance menu (page 84)

>: White balance is

automatically adjusted depending on ambient lighting

r: For photography in fair

weather (sunny) conditions

o: In overcast conditions p: Under fluorescent lighting q: Under incandescent

lighting

]: For setting the most

accurate white balance

7 Option icon (page 118)

h Display the Option Screen.

8 PAGE display (page 66) 9 Help display (page 123) 0 Remaining battery power

(page 147)

* When you specify multiple functions that cannot be simultaneously enabled,

the function which was last set becomes the active setting, and the other settings accordingly change automatically.

English 70

VIDEO CLIP MODE (IMAGE QUALITY) SETTING

When it comes to video clips, a larger number of pixels and a higher frame rate means better image quality and smoother playback. On the other hand, the file size becomes large and uses more memory. Set the image quality to a setting that’s right for your purpose.

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the video clip mode menu.

Setting

HD mode

Normal

mode

HD mode/

normal

mode

3 Select the desired icon from the video clip mode menu, and press

the SET button.

h This completes the video clip mode setting.

CAUTION When editing video clips...

i In order for video clips to be joined, they must have been photographed in

the same mode.

i Video clips that were photographed in different modes cannot be joined.

Resolution

(units: pixels)

1,280 × 720 30 fps

V High image quality

640 × 480

T 60 fps High image quality

a 30 fps High image quality d 320 × 240 15 fps Standard image quality

< —— —

Frame

rate

30 fps Very high image quality

Image quality

Very high image quality

71 English

STILL IMAGE MODE (RESOLUTION) SETTING

By setting the still image resolution (pixels) to a higher setting, image detail is enhanced for a smoother, finer picture. However, the file size also becomes large and uses more memory. Select the resolution setting that suits your purpose.

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the still image mode menu.

Setting

k 3,680 × 2,760

s 2,592 × 1,944 Low compression r 2,592 × 1,944

G 1,600 × 1,200 A 1,280 × 960

[ 640 × 480

Resolution

(units: pixels)

Compression

Standard

compression

Standard

compression

3 Select the desired icon from the still image resolution menu, and

press the SET button.

h This completes the still image resolution setting.

Applicable shooting

mode(s)

Single shot

Single shot/

sequential shots

English 72

SCENE SELECT

You can select from various preset settings (aperture, shutter speed, etc.) for specific shooting conditions.

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the scene select menu.

=: The camera automatically makes the optimum settings suitable for

the surrounding conditions (full auto).

a: Capture a split-second image of a fast-moving subject (sports

mode).

>: Enhance the 3D feeling of the subject by blurring the background

(portrait mode).

+: For beautiful shots of distant scenery (landscape mode). /: Photograph the subject while keeping the background night

scenery (night view mode: For single shot shooting, video clip recording only).

+: For capturing fireworks at night (fireworks mode: For single shot

shooting, video clip recording only).

Q: Photograph in low-light conditions (lamp mode: For single shot

shooting, video clip recording only).

3 Select the desired icon from the scene select menu, and press the

SET button.

h This completes the scene select function setting. h To return to normal photography, select = from the scene select

menu, and press the SET button.

HINT

i When capturing images using the lamp Q, fireworks + or night view

/ setting, use a tripod or other method to stabilize the camera.

i A table showing the limitations for settings corresponding to scene select

icons other than = is on page 179.

73 English

EXPOSURE SETTING

Various settings—including shutter speed, aperture size, the ND filter ON/ OFF status—can be set by the user.

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the manual exposure menu.

@: The optimum shutter speed and aperture size are set according to

the brightness of the subject (aperture and shutter variable program AE).

Example: For simple shooting with minimum setup, using the camera’s automatic settings.

T: This allows you to set a specific shutter speed and enable/disable

the ND filter. The camera automatically sets an appropriate aperture size based on this setting (shutter speed priority AE).

Example: To set a fast shutter speed for capturing a clear image of a fast-moving object, or to set a slow shutter speed to shoot the flow of a background scene. By using the flash in combination with a slow shutter speed, you can create beautiful photographs of people against a background night scene (slow synchro photography).

g: This allows you to set a specific aperture size and enable/disable

the ND filter. The camera automatically sets an appropriate shutter speed based on this setting (aperture priority AE).

Example: To open the aperture for portraits with a blurred background (for a shallow field depth), or to close the aperture for a clear foreground and background (for a deep field depth).

,: This allows you to set a specific shutter speed, aperture size and

enable/disable the ND filter (manual exposure control).

Example: When shooting in a dark location without using the flash, set the shutter to stay open for a longer time (slow shutter). When used for shooting nighttime scenes, you can capture lights flowing across the image.

English 74

EXPOSURE SETTING

3 Select the desired icon from the

manual exposure menu, and press the SET button. <If T, g or , was selected>

1 Toggle the SET button up or down

to select ND filter, aperture value or shutter speed.

2 Toggle the SET button left or right

to change the setting for the selected parameter.

4 Press the SET button.

h This completes the exposure

setting.

HINT

i To prevent the effects of camera shake at slow shutter speeds, it is

recommended to use a tripod or other method to stabilize the camera.

i A slow shutter speed may be useful for photographing in a darker

environment, but noise in the image may be increased.

i To minimize noise in the image, enable the noise reduction function

(page 126).

i The manual exposure setting automatically becomes @ if the scene

select function is active or if the mode is set to the AE shift sequential shots mode.

i In the sequential shots mode, the shutter speed is faster than 1/15 sec. i When a video clip is recorded in a video mode other than T with the

shutter speed set to slower than 1/29 sec., the shutter speed during recording is 1/30 sec. And when a video clip is recorded in the T video mode with the shutter speed set to slower than 1/59 sec., the shutter speed during recording is 1/60 sec.

i If the exposure setting is

(page 83), the exposure correction setting will be disabled.

, and the ISO sensitivity set is other than t

ND filter

F3.5 1/1500

Shutter speed Aperture

75 English

FILTERS

The filter feature changes image characteristics such as color tones, to apply unique effects to the photographed image.

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the filter menu.

&: No filter is used (none). %: Skin tones are enhanced in close-up shots (cosmetic filter). W: Snap black-and-white photos (monochrome filter).

,: Create a sepia-tone photo (sepia filter).

3 Select the desired icon from the filter menu, and press the SET

button.

h This completes the filter setting. h To return to normal photography, select & from the filter menu, and

press the SET button.

HINT

i A table showing the limitations for settings corresponding to filter icons

other than & is on page 179.

English 76

MOTION COMPENSATION (IMAGE STABILIZER)

Your camera can minimize a jittery picture by compensating for unintentional hand motion (video clips only).

1 Display the PAGE 2 Shooting Setting Screen (page 65).

2 Select the image stabilizer menu.

p: Compensate for camera shake during video clip recording. The

field of view does not change when the video clip recording button is pressed, so this setting is convenient when shooting mostly video clips (video clip field of view display).

q: Compensate for camera shake during video clip recording. The

field of view does not change when the still image recording button is pressed, so this setting is convenient when shooting mostly still images (still image field of view display).

]: Disengages the motion compensation function (OFF).

3 Select the desired icon from the image stabilizer menu, and press

the SET button.

h This completes the image stabilizer setting.

HINT If the motion compensation does not seem to be working...

i Due to the mechanical characteristics of this function, it may not be

possible for the camera to compensate for violent motion.

i If the digital zoom (page 60) is being used, the large magnification factor

may make it difficult for the motion compensation function to work correctly.

i When using a tripod, the docking station or other means to stabilize the

camera, please turn the motion compensation function off ]. If the motion compensation function is enabled when it is not actually needed, it may result in an image that appears unnatural.

77 English

i When the motion compensation is set to ON, the field of view during

recording standby differs from the recordable field of view as shown below.

i When set to the motion compensation q setting, the video clip recording

range is as shown in the recording standby screen.

During still image shooting

Display during recording standby

For p setting

For q setting

Video clip recording area

For ] setting

During video clip recording

i When the still image shooting resolution is set to [ or A and the

scene selection function to =, a, > or + (page 73), a still image captured during video clip recording will have the same field of view as the video clip.

English 78

FOCUS RANGE

1 Display the PAGE 2 Shooting Setting Screen (page 65).

2 Select the focus range menu.

h When shooting a subject at a medium to far distance, by setting the

focus range to *, you will find it both easier and faster to focus.

-: Wide end: 10 cm (3.94 in.) to infinity

Tele end: 1 m (3.28 ft.) to infinity (total range mode)

*: 80 cm (31.50 in.) to infinity (standard mode)

-: The focus can be manually set to any distance from 1 cm

(0.39 in.) to 40 m (13.12 ft.), as well as to infinity (manual focus).

+: 1 cm (0.39 in.) to 1 m (3.28 ft.) (super macro mode: wide end

only)

h When the focus range is set to *, + or -, the corresponding

indication appears on the monitor.

3 Select the desired icon from the focus range menu, and press the

SET button.

h This completes the focus range setting.

HINT

i From the Shooting Screen, you can quickly change the focus range setting

by toggling the SET button down.

i When the focus range is set to super macro +, the zoom is temporarily

set to the wide end.

i You can lock the focus by toggling the SET button up.

79 English

How to use the manual focus

1 Select the manual focus icon - from the focus menu, and press

the SET button.

2 Press the SET button.

h The focus distance adjustment bar

appears.

00:00:15

3 Toggle the SET button to the left or

right to adjust the focus distance, and press the SET button.

h The focus distance is set, and you

are returned to the Shooting Screen.

HINT About the focus range

i The focus distance indication shows the distance between the lens surface

and the subject.

i In some cases there may be a slight variance between the distance

(numerical figure) you set in the manual focus mode and the actual distance.

About zoom movement when using the manual focus

i If the focus distance is set to 70 cm (27.56 in.) or less, the zoom changes

to the largest setting that is suitable for that focus distance.

i When the focus distance is set to 70 cm (27.56 in.) or less, the zoom will

function only within the range at which the image is focused.

1cm

English 80

FOCUS AREA SETTING

You can choose from the following 2 types of autofocus (still image shooting only):

5-point range finder focus:

The correct focus is determined from 5 different focus points within the shooting area visible on the monitor. When the image is focused, a target mark & appears.

Spot focus:

The camera focuses on the subject in the center of the monitor.

1 Display the PAGE 2 Shooting

Setting Screen (page 65).

2 Select the focus mode menu.

K: 5-point range finder focus is

selected.

C: Spot focus is selected.

3 Select the desired icon from the

focus mode menu, and press the SET button.

h The focus area is set. h When the spot focus setting is

selected, the focus mark + appears in the center of the monitor.

12 00:00:52

F3.5 1/40

Focus mark

81 English

LIGHT-MEASURING MODE SETTING

You can select from 3 types of light-measuring modes.

Multi-section light-measuring:

The light is modulated after sampling from multiple areas of the entire shooting screen.

Center-weighted light-measuring:

The light is modulated for the entire image after measuring from mostly the center area.

Spot light-measuring:

You can compose the picture and capture the image after first modulating the light only at the center spot of the monitor.

1 Display the PAGE 2 Shooting Setting Screen (page 65).

2 Select the light-measuring mode (EXP MEASURE) menu.

n: Multi-section light-measuring

W: Center-weighted light-measuring Y: Spot light-measuring

3 Select the desired light-measuring

mode from the light-measuring mode (EXP MEASURE) menu, and press the SET button.

h This completes the light-measuring

mode setting.

h When spot light-measuring is

selected, the light-measuring spot mark appears in the center of the monitor.

12 00:00:52

F3.5 1/40

Light-measuring spot mark

English 82

ISO SENSITIVITY

With the initial settings, the ISO sensitivity is automatically set according to the brightness of the subject. However, the ISO sensitivity can be set to a fixed setting.

1 Display the PAGE 2 Shooting Setting Screen (page 65).

2 Select the ISO sensitivity menu.

t: Sets the ISO sensitivity automatically (equivalent to ISO 50 to 200

[video clip shooting mode: ISO 200 to 800]).

*: Sets the sensitivity to ISO 50 equivalent

(video clip shooting mode: ISO 200).

u: Sets the sensitivity to ISO 100 equivalent

(video clip shooting mode: ISO 400).

v: Sets the sensitivity to ISO 200 equivalent

(video clip shooting mode: ISO 800).

w: Sets the sensitivity to ISO 400 equivalent

(video clip shooting mode: ISO 1600).

3 Select the desired icon from the ISO sensitivity menu, and press the

SET button.

h This completes the ISO sensitivity setting.

HINT

i By setting a higher ISO sensitivity, you can set higher shutter speeds and

capture images in darker locations, but noise in the captured images may increase or the images may be irregular.

i If you capture a still image during video clip recording with the ISO

sensitivity set to w, the still image will be captured with the ISO sensitivity setting automatically changed to v.

i The exposure correction (page 63) is not available when the ISO sensitivity

is set to w.

83 English

WHITE BALANCE

This camera automatically adjusts the white balance under most lighting conditions. However, if you want to specify the lighting conditions or change the overall tone of the image, the white balance can be manually set.

1 Display the PAGE 2 Shooting Setting Screen (page 65).

2 Select the white balance menu.

>: The camera will make the white balance adjustment automatically

based on the natural and artificial light conditions.

r: For shooting outside on a sunny day. o: For shooting outside on a cloudy day. p: For shooting inside under fluorescent lighting. q: For shooting inside under incandescent lighting. ]: This setting is used for a more accurate white balance using the

existing light source (one push). Please use it when the light source cannot be identified, for example.

Setting procedure 1 Select the ] icon and press the SET button.

h The ] icon moves to the left end of the line.

2 Fill the entire screen with a plain white card (or piece of

paper, etc.), and press the SET button.

English 84

WHITE BALANCE

3 Select the desired icon from the white balance menu, and press the

SET button.

h This completes the white balance setting. h Once the white balance setting is programmed for the ] icon, it is

retained even if another white balance setting (>, r, o, p, or q) is selected. If you changed to another setting, whenever you

select the ] icon and press the SET button, the previously programmed setting is recalled.

HINT To cancel the white balance setting

i Perform step 1, select >, and then press the SET button.

85 English

SELF-TIMER

1 Display the PAGE 1 Shooting Setting Screen (page 65).

2 Select the self-timer menu.

N: Turns off the self-timer function. y: Turns on the self-timer function. The image is captured about 2

seconds after the still image shooting button or video clip recording button is pressed.

x: Turns on the self-timer function. The image is captured about 10

seconds after the still image shooting button or video clip recording button is pressed.

Select the desired icon from the self-timer menu, and press the SET button.

h This completes the self-timer setting.

HINT To pause or cancel the self-timer function...

i If the video clip recording button or still image shooting button is pressed

again before the shutter is released, the self-timer countdown temporarily stops. Press the video clip recording button or still image shooting button one more time to restart the self-timer.

i To cancel self-timer photography, select the N icon from the self-timer

menu, and press the SET button.

i After the self-timer picture is snapped, the self-timer is automatically reset

to off N.

When x is selected...

i When the still image shooting button or

video clip recording button is pressed, the multi-indicator will blink for about 10 seconds, and then the image is captured. Also, 4 seconds before the shutter releases, the indication shown in the illustration appears on the monitor.

i If you swivel the monitor unit towards the

subject, the self-timer indication will be visible to the subject.

CAUTION

i The self-timer cannot be used in the sequential shots shooting mode.

English 86

SEQUENTIAL SHOTS MODE SETTING

This camera features two types of sequential shots.

Standard sequential shots P:

Takes standard sequential shots (page 52).

Auto bracket shots I:

A series of images is captured while the exposure (shutter speed and aperture size) automatically changes.

Normal

exposure +0.9EV –0.9EV

1 Press the sequential/single

button [O/ ] to select the sequential shots mode.

2 Display the PAGE 1 Shooting

Setting Screen (page 65).

87 English

Sequential/single button

3 Select the sequential shots mode menu.

P: Standard sequential shots

I: Auto bracket shots

4 Select the desired icon from the sequential shots menu, and press

the SET button.

h This completes the sequential shots mode setting.

HINT How many shots in the auto bracket series?

i Three images are captured in the auto bracket shots mode.

Can the flash be used?

i The flash does not operate when shooting sequential shots.

English 88

PLAYBACK PAGE 1 (BASIC SETTINGS)

DISPLAYING THE PLAYBACK SETTING SCREENS

The Playback Setting Screens are used to adjust your camera’s playback settings. The Playback Setting Screens are organized into two displays: PAG E 1 and PA GE 2 . The PAGE 1 settings (page 91) cover the basic playback settings, and the PAG E 2 settings (page 92) provide you with more detailed settings.

1 Turn on the camera (page 30).

2 Set the main switch to PLAY.

3 Press the MENU button.

h The Playback Setting Screen

appears.

h Pressing the MENU button

again will cancel the Playback Setting Screen.

Main switch

MENU button

89 English

PLAYBACK METHOD

Set play all or 1 clip

SWITCHING THE PAGE

Switch from PAGE 1 to PAG E 2 , or vice versa.

1 Display a Playback Setting Screen (page 89).

2 Toggle the SET button to the left.

h The Playback Setting Screen

changes to the other PAGE.

h Each time the SET button is toggled

to the left, the PAGE changes.

PAGE indication

<Example: Playback Setting

PLAYBACK METHOD

Set play all or 1 clip

Screen: PAGE 1>

ROTATE

Rotate image

Screen: PAGE 2>

English 90

DISPLAYING THE PLAYBACK SETTING SCREENS

Overview of the Playback Setting Screens

PAG E 1

PLAYBACK METHOD

Set play all or 1 clip

1 Playback method setting

(page 93)

h Select continuous playback or

single-frame playback.

2 Multi-playback (page 49)

h Display images in the 9-frame

multi-display format.

3 Playback volume control

(page 94)

h Adjust the playback volume for

video clips and audio data.

91 English

4 Data protect setting (page 95)

h Protect data from accidental

erasure.

5 Erase (page 97)

h Delete images from the card

memory.

6 Option icon (page 118)

h Display the Option Screen.

7 PAGE display (page 90) 8 Help display (page 123) 9 Remaining battery power

(page 147)

PAG E 2

ROTATE

Rotate image

1 Rotate image (page 99)

h Rotate still images.

2 Resize (page 100)

h Reduce the resolution of a still

image.

3 Extract still image (page 101)

h Extract a still image from a

video clip.

4 Video clip edit (page 102)

h Edit video clips.

5 Print settings (page 109)

h Specify the print settings

(DPOF settings).

6 Smooth playback (page 116)

h Video clips are played back

smoothly.

7 Option icon (page 118)

h Display the Option Screen.

8 PAGE display (page 90) 9 Help display (page 123) 0 Remaining battery power

(page 147)

English 92

PLAYBACK METHOD

Images can be viewed continuously (slideshow playback) or you can choose to show single images.

1 Display the PAGE 1 Playback Setting Screen (page 89).

2 Select the playback method icon

4, and press the SET button.

h The Playback Method Screen

appears.

PLAY ALL: Play back images in

1 CLIP: Display only the selected

3 Select the desired playback mode.

h The screen to set the time that each

1 Toggle the SET button to the right

2 Toggle the SET button up or down

3 Press the SET button.

4 Press the SET button.

h The display time is set, and you are returned to the Playback Setting

slideshow fashion.

image (pages 43 and 48).

image is displayed appears.

to select playback time.

to specify the time that each image is shown.

Screen.

PLAYBACK METHOD

PLAY ALL 1SEC

1 CLIP

PLAYBACK METHOD

DURATION OF PHOTO

PLAY ALL 1SEC

93 English

PLAYBACK VOLUME

Adjust the playback volume for video clips and audio data.

1 Display the PAGE 1 Playback Setting Screen (page 89).

2 Select the playback volume icon

Z, and press the SET button.

h The volume control bar appears.

3 Toggle the SET button left or right to

adjust the volume, and press the SET button.

h The volume is set, and you are

returned to the Playback Setting Screen.

HINT

i During video clip or audio memo playback, if you move the zoom switch,

the volume control bar will appear, allowing you to adjust the volume.

PLAY VOLUME

VOLUME SETTING

English 94
