Sanyo VPC-H2GX, VPC-HD2, VPC-HD2EX User Manual

INSTRUCTION MANUAL

VPC-HD2EX VPC-HD2

Digital Movie Camera

Important note

This manual explains how to safely operate the VPC-HD2EX, VPC-HD2 and VPC-HD2GX. Any information regarding only one of these products will be labeled as such.

Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

VPC-HD2GX

Warning

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FOR AMERICAN USERS

The following advisory is included in accordance with the laws of the State of California (USA):

WARNING:

This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash

hands after handling.

i This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

h Consult the dealer or an experienced radio/TV technician for help.

i Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model number: VPC-HD2 Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

i English

FOR CANADIAN USERS

i This Class B digital apparatus complies with Canadian ICES-003.

FOR EU USERS

Note:

i This symbol mark and recycle system apply only to EU

countries and do not apply to countries in other areas of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

Symbols used in this manual

HINT Points giving some extended instructions or special points to pay

CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information.

You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 176) and “TROUBLESHOOTING” (page 184).

attention to.

English ii

SHOOT, PLAY BACK AND SAVE

Preparing the camera

1 Insert the SD Memory Card.

h An SD Memory Card is not included with your camera. Please

purchase a commercially sold card.

h In this manual, the SD Memory Card is referred to as the “card”.

SD Memory Card

Card slot cover Card slot

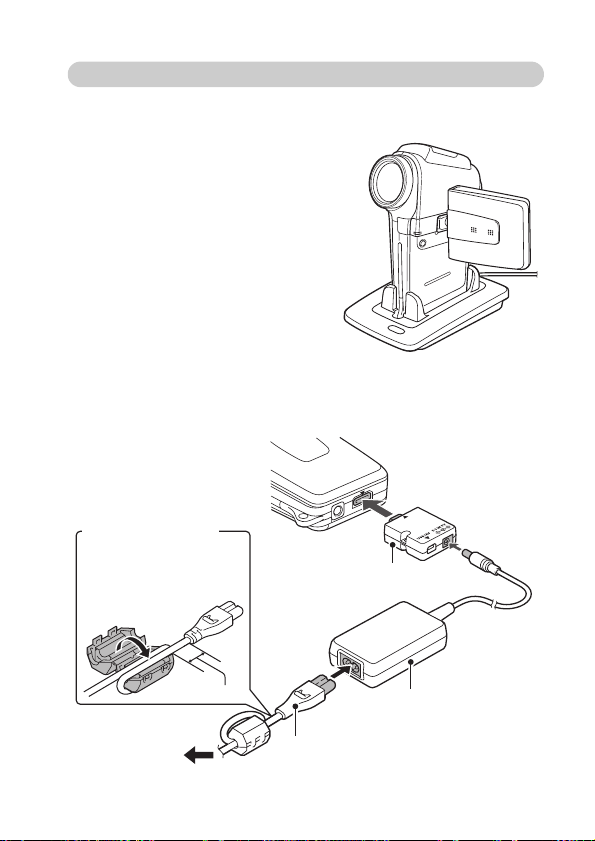

2 Connect the cable adaptor to the camera, and connect the AC

adaptor.

Supplied cable adaptor

To power outlet

iii English

Supplied AC adaptor

Supplied power cord

Shooting

297 00:20:39

F3.5 1/30

kVideo clip recording

1 Open the monitor unit, and

press the ON/OFF button for at least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the video clip

recording button [ ].

h Recording begins. h To stop recording, press

the video clip recording button again.

kStill image

photography

1 Open the monitor unit, and

press the ON/OFF button for at least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the still image

shooting button [ ].

h The image is captured.

Video clip recording

button [ ]

Still image shooting

button [ ]

ON/OFF button

Main switch

297 00:20:39

F3.5

1/30

English iv

SHOOT, PLAY BACK AND SAVE

Playback

kVideo clip playback

1 Set the main switch to PLAY.

h The display switches to the

Playback Screen.

h Toggle the SET button to

the left or right to display the video clip you wish to play back.

h Video clips are indicated by

a video clip pattern along the top and bottom of the screen.

2 Press the SET button.

h Playback of the selected

video clip begins.

h When the main switch is

moved to REC, the display changes to the Shooting Screen.

kStill image playback

1 Set the main switch to PLAY.

h The display switches to the

Playback Screen.

h To view other images,

toggle the SET button to the left or right.

h When the main switch is

moved to REC, the display changes to the Shooting Screen.

Video clip pattern

<Example: After recording a

Main switch

SET button

video clip>

When you are finished using the camera...

Press the ON/OFF button for at least 1 second to turn the camera off.

v English

Burn your recorded video clips onto a DVD (Windows XP)

Using the supplied CD-ROM (SANYO Software Pack), you can import the captured images to your computer and store them on a DVD. Detailed information about the SANYO Software Pack can be found on page 4 in the SANYO Software Pack INSTRUCTION MANUAL.

Install application programs

1 Set the supplied CD-ROM (SANYO Software Pack) in your

computer’s CD-ROM drive.

h The installation window opens.

2 Click on the application program you wish to install.

h Install the application program with which you can import images to a

computer (Photo Explorer).

h Install the application program with which you can create DVDs

(MovieFactory).

h After clicking on an application program, follow the instructions shown

on the monitor to install the program.

h When the installation is complete, the product registration window will

appear, but click on the [Exit] button to close the window.

English vi

SHOOT, PLAY BACK AND SAVE

3 In the installation window, click on [Finish] and remove the CD-ROM

from the computer’s CD-ROM drive. <About the Kodak online service>

h When the installation window closes, a dialog box to connect to the

website introducing Kodak’s online service appears. Check the [No thanks!] option button, and then click on the [OK] button.

Connect your camera to a computer

Use the supplied dedicated USB interface cable to connect your camera to a computer (page 7 in the SANYO Software Pack INSTRUCTION MANUAL).

USB CONNECTION

COMPUTER

PRINTER

CANCEL

SET

CANCEL OK

USB/AV terminal

To AC adaptor

To USB connector on the computer

Supplied dedicated USB interface cable

i Insert the plug with the [n] mark facing up.

Copy a video clip to your computer

Run PhotoExplorer, set the location of the camera’s data as the copy source, and copy the video clip(s) to your computer (page 18 in the SANYO Software Pack INSTRUCTION MANUAL).

vii English

Burn video clips onto a DVD

1 Click on your desktop’s [Ulead DVD MovieFactory 5 Launcher] icon

to run MovieFactory.

h The MovieFactory launcher appears. h If the product registration screen appears, select [Register Later].

English viii

SHOOT, PLAY BACK AND SAVE

2 Click on [New Project].

h The [Create Video Disc] window opens.

ix English

3 Set the [DVD] option to ON, and click on the [OK] button.

h The [Select source and import] window opens.

4 Click on the [Add video files] icon.

[Add video files] icon

h The [Open Video File] dialog box opens. h Open the folder that contains the video files

(My Documents\SANYO_PEX\datefolder).

English x

SHOOT, PLAY BACK AND SAVE

5 Select the video clip files to burn onto the DVD.

h Select the files you wish to burn onto the DVD by clicking on them. h To select multiple files, click on the individual files while holding down

the [Ctrl] button. If you select one file, hold down the [Shift] button and click on another file in the list, all the files in between are also selected.

6 Click on the [Open] button.

h The [Open Video File] dialog box closes.

h The [Rearrange clip order] dialog box opens. h You can drag the clip file names to change the video clip playback

order.

h Click on the [OK] button, and the [Rearrange clip order] dialog box

closes.

h The file selected in step 5 appears in the [Select source and import]

window.

xi English

7 Click on the [Next] button.

h The window to edit the title page of your DVD appears.

8 Set your desired title page, and click on the [Next] button.

h The window to confirm the title page appears.

9 Click on the [Next] button.

h The [Press Burn button to create a DVD] window opens.

Set the [Recording format] to [DVD-Video].

Set a blank DVD in your computer’s disc burner, and click on the [Burn] icon.

h A confirmation dialog box appears.

English xii

SHOOT, PLAY BACK AND SAVE

Click on the [OK] button.

h Disc writing begins. h After burning the disc, a dialog box shows that burning is complete.

Click on the [OK] button.

h The DVD drive tray opens for you to remove the disc.

h After burning a disc, a save project dialog box appears. If you wish to

use the settings for the current project in subsequent projects, you should save them. If you will not use the settings in subsequent projects, it is not necessary to save them.

Click on the [OK] button.

h You are returned to the MovieFactory launcher.

Click on the exit MovieFactory button [×].

h The DVD is completed. h MovieFactory is exited.

How was that? The convenient accessories not only let you immediately view images captured with the camera, but you can also upload images to your computer and create your original DVDs. Read the following explanations to find out how you can fully enjoy your camera’s digital movie feature.

xiii English

CONTENTS

CONTENTS ........................................................................................... 1

QUICK SEARCH BY OPERATION ........................................................ 6

CHECKING THE INCLUDED ACCESSORIES ...................................... 9

How to use the accessories .......................................................... 11

Separately sold accessories ......................................................... 13

Media cards that can be used with this camera ............................ 13

GETTING THE MOST OUT OF YOUR CAMERA ............................... 14

Widescreen recording and playback (HD mode) .......................... 14

Capture still shots while recording a video clip ............................. 15

Docking station for easy connection ............................................. 16

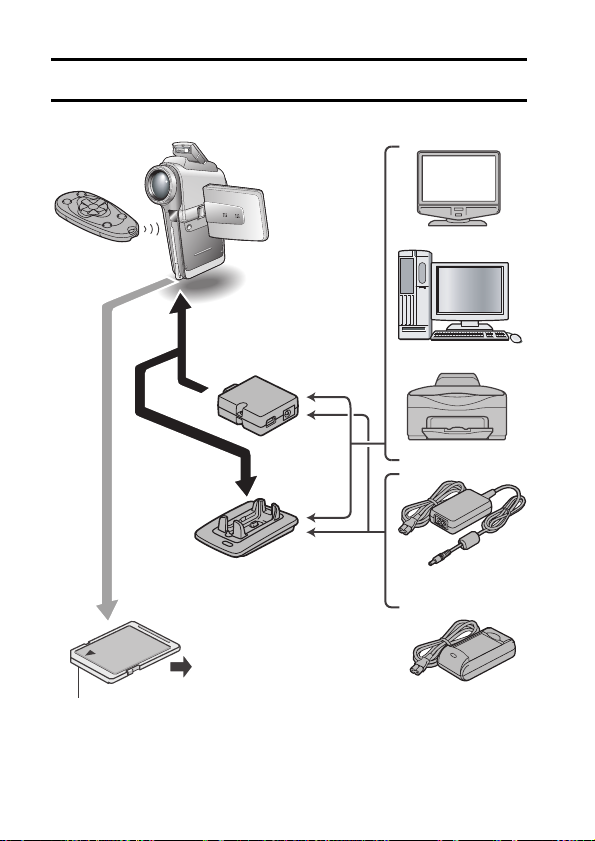

SYSTEM MAP ..................................................................................... 17

 SETUP

PARTS NAMES ................................................................................... 18

Camera ......................................................................................... 18

Docking station ............................................................................. 21

Remote control unit ....................................................................... 22

Cable adaptor ............................................................................... 22

INSTALLING THE CARD ..................................................................... 23

PREPARING THE DOCKING STATION ............................................. 25

PREPARING THE REMOTE CONTROL UNIT ................................... 26

Insert the battery ........................................................................... 26

How to use the remote control unit ............................................... 27

PREPARING THE POWER ................................................................. 29

Charging the battery pack ............................................................. 29

When using a power outlet ...........................................................32

About using the docking station/cable adaptor for recharging ...... 33

TURNING THE CAMERA ON AND OFF ............................................. 34

Turning on the camera .................................................................. 34

Turning on the camera when the power save (sleep) mode is

active ........................................................................................ 35

Turning off the camera .................................................................. 35

OPERATION BUTTONS ...................................................................... 37

DATE AND TIME SETTING ................................................................. 39

1 English

 BASIC OPERATION

BEFORE TAKING PICTURES .............................................................42

How to hold the camera ................................................................42

Using the autofocus .......................................................................43

Hints for taking pictures .................................................................45

VIDEO CLIP RECORDING AND PLAYBACK ......................................46

Recording video clips ....................................................................46

Playing back a video clip ...............................................................47

CAPTURING AND PLAYING BACK STILL IMAGES ...........................50

Shooting single shots ....................................................................50

Viewing still images ....................................................................... 52

9-image display playback ..............................................................53

Art mode playback .........................................................................54

Magnifying (zooming in) the image ...............................................56

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP ..........57

RECORDING IN THE HD MODE .........................................................59

Switching between the normal mode and HD mode .....................59

AUDIO RECORDING AND PLAYBACK ...............................................61

Audio recording .............................................................................61

Audio playback ..............................................................................63

SHOOTING AND PLAYBACK WITH THE REMOTE CONTROL

UNIT .................................................................................................64

USING THE ZOOM ..............................................................................65

SHOOTING WITH THE FLASH ............................................................66

EXPOSURE CORRECTION .................................................................68

SHOOTING IN THE HIGH SENSITIVITY MODE .................................70

 SHOOTING

DISPLAYING THE SHOOTING SETTING SCREENS .........................71

Switching the page ........................................................................72

Overview of the Shooting Setting Screens ....................................73

VIDEO CLIP MODE (IMAGE QUALITY) SETTING .............................. 77

STILL IMAGE MODE (RESOLUTION) SETTING ................................79

SCENE SELECT ..................................................................................80

EXPOSURE SETTING .........................................................................81

FILTERS ...............................................................................................83

MOTION COMPENSATION (IMAGE STABILIZER) .............................84

FOCUS RANGE ...................................................................................86

How to use the manual focus ........................................................87

FOCUS AREA SETTING ......................................................................88

English 2

CONTENTS

LIGHT-MEASURING MODE SETTING ............................................... 89

ISO SENSITIVITY ................................................................................ 90

WHITE BALANCE ................................................................................ 91

SELF-TIMER ........................................................................................ 93

CAPTURING SEQUENTIAL SHOTS ................................................... 94

 PLAYBACK

DISPLAYING THE PLAYBACK SETTING SCREENS ........................ 95

Switching the page ....................................................................... 96

Overview of the Playback Setting Screens ................................... 97

PLAYBACK MODE .............................................................................. 99

SLIDESHOW PLAYBACK ................................................................. 101

PLAYBACK VOLUME ........................................................................ 102

IMAGE PROTECT ............................................................................. 103

DELETING DATA .............................................................................. 105

ROTATE IMAGE ................................................................................ 107

CHANGING IMAGE SIZE (RESIZE) .................................................. 108

EXTRACTING A STILL IMAGE FROM A VIDEO CLIP ..................... 109

EDITING VIDEO CLIPS ..................................................................... 111

Procedure to cut (extract) a portion of a video clip ..................... 111

Procedure to join video clips .......................................................112

Video clip cutting (extracting) ...................................................... 113

Joining two video clips ................................................................ 117

PRINT INSTRUCTIONS .................................................................... 120

Display the Printing Instructions Screen ..................................... 120

Specifying date imprinting and print quantities ........................... 122

Index print ................................................................................... 124

Clearing all the printing instructions ............................................ 125

SMOOTH PLAYBACK ....................................................................... 126

DISPLAYING IMAGE PROPERTIES (INFORMATION SCREEN) ....127

3 English

 OPTION SETTINGS

DISPLAYING THE OPTION SCREEN ...............................................128

Overview of the Option Screen ...................................................129

SCREEN DISPLAY .............................................................................131

SELECT THE STARTUP DISPLAY ....................................................132

OPERATION SOUNDS ......................................................................133

POST-VIEW SETTING .......................................................................135

WIND NOISE REDUCTION ................................................................136

NOISE-REDUCTION FUNCTION ......................................................137

ADJUST THE IMAGE QUALITY .........................................................138

FLICKER-REDUCTION ......................................................................139

DIGITAL ZOOM SETTING .................................................................140

MONITOR BRIGHTNESS ..................................................................141

ADJUST THE VOLUME OF AN EXTERNAL MICROPHONE ............142

SCREEN LANGUAGE ........................................................................143

TV OUTPUT SETTING .......................................................................144

POWER SAVE FUNCTION ................................................................149

FILE NO. RESET FUNCTION ............................................................151

FORMATTING A CARD .....................................................................154

RESETTING THE CAMERA SETTINGS ............................................156

CHECKING THE REMAINING CARD MEMORY ...............................157

Checking the remaining number of images and

video recording time ................................................................157

For audio recordings ...................................................................157

CHECKING THE REMAINING BATTERY PACK CHARGE ..............159

 OTHER DEVICES AND CONNECTIONS

CONNECTING TO A TV .....................................................................161

Connecting to a standard video input terminal ............................161

Enjoy higher image quality (progressive output) .........................163

Connecting to the HDMI terminal ................................................164

Playing back on a TV ..................................................................165

DIRECT PRINTING ............................................................................166

Print preparations ........................................................................166

To select one image and print it (one image) ..............................168

To print all the images (all images) .............................................170

Thumbnail prints (index) ..............................................................171

To print images according to the printing instructions

(print requested images) .........................................................172

To change the printer settings and print images

(change printer settings) .........................................................173

CONNECTING AN EXTERNAL MICROPHONE ................................175

English 4

CONTENTS

 APPENDICES

COMMONLY ASKED QUESTIONS ................................................... 176

TROUBLESHOOTING ....................................................................... 184

Camera ....................................................................................... 184

Docking station ........................................................................... 193

Notes regarding the Scene Select feature and filters ................. 195

SPECIFICATIONS ............................................................................. 197

Camera ....................................................................................... 197

Camera connectors .................................................................... 201

Battery life ................................................................................... 202

Possible No. of Images/Possible Shooting Time/

Possible Recording Time ....................................................... 203

Docking station ........................................................................... 204

Remote control unit ..................................................................... 204

Concerning the multi-indicator .................................................... 205

Concerning the charge indicator ................................................. 206

Supplied AC adaptor ................................................................... 206

Supplied Li-ion battery pack ....................................................... 207

Others ......................................................................................... 208

HINTS FOR TAKING PICTURES ...................................................... 209

5 English

QUICK SEARCH BY OPERATION

Your camera has an abundance of convenient features and functions. From creating precisely the photo you want, to viewing images using various techniques, you can locate the exact operation for your purposes in the following table.

Shooting/recording

Basic operation Convenient functions Additional functions

Getting started shooting/recording

• “Recording video clips” on page 46

• “Shooting single shots” on page 50

• “CAPTURING SEQUENTIAL SHOTS” on page 94

• “Audio recording” on page 61

Optimize the photo quality

• “VIDEO CLIP MODE (IMAGE QUALITY) SETTING” on page 77

• “STILL IMAGE MODE (RESOLUTION) SETTING” on page 79

Widescreen video recording (HD mode)

• “RECORDING IN THE HD MODE” on page 59

Capture fast-moving subjects

• “SCENE SELECT” (sports mode) on page 80

Log the date and time of your photos

• “DATE AND TIME SETTING” on page 39

Zoom in on the subject

• “USING THE ZOOM” on page 65

Close-up photography

• “FOCUS RANGE” (super macro mode) on page 86

Reduce video clip flicker

• “FLICKER-REDUCTION” on page 139

Set the camera’s color/contrast characteristics

• “ADJUST THE IMAGE QUALITY” on page 138

For more accurate focus

• “FOCUS RANGE” (manual focus) on page 86

Set the focus to a narrow range

• “FOCUS AREA SETTING” on page 88

English 6

QUICK SEARCH BY OPERATION

Shooting/recording

Basic operation Convenient functions Additional functions

Shoot in dark conditions

• “EXPOSURE CORRECTION” on page 68

• “SHOOTING WITH THE FLASH” on page 66

• “SCENE SELECT” (night view portrait mode/fireworks mode/lamp mode) on page 80

Increase the camera’s sensitivity

• “ISO SENSITIVITY” on page 90

Photographing people

• “SCENE SELECT” (portrait mode/night view portrait mode) on page 80

• “FILTERS” (cosmetic filter) on page 83

• “SHOOTING WITH THE FLASH” (red-eye reduction) on page 66

Photographing landscapes

• “SCENE SELECT” (landscape mode) on page 80

Take a self-photo

• “SELF-TIMER” on page 93

Make images lighter or darker

• “EXPOSURE CORRECTION” on page 68

• “SHOOTING IN THE HIGH SENSITIVITY MODE” on page 70

Change the color of the images

• “FILTERS” (monochrome filter/sepia filter) on page 83

Measure the brightness of a specific area

• “LIGHT-MEASURING MODE SETTING” on page 89

Adjust the camera’s sensitivity

• “ISO SENSITIVITY” on page 90

For a more precise exposure setting

• “EXPOSURE SETTING” (manual exposure control) on page 81

Make white appear natural

• “WHITE BALANCE” on page 91

7 English

Playback

Basic operation Convenient functions Additional functions

Getting started viewing images

• “Playing back a video clip” on page 47

• “Viewing still images” on page 52

• “Audio playback” on page 63

Slideshow playback

• “PLAYBACK MODE” on page 99

• “SLIDESHOW PLAYBACK” on page 101

Adjust the monitor brightness

• “MONITOR BRIGHTNESS” on page 141

Playback on a TV

• “CONNECTING TO A TV” on page 161

Adjust the speaker volume

• “PLAYBACK VOLUME” on page 102

Smooth out video clip playback

• “SMOOTH PLAYBACK” on page 126

Search for image/ audio data

• “9-image display playback” on page 53

Magnify an image

• “Magnifying (zooming in) the image” on page 56

Adjust the speaker volume

• “PLAYBACK VOLUME” on page 102

Change the angle of view

• “ROTATE IMAGE” on page 107

A unique playback format

• “Art mode playback” on page 54

Set the TV system

• “TV OUTPUT SETTING” on page 144

Data managing/processing

Basic operation Convenient functions Additional functions

Search for image/audio data

• “9-image display playback” on page 53

Delete data

• “DELETING DATA” on page 105

Delete a part of a video clip and join video clips

• “EDITING VIDEO CLIPS” on page 111

Specify the number of prints, index print, and date imprint

• “PRINT INSTRUCTIONS” on page 120

Protect images from accidental erasure

• “IMAGE PROTECT” on page 103

Format a card

• “FORMATTING A CARD” on page 154

View the settings that were in effect when the image/audio data was recorded

• “DISPLAYING IMAGE PROPERTIES (INFORMATION SCREEN)” on page 127

English 8

CHECKING THE INCLUDED ACCESSORIES

i Handstrap and camera case:

1 set

i Li-ion battery pack: 1 i Docking station: 1

i Dedicated S-AV interface

cable: 1

Dedicated component cable: 1

i AC adaptor and power cord: 1

i SANYO Software Pack

(CD-ROM): 2

i Dedicated USB interface

cable: 1

i HDMI cable: 1

Included with model VPC-HD2EX. Not included with other models.

9 English

i Remote control unit and

battery (CR2025): 1

FOR CALIFORNIA, U.S.A. ONLY Perchlorate Material - special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswaste/ perchlorate.

i Lens cap and strap: 1 i Cable adaptor: 1

i Microphone connection

cable: 1

i “SAFETY MANUAL”

(safety precautions booklet) Please read this booklet carefully before using the camera.

i Core: Small (2), large (1)

Large:

For use with the AC adaptor power cord

Small:

For use with the microphone connection cable and the HDMI cable

i Quick Guide

English 10

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories

k Handstrap

k Lens cap

11 English

k Camera case

English 12

CHECKING THE INCLUDED ACCESSORIES

Separately sold accessories

i Lithium-ion Battery Charger VAR-L40

Battery charger for the supplied or separately sold lithium-ion battery pack (DB-L40A).

i Lithium-ion Battery DB-L40A

Same model as the supplied lithium-ion battery pack.

i Wide Conversion Lens VCP-L06W

Expand your camera’s wide-angle range.

i Tele Conversion Lens VCP-L14T

Make distant objects appear closer.

i HDMI Cable VCP-HDMI01

For connecting to the [HDMI] terminal.

i External Microphone VCP-MP01

Connect this stereo microphone to the external microphone jack [MIC].

Media cards that can be used with this camera

The type of card that can be inserted into and used with this camera is:

i SD Memory Card

13 English

GETTING THE MOST OUT OF YOUR CAMERA

297 00:07:10

F3.5 1/40

Your camera is a digital movie camera with the ability to shoot and play back video clips with high image quality. Video clips can be recorded with a 16:9 aspect ratio. Of course, your camera captures high-quality still images, as you would expect, and you can even capture still images while recording a video clip. The docking station makes it simple to connect other devices to your camera, providing you with the double advantages of both high functionality and ease of use.

Widescreen recording and playback (HD mode) (page 59)

In addition to the standard recording mode (normal mode, 4:3 aspect ratio), your camera can both record and play back video clips in the widescreen mode with a 16:9 aspect ratio (HD mode).

Press the

297 00:20:39

F3.5 1/40

<Normal Mode Shooting

Screen>

HD/NORM button

297 00:07:10

F3.5

1/40

<HD Mode Shooting

Screen>

English 14

GETTING THE MOST OUT OF YOUR CAMERA

Capture still shots while recording a video clip (page 57)

Suppose that while you’re recording a video clip, there’s a scene you’d like to keep as a still photo. Your camera makes it possible to record the still photo without interrupting the video clip recording.

Still image shooting

button [ ]

15 English

Video clip recording button [ ]

297 00:10:39

F3.5 1/40

Docking station for easy connection

The docking station simplifies those complicated connections to your TV or computer. Just set the camera in the docking station, and you can view your photos on your TV or computer right away.

HDMI cable

Dedicated component cable

Dedicated S-AV interface cable

Dedicated USB interface cable

Computer

Printer

English 16

SYSTEM MAP

You can connect the camera to various devices to expand its capabilities.

Remote control unit

Cable adaptor

Docking station

i Card reader i DPOF-compatible printer i Photo shop

Separately sold or commercially available SD Memory Card

17 English

Computer

Printer

AC adaptor

(supplied)

Battery charger

(optional)

PARTS NAMES

Camera

Front

Flash

i Extends when the flash

button [?] is pressed.

SETUP

Flash unit

External microphone

jack [MIC]

Flash button [?]

Speaker

Battery cover lock

Battery cover

Charge indicator

Stereo microphone

Lens

Remote control sensor

Monitor unit

Strap holder

Monitor unit

English 18

PARTS NAMES

ON/OFF button

19 English

Rear

button [ ]

Monitor

ON/OFF button

HD/NORM button

Multi-indicatorStill image shooting

Video clip recording button [ ]

Zoom switch

Main switch

Card slot cover

HIGH SENSITIVITY

Bottom

button

Tripod stand hole h Open the monitor

unit before mounting the camera on a tripod.

SET

button

Docking station terminal

MENU button

English 20

PARTS NAMES

Docking station

Front

Rear

Docking station terminal

Operation mode button [ ]

HDMI terminal

21 English

DC IN terminal

USB/AV terminal

COMPONENT terminal

Remote control unit

1 Still image shooting button 2 Video clip recording button 3 SET button 4 Works the same as toggling

SET button to the left

5 Works the same as toggling

SET button up or pushing zoom switch toward the [T] ([]]) side

6 Works the same as toggling

SET button to the right

7 Works the same as toggling

SET button down or pushing zoom switch toward the [W] ([P]) side

8 CH button 9 MENU button

* Operation shortcuts are not available from the remote control unit.

1 (inoperative) 2 (inoperative) 3 SET button 4 Works the same as toggling

SET button to the left

5 Works the same as toggling

SET button up

6 Works the same as toggling

SET button to the right

7 Works the same as toggling

SET button down

8 CH button 9 MENU button

Cable adaptor

Docking station terminal

USB/AV terminal * The dedicated component cable

(supplied) cannot be connected.

DC IN terminal

English 22

INSTALLING THE CARD

Be sure to format a newly purchased card or one that was used in another device before using it in your camera (page 154). If an unformatted card is used, the card itself may become unusable.

1 Open the card slot cover, and

insert the card in the card slot.

Card slot cover

2 Insert the card all the way in.

h Firmly insert the card until it

clicks into place.

3 Close the card slot cover.

Card slot Card

23 English

h To remove the card, press it in, and then release. The card will

protrude slightly, and you can then pull it out.

CAUTION Do not attempt to forcibly remove the card.

i Doing so may damage the card or the stored data.

If the multi-indicator is flashing red...

i Never remove the card when the multi-indicator is flashing red, as doing so

may result in loss of data stored in the card.

English 24

PREPARING THE DOCKING STATION

The supplied docking station is used to connect your camera to a computer, printer or TV, as well as to charge the battery pack installed in the camera.

1 Connect the docking station to a power outlet.

h Use the supplied AC adaptor and power cord.

Docking station

To reduce spurious radiation

i Please affix the large

core (supplied) to the cable.

3 mm or less

To power outlet

25 English

DC IN terminal

Supplied AC adaptor

Supplied power cord

PREPARING THE REMOTE CONTROL UNIT

The remote control unit can be used to take pictures and play them back with the camera.

Insert the battery

Install the supplied battery (CR2025) in the remote control unit.

1 Pull out the battery case.

Battery case

2 Insert the supplied battery.

h Wipe the battery with a soft, dry

cloth before inserting it.

h Insert the battery with the (+) mark

facing upward.

3 Reinsert the battery case.

Battery for remote control unit

English 26

PREPARING THE REMOTE CONTROL UNIT

How to use the remote control unit

The remote control unit can be used at an angle that is displaced 15 degrees horizontally from the remote control sensor on the front of the camera, at a distance of up to 7 meters. When operating the remote control unit, remove any object that may obstruct the path between it and the remote control sensor.

Remote control sensor

At a distance of up to 7 meters

15° horizontally

To AC adaptor

Infrared emitter

CAUTION

i If the remote control unit is operated in sunlight or under inverter lighting,

the remote control receiving range may become shorter. This is a characteristic of the infrared remote control unit and is not a defect. To avoid this malfunction when operating the remote control unit, take care to shield the remote control sensor from strong light.

27 English

Changing the remote control code

The remote control unit will also work with other Sanyo cameras that can be operated by infrared remote control. When more than one camera is present, it is recommended to change the remote control code to ensure that only the intended camera operates when the remote control unit is used. The remote control code is set to “RC CODE 1” at the time of purchase.

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Hold down the CH button and press the [J] button for about

3 seconds.

3 Press a button on the remote control unit and check that the camera

is receiving correctly.

h The remote control codes are retained even if the batteries in the

remote control unit or camera are replaced.

h If the remote control codes for the remote control unit and the camera

and do not match, the remote control unit cannot be used to operate the camera.

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Hold down the CH button and press the [I] button for about

3 seconds.

English 28

PREPARING THE POWER

Please charge the supplied battery pack before using it. Power to the camera can also be supplied from a power outlet if the docking station or the cable adaptor is used.

Charging the battery pack

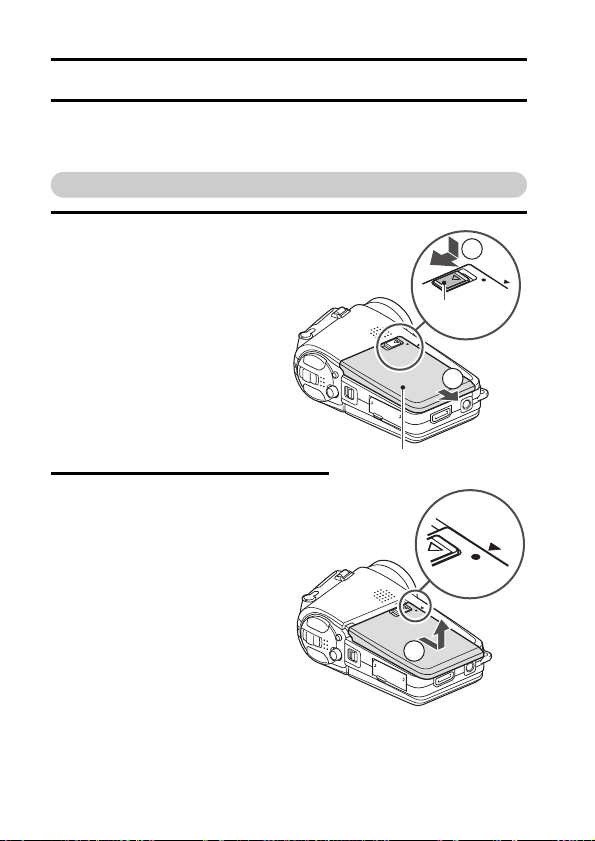

1 While pressing the battery

cover lock, slide it (1), and pull out the battery cover toward the bottom of the camera (2).

2 Open the battery cover (3).

h The battery cover comes off.

Battery cover

Battery cover lock

29 English

3 Insert the battery pack.

h Take care that it is positioned

correctly.

4 Replace the battery cover.

h Raise the edge of the battery pack

to remove it.

5 Prepare the docking station

(page 25).

Battery pack

6 Close the camera’s monitor unit,

and set the camera in the docking station.

h Set the camera securely, making

sure that the camera is correctly oriented in relation to the terminal contacts in the docking station.

h Charging begins when the camera

is set in the docking station.

h During charging, the charge

indicator is lit red. When charging is completed, the charge indicator turns off.

h If the charge indicator flashes red,

it indicates that the battery pack is defective or the camera is not correctly set in the docking station. Reset the camera correctly in the docking station.

h The charging time is approx.

90 minutes.

Charge indicator

Docking station terminal

English 30

PREPARING THE POWER

CAUTION Using the camera when it is set in the docking station...

i You can photograph and view images while the camera is set in the

docking station. The battery pack can be charged when the camera is in the playback mode, but not in the shooting mode.

Do not charge the battery pack battery pack immediately after the camera has been in continuous use for a long time

i The battery pack becomes hot when the camera is used continuously for a

long time. If you attempt to charge the battery pack in this state, the charge indicator may flash red and it may not be possible to charge the battery pack. Wait until the battery pack has cooled down before attempting to charge it.

Does the battery pack appear swollen?

i The lithium-ion battery used in this camera may expand slightly when

stored in a hot environment or repeatedly used, but this is not a safety hazard.

HINT About the internal backup battery

i This camera’s internal battery serves to maintain the date and time

settings, as well as the shooting settings. The backup battery will be fully charged when the battery pack is kept in the camera continuously for about 2 days. In the fully charged state, the backup battery will maintain the camera settings for about 7 days.

When not using the camera for a long time, remove the battery pack

i A small amount of power is still used even if the camera is turned off, and it

is therefore recommended that the battery pack be removed from the camera if it is not going to be used for a long time. Note that when the battery pack is removed for a long period, the time and date settings may be cleared. Before using your camera again, be sure to confirm that the camera settings are correct.

To prolong the life of the battery pack

i Although the battery pack is an expendable item, you can maximize the life

of the battery by heeding the following suggestions. h Do not leave the battery under the hot summer sun or exposed to other

high-temperature environments.

h Do not continually recharge the battery when it is already fully charged.

After fully charging it once, for example, use it for a while to partially discharge it before recharging it again.

h When the battery is not to be used for a long time, if possible store the

partially charged (not fully charged) battery in a cool environment.

31 English

When using a power outlet

Power to the camera can be supplied from a power outlet if the docking station or the cable adaptor is used.

Using the docking station

Use the supplied power cord to connect the docking station to a power outlet, and set the camera in the docking station.

Using the cable adaptor

Connect the cable adaptor to the camera, and use the supplied power cord to connect the cable adaptor to a power outlet.

To reduce spurious radiation

i Please affix a large

core (supplied) to the cable.

Supplied cable adaptor

To power outlet

3 mm or less

Supplied AC adaptor

Supplied power cord

English 32

PREPARING THE POWER

About using the docking station/cable adaptor for recharging

The recharging operation differs depending on the position of the camera’s main switch and on the power ON/OFF status.

Recharging when the docking station is connected

Main switch

ON*

Recharges Recharges Recharges

Camera power

OFF

Power s ave

mode*

Does not

recharge*

*1After one continuous hour of no recording or playback, the camera

switches to the power save mode (page 35).

If the operation mode button on the docking station is pressed, the

camera turns on.

If the operation mode button on the docking station is pressed, the

camera turns off and recharging begins.

If the operation mode button on the docking station is pressed, the camera turns on and recharging stops.

Recharges*

Recharges

Recharging when the cable adaptor is connected

Main switch

* After one continuous hour of no recording or playback, the camera

switches to the power save mode (page 35).

ON* OFF

Recharges Recharges Recharges

Does not recharge

Camera power

Power s ave

mode

Recharges Recharges

33 English

TURNING THE CAMERA ON AND OFF

Turning on the camera

1 Set the main switch.

To shoot pictures:

Set to REC.

To play back images:

Set to PLAY.

2 Open the monitor unit.

3 Press the ON/OFF button for at

least 1 second.

h The camera turns on, and an

image appears on the monitor.

Main switch

Recording Playback

Monitor unit

ON/OFF button

Monitor

English 34

TURNING THE CAMERA ON AND OFF

Turning on the camera when the power save (sleep) mode is active

In order to preserve battery pack power, the power save (sleep) function will automatically turn off the camera after 1 minute of no use during shooting, or 5 minutes of no use during playback (factory-preset setting).

i When the power save mode is active, you can restore the power by any of

the following methods:

h Move the main switch. h Press the ON/OFF button. h Press the still image shooting/video clip recording button. h Press the SET or MENU button. h Press the zoom switch. h Press the flash button [?]. h Press the HD/NORM button. h Press the HIGH SENSITIVITY button.

i After the power save mode has been active for about 1 hour, the camera

will switch to the standby mode. In this case, you can restore the power by pressing the ON/OFF button, or by closing and then opening the monitor unit.

i When the AC adaptor is connected, the power save mode will become

active about 10 minutes after the camera is turned on (factory-preset setting).

i The user can specify the time elapsed before the power save mode is

activated (page 149).

i When the camera is connected to a computer or printer, the power save

mode becomes active after about 12 hours.

Turning off the camera

1 Press the ON/OFF button for at least 1 second.

h The camera turns off.

35 English

HINT To immediately activate the power save mode

i Press the ON/OFF button briefly to active the power save function.

About the standby mode

i To turn off the camera only briefly, you can close the monitor unit to put the

camera in the standby mode. The standby mode uses almost no power. When the monitor unit is opened again, the camera turns on immediately and you are ready to shoot or view images without any delay.

If the date and time setting has been completed (page 39)

i The current time is shown on the monitor when the main switch is set to

REC and the camera is turned on.

CAUTION If the K icon appears...

i When a picture is taken, the date and time it was captured are recorded

with it. If the date and time settings have not been completed (page 39), the date and time cannot be recorded with the captured images. For this reason, immediately after the camera is turned on, the “Set date and time” reminder briefly appears, after which the K icon is shown on the Shooting Screen. To have the date and time recorded with the images, please complete this setting before capturing images.

English 36

OPERATION BUTTONS

The procedures to change the camera settings, choose images, etc., are performed by using the SET button to control the monitor display. This operation is used very frequently, so it is best to become familiar with it right away.

1 Turn on the camera.

2 Press the MENU button.

h The Menu Screen appears.

To select the icon above, toggle the SET button up.

VIDEO CLIP MPEG4 640×480 30fps SHQ

To select the icon below, toggle the SET button down.

SET button

MENU button

PHOTO RESOLUTION 3072×2304 (7M-S)

SCENE SELECT FULL AUTO

37 English

To select the icon to the right, toggle the SET button to the right.

To select the icon to the left, toggle the SET button to the left.

Press the SET button. The selected icon moves to the left end of the lineup.

VIDEO CLIP MPEG4 720×480 30fps SDV

English 38

DATE AND TIME SETTING

The camera will record the date and time an image or audio recording is taken so that you can display them during playback. Therefore, before capturing images, make sure the correct date and time are set.

Example: To set the clock to 7:30 p.m. on December 24, 2007

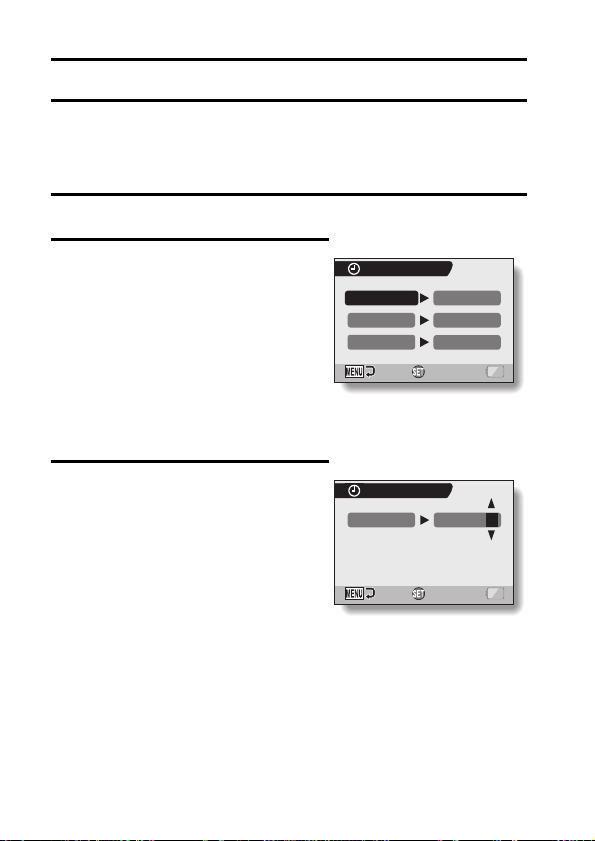

1 Display the Option Screen (page 128).

2 Select the clock set icon C, and

press the SET button.

h The Clock Set Screen appears. h The current date and time settings

are shown.

h Follow the procedures below to

enable or disable the date display during playback, to set the display format for the date, and to set the date and time.

h To return to the Option Screen,

press the MENU button.

3 Set the date.

1 Select “DATE”. 2 Press the SET button.

h The Set Date Screen appears.

3 Set the date to “2007/12/24”.

h The date is set in the following

order: Set the year → Set the month → Set the day.

h Toggle the SET button left or

right to select year, month or day. Toggle the SET button up or down to increase or decrease the number.

4 Press the SET button.

39 English

CLOCK SET

DATE

TIME

DISP

CLOCK SET

DATE

2007/03/01

00:00

Y / M / D

2007/12/24

4 Set the clock.

1 Select “TIME”. 2 Press the SET button.

h The Set Time Screen appears.

3 Set the time to “19:30”.

h The time is set in the following

order: Set the hour → Set the minute.

h A 24-hour clock is used for the

time display.

4 Press the SET button.

CLOCK SET

TIME

19:30

5 Set the order in which the date is

displayed during playback.

1 Select “DISP”. 2 Press the SET button.

h The Set Date Format Screen

appears.

3 Toggle the SET button up or down.

h Toggle the SET button up to

change the displayed date order as follows:

Y/M/D → M/D/Y → D/M/Y

Toggle the SET button down to change it in the reverse order.

4 Press the SET button.

CLOCK SET

DISP Y / M / D

English 40

DATE AND TIME SETTING

6 Press the MENU button.

h The date and time setting is completed, and you are returned to the

Option Screen.

h To return to the Shooting or Playback Screen, press the MENU button.

HINT

i Under normal conditions, while the battery pack is being replaced, an

internal battery will maintain the date and time settings. However, there is a small chance the settings may be lost (the backup will last for about 7 days). It is recommended to check that the date and time settings are still correct after replacing the battery pack and before shooting or recording of any type (follow steps 1 and 2).

To correct the date and time settings

i After steps 1 and 2, select the line of the setting that you want to change,

press the SET button, and follow the steps in the respective paragraphs above to change the setting.

41 English

BASIC OPERATION

BEFORE TAKING PICTURES

How to hold the camera

Hold the camera securely, keeping your elbows close to your body and making sure the camera is stable.

Correct hold Incorrect hold

A finger is blocking the lens or flash.

Example 1: Grip the camera by wrapping the fingers of the right hand, from the little finger to the middle finger, around the camera, and hook the index finger above the lens.

Example 2: Grip the camera by wrapping the fingers of the right hand, from the little finger to the index finger, around the camera.

Make sure that the lens and flash are not blocked by your fingers or the strap.

HINT

i Images captured in the still image shooting mode can be rotated when

they are played back (page 107).

i When the optical zoom is used or when the autofocus is operating, the

image may appear to waver, but this is not a malfunction.

English 42

BEFORE TAKING PICTURES

Using the autofocus

The autofocus will work in almost all situations; however, there are certain conditions that may cause the autofocus function to not work properly. If the autofocus function is not working properly, set the focus range to capture images (page 86).

k Conditions that may cause incorrect focus

The following examples are some of the situations where the autofocus function may not work.

i Subjects with low contrast, very bright

subjects at the center of the image or dark subjects or locations

Use the focus-lock function to lock the focus on an object with contrast at the same distance as the desired subject.

i Subjects without vertical lines

Use the focus-lock function to lock the focus while framing the subject vertically, then re-orient the camera to compose a horizontally framed image.

43 English

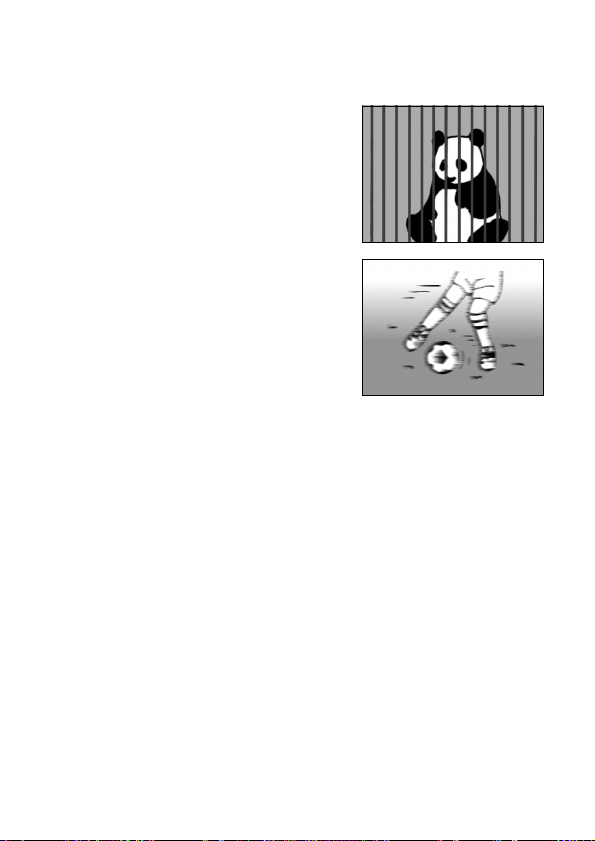

The following examples are some of the situations where the autofocus function may work, but not as desired.

i When both near and far objects are

present

Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture.

i Fast-moving subjects

Use the focus-lock function to lock the focus on an object at the same distance as the desired subject, then reposition the camera to compose the picture.

English 44

BEFORE TAKING PICTURES

Hints for taking pictures

Muting the operation sounds

i The operation sounds that are generated, for example, when the still image

shooting button, MENU button or SET button is pressed, as well as the audio guidance when you switch the mode, can be muted (page 133).

Where is the image and audio data saved?

i All the image and sound data is recorded on the card installed in the

camera.

Taking pictures in backlight conditions...

i When taking pictures with the light coming from behind the subject, due to

the characteristics of the lens, light lines or ghost patterns (flare phenomenon) may appear in the captured image. In this situation, it is recommended that you avoid taking pictures with the subject lit from behind.

While the image data is being recorded...

i While the multi-indicator is flashing red, the image data is being written to

the memory, during which time it is not possible to capture another image. Another image can be captured after the flashing red indicator turns off. However, even when the multi-indicator is flashing red, depending on the camera’s internal memory remaining capacity, in some cases the next image can be captured about 2 seconds after shooting.

Checking the last image shot (instant review)

i After shooting a picture, you can immediately view it by pressing the SET

button once.

i During instant review of a video clip, normal play, reverse play and pause,

etc. are available (page 48).

i If you wish to delete the image (for a video clip, it must be in the pause or

stop mode), toggle the SET button up to access the delete function.

i You can view other images while the instant review display is showing by

toggling the SET button to the left or right.

i Cancel the instant review display by toggling the SET button down.

45 English

VIDEO CLIP RECORDING AND PLAYBACK

REC 00:00:15

Recording video clips

1 Turn on the camera.

If the monitor unit is closed

→ Open the monitor unit.

If the camera is in the power save mode OFF button.

→ Press the ON/

2 Set the main switch to

REC.

3 Press the video clip

recording button [].

h Recording begins. h It is not necessary to

keep the video clip recording button pressed while shooting.

h When the remaining

recording time available for the currently recording clip becomes little, a countdown of the remaining recording time appears on the display.

4 End the recording.

h Press the video clip

recording button again to stop recording.

Monitor unit

Main switch

Recording time

Available recording time

Video clip recording

button [ ]

REC 00:00:15

remaining

English 46

VIDEO CLIP RECORDING AND PLAYBACK

Playing back a video clip

5 Set the main switch to PLAY.

h The video clip just recorded is

shown on the monitor.

6 Press the SET button.

h Playback of the video clip begins.

<Example: After recording a

video clip: Normal mode>

Main switch

SET button

<Example: After recording a

video clip: HD mode>

47 English

To do this... Do this

Normal forward playback Press the SET button.

Stop playback During playback, toggle the SET button down.

Pause

To play back

one image

at a time

(single-

frame step)

Slow

playback

accelerate

playback

Return to normal playback

Adjusting the volume

During forward

playback

During reverse

playback

During forward

playback

During reverse

playback

Forward

playback

Reverse playback

speed

During playback, press the SET button or toggle the SET button up. During accelerated playback, toggle the SET button up.

After pausing playback, toggle the SET button to the right.

After pausing playback, toggle the SET button to the left.

After pausing playback, press and hold the SET button to the right.

After pausing playback, press and hold the SET button to the left.

During forward playback, toggle the SET button to the right. * The playback speed changes each time the

SET button is toggled to the right, as follows: Normal playback Toggle the SET button to the left to resume normal playback speed.

During forward playback, toggle the SET button to the left. * The playback speed changes each time the

SET button is toggled to the left, as follows: 15× ← 10× ← 5× Toggle the SET button to the right to resume normal playback speed.

Press the SET button.

Louder: During playback, push the zoom

Softer: During playback, push the zoom

→ 2× → 5× → 10× → 15×

switch toward the [T] side.

switch toward the [W] side.

When you are finished using the camera...

i Press the ON/OFF button to turn the camera off.

English 48

VIDEO CLIP RECORDING AND PLAYBACK

HINT Adjusting the monitor brightness

i While the Shooting Screen is active, you can quickly access the screen for

adjusting the brightness of the monitor by pressing the MENU button for at least 1 second.

The focus can be locked

i The autofocus can be set to a fixed focus during video clip recording if you

toggle the SET button up. When the autofocus is fixed, the p icon appears on the monitor.

i When the focus range (page 86) setting is changed, the focus lock is

released.

The data for a video clip is very large

i Therefore, be aware that if the video clip is uploaded to a computer to be

played back, the computer may not be able to play back the video fast enough, making it appear jerky. (The video will always be displayed properly on the monitor or a television.)

i Depending on the card, shooting may end even before the possible

shooting time indicated.

Display the video clip playback point

i During video clip playback, press the MENU button for at least 1 second to

display a bar showing the current playback point in the video clip.

i Press the MENU button for about 1 second to cancel the bar.

CAUTION During video clip playback, the sound of a motor is audible...

i During recording, the sound of the optical zoom movement or autofocus

movement was recorded. This is not a malfunction.

If no audio is heard...

i The audio is not played back when the video clip is played back in the

frame-by-frame, fast playback or reverse playback mode.

49 English

CAPTURING AND PLAYING BACK

F3.5 1/40

STILL IMAGES

Shooting single shots

1 Press the ON/OFF button to

turn the camera on.

Main switch

2 Set the main switch to REC.

3 Press the still image shooting

button [ ]. 1 Press the still image

shooting button halfway.

h The autofocus operates,

and the image is focused (focus lock).

2 Continue to gently press

the still image shooting button all the way.

h The shutter releases and

the image is captured.

h You can view the captured

image on the monitor by keeping the still image shooting button depressed when you capture the image (post-view [page 135]).

F3.5

F3.5 1/40

1/40

Shutter speed

Aperture

Still image shooting

Target mark

button [ ]

English 50

CAPTURING AND PLAYING BACK STILL IMAGES

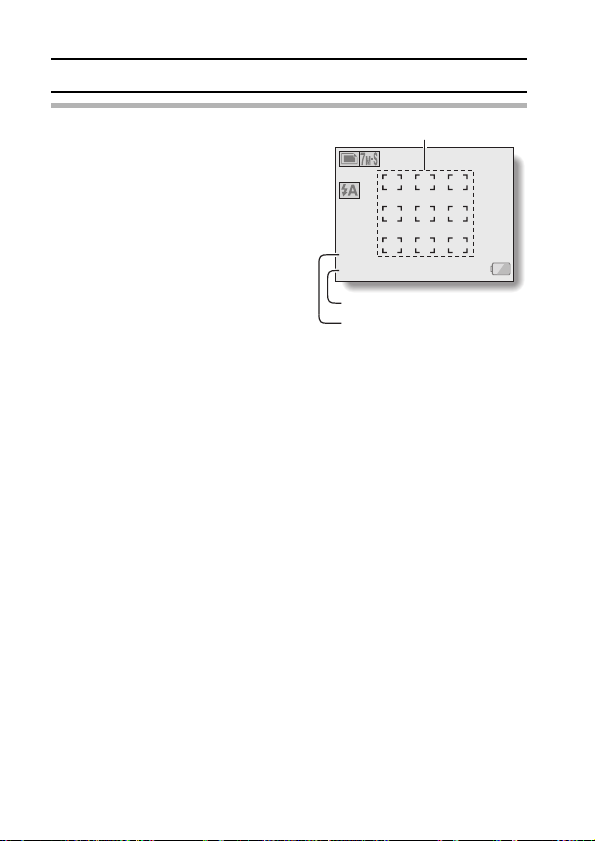

HINT What is the camera focusing on?

i A target mark & on the monitor shows

the area the camera is focusing on.

i The camera automatically determines

the correct focus by measuring from 9 different focus points within the shooting area. If the target mark is at a position that is different from the point you wish to focus on, you can refocus, for example, by changing the shooting angle.

i The large target mark appears when

the camera focuses on a wide area in the center of the screen.

The shutter speed and aperture are displayed

i When the camera focuses and the

target mark appears, at the same time, the shutter speed and aperture settings are also displayed. You can use them as a reference when shooting.

If the camera shake icon > appears...

i During still image shooting, if the

shutter speed is slow and the possibility that the image may be blurred due to camera shake becomes high, the camera shake icon may appear on the monitor. In this case, use a tripod to stabilize the camera when shooting, or set the flash operation mode to automatic (page 66).

i When shooting with the scene select

function set to the fireworks + mode, the camera shake icon always appears, but this is normal.

Target mark

F3.5 1/40

Shutter speed Aperture

51 English

Viewing still images

100-0001

1 Set the main switch to PLAY.

h An image is displayed on the

monitor.

2 Select the image you wish to

view.

To display the previous image, toggle the SET button to the left. To display the next image, toggle the SET button to the right. h Display the desired image.

Main switch

SET button

100-0001

English 52

CAPTURING AND PLAYING BACK STILL IMAGES

9-image display playback

1 Set the main switch to PLAY.

2 Push the zoom switch toward

the [W] ([P]) side.

h The 9-image display appears.

3 Select the image to play back.

h Toggle the SET button up,

down, left or right to move the orange frame to the desired image, and press the SET button. Instead of pressing the SET button, you can push the zoom switch toward the [T] ([]]) side to show the image full screen.

h If the zoom switch is pushed

toward the [W] ([P]) side while the 9-image display is shown, the camera changes to the art mode playback (page 54).

Video clip

101

Audio data

Folder number

Main switch

Zoom switch

SET button

Orange frame

Still image

0002 00030001

0005 00060004

0008 00090007

Image number

HINT

i The 9-image multi-playback display can also be accessed by selecting P

on the Playback Setting Screen.

53 English

Art mode playback

Art mode playback displays all 22 images that immediately follow the image currently shown on the normal display, or the framed image on the 9-image display.

[W] (P)[W] (P)

<Normal playback> <9-image playback

[T] (])/SET button [T] (])

* When the number of images is less than 22, the blank frames are filled in

with color.

display>

SET button

1 In normal playback, display an

image (pages 47 and 52), or on the 9-image playback display, move the orange frame to select an image (page 53). This will be the largest image in the art mode playback display.

English 54

CAPTURING AND PLAYING BACK STILL IMAGES

2 If switching to the art mode

playback from normal playback, push the zoom switch toward the [W] ([P]) side two times. Push it one time if switching from the 9-image playback display.

h The screen changes to art mode

playback.

<Art mode playback screen operation> Toggle the SET button up or down:

Select an image.

Press the SET button:

The selected image is displayed fullscreen.

Press the MENU button:

The selected image is displayed fullscreen, and the Playback Setting Screen (page 97) appears.

Toggle the SET button to the left or right:

The images before and after are displayed in random order.

Push the zoom switch toward the [T] ([]]) side:

The screen changes to the 9-image display.

Orange frame

55 English

Magnifying (zooming in) the image

109%

1 Display the image that you want to magnify.

h For a video clip, pause playback at the place you want to magnify.

2 Push the zoom switch toward the [T]

([]]) side.

h Magnification is enabled. h The image is magnified, and the

central portion of image is displayed.

h Toggle the SET button to view

different parts of the magnified image.

To magnify:

Magnification increases each time the zoom switch is pushed toward the [T] ([]]) side.

To return to normal size:

Magnification decreases each time the zoom switch is pushed toward the [W] ([P]) side.

h Press the SET button to retur n to the

normal (100%) view.

HINT The magnified portion of the image can be saved as a separate image

i Press the still image shooting button. The magnified portion is saved as a

new still image.

Press shutter to save

100%

MOVE

109%

English 56

SHOOT A STILL IMAGE WHILE

REC 00:00:09

RECORDING A VIDEO CLIP

You can capture a still image (a single-shot) while recording a video clip.

1 Press the ON/OFF button for at

least 1 second to turn the camera on.

2 Set the main switch to REC.

3 Press the video clip recording

button [ ].

4 When you see a scene you’d like

to capture as a still image, press the still image shooting button [].

5 End the recording.

h Press the video clip recording

button to stop recording.

Video clip recording

button [ ]

Still image shooting button

[]

Main switch

REC 00:00:09

57 English

CAUTION

i When shooting a still image while recording a video clip, the flash does not

operate.

i When shooting a still image while recording a video clip, the display briefly

pauses, and then returns to the video clip display after the still image is captured.

i If the still image resolution is set to k, it automatically changes to w

and the image is captured.

i When the remaining video recording time becomes approximately

50 seconds, it will no longer be possible to capture a still image while recording a video clip. The exact remaining recording time at which this occurs will differ depending on the subject and on the video clip mode setting (page 77). If you intend to capture a still image while recording a video clip, it is suggested that you take note of the remaining video recording time.

English 58

RECORDING IN THE HD MODE

In addition to the standard video clip recording mode (normal mode, aspect ratio 4:3), your camera can also record video clips in the widescreen mode (HD mode) with an aspect ratio of 16:9.

Switching between the normal mode and HD mode

1 Press the ON/OFF button for at least 1 second to turn the camera on.

2 Set the main switch to REC.

59 English

3 Press the HD/NORM button.

297 00:07:10

F3.5 1/40

h The monitor display changes to the 16:9 aspect ratio HD mode. h Each time the HD/NORM button is pressed, the mode switches

between the HD mode and the normal mode.

Press the

297 00:20:39

F3.5 1/40

<Normal Mode Shooting

Screen>

HD/NORM button

297 00:07:10

F3.5

1/40

<HD Mode Shooting

Screen>

4 Press the video clip recording button [ ].

English 60

AUDIO RECORDING AND PLAYBACK

Your camera can make audio recordings and play them back.

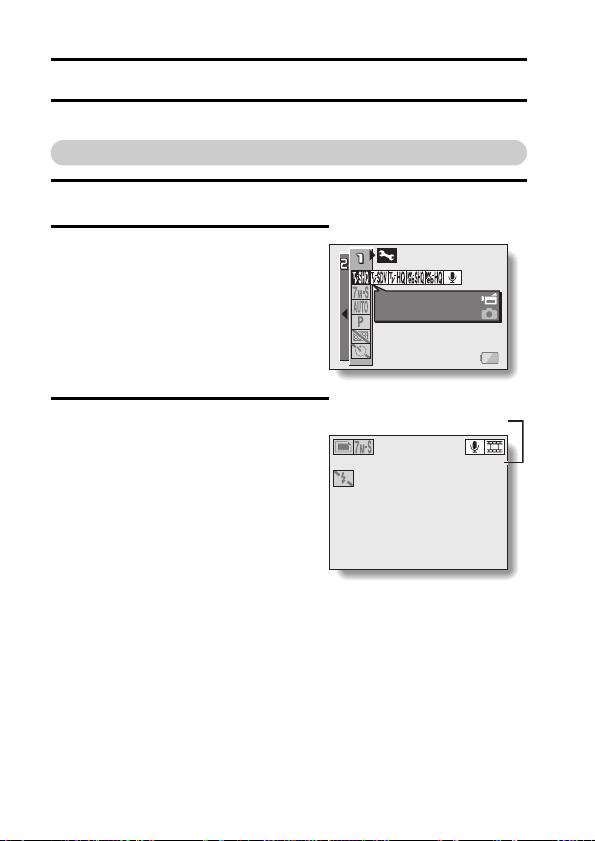

Audio recording

1 Set the main switch to REC.

2 Press the MENU button.

h The menu display appears.

VIDEO CLIP MPEG4 640×480 30fps SHQ

3 From the video clip mode menu,

select the audio memo icon <, and press the SET button.

h The audio recording mode is

enabled.

h The menu display is canceled if

the MENU button is pressed.

61 English

Remaining time

41 01:10:36

F3.5 1/40

4 Press the video clip recording

button.

h Audio recording begins. During

recording, < appears in the monitor. It is not necessary to continue pressing the video clip recording button while recording.

h The maximum time for recording a

continuous audio memo is about 13 hours.

5 End the recording.

h Press the video clip recording button again to stop recording.

HINT You can capture a still image during an audio recording

i Press the still image shooting button during audio recording to capture a

still image. Note, however, that if the resolution in the still image mode is set to k, it automatically changes to w and the image is captured.

Length of recording

REC 00:09:45

English 62

AUDIO RECORDING AND PLAYBACK

Audio playback

1 Display the desired audio data.

2 Play back the recording.

Start forward playback:

Press the SET button.

Pause:

During playback, press the SET button, or toggle the SET button up. During fast forward or fast reverse, toggle the SET button up.

Stop playback:

During playback, toggle the SET button down.

Fast forward/fast reverse:

h Fast forward/fast reverse playback is possible at 2× (forward only),

5×, 10× and 15×.

h Toggle the SET button to the left or right during playback to

activate fast forward/fast reverse.

h The playback speed changes each time the SET button is toggled

to the left or right.

Fast forward (toggle the SET button to the right)

2× → 5× → 10× → 15× * Toggle the SET button to the left to return to normal speed.

Fast reverse (toggle the SET button to the left)

15× ← 10× ← 5× * Toggle the SET button to the right to return to normal speed.

Adjusting the volume Louder: During playback, push the zoom switch toward the [T] side. Softer: During playback, push the zoom switch toward the [W] side.

CAUTION If no audio is heard...

i The audio is not played back when the audio memo is played back in the

fast playback or fast reverse mode.

00:00:00

63 English

SHOOTING AND PLAYBACK WITH THE REMOTE CONTROL UNIT

The remote control sensor on your camera makes it possible to capture images and play them back using the supplied remote control unit.

1 Prepare the remote control unit (page 26).

2 Turn the camera on, and set the main switch to REC or PLAY.

h Set the main switch to REC for shooting, or to PLAY for playback.

3 Aim the remote control unit at the camera’s remote control sensor.

h Open the monitor unit.

4 Press the buttons on the remote control unit to operate the camera

(page 22).

English 64

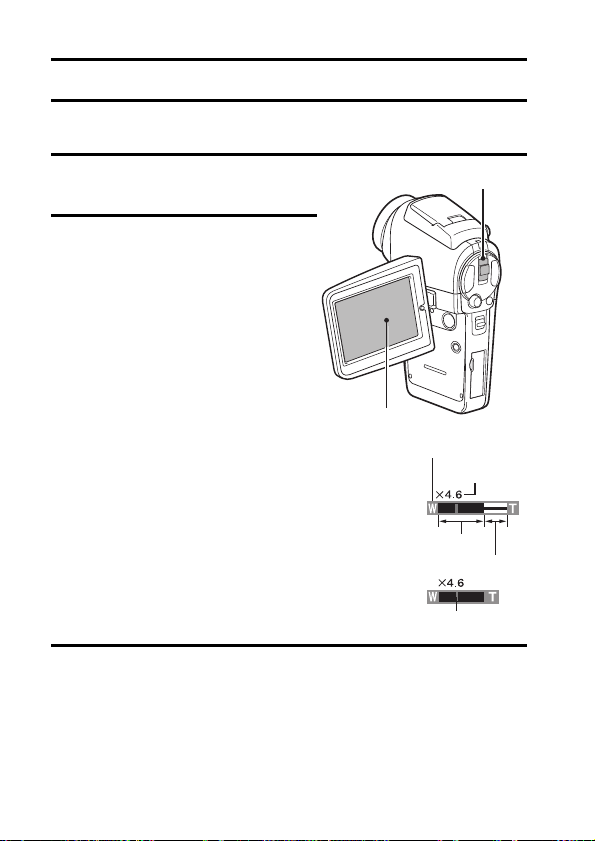

USING THE ZOOM

Your camera has two zoom functions: optical zoom and digital zoom. You can specify whether or not the digital zoom is enabled (page 140).

1 Point the camera lens at the

subject.

2 Press [T] or [W] on the zoom

switch to compose the desired image.

[T]: Zoom in on the subject. [W]: Zoom out. h When the zoom switch is

pressed, the zoom bar appears on the monitor.

h When moving the optical zoom,

press the zoom switch lightly to zoom slowly, and press more strongly to zoom quickly.

h When the optical zoom factor is at

maximum, zooming stops temporarily. When the zoom switch is pressed toward the [T] side again, the mode changes to the digital zoom mode and zooming continues.

3 Take the picture.

For video clip recording, see page 46. For shooting single shots, see page 50. For shooting sequential shots, see page 94.

Monitor

When both optical and digital zoom are enabled

When optical zoom only is enabled

Digital zoom (yellow)

Zoom switch

Zoom bar

Magnification

Optical zoom

Pointer

65 English

SHOOTING WITH THE FLASH

The flash is used not only for taking pictures where there is insufficient light, but also when the subject is in shade or in backlight conditions. Your camera’s flash has four modes of operation (automatic flash mode, forced flash mode, flash off mode, and red-eye reduction mode). Select the flash mode that is appropriate for the surrounding conditions. The flash can be enabled only when taking single-shot still images.

1 Set the main switch to REC.

2 Press the flash button to

extend the flash.

h The flash setting appears

on the monitor.

No flash indication:

The camera will detect the subject brightness and use the flash only when required. In a backlight situation, if only the center of the image is very dark, the flash will operate to compensate (auto flash).

Flash button

40 00:02:47

F3.5 1/40

Flash setting

English 66

SHOOTING WITH THE FLASH

m: The flash will operate with every image captured regardless

of the conditions. Use this setting under backlight conditions, when the subject is in shade, under fluorescent lighting conditions, etc. (forced flash).

l: The flash will not operate even in dark situations. Use this

setting when capturing an image in a location where flash photography is prohibited, or when shooting a night landscape scene (flash off).

J: The camera will detect the subject brightness and use the

flash only when required. At this time the flash will operate in a manner that reduces the red reflection (“red-eye”) in the subject’s eyes (red-eye reduction).

3 Press the flash button to set the flash mode.

h Each time the flash button is pressed, the flash mode changes. h Display the icon for the desired flash mode.

4 Press the still image shooting button.

h The picture is snapped and the flash operates according to the

selected mode.

HINT

i The flash cannot be used during video clip recording or in the sequential

shots mode.

67 English

EXPOSURE CORRECTION

When capturing images, you can make the image lighter or darker.

1 Set the main switch to REC.

h If the Shooting Setting

Screen is displayed, press the MENU button to exit it.

2 While the Shooting Screen is

displayed, toggle the SET button to the right.

h The exposure correction bar

appears.

3 Toggle the SET button to the

left or right to adjust the exposure.

h The exposure setting

numerical value is shown at the left end of the exposure bar.

h The exposure can be set to a

value from –1.8 EV to +1.8 EV.

h The exposure correction bar

is canceled when the MENU button or the SET button is pressed.

40 00:02:47

Main switch

SET button

MENU button

Exposure correction bar

Pointer

English 68

EXPOSURE CORRECTION

HINT The exposure correction setting is canceled in the following cases:

i When the pointer is set to the center position. i When the Option Screen is accessed. i When the main switch is set to PLAY. i After the power is turned off.

69 English

SHOOTING IN THE HIGH SENSITIVITY MODE

You can press the HIGH SENSITIVITY button to capture an even brighter image. You can also get a brighter image by setting the ISO sensitivity (page 90) to a higher setting.

1 Press the HIGH SENSITIVITY

button.

h The mark appears on the

monitor, and the camera changes to the high sensitivity mode.

Still image shooting:

Images are captured at an ISO sensitivity setting higher than t.

Video clip recording:

Sensitivity is increased by raising the ISO sensitivity above the t setting and by automatically adjusting the shutter speed during video clip recording.

h To return to normal sensitivity,

press the HIGH SENSITIVITY button again.

CAUTION Limitation concerning the high sensitivity mode

i It is not possible to set the manual exposure or flicker reduction function

while the high sensitivity mode is enabled.

Does the movement in the recorded video clip appear rough?

i When the shutter speed is reduced to create a brighter image, video clip

movement may not appear smooth during playback.

HIGH SENSITIVITY

213

F3.5 1/30

button

00:20:40

English 70

SHOOTING PAGE 1 (BASIC SETTINGS)

DISPLAYING THE SHOOTING SETTING SCREENS

The Shooting Setting Screens are used to adjust your camera’s shooting settings. The Shooting Setting Screens are organized into two displays: PAG E 1 and PA GE 2 . The PAG E 1 settings (page 73) cover the basic shooting settings, and the PAGE 2 settings (page 75) provide you with more detailed settings.

1 Turn on the camera (page 34).

2 Set the main switch to REC.

3 Press the MENU button.

h The Shooting Setting Screen

appears.

h Pressing the MENU button again

will cancel the Shooting Setting Screen.

About the HELP display

When the Shooting Setting Screen icon is selected, the HELP display appears, showing the function of the selected icon and the shooting mode(s) for which it is effective.

Main switch

MENU button

VIDEO CLIP MPEG4 640×480 30fps SHQ

71 English

HELP display

VIDEO CLIP MPEG4 640×480 30fps SHQ

Switching the page

Switch from PAG E 1 to PA GE 2 , or vice versa, depending on how you wish to use your camera.

1 Display a Shooting Setting Screen.

2 Toggle the SET button to the left.

h The Shooting Setting Screen PAGE

changes.

h Each time the SET button is toggled

to the left, the PAGE changes.

PAG E indication

VIDEO CLIP MPEG4 640×480 30fps SHQ

<Example: Shooting Setting

Screen: PAGE 1>

IMAGE STABILIZER VIDEO VIEW

<Example: Shooting Setting

Screen: PAGE 2>

English 72

DISPLAYING THE SHOOTING SETTING SCREENS

Overview of the Shooting Setting Screens

PAG E 1

VIDEO CLIP MPEG4 640×480 30fps SHQ

73 English

1 Video clip mode menu

(page 77) <In the normal mode>

Record at 640 × 480 pixels,

30 fps, high image quality. Record at 720 × 480 pixels,

30 fps. Record at 640 × 480 pixels,

30 fps, standard image quality. Record at 320 × 240 pixels,

30 fps. Record at 320 × 240 pixels,

15 fps. Make an audio recording.

Record at 1,280 × 720 pixels,

30 fps, very high image quality. Record at 1,280 × 720 pixels,

30 fps, high image quality. Make an audio recording.

2 Still image mode menu

(page 79)

Shoot image at 3,072 × 2,304

resolution (approx. 7 million pixels [standard compression]).

Shoot image at 3,680 × 2,760

resolution (approx. 10 million pixels).

Shoot image at 3,072 × 2,304

resolution (approx. 7 million pixels [low compression]).

Shoot image at 3,072 × 1,728

resolution (approx. 5.30 million pixels).

Shoot image at 1,600 × 1,200

resolution (approx. 2 million pixels).

Shoot image at 1,280 × 720

resolution (approx. 900,000 pixels).

Shoot image at 640 × 480

resolution (approx. 300,000 pixels).

Shoot sequential images at

640 × 480 resolution (approx. 300,000 pixels).

* When you specify multiple functions that cannot be simultaneously enabled,

the function which was last set becomes the active setting, and the other

3 Scene select menu (page 80)

Full auto photography

Sports photography

Portrait photography

Landscape photography

Night view portrait photography

Fireworks photography

Lamp photography

4 Manual exposure setting

menu (page 81)

The exposure is set

automatically. Set the shutter speed and ND

filter settings. Set the aperture size and ND

filter settings. Set the aperture size, shutter

speed and ND filter settings.

5 Filter menu (page 83)

No filter

Cosmetic filter

Monochrome filter

Sepia filter

6 Self-timer menu (page 93)

Self-timer off

Shooting begins 2 seconds

after the still image shooting button or video clip recording button is pressed.

Shooting begins 10 seconds

after the still image shooting button or video clip recording button is pressed.

7 Option icon (page 128)

h Displays the Option Screen.

8 PAGE display (page 72) 9 HELP display (page 95) 0 Remaining battery power

(page 159)

settings accordingly change automatically.

English 74

DISPLAYING THE SHOOTING SETTING SCREENS PAG E 2

IMAGE STABILIZER VIDEO VIEW

75 English

1 Image stabilizer menu

(page 84)

p: Shoot using the video clip

field of view display.

q: Shoot using the still image

field of view display.

]: Image stabilizer function off

2 Focus menu (page 86)

-: All ranges mode

*: Normal mode

-: Manual mode +: Super macro (close-up)

mode

3 Focus mode menu (page 88)

B: 9-point range finder focus

setting

C: Spot focus setting

4 Light-measuring mode (EXP

MEASURE) menu (page 89)

n: Multi-section light-

measuring setting

W: Center-weighted light-

measuring setting

Y: Spot light-measuring

setting

5 ISO sensitivity menu

(page 90)

t: Auto sensitivity setting

(corresponds to ISO 50 to

400).

*: Corresponds to ISO 50.

u: Corresponds to ISO 100. v: Corresponds to ISO 200. w: Corresponds to ISO 400.

6: Corresponds to ISO 800.

-: Corresponds to ISO 1600.

* The indicated ISO value is the

standard output sensitivity.

6 White balance menu (page 91)

>: White balance is

automatically adjusted depending on ambient lighting.

r: For photography in fair

weather (sunny) conditions

o: In overcast conditions p: Under fluorescent lighting q: Under incandescent

lighting

]: For setting the most

accurate white balance

7 Option icon (page 128)

h Display the Option Screen.

8 PAGE display (page 72) 9 HELP display (page 95) 0 Remaining battery power

(page 159)

* When you specify multiple functions that cannot be simultaneously enabled,

the function which was last set becomes the active setting, and the other settings accordingly change automatically.

English 76

VIDEO CLIP MODE (IMAGE QUALITY) SETTING

When it comes to video clips, a larger number of pixels and a higher frame rate means better image quality and smoother playback. On the other hand, the file size becomes large and uses more memory. Set the image quality to a setting that’s right for your purpose.

1 Display the PAGE 1 Shooting Setting Screen (page 72).

2 Select the video clip mode menu.

Setting

HD mode

Normal

mode

HD mode/

normal

mode

3 Select the desired icon from the video clip mode menu, and press

the SET button.

h This completes the video clip mode setting.

HINT Recording a video clip to play back on a TV

i Set the video clip mode to S. Note, however, that a video clip recorded in

the S mode may appear stretched horizontally when played back on a computer.

Resolution

(units: pixels)

1,280 × 720 30 fps

V High image quality S 720 × 480 30 fps

b 640 × 480 30 fps a 640 × 480 30 fps

d 320 × 240 15 fps

< —— —

Frame

rate

Very high image quality

Standard image qualityl 320 × 240 30 fps

Image quality

High image quality

77 English

CAUTION When editing video clips...

i In order for video clips to be joined, they must have been photographed in

the same mode.

i Video clips that were photographed in different modes cannot be joined.

Playing back video clips that were recorded with a different camera

i Video clips recorded using model VPC-HD1A or VPC-HD1 with the mode

set to T (640 × 480 pixels, 60 fps) will be played back on this camera at a resolution of 640 × 480 pixels and frame rate 30 fps.

English 78

STILL IMAGE MODE (RESOLUTION) SETTING

By setting the still image resolution (pixels) to a higher setting, image detail is enhanced for a smoother, finer picture. However, the file size also becomes large and uses more memory. Select the resolution setting that suits your purpose.

1 Display the PAGE 1 Shooting Setting Screen (page 72).

2 Select the still image mode menu.

h Shooting with the still image mode set to v or u will produce an

image with an aspect ratio of 16:9.

h When set to P, the camera changes to the sequential shots mode

(page 94).

Setting Resolution (units: pixels) Compression

k 3,680 × 2,760 Standard compression

x w v 3,072 × 1,728

t 1,600 × 1,200

u 1,280 × 720

[

3 Select the desired icon from the still image resolution menu, and

press the SET button.

h This completes the still image resolution setting.

3,072 × 2,304

640 × 480

Low compression

Standard compression

79 English

SCENE SELECT

You can select from various preset settings (aperture, shutter speed, etc.) for specific shooting conditions.

1 Display the PAGE 1 Shooting Setting Screen (page 72).

2 Select the scene select menu.

=: The camera automatically makes the optimum settings suitable for

the surrounding conditions (full auto).

a: Capture a split-second image of a fast-moving subject (sports

mode).

>: Enhance the 3D feeling of the subject by blurring the background

(portrait mode).

+: For beautiful shots of distant scenery (landscape mode). /: Photograph the subject while keeping the background night

scenery (night view portrait mode: For single-shot shooting, video clip recording only).

+: For capturing fireworks at night (fireworks mode: For single-shot

shooting, video clip recording only).

Q: Photograph in low-light conditions (lamp mode: For single-shot

shooting, video clip recording only).

3 Select the desired icon from the scene select menu, and press the

SET button.

h This completes the scene select function setting. h To return to normal photography, select = from the scene select

menu, and press the SET button.

HINT

i When capturing images using the lamp Q, fireworks + or night view

portrait / setting, use a tripod or other method to stabilize the camera.

i A table showing the limitations for settings corresponding to scene select

icons other than = is on page 195.

English 80

EXPOSURE SETTING

Various settings—including shutter speed, aperture size, the ND filter ON/ OFF status—can be set by the user.

1 Display the PAGE 1 Shooting Setting Screen (page 72).

2 Select the manual exposure menu.

@: The optimum shutter speed and aperture size are set according to

the brightness of the subject (aperture and shutter variable program AE).

Example: For simple shooting with minimum setup, using the camera’s automatic settings.

T: This allows you to set a specific shutter speed and enable/disable

the ND filter. The camera automatically sets an appropriate aperture size based on this setting (shutter speed priority AE).

Example: To set a fast shutter speed for capturing a clear image of a fast-moving object, or to set a slow shutter speed to shoot the flow of a background scene. By using the flash in combination with a slow shutter speed, you can create beautiful photographs of people against a background night scene (slow synchro photography).

g: This allows you to set a specific aperture size and enable/disable

the ND filter. The camera automatically sets an appropriate shutter speed based on this setting (aperture priority AE).

Example: To open the aperture for portraits with a blurred background (for a shallow field depth), or to close the aperture for a clear foreground and background (for a deep field depth).

,: This allows you to set a specific shutter speed, aperture size and

enable/disable the ND filter (manual exposure control).

Example: When shooting in a dark location without using the flash, set the shutter to stay open for a longer time (slow shutter). When used for shooting nighttime scenes, you can capture lights flowing across the image.

81 English

3 Select the desired icon from the

manual exposure menu, and press the SET button. <If T, g or , was selected>

1 Toggle the SET button up or down

to select ND filter, aperture value or shutter speed.

2 Toggle the SET button left or right

to change the setting for the selected parameter.

4 Press the SET button.

h This completes the exposure

setting.

HINT

i To prevent the effects of camera shake at slow shutter speeds, it is

recommended to use a tripod or other method to stabilize the camera.

i A slow shutter speed may be useful for photographing in a darker

environment, but noise in the image may be increased.

i To minimize noise in the image, enable the noise reduction function

(page 137).

i The manual exposure setting automatically becomes @ if the scene

select function is active.

i In the sequential shots mode, the shutter speed is faster than 1/15 sec. i Even if the shutter speed is set to slower than 1/29 sec., the shutter speed

during video clip recording is 1/30 sec.

ND filter

F3.5 1/1500

Shutter speed Aperture

English 82

FILTERS

The filter feature changes image characteristics such as color tones, to apply unique effects to the photographed image.

1 Display the PAGE 1 Shooting Setting Screen (page 72).

2 Select the filter menu.

&: No filter is used (none). %: Skin tones are enhanced in close-up shots (cosmetic filter). W: Snap black-and-white photos (monochrome filter).

,: Create a sepia-tone photo (sepia filter).

3 Select the desired icon from the filter menu, and press the SET

button.

h This completes the filter setting. h To return to normal photography, select & from the filter menu, and

press the SET button.

HINT

i A table showing the limitations for settings corresponding to filter icons

other than & is on page 196.

83 English

MOTION COMPENSATION (IMAGE STABILIZER)

Your camera can minimize a jittery picture by compensating for unintentional hand motion (only during video clip recording).

1 Display the PAGE 2 Shooting Setting Screen (page 72).

2 Select the image stabilizer menu.

p: Compensate for camera shake during video clip recording. The

field of view does not change when the video clip recording button is pressed, so this setting is convenient when shooting mostly video clips (video clip field of view display).

q: Compensate for camera shake during video clip recording. The

field of view does not change when the still image recording button is pressed, so this setting is convenient when shooting mostly still images (still image field of view display).

]: Disengages the motion compensation function (OFF).

3 Select the desired icon from the image stabilizer menu, and press

the SET button.

h This completes the image stabilizer setting.

HINT If the motion compensation does not seem to be working...

i Due to the mechanical characteristics of this function, it may not be

possible for the camera to compensate for violent motion.

i If the digital zoom (page 140) is being used, the large magnification factor

may make it difficult for the motion compensation function to work correctly.

i When using a tripod, the docking station or other means to stabilize the

camera, please turn the motion compensation function off ]. If the motion compensation function is enabled when it is not actually needed, it may result in an image that appears unnatural.

English 84

MOTION COMPENSATION (IMAGE STABILIZER)

i When the motion compensation is set to ON, the field of view during

recording standby differs from the recordable field of view as shown below.

i When set to the motion compensation q setting, the video clip recording

range is as shown in the recording standby screen.

During still image

shooting

Display during

recording standby

For p setting

For q setting

Video clip recording area

For ] setting

During video clip

recording

i When recording in the HD mode, the field of view will change even when

the motion compensation is set to OFF.

i When the still image mode is set to u or [ and the scene selection

function to =, a, > or + (page 80), a still image captured during video clip recording will have the same field of view as the video clip.

85 English

FOCUS RANGE

1 Display the PAGE 2 Shooting Setting Screen (page 72).

2 Select the focus range menu.

h When shooting a subject at a medium to far distance, by setting the

focus range to *, you will find it both easier and faster to focus.

-: Wide end: 10 cm (3.94 in.) to infinity

Tele end: 1 m (3.28 ft.) to infinity (total range mode)

*: 80 cm (31.50 in.) to infinity (normal mode)

-: The focus can be manually set to any distance from 1 cm

(0.39 in.) to 40 m (131.23 ft.), as well as to infinity (manual focus).

+: 1 cm (0.39 in.) to 1 m (3.28 ft.) (super macro mode: wide end

only)

h When the focus range is set to *, + or -, the corresponding

indication appears on the monitor.

3 Select the desired icon from the focus range menu, and press the

SET button.

h This completes the focus range setting.

HINT

i From the Shooting Screen, you can quickly change the focus range setting

by toggling the SET button down.

i When the focus range is set to super macro +, the zoom is temporarily

set to the wide end.

i You can lock the focus by toggling the SET button up.

English 86

Sanyo VPC-H2GX, VPC-HD2, VPC-HD2EX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
