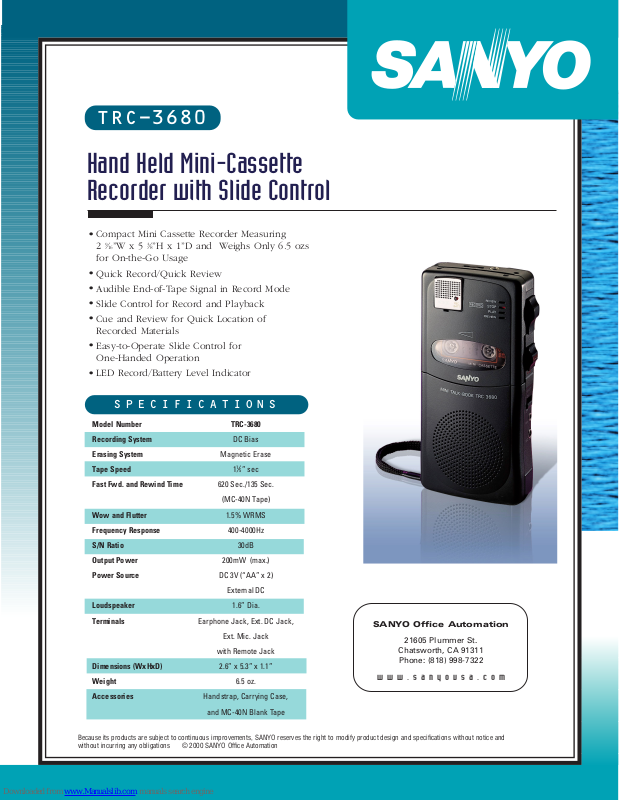

Page 1
Hand Held Mini-Cassette
Recorder with Slide Control
•
Compact Mini Cassette Recorder Measuring
2
9
⁄16”W x 5 3⁄8”H x 1”D and Weighs Only 6.5 ozs
for On-the-Go Usage
•
Quick Record/Quick Review
•
Audible End-of-Tape Signal in Record Mode
•
Slide Control for Record and Playback
•
Cue and Review for Quick Location of
Recorded Materials
•
Easy-to-Operate Slide Control for
One-Handed Operation
•
LED Record/Battery Level Indicator
TRC-3680
Because its products are subject to continuous improvements, SANYO reserves the right to modify product design and specifications without notice and
without incurring any obligations © 2000 SANYO Office Automation
Model Number
Recording System
Erasing System
Tape Speed
Fast Fwd. and Rewind Time
Wow and Flutter
Frequency Response
S/N Ratio
Output Power
Power Source
Loudspeaker
Terminals
Dimensions (WxHxD)
Weight
Accessories
TRC-3680
DC Bias
Magnetic Erase
1
1
⁄5” sec
620 Sec./135 Sec.
(MC-40N Tape)
1.5% WRMS
400-4000Hz
30dB
200mW (max.)
DC 3V (“AA” x 2)
External DC
1.6” Dia.
Earphone Jack, Ext. DC Jack,
Ext. Mic. Jack
with Remote Jack
2.6” x 5.3” x 1.1”
6.5 oz.
Handstrap, Carrying Case,
and MC-40N Blank Tape
SPECIFICATIONS
SANYO Office Automation
21605 Plummer St.
Chatsworth, CA 91311
Phone: (818) 998-7322
www.sanyousa.com
Page 2
TRC-3680
Hand Held Mini-Cassette Recorder with Slide Control
Compact Mini Cassette Recorder Measuring 2 9⁄16”W
x 5 3⁄8”H x 1”D and Weighs Only 6.5 ozs for On-the-
Go Usage
Quick Record/Quick Review
Audible End-of-Tape Signal in Record Mode
Slide Control for Record and Playback
Cue and Review for Quick Location of
Recorded Materials
Easy-to-Operate Slide Control for One-Handed
Operation
LED Record/Battery Level Indicator
Built-In Microphone for Convenient Dictation
Telephone Recording Capability with Optional
External Microphone
Safety Lock to Prevent Accidental Erasure of
Recorded Materials
Terminals for External Microphone, External
Earphone, External DC Power
Source Jack and Remote Control
Recharge Capable with Optional Rechargeable
Batteries
Accessories Include Handstrap, Carrying Case and
MC-30N Blank Tape
Operates on 2 “AA” Batteries (Not Included) or with
Optional Adaptor (3CV120B)
Model Number
Recording System
Erasing System
Tape Speed
Fast Fwd. and Rewind Time
Wow and Flutter
Frequency Response
S/N Ratio
Output Power
Power Source
Loudspeaker
Terminals
Dimensions (WxHxD)
Weight
Accessories
TRC-3680
DC Bias
Magnetic Erase
1
1
⁄5” sec
620 Sec./135 Sec.
(MC-40N Tape)
1.5% WRMS
400-4000Hz
30dB
200mW (max.)
DC 3V (“AA” x 2)
External DC
1.6” Dia.
Earphone Jack, Ext. DC Jack,
Ext. Mic. Jack
with Remote Jack
2.6” x 5.3” x 1.1”
6.5 oz.
Handstrap, Carrying Case,
and MC-40N Blank Tape
SPECIFICATIONS
Because its products are subject to continuous improvements, SANYO
reserves the right to modify product design and specifications without notice
and without incurring any obligations © 2000 SANYO Office Automation
Office Automation
21605 Plummer St.
Chatsworth, CA 91311
Phone: (818) 998-7322
www.sanyousa.com
