Thick Film Hybrid IC
Chopper T ype V oltage Regulator
Ordering number:ENN1709C
STK795
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Features
• Self-oscillation type chopper regulator power IC using
Sanyo’s original IMST (Insulated Metal Substrate Technology) substrate.
• The STK795, being a 5V chopper IC, is more advantageous in the following points as compared with series
regulator (dropper type) ICs.
1. Possible to provide a 5V output power supply circuit
with high efficiency.
2. Since the input voltage range is wide, no more than
one rectifying/smoothing circuit is required to provide a multi-output power supply circuit which also
delivers 12V or 24V output.
• Functional trimming is used to set 5V output with high
accuracy.
• Cutoff function to cut off output voltage by external signal.
• Contains a transistor for overcurrent protector (foldback
characteristic) and possibel to set the protection level externally.
Specifications
Maximum Ratings at Ta = 25˚C
retemaraPlobmySsnoitidnoCsgnitaRtinU
egatloVtupnICDmumixaM
tnerruCtuptuOmumixaMI
erutarepmeTetartsbuSgnitarepOcT 501
erutarepmeTnoitcnuJjT 051
erutarepmetegarotSgtsT 501+ot03–
V
xam
)CD(ni
xam 3A
O
Package Dimensions
unit:mm
4063A
[STK795]
53.0
116
2.54
15×2.54=38.1
0.5
25.5
9.0
1.0
0.4
4.0
SANYO : SIP16
2.9
04V
˚C
˚C
˚C
Operating Characteristics at Ta = 25˚C, See specified Test Circuit.
retemaraPlobmySsnoitidnoC
egatloVtuptuOV
noitalugeReniLV
noitalugeRdaoLV
ycneiciffEV
ycneuqerFfV
tneiciffeoCerutarepmeTV
V
O
I,V21=
NI
NI
NI
NI
NI
NI
A5.1=9.40.51.5V
O
I,V51ot01=
A5.1=07001Vm
O
I,V21=
O
I,V21=
O
I,V21=
O
I,V21=
O
A3ot5.0=0306Vm
A5.1=27%
A5.1=53zHk
A5.1=1
O2099TH (KT)/21094YK/O199TA/5236KI, TS No.1709–1/5
sgnitaR
nimpytxam
tinU
mV/˚C
Equivalent Circuit
Test Circuit
STK795
Note) · D1 : Schottky barrier diode SB40-05.
· B. C. : Beads core, 2 to 3µH.
· C3, B. C. are used to reduce switching spike noise.
· TR1 is used to provide overcurrent protection.
If no protection is required, remove TR1.
· A current of 0.5A min. must flow in the load.
No.1709–2/5
STK795
No.1709–3/5
STK795
Thermal Design

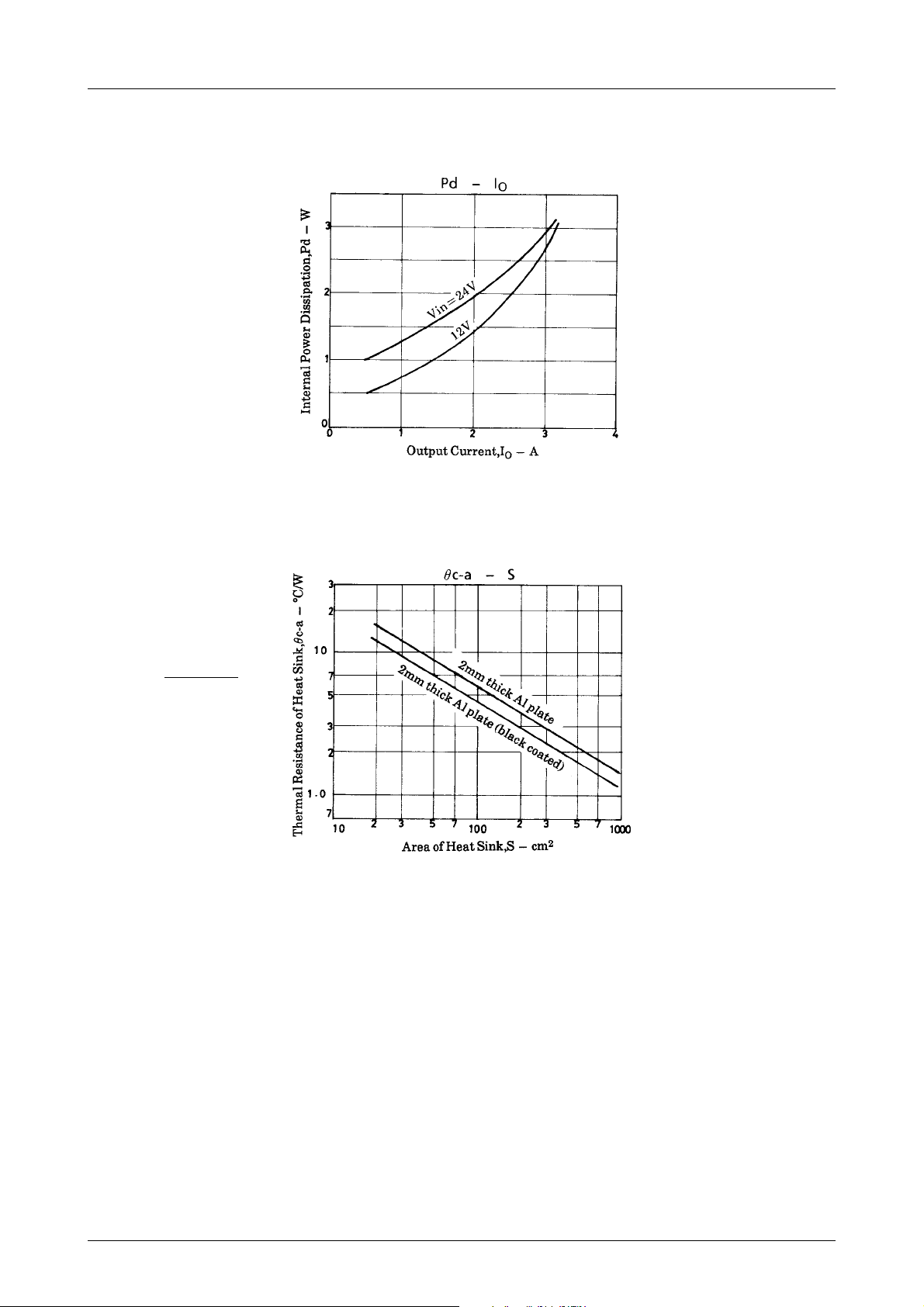

The total internal power dissipation in the IC is related to the output current as shown below. Assuming V
output current=3A, the total internal power dissipation is 2.7W.
Assuming that the IC case temperature (Al plate) is 85°C (Tc max=105°C) and the temperature inside equipment is 60°C
max., the thermal resistance required of the heat sink is as shown below.
in(DC)
=12V,
85°C–60°C
θc-a=
For 2mm thick Al plate (black coated), the area is 30cm2. (55×55×2t)
Junction temperature Tj of the power transistor which forms a main heat source is calculated as follows :
The thermal resistance of the power transistor is : θj-c=6.2°C/W
Therefore, Tj is calculated using Tj=Pd×θj-c+Tc.
Since the actual thermal resistance of the heat sink greatly depends on various conditions such as the layout of equipment or ventilation, allow an ample margin in thermal design.
2.7W
=9.3°C/W
Tj=2.7W×6.2°C/W+85°C=101.7°C
No.1709–4/5
STK795
