INSTRUCTION MANUAL
SC-N500
VACUUM CLEANER
HOUSEHOLD USE ONLY
NAME AND FUNCTION OF PARTS (Assemble as indicated in the center illustration.) /
Vacuum Power Adjustment Ring /
The full vacuum power of the cleaner may be too strong in certain cases, for
instance when vacuuming curtains and draperies. In these cases, turn the
vacuum power adjustment ring (on the hose) to control the vacuum power.
Match the hole in the ring with the hose hole to reduce the power.
Extension Pipe/
The pipe is adjustable according to the height
of the user.
Push
How to adjust the pipe:
Hold the position as shown in
the figure and extend the pipe
Pull
by pulling upward.
Hold the position as shown in
the figure and shorten the
Hold here
pipe by pushing downward.
Attachments /
Crevice tool/
For vacuuming edges and gaps.
Cloth Bag Type
Round brush /
The head of the brush can rotate.
For vacuuming fragile or easily
scratched items.
One cloth bag set in
the vacuum cleaner.
Vacuum power
adjustment ring
Dust Indicator /
The dust indicator shows the amount of dust that has been collected in the dust
compartment. Hold the floor nozzle away from the floor, while operating to check.
DUST INDICATOR
Vacuuming can continue.
Pipe holder
Put the round brush
here when not in use.
Floor Nozzle /
The two-way floor nozzle has lever with two positions.
FLOOR
T
FLOOR:
For vacuuming wooden floors, linoleum or
plastic covered floors.
Suction power decreases. Dust compartment
should be emptied.
DUST INDICATOR
Connect the angled pipe
Angled pipe
Hose
FLOOR
RUG
RUG:
For vacuuming rugs and carpets.
RUG
Switch /
Press the ON side of the switch to
start the motor.
To stop the motor, press the OFF
side of the switch.
ON
OFF
OFF ON
Hose Stopper/
Insert the hose all the way up
h
ose s topper.
To detach it, press the hose stopper
and pull the hose toward you.
to
the
Handle
Cord Rewind Button /
To pull the cord back into the unit, press the cord rewind button.
Caution:
Hold the plug when rewinding the cord so that the plug
does not damage furniture, hands, the vacuum cleaner
or the cord by hitting them. Holding the plug will make
rewinding smoother.
Cord rewind button
Cord and Plug /
Pull out the cord and
Do not extend the cord from the unit beyond the red marker line.
connect the plug.
Unclogging the Hose /
When the hose is clogged with dust, remove it in the following manner:
1) Pull out the angled pipe by turning the removal ring in either direction.
2) Use a vinyl garden hose to push out the dust clogging the hose.
3) Insert the angled pipe in place and return the ring to its original position.
Do not use the hose without the angled pipe in place. If the hose is used
without the angled pipe, the hose will bend excessively, causing it to break.
Angled pipe
Removal ring

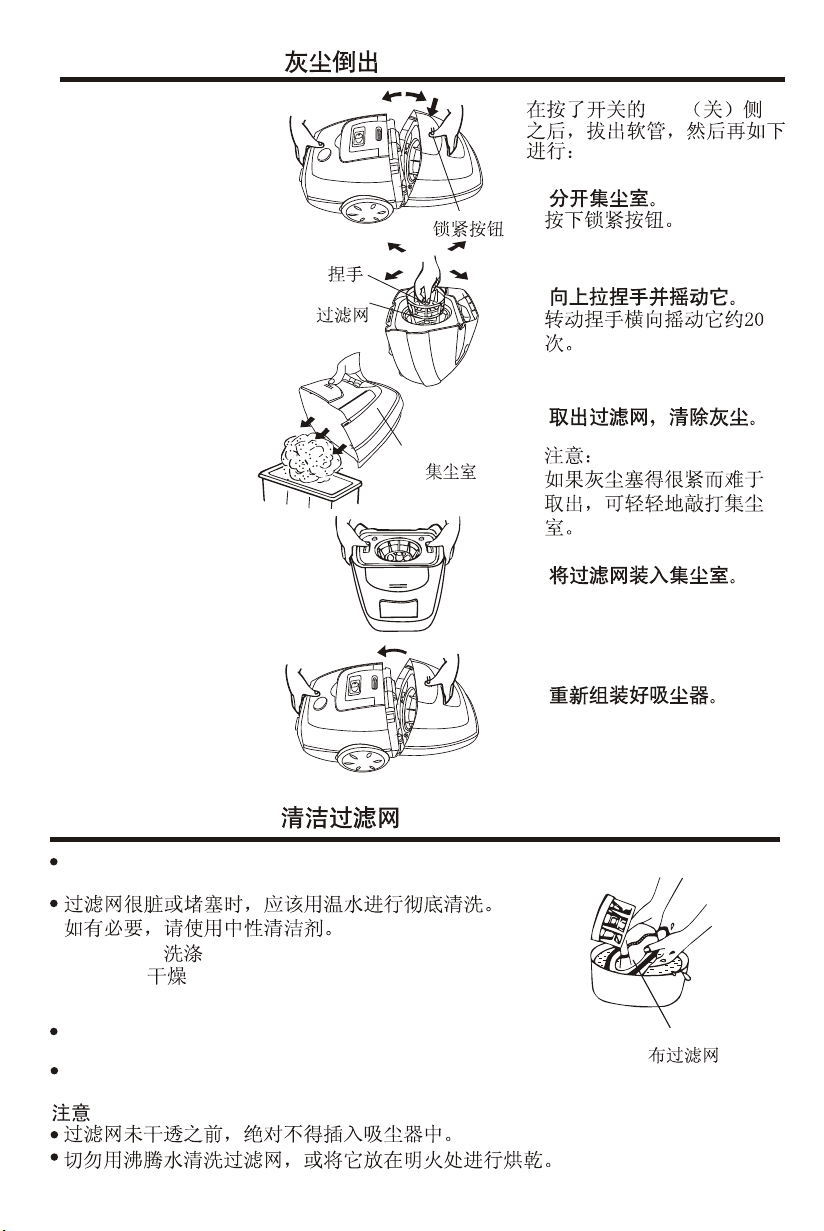

DUST DISPOSAL /
After press the OFF side of the
switch, d
and proceed as follows:
1. Se parate off the dust
co mpartment.
2. Pull up the knob and shake.
3. Take out the filter and
dispose of the dirt.
4.
co
isconnect th e h ose
Push the clamp button.
Shake the knob by turning
it si deways
Caution:
If the dust is tightly
packed and difficult to
remove, lightly tap the
dust compartment.
Insert
mpartment.
the
about 20
filter
times.
in
the
dust
Knob
Filter
Clamp button
Dust compartment
OFF
1.
2.
3.
4.
5. Reassemble the unit.
5.
CLEANING FILTER /
A severely soiled or clogged filter should be thoroughly washed with fresh tepid water.
A neutral detergent could be used if required.
1. Washing /
2. Drying /
Note
Never insert the cloth filter into the body of the unit unless it
is completely dry.
Never wash the filter with boiling water or expose it to an
open flame to dry.
Cloth filter
Thank you for your purchase of the Sanyo Vacuum Cleaner.
Please read these instructions carefully before using.
A FEW PRECAUTIONS
1. Operating without the filter in place will allow dust to enter the motor and
could damage the vacuum cleaner.
2. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolor the plastic parts of the unit.
3. Keep the vacuum cleaner free of insecticides. Do not wipe with benzine,
thinner, petrol or other oils which might cause discoloration or cracking.
To clean the body and hose, dampen a cloth with a mild detergent and
wipe clean.
4. Blocking the suction inle t o r allowing the dus t to clog the hose wil l
decrease the efficiency o f the motor.
5. Be sure not to push the clamp button while carrying the vacuum cleaner.
6. Never try to vacuum the following objects. They may damage the unit or
cause a fire.
* Wet things, mud, soil, and fluids
* Burning cigarettes
* Needles and razor blades
* Inflammable materials such as gasoline and thinner
7. The following kinds of treatment shorten hose life:
* Bending hose at an acute angle when storing
* Pulling the hose with excessive force
* Placing heavy objects on, or stepping on the hose
8. Pull out the plug from the power source after use. Grasp the plug-not
the cord-when pulling out the plug.
Pulling on the cord may lead to shortcircuiting.
9. Long and continuous use causes the exhaust air and the body of the
vacuum cleaner to become warm. This, however, does not denote
malfunction.
10.When vacuuming places that are very dusty, and also when vacuuming
regularly, empty the dust compartment before it becomes completely
filled.
Frequent emptying lengthens the life of the motor and maintains strong
suction power.
11.If the supply cord of this appliance is damaged, it must only be replaced
by a repair shop appointed by the manufacturer, in order to avoid a
hazard.
12.Do not allow it to be used as a toy. Close attention is necessary when
used by or near children or infirm persons.

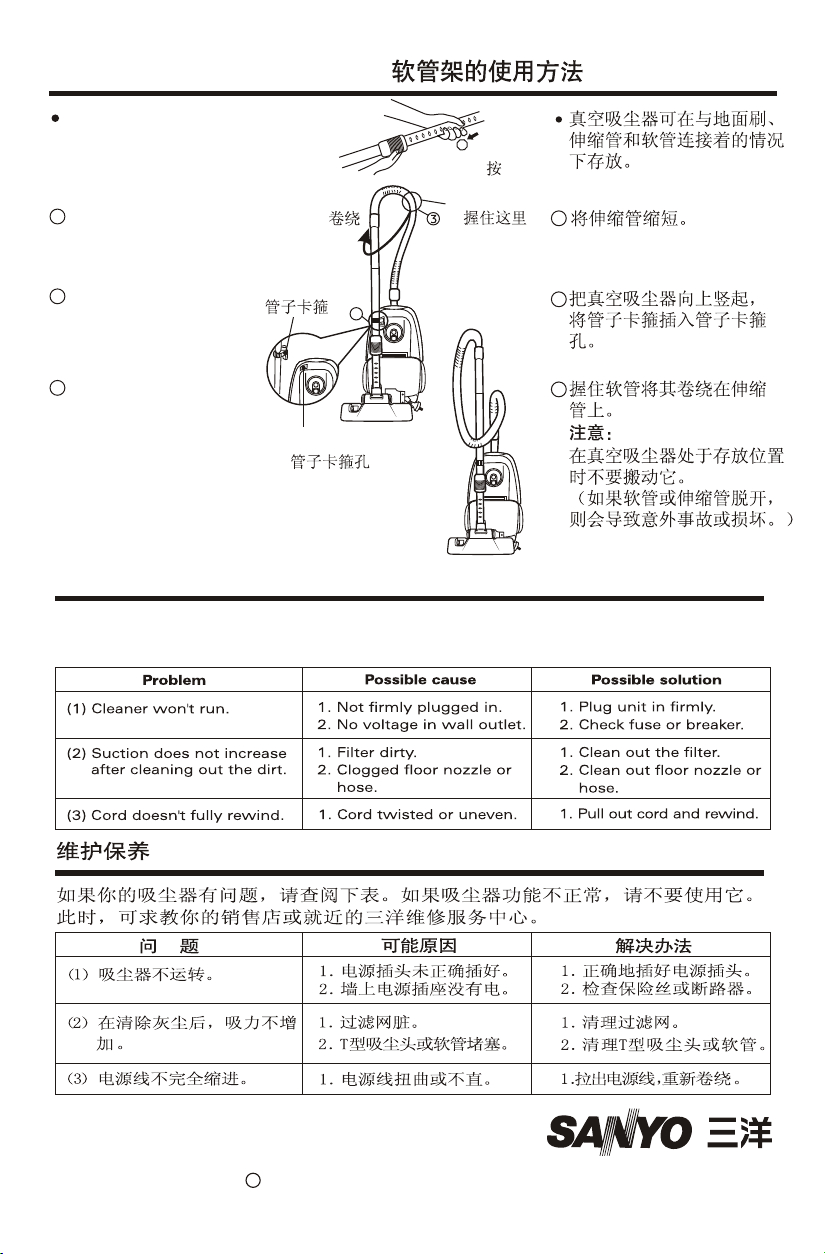

HOW TO USE THE HOSE STAND /
The vacuum cleaner with
the floor nozzle, extension
pipe and hose can be
stored while still
connected.
Shorten the extension
1
pipe.
Wind
1
Push
Hold here
1
2
Stand the vacuum
cleaner up and insert t
he pipe holder into the
pipe-holder hole.
3
Hold the hose and wind
it around the pipe.
Caution:
Do not carry the vacuum
cleaner while it is in the
storage position.
(Injury or damage may result
if the hose or extension pipe
becomes unattached.)
Pipe holder
2
Pipe holder hole
2
3
CARE AND MAINTENANCE
If you have a problem with your vacuum cleaner, consult the handy guide below. If the
vacuum cleaner is malfunctioning, do not operate it. Contact your dealer or the nearest Sanyo
Service Center.
