FILE No.
PARTS LIST
Vacuum Cleaner
Specifications
Power source : AC 120 V 60 Hz
Power consumption : 12 A
Motor revolution : 36,000 r.p.m.
Vacuum : 21,560 Pa
Dimensions : 412 X 340 X 1,148 mm
L X W X H (16 - 7/32” x 13 - 3/8” x 45 - 3/16”)
Net weight : 10.4 Kg ( 23 lbs. 2 ozs. )
Attachment : Suction hose, Wand,
Crevice tool, Upholstery tool,
Duster arm
SC-F1201
(U.S.A.)
PRODUCT CODE NO.
1 - 326 801 01 ( S )
Wiring Diagram
Motor
Stator
Carbon brush
Rotor
Stator
Connector
Switch
Lamp
(15W 120V)
Fuse
(125V 15A)
A C
- 1 -
REFERENCE NO. PL2110167-00
Exploded View
(Case unit)
1
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
2
4
43
SC-F1201 (U.S.A.)
48
5
47
1
1
3
20
19
22
21
23
27
42
41
40
28
44
42
46
45
39
49
50
1
52
51
53
38
36
1
54
1
1
37
1
59
60
61
56
62
59
55
57
58
1
1
35
34
63
64
65
59
63
62
61
60
66
59
67
1
26
6
6
17
18
2425
7
16
8
1
29
1
14
15
31
30
9
10
11
12
13
91
92
93
94
95
68
69
71
42
70
80
81
82
1
1
33
72
32
75
73
74
39
83
84
76
1
77
1
79
1
78
86
96
87
88
85
86
89
- 2
90
90
84
89
-
87
84
Parts List
(Case unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-F1201 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
Key
No.
1 663 000 0847 SCREW (4X16) 35 51 663 007 8006 AIR INLET GUIDE (N1-233) 1
2 663 007 7702 GRIP RIGHT (N3-99T) 1 52 663 007 8013 TRANSMISSION ASSEMBLY 1
3 663 007 7719 GRIP SUPPLEMENT 1 53 663 005 4352 AIR INLET PACKING LOWER 1
4 663 007 7726 GRIP LEFT (N3-99T) 1 54 663 007 8020 CASE REAR (N1-233) 1
5 663 007 7733 CORD HOOK (N3-99T) 1 55 663 007 8037 ATTACHMENT SUPPORTER REAR 1
6 663 000 8263 SCREW (3X12) 3 56 663 000 4142 CAUTION LABEL (BOTTOM PLATE) 1
7 663 007 7740 SUPPLEMENT CASE (N1-233) 1 57 663 007 8044 NAME PLATE 1
8 663 007 7757 SWITCH ORNAMENT (N3-99T) 1 58 663 007 8051 CAUTION LABEL 1
9 663 007 7764 CAUTION LABEL 1 59 663 000 2131 RING E6 4
10 663 007 7771 CRAMP HOOK B (PB-102) 1 60 663 006 3484 WHEEL REAR ASSEMBLY 2
11 663 007 7788 CRAMP HOOK C (PB-102) 1 61 663 000 2155 WASHER Z (7.2X12X0.5) 2
12 663 000 4425 CRAMP SPRING C 2 62 663 000 6115 SHAFT REAR 2
13 663 007 7795 FRONT COVER (N3-99T) 1 63 663 007 2264 SLEEVE (NATURAL) 2
14 663 007 7801 OUTLET FILTER ASSEMBLY 1 64 663 000 4814 MOTOR CUSHION REAR 1
15 663 007 2776 NUT (LEFT) 1 65 663 007 6750 SILENCER PIPE 1
16 663 007 7818 GRIP PIPE FITTING (N1-233) 1
17 663 007 7825 SWITCH COVER PIECE (N3-99T) 1
66 663 000 3930 MOTOR COMP. (AC 120 V) 1
663 000 0298 CARBON BRUSH ASSEMBLY 2
18 663 000 2896 SWITCH 1 67 663 000 3947 MOTOR CUTHION FRONT 1
19 663 007 7832 FUSE ASSEMBLY (125V 15A) 1 68 663 007 8068 CASE COVER (B-619) 1
20 663 000 0700 WIRE CONNECTOR (CE-230) 2 69 663 007 2110 HOSE JOINT PACKING B 1
21 663 007 8358 POWER CORD (U2) 1 70 663 007 2127 HOSE JOINT PIPE B (NATURAL) 1
22 663 007 7849 SWITCH BUTTON (N3-99T) 1 71 663 007 8075 SUCTION HOSE (N1-233) 1
23 663 007 7856 CONNECTOR HOUSING ASSEMBLY A 1 72 663 007 8082 AIR INLETE B (N1-233) 1
24 663 000 3107 SCREW/WASHER 1 73 663 007 8099 BELT COVER FRONT (N1-233) 1
25 663 007 2196 CORD RETAINER (NATURAL) 1 74 663 007 7627 ROTARY BRUSH COMP. (PB-102) 1
26 663 007 7863 CRAMP HOOK A (PB-102) 1 75 663 000 2582 BELT (NN-B) 1
27 663 000 3046 HELICAL SPRING (CRAMP) 1 76 663 007 8105 BUMPER (PB-102) 1
28 663 007 7870 CASE FRONT (N1-233) 1 77 663 007 8112 SPACER (NN-B) 1
29 663 007 7887 SUCTION HOSE RETAINER 1 78 663 007 1281 SCREW (4X12) 3
30 663 000 3411 SHIELD SHEET 1 79 663 007 8129 LEVER KNOB LOWER (NN-B) 1
31 663 007 2486 CASE ORNAMENT 1 80 663 007 8136 LEVER KNOB UPPER (N3-99T) 1
32 663 000 3398 LAMP (15W 120V) 1 81 663 007 8143 CASE UPPER (N3-99T) 1
33 663 007 7894 CONNECTOR HOUSING ASSEMBLY D 1 82 663 007 2332 PEDAL (RELEASE) ASSEMBLY 1
34 663 007 7900 ATTACHMENT SUPPORTER LOWER 1 83 663 007 8150 AIR INLETE A (NN-B) 1
35 663 007 7917 ATTACHMENT SUPPORTER UPPER 1 84 663 000 0335 SCREW (4X16) 5
36 663 007 7924 PRE FILTER ASSEMBLY (N1-233) 1 85 663 007 8167 BOTTOM PLATE (NN-B) 1
37 663 000 2063 HANDLE SCREW (M6) 1 86 663 000 2605 AIR SPREADER B 2
38 663 007 7931 HOSE HOOK (N1-233) 1 87 663 006 9080 BRUSH BASE ASSEMBLY (NN-B) 2
39 663 005 7940 SCREW (4X25) 5 88 663 007 8174 WHEEL HOLDER FRONT (NN-B) 1
40 663 007 2110 HOSE JOINT PACKING B 1 89 663 000 2643 SHAFT FRONT 2
41 663 007 2127 HOSE JOINT PIPE B (NATURAL) 1 90 663 006 3637 WHELL FRONT ASSEMBLY 2
42 663 000 2834 AIR SPREADER (SUCTION HOSE) 2 91 663 005 4888 CONNECTION PIPE A (N1-233) 1
43 663 007 7948 SUCTION HOSE (N1-233) 1 92 663 005 4895 CONNECTION PIPE B (N1-233) 1
44 663 005 4840 HOSE GRIP PIPE (N1-233) 1 93 663 005 4857 CREVICE TOOL (N1-233) 1
45 663 007 7955 HOSE JOINT PIPE (IN)(N1-233) 1 94 663 005 4864 UPHOLSTERY BRUSH BASE 1
46 663 007 7962 CASE COVER (N1-233) 1 95 663 005 4871 FLOOR TOOL BASE ASSEMBLY 1
47 663 000 4432 CUSHION (CASE FRONT) 1 96 663 000 0892 DUSTER ARM (N1-233) 1
48 663 007 7979 AIR INLET COVER (N1-233) 1 663 007 8181 INSTRUCTION MANUAL 1
49 663 007 7986 AIR INLET PACKING UPPER 1
50 663 007 7993 AIR INLET FILTER 1
COLOR CODE:B-619/PB-102(PURPLE),N3-99T(SILVER),N1-233(GRAY),NN-B(BLACK)
- 3 -
Exploded View

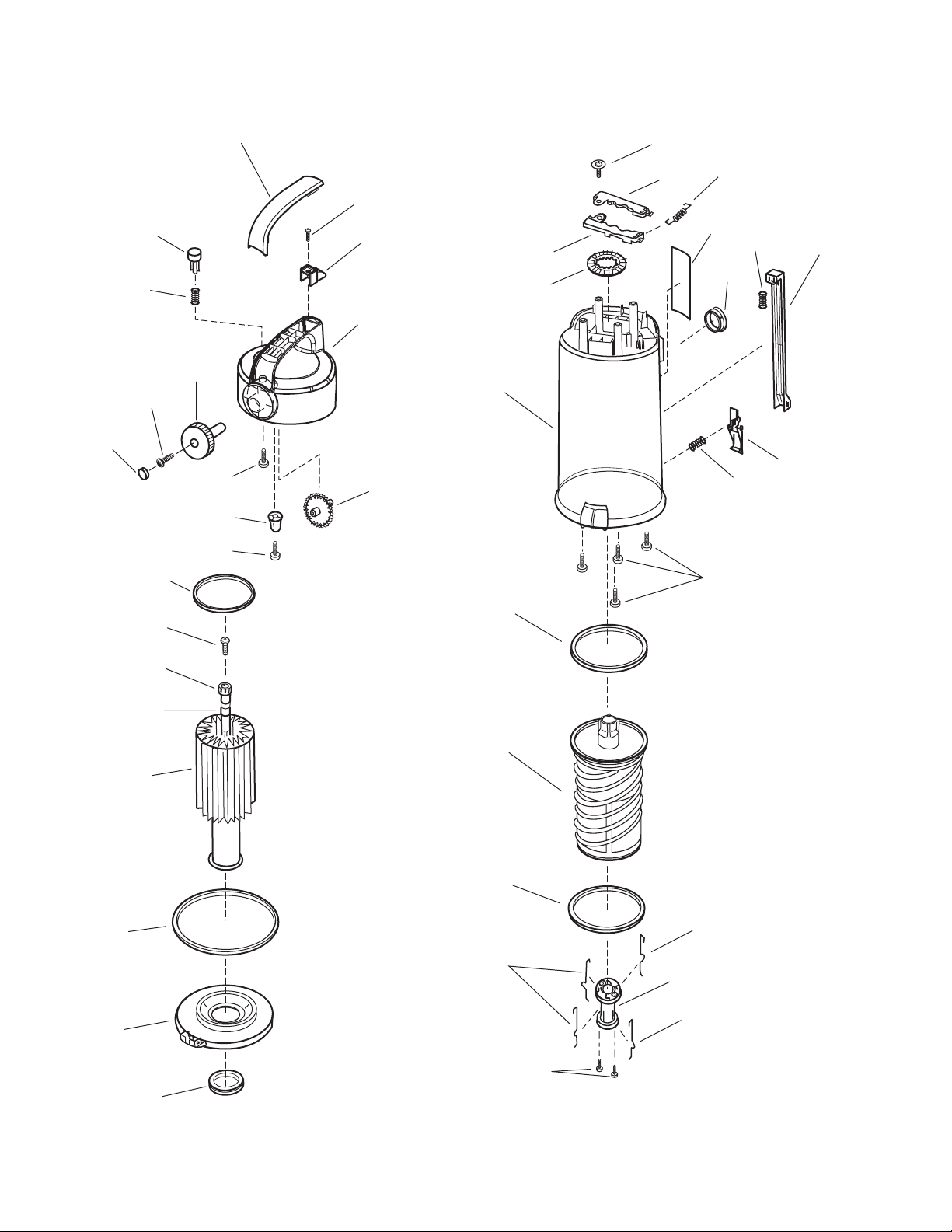

(Dust box)
SC-F1201 (U.S.A.)
1
4
2
3
8
4
7
4
9
4
11
5
21
22
6
23
10
18
19
24
20
26
25
29
4
27
28
15
16
30
4
12
13
31
14
30
32
32
33
32
17
4
- 4 -
Parts List
(Dust box)
SC-F1201 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
1 663 007 8198 HANDLE UPPER (PB-102) 1
2 663 007 8204 CRAMP BUTTON (DUST) 1
3 663 007 8211 CRAMP SPRING (DUST) 1
4 663 000 0847 SCREW (4X16) 11
5 663 007 8228 CRAMP PIECE (PB-102) 1
6 663 007 8235 DUST BOX COVER (N1-233) 1
7 663 005 4628 HANDLE ORNAMENT (PB-102) 1
8 663 007 8242 DUSTER HANDLE (PB-102) 1
9 663 000 3473 CRAMP HOOK STOPPER MIDLE 1
10 663 000 3541 GEAR A (HANDLE) 1
11 663 000 3480 PACKING(DUST FILTER ASSEMBLY 1
12 663 000 3497 DUSTER FRAME (N1-233) 1
13 663 000 3503 PACKING (DUSTER FRAME) 1
14 663 007 8259 DUST FILTER ASSEMBLY 1
15 663 007 8266 DUST FILTER PACKING (LOWER) 1
16 663 007 8273 DUST FILTER COVER (N1-233) 1
17 663 000 3640 PACKING (DUST FILTER COVER) 1
18 663 000 3107 SCREW/WASHER 1
19 663 005 4642 CRAMP HOOK STOPPER UPPER 1
20 663 005 4659 CRAMP SPRING (STOPPER) 1
21 663 005 4635 CRAMP HOOK STOPPER LOWER 1
22 663 000 3572 GEAR B (DUST) 1
23 663 007 8280 DUST BOX (N1-251) 1
24 663 007 8297 CAUTION LABEL 1
25 663 007 8303 AIR INLET PACKING UPPER 1
26 663 000 3046 HELICAL SPRING (CRAMP) 1
27 663 005 4666 CRAMP LEVER (DUST) 1
28 663 005 4673 CRAMP HOOK (DUST)(PB-102) 1
29 663 000 2957 CRAMP SPRING A 1
30 663 005 4710 PACKING (PRE FILTER ASS'Y) LOWER 2
31 663 007 8310 PRE FILTER ASSEMBLY (PB-102) 1
32 663 000 4449 DUSTER ARM 4
33 663 000 3701 DUSTER HOLDER (N1-233) 1
Key
No.
COLOR CODE:PB-102(PURPLE),N1-233/N1-251(GRAY)
Mar./2004
- 5 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311
