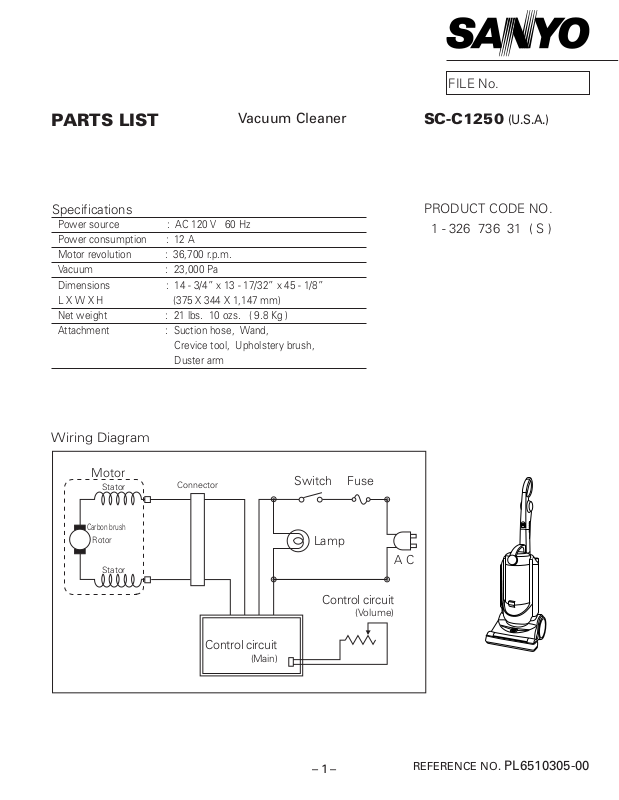

FILE No.
PARTS LIST
Vacuum Cleaner
Specifications
Power source : AC 120 V 60 Hz
Power consumption
Motor revolution : 36,700 r.p.m.
Vacuum : 23,000 Pa
Dimensions : 14 - 3/4” x 13 - 17/32” x 45 - 1/8”
L X W X H (375 X 344 X 1,147 mm)
Net weight : 21 lbs. 10 ozs. ( 9.8 Kg )
Attachment : Suction hose, Wand,
Crevice tool, Upholstery brush,
Duster arm
: 12 A
SC-C1250
(U.S.A.)
PRODUCT CODE NO.
1 - 326 736 31 ( S )
Wiring Diagram
Motor
Stator
Carbon brush
Rotor
Stator
Connector
Control circuit
Switch Fuse
Lamp
A C
Control circuit
(Volume)
(Main)
- 1 -
REFERENCE NO. PL6510305-00
Exploded View
(Case unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
1
2
3
4
5
8
9
10
11
SC-C1250 (U.S.A.)
30
31
29
2
6
12
28
1
14
13
15
20
16
7
17
18
19
45
A46
23
21
A22
21
26
A24
27
25
34
21
32
33
A49
38
39
48
55
47
35
40
41
4
50
1
51
52
1
53
26
1
53
54
58
1
56
59
60
21
57
1
26
44
1
1
36
1
A63
1
21
A62
A75
A76
37
42
43
64
65
78
1
66
67
74
77
1
- 2
-
70
68
39
69
71
72
73
1
1
61
Parts List
(Case unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-C1250 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
1 663 000 0847 SCREW (4X16) 30 51 663 000 3152 GRIP PIPE FITTING 1
2 663 000 2681 INLEY PLUG 4 52 663 000 3169 ATTACHMENT SUPPORTER A 1
3 663 000 2698 WHEEL CAP (N3-99T) 2 53 663 000 3176 ATTACHMENT SUPPORTER B 2
4 663 000 2704 GRIP INSCRIPTION (B-551) 1 54 663 000 3183 BYPASS COVER OUTER (B-551) 1
5 663 000 2711 GRIP RIGHT (N3-99T) 1 55 663 000 3190 BYPASS TUBE 1
6 663 000 2728 GRIP COVER LEFT 1 56 663 000 3206 AIR SPREADER (BYPASS TUBE) 1
7 663 000 2735 GRIP LEFT (N3-99T) 1 57 663 000 3213 AIR INLET PACKING (BYPASS TUBE) 1
8 663 000 2742 HANDLE ORNAMENT 1 58 663 000 3220 SWITCH KNOB (NN-B) 1
9 663 000 2759 SCREW 4X14 1 59 663 000 3237 LEAF SPRING 1
10 663 000 2766 CORD HOOK 1 60 663 000 3244 SWITCH HOLDER 1
11 663 000 2773 SUCTION HOSE COVER 1 61 663 000 3251 AIR INLET COVER 1
12 663 000 2780 HOSE JOINT PIPE GRIP 1
13 663 000 2797 CRAMP SPRING 1
14 663 000 2803 CRAMP BUTTON (N1-249) 1 64 663 000 3282 AIR INLET FILTER 1
15 663 000 2810 GRIP PIPE 1 65 663 000 3299 BYPASS PACKING UPPER 1
16 663 000 4401 SUCTION HOSE 1 66 663 000 3305 BYPASS COVER INNER 1
17 663 000 2834 AIR SPREADER (SUCTION HOSE) 1 67 663 000 3312 TRANSMISSION ASSEMBLY 1
18 663 000 4418 HOSE JOINT PIPE A 1 68 663 000 3329 CRAMP PIN 1
19 663 000 2858 HOSE JOINT PACKING 1 69 663 000 3336 CRAMP LEVER LOWER 1
20 663 000 2865 GRIP SUPPLEMENT (N1-233) 1 70 663 000 3343 AIR OUTLET PACKING 1
21 663 000 2872 SCREW (3X10) 8 71 663 000 3350 BYPASS PACKING LOWER 1
22 663 000 2407 CORD ASSEMBLY (BLACK) L=350 1 72 663 000 3367 AIR INLET PACKING (CASE LOWER) 1
A
23 663 000 2889 SWITCH BUTTON (N3-99T) 1 73 663 000 3374 CASE LOWER (B-551) 1
24 663 000 2896 SWITCH 1 74 663 000 3381 CASE ORNAMENT (N1-251) 1
A
25 663 000 2902 SWITCH ORNAMENT (B-551) 1
26 663 000 2919 SCREW (4X12) 4
27 663 000 2926 AIR OUTLET GUIDE 1 77 663 000 2193 WIRE CONNECTOR (CE-530) 2
28 663 000 2933 OUTLET FILTER ASSEMBLY 1 78 663 000 3411 SHIELD SHEET 1
29 663 000 2940 CRAMP LEVER UPPER (PB-102) 1
30 663 000 4425 CRAMP SPRING C 1
31 663 000 2964 AIR OUTLET (B-551) 1
32 663 000 2971 SUPPLEMENT CASE (N1-233) 1
33 663 000 2988 CASE FRONT (NN-B) 1
34 663 000 2995 CAUTION LABEL (CASE FRONT) 1
35 663 000 4432 CUSHION (CASE FRONT) 2
36 663 000 3015 CASE COVER LOWER (N3-99T) 1
37 663 000 3022 CASE COVER UPPER (B-551) 1
38 663 000 3039 CRAMP HOOK STOPPER (PB-102) 1
39 663 000 3046 HELICAL SPRING 3
40 663 000 3053 PACKING (SHUTTER) 1
41 663 000 3060 SHUTTER 1
42 663 000 3077 SHUTTER ARM 1
43 663 000 3084 HELICAL SPRING (SHUTTER ARM) 1
44 663 000 3091 AIR INLET ASSEMBLY 1
45 663 000 3107 SCREW 1
46 663 000 3114 POWER CORD (U2) 1
A
47 663 000 3121 LEAD WIRE (WHITE) L=250 1
48 663 000 0700 WIRE CONNECTOR (CE-230) 2
49 663 000 3138 FUSE ASSEMBLY (125V 12A) 1
A
50 663 000 3145 CASE REAR (N3-99T) 1
Key
No.
62 663 000 3268 CONTROL CIRCUITE ASSEMBLY A 1
A
63 663 000 3275 CONTROL CIRCUITE ASSEMBLY B 1
A
75 663 000 3398 LAMP 1
A
76 663 000 3404 LAMP HOLDER 1
A
COLOR CODE:N3-99T(SILVER),B-551(BLUE),PB-102(PURPLE),N1-233/N1-249/N1-251(GRAY),NN-B(BLACK)
- 3 -

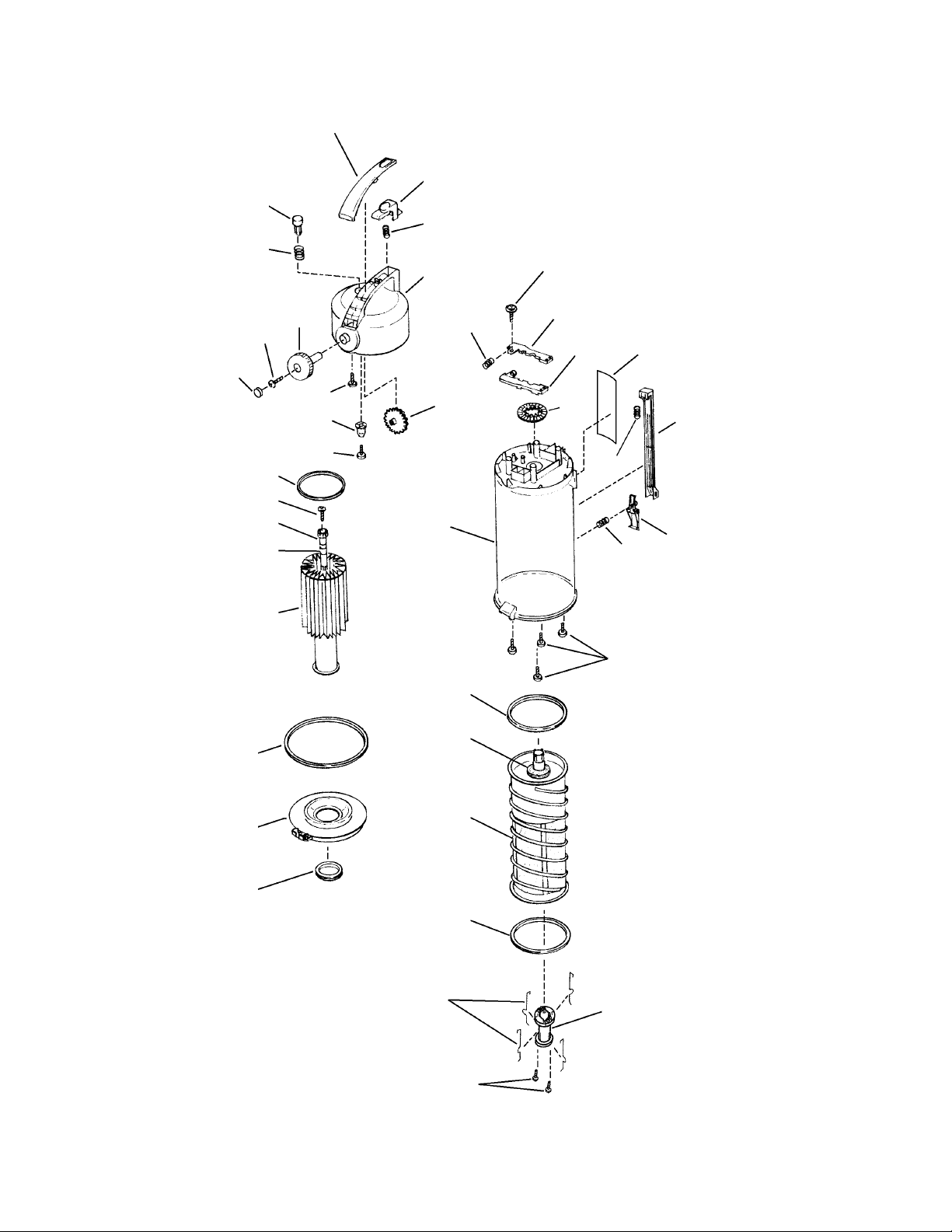

Exploded View
(Dust box)
SC-C1250 (U.S.A.)
1
13
2
14
3
15
18
6
27
5
10
11
12
4
5
7
8
9
5
17
16
26
30
31
19
21
20
22
23
17
24
25
5
28
29
34
- 4 -
32
33
35
8
Parts List
(Dust box)
SC-C1250 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
1 663 000 3428 HANDLE UPPER (N3-99T) 1
2 663 000 3435 CRAMP BUTTON (DUST) 1
3 663 000 3442 CRAMP SPRING (DUST) 1
4 663 000 3459 DUSTER HANDLE (N3-99T) 1
5 663 000 0243 SCREW (4X20) 7
6 663 000 3466 HANDLE ORNAMENT (N3-99T) 1
7 663 000 3473 CRAMP HOOK STOPPER MIDLE 1
8 663 000 0847 SCREW (4X16) 3
9 663 000 3480 PACKING (DUST FILTER ASSEMBLY) 1
10 663 000 3497 DUSTER FRAME 1
11 663 000 3503 PACKING (DUSTER FRAME) 1
12 663 000 3510 DUST FILTER ASSEMBLY 1
13 663 000 3527 CRAMP BUTTON (HANDLE) 1
14 663 000 2797 CRAMP SPRING 1
15 663 000 3534 DUST BOX COVER (N1-232) 1
16 663 000 3541 GEAR A (HANDLE) 1
17 663 000 3046 HELICAL SPRING 2
18 663 000 3107 SCREW 1
19 663 000 3558 CRAMP HOOK STOPPER UPPER 1
20 663 000 3565 CRAMP HOOK STOPPER LOWER 1
21 663 000 3572 GEAR B (DUST) 1
22 663 000 3589 CAUTION LABEL 1
23 663 000 3596 CRAMP LEVER (DUST) 1
24 663 000 3602 CRAMP HOOK 1
25 663 000 2957 CRAMP SPRING A 1
26 663 000 3619 DUST BOX ASSEMBLY 1
27 663 000 3626 DUST FILTER PACKING 1
28 663 000 3633 DUST FILTER COVER 1
29 663 000 3640 PACKING (DUST FILTER COVER) 1
30 663 000 3657 PACKING (PRE FILTER ASSEMBLY UPPER) 1
31 663 000 3664 AIR SPREADER (PRE FILTER) 1
32 663 000 3671 PRE FILTER ASSEMBLY 1
33 663 000 3688 PACKING (PRE FILTER ASSEMBLY LOWER) 1
34 663 000 4449 DUSTER ARM 4
35 663 000 3701 DUSTER HOLDER 1
Key
No.
COLOR CODE:N3-99T(SILVER),N1-232(GRAY)
- 5 -
Exploded View
(Power head)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-C1250 (U.S.A.)
22
1
2
3
9
77
78
8
82
3
2
1
10
11
17
23
79
4
5
41
15
7
6
14
5
4
12
13
6
7
16
6
18
19
20
21
24
25
26
A27
51(52 - 55)
53
52
54
55
28
48
29
47
30
42
43
44
45
31
32
80
40
33
39
81
38
A35
A34
37
36
46
57
63
42
60
62
58
59
61
42
65
64
73
56
67
71
69
42
68
42
72
6
49
50
42
66
67
68
42
70
74
73
75
76
- 6 -
Parts List
(Power head)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-C1250 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
1 663 000 2698 WHEEL CAP (N3-99T) 2 50 663 000 4142 CAUTION LABEL (BOTTOM PLATE REAR) 1
2 663 000 3718 WHEEL SHAFT 2 51 663 000 4159 ARM ASSEMBLY KEYNO(52-55) 1
3 663 000 3725 WHEEL REAR (B-551) 2 52 663 000 3008 CUSHION 1
4 663 000 3732 WASHER 4 53 663 000 4166 ARM A 1
5 663 000 3749 WHEEL HOLDER REAR 2 54 663 000 4173 HELICAL SPRING 1
6 663 000 2919 SCREW (4X12) 7 55 663 000 4180 ARM B 1
7 663 000 3756 NUT HEX+FLG W/SRT 6 2 56 663 000 4197 PEDAL RIGHT (NN-B) 1
8 663 000 3763 CASE UPPER 1 57 663 000 4203 CAUTION LABEL (PEDAL RIGHT) 1
9 663 000 3770 LEVER KNOB UPPER (B-551) 1 58 663 000 4210 SHAFT B 1
10 663 000 3787 BUMPER (B-551) 1 59 663 000 4227 SHAFT C 1
11 663 000 2872 SCREW (3X10) 1 60 663 000 4234 TORSION SPRINGB 1
12 663 000 3794 AIR SPREADER (CASE UPPER SIDE) 2 61 663 000 4241 PEDAL HOLDER B 1
13 663 000 3800 AIR SPREADER (CASE UPPER F,R) 2 62 663 000 4258 SLIDE LEVER PLATE B 1
14 663 000 3817 PACKING REAR 1 63 663 000 4265 SLIDE LEVER PLATE A 1
15 663 000 3824 PACKING MIDDLE 1 64 663 000 4104 RING E4 2
16 663 000 3831 LEVER KNOB LOWER 1 65 663 000 4272 SLIDE LEVER 1
17 663 000 3848 CASE COVER FRONT 1 66 663 000 4289 WHEEL HOLDER FRONT (NN-B) 1
18 663 000 3855 PACKING L=18 1 67 663 000 4296 WHEEL SMALL (NN-B) 2
19 663 000 3862 PACKING L=159 1 68 663 000 4302 HOLDER PLATE 2
20 663 000 3879 PACKING L=26 1 69 663 000 4319 SHAFT FRONT 1
21 663 000 3886 PACKING L=274 1 70 663 000 4326 PACKING L=179 1
22 663 000 2582 BELT 1 71 663 000 4333 PACKING L=322 2
23 663 000 3893 BELT COVER FRONT 1 72 663 000 2612 LEAF SPRING D 1
24 663 000 3909 ROTARY BRUSH COMP. 1 73 663 000 4340 AIR SPREADER (BOTTOM PLATE FRONT) 2
25 663 000 3916 AIR OUTLET PIPE 1 74 663 000 4357 BOTTOM PLATE FRONT (B-551) 1
26 663 000 3923 MOTOR CUTHION REAR 1 75 663 000 2650 LEVER 1
27 663 000 3930 MOTOR COMP. (AC 120 V) 1 76 663 000 2568 SCREW 1
A
663 000 0298 CARBON BRUSH ASSEMBLY 2 77 663 000 4364 CONNECTION PIPE (NN-B) 1
A
28 663 000 3947 MOTOR CUTHION FRONT 1 78 663 000 2476 CREVICE TOOL (NN-B) 1
29 663 000 3954 ROTARY HOLDER A 1 79 663 000 4371
30 663 000 3961 ROTARY PIPE A 1 80 663 000 4388
31 663 000 3978 ROTARY HOLDER B 1 81 663 000 0892 DUSTER ARM 1
32 663 000 3985 AIR INLETE COVER BASE 1 82 663 000 4395 SUCTION HOSE COMP. 1
33 663 000 3992 AIR SPREADER (AIR INLETE COVER BASE) 1
34 663 000 4005 CORD ASSEMBLY (WHITE) L=700 1
A
35 663 000 4012 CORD ASSEMBLY (BLACK) L=600 1
A
36 663 000 4029 ROTARY HOLDER C 1
37 663 000 0076 SCREW (4X16) 1
38 663 000 4036 HOLDER PLATE 1
39 663 000 4043 ROTARY PIPE B 1
40 663 000 4050 CONNECTOR BODY (PLUG) 1
41 663 000 4067 ROTARY PIPE COVER 1
42 663 000 0847 SCREW (4X16) 13
43 663 000 4074 PEDAL LEFT (NN-B) 1
44 663 000 4081 SHAFT A 1
45 663 000 4098 TORSION SPRING A 1
46 663 000 4104 RING E4 1
47 663 000 4111 PEDAL HOLDER A 1
48 663 000 4128 NAME PLATE 1
49 663 000 4135 BOTTOM PLATE REAR (B-551) 1
Key
No.
UPHOLSTERY BRUSH ASSEMBLY
UPHOLSTERY BRUSH ASSEMBLY (ETIQUETTE)
COLOR CODE:N3-99T(SILVER),B-551(BLUE),PB-102(PURPLE),N1-233/N1-249/N1-251(GRAY),NN-B(BLACK)
1
1
Jul./2001/60 Printed in Japan
- 7 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311
