FILE No.
PARTS LIST
Vacuum Cleaner
Specifications
Power source : AC 120 V 60 Hz
Power consumption : 6 A
Motor revolution : 38,000 r.p.m.
Vacuum : 19,000 Pa
Dimensions : (Handy) (Upright)
L X W X H
345 X 180 X 225 mm 360 X 300 X 1,070 mm
Net weight : 7 lbs. 8ozs. (3.4 Kg)
Attachment :
Extension pipe, Crevice tool
13-19/32” X 7-3/32” X 8-27/32” 14-3/16” X 9-27/32” X 42-1/8”
Hose, Floor nozzle,
SC-150
(U.S.A.)
PRODUCT CODE NO.
1 - 326 732 51 ( G )
Wiring Diagram
Motor
Stator
Carbon brush
Rotor
Stator
Switch Fuse
Black
A C
Red
- 1 -
REFERENCE NO. PL6510307-00
Exploded View (Main unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-150 (U.S.A.)
1
3
2
A4
2
5
2
7
A6
8
A9
7
21
18
A19
20
A17
16
15
10
12
11
13
25
- 2
22
14
23
24
-

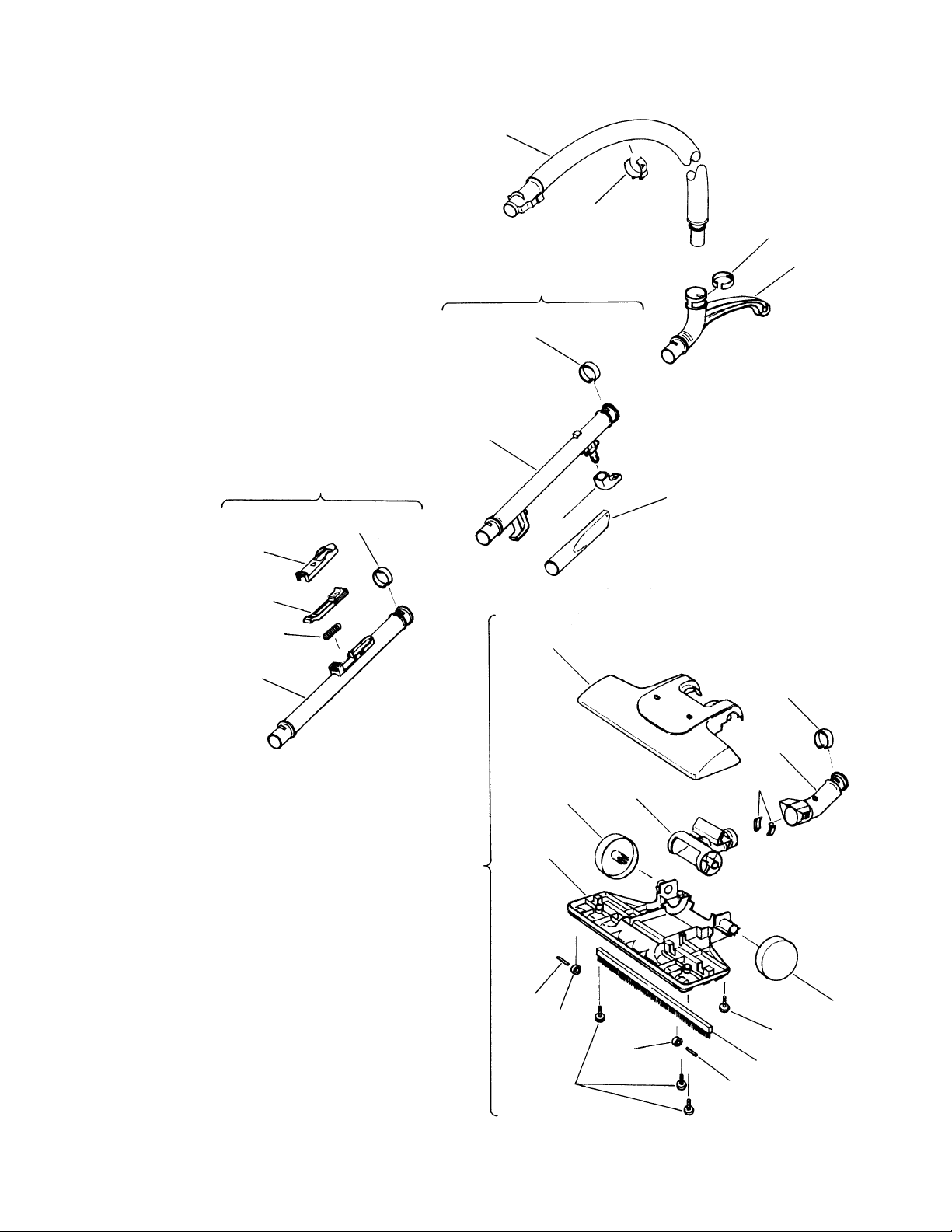

Exploded View (Attachment)
60(61 - 65)
61
SC-150 (U.S.A.)
51
52
53
54
55(56 - 58)
56
57
59
58
62
65
63
64
66(67 - 77)
73
67
72
68
69
70
71
- 3 -
74
75
76
72
76
75
77
74
Parts List
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-150 (U.S.A.)
Key
Parts No. Description Q'ty Parts No. Description Q'ty
No.
Key
No.
1 663 000 5446 DUST BOX COVER (G-328) 1 51 663 000 5132 HOSE ASSEMBLY (L=750) 1
2 663 000 0243 SCREW (4X20) 6 52 663 000 5149 HOSE HOLDER (NN-B) 1
3 663 000 4920 HANDLE (NN-B) 1 53 663 000 5477 ROTARY BEND SET RING 1
4 663 000 0120 SWITCH 1 54 663 000 5163 GRIP (NN-B) 1
A
5 663 000 5453 CASE UPPER (G-328) 1 55 663 000 5484
6 663 000 4944 FUSE ASSEMBLY (125V 10A) 1 56 663 000 5491 PIPE SET RING (G-328) 1
A
CONNECTION PIPE ASSEMBLY B KEYNO,56-58
7 663 000 0700 WIRE CONNECTOR (CE-230) 2 57 663 000 5194 CONNECTION PIPE B (NN-B) 1
8 663 000 2278 SCREW (4X17) 1 58 663 000 5200 CORD HOOK (NN-B) 1
9 663 000 4951 POWER CORD (U2) 1 59 663 000 5217 CREVICE TOOL (NN-B) 1
A
10 663 000 4968 PAPER BAG (SC-P11) 1 60 663 000 5507
CONNECTION PIPE ASSEMBLY KEYNO,61-65
11 663 000 4975 DUST BOX PACKING 1 61 663 000 5491 PIPE SET RING (G-328) 1
12 663 000 4982 FRONT COVER (NN-B) 1 62 663 000 5231 PIPE COVER (NN-B) 1
13 663 000 4999 AIR INLET PACKING 1 63 663 000 5514 CRAMP HOOK (PIPE)(G-328) 1
14 663 000 5125 CAUTION LABEL 1 64 663 000 5255 CRAMP SPRING 1
15 663 000 5002 AIR INLET FILTER 1 65 663 000 5521 CONNECTION PIPE A (NN-B) 1
16 663 000 5019 MOTOR CUSHION FRONT 1 66 663 000 5538 FLOOR TOOL COMP. KEYNO,67-77 1
17 663 000 5026 MOTOR COMP. (AC 120 V) 1 67 663 000 5545 FLOOR TOOL CASE (G-328) 1
A
663 000 0298 CARBON BRUSH ASSEMBLY 2 68 663 000 5491 PIPE SET RING (G-328) 1
A
18 663 000 5033 LEAD WIRE (RED) L=200 1 69 663 000 5330 ROTARY BEND (NN-B) 1
19 663 000 5040 CORD ASSEMBLY (BLACK) L=250 1 70 663 000 5347 BEND SET PIEACE (NN-B) 2
A
20 663 000 5057 MOTOR CUSHION REAR 1 71 663 000 5354 ROTARY PIPE (NN-B) 1
21 663 000 5064 MOTOR BASE 1 72 663 000 5385 FLOOR TOOL ROLLER (NN-B) 2
22 663 000 5071 OUTLET FILTER 2 73 663 000 5552 FLOOR TOOL BASE (NN-B) 1
23 663 000 5095 CASE LOWER (NN-B) 1 74 663 000 5569 SHAFT FRONT 2
24 663 000 5460 NAME PLATE 1 75 663 000 5576 WHEEL SMALL ASSEMBLY 2
25 663 000 5118 INDICATOR FILTER 1 76 663 000 0335 SCREW (4X16) 4
77 663 000 5583 BRUSH BASE ASSEMBLY 1
663 000 5439 INSTRUCTION MANUAL 1
1
1
COLOR CODE:G-328(GREEN),NN-B(BLACK)
Jul./2001/60 Printed in Japan
- 4 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311
