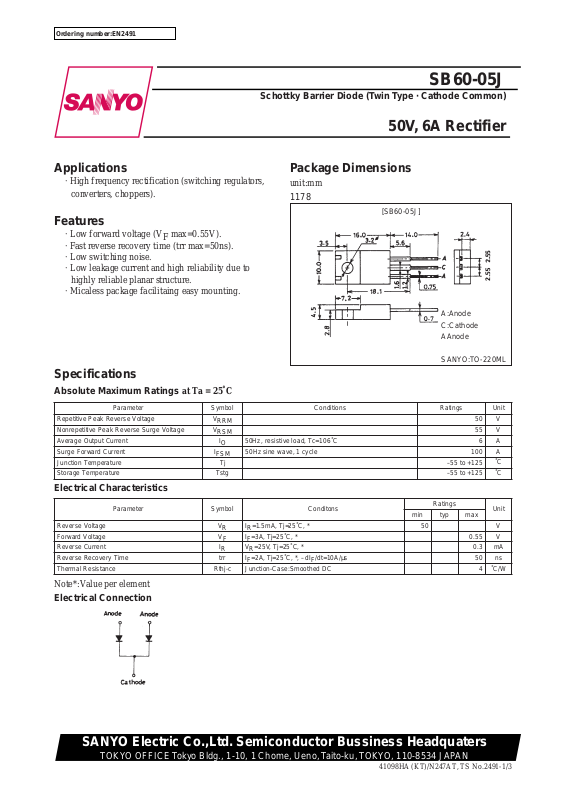

Sanyo SB60-05J Specifications
Ordering number:EN2491
SB60-05J
Schottky Barrier Diode (Twin Type · Cathode Common)
50V, 6A Rectifier
Applications
· High frequency rectification (switching regulators,
converters, choppers).
Features
· Low forward voltage (V max=0.55V). F
·Fast reverse recovery time (trr max=50ns).
·Low switching noise.
·Low leakage current and high reliability due to highly reliable planar structure.
·Micaless package facilitaing easy mounting.
Specifications
Absolute Maximum Ratings at Ta = 25˚C
Package Dimensions
unit:mm
1178
[SB60-05J]
A:Anode
C:Cathode
AAnode
SANYO:TO-220ML
Parameter |
Symbol |
Conditions |
|
|
Ratings |
|
Unit |
|
|
|
|
|
|
|
|
|
|
Repetitive Peak Reverse Voltage |
VRRM |
|
|
|
|
|
50 |
V |
Nonrepetitive Peak Reverse Surge Voltage |
VRSM |
|
|
|
|
|
55 |
V |
Average Output Current |
IO |
50Hz, resistive load, Tc=106˚C |
|
|
|
|
6 |
A |
Surge Forward Current |
IFSM |
50Hz sine wave, 1 cycle |
|
|
|
|
100 |
A |
Junction Temperature |
Tj |
|
|
|
–55 to +125 |
˚C |
||
|
|
|
|
|
|
|
|
|
Storage Temperature |
Tstg |
|
|
|
–55 to +125 |
˚C |
||
|
|
|
|
|
|
|
|
|
Electrical Characteristics |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameter |
Symbol |
Conditons |
|
|
Ratings |
|
Unit |
|
|
|
|
|
|
||||
|
|
|
min |
typ |
|
max |
|
|
|
|
|
|
|
|
|
|
|
Reverse Voltage |
VR |
IR=1.5mA, Tj=25˚C, * |
50 |
|
|
|
V |
|
Forward Voltage |
VF |
IF=3A, Tj=25˚C, * |
|
|
|
|
0.55 |
V |
Reverse Current |
IR |
VR=25V, Tj=25˚C, * |
|
|
|
|
0.3 |
mA |
Reverse Recovery Time |
trr |
IF=2A, Tj=25˚C, *, –dIF/dt=10A/μs |
|
|
|
|
50 |
ns |
Thermal Resistance |
Rthj-c |
Junction-Case:Smoothed DC |
|
|
|
|
4 |
˚C/W |
|
|
|
|
|
|
|
|
|
Note*:Value per element
Electrical Connection
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
41098HA (KT)/N247AT, TS No.2491-1/3
SB60-05J
No.2491-2/3
