Multimedia Projector
MODEL
PLV-75/PLV-80
PLV75L/PLV-80L (Lensless)
Owner’s Manual
2
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER’S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintain it in better condition for a
considerable time.
Improper operation may result in not only shortening the
product life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of this
booklet. If the problem still persists, contact the dealer where
you purchased the projector or the service center.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as much as
possible. Eye damage could result. Be especially careful
that children do not stare directly into the beam.
– Install the projector in a proper position. If not, it may result
in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearances must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat build-up
can reduce the service life of your projector, and can also
be dangerous.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment.
NOTE: This symbol mark and recycle system are applied only
to EU countries and not applied to the countries in the
other area of the world.
Your SANYO product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please dispose of this equipment at your local community
waste collection/recycling centre.
In the European Union there are separate collection systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the ceiling,
clean the air intake vents, air filters, and top
of the projector periodically with a vacuum
cleaner. If you leave the projector without
cleaning for a long time, the dust will block the
operation of the cooling function, and it may
cause a breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET, OR
SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT
A BREAKDOWN OR A DISASTER. IF THE PROJECTOR
COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY
BECOME DETERIORATED.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
TO THE OWNER
SIDE and TOP
REAR
3.3' (1m)
3.3' (1m)
3.3' (1m)
3.3' (1m)
3
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of airconditioning equipment.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.
4
COMPLIANCES
AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of
the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating,
marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse
cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse
covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be
unable to insert the plug into the outlet, contact your electrician.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC POWER CORD REQUIREMENT
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number : PLV-75/PLV-80/PLV-75L/PLV-80L
Trade Name : Sanyo
Responsible party : SANYO FISHER COMPANY
Address : 21605 Plummer Street, Chatsworth, California 91311
Telephone No. : (818)998-7322
ASA
GROUND
5
TABLE OF CONTENTS
FEATURES AND DESIGN 6
BEFORE OPERATION 15
PREPARATION 7
NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8
CONNECTING AC POWER CORD 8
POSITIONING PROJECTOR 9
LENS INSTALLATION 9
ADJUSTABLE FEET 10
INSTALLING PROJECTOR IN PROPER POSITION 10
MOVING PROJECTOR 11
CONNECTING PROJECTOR 12
TERMINALS OF PROJECTOR 12

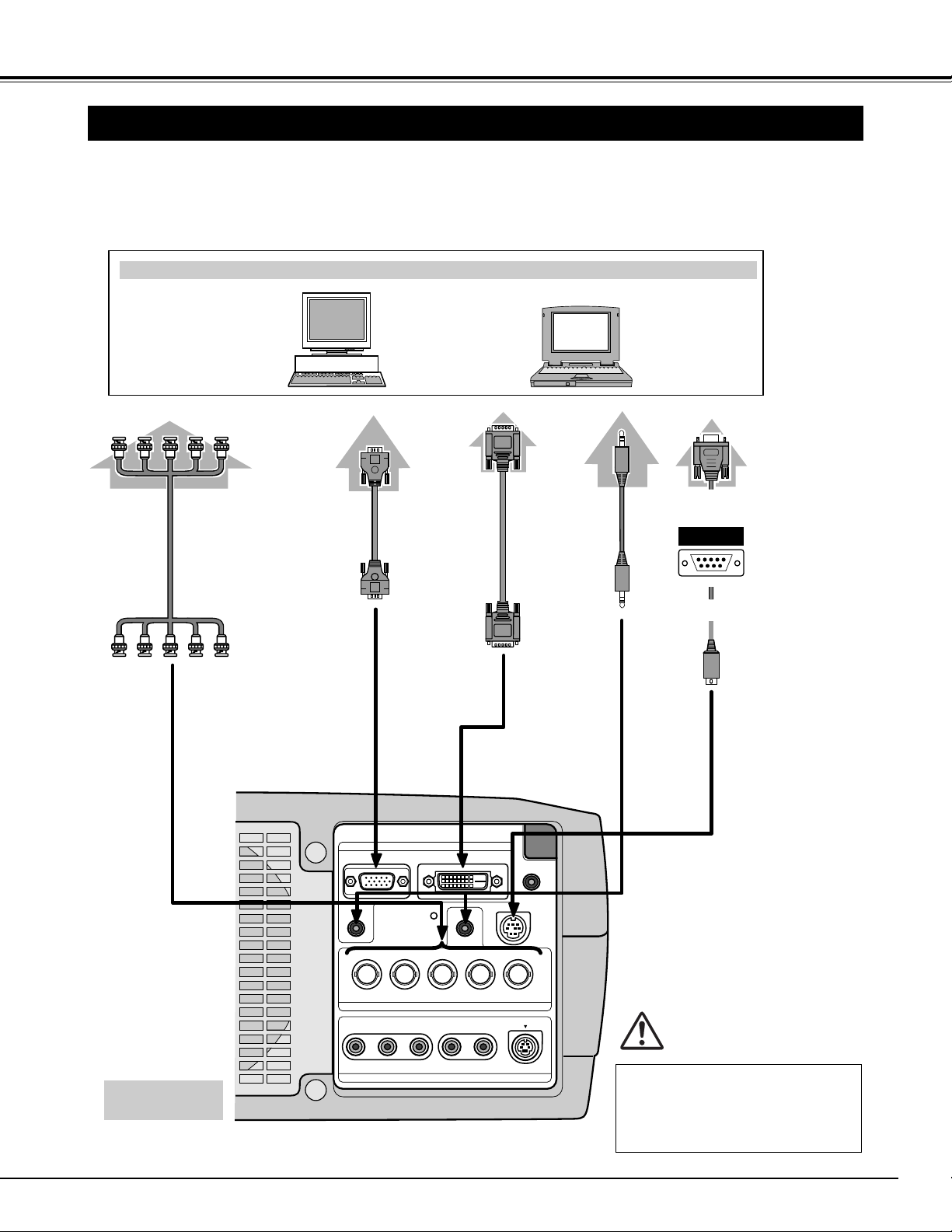

CONNECTING TO COMPUTER 13
CONNECTING TO VIDEO EQUIPMENT 14
OPERATION OF REMOTE CONTROL 15
REMOTE CONTROL BATTERIES INSTALLATION 16
TOP CONTROLS AND INDICATORS 17
OPERATING ON-SCREEN MENU 18

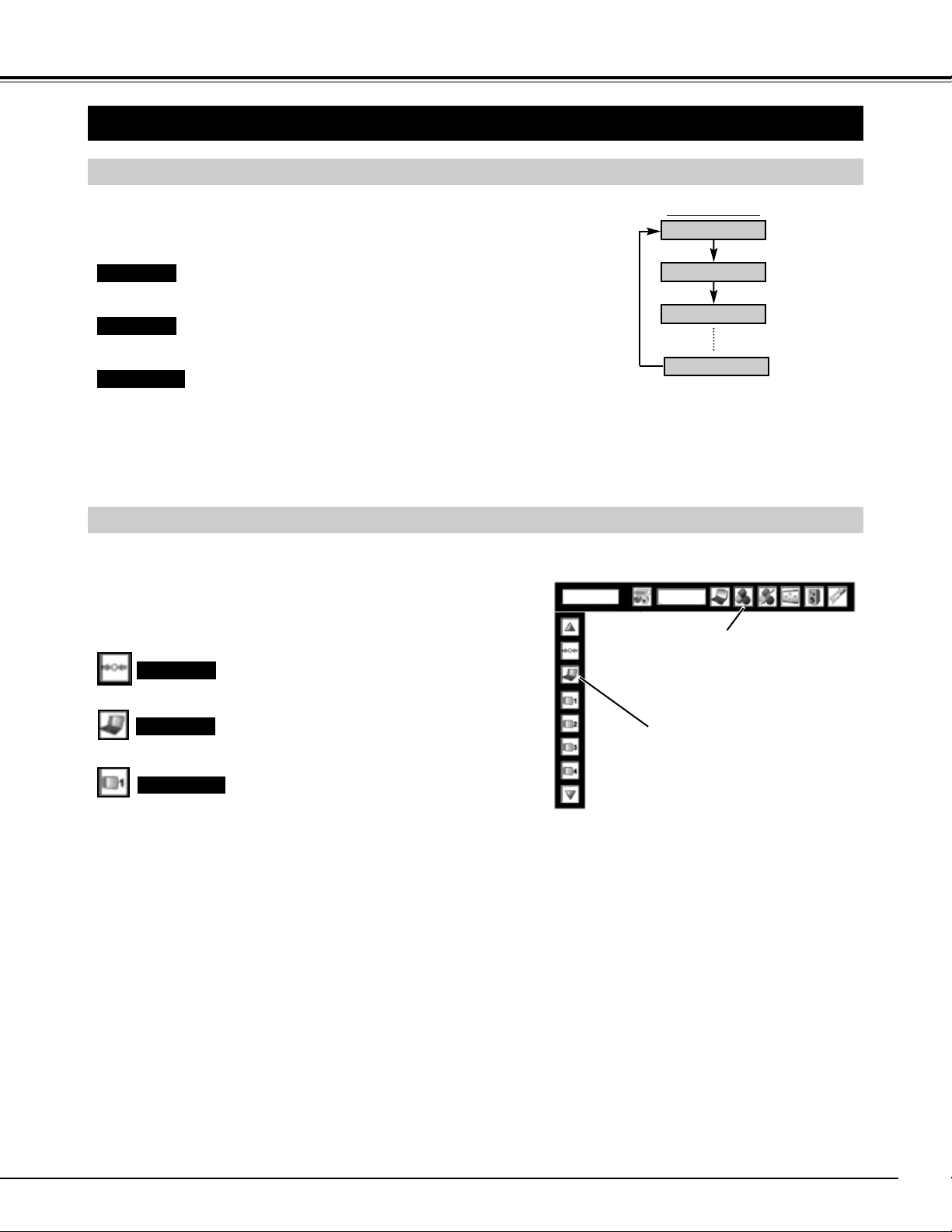

HOW TO OPERATE ON-SCREEN MENU 18
FLOW OF ON-SCREEN MENU OPERATION 18
MENU BAR 19
BASIC OPERATION 20
TURNING ON / OFF PROJECTOR 20
TURNING ON THE PROJECTOR 20
TURNING OFF THE PROJECTOR 21
ADJUSTING SCREEN 22
ZOOM ADJUSTMENT 22
FOCUS ADJUSTMENT 22
LENS SHIFT ADJUSTMENT 22
KEYSTONE ADJUSTMENT 22
PICTURE FREEZE FUNCTION 23
NO SHOW FUNCTION 23
SOUND ADJUSTMENT 23
TRADEMARKS
● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
● Windows and PowerPoint are registered trademarks of Microsoft Corporation.
● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
COMPUTER INPUT 24
VIDEO INPUT 31
SETTING 38
APPENDIX 44
SELECTING INPUT SOURCE 24
SELECTING COMPUTER SYSTEM 24
PC ADJUSTMENT 26
AUTO PC ADJUSTMENT 26
MANUAL PC ADJUSTMENT 27
PICTURE IMAGE SELECT 29
IMAGE LEVEL SELECT 29
PICTURE SCREEN ADJUSTMENT 30
PICTURE SCREEN SELECT 30
SELECTING INPUT SOURCE 31
SELECTING VIDEO SYSTEM 32
PICTURE IMAGE SELECT 33
IMAGE LEVEL SELECT 33
PICTURE SCREEN ADJUSTMENT 34
PICTURE SCREEN SELECT 34
SETTING MENU 38
MAINTENANCE 44
WARNING TEMP. INDICATOR 44
AIR FILTER CARE AND CLEANING 45
CLEANING PROJECTION LENS 45
LAMP REPLACEMENT 46
LAMP REPLACE COUNTER 47
TROUBLESHOOTING 48
MENU TREE 50
COMPATIBLE COMPUTER SPECIFICATIONS 52
INDICATORS AND PROJECTOR CONDITION 53
TECHNICAL SPECIFICATIONS 55
PJ LINK NOTICE 56
CONFIGURATIONS OF TERMINALS 57
OPTIONAL PARTS 58
LENS REPLACEMENT 58
PIN CODE NUMBER MEMO 59
PICTURE IMAGE 35
PICTURE IMAGE ADJUSTMENTS 35
6
FEATURES AND DESIGN
This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This
projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD)
technology.
◆ Compatibility
This projector widely accepts various video and
computer input signals including;
● Computers
IBM-compatible or Macintosh computer up to 1600
x 1200 resolution.
● 6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.
● Component Video
Component video signal, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i or 1080i, can be
connected.
● S-Video
S-Video signal, such as a S-VHS VCR output
signal, can be connected.
◆ High Resolution Image
This projector provides 1366 x 768 dots resolution for
computer input and 800 horizontal TV lines. Resolution
from a computer between XGA (1024 x 768) and UXGA
(1600 x 1200) is compressed into 1024 x 768 dots. This
projector cannot display image of over 1600 x 1200 dots.
When resolution of your computer is over than 1600 x
1200, reset a computer output for lower resolution.
◆ Multi-Scan System
This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for troublesome manual adjustment of frequency
and other settings.
◆ Keystone Correction
Positioning of a projector may result in distorted image
being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.
◆ Multilanguage Menu Display
Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish,
Russian, Chinese, Korean or Japanese.
◆ One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.
◆ Digital Zoom (for Computer)
Digital Zoom function adjusts image size to approx. 1/4 ~
49 times of original image size, allowing you to focus on
crucial information at a presentation.
◆ Compact Design
This projector is extremely compact in size and weight.
It is designed to carry and work anywhere you wish to
use.
◆ Power Management
Power Management function is provided to reduce power
consumption while a projector is not in use.
This Power Management function operates to turn
Projection Lamp off when a projector detects signal
interruption and any button is not pressed. Projection
Lamp is automatically turned on again when a projector
detects signal or any operation button is pressed.
This projector is shipped with this function ON.
◆ Digital Visual Interface
This projector is equipped with DVI 24-pin terminal for
connecting DVI output from a computer.
◆ Motor-driven Lens Shift
Projection lens can be moved up and down with motordriven lens shift function. This function makes it easy to
provide projected image where you want.
Zoom and focus can be also adjusted with motor-driven
operation.
◆ PJ-Net Organizer (Optional)
PJ-Net Organizer enables the projector to display the
image of the computer screen and the data image stored
in the computer via a network. The projector can be also
controlled and maintained through a web browser.
◆ Color management
You can make fine adjustments to the colors on the
screen to change them to the desired colors.
At this time, the colors are changed within an extremely
narrow hue range, so that other colors are not affected.
The luminance and gamma values can also be changed
in addition to the hue.
This allows colors to be reproduced with great accuracy.
Faithful color reproduction and color correction which
effectively matches colors to scenes or emphasizes colors can be achieved.
Adjustments can be made easily, because they are
reflected in the on-screen images in real time. Up to
eight colors can be adjusted at a single time. The adjustment data can be saved for images in both in video
mode and PC mode (total 20 images). The adjusted data
is displayed in a list for easy checking.
◆ Auto Picture Control
The gamma value can be adjusted automatically in
accordance with the luminance of the screen. Images
that are either too dark or too bright can be adjusted to
the optimum level, so that these images can be reproduced without any distortion.
Equipped with an advanced Intelligent Digital Sharpness
Control which controls the sharpness automatically in
accordance with the images on the screen.
7
PREPARATION
NAME OF EACH PART OF PROJECTOR
BOTTOM OF CABINET
BACK OF CABINET
HOT AIR EXHAUSTED !
Air blown from exhaust vent is hot. When
using or installing a projector, following
precautions should be taken.
● Do not put a flammable object near this vent.
● Keep rear grills at least 3.3’(1 m) away from
any object, especially heat-sensitive object.
● Do not touch this area, especially screws
and metallic parts. This area will become
hot while a projector is used.
This projector detects internal temperature
and automatically controls operating power
of Cooling Fans.
FRONT OF CABINET
LAMP COVER
ADJUSTABLE FEET
AND
FEET LOCK LATCHES
This projector is equipped with cooling fans for protection from
overheating. Pay attention to following to ensure proper ventilation
and avoid a possible risk of fire and malfunction.
● Do not cover vent slots.
● Keep side clear of any objects. Obstructions may block cooling
air.
AIR INTAKE VENTS
PROJECTION LENS
SPEAKERS
INFRARED
REMOTE RECEIVER
LENS COVER
POWER CORD
CONNECTOR
EXHAUST VENT
TERMINALS
AND CONNECTORS
TOP CONTROLS
AND INDICATORS
INFRARED
REMOTE RECEIVER
CARRYING
HANDLE
AIR INTAKE
VENT
When attached the PJ-Net organizer (optional
part) to the projector, remove the these parts.
Refer to the owner's manual in the optional
PJ-Net organizer.
NOTE ON POWER CORD
AC Power Cord must meet requirement of country where you use a projector.
Confirm an AC plug type with chart below and proper AC Power Cord must be used.
If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.
SETTING-UP PROJECTOR
8
PREPARATION
To POWER CORD
CONNECTOR on your
projector.
Projector side AC Outlet side
Ground
To the AC Outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
This projector uses nominal input voltages of 100-120 V or 200-240
V AC. This projector automatically selects correct input voltage. It
is designed to work with single-phase power systems having a
grounded neutral conductor. To reduce risk of electrical shock, do
not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure
of type of power supply being in use.
Connect a projector with a peripheral equipment before turning a
projector on. (Refer to pages 12 ~ 14 for connection.)
CAUTION
For safety, unplug AC Power Cord when an appliance is not
used.
When this projector is connected to outlet with AC Power Cord,
an appliance is in Stand-by Mode and consumes a little electric
power.
CONNECTING AC POWER CORD
Connect AC Power Cord (supplied) to a projector.
AC outlet must be near this equipment and must
be easily accessible.
For the U.K.
To the AC Outlet.
(200 - 240 V AC)
To the AC Outlet.
(200 - 240 V AC)
9
PREPARATION
POSITIONING PROJECTOR
● This projector is designed to project on a flat
projection surface.
● Projector can be focused from 5.0’ (1.5m) ~ 52.2’
(15.9m).
● Refer to figure below to adjust screen size.
Screen
Size
Distance
40”
30”
5.0’ (1.5m)
ROOM LIGHT
Brightness in room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide best
image.
Min. Zoom
Max. Zoom
100”
77”
12.7’ (3.9m)
150”
115”
19.1’ (5.8m)
200”
154”
25.6’ (7.8m)
250”
192”
32.0’ (9.8m)
300”
231”
38.4’ (11.7m)
400”
308”
52.2’ (15.9m)
LENS SHIFT ADJUSTMENT
Projection lens can be moved up and down with motor-driven lens shift function. This function makes it easy to
provide projected image where you want. Refer to P 22 for operation.
H3
H4
H1
H2
Highest Lens Shift Lowest Lens Shift
H1 : H2 = 6 : 1
H3 : H4 = 1 : 1
NOTE
Screen size and lens shift ratio on the above charts are standard values and they may change by positioning
conditions.
Before setting up a projector, install Projection Lens on
Projector.
1. Before installation, check where a projector is used and
prepare suitable lens. For specifications of a Projection Lens,
contact sales dealer where you purchased a projector.
2. For installation, refer to installation manual in the optional
lens.
LENS INSTALLATION (For Lensless model PLV-75L/PLV-80L only)
When install the lens, remove the cover cap in the projector.
NOTE;
COVER CAP
NOTE: The figures below are only for Model PLV-75/PLV-80.
Projection lens is not provided with Model PLV-75L/PLV-80L.
12.7’(3.9m)
5.0’(1.5m)
100”
77”
40”
30”
25.6’(7.8m)
200”
154”
52.2’(15.9m)
38.4’(11.7m)
300”
231”
Max. Zoom
Min. Zoom
400”
308”
10
PREPARATION
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by
rotating ADJUSTABLE FEET. Projection angle can be
adjusted to 10.5 degrees.
Lift front of a projector and pull FEET LOCK LATCHES
on both sides of a projector.
1
Release FEET LOCK LATCHES to lock ADJUSTABLE
FEET and rotate ADJUSTABLE FEET to fine tune
position and tilt.
2
To shorten ADJUSTABLE FEET, lift front of a projector
and pull and undo FEET LOCK LATCHES.
Position and keystone distortion of image can be adjusted
using Menu Operation. (Refer to P 22 and 38.)
3
INSTALLING PROJECTOR IN PROPER POSITION
Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.
Do not tilt the projector more than 10 degrees above and below.
Do not point the projector up to project an image.
Do not point the projector down to project an image.
Do not put the projector on either side to project an image.
NO UPWARD
NO DOWNWARD
NO SIDEWAYS
ADJUSTABLE FEET FEET LOCK
LATCHES
10˚
10˚
11
PREPARATION
CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR
● Do not drop or bump a projector, otherwise damages or malfunctions may result.
● When carrying a projector, use a suitable carrying case.
● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This
may cause damage to a projector. To transport a projector through a courier or transport service, consult
your dealer for best way.
MOVING PROJECTOR
Use Carrying Handle when moving a Projector.
When moving a projector, replace lens cover and retract
feet to prevent damage to lens and cabinet.
When this projector is not in use for an extended period,
put it into case (not supplied with this projector).
12
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
When controlling the projector
from a computer, connect the
computer to this connector
with a control cable. (Refer to
P13.)
Connect S-VIDEO
output from video
equipment to this
jack. (Refer to P14.)
Connect an audio output
from video equipment to
these jacks.
(Refer to P14.)
CONTROL PORT CONNECTOR
AUDIO INPUT JACKS
VIDEO INPUT JACKS
S-VIDEO INPUT JACK
Connect composite video
output from video equipment
to VIDEO/Y jack or connect
component video outputs to
VIDEO/Y, Cb/Pb and Cr/Pr
jacks. (Refer to P14.)
Connect computer output
(Analog HDB 15 pin type)
to this terminal.
(Refer to P13.)
INPUT TERMINAL (ANALOG)
This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on
pages 12 to 14 and connect properly.
This projector uses a micro processor
to control this unit, and occasionally,
this micro processor may malfunction
and need to be reset. This can be
done by pressing RESET button with a
pen, which will shut down and restart
unit. Do not use RESET function
excessively.
RESET BUTTON
Connect component video
output (Y, Cb, Cr or Y, Pb, Pr)
from video equipment to
VIDEO/Y, Cb/Pb and Cr/Pr
jacks or connect computer
output {5 BNC Type (Green,
Blue, Red, Horiz. Sync and
Vert. Sync.)} from computer
to G, B, R, H/V and V jacks.
(Refer to P13 and 14.)
5 BNC INPUT JACKS
When using Wired/Wireless
Remote Control Unit as Wired
Remote Control, Connect
Wired Remote Control Unit to
this jack with Remote Control
Cable (not supplied).
R/C JACK
Connect an audio output
(stereo) from computer to
this jack.
(Refer to P13.)
Connect computer output
(Digital DVI-D type) to this
terminal.
HD (HDCP Compatible) signal
can also be connected.
(Refer to P13.)
INPUT TERMINAL (DIGITAL)
Connect an audio output
(stereo) from computer to
this jack.
(Refer to P13.)
AUDIO INPUT 1 JACK
AUDIO INPUT 2 JACK
INPUT 1
ANALOG
AUDIO 1
GBRH/V V
VIDEO/Y Cb/Pb Cr/Pr
VIDEO/Y Cb/Pb Cr/Pr
DIGITAL(DVI-D)
RESET
INPUT 2
R–AUDIO–L
INPUT 3
AUDIO 2
CONTROL PORT
(
MONO
R/C JACK
S–VIDEO
)
13
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA/SXGA+/WXGA/UXGA)
Monitor Output
Desktop type Laptop type
Control Cable
for Serial Port
Serial portAudio Output
CONTROL
PORT
AUDIO IN 1 or 2
INPUT TERMINAL (ANALOG)
Cables used for connection (✽ = Cable or adapter is not supplied with this projector.)
Audio
Cable
✽
(stereo)
• VGA Cable (HDB 15 pin) ✽
• DVI-Digital Cable (for Single Link T.M.D.S.) ✽
• BNC Cable ✽
• Control Cable for Serial Port
• Audio Cables (Mini Plug (stereo) )
✽
Terminals
of a Projector
Terminal
DVI-Digital
Cable
✽
Monitor Output
BNC
Cable
✽
INPUT TERMINAL (DIGITAL)
Note:
When connecting the cable, the power
cords of both the projector and the external equipment should be disconnected
from AC outlet.
VGA Cable ✽
Monitor Output
5 BNC (G/B/R/HV/V)
ANALOG
INPUT 1
DIGITAL(DVI-D)
R/C JACK
AUDI O 1
GBRH/V V
VIDEO/Y Cb/Pb Cr/Pr
VIDEO/Y Cb/Pb Cr/Pr
RESET
INPUT 2
INPUT 3
AUDIO 2
R–AUDIO–L
CONTROL PORT
(
MONO
)
S–VIDEO
14
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Video Source (example)
Video Cassette Recorder
Video Disc Player
S-VIDEO
Cable ✽
Terminals
of a Projector
S-VIDEO
Output
Cables used for connection (✽ = Cable is not supplied with this projector.)
Audio Cable
(RCA x 2) ✽
AUDIO IN
S-VIDEO
Y - Cb/Pb - Cr/Pr
VIDEO
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
Y - Cb/Pb - Cr/Pr
Video Cables
(RCA x 1 or
RCA x 3
) ✽
BNC Cable ✽
Audio
Output
Composite
Video Output
VIDEO
• Video Cable (RCA x 1 or RCA x 3) ✽
• BNC Cable ✽
• S-VIDEO Cable ✽
• DVI-Digital Cable (for Single Link T.M.D.S.) ✽
• Audio Cable (RCA x 2) ✽
• HDB 15 pin-SCART 21 pin Cable ✽
RGB Scart
21-pin Output
HDB 15 pinSCART 21 pin
Cable ✽
INPUT TERMINAL (ANALOG)
Note:
When connecting the cable, the power cords
of both the projector and the external equipment should be disconnected from AC outlet.
Digital Output
(HDCP compatible)
DVI-Digital
Cable
✽
INPUT TERMINAL
(DIGITAL)
INPUT 1
ANALOG
AUDIO 1
GBRH/V V
VIDEO/Y Cb/Pb Cr/Pr
VIDEO/Y Cb/Pb Cr/Pr
DIGITAL(DVI-D)
RESET
INPUT 2
R–AUDIO–L
INPUT 3
AUDIO 2
R/C JACK
CONTROL PORT
S–VIDEO
(
)
MONO
15
BEFORE OPERATION
SCREEN
NO SHOW
MUTE
OPERATION OF REMOTE CONTROL
LIGHT BUTTON
Lights the buttons on the remote
control for about 10 seconds.
Used to select input
source. (P24, 31)
POWER ON-OFF BUTTON
Used to turn projector on or
off. (P20, 21)
MENU BUTTON
Used to select MENU
operation. (P18, 19)
INPUT BUTTON
MUTE BUTTON
Used to mute sound. (P23)
AUTO PC ADJ. BUTTON
Used to operate AUTO PC
Adjustment function. (P26)
FREEZE BUTTON
Used to freeze picture.
(P23)
SELECT BUTTON
POINT (UP / DOWN / LEFT / RIGHT)
BUTTONS
Used to select an item or adjust
value in ON-SCREEN MENU.
They are also used to pan image
in DIGITAL ZOOM +/– mode.
(P30)
POINT LEFT/RIGHT buttons are
also used as VOLUME +/–
buttons. (P23)
Used to execute item
selected. It is also used to
expand / compress image
in DIGITAL ZOOM mode.
(P30)
COLOR M. BUTTON
Used to operate COLOR
MANAGEMENT.
(P35, 36)
Used to adjust zoom.
(P22)
ZOOM BUTTON
FOCUS BUTTON
Used to adjust focus.
(P22)
NO SHOW BUTTON
Used to turn picture into
black image. (P23)
D.ZOOM BUTTON
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P30)
KEYSTONE BUTTON
Used to correct
keystone distortion.
(P22, 38)
IMAGE BUTTON
Used to select image
level. (P29, 33)
WIRED REMOTE JACK
When using as Wired Remote
Control, connect Remote
Control Cable to this jack.
Battery installation is required
when using as Wired Remote
Control.
SCREEN BUTTON
Used to select screen.
(P30, 34)
LENS SHIFT BUTTON
Used to select LENS
SHIFT function. (P22)
IMAGE ADJ. BUTTON
Used to adjust image
level. (P35-37)
ON-OFF
AUTO PC
LIGHT
AUTO
MENU
-
E
M
U
L
O
V
INPUT
SELECT
INPUT IMAGE
1
2
D.ZOOM
3
FREEZE
KEYSTONE
SCREEN
KEYS.
L
F
FOCUSLENS ZOOM
L
-
COLOR M.
I
SELECTION
I
NO SHOW
MUTE
Z
ZF
I
V
O
L
U
M
E
+
CXTW
16
BEFORE OPERATION
To insure safe operation, please observe following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace two batteries at same time.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose Remote Control Unit to moisture, or heat.
● Do not drop Remote Control Unit.
● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to batteries manufacturers instructions and local rules.
Pull up lid and
remove it.
Remove battery
compartment lid.
Slide batteries into
compartment.
Replace compartment lid.
Two AA size batteries
For correct polarity (+ and
–), be sure battery
terminals are in contact
with pins in compartment.
REMOTE CONTROL BATTERIES INSTALLATION
1
2
3
Operating Range
Point Remote Control Unit toward
projector (Infrared Remote Receiver)
whenever pressing any button.
Maximum operating range for Remote
Control Unit is about 16.4’ (5m) and
60° in front and rear of a projector.
16.4’
(5 m)
16.4’
(5 m)
60°
60°
17
BEFORE OPERATION
TOP CONTROLS AND INDICATORS
Used to open or close
MENU operation. (P18,
19)
MENU BUTTON
IMAGE BUTTON
READY INDICATOR
SELECT BUTTON
POWER ON–OFF BUTTON
INPUT BUTTON
WARNING TEMP. INDICATOR
LAMP INDICATOR
POINT (VOLUME + / – ) BUTTONS
LAMP REPLACE INDICATOR
Used to select image
level. (P29, 33)
Lights green when a
projector is ready to be
turned on. And it
flashes green in Power
Management mode.
(P40, 44, 53-54)
Becomes dim when a
projector is turned on.
And bright when a
projector is in stand-by
mode. (P20, 21, 53-54)
Turns to yellow when
life of projection lamp
draws to an end.
Flashes yellow when
the lamp cannot light
up. (P46, 53-54)
Flashes red when
internal projector
temperature is too
high. (P44, 53-54)
Used to select input
source. (P24, P31)
Used to select an item or adjust value
in ON-SCREEN MENU. They are also
used to pan image in DIGITAL ZOOM
+/– mode. (P30)
POINT LEFT/RIGHT buttons are also
used as VOLUME +/– buttons. (P23)
Used to execute the
selected item.
It is also used to
expand/compress image
in DIGITAL ZOOM mode.
(P30)
Used to turn a projector
on or off. (P20, 21)
Used to adjust zoom.
(P22)
FOCUS BUTTON
Used to adjust focus.
(P22)
ZOOM BUTTON
This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.
LENS SHIFT BUTTON
Used to select LENS
SHIFT function. (P22)
AUTO PC ADJ. BUTTON
Used to operate AUTO
PC Adjustment function.
(P26)
18
BEFORE OPERATION
HOW TO OPERATE ON-SCREEN MENU
You can control and adjust this projector through ON-SCREEN
MENU. Refer to following pages to operate each adjustment on
ON-SCREEN MENU.
2 MOVING POINTER
3 SELECT ITEM
Move pointer (✽ see below) or adjust value of item by pressing
POINT buttons on Top Control or on Remote Control Unit.
Select item or set selected function by pressing SELECT button.
OPERATING ON-SCREEN MENU
✽ Pointer is icon on ON-SCREEN MENU to select item. See fig-
ures on section "FLOW OF ON-SCREEN MENU OPERATION"
below.
Used to select item.
SELECT BUTTON
Used to move a
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTONS
TOP CONTROL
MENU BAR
MENU ICON
SELECT
BUTTON
1 DISPLAY MENU
Press MENU button to display ON-SCREEN MENU.
Used to select the item.
SELECT BUTTON
Used to move a
Pointer UP/ DOWN/
RIGHT/ LEFT.
POINT BUTTONS
REMOTE CONTROL UNIT
FLOW OF ON-SCREEN MENU OPERATION
Display ON-SCREEN MENU
Press MENU button to display ON-SCREEN MENU (MENU
BAR). A red frame is POINTER.
Move POINTER (red frame) to MENU ICON that you want to
select by pressing POINT RIGHT / LEFT buttons.
Adjust ITEM DATA by pressing POINT RIGHT/LEFT buttons.
Refer to following pages for details of respective
adjustments.
Press POINT UP/DOWN buttons and move POINTER (red
frame or red arrow) to ITEM that you want to adjust, and then
press SELECT button to show ITEM DATA.
Select Menu to be adjusted
Control or adjust item through ON-SCREEN MENU
1
2
4
3
POINTER (red frame)
Press POINT UP/DOWN
buttons to move POINTER.
POINTER
(red frame)
ITEM
ITEM DATA
Press POINT LEFT/RIGHT
buttons to adjust value or
set function.
MENU BUTTON
MENU BUTTON
Contrast
Auto
AUTO PC
LIGHT
AUTO
MENU
-
E
M
U
SELECT
L
O
V
INPUT
ON-OFF
-
I
COLOR M.
V
O
L
U
M
E
+
19
BEFORE OPERATION
MENU BAR
FOR PC SOURCE
Press MENU BUTTON while connecting to PC input source.
FOR VIDEO SOURCE
Press MENU BUTTON while connecting to VIDEO input source.
PC SYSTEM MENU
Used to select
computer system.
(Refer to P24, 25)
SETTING MENU
Used to change
settings of projector
or reset Lamp
Replace Counter.
(Refer to P38-43)
IMAGE SELECT MENU
Used to select
image level among
Standard, Real
and Image 1 ~ 10.
(Refer to P29)
GUIDE WINDOW
Shows selected
item of ONSCREEN MENU.
SCREEN MENU
Used to adjust size
of image. [Normal
/ Full / True / Digital
zoom +/–]
(Refer to P30)
SOUND MENU
Used to adjust
volume or mute
sound.
(Refer to P23)
INPUT MENU
Used to select
input source (Input
1, Input 2 or Input
3). (Refer to P24)
IMAGE ADJUST MENU
Used to adjust computer
image.
[Contrast/Brightness/Color
/Tint/Color management
/Auto picture control
/Color temp.
/White balance (R/G/B)
/Sharpness/Gamma/Noise
reduction/Progressive]
(Refer to P35-37)
PC ADJUST MENU
Used to adjust
parameters to
match with input
signal format.
(Refer to P26-28)
INPUT MENU
Used to select
input source
(Input 1, Input 2
or Input 3).
(Refer to P31)
IMAGE SELECT MENU
Used to select image
level among
Standard, Cinema
and Image 1 ~ 10.
(Refer to P33)
SCREEN MENU
Used to adjust size of
image. [Full/ Normal/
Zoom / Natural wide]
(Refer to P34)
AV SYSTEM MENU
Used to select
system of selected
video source.
(Refer to P32)
IMAGE ADJUST MENU
Used to adjust picture image.
[Contrast/Brightness/Color/Tint
/Color management
/Auto picture control/Color temp.
/White balance (R/G/B)
/Sharpness/Gamma
/Noise reduction/Progressive]
(Refer to P35-37)
Same function as
Menu for PC source.
Same function as
Menu for PC source.
Input
Input
SVGA1
Auto
20
BASIC OPERATION
TURNING ON THE PROJECTOR
TURNING ON / OFF PROJECTOR
Connect the projector's AC power cord into an AC outlet.
The LAMP Indicator lights RED, and READY Indicator lights
GREEN.
Press the POWER ON-OFF button on the top control or on
the remote control to ON. The LAMP Indicator dims, and the
cooling fans start to operate. The preparation display
appears on the screen and the count down starts.
2
3
1
16
The preparation display disappears after 20 ~ 30 seconds.
4
After the count-down, the input source that was selected last
and the Lamp control status icon (see page 40) appear on
the screen.
If the projector is locked with a PIN code, PIN code Input
Dialog Box will appear. Enter the PIN code as instructed
below.
For model PLV-80/PLV-80L only.
(See page 40 for Lamp control.)
Selected Input Source and Lamp control
Complete peripheral connections (with a computer, VCR,
etc.) before turning on the projector.
What is PIN code?
PIN code is a security code using Personal Identification Number that
allows the person who knows it to operate the projector. Setting PIN code
prevents others except the specific users from operating the projector.
A PIN code consists of a four-digit number. Refer to PIN Code Lock
function in Setting on page 42 for locking operation of the projector with
your PIN code.
Pointer
PIN code Input Dialog Box
Enter a PIN code
Select a number by pressing the POINT LEFT/RIGHT button and fix the
number with the SELECT button. The number will change to "✳". If you
fixed a wrong number, move the pointer to "Set" or "Clear" once by
pressing the POINT DOWN button, then return to "PIN code". Enter the
correct number again.
Repeat this step to complete entering a four-digit number.
When the four-digit number is fixed, the pointer will automatically move to
"Set". Press the SELECT button so that you can start to operate the
projector.
If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will
turn red and disappear. Enter a correct PIN code all over again.
CAUTION ON HANDLING PIN CODE
If you forget your PIN code, the projector can no
longer be started. Set a new PIN code with special
care, write it down in column on page 59 of this
manual, and keep it at hand. Should the PIN code be
missing or forgotten, consult your dealer or service
center.
After the OK icon
disappears, you can
operate the projector.
Lamp control status
21
BASIC OPERATION
Press the POWER ON-OFF button on the top control or on
the remote control, and a message "Power off?" appears on
the screen.
Press the POWER ON-OFF button again to turn off the
projector. The LAMP Indicator lights bright and READY
Indicator turns off. After projector is turned off, Cooling Fans
operate (for 90 seconds). During this "Cooling Down" period,
this appliance cannot be turned on.
1
2
TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN
PROJECTOR ON, WAIT AT LEAST 5 MINUTES
BEFORE TURNING IT OFF.
DO NOT DISCONNECT AC POWER CORD WHILE
COOLING FANS ARE RUNNING OR BEFORE READY
INDICATOR LIGHTS GREEN AGAIN. OTHERWISE IT
WILL RESULT IN SHORTENING LAMP LIFE.
3
When the projector has cooled down, READY Indicator lights
GREEN again and you can turn projector on. After cooling
down completely, disconnect AC Power Cord.
The message disappears after 4 seconds.
• The projector cannot be turned on during the cooling period with the
READY indicator turned off. You can turn it on again after the READY
indicator GREEN again.
• When the On start function is on, this projector is turned on automatically by connecting the AC power cord to an AC outlet. (See page 40
for the On start function.)
• Do not operate the projector continuously without rest. Continuous use
may result in shortening the lamp life. Turn off the projector and give it
a rest about an hour in every 24 hours.
• This projector monitors internal temperature and automatically controls
the running speed of the cooling fans.
• If the WARNING TEMP indicator flashes red, see “WARNING TEMP
INDICATOR ” on page 44.
TURNING OFF THE PROJECTOR
NOTE;
22
BASIC OPERATION
ADJUSTING SCREEN
Message disappears after 4 seconds.
Message disappears after 4 seconds.
ZOOM ADJUSTMENT
FOCUS ADJUSTMENT
1
Press ZOOM button on Top Control or ZOOM ▲/▼ button on
Remote Control Unit. Message “Zoom” is displayed.
2
Press ZOOM ▲ button or POINT UP button to make image
larger, and press ZOOM ▼ button or POINT DOWN button to
make image smaller.
1
Press FOCUS button on Top Control or FOCUS ▲/▼ button on
Remote Control Unit. Message “Focus” is displayed.
2
Adjust focus of image by pressing FOCUS ▲/▼ button or
POINT UP/DOWN buttons.
LENS SHIFT ADJUSTMENT
1
Press LENS SHIFT button on Top Control or LENS SHIFT ▲/▼
button on Remote Control Unit. Message “Lens shift” is
displayed.
2
Press POINT UP button or LENS SHIFT ▲ button to move
image up, press POINT DOWN or LENS SHIFT ▼ button to
move image down.
KEYSTONE ADJUSTMENT
1
Press KEYSTONE button on Remote Control Unit or select
Keystone on SETTING menu. (Refer to page 38.) Keystone
dialog box appears.
2
Correct keystone distortion by pressing POINT
UP/DOWN/LEFT/RIGHT buttons. Press POINT UP button to
reduce the upper part of the image, and press POINT DOWN
button to reduce the lower part. Press POINT LEFT button to
reduce the left part, and press POINT RIGHT button to reduce
the right part.
Reduce the upper width
with POINT UP button.
Reduce the lower width
with POINT DOWN button.
If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.
Reduce the left part with
POINT LEFT button.
Reduce the right part with
POINT RIGHT button.
• Arrows are white in no correction.
• Arrow(s) of direction being corrected turn(s) red.
•Arrow(s) disappear(s) at the maximum
correction.
• If you press the KEYSTONE button on Remote
Control Unit once more while the keystone
dialog box is being displayed, the keystone
adjustment will be canceled.
NOTE;
Focus adjustment may not function properly if the image is
corrected by KEYSTONE adjustment.
Message disappears after 4 seconds.
23
Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE
button again or press any other button.
Press NO SHOW button on Remote Control Unit to black out image.
To restore to normal, press NO SHOW button again or press any
other button.
NO SHOW FUNCTION
PICTURE FREEZE FUNCTION
Message disappears after 4 seconds.
1
2
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SOUND Menu icon.
Volume
Press VOLUME (+/–) buttons on Top Control or on Remote Control
Unit to adjust volume. Volume dialog box appears on screen for a few
seconds.
(+) button to increase volume, and (–) button for decreasing.
Mute
Press MUTE button on Remote Control Unit to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–) buttons.
To increase volume, press POINT RIGHT button, and press POINT
LEFT button for decreasing.
Press POINT UP/DOWN buttons to move a red frame pointer to
item that you want to select, and then press SELECT button.
SOUND ADJUSTMENT
DIRECT OPERATION
MENU OPERATION
Volume
Indicates roughly level of
volume.
Press MUTE button to set
Mute function On or Off.
Display disappears after 4 seconds.
SOUND MENU
Press POINT LEFT/RIGHT buttons to cut off sound. Dialog box
display is changed to “On” and sound is cut off. To restore sound to
its previous level, press POINT LEFT/RIGHT buttons again.
Mute
BASIC OPERATION
Close SOUND Menu
Indicates roughly
level of volume.
SOUND Menu icon
24
SELECTING INPUT SOURCE
DIRECT OPERATION
Select INPUT source by pressing INPUT button on Top Control or on
Remote Control Unit.
Select INPUT source by pressing INPUT 1, INPUT 2 or INPUT 3
button on Remote Control Unit.
If projector cannot reproduce proper image, select correct input source
through MENU OPERATION (see below).
INPUT button
Input 1
Input 2
Input 3
SELECTING COMPUTER SYSTEM
WHEN SELECT INPUT 1 (COMPUTER INPUT TERMINALS )
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
INPUT Menu icon.
Press POINT UP/DOWN buttons to move a red arrow pointer to
Input 1 and then press SELECT button. Source Select Menu will
appear.
1
2
Input 1
INPUT MENU
Move a pointer to source that you want to select and then press
SELECT button.
3
When your computer is connected to INPUT 1 (DIGITAL)
terminal, select RGB (PC digital).
RGB (AV HDCP)
When your computer is connected to INPUT 1 (ANALOG)
terminal, select RGB (PC analog).
Move a pointer (red arrow)
to source and press
SELECT button.
Source Select Menu
INPUT Menu icon
Move a pointer (red arrow) to
Input 1 and press SELECT
button.
RGB (PC digital)
RGB (Scart)
When scart video equipment is connected to INPUT 1
(ANALOG) terminal, select RGB (Scart).
If a HDCP-compatible signal source is connected to the INPUT 1
(DIGITAL) terminal, select RGB (AV HDCP).
NOTE;
HDCP (High-bandwidth Digital Content
Protection) is a system for protecting digital
entertainment content which is delivered by DVI
(Digital Visual Interface) from being copied.
The specification of HDCP is decided and
controlled by Digital Content Protection, LLC.
Should the specification be changed, this
projector may not display the digital content
protected by HDCP.
RGB (PC analog)
COMPUTER INPUT
Input
NOTE;
INPUT SOURCE changes if the INPUT 1 button on Remote Control
Unit is pressed.
SVGA1
Input 1
Input 2
Input 3
25
COMPUTER INPUT
This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA
or UXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on pages 52-53). When a computer is selected, this
projector automatically tunes to incoming signal and projects the proper image without any special setting. (Some
computers need to be set manually.)
The projector displays one of the Auto, -----, Mode 1/2/3/4/5/6/7/8/9/10, or the system provided in the projector.
When projector cannot recognize connected signal as PC
system provided in this projector, Auto PC Adjustment
function operates to adjust projector and message “Auto”
is displayed on SYSTEM Menu icon.
When image is not provided properly, manual adjustment
is required. (Refer to P27 and 28.)
There is no signal input from computer. Make sure
connection of computer and a projector is set correctly.
(Refer to TROUBLESHOOTING on page 48.)
Auto
––––
PC SYSTEM Menu icon
Displays system being
selected.
PC SYSTEM MENU
SELECT COMPUTER SYSTEM MANUALLY
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
SYSTEM Menu icon.
Press POINT UP/DOWN buttons to move a red arrow pointer to
system that you want to set, and then press
SELECT button.
1
2
PC SYSTEM MENU
This projector automatically selects PC system among those provided
in this projector and PC system can be also selected manually.
AUTOMATIC MULTI-SCAN SYSTEM
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
INPUT Menu icon.
Press POINT UP/DOWN buttons and a red-arrow icon will
appear. Move arrow to "RGB", and then press SELECT button.
1
3
When connect a computer output [5 BNC Type (Green, Blue, Red,
Horiz. Sync and Vert. Sync.)] from a computer to G, B, R, H/HV and V
jacks.
WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )
Input 2
INPUT MENU
Move a pointer (red arrow)
to RGB and press SELECT
button.
Source Select Menu
Press POINT UP/DOWN buttons to move a red arrow pointer to
Input 2 and then press SELECT button. Source Select Menu will
appear.
2
INPUT Menu icon
Move a pointer (red arrow) to
Input 2 and press SELECT
button.
PC SYSTEM Menu icon
Displays system being selected.
Systems on this dialog box can
be selected.
Custom Mode (1~10) set in PC
ADJUST Menu. (P27, 28)
User preset adjustment in MANUAL PC ADJUSTMENT.
Adjustment data can be stored in the Mode 1-10.
Mode 1
Computer systems provided in the projector. The
projector chooses proper system and displays it.
SVGA 1
Mode 1 and SVGA 1 are examples.
✽
Input
NOTE;
INPUT SOURCE changes if the INPUT 2 button on Remote Control
Unit is pressed.
SVGA1
Input 1
Input 2
Input 3
System
Mode 1
Mode 1
Mode 2
SVGA 1
SVGA 2
SVGA 3
System
Mode 1
26
COMPUTER INPUT
PC ADJUSTMENT
AUTO PC ADJUSTMENT
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your
computer. Auto PC Adjustment function can be operated as follows.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
ADJUST Menu icon.
1
2
Press POINT UP/DOWN buttons to move a red frame pointer to
AUTO PC Adj. icon and then press SELECT button.
This Auto PC Adjustment can be also executed by pressing
AUTO PC ADJ. button on Top Control or on Remote Control
Unit.
PC ADJUST MENU
Auto PC Adj.
Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in PC SYSTEM Menu (P25). Refer to
MANUAL PC ADJUSTMENT section (P27-28).
NOTE
● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment
function. When image is not provided properly through this function, manual adjustments are required. (Refer to pages
27, 28.)
● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “480p”, “575p”, “480i”, “575i”
“720p (HDTV)”, “1035i (HDTV)” or “1080i (HDTV)” is selected on PC SYSTEM Menu.
PC ADJUST Menu icon
Move a red frame pointer to AUTO
PC Adj. icon and press SELECT
button.
Auto PC adj.
SVGA1
27
COMPUTER INPUT
MANUAL PC ADJUSTMENT
This projector can automatically tune to display signals from most personal computers currently distributed. However, some
computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system
of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering
picture, a non-synchronized picture, a non-centered picture or a skewed picture.
This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special
signal formats. This projector has 10 independent memory areas to memorize those parameters manually adjusted. This
enables you to recall setting for a specific computer whenever you use it.
Note : This PC ADJUST Menu cannot be operated when in digital signal input on DVI terminal is selected on PC SYSTEM
MENU (P24).
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to PC
ADJUST Menu icon.
1
2
Press POINT UP/DOWN buttons to move a red frame pointer to
item that you want to adjust and then press SELECT button.
Adjustment dialog box will appear. Press POINT LEFT/RIGHT
buttons to adjust value.
Adjusts an image as necessary to eliminate flicker from display.
Press POINT LEFT/RIGHT buttons to adjust value. (From 0 to 31.)
Fine sync
Adjust the number of total dots in one horizontal period. Press
POINT LEFT/RIGHT buttons and adjust number to match your PC
image.
Total dots
Adjusts horizontal picture position. Press POINT LEFT/RIGHT
buttons to adjust position.
Position H
Adjusts vertical picture position. Press POINT LEFT/RIGHT
button(s) to adjust position.
Position V
Press SELECT button to show information of computer selected.
Current mode
Adjusts clamp position. When image has a dark bar(s), try this
adjustment.
Clamp
Press SELECT button at
Current mode icon to
show information of
computer connected.
Current mode
PC ADJUST MENU
PC ADJUST Menu icon
Move a red frame pointer to item
and press SELECT button.
Press POINT LEFT/RIGHT
buttons to adjust value.
Press SELECT button at this icon to
adjust “Clamp,” “Display area H” or
set “Display area V.”
Press SELECT button at this icon
to display previous items.
Adjustment of horizontal area displayed with this projector. Press
POINT LEFT/RIGHT buttons to decrease/increase value and then
press SELECT button.
Display area H
Adjustment of vertical area displayed with this projector. Press
POINT LEFT/RIGHT buttons to decrease/increase value and then
press SELECT button.
Display area V
Selected Mode
Shows status
(Stored / Free) of
selected Mode.
Auto PC adj.
SVGA1
Fine sync
Mode 1 Stored
28
COMPUTER INPUT
Reset
Store
Closes PC ADJUST MENU.
Quit
Other icons operates as follows.
To store adjustment parameters, move a red frame pointer to
Store icon and then press SELECT button. Move a red arrow
pointer to any of Mode 1 to 10 that you want to store and then
press SELECT button.
Reset all adjust parameters on adjustment dialog box to previous
figure.
Mode free
Vacant Mode
Shows values of “Total dots,”
“Position H,” “Position V,”
“Display area H,” and “Display
area V.”
Close this dialog box.
To store adjustment data.
To clear adjustment data.
To clear adjustment parameters previously set, move a red
frame pointer to Mode free icon and then SELECT button. Move
a red arrow pointer to Mode that you want to clear and then
press SELECT button.
This Mode has parameters being stored.
Close this dialog box.
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Stored
Free
Free
Free
Free
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Stored
Free
Free
Free
Free
29
COMPUTER INPUT
PICTURE IMAGE SELECT
IMAGE LEVEL SELECT (MENU)
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
IMAGE SELECT Menu icon.
1
2
Press POINT UP/DOWN buttons to move a red frame pointer to
level that you want to set and then press SELECT button.
IMAGE SELECT MENU
Normal picture level preset on this projector.
Standard
Picture level with improved halftone for graphics.
Real
User preset picture adjustment in IMAGE ADJUST Menu (P37).
IMAGE 1~10
IMAGE LEVEL SELECT (DIRECT)
Select image level among Standard, Real, Image 1 to Image 10 by
pressing IMAGE button on Top Control or IMAGE SELECTION ▲/▼
button on Remote Control Unit.
IMAGE button
Standard
Real
Image 1
Image 10
Normal picture level preset on this projector.
Picture level with improved halftone for graphics.
User preset picture adjustment in IMAGE ADJUST Menu (P37).
Standard
Real
IMAGE 1~10
Move a red frame pointer to level
and press SELECT button.
IMAGE SELECT
Menu icon
Image 1
SVGA 1
30
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display desirable image size.
Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SCREEN Menu icon.
When Digital zoom + is selected, ON-SCREEN MENU disappears
and message “D. Zoom +” is displayed. Press SELECT button to
expand image size. And press POINT UP/DOWN/LEFT/RIGHT
button(s) to pan image. Panning function can work only when image
is larger than screen size.
A projected image can be also expanded by pressing D.ZOOM and
SELECT button on Remote Control Unit.
1
To cancel Digital Zoom +/– mode, press any button except D.ZOOM,
SELECT and POINT buttons.
Press POINT UP/DOWN buttons and move a red frame pointer to
function that you want to select and then press SELECT button.
2
Digital zoom +
NOTE
● Picture screen adjustment can not be operated
when “720p (HDTV)”, “1035i (HDTV)” or “1080i
(HDTV)” is selected on PC SYSTEM Menu (P25).
● True and Digital zoom +/- can not be selected
when “480i”, “575i”, “480p” or “575p” is selected on
PC SYSTEM Menu (P25).
● This projector cannot display any resolution higher
than 1600 X 1200. If your computer’s screen
resolution is higher than 1600 X 1200, reset
resolution to lower before connecting projector.
● Image data in other than XGA (1024 x 768) is
modified to fit screen size in initial mode.
● Panning function may not operate properly if
computer system prepared on PC ADJUST Menu
is used.
Normal
SCREEN MENU
When Digital zoom – is selected, ON-SCREEN MENU disappears
and message “D. Zoom –” is displayed. Press SELECT button to
compress image size.
A projected image can be also compressed by pressing D.ZOOM
and SELECT button on Remote Control Unit.
Digital zoom –
Move a red frame pointer to function
and press SELECT button.
SCREEN Menu icon
True
Provides image to fit the panel size of the screen.
Full
Provides image to fit the horizontal size of the screen.
Provides image in its original size. When the original image size is
larger than screen size (1366 X 768), this projector enters “D. Zoom
+” mode automatically.
COMPUTER INPUT
PICTURE SCREEN SELECT (DIRECT)
Select picture screen among Normal, Full and True by pressing
SCREEN button on Remote Control Unit.
SCREEN button
Normal
Full
True
PICTURE SCREEN SELECT (MENU)
