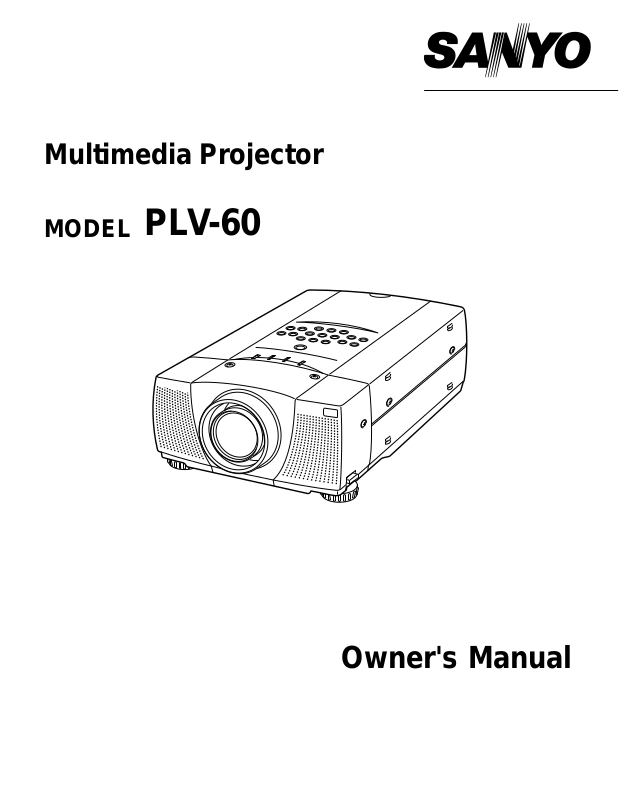

Sanyo PLV-60 User Manual

Owner's Manual

PLV-60

Multimedia Projector

MODEL

2

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for a considerable time.
Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try
the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales
dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible.
Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector.
Minimum distance should be taken. If the projector is to be built
into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the
projector. Heat build-up can reduce the service life of your
projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation
holes.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP

REAR

20cm

50cm 50cm

50cm

3

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before
the product is operated.

Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.

Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.

Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the
manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.

An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.

Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to insure reliable operation of the
equipment and to protect it from overheating.

The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.

This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.

Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest on
the power cord. Do not locate this projector where the cord
may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.

Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask
the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen
geleverd.
Wanneer deze leeg zijn,
moet u ze niet weggooien
maar inleveren als KCA.

4

COMPLIANCES

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin
face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the
same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a
replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug
(i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth
Blue ································· Neutral

Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked
by the letter E or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.
Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

GROUND

ASA

5

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 14

COMPUTER MODE 23

VIDEO MODE 31

SETTING 36

APPENDIX 38

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7
SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8
POSITIONING PROJECTOR 9
ADJUSTABLE FEET 10
MOVING PROJECTOR 10

CONNECTING PROJECTOR 11

TERMINALS OF PROJECTOR 11
CONNECTING TO VIDEO EQUIPMENT 12
CONNECTING TO COMPUTER 13

TOP CONTROLS AND INDICATORS 14
OPERATION OF REMOTE CONTROL 16

OPERATING RANGE 16
WIRED REMOTE CONTROL OPERATION 17
REMOTE CONTROL BATTERIES INSTALLATION 17

OPERATING ON-SCREEN MENU 18

HOW TO OPERATE ON-SCREEN MENU 18
FLOW OF ON-SCREEN MENU OPERATION 18
MENU BAR 19

SELECTING INPUT SOURCE 23
SELECTING COMPUTER SYSTEM 23
PC ADJUSTMENT 24

AUTO PC ADJUSTMENT 24
MANUAL PC ADJUSTMENT 25
COMPATIBLE COMPUTER SPECIFICATIONS 27

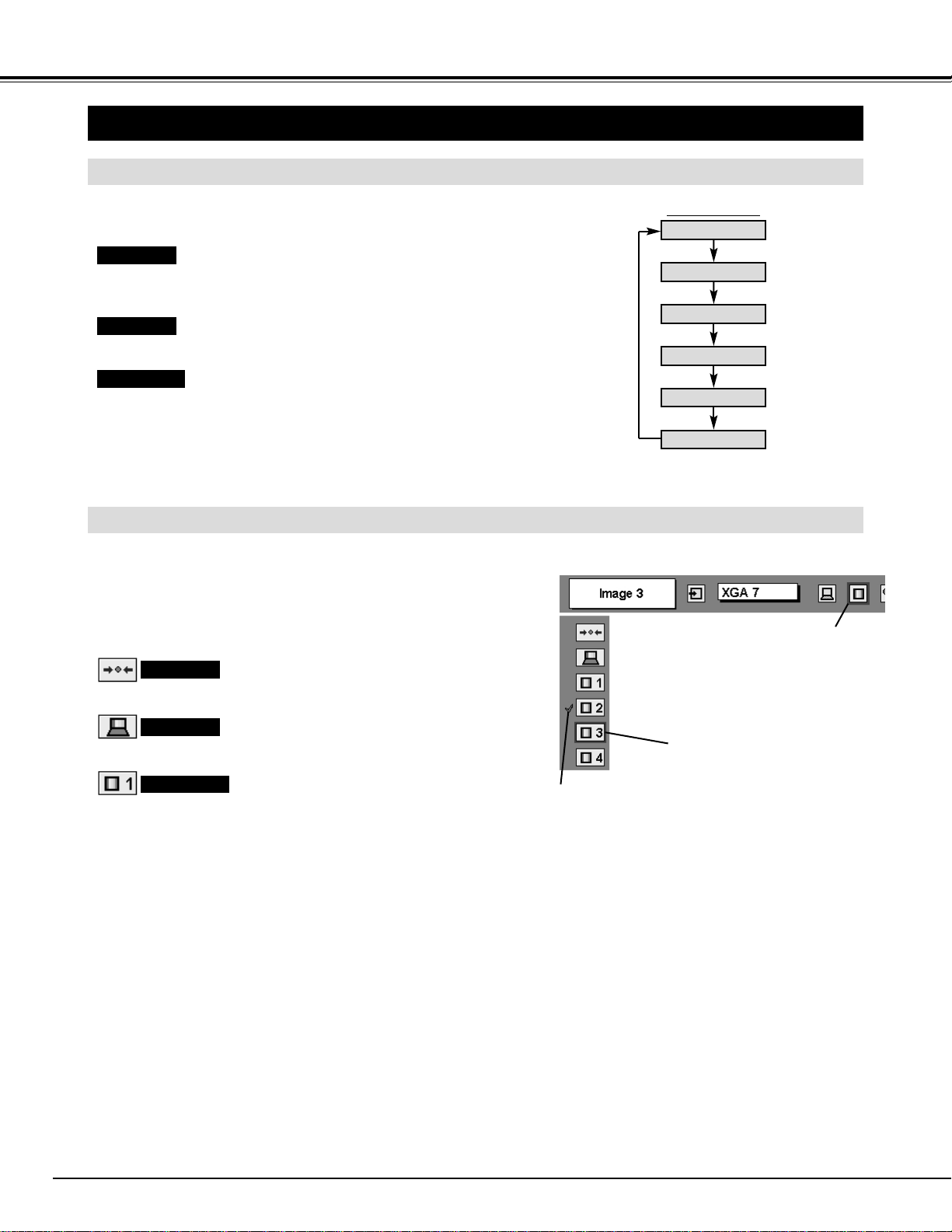

PICTURE IMAGE ADJUSTMENT 28

IMAGE LEVEL SELECT 28
IMAGE LEVEL ADJUSTMENT 29

PICTURE SCREEN ADJUSTMENT 30

SELECTING INPUT SOURCE 31
SELECTING VIDEO SYSTEM 32

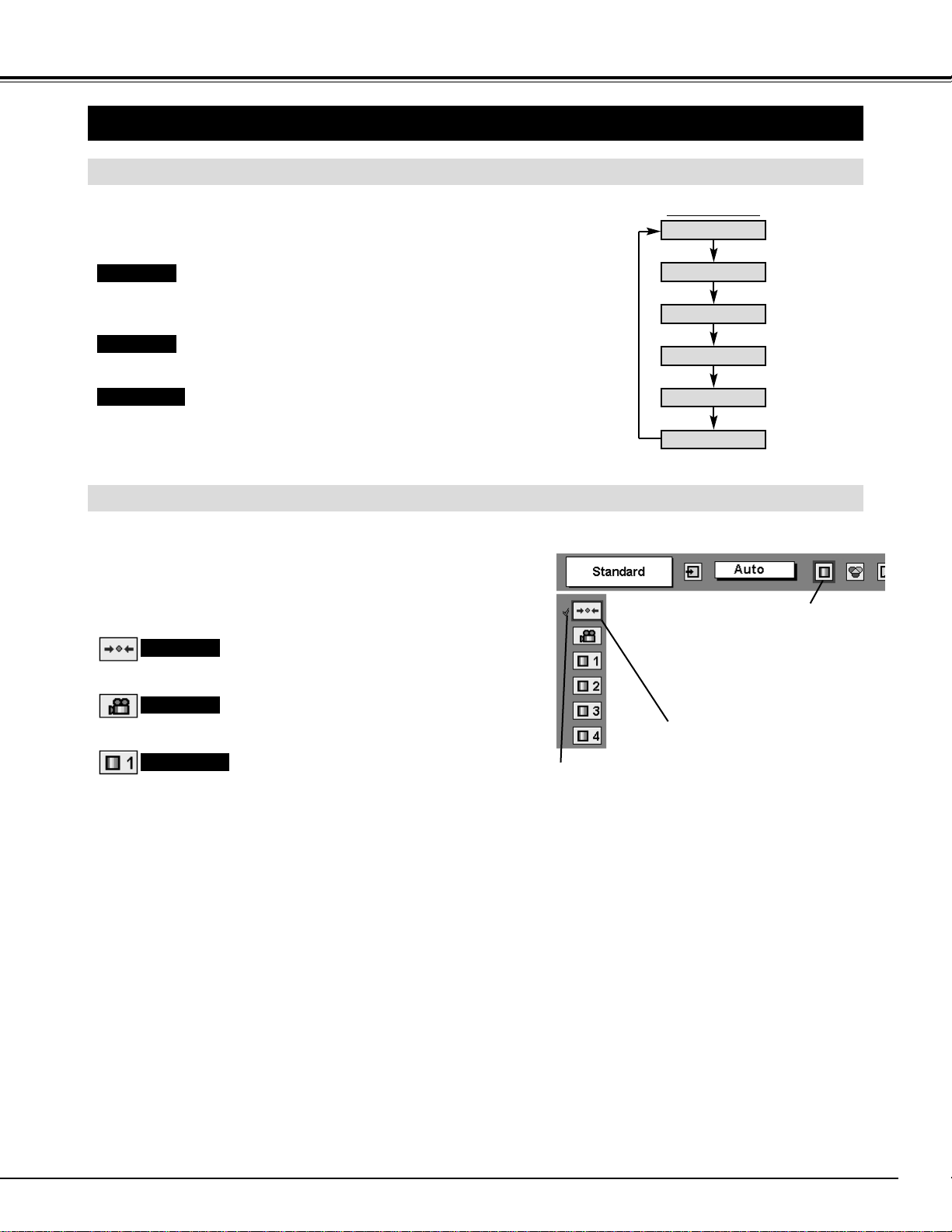

PICTURE IMAGE ADJUSTMENT 33

IMAGE LEVEL SELECT 33
IMAGE LEVEL ADJUSTMENT 34

PICTURE SCREEN ADJUSTMENT 35

SETTING MENU 36

MAINTENANCE 38

WARNING TEMP. INDICATOR 38
AIR FILTER CARE AND CLEANING 38
CLEANING THE PROJECTION LENS 38
LAMP REPLACEMENT 39
LAMP REPLACE COUNTER 39

TROUBLESHOOTING 40
TECHNICAL SPECIFICATIONS 42

BASIC OPERATION 20

TURNING ON / OFF PROJECTOR 20

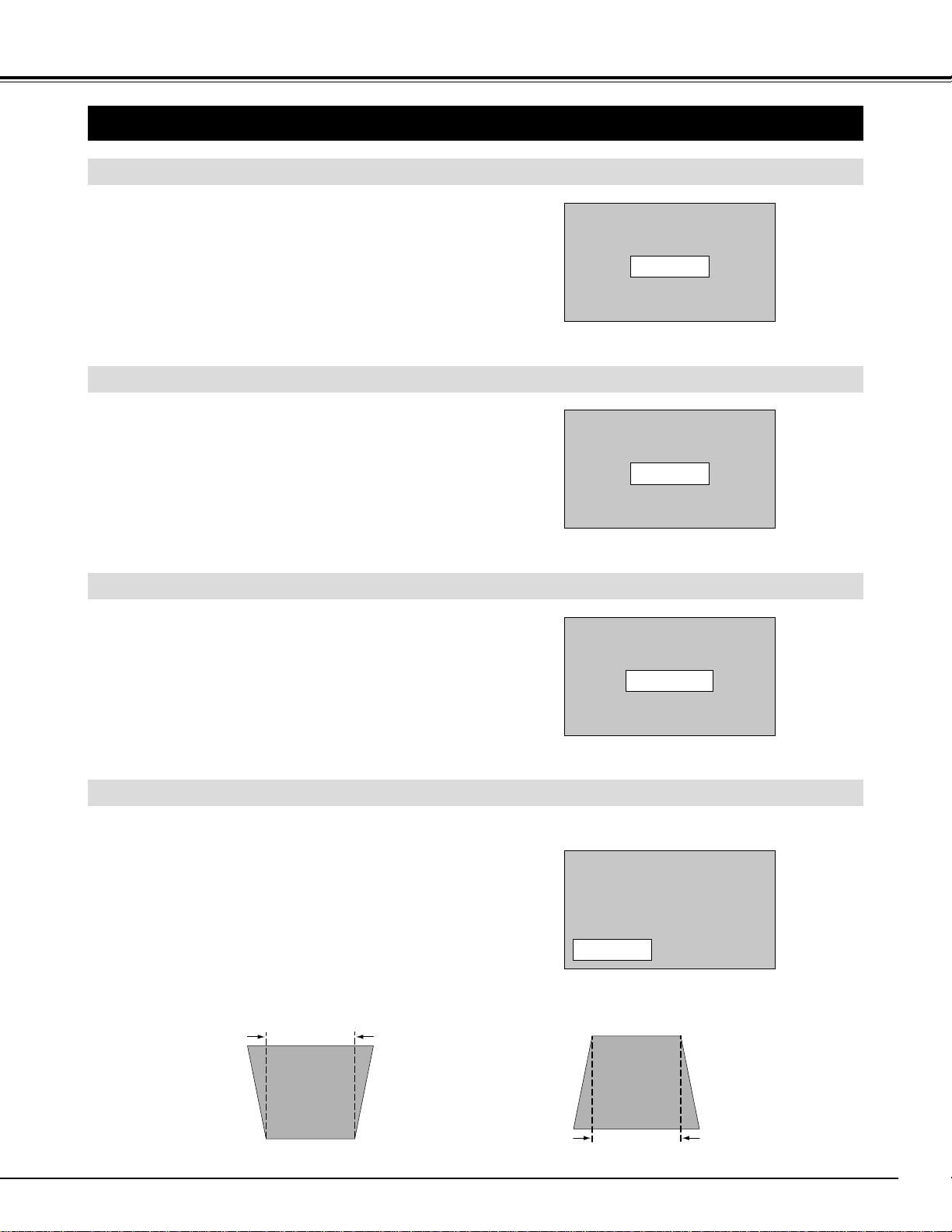

ADJUSTING SCREEN 21

ZOOM ADJUSTMENT 21
FOCUS ADJUSTMENT 21
LENS SHIFT ADJUSTMENT 21
KEYSTONE ADJUSTMENT 21
NO SHOW FUNCTION 22
PICTURE FREEZE FUNCTION 22

SOUND ADJUSTMENT 22

VOLUME ADJUSTMENT 22
MUTE SETTING 22

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

6

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of
use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal
display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and
computer input signals including;

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL­N color system can be connected.

● Component Video

Component video signals, such as a DVD player
output high definition TV signals including 480i,
480p, 575i, 575p, 720p, 1035i, 1080i-50 or 1080i­60, can be connected.

● S-Video

S-Video signals, such as a S-VHS VCR output
signals, can be connected.

● Computers

IBM-compatible and Macintosh computers up to
1280 x 1024 resolution.

◆ High Resolution Image

This projector provides 1366 x 768 dots resolution for
computer input and 800 horizontal TV lines. The
resolution from computer between XGA (1024 x 768)
and SXGA (1280 x 1024) is compressed into 1024 x 768
dots. This projector cannot display image of over 1280 x
1024 dots. When the resolution of your computer is over
than 1280 x 1024, reset computer output for lower
resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to
almost all computer output signals quickly. There is no
need for complicated manual adjustment of frequency
and other settings.

◆ Keystone Correction

Positioning height of projector may result in distorted
images being displayed in a trapezoid shape. Keystone
Correction solves this problem by digitally altering
projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German,
French, Italian, Spanish, Portuguese, Dutch, Swedish or
Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the
best adjustment is automatically set by Auto PC
Adjustment. No complicated setup is necessary and
projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function magnifies the image up to 16
times, allowing you to focus on crucial information at a
presentation.

◆ Power Management

Power Management function is provided to reduce power
consumption while the projector is not in use.
This Power Management function operates to turn
Projection Lamp off when the projector detects signal
interruption and any button is not pressed over 5
minutes. Projection Lamp is automatically turned on
again when the projector detects the signal or any
operation button is pressed.
This projector is shipped with this function ON.

◆ Motor-driven Lens Shift

Projection Lens can be moved up and down with Motor­driven Lens Shift function. This function makes it easy to
provide projected image where you want.
Zoom and Focus can be also adjusted with Motor-driven
operation.

◆ Progressive Scan (for Video)

Progressive Scan function converts interlace video
signals into progressive scan signals and provide fine
picture quality.

7

PREPARATION

NAME OF EACH PART OF PROJECTOR

BOTTOM

BACK

HOT AIR EXHAUSTED !

Air blown from Exhaust Vents is hot. When
using or installing projector, the following
precautions should be taken.

● Do not put any flammable object near these
vents.

● Keep the rear grills at least 3’(1m) away from
any object, especially heat-sensitive object.

● Do not touch this area, especially screws and
metallic parts. This area will become hot
while projector is used.

This projector detects internal temperature
and automatically controls operating power
of Cooling Fans.

FRONT

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

This projector is equipped with Cooling
Fans for protection from overheating.
Pay attention to the following to ensure
proper ventilation and avoid a possible
risk of fire and malfunction.

● Do not cover vent slots.

● Keep bottom clear of any object.

Obstructions may block cooling air.

AIR INTAKE VENTS

(Side and Bottom)

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVERS

LENS COVER

POWER CORD CONNECTOR

EXHAUST VENTS

TERMINALS

AND CONNECTORS

MAIN ON / OFF SWITCH

TOP CONTROLS

AND INDICATORS

SETTING-UP PROJECTOR

8

PREPARATION

This projector uses nominal input voltages of 100-120 V
or 200-240 V AC. The projector automatically selects the
correct input voltage. It is designed to work with single­phase power systems having a grounded neutral
conductor. To reduce the risk of electrical shock, do not
plug into any other type of power system.
Consult your authorized dealer or service station if you
are not sure of the type of power supply being in use.
Connect projector with the peripheral equipment before
turning projector on. (Refer to pages 11 ~ 13 for
connection.)

CAUTION

For safety, unplug the AC Power Cord when the
appliance is not used.

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to
projector.
The AC outlet must be near this
equipment and must be easily
accessible.

To the POWER CORD
CONNECTOR on pro­jector.

Projector side AC Outlet side

Ground

NOTE ON THE POWER CORD

The AC Power Cord must meet the requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and the proper AC Power Cord must be used.
If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

For the U.K.

To the AC Outlet.

(200 - 240 V AC)

To the AC Outlet.

(200 - 240 V AC)

MAIN ON / OFF SWITCH

9

PREPARATION

POSITIONING THE PROJECTOR

This projector is designed to project on a flat projection surface and it can be focused from 4.43’ (1.35m) ~ 45.9’
(14.0m). Refer to the figure below to adjust the screen size.

Width x Height

886 x 498 mm

45.9’ (14.0m)

34.1’ (10.4m)

22.9’ (7.0m)

11.5’ (3.5m)

4.43’ (1.35m)

Max. Zoom

Min. Zoom

2215 x 1245 mm 4430 x 2490 mm 6644 x 3736 mm 8860 x 4980 mm

LENS SHIFT ADJUSTMENT

Projection Lens can be moved up and down with Motor-driven Lens Shift function. This function makes it easy
to provide the projected image where you want. Refer to P 21 for operation.

Highest Lens Shift Lowest Lens Shift

H1

H3

H4

Screen Size

40” 100” 200” 300” 400

”

H2

H1 : H2 = 10.9 : 1 H3 : H4 = 1 : 3.9

RECOMMENDATION

Brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in
order to provide the best image.

NOTE
Screen size and lens shift ratio on the above charts are standard values and they may change by positioning
conditions.

40”

31”

100”

77”

200”
154”

300”

231”

400”

308”

10

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump projector, otherwise damages or malfunctions may result.

● When carrying projector, use a suitable carrying case.

● Do not transport projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to projector. To transport projector through a courier or transport service, consult your
dealer for best way.

MOVING PROJECTOR

Use Carry Handle when moving projector.
When moving projector, replace Lens Cover and retract
Adjustable Feet to prevent damage to Projection Lens
and cabinet.
When this projector is not in use for an extended period,
put it into the case (Dust Cover) supplied with this
projector.

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by
rotating Adjustable Feet. Projection angle can be
adjusted to 9.0 degrees.

Lift the front of projector and pull Feet Lock Latches on
both sides of projector.

1

ADJUSTABLE FEET

FEET LOCK
LATCHES

Release Feet Lock Latches to lock Adjustable Feet and
rotate Adjustable Feet to fine tune position and tilt.

2

To shorten Adjustable Feet, lift the front of projector and
pull and undo Feet Lock Latches.

Position and keystone distortion of the image can be
adjusted using Menu Operation. (Refer to P 21 and 36.)

3

11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

Connect S-VIDEO output
from video equipment to
this jack. (Refer to P12.)

Connect audio output from
computer or video equipment to
these jacks. (Refer to P12, 13.)

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect video output to these
jacks.
Connect composite video
output to VIDEO/Y or connect
component video outputs to
VIDEO/Y, Pb(Cb) and Pr(Cr).
(Refer to P12.)

Connect computer or video output to
these jacks.
Connect composite video output to
VIDEO/Y, separate video outputs to
VIDEO/Y and C/Pb(Cb) or component
video outputs to VIDEO/Y, C/Pb(Cb) and
Pr(Cr). (Refer to P12, 13.)

BNC JACKS

Connect computer output to
this terminal. (Refer to P13.)

RGB TERMINAL

This projector has INPUT TERMINALS and OUTPUT TERMINALS on its side for connecting computers and
video equipment. Refer to the figure on pages 11 to 13 and connect properly.

Connect an external audio
amplifier to these jacks.
(Refer to P12, 13.)

AUDIO OUTPUT JACKS

This projector uses a micro processor to
control the unit. Occasionally, the micro
processor may malfunction and need to
be reset. This can be done by pressing
RESET button with a pen, which will
shut down and restart the unit. Do not
use RESET function excessively.

RESET BUTTON

When using Remote Control Unit as
Wired Remote Control, Connect
Remote Control Unit to this jack with
Remote Control Cable (supplied).
(Refer to page 16, 17.)

R/C JACK

When controlling this projector
by computer, connect your
computer to this terminal.

SERIAL PORT TERMINAL

Connect an external speaker
system to this jack.
(Refer to P12, 13.)

EXTERNAL SPEAKER JACK

INPUT / OUTPUT

TERMINALS

INPUT 1

-

AUDIO-L(MONO)

INPUT 2

S-VIDEO

R

-

AUDIO-L(MONO)

AUDIO OUT

R-AUDIO-LRESET EXT.SP(8Ω)

RGB SERIAL PORT R/C JACK R

VH/VRB

G

VIDEO/Y

C/Pb (Cb) Pr (Cr)

INPUT 3

VIDEO/Y Pb (Cb) Pr (Cr)

R

-

AUDIO-L

(MONO)

RGB SERIAL PORT R/C JACK R

G

VIDEO/Y

VIDEO/Y Pb (Cb) Pr (Cr)

C/Pb (Cb) Pr (Cr)

INPUT 3

INPUT 1

INPUT 2

S-VIDEO

-

AUDIO-L

R

VH/VRB

-

AUDIO-L(MONO)

-

AUDIO-L(MONO)

R

AUDIO OUT

R-AUDIO-LRESET EXT.SP(8Ω)

(MONO)

12

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder Video Disc Player

Video Cable
(RCA x 3) ✽

S-VIDEO

Cable

Audio Amplifier

Audio Speaker

(stereo)

Audio Cable ✽

(RCA x 2)

S-VIDEO

Output

Audio Amplifier

Cables used for connection (✽ = Cables are not supplied with this projector.)

• Video Cable (RCA x 1)

• Video Cable (RCA x 3)

✽, (BNC x 1)✽, (BNC x 2)✽ or (BNC x 3)✽

• S-VIDEO Cable

• Audio Cable (RCA x 2)

• Speaker Cable (Mini x 1 (stereo))

✽

NOTE :
When connecting projector, AC Power Cords of
both projector and external equipment should be
disconnected from AC outlet.

Audio Output

External Audio

Equipment

R L

S-VIDEO

Y Pb/Cb Pr/Cr

VIDEO

R L

Component video output equipment.

(such as DVD player or

high-definition TV source.)

Composite

Video Output

Audio Cable

(RCA x 2)

VIDEO

Y Pb/Cb Pr/Cr Y C

Component Video

Output

Separate

Video Output

Component Video

Output

EXT. SP

Speaker (8Ω / 2W)

Speaker Cable

(Mini / stereo)

✽

Video
Cable

(RCA x 1)

Video
Cable

(BNC x 1)✽

Video Cable

(BNC x 2) ✽

Video Cable

(BNC x 3) ✽

RGB SERIAL PORT R/C JACK R-AUDIO-L(MONO)

G

VIDEO/Y

C/Pb (Cb) Pr (Cr)

VIDEO/Y Pb (Cb) Pr (Cr)

INPUT 3

-

R

AUDIO-L

INPUT 1

INPUT 2

S-VIDEO

VH/VRB

RESET EXT.SP(8Ω)

R-AUDIO-L(MONO)

AUDIO OUT

R-AUDIO-L

(MONO)

13

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA)

VGA Cable

Desktop type Laptop type

Audio Output

MAC Adapter ✽

Set the slide
switches accord­ing to the chart
on page 43.

Cables used for connection (✽ = Cables are not supplied with this projector.)

• VGA Cable (HDB 15 pin)

✽

• Video Cable (BNC x 5) ✽

• MAC Adapter (in the case of connecting Macintosh computer) ✽

• Audio Cables (RCA x 2) or (RCA x 1 - Mini Plug (mono)) ✽

• Speaker Cable (Mini Plug (stereo)) ✽

Audio Cable

(RCA x 2)

NOTE :

When connecting the cable, AC Power Cords of
both projector and external equipment should be
disconnected from AC outlet. Turn projector and
peripheral equipment on before your computer is
switched on.

RGB

Monitor Output

Use either RGB Terminal or
G, B, R, H/V and V jacks.

Audio Cable

(RCA-Mini Plug) ✽

Audio Amplifier

Audio Speaker

(stereo)

Audio Cable ✽

(RCA x 2)

Audio Amplifier

External Audio

Equipment

R LEXT. SP

Speaker (8Ω / 2W)

Speaker Cable

(Mini / stereo)

✽

R L

MONO (L)G B R H/V V

Monitor Output

Video Cable

(BNC x 5) ✽

Mini Plug

RCA

-

AUDIO-L

VH/VRB

(MONO)

INPUT 1

INPUT 2

S-VIDEO

RESET

RGB R

G

VIDEO/Y

C/Pb (Cb) Pr (Cr)

VIDEO/Y Pb (Cb) Pr (Cr)

SERIAL PORT R/C JACK

INPUT 3

R

R

AUDIO OUT

R

-

AUDIO-L(MONO)

-

AUDIO-L(MONO)

-

AUDIO-LEXT.SP(8Ω)

14

LAMP

REPLACE

WARNING

TEMP.

LAMP

READY

ON-OFF

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

READY INDICATOR

WARNING TEMP. INDICATOR

LAMP INDICATOR

LAMP REPLACE INDICATOR

This indicator lights green
when projector is ready to
be turned on. And it
flashes green in Power
Management mode. (P37)

This indicator is dim when
projector is turned on. And
bright when projector is in
stand-by mode.

This indicator turns to
yellow when the life of
Projection Lamp draws to
an end. (P39)

This indicator flashes red
when internal projector
temperature is too high.
(P38)

INDICATORS

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

TOP CONTROLS AND

INDICATORS

INPUT

MENU

SELECT

NORMAL

AUTO PC ADJ.

LENS SHIFT VOLUMEFOCUSZOOM

ON-OFF

Used to adjust zoom. (P21)

Used to select MENU
operation. (P18, 19)

MENU BUTTON INPUT BUTTON

POWER ON–OFF BUTTON

FOCUS BUTTONS

VOLUME BUTTONS

Used to select input source
among INPUT 1, 2 or 3.
(P23, 31)

Used to operate Auto PC
Adjustment function. (P24)

Used to adjust focus. (P21)

Used to adjust volume.
(P22)

Used to reset to normal
picture adjustments preset
by the factory or to reset
screen adjustment in True
mode, Digital Zoom mode or
Keystone mode. (P21, 28,
30, 33)

Used to move Pointer or to
adjust the item on On-Screen
MENU. And it is also used to
pan image in Digital Zoom
mode. (P30)

Used to execute the item
selected or to expand
image in Digital Zoom
mode. (P30)

Used to turn projector on
or off. (P20)

ZOOM BUTTONS

Used to adjust lens shift.
(P21)

AUTO PC ADJ. BUTTON

SELECT BUTTON NORMAL BUTTON

POINT BUTTONS

LENS SHIFT BUTTONS

TOP CONTROL

15

BEFORE OPERATION

16

16.4’ (5 m)

60°

16.4’ (5 m)

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

Used to select input source.
(P23, 31)

Used to execute the item
selected or to expand image in
Digital Zoom mode. (P30)

POWER ON-OFF BUTTON

Used to turn projector on or off.
(P20)

MENU BUTTON

Used to select MENU operation.
(P18, 19)

SELECT BUTTON

INPUT BUTTON

Used to move Pointer or to
adjust the item on On-Screen
MENU. And it is also used to
pan image in Digital Zoom
mode. (P30)

POINT BUTTONS

Used to adjust zoom. (P21)

MUTE BUTTON

Used to mute sound.(P22)

ZOOM BUTTONS

FOCUS BUTTONS

Used to adjust focus. (P21)

NO SHOW BUTTON

Used to turn picture into black
image. (P22)

AUTO PC ADJ. BUTTON

Use to operate

Auto PC

Adjustment

function. (P24)

VOLUME BUTTONS

Used to adjust volume. (P22)

D.ZOOM BUTTONS

Used to select Digital Zoom
mode and resize image. (P30)

KEYSTONE BUTTON

Used to correct keystone
distortion. (P21, 36)

FREEZE BUTTON

Used to freeze picture. (P22)

NORMAL BUTTON

Used to reset to normal picture
adjustments preset by the
factory or to reset screen
adjustment in True mode, Digital
Zoom mode or Keystone mode.
(P21, 28, 30, 33)

WIRED REMOTE JACK

When using as Wired Remote
Control, connect Remote Control
Cable to this jack. (P17)

LENS SHIFT BUTTON

Used to select LENS SHIFT
function. (P21)

IMAGE BUTTON

Use to select IMAGE level.
(P28, 33)

60°

OPERATING RANGE

Point Remote Control toward projector (Remote Receiver) whenever pressing the buttons. Maximum operating
range for Remote Control is about 16.4’ (5m) and 60° in front and rear of projector.

Remote Control Unit can be used as either Wired or Wireless.

MUTE INPUT ON-OFF

VOLUME ZOOM FOCUS

AUTO PC ADJ.

D.ZOOM FREEZE


LENS SHIFT KEYSTONE

MENU

NO SHOW

SELECT

NORMAL

17

BEFORE OPERATION

1 2 3

Slide the lid
upward.

Press the lid
downward
and slide it.

Remove the battery
compartment lid.

Slide 2 batteries into
the compartment.

Replace the compartment
lid.

REMOTE CONTROL BATTERIES INSTALLATION

Two AA size batteries

For correct polarity (+ and –), be sure
the battery terminals are in contact
with pins in the compartment.

WIRED REMOTE CONTROL OPERATION

When using this Remote Control Unit as Wired Remote Control, Connect Remote Control Unit to R/C JACK with
Remote Control Cable (supplied). Batteries installation is required when using as Wired Remote Control Unit.

Remote Control Cable (supplied)

To insure safe operation, please observe the following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If batteries have leaked on Remote Control Unit, carefully wipe the case clean and load new

batteries.

INPUT 1

R/C JACK

OPEN OPEN

18

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press MENU button to display ON-SCREEN MENU
(MENU BAR). A red frame is POINTER.

Move POINTER (red frame) to MENU ICON that you
want to select by pressing POINT RIGHT / LEFT
buttons.

Adjust ITEM DATA by pressing POINT buttons.
Refer to the following pages for details of respective
adjustments.

Press POINT DOWN button and move POINTER (red
frame or red arrow) to ITEM that you want to adjust, and
then press SELECT button to show Item Data.

Select item to be adjusted

Control and adjust through ON-SCREEN MENU

1

2

4

3

You can control and adjust this projector through ON­SCREEN MENU. Refer to the following pages to operate
each adjustment on ON-SCREEN MENU.

2 MOVING POINTER

3 SELECT ITEM

Move the pointer (✽ see below) or adjust the value of item by
pressing POINT button(s) on Top Control or on Remote
Control Unit.

Select the item by pressing SELECT button.

Used to select the item.

SELECT BUTTON

Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.

POINT BUTTONS

REMOTE CONTROL

OPERATING ON-SCREEN MENU

✽ Pointer is the icon on ON-SCREEN MENU to select the

item. See the figures on the section "FLOW OF ON­SCREEN MENU OPERATION" below.

L

Used to select the item.

SELECT BUTTON

Used to move the
Pointer UP/ DOWN/
RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR

POINTER
(red frame)

MENU ICON

ITEM DATA
Press POINT LEFT/RIGHT
buttons to adjust the value.

SELECT

BUTTON

POINTER (red frame)
Press POINT DOWN button to
move POINTER.

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

ITEM

LENS SHIFT KEYSTONE

SELECT

MENU

MENU

SELECT

AUTO PC ADJ.

NORMAL

INPUT

NORMAL

19

BEFORE OPERATION

MENU BAR

SYSTEM MENU

Used to select
computer system.
(Refer to P23, 24)

IMAGE ADJUST MENU

Used to adjust
computer image.
[Contrast / Brightness /
White Balance (R/G/B)
/ Gamma]
(Refer to P29)

SETTING MENU

Used to change settings
of projector and reset
Lamp Replace Counter.
(Refer to P36, 37)

INPUT MENU

Used to select
input source
among INPUT 1,
2, or 3.
(Refer to P23)

SCREEN MENU

Used to adjust
size of image.
(Refer to P30)

IMAGE SELECT MENU

Used to select image
level among
Standard, Real or
Image 1 ~ 4.
(Refer to P28)

FOR PC SOURCE

Press MENU BUTTON for PC input source.

SYSTEM MENU

Used to select
system of selected
video source.
(Refer to P32)

IMAGE ADJUST MENU

Used to adjust picture image.
[Contrast / Brightness / Color /
Tint / White balance / Sharpness /
Gamma / Noise Reduction /
Progressive] (Refer to P34)

FOR VIDEO SOURCE

Press MENU BUTTON for VIDEO input source.

Same function as the
Computer Mode.

INPUT MENU

Used to select input
source among INPUT 1,
2, or 3, and to select
video source.
(Refer to P31)

PC ADJUST MENU

Used to adjust
parameters to
match with input
signal format.
(Refer to P24-26)

IMAGE SELECT MENU

Used to select image
level among
Standard, Cinema or
Image 1 ~ 4.
(Refer to P33)

SCREEN MENU

Used to set size of
image to Full,
Zoom, Normal or
Wide zoom.
(Refer to P35)

GUIDE WINDOW

Shows selected
item of ON­SCREEN MENU.

Same function as the
Computer Mode.

20

BASIC OPERATION

TURNING ON PROJECTOR

Connect the projector's AC Power Cord into an AC outlet and
turn MAIN ON / OFF SWITCH to ON. LAMP Indicator lights
RED, and READY Indicator lights GREEN.

Press POWER ON-OFF button on Top Control or on Remote
Control Unit to ON. LAMP Indicator dims, and Cooling Fans
start to operate. Preparation Display appears on a screen and
the count-down starts. The signal from the PC or Video source
appears after 30 seconds.

2

3

TURNING OFF THE PROJECTOR

Press POWER ON-OFF button on Top Control or on Remote
Control Unit, and the message "Power off?" appears on a
screen.

Press POWER ON-OFF button again to turn off projector. LAMP
Indicator lights bright and READY Indicator turns off. After
projector is turned off, Cooling Fans operate (for 90 seconds).
During this "Cooling Down" period, this appliance cannot be
turned on.

1
2

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU
TURN PROJECTOR ON, WAIT AT LEAST 5
MINUTES BEFORE TURNING IT OFF.

TURNING ON / OFF PROJECTOR

When WARNING TEMP. Indicator flashes red, projector is automatically turned off. Wait at least 5 minutes before turning on
projector again.
When WARNING TEMP. Indicator continues to flash, follow procedures below:

1. Turn MAIN ON / OFF SWITCH to OFF and disconnect the AC Power Cord from a AC outlet.

2. Check Air Filters for dust accumulation.

3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 38.)

4. Turn projector on again.
If WARNING TEMP. Indicator should still continue to flash, contact the sales dealer where you purchased this projector or

service center.

1

Complete the peripheral connections (with Computer, VCR, etc.)
before turning on projector. (Refer to "CONNECTING TO
PROJECTOR" on Pages 11~13 for connecting that equipment.)

3

When projector has cooled down, READY Indicator turns to
green again and you can turn projector on. After cooling down
completely, turn MAIN ON / OFF SWITCH to OFF and
disconnect AC Power Cord.

30

Preparation Display disappears after 30 seconds.

Power off?

Message disappears after 4 seconds.

When “Power Management” function is ON, projector detects signal interruption and turns off Projection Lamp automatically.
Refer to “Power Management” on page 37.

NOTE : When “On start” function is ON, this projector is turned

on automatically by switching MAIN ON / OFF SWITCH
on. (Refer to page 37.)

21

KEYSTONE ADJUSTMENT

1

Press KEYSTONE button on Remote Control Unit or select
Keystone on SETTING Menu (P36). The message “Keystone” is
displayed.

2

Correct keystone distortion by pressing POINT UP/DOWN
button(s). Press POINT UP button to reduce upper part of the
image, and press POINT DOWN button to reduce lower part of
the image.
To reset Keystone adjustment, press NORMAL button.

Message disappears after 4 seconds.

Reduce the upper width with POINT UP button. Reduce the lower width with POINT DOWN button.

Keystone

If image has keystone distortion, correct image with KEYSTONE adjustment.

BASIC OPERATION

ADJUSTING SCREEN

Message disappears after 4 seconds.

Message disappears after 4 seconds.

Zoom

Focus

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Message disappears after 4 seconds.

Lens shift

LENS SHIFT ADJUSTMENT

1

Press LENS SHIFT ▲/▼ button(s) on Top Control or LENS
SHIFT button on Remote Control Unit. The message “Lens
shift” is displayed.

2

Press LENS SHIFT ▲ button or POINT UP button to move
image up, and press LENS SHIFT ▼ button or POINT DOWN
button to move image down.
Refer to P9 for operating range.

1

Press ZOOM ▲/▼ button(s) on Top Control or on Remote
Control Unit. The message “Zoom” is displayed.

2

Press ZOOM ▲ button or POINT UP button to make image
larger, and press ZOOM ▼ button or POINT DOWN button to
make image smaller.

1

Press FOCUS ▲/▼ button(s) on Top Control or on Remote
Control Unit. The message “Focus” is displayed.

2

Adjust focus of the image by pressing FOCUS ▲/▼ button(s) or
POINT UP/DOWN button(s) .

22

MUTE SETTING

VOLUME ADJUSTMENT

BASIC OPERATION

Press FREEZE button on Remote Control Unit to freeze the picture on-screen. To cancel FREEZE function, press FREEZE
button again or press any other button.

Press NO SHOW button on Remote Control Unit to black out the
image. To restore to normal, press NO SHOW button again or press
any other button.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

Message disappears after 4 seconds.

No show

Press VOLUME (+/–) button(s) on Top Control or on Remote Control
Unit to adjust volume. Volume dialog box appears on the screen for a
few seconds.
(+) button to increase volume, and (–) button decreasing.

Press MUTE button on Remote Control Unit to cut off sound. To
restore sound to its previous level, press MUTE button again or press
Volume (+/–) button(s).

Indicates the roughly level
of volume.

Press MUTE button to set
Mute function On or Off.

The display disappears after 4 seconds.

SOUND ADJUSTMENT

23

COMPUTER MODE

SELECTING INPUT SOURCE

MENU OPERATION

DIRECT OPERATION

Choose either Input 1 or Input 2 by pressing INPUT button on Top
Control or on Remote Control Unit.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to
either Input 1 or Input 2 that you want to choose and then press
SELECT button.
When choosing Input 2, Source Select Menu will appear. Move
POINTER to RGB and then press SELECT button. (Input 2
accepts R, G, B, H/V and V computer signals (P 13).)

1
2

INPUT button

Input 1

Input 2

Input 3

Move POINTER (red arrow)
to Input 1 or 2 and press
SELECT button.

INPUT 2

Move POINTER to RGB and
press SELECT button.

Source Select Menu (Input 2)

INPUT MENU

INPUT Menu icon

SELECTING COMPUTER SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to
“COMPATIBLE COMPUTER SPECIFICATION” on page 27). When selecting Computer, this projector automatically tunes
to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of the following messages.

When projector cannot recognize connected signal
as PC system provided in this projector, Auto PC
Adjustment function operates to adjust projector
and the message “AUTO PC Adj.” is displayed on
SYSTEM icon. When image is not provided
properly, manual adjustment is required. (Refer to
P25 and 26.)

There is no signal input from computer. Make
sure the connection of computer and projector is
set correctly.
(Refer to TROUBLESHOOTING on page 40.)

AUTO PC Adj.

No signal

SYSTEM Menu icon
Displays system being
selected.

SYSTEM MENU

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync., Total dots, and Picture Position to conform to
your computer. Auto PC Adjustment function can be operated as follows.

NOTE : Auto PC Adjustment function cannot be operated when

“RGB,” “HDTV720p,” “HDTV1035i” or “HDTV1080i” is
selected on SYSTEM Menu (P23, 24).

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to
AUTO PC Adj. icon and then press SELECT button.
This Auto PC Adjustment can be executed by pressing AUTO
PC ADJ. button on Top Control or on Remote Control Unit.

Move a red frame pointer to AUTO PC
Adj. icon and press SELECT button.

PC ADJUST MENU

Fine sync, Total dots and Picture Position of some computers
may not be fully adjusted with Auto PC Adjustment function.
When the image is not provided properly through this function,
manual adjustment is required. (Refer to page 25, 26.)

Auto PC Adj.

PC ADJUST
Menu icon

24

COMPUTER MODE

SELECT COMPUTER SYSTEM MANUALLY

SYSTEM Menu icon
Displays system being selected.

The systems on this dialog box
can be selected.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SYSTEM icon.

Press POINT DOWN button to move a red arrow pointer to the
system that you want to set, and then press

SELECT button.

1
2

When this mark is displayed as
black, more computer system
modes will be available. Move
the arrow to this mark and then
press SELECT button, and the
other modes will be displayed.

SYSTEM MENU

Custom Mode (1~5) set in PC
ADJUST Menu. (P25, 26)

This projector automatically selects PC system among those provided
in this projector and PC system can be also selected manually.

Store adjustment parameters.
Adjustment parameters from Auto PC Adjustment can be memorized
in this projector. Once parameters are memorized, setting can be
done just by selecting Mode in SYSTEM Menu (above). Refer to step
3 of MANUAL PC ADJUSTMENT section (P26).

25

COMPUTER MODE

MANUAL PC ADJUSTMENT

This projector can automatically tune to the display signals from most personal computers currently distributed. However,
some computers employ special signal formats which are different from the standard ones and may not be tuned by Multi­Scan system of this projector. If this happens, projector cannot reproduce a proper image and the image may be recognized
as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture.
This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special
signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This
enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated when “RGB” is selected on SYSTEM Menu (P23, 24).

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to PC
ADJUST Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SELECT button.
Adjustment dialog box will appear. Press POINT LEFT/RIGHT
button to adjust the value.

Move the red frame icon to the item and
press SELECT button.

PC ADJUST MENU

PC ADJUST
Menu icon

Adjust the picture as necessary to eliminate flicker from the display.
Press POINT LEFT/RIGHT button to adjust value.(From 0 to 255.)

Fine sync

The number of total dots in one horizontal period. Press POINT
LEFT/RIGHT button(s) and adjust number to match your PC image.

Total dots

Adjust horizontal picture position. Press POINT LEFT/RIGHT
button(s) to adjust the position.

Horizontal

Adjust vertical picture position. Press POINT LEFT/RIGHT button(s)
to adjust the position.

Vertical

Press SELECT button to show the information of computer selected.

Current mode

The number of the total horizontal lines. Press POINT LEFT/RIGHT
button(s) and adjust number to match your PC image.

Total lines

Adjusts clamp level. When the image has a dark bar(s), try this
adjustment.

Clamp

Press SELECT button at this icon to
adjust “Total lines,” “Clamp,” “Display
area,” “Horiz. scale” or “Vert. scale” .

Press POINT LEFT/RIGHT
button to adjust the value.

Press SELECT button at
Current mode icon to show
the information of computer
connected.

Shows the status
(Stored/Free) of
Mode.

Selected Mode

26

COMPUTER MODE

NOTE : Display area (H/V), Horizontal scale and Vertical scale

cannot be adjusted when “HDTV1035i” or “HDTV1080i” is
selected on SYSTEM Menu (P23, 24).
Fine sync and Total dots cannot be fully adjusted when
“HDTV1035i” or “HDTV1080i” is selected on SYSTEM Menu
(P23, 24).

Selects area displayed with this projector. Select the resolution at
the Display area dialog box.

Display area

Adjustment of horizontal area displayed with this projector. Press
POINT LEFT/RIGHT button(s) and adjust number to match the
resolution of image.

Display area H

Adjustment of vertical area displayed with this projector. Press
POINT LEFT/RIGHT button(s) and adjust number to match the
resolution of image.

Display area V

Adjustment of width of image. Press POINT LEFT/RIGHT button(s)
for adjustments.

Horizontal scale

Adjustment of height of image. Press POINT LEFT/RIGHT button(s)
for adjustments.

Vertical scale

Press SELECT button at
Display area icon and
the Display area dialog
box appears.

Reset

Stored

Closes PC ADJUST MENU.

Quit

Other icons operates as follows.

3

To store adjustment parameters, move a red frame pointer to
Stored icon and then press SELECT button. Move a red arrow
pointer to any of Mode 1 to 5 that you want to store to and then
press SELECT button.

Reset all adjust parameters on adjustment dialog box to previous
figure.

Mode free

This Mode has parameters being stored.

Vacant Mode Shows values of “Fine sync,”

“Horizontal,” “Vertical,” “Display
area H,” and “Display area V.”

Stored icon

Mode free icon

Close the dialog box.

To store the adjustment data.

To clear the adjustment data.

To clear adjustment parameters previously set, move a red
frame pointer to Mode free icon and then SELECT button. Move
a red arrow pointer to the Mode that you want to clear and then
press SELECT button.

27

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept the signal from all computers with the V, H-Frequency mentioned below and
less than 180 MHz of Dot Clock.

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08
MAC 21

1152 x 870

68.68 75.06

MAC 1280 x 960 75.00 75.08
MAC 1280 x 1024 80.00 75.08

SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 10 1024 x 768

XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768

62.04 77.07

XGA 14 1024 x 768

61.00 75.70

XGA15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

58.03 72.0

SXGA 1 1152 x 864
SXGA 2 1280 x 1024

63.48 79.35

SXGA 3 1280 x 1024

36.00

87.17

(Interlace)

SXGA 4 1280 x 1024

64.20 70.40

SXGA 5 1280 x 1024

62.50 58.60

SXGA 6 1280 x 1024

63.90 60.00

SXGA 7 1280 x 1024

63.34 59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

SXGA 12 1152 x 900

81.13 76.107

SXGA 13 1280 x 1024

63.98 60.02

SXGA 14 1280 x 1024

61.20 65.20

71.40 75.60

50.00

86.00

(Interlace)

HDTV720p

––––––––

50.00

94.00

(Interlace)

45.00 60.00

XGA 1 1024 x 768
XGA 2 1024 x 768
XGA 3 1024 x 768
XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.47 70.07

48.50 60.02

44.00 54.58

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
SXGA 18 1280 x 1024

63.37 60.01

76.97 72.00

61.85 66.00

46.43

86.70

(Interlace)

SXGA 19 1280 x 1024 63.79 60.18

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

RGB

––––––––

15.734

60

(Interlace)

RGB

––––––––

15.625

50

(Interlace)

HDTV1080i

––––––––

33.75

60.00

(Interlace)

HDTV1035i

––––––––

33.75

60.00

(Interlace)

SVGA 10 800 x 600 32.70 51.09

SXGA 20 1280 x 1024 91.146 85.024

28

COMPUTER MODE

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SELECT button.

Move the red frame icon to the
level and press SELECT button.

The level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Real

User preset picture adjustment in IMAGE ADJUST Menu (P29).

IMAGE 1~4

IMAGE SELECT
Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3
and Image 4 by pressing IMAGE button on the Remote Control Unit.

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal picture level preset on this projector. This normal picture
level can also be selected by pressing NORMAL button.

Picture level adjusted for the picture with fine tone.

User preset picture adjustment in IMAGE ADJUST Menu (P29).

Standard

Real

IMAGE 1~4

29

COMPUTER MODE

Press POINT LEFT/RIGHT buttons
to adjust value.

Reset all adjustment to previous figure.

Reset

Stored

Closes IMAGE MENU.

Quit

Other icons operates as follows.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
IMAGE ADJUST Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust. and then press SELECT button.
The level of each item is displayed. Adjust each level by
pressing POINT LEFT/RIGHT button(s).

Move a red frame pointer to
the item to be selected and
then press SELECT button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)

Gamma

3

To store manually preset image, move a red frame pointer to
STORE icon and press SELECT button. Image Level Menu will
appear. Move a red frame pointer to the Image 1 to 4 where you
want to set and then press SELECT button.

Image Level Menu
Move a red frame pointer to any of
Image 1 to 4 where you want to set
and then press SELECT button.

Stored icon
Press SELECT button at this icon to
store the adjustment.

IMAGE ADJUST
Menu icon

Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Blue)

Selected Image level

30

COMPUTER MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.

Adjusts image size or pans image. In “Digital Zoom” mode, the ON­SCREEN MENU disappears and the magnifying glass icon and the
message “D. Zoom” is displayed.
This projector also enters Digital Zoom mode by pressing the
D.ZOOM ▲/▼ button on Remote Control Unit.

1

Refer to the following for operation.

Expand function

To expand the image size, press the D.ZOOM ▲ button or the
SELECT button. The image is magnified by degrees.

Compress function

To compress the image size, press the D.ZOOM ▼ button. The
size of image is reduced by degrees.

Panning function

To pan the image, press the POINT UP/DOWN/LEFT/RIGHT
buttons. Panning function can work only when the image is larger

than the screen size.
To return to screen size previously set, press NORMAL button.
To cancel Digital Zoom mode, press any button except D.ZOOM

▲/▼, SELECT, POINT, NORMAL or AUTO PC ADJ. button.

Provides image in its original size. When the original image size is
larger than screen size (1366 x 768), this projector enters Digital
Zoom mode automatically. Image size can be set to Normal by
pressing NORMAL button.

Move the red frame to the function and
press SELECT button.

Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SELECT button.

2

True

Digital Zoom

NOTE

● This SCREEN Menu cannot be operated when

“HDTV720p,” “HDTV1035i” or “HDTV1080i” is
selected on SYSTEM Menu (P23, 24).

● True and Digital Zoom cannot be selected when
“RGB” is selected on SYSTEM Menu (P23, 24).

● This projector cannot display any resolution higher
than 1280 X 1024. If your computer’s screen
resolution is higher than 1280 X 1024, reset the
resolution to the lower before connecting projector.

● The image data in other than XGA (1024 x 768) is
modified to fit the screen size in the initial mode.

● Panning function may not operate properly if the
computer system prepared on PC ADJUST Menu
is used.

Provides image to fit the vertical size of the screen.

Normal

Provides image to fit the horizontal size of the screen.

Full

SCREEN MENU

SCREEN Menu icon

31

VIDEO MODE

SELECTING INPUT SOURCE

MENU OPERATION

DIRECT OPERATION

Choose either Input 2 or Input 3 by pressing INPUT button on the Top
Control or on the Remote Control Unit.
If projector cannot reproduce proper video source, select correct input
source through MENU OPERATION (see below).

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to
either Input 2 or Input 3 that you want to choose and then press
SELECT button. Source Select Menu appear.

1
2

Move the arrow to the Input
source and press SELECT
button.

INPUT 2

Move the arrow to the source and press SELECT
button.

Source Select Menu (Input 2 / 3)

Move the pointer to the source that you want to select and then
press SELECT button.

3

INPUT MENU

INPUT button

Input 1

Input 2

Input 3

INPUT 3

32

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

VIDEO MODE

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT buttons to move a red frame pointer to
SYSTEM Menu icon.

Press POINT DOWN button to move a red arrow pointer to the
system that you want to select and then press SELECT button.

1
2

If projector cannot reproduce proper video image, it is necessary to
select a specific broadcast signal format among PAL, SECAM, NTSC,
NTSC 4.43, PAL-M, and PAL-N.

Move the pointer to the
system and press
SELECT button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

Projector automatically detects incoming Video signal, and adjusts
itself to optimize its performance.

If projector cannot reproduce proper video image, it is necessary to
select a specific component video signal format among 480i, 575i,
480p, 575p, 720p, 1035i and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK, Y/C JACKS OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects incoming Video system, and adjusts
itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system manually.

Auto

SYSTEM Menu icon
This box indicates the system
being selected.

Move the pointer to the
system and press
SELECT button.

SYSTEM Menu icon
This box indicates the system
being selected.

33

VIDEO MODE

PICTURE IMAGE ADJUSTMENTS

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button to move a red frame pointer to
IMAGE SELECT Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to the
level that you want to set and then press SELECT button.

Move the red frame pointer to the
level and press SELECT button.

The level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P34).

IMAGE 1~4

IMAGE SELECT
Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2,
Image 3 and Image 4 by pressing IMAGE button on the Remote
Control Unit.

Normal picture level preset on this projector. This normal picture
level can also be selected by pressing NORMAL button.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P34).

IMAGE 1~4

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

34

VIDEO MODE

Press POINT LEFT/RIGHT buttons
to adjust value.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
IMAGE ADJUST Menu icon.

1
2

Press POINT DOWN button to move a red frame pointer to the
item that you want to adjust and then press SELECT button.
The level of each item is displayed. Adjust each level by
pressing POINT LEFT/RIGHT button(s).

Move a red frame pointer to
the item to be selected and
then press SELECT button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT
button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT
RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either POINT LEFT button or POINT RIGHT button to obtain
better balance of contrast. (From 0 to 15.)

Gamma

Press SELECT button at this icon to
display other items.

IMAGE ADJUST
Menu icon

Press POINT LEFT/RIGHT buttons
to adjust value.

Press POINT LEFT button to lighten color, and POINT RIGHT button
to deeper color. (From 0 to 63.)

Press POINT LEFT button or POINT RIGHT button to obtain proper
color. (From 0 to 63.)

Color

Tint

Press POINT LEFT button to soften the image, and POINT RIGHT
button to sharpen the image. (From 0 to 31.)

Sharpness

Set “On” to reduce noise (rough parts) of the image.

Noise reduction

Set “On” to provide progressive scan mode.

Progressive

Press POINT LEFT button to lighten red tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT
button to deeper tone. (From 0 to 63.)

White balance (Blue)

NOTE : Tint cannot be adjusted when the video system is PAL,

SECAM, PAL-M or PAL-N.
Noise reduction cannot be selected when the input signal is
from Y, Pb/Cb, Pr/Cr jacks.
Progressive cannot be selected when “480p,” “575p” or
“720p” is selected on SYSTEM Menu (P32).

Press SELECT button at this icon to
store the value.

35

VIDEO MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red frame pointer to
SCREEN Menu icon.

Press POINT DOWN button and move a red frame pointer to the
function that you want to select and then press SELECT button.

1
2

Provides image to fit width of screen by expanding image width
uniformly. This function can be used for providing a squeezed video
signal at wide video aspect ratio of 16 : 9.
When your video equipment (such as DVD) has 16 : 9 output mode,
select 16 : 9 and select Full on this SCREEN Menu to provide better
quality.

Full

NOTE : SCREEN Menu cannot be operated when

“720p,” “1035i,” “1080i-50” or “1080i-60” is
selected on SYSTEM Menu (P32).

Move the red frame to the function and
press SELECT button.

SCREEN MENU

SCREEN Menu icon

Provides image to fit screen size (16 : 9 aspect ratio) by expanding
image width and height uniformly. This function can be used for
providing a letter box mode picture (4 : 3 aspect picture with black
bar on top and bottom edges) at wide video aspect of 16 : 9.

Zoom

Provides image at the normal video aspect ratio of 4 : 3.

Normal

Provides image to fit width of screen by expanding both sides of
image. This function is suitable to provide a normal video signal (4 :
3 aspect ratio) at wide video aspect ratio of 16 : 9.

Wide zoom

Reset all adjustment to previous figure.

Reset

Stored

Closes IMAGE MENU.

Quit

Other icons operates as follows.

3

To store the adjustment data, move a red frame pointer to
Stored icon and press SELECT button. Image Level Menu will
appear. Move a red frame pointer to the Image Level 1 to 4 and
then press SELECT button.

Image Level Menu
Move a red frame pointer to
the image icon to be set
and then press SELECT
button.

Stored icon

36

SETTING

Ceiling

When this function is “On,” picture is top / bottom and the left / right
reversed. This function is used to project the image from a ceiling
mounted projector.

Rear

When this function is “On,” picture is left / right reversed. This
function is used to project the image to a rear projection screen.

Ceiling function

Rear function

Keystone

When the image is distorted vertically, select Keystone. ON­SCREEN Menu disappears and the message “Keystone” is
displayed. Correct the Keystone distortion by pressing the POINT
UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page

21.

SETTING MENU

Press MENU button and ON-SCREEN MENU will appear. Press
POINT LEFT/RIGHT button(s) to move a red-frame pointer to
SETTING icon.

1
2

Language

Language used in ON-SCREEN MENU is selectable from among
English, German, French, Italian, Spanish, Portuguese, Dutch,
Swedish and Japanese.

Display

This function decides whether to display the On-Screen Displays.

On ··· shows all the On-Screen Displays.
Off ···· sets the On-Screen Displays disappeared except;

● ON SCREEN MENU

● “Power off?” message

Set the red frame
pointer to the item
and press SELECT
button.

Press POINT DOWN button to move a red-frame pointer to the
item that you want to set and then press

SELECT button.

Setting dialog box appears.

Blue back

When this function is “On,” this projector will produce a blue image
instead of the video noise on the screen when the input source is
unplugged or turned off.

Logo

When this function is “On,” projector displays logo when starting up.

When selecting Language,
Language Menu appears.

Move the pointer to the item
and then press POINT
LEFT/RIGHT button(s).

SETTING MENU

SETTING Menu icon

37

This function turns Projection Lamp off when projector detects signal
interruption and projector is not used for a certain period in order to
reduce power consumption and maintain the Lamp-life. (This
projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off
when the input signal is interrupted and projector is not operated
over 5 minutes. This function operates as follows;

1. When the signal is interrupted, “No signal” and the counting
down display appears (for 5 minutes).

2. When Projection Lamp turned off, READY Indicator turns off.
Cooling Fans operate and Projection Lamp is turned off for 90
seconds. (During this "Cooling Down" period, projector cannot
be turned on.)

3. When Projection Lamp has cooled down, READY Indicator
flashes and Projection Lamp can be turned on again (Power
Management mode).
In this Power Management mode, Projection Lamp is
automatically turned on when the input signal connected or
projector is operated with any button on the Top Control or on
the Remote Control Unit.

Power management

This function is used to reset Lamp Replace Counter. When
replacing Projection Lamp, reset Lamp Replace Counter by using
this function. Refer to page 39 for operation.

Lamp counter reset

SETTING

Remote control

This projector has two different remote control codes; the factory-set
normal code (Code 1) and the secondary code (Code 2). This
switching function prevents the remote control operation mixture
(jam) when operating several projectors or video equipment together.
When operating projector in “Code 2,” both projector and Remote
Control must be switched to “Code 2.”

To change the code of Projector;

Set the Remote control in the SETTING MENU to “Code 2.”

To change the code of the Remote Control;

Press both MENU and NORMAL buttons on the Remote Control
Unit together for over 10 seconds.

After changing the code, make sure the Remote Control operates
properly.
To return to the normal code (Code 1), operate both projector and
Remote Control in the ways above again.

NOTE : When batteries of the Remote Control Unit is replaced, the

remote transmit code automatically returns to the normal
code (Code 1).

On start

When this function is “On,” projector is automatically turned on just
by switching MAIN ON / OFF SWITCH on.

Note ; Be sure to turn projector off properly (refer to the section

“TURNING OFF THE PROJECTOR” on page 20.). If
projector is turned off in the wrong steps, On Start function
does not operate properly.

Time left until Lamp off.

Move the pointer to the item
and then press POINT
LEFT/RIGHT button(s).

Move the pointer to Lamp counter reset and then press
SELECT button. The message “Lamp replace counter
reset?” is displayed.

38

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

WARNING TEMP. Indicator flashes red when internal temperature of projector exceeds normal temperature. The Indicator
stops flashing when temperature of projector returns to normal. When WARNING TEMP. Indicator continues to flash, check
the items listed below.

Ventilation slots of projector may be blocked. In such an event, reposition the appliance so that Ventilation slots are
not obstructed.

AIR FILTER CARE AND CLEANING

Air Filters may be clogged with dust particles. Clean Air Filters by following the section AIR FILTER CARE AND
CLEANING below.

1
2

If WARNING TEMP. Indicator remains on after performing the above checks, Cooling Fans or Internal Circuits may be
malfunctioning. Contact a service personnel from an authorized dealer or service station.

3

Turn the power off, and disconnect the AC Power Cord from an
AC outlet.

Turn projector upside down and remove Air Filter Cover by
pressing four latches sideways and pulling up. Remove three Air
Filters by pulling up the latches.

1
2

Removable Air Filter prevents dust from accumulating on the surface of Projection Lens and the Projection Mirror. Should
Air Filter become clogged with dust particles, it will reduce Cooling Fans' effectiveness and may result in internal heat build
up and adversely affect the life of projector. Clean Air Filter following the steps below:

Clean Air Filters with brush or wash out the dust and particles.
Be sure to dry them out.

3

Replace Air Filters and Air Filter Cover properly. Make sure that
they are fully set.

4

CAUTION

Do not operate projector with Air Filters removed. Dust may
accumulate on the LCD Panel and the Mirror degrading
picture quality.
Do not put small parts into Air Intake Vents. It may result in
malfunction of projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when
operating projector. Usage in these environments may cause
poor image quality.

When using under dusty or smoky conditions, dust may accumulate
on the liquid crystal panel, Projection Lens, or optical elements inside
it. This condition may degrade the quality of the projected image.

When the above symptoms are noticed, contact your authorized
dealer or service station for proper cleaning.

Air Filter Cover
Press the latches
sideways and pull up.

Air Filters
Remove three Air Filters
by pulling up the latches.

CLEANING THE PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner.
Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

When projector is not in use, replace the lens cover.

1

3

Lightly wipe the cleaning cloth over the lens.

2

Follow these steps to clean the projection lens:

39

APPENDIX

LAMP REPLACEMENT

When the life of the Lamp of this projector draws to an end, the LAMP REPLACEMENT Indicator lights yellow. When the
image becomes dark or the color of the image becomes unnatural, replacement of the Lamp is required.

Turn off projector and disconnect AC plug. Allow projector to
cool for at least 45 minutes.

Remove 2 screws and pull out Lamp Assembly by grasping
Handle.

1

3

LAMP REPLACE COUNTER

Replace Lamp Assembly with a new one and tighten 2 screws.
Make sure that Lamp Assembly is set properly. Replace Lamp
Cover and tighten a screw.

4

Remove a screw with a screwdriver and remove Lamp Cover.

2

CAUTION

●For continued safety, replace with a lamp assembly of the same type.

●Allow projector to cool for at least 45 minutes before you open the lamp cover. The inside of projector can

become very hot.

●Do not drop the lamp assembly or touch the glass bulb! The glass can shatter and may cause injury.

Be sure to reset Lamp Replace Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP
REPLACE Indicator stops lighting.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to
move a red frame pointer to SETTING Menu icon (refer to page 36, 37).

1

Press POINT DOWN button to move a red frame pointer to “Lamp counter reset” and then press

SELECT button. The

message "Lamp replace counter reset?" is displayed. Move the pointer to [Yes] and then press SELECT button.

2

Do not reset Lamp Replace Counter except after Projection Lamp is replaced.

Connect AC Power Cord to projector and turn on projector.

6

Follow these steps to replace the lamp assembly.

Reset Lamp Replace Counter (refer to the section “Lamp
Replace Counter” below).

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

3

5

LAMP
ASSEMBLY

HANDLE

LAMP COVER

NOTE : Do not reset Lamp Replace Counter when Projection

Lamp is not replaced.

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering the Lamp, give the following information to the
dealer.

●Model No. of your projector : PLV-60

●Replacement Lamp Type No. : POA-LMP28

(Service Parts No. 610 285 4824)

40

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the matters below once again.

1. Make sure you have connected projector to your equipment as described in the section "CONNECTING THE
PROJECTOR" on pages 11 ~ 13.

2. Check cable connection. Verify that all computer, video and power cords are properly connected.

3. Verify that all power is switched on.

4. If projector still does not produce an image, re-start the computer.

5. If the image sill does not appear, unplug projector from the computer and check the computer monitor's
display. The problem may be with your graphics controller rather than with projector. (When you reconnect
projector, remember to turn the computer and monitor off before you power up projector. Power the
equipment back on in order of : projector and computer.)

6. If the problem still exists, check the following chart.

No power.

● Plug projector into the AC outlet.

● Be sure READY Indicator light is On.

● Wait 90 seconds after projector is turned OFF before turning projector back on.

NOTE : After pressing the power ON-OFF switch to OFF, make sure projector works as

follows:

1. The LAMP Indicator will light and the READY Indicator will turn off.

2. After 90 seconds, the READY Indicator will light green again and projector may
be turned on by pressing the power ON-OFF button.

● Check WARNING TEMP. Indicator. If this indicator flashes red, projector cannot be
turned on.
(See "TURNING ON/OFF THE PROJECTOR" section on page 20.)

● Check the Projection Lamp. (Refer to page 39.)

Image is out of
focus.

● Adjust the focus

● Make sure the projection screen is at least 4.43’ (1.35 m) from projector.

● Check the projection lens to see if it needs cleaning.

NOTE : Moving projector from a cool temperature location to a warm temperature location

may result in moisture condensation on the lens. In such an event, leave projector
OFF and wait until condensation disappears.

Picture is Left/Right
reversed.

● Check Ceiling / Rear feature. (See “SETTING” section on page 36.)

Problem: Try these Solutions

Picture is
Top/Bottom
reversed.

● Check Ceiling feature. (See “SETTING” section on page 36.)

Some displays are
not seen during the
Operation.

● Check Display feature. (See “SETTING” section on page 36.)

No image.

● Check the connection between the computer or video equipment and projector.

● When turning projector on, it takes about 30 seconds to display the image.

● Check the system that you select is corresponding with the computer or the video

equipment.

● Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

No sound.

● Check audio cable connection from audio input source.

● Adjust the audio source.

● Press VOLUME (+) button.

● Press MUTE button.

41

This symbol on the nameplate means the product is Listed by Underwriters
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards
against risk of fire, casualty and electrical hazards.

APPENDIX

WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.

If the problem still persists

after following all operating instructions,

contact the sales dealer where you

purchased projector or the service center.

Give the model number and explain the difficulty. We will advise you

how to obtain service.

Remote Control Unit
does not work.

● Check the batteries.

● Make sure nothing is between the Remote Receiver and the Remote Control Unit.

● Make sure you are not too far from projector when using the Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Make sure the code of the Remote Control is set to conform to projector.

(See “SETTING” section on page 36, 37.)

Problem: Try these Solution

42

APPENDIX

1.35" TFT Active Matrix type, 3 panels

TECHNICAL SPECIFICATIONS

Multi-media Projector

20.3 lbs (9.2 kg)

12.44" x 6.46" x 18.9" (316mm x 164mm x 480mm)

1366 x 768 dots
3,147,264 (1366 x 768 x 3 panels)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz
Adjustable from 31” to 400”
800 TV lines

2 speakers, 1.57" x 2.76" (40mm x 70mm)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Owner’s Manual
AC Power Cord
Wired/Wireless Remote Control Transmitter and Batteries
Video Cable (RCA x 1)
Audio Cable (RCA x 2)
S-Video Cable
Remote Control Cable
Dust Cover
Lens Cover

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution
Number of Pixels
Color System

Scanning Frequency
Projection Image size

(Diagonal)

Horizontal Resolution

Built-in Speakers

Operating Temperature
Storage Temperature

Accessories

LCD Panel System

● The specifications are subject to change without notice.

F 1.8 ~ 2.1 lens with f 48.4 mm ~ 62.8 mm with motor zoom, focus and shift

4.43’ ~ 45.9’ (1.35 m ~ 14.0 m)
250 W

Projection Lens
Throw Distance
Projection Lamp

RCA Type Jacks (R and L(mono)) x 3

Audio Input Jacks (Input 1/2/3)

INPUT 1 : HDB 15 pin Type Terminal
INPUT 2 : BNC Type Jacks (Video/Y, C/Pb(Cb), Pr(Cr)) / (G, B, R, H, V)

Mini DIN 4 pin Type Jack (S-Video)

INPUT 3 : RCA Type Jacks (Video/Y, Pb(Cb), Pr(Cr))

2.0 W RMS (stereo)

Computer / AV Input Jacks

Internal Audio Amp

0˚ to 9.0˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2
Operating Range : 16.4’ (5m) / ±30˚
Dimensions : 1.8” x 0.75” x 6.7” (45mm x 19mm x 170mm)
Net Weight : 0.20 lbs (92 g) (including batteries)

Remote Control Transmitter

480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 and 1080i-60

High Definition TV Signal

AC 100 ~ 120 V (4.4 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (2.2 A Max. Ampere), 50 / 60 Hz

(Continental Europe and The U.K.)

Voltage and
Power Consumption

RCA Type Jacks (R and L)

Audio Output Jacks

35 mm Mini Jack (8 Ω 2 W / stereo)

External Speaker Jack

HDB 9 pin Type Terminal

Serial Port Terminal
R/C Jack

Mini Jack

43

APPENDIX

CONFIGURATIONS OF TERMINALS

RGB TERMINAL

Terminal : HDB15-PIN

Connect the display output terminal of computer to this terminal with VGA Cable (not supplied). When connecting the
Macintosh computer, the MAC Adapter (not supplied) is required.

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red)
Ground (Green)
Ground (Blue)

1

5

2

4

3

6
7
8

No Connect

Horiz. sync.

Ground (Vert.sync.)

Sense 1

Sense 0

Vert. sync.
Reserved

9

13

10

12

11

14
15

Pin Configuration

SERIAL TERMINAL

Terminal : HDB9-PIN

Connect the serial port of computer to this terminal with Serial Cable (not supplied).

No Connect

Ground

R x D

No Connect

T x D

1

5

2

4

3

No Connect
RTS

No Connect

CTS

6
7

9

8

Pin Configuration

MAC ADAPTER (NOT SUPPLIED)

Set Slide Switches as shown in the table below depending on RESOLUTION MODE that you want to use before
you turn-on projector and computer.

13” MODE (640 x 480)
16” MODE (832 x 624)
19” MODE (1024 x 768)
21” MODE (1152 x 870)

ON

OFF
OFF

ON

ON
ON
ON
ON

OFF
OFF

ON
ON

OFF

ON

OFF

ON

OFF
OFF
OFF
OFF

OFF
OFF
OFF
OFF

1 2 3 4 5 6

Slide Switches (1 ~ 6)

5

34

10

9 678

15

14

13

2

1

12

11

35 4 2 1

79 8 6

ON

OFF

ON

2 3 4 5 6

1

DIP

Printed in Japan
Part No. 610 289 4110 (1AA6P1P2612-- M4HA)

SANYO Electric Co., Ltd
