Sanyo PLC-SU25 User Manual

Multimedia Projector
MODEL PLC-SU25
Owner’s Manual
2
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “TROUBLESHOOTING” section at the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.
TO THE OWNER
SAFETY PRECAUTIONS
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
This projector produces intense light from the projection lens. Do not stare directly into the lens as it could possibly damage your eyes. Be especially careful that children do not stare directly into the beam.
This projector should be installed as shown. If not, it may result in a fire hazard.
Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.
Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.
The Remote Control, supplied to this projector, emits the laser beam as the laser pointer function from Laser Light Window while pressing the LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into the Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.
If the projector is not to be used for an extended time, unplug the projector from the power outlet.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
SIDE and TOP REAR
20cm
50cm 50cm
50cm
3
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.
This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.
This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.
4

COMPLIANCES

AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC POWER CORD REQUIREMENT
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :
Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Model Numbers : PLC-SU25 Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311
Telephone No. : (818)998-7322
ASA
GROUND
5

TABLE OF CONTENTS

FEATURES AND DESIGN 6
BEFORE OPERATION 14
COMPUTER INPUT (RGB Scart 21-Pin Video Input) 22
VIDEO INPUT 31
SETTING 36
APPENDIX 38
PREPARATION 7
NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8
CONNECTING AC POWER CORD 8 POSITIONING PROJECTOR 9 ADJUSTABLE FEET 9 INSTALLING PROJECTOR IN PROPER POSITION 10 MOVING PROJECTOR 10
CONNECTING PROJECTOR 11
TERMINALS OF PROJECTOR 11 CONNECTING TO COMPUTER 12 CONNECTING TO VIDEO EQUIPMENT 13
OPERATION OF REMOTE CONTROL 14
LASER POINTER FUNCTION 14 REMOTE CONTROL BATTERIES INSTALLATION 15
TOP CONTROLS AND INDICATORS 16 OPERATING ON-SCREEN MENU 17
HOW TO OPERATE ON-SCREEN MENU 17 FLOW OF ON-SCREEN MENU OPERATION 17 MENU BAR 18
SELECTING INPUT SOURCE 22 SELECTING COMPUTER SYSTEM 23
COMPATIBLE COMPUTER SPECIFICATIONS 24
PC ADJUSTMENT 25

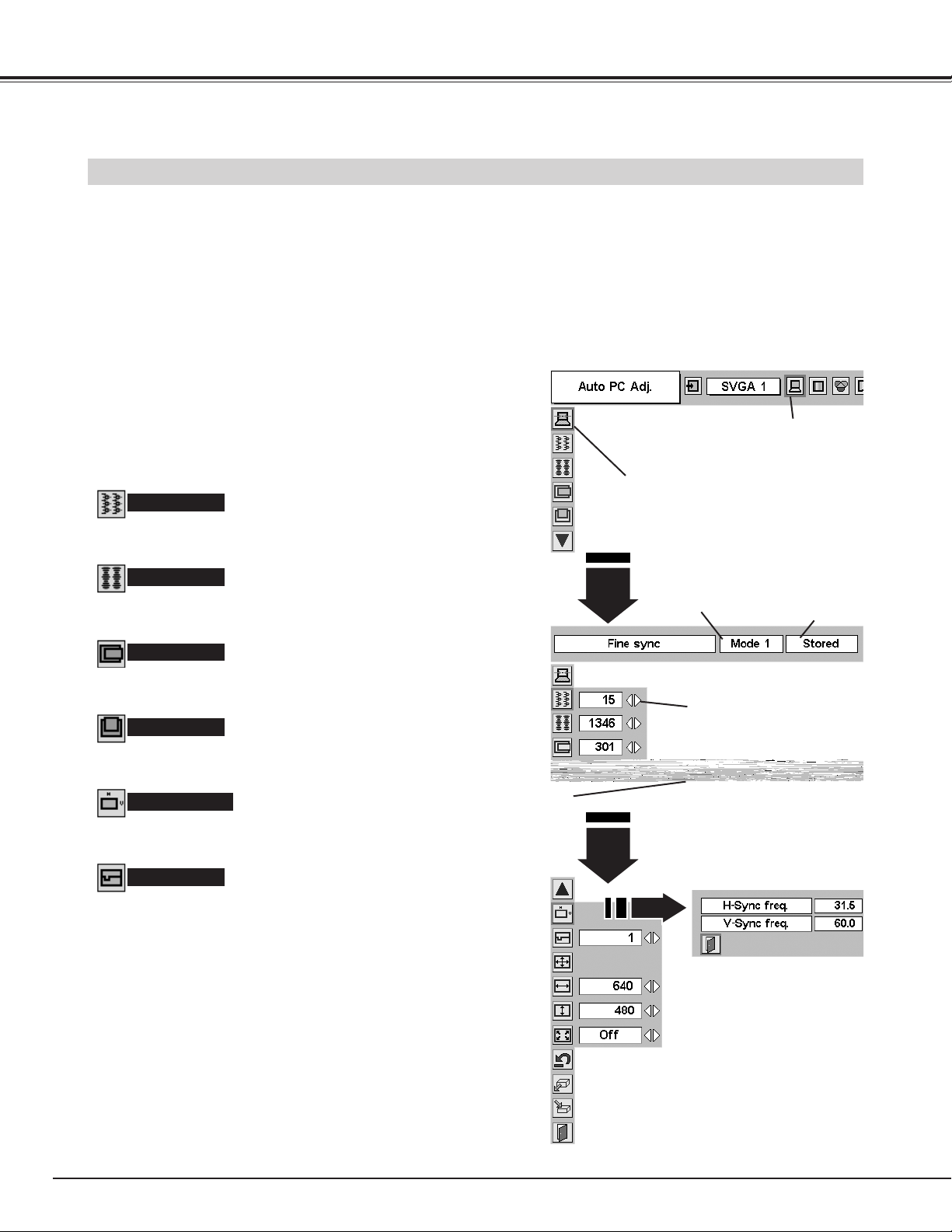

AUTO PC ADJUSTMENT 25 MANUAL PC ADJUSTMENT 26
PICTURE IMAGE ADJUSTMENTS 28
IMAGE LEVEL SELECT 28 IMAGE LEVEL ADJUSTMENT 29
PICTURE SCREEN ADJUSTMENT 30
SELECTING INPUT SOURCE 31 SELECTING VIDEO SYSTEM 32 PICTURE IMAGE ADJUSTMENTS 33
IMAGE LEVEL SELECT 33 IMAGE LEVEL ADJUSTMENT 34
PICTURE SCREEN ADJUSTMENT 35
SETTING MENU 36
LAMP REPLACEMENT 38

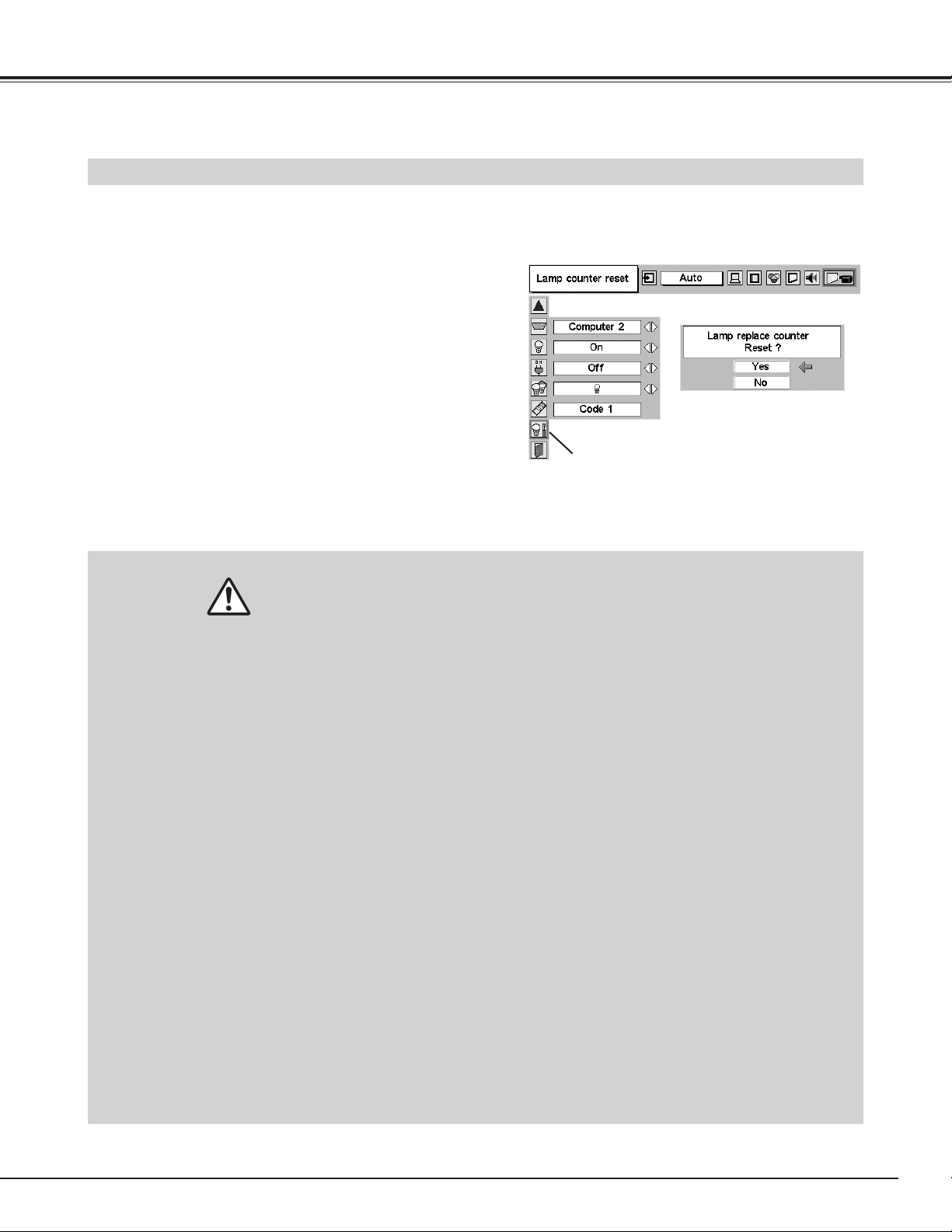

LAMP REPLACE 38 LAMP REPLACE COUNTER 39
OPERATING WIRELESS MOUSE 40 MAINTENANCE 41
WARNING TEMP. INDICATOR 41 AIR FILTER CARE AND CLEANING 41 CLEANING PROJECTION LENS 41
TROUBLESHOOTING 42
INDICATORS AND PROJECTOR CONDITION 44
TECHNICAL SPECIFICATIONS 45
CONFIGURATIONS OF TERMINALS 46 OPTIONAL PARTS 47
BASIC OPERATION 19
TURNING ON / OFF PROJECTOR 19 ADJUSTING SCREEN 20
ZOOM ADJUSTMENT 20 FOCUS ADJUSTMENT 20 KEYSTONE ADJUSTMENT 20 PICTURE FREEZE FUNCTION 20 NO SHOW FUNCTION 21 P-TIMER FUNCTION 21
SOUND ADJUSTMENT 21
TRADEMARKS
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
Windows and PowerPoint are registered trademarks of Microsoft Corporation.
Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its
respective corporation.
6

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
Compatibility
This projector widely accepts various video and computer input signals including;
Computers
IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.
6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL­N color system can be connected.
Component Video
Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.
S-Video
S-Video signal, such as a S-VHS VCR output signal, can be connected.
High Resolution Image
This projector provides 800 x 600 dots resolution for computer input. Resolution from a computer between SVGA (800 x 600) and SXGA (1280 x 1024) is compressed into 800 x 600 dots. This projector cannot display the image of over 1280 x 1024 dots. When the resolution of your computer is over than 1280 x 1024, reset the computer output for lower resolution.
Multi-Scan System
This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.
One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and the best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.
Compact Design
This projector is extremely compact in size and weight. It is designed to be carried and work anywhere you wish to use.
Short Zoom Lens
Short Zoom Lens allows you to enjoy a larger screen even in the limited space.
Keystone Correction
Positioning of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.
Multilanguage Menu Display
Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.
Digital Zoom (for Computer)
Digital Zoom function expands (to approx. 16 times of screen size) or compress the image size, allowing you to focus on crucial information at a presentation.
Wireless Mouse
Remote Control supplied with this projector has Wireless Mouse function for a connected computer. This function enables you to operate both the projector and the computer with Remote Control only.
Power Management
The Power management function is provided to reduce power consumption while the projector is not in use. This Power management function operates to turn the Projection lamp off when the projector detects signal interruption and any button is not pressed for over 5 minutes. The Projection lamp is automatically turned on again when the projector detects a signal or any operation button is pressed. This projector is shipped with this function ON.
Digital Visual Interface
This projector is equipped with DVI 29-pin terminal for connecting DVI output from a computer.
Switchable Interface Terminal
This projector provides a switchable Interface terminal. You can use the terminal as computer input or monitor output conveniently. (Refer to page 36.)
Laser Pointer Function
Remote Control supplied with this projector includes the Laser Pointer function. This function helps you to make a smart presentation on a projected screen.
7

PREPARATION

NAME OF EACH PART OF PROJECTOR

NOTE ON THE POWER CORD
AC Power Cord must meet requirement of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer.

SETTING-UP PROJECTOR

8
PREPARATION
To POWER CORD CONNECTOR on your projector.
Projector side AC Outlet side
Ground
To the AC Outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power being supplied. Connect the projector with all peripheral equipment before turning the projector on. (Refer to pages 11 ~ 13 for connection.)
CAUTION
For safety, unplug AC Power Cord when the projector is not in use. When this projector is connected to an outlet with AC Power Cord, it is in Stand-by mode and consumes a little electric power.
CONNECTING AC POWER CORD
Connect AC Power Cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.
For the U.K.
To the AC Outlet.
(200 - 240 V AC)
To the AC Outlet.
(200 - 240 V AC)
9
PREPARATION

POSITIONING PROJECTOR

ADJUSTABLE FEET

Picture tilt and projection angle can be adjusted by rotating ADJUSTABLE FEET. Projection angle can be adjusted up to 15.6 degrees.
Lift the front of the projector and pull the FEET LOCK LATCHES on both sides of the projector.
1
ADJUSTABLE FEET
FEET LOCK LATCHES
Release the FEET LOCK LATCHES to lock the ADJUSTABLE FEET and rotate the ADJUSTABLE FEET to adjust the position and tilt.
2
To retract the ADJUSTABLE FEET, lift the front of the projector and pull and undo the FEET LOCK LATCHES. Keystone distortion of the projected image can be adjusted by Menu Operation. (Refer to P20 and 36.)
3
CAUTION
Tilt the projector within the adjustable range in order not to shorten the life of the lamp. Proper angle should be taken. Refer to page
10.
This projector is designed to project on a flat projection surface.
The projector can be focused from 3.6(1.1m) ~ 22.6(6.9m).
Refer to the figure below to adjust a screen size.
H1
H2
22.6' (6.9m)
17.4' (5.3m)
13.1' (4.0m)
8.5' (2.6m)
3.6'
ROOM LIGHT
The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide the best image.
Max. Zoom
Min. Zoom
(1.1m)
H1 : H2 = 26 : 1
Screen Size (W x H) mm
Zoom (min)
43
Zoom (max)
874 x 655
4.3' (1.3m)
3.6' (1.1m)
100
2032 x 1524
10.5' (3.2m)
8.5' (2.6m)
150
3048 x 2286
15.7' (4.8m)
13.1' (4.0m)
200
4064 x 3048
21.0' (6.4m)
17.4' (5.3m)
260
5283 x 3962
–––––
22.6' (6.9m)
36
732 x 549
3.6' (1.1m)
–––––
43”
100”
82”
36”
150”
126”
200”
166”
260”
216”
10
PREPARATION
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
Do not drop or bump the projector, otherwise damages or malfunctions may result.
When carrying the projector, use a suitable carrying case.
Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause
damage to the projector. To transport the projector through a courier or transport service, consult your dealer for best way.

MOVING PROJECTOR

CAUTION
Carrying Bag (supplied) is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to protect an appliance from external forces. Do not transport the projector through a courier or transport services with this bag. The projector can be damaged. When handling the projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.
Use Carry Handle when moving the projector. When moving the projector, replace the Lens Cover and retract the Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the case (carrying bag) supplied with the projector.

INSTALLING PROJECTOR IN PROPER POSITION

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.
Do not tilt the projector more than 20 degrees above and below.
Do not point the projector up to project an image.
Do not point the projector down to project an image.
Do not put the projector on either side to project an image.
NO UPWARD
NO DOWNWARD
NO SIDEWAYS
20˚
20˚
11

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to figures on pages 11 to 13 and connect properly.
12
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
13" MODE (640 x 480) 16" MODE (832 x 624) 19" MODE (1024 x 768)
ON
OFF
123456
OFF OFF OFF OFF
OFFON ON OFFOFF OFF OFF
ON ON ON ON
ON
DIP
1
2 3 4 5 6
OFF OFF OFF
OFF OFFON ONON ON21" MODE (1152 x 870)
13
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Video Source (example)
Video Cassette Recorder Video Disc Player
Video Cable (RCA x 1)
S-VIDEO Cable
Audio Amplifier
Audio Speaker
(stereo)
Audio Cable (Stereo)
Terminals
of the Projector
Use any of VIDEO jack, S-VIDEO jack, or Y-Pb/Cb-Pr/Cr jacks.
When both VIDEO jack and S­VIDEO jack are connected, S­VIDEO jack has priority over VIDEO jack.
When both Y-Pb/Cb-Pr/Cr jacks and S-VIDEO jack are connected, Y-Pb/Cb-Pr/Cr jacks has priority over S-VIDEO jack.
S-VIDEO Output
Audio Input
Video Cable (RCA x 1 or RCA x 3)
S-VIDEO Cable
Audio Cable (RCA x 2)
Scart-VGA Cable
NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.
Audio Output
(R, L)
Audio Cable (RCA x 2)
External Audio Equipment
AUDIO INS-VIDEO
Y - Pb/Cb - Pr/Cr
VIDEO
AUDIO OUT
Component video output equipment.
(such as DVD player or high-definition TV source.)
Composite
Video Output
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Video Cable (RCA x 3)
Scart-VGA
Cable
RGB Scart
21-pin Output
Cables used for connection (= Cable is not supplied with this projector.)
NOTE
It is necessary to select COMPUTER 2 in the SETTING Menu when this terminal is used as RGB Scart 21-Pin Video Input.
(See page 22, 36.)
COMPUTER IN 2 / MONITOR OUT
COMPUTER IN 1
DVI - I
R – AUDIO IN – L
S – VIDEO
VIDEO
(MONO)
Y – Pb / Cb – Pr / Cr
AUDIO IN
COMPUTER
R – – L
AUDIO OUT
RESET
COMPUTER IN 2 /
MONITOR OUT
USB
CONTROL PORT
14

BEFORE OPERATION

OPERATION OF REMOTE CONTROL
FOCUS BUTTON
Used to adjust focus. (P20)
AUTO PC ADJ. BUTTON
Use to operate AUTO PC Adjustment function. (P25)
KEYSTONE BUTTON
Used to correct keystone distortion. (P20, 36)
IMAGE BUTTON
Used to select image level. (P28, 33)
ALL-OFF SWITCH
Left Side
When using the Remote Control, turn this switch to ON. And turn it to ALL OFF when it is not used.
This Remote Control emits a laser beam as laser pointer function from the Laser Light Window. When the LASER button is pressed, laser light goes on. And when the LASER button is being pressed for more than 1 minute or the LASER button is released, light goes off. The LASER POINTER INDICATOR lights RED and Laser is emitted with RED light to indicate laser beam is being emitted. The Laser emitted is a class II laser; therefore, do not look into the Laser Light Window or shine the laser beam on yourself or other people. Three marks below are caution labels for laser beam.
CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result
hazardous radiation exposure.
ON
ALL OFF
LOCK
VOLUME
D.ZOOM
MUTE
-
MENU
AUTO PC
FREEZE
SELECT
ON-OFF
NO SHOW
VOLUME
+
KEYSTONE
LASER
P-TIMER
COMPUTER
ZOOM
FOCUS
VIDEO
15
BEFORE OPERATION
To insure safe operation, please observe the following precautions :
Use (2) AA, UM3 or R06 type alkaline batteries.
Replace two batteries at the same time.
Do not use a new battery with a used battery.
Avoid contact with water or liquid.
Do not expose the Remote Control to moisture, or heat.
Do not drop the Remote Control.
If a battery has leaked on Remote Control, carefully wipe case clean and install new batteries.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Press lid down­ward and slide it.
Remove the battery compartment lid.
Slide the batteries into compartment.
Replace the compartment lid.
Two AA size batteries
For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.
REMOTE CONTROL BATTERIES INSTALLATION
1
2
3
Operating Range
Point the Remote Control toward projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for Remote Control is about
16.4 (5m) and 60° in front and rear of the projector.
16.4 (5 m)
60°
16.4 (5 m)
Used to operate P-TIMER function. (P21)
Loading...
+ 33 hidden pages
