Sanyo PID-42AS1, PID-42AE1 User Manual

INSTRUCTION MANUAL PID-42AE1

PID-42AS1

LCD Monitor

Please read this Instruction book before using your LCD monitor. We wish you many hours of pleasure from your new LCD monitor.

GB GB

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . 3

Installation and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Federal Communications Commission Notice . . . . . . . . . 5

AC Power Cord Requirement . . . . . . . . . . . . . . . . . . . . . . 6

End-User License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step: 1 Mains Connection . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step: 2 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

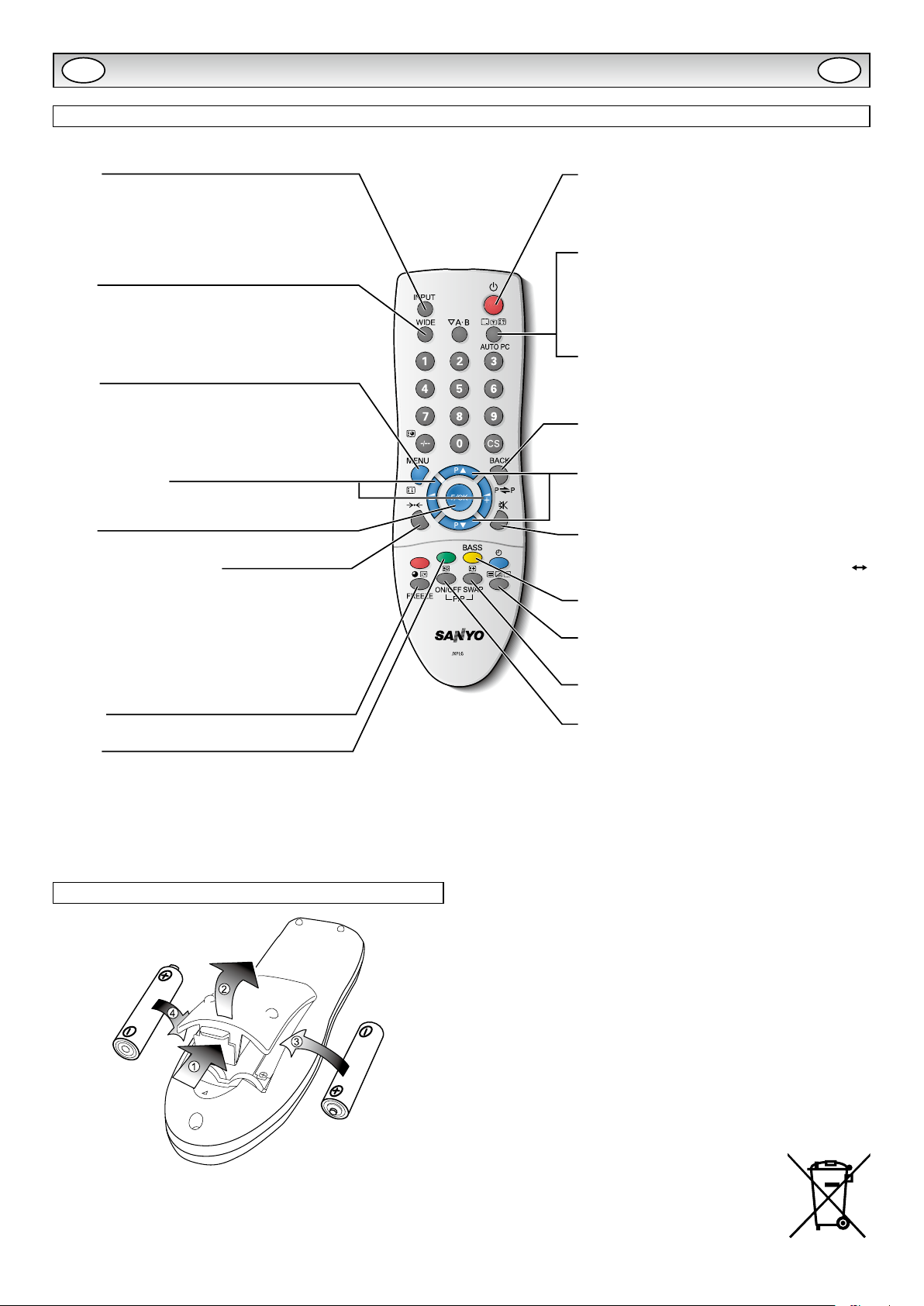

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote control battery installation . . . . . . . . . . . . . . . . . . 9

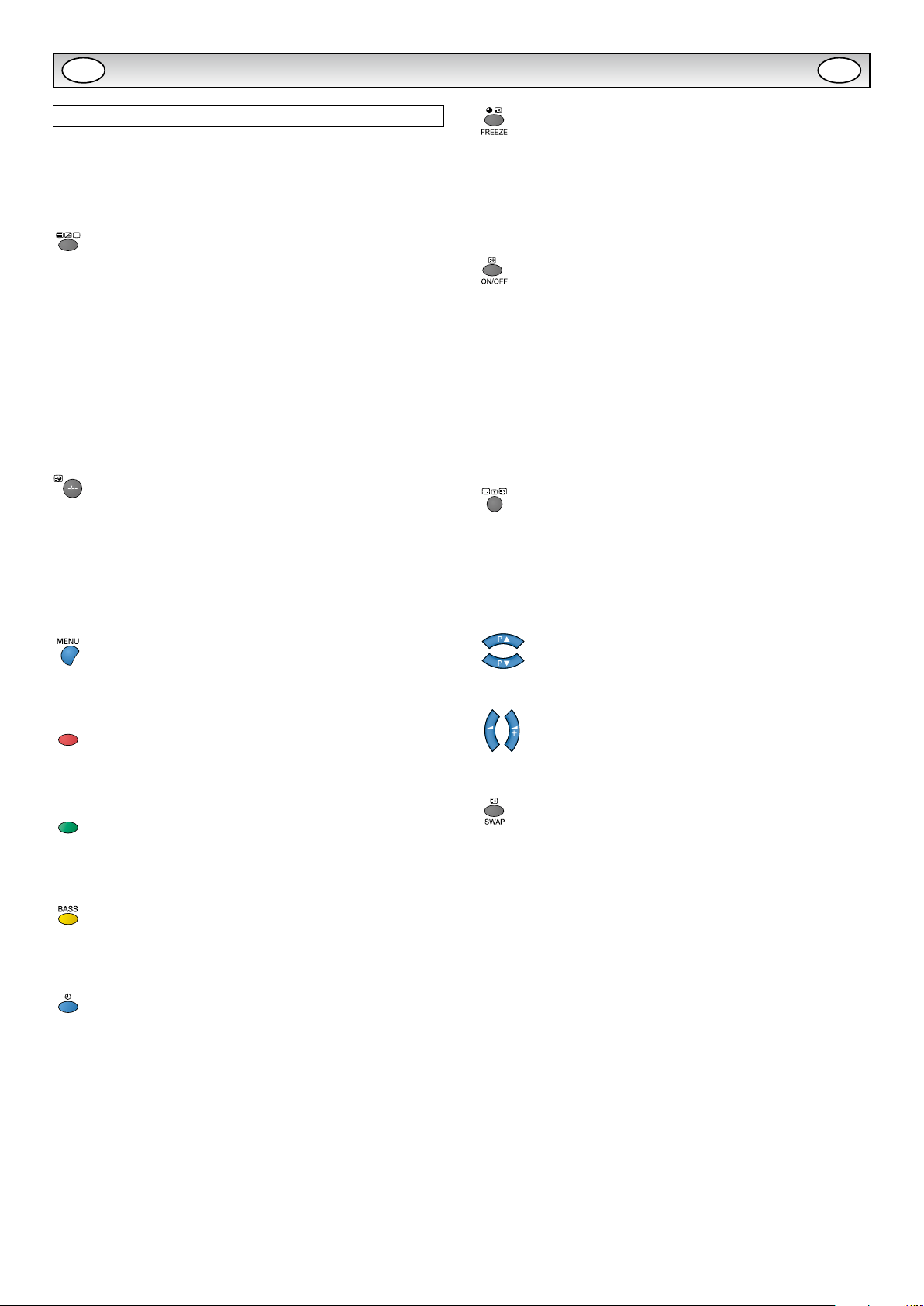

Controls and Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

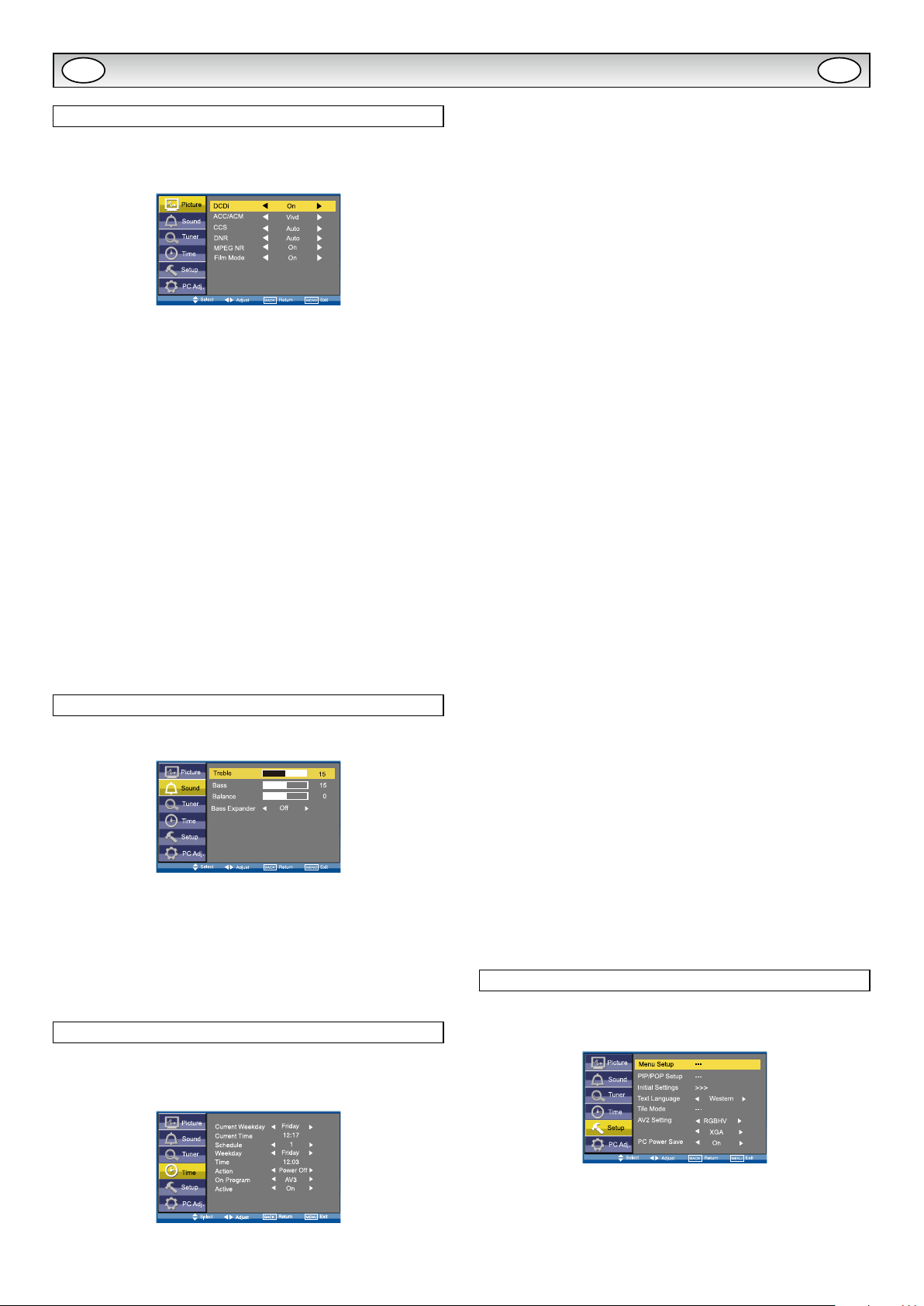

Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

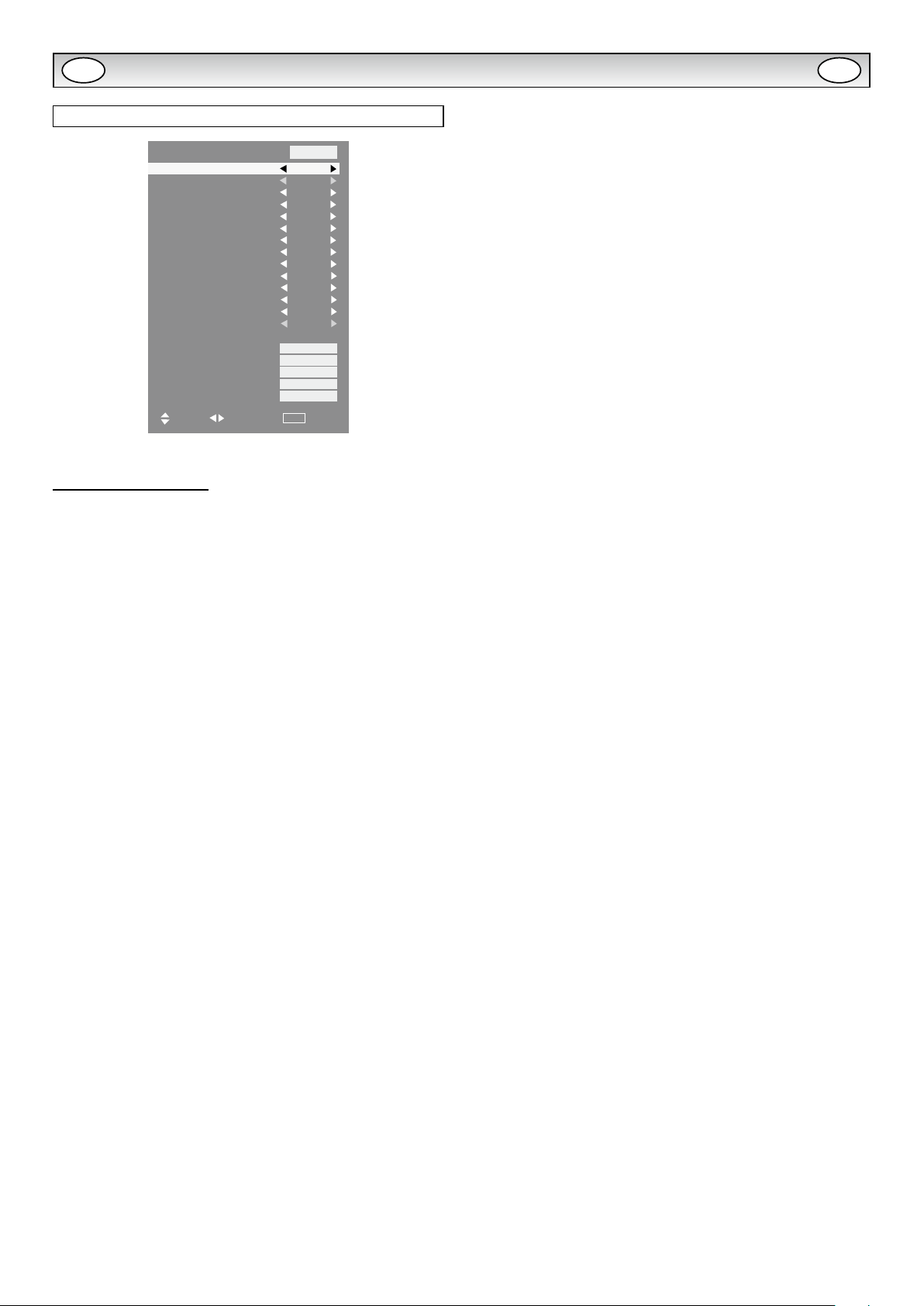

MENU OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Time menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

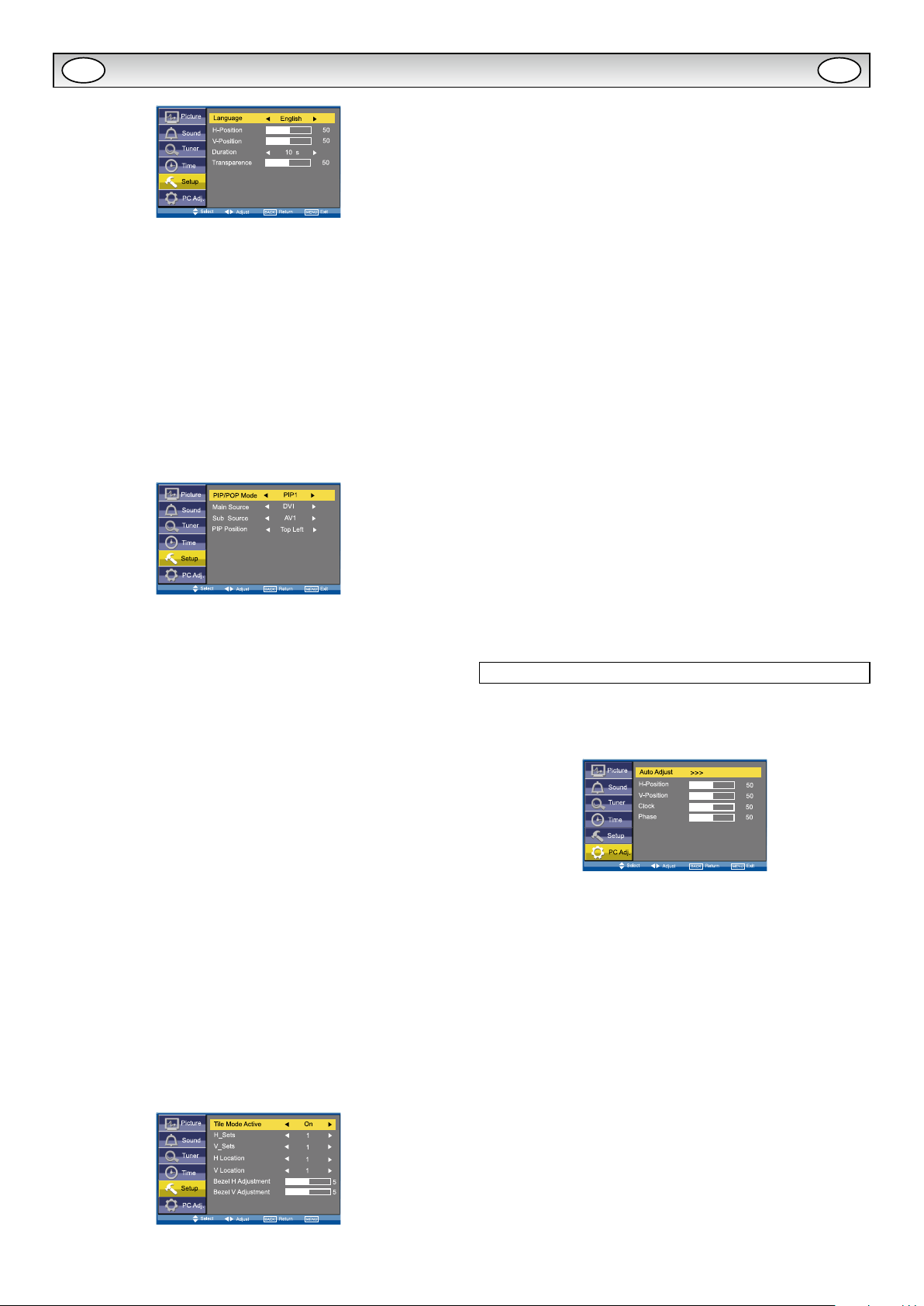

Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PC Adj. menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLATION MODE . . . . . . . . . . . . . . . . . . . . . . . 13

Installation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

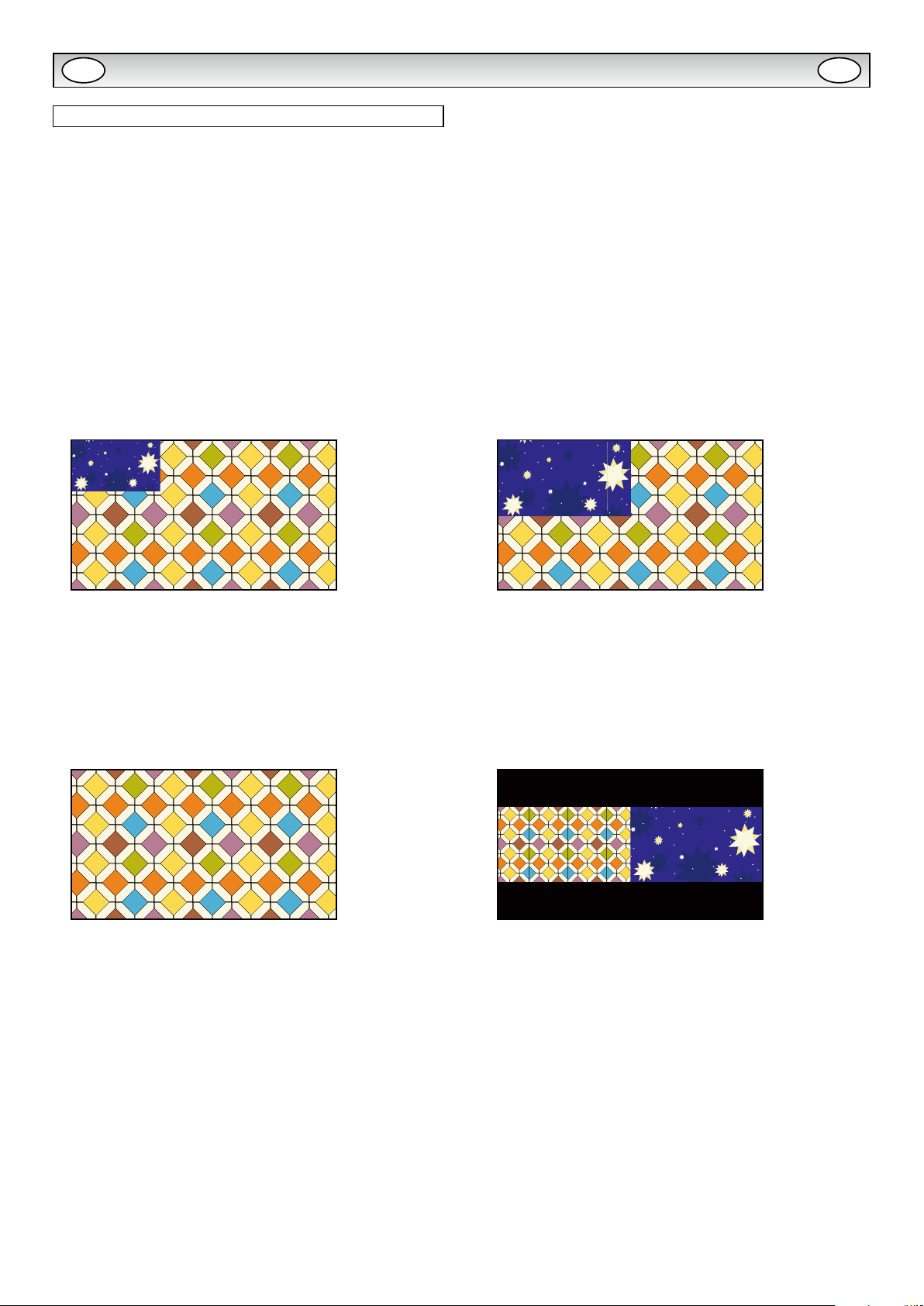

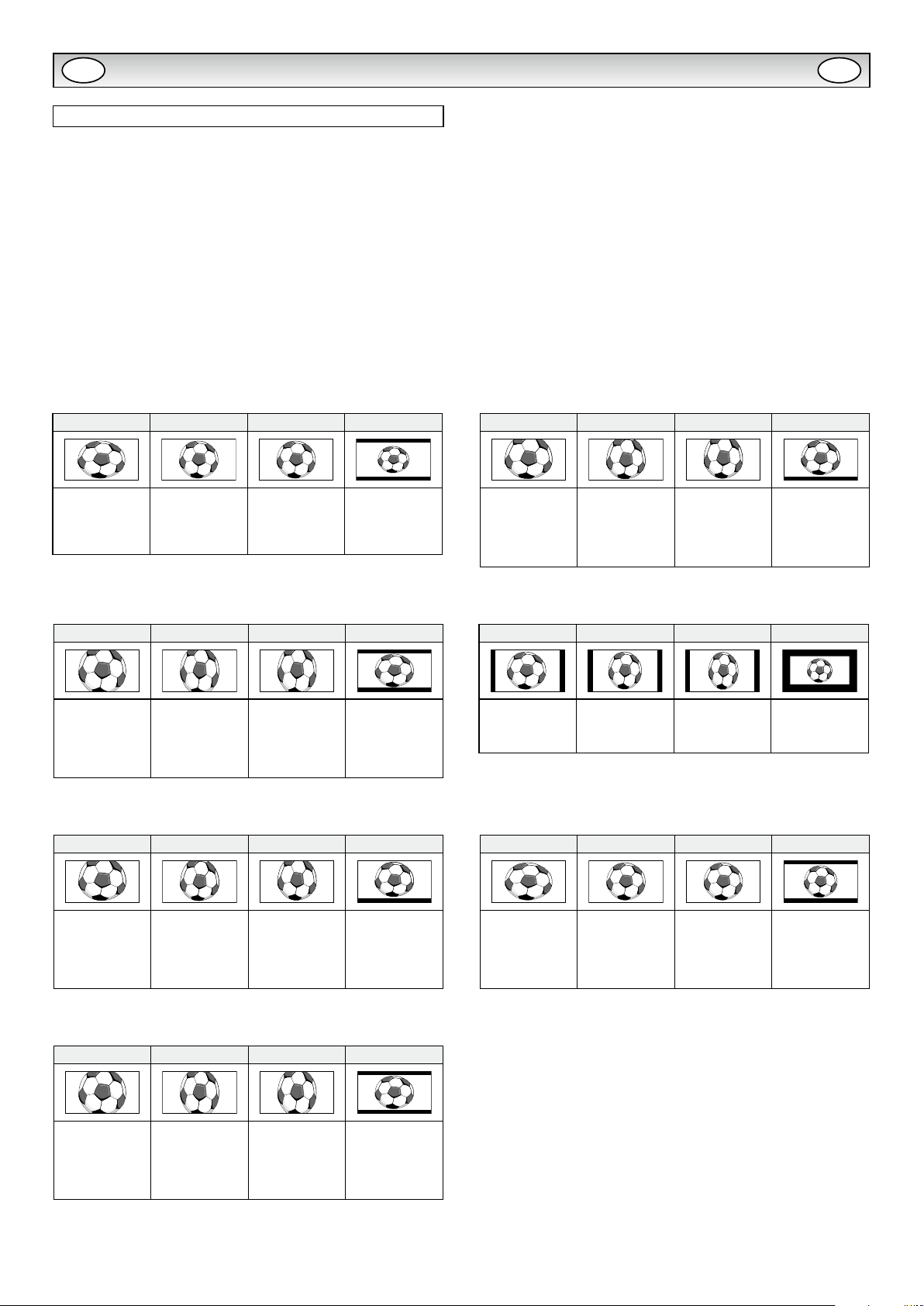

Selection of picture size . . . . . . . . . . . . . . . . . . . . . . . . . .14

PIP/POP Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

OPERATION (IN TEXT MODE) . . . . . . . . . . . . . . . . . 16

Teletext Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

SPECIFICATIONS/HELPFUL HINTS . . . . . . . . . . . . . .17

Specication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Helpful hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

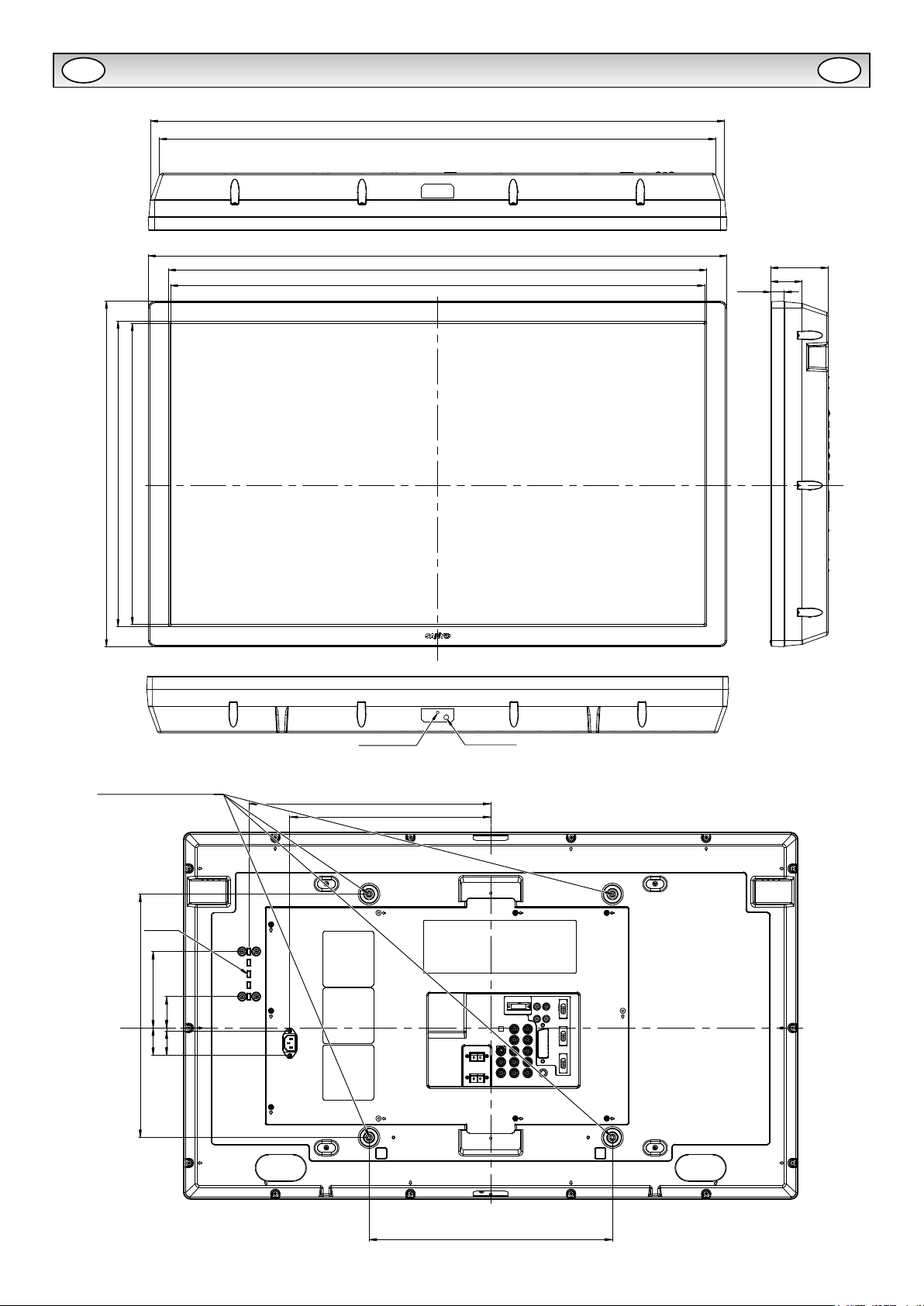

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

PC/DVI-D/COMPONENT SIGNAL SUPPORT TIMING

LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RS232C COMMAND TABLES . . . . . . . . . . . . . . . . . . 20

Standard monitor (PID-42AE1)

● EXTENSIVE INPUT & OUTPUT TERMINALS (for all products)

This monitor set has various input and output terminals including component (Y,Pb,Pr) or RGBHV input and output with 5 -BNC, composite

video input and output with BNC, and RS-232 control port (serial D-Sub 9) input and output which offer the daisy chain connection. There

are computer inputs (a D-Sub 15 RGB terminal) and DVI-D input with HDCP for High denition signals. There are also jacks for external speakers.

Daylight readable monitor (PID- 42AS1)

In addition to Standard monitor, it has adaptive brightness in accordance with prevailing light conditions.

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective

corporation.

10cm

5cm

GB GB

SAFETY PRECAUTIONS

CAUTION: Please read and retain for your safety. This unit has been designed and manufactured to assure your personal safety, but

improper use can result in potential electric shock or re hazards. In order not to defeat the safeguards incorporated in this monitor observe the

following basic rules for its installation, use and servicing.

Installation and Use

Do not allow anything to rest on the power cord. Do not locate this LCD monitor where the

cord will be damaged by people walking on it.

Do not overload wall outlets and extension

cords as this can result in re or electric shock. A suitable socket outlet must be provided near

to the monitor and shall be easily accessible. Do not place this LCD monitor near any heat

sources such as radiators, heaters, stoves and other heat-generating

products (including ampliers).

Do not place your LCD monitor on an unstable stand, shelf or table. Serious injury to an individual, and damage to the LCD monitor may result if it should fall. Your sales person can recommend an approved

wall mounting kit. A special wall mounting kit is available for this

model.

This LCD monitor should be operated only from the type of power source indicated on the monitor or as indicated in the Operating Instructions. If you are not sure of the type of power supply, consult your sales person or your local power company.

For added protection it is strongly recommended that this LCD monitor has its mains supplied via an approved earth fault protection device.

WARNING: To prevent injury the LCD monitor must be securely

attached to the wall in accordance with the manufacturers installation instructions.

IMPORTANT:

This product must be earthed.

This unit is not disconnected from the mains unless the mains lead is

unplugged. The installer must make sure that the mains plug is easily

accessible.

Do not use immediately after moving the LCD monitor from a low temperature to a high temperature environment, as this causes con-

densation, which may result in re, electric shock, or other hazards. Before cleaning, unplug the monitor from the wall socket.

Do not mount near an open ame source. Open ames must never

be used near this LCD monitor. This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.

This LCD monitor should have a minimum distance of 5cm away from the wall and the monitor should have 10cm distance around the top and sides. Always mount using recommended and substantial xtures and t- tings.

ADDITIONAL FOR NORTH AMERICA AND CANADA:

This monitor must NOT be permanently mounted to the building

structure. It must be mounted in such a way that it can be removed using basic tools. The power supply cord must NOT be attached to the building surface. The power supply cord must NOT be routed through walls, ceiling,

oors, or other similar openings in the building structure.

The power supply cord MUST be positioned so as to prevent physical damage.

Important: (UK only)

THIS PRODUCT MUST BE EARTHED.

This equipment is tted with an approved mains lead and an

approved non rewireable UK mains plug. To change a fuse in this type of plug proceed as follows:

1. Remove the fuse cover and fuse.

2. Fit a new fuse which should be a BS1362 13 Amp A.S.T.A. or

BSI approved type.

3. Ensure that the fuse cover is correctly retted.

If the fuse cover is lost or damaged the plug must NOT be used but replaced with a serviceable plug.

If the tted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug tted in its place. If the mains plug

contains a fuse, this should have a rating of 13 Amp, ensure the

fuse cover is correctly tted. If a plug without a fuse is used, the

fuse at the distribution board should not be greater than 13 Amp.

Note: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral Brown Live Green and Yellow Earth

1. The Blue wire must be connected to the terminal which is

marked with the letter “N” or coloured BL ACK.

2. The Brown wire must be connected to the terminal with the

letter “L” or coloured RED.

3. The Green and Yellow wire must be connected to the terminal

which is marked with the letter “E” or coloured GREEN or

GREEN and YELLOW.

Before replacing the plug cover, make certain that the cord grip is

clamped over the sheath of the lead - not simply over the wires.

Do not attempt to bypass the safety purpose of the grounding type plug.

THIS UNIT IS NOT DISCONNECTED FROM THE MAINS UNLESS THE MAINS LEAD IS UNPLUGGED.

THE INSTALLER MUST MAKE SURE THE MAINS LEAD IS EASILY ACCESSIBLE.

Do not cover the ventilation slot on the LCD monitor. Heat build-up

can reduce the service life of your LCD monitor, and can also be dangerous.

Do not apply liquid cleaners or aerosol cleaners directly onto the LCD monitor. Use a damp cloth for cleaning.

GB GB

SERVICING

Servicing

Your monitor is fully transistorised and does not contain any user serviceable components.

You must not remove the rear cover of the monitor by yourself. The apparatus is working with high voltages and could damage objects or even endanger people. Leave all required repair and service jobs to an authorised service technician. He will exclusively use such spare parts that are complying with the same safety standards as applicable to the original parts. The use of original

spare parts can prevent re, shock and other hazards.

Unplug the LCD monitor from the wall outlet and refer ser vicing to qualied service personnel under the following

conditions:

n If the power cord or plug is damaged.

n If liquid has been spilt in to the LCD monitor.

n If the LCD monitor has been dropped or the cabinet has been damaged.

n If the LCD monitor exhibits a distinct change in performance.

n If the LCD monitor does not operate normally by following the operating instructions.

n If the LCD monitor has been exposed to rain or water.

Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage.

This will often require extensive work by a qualied technician to restore the monitor to normal operation.

Important recycling information.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in! Note: This symbol mark and recycle system are applied only to EU countries are not applied to

other countries of the world.

GB GB

SERVICING

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful inter ference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Do not make any changes or modications to the equipment unless otherwise specied in the instructions. If such changes or modications should be made, you could be required to stop operation of the equipment.

Canadian Radio Interference Regulations

This Class A digital apparatus meets all requirements of the Canadian ICES-003.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be

required to take adequate measures.

GB GB

SERVICING

AC Power Cord Requirement

The AC Power Cord supplied with this LCD monitor meets the requirement for use in the country in which you purchase it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certied by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to make sure that the plug will t into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE

GROUND

End-User License

The product (meaning the equipment or appliance to which this documentation relates) incorporates Software (the software applications, utilities and modules embedded within the Product) which is owned by Sanyo or its licensors. Before using the product, please read the End-User License Conditions detailed below. If you do not agree to the terms and conditions of the End-User License, Please do not proceed to use the

Product- repack the Product unused and return it to your supplier together with proof of purchase for a full refund. By using the product, you

agree to be bound by the terms and conditions of the End-User License.

License Grant, Conditions and restrictions

1. Sanyo grants you a non-exclusive, world-wide (subject to export controls), non-transferable (except as permitted by 2 below), royalty-free license to use the Software upon and with the Product.

2. You may not transfer any of your license rights in the Software without the prior written consent of SANYO and if consent is provided then the Software shall only be transferred in conjunction with the transfer of the Product AND provided that the transferee has read and agreed to accept the terms and conditions of this license.

3. You must ensure that the copyright, trademark and other protective notices contained in the Software are maintained and not altered or

removed.

4. The Software provided hereunder is copyrighted and licensed (not sold). SANYO especially does not transfer title or and ownership rights in the Software to you. The Software provided hereunder may contain or be derived from portions of materials provided to SANYO under license by a third party supplier.

Except as expressly permitted by statute you may not;

● use the Software in conjunction with any other computer hardware other than the product;

● copy all or part of the Software;

● incorporate all (or any of) the Software into other programs developed by (or on behalf of) you and/or used by you;

● reverse-engineer, decompile or disassemble the Sof tware;

● make the Software (or any part of it) available, or permit its redistribution, for use with any computer hardware other than the Product; or

rent, lease, gift, loan, sell, distribute or transfer possession of the whole or any part of the Software.

Termination

This license is effective until terminated. This license will terminate automatically without notice if you fail to comply with any of its provisions.

Disclaimer

1. The Software is(to the extent permitted by law) supplied “as is” and SANYO and its suppliers expressly exclude all warranties, express or

implied, including (but not limited to) warranties of satisfactory quality, tness for purpose and non-infringement (save to the extent that the

same are not capable of exclusion at law).

2. In no circumstances will SANYO be liable for any direct, indirect, consequential, or incidental damage (including loss of prots, business

interruption, loss of data or the cost of procurement of substitute goods, technology or services) arising out of the use or the inability to use the Software (save to the extent that such liability is not capable of exclusion at law).

General

1. This End-User License will be governed by laws of England and the User may only bring claims in the English Courts and SANYO shall be

entitled to bring a claim in the courts of any jurisdiction.

2. This End-User License is governed by the laws of the State of California. The End-User and Sanyo agree that any action to enforce or interpret the terms of this End-User License shall be brought only in the appropriate state or federal court located in Los Angeles County, California. The End-User and Sanyo hereby submit to the exclusive jurisdiction and venue of such court.

3. The above terms and conditions supersede any prior agreement, oral or written, between you and SANYO relating to the Software.

GB GB

SERVICING

Installation Notice

1. The LCD monitor can be installated by the following two ways:

Screw holes for installing

Screws: Spec : M6 X 12MM (metric) Material : Stainless Steel

Screw holes for installing

Note:

Don't install the T V set reversed as shown below :

2. The product should be mounted to wall only as recommended by the manufacturer.

3. The installation of the bracket must be done by a qualied professional.

● Installing the bracket by unqualied personnel may result in injury.

● Always use the mounting device specied by a qualied professional.

Note:

For use only with UL Listed Wall Mount Bracket.

GB GB

INSTALLATION

Step: 1 Mains Connection

■ Connect the display unit to VGA, BNC and Scart con-

nector as required.

Mains Inlet

1. Connect the in-line power connector to the Mains Inlet as shown above.

2. Connect the power cord of the LCD monitor to a suitable wall outlet.

✐ As this product does not have a mains On/Off switch, please

ensure your mains plug is easily accessible.

✐ The LCD monitor is prepared for a mains voltage AC100 ~ 240V,

50Hz/60Hz. To completely switch off the mains, or when the display unit is not to be used for an extended period of time, it is advisable to disconnect the power cord from the power outlet.

AC Mains Ou tlet

✐ Please use the correct mains lead supplied with the set for your

area.

3. Warning:

the wall in accordance with the installation instructions.

To prevent injury, the unit must be securely attached to

4. AV3

Composite (CVBS) signal input. AV3-OUT can be used to output the incoming AV3 signal to the other monitor.

5. DVI-D (Digital Video Interface)

DVI-D supports a large range of resolutions as shown on page 19.

6. PC connection

PC input (PC-IN D-SUB). This input supports a large range of reso lutions as shown page 19. Audio can be connected via the 3.5mm PC-AUDIO IN.

7. External Speaker

Output the audio signal from AV1, AV2, AV3, PC and DVI.

The speaker impedance is 8 ohms.

WARNING! High voltages are used in the

operation of this set. Refer service to qualied

service personnel.

Step: 2 Connections

■ INPUT selection

To switch either AV1, RGB, AV2, AV3, PC, DVI or Network by pressing the INPUT button on your remote control repeatedly.

1. AV1

SCART connection/CVBS/RGB/S-VIDEO.

2. RGB

TTL input (5V RGB signals) into SCART terminal.

3. Y, Pb, Pr/RGBHV connection (AV2)

Choose Y, Pb, Pr or RGB H/V connection by selecting AV2 Setting in Set up menu (see page 12). You can connect your DVD player to the Y, Pb, Pr terminals instead of using a scart lead. This can

support high denition in analogue component form. RGB H/ V can

be used as a PC input via the BNC terminals. Both options support a large range of resolutions (page 19). AV2-OUT can be used to output the incoming AV2 signal to the other monitor.

8. AV2 / DVI AUDIO IN

Connect the audio output (stereo) from a computer or video equipment connected AV2 or DVI.

9. Monitor Audio OUT

This terminals output xed level from AUDIO IN.

10. RS232C IN/OUT

When the monitor is controlled by a computer, connect to this jack

with serial control cable. You can connect to another monitor with RS232C OUT.

When you connect PC with RS232C, select “ON” at Network

standby in Installation mode.

If it is selected “OFF”, RS232C terminals do not functional. Also select push button to “SERIAL POART”.

GB GB

INSTALLATION

Remote control

Input

To switch input source from AV1, RGB, AV2, AV3, PC, DVI or Network mode.

Wide

To select the screen mode Full, Full All, Zoom 16:9, Title in 16:9, Zoom 14:9, Title in 14:9, Normal or Natural wide.

Refer to page 14.

To enter and exit the main menu, and sub menu.

Level Up/Down

To adjust the sound volume level or enter sub menus.

F/OK

To conrm the initial setting in the menu.

Picture mode selector

Press the 9 button repeatedly to select the following picture mode.

Personal - Personal preference mode. Standard - Normal viewing mode. Dynamic - Suitable for brightly lit rooms. Soft - Low contrast setting Eco - Suitable for dimly lit rooms and gives a cin-

ema-like effect.

Freeze

To switch picture still on or off.

Green

Press this button for more than 5 seconds, installation mode will appear.

Standby

To switch the monitor on and off. Also see page 10.

Recall

To display input selection information and the Time set. You can also select colour systems in AV1/AV3 mode as follows: AUTO í PAL í SECAM í

NTSC í NTSC4.43 í PAL M í PAL N.

Auto PC

It can also be automatically adjusted in PC mode by pressing this button for twice .

Back

Used to return to the previous menu.

Up and Down

To select the next or previous item.

Sound Mute

To mute the sound from the speakers.

The sound changes as follows: Normal volume Mute.

Bass Expander

To get an emphasised bass sound ON or OFF.

TXT/TV

To select Teletext mode.

Main/Sub Picture Swap

To swap Main and Sub picture.

ON/OFF

To switch OFF í PIP(1) í PIP(2) í POP mode in turn. Refer to page 15.

Remote control battery installation

Install two “AA” 1.5 volt batteries so that the “+” and “–” marks on the batteries match the “+” and “–” marks inside the unit into the remote

control handset.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU

countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment,

batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a cer tain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead

In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!


Brightness Contrast Color Tint (only if NTSC equipment is detected) Sharpness White Tone

White Tone / R / G / B

Advanced Setting

DCDi / ACC/ACM / CCS / DNR / MPEG NR / Film Mode

Sound

Treble Bass Balance

Bass Expander

On / Off

Time

Setup

PC Adj.

Current Time Schedule Weekday

On Program

AV1 / RGB / AV2 / AV3 / PC / DVI / Network

Menu Setup PIP / POP Setup Initial Settings Text Language Tile Mode AV2 Setting

Western / Eastern / Russian / Arabic / Farsi

Tile Mode Active / H/V_Sets / H/V Location / Bezel H/V Adjustment

RGBHV / YPbPr

Auto Adjust H-Position V-Position Clock

Phase

Language / H/V-Position / Duration / Transparence

PIP/POP Mode / Main/Sub Source / PIP Position

Time Action

Active

Power On / Power Off

On / Off

1 - 20

Current Weekday

XGA Mode PC Power save

XGA / WXGA 1366x768

On / Off

GB GB

INSTALLATION

Controls and Menus

Infrared Remote Receiver Power Indicator

The LCD display has a Standby light to show there is power.

Switching into/from standby mode

The Standby mode is used for switching the LCD monitor off for short periods of time. In standby mode the monitor is switched off but is still receiving mains power.

● To turn the monitor into standby mode, press the 4 button.

The blue power indicator illuminates more brightly.

● To turn the monitor ON from standby mode, press the 4 button

again.

If you nd the power indicator ashing, disconnect

power cord from the power outlet and contact our

Service desk.

This warning is a sign to let you know that the

power protection function of this TV set is now operating.

Menu Operation

Many of your monitors functions are controlled through the menu function, using the remote control.

During menu operation the bottom of the on screen display will show which controls can be used for menu navigation. Press the MENU button to enter the main menu. Whenever main menu is accessed initially, PICTURE will be the default selection.

A sub menu is selected using the 5 or 6 button and pressing the 1 or 2 button when the required sub menu is highlighted. When you have nished you can press the BACK button to return to the previous menu, press the MENU button to exit the menu operation.

Picture menu

1. Press the MENU button. PICTURE will be the default selection.

Press the 1 or 2 button to enter. Set the picture settings for your “personal” preference.

Control buttons (back cover)

Menu button: Used to display or cancel main menu.

Input /d button: Switch between AV1, RGB, AV2, AV3, PC , DVI

1 or 2 buttons: provide up and down adjustments.

4 button: To switch to standby mode (to switch off completely

or Network mode. It is also used to provide sub

menu selection from the Main Menu.

disconnect the monitor from the power supply).

2. Use the 5 or 6 button to select eg. Brightness and the 1 or 2 button to adjust levels.

■ White Tone

May be used to adjust the color tone of the picture. Use the 5 or 6 button to select White Tone and press the 1 or 2 button

to enter the sub menu. You can select Personal, Cool, Standard or Warm settings by using the 1 or 2 button. To adjust the color tone of the picture by using the 5 or 6 button to select Red(R), Green(G) or Blue(B) and the 1 or 2 button to adjust levels.

These settings will be stored in personal mode automatically.

XGA Mode

GB GB

MENU OPERATION

Picture menu

■ Advanced settings

Use the 5 or 6 button to select Advanced settings and press the 1 or 2 button to enter the sub menu as follows.

DCDi (Directional Correlational Deinterlacing) is used to process moving angled edge in deinterlacing to get the smoothest and most natural image. Press the 1 or 2 button on the remote control to select On or Off.

ACC/ACM (ACC: Adaptive Contrast and Color; ACM-II: Active Color Management-II) is used to select adaptive Brightness, Contrast and tone control. Press the 1 or 2 button on the remote control to select suitable mode either Vivid, Cinema, Sport or Off.

CCS (Cross Color Separation) is used to remove residual chroma information from luminance signal which is the result of imperfect decoding of composite video. Press the 1 or 2 button on the remote control to select either Auto, Standard or Off.

DNR (Digital Noise Reduction) is available for noise reduction. Press the 1 or 2 button on the remote control to select either Auto,

Low, Mid, High or Off.

MPEG NR (MPEG Noise Reduction): Removes unwanted ringing and

block noise from images that have undergone MPEG or JPEG compression and decompression. Press the 1 or 2 button on the remote control to select On or Off.

Film Mode (Inverse 3:2 pulldown): Film vs.Video-Detect lm. Performed

on material which underwent technologic conversion to video. Press the

1 or 2 button on the remote control to select On or Off.

Sound menu

Press the MENU button and select Sound using the 5 or 6 buttons, press the 1 or 2 button to enter.

Select and adjust to obtain the best sound settings for your environment using the 5 or 6 button to select Treble, Bass or Balance and the 1 or 2 button to adjust levels. Bass Expander can also be selected using the 5 or 6 button and pressing the 1 or 2 button to select On or Off. These settings automatically store when you exit the menu. Press the BACK button to return to the previous menu. Press the MENU button to exit menu operation.

Time menu

Press the MENU button and select Time using the 5 or 6 buttons, press the 1 or 2 button to enter. Press the BACK button to return to the previous menu. Press the MENU button to exit

menu operation.

■ Current Weekday

Use to set current weekday using the 1 or 2 button.

■ Current Time

Use to set the current time using the Numeric buttons.

✐ Other items in Time Menu should not be selected until Current

Time has been set.

■ Schedule

Use to set up to 20 separate time schedules for “Power On” or “Power Off ”, select 1 ~ 20 using the 1 or 2 button.

■ Weekday

Use to set the schedule for “Power On” or “Power Off ” of any weekday

from Sunday through to Saturday or Everyday using the 1 or 2 button.

■ Time

Use to set the schedule for “Power On” or “Power Off ” of any time using the Numeric buttons.

■ Action

Use to set the schedule for “Power On” or “Power Off ” active using

the 1 or 2 button.

You can set Power On timer in Time menu selecting “ON” in “On Timer Function” in Installation Mode. If it is selected “OFF”, Power On

display in Time menu does not functional.

■ On Program

Use to select AV1, RGB, AV2, AV3, PC, DVI or Network for the schedule of “Power On” using the 1 or 2 button.

■ Active

Use to select ON or OFF using the 1 or 2 button. When set

“OFF” the above items “Schedule”, “Weekday”, “Time”, “Action” or “ON Program” will be inactive. Use NUMERIC buttons [0 ~ 9] to set On Time. (Action “Power On” – 00:00 ~ 23:59)

✐ Once On Time has been set, when the set time is reached, the

monitor will leave the stand-by status and enter to the source automatically.

✐ After On Time has been set, you can go on watching other pro-

grams. When the set time is reached, the monitor will automatically switch to the preset program.

✐ On Program can only be selected whenAction (Power On) has

been set.

✐ Action (Power Off) can be set to turn the monitor into standby at a

selected time

Once On Program has been set, when the set time is reached, the monitor will enter to the preset source automatically. Use the 1 or 2 button to select On program, AV1, RGB, AV2,

AV3, PC, DVI or Network.

Setup menu

Press the MENU button and select Setup using the 5 or 6 buttons, press the 1 or 2 button to enter. Press the BACK button to return to the previous menu. Press the MENU button to exit.

■ Menu Setup

Whenever Setup menu is accessed initially, Menu Setup will be the default selection. Press the 1 or 2 button to enter the sub menu.

GB GB

MENU OPERATION

H_Sets is used to divide the horizonal picture into more than one

part, but the most is 5 parts (5 monitors).

V_Sets is used to divide the vertical picture into more than one par t, and the most is also 5 parts (5 monitors). Using the 1 or 2 but-

ton to set.

H Location is used to select one part of the horizonal picture to display on the current LCD Monitor using the 1 or 2 button.

Language is used to select the preferred language. Use the 1 or 2 button to select English, French, German, Italian, Spanish or Dutch.

H-Position changes the OSD position horizontally by using the 1 or 2 button.

V-Position changes the OSD position ver tically by using the 1 or 2 button.

Duration is used to set the display time of the MENU by using the 1 or 2 button. (5 ~ 120 seconds)

Transparence is used to adjust transparence of menu display. Use the 1 or 2 button to adjust levels.

■ PIP/POP Setup

Use the 5 or 6 button to select PIP/POP Setup and press the 1 or 2 button to enter the sub menu.

V Location is used to select one part of the vertical picture to display on the current LCD Monitor using the 1 or 2 button.

Bezel H Adjustment is used to align the image horizontally with respect to the other monitors in the video wall to accommodate the bezel width using the 1 or 2 button. (0 ~ 10)

Bezel V Adjustment is used to align the image vertically with respect to the other monitors in the video wall to accommodate the bezel width using the 1 or 2 button. (0 ~ 10)

■ AV2 Setting

Use the 5 or 6 button to select AV2 Setting and press the 1 or 2 button to select YPbPr or RGBHV. Connect your PC to either PC-IN or RGBHV on the rear of the set. Once connected select PC mode or AV2 (RGBHV, see page 8 for AV2 input settings) via the INPUT button on your remote control. The set will become a monitor for the PC.

■ XGA Mode

Use the 5 or 6 button to select XGA Mode and press the 1 or 2 button to select XGA or WXGA 1366 x 768.

PIP/POP Mode: Using the 1 or 2 button select the most suitable mode PIP1, PIP2, POP or Off. (Please refer to page 15.)

✐ When Mode is set to Off, Sub Source and PIP Position will not

work.

Main Source is used to select input source (AV1, RGB, AV2, AV3, PC, DVI or Network ) for main picture by using the 1 or 2 button.

Sub Source is used to select input source (AV1, AV2, AV3, PC or DVI) for sub picture by using the 1 or 2 button.

✐ For a combination of main picture and sub picture: only DVI or

Network input can assemble with other input source. For example,

if main source is selected as AV1 input, then the sub source must

be DVI or Network input.

PIP Position: Using the 1 or 2 button it can be selected Top Left, Top Right, Bottom Right or Bottom Left.

■ Initial Settings

This function returns all setting values except for Installation Mode.

■ Text Language

Use the 5 or 6 button to select Text Language and press the 1 or 2 button to select Western, Eastern, Russian, Arabic or

Farsi.

■ Tile Mode

This function allows you to split an image to suit your monitor grid format to create a video wall. Use the 5 or 6 button to select Tile Mode and press the 1 or

2 button to enter the sub menu as follows. Tile Mode Active can be set On or Off using the 1 or 2 button.

■ PC Power Save

The monitor set automatically turns off with no PC input signal and

wakes up with signal while PC Power Save is active.

Use the 5 or 6 button to select PC Power Save and press the 1 or 2 button to select ON or OFF.

PC Adj. menu

Press the MENU button and select PC Adj. using the 5 or 6 buttons, press the 1 or 2 button to enter. Press the BACK button to return to the previous menu. Press the MENU button to

exit menu operation.

Auto Adjust is used to automatically detect incoming signal, and adjust itself to optimize its performance by using the 1 or 2 button. If the image is not displayed properly, a manual adjustment is required (Refer to following adjustments).

H-Position is used to move the horizontal picture position by using the 1 or 2 button.

V-Position is used to move the ver tical picture position by using the

1 or 2 button. Clock is used to eliminate icker from the image by using the 1 or

2 button. Phase is used to eliminate disorder from the image by using the 1

or 2 button.

Installation Mode

On program

Tuner Menu

Max Volume Winter mode RC inhibition Child Lock Address Baud rate Panel protection AV Auto shut off Network Standby On Timer Function LED light setting

DCR

Network initial Temperature Error IP Address Subnet Gateway DNS

Off

63 Off Off Off

19200

Off Off On Off Off

Off

>>>

000000000000

G2.02 0000

Select Adjust

Exit

GB GB

INSTALLATION MODE

Installation Mode

This LCD monitor allows you to set up the following:

SETTING PROCEDURE

1. Press and hold the GREEN button on the remote control for 5

seconds. (Installation Mode will appear)

2. Use the 5 or 6 button to highlight each option, use the 1 or 2 button to adjust each option. Press the MENU button to exit

the mode.

■ Address

Set the address for the LCD monitor (0 ~ 999).

● Setting the monitor address in RS232 mode

Each monitor can have a specic Address, which helps command

that monitor individually and will not effect to other monitors connected to a controlling PC Address format command. The addressing format command is used for operating multiple monitor sets from a single PC via the RS232C command line.

■ Baud rate

Select Baud rate using the 5 or 6 button. To set transmission speed RS232 or LD-NET communication for 19200 or 9600 Baud rate by pressing the 1 or 2 button.

■ Panel protection

To prevent image sticking which may occur showing still picture for a long time, select “Panel Protect” using the 5 or 6 button, once

highlighted you can select ON or OFF by pressing the 1 or 2 button.

■ AV Auto shut off

With no picture input signal to AV1, RGB, AV2(YPbPr), AV3, DVI,

Network, set turns off automatically. Select “AV Auto Shut Of f” using

the 5 or 6 button, once highlighted you can select On or Off by pressing the 1 or 2 button.

■ Network Standby

You can save power consumption selecting “Off” at Network Standby in Installation mode, RS232C do not functional. To make them functional, select “ON” in this menu.

■ On Program

Select ON program using the 5 or 6 button, select the start up position using the 1 or 2 buttons.

(Off/AV1/RGB/AV2/AV3/PC/DVI or Network)

■ Max Volume

Select Max volume using the 5 or 6 button, use the 1 or 2 buttons to set the maximum volume required.

■ Winter mode

This Function can be activated when the LCD monitor is used during cold temperature conditions, approximately 38˚F/4˚C or below to maintain picture performance. Using the 5 or 6 button select winter mode, once highlighted you can select ON or OFF by pressing the 1 or 2 button. IMPORTANT: The AC cord should not be disconnected during the operation of Winter mode function. When in winter mode, power consumption is higher than normal standby consumption. This is entirely due to the operation of heating circuitr y. We strongly recommend to turn off Winter mode when the

ambient temperature is above 38˚F/4˚C.

■ RC inhibition

You can prevent unwanted remote control operation by selecting RC Inhibition. Select using the 5 or 6 button. Press the 1 or 2 button to select On or Off. To re-instate RC operation press and hold the green button on the remote control and select RC inhibition OFF.

■ Child Lock

You can prevent unwanted operation of the LCD monitor via the buttons on the rear of the monitor. Select using the 5 or 6 button. Press the 1 button to select

On or OFF. The “Child Lock” OSD will appear if buttons are pressed when child lock is On.

✐ Standby operates normally when childlock is set “On”.

■ On Timer Function

You can save power consumption selecting “Off” at On Timer function

in Installation mode. On Timer in Time menu does not functional. To

make them functional, select “ON” in this menu.

■ LED Light setting

Select LED Light setting using the 5 or 6 button, once highlighted you can select On or Off by pressing the 1 or 2 button.

■ DCR

The picture contrast improved while DCR is ON. Select DCR using the 5 or 6 button, once highlighted you can select On or Off by pressing the 1 or 2 button.

■ Network Initial

This function is not used.

■ Temperature Error

The recorded number of abnormal temperature is occurred is indicated here.

■ IP Address/Subnet/Gateway/DNS

This function is not used.

TITLES ON SCREEN

GB GB

OPERATION

Selection of picture size

Select screen size from FULL, FULL ALL, ZOOM 16:9, TITLE IN 16:9, ZOOM 14:9, TITLE IN 14:9, NORMAL or NATURAL WIDE by pressing the WIDE button repeatedly on the Remote Control.

✐ When in AV2 (RGBHV) or PC mode FULL or NORMAL can be

selected.

Note: Full - Set display area 100%

✐ Only in DVI or AV2 (YPbPr) displaying high resolution content

FULL and FULL ALL are selectable.

Note: FULL - Set display area 95%

FULL ALL - Set display area 100%

All other inputs AV1, AV3, DVI or AV2 (YPbPr) (displaying lower resolutions) can select all picture sizes.

■ Full/Full All

4:3 14:9 16:9 Letterbox Video

The whole screen

is lled stretching

the width.

The whole screen

is lled stretching

the height slightly at the edges.

The whole screen

is lled with the

corrrect picture ratio.

■ Zoom 16:9

4:3 14:9 16:9 Letterbox Video

The correct picture width is maintained but the top and bottom are cropped.

Zooms in slightly cropping the top and bottom.

■ Title in 16:9

4:3 14:9 16:9 Letterbox Video

The black bars

top and bottom are present and the height is compressed.

The black bars

top and bottom are smaller and the picture height is compressed slightly.

■ Title In 14:9

4:3 14:9 16:9 Letterbox Video

As zoom (14:9), but bottom is compressed even more to allow subtitles to be seen.

■ Normal

4:3 14:9 16:9 Letterbox Video

The correct ratio is maintained with

black bars on the

left and r ight.

Black bars

left and r ight, picture height is stretched.

Black bars

left and r ight, picture height is stretched.

■ Natural Wide

4:3 14:9 16:9 Letterbox Video

As zoom (14:9), but bottom is compressed even more to allow subtitles to be seen.

Black bars left,

right, top and bottom.

■ Zoom 14:9

As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

4:3 14:9 16:9 Letterbox Video

The correct picture width is maintained but the top and bottom are cropped.

As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

Zooms in slightly cropping the top and bottom.

As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

Zooms in slightly cropping the top and bottom.

As Zoom (16:9), but bottom is compressed even more to allow subtitles to be seen.

The black bars

top and bottom are smaller and the picture height is compressed slightly.

Stretches the picture horizontally

to ll the screen.

The picture is more stretched at the edges.

The height is ex-

panded to ll the

whole screen.

The picture lls

the screen and is propor tionally correct.

The black bars

top and bottom remain and the height is com-

pressed to t the

picture area.

GB GB

OPERATION

PIP/POP Operation

Using this function, you can enjoy a DVI or Network program and an image (AV1, AV2, AV3 or PC input) at the same time. Press the ON/OFF button on the Remote Control repeatly to select PIP1, PIP2, POP or OFF mode.

During the PIP/POP mode, press the Main/Sub Picture Swap but- ton will switch the location for main and sub picture.

✐ Only the sound on the main picture is heard from the monitor

speaker. The sound on the sub-picture cannot be heard.

✐ The details for PIP/POP operation (eg,location for sub picture or

input source for any picture,etc.), please refer to page 12.

■ PIP1 mode

■ OFF mode

■ PIP2 mode

■ POP mode

The left picture is main picture, the right picture is sub picture.

GB GB

OPERATION (IN TEXT MODE)

Teletext Operation

Teletext is only available via external sources. Teletext mode can be operated by the following buttons on the Remote Control.

✐ Some buttons have dual functions.

TXT/TV

Press TXT/TV button to select teletext. Press again will display: AV mode: AV/TEXT mode/MIX mode/AV.

Note: MIX mode: AV (broadcast image) screen and the contents of TEXT

(superimposed) are displayed simultaneously.

CANCEL mode: TEXT/MIX MODE is cancelled temporarily and AV

image is displayed.

If the signal is removed or disconnected, the monitor will revert to a

blue background with “No signal” message on the screen.

If the TXT/TV button is pressed during the CANCEL mode, the CANCEL mode will be cancelled, and full text will resume.

Text Subcode

Press this button, “110/. . . .” will be displayed (e.g. the current page is

110).

And press the NUMERIC buttons(0 ~ 9) to enter the sub page. For example, to select sub page 4, press NUMERIC buttons 0 - 0 - 0

- 4, and “110/0004” will be displayed.

When nished, press the text subcode button to return to normal

operation.

Text Cancel

Press the TEXT CANCEL button in TEXT or MIX mode, the TV picture appears on the screen. Press this button once again or press TXT/TV button, CANCEL mode will be cancelled.

In CANCEL mode, “CAN” is always displayed on the upper left of the

screen.

Text Hold

Press Text Hold button to stop page request and updating.

HOLD ON:

The Hold symbol will appear instead of the page number. Update of TELETEXT is forbidden. It holds on the current TEX T screen display now.

HOLD OFF:

The hold symbol is replaced with the page number.

TELETEXT page data is updated. The present page is re-requested. (header roll)

Text Hold button will only work whilst in TEXT Mode.

Text Reveal

Press Text Reveal button to reveal hidden items on the text page. Some pages such as quiz pages have the answers hidden. The button

may have to be held to keep the answer on the screen, or press again

to remove the answer. In Reveal OFF, this indication is not given.

Text Reveal button will only work whilst in text mode.

Text Index

Press this button to select one of the teletext index pages in TEXT, MIX or CANCEL mode.

Text Red

Use to select the red topic or page number at the bottom of the text page.

Text Green

Use to select the green topic or page number at the bottom of the text page.

Text Yellow

Use to select the yellow topic or page number at the bottom of the text page.

Text Blue

Use to select the blue topic or page number at the bottom of the text page.

Page Up and Down

To select the next or previous page.

Volume Up/Down

To adjust the sound volume level.

Text Size

Press Text Size button to enlarge the top half of the text page. Press Text Size button again to enlarge the bottom half of the text page. Press Text Size button again to return to the normal size page. (Normal/top half enlargement/bottom half enlargement/normal)

Note:

During the top half or bottom half enlargement mode, if a page request is performed by [0 ~ 9] numeric buttons or the TEXT INDEX button, it will return to normal mode and a page will be requested. If HOLD ON/OFF is performed during the top half enlargement mode, it will hold the top half enlargement mode. (HOLD symbol will display) If HOLD ON/OFF is performed during the bottom half enlargement mode, it will hold the bottom half enlargement mode. (HOLD symbol will NOT display)

GB GB

SPECIFICATIONS/HELPFUL HINTS

Specication

Common specication

Power source: 100 ~ 240V 50Hz/60Hz

Colour system: PAL/NTSC/NTSC4.43/SECAM

AV terminal

AV1: Scart CENELEC Standard Input: Composite video, RGB (5V RGB with 5V sync to pin 14)

and audio- L/R

Output: composite video from AV3 and audio L/R

AV2: BNC Input: RGB, H and V/Y, Pb, Pr and audio L/R Output: RGB, H and V/Y, Pb, Pr

AV3: BNC Input: Composite video Output: Composite video

Audio Monitor Out: CINCH L/R

Audio Speaker Out: 2 x 6W

DVI Input: DVI-D GROUP Standard

PC Input: Mini D-SUB 15 PIN and Audio 3.5mm Jack

Serial Port: RS232C: Input/Output

Helpful hints

■ NO PICTURE NO SOUND

● Check if monitor is plugged in.

● Check monitor is not in standby mode.

■ POOR PICTURE

● Adjust BRIGHTNESS/CONTRAST levels (too low).

■ NO COLOUR, PICTURE OK

● Adjust COLOUR control.

● Check lead connections.

● Does the signal input have colour.

■ REMOTE CONTROL DOES NOT WORK

● Check batteries are inserted correctly.

● Check condition of batteries.

● Check to see if remote control inhibit is set ON.

■ PICTURE OK, NO SOUND

● Check external speakers are connected correctly.

● Check lead connections to external equipment.

● Check volume turned down or mute selected.

Screen

Model name Contrast Ratio

PID- 42AE1

PID- 42AS1

● The specications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels

1000:1 42"/106.7 cm 1920 x 1080 H: 178°, V: 178° 1010.3 x 603.3 x 100 mm 18

(inches/cm)

(viewing measured

diagonally)

Display Native

Resolution

Veiwing angles

Dimension (W x H x D)

Weight (kg)

(0.01% or less) may be ineffective by the characteristics of the LCD panels.

1002.8

971.5

1010.3

940

932.3

603.3

533

525.3

100

23.5

400

125.6

51.6

VIEWING AREA(H)

VIEWING AREA(V)

Control buttons

(WALL MOUNT SCREW)

4 x M6, 1.0 PITCH x 12MM

RC RECEIVER

LED INDICATOR

397.2 330

400

125.6

51.6

Control buttons

(WALL MOUNT SCREW)

4 x M6, 1.0 PITCH x 12MM

GB GB

DIMENSIONS

Unit: mm

GB GB

PC/DVI-D/COMPONENT SIGNAL SUPPORT TIMING LIST

■ PC signal support timing

Resolution

720 x 400 31.47 70.09 DOS (VGA)

640 x 480 31.43 59.88 VGA VESA 60 Hz

640 x 480 37.50 75.00 VGA VESA 75Hz

640 x 480 37.86 72.81 VGA VESA 72Hz

640 x 480 43.27 85.00 VGA VESA 85Hz

640 x 480 35.00 66.67 Mac. 13

640 x 480 34.97 66.60 Mac LC 13"

800 x 600 35.16 56.25 SVGA VESA 56 Hz

800 x 600 37.88 60.32 SVGA VESA 60 Hz

800 x 600 46.875 75.00 SVGA VESA 75Hz

800 x 600 34.50 55.38 SVGA

800 x 600 38.00 60.51 SVGA

800 x 600 53.67 85.06 SVGA VESA 85Hz

832 x 624 49.72 74.55 Mac. 16

1024 x 768 48.36 60.0 0 XGA VESA 60Hz

1024 x 768 56.47 70.07 XGA VESA 70Hz

1024 x 768 60.02 75.03 XGA VESA 75Hz

1024 x 768 48.50 60.02 XGA

1024 x 768 60.31 74.92 XGA

1024 x 768 61.00 75.70 XGA

1024 x 768 68.68 85.0 0 XGA VESA 85Hz

1024 x 768 60.24 75.08 MAC_Normal 19"

1280 x 720 37.5 50.00 720p - 50Hz

1280 x 960 60.00 60.00 SXGA VESA 60Hz

1280 x 1024 79.976 75.025 SXGA VESA 75Hz

1280 x 1024 63.370 60.01 SXGA

1280 x 1024 63.34 59.98 SXGA

1280 x 1024 63.74 60.01 SXGA

1280 x 1024 63.79 60.18 SXGA

1280 x 1024 63.90 60.00 SXGA

1280 x 1024 81.13 76.107 SXGA

1152 x 900 61.20 65.20 SXGA

1152 x 900 61.85 66.00 SXGA

1152 x 900 71.40 75.60 SXGA

1400 x 1050 65.35 6 0.12 SXGA +

1400 x 1050 65.12 59.90 SXGA +

1152 x 870 68.68 75.06 MAC_Normal 21"

1280 x 1024 80.00 75.00 Mac II

1600 x 1200 75.00 60.00 UXGA VESA 60 Hz

1366 x 768 48.36 60.01 WXGA

1360 x 768 47.73 60.03 WXGA

1920 x 1080 28.125 50.00 1080i - 50 Hz

1920 x 1080 33.75 60.00 1080i - 60Hz

The monitor can be automatically adjusted in pc mode when receiving a standard VESA signal. It will be displayed as XGA when the monitor is receiving a XGA or WXGA signal.

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Remark

■ DVI-D signal support timing

Resolution

640 x 480 31.43 59.88 VGA VESA 60 Hz

640 x 480 37.86 72.81 VGA VESA 72Hz

640 x 480 37.5 75 VGA VESA 75Hz

640 x 480 34.97 66.6 MAC LC 13"

640 x 480 35 66.67 MAC_NORMAL 13"

800 x 600 35.16 56.25 SVGA VESA 56 Hz

800 x 600 37.88 60.32 SVGA VESA 60 Hz

800 x 600 46.875 75 SVGA VESA 75Hz

832 x 624 49.72 74.55 MAC_NORMAL 16"

1024 x 768 48.36 60 XGA VESA 60Hz

1024 x 768 60.23 75.03 XGA VESA 75Hz

1024 x 768 56.47 70.07 XGA VESA 70Hz

1024 x 768 60.24 75.08 MAC_NORMAL 19"

1152 x 870 68.68 75.06 MAC_NORMAL 21"

1280 x 1024 63.98 60.02 SXGA VESA 60Hz

720 x 480 31.7 59.9 4 480p

720 x 480 15.73 59.94 480i

768 x 575 31.25 50 575p

768 x 575 15.63 50 575i

1280 x 720 37.5 50 720p - 50Hz

1280 x 720 45 60 720p - 60Hz

1366 x 768 48.36 60 WXGA

1360 x 768 47.7 60 WXGA

1920 x 1080 28.125 50 1080i - 50Hz

1920 x 1080 33.75 60 1080i - 60Hz

1920 x 1080 56.25 50 HDTV 1080p - 50Hz

1920 x 1080 67.5 60 HDTV 1080p - 60Hz

1920 x 1080 27.00 24 HDTV 108 0p - 24Hz

1920 x 1080 28.13 25 HDTV 1080p - 25Hz

1920 x 1080 33.75 30 HDTV 1080p - 30Hz

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed. To save the XGA Mode 1366 x 768 setting switch the monitor off then on using the standby button.

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Remark

■ Component signal support timing

Resolution

720 x 480 15.735 60i SDTV 48 0i

720 x 576 15.625 50i SDTV 576i

720 x 480 31.25 60p SDTV 48 0p

720 x 576 31.25 50p SDTV 576p

1280 x 720 45.00 6 0p HDTV 720 p

1280 x 720 37.50 5 0p HDTV 720 p

1920 x 1080 33.75 60i HDTV 1080i

1920 x 1080 28.13 50i HDTV 1080i

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Remark

GB GB

RS232C COMMAND TABLES

■ Functional Execution Command Table

Command Item

C00 POWER ON

C01 POWER OFF

C24 Wide “Natural” direct

C25 Wide “Zoom 16:9” direct

C26 Wide “Title in 16:9” direct

C27 Wide “Zoom 14:9” direct

C28 Wide “Title in 14:9” direct

C29 Wide “Full” direct

C0F Wide “Normal” direct

C70 AV1 direct

C71 RGB direct

C72 AV2 RGBHV direct

C73 AV2 YPbPr direct

C74 AV3 direct

C75 DVI direct

C76 PC direct

C64 PC Auto adjust

C92 Factory settings

CF PSAVE ON Power save ON

CF PSAVE OFF Power save OFF

CF CLOK ON Child lock ON

CF CLOK OFF Child lock OFF

CF DEA RMCY RC inhibition OFF

CF DEA RMCN RC inhibition ON

■ Image control Read Command Table

Status read command Item

CR BRIGHT Status of Brightness.

CR CONT Status of Contrast.

CR COLOR Status of Color.

CR TINT Status of Tint.

CR SHARP Sharpness.

CR WBAL

CR WBAL-R Status of White Balance Red.

CR WBAL-G Status of White Balance Green.

CR WBAL-B Status of White Balance Blue.

CR NZRED Status of Noise reduction setting.

CR FILM Status of Film mode setting.

CR IMAGE

CR DCDI Status of DCDi setting.

CR ACCACM Status of ACC/ACM setting.

CR CCS Status of CCS setting.

CR MPEGNR Status of MPEG NR setting.

Status of White Balance Mode information.

Status of Image selection. (The same as PICTURE mode)

■ PC Read Command Table

Status read command Item

CR H-POS Status of Horizontal position.

CR V-POS Status of Vertical position.

CR PHASE Status of PHASE value.

CR CLOCK Status of CLOCK value.

■ Input Read Command Table

Status read command Item

CR INPUT Status of Input selection.

CR SOURCE Status of Input source mode.

CR SYSTEM Status of system of Input mode.

■ Screen Read Command Table

Status read command Item

CR SCREEN

Status of screen size. (The same of WIDE mode)

GB GB

RS232C COMMAND TABLES

■ Time Read Command Table

Status read command Item

CR PANELH

CR MONH

Status of accumulated lifetime of panel. (The same as CR_L AMPH Command)

Status of accumulated lifetime of monitor.

(The same as CR_PROJH Command)

■ Sound control Read Command Table

Status read command Item

CR VOLUME Status of volume value.

CR MUTE Status of MUTE.

■ Setting Read Command Table

Status read command Item

CR LANG Status of Language selection.

CR P-MANE Status of Power management setting.

CR TILE Status of Tile mode ON/OFF setting.

CR TILE-HSETS

CR TILE-VSETS

CR TILE-HLOCAT

CR TILE-VLOCAT

CR TILE-BZLHADJ

CR TILE-BZLVADJ

CR ONPROG Status of On Program information.

CR WINTERMODE Status of Winter mode Information.

CR PANELPROTECT Statuses of Panel protect Information.

CR LEDLIGHT Status of LED light Information.

CR AVAUTOSHUT Status of AV auto shut OFF Information.

CR CHILDLOCK Statuses of Child lock Information.

CR RCINHIBITION Status of RC Inhibit Information.

Status of Tile mode, the number of Horizontal array.

Status of Tile mode, the number of Vertical array.

Status of Tile mode, the number of Horizontal allocation.

Status of Tile mode the number of Vertical allocation.

Status of Tile mode, the width of bezel (Horizontal).

Status of Tile mode, the width of bezel (Vertical).

■ UK5 Read Command Table (Basic Command)

Command Item Note

CR0 Power On, Standby, power error,

CR1 Input Mode AV1, AV2, . . . , DVI, PC

CR WIDE Wide mode Auto, Normal, Full, . . .

CR PICTURE Picture mode Dynamic, Standard, . . .

CR SIGNAL Signal existence Signal/No signal

CR CHILD Child lock On/Off

CR PSAVE Power save On/Off

CRTM Panel usage time –––

CR RMC RC inhibition On/Off

CR MDL Model number Model number

■ Error code Table

Error code Note

000 Normal receiving. (no error)

102

103

201

301

402

101 The errors not including above.

• Receiving the data that cannot be decoded.

• The wrong indication of parameter.

(Wrong gured number, or wrong word is included)

If the command of out of range is directly entered valuable parameter.

No matching with Hardware. (Command for optional function which is not equipped)

If the command of “Out of range” is entered by

inclement or decrements by numeric value.

While capturing the picture, no execution. Wait and transmit command again.

While PIN code is in operation, no execution. Wait and transmit command again.

■ Other Read Command Table

Status read command Item

CR STATUS Status of the operation of the monitor.

CR SIGNAL Status of with or without signal.

CR FREEZE Status of Freeze setting.

CR FANLOCK Statuses of fan lock error.

CR TEMP Status of current temperature value.

N8FA/N8FD-A

SANYO Electric Co., Ltd.

Sanyo PID-42AS1, PID-42AE1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

SAFETY PRECAUTIONS

Installation and Use

SERVICING

Servicing

Federal Communications Commission Notice

AC Power Cord Requirement

End-User License

Installation Notice

INSTALLATION

Step: 1 Mains Connection

Step: 2 Connections

Remote control

Remote control battery installation

Controls and Menus

Menu Operation

Picture menu

MENU OPERATION

Picture menu

Sound menu

Time menu

Setup menu

PC Adj. menu

Installation Mode

INSTALLATION MODE

OPERATION

Selection of picture size

PIP/POP Operation

OPERATION (IN TEXT MODE)

Teletext Operation

SPECIFICATIONS/HELPFUL HINTS

Helpful hints

DIMENSIONS

PC/DVI-D/COMPONENT SIGNAL SUPPORT TIMING LIST

RS232C COMMAND TABLES
