Sanyo MT-EDU101 User Manual

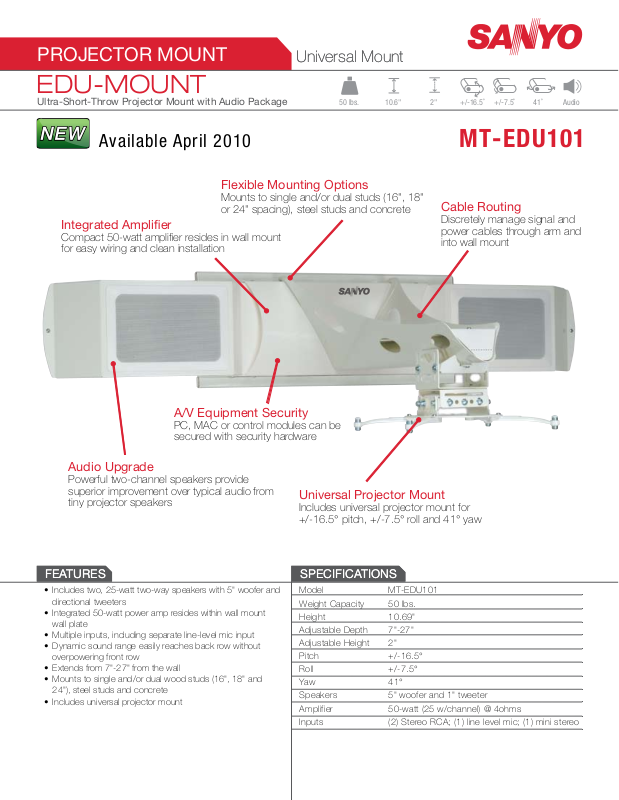

PROJECTOR MOUNT
EDU-MOUNT
Ultra-Short-Throw Projector Mount with Audio Package
Universal MountUniversal Mount
50 lbs.
10.6"
2"
+/-7.5˚+/-16.5˚ 41˚
Audio
Available April 2010
Flexible Mounting Options
Mounts to single and/or dual studs (16", 18"
or 24" spacing), steel studs and concrete
Integrated Amplifier
Compact 50-watt amplifier resides in wall mount
for easy wiring and clean installation
A/V Equipment Security
PC, MAC or control modules can be
secured with security hardware
MT-EDU101
Cable Routing
Discretely manage signal and
power cables through arm and
into wall mount
Audio Upgrade
Powerful two-channel speakers provide
superior improvement over typical audio from
tiny projector speakers
Universal Projector Mount
Includes universal projector mount for
+/-16.5° pitch, +/-7.5° roll and 41° yaw
FEATURES SPECIFICATIONSFEATURES SPECIFICATIONS
• Includes two, 25-watt two-way speakers with 5" woofer and
directional tweeters
• Integrated 50-watt power amp resides within wall mount
wall plate
• Multiple inputs, including separate line-level mic input
• Dynamic sound range easily reaches back row without
overpowering front row
• Extends from 7"-27" from the wall
• Mounts to single and/or dual wood studs (16", 18" and
24"), steel studs and concrete
• Includes universal projector mount
Model MT-EDU101
Weight Capacity 50 lbs.
Height 10.69"
Adjustable Depth 7"-27"
Adjustable Height 2"
Pitch +/-16.5°
Roll +/-7.5°
Yaw 41°
Speakers 5" woofer and 1" tweeter
Amplifier 50-watt (25 w/channel) @ 4ohms
Inputs (2) Stereo RC
A; (1) line level mic; (1) mini stereo
DIMENSIONAL DRAWING
31.5”
EDU-MOUNT
Ultra-Short-Throw Projector Mount with Audio Package
MT-EDU101
53.9”
31.56”
11.34”
ACCESSORY OPTIONS FAQ
No accessory options available at this time
Please contact SANYO Support for more information regarding
mounting the SANYO PLC-XL50A/XL51.
Works with SANYO PDG-DWL100, PDG-DXL100, PLC-WXL46, PLC-WXE45
What inputs are on the amplifier?
Two RCA inputs and a line-level microphone input are on the amplifier.
Separate gain presets are integrated on the side of the chassis.
How is the sound? Will I blow away the front row to barely be
heard at the back?
The sound is great! We tested dozens of speakers to find just the right ones.
We tuned the ports and power levels to optimize for a standard 32' x 32'
classroom with no mic feedback, distortion or blaring up close.
Note: DWL100/WXE45/WXL46 can be attached max 60” diagonal screen image.
DXL100 can be attached max 55” diagonal screen image.
If you need to project a larger screen MT-EDU102 can be attached
8.44”
10.69”
Dimensions in inches.
Drawings subject to change without notice.
