INSTRUCTION MANUAL

LCD TV

LCD-37XR9DA

Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference.

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

! Using cabinets or stands recommended by the manufacturer of the television.

! Only using furniture that can safety support the television.

! Ensuring the television is not overhanging the edge of the supporting

furniture.

! Not placing the television on tall furniture (for example, cupboards or

bookcases) without anchoring both the furniture and the television to a suitable support.

! Not standing the televisions on cloth or other materials placed between the

television and supporting furniture.

! Educating children about the dangers of climbing on furniture to reach

the television or its controls.

Table of Contents

Important Safety Precautions..........................................................................................................................1

Important Notice............................................................................................................................................3

Preparations....................................................................................................................................................4

Identification of Controls ................................................................................................................................6

Connections....................................................................................................................................................9

Basic Operations...........................................................................................................................................13

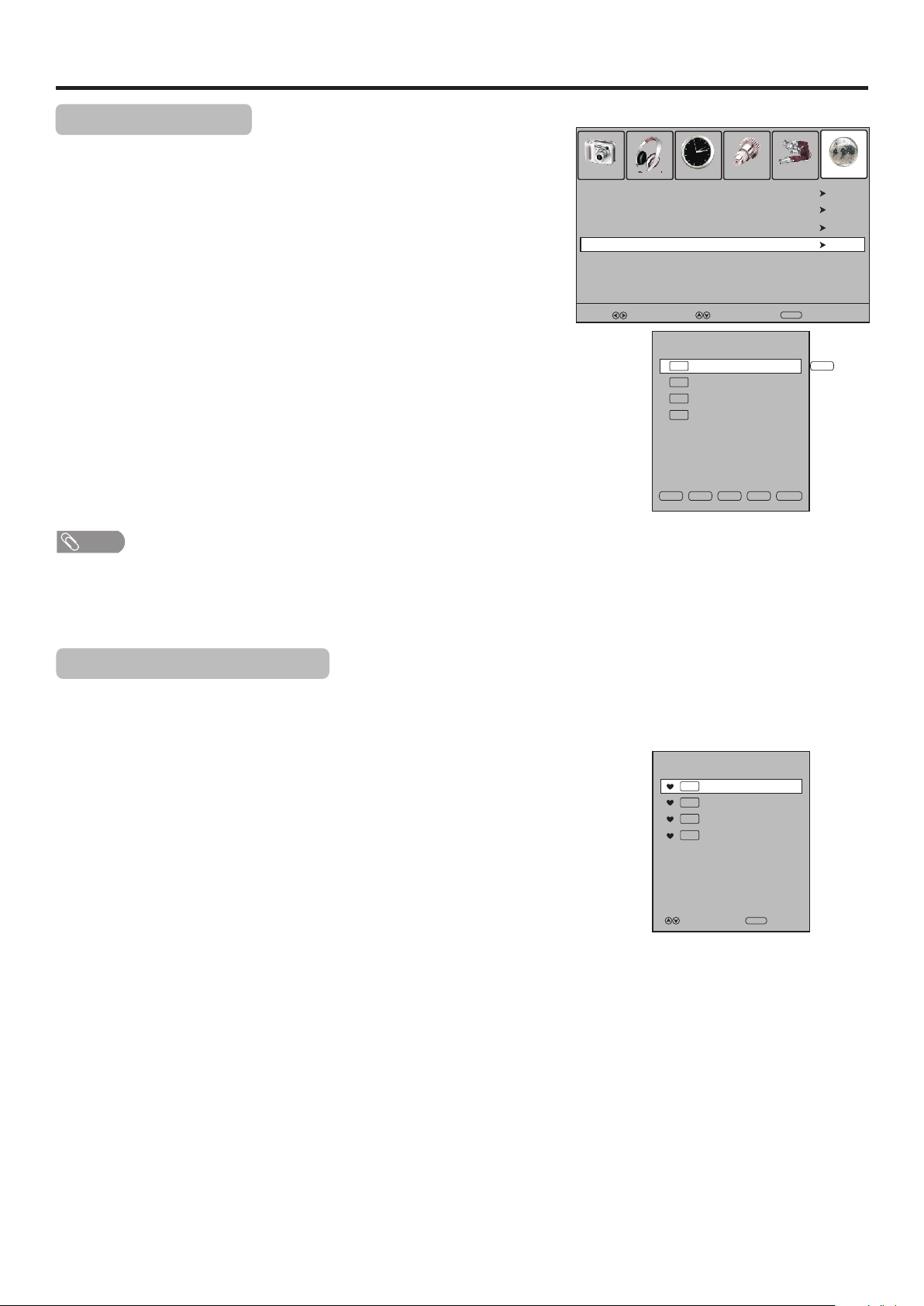

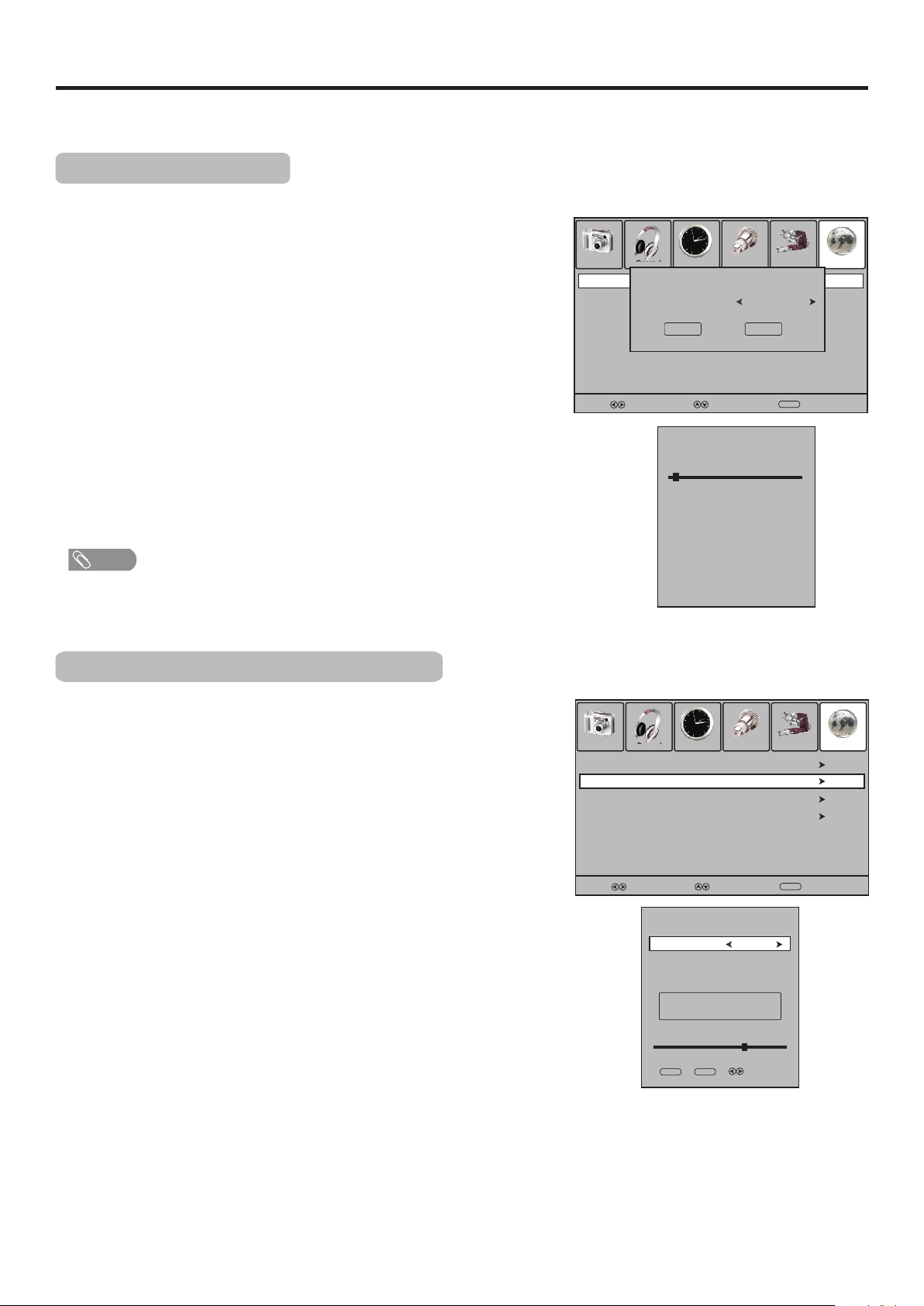

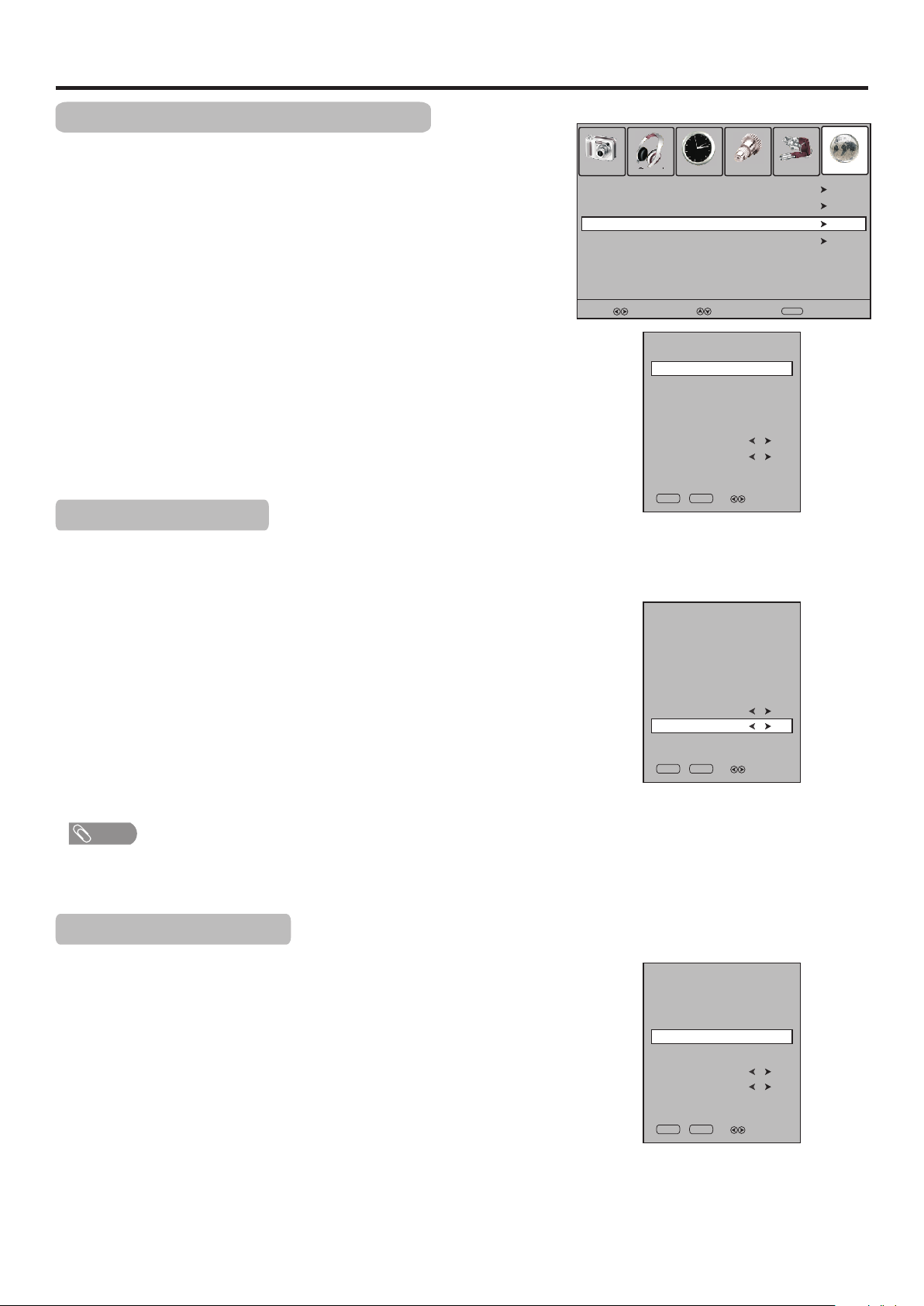

Memorizing the Channels .............................................................................................................................16

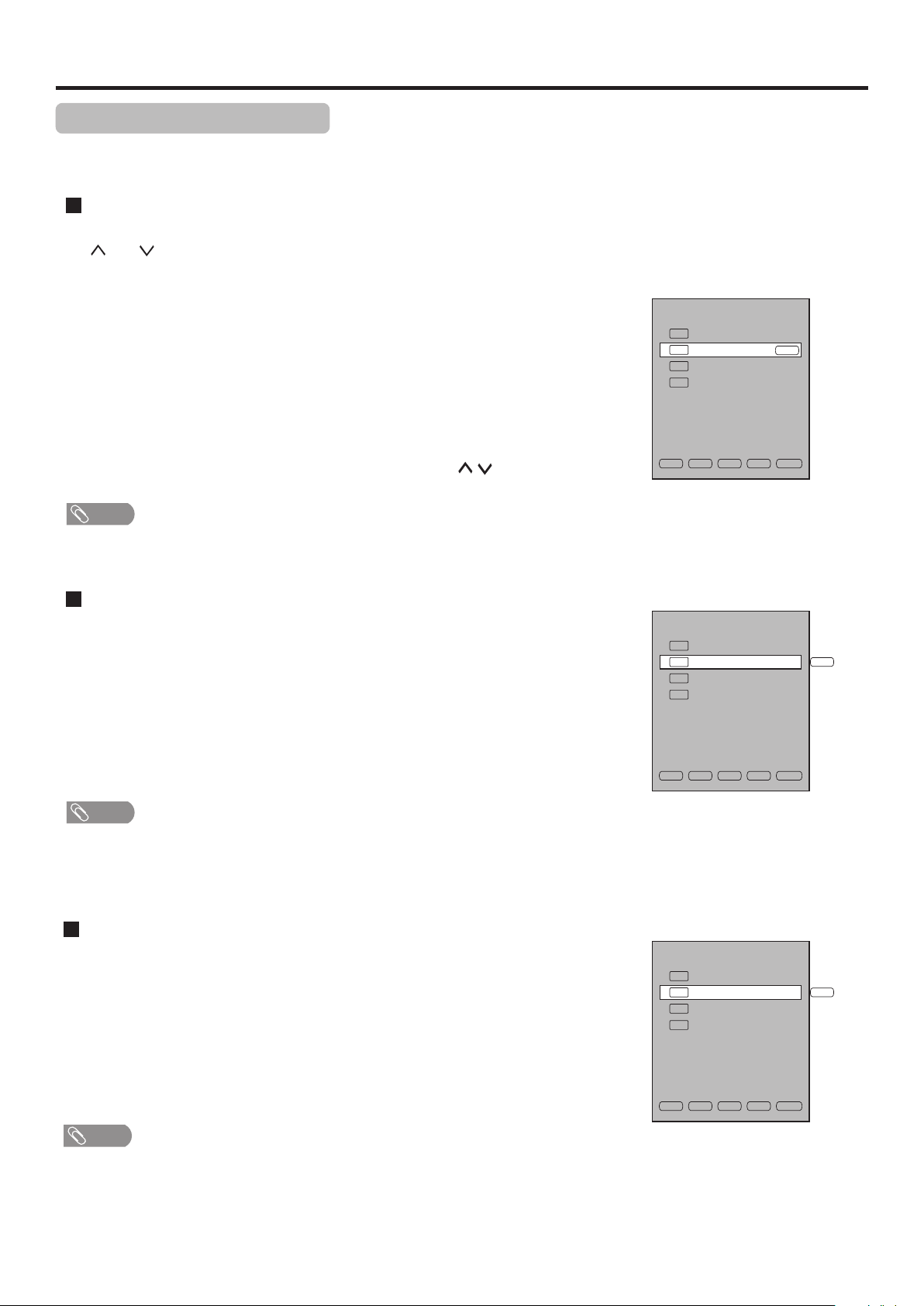

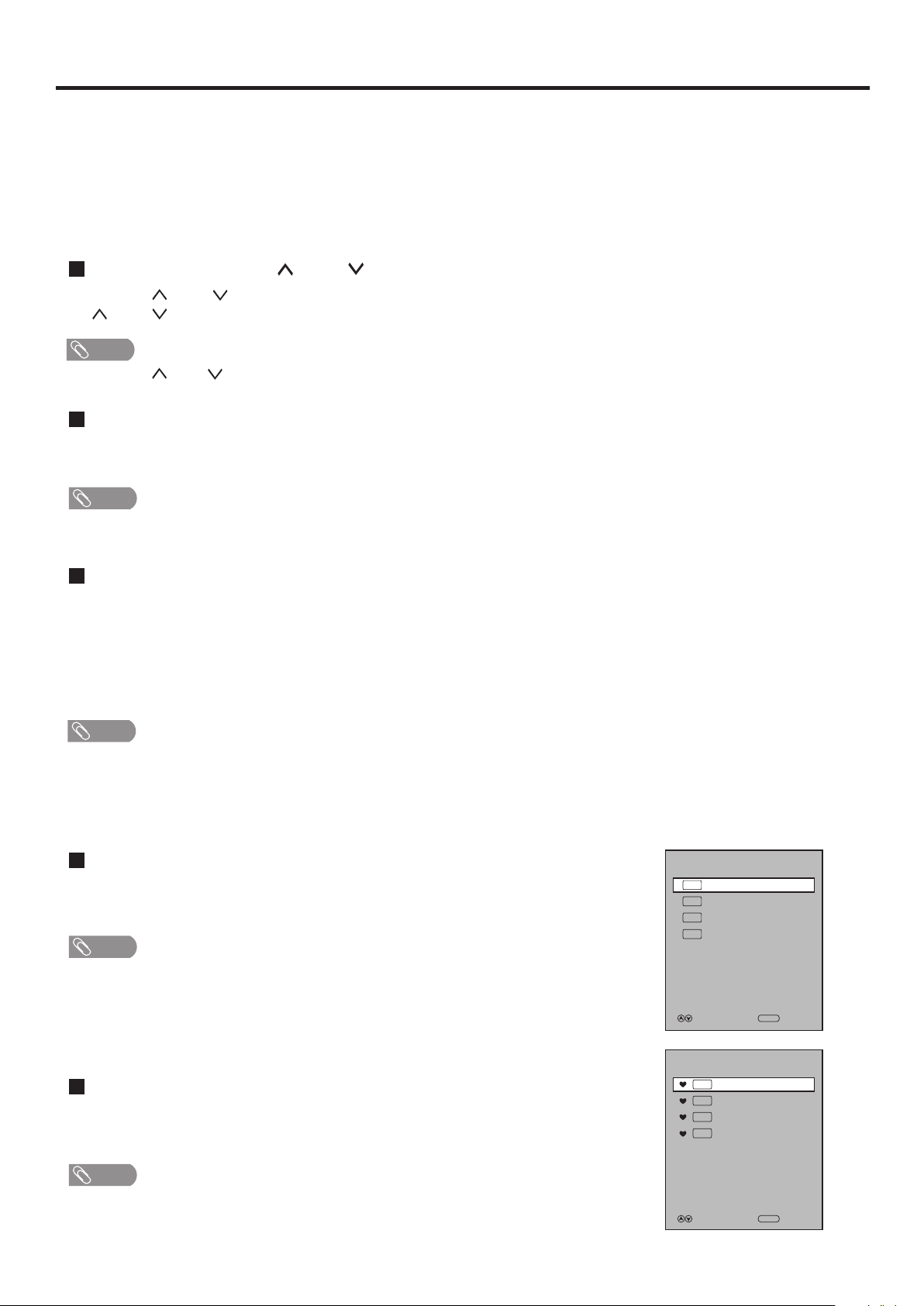

Channel and Program Selection....................................................................................................................20

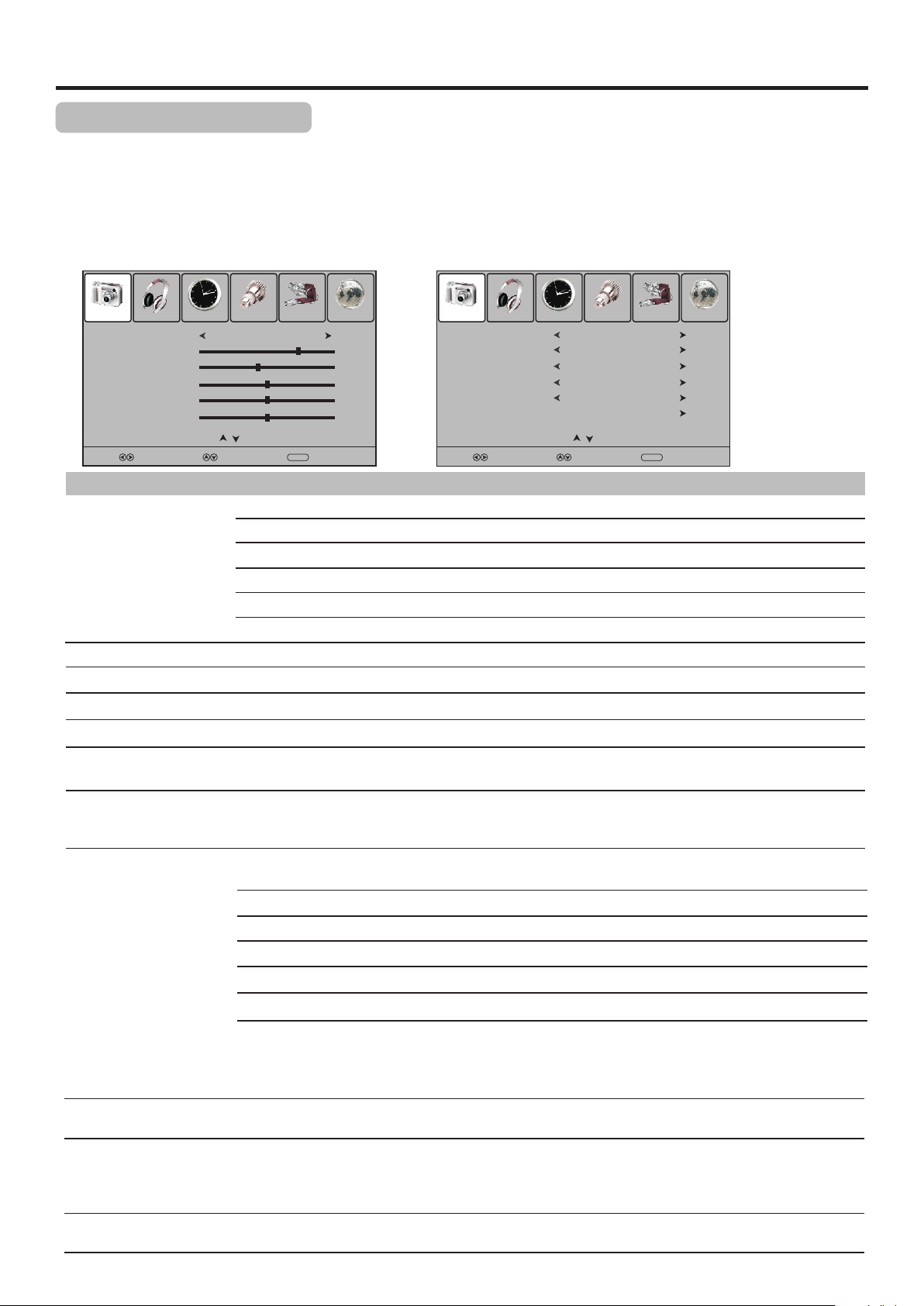

Picture Adjustment .......................................................................................................................................21

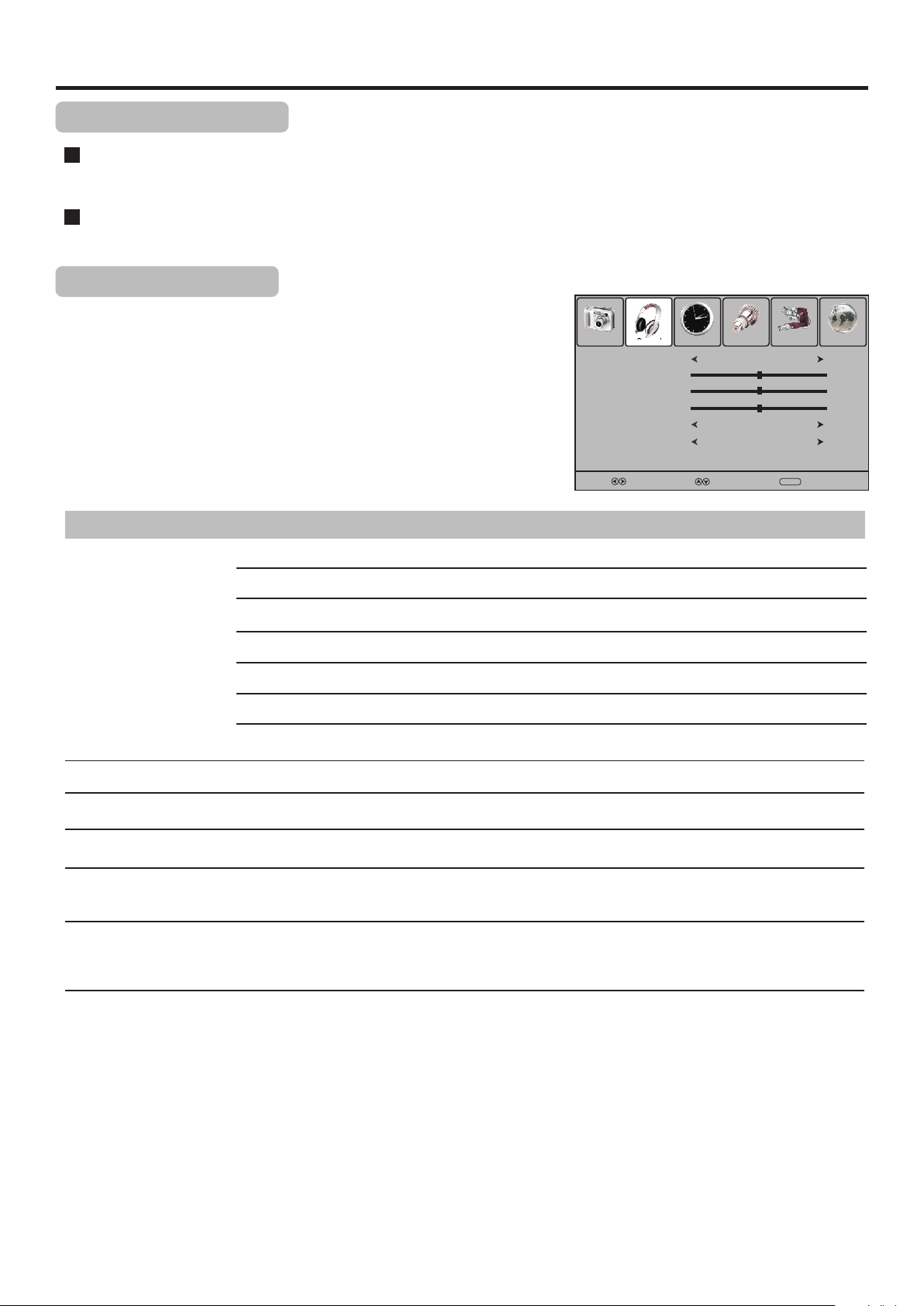

Sound Adjustment.........................................................................................................................................22

System Setup ................................................................................................................................................24

Rating and Lock Setup ..................................................................................................................................25

Timer Setup..................................................................................................................................................27

EPG Operation.............................................................................................................................................29

Teletext & Subtitle

Screen setup for D-SUB (PC) Mode ............................................................................................................31

Hotel Mode Setup ........................................................................................................................................32

Troubleshooting............................................................................................................................................33

Specifications ................................................................................................................................................35

Assembling the stand and removing the stand column.................................................................................36

........................................................................................................................................30

Important Safety Precautions

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please read the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your new TV product, please read the following precautions carefully before using the product.

1. Read these instructions---All operating instructions must be read and understood before the product is operated.

2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.

3. Heed all warnings---All warnings on the product and in the instructions must be observed closely.

4. Follow all instructions---All operating instructions must be followed.

5.Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not

recommended by the manufacturer. Use of improper attachments can result in accidents.

6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

7.Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Note: where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

8.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

9.Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

10. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11.Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid is spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. If the product has been dropped or the cabinet has been damaged in any way. f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality in the product indicates that the product needs servicing.

12. Replacement parts---In case the product needs replacement parts, make sure that the service person replaces parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks---Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to ask a authorized service personnel to carry out setup. This is a safety feature.

Important Safety Precautions (Continued)

15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

16.Careful move---When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley. Never attempt to move the TV unless the AC power cord has been disconnected.

17. Lightning---Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

18. Do not use this apparatus near water---for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

19. Clean only with dry cloth---Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

20. Ventilation---Do not block any ventilation openings. Install in accordance with the manufacturer instructions. The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

21.Heat sources---Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

22.Panel protection---The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the display panel breaks.

23.Pixel defect---The display panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Warning: For continued safety, apparatus with class I construction shall be connected to a mains socket outlet with a protective earthing connection.

Important Notice

About Temperature

About After-Image

Do not use in hot and cold rooms (locations)

! When the unit is used in rooms (locations) with low temperature, the picture may

leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

! Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location

exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the to malfunction.

screen

! Storage temperature: 0°C to +50°C ! Working temperature: 5°C to +40°C

The extended use of fixed image program material can cause a permanent on the screen.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible screen deterioration can be limited by observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

after-image

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays.

! Do not allow a still picture to be displayed for an extended period, as this can cause a

permanent after-image to remain on the screen.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Cleaning and Maintenance

CAUTIONS:

! The permanent after-image on the screen resulting from fixed image use is not an

operating defect and as such is not covered by the warranty.

! This product is not designed to display fixed images for extended periods of time.

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

Use eyeglass cleaner to remove stubborn dirt from the screen.

Never use alcohol, paint thinner or benzine to clean this unit.

Before using a chemically treated cloth, read the instructions that came with the

cloth carefully.

Preparations

Using the Remote Control

<Use the remote control by pointing it towards the remote sensor window of the

set. Objects between the remote control and sensor window may prevent proper operation.

Cautions regarding use of remote control

<Do not expose the remote control to shock. In addition, do not expose the remote

control to liquids, and do not place in an area with high humidity.

<Do not install or place the remote control under direct sunlight. The heat may cause deformation

of the unit.

<The remote control may not work properly if the remote sensor window of the main unit is under direct sunlight or strong

lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote sensor window.

Installing the Batteries

If the remote control fails to operate the TV functions, replace the batteries in the remote control.

Open the battery cover.

Insert two size-AAA batteries.

<(Place the batteries with their terminals corresponding to the (+)

and (–) indications in the battery compartment.)

Replace the cover and slide in reverse until the lock snaps.

Precaution on battery use

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

<Place batteries with their terminals corresponding to the (+) and (–) indications.

<Different types of batteries have different characteristics. Do not mix batteries of different types.

<Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old

batteries to leak chemicals.

<Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical

leakage is found, wipe with a cloth.

<If the remote control is not used for an extended period of time, remove the batteries from the remote control.

<The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Preparations (continued)

Antenna Connection

INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used. The exact type and position of the antenna will depend upon your particular area.

TV REAR

75-ohm coaxial cable (round cable)

Note

=It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave

conditions.

=The antenna cable should not be bundled with the power cord.

Power Connection

Connect the power cord to the AC IN jack, then plug the other end into a power outlet.

Household

power outlet

Plug into AC outlet.

AC cord

AC IN

Note

= This illustration is for reference only. The AC plug may be different on different models. =This product should be operated only from the type of power source indicated on the marking label. =Always unplug the AC cord from power outlet when not using for a long period of time.

Identification of Controls

Main Unit (front view/side view)

Remote Sensor

Power Indicator

6 Main Power on/off Switch

CH+

CH-

VOL+

VOL-

SOURCE

1. CH+/-

Press these two buttons to directly change the TV channel.

In OSD menu, press these buttons to choose the OSD items.

2. VOL+/ Press the VOL+ or VOL- button to directly increase or decrease the sound volume level;

In OSD menu, press these buttons to adjust the value or setting of each item.

3. MENU

Press this button to access Menu main page.

4. SOURCE

To access input source select menu.

5. STANDBY SWITCH

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

6. POWER SWITCH

Switch this switch ON first before you use the STANDBY switch to power the unit up.

Note

Functions of CH+/-, VOL+/-, MENU, SOURCE and are also provided to the remote control. This operation manual provides a description based on operating functions with the remote control.

Identification of Controls (Continued)

Main Unit (rear view)

AC IN

1 2

1. HDMI 1/2/3 interface To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A

HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.)

2. D-SUB input

Connect to the D-SUB/AUDIO output jack on your computer.

3. COMPONENT 1/2 inputs Connect to the audio and component output jacks of a DVD player or Set-Top Box.

4. Headphone jack Connect to your headphones.

5. AV inputs (Video, Audio L, R) Receive video/audio signal from external sources such as VCR or DVD player.

6. AV outputs(Video, Audio L, R) Connect to your VCR to record programs.

7. RS232 interface For service use . The user cannot operate the unit through this terminal.

8. Antenna input

Connect to your cable system or outdoor antenna.

9. S/PDIF digital audio out terminal(coaxial) Connect to the digital audio input of a digital audio component.

Identification of Controls (Continued)

Remote Control Unit

POWER: Switches the TV power on or Standby.

TV/Radio: Switches between TV and Radio mode. (DTV only)

EPG: Displays the Electronic Program Guide (DTV only).

14 15

FAV.LIST: Displays the favorite channel list.

FAV+/ FAV–: Selects the favorite channel.

0 – 9 number buttons: Press to enter channel numbers or

input password.

ZOOM: Selects the screen size.

MENU: Displays the main menu screen.

5/6/3/4/OK: Press the arrows to navigate through the

menus or adjust an item. Press OK to confirm a selection or enter a sub-menu.

MUTE: Mutes the sound.

INFO: Displays the information banner.

VOL+/–: Increases or decreases the volume.

13 23

24 25

26 27

28 29

30 31

STEREO: Selects bilingual, stereo or mono ( ATV only ), or

audio track(DTV only).

FREEZE: To freeze current picture.

SLEEP: Sets the sleep timer.

RECALL: Returns to the previous channel.

EXIT: Exits the menu screen.

SOURCE: Displays input source menu.

LIST: Displays the channel list.

CH / : Changes channel up and down.

P.MODE: Selects picture mode.

Below is teletext control buttons:

Colored buttons (RED/GREEN/YELLOW/BLUE): Direct

access to the colored items or corresponding pages. (Teletext)

TTX: Used to enter or exit teletext mode. (Teletext)

Subtitle: Displays the subtitle (DTV only), or the teletext

subpage (ATV only).

Size: Press this button several times to display the upper, then

the lower part of the screen and then return to the normal size teletext page. (Teletext)

Index: Press this button to view the main index page.(Teletext)

Reveal: To reveal or hide the concealed information. (Teletext)

28 29

Hold: To stop or resume sub-page acquisition. (Teletext)

Update:

(Teletext)

Mix:

transparent background while viewing the TV program simultaneously

Press the button to view the updated teletext page.

Press the button to display the Teletext on the screen with

. (Teletext)

S.MODE: Selects sound mode.

Connections

Cautions before connecting

Carefully check the terminals for position and type before making any connections.

The illustration of the external equipment may be different depending on your model.

Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted into their terminals.

Refer to the operating manual of the external device as well.

When connecting an external device, turn the power off to avoid any issues.

Connecting digital coaxial audio

TV REAR

HIFi System

For a full Home Theater sound experience, you must connect your Hi-Fi or Audio processor to the S/PDIF OUT(Coaxial) terminal on the TV rear.

Note

The S/PDIF OUT terminal only can output digital TV program’s audio.

Audio Processor

Coaxial cable

S/PDIF IN

(Coaxial)

Connections (Continued)

Connecting a Camcorder

TV REAR

Camcorder

Cables are often color-coded to connectors. Connect red to red, white to white, etc.

AV cable

How to connect:

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder.

To playback Camcorder

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select AV, then press OK to confirm.

3. Turn on your camcorder and set it to output mode. (For details, refer to your camcorder user manual.)

4. Insert the tape into the camcorder and press Play button.

“PlayStation”

Note

The operations of the camcorder may be different and is dependant on your model. Please read the user manual of your camcorder to confirm operation.

Connecting an HDMI device

TV REAR

Device with HDMI output

HDMI cable

How to connect a device using HDMI Connection:

Connect the HDMI cable between the HDMI1, HDMI2 or HDMI3 interface on the unit and HDMI output on the device.

To play from the device using HDMI:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select HDMI1/HDMI2/HDMI3 correspondingly, then press OK to confirm.

3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.

Note

If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio cable to the D-SUB AUDIO IN jack on the TV rear.

Connections (Continued)

Connecting Component Video

TV REAR

Component video cable

Device with component video

Cables are often color-coded to connectors. Connect red to red, white to white, etc.

Audio cable

To connect a device using component video:

Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on

the device .

Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.

To play component video from an external device:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6 to select Component1/Component2 correspondingly, then press OK to confirm.

3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.

Connecting a Computer

TV REAR

D-Sub cable

(analog RGB)

How to connect:

Connect a D-Sub cable between the D-SUB jack on the computer and the D-SUB input jack on the unit.

Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.

To monitor port

(15-pin D-Sub)

To audio output jack

Audio cable

(stereo mini plugs)

To play video from a computer

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press5or6to select D-SUB, then press OK to confirm.

3. Turn on your computer, and adjust the display properties as required.

Connections (Continued)

Connecting a VCR (for Recording)

TV REAR

How to connect:

VCR for Recording

S-VIDEO

AV cable

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.

To record program

1. Turn on your TV, select a program you wish to record.

2. Turn on your VCR, insert a videotape for recording.

3. Press the Record button to begin recording.

Note

! Only analog TV programs and AV input source can be output through the AV output jacks.

Connecting Headphones

Insert the plug of the headphone into the TV’s Headphone jack. When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result.

TV REAR

Headphones

Basic Operations

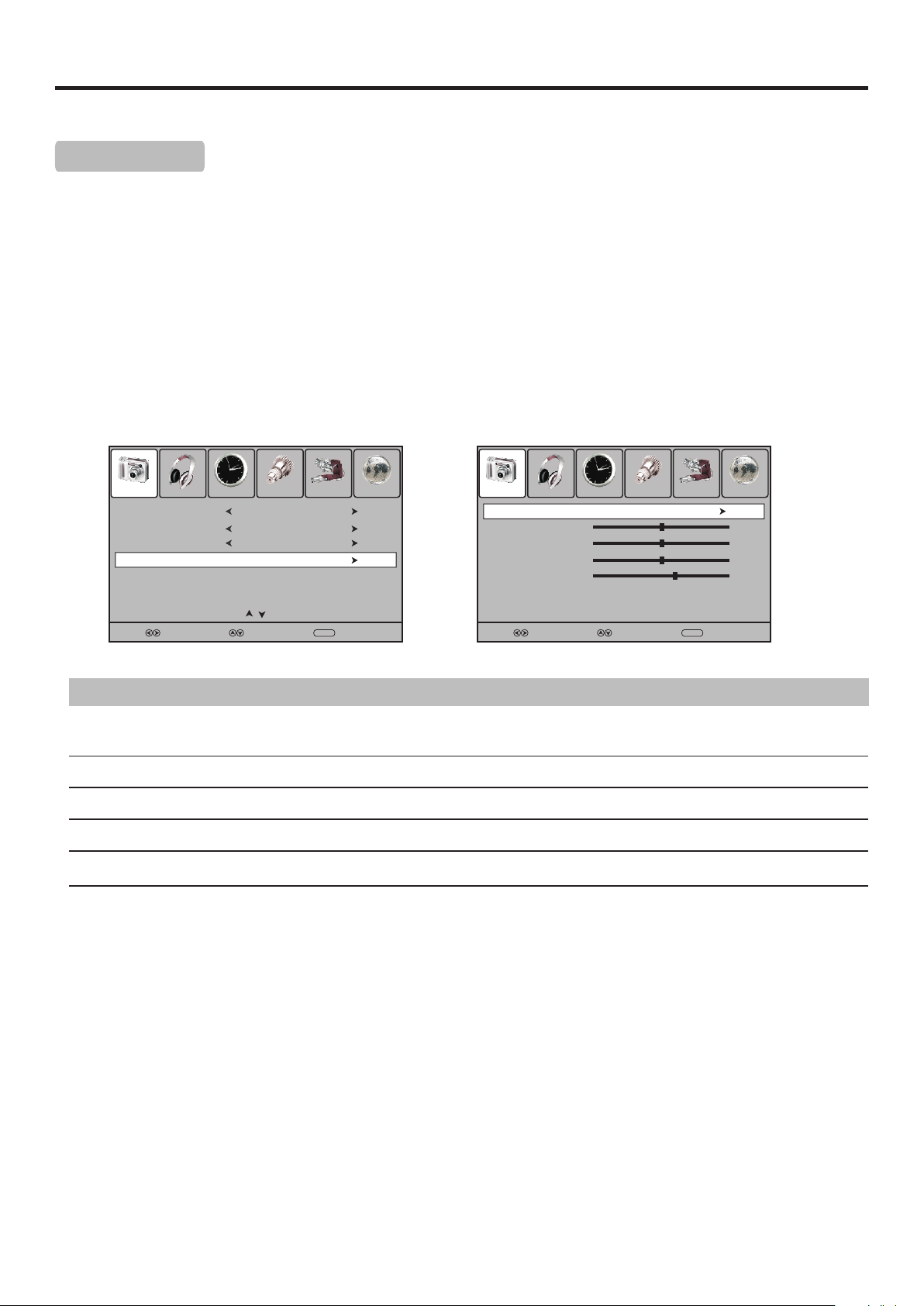

Main Menu Overview

List of main menus to help you with operations

PICTURE menu

SOUND menu

Picture Sound Time Option Lock Channel

Picture Mode Contrast

Brightness

Color

Sharpness

Tint

Prev Page Next Page

Select

Move

User

50 50

Return

TIME menu

Picture Sound Time Option Lock Channel

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

28/Sep /2008 15:30

Off Off

Off

VIC GMT+10

Move

Return

LOCK menu CHANNEL menu

Picture Sound Time Option Lock Channel

Sound Mode Treble

Bass

Balance

Auto Volume

Spatial

Select

Move

User

Off

Return

OPTION menu

Picture Sound Time Option Lock Channel

Allow Update

System Update Time

Hearing Impaired

SPDIF Audio Preference

Select

03:00

Dolby Digital

Move

Auto

Return

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Select

Move

Off

No Block

Return

Picture Sound Time Option Lock Channel

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

Select

Move

Return

To navigate through the OSD main menu

With the power on, press MENU and the main menu screen displays.

Press 3or4to select menu. Press 6 to access the menu.

Within the menu, press 5, 6,3or4navigate through the options or adjust

an option. Press OK to confirm a selection or enter a sub-menu.

Press MENU to return to previous menu. Press EXIT to exit the menu screen

directly. Or you may wait for a few seconds and the on-screen menu will disappear from the screen automatically.

Note

Some menu items may be different when the unit works in different mode, and menu items that are not selectable are grayed out.

The Picture menu has more than one page, please use 5or 6to scroll through.

The illustrations and on-screen displays in this manual are for explanation purpose (some are enlarged, others cropped) and may vary slightly from the actual ones.

Basic Operations (Continued)

Turning On/Off the Power

Turning On

Insert the power cord into the wall outlet. Press the Power Switch on the unit to power on. If the unit is in standby mode, press Power button on the unit or the remote control to turn on the unit, and you will be ready to use its features.

Turning Off

With the power on, press the Power button on the unit or on the remote control to turn off the unit, and put the unit in standby mode. To cut off the power completely, press the Power Switch directly.

First Time Setup

The first time you use the TV, you need to set up the TV.

Make sure that:

! You have installed the batteries in the remote control.

! You have connected the TV to an antenna or cable TV outlet.

! You have connected the power cord.

Energy Save Mode

Press POWER to turn on the TV. After a few seconds

the Energy Save Mode screen opens.

To use this TV for displaying in a store, please select [Store/Dynamic]. [Standard/Energy Save] mode is recommended for normal home use.

Standard/Energy Save

Press 3or4 to select Standard/Energy Save or

Store/Dynamic. Press OK to confirm the selection.

Now the Installation Guide screen will display.

Highlight Auto Tuning item, and press OK to access.

Press 3or4 to highlight Start item, and then Press OK to

begin the auto channel search.

Note

The Language and Country Selection items is defaulted and cannot be adjusted.

Navigate

Language

Auto Tuning

Start

Country Selection

Language

Auto Tuning

Start

Store/Dynamic

Confirm

Installation Guide

English

Installation Guide

Australia

English

Start

Cancel

Exit

Basic Operations (Continued)

Selecting the Input Signal Source

Press SOURCE button.

Press 6or 5to select the input source. Options include:

! DTV — Watch the DTV signal. ! ATV — Watch the ATV signal. ! AV — Watch the signal from the AV input terminals. ! Component 1 — Watch the signal from the COMPONENT 1 input terminals. ! Component 2 — Watch the signal from the COMPONENT 2 input terminals. ! D-SUB — Watch the signal from the D-SUB input jack. ! HDMI 1 — Watch the signal from the HDMI 1 input jack. ! HDMI 2 — Watch the signal from the HDMI 2 input jack. ! HDMI 3 — Watch the signal from the HDMI 3 input jack.

Press 3,4 or OK to confirm the selection.

Displaying the Information Banner

Input Source

DTV ATV

Component 1

Component 2

D-SUB HDMI 1 HDMI 2 HDMI 3

Move

Select

Press the INFO button to display the information banner. The information banner displays current status information such as the channel number and signal source. Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Below is an example banner in DTV mode.

In DTV mode, the information banner may contain:

2 ABC T V Sydney

DTV SD MPEG

! Channel number and name. ! Current time. ! Current program name, start and end play times. ! Next program name and start and end play times. ! TV or Radio.

Fri, Feb 27 2008

English

Subtitle

Reserved for future use Alan Titchmarsh continues his epic journey around the

British Isles and discovers why they are so diverse.

11:05

Teletext

576i

12:00

11:08British Isles: A Natural History

! Audio mode, audio track. ! Signal strength for current channel. ! Signal resolution. ! Subtitle, teletext.

Note

The above OSD is only served as an example, and it is in DTV mode.

Information banner content varies, depending on the broadcaster and your settings.

Memorizing the Channels

When you turn on the TV for the first time, you should perform an auto channel search to set up stations on your TV.

Note: Be sure to select the proper input source (ATV/DTV) before operation.

Auto Channel Search

You should perform an auto channel search to search for all channels available and stores them in memory.

And before you start Auto Tuning, it is necessary to select a country firstly.

Press MENU and the main menu screen displays.

Press 3or4to select Channel menu, press 6 to access the menu.

Highlight Auto Tuning item, and press 4or OK to access.

Now a confirmation box appears on the screen. Press 3or4to

highlight Start item, and then press OK to begin the auto channel search.(If you want to cancel, press 4to select Cancel item, and use OK to confirm.)

Then the TV begins memorizing all ATV/DTV channels available in

your area. During the process, you can press MENU to skip the search, or EXIT to stop.

Note

= In the confirmation box, the Country Selection item is defaulted to be Australia

and cannot be adjusted.

Manual Searching for DTV programs

Picture Sound Time Option Lock Channel

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

Country Selection

Start

Select

ATV

DTV

Radio

Press <Menu> to skip.

Press <Exit> to exit.

Channel Tuning

2 %...

Australia

Cancel

Move

78.50MHz

Programme(s)

Return

If desired digital programs cannot be searched by Auto Tuning, you can make use of DTV Manual Tuning to search programs manually.

In Channel menu, press 6or5 to select DTV Manual Tuning

item, then press4or OK to access.

Highlight VHF CH (or UHF CH) item, press 3or4 button to

select your desired channel number.

Press OK to begin the manual DTV channel search.

At the bottom of the menu screen the DTV Signal strength bar is displayed. You can make use of it to check how strong your DTV signal is and whether you need to adjust your antenna or digital cable input. The higher the signal strength is, the less likely you are to experience picture degradation.

Then all the digital programs available in this channel will be

searched and stored. During the process, you can press MENU or EXIT to exit the search.

Picture Sound Time Option Lock Channel

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

Good

Select

Return

Select

DTV Manual Tuning

VHF CH

Please select channel then Press OK to search

Bad

Move

Normal

Exit

Memorizing the Channels (Continued)

Manual Searching for ATV programs

If desired analog programs cannot be searched by Auto Tuning, you can make use of ATV Manual Tuning to search programs manually.

In Channel menu, press 6or5 to select ATV Manual Tuning

item, then press4or OK to access.

Highlight Storage To item, press 3or4 button to select a channel

position in which you want to store.

Use 6or5 to select Search item, press 3or4to begin the

manual ATV channel search. Press 4, the unit searches towards higher frequency; Press 3, the unit searches towards lower frequency.

The search stops when a program is found and this program will be

stored in current channel, then press the RED button to save. D

uring

the process, If you want to stop the search , please press EXIT button.

Manual Fine Tuning

Fine Tuning is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustment is necessary for a better picture and sound effect, use Fine Tune.

Navigate to ATV Manual Tuning submenu, highlight Current

CH item, press 3or4 to select a channel you want to perform fine tune.

Press 6 to select Fine-Tune item, and then use 3or4 button to

fine tune until the best possible picture and sound are obtained.

During the process, press EXIT to exit, and RED button to save

the effect.

Picture Sound Time Option Lock

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

Select

ATV Manual Tuning

Storage To

Color System

Audio System

Current CH

Fine-Tune

Frequency

Exit

ATV Manual Tuning

Storage To

Color System

Audio System

Current CH

Fine-Tune

Frequency

Exit

Move

445.25 MHz

SAVE

445.25 MHz

SAVE

PAL

Select

PAL

Select

Channel

Return

Note

= Fine Tune is only for analog TV program.

Setting Audio System

Normally it is unnecessary to set audio system. However, if abnormal sound occurs, you may try to adjust the audio system.

Navigate to ATV Manual Tuning submenu, press 5or6 to highlight the Audio System item.

Press 3or4 to select the proper audio system. Press RED button to save.

Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

ATV Manual Tuning

Storage To

Color System

Audio System

Current CH

Fine-Tune

Frequency

Exit

445.25 MHz

SAVE

PAL

Select

Memorizing the Channels (Continued)

Labeling Channels

If required, you can give a name to the programs.

Picture Sound Time Option Lock

Press MENU and the main menu screen displays.

Press 3or4to select Channel menu, press 6 to access the menu.

Press 6or5 to select Programme Edit item, press 4 or OK to open the Programme Edit menu.

Within the program list, press 6or5 to select a channel you want to

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

edit, press GREEN button to start to label. Then a name symbol appears alongside.

Use 6or5 to select character to input, use 3or4 to move the cursor. To delete the inputting, please press RED button. After finishing inputting, press OK to confirm. The maximum length of label is 5 characters. Repeat the above steps to set up more channel labels.

Note

! The labels of DTV channels are automatically assigned and cannot be changed by user. ! There will be no NAME item in DTV mode.

Select

Move

Programme Edit

S-03

C-42

S-04

C-04

NAMEDEL MOVE

SKIP

Fav.List

Channel

Return

NAME

Setting Favorite Channels

You can set up favorite channels list so that you can quickly browse through your favorite channels by using Favorite button.

Navigate to the Channel menu, press 5or6 to select Programme

Edit item, press 4 or OK to open the Programme Edit menu.

Use 6or5 to select your favorite program, use AV.LIST button to

mark the selected program as favorite (a favorite symbol appears). To cancel the favorite mark, just press AV.LIST button again and the

symbol disappears. If the program list has more than one page, you can press 6or5to scroll the page. Repeat the above steps to set more favorite programs.

To exit, press EXIT button.

Now you can press F button to display the avorite list, press to browse through the favorite programs and press

6or5

OK to access the channel. Or you can use FAV+/FAV- to

cycle

AV.LIST f

among the favorite channels.

Favourite List

S-03

C-42

S-04

C-04

Move

Select

Memorizing the Channels (Continued)

Channel List Management

After auto search, a default channel list is created. You can make use of Programme Edit menu to select program, to skip unnecessary channels, to delete channels, to sort programs, and to create a favorite channel list.

To skip unnecessary channels

After auto search, you can skip unnecessary channels so that only the channels you want to watch can be selected by CH / CH .

Navigate to Channel menu and press 6or5 to select Programme Edit item

and then press 4 or OK to access.

Press 6or5 to select your unwanted channel, press BLUE button and a skip

symbol appears alongside the selected channel in the list, which means this channel will be skipped.

If you want to skip more channels, repeat the above steps to set more skip

symbols to more channels. Press EXIT to quit the list. Now when you press CH / , these unwanted channels will be skipped.

Note

If the Programme Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.

To restore a skipped channel, navigate to the Programme Edit menu, select the channel and press BLUE button to cancel the skip symbol.

Programme Edit

S-03

C-42

S-04

C-04

NAMEDEL MOVE

SKIP

Fav.List

To sort channels

This function allows you to arrange the channel order.

Select the channel you want to move in the Programme Edit menu.

Press YELLOW button and a move symbol appears alongside the

selected channel in the list, then use 6or5to move the channel upward or downward to a desired new position. Press YELLOW button again to finish the sorting.

Repeat the above steps for each channel you wish to move.

Note

If the Programme Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.

The order of the DTV channels is

There will be no MOVE item in DTV mode.

automatically assigned and cannot be changed by user.

To delete channels

This function allows you to delete your unwanted channels.

Select the channel you want to delete in the Programme Edit menu.

Press RED button and a delete symbol appears alongside the

selected channel in the list. Press RED button again to finish the delete.

Programme Edit

S-03

C-42

S-04

C-04

NAMEDEL MOVE

Programme Edit

SKIP

S-03

C-42

S-04

C-04

MOVE

Fav.List

DEL

Repeat the above steps for more channels you want to delete.

Note

If the Programme Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.

The deleted channels cannot be found unless you perform a channel search again.

NAMEDEL MOVE

SKIP

Fav.List

Channel and Program Selection

Please note: your new TV is capable of receiving both radio and TV broadcasts. And for TV reception, your new TV is capable of receiving both traditional analog channels and digital channels.

When watching digital TV program and you want to listen to radio program, simply press TV/Radio button to switch. To return to TV program, press TV/Radio button again. (When watching analog TV program, the TV/Radio

button does not work.)

The TV allows channel and program selection in the following ways:

Method 1— Using CH or CH

Press the CH or CH to cycle among all available channels. The skipped channels can not be selected by CH or CH button.

Note

By using CH or CH , you can not select analog channels in DTV mode, or digital channels in ATV mode.

Method 2— Using RECALL button

Press RECALL to switch to the previously tuned channel. Press RECALL again to switch back to the currently tuned channel.

Note

RECALL will not work if no channel has been changed after TV is turned on.

Method 3— Using 0 – 9 and OK button

Press the 0 – 9 number buttons to input a channel number, then wait for some seconds or press OK to go directly to that channel.

When selecting, the TV will indicate the channel through the information banner.

Note

By using 0 – 9 number buttons, you can not select analog channels in DTV mode, or digital channels in ATV mode.

When in Radio mode, you can press TV/Radio button to switch to TV mode.

If you input one-digit or two-digit channel number, you can press OK to go directly to the channel without waiting.

Method 4— Using channel list

Press LIST button to display the channel list. Use 5or6to select a channel and then press OK button.

Note

If the channel list has more than one page, you may press 5or6 to scroll the page upward or downward.

Channel List

Move

S-03

C-42

S-04

C-04

Select

Method 5— Using favorite channel list

After you have created the favorite channel list, you can press FAV.LIST button to display the favorite channel list. Use 5or6to select a channel and then press OK button.

Note

You can directly press FAV+/ FAV– button to cycle among the favorite channels.

Favourite List

S-03

C-42

S-04

C-04

Move

Select

Picture Adjustment

Customizing the Picture

Press MENU and the main menu screen displays.

Press 3or4to select Picture menu, press 6 to access the menu.

Within the menu, press 5 or 6 to scroll through the page upward or downward,

and press 5,6,3,4 to navigate through the options or adjust an option.

Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel

Picture Mode Contrast

Brightness

Color

Sharpness

Tint

Prev Page Next Page

Select Move

Option

Picture Mode

User

Return

Description

Selects a desired picture mode. You can select from Standard, Dynamic, Mild and User.

50 50

Picture Sound Time Option Lock Channel

Color Temperature Aspect Ratio

Noise Reduction

Light Sensor

Light Status

Screen

Prev Page Next Page

Select Move

Cool

16:9

Off

Dark

Return

Standard: Select for a standard picture.

Dynamic: Select for a bright and vivid picture.

Mild: Select for a finely detailed picture.

User: The picture quality you set.

Note: To quickly change the picture mode, press the P.MODE button on the remote control repeatedly.

Contrast

Brightness

Color

Sharpness

Tint

Adjusts image contrast.

Adjusts screen brightness for easier viewing of dark picture such as night scenes and black hair.

Adjusts color saturation.

Adjusts image sharpness and displays a sharp image.

Adjusts tint for image.

Note: The Tint item is only for NTSC system.

Color Temperature

Selects one of three automatic color adjustments. Sets to Warm to enhance hotter colors such as red, or set to Cool to see less intense colors with more blue. You can select from Warm, Cool and Normal.

Aspect Ratio

You can select the aspect ratio (display proportions) according to your video signal type or personal preference. You can select from 16:9, Zoom1, Zoom2 , Auto and 4:3.

16:9: Displays a 16:9 picture.

Zoom1: Enlarges the picture to fill the full screen.

Zoom2: Enlarges the picture, the top and bottom portions may be cropped.

Auto: Displays picture automatically in proper ratio.

4:3: Displays a 4:3 picture.

Note: You can press the ZOOM button repeatedly to select a desired aspect ratio.

When selecting Zoom1/Zoom2, you may use 5 or 6 to move the picture upward or downward, or press4 or 3 to

zoom in or out the picture.

For the sake of protecting the screen, please do not display the image in 4:3 mode for extended periods of time.

Noise Reduction

Select from Low/Middle/High to reduce noise in the picture, commonly called snow. Select Off to turn off this function.

Light Sensor

Select On to enable the automatic brightness control. The light sensor measures the room brightness which allows the TV to automatically adjust the picture brightness, based on the ambient room light conditions.

Note: Be sure not to put anything around the sensor, as its function may be affected.

Light Status

When Light Sensor is turned On, the ambient room light status will appear at the bottom of the menu. You can check the light status to know whether it is dark or normal or bright.

Sound Adjustment

Adjusting the Volume

Using the volume buttons (VOL+ and VOL – )

Press the VOL + or VOL- to increase or decrease the volume.

Using the Mute

Press the MUTE button to temporarily turn off all sound. To restore the sound, press the MUTE button again.

Adjusting the Sound

Press MENU and the main menu screen displays.

Press 3or4to select Sound menu, press 6 to access the menu.

Within the menu, press 5 or 6to navigate through the options,

press3or4to adjust an option.

Press MENU to return to previous menu. Press EXIT to exit the

menu screen directly.

Picture Sound Time Option Lock Channel

Sound Mode Treble

Bass

Balance

Auto Volume

Spatial

Select Move

User

Off

Return

Option

Sound Mode

Description

Selects a desired sound mode. You can select from Standard, Music, Movie, Sports and User.

Standard: Select for normal programs.

Music: Select for a music program.

Movie: Select for a movie program.

Sports: Select for a sports program.

User: The sound quality you set.

Note: To quickly change the sound mode, press the S.MODE button repeatedly.

Treble

Bass

Balance

Auto Volume

Adjusts Treble (high sounds).

Adjusts Bass (low sounds)

Adjusts volume balance (left and right volumes).

Select On to equalize overall volume levels across all channels. Select Off to turn off the auto volume control.

Spatial

Select On to turn on the surround sound effect. The benefits of surround sound are enormous. You can be completely enveloped in sound, just as if you were at a concert hall or cinema. Select Off to turn off surround sound.

Sound Adjustment (Continued)

Stereo/Bilingual Selection (for analog channels)

You can quickly select sound multiplex mode by using the STEREO button on the remote control.

NICAM Broadcast Selection

This enables the selection of the reception mode when receiving a NICAM signal. To let you enjoy NICAM broadcasting, this TV set receives NICAM system stereo, bilingual, and monaural broadcasts.

Stereo

When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is selected, the TV sound is output monaurally.

Bilingual

When the TV set is receiving a bilingual program, press the STEREO button to select NICAM DUAL A or NICAM DUAL B.

IGR (German stereo system) Broadcasts

This enables the selection of the reception mode when receiving an IGR signal. To let you enjoy IGR broadcasting, this TV set receives IGR system stereo and bilingual broadcasts.

Stereo

When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is selected, the TV sound is output monaurally.

Bilingual

When the TV set is receiving bilingual program, press the STEREO button to select DUAL A or DUAL B.

Audio Track Selection (for digital channels)

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages, or different commentators for sport events). You can press STEREO button to select the audio track.

Note

The availability of these additional “multi-tracks” depends upon the broadcaster.

System Setup

You may change system settings such as Hearing impaired, SPDIF, Audio Preference, etc. by making use of Option menu.

Press MENU and the main menu screen displays.

Press 3or4to select Option menu, press 6 to access the menu.

Within the menu, press 5,6,3,4 to navigate through the options

or adjust an option.

Press MENU to return to previous menu. Press EXIT to exit the

Picture Sound Time Option Lock Channel

Allow Update

System Update Time

Hearing Impaired

SPDIF Audio Preference

menu screen directly.

Option

Allow Update

Description

Press 3/4 to select On to allow system update. Select Off to turn off the function.

Note: You should first set this item to On before performing system update time function.

System Update Time

Press 4or OK to display the System Update Time screen, then set On time. When the TV is in standby mode, the TV will automatically turn on at the preset time and detect OTA, then start system update.

Hearing Impaired

(Only for digital programs)

Press 3/4 to select On to display the subtitles (if available) for the hearing impaired.

Select Off to turn off the function.

Selects the digital audio output mode for S/PDIF. You can select Auto or PCM.

SPDIF

(Only for digital programs)

Auto: Output audio signal by the rule: If current audio track is in Dolby Digital format, then Dolby Digital format will be selected. If current audio track is in MPEG, then PCM format will be selected.

Select

03:00

Dolby Digital

Move

Auto

Return

PCM: Output audio signal by PCM format.

Note: To select Auto is recommended.

Audio Preference

(Only for digital programs)

Selects the audio track to output. You can select MPEG or Dolby Digital.

MPEG: If the program has MPEG and Dolby Digital tracks, select MPEG to output MPEG track in preference.

Dolby Digital: If the program has MPEG and Dolby Digital tracks, select Dolby Digital to output Dolby Digital track in preference.

Note

! Manufactured under license from Dolby Laboratories. ! Dolby and double-D symbol are trademarks of Dolby Laboratories.

Rating and Lock Setup

Password Setup

The Password setup sub-menu is used to set a new system password or to change an existing system password. By default, the system password is 0000 and you may change it. To access Parental Guidance, to lock or unlock channels, to view locked channels, etc., the system password is required.

To create a new password

Press MENU and the main menu screen displays.

Press 3/4to select Lock menu, press 6 to access the menu.

Now a password is required to input. Use number buttons to input

the correct password (the default password is 0000).

Press 5or6 to select Set Password item, and then press 4 or

OK button to access its submenu.

Use the number buttons to input a new password (4- digit).

Input the new password again.

Now the new password has been created successfully.

Note

! Be sure to write down your password and retain it for future use. If you

do forget the password, the unit provides a super password “2580”. Please DO NOT let your children know the super password.

Block Program Setup

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Please enter Password

Select

Please enter Password

New

Confirm

Select

English

- - - -

Off

Move

Off

Move

Off

No Block

Off

- - - -

No Block

Return

The Block Program function blocks any channels that you do not want to watch or that you do not want your children to watch.

Navigate to the Lock menu and input the correct password to

access.

Use 5or6to highlight Block Program item, press 4 or OK to

access.

Now the Block Program screen opens. Use 5or6to select the

channel you want to lock, then press GREEN button to set lock to the channel. A lock symbol appears alongside the locked channel.

Repeat the above steps for each program you wish to lock.

Press MENU to return to previous menu. Press EXIT to exit the

menu screen directly. Then the Block Program comes into effect for the Locked channel.

Note

! To view a locked channel, just input the password. ! To cancel channel lock, use password to enter into the Lock menu, and

call up Block Program screen, then use GREEN button to unlock the channel, and the lock symbol will disappear.

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Select

Block Program

Select

Move

S-48

S-51

S-56

Off

No Block

LOCKOK

Return

Rating and Lock Setup (Continued)

Parental Guidance Setup (DTV only)

Parental Guidance blocks programs according to their classification so that children can not view certain programs.

Navigate to the Lock menu and input the correct password to

access.

Press 5or6 to highlight the Parental Guidance item.

G (General Audiences): Content not

Use3or4to select your desired

rating.

Use the “Block All” setting to completely block all viewing. The menu can still be accessed to unblock all programs.

Press MENU to return to previous

menu. Press EXIT to exit the menu screen directly.

offensive to most viewers.

PG (Parental Guidance Suggested):

Content is such that parents may not want their children to view the program.

M (Mature Audience): Suitable for mature

audience.

MA(Mature Adult Audience): May contain

mature themes, profane language, graphic violence, and sexual situations.

AV (Adult Audience): Strong violence.

R (Restricted viewing): Not for children

under age 17. Strong elements of sex and/or violence.

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Select

Off

No Block

Move

Block All

Block G and above

Block PG and above

Block M and above

Block MA and above

Block AV and above

Block R and above

No Block

Return

Lock Tuning Setup

Making use of Lock Tuning you can protect some TV settings from being accidentally changed.

Navigate to the Lock menu and input the correct password to

access.

Now the Lock Tuning item will be highlighted automatically.

Use 3or4to turn on or turn off the Lock Tuning.

Once you turn on Lock Tuning, all items in Channel Menu can not be accessed by the user without the correct password. To cancel, use password to enter into Lock Menu and set Lock Tuning item to OFF.

Restoring Factory Default

Running this function to reset all settings to its original factory condition.

Navigate to the Lock menu and input the correct password to

access.

Press 5or6to select the Restore Factory Default item, press 4

or OK to activate the function.

Now the screen will display a dialog box for you to confirm your

operation. Use 3or4to toggle between YES or NO item, and press OK to confirm your operation.

Note

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Select

Picture Sound Time Option Lock Channel

Lock Tuning

Set Password

Block Program

Parental Guidance

Restore Factory Default

Select

Off

No Block

Move

Off

Are you sure?

English

No Block

Move

Off

Return

NoYes

Return

! This function will clear most of your customized settings. So make sure you do want to reset

all settings to its original factory condition before you perform this operation.

Timer Setup

Time Zone Selection

To obtain local time, you should first set local time zone. and it depends on your local station whether has broadcast time zone information.

Press MENU and the main menu screen displays.

Press 3or4to select Time menu, press 6 to access.

Press 5or6 to select Time Zone item, and then press 3or4to

select the appropriate one.

Picture Sound Time Option Lock Channel

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

28/Sep /2008 15:30

Off Off

Off

VIC GMT+10

Current Time Setup

Make use of this function can set the current time for the TV.

Navigate to the Time menu, press 6 to access.

Press 5or6 to select Clock item, Press4or OK to access the

submenu.

Within the menu, use 5or6 to highlight the Date, Month, Year,

Hour or Minute item, and use 3or4 to adjust the values. When finished, use 5or6 to select Close and press OK to confirm the setting.

Note

! Before setting Off timer and On timer, please set the Clock for the TV.

On Timer Setup

With On Timer function On, the TV will automatically turn on at the preset time.

Navigate to the Time menu, press 6 to access.

Off Off

Off

Sep

2008

15 30

Return

Select

Picture Sound Time Option Lock Channel

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

Move

28/Sep /2008 15:30

Date

Month

Year

Hour

Minute

VIC GMT+10

Move

Press 5or6 to select On Time item, Press 4or OK to access

the submenu.

Now the Activate item will be highlighted automatically, press

3or4to select On . (If you want to cancel setting, please choose Off )

Press 5or6 to select Hour or Minute item, and press 3or4to

adjust the value.

After setting On Timer, you can press 5,6,3or4to navigate

through the following three options and adjust the options .

Option

Volume

Mode

Program Number

When finished, use 5or6 to select Close item and press OK to confirm the setting.

Press to switch the TV to standby mode. At the preset time, the TV will

Description

Sets desired volume for the On program.

Selects one source to be viewed through On timer.

Selects a broadcasting program for On timer.

auto turn on and broadcast the preset program at the preset volume.

Picture Sound Time Option Lock Channel

Clock Off Time

On Time Off

Sleep Timer

Auto Sleep

Time Zone

Select

28/Sep /2008 15:30

Off

Activate Hour Minute Volume Mode

VIC GMT+10

Move

Off

22 ABC TV

00 00 00 DTV

Return

Timer Setup (Continued)

Off Timer Setup

With Off Timer function On, the TV will automatically turn off at the preset time.

Navigate to the Time menu, press 6 to access.

Press 5or6 to select Off Time item, press 4or OK to access

the submenu.

Now the Activate item will be highlighted automatically, press

3or4to select On . (If you want to cancel setting, please choose Off )

Press 5or6 to select Hour or Minute item, and press 3or4to

adjust the value. When finished, use 5or6 to select Close and press OK to confirm

Picture Sound Time Option Lock Channel

Clock Off Time

On Time Off

Sleep Timer

Auto Sleep

Time Zone

Select

the setting.

Note

! Once you have set On timer or Off timer function, the unit will perform it everyday at the preset time.

Sleep Timer Setup

Sleep timer lets you select the amount of time before your TV turns itself off automatically. This setting is cleared when the TV is turned off.

Picture Sound Time Option Lock Channel

Navigate to the Time menu , press 6 to access.

Press 5or6 to select Sleep Timer item.

Press 3or4to select the amount of the time; to turn off the timer,

please select Off.

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

28/Sep /2008 15:30

Off

Activate

Hour

Minute

VIC GMT+10

Move

28/Sep /2008 15:30

VIC GMT+10

Move

Off

Off Off

Off

00 00

Return

Note

! You may directly press SLEEP button on the remote control to set sleep timer. ! After you have set sleep timer, when the last 30 seconds have come up, the Power Off screen will

appear to remind you after how many seconds the TV will power off. You can press any button to quit.

Auto Sleep Setup

When there is no signal input for a certain time, the unit will turn off automatically.

Navigate to the Time menu, press 6 to access.

Press 5or6 to select Auto Sleep item.

Press 3or4to select On or Off.

Picture Sound Time Option Lock Channel

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

28/Sep /2008 15:30

Off Off

Off On

VIC GMT+10

Move

Return

EPG Operation

EPG

The Electronic Programme Guide (EPG) makes it possible for users to see details about the programme they are watching, other programmes and even a schedule of the next 7 days. The information available includes the number and name of the channel, the name and type of programme, the start and end time, and a summary. Thus viewers can easily select the programmes they want to see.

Opereation

Press the EPG button to open the EPG (Electronic

Program Guide). In the EPG window (as shown on

PROGRAMME GUIDE

28 Jul 2008 15:03

the right), several channels’ current and upcoming program’s information will be displayed.

Press YELLOW button to highlight the date bar,

use 3or4to select the proper date, and then press YELLOW button again to exit. Use 5,6,3or4to navigate among the channels

DTV

7 7 Digital

70 7 HD Digital

71 7 Digital 1

72 7 Digital 2

73 7 Digital 3

and program events, and press INFO button to get more detailed information (if available) about the programme you choose.

EXIT

Info

If you want to switch between TV and Radio programmes, please press TV/Radio.

Press OK to tune to the channel you have selected.

To clear the EPG window, press EXIT button or EPG button.

Note

! The EPG will only work when you are receiving digital channels. ! To enable EPG to work properly, it is suggested to set the appropriate time zone.

DTV

72 7 Digital 2

15:00 - 16:00 BLUE HEELERS

15:00 16:00

BLUE HEELERS

TV/Radio

28 Jul

OK DATE

No information

Teletext & Subtitle

Teletext

What Is Teletext?

Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

To Turn On/Off Teletext

Select a TV channel providing the Teletext program. Press TTX button to display the teletext. Press TTX button again to switch back to TV screen.

Teletext control button list

! 5/6 button

Used to scroll page upward or downward.

! 0 – 9 button

Directly select any page by using 0 - 9.

! Colored buttons (RED/GREEN/YELLOW/BLUE)

Colored areas are displayed at the bottom of the screen. The 4 colored

buttons are used to access the items or corresponding pages.

! Hold button

Certain pages contain sub-pages which are automatically displayed

successively. This button is used to stop or resume sub-page acquisition.

! Reveal button

Press the button to reveal the concealed information such as games solutions. Press the button again to hide the information.

! Size button

Press this button several times to display the upper, then the lower part of the screen and then return to the normal size teletext page.

! Index button

In teletext mode, press this button to display the index page.

! Mix button

Press the button to display the Teletext on the screen with transparent background while viewing the TV program simultaneously

! Update button

Press the button to view the updated teletext page.

Subtitle

When watching digital programs, press Subtitle button to display the subtitle.

If the program has subtitle, simply press Subtitle button to display subtitle.

Press Subtitle again to cancel the subtitle.

When watching analog programs, press this button to display the teletext subpage.

Screen Setup for D-SUB(PC) Mode

Before adjusting the screen, make sure that you select the correct source (D-SUB).

Screen Setup

Press MENU and the main menu screen displays.

Press 3or4to select the Picture menu, press 6 to access the menu.

Within the menu, press 5 or 6 to scroll through the page upward or downward until you select the Screen

item, then press 4or OK to access.

Press 5,6,3,4 to navigate through the options or adjust an option. To confirm, press OK.

Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel

Color Temperature Aspect Ratio

Noise Reduction

Screen

Prev Page Next Page

Select Move

Option

Auto adjust

Cool

16:9

Off

Description

Selects and activates to start auto adjustment. The set automatically adjusts the image settings, such as position and phase.

Horizontal Position

Vertical Position

Size

Phase

Moves the image on the screen left or right.

Moves the image on the screen up or down.

Adjust the horizontal width of the image on the screen.

Improves the focusing of a stable image.

Return

Picture Sound Time Option Lock Channel

Auto Adjust

Horizontal Pos.

Vertical Pos.

Size

Phase

Select Move

0 60

Return

Hotel Mode Setup

Press SOURCE button. The Input Source menu opens.

Press number buttons: [ 1, 4, 7 ] to access the Hotel Mode screen.

Within the menu, press 5,6,3,4 to navigate through the options

or adjust an option.

Press OK to save the setting. Press MENU or EXIT to exit the

menu screen directly.

Hotel Mode

Channel Preset Lock

Volume Max

AV Lock

Panel Lock

Press < OK > to save

Off

100

Off

Option

Channel Preset Lock

Note: When the item is set to On, the Channel menu and Lock Tuning item will be grayed out and unselectable.

Volume Max

AV Lock

Note: If AV Lock is set to On, options except AV in the Input Source menu will be grayed out and unselectable.

Panel Lock

Note

Description

Press 3/4 to select On to lock the Channel menu and Lock Tuning item in Lock menu. Select Off to release.

Press 3/4 to set the maximum volume (30 -100) for the unit.

Press 3/4 to select On to lock the input source of the unit to AV. Select Off to return to normal operation.

Press 3/4 to select On or Off.

When the Panel Lock is set to On, buttons on the control panel on the main unit are not active. To restore, please set it to Off.

! When you press keys:[ 1, 4, 7 ] to call up Hotel Mode screen, please make sure to finish the inputing when the Input

Source menu is still visible.

Troubleshooting

If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions.

Remote Control

Problem Possible Solutions

Remote control does not operate

! The batteries could be weak. Replace the batteries. ! Check the orientation of the batteries. ! Make sure the power cord is plugged in.

Video and Audio

Problem Possible Solutions

No picture (screen not lit), No sound

Dark, poor or no picture (Screen lit), good sound

No color/dark picture/color is not correct

Only snow and noise appear on the screen

Dotted lines or stripes

! Make sure the power cord is plugged in. ! Press POWER on the TV or on the remote control. ! Try another channel; it could be station trouble.

! Select a proper picture mode. ! Adjust the brightness in the video setting. ! Check the antenna connections.

! Adjust the color saturation in the video setting.

! Check the antenna connections. ! Try another channel; it could be station trouble.

! Adjust the antenna. ! Move the TV away from noise sources such as cars, neon signs, or hair dryers.

Double images

Good picture, no sound

! Using a highly directional outdoor antenna or a cable may solve the problem.

! The sound may be muted. Press MUTE again to cancel. ! Make sure the stereo mode is set to stereo or mono.

Audio noise ! Communication problems may occur if infrared communication equipment (e.g.,

infrared cordless headphones) is used near the TV. Move the infrared communication equipment away from the TV until the noise is eliminated.

Troubleshooting

General

Problem Possible Solutions

One or some channels can’t be displayed

Lost password ! You may use the super password (2580).

Some items can’t be accessed ! If a setting option appears in gray, this indicates that the settings option is unavailable

TV cabinet creaks ! When the TV is in use, there is a natural rise in temperature, causing the cabinet to

! These channels may be locked. Please unlock them (see <Rating and Lock Setup>

section).

! These channels may be set skipped in the channel list. You may set it to not skipped or

select them with 0-9 number buttons.

in current input mode.

expand or contract and may be accompanied by a slight creaking noise. This is not a malfunction.

Some settings (such as volume setting, etc.)may not be memorized when the TV loses power or you press main Power Switch to turn off the TV.

Control buttons do not operate

Note

If your problem is not solved, turn your unit off and then on again.

! After you make some settings or adjustments, and within 30 seconds you turn off the

TV by main Power Switch or the TV loses power, then the settings you have made within 30 seconds may not be memorized. But you can use Power button to switch the TV to standby mode before cutting off the power, then the settings can be memorized.

! Disconnect the power cord and wait for a few seconds. Then re-plug the power cord

and turn on the unit again.

Cautions:

Never attempt to repair a defective TV yourself.

Specifications

Type: LCD TV

Display Size diagonal: 94cm (37 inch)

Power Supply: AC220-240V 50/60Hz

Power Consumption: 150W

Dimensions(mm): 899 (W) x 636 (H) x 300 (D)

Unit Weight(kg): 16.6

TV System: Analogue: CCIR(PAL-B/G, NTSC(AV))

Digital: DVB-T(2K/8K OFDM)

Note

! Design and specifications are subject to change without notice.

Assembling the stand and removing the stand column(Option)

If the stand is provided, please read these instructions thoroughly before attempting this installation.

You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend

to mount your TV on a wall or other vertical surface, you must remove the stand column.

Cautions:

Make sure that you handle your TV very carefully when attempting assembly or removal of the stand. If you are not

sure of your ability to do this, or of your ability to use the tools necessary to complete this job, refer to a

professional installer or service personnel. The manufacturer is not responsible for any damages or injuries that

occur due to mishandling or improper assembly.

When using a table or bench as an aid to assembly, make sure that you put down a soft cushion or covering to

prevent accidental scratching or damage to your TV's finish.

The speaker is not intended to support the weight of your TV. Do not move or handle your TV by the speaker.

This can cause damage to your TV that is not covered by the manufacturer's warranty.

Before attempting assembly or removal of the stand, unplug the AC power cord.

To install the stand:

1. Remove the stand from the box and place it on a table or bench.

You must pay attention to the direction of the stand. The wide portion of the stand should go towards

the front of the TV.

2. Lay your TV flat (screen down) on the edge of a table or bench. Make sure that you put down a soft

cushion or cloth so that your TV is not scratched.

3. Insert the stand column into the stand socket, move the column steadily until the Locators on the

column align with the locating grooves on the stand. And align the holes in the stand with the holes in

the stand column, then secure the stand to the column with four M5 screws(provided).

Locators

Stand

M5 screws

To remove the stand from the TV, perform these steps in reverse order.

Locating grooves

To remove the stand column:

1. Lay your TV flat (screen down) on a table or bench. Make sure that you put down a soft cushion or cloth

so that your TV is not scratched.

2. Remove the four screws holding the stand column to your TV, then remove the stand column.

Stand column

Remove four screws

NOTE:

The appearance of this product in these illustrations may differ from your actual product, and is for

comparative purposes only.

5944035230

Ver. 1.0

Sanyo LCD-37XR9DA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
