Sanyo LCD-32XR10F User Manual

INSTRUCTION MANUAL

LCD TV

LCD-32XR10F

Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference.

Contents

Important Information 3

Important Safety Precautions 4

Important Notice 6

Identification of Controls 7

Setting Up 9

Connections 10

First Time Configuration / Basic Operations 14

Memorizing the Channels 18

Programme Edit 19

Adjusting the Picture

Adjusting the Sound

Adjusting Basic Settings 24

Setting Clock & Timer 25

Setting Child and Rating Locks 27

Making Use of Time Shift Function 29

Teletext & Subtitle 30

Adjusting the Computer Image & Setting Hotel Mode

Using MUSIC Player /Using USB Multi Media Player 32

Troubleshooting 35

Specifications 36

Appendix: Installing the Stand 37

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

! Using cabinets or stands recommended by the manufacturer of the television.

! Only using furniture that can safely support the television.

! Ensuring the television is not overhanging the edge of the supporting

furniture.

! Not placing the television on tall furniture (for example, cupboards or

bookcases) without anchoring both the furniture and the television to a suitable support.

! Not standing the televisions on cloth or other materials placed between the

television and supporting furniture.

! Educating children about the dangers of climbing on furniture to reach

the television or its controls.

Warning: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

Important Safety Precautions

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your TV product, please read the following precautions carefully before using the product.

1. Read these instructions---All operating instructions must be read and understood before the product is operated.

2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.

3. Heed all warnings---

4. Follow all instructions---All operating instructions must be followed.

5.Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not

recommended by the manufacturer. Use of improper attachments can result in accidents.

6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

7.Power cord protection--convenience receptacles, and the point where they exit from the apparatus.

NOTE: where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall

remain readily operable.

8.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

9.Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

10. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11.Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.

b. When a liquid is spilled on the product or when objects have fallen into the product.

c. When the product has been exposed to rain or water.

d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. If the product has been dropped or the cabinet has been damaged in any way.

f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality in the product indicates that the product needs servicing.

12. Replacement parts---In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

13. Safety checks---Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

14. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature.

All warnings on the product and in the instructions must be observed closely.

Protect the power cord from being walked on or pinched particularly at plugs,

Important Safety Precautions (Continued)

15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by

SOURCEMENU

CH VOL

SOURCEMENU

CH VOL

the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

16.Careful move---When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley.

Never attempt to move the TV unless the AC power cord has been disconnected.

17. Lightning---Unplug this apparatus during lightning storms or when unused for long periods of time.

For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

18. Do not use this apparatus near water---for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

SOU RCE

MEN U

VOL

and that no objects filled with liquids, such as vases, shall be placed on the

The apparatus shall not be exposed to dripping or splashing

apparatus.

Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.

19. Clean only with dry cloth---Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth

SOURCEMENU

CH VOL

for cleaning.

20. Ventilation---Do not block any ventilation openings. Install in accordance with the manufacturer instructions. The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface,

SOURCEMENU

CH VOL

since they can block ventilation openings. This product is not designed for builtin installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

21.Heat sources---Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

SOURCE

VOL

22.Panel protection---The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the display panel breaks.

23.Pixel defect---The display panel is a very high technology product, giving you

SOU

RCE

VOL

finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

WARNING: For continued safety, apparatus with class I construction shall be connected to a mains socket outlet with a protective earthing connection.

Important Notice

About Temperature

Do not use in hot and cold rooms (locations)

! When the unit is used in rooms (locations) with low temperature, the picture may

leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

! Do not leave the unit in a hot or cold location. Also, do not leave the unit in a

location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the to malfunction.

screen

! Storage temperature: 0°C to 50°C ! Working temperature: 5°C to 40°C

after-

About After-Image

The extended use of fixed image programme material can cause a permanent image

on the screen.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible screen deterioration can be limited by observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Important Information Regarding Use of Video Games,

Computers, Captions or Other Fixed Image Displays.

! Do not allow a still picture to be displayed for an extended period, as this can cause

a permanent after-image to remain on the screen.

Examples of still pictures include logos, video games, computer images, teletext

and images displayed in 4:3 mode.

Cleaning and Maintenance

CAUTIONS:

! The permanent after-image on the screen resulting from fixed image use is not an

operating defect and as such is not covered by the warranty.

! This product is not designed to display fixed images for extended periods of time.

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

Use eyeglass cleaner to remove stubborn dirt from the screen.

Never use alcohol, paint thinner or benzine to clean this unit.

Before using a chemically treated cloth, read the instructions that came with the

cloth carefully.

Identification of Controls

Main Unit (front/side view)

SOURCE MENU

CH VOL

1 2

SOURCE

3 4 5 6 7

CH VOL

1. Remote sensor/Light sensor

Receives signals from the remote control. Do not block.

The light sensor will measure the room brightness, do not put anything around the sensor.

2. Power indicator

Lights blue when in operating mode.

Lights red when in standby mode.

3. POWER

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

4. SOURCE

To access SOURCE menu

5. MENU Press this button to access the main menu screen.

6. CH

Press these two buttons to directly change the TV channel;

In menu operations, these buttons serve as up/down buttons.

7. VOL+

/–

Press the VOL+ or VOL– button to directly increase or decrease

the sound volume level;

In menu operations, these buttons serve as right/left buttons.

8. Power Switch

Note: B SOURCE, POWER ) are touch buttons. First touch of the button will illuminate it. Second touch will fulfill its function.

uttons on the TV control panel (CH / , VOL+/-, MENU,

S/PD IF

Main Unit (back view)

1. Headphone: Connect headphones to this jack.

2. USB port: Connect a USB device to this port.

3. HDMI3: Connect an HDMI device to this jack.

USB

4. AV2 INPUT: Connect an AV device to these jacks.

HDMI 3

AUDIO

AV2 I N

VIDE O

MUSI C

5. MUSIC: Connect a MP3 player to this jack.

6. S/PDIF: Connect a digital sound system to this jack.

7. HDMI1/2: Connect HDMI devices to these jacks.

8. PC IN D-SUB/AUDIO: Connect a computer to these jacks.

9. COMPONENT IN 1/2: Connect component video devices to these

jacks.

10. AV1 INPUT: Connect an AV device to these jacks.

VIDE O

AUDI O

HDMI 1

HDMI 2

AUDI O D-S ub

PC IN

COMP ONENT IN

AUDI O

AV OUT

VIDE O

AUDI O

AV1 I N

7 8 9 10 11 12 13

RS- 232

11. AV OUTPUT: Connect a VCR to these jacks to record programs.

12. RF: Connect an antenna or cable TV to this jack.

13. RS-232: For service only. Do not use.

14. AC IN: Plug the AC cord into this jack and into a

power outlet.

Remote control unit

Identification of Controls (Continued)

1. POWER: Switches the TV power on or Standby.

2. S.MODE: Selects sound mode.

3. P.MODE: Selects picture mode.

15 16

4. FAV.LIST: Displays the favorite channel list.

5. FAV+/ FAV–: Selects the favorite channel.

6. MENU: Displays the main menu screen.

7.5/6/3/4/OK: Press the arrows to navigate through the menus or adjust an item. Press OK to confirm a selection or enter a sub-menu.

8. EPG: Displays the Electronic programme Guide (DTV only).

9. 0 – 9 number buttons: Press to enter channel numbers or input

password.

10. ZOOM: Selects the screen size.

11. CH / : Changes channel up and down.

12.Coloured buttons (RED/GREEN/YELLOW/BLUE): Direct

access to the coloured items or corresponding pages. (Teletext)

13. Teletext control buttons

. TTX: Used to enter or exit teletext mode. (Teletext)

(ATV only).

21 22

. Hold: To stop or resume sub-page acquisition. (Teletext)

. Reveal: To reveal or hide the concealed information. (Teletext)

. Subtitle: Displays the subtitle (DTV only), or the teletext subpage

25. Control buttons when using time shift/Media Player

T.SHIFT( ): time shift button

: Play/Pause button

: STOP button

: Repeat mode select (USB)

/ : Fast forward/fast reverse

/ : Previous/next

. Size: Press this button several times to display the upper, then the

lower part of the screen and then return to the normal size teletext

page. (Teletext)

. Index: Press this button to view the main index page.(Teletext)

. Mix:

transparent background while viewing the TV programme simultaneously

. Update:

(Teletext)

14. TV/Radio: Switches between TV and Radio mode. (DTV only)

15. SOURCE: Displays input source menu.

16. STEREO: Selects bilingual, stereo or mono ( ATV only ), or audio

track(DTV only).

17. FREEZE: To freeze current picture.

18. SLEEP: Sets the sleep timer.

19. EXIT: Exits the menu screen.

20. LIST: Displays the channel list.

21. RECALL: Returns to the previous channel.

22. INFO: Displays the information banner.

23. VOL+/–: Increases or decreases the volume.

24. MUTE: Mutes the sound.

Press the button to display the Teletext on the screen with

. (Teletext)

Press the button to view the updated teletext page.

Setting Up

Selecting a location

Installing remote control Batteries

You should select a location for the TV:

·Where direct light does not reflect on the screen.

·That has indirect and soft lighting.

·Where the TV has access to an antenna or cable TV connection.

·Where the TV has access to a power outlet.

Note: Watching TV in total darkness or with a reflection on the screen may cause eyestrain.

To install remote control batteries:

Open the battery cover.

Insert two AAA batteries into the battery compartment. Make sure

that the + and – symbols on the batteries match the + and – symbols in the battery compartment.

Replace the cover.

Battery precautions:

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

·Place batteries with their terminals corresponding to the (+) and (–)

indications.

·Different types of batteries have different characteristics. Do not mix

batteries of different types.

Aiming the remote control

·Do not mix old and new batteries. Mixing old and new batteries can

shorten the life of new batteries and/or cause old batteries to leak chemicals.

·Remove batteries as soon as they are non-operable. Chemicals that leak

from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.

·Dispose of batteries in a proper manner.

·If the remote control is not used for an extended period of time, remove

the batteries.

·The batteries shall not be exposed to excessive heat such as sunshine, fire

or the like.

Use the remote control by pointing it towards the remote sensor on the front of your TV. Objects between the remote control and the remote sensor may prevent proper operation.

Cautions regarding use of remote control

·Do not expose the remote control to shock. In addition, do not expose the

remote control to liquids, and do not place in an area with high humidity.

·Do not install or place the remote control under direct sunlight. The heat

may cause deformation of the unit.

·The remote control may not work properly if the remote sensor window

of the main unit is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote sensor window.

Connections

Cautions Before Connecting

=When connecting an external device to the TV, make sure that the TV and the device are turned off. =Check the plugs on the ends of cables to make sure that they are the correct type before you try plugging them into jacks

on the TV.

=Make sure that all plugs are securely inserted into the jacks. Loose connections can result in image or color problems. =The illustration of the external device may be different depending on your model. =Refer to the operating manual of the external device as well.

Antenna Connection

VIDE O

AUDI O

COMP ONENT IN

VIDE O

75-ohm coaxial cable

(round cable)

Power Connection

AV OUT

AV1 I N

AUDI O

·Connect one end of your antenna cable to the RF jack on the back of

the TV, then connect the other end of the cable to the antenna wall jack.

RS- 232

Note:

=It is recommended that the 75-ohm coaxial cable be used to eliminate

interference and noise which may occur due to radio wave conditions.

=The antenna cable should not be bundled with the power cord and the like.

=If the antenna is not installed properly, contact your dealer for assistance.

Connect the power cable to the AC IN socket on the back of the TV, then connect the other end to a power outlet.

Household power outlet

AC cord

Note:

=This product should be operated only from the type of power source indicated

on the marking label.

=Always unplug the AC cord from power outlet when not using for a long period

of time.

=This illustration is for reference only. The AC plug may be different on different

models.

Connections(Continued)

Connecting Headphones

TV Side

USB

HDMI 3

AUDIO

AV2 I N

VIDE O

Headphones

MUSI C

Connecting a USB device

USB

To USB port

HDMI 3

AUDIO

AV2 I N

VIDE O

MUSI C

TV Side

To connect headphones:

Insert the plug of the headphone into the TV’s Headphone jack. When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result.

Insert your USB device into the USB port.

To play from the USB device:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select USB, then press OK to confirm.

Never remove the USB device or turn off the TV while using the USB device.

Connecting a MP3 player

USB

HDMI 3

MP3 player

AUDIO

AV2 I N

VIDE O

MUSI C

TV Side

Connecting a digital sound system

TV REAR

Coaxial cable

Insert MP3 player headphone plug into the MUSIC jack on the side of the TV. Be sure to insert fully, otherwise it may not sound right.

To listen to music from MP3 player through TV

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press5or6to select Music, then press OK to confirm.

3. Turn on your MP3 player and begin playing music. Refer to the instructions that came with the MP3 player.

For a full Home Theater sound experience, you must connect your digital sound system to the S/PDIF OUT(Coaxial) terminal on the TV rear.

Note: The S/PDIF OUT terminal only can output digital TV program’s audio.

S/PDIF IN

(Coaxial)

Digital sound system

Connections(Continued)

Connecting an HDMI device

How to connect an HDMI device:

Connect the HDMI cable between the HDMI jack on the TV and HDMI output jack on the device.

Note: If your device has an HDMI connection, we recommend you use that to get the best quality possible.

TV REAR

HDMI device

HDMI cable

Connecting a component video device

To connect a component video device:

Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the TV and Y, Cb/Pb, Cr/Pr output jacks on the device .

Connect the Audio cable between the AUDIO input jacks on the TV and AUDIO output jacks on the device.

TV REAR

To play from the HDMI device:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select HDMI1 or HDMI2 or HDMI3 correspondingly, then press OK to confirm.

3. Turn on the HDMI device and set it to the correct mode. Refer to the instructions that came with the HDMI device.

Note:

If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio cable to the PC IN AUDIO jack on the TV rear.

Component video device

Audio cable

Component cables often have red, green, and blue color-coded video connectors and red and white audio connectors. Match the colors when making connections.

Connecting a computer

TV REAR

D-Sub cable

To play from the component video device:

1. Turn on your TV, then press SOURCE button. The Input

2. Press 5or6 to select Component 1 or Component 2,

Component

video cable

3. Turn on your external device and set it to the correct

To connect a computer:

Connect a VGA cable between the VGA jack on the computer and the

VGA input jack on the unit.

Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.

To monitor port (15-pin D-Sub)

Source menu opens.

then press OK to confirm.

mode. See the device’s user guide for more information.

To play video from the computer:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5 or 6 to select D-SUB, then press OK to confirm.

3. Turn on your computer, and adjust the display properties as required.

Audio cable

To audio output jack

Connections(Continued)

Connecting a VCR

To connect a VCR:

Connect the Audio/Video cables between the Audio (L/R)/Video jacks

TV REAR

on the TV and VCR.

VCR

S-VIDEO

Cables are often colorcoded to connectors. Connect yellow to yellow, red to red, white

AV cable

to white.

Connecting a camcorder or game console

To play the VCR:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select AV1, then press OK to confirm.

3. Turn on your VCR , insert a videotape and press the Play button.

Camcorder

Game console

Connecting a VCR for recording

TV REAR

Cables are often colorcoded to connectors. Connect yellow to yellow, red to red, white to white.

To connect a camcorder or game console:

USB

HDMI 3

AUDIO

AV2 I N

VIDE O

MUSI C

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the TV and the camcorder or game console.

Note: If your game console has an HDMI connection, you will get better quality using the HDMI connection instead of the AV connection.

To playback the camcorder or play the game console:

1. Turn on your TV, then press SOURCE button. The Input Source menu opens.

2. Press 5or6to select AV2, then press OK to confirm.

3. Turn on the camcorder or game console, then follow the instructions that came with the device to play from the camcorder or game console.

To connect a VCR for recording

Connect an AV cable to the AV OUT jacks on the back of your TV and to the AV IN jacks on the back of the VCR.

To record a program:

VCR

S-VIDEO

1. Turn on your TV, then select the programme you want to record.

2. Turn on your VCR , then insert a videotape.

3. Press RECORD on your VCR to start the recording.

Note: Only TV and AV programs can be recorded.

AV cable

First Time Configuration/Basic Operations

Turning on your TV for the first time

Energy Save Mode

To use this TV for displaying in a store, please select [Store/Dynamic]. [Standard/Energy Save] mode is recommended for normal home use.

Standard/Energy Save

Select

Installation Guide

OSD Language

Channel Tuning

SELECT

Channel Tuning

2 %...

ATV

DTV

Radio

Press <Menu> to skip.

Press <Exit> to exit.

78.50MHz

Store/Dynamic

English

MOVE

Programme(s)

Exit

ATV

Exit

The first time you use the TV, you need to configure your TV:

To configure your TV:

Make sure that you have inserted the batteries in the

remote control, have connected your antenna to the TV, and have connected the AC power.

Press the Power Switch on the TV.

Press POWER to turn on the TV. After a few

seconds the Energy Save Mode screen opens.

Press 3or4 to select Standard/Energy Save or Store/Dynamic, press OK to confirm. (For normal home use, please select Standard/Energy Save.)

Now the Installation Guide screen appears with Channel Tuning highlighted. Press 4or OK to begin

the auto tuning for all available ATV/DTV channels. It may take several minutes, please wait until it is finished.

During searching, the screen will display a report about found stations.

When complete, it will go to digital programme position one. Now channel list has been created and you can start to watch TV.

Turning the TV on or off

To turn the TV on or off:

Power Switch

Warning: When the TV is in standby mode, power is still flowing into the TV. For the sake of energy saving and safety issue, please press Power Switch to completely cut off the power. After you turn off the TV, you should wait at least 5 seconds (the power indicator goes out)before you turn it on again.

Note: If the TV does not receive a broadcast signal for several minutes, the TV goes into standby mode.

Plug the power cord into an AC power outlet. Press Power Switch on the TV.

If no picture appears while the indicator lights up, the set is in standby mode.

Press POWER to turn on the TV.

Press button again to turn off the TV and put the TV in standby mode.

To cut off the power completely, press Power Switch on the TV.

Selecting the input source

Basic Operations (Continued)

Input Source

DTV

ATV AV 1 AV 2

Component1 Component2

D-SUB

HDMI1 HDMI2 HDMI3

USB

MUSIC

Move

Select

Programme Selection

Channel List

DTV

2 ABC TV Sydney

DTV

ABC HDTV

DTV

ABC2

DTV

ABC TV

DTV

CH1

350

CH2

351

DTV

CH3

352

DTV

CH4

353

Move

Select

To select the input source:

Press SOURCE button. The Input Source list appears.

Press 6or 5to select the input source, then press OK or 4 to confirm your choice.

The TV switches to the selected source.

Digital programme selection

After you have tuned the TV, you have several ways to select DTV programmes.

Be sure to select DTV through the Input Source menu (See the above steps for source selection).

When watching digital programme and you want to listen to radio, simply press TV/RADIO button to switch. To return to TV program, press TV/RADIO button again. (When watching analogue programme, the TV/RADIO button does not work.)

! Press CH or CH to go to the next or previous channel. The skipped channels

can not be selected.

Favourite List

DTV

2 ABC TV Sydney

DTV

ABC TV

DTV

350

DTV

353

Move

Channel List

S-03

C-42

S-04

C-04

Move

Favourite List

CH1 CH4

S-03

C-42

C-04

! Press the number buttons to directly select any channel you want, then wait for the

channel to change.

Note: Button presses must be within three seconds of each other.

! Press LIST to display the Channel List, then press 6 or 5 to select a channel, and

then press OK.

! After you have created the favorite channel list, you can press FAV.LIST button to

display the favorite channel list. Use 5or6to select a channel and then press OK. Or you can directly press FAV+/ FAV– button to cycle among the favorite channels.

Select

! To go to the previous channel viewed, press .

Analogue programme selection

Be sure to select ATV through the Input Source menu (See the above steps for source selection).

! Press CH or CH to go to the next or previous channel. The skipped channels

can not be selected.

Select

! Press the number buttons to directly select any channel you want, then wait for the

channel to change.

Note: Button presses must be within three seconds of each other.

! Press LIST to display the Channel List, then press 6 or 5 to select a channel, and

then press OK.

! After you have created the favorite channel list, you can press FAV.LIST button to

display the favorite channel list. Use 5or6to select a channel and then press OK. Or you can directly press FAV+/ FAV– button to cycle among the favorite channels.

Move

! To go to the previous channel viewed, press .

Select

Basic Operations (Continued)

Adjusting the volume

Displaying the Information Banner

Note:

The above OSD is only served as an example, and it is in DTV mode.

Information banner content varies, depending on the broadcaster and your settings.

To adjust the volume:

! Press the VOL+/ – to increase or decrease the volume. ! Press the MUTE button to temporarily turn off the sound.

To restore the sound, press the MUTE button again.

Press the INFO button to display the information banner. The information banner displays current status information such as the channel number and signal source. Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Left figure is an example banner in DTV mode.

In DTV mode, the information banner may contain:

! Current channel number and name. ! Current time. ! Current programme name, start and end play times. ! Next programme name and start and end play times. ! TV or Radio. ! Audio mode, audio track. ! Signal strength for current channel. ! Signal resolution. ! Subtitle/teletext availability.

! Video format of the current programme (SD/HD). ! Parental rating (G, PG, M, MA, etc.)

Using the EPG (Electronic Programme Guide) – digital only –

The Electronic Programme Guide (EPG) makes it possible for users to see details about the programme they are watching, other programmes and even a schedule of the next 7 days (if available). The information available includes the number and name of the channel, the name of programme, the start and end time, and a summary. Thus viewers can easily get information about future programmes.

To use EPG

Press the EPG button to open the EPG. In the EPG

window (as shown on the left), current channels’ now and upcoming program’s information will be displayed.

At upper screen, the channel number/name is shown,

you can use 3or4 to select a channel whose information you want to know. At the bottom screen, this selected channel’s now and future programme events are listed. Use 5 or 6 to navigate among the programme events (To quickly navigate among the list, press RED button to go to previous day list and GREEN button to next day list), and press INFO button to get more detailed information (if available) about the programme you choose.

To close the EPG, press EXIT or EPG button.

Note:

! The above OSD is only served as an example. The availability of EPG information depends upon the broadcaster. ! To enable EPG to work properly, it is suggested to set the appropriate time zone.

On-screen menu overview

Basic Operations (Continued)

PICTURE menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

Picture Mode Contrast

Brightness

Colour

Sharpness

Tint

SELECT

MOVE

User

50 50

RETURN

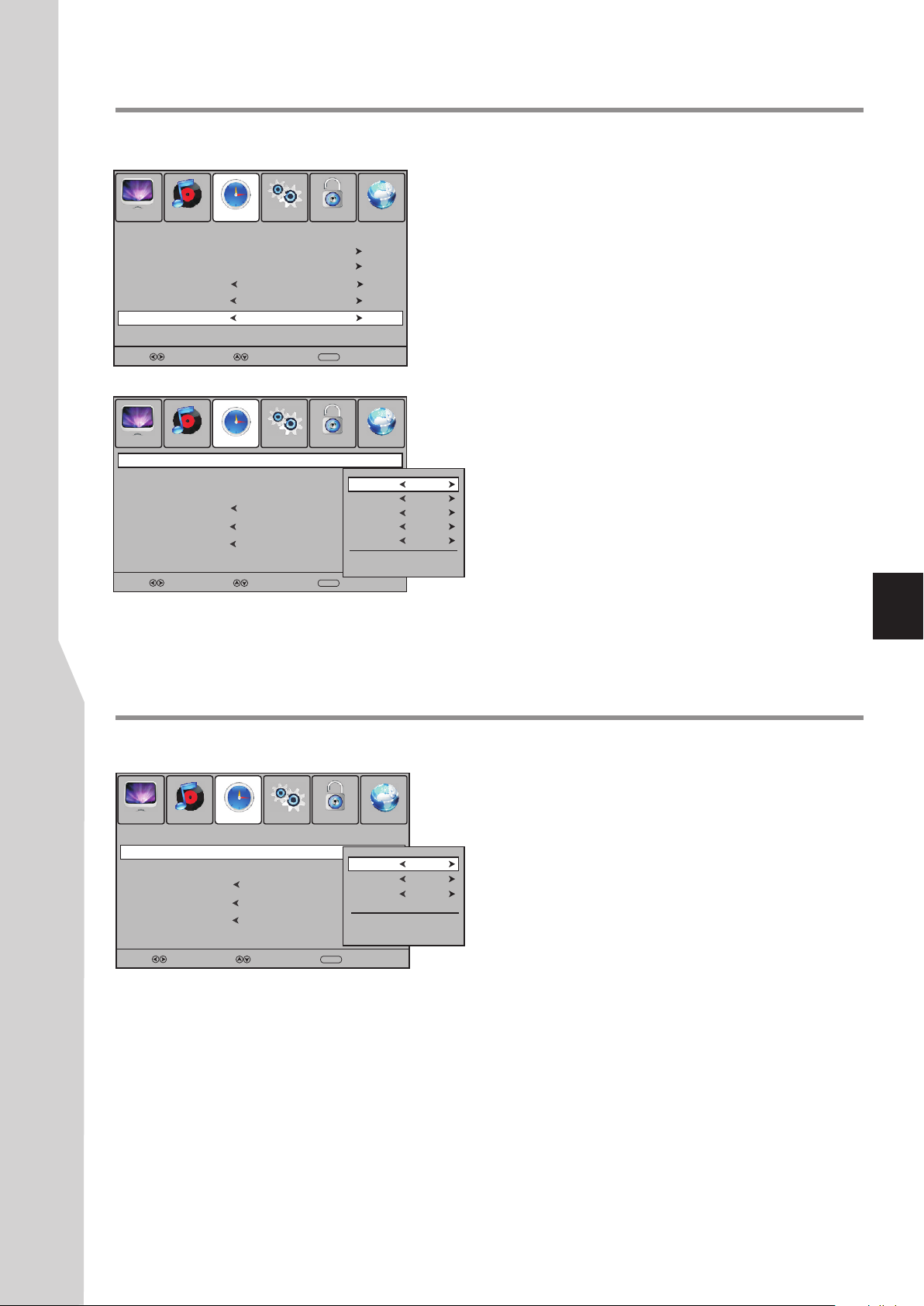

TIME menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

SELECT

01/Jan /2011 15:30

Off

NSW/ACT GMT+10

MOVE

RETURN

LOCK menu CHANNEL menu

SOUND menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

Sound Mode Treble

Bass

Balance

Auto Volume

Surround Sound

SELECT

MOVE

User

Off

RETURN

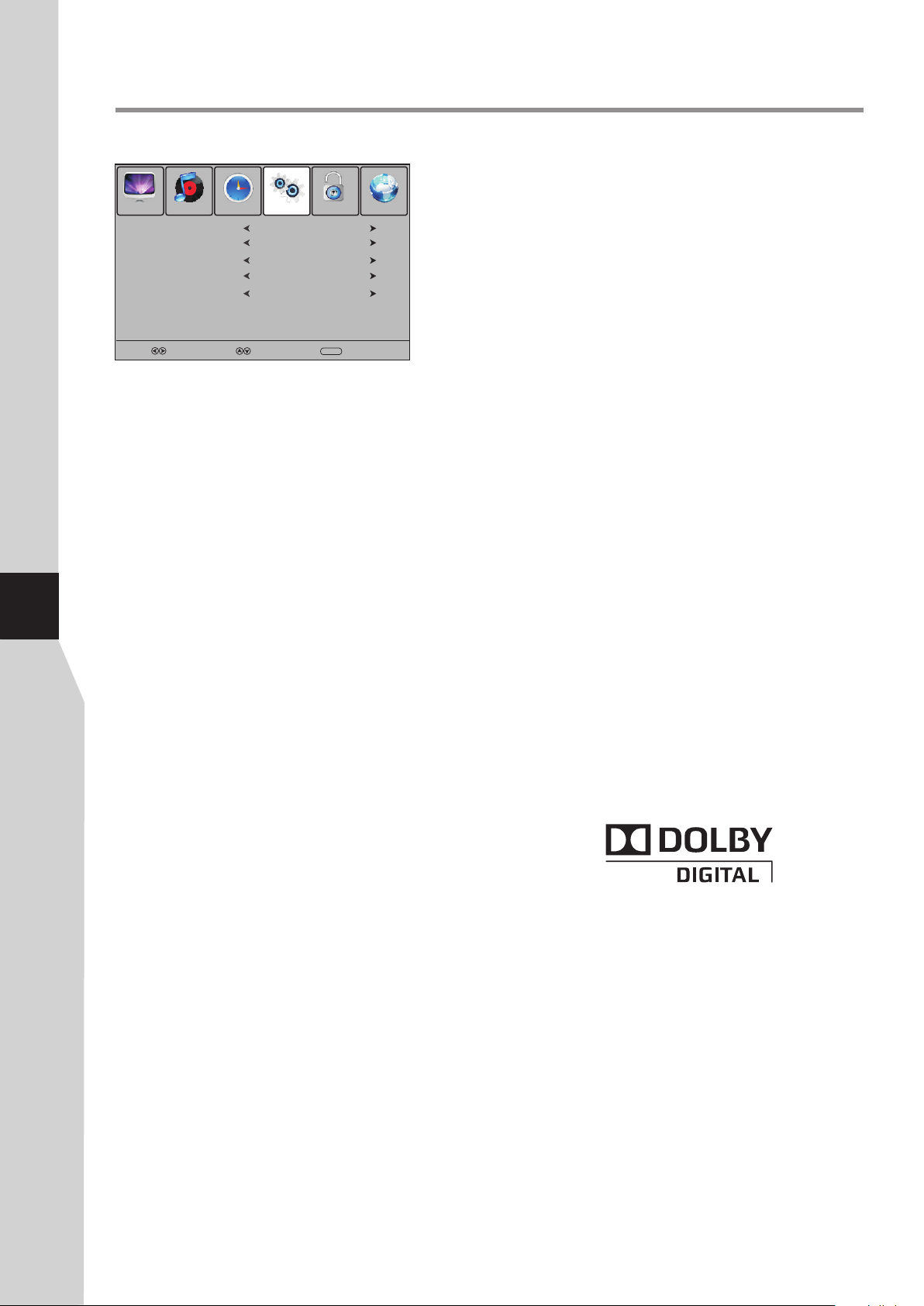

OPTION menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

OSD Language Hearing Impaired

S/PDIF Output

Audio Preference

Audio Only

SELECT

Dolby Digital

MOVE

English

Off

AUTO

Normal

RETURN

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

SELECT

MOVE

Off

No Block

Off

RETURN

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

SELECT

MOVE

RETURN

Note:

·Depending on the signal tuned, you may see different menu options on your screen. The above main menus are illustrated under TV mode.

·Menu items that are not selectable are grayed out. If without special indication, this manual is described under TV mode.

·The illustrations and on-screen displays in this manual are for explanation purposes (some are enlarged, others cropped) and may

vary slightly from the actual ones.

Using the OSD menu

To operate the OSD (on-screen display)menu:

! Press MENU to call up the OSD main menu.

– The screen will now display PICTURE menu.

! Press 3or4 one or more times to select menu, press 6to access.

– PICTURE, SOUND, TIME, OPTION, LOCK, CHANNEL menu

can be selected.

! From the menu, press5634to navigate or adjust. Press OK to

confirm an entry or selection.

! To return to previous menu, press MENU.

! To close the menu, press EXIT.

Memorizing the Channels

Note: If the Lock System is On, Auto Tuning/DTV manual tuning/ATV manual tuning can not be operated without password. For details, please see <Setting Child and Rating Locks> section.

Auto Tuning

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

Australia

Cancel

RETURN

SELECT

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

Country Selection

SELECT

MOVE

Start

MOVE

Auto Tuning will completely re-tune the TV and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current channels and settings, e.g. locked channels, will be lost.

Note:

As new services are broadcast, it will be necessary to retune the TV in order to view them.

Go to Input Source menu and select ATV or DTV first.

Press MENU. Press 3or4to select CHANNEL menu, press

6 to access.

Highlight Auto Tuning item, and press 4or OK to access.

Now a pop-up screen opens with Australia as default country

and Start is highlighted. Now simply press OK to begin the auto tuning.(If you want to cancel, press4to select Cancel and press OK.)

All ATV/DTV channels available in your area will be searched and stored into memory. Please wait until the searching is complete.

During the process, if you want to skip, press MENU. To exit

searching, press EXIT.

DTV manual tuning - digital only -

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

Good

SELECT

Return

Select

DTV Manual Tuning

UHF CH

Please select channel then Press OK to search

DTV 4 Radio 2

Bad

EXIT

Move

Normal

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

In CHANNEL menu, press 6or5 to select DTV Manual

Tuning, then press4or OK to access.

Highlight UHF CH item, press 3or4 button to select your

desired multiplex number.

Press OK to begin the search for that multiplex.

At the bottom of the menu screen the DTV Signal strength bar is displayed. You can make use of it to check how strong your DTV signal is and whether you need to adjust your antenna. The higher the signal strength is, the less likely you are to experience picture degradation.

When the multiplex is found, any channels that are not currently

in the channel list will be added and the channel information will be updated. During the process, you can press MENU or EXIT to exit the search.

Memorizing the Channels & Programme Edit

ATV manual tuning - analogue only -

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

Select

RETURN

SELECT

ATV Manual Tuning

Storage To

System

Current CH

Fine-Tune

Frequency

Exit

MOVE

445.25 MHz

SAVE

Use the Manual Tuning operation if desired channels can not be preset by Auto Tuning or if you would like to preset channels to specific position numbers one by one.

In CHANNEL menu, press 6or5 to select ATV Manual

Tuning, then press4or OK to access the setting menu.

From ATV Manual Tuning setting menu, press 6or5 to select

an item, press 3or4 to set the item as shown below.

A. Storage To: Position selection. Press 3or4 button to select the position you want to store.

B. System: Sound system selection. If certain channel’s sound is abnormal, it may be that the sound system setting is wrong. In this case, select another sound system.

C. Current CH: Selects current channel number using 3or4.

D. Search: Channel search operation.

Press 4to search up the band or3 to search down the band.

Press 3or4repeatedly until your desired channel is displayed.

E. Fine-Tune: Manual fine tuning.

Press 3or4until better picture and sound are obtained.

Adding or changing a channel label

- analogue only -

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

File System

SELECT

MOVE

Programme Edit

S-03

C-42

S-04

C-04

RETURN

F. Frequency: Shows current frequency, it can not be adjusted.

(During the process, you can press EXIT to exit the operation.)

Press RED button to save your settings.

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

Press MENU. Press 3or4to select CHANNEL menu, press

6 to access.

Press 6or5 to select Programme Edit, press 4 or OK to

open the Programme Edit menu and a programme list is displayed.

Within the programme list, press 6or5 to select a channel you

want to label, press GREEN button to start to label. A cursor appears at the edit field.

Use 6or5 to select a character, use 3or4 to move the cursor.

When finished, press OK to confirm. The maximum length of label is 5 characters.

NAMEDEL MOVE

SKIP

Fav.List

Repeat the above steps to label more channels.

Note: The labels of DTV channels are automatically assigned and cannot be changed by user.

Programme Edit (Continued)

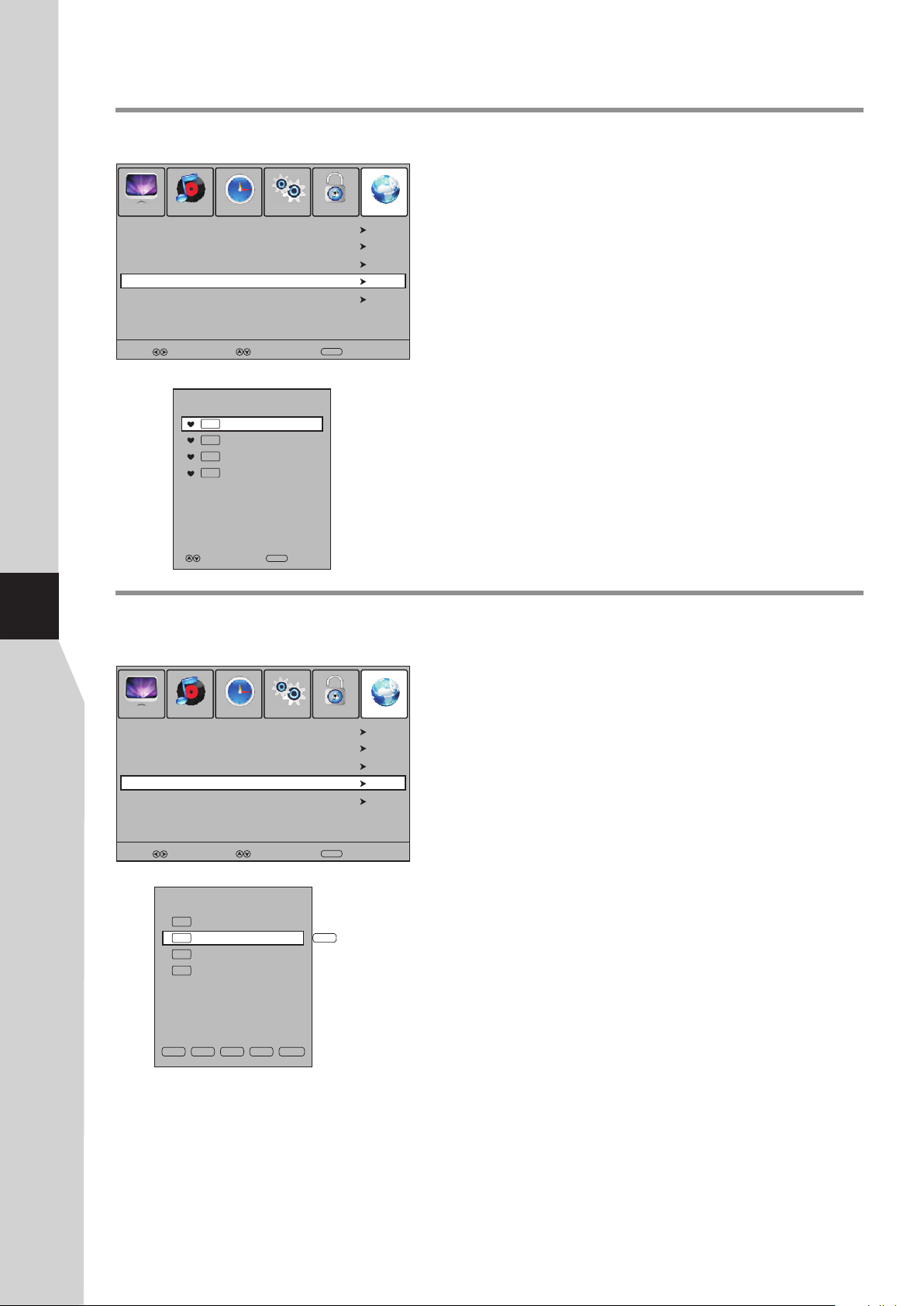

Setting up a favourite channel list

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

File System

Select

RETURN

SELECT

Favourite List

S-03

C-42

S-04

C-04

Move

MOVE

You can create a favourite channel list so you can quickly browse through your favourite channels by pressing FAV.LIST, then selecting a channel from the favourite channel list.

Navigate to the CHANNEL menu, press 5or6 to select

Programme Edit, press 4 or OK to open the Programme Edit menu.

Use 6or5 to select your favourite program, use AV.LIST

button to mark the selected programme as favourite (a favourite

symbol appears). To cancel the favourite mark, just press

AV.LIST button again and the symbol disappears. If the

programme list has more than one page, you can press 6or5to scroll the page.

Repeat the above steps to set more favorite programs.

Press EXIT button to close the menu.

Now you can press F button to display the avorite list,

6or5

press to browse through the favorite programs and press OK to access the channel. Or you can directly use

FAV+/FAV- to

AV.LIST f

cycle among the favorite channels.

Reorder/rearrange channels

- analogue only -

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

File System

Fav.List

MOVE

RETURN

SELECT

Programme Edit

S-03

C-42

S-04

C-04

NAMEDEL MOVE

MOVE

SKIP

ATV channels can be arranged in your favourite order.

Navigate to the CHANNEL menu, press 5or6 to select

Programme Edit, press 4 or OK to open the Programme Edit menu.

Use 6or5 to select a channel you want to move.

Press YELLOW button and a move symbol appears alongside

the selected channel in the list, then use 6or5to move the channel upward or downward to a desired new position. Press YELLOW button again to finish the moving.

Repeat the above steps to move more programs.

Note:

If the Programme Edit menu has more than one page, you may press

5or6 to scroll the page upward or downward.

The order of the DTV channels is automatically assigned and cannot be changed by user.

Programme Edit (Continued)

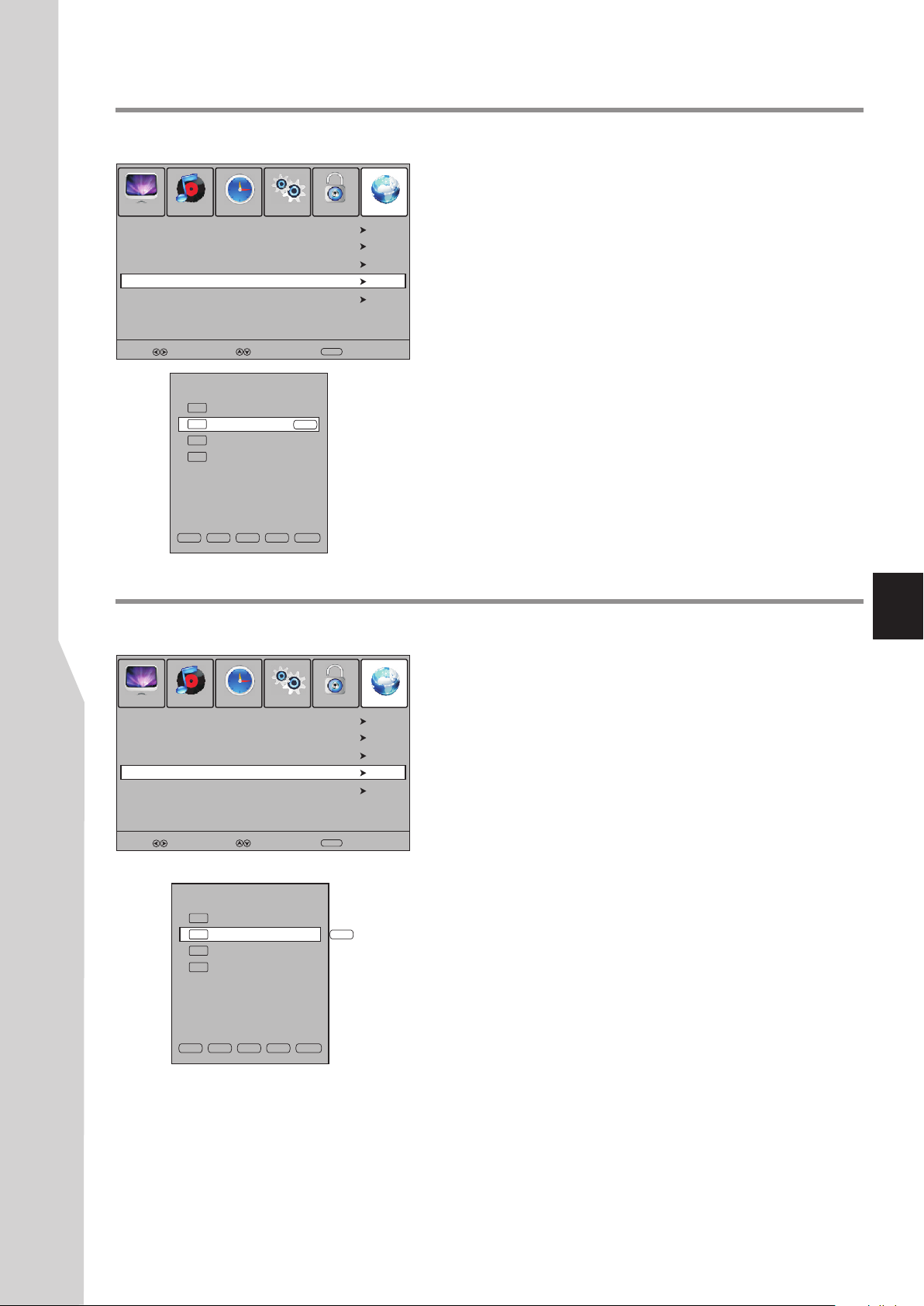

Skipping channels

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

File System

SKIP

Fav.List

RETURN

SELECT

Programme Edit

NAMEDEL MOVE

MOVE

S-03

C-42

S-04

C-04

SKIP

You can skip unnecessary channels so that only the channels you want

to watch can be selected by CH / CH . You can still tune to the

skipped channel by using the number buttons.

Navigate to the CHANNEL menu, press 5or6 to select

Programme Edit, press 4 or OK to open the Programme Edit menu.

Press 6or5 to select your unwanted channel, press BLUE

button and a skip symbol appears alongside the selected channel in the list, which means this channel will be skipped. (To cancel the skip setting, press BLUE button again and the symbol disappears.)

Repeat the above steps to set more programs to skip.

Press EXIT to close the menu. Now when you press CH / ,

these unwanted channels will be skipped.

Note: If the Programme Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.

Deleting channels

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit

File System

Fav.List

RETURN

DEL

SELECT

Programme Edit

NAMEDEL MOVE

MOVE

S-03

C-42

S-04

C-04

SKIP

You can delete your unwanted channels from the channel list. After deleting, you can not find them unless you perform a new channel search.

Navigate to the CHANNEL menu, press 5or6 to select

Programme Edit, press 4 or OK to open the Programme Edit menu.

Press 6or5 to select your unwanted channel, press RED

button and a delete symbol appears alongside the selected channel in the list. Press RED button again to confirm the deleting and this channel is deleted.

Repeat the above steps to delete more unwanted programs.

Press EXIT to close the menu.

Note: If the Programme Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.

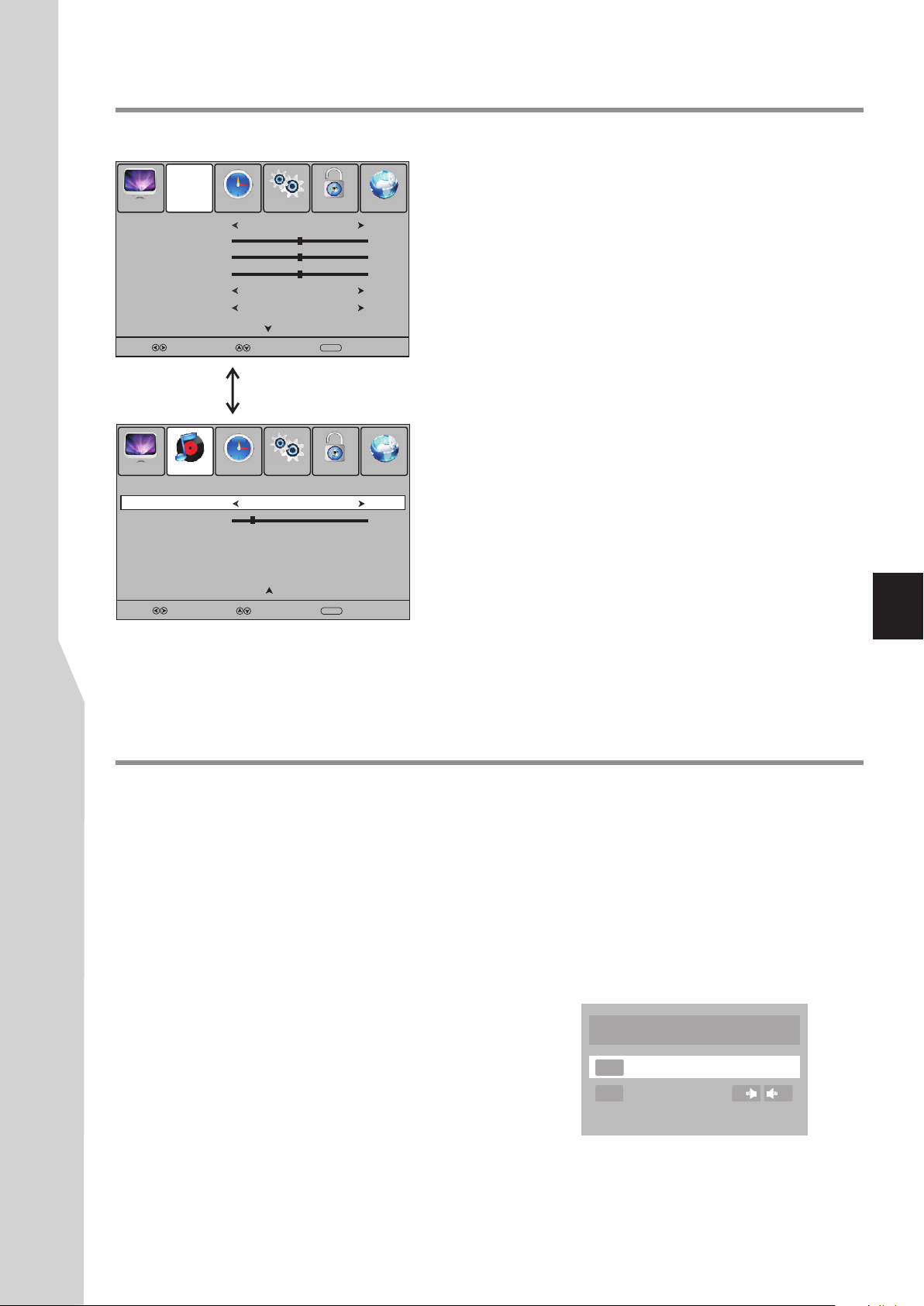

Adjusting the Picture

Adjusting the picture

PICTURE SOUND TIME OPTION LOCK CHANNEL

Picture Mode Contrast

Brightness

Colour

Sharpness

Tint

SELECT

MOVE

User

RETURN

Press 6 or 5to scroll the menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

Colour Temperature Aspect Ratio

Noise Reduction

Light Sensor

Light Status

Overscan

SELECT

MOVE

Normal

16:9

Middle

Off

RETURN

Press 6 or 5to scroll the menu

PICTURE SOUND TIME OPTION LOCK CHANNEL

Adaptive Contrast

HDMI Black Level

Screen

SELECT

MOVE

Normal

RETURN

50 50

Freezing the picture

Press the FREEZE button to freeze the image on the screen (the video sources still run). Press again to restore.

Note:

If a fixed image is displayed on the screen for a

long time, that fixed image may become imprinted on the screen and remain visible.

Therefore do not freeze the picture for a long time.

! In some mode, the FREEZE function can not

work.

To adjust the picture:

Press MENU. The on-screen menu opens with the PICTURE menu displayed, then press 6 to access.

Press 65 to highlight an option, press 34to adjust the option;

If a sub-menu exits, press 4or OK to access. You can select:

! Picture Mode — Selects the picture mode. You can select:

. Dynamic (a bright and vivid picture, recommended for store use.

When the TV is powered on in this picture mode, a reminder appears)

. Standard (a standard picture) . Mild (a soft picture) . User (user customized picture). Note: You can also press P.MODE to select the picture mode.

! Contrast — Adjusts the contrast. ! Brightness — Adjusts the brightness. ! Colour — Adjusts the colour saturation. ! Sharpness — Adjusts the sharpness. ! Tint — Adjusts the image tint. (Only for NTSC system) ! Colour Temperature — Selects the colour temperature. You

can select Warm (to enhance the reds), Cool (to enhance the

blues), or Normal.

! Aspect Ratio — Selects the aspect ratio of the picture. You

can select:

. 16:9 — Shows a full-screen picture in 16:9 mode. . 4:3 — Shows picture in 4:3 display mode. (Recommended not

let TV remain in this mode for extended period of time as to protect the screen.)

. Auto — Selects the correct aspect ratio automatically.

. Zoom1 — Enlarges the picture vertically. The top and bottom

may be cropped.

. Zoom2 — Enlarges picture both horizontally and vertically.

The edges may be cropped.

. 1:1 pixel mapping (D-SUB, HDMI only) — Displays an input

source without scaling it (This option is available on either of these two conditions: native resolution:1920x1080, input resolution:1920 x 1080p; native resolution:1366x768, input

resolution:1360 x768). Note: You can also press ZOOM to select the aspect ratio. ! Noise Reduction — Selects the noise reduction mode to

reduce picture noise (snow). You can select Low, Middle,

High, or Off. ! Light Sensor — Select On to enable the automatic brightness

control. The light sensor measures the room brightness which

allows the TV to automatically adjust the picture brightness,

based on the ambient room light conditions. Note: Be sure not to put anything around the light sensor on the

TV front, as its function may be affected. ! Light Status — When Light Sensor is turned On, the ambient

room light status will appear at this line. You can check the light

status to know whether it is dark or normal or bright. ! Overscan (D-SUB,HDMI only) — Turn this On to adjust the

picture’s reproduction rate (available when the TV’s aspect

ratio is in 4:3 or16:9 and the input signal is in video format). ! Adaptive Contrast — Turn this On to optimize the picture

display for a more vivid image. ! HDMI Black Level (HDMI only) — Selects the black level on

the screen. Select Low for darker screen, Normal for brighter

screen. (Available when RGB signal is input through HDMI jack). ! Screen (D-SUB only) — Adjusts the computer image.

Adjusting the Sound

Adjusting the sound

PICTURE SOUND TIME OPTION LOCK CHANNEL

Sound Mode Treble

Bass

Balance

Auto Volume

Surround Sound

SELECT

PICTURE SOUND TIME OPTION LOCK CHANNEL

Visual Impairment: Mode

Volume

SELECT

User

Off

MOVE

RETURN

Press 6 or 5to scroll the menu

MOVE

RETURN

To adjust the sound:

Press MENU. The on-screen menu opens.

Press 3 or 4 to select SOUND menu, press 6 to access.

Press 6 or 5 to highlight an option, press 3 or 4 to adjust the

option. You can select:

! Sound Mode — Selects the sound mode. You can select:

. Standard (for normal programs)

. Music (for musical programs)

. Movie (for movies)

. Sports (for sports programs)

. User (for user setting sound mode).

Note: You can also press S.MODE on the remote control to select the sound mode.

! Treble — Adjusts Treble (high sounds).

! Bass — Adjusts Bass (low sounds)

! Balance — Adjusts the balance between the left and right

audio channels.

! Auto Volume — Turns on to equalize the overall volume

levels for all channels.

! Surround Sound — Turns the Surround sound effect on or

off.

! Visual Impairment — Sets the mix of visually impaired

audio with regular audio. When available, visually impaired audio includes audio descriptions of on-screen action. Enable this by setting Mode to On, also you can adjust the volume from this menu.

Stereo and Bilingual transmissions

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time you change channels, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo ... Press STEREO button to select Stereo or Mono.

Bilingual ... Bilingual transmissions are rare. If they are transmitted, the word DUAL will display. Choose the desired channel number, and if the word

DUAL appears, press STEREO to select NICAM DUAL A, NICAM DUAL B, Mono (NICAM

broadcast), or DUAL A or DUAL B (German stereo/bilingual broadcast).

To close the menu, press EXIT button.

For DTV programmes

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the programme into foreign languages, or different commentators for sport events). You can press STEREO button and then use 6 or 5 to select the audio track.

Audio Languages

MPEG

English

Dolby D

English

Note: The availability of these additional “multitracks” depends upon the broadcaster.

L R

Adjusting Basic Settings

Adjusting basic settings

PICTURE SOUND TIME OPTION LOCK CHANNEL

OSD Language Hearing Impaired

S/PDIF Output

Audio Preference

Audio Only

SELECT

Dolby Digital

MOVE

English

Off

AUTO

Normal

RETURN

To adjust basic settings:

Press MENU. The on-screen menu opens.

Press 3or4 to display OPTION menu, press 6 to access.

Press 6 or 5 to select an option, press 3or4 to adjust the

option.

To close the menu, press EXIT button.

From OPTION menu you can select and adjust the following:

OSD Language — Selects on-screen menus language. In this model, only ENGLISH is available.

Hearing Impaired (digital only) — Selects On to display the subtitles (if available) for the hearing impaired.

S/PDIF Output (digital only) — Selects the digital audio output mode for S/PDIF. You can select Auto or

PCM.

. Auto: This mode outputs Dolby Digital or PCM to the digital audio output jack (S/PDIF) providing it is being broadcast.

. PCM: Select this when a 2ch digital stereo amplifier is connected to the TV. When you select a Dolby Digital or MPEG audio track, the sound is converted to the PCM (2ch) format and output.

Audio Preference (digital only) — Selects the audio track to output. You can select MPEG or Dolby Digital*.

. MPEG: If the programme has MPEG and Dolby Digital tracks, select MPEG to output MPEG track in preference.

. Dolby Digital*: If the programme has MPEG and Dolby Digital tracks, select Dolby Digital to output Dolby

Digital track in preference.

* Manufactured under license from Dolby Laboratories.

Dolby and double-D symbol are trademarks of Dolby Laboratories.

Audio Only — When listening to radio programs, or listening to MP3 music (under MUSIC source or USB music

play), you can set Audio Only to Power Saving for energy save. The backlight will turn off automatically after some seconds. Select Normal then the backlight works normally.

Setting Clock & Timer

Setting TV clock

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

SELECT

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

SELECT

01/Jan /2011 15:30

Off Off

Off

NSW/ACT GMT+10

MOVE

01/Jan /2011 15:30

NSW/ACT GMT+10

MOVE

Off

RETURN

Date Month Year Hour Minute

RETURN

Jan

2011

15 30

To set TV clock

– For DTV programs, the clock displays the current time using time data received from your TV service provider. This information is based on a digital channel and does not need to be set manually, but you need to select your time zone firstly.

– For ATV programs, you may set the clock manually.

– To set OFF timer/ON timer, you should set the clock first.

Press MENU. Press 3or4 to display TIME menu, press 6 to access.

A. For DTV programs, you need to select your time

zone. Press 5or6 to select Time Zone, use 3or4to select your local area time zone. Then the clock will be automatically set by the TV signal source, based on the time zone you selected.

B. For ATV programs, press 5or6 to select Clock, Press4or OK to access its setting menu. Within the menu, use 5or6 to highlight the Date, Month, Year, Hour or Minute item, and use 3or4 to adjust the values. When finished, use 5or6 to select Close and press OK to confirm the setting and close this sub-menu.

Setting Off timer

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time Off

Sleep Timer

Auto Sleep

Time Zone

Select

01/Jan /2011 15:30

Off

NSW/ACT GMT+10

Move

Activate

Hour

Minute

Return

00 00

To close the menu, press EXIT button.

To set OFF timer

You can set OFF timer to switch the TV to standby at a specified time. Once you set OFF timer, it will effect every day.

Press MENU. Press 3or4 to display TIME menu,

press 6 to access.

Press 5or6 to select Off Time, press 4or OK to access its setting menu.

Now the Activate item is highlighted automatically,

press 3or4to select On to turn on the function (To cancel the function, select Off).

After Activate is set to On, press 5or6 to select

Hour or Minute, press 3or4to adjust the value.

When finished, use 5or6 to select Close and press OK

to confirm the setting and close this sub-menu.

To close the menu, press EXIT button.

Setting Clock & Timer (continued)

Setting Sleep timer

To set Sleep timer

Sleep timer lets you select the amount of time before your TV turns itself off automatically. This setting is cleared when the

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

SELECT

01/Jan /2011 15:30

Off Off

Off

NSW/ACT GMT+10

MOVE

RETURN

TV is turned off.

Press MENU. Press 3or4 to display TIME menu,

press 6 to access.

Press 5or6 to select Sleep Timer.

Press 3or4to select the amount of time; to turn off the

timer, please select Off.

Note:

! You can directly press SLEEP button on the remote control to set sleep timer. ! After you have set sleep timer, when the last 60 seconds comes, the Power Off screen will appear to remind you

after how many seconds the TV will power off. You can press any button to quit.

Setting Auto Sleep

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

01/Jan /2011 15:30

Off

NSW/ACT GMT+10

Move

Return

To set Auto Sleep

Auto Sleep will bring the TV to standby automatically when there is no signal input for a certain time.

Press MENU. Press 3or4 to display TIME menu, press 6 to access.

Press 5or6 to select Auto Sleep.

Press 3or4to select On to turn on Auto Sleep. (To

cancel the function, select Off.)

To close the menu, press EXIT button.

Setting ON timer

PICTURE SOUND TIME OPTION LOCK CHANNEL

Clock Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

Select

After Activate is set to On, press 5or6 to go through the item list adding the details of the on timer by using

3or4 to make selections.

!Hour/Minute: Sets the desired time to turn on the TV.

!Volume: Sets the volume level for the On Timer program.

!Source: Sets the source to be viewed when the TV turns on.

!Channel: Sets the channel that will be tuned when the TV turns on.

When finished, use 5or6 to select Close item and press OK to close the sub-menu.

Press EXIT button to close the main menu.

01/Jan /2011 15:30

Off

NSW/ACT GMT+10

Move

Activate Hour Minute Volume Source Channel

Return

On 00 00 00

DTV

To set ON timer

ON timer feature allows you to set the TV to turn on automatically to a preset channel or source at a certain time and at certain volume. Once you set ON timer, it will effect every day.

Press MENU. Press 3or4 to display TIME menu, press 6 to access.

Press 5or6 to select On Time. Press 4or OK to

access the submenu.

Now the Activate item is highlighted automatically,

press 3or4to select On to enable ON timer (To cancel, select Off ).

Press to switch the TV to standby mode. At the preset time, the TV will auto turn on and broadcast the preset programme at the preset volume.

Setting Child and Rating Locks

You can prevent your children from watching TV by locking the TV and using age ratings. To enable child lock and rating feature, you must set Lock System to On through LOCK menu. Also you can set Lock System to On to lock auto tuning/manual tuning to protect some TV settings from being accidentally changed. To cancel child and rating lock, you can directly set Lock System to Off.

Setting or changing the child lock password

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

Please enter Password

SELECT

Please enter Password

New

Confirm

SELECT

-- -- -- –

No Block

MOVE

- - - -

No Block

MOVE

Off

RETURN

To set or change the child lock password

From LOCK menu you can set a new child lock password or to change an existing child lock password. By default, the password is 0000 and you should change it. To access LOCK menu, to lock or unlock channels, to view locked channels, etc., the child lock password is required.

Press MENU. Press 3or4 to display LOCK menu,

press 6 to access.

Now a password is required to input. Use number

buttons to input the correct password (the default password is 0000).

Press 5or6 to select Set Password, and then press 4

or OK button to access its submenu.

Use the number buttons to input a new password (4-

digit). Input the new password again. Now the new password has been created successfully.

Note: Be sure to write down your password and retain it for future use. If you do forget the password, the unit provides a super password “2580”. Please DO NOT let your children know the super password.

Locking the TV programmes

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

SELECT

Block Programme

Select

MOVE

S-48

S-51

S-56

No Block

Off

LOCKOK

RETURN

To lock or unlock the TV programmes

Locking the TV programs prevents your children from viewing any channels which you do not want them to watch. To use lock feature, you have to enable the Lock System.

Navigate to the Lock menu and input the correct

password to access.

Now the Lock System item will be highlighted

automatically. Use 3or4to select On to enable the lock system.

Use 5or6to highlight Block Programme item, press

4 or OK to access.

Now the Block Programme screen opens with a

programme list displayed. Use 5or6to select the programme you want to lock, then press GREEN button to set lock to it. A lock symbol appears alongside. (To unlock, press GREEN button again.) Select other programs and press GREEN button to set lock to them .

Press MENU to return to previous menu. Press EXIT

to exit the menu screen directly. Then the lock comes into effect and these locked

programmes are blocked. To viewed locked programmes, just input the password.

To disable the lock system, set Lock System to Off and all locked programmes can be viewed.

Setting Child and Rating Locks (continued)

Setting parental ratings - digital only -

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

SELECT

G (General Audiences): Content not offensive to most viewers.

PG (Parental Guidance Suggested): Content is such that parents may not want their children to view the programme.

M (Mature Audience): Suitable for mature audience.

MA(Mature Adult Audience): May contain mature

themes, profane language, graphic violence, and sexual situations.

AV (Adult Audience): Strong violence.

R (Restricted viewing): Not for children under age 17.

Strong elements of sex and/or violence.

MOVE

No Block

Off

RETURN

To set and enable parental ratings

Some digital broadcasters rate their programmes according to age. You can set your TV to display only programmes with age ratings higher than your child’s age. Before setting parental ratings, you have to enable the lock system.

Use password to access LOCK menu, highlight Lock

System and use 3or4to select On to enable the lock

system.

Press 5or6 to highlight the Parental Guidance,

use3or4to select an age rating. All programmes beyond the selected age rating will be blocked.You can select:

! Block All ! Block G and above ! Block PG and above ! Block M and above ! Block MA and above ! Block AV and above ! Block R and above ! No Block

Press MENU to return to previous menu.

Press EXIT to close the menu directly.

Restoring factory default

To restore factory default

Caution: When you restore factory default, all settings including password will be cleared and reset to default

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

SELECT

Off

Are you sure?

No Block

Off

MOVE

NoYes

RETURN

(the password is reset to 0000). So make sure you do want to reset the settings to its original factory condition before you perform this operation.

Navigate to the Lock menu and input the correct

password to access.

Press 5or6to select the Restore Factory Default

item, and then press 4 or OK. A message appears prompting you to confirm again.

Use 3or4to select between YES (to reset) or NO (to cancel) item, and press OK to confirm.

Press MENU to return to previous menu. Press EXIT to close the menu directly.

Setting Allow Update

To set Allow Update

When the TV is in standby mode, the TV will automatically work at the preset time and detect OTA, then start system

PICTURE SOUND TIME OPTION LOCK CHANNEL

Lock System

Set Password

Block Programme

Parental Guidance

Restore Factory Default

Allow Update

SELECT

MOVE

Off

No Block

Off

Activate

Hour

Minute

RETURN

00 00

update.

Navigate to the Lock menu and input the correct

password to access.

Press 5or6to select the Allow Update item, press 4

or OK to access its setting menu.

Now the Activate item is highlighted automatically,

press 3or4to select On to enable the function (To cancel, select Off ).

After Activate is set to On, press 5or6 to go through Hour/Minute item and use 3or4 to set update time.

When finished, use 5or6to select Close and press OK to close the sub-menu. To exit, press EXIT button.

Making Use of Time Shift Function

Checking File System before Time Shift

Time Shift function is the recording of DTV programme to an external memory device (portable hard disk or USB device) to be viewed at a later time more convenient to the user. But before operation you must pay attention to the following notes:

! Before Time Shift, you need to check the File System successfully. ! During Time Shift, do not unplug the external memory device from the TV. When the memory device is removed then

the data is lost.

! When Time Shifting, a directory will be automatically created at the external memory device to temporarily save the data. ! The data cannot be played on any other product or computer. ! The recorder once in time shift mode will continue recording what you are watching and overwrite any information already

on the memory device.

! If malfunction, then information already on the memory device may lose. So please back up your memory device data. ! The FAT32 file system is supported. So it is recommended to use external memory device in FAT32 file system, otherwise a

disk formatting is required and all data will lose.

! The external memory device must have enough free space (at least 512MB) for time shift. Recording capacity varies

depending on the memory device’s file system, the maximum capacity is 8GB while for the FAT32 file system the maximum capacity is 4GB.

PICTURE SOUND TIME OPTION LOCK CHANNEL

Auto Tuning

DTV Manual Tuning

ATV Manual Tuning

Programme Edit File System

SELECT

MOVE

RETURN

File System

Select Disk

Check File System

USB Disk Speed

EXIT

Disk C:

OK EXIT

EXIT

Select Disk

Return

Start

Move

Select

File System

Select Disk

Check File System

USB Disk Speed

EXIT

HD support

RETURN

SUCCESS

Pass

2112KB/s

MOVE

SELECT

To check File System before Time Shift

Connect your USB device or portable hard disk to the USB port on

TV side firstly.

Navigate to CHANNEL-File System menu to check file system.

(Press MENU, then use 3or4to select CHANNEL menu, press 6 to access. Press 5or6 to highlight File System, then press 4to

access.) Now do the following to check file system.

A. Select Disk:

From File System menu, highlight Select Disk, press 4to access. Use 3or4to select a disk, then move the highlight to OK box and press OK to confirm. (To cancel, select EXIT to exit).

B. Check File System

From File System menu, highlight Check File System, press 4to begin checking. It may take several minutes, please wait. When finished, if SUCCESS appears at the Check File System line then you can start time shift function.

(At File System menu bottom screen, USB Disk state and speed information will appear, they can not be adjusted)

Note:

! If your external memory device is not in FAT32 file system, then during

the process of File System checking, a message appears prompting you to start to create disk partition. If you want to proceed, operate according to on-screen instructions to format the disk.

! After File System checking, if “SD Fail” appears on the screen, that

indicates this external memory device is not suitable to be used for time shift, please replace with other one and try it again. If “SD Safe” appears, that means this external device is suitable to time shift SD program, but not HD program. If “HD Support” appears, then both SD and HD programs are OK.

Making use of Time Shift function – digital only –

After successful File System check, you can use Time Shift function now. Press T.SHIFT button to start time shifting. The live programme stops at the current state. At the bottom screen, an information box will appear for your help. After some time, this information box will be minimized in size and glitter on the screen. To restore, please press OK.

Now you can use below buttons to operate:

Current time

! : PLAY/PAUSE button ! : STOP button. ! / : Fast forward/fast reverse ! / : Previous/next

Duration

Teletext & Subtitle

What Is Teletext?

Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

To Turn On/Off Teletext

Select a TV channel providing the Teletext program. Press TTX button to display the teletext. Press TTX button again to switch back to TV screen.

Teletext control button list

! 5/6 button

Used to scroll page upward or downward.

! 0 – 9 button

Directly select any page by using 0 - 9.

! Coloured buttons (RED/GREEN/YELLOW/BLUE)

Coloured areas are displayed at the bottom of the screen. The 4 coloured

buttons are used to access the items or corresponding pages.

! Hold button

Certain pages contain sub-pages which are automatically displayed

successively. This button is used to stop or resume sub-page acquisition.

! Reveal button

Press the button to reveal the concealed information such as games solutions. Press the button again to hide the information.

! Size button

Press this button several times to display the upper, then the lower part of the screen and then return to the normal size teletext page.

! Index button

In teletext mode, press this button to display the index page.

! Mix button

Press the button to display the Teletext on the screen with transparent

background while viewing the TV programme simultaneously

! Update button

Press the button to view the updated teletext page.

Subtitle

!When watching digital programs, press Subtitle button to display the

subtitle.

If the programme has subtitle, simply press Subtitle button to display

subtitle.

Press Subtitle again to cancel the subtitle.

! When watching analogue programs, press this button to display the

teletext subpage.

Adjusting the Computer Image & Setting Hotel Mode

Adjusting the PC image

PICTURE SOUND TIME OPTION LOCK CHANNEL

Adaptive Contrast

HDMI Black Level

Screen

SELECT MOVE

Picture Sound Time Setup Lock Channel

Auto Adjust

Horizontal Pos.

Vertical Pos.

Size

Phase

SELECT MOVE

Normal

RETURN

Before adjusting the screen, make sure that you select the correct source (D-SUB).

To adjust the computer image:

Press MENU. The on-screen menu opens with PICTURE

menu displayed.

Press 5 or 6 repeatedly to scroll the menu page until you

select the Screen item, then press 4or OK to access.

Press 6 or 5 to highlight an option, press 3or 4 to adjust

the level, or press OK to confirm. You can select:

! Auto Adjust — Automatically adjusts the image settings

such as position and phase.

! Horizontal Pos. — Moves the image right or left.

! Vertical Pos. — Moves the image up or down.

! Size — Adjust the horizontal width of the image on the

screen.

! Phase — Adjusts the focus of stable images.

To close the menu, press EXIT button.

Setting Hotel Mode

Hotel Mode

Channel Preset Lock

Volume Max

AV Lock

Panel Lock RF AUTO

Press < OK > to save

100

Off

Off Off

Hotel Mode feature enables you to lock CHANNEL menu, set maximum volume, lock other sources except AV1, lock panel buttons, etc. which is especially useful at Hotel environment.

To set Hotel Mode

Press SOURCE button. The Input Source menu opens.

Press number buttons: [ 1, 4, 7 ] to access the Hotel Mode

screen. Be sure to quickly input the numbers while the

Input Source menu is still visible.

Within the menu, press 6 or 5 to highlight an option, press

3or 4 to adjust the option. You can select:

Channel Preset Lock — Turns On to lock the

CHANNEL menu, the CHANNEL menu will be grayed out and can not be accessed. To cancel the lock, set it to Off.

! Volume Max — Sets the maximum volume (30–100) for

the TV.

! AV Lock — Turns On to fix the input source to AV1,

only AV1 programme can be viewed while all other sources are blocked. To cancel the lock, set it to Off.

! Panel Lock — Turns On to lock panel buttons, buttons

on the control panel on the TV are not active. To restore, set it to Off.

! RF AUTO — When On is set, the TV will automatically

go to standby if without RF signal input for several minutes. If Off is set, the TV will still work even if there is no RF signal input.

Press OK to save the setting. Press EXIT to exit the menu

screen directly.

Using MUSIC Player & Using USB Multi Media Player

Using MUSIC player

You can connect your MP3 player to MUSIC jack on the TV side to listen to music from your TV. Be sure to switch to MUSIC source firstly by pressing SOURCE button. During music playing and you want to save power, please go to OPTION menu and set Audio Only to Power Saving, then a message “Audio Only, it will go to power saving mode” appears, after some seconds the backlight will turn off automatically.

Using USB multi media player

You can connect a USB device (such as U disk, portable hard disk, MP3 card) to your TV to view compatible photo, movie, text or play compatible music.

To use USB multi media player, please go to USB source through Input Source menu by pressing SOURCE button.

Notes:

·Never remove the USB device or turn off the TV while using the USB device.

·It is recommended that you back up your USB device data.

·The USB menu may vary in different situation.

·If you want to pull out the USB device, please exit USB mode first. For instructions on using your USB device,

refer to the owner’s manual of your USB device.

·Please use English to name your files. Otherwise the file names can not be shown correctly.

Viewing photos

USB 2.0

You can connect the USB device to the TV to display most photos in JPG, BMP and PNG formats, but for the sake of technical updating, some formats above may not be supported.

PHOTO M US IC MOVI E TEXT

Pag e 1 / 1

ENTER

MSTPV R

PIC

MP3

BACK

SELECT PLAY/PAUSE

To view photos:

Connect USB device and switch to USB mode, the

USB main menu will appear automatically.

Press 3or4 to select PHOTO menu, and press OK to

access.

Press 5or6 to navigate among files or folders.

Press to start slide show from current photo file or

press OK to open the highlighted folder. After a photo

USB 2.0

folder is opened, you can press GREEN button to view photos in thumbnail, then use5634 to navigate, press to start slide show from current photo.

PHOTO M US IC MOVI E TEXT

C: \PIC

- -

DSC08 75 7.j pg

DSC08 75 8.j pg

DSC08 75 9.j pg

DSC08 76 0.j pg

DSC08 76 1.j pg

BACK

Pag e 1 / 5

ENTER SELECT PLAY/PAUSE

WxH : 1920x1 200 Size: 53 Kbytes

During photo slide show, you can press:

: Play /pause.

: Stop.

: Go to the previous photo.

: Go to the next photo.

: Rotate the photo clockwise (To restore to slide show,

press ).

: Press one or more times to zoom in the photo by x1, x2,

x4, x8. In this mode, you can press arrow buttons to pan the photo.

: Press one or more times to zoom out the photo.

EXIT: Exit slide show.

: Exit slide show and return to USB main menu.

When USB main menu is on the screen, you can press:

: Press one or more times to select a repeat mode. You can select (repeat to show one photo), (repeat to

show all photos when slide show reaches end), (no repeat when it reaches end and go to USB main menu).

Note: When a photo file is selected, you can press OK button to mark it as favourite and a check mark appears (press OK again to cancel the mark). Do so to create your favourite photo list, then slide show goes among these favourite photos. To quickly select/unselect all photos inside this folder, move the cursor to its volume row (first row) and press OK, then choose “Select” or “UnSelect”.

Using USB Multi Media Player (continued)

Playing music

USB 2.0

PHOTO MUS IC MOV IE TE XT

MUSIC

MSTPV R

PIC

MP3

BACK

USB 2.0

PHOTO MUS IC MOV IE TE XT

MUSIC

C: \MP3

- -

SONG OF S ON G.mp3

MESSI AH .mp3

OLYM PICS. mp 3

PEACE .m p3

CHRIS TM AS. mp3

BACK

Pag e 1 / 1

ENTER

ENTER SELECT PLAY/PAUSE

Generally, audio player supports MP3, WMA and AAC formats, but for the sake of technical updating, some formats above may not be supported.

To listen to music:

Connect USB device and switch to USB mode,

the USB main menu will appear automatically.

Press 3or4 to select MUSIC menu, and press

OK to access.

Press 5or6 to navigate among files or folders and

select your desired one.

Press to start music playing from current file

or press OK to open the highlighted folder.

During music playing, you can press:

: Play /pause. : Stop playing.

: Fast forward.

: Fast reverse.

: Play the previous. : Play the next.

EXIT: Exit music play.

: Exit and return to USB main menu.

When USB main menu is on the screen, you can press:

: Press one or more times to select a repeat mode. You can select (repeat to play one music), (repeat to play

all music files when it reaches end), (no repeat when it reaches end and go to USB main menu).

Note:

! When selecting file or folder from the list, you can press3/4to scroll the page. ! When a music file is selected, you can press OK button to mark it as favourite and a check mark appears (press OK

again to cancel the mark). Do so to create your favourite music list, then music play goes among these favourites. To

quickly select/unselect all files inside this folder, move the cursor to its volume row (first row) and press OK, then choose “Select” or “UnSelect”.

Playing movie

USB 2.0

Generally, video playback supports MPG, MPEG, MP4, TS, TRP, M4V, RM/RMVB formats, but for the sake of technical updating, some formats above may not be supported.

PHOTO MUS IC MOV IE TE XT

MSTPV R

PIC

MP3

TITANI C. ts

2012. mo v

Pag e 1 / 1

To watch movie:

From the USB main menu, press 3or4 to

select MOVIE menu, and press OK to access.

Press 5or6 to navigate among your files or

folders.

BACK

ENTER SELECT PLAY/PAUSE

Press to play the selected movie full-screen or

press OK to access the folder to select your desired movie to play.

Using USB Multi Media Player (continued)

Playing movie (continued)

USB 2.0

PHOTO MUS IC MOV IE TE XT

MOVIE

MSTPV R

PIC

MP3

TITANI C. ts

2012. mo v

BACK

Pag e 1 / 1

ENTER SELECT PLAY/PAUSE

Size: 101 Mbytes

During movie play, you can press:

: Play /pause.

: Stop playing.

: Fast forward.

: Fast reverse.

Subtitle: Shows subtitle if available. STEREO: Selects audio track if available. EXIT: Exit movie play.

: Exit and return to USB main menu.

When USB main menu is on the screen, you can press one or more times to select a repeat

mode. You can select (repeat to play one movie), (repeat to play all movies when it

reaches end), (no repeat when it reaches end).

Also you can press RED button for A-B repeat, BLUE button for time search so that the play starts from the specific time.

!A-B repeat: During play, you can pause and repeat any specified section simply by pressing RED button at the

starting and ending points. To cancel, press RED button once again.

!Time search: Press BLUE button to call out Input search time screen, then use number buttons to input time,

use 3/4to move the cursor, and then highlight OK and press OK button for time search, and the playback starts from the specific time. (Pressing INFO button can get time information from the screen)

Note:

! When selecting photo or folder from the list, y ou can press3/4to scroll the page. ! When the highlight rest on a file for more than four or five second, its content preview will appear automatically.

Playing text

USB 2.0

Text play supports TXT format, but for the sake of technical updating, not all TXT format files can be played.

PHOTO MUS IC MOV IE TE XT

MSTPV R

PIC

MP3

WORD. txt

FOXMA IL .txt

BACK

USB 2.0

Pag e 1 / 1

ENTER SELECT PLAY/PAUSE

To view text:

From the USB main menu, press 3or4 to

select TEXT menu, and press OK to access.

Press 5or6 to navigate among files or folders.

Press to open the highlighted file and show its text or press OK to open the highlighted folder.

During text playing, you can press:

: Play the text.

PHOTO MUS IC MOV IE TE XT

MSTPV R

PIC

MP3

WORD. txt

FOXMA IL .txt

Pag e 1 / 1

A signal that reaches beyond the viewing area of a display screen. A slight overscan is generally not noticeable on a TV set, but is apparent on a computer monitor where taskbars are typically at the extreme ends of the viewing area.

Size: 2K Bytes

: Stop playing.

: Go to the previous.

: Go to the next.

5/6 : Scroll the content. EXIT: Exit text playing.

: Exit and return to USB main menu.

Note: When selecting file or folder from the list, you can press3/4to scroll the page.

BACK

ENTER SELECT PLAY/PAUSE

Troubleshooting

If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions.

Remote Control

Problem Possible Solutions

Remote control does not operate

! Check the orientation of the batteries. ! Make sure the power cord is plugged in.

Video and Audio

Problem Possible Solutions

! The batteries could be weak. Replace the batteries.

No picture (screen not lit), No sound

Dark, poor or no picture (Screen lit), good sound

No color/dark picture/color is not correct

Only snow and noise appear on the screen

Dotted lines or stripes

Double images

! Make sure the power cord is plugged in. ! Press POWER on the TV or on the remote control. ! Try another channel; it could be station trouble.

! Select a proper picture mode. ! Adjust the brightness in the video setting. ! Check the antenna/cable connections.

! Adjust the color saturation in the video setting.

! Check the antenna/cable connections. ! Try another channel; it could be station trouble.

! Adjust the antenna. ! Move the TV away from noise sources such as cars, neon signs, or hair dryers.

! Using a highly directional outdoor antenna or a cable may solve the problem.

Good picture, no sound

Audio noise

! The sound may be muted. Press MUTE again to cancel.

! Communication problems may occur if infrared communication equipment

(e.g., infrared cordless headphones) is used near the TV. Move the infrared communication equipment away from the TV until the noise is eliminated.

General

Problem Possible Solutions

One or some channels can’t be displayed

Lost password ! You may use the super password (2580).

Some items can’t be accessed ! If a setting option appears in gray, this indicates that the settings option is

TV cabinet creaks

Control buttons do not operate

POWER button responds slowly after power is connected.

! These channels may be set skipped. You may cancel the skip setting through

Programme Edit sub-menu or select them with 0-9 number buttons.

! These channels may be locked or blocked, you may go to LOCK menu and

set Lock System to Off.

unavailable in current input mode.

! When the TV is in use, there is a natural rise in temperature, causing the

cabinet to expand or contract and may be accompanied by a slight creaking noise. This is not a malfunction.

! Disconnect the power cord and wait for a few seconds. Then re-plug the

power cord and turn on the unit again.

! When you push POWER SWITCH to power on the TV, in about 3 seconds

the POWER button starts to respond after pressed.

Note: If your problem is not solved, turn your unit off and then on again.

Cautions: Never attempt to repair a defective TV yourself.

Specifications

Type: Integrated Digital LCD TV

Panel: 32” TFT LCD

Analogue TV system: PAL-B/G (CCIR), NTSC(AV)

Digital TV system:

Power Requirement: AC 220-240 V, 50/60 Hz

Power Consumption: 120W

Dimensions (W x H x D):

Weight: 10.5 kg (stand included)

Terminals:

Compliant Standard: DVB-T, 7 MHz Bandwidth Video Decoding: MP@ML & MP @ HL Audio Decoding: Dolby Digital, MPEG ( &Ⅱ) Audio Sampling Rate: 32, 44.1, 48 kHz

776(W) x 555(H) x 210(D)mm (stand included)

776(W) x 510(H) x 95(D)mm (stand not included)

9 kg (stand not included)

Antenna in (1) AV in (2) COMPONENT in (2) VGA in (1) HDMI in (3) RS-232 (1) Headphone (1) USB port (1) MUSIC port (1) AV out (1) S/PDIF optical out (1)

Ⅰ

Note:

1. Design and specifications are subject to change without notice.

2. Weight and dimensions shown are approximate.

3. Specifications and external appearance may be changed for the sake of improvement.

Appendix: Installing the Stand

If the stand is provided, please read these instructions thoroughly before attempting this installation.

You must install your TV into the stand in order for it to stand upright on a cabinet or other flat surface. If you intend to mount your TV on a wall or other vertical surface, you must remove the stand column.

Cautions:

Make sure that you handle your TV very carefully when attempting assembly or removal of the stand. If you are not sure of your ability to do this, or of your ability to use the tools necessary to complete this job, refer to a professional installer or service personnel. The manufacturer is not responsible for any damages or injuries that occur due to mishandling or improper assembly.

When using a table or bench as an aid to assembly, make sure that you put down a soft cushion or covering to prevent accidental scratching or damage to your TV's finish.

The speaker is not intended to support the weight of your TV. Do not move or handle your TV by the speaker. This can cause damage to your TV that is not covered by the manufacturer's warranty.

Before attempting assembly or removal of the stand, unplug the AC power cord.

Installing the stand

To install the stand:

1. Remove the stand from the box and place it on a table or bench.

You must pay attention to the direction of the stand. The

wide portion of the stand should go towards the front of the TV.

2. Lay your TV flat (screen down) on the edge of a table or

bench. Make sure that you put down a soft cushion or cloth so that your TV is not scratched.

3. Put the stand close to the TV back, align the stand with

the TV by moving the stand column steadily until the Stand Locators align with the locating grooves on the stand column. And align the screw holes on the TV back with the holes in the stand column, then secure the stand to the TV with provided screws .

Locators

w holes

Stand

To remove the stand from the TV, perform these steps in reverse order.

NOTE:

The appearance of this product in these illustrations may differ from your actual product, and is for comparative purposes only.

5944037000 Ver.1.0

Sanyo LCD-32XR10F User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
