Sanyo LCD-17LX2 Schematic

SERVICE MANUAL LCD Television

N2SV

FILE NO.

Model No. LCD-17XL2

(Argentina)

Give complete “SERVICE REF. NO.” for parts order or servicing. It is shown on the rating label at the cabinet back of the unit.

This T.V. receiver will not work properly in foreign countries where the television transmission system and power source differ from the design specifications. Refer to the specification table.

Product Code:111374216 Original Ver sion

Chassis Series: UE1-B

Service Ref. No. LCD-17XL2-00

Contents

Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chassis Block Diagrams . . . . . . . . . . . . . . . . . . . . . . 4-5

CPU Port Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Option Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

On-screen Service Menu System . . . . . . . . . . . . . . 8-10

Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . 11

Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

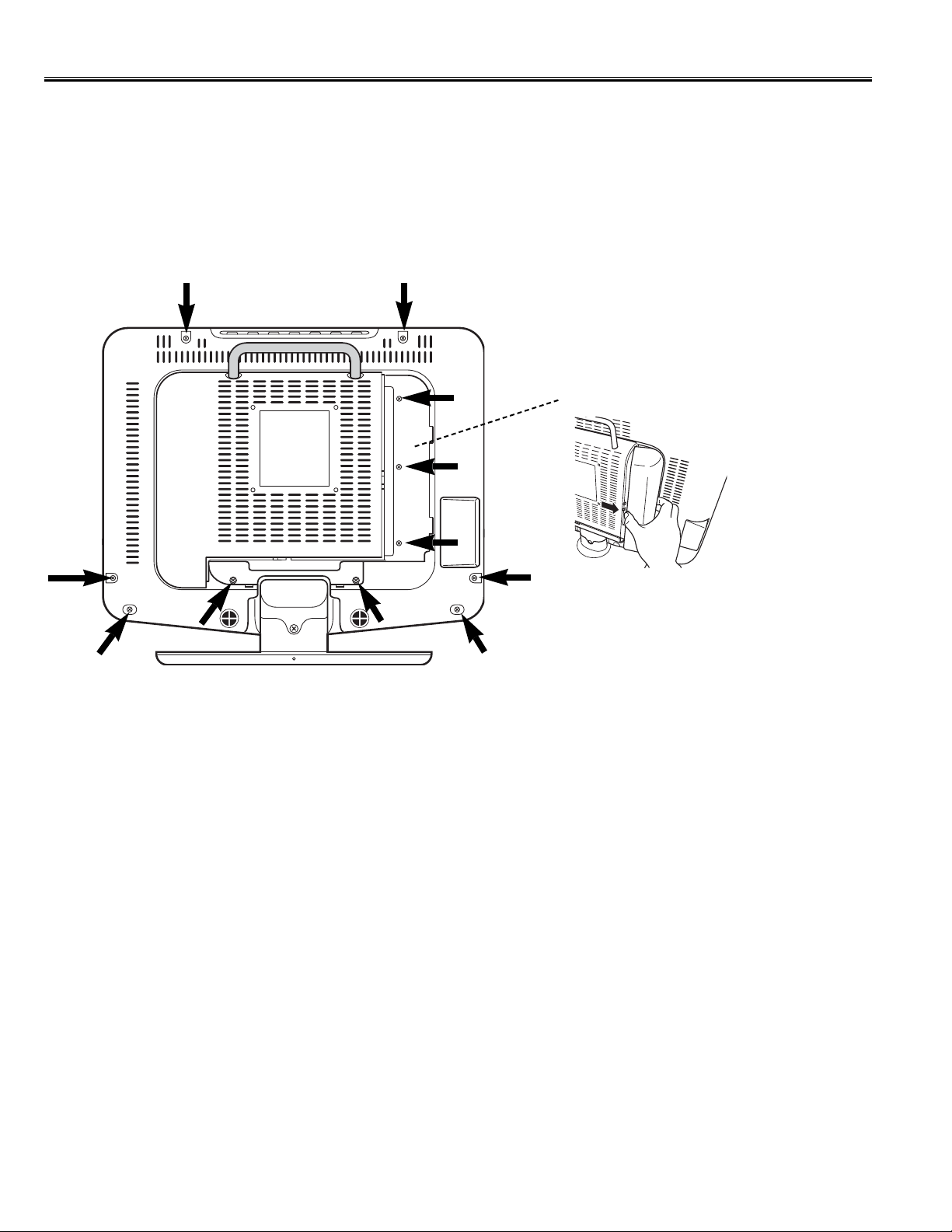

Mechanical Disassembly . . . . . . . . . . . . . . . . . . . 13-17

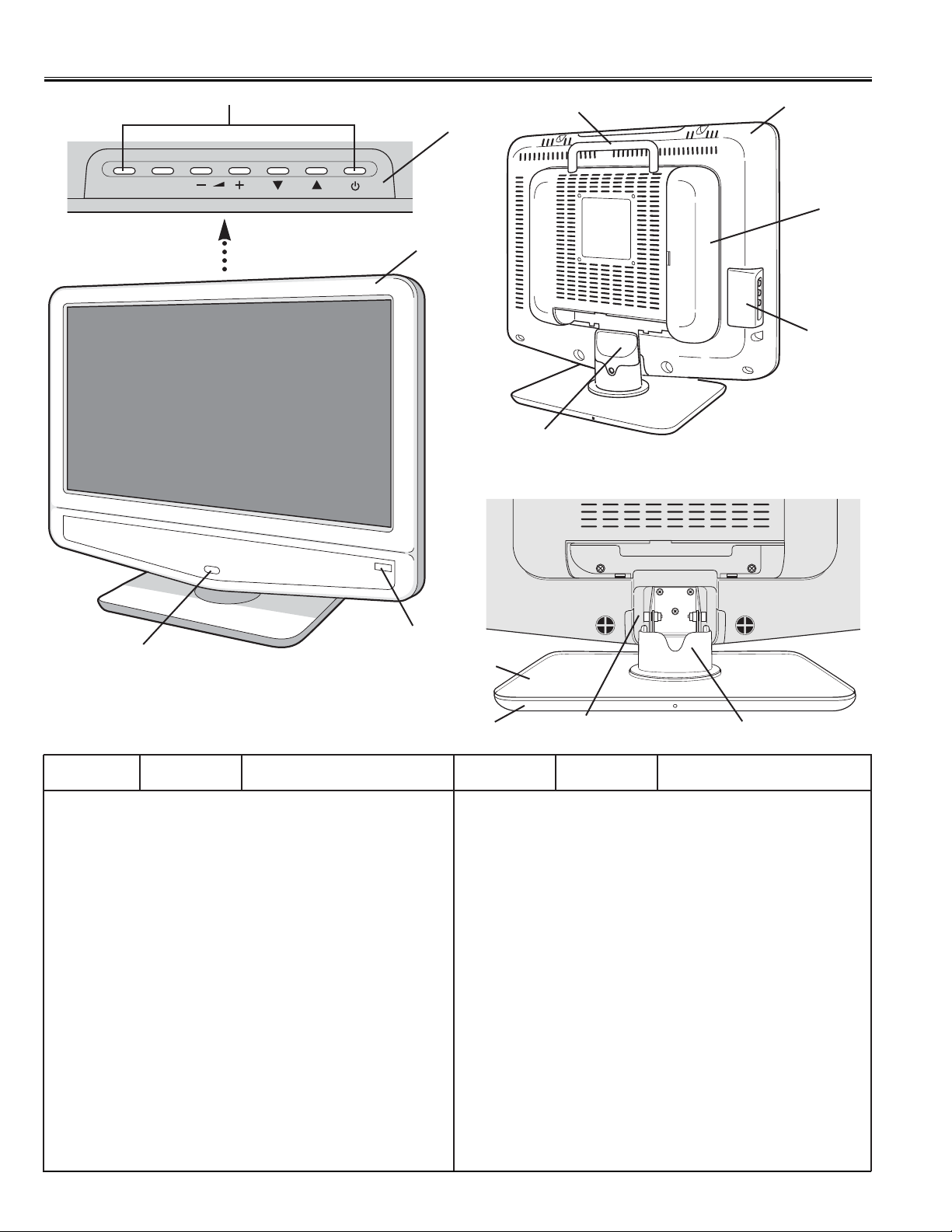

Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Chassis Electrical Parts List . . . . . . . . . . . . . . . . . 20-26

Printed Wiring Board . . . . . . . . . . . . . . . . . . . . . . 27-29

Safety Notice

-2-

Safety Precautions

The following precautions must be observed.

1: Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the

cabinet or on the chassis.

2: When replacing a chassis in the cabinet, always be certain that all the protective devices are installed

properly, such as, control knobs, adjustment covers or shields, barriers, etc..

DO NOT OPERATE THIS TELEVISION WITHOUT THE PROTECTIVE SHIELD IN POSITION AND PROPERLY SECURED.

3: Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or

tools have been left inside.

Before returning any television to the customer, the service personnel must be sure that it is completely safe to operate without danger of electrical shock.

Product Safety Notice

Product safety should be considered when a component replacement is made in any area of a receiver. Components indicated by mark in the parts list and the schematic diagram designate components in which safety can be of special significance. It is particular ly recommended that only parts designated on the par ts list in this manual be used for component replacement designated by mark . No deviations from resistance wattage or voltage ratings may be made for replacement items designated by mark .

[ Details of Dimensions ]

452 70 167

106

372

248 237

224

151

373

409

(Unit : mm)

Specifications

-3-

Power Source Monitor: DC19V

AC Adaptor: AC 100-240 Volts, 50/60Hz, Output DC19V

Receiving System PAL-N/N/, PAL-M/M, NTSC-M/M

Channel Coverage ANTENNA mode

VHF: CH02 - CH13 UHF: CH14 - CH69

CATV mode

VHF band: CH01-CH13 MID band: CH14-CH22 SUPER band: CH23-CH36 HYPER band: CH37-CH64 ULTRA band: CH65-CH94 and CH100-CH125 Low MID band: CH95-CH99

Aerial Input Impedance 75 Ω

LCD Panel

Screen Size (Measured Diagonally): 17 inch (43.1 cm) Picture Resolution: WXGA 1280 (Horiz.) x 768 (Vert.) pixels Viewing Angles: Horiz. 176˚, Vert. 176˚ Contrast Ratio: 600:1 Brightness: 450 cd/m

Audio Output (RMS) 2W + 2W Speaker 5 cm x 9 cm x 2 pcs.

AV Input T erminals

AV1 (Video): Composite Video Input x 1 AV1 (Audio): L/R Stereo Input x 1 set

AV2 or DVD (Video):Composite / Component-Y, C

B, CR Input x 1 set

AV2 S-Video: Separated Y/C DIN Jack Input x 1 AV2 (Audio): L/R Stereo Input x 1 set

AV3 (Video): Composite Video Input x 1 AV3 (Audio): L/R Stereo Input x 1 set

Output Terminal

Mini Stereo Headphone Jack x 1

Dimensions 452(W) X 409(H) X 237(D) mm (Included Swivel Stand) Weight Approx.7.5 Kg (Included Swivel Stand)

Specifications subject to change without notice.

-4-

Chassis Block Diagrams

(Video Signal Lines)

(WXGA)

LCD PANEL

K7H

Y/U/V

16/17/19

IC2001

Y/U/V

6/8/9

PICTURE IMPROVEMENT

LVDS0N

LVDS0P

LVDS1N

B14/A15/B15

F26/T25/T26

LVDS1P

A2901

INDICATOR

RC-IN

AE20

RC RECEIVER

AA25

LVDS2N

LVDS2P

LVDS_CLKN

ASSY,PWB, LED

LVDS_CLKP

LVDS3N

LVDS3P

STAND-BY &

POWER

LED

D2901

K29A

ASSY,PWB, KEY

K29C

POWER

KEY IN

SW2951~

SW2957

TOP CONTROL

KEY IN

AE22

AE25

KEYS

AD19

AC19

N3/R3/U3

SCL

SDA

RGB

IC801

MEMORY

ASSY, PWB, SIGNAL

A101A

X121A

TUNER

SAW

FILTER

K23 / K24

D18

V24

Y IN

IC201

U23

R IN

IF/VIDEO/CHROMA/CPU/

SCALER/CAPTION/AUDIO CONTROL

V23

B IN

B19

CVBS/Y IN

C18

Y23/Y24/Y25

B21

IC4001

COMPISITE

VIDEO IN

(AV3)

FLASH MEMORY

K29X

(K1002)

AV1 TERMINAL

COMPISITE VIDEO IN

COMPONENT CR IN

COMPONENT Y or COMPISITE VIDEO IN

(K1004/K1005)

AV2 TERMINAL

COMPONENT C

S-VIDEO C-IN

S-VIDEO Y-IN

(AV2)

S-TERMINAL

SIDE AV

(AV3)

ASSY, PWB,

-5-

Chassis Block Diagrams

(Audio Signal Lines)

K001

SP902

R-OUT

ASSY, PWB,

HEADPHONE JACK

SIDE-AV

K29F

SP901

A1901

INDICATOR

L-OUT

STAND-BY &

D1901

ASSY,PWB, LED

POWER

LED

K29A

RC RECEIVER

ASSY,PWB, KEY

K29C

SW2951~

SW2957

TOP CONTROL

KEYS

IC001

AUDIO AMP.

12 8

X121A

AUDIO R-OUT

AUDIO L-OUT

AUDIO R

AUDIO L

SAW

FILTER

D17

C17

K23 /K24

IC201

AE20

IF/VIDEO/CHROMA/CPU/

SCALER/CAPTION/AUDIO CONTROL

RC-IN

AA25

POWER

KEY IN

AE25

AE22

AD19

AC19

SCL

SDA

IC801

MEMORY

ASSY, PWB, SIGNAL

A101

TUNER

C21

(K1002)

EXT. AUDIO IN-R (AV1)

AV1 TERMINAL

EXT. AUDIO IN-L (AV1)

A23

F24

(K1005)

EXT. AUDIO IN-L (AV2)

EXT. AUDIO IN-R (AV2)

AV2 TERMINAL

F25

EXT. AUDIO L-IN (AV3)

B20

EXT. AUDIO R-IN (AV3)

ASSY, PWB,

A20

SIDE-AV

(AV3)

L-IN

K29X

R-IN

CPU Port Functions (IC201)

-6-

Pad No. Function Name Pad Name Description

163 (AE9) A16 INT_N/GPIO10/A16 Interrupt request output, general purpose I/O 273 (G3) SCL SCL/GPIO12 I2C clock HS-I2C 3.4MHz, general purpose I/O 189 (F2) SDA SDA/GPIO13 272 (H3) Text Reset GPIO9/ACLK General purpose I/O / Analog video clock I/O 349 (H4) LCD-BR GPIO4/PWM1/TCP_TDO General pur pose I/O / Pulse width modul. output / Test control 93 (J1)

NRESET/FPGA

reset KBD0 Keyboard ADC input (Scaler) -Not used92 (K1) A17 A17 / GPIO11 Memory address bus, general purpose I/O 185 (K2) Scart-3 8-pin input A17 / GPIO11 Keyboard ADC input (Scaler) -Not used91 (L1) UART for test GPIO6 General purpose I/O 346 (L4) Text/RF sw PWM0 Pulse width modulated back light brightness control 81 (AA1) PC VSCL ASCL / GPIO14 DDC clock 400 KHz, general purpose I/O 174 (AA2) PC VSDA ASDA / GPIO15 DDC data 400 KHz, general purpose I/O 97 (E1) LCD-ON GPIO3 / TRST 102 (B3) PC-Det GPIO0 /T0/ TMS -Not used352 (E4) Scart-3 sw GPIO1 /T1/ TD1 -Not used276 (D3) Scart-3 sw GPIO2 /TCK -Not used98 (D1) UART for test RXD/GPIO5 166 (AE6) WE for Flash WR-N / GPI8 313 (AA23) NVM-WE P1.1 / T0 Port 1.1 or Counter Timer 0 input 232 (AA24) Line off input P1.1 / INT1 Port 1.0 or external interrupt 1 -Not used143 (AA25) RC input INT0 / P0.5 External interrupt 0 or port 0.5 320 (AC18) Status input P0.2 / I2SDO2 Port 0.2 or I2S digital output 2 319 (AC19) I2C SDA P1.7 / SDA Port 1.7 or I2C bus data line 241 (AD18) Power Error 2 P0.3 / I2SCLK Port 0.3 or I2S clock (Power Error=Low) 240 (AD19) I2C SCL P1.6 / SCL Port 1.6 or I2C clock line 239 (AD20) RGB selector P2.2 / PWM1 Port 2.2 or PWM1 output 238 (AD21) Scart-2 8-pin input P3.1 / ADC1 Port 3.2 or ADC1 input -Not used154 (AE18) Power Error 1 P0.4 / I2SWS Port 0.4 or I2S Word Select (Power Error=Low) 153 (AE19) Power-2 ON/OFF P1.3 /T1 LVDS on 20” model only (H=ON) 152 (AE20) Power LED P2.1 / PWM0 Port 2.1 or PWM0 output (H= LED ON) 151 (AE21) Scart-1 8-pin input P3.0 / ADC0 Port 3.0 or ADC0 input -Not used150 (AE22) Key input P3.3 / ADC3 Port 3.3 or ADC3 input 149 (AE23) L/L’/AV2 SW P2.5 / PWM4 Port 2.2 or PWM4 output -Not used148 (AE24) DM Power Error P1.4 / RX Port 1.4 or UART bus 147 (AE25) Power key input P1.5 / TX Port 1.5 or UART bus 59 (AF18) Power-3 ON/OFF P0.1 / I2SDO1 Panel Power ON 20” model only (H=ON) 58 (AF19) Power-1 ON/OFF P0.0 / I2SDI1/O 3.3V, 5V Panel Power ON (L=ON) 57 (AF20) (118-pin Reset) P2.0 / TPWM Port 2.0 or Tuning PWM output -Not used56 (AF21) 50/60 P2.3 / PWM2 Port 2.3 or PWM2 output (23” model only, 50=H, 60=L) 55 (AF22) AGC input for factory P3.2 / ADC2 Port 3.2 or ADC2 input 54 (AF23) Sound mute P2.4 / PWM3 Port 2.4 or PWM3 output 53 (AF24) Scart-1 SW P1.2 / INT2 Port 1.2 or external interrupt-2 -Not used-

Option Setting

-7-

After replacing Memory IC (IC801)

The memory IC (IC801), stores the option data of TV set and service adjustments data for each circuit, therefore, when the memory IC is replaced, it should be programmed to the following settings and “ Service Adjustment” on page 11.

1) How to enter the Option Setting Mode

Press and hold the MUTE on the remote control and press the CHANNEL DOWN (P▼)button on the top

control panel of the TV.The option window will appear on the screen.

OPTION

PLUG & PLAY BASS FEATURE

OFF OFF

BLUE BACK

AUTO VOLUME

OSD H-POS

BBE&BASS EXPANDER

ARG ON

AV3 ON

COUNTRY SURROUND

Option Setting Mode

2) How to make the Option Setting

Select desired option item by pressing the CHANNEL UP or DOWN button. To switch the option mode, use the VOLUME + or -button. The data which is set in the option mode is stored into the memory IC automatically.

The following table shows the available option items and default setting mode.

Option Items Mode Default / Description

OSD H-POS 0 to 15 Default “ 6 ”/ OSD horizontal position adjustment. COUNTRY

ARG, BRA or

Default “ARG”(Argentina) / Shipping country selection.

SOUTH AMERICA PLUG & PLAY ON or OFF Default “ON”/ Disable or enable Plug & Play function. SURROUND ON or OFF Default “ON” / Disable or enable Surround function.

Incase of inactive, the Sound menu will have no “SURROUND” item.

BASS FEATURE

VIRTUAL SUB WOOFER

, Default “BBE&BASS EXPANDER” / Bass feature selection. Incase of

BBE&BASS EXPANDER

“OFF”, item of Bass feature in Sound menu will be “BASS EXPANDER”.

or OFF AUTO VOLUME ON or OFF Default “OFF” / Disable or enable “Auto Volume Level” function. BLUE BACK ON or OFF Default “ON” / Disable or enable AV blue back under the no signal. AV3 ON or OFF Default “ON” / Disable or enable “AV3”. RESET START STAND BY start or Default “STAND BY” / Selection of Stand-by or Last Power start.

LAST POWER start

3) Exit from the Option Mode

Press the MENU button or tur n off the TV set by pressing the Power ON/OFF button.

The item not displayed exists when a triangular mark is displayed.Press P or P button to scroll the screen.

-8-

On-screen Service Menu System

General

This set has an On-screen Service Menu system included in the CPU that allows remote operation for most of the service adjustments.

3) Exit from the Service Menu

Press the MENU button or turn off the TV set by pressing the Power ON/OFF button.

144

White Bal. SACR

2) How to make the Adjustments:

Press the CHANNEL UP or DOWN button on the remote control hand set to select ser vice menu item.

Use VVOLUME + or

button to adjust the data.The + or-key will increase or decrease the data sequentially.

On-screen Service Menu System

1) How to enter the Service Menu

Press and hold the SOUND MODE button of the remote control and press the CHANNEL DOWN (P▼)button on the top control panel of the TV

Item No.

Adjustment Item

Adjustment Data

01110000 00000000 01110000 00101101 10000101 00101101 00011100 00101101

Example of the Service Mode Display

000

GTV 4. 0 UE1B

1. 08

01110010 00000000 01110001 01011101 10000101 00101101 00011110 00101101

Software Version Information

Read Status

Item No.

Section

-9-

On-Screen Service Menu System

On-screen Service Menu

Important Note: All data except in gray box area is fixed. Do not change for correct operating. Data in gray box

area is initial. Can be set according to adjustment information on page 11.

No. Title Explanation Initial Value

000 UE1B GTV software version information 001 Init TV Initialize TV 0 002 ISP Mode Enter ISP mode 0 003 Sedna version Sedna version information 4 004 PWT Power time 0 005 DCXO DCXO scanning control center 48 006 DCXO Auto DCXO auto adjustment 0 007 WSS Zoom option 1 008 WPR White point Red 20 009 WPG White point Green 20 010 WPB White point Blue 20 011 BLOR Black level offset Red 20 012 BLOG Black level offset Green 20 013 WPR-SECAM SECAM offset for WPR 0 014 WPG-SECAM SECAM offset for WPG 0 015 WPB-SECAM SECAM offset for WPB 0 016 BLOR-SECAM SECAM offset for BLOR 0 017 BLOG-SECAM SECAM offset for BLOG 0 018 Reserved Not used 019 Reserved Not used 020 RGB Bright RGB brightness 29 021 CapBri MIN Caption brightness min. 6 022 CapBri MID Caption brightness mid. 16 023 CapBri MAX Caption brightness max. 31 024 BR RF PN Offset Brightness RF PAL/NTSC 245 025 BR AV Offset Brightness AV PAL/NTSC 245 026 BR DVD Offset Brightness DVD 243 027 Reserved Not used 028 CN RF PN Offset Contrast RF PAL/NTSC 0 029 CN AV Offset Contrast AV PAL/NTSC 0 030 CN RGB Offset Contrast AV RGB 254 031 Reserved Not used 032 SH RF PN Offset Sharpness RF PAL/NTSC 0 033 SH AV Offset Sharpness AV PAL/NTSC 0 034 SH RGB Offset Shar pness AV RGB 0 035 Reserved Not used 036 CL RF P Offset Colour RF PAL 0 037 CL AV P Offset Colour AV PAL 0 038 CL N Offset Colour NTSC 0 039 Reserved Not used 040 CL DVD Offset Colour DVD 8 041 PV-BR-DY Preset Movie Brightness 40 042 PV-CL-DY Preset Movie Colour 50 043 PV-CT-DY Preset Movie Contrast 63 044 PV-SH-DY Preset Movie Sharpness 32 045 PV-BR-ST Preset Sport Br ightness 32 046 PV-CL-ST Preset Sport Colour 50 047 PV-CT-ST Preset Sport Contrast 45 048 PV-SH-ST Preset Sport Shar pness 32 049 PV-BR-EC Preset Weak Signal Brightness 22 050 PV-CL-EC Preset Weak Signal Colour 50 051 PV-CT-EC Preset Weak Signal Contrast 32 052 PV-SH-EC Preset Weak Signal Sharpness 32 053 CLO SECAM Center frequency of cloche filter 0 054 DTR SECAM Chroma trap mode 1 055 YSECAM Y-delay adjustment 2 056 YNTSC Y-delay adjustment 0 057 YPAL Y-delay adjustment 4 058 YAV Y-delay adjustment 4 059 ACL Automatic colour limiting 0 060 MUS NTSC matrix 1 061 PWLDAC Peak White limiting 8 062 CB CB default 1 063 CB RF-NT CB for RF NTSC 1 064 BPS Bypass of chroma base-band delay line 0 065 FCO Forced colour-on 0 066 PeakFreqPAL443 Peaking center frequency and delay 3 067 PeakFreqPALM Peaking center frequency and delay 3 068 PeakFreqPALN Peaking center frequency and delay 3 069 PeakFreqNTSC443 Peaking center frequency and delay 3 070 PeakFreqNTSCM Peaking center frequency and delay 3 071 PeakFreqSECAM Peaking center frequency and delay 3 072 PeakFreqAV Peaking center frequency and delay 3 073 UOC Tint Def

Base-band tint control

32 074 UOC Tint NT Tint for NT 0 075 Blackstretch Black stretch 1 076 Bluestretch Blue stretch 0 077 Whitestretch Gamma control and white stretch setting 0 078 GAM Gamma control 0 079 PWL Peak White limiting 0

No. Title Explanation Initial Value

080 BSD Black stretch Depth 0 081 AAS Black stretch Area Selection 0 082 PeakRatioOvShot Ratio of positive and negative peak 0 083 RatioPreAftShot Ratio pre and after shoot 0 084 CRAO Coring on SCAVEM 0 085 DL Sets the Inter lace 0 086 Tint NTSC Current baseband tint 31 087 OSO Switch-off in vertical overscan 0 088 FSL Forced slicing level for vertical sync. 0 089 HP2 Synchronization of OSD TEXT display 0 090 SoftClipLevel Soft clipping level 0 091 FO Phase 1 0 092 Picture booster Option of TDA9178 1 093 AMS Luminance amplitude input 1 094 LDH Luminance histogram 1 095 FHS Line frequency selection 0 096 WLB Window letterbox format 1 097 DEM Demodulation mode on/off 0 098 CD2-O Chroma delay 0 099 OSP Overrule smart peaking 0 100 WPO White point stretch off 0 101 DSK Dynamic skintone on/off 1 102 ASK Dynamic skintone angle 0 103 WSK Dynamic skintone width 0 104 SSK Dynamic skintone size 1 105 DGR Green enhancement on/off 1 106 GGR Green enhancement gain 0 107 WGR Green enhancement width 0 108 SGR Green enhancement size 1 109 DBL Blue stretch on/off 0 110 GBL Blue stretch gain 0 111 SBL Blue stretch size 0 112 BON Black offset on/off 0 113 BT5-0 Adaptive black stretch 0 114 NL5-0 Non linearity amplifier 0 115 VG5-0 Variable gamma 32 116 9178 CFS-RF Contour filter section for RF 1 117 9178 VDC-RF Video dependent coring on/off for RF 1 118 9178 CDS-RF Colour sharpness on/off for RF 0 119 9178 CTI-RF Colour transient improvement on/off for RF 1 120 9178 PK-RF Peaking amplitude for RF 35 121 9178 SP-RF Steepness correction for RF 32 122 9178 CR-RF Coring Level for RF 32 123 9178 LW-RF Line width for RF 32 124 UOC COR-RF Video dependent coring (peaking) for RF 3 125 UOC PeakFreq-RF Peaking control for RF 3 126 SCA Lit H Flt-RF Sharpness Horiz. Filtering for RF 30 127 SCA Lit V Flt-RF Sharpness Vert.Filtering for RF 27 128 9178 CFS-AV Contour filter section for AV 1 129 9178 VDC-AV Video dependent coring on/off for AV 1 130 9178 CDS-AV Colour sharpness on/off for AV 0 131 9178 CTI-AV Colour transient improvement on/off for AV 1 132 9178 PK-AV Peaking amplitude for AV 35 133 9178 SP-AV Steepness correction for AV 32 134 9178 CR-AV Coring Level for AV 20 135 9178 LW-AV Line width for AV 32 136 UOC COR-AV Video dependent coring (peaking) for AV 3 137 UOC PeakFreq-AV Peaking control for AV 3 138 SCA Lit H Flt-AV Sharpness Horiz. Filtering for AV 38 139 SCA Lit V Flt-AV Sharpness Vert.Filtering for AV 27 140 HPOS50 Horizontal position for 50Hz 425 141 VPOS50 Vertical position for 50Hz 14 142 HPOS60 Horizontal position for 60Hz 396 143 VPOS60 Vertical position for 60Hz 16 144 SACR ADC Clamp Red 17 145 SACG ADC Clamp Green 17 146 SACB ADC Clamp Blue 17 147 SAGR ADC Gain Red 31 148 SAGG ADC Gain Green 31 149 SAGB ADC Gain Blue 31 150 Reserved Not used 151 Reserved Not used 152 Reserved Not used 153 Reserved Not used 154 Reserved Not used 155 OP AUDIO CONFIG Not used 2 156 OP DUB DBE DBE/DUB/BBE control for study 0 157 AVL-LEV AVL reference level 5 158 AVL-WGT AVL weighting filter 0 159 AVL-MOD AVL decay time 3

-10-

On-Screen Service Menu System

No. Title Explanation Initial Value

160 LOUD-NA Main loudness none attack volume level 3 161 LOUD-CH Main loudness filter characteristic 0 162 BBE-CONT BBE contour value 10 163 BBE-PROC BBE process value 10 164 OP CLIP Clip management 0 165 ADC-AV-L Level adjust ADC 16 166 DEC-LEV Level adjust DEC 16 167 MONO-LEV Level adjust MONO 10 168 NIC-LEV Level adjust NICAM 16 169 SAP-LEV Level adjust SAP 16 170 E2D Audio output signal on the AUDEEM pin. 0

171 FFI

Value of the last set in video signal process

172 MR VOL L

Master volume Low

173 MR VOL H

Master volume High

4 174 L HI CUT Equalizer MAIN channel band 5 (8000Hz) 26 175 ASD SC1 THR 16 176 AGN Gain FM demodulator 0 177 OVMADAPT FM over modulation adaptation 1

178 OVMTHR

Over modulation level threshold relative to nominal

3 179 CHSE PAL/NTSC ident sensitivity 3

180 NLEL NICAM lower error limit 100 181 NUEL NICAM upper error limit 200 182 DSG Gai audio in out 1 183 FMWS Window size for FM demodulator 1 184 CV2 CVBS2 input signal selection 0 185 PA-BA-MU 48 186 PA-TR-MU 45 187 PA-BA-TK 28 188 PA-TR-TK 40 189 PA-BA-NR 32 190 PA-TR-NR 32 191 BEEP-VOL Alarm beeper volume 25 192 BEEP-FRQ Alarm beeper frequency 4 193 AGC Speed IF AGC speed 1 194 AGC Take over AGC take over 23 195 OIF Offset IF demodulator 32 196 VA Video output signal amplitude 0 197 VAI System I output signal amplitude correction 0 198 SVO Function of IFVO/SVO/CVBS1 pin 0 199 GD Group delay on CVBS1 signal 1

200 BPB

Bypass of sound bandpass filter at mono mode

0 201 BPB2 Bypass of sound bandpass filter section 2 1

202 OSD-H-POS On-screen Display Horizontal position 6 203 CL Cathode dr ive level 0 204 PGR Preset Gain Red 45 205 PGG Preset Gain Green 45 206 PGB Preset Gain Blue 45 207 Back Light Back-light 63 208 BL PWMMin Back-light PWM Min. control 0 209 BL PWMMax Back-light PWM Max. control 255 210 BL PWMFreq Back-light PWM Frequency control 240 211 GAMMA Ganma 32 212 BRIFE Brightness control 52 213 SATBE Saturation control 23 214 CONBE 40 215 PANEL (Not used) 0 216 LPG RGB gain preset 1 217 EGL Enable gain loop in the CCC system 0 218 RBL RGB blanking 0 219 OffsetMid 16 220 OffsetMin 48 221 OffsetMax 41 222 Interval 2 223 Wait-OffMid 8 224 Wait-OffMin 8 225 Wait-Next 8 226 Wait-Step 4 227 Wait Time 30 228 Judge Width 1 229 Scan Time Auto Scan Time/Min. value=0 x 04 6 230 Phi1 Phase 1 time constant

(Should be very slow.)

2 231 Reserved Not used 232 Reserved Not used 233 Reserved Not used 234 Reserved Not used 235 Reserved Not used 236 Reserved Not used 237 Reserved Not used 238 Reserved Not used 239 CC-VPos Closed Caption Vertical Position 0 240 CC-HPos Closed Caption Horizontal Position 14 241 HSyncDelay 4 242 POS change Post Video & Sound mute time POS

change to with ident channel

1 243 POS chg no sig Post Video & Sound mute time POS

change to with no ident channel

244 Zoom or Text Post Video & Sound mute time at zoom

mode change and text mode 245 NICPLIM DCXO scaling control limit 96 246 CC-Wait 0 247 CC-LINE 21

+ 22 hidden pages
