SERVICE MANUAL (Basic Information)

W

CM3212 / KMS0712 (✕ 2)+KMS1812

SPLIT SYSTEM AIR CONDITIONER

Indoor Unit Outdoor Unit

CM3212

KMS0712

KMS1812

8526481017300 REFERENCE NO. WM–700699

SERVICE MANUAL

CM3212 / KMS0712(×2)+KMS1812

(Basic Information)

ii

WM– 700699

IMPORTANT!

DANGER:

WARNING:

CAUTION:

Please Read Before Starting

This air conditioning system meets strict safety and operating
standards. As the installer or service person, it is an important
part of your job to install or service the system so it operates
safely and efficiently.

For safe installation and trouble-free operation, you must:

●

Carefully read this instruction booklet before beginning

●

Follow each installation or repair step exactly as shown

●

Observe all local, state, and national electrical codes

●

Pay close attention to all danger, warning, and caution
notices given in this manual

This symbol warns of an imme­diate hazard which will result in
severe personal injury or death.

This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or
death.

• Connect all wiring tightly. Loose wiring may cause over­heating at connection points and a possible fire hazard.

When Transporting

Be careful when picking up and moving the indoor and out­door units. Get a partner to help, and bend your knees when
lifting to reduce strain on your back. Sharp edges or thin
aluminum fins on the air conditioner can cut your fingers.

When Installing…

…In a Ceiling or Wall

Make sure the ceiling/wall is strong enough to hold the
unit’s weight. It may be necessary to construct a strong
wood or metal frame to provide added support.

…In a Room

Properly insulate any tubing run inside a room to prevent
“sweating” that can cause dripping and water damage to
walls and floors.

…In Moist or Uneven Locations

Use a raised concrete pad or concrete blocks to provide a
solid, level foundation for the outdoor unit. This prevents
water damage and abnormal vibration.

This symbol refers to a hazard
or unsafe practice which can
result in personal injury or prod­uct or property damage.

If Necessary, Get Help

These instructions are all you need for most installation
sites and maintenance conditions. If you require help for a
special problem, contact our sales/service outlet or your
certified dealer for additional instructions.

In Case of Improper Installation

The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.

SPECIAL PRECAUTIONS

When Wiring

ELECTRICAL SHOCK CAN CAUSE SEVERE PER­SONAL INJURY OR DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.

• Do not supply power to the unit until all wiring and tub­ing are completed or reconnected and checked.

• Highly dangerous electrical voltages are used in this sys­tem. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inad­equate grounding can cause accidental injury or death.

• Ground the unit following local electrical codes.

…In an Area with High Winds

Securely anchor unit down with bolts and metal frame.
Provide a suitable air baffle.

…In a Snowy Area (for Heat Pump-type Systems)

Install the outdoor unit on a raised platform that is higher
than drifting snow. Provide snow vents.

When Connecting Refrigerant Tubing

• Keep all tubing runs as short as possible.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the
flare and union tubes before connecting them, then tighten
the nut with a torque wrench for a leak-free connection.

• Check carefully for leaks before starting the test run.

NOTE:

Depending on the system type, liquid and gas lines may be
either narrow or wide. Therefore, to avoid confusion the
refrigerant tubing for your particular model is specified as
either “narrow” or “wide” rather than as “liquid” or “gas.”

When Servicing

• Turn the power OFF at the main power box (mains)
before opening the unit to check or repair electrical parts.

• Keep your fingers and clothing away from any moving
parts.

• Clean up the site after you finish, remembering to check
that no scraps or bits of wiring have been left inside the
unit being serviced.

iii

WM– 700699

Table of Contents

Page

1. OPERATING RANGE............................................................................................................................... 1

2. SPECIFICATIONS .................................................................................................................................... 2

Unit Specifications ....................................................................................................................................... 2

Applicable Indoor Unit................................................................................................................................. 3

3. DIMENSIONAL DATA.............................................................................................................................. 5

4. COOLING CAPACITY ............................................................................................................................. 7

5. REFRIGERANT FLOW DIAGRAM....................................................................................................... 11

6. ELECTRICAL DATA ................................................................................................................................12

● Electrical Characteristics ....................................................................................................................... 12

● Electrical Wiring Diagram..................................................................................................................... 14

iv

WM– 700699

1. OPERATING RANGE

CM3212 / KMS0712(× 2)+KMS1812

Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.

Maximum 95°F DB / 71°F WB 115°F DB

Minimum 67°F DB / 57°F WB 67°F DB

1

WM– 700699

2. SPECIFICATIONS

Unit Specifications

Model No.

No. of indoor units

Capacity

Performance

Phase, Frequency Hz

Voltage rating V

Available voltage range V

Running amperes A

Power input W

Power factor %

Electrical Rating

Starting amperes A

S. E. E. R. BTU/Wh

Fan speeds Automatic (2)

Compressor … number Rotary, 500 W … 2 / 1,400 W … 1

Refrigerant amount charged at shipment lbs. (kg) R-22: 1.83 × 2 (0.83 × 2) / 4.14 (1.88)

Refrigerant control Capillary tube

Operation sound (Outdoor unit) dB-A 62

Refrigerant tubing connections Flare type

Max. allowable tubing length at shipment ft. (m) 33 (10)

Features

Limit of tubing length ft. (m) 7,000 BTU: 50 (15) / 18,000 BTU: 65 (20)

Limit of elevation difference ft. (m) 23 (7)
between the 2 units

Refrigerant tube o.d.

Refrigerant tube kit Optional

Height in. (mm) 32-1/16 (815)

Width in. (mm) 26-3/8 (670)

Depth in. (mm) 26-3/8 (670)

Net weight lbs. (kg) 220 (99)

Weight

Shipping volume cu. ft. (cu. m) 19.5 (0.552)

Dimensions &

Shipping weight (Approx.) lbs. (kg) 242 (110)

Remarks: Rating conditions are: Outside air temperature 95°F DB/ 75°F WB

Outdoor unit CM3212

Applicable indoor unit KMS0712, KMS1812

BTU/h

kW

Narrow tube in. (mm) 1/4 (6.35)

Wide tube in. (mm) 7,000 BTU: 3/8 (9.52) / 18,000 BTU: 1/2 (12.7)

Indoor unit entering air temperature 80°F DB/67°F WB

1 unit – A

7,000 / 7,000

2.05 / 2.05

Single, 60

230 / 208

187 to 253

3.3 / 3.5

750 / 720

99 / 99

24

10.0 / 10.0

1 unit – B

18,000 / 18,000

5.27 / 5.27

Single, 60

230 / 208

187 to 253

8.9 / 9.5

2,000 / 1,950

99 / 99

56

10.0 / 10.0

Cooling

2 units – A + A

14,000 / 14,000

4.10 / 4.10

Single, 60

230 / 208

187 to 253

6.7 / 7.2

1,540 / 1,490

99 / 99

24 × 2

10.0 / 10.0

2 units – A + B

25,000 / 25,000

7.33 / 7.33

Single, 60

230 / 208

187 to 253

11.8 / 12.6

2,700 / 2,600

99 / 99

24 + 56

10.0 / 10.0

DATA SUBJECT TO CHANGE WITHOUT NOTICE.

3 units – A + A + B

32,000 / 32,000

9.38 / 9.38

Single, 60

230 / 208

187 to 253

15.0 / 16.0

3,400 / 3,300

99 / 99

24 × 2 + 56

10.0 / 10.0

WM– 700699

2

Applicable Indoor Unit

Model No. KMS0712

Type Wall-mounted

Cooling

Capacity

Air circulation (High) cu. ft./min. 220 / 210

Performance

Moisture removal (High) pints/h 2.2 / 2.1

Phase, Frequency Hz Single, 60

Voltage rating V 230 / 208

Rating

Electrical

Available voltage range V 187 to 253

Controls Microprocessor

Control unit Wireless remote control unit

Temperature control IC thermostat

Timer ON/OFF 24-hours & Program

Fan speeds 3

Air deflector Horizontal / Vertical Manual / Manual

Air filter Washable, easy access

Features

Operation sound Hi / Me / Lo dB-A 45 / 35 / 30

Refrigerant tubing connections Flare type

Narrow tube in. (mm) 1/4 (6.35)

Refrigerant tube o.d.

Wide tube in. (mm) 3/8 (9.52)

Refrigerant tube kit Optional

Accessories Hanging wall bracket

Height in. (mm) 13-19/32 (345)

Width in. (mm) 31-1/2 (800)

Depth in. (mm) 7-3/32 (180)

Net weight lbs. (kg) 24 (11)

Weight

Shipping volume cu. ft. (cu. m) 3.3 (0.093)

Dimensions &

Shipping weight lbs. (kg) 29 (13)

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor unit entering air temperature 80°F DB/67°F WB

BTU/h 7,000 / 7,700

kW 2.05 / 2.05

DATA SUBJECT TO CHANGE WITHOUT NOTICE.

3

WM– 700699

Applicable Indoor Unit

Model No. KMS1812

Type Wall-mounted

Cooling

Capacity

Air circulation (High) cu. ft./min. 440 / 420

Performance

Moisture removal (High) pints/h 5.3 / 5.2

Phase, Frequency Hz Single, 60

Voltage rating V 230 / 208

Rating

Electrical

Available voltage range V 187 to 253

Controls Microprocessor

Control unit Wireless remote control unit

Temperature control IC thermostat

Timer ON/OFF 24-hours & Program

Fan speeds 3

Air deflector Horizontal / Vertical Manual / Manual

Air filter Washable, easy access

Features

Operation sound Hi / Me / Lo dB-A 47 / 44 / 40

Refrigerant tubing connections Flare type

Narrow tube in. (mm) 1/4 (6.35)

Refrigerant tube o.d.

Wide tube in. (mm) 1/2 (12.7)

Refrigerant tube kit Optional

Accessories Hanging wall bracket

Height in. (mm) 14-3/16 (360)

Width in. (mm) 38-31/32 (990)

Depth in. (mm) 7-25/32 (198)

Net weight lbs. (kg) 30 (13.5)

Weight

Shipping volume cu. ft. (cu. m) 4.8 (0.136)

Dimensions &

Shipping weight lbs. (kg) 37 (17)

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor unit entering air temperature 80°F DB/67°F WB

BTU/h 18,000 / 17,600

kW 5.27 / 5.16

DATA SUBJECT TO CHANGE WITHOUT NOTICE.

4

WM– 700699

3. DIMENSIONAL DATA

Air intake

21/32

Air intake Air intake

21/32

25-1/16

26-3/8

21/32

26-3/8

25-1/16

4 × 15/32 dia. hole for fixing

26-7/32

Air dischange

1/4" narrow tubing service valve

1/2" wide tubing service valve

32-1/16

28-1/32

5-7/16

5-3/8

3-5/32 2-3/4 5-1/4

26-7/32

3/8" wide tubing service valve

Outdoor Unit: CM3212

5

WM– 700699

Indoor Unit: KMS0712

Wireless remote
control unit

31-1/2 7-3/32

7-11/64 17-23/32

Rear panel
(center point
of gravity)

6-23/32

13-19/32

1-49/64

3-3/4

15/32

1-49/64

1-3/8

5-1/2

1-49/64

Center of
tubing hole

(for right
rear)

O.D. 3/8" wide tubing

O.D. 1/4" narrow tubing

Drain hose O.D. 23/32

1-5/8

6-7/64

2-13/64 19/32

38-31/32

14-3/16

7-25/32

Rear panel
(Center point of gravity)

Drain hose O.D. 1-1/4

Narrow tube O.D. 1/4"

Wide tube O.D. 1/2"

Center of
tubing hole
(For right rear)

5-19/32

1-61/64

Wireless remote
control unit

6-7/64

2-13/64 19/32

Indoor Unit: KMS1812

6

WM– 700699

4. COOLING CAPACITY

230V

CM3622 / KMS0712× 1

Rating Capacity: 7,000 BTU/H Air Flow Rate: 220 CFM

Evaporator Condenser

Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)

WB DB

TC 6,930 6,620 6,300 5,940 5,460

kW 0.48 0.52 0.57 0.61 0.67

59 72 (22.2) SHC 5,290 5,130 4,980 4,810 4,590

(15.0) 76 (24.4) SHC 6,030 5,880 5,730 5,560 5,330

80 (26.7) SHC 6,810 6,620 6,300 5,940 5,460
84 (28.9) SHC 6,930 6,620 6,300 5,940 5,460
88 (31.1) SHC 6,930 6,620 6,300 5,940 5,460

TC 7,170 6,940 6,670 6,310 5,810

kW 0.48 0.53 0.57 0.62 0.69

63 72 (22.2) SHC 4,390 4,290 4,170 4,010 3,800

(17.2) 76 (24.4) SHC 5,130 5,030 4,910 4,750 4,540

80 (26.7) SHC 5,910 5,810 5,690 5,530 5,320
84 (28.9) SHC 6,650 6,550 6,430 6,270 5,810
88 (31.1) SHC 7,170 6,940 6,670 6,310 5,810

TC 7,360 7,250 *7,000 6,620 6,610

kW 0.48 0.53 0.58 0.63 0.70

67 72 (22.2) SHC 3,470 3,420 3,320 3,170 2,990

(19.4) 76 (24.4) SHC 4,210 4,160 4,060 3,910 3,730

80 (26.7) SHC 4,990 4,940 4,840 4,680 4,510
84 (28.9) SHC 5,730 5,680 5,580 5,430 5,250
88 (31.1) SHC 6,470 6,420 6,320 6,170 5,990

TC 7,600 7,470 7,280 6,950 6,550

kW 0.49 0.54 0.59 0.65 0.72

71 72 (22.2) SHC 2,520 2,470 2,400 2,280 2,140

(21.7) 76 (24.4) SHC 3,260 3,210 3,140 3,020 2,880

80 (26.7) SHC 4,040 3,990 3,920 3,800 3,660
84 (28.9) SHC 4,780 4,730 4,660 4,540 4,400
88 (31.1) SHC 5,520 5,480 5,410 5,290 5,140

TC 7,740 7,660 7,490 7,220 6,930

kW 0.50 0.55 0.60 0.66 0.73

75 76 (24.4) SHC 2,320 2,290 2,240 2,150 2,050

(23.9) 80 (26.7) SHC 3,100 3,070 3,010 2,920 2,830

84 (28.9) SHC 3,840 3,810 3,750 3,670 3,570
88 (31.1) SHC 4,580 4,550 4,500 4,410 4,310

75 85 95 105 115

(23.9) (29.4) (35.0) (40.6) (46.1)

TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)

Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB

Indoor unit entering air temperature 80°F DB/67°F WB

7

WM– 700699

208V

CM3622 / KMS0712× 1

Rating Capacity: 7,000 BTU/H Air Flow Rate: 210 CFM

Evaporator Condenser

Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)

WB DB

TC 6,930 6,620 6,300 5,940 5,460

kW 0.47 0.51 0.56 0.60 0.66

59 72 (22.2) SHC 5,220 5,070 4,920 4,750 4,520

(15.0) 76 (24.4) SHC 5,940 5,780 5,630 5,460 5,240

80 (26.7) SHC 6,690 6,530 6,300 5,940 5,460
84 (28.9) SHC 6,930 6,620 6,300 5,940 5,460
88 (31.1) SHC 6,930 6,620 6,300 5,940 5,460

TC 7,170 6,940 6,670 6,310 5,810

kW 0.47 0.52 0.56 0.61 0.68

63 72 (22.2) SHC 4,360 4,250 4,130 3,970 3,760

(17.2) 76 (24.4) SHC 5,070 4,970 4,850 4,690 4,470

80 (26.7) SHC 5,820 5,720 5,590 5,430 5,220
84 (28.9) SHC 6,530 6,430 6,310 6,150 5,810
88 (31.1) SHC 7,170 6,940 6,670 6,310 5,810

TC 7,360 7,250 *7,000 6,620 6,160

kW 0.48 0.52 0.57 0.62 0.69

67 72 (22.2) SHC 3,460 3,410 3,310 3,160 2,970

(19.4) 76 (24.4) SHC 4,170 4,130 4,030 3,870 3,690

80 (26.7) SHC 4,920 4,870 4,770 4,620 4,400
84 (28.9) SHC 5,640 5,590 5,490 5,330 5,150
88 (31.1) SHC 6,350 6,300 6,200 6,050 5,860

TC 7,600 7,470 7,280 6,950 6,550

kW 0.48 0.53 0.58 0.64 0.70

71 72 (22.2) SHC 2,540 2,490 2,420 2,300 2,150

(21.7) 76 (24.4) SHC 3,250 3,210 3,140 3,020 2,870

80 (26.7) SHC 4,000 3,950 3,880 3,760 3,620
84 (28.9) SHC 4,720 4,670 4,600 4,480 4,330
88 (31.1) SHC 5,430 5,380 5,310 5,190 5,040

TC 7,740 7,660 7,490 7,220 6,930

kW 0.49 0.54 0.59 0.65 0.72

75 76 (24.4) SHC 2,340 2,310 2,260 2,170 2,070

(23.9) 80 (26.7) SHC 3,090 3,060 3,000 2,910 2,820

84 (28.9) SHC 3,800 3,770 3,720 3,630 3,530
88 (31.1) SHC 4,520 4,490 4,430 4,340 4,250

75 85 95 105 115

(23.9) (29.4) (35.0) (40.6) (46.1)

TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)

Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB

Indoor unit entering air temperature 80°F DB/67°F WB

8

WM– 700699

230V

CM3622 / KMS1812

Rating Capacity: 18,000 BTU/H Air Flow Rate: 440 CFM

Evaporator Condenser

Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)

WB DB

TC 17,820 17,010 16,200 15,280 14,040

kW 1.30 1.41 1.54 1.67 1.83

59 72 (22.2) SHC 12,350 11,900 11,460 10,970 10,340

(15.0) 76 (24.4) SHC 13,720 13,270 12,830 12,350 11,710

80 (26.7) SHC 15,150 14,700 14,260 13,780 13,140
84 (28.9) SHC 16,520 16,070 15,630 15,150 14,040
88 (31.1) SHC 17,820 17,010 16,200 15,280 14,040

TC 18,430 17,860 17,150 16,220 14,940

kW 1.31 1.43 1.56 1.70 1.87

63 72 (22.2) SHC 10,550 10,260 9,910 9,450 8,840

(17.2) 76 (24.4) SHC 11,920 11,630 11,280 10,820 10,210

80 (26.7) SHC 13,350 13,060 12,710 12,250 11,640
84 (28.9) SHC 14,720 14,430 14,080 13,620 13,010
88 (31.1) SHC 16,090 15,800 15,450 14,990 14,380

TC 18,940 18,630 *18,000 17,010 15,840

kW 1.32 1.45 1.58 1.72 1.91

67 72 (22.2) SHC 8,680 8,540 8,250 7,800 7,290

(19.4) 76 (24.4) SHC 10,050 9,910 9,620 9,180 8,660

80 (26.7) SHC 11,480 11,340 11,050 10,610 10,100
84 (28.9) SHC 12,850 12,710 12,420 11,980 11,470
88 (31.1) SHC 14,220 14,080 13,790 13,350 12,840

TC 19,530 19,210 18,720 17,870 16,830

kW 1.33 1.46 1.60 1.77 1.95

71 72 (22.2) SHC 6,760 6,630 6,430 6,080 5,660

(21.7) 76 (24.4) SHC 8,130 8,000 7,800 7,450 7,040

80 (26.7) SHC 9,570 9,430 9,230 8,880 8,470
84 (28.9) SHC 10,940 10,800 10,600 10,260 9,840
88 (31.1) SHC 12,310 12,170 11,970 11,630 11,210

TC 19,910 19,690 19,260 18,580 17,820

kW 1.36 1.49 1.63 1.81 2.00

75 76 (24.4) SHC 6,210 6,130 5,970 5,720 5,440

(23.9) 80 (26.7) SHC 7,640 7,560 7,400 7,150 6,880

84 (28.9) SHC 9,010 8,930 8,770 8,520 8,250
88 (31.1) SHC 10,390 10,300 10,140 9,890 9,620

75 85 95 105 115

(23.9) (29.4) (35.0) (40.6) (46.1)

TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)

Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB

Indoor unit entering air temperature 80°F DB/67°F WB

9

WM– 700699

208V

CM3622 / KMS1812

Rating Capacity: 17,600 BTU/H Air Flow Rate: 420 CFM

Evaporator Condenser

Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)

WB DB

TC 17,420 16,630 15,840 14,940 13,730

kW 1.30 1.41 1.54 1.67 1.83

59 72 (22.2) SHC 10,040 9,520 9,030 8,470 7,750

(15.0) 76 (24.4) SHC 11,360 10,850 10,350 9,790 9,070

80 (26.7) SHC 12,740 12,230 11,730 11,170 10,450
84 (28.9) SHC 14,060 13,550 13,050 12,490 11,770
88 (31.1) SHC 15,380 14,870 14,370 13,820 13,090

TC 18,020 17,460 16,770 15,860 14,610

kW 1.31 1.43 1.56 1.70 1.87

63 72 (22.2) SHC 8,030 7,690 7,300 6,780 6,090

(17.2) 76 (24.4) SHC 9,350 9,020 8,620 8,100 7,410

80 (26.7) SHC 10,730 10,400 10,000 9,480 8,790
84 (28.9) SHC 12,050 11,720 11,320 10,800 10,110
88 (31.1) SHC 13,370 13,040 12,640 12,120 11,430

TC 18,520 18,220 *17,600 16,630 15,490

kW 1.32 1.45 1.58 1.72 1.91

67 72 (22.2) SHC 5,950 5,790 5,460 4,970 4,390

(19.4) 76 (24.4) SHC 7,270 7,110 6,790 6,290 5,710

80 (26.7) SHC 8,650 8,490 8,170 7,670 7,090
84 (28.9) SHC 9,970 9,810 9,490 8,990 8,410
88 (31.1) SHC 11,290 11,130 10,810 10,310 9,730

TC 19,100 18,780 18,300 17,480 16,460

kW 1.33 1.46 1.60 1.77 1.95

71 72 (22.2) SHC 3,830 3,680 3,460 3,070 2,610

(21.7) 76 (24.4) SHC 5,160 5,000 4,780 4,390 3,930

80 (26.7) SHC 6,540 6,380 6,160 5,770 5,310
84 (28.9) SHC 7,860 7,700 7,480 7,090 6,630
88 (31.1) SHC 9,180 9,030 8,800 8,410 7,950

TC 19,470 19,250 18,830 18,160 17,420

kW 1.36 1.49 1.63 1.81 2.00

75 76 (24.4) SHC 3,050 2,960 2,780 2,500 2,200

(23.9) 80 (26.7) SHC 4,430 4,340 4,160 3,880 3,580

84 (28.9) SHC 5,750 5,660 5,480 5,200 4,900
88 (31.1) SHC 7,070 6,980 6,800 6,520 6,220

75 85 95 105 115

(23.9) (29.4) (35.0) (40.6) (46.1)

TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)

Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB

Indoor unit entering air temperature 80°F DB/67°F WB

10

WM– 700699

OUTDOOR UNIT

INDOOR UNIT

UNIT A

Heat exchanger

Heat exchanger

INDOOR UNIT

UNIT B

Heat exchanger

INDOOR UNIT

UNIT C

Heat exchanger

Narrow
tube
service valve

Capillary tube Drier

A

B

C

Check
port A

Check
port B

Check
port C

Accumulator

Accumulator

Accumulator

Compressor C

Compressor B

Compressor A

Narrow tube
O.D.
1/4" (6.35 mm)

O.D.
1/4" (6.35 mm)

O.D.
1/4" (6.35 mm)

Wide tube
O.D.
3/8" (9.52 mm)

O.D.
3/8" (9.52 mm)

O.D.
1/2" (12.7 mm)

Wide tube
service
valve

A

B

C

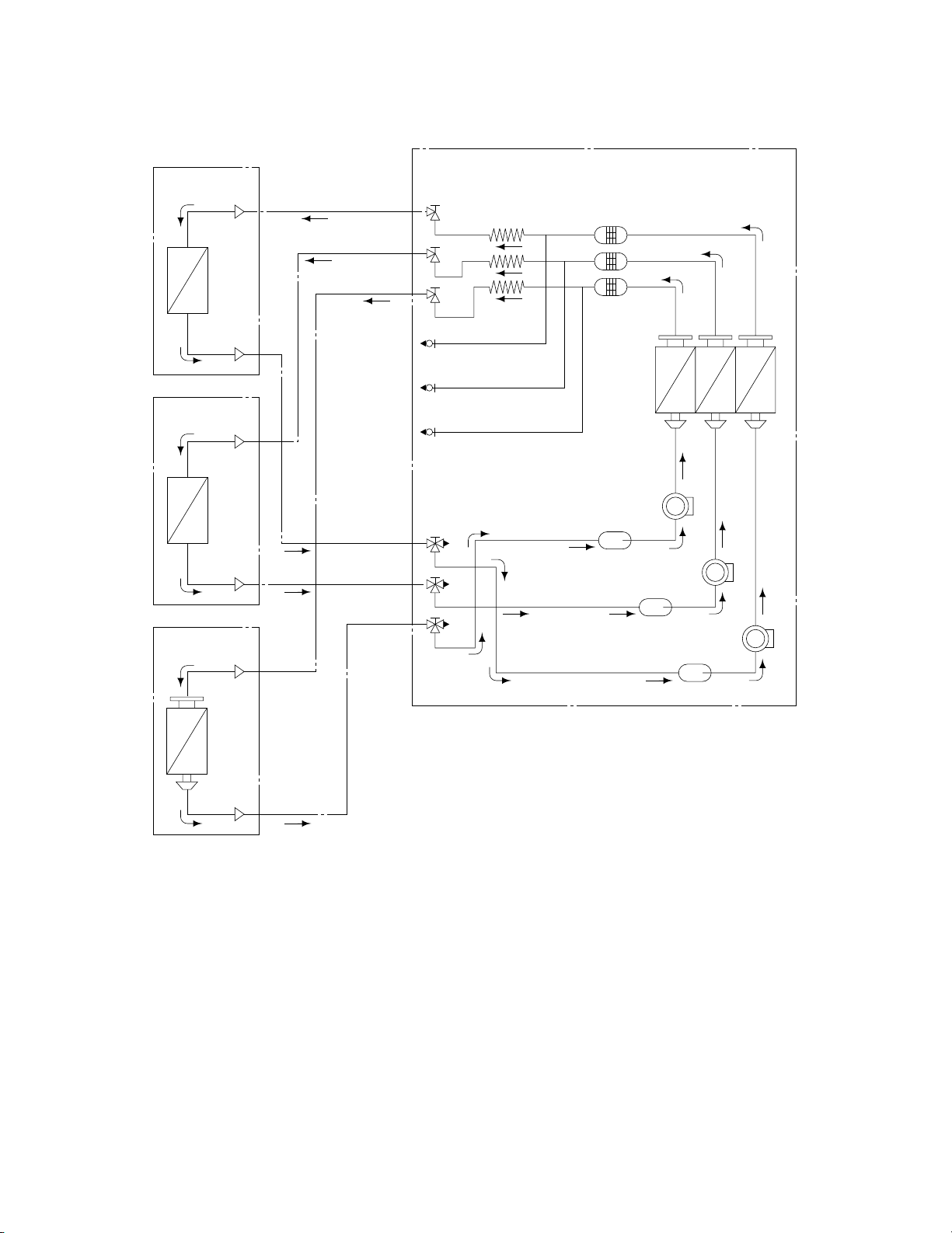

5. REFRIGERANT FLOW DIAGRAM

11

WM– 700699

6. ELECTRICAL DATA

● Electrical Characteristics

CM3212 / KMS0712× 1

Performance at
230/208V – 1ø – 60Hz

Rating Conditions

Locked-Rotor Amperes A 0.19 / 0.18 1.95 / 1.77 22 —

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor Unit Outdoor Unit

Fan Motor Fan Motor Compressor

A 0.15 / 0.14 0.62 / 0.56 2.53 / 2.80 3.3 / 3.5

W 34 / 28 140 / 126 576 / 566 750 / 720

Indoor unit entering air temperature 80°F DB/67°F WB

Complete Unit

CM3212 / KMS1812× 1

Performance at
230/208V – 1ø – 60Hz

Rating Conditions

Locked-Rotor Amperes A 0.45 / 0.40 1.95 / 1.77 54 —

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor Unit Outdoor Unit

Fan Motor Fan Motor Compressor

A 0.4 / 0.4 1.45 / 1.42 7.05 / 7.68 8.9 / 9.5

W 90 / 80 330 / 290 1,580 / 1,580 2,000 / 1,950

Indoor unit entering air temperature 80°F DB/67°F WB

Complete Unit

CM3212 / KMS7012× 2

Performance at
230/208V – 1ø – 60Hz

Rating Conditions

Locked-Rotor Amperes A (0.19 / 0.18) × 2 1.95 / 1.77 22 × 2—

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor Units Outdoor Unit

Fan Motor Fan Motor Compressor

A 0.30 / 0.28 1.45 / 1.42 4.95 / 5.5 6.7 / 7.2

W 68 / 56 330 / 290 1,142 / 1,144 1,540 / 1,490

Indoor unit entering air temperature 80°F DB/67°F WB

Complete Unit

12

WM– 700699

CM3212 / KMS0712+KMS1812

Performance at
230/208V – 1ø – 60Hz

Rating Conditions

Indoor Units

Fan Motor Compressor

A 0.55 / 0.54 1.45 / 1.42 9.80 / 10.64 11.8 / 12.6

W 124 / 108 330 / 290 2,246 / 2,202 2,700 / 2,600

Outdoor Unit

Complete Unit

Locked-Rotor Amperes A 0.19 + 0.45 / 0.18 + 0.40 1.95 / 1.77 22 + 54 —

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor unit entering air temperature 80°F DB/67°F WB

CM3212 / KMS7012× 2+KMS1812

Performance at
230/208V – 1ø – 60Hz

Rating Conditions

A 0.70 / 0.68 1.45 / 1.42 12.85 / 13.90 15.0 / 16.0

W 158 / 136 330 / 290 2,912 / 2,874 3,400 / 3,300

Indoor Units

Locked-Rotor Amperes A 0.19 + 0.19 + 0.45 / 0.18 + 0.18 + 0.40 1.95 / 1.77 22 + 22 + 54 —

Remarks: Rating conditions are: Outside air temperature 95°F DB/75°F WB

Indoor unit entering air temperature 80°F DB/67°F WB

Outdoor Unit

Fan Motor Compressor

Complete Unit

13

WM– 700699

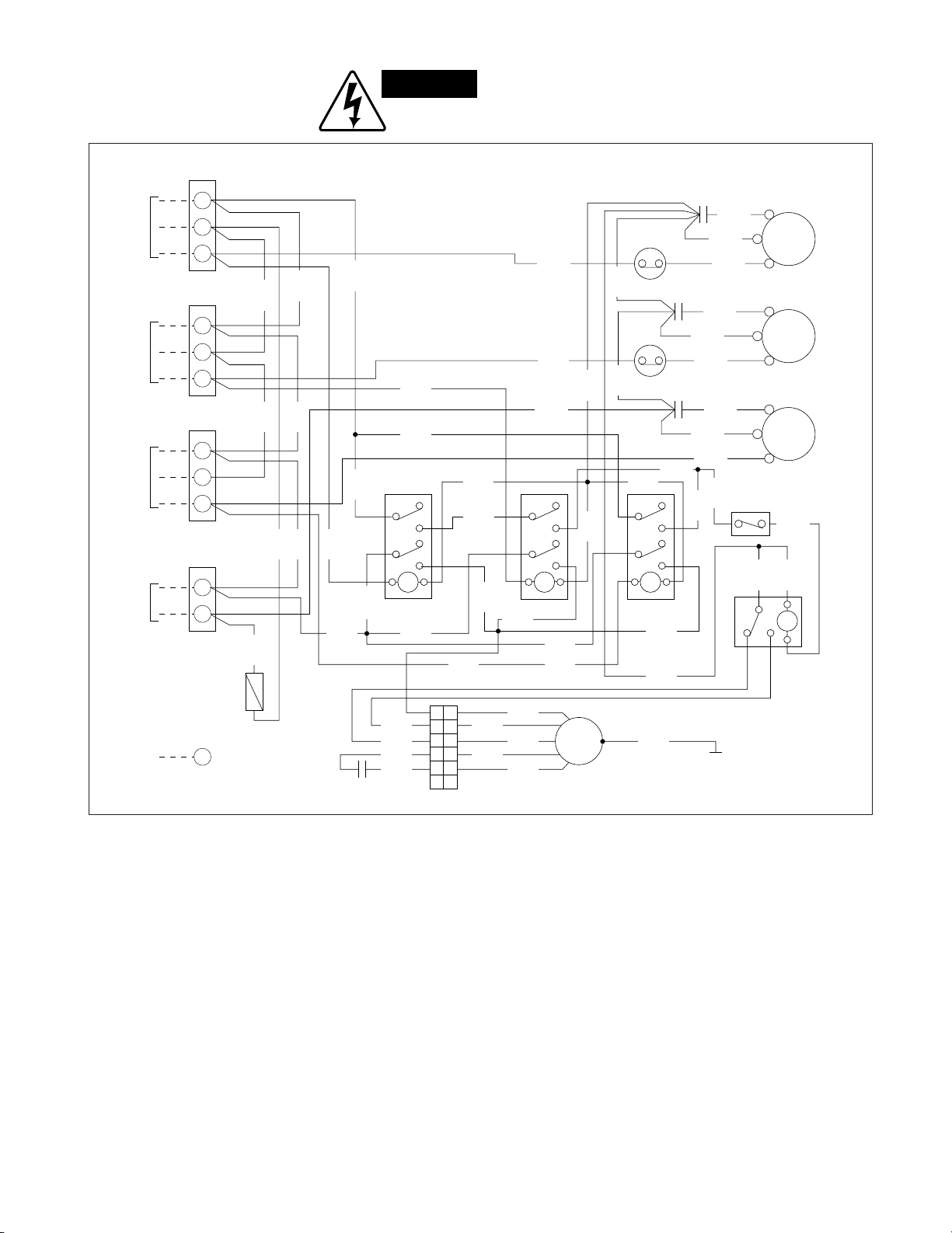

● Electrical Wiring Diagram

CMA

S

C

R

WHT

BLK

RED

CMB

S

C

R

BLK

WHT

RED

CMC

S

C

R

BLK

WHT

RED

2

3

TO INDOOR UNIT A

1

2

3

1

2

3

1

2

Power

supply

1

5

3

2

6

4

78

Fuse

1

5

3

2

6

4

78

1

5

3

2

6

4

78

P

5

4

3

2

1

6

5

4

3

2

1

1

Terminal
plate (3P) A

TO INDOOR UNIT B

Terminal
plate (3P) B

TO INDOOR UNIT C

Terminal
plate (3P) C

Terminal
plate (2P)

BLK

G

BLK

YEL

BRN

Capacitor C

WHT

YEL
PNK
BRN

6

S

WHT

PNK

YEL

BRN

GRY

FM

Connector (6P)

GRN

Fan motor

G

GRY

BLU

138

57

Relay

GRY

GRY

BLK

Thermostat

BLK

PNK

Relay C

GRY

PNK

GRY

Relay B

BLU

ORG

REDGRY

Relay A

ORGORG

ORG

YEL

BLK

YEL

BLK

YEL

YEL

BRN

ORG

BLK

GRY

BLK

ORG

BLK

Compressor
motor

Capacitor

CA

OLR A

Capacitor
CB

Capacitor
CC

OLR B

XA XB XC

GRY

PNK

BLU

1X

YEL

Compressor
motor

Compressor
motor

WARNING:

To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleaning any electrical parts.

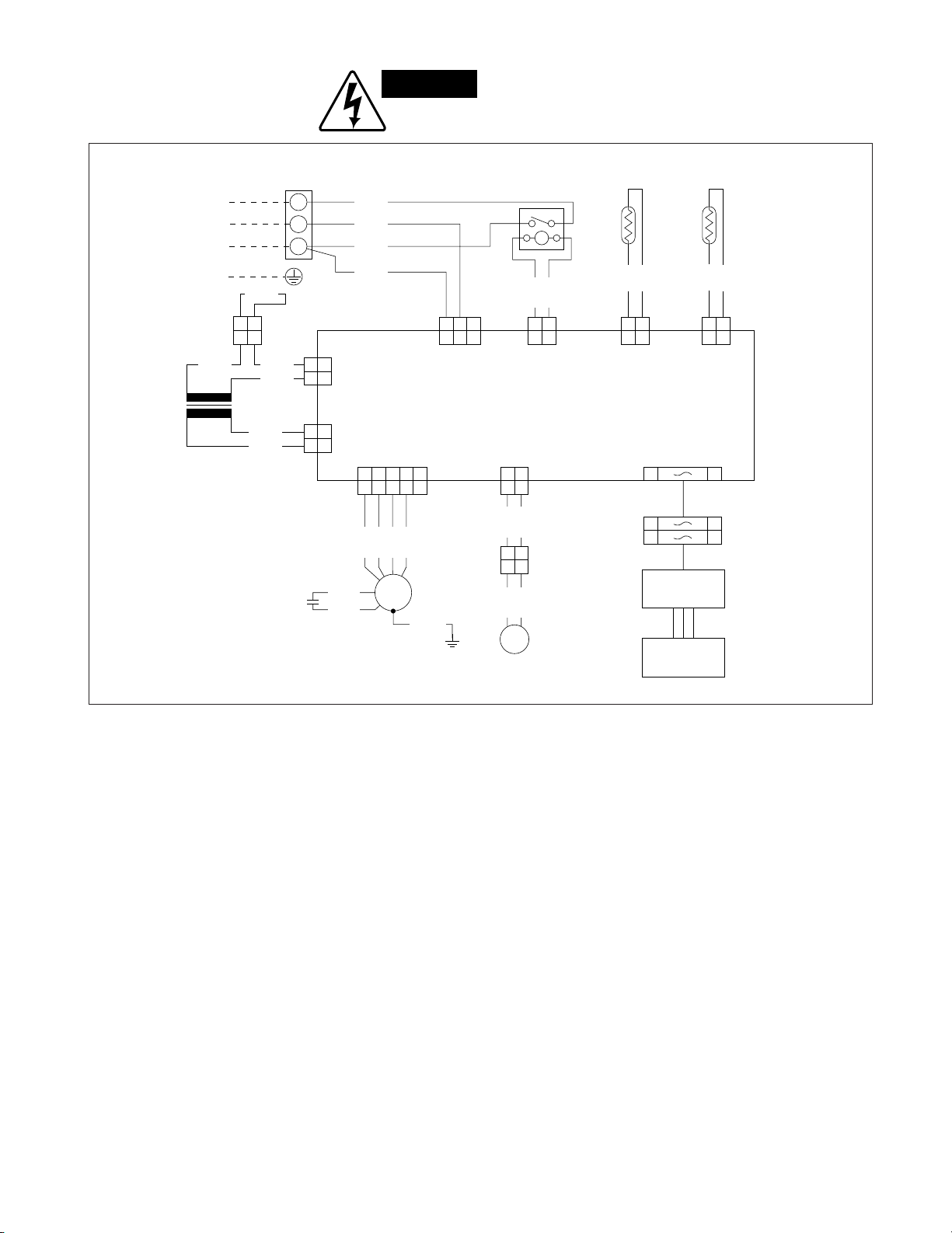

Outdoor Unit: CM3212

14

WM– 700699

Indoor Unit: KMS0712

1

3
3 221

1 221

1

121

2

1
1

9
9

554433221

1

55443322116

6

BLK
BLK

Thermistor

121

2

BLK
BLK

Thermistor

2P
TH1

2P
TH2

2P
CM

3P
Supply

CONTROLLER

Switch
assy

Receiver
assy

9P SW

Fan motor

FM

2

3

121

2

2P
SEC

BRN

PNK

GRY

YEL

VLT

WHT

GRY

YEL

VLT

WHT

Connector (6P)

5P FM

Capacitor

PNK

BRN

121

2

2P
PRY

WHT
WHT

SP

Power
transformer

BRN

WHT

BLK

RED

WHT

ORG

Relay

ORG

Terminal plate

TO OUTDOOR UNIT

GRN

G

G

212

1

BRN

BRN

BRN

Connector

228

8

g

WARNING:

To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleanin

any electrical parts.

15

WM– 700699

Indoor Unit: KMS1812

3

1
1 223

3 112

2

1 9554433221

1

2P
TH2

3P
Supply

CONTROLLER

Switch
assy

Switch assy

2

1

121

2

5P FM

GRY

YEL

VLT

2P LM

Capacitor

121

2

2P
SEC

S

P

Louver
motor

RED

WHT

BLU

BLK

Terminal plate

FROM OUTDOOR UNIT

Power relay

BLU

112

2

BLK

2P
TH1

BLK

112

2

BLK

112

2

112

2

LM

FM

GRN

2P
CM

2P
PRY

Transformer

BRN

BRN

WHT
WHT

1
1

9
9

Receiver
assy

9P
Connector

2P
Connector

WHT

Fan motor

BRN
PNK

GRY

GRY

GRY

GRY

Thermistor

BLK

BLK

Thermistor

121

2

BRN

BRN

Connector

g

WARNING:

To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleanin

any electrical parts.

16

WM– 700699

For parts or service contact

SFS Corporation: 1200 West Artesia Blvd., Compton, California 90220

Printed in U.S.A.

CORPORATION

1991/Nov./12M

SANYO Canada Inc.: Toronto, Ont. M4H 1M6In Canada

H406/12M Printed in U.S.A.

WM– 700699
