HDR-SR11/SR11E/SR12/SR12E

RMT-835

Ver. 1.2 2008.06

Revision History

Link

Before starting adjustments

Adjusting items when replacing main parts and boards

List of service tools

CAMERA SECTION ADJUSTMENTS

PREPARATIONS BEFORE ADJUSTMENTS

ADJUSTMENT PROGRAM

HDD SYSTEM ADJUSTMENTS

DESTINATION DATA WRITE

SECTION 6

ADJUSTMENTS

SERVICE MODE

APPLICATION FOR ADJUSTMENT (SeusEX)

SERVICE MODE

DATA BACKUP

Auto-ADJ

USB SERIAL No. INPUT

VIDEO SYSTEM ADJUSTMENTS

CAMERA SYSTEM ADJUSTMENTS

LCD/EVF SYSTEM ADJUSTMENTS

AUDIO SYSTEM ADJUSTMENTS

ERROR

• Use this Service Manual together with the Automatic Adjustment Program (HDR-SR11 Series Auto-Adj Ver_1.2r03.exe).

HDR-SR11/SR11E/SR12/SR12E_ADJ

9-852-254-53

Sony EMCS Co.

2008F0500-1

Published by Kohda TEC

Page 2

6. ADJUSTMENTS

Before starting adjustments

1-1. Adjusting items when replacing main parts and boards

When replacing main parts and boards, adjust the items indicated by z in the following table.

Note 1: The Automatic Adjustment Program does not support.

Note 2: When replacing the HDD block, refer to “HDD Replacement Procedure”. (See page 6-10)

Note 3: IC2101 (Flash memory) on the VC-516 board cannot be replaced.

Replaced parts

Parts replacementBlock replacement

Board

replacement

Adjusting item

Destination Data Write USB Serial No.

In (Note 1)

S VIDEO OUT an VIDEO OUT adjustment

COMPONENT OUT adjustment

CAMERA adjustment 1

CAMERA ad

ustment 2 CAMERA ad

ustment 3

CAMERA adjustment 4

CAMERA adjustment 5

CAMERA adjustment 6 CAMERA ad

ustment 7 CAMERA ad

ustment 8 LCD

adjustment

EVF adjustment

Touch panel ad

ustment

AUDIO adjustment Internal 3ch microphone sensitivity adj.

Adjustment

Destination data write

USB serial No. input

Origin oscillation check S VIDEO OUT Y level adj. S VIDEO OUT chroma level adj. VIDEO OUT level check COMPONENT OUT Y level adj. COMPONENT OUT Pb level adj. COMPONENT OUT Pr level adj. STEADY HALL adj. HALL & MR adj.

Flange back adj.

Flange back check

F No. & ND light qualiy standard data in Mechanical shutter ad Linear matrix adj. AWB standard data input LV standard data input AWB adj. Color reproduction adj. & check MAX GAIN adj. White defect adj. Black defect adj.

Strobe light level & white balance adj.

GYRO sensor sensitivity adj.

V-COM adj.

Transmissive mode white balance ad EVF automatic adj.

White balance adj.

Touch panel adj.

Lens device

HDD block (Note 2)

LCD block LCD901 (LCD panel)

EVF block LCD902 (LCD panel)

Flash unit

Microphone unit MIC901

CMOS block assy (Including CM-094 board and CMOS imager)

BL-017 board D5701 (EVF backlight)

FR-278 board SE9001, 9002 (PITCH, YAW sensor)

VC-516 board X1301 (Clock generator)

VC-516 board IC2401 (D/A conv.)

VC-516 board IC2501 (Component out AMP)

VC-516 board IC2801 (Video out, Audio I/O)

VC-516 board IC3101 (EVF drive)

PD-343 board IC5901 (LCD drive)

BL-017 board (COMPLETE)

FR-278 board (COMPLETE)

VC-516 board (COMPLETE)

PD-343 board (COMPLETE)

zzz

zz z

zzzz

zzzzz

zzz

HDR-SR11/SR11E/SR12/SR12E_ADJ

Table 6-1-1

6-1

Page 3

1-2. List of service tools

• Oscilloscope • Color monitor • Frequency counter

• Amplifier built-in speaker for PC • Adjustment sound source file

J-1

J-4

J-7

J-10

Personal computer (Note)

Minipattern box J-6082-353-B

Pattern box PTB-450 J-6082-200-A or Small pattern box PTB-1450 J-6082-557-A

Filter for color temperature correction (C14) J-6080-058-A

J-2

HASP key and application for adjustment (SeusEX)

Contact our service headquater of each area how to get the application for adjustment (SeusEX) and HASP key.

J-5

Flange back adjustment jig J-6082-563-A

J-8

Color bar chart

For PTB-450: J-6020-250-A

For PTB-1450: J-6082-559-A

J-11

ND filter 1.0 J-6080-808-A

ND filter 0.4 J-6080-806-A

ND filter 0.1 J-6080-807-A

J-3

USB cable 1-829-868-31

J-6

Siemens star chart J-6080-875-A

J-9

Clear chart

For PTB-450: J-6080-621-A

For PTB-1450: J-6082-560-A

J-12

Background paper J-2501-130-A

J-13

Camera table J-6082-384-A

Note: Personal computer

OS: Windows 2000/XP Home/XP Pro RAM: 256MB or more recommended USB: 2.0 recommended (also compatible with 1.1)

Two connectors are required.

J-14

AC adaptor AC-L200/L200B 1-479-285-21

Fig. 6-1-1

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-2

Page 4

Ver. 1.2 2008.06

6-1. CAMERA SECTION ADJUSTMENTS

1-1. PREPARATIONS BEFORE ADJUSTMENTS

(CAMERA SECTION)

1-1-1. Preparations

1) Connect the equipment for adjustments according to Fig. 6-1-2.

To DC IN jack

Camera system Adjustment

Color monitor

To A/V Remote connector

To USB jack

Audio L

Audio R

Video

S VIDEO OUT and VIDEO OUT Adjustment

Oscilloscope

S-Video or Video

COMPONENT OUT Adjustment

Y or Pb or Pr

OS: Windows 2000/XP RAM: 256MB or more recommended USB: 2.0 recommended (also compatible with 1.1) Two connectors are required.

Terminated 75 Ω

Oscilloscope

Terminated 75 Ω

(The SeusEX must be installed in the PC.)

AC adaptor AC-L200/L200B (1-479-285-21)

USB cable (1-829-868-31)

AC IN

HASP Key

Fig. 6-1-2

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-3

Page 5

1-1-2. Precaution

1. Setting the Switch

Unless otherwise specified, set the switches as follows and perform adjustments without inserting disc.

1. POWER switch ............................................................. Movie

2. BACK LIGHT .................................................................. OFF

3. NIGHT SHOT .................................................................. OFF

4. (OPTION) menu

FOCUS .......................................................................... AUTO

2. Order of Adjustments

Basically carry out adjustments in the order given.

Color bar chart (Color reproduction adjustment frame)

Yellow

Cyan

Green

AB B

Fig. a (VIDEO terminal of A/V jack output waveform)

A=B

White

Magenta

Red

Blue

Enlargement

C = D = 0

Difference in level

5. (HOME) menu – (SETTINGS) – MOVIE SETTINGS

DIGITAL ZOOM ............................................................. OFF

STEADY SHOT ............................................................... OFF

6. (HOME) menu – (SETTINGS) – GENERAL SET

DEMO MODE ................................................................. OFF

Electronic beam scanning frame

White

Red

Magenta

Cyan

Green

Yellow

Fig. b (monitor TV picture)

Adjust the camera zoom and direction to obtain the output waveform shown in Fig. a and the monitor TV display shown in Fig. b.

CRT picture frame

Blue

Fig. 6-1-3

3. Subjects

1) Color bar chart (Color reproduction adjustment frame) When performing adjustments using the color bar chart, adjust the picture frame as shown in Fig. 6-1-3. (Color reproduction adjustment frame)

2) Clear chart (AWB adjustment frame) Shoot the color bar chart. Then adjust the zoom to TELE side from WIDE side, and stop it when the black frame of the chart disappears. Remove the color bar chart from pattern box and insert a clear chart in its place.

3) Chart for flange back adjustment Join together a piece of white A0 size paper (1189 mm × 841 mm) and a piece of black paper to make the chart shown in Fig. 6-1-4.

Note: Use a non-reflecting and non-glazing vellum paper. The

size must be A0 or larger and the joint between the white and black paper must not have any undulations.

White

841 mm

Black

1189 mm

Fig. 6-1-4

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-4

Page 6

Ver. 1.2 2008.06

4. Setting Distance between Pattern Box and Camera

Set the distance from the front of the lens to the pattern box as shown in Fig. 6-1-5.

L = 1 m (PTB-450) L = 40 cm (PTB-1450)

Pattern box

Front of the lens

Camera

Fig. 6-1-5

5. Precautions When Using Pattern Box

1) It takes about 30 minutes for pattern box to stabilize its brightness. Turn on the pattern box 30 minutes before the adjustment starts.

2) Make arrangement so that the outside light does not enter the chart surface in the pattern box. Also, place a board between chart and camera, and make a hole at the lens part of the board so that the camera is not reflected in the shot image screen. (Adjustment may not be performed correctly due to the influence of outside light.) Example 1: Place a box to block a section between pattern box and camera.

Make the hole of the same size as the pattern box.

Pattern box

L = 1 m (PTB-450) L = 40 cm (PTB-1450)

Make the hole of the same size as the lens.

Front of the lens

Camera

Example 2: Place a board having a hole in front of the camera and cover the pattern box and camera with a blackout curtain

Cover with a blackout curtain

L = 1 m (PTB-450)

Pattern box

L = 40 cm (PTB-1450)

Board that opens hole to lens part

Front of the lens

Camera

3) Control of color chart The color chart will fade if it is exposed to direct sunlight or strong light. Since the fading of color chart progresses even with the light in the pattern box, remove and store the color chart when it is not used. Remove the color chart and store it. Store the color chart in a place not exposed to direct light, avoiding high temperature and humidity. Use the color chart for about three years, and afterward replace it with a new chart.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-5

Page 7

6. Preparing the Flash Adjustment Box

A dark room is required to provide an accurate flash adjustment. If it is not available, prepare the flash adjustment box as given below;

1) Provide woody board A, B, C and D of 15 mm thickness.

woody board A (2)

400 mm

513 mm 513 mm 700 mm

woody board B (2)

370 mm

700 mm730 mm

Fig. 6-1-6

2) Apply black mat paint to one side of woody board A, B and D.

3) Attach background paper (J-2501-130-A) to woody board C.

4) Assemble so that the black sides and the background paper side of woody board A, B, C and D are internal. (Fig. 6-1-7)

woody board A

woody board B

woody board C (1)

700 mm

woody board D

woody board D (1)

100 mm

woody board A

370 mm

120 mm

Flash adjustment box

Background paper

HDR-SR11/SR11E/SR12/SR12E_ADJ

woody board B

woody board C

Fig. 6-1-7

L = 50 cm

Fig. 6-1-8

6-6

Front of the lens

Camera

Page 8

Ver. 1.2 2008.06

1-2. ADJUSTMENT PROGRAM

The HDR-SR11/SR11E/SR12/SR12E are adjusted by the Automatic Adjustment Program. The Automatic Adjustment Program enters automatically via the SeusEX the adjustment operations that were formerly entered manually by the adjustment remote commander (some items may be adjusted by manual operation on the operation screen of the SeusEX).

1. Precautions When Using Automatic Adjustment Program

1) The Automatic Adjustment Program writes the adjustment re-

sults such as EVR data to the set through two-way communication with the camcorder via the SeusEX. Accordingly, the Automatic Adjustment Program must be used in the environment where the SeusEX operates.

2) The Automatic Adjustment Program cannot be used when the

SEUS or the SeusCam is running. Exit the SEUS or the SeusCam before using the Automatic Adjustment Program.

3) The SeusEX must be already started on the PC when using the

Automatic Adjustment Program. With the SeusEX not started, some adjustment items will take time in adjustment.

4) The program run time may vary depending on the environ-

ment of the personal computer used.

2. Start of Automatic Adjustment Program

Double-click the application file (HDR-SR11 Series Auto-Adj Ver_1.2r03.exe), and the Automatic Adjustment Program will start.

3. Function of Each Button on Main Menu Screen

When the Automatic Adjustment Program started, the Main Menu screen in Fig. 6-1-9 will appear. On this screen, select each adjustment section.

Fig. 6-1-9

1 [Connecting the Equipment] button

A connection diagram of the equipment is displayed.

2 [CONNECT] button

The mode of Camcorder is switched to the Adjustment Mode. When the Adjustment Mode has switched normally, the operation of the buttons 4 - qa is enabled.

3 [END] button

The mode of Camcorder is switched to the normal mode. When the normal mode has switched correctly, the Automatic Adjustment Program is finished.

4 [DESTINATION DATA WRITE] button

The “DESTINATION DATA WRITE” screen appears.

5 [USB SERIAL No. INPUT] button

The “USB SERIAL No. INPUT” screen appears.

6 [VIDEO SYSTEM ADJUSTMENT] button

The “VIDEO SYSTEM ADJUSTMENT” screen appears.

7 [CAMERA SYSTEM ADJUSTMENT] button

The “CAMERA SYSTEM ADJUSTMENT” screen appears.

8 [LCD/EVF SYSTEM ADJUSTMENT] button

The “LCD/EVF SYSTEM ADJUSTMENT” screen appears.

9 [AUDIO SYSTEM ADJUSTMENT] button

The “AUDIO SYSTEM ADJUSTMENT” screen appears.

q; [SERVICE MODE] button

The “SERVICE MODE” screen appears.

qa [DATA BACKUP] button

The “DATA BACKUP” screen appears.

HDR-SR11/SR11E/SR12/SR12E_ADJ

qs This part indicates the version of Automatic Adjustment Pro-

gram.

qd [Adjust item] button

“Adjusting items when replacing main parts and boards” table is displayed.

6-7

Page 9

4. Setting of Adjustment Mode

Before performing the adjustment, “Setting of Adjustment Mode” is required.

5. Release of Adjustment Mode

To finish the adjustment, be sure to perform “Release of Adjustment Mode”.

[Setting method]

1) Connect the Camcorder to the PC with a USB cable, and turn

on the power switch.

2) The USB SELECT menu will appear on the LCD screen of

the Camcorder, and then select “COMPUTER” to establish the connection.

3) Start the Automatic Adjustment Program, and click the [Con-

nect] button on the Main Menu screen.

4) When the following message is displayed, turn off and on again

the power switch of the Camcorder. Note: Turning off and on the power switch causes the

Camcorder to be switched to the Adjustment Mode. After the Camcorder restarted, click the [OK] button in the message window.

5) Upon successful completion of the settings in the Adjustment

Mode, the operation of each button on the Main Menu screen is enabled.

[Releasing method]

1) Click the [END] button on the Main Menu screen.

2) When the following message is displayed, releasing of adjust-

ment mode has completed. Click the [OK] button in the mes- sage window to exit the Automatic Adjustment Program. Note: The Camcorder switches to the normal mode by turn-

ing off and on the power switch. After the adjustment finished, turn off and on again the power switch of the Camcorder to confirm that the USB SELECT menu is displayed.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-8

Page 10

1-3. HDD SYSTEM ADJUSTMENTS

When the HDD is replaced, the following VBScript files are used. The Automatic Adjustment Program (HDR-SR11 Series Auto-Adj Ver_1.[]r[][].exe) is not used.

• CheckHDDError_After2008.vbe

• SetFactoryCheckDefault_After2008.vbe

• SetFactoryCheckFull_After2008.vbe

•ExecAfterFactoryCheck_2008.vbe

For the VBScript files ([][][][][][][].vbe), the program is executed by double-clicking the file. Note 1: The VBScript files can only be used on the PC in which

the SeusEX is installed.

Note 2: The VBScript file to be used must include 2008 in the

file name.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-9

Page 11

)

1. HDD Replacement Procedure

Note 1: 60GB: HDR-SR11/SR11E

120GB: HDR-SR12/SR12E

Note 2: Select correct capacity and retry, if the HDD capacity

setting was wrong.

Start

Connect the camcorder to the PC with a USB cable, and turn on the power switch.

The USB SELECT menu will appear on the LCD screen of the camcorder, and the select “USB CONNECT” to establish the connection.

Execte the “CheckHDDError_After2008.vbe”. (Double-click the file.)

Message is checked.

When message is “No Error”

Replacing the HDD is unneccessary.

End

(See page 6-11)

When message is “Error Detected”

(See page 6-11

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-10

Page 12

Note: During the execution of Factory Check, the LCD screen of

the camcorder becomes gray, and the ACCESS lamp becomes dark and light. When the Factory Check finished, the LCD screen changes as follows:

When Factory Check is OK: Camera image display When Factory Check is NG: Blue display

(See page 6-10)

Ye s New HDD

Execte the “SetFactoryCheckDefault_After2008.vbe”. (Double-click the file.)

Wait until “JOB Success” message is displayed. (several seconds)

Is replacement HDD new one?

Turn off the power of camcorder.

Turning on the power of camcorder

will start automatic Factory Check.

No Reused HDD

Execte the “SetFactoryCheckFull_After2008.vbe”. (Double-click the file.)

Wait until “JOB Success” message is displayed. (several seconds)

Replace the HDD.

Wait until Factory Check completed. (Note)

[EST. PROCESS TIME]

Default: 6 min.

Full: 40GB About 2 hour 36 min. 60GB About 3 hour 36 min. 120GB About 7 hour 15 min.

Execte the “ExecAfterFactoryCheck_2008.vbe”. (Double-click the file.)

HDR-SR11/SR11E/SR12/SR12E_ADJ

Wait until “JOB Success” message is displayed. (several seconds)

(See page 6-10)

6-11

Page 13

1-4. DESTINATION DATA WRITE

Note: The DESTINATION DATA WRITE can be set with the

Service board only. Performing the DESTINATION DATA WRITE with other than the Service board causes the error (E:20:00 will be blinking) and the power to be shut down.

1. Function of Each Button on Destination Data Write Screen

Click the [DESTINATION DATA WRITE] button on the Main Menu screen, and the “DESTNATION DATA WRITE” screen in Fig. 61-10 will appear.

2. Destination Data Write

[Writing method]

1) Select the model name from the pulldown list.

2) Select the target destination from the pulldown list.

Fig. 6-1-10

1 [To Menu] button

Return to the main menu.

2 Destination Check button

Current destination setting checked when the “DESTINATION DATA WRITE” screen started is displayed. When this button is clicked, the destination is checked and the display is updated.

3 Model Name List

Selects the model name.

4 Destination List

Selects the written destination.

5 [Data Write] button

Write the destination data to the camcorder.

3) Click the [Data Write] button.

4) Following message will be appeared after completing data writing.

5) After the destination data writing completed, click the Destination Check button to check the destination.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-12

Page 14

Ver. 1.1 2008.05

3. Selectable Language Table

SELECTABLE LANGUAGE

DESTINATION

J1 J

U2 US

E23

KR2 KR

JE3

NTSC model

CA2

E34 E

TH6

HK1

AU2

CN2 CH

JE3

PAL model

CEL

CEH

CEN

CND

Thai

AUS

AEP

AREA

English

z z aaa a z aaaaaa a aaaaza z aaaaaa z aaaaaa z aaaaaaaaa a aaaa aa z aaaaaaaaa a aaaa aa z aaaaaaaaa a aaaa aa z aaaaaaaaa a aaaa aa a aaaaaazaa a aaaa aa z aaaaaaaaa a aaaaaaaaaa z aaaaaaaaa a a aaaaa z aaaaa aaa a a aaaaa z aaaaa aaa a a aaaaa

z: INITIAL LANGUAGE

French

Japanese

Italian

German

Spanish

Dutch

Russian

Simplified Chinese

Greek

Portuguese

Braz.Portuguese

Korean

Espanyol

Canadian French

Traditional Chinese

Simplified English

Arabic

Persian

Thai

Polish

Turkish

Czech

Table 6-1-2

Melayu

Indonesia

Hungarian

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-13

Page 15

1-5. USB SERIAL No. INPUT

HDR-SR11_SERIAL_xxxxxxxx_yyyymmdd.dat

Date USB serial number Data name

The set is shipped with a unique ID (USB Serial No.) written in it. This ID has not been written in a new board for service, and therefore it must be entered after the board replacement. If original ID can be read from the board before replacement, read it from the board before replacement using the “SERIAL READ/ WRITE” screen, and then write it after replacement. If original ID cannot be read from the board before replacement, write the ID for service using the “MANUAL WRITE” screen. (The ID for service is different from the ID written when the set is shipped.) Enter the PRODUCT ID (last 5 characters of model name) and SERIAL No. into the screen and write them.

1. Function of Each Button on USB Serial No. Input Screen

Click the [USB SERIAL No. INPUT] button on the Main Menu screen, and the “USB SERIAL No. INPUT” screen in Fig. 6-1-11 will appear.

Fig. 6-1-11

1 [To Menu] button

Return to the main menu.

2 Display area

The “PRODUCT ID” and “SERIAL No.” are displayed.

3 [Check Serial] button

The USB SERIAL No. data is read from the camcorder and displayed in the display area.

4 [Read and Save] button

The USB SERIAL No. data is read from the camcorder and saved in PC as a file. Default file name is as follows:

5 [Load and Write] button

The USB SERIAL No. data is loaded from the file saved in PC and written to the camcorder.

6 Input area

Enter “PRODUCT ID” and “SERIAL No.” when writing the ID for service. The “PRODUCT ID” is set from the last 5 characters of model name if the model name is selected. For the “SERIAL No.”, read it from the label on the camcorder body and enter it.

7 [Write Manually] button

The USB SERIAL No. data entered in the input area is written to the camcorder.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-14

Page 16

1-6. VIDEO SYSTEM ADJUSTMENTS

1. Function of Each Button on Video System Adjustment Screen

Click the [VIDEO SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “VIDEO SYSTEM ADJUSTMENT” screen in Fig. 6-1-12 will appear.

Fig. 6-1-12

1 [To Menu] button

The Main Menu screen comes back.

2 [Preparation] button

Notes for adjustment or jigs used are displayed.

3 [Start] button

Each adjustment “S VIDEO OUT and VIDEO OUT Adjustment” or “COMPONENT OUT Adjustment” starts.

2. Adjustment Items of VIDEO System Adjustment

The adjustment items of video system adjustment are as listed in Tab le 6-1-3. The Automatic Adjustment Program executes the adjustment items if the VIDEO Adjustment Start button is clicked.

Button Name Adjustment Measurement Point

(Note)

S VIDEO OUT and VIDEO OUT Adjustment

COMPONENT OUT Adjustment

Note: The Automatic Ad

Origin Oscillation Check

S VIDEO OUT Y Level Adj.

S VIDEO OUT Chroma Level Adj.

VIDEO OUT Level Check

COMPONENT OUT Y Level Adj.

COMPONENT OUT Pb Level Adj.

COMPONENT OUT Pr Level Adj.

Pin 4 of IC1303 on VC-516 board

Y signal terminal of S VIDEO plug of A/V Remote connector (75 ohm terminated)

Chroma signal terminal of S VIDEO plug of A/V Remote connector (75 ohm terminated)

VIDEO terminal of A/V Remote connector (75 ohm terminated)

Y signal terminal of A/V Remote connector (75 ohm terminated)

Pb signal terminal of A/V Remote connector (75 ohm terminated)

Pr signal terminal of A/V Remote connector (75 ohm terminated)

ustment Program does not support.

Measuring Instrument

Frequency counter

Adjusting Address

Block Page Address

-- -

Oscilloscope 10 60 4400

Oscilloscope 10 60 4401, 4402

Oscilloscope - - -

Oscilloscope 10 60 4410

Oscilloscope 10 60 4411

Oscilloscope 10 60 4412

HDR-SR11/SR11E/SR12/SR12E_ADJ

Table 6-1-3

6-15

Page 17

3. Origin Oscillation Check

Check the frequency of the clock for synchronization. If deviated, the synchronization will be disrupted and the color will become inconsistent.

Subject Not required Measurement Point Pin 4 of IC1303 on VC-516 board

Measuring Instrument Frequency counter

Specified value f = 48000000 ± 960 Hz

Switch setting

1) POWER ............................................................. MOVIE mode

Checking method:

1) Check that the frequency (f) satisfies the specified value.

IC1303 4pin

4. S VIDEO OUT and VIDEO OUT Adjustment

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Video Adj.

2. S VIDEO OUT Y Level Adj.

3. S VIDEO OUT Chroma Level Adj.

4. VIDEO OUT Level Check

5. Release of Data Setting during Video Adj.

[Adjusting method]

1) Click the [Start] button of the S VIDEO OUT and VIDEO OUT

Adjustment.

2) The Automatic Adjustment Program executes the “1. Data Setting during Video Adj.”.

3) If “1. Data Setting during Video Adj.” completed successfully, the following screen is displayed during the execution of “2. S VIDEO OUT Y Level Adj.”. Using the [Up] / [Down] button on the screen, adjust so that the Y signal level satisfies the specified value. After the adjustment, click the [End] button in the screen.

VC-516 BOARD (SIDE A)

Fig. 6-1-13

IC1301

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-16

Page 18

4) After that, the following screen is displayed during the execu-

tion of “3. S VIDEO OUT Chroma Level Adj.”. Using the [Up]/ [Down] button on the screen, adjust so that the Cr signal level and the Cb signal level satisfies the specified value. After the adjustment, check that the burst level of the chroma signals satisfies the specified value, and click the [End] button in the screen.

6) If the [OK] button is clicked, “5. Release of Data Setting dur- ing Video Adj.” will be executed.

7) Upon successful completion of all item the S VIDEO OUT and VIDEO OUT Adjustment, the following message is displayed. Click the [OK] button.

5) If the [End] button is clicked, “4. VIDEO OUT Level Check”

will be executed. The following message and screen are displayed. Check that the sync signal level and burst level of the video signals satisfies the specified value, and click the [OK] button in the message.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-17

Page 19

5. COMPONENT OUT Adjustment

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Video Adj.

2. COMPONENT OUT Y Level Adj.

3. COMPONENT OUT Pb Level Adj.

4. COMPONENT OUT Pr Level Adj.

5. Release of Data Setting during Video Adj.

[Adjusting method]

1) Click the [Start] button of the COMPONENT OUT Adjust-

ment.

2) The Automatic Adjustment Program executes the “1. Data Setting during Video Adj.”.

3) If “1. Data Setting during Video Adj.” completed successfully, the following screen is displayed during the execution of “2. COMPONENT OUT Y Level Adj.”. Using the [Up]/[Down] button on the screen, adjust so that the Y signal level satisfies the specified value. After the adjustment, check that the sync level of the Y signals satisfies the specified value, and click the [End] button in the screen.

4) After that, the following screen is displayed during the execu-

tion of “3. COMPONENT OUT Pb Level Adj.”. Using the [Up]/ [Down] button on the screen, adjust so that the Pb signal level satisfies the specified value. After the adjustment, check that the sync level of the Pb signals satisfies the specified value, and click the [End] button in the screen.

5) After that, the following screen is displayed during the execu-

tion of “4. COMPONENT OUT Pr Level Adj.”. Using the [Up]/ [Down] button on the screen, adjust so that the Pr signal level satisfies the specified value. After the adjustment, check that the sync level of the Pr signals satisfies the specified value, and click the [End] button in the screen.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-18

Page 20

6) If the [End] button is clicked, “5. Release of Data Setting dur- ing Video Adj.” will be executed.

7) Upon successful completion of all item the COMPONENT OUT Adjustment, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-19

Page 21

1-7. CAMERA SYSTEM ADJUSTMENTS

1. Function of Each Button on Camera System

Adjustment Screen

Click the [CAMERA SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “CAMERA SYSTEM ADJUSTMENT” screen in Fig. 6-1-14 will appear.

Fig. 6-1-14

1 [To Menu] button

The Main Menu screen comes back.

2 [Preparation] button

Notes for adjustment or jigs used are displayed.

3 [Start] button

Each adjustment from “Camera Adjustment 1” to “Camera Adjustment 8” starts.

4 [Release Data Setting] button

The data setting at the adjustment is cancelled. During the data setting, the button color changes from “white” to “red”. When the data setting is cancelled, the button color returns to “white”. (Use this button when an error occurred in the camera adjustment. If the adjustment completed successfully, the data setting is automatically cancelled and the button color returns to “white”.)

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-20

Page 22

2. Adjustment Items of Camera System Adjustment

(

)

The adjustment items of camera system adjustment are as listed in Tab le 6-1-4. The Automatic Adjustment Program divides the adjustment items into eight, camera adjustment 1-8. Clicking either CAMERA Adjustment Start button allows the adjustment item which corresponds to that button to be executed.

The adjustment conditions of the subject and filter vary depending on which item is adjusted. The Adjustment Program displays an instruction for the subject and filter as a message during the adjustment.

Button Name Adjustment Subject

CAMERA Adjustment 1

CAMERA Adjustment 2

CAMERA

ustment 3

CAMERA Adjustment 4

CAMERA Adjustment 5

CAMERA Adjustment 6

CAMERA

ustment 7

Ad CAMERA

ustment 8

Note: Dark Siemens star chart.

STEADY HALL Adj.

HALL & MR Adj. 11 8F

Flange Back Adj.

Flange Back Check Siemens star chart

F No. & ND Light Quality Standard Data In Mechanical Shutter Adj.

Linear Matrix Adj.

AWB Standard Data Input

LV Standard Data Input

AWB Adj.

AWB Check

Color Reproduction Adj. & Check (Indoor)

Color Reproduction Check (Outdoor)

MAX GAIN Adj.

White Defect Adj.

FD white point

White Defect Adj.

Black Defect Adj.

Strobe Light Level & White Balance Adj.

GYRO Sensor Sensitivity Adj. Not required 11

Not required

Siemens star chart with ND filter for minipattern box (Note) or

e back adjustment ji

Flan Flange back adjustment chart and

ect more than 500 m awa

sub

Not required

Not required 11

Clear chart (All White frame)

Clear chart (All White frame) Filter C14 for color tem Clear chart (All White frame) ND filter 1.0, 0.4 and 0.1 Color bar chart (Color re Color bar chart (Color reproduction adjustment frame) Filter C14 for color tem Clear chart (Center frame) 11

Not required

Clear chart (All White) (Shoot the clear chart with the zoom TELE end.

Flash adjustment box 11

roduction adjustment frame)

erature correction

Adjusting Address

Block Page Address

11 8F FF00 to FF5F

0700 to 0709, 0490, 04A0 to 04AF

0480 to 049F

-- -

11 8F

0710 to 0757

0240 to 0245

0360 to 03B9

0308 to 031F

070C, 070D

0320 to 0337

8F 0340 to 035F

8F 070E, 070F

2460 to 36FF, 3C60 to 4EFF, 5460 to 66FF, 6C60 to 7EFF 2000 to 365F, 3800 to 4E5F, 5000 to 665F, 6800 to 7E5F

2588 to 37FF, 3D88 to 4FFF, 5588 to 67FF, 6D88 to 7FFF

8F 0238 to 023D, 0306, 0307

8F FF70, FF71

HDR-SR11/SR11E/SR12/SR12E_ADJ

Table 6-1-4

6-21

Page 23

3. CAMERA Adjustment 1

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. STEADY HALL Adj.

3. HALL & MR Adj.

4. Release of Data Setting during Camera Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 1.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) If “1. Data Setting during Camera Adj.” completed successfully, and the items from “2. STEADY HALL Adj.” to “4. Release of Data Setting during Camera Adj.” will be executed.

4) Upon successful completion of all items of the CAMERA Adjustment 1, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-22

Page 24

4. CAMERA Adjustment 2

(Using the minipattern box or flange back adjustment jig)

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Flange Back Adj.

3. Release of Data Setting during Camera Adj.

[Preparation (Using the minipattern box)]

1) The minipattern box is installed as shown in the following figure. Note: The attachment lenses are not used.

2) Install the minipattern box so that the distance between it and the front of lens of camera is less than 3 cm.

3) Make the height of minipattern box and the camera equal.

4) Check the output voltage of the regulated power supply is the specified voltage ± 0.01 Vdc.

5) Check that the center of Siemens star chart meets the center of shot image screen with the zoom lens at TELE end and WIDE end respectively.

Specified voltage: The specified voltage varies according to the

minipattern box, so adjustment the power supply output voltage to the specified voltage written on the sheet which is supplied with the minipattern box.

[Preparation (Using the flange back adjustment jig)] (Illuminance: approx. 800 lux)

Note: When using the flange back adjustment jig, take care of the

following points:

• For the illumination, use a light source such as an incandescent lamp or inverter type fluorescent light free from flickering.

• Do not make an adjustment in the environment where fluorescent lamp flickering occurs even if the illuminance can be ensured with the room illumination only. Use an incandescent lamp or inverter type fluorescent light at a place free from the influence of room illumination.

1) Install the flange back adjustment jig so that the distance between it and the front of lens of camera is less than 3 cm.

2) Make the height of flange back adjustment jig and the camera equal.

3) Check that the center of chart meets the center of shot image screen with the zoom lens at TELE end and WIDE end respectively.

Flange back adjustment jig

Below 3 cm

Camera

Minipattern box

Output voltage : Specified voltage ± 0.01 Vdc

Red (+)

Black (–)

Yellow (SENS +)

White (SENS –)

Black (GND)

Below 3 cm

Camera

Regulated power supply

Output current : more than 3.5 A

Need not connected

Fig. 6-1-15

Fig. 6-1-16

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 2.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) Upon successful completion of the “1. Data Setting during Camera Adj.”, the following message is displayed. Set the subject by referring to “Preparation”.

4) If the [OK] button is clicked, “2. Flange Back Adj.” and “3. Release of Data Setting during Camera Adj.” will be executed.

5) Upon successful completion of all items of the CAMERA Adjustment 2, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-23

Page 25

5. CAMERA Adjustment 2 (Using the flange back adjustment chart and subject more than 500 m away)

5-1. CAMERA Adjustment 2 (1)

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Flange Back (1) Adj.

3. Release of Data Setting during Camera Adj.

[Preparation]

1) Place the Flange back adjustment chart at 2 m position away

from the lens.

2) Check that the center of Flange back adjustment chart meets

the center of shot image screen with the zoom lens at TELE end and WIDE end respectively.

[Adjusting method]

1) Click the [Start $1%] button of the CAMERA Adjustment 2.

2) The Automatic Adjustment Program executes “1. Data Setting

during Camera Adj.”.

3) Upon successful completion of the “1. Data Setting during

Camera Adj.”, the following message is displayed. Set the subject by referring to “Preparation”.

5-2. CAMERA Adjustment 2 (2)

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Flange Back (2) Adj.

3. Release of Data Setting during Camera Adj.

[Preparation]

1) Set the zoom lens to the TELE end and expose a subject that is more than 500 m away. (subjects with clear contrast such as building, etc.) (Nearby subjects less than 500 m away should not be in the screen)

[Adjusting method]

1) Click the [Start $2%] button of the CAMERA Adjustment 2.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) Upon successful completion of the “1. Data Setting during Camera Adj.”, the following message is displayed. Set the subject by referring to “Preparation”.

4) If the [OK] button is clicked, “2. Flange Back (1) Adj.” and “3.

Release of Data Setting during Camera Adj.” will be executed.

5) Upon successful completion of all items of the CAMERA Adjustment 2 (1), the following message is displayed. Click the [OK] button.

6) Perform “CAMERA Adjustment 2 (2)”.

4) If the [OK] button is clicked, “2. Flange Back (2) Adj.” will be

executed. The following message is displayed during the execution of adjustment, and then place the ND filter on the lens so as to obtain the optimum image.

5) If “2. Flange Back (2) Adj.” completed successfully, “3. Release of Data Setting during Camera Adj.” will be executed.

6) Upon successful completion of all items of the CAMERA Adjustment 2 (2), the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-24

Page 26

6. CAMERA Adjustment 3

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Flange Back Check

3. Release of Data Setting during Camera Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 3.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) Upon successful completion of the “1. Data Setting during Camera Adj.”, the following message is displayed. Set the subject in accordance with the message.

4) If the [OK] button is clicked, “2. Flange Back Check” is ex- ecuted. The following messages are displayed, and then operate the camera to make a check in accordance with the messages.

7. CAMERA Adjustment 4

[Automatic Adjustment Program execution items and sequence]

1. F No. & ND Light Quality Standard Data Input.

2. Mechanical Shutter Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 4.

2) The Automatic Adjustment Program executes “1. F No. & ND Light Quality Standard Data Input” and “2. Mechanical Shutter Adj.”.

3) Upon successful completion of all items of the CAMERA Adjustment 4, the following message is displayed. Click the [OK] button.

5) Upon completion of “2. Flange Back Check”, “3. Release of Data Setting during Camera Adj.” is executed.

6) Upon successful completion of all items of the CAMERA Adjustment 3, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-25

Page 27

8. CAMERA Adjustment 5

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Linear Matrix Adj.

3. Picture Frame Setting (Color Reproduction Adjustment Frame)

4. Picture Frame Setting (All White Frame)

5. AWB Standard Data Input

6. LV Standard Data Input

7. AWB Adj.

8. AWB Check

9. Color Reproduction Adj. & Check (Indoor)

10. Color Reproduction Check (Outdoor)

11. Picture Frame Setting (Center Frame)

12. MAX GAIN Adj.

13. Release of Data Setting during Camera Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 5.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) If “1. Data Setting during Camera Adj.” completed successfully, and the items “2. Linear Matrix Adj.” will be executed.

4) Upon successful completion of the “2. Linear Matrix Adj.”, the following screen is displayed during the execution of “3. Picture Frame Setting (Color Reproduction Adjustment Frame)”. Set the subject in accordance with the message.

5) If the [OK] button is clicked, the following screen will appear,

and then adjust the zoom and the camera direction to set the picture frame. After the setting finished, click the [End] but- ton.

The buttons on this screen provide the following functions: [Save the position] button

Saves the camera zoom and focus position data.

[Load the position] button

Reads the camera zoom and focus position data saved last and moves the camera zoom and focus to that position.

Note 1: The zoom and focus position data are saved with

“HDR_SR11_ZoomFocusData.txt” file name in the same holder as the Automatic Adjustment Program.

No position data can be read if this file is moved or de-

leted.

Note 2: Only the latest position data can be saved. If the [Save

the position] button is clicked, the latest data are saved

over writing the previous data.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-26

Page 28

6) After setting the picture frame, if the [End] button is clicked, “4. Picture Frame Setting (All White Frame)” is executed. The following messages are displayed in the order given below during the execution. Then, set the picture frame in accordance with the messages.

8) Upon successful completion of the “8. AWB Check”, the following message is displayed. Then, change the chart in accordance with the message.

9) If the [OK] button is clicked, the adjustment items “9. Color Reproduction Adj. & Check (Indoor)” is executed.

10) After the checking of the Indoor mode, “10. Color Reproduction Check (Outdoor)” is executed. The following messages are displayed in order given below. Place or remove the filters on the lens in accordance with the messages.

11) Upon successful completion of the “10. Color Reproduction Check (Outdoor)”, the following message is displayed. Then, change the chart in accordance with the message.

7) After the setting, if the [OK] button is clicked, the adjustment

items from “5. AWB Standard Data Input” to “8. AWB Check” are executed. During the execution, the following messages are displayed in the order given below. Place or remove the filters on the lens in accordance with the messages.

12) After the setting, if the [OK] button is clicked, the following message is displayed during the execution of “11. Picture Frame Setting (Center Frame)”. Set the subject in accordance with the message, and then check the size of clear chart shot on the monitor screen.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-27

Page 29

13) After the checking, if the [OK] button in the message window

is clicked, “12. MAX GAIN Adj.” is executed.

14) Upon successful completion of the “12. MAX GAIN Adj.”, “13. Release of Data Setting during Camera Adj.” is executed.

15) Upon successful completion of all items of the CAMERA Adjustment 5, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-28

Page 30

Ver. 1.2 2008.06

9. CAMERA Adjustment 6

Note: Before performing the defect adjustment, make sure that

the lens temperature of the camcorder 33 ºC to 36 ºC.

[Preparation (Temperature Check)]

1) Click the [Preparation] button of the CAMERA Adjustment 6 to display the Preparation screen.

2) Click the [Temperature Check] button of the Preparation screen, the following screen will appear.

[Checking method]

Click the [Start] button of the Temperature Check, and the camcorder will go in the Temperature Check mode and the temperature check result will be displayed on the LCD screen. Perform the aging if the check result is NG (below 33 ºC). To exit the Temperature Check mode, click the [Stop] button.

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. White Defect Adj. (FD white point)

3. White Defect Adj.

4. Black Defect Adj.

5. Release of Data Setting during Camera Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 6.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) If “1. Data Setting during Camera Adj.” completed successfully, and the items from “2. White Defect Adj. (FD white point)” to “3. White Defect Adj.” will be executed.

4) If “3. White Defect Adj.” completed successfully, the following message is displayed. Set the subject in accordance with the message.

5) Click the [OK] button, and the “4. Black Defect Adj.” will be executed.

6) Upon completion of “4. Black Defect Adj.”, “5. Release of Data Setting during Camera Adj.” is executed.

7) Upon successful completion of all items of the CAMERA Adjustment 6, the following message is displayed. Click the [OK] button.

[Aging method]

Set the camcorder to the Movie mode, and place the LCD screen in the “reverse-closed” state. (In this state, the temperature rises more quickly than that in other states.) Set the camcorder to the Temperature Check mode, and wait until the LCD screen display changes from NG (grid pattern) to OK (color bars).

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-29

Page 31

10. CAMERA Adjustment 7 Note: “CAMERA Adjustment 7” is available only once after the

power is turned on. If the adjustment is retried, turn off the power and turn on again.

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during Camera Adj.

2. Strobe Light Level & White Balance Adj.

3. Release of Data Setting during Camera Adj.

[Adjusting method]

1) Click the [Start] button of the CAMERA Adjustment 7.

2) The Automatic Adjustment Program executes “1. Data Setting during Camera Adj.”.

3) Upon successful completion of the “1. Data Setting during Camera Adj.”, the following message is displayed. Set the subject in accordance with the message. (For the Flash adjustment box, refer to “6. Preparing the Flash Adjustment Box” (see page 6-6).)

4) Press the [OK] button, and the items “2. Strobe Light Level & White Balance Adj.” will be executed.

5) Upon completion of “2. Strobe Light Level & White Balance Adj.”, “3. Release of Data Setting during Camera Adj.” is executed

6) Upon successful completion of all items of the CAMERA Adjustment 7, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-30

Page 32

11. CAMERA Adjustment 8

Hand Writing

Perform this adjustment only when replacing the GYRO sensor or lens block. When the microprocessor, circuit etc. is damaged, don't perform this adjustment but check the operations only.

11-1. Preparation when the GYRO sensor or the FR-

278 board is replaced

Note down the sensitivity displayed on the GYRO sensor of the repair parts. At this time, note down also to which board it was attached to. Be sure to check because if attached incorrectly, the screen will vibrate up and down or left and right during the steady shot operations.

Precautions on the Parts Replacement

The PITCH sensor and the YAW sensor are different parts.

Precautions on GYRO Sensor

The sensor incorporates a precision oscillator. Handle it with care as if it dropped, the balance of oscillator will be disrupted and operations will not be performed properly.

Adjustment Block 11

Adjustment Page 8F

Adjustment Address FF70, FF71

Note: The sensor sensitivity of SE9001 and SE9002 of the FR-

278 board is written only repair parts.

Preparation:

1) Read the PITCH sensor (FR-278 board SE9001) sensitivity written on repair parts, and named this as S

9001

2) Read the YAW sensor (FR-278 board SE9002) sensitivity written on repair parts, and named this as S

9002

FR-278 BOARD (SIDE B)

YY: YAW sensor

SE9002

SE9001

sensitivity S

PP: PITCH sensor sensitivity S

9002

9001

Fig. 6-1-17

How to read the sensitivity data of angular velocity sensor

With the pins 1 and 2 of angular velocity sensor placed in the lower position, read the data value.

Description example:

For the sensor sensitivity value 60

Fig. 6-1-18

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-31

Page 33

11-2. Preparation when the lens is replaced

Note down the PITCH/YAW data on the replacement lens for repair.

Adjustment Block 11

Adjustment Page 8F

Adjustment Address FF70, FF71

Note: The PITCH/YAW data of lens is written only repair parts.

Preparation:

1) Read the PITCH data written on repair parts, and named this as L

2) Read the YAW data written on repair parts, and named this as L2.

11-3. GYRO Sensor Sensitivity Adjustment

[Adjusting method]

1) Click the [Start] button of Camera Adjustment 8, and the fol-

lowing screen will appear.

P. PP / Y.YY

PITCH/YAW Data

P.PP / Y.YY

Fig. 6-1-19

YAW data t L

PITCH data t L

2) Input the sensitivity of respective sensors (S

9001

, S

) read at

9002

“Preparation” into the screen. If only either sensor was replaced, give a check to the checkbox for the sensor not replaced at the lower left of the screen.

3) Input the PITCH/YAW data of lens (L1, L2) read at “Preparation” into the screen. If the lens was not replaced, give a check to the checkbox at the lower left of the screen. Note: In order to get the correct value for the adjustment, it is

necessary to input a decimal point (“period” or “comma”) as same format as windows setting because “Numeric Value Format” depend on the language. (F:123 456 789,00, GB:123,456,789.00, D:123.456.789,00) “Numeric Value Format” setting is available in “Control Panel”-“Regional and Language Options”.

4) Click the [OK] button, and the adjustment data is then calcu- lated from the sensor sensitivity value and the calculation result is written to the memory in the camera.

5) Upon successful completion of the data writing, the following massage will be displayed, and then turn off the power of camera and turn it on again.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6) After the Camera started, click the [OK] button of the mes- sage, and the data value will be clecked. If the data value is normal, the following massage will be displayed. Check that the steady shot function operates normally.

6-32

Page 34

1-8. LCD/EVF SYSTEM ADJUSTMENTS

1. Function of Each Button on LCD/EVF System Adjustment Screen

Click the [LCD/EVF SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “LCD/EVF SYSTEM ADJUSTMENT” screen in Fig. 6-1-20 will appear.

Fig. 6-1-20

1 [To Menu] button

The Main Menu screen comes back.

2 [Start] button

Each adjustment “LCD Adjustment”, “EVF Adjustment” or “Touch Panel Adjustment” starts.

2. Adjustment Items of LCD/EVF System Adjustment

The adjustment items of LCD/EVF system adjustment are as listed in Table 6-1-5. The Automatic Adjustment Program executes the

adjustment items if the LCD/EVF Adjustment Start button is clicked.

Button Name Adjustment

LCD Adjustment

V-COM Adj.

Transmissive Mode White Balance Adj.

VCO Adj. 10 60 EVF Adjustment

Contrast Adj. 10 60

White Balance Adj.

Touch Panel Adjustment

Touch Panel Adj.

Note: The adjustment data cannot be read or written from the SeusEX.

Table 6-1-5

Adjusting Address

Block Page Address

1052

1056, 1057

103F (NTSC model), 1040 (PAL model)

1047

1045, 1046

(Note)

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-33

Page 35

3. LCD Adjustment

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during LCD/EVF Adj.

2. V-COM Adj.

3. Transmissive Mode White Balance Adj.

4. Release of Data Setting during LCD/EVF Adj.

[Adjusting method]

1) Click the [Start] button of the LCD Adjustment.

2) The Automatic Adjustment Program executes the “1. Data Setting during LCD/EVF Adj.”.

3) After that, the following screen is displayed during the execution of “2. V-COM Adj.”. Using the [Up]/[Down] button on the screen, adjust so that the brightness of portions A and B on the LCD panel is equal. After the adjustment, click the [End] button in the screen.

4) If the [End] button is clicked, the following screen is displayed

during the execution of “3. Transmissive Mode White Balance Adj.”. Check that the LCD screen is not colored. If colored, using the [Up]/[Down] button on the screen, adjust so that the LCD screen is not colored. After the adjustment, click the [End] button in the screen.

5) If the [End] button is clicked, “4. Release of Data Setting dur-

ing LCD/EVF Adj.” will be executed.

6) Upon successful completion of all item the LCD Adjustment,

the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-34

Page 36

4. EVF Adjustment

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during LCD/EVF Adj.

2. EVF Automatic Adj. (VCO Adj., Contrast Adj.)

3. White Balance Adj.

4. Release of Data Setting during LCD/EVF Adj.

[Adjusting method]

1) Click the [Start] button of the EVF Adjustment.

2) The Automatic Adjustment Program executes the “1. Data Setting during LCD/EVF Adj.” and “2. EVF Automatic Adj.”.

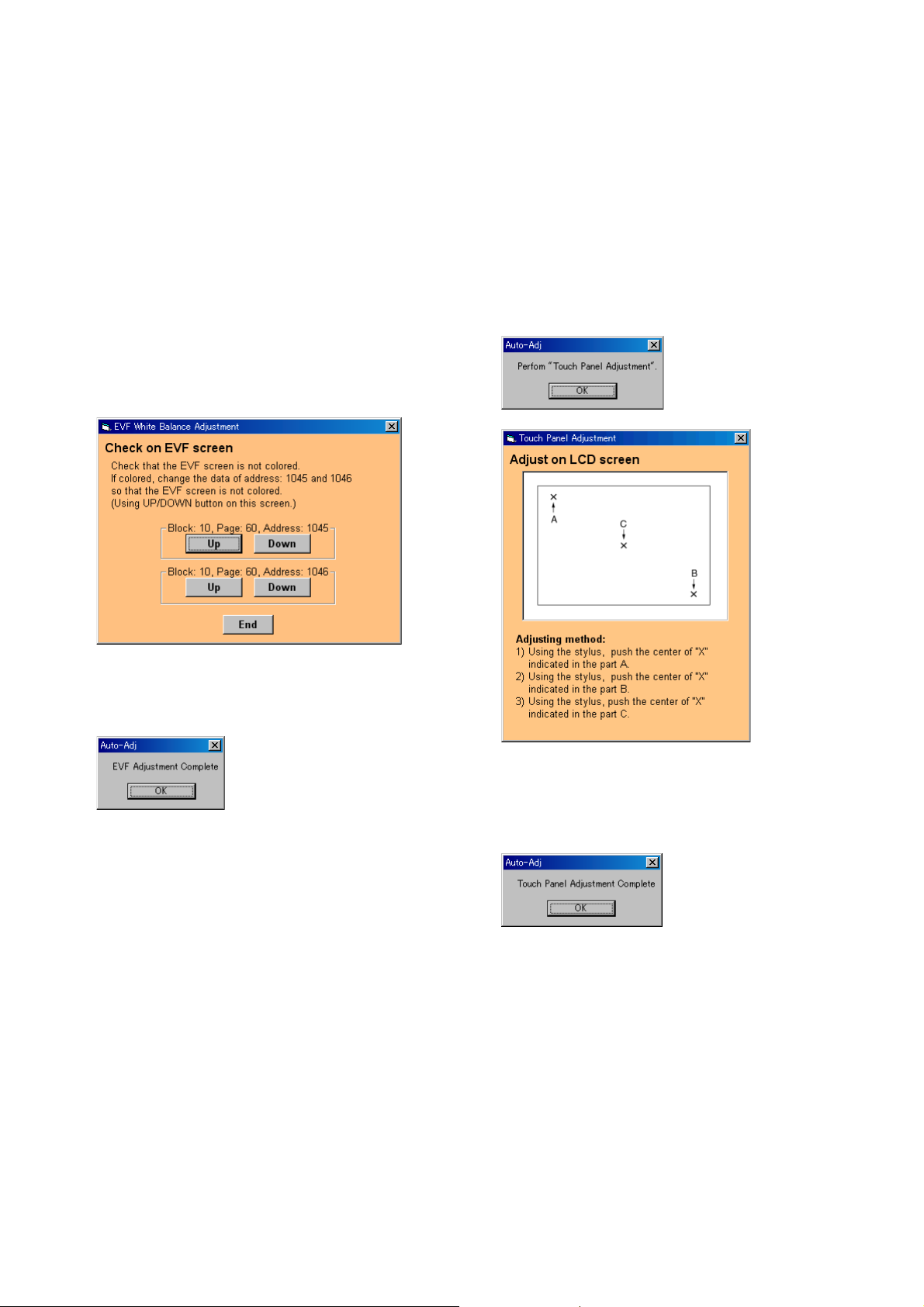

3) After that, the following screen is displayed during the execution of “3. White Balance Adj.”. Check that the EVF screen is not colored. If colored, using the [Up]/[Down] button on the screen, adjust so that the EVF screen is not colored. After the adjustment, click the [End] button in the screen.

5. Touch Panel Adjustment

[Automatic Adjustment Program execution items and sequence]

1. Touch Panel Adj.

2. Release of Data Setting during LCD/EVF Adj.

[Adjusting method]

1) Click the [Start] button of the Touch Panel Adjustment.

2) The Automatic Adjustment Program executes the “1. Touch Panel Adj.”. The following message is displayed, and then adjust the LCD screen in accordance with the instructions given on the screen. After the adjustment, click the [OK] button in the message window.

4) If the [End] button is clicked,“4.Release of Data Setting dur-

ing LCD/EVF Adj.” will be executed.

5) Upon successful completion of all item the EVF Adjustment,

the following message is displayed. Click the [OK] button.

3) If the [OK] button is clicked, “2. Release of Data Setting dur- ing LCD/EVF Adj.” will be executed.

4) Upon successful completion of all item the Touch Panel Adjustment, the following message is displayed. Click the [OK] button.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-35

Page 37

1-9. AUDIO SYSTEM ADJUSTMENTS

1. Function of Each Button on Audio System Adjustment Screen

Click the [AUDIO SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “AUDIO SYSTEM ADJUSTMENT” screen in Fig. 6-1-21 will appear.

Fig. 6-1-21

1 [To Menu] button

The Main Menu screen comes back.

2 [Preparation] button

Notes for adjustment or jigs used are displayed.

3 [Start] button

“Audio Adjustment” starts.

4 [Release Data Setting] button

The data setting at the adjustment is cancelled. During the data setting, the button color changes from “white” to “red”. When the data setting is cancelled, the button color returns to “white”. (Use this button when an error occurred in the audio adjustment. If the adjustment completed successfully, the data setting is automatically cancelled and the button color returns to “white”.)

2. Adjustment Items of AUDIO System Adjustment

The adjustment items of audio system adjustment are as listed in Tab le 6-1-6. The Automatic Adjustment Program executes the adjustment items when the AUDIO Adjustment Start button is clicked.

Button Name Adjustment

AUDIO Adjustment

Internal 3ch Microphone Sensitivity Adj. 10 60

Table 6-1-6

Adjusting Address

Block Page Address

0104 to 013F

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-36

Page 38

3. AUDIO Adjustment

Note 1: AUDIO Adjustment is available only once after the power

is turned on. If the adjustment is retried, turn off the power and turn on again.

[Automatic Adjustment Program execution items and sequence]

1. Data Setting during AUDIO Adj.

2. Internal 3ch microphone Adj.

3. Release of Data Setting during Audio Adj.

[Preparation]

Prepare an amplifier built-in speaker for PC and arrange it above the internal 3ch microphone of the camcoder.

• Adjust the speaker position so that it is within ±3 cm from the

center of camcoder internal 3ch microphone at the height of 40 cm.

• The diaphragm of speaker position should be set face down to-

ward the internal 3ch microphone.

• The speaker may be held by hand if it is hard to secure.

Amplifier built-in speaker for PC

[Adjusting method]

1) Play back the adjustment sound source file on the PC.

2) Set the speaker volume so that the adjustment signal sound is heard to the extent of the loudness of talking voices.

3) Click the [Start] button of the AUDIO Adjustment.

4) The Automatic Adjustment Program executes “1. Data Setting during AUDIO Adj.”.

5) When “1. Data Setting during AUDIO Adj.” completed successfully, and the items “2. Internal 3ch microphone Adj.” and “3. Release of Data Setting during AUDIO Adj.” will be executed.

6) Upon successful completion of all items of the AUDIO Adjustment, the following message is displayed. Click the [OK] button.

In case of adjustment NG, reduce or increase the speaker volume, and then retry adjustment. If the Adjustment Program displays a message “Volume too loud” or “Volume too low”, adjust the speaker volume following the message.

Internal 3ch microphone

about 40 cm

Fig. 6-1-22

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-37

Page 39

1-10. ERROR

In the case of an error during the execution of adjustment, the Automatic Adjustment Program interrupts the processing at that point, and displays an error message, and then terminates the program execution there.

3. Adjustment Time Out

1-10-1. Error Message

When an error message is displayed, perform the remedy given below, and then retry adjustment. If the error message is displayed though the remedy was performed, the circuits will be faulty.

1. Connect Error, Adjust Control Error

Fig. 6-1-23

Symptom USB communication with the set is abnormal.

Cause • USB cable is not inserted tightly.

• Power supply is not installed correctly.

• Communication with SeusEX is abnormal.

Remedy • Disconnect the USB cable once, and then re-

connect it tightly and check that the set is in “USB Mode”.

• Install the power supply correctly.

• Start the SeusEX and click the [Connect] to

check that the connection state is established.

This part indicates the adjustment item in which an error occurred.

Fig. 6-1-25

Symptom Adjustment does not finish within the specified

time.

Cause • Adjustment conditions are wrong.

• Data error exists in the camera.

Remedy • Check that the conditions such as a subject

are correct.

• Reset the camera.

4. Adjustment NG

This part indicates the adjustment item in which an error occurred.

Fig. 6-1-26

2. RESET the CAMERA and Try Again

Fig. 6-1-24

Symptom The camera is not ready for adjustment.

Cause Data error exists in the camera.

Remedy Reset the camera.

Symptom The adjusted data does not become the speci-

fied value.

Cause • Adjustment conditions are wrong.

• Data error exists in the camera.

Remedy • Check that the conditions such as a subject

are correct.

• Reset the camera.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-38

Page 40

1-10-2. Precautions When an Error Occurred

The Automatic Adjustment Program sets the data for adjustment before the adjustment starts. Accordingly, if the adjustment terminates by an error, the data during the adjustment may be left in the camera. Note: With this data left in the camera, the camera will not oper-

ate normally.

In this case, the [Release Data Setting] button is displayed in “red” on the screen as shown figures below. Click the [Release Data Set- ting] button to cancel the data setting. When the data setting is cancelled, the button color becomes “white”.

Camera System Adjustment screen

Fig. 6-1-27

Audio System Adjustment screen

Fig. 6-1-28

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-39

Page 41

6-2. SERVICE MODE

2-1. APPLICATION FOR ADJUSTMENT (SeusEX)

The adjustment software (SeusEX) can change operational coefficients of signal processing, EVR data, etc. same as the adjustment remote commander. The SeusEX performs two-way communication between PC and camcorder using the USB terminal. The twoway communication result data can be written in the nonvolatile memory.

1. Connection

1) Connect the HASP key to the USB terminal of the PC.

2) Connect the PC and camcorder with the USB cable.

3) Start the SeusEX on the PC.

4) Click [Connect] on the SeusEX screen. If the connection is

normal, the SeusEX screen will be as shown in Fig. 6-2-1, indicating the “connected” state. Note: The SeusEX will go in “disconnect” state, if the

camcorder is turned off (for instance, by resetting the set). In such a case, click [Connect] on the SeusEX screen to restore the “connected” state.

2. Operation

• Block change

To change the block, click [Block] on the SeusEX screen and enter the block to be changed. The block is displayed in hexadecimal notation.

• Page change

To change the page, click [Page] on the SeusEX screen and enter the page to be changed. The page is displayed in hexadecimal notation.

• Address change

To change the address, click [Address] on the SeusEX screen and enter the address to be changed. The address is displayed in hexadecimal notation.

• Data change

To change the data, click [Set] on the SeusEX screen and enter the data. The data is displayed in hexadecimal notation. This operation does not write the data to the nonvolatile memory.

• Data writing

To write the data to the EEPROM, click [Write] on the SeusEX screen and enter the data value to be written. To write the data to the flash memory, change the data value using the [Set] on the SeusEX screen and then click [Save] to save the data.

Fig. 6-2-1

• Data reading

The data displayed on the SeusEX screen are the data values at the time when the pages and addresses were set, and they are not updated automatically. To check the data change, click [Read] on the SeusEX screen and update the displayed data.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-40

Page 42

Ver. 1.2 2008.06

2-2. SERVICE MODE

1. Function of Each Button on Service Mode Screen

Click the [SERVICE MODE] button on the Main Menu screen, and the “SERVICE MODE” screen in Fig. 6-2-2 will appear.

Fig. 6-2-2

1 [To Menu] button

The Main Menu screen comes back.

2 [Switch Check] button

“SWITCH CHECK” screen appears.

3 [LED Check] button

“LED CHECK” screen appears.

2. Switch Check

Click the [Switch Check] button on the SERVICE MODE screen, and the “SWITCH CHECK” screen will appear.

Using method:

Click the [Start] button, and the switch check will start. During execution of switch check, the pressed switch is displayed in orange. Also, once the switch was pressed, its name characters change to blue in color.

4 [Jack Check] button

“JACK CHECK” screen appears.

5 [Lens Barrier Check] button

“LENS BARRIER CHECK” screen appears.

6 [G Sensor Check] button

“G SENSOR CHECK” screen appears.

7 [Record Data] button

“RECORD DATA” screen appears.

8 [Test Pattern Output] button

“TEST PATTERN OUTPUT” screen appears.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-41

Page 43

3. LED Check

Click the [LED Check] button on the SERVICE MODE screen, and the “LED CHECK” screen will appear.

Using method:

LED ON or OFF can be controlled with [LED ON] or [LED OFF] button on the screen.

4. Jack Check

Click the [Jack Check] button on the SERVICE MODE screen, and the “JACK CHECK” screen will appear.

Using method:

Click the [Start] button, and the jack check will start. During execution of jack check, the connected jack is displayed in orange. Note: The HDMI OUT jack is displayed in orange when it is con-

nected to a unit that supports HDMI.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-42

Page 44

5. Lens Barrier Check

Click the [Lens Barrier Check] button on the SERVICE MODE screen, and the “LENS BARRIER CHECK” screen will appear.

6. G Sensor Check

Click the [G Sensor Check] button on the SERVICE MODE screen, and the following screen will appear.

Using method:

The lens barrier open or close can be controlled with [OPEN] or [CLOSE] button on the screen.

If the [Reset] button is clicked, the Camcorder is reset and it is restarted, and then the “G SENSOR CHECK” screen will appear.

Using method:

Click the [Start] button, and the G sensor check will start. During execution of G sensor check, the conditon of G sensor is displayed.

HDR-SR11/SR11E/SR12/SR12E_ADJ

Click the [Top] button, and the following message will be displayed.

If the [OK] button is clicked, and Camcorder is reset and it is re- started, and then the SERVICE MODE screen will come back.

6-43

Page 45

Ver. 1.2 2008.06

7. Record Data

Click the [Record Data] button on the SERVICE MODE screen, and the “RECORD DATA” screen will appear.

The record data such as use record and self-diagnostic record are displayed.

Initializing method (Self-Diagnosis Data Only):

Click the [Clear Self-Diagnosis Data Only] button on the screen, and the Self-Diagnosis Data will be initialized.

Initializing method (All Record-Data):

Click the [Clear All Recorded-Data] button on the screen, and the All Recorded-Data will be initialized. Note: Performing the initialization causes all the user settings

including time setting to be initialized, too.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-44

Page 46

Ver. 1.2 2008.06

8. Test Pattern Output

Click the [Test Pattern Output] button on the Service Mode screen, and the “TEST PATTERN OUTPUT” screen will appear.

Using method:

1) Select the signal source of test patterns from the following items and click it.

• Front-end (CAMERA SIGNAL PROCESSOR)

• Back-end (CAMERA SIGNAL PROCESSOR)

• D/A CONVERTER

2) If you clicked D/A CONVERTER, select the output type. Note 1: If “Component out” is selected, the test patterns are

also output to the LCD screen.

3) Select the type of test patterns and click it, and the signals will be output.

4) Click the [Test Signal Cancel] button to cancel the signal output.

5) Click [x] (Close button) on the right side of signal source display to return to the initial screen. Note 2: Frequent output/cancel of test signals may cause the

signal colors to be disordered. In such a case, turn off and on the power of the camcorder.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-45

Page 47

2-3. DATA BACKUP

With the “DATA BACKUP”, the adjustment data in the camcorder can be backed up in the PC as a file. The adjustment data that can be backed up are as follows.

1) Video System Adjustments

2) Camera System Adjustments

3) LCD/EVF System Adjustments

4) Audio System Adjustments

1. Function of Each Button on Data Backup Screen

Click the [DATA BACKUP] button on the Main Menu screen, and the “DATA BACKUP” screen in Fig. 6-2-3 will appear.

Fig. 6-2-3

1 [To Menu] button

The Main Menu screen comes back.

2 [Data Read and Save] button

Read the adjustment data from the camcorder and save them in PC as a file. Default file name is as follows:

HDR-SR11_MEM_xxxxxxxx_yyyymmdd.dat

Date USB serial number Data name

3 [Data Load and Write] button

Load the adjustment data from the file saved in PC and write them to the camcorder.

HDR-SR11/SR11E/SR12/SR12E_ADJ

6-46E

Page 48

Reverse

985225453.pdf

Revision History

Ver.

1.0

1.1

1.2

Date

2008.01

2008.05

2008.06

History

Official Release

Revised-1 (A1 DI08-059)

Revised-2 (A2 DI08-174)

Contents

—

Replace the previously issued SERVICE MANUAL 9-852-254-51 with this manual.

• Change of Automatic Adjustment Program Ve rsion of Automatic Adjustment Program has been changed from Ver_1.0r01 into Ver_1.1r02.

•Addition of Thai Model

S.M. revised: Page 6-7, Page 6-13

Replace the previously issued SERVICE MANUAL 9-852-254-52 with this manual.

• Change of Automatic Adjustment Program Ve rsion of Automatic Adjustment Program has been changed from Ver_1.1r02 into Ver_1.2r03.

•Addition of “Precautions When Using Pattern Box”

• Change of aging temperature (CAMERA Adjustment 6)

• Addition of “Record Data”

•Addition of “Test Pattern Output”

S.M. revised:Page 6-3, Page 6-5, Page 6-7,

Page 6-29, Page 6-41, Page 6-44, Page 6-45

S.M. Rev.

issued

—

Ye s

HDR-SR11/SR11E/SR12/SR12E_ADJ

sanyo HDR-SR11, HDR-SR11E, HDR-SR12, HDR-SR12E Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual

Before starting adjustments

1-2. ADJUSTMENT PROGRAM

1-3. HDD SYSTEM ADJUSTMENTS

1-4. DESTINATION DATA WRITE

1-5. USB SERIAL No. INPUT

1-6. VIDEO SYSTEM ADJUSTMENTS

1-7. CAMERA SYSTEM ADJUSTMENTS

1-8. LCD/EVF SYSTEM ADJUSTMENTS

1-9. AUDIO SYSTEM ADJUSTMENTS

2-1. APPLICATION FOR ADJUSTMENT (SeusEX)

2-2. SERVICE MODE

2-3. DATA BACKUP

Revision History
