Sanyo FXR-725-GD, FXR-730-GD, FXR-750-GD, FXR-755-RDS Service manual

Download

FILE NO.

SERVICE MANUAL

REL

VOL

TUN TRK

CD PWR

Specifications

FM TUNER

Tuning Range.............................................................................. 87.5 - 107.9 MHz. (200 KHz. step)

Sensitivity .................................................................................... 2 µV (FXR-725GD)

Separation................................................................................... 30 dB (FXR-725GD)

Signal-to-Noise Ratio .................................................................. 65 dB (stereo), 70 dB (mono)

Full Panel Detachable Auto Reverse Cassette Player With CD Changer Controller

CD CHANGER CONTROL

HI-POWER 40W x 4 FXC-755RDS

AUD

DISC

FXC-755RDS

87.5 - 108.0 MHz. (50 KHz. step)

1.2 µV (others) 35 dB (others)

FXR-725GD (A.SS)

114782847

FXR-725GD (SS)

114782846

FXR-725GD (XE)

114782839

FXR-730GD (A.SS)

114782842

FXC-750GD (A.SS)

114782843

FXC-755RDS (XE)

114782840

BAND/ATP

TA/AF

SCANRM/

RPTSHF

PTY REG

AM TUNER

Tuning Range.............................................................................. 530 - 1,710 KHz. (10 KHz. step)

531 - 1,602 KHz. (9 KHz. step)

Sensitivity .................................................................................... 30 µV (FXR-725GD)

35 µV (others)

Signal-to-Noise Ratio .................................................................. 47 dB (FXR-725GD)

50 dB (others)

CASSETTE PLAYER

Tape Frequency Response ......................................................... 30 - 15,000 Hz.

Tape S/N Ratio ............................................................................ 45 dB

Wow & Flutter.............................................................................. 1.25 % WRMS

AUDIO AMPLIFIER & GENERAL

Maximum Output Power ............................................................. 35 W x 4 channels

40 W x 4 channels

Output Wiring .............................................................................. Floating-Ground type designed for 4-

speaker use

RCA low-level outputs: 2 channels

Output Impedance ...................................................................... 4 - 8 ohms

Power Supply .............................................................................. 12 volts DC, negative ground

Specifications are subject to change without notice.

REFERENCE No. SM-7900005

CONTENTS

SERVICE NOTES and PRECAUTIONS............................................................................1

ELECTRICAL ADJUSTMENTS.....................................................................................2-10

BLOCK DIAGRAM ........................................................................................................... 11

IC/TRANSISTOR LEAD IDENTIFICATION......................................................................13

CASSETTE DECK MECHANISM EXPLODED VIEW .....................................................14

CABINET & CHASSIS EXPLODED VIEW..................................................................15-16

PARTS LIST - CABINET, CHASSIS AND ACCESSORIES.........................................17-18

PARTS LIST - CASSETTE DECK MECHANISM.............................................................19

PARTS LIST-MAIN ......................................................................................................21-32

PARTS LIST-DISP ......................................................................................................33-36

PARTS LIST-RF33 ......................................................................................................37-42

CIRCUIT BOARD DIAGRAM ............................................................... SEPARATE SHEET

SCHEMATIC DIAGRAM ...................................................................... SEPARATE SHEET

SERVICE NOTES AND PRECAUTIONS

SERVICE NOTES

1. Make sure that the power lead is connected properly to power source, otherwise damage to radio may result. If a battery eliminator is used as a power source in place of a battery, it must be filtered and regulated. (The power supply capacity should be more than 5 amps.)

2. Integrated circuits (ICs) are used in this unit. Because the ICs are direc-coupled devices, as to all electronic equipment, reading within 10% of the indicated values are acceptable. Allowance must also be made for variations in supply voltage. It is expected that any breakdown within the IC results in drastic changes of the operating voltages at the terminals.

3. When replacing a power output IC, remember to use the IC specified in the parts list; Coat the IC-fin with sillicon grease.

WARNING

ln using meters, signal generator and any tool in servicing Ics, extreme care is needed. DO NOT SHORT THE IC TERMINALS TO THE PATTERN ON THE PC BOARD OR TO EACH OTHER. THE IC WILL BE INSTANTANEOUSLY DESTROYED.

ALIGNMENT PROCEDURE

Alignment is performed at factory with laboratory equipment. Therefore, before alignment is attempted, the unit should be thoroughly checked for circuit troubles.

NOTES:

1. Check for specified source voltage-DC, 14.4volts.

2. Connect an AC voltmeter (AC VM) across speaker or dummy load (4 ohms. 20W , wirewound resistor)...see Fig. 1-3. (ELECTRICAL ADJUSTMENTS)

3. Signal input must be kept as low as possible to avoid overload and clipping (use highest sensitivity of output indicator).

4. Repeat adjustment to ensure good results.

5. Non-metallic alignment tools must be used (especially at FM alignment).

6. For alignment location details, refer to CIRCUIT BOARD PARTS LOCATION.

INSTALLATION PROCEDURE

1. To prevent a short circuit, remove the key from the ignition and disconnect the

2. Make the proper input and output wire connections for each unit.

3. Connect the wiring harness wires in the following order: ground, speakers, battery, ignition.

4. Connect the wiring harness connector to the unit.

5. Install the unit in your car.

6. Reconnect the

7. Disinstall by reversing the installation procedure.

battery.

CAUTI0N

• The rear-panel which also heatsink is very hot. Don’t burn!!

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key . If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.

• If the console has a lid, make sure to install the unit so that the cover will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Do not let unconnected wires or terminals touch metal on the car or anything else conducting electricity. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correclly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the metal part in the car.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Insulate unconnected wires with vinyl tape or other similar material .

wires or ground them to any

— 1 —

DUMMY BOX SCHEMATIC

ELECTRICAL ADJUSTMENTS

(FOR FXR-725GD)

AM S.G. (50Ω)

CO-AX CABLE

33Ω 15PF

60PF

PLUG TO FIT ANTENNA RECEPTACLE OF UNIT

METAL SHIELD CAN

FM S.G. (50Ω)

CO-AX CABLE

10Ω 45Ω

60Ω

PLUG TO FIT ANTENNA RECEPTACLE OF UNIT

METAL SHIELD CAN

AM DUMMY ANTENNA FM DUMMY ANTENNA

Fig. 1-1 Fig. 1-2

4Ω 20W

LEFT CHANNEL OUTPUT

UNIT

RIGHT CHANNEL OUTPUT

4Ω 20W

R L

AC V.T.V.M. OR SCOPE

DUMMY LOAD & SWITCH BOX (FOR STEREO UNIT)

Fig. 1-3

ALIGNMENT OF AM RF & lF SECTI0N

Set the radio for AM reception. AM signal generator should be coupled with antenna receptacle through dummy (see Fig.1-1). Set VOLUME control to maximum and TONE to center. Attenuate signal generator output to maintain 0.5 watts (1.4 volts across 4 ohms load) on AC voltmeter.

VTVM

DISTORTION METER

AC VOLTMETER

T.P

SET

(See Fig. 1.3)

DUMMY

LOAD &

SW BOX

FM SG

STEREO SG

(See Fig. 1.2)

DUMMY

ANTENNA

Fig. 2 * SG frequency should be as accurate as possible.

For RADIO DIAL SETTING in the table below , settings marked are for the (10 kHz step) mode and those marked are for the (9 kHz step) mode.

STEP

GENERATOR FREQUENCY

Non-Mod.

1000kHz, 999kHz

612kHz 400Hz, 30% MOD SG att: Less than 17dB

610kHz, 612kHz 400Hz, 30% MOD SG att: 17dB

RADIO DIAL

SETTING

530kHz

531kHz

1710kHz

1602kHz

1000kHz

999kHz 612kHz

610kHz

612kHz

OUTPUT

INDICATOR

DC VTVM to test

point

DC VTVM to test

point

AC VTVM across speaker(L or R) or 4 ohms load

ADJUST-

MENT

L134

AM OSC

—

L152

AM IF

L133

AM RF

REMARKS

Adjust for 1.4V. (TYP)

Check the voltage less than 7.5V.

Adjust for Maximum Level.

— 2 —

ALIGNMENT OF FM RF & IF SECTION

Set the radio for FM reception. FM signal generator should be coupled with antenna receptacle, through dummy (see Fig.1-2).

FM SG

STEREO SG

VTVM

(See Fig. 1.2)

DUMMY

ANTENNA

T.P

SET

(See Fig. 1.3)

DUMMY LOAD &

SW BOX

DISTORTION METER

AC VOLTMETER

Fig. 3 * SG frequency should be as accurate as possible.

For RADIO DIAL SETTING in the table below, settings marked are for the (200 kHz step) mode and those marked are for the (50 kHz step) mode. In steps 1 to7, no mark frequency means that is common for both (200 kHz step) and (50 kHz step) mode.

STEP

GENERATOR FREQUENCY

Non-Mod.

98.1MHz, 97.1MHz 1kHz, 75kHz dev. SG att:66dB (1mV)

98.1MHz, 97.1MHz 1kHz, 22.5kHz dev . SG att:Less than 8dB

88.5 MHz SG att: 8~12dB

87.5 MHz

97.1 MHz, 11dB

98.1MHz, 107.1MHz

88.5 MHz

SG att: 1 1dB

RADIO DIAL

SETTING

87.5MHz

98.1MHz

97.1MHz

 98.1MHz

97.1MHz

 88.5 MHz  87.5 MHz

97.1MHz

98.1 MHz

 107.1 MHz

88.5MHz

OUTPUT

INDICATOR

DC VTVM to test

point DC VTVM to test

point AC VTVM across

speaker or 4 ohms load

AC VTVM across speaker or 4 ohms load

ADJUST-

MENT

L105

FM OSC

(L105)

L151

FM DET

L104

FM IFT

L101

FM ANT

L103

FM RF

L101

FM ANT

L103

FM RF

REMARKS

Adjust for 7.3V.

Check the voltage more than 1.1V.

Adjust for Minimum Distortion.

Adjust for Maximum Level.

Adjust for Maximum Level. (Adjust for Minimum Distortion.)

Check for SPEC.

— 3 —

ALIGNMENT OF CASSETTE PLAYER

See the wow/flutter meter for JIS/WRMS function.

(See Fig. 1.3)

SET

DUMMY LOAD &

SW BOX

AC VOLTMETER

Fig. 4

WOW/FLUTTER METER

(with drift meter)

STEP

MODULATION

FREQUENCY

Head Azimuth

Wow/Flutter

Tape Speed

TEST TAPE

MTT-257E

MTT-111N (3kHz)

OUTPUT

INDICATOR

VOLTMETER

Wow/Flutter Meter

Tape Speed Drift Meter

REMARKS

Align azimuth (on Head) for maximum output 10 kHz as well as baiance on 1 kHz between Left and Right channel output.

Check the display less than 0.3% (JIS/WRMS).

Check the display within -1% and +3%.

— 4 —

(FOR FXR-730GD/A.SS, FXC-750GD/A.SS, FXC-755RDS/XE)

DUMMY BOX SCHEMATIC

ELECTRICAL ADJUSTMENTS

AM S.G. (50Ω)

CO-AX CABLE

33Ω 15PF

60PF

PLUG TO FIT ANTENNA RECEPTACLE OF UNIT

METAL SHIELD CAN

FM S.G. (50Ω)

CO-AX CABLE

10Ω 45Ω

60Ω

PLUG TO FIT ANTENNA RECEPTACLE OF UNIT

METAL SHIELD CAN

AM DUMMY ANTENNA FM DUMMY ANTENNA

Fig. 5-1 Fig. 5-2

4Ω 20W

LEFT CHANNEL OUTPUT

UNIT

RIGHT CHANNEL OUTPUT

4Ω 20W

R L

AC V.T.V.M. OR SCOPE

DUMMY LOAD & SWITCH BOX (FOR STEREO UNIT)

Fig. 5-3

ALIGNMENT OF AM RF & lF SECTI0N

Set the radio for AM reception. AM signal generator should be coupled with antenna receptacle through dummy (see Fig.5-1). Set VOLUME control to maximum and TONE to center. Attenuate signal generator output to maintain 0.5 watts (1.4 volts across 4 ohms load) on AC voltmeter.

VTVM

DISTORTION METER

AC VOLTMETER

FM SG

STEREO SG

(See Fig. 1.2)

DUMMY

ANTENNA

T.P

SET

(See Fig. 1.3)

DUMMY

LOAD &

SW BOX

Fig. 6 * SG frequency should be as accurate as possible.

— 5 —

STEP

GENERATOR FREQUENCY

RADIO DIAL

SETTING

OUTPUT

INDICATOR

ADJUST-

MENT

REMARKS

Non-Mod.

1000kHz, 999kHz 400Hz 30% MOD SG att: 20dBµ

1000kHz, 999kHz 400Hz 30% MOD SG att: 30dBµ

530kHz

531kHz

1710kHz

1602kHz

1000kHz

999kHz

1000kHz

999kHz

TEST MODE

DC VTVM to test

point

DC VTVM to test

point

AC VTVM across speaker(L or R) or 4 ohms load

Adjust so that the “ST” mark of LCD Display appears

—

L108

AM IF

L111

AM IFT2

R124

AM SD

Check the voltage more than 2.5V.

Check the voltage less than 7.5V.

Adjust for Maximum Level.

Sensitivity of the seeking frequency.

SETTING UP TEST MODE AT STEP 4 - SEE PAGE 9

ALIGNMENT OF FM RF & IF SECTION

Set the radio for FM reception. FM signal generator should be coupled with antenna receptacle, through dummy (see Fig.5-2).

FM SG

STEREO SG

VTVM

(See Fig. 1.2)

DUMMY

ANTENNA

DISTORTION METER

AC VOLTMETER

T.P

SET

(See Fig. 1.3)

DUMMY LOAD &

SW BOX

Fig. 7 * SG frequency should be as accurate as possible.

— 6 —

STEP

GENERATOR FREQUENCY

RADIO DIAL

SETTING

OUTPUT

INDICATOR

ADJUST-

MENT

REMARKS

7’

RDS

Non-Mod.

98.1MHz 1kHz, 22.5kHz dev. SG att:66dBµ(1mV)

98.1MHz 1kHz, 22.5kHz dev . SG att:6dBµ

98.1MHz SG att:6dBµ

87.5MHz

107.9 (108) MHz SG att:6dBµ

98.1MHz SG att:25dBµ

98.1MHz 1kHz, 22.5kHz dev . SG att:33dBµ

87.5MHz

107.9MHz 108MHz

98.1MHz

87.5MHz

107.9 (108.0 ) MHz

98.1MHz

TEST MODE

98.1MHz

TEST MODE

DC VTVM to test

point DC VTVM to test

point AC VTVM to test

point

AC VTVM across speaker or 4 ohms load

Adjust so that the “ST” mark of LCD Display appears

Adjust like to appear for 0.95 of LCD Display

—

L103

FM OSC

L110

FM DET

L107

FM MIX

L100

FM ANT

L102

FM RF

L100

FM ANT

L102

FM RF

R129

FM SD

R204

Check the voltage more than 1.1V

Adjust for 6.9 ± 0.1V.

NULL VOLTAGE to become —20±20mV

Adjust for Maximum Level.

Check for SPEC.

Sensitivity of the seeking frequency.

Sensitivity of the S meter.

SETTING UP TEST MODE AT STEP 7 - SEE PAGE 10

ALIGNMENT OF FM MULTIPLEX SECTION

FM signal generator should be modulated by FM stereo signal generator. Modulation level: 19kHz 10% (7.5kHz dev)

1000Hz 30% (22.5kHz dev) FM signal generator output level: 66dBµ (1mV) Frequency: 98.1 MHz.

STEP

MODULATION

FREQUENCY

19kHz & 1000Hz (Left Channel) SG att:66dBµ

19kHz & 1000Hz (Right Channel)

19kHz & 1000Hz (Left Channel) SG att:47dBµ

OUTPUT INDICATOR

AC VTVM across Right speaker or Right channel load

AC VTVM through Left speaker or Left channel load

AC VTVM across Right speaker or Right channel load

Set the radio for FM reception and tune to signal. Adjust volume control to provide 0.5 watt on AC VTVM and tone to center. Set L/R balance control for equal output at each channel.

ADJUST-

MENT

R137

R156

Adjust for minimum.

Check for minimum.

Adjust for 20dB Separation.

REMARKS

— 7 —

ELECTRICAL ADJUSTMENTS

FOR FXR-725GD, FXR-730GD FXC-750GD

SETTING UP TEST MODE AT STEP 4 FOR AM & STEP 7 FOR FM

Press the e the mode to the test mode shown in Step 4 for AM and Step 7 for FM.

PWR

button to turn the power off. Next, use the following procedure with the front panel switches to set

VOL

REL

PWR

TUN TRK

CD CHANGER CONTROL

HI-POWER 40W x 4 FXC-750GD

AUD

BAND/ATP

CDC

DISC

SCANRM/

RPTSHF

/DX

q we r

Fig. 5

1. While the power is off, press the q

to enable the w

BAND

button to be used at the moment the power comes on.

2. If the above operation is successful all the figures on the LCD light up, check that you have entered test mode. Fig. 6 (A).

3. Press the r

AUD

button once. The display shown in Fig. 6 (B) appears on the LCD and the unit enters DX mode.

Then, while receiving FM 98.1MHz rotate the Semi-fixed VR R129 on the TUNER UNIT (RF33) to adjust the LCD until the stereo mark light “

4. Press the r

” is on. Fig. 6 (B').

AUD

button, if the display changes to that shown in Fig. 6 (C) the unit is in Local mode. Check that the “

mark is displayed (for specific: Input level is 12~28dB higher than that of the DX mode).

5. Press the w

6. Then press the r

BAND

button, if the display changes to that shown in Fig. 6 (D) or (D') receiving AM1000 kHz or *(999) kHz.

AUD

button, if the display changes to that shown in Fig. 6 (E) the unit is in DX mode. Rotate the Semi-

fixed VR R124 on the TUNER UNIT (RF33) to adjust the LCD until “

7. Then press the r

AUD

button, if the display changes to that shown in Fig. 6 (F) the unit is in Local mode. Check that the “ST”

mark is displayed. (for specific: Input level is 12~28dB higher than that of DX mode).

8. Turn off the power to release the test mode.

PRESET1

button. Then press the w

BAND

button and e

” mark lights up.

PWR

button simultaneously

”

TEST MODE CHART

(A) Enter the Test Mode

(B) FM DX Mode

(B’)OK

(D) Receiving 1000kHz

(D’) Receiving 999kHz

(E) AM DX Mode

(F) AM Local Mode

Fig. 6

— 8 —

(E’)OK

ELECTRICAL ADJUSTMENTS

FOR FXC-755RDS

TEST MODE CHART

(A) Enter the Test Mode

(B) Enter the FM Mode

REL

VOL

TUN TRK

CD PWR

(D) Receiving 98.1 MHz

(E) FM Local Mode

CD CHANGER CONTROL

HI-POWER 40W x 4 FXC-755RDS

AUD

Fig. 7

BAND/ATP

TA/AF

DISC

SCANRM/

RPTSHF

q w tye r

(F) Enter the AM Mode

(G) AM DX Mode

PTY REG

Fig. 8

1. While the power is off, press the q

PRESET1

button. Then keep pressing the w

BAND

button, press the e

simultaneously . All the figures on the LCD lights up Fig. 8 (A) enter the test mode.

2. Press the r

AUD

button after step 1, the unit enters FM seek adjustment mode of the DX mode. Fig. 8 (C) Rotate the R129

on the PC Board Ass’y (RF33R) to adjust the LCD until the STEREO indicator lights up Fig. 8 (D).

AUD

3. Press the r

button again after step 2, the unit enters the LOCAL mode. Check that the STEREO indicator is displayed

(for specific: Input level of signal Generator is 12~28dB higher than that of the DX mode). Fig. 8 (E)

4. By pressing the w

5. Press the r

BAND

button in the steps 1 to 3 enters the unit to the AM mode. Fig. 8 (F)

AUD

button, the unit enters SEEK adjustment mode of the DX mode. Fig. 8 (G)

Rotate the R124 on the PC Board Ass’y (RF33R) to adjust the LCD until the STEREO indicator lights up.

AUD

6. Pressing the r

button again after the step 5, the unit enters the LOCAL mode. Check that the STEREO indicator is

displayed (for specific: Input level of Signal Generator is 12~28dB higher than that of the DX mode). Fig. 9 (I)

PWR

button

— 9 —

(H) Receiving 999 kHz (K) The moment TP ON (N) Change the Display while AF ON

(I) AM Local Mode

(J) S. Meter Adj. Mode

(L) Change the Display while TP ON

(M) The Moment AF ON

Fig. 9

7. Press the t

TA/AF

button in the step 1, the unit enters the S meter adjustment mode. Rotate the R204 on Main PCB to adjust the LCD

until the 0.95 lights up Fig. 9 (J)

8. e

9. e

POWER POWER

OFF and ON. Release the test mode. ON and press the y

PRESET 5

. SG 98.1 MHz, MOD. 75 kHz, INT MOD. EXT, att 66dBµ RDS 1.0%, MOD. 30% 1 kHz, MONO, RDS ON, TP ON, SK OFF, BK OFF.

10. Confirm the “

” indicator on the LCD lights up.

Fig. 9 (K) 씮 (L) soon. So RDS ON Sensitivity is OK.

11 . Press the q

12. Press the t

PRESET 1 T A/AF

button for more than 2 seconds. (Memorize the RDS).

button for more than 2 seconds and confirm the “ SG 107.1 MHz, MOD. 75 kHz, INT MOD. EXT, att 66dBµ RDS 1.6%, MOD. 30% 1kHz, MONO, RDS ON, TP ON, SK OFF, BK OFF.

13. Press the q

PRESET 1

button. Confirm the receiving 107.1 MHz automatically. So the LCD indicator displays Fig. 9 (O) 씮 (P) .

(O) The Moment 107.1MHz Receiving

Change the Display while 107.1MHz Receiving

(P)

” indicator on the LCD lights up. Fig. 9 (M) 씮 (N) soon.

ALIGNMENT OF CASSETTE PLAYER

See the wow/flutter meter for JIS/WRMS function.

(See Fig. 1.3)

DUMMY LOAD &

SW BOX

TEST TAPE

MTT-257E

MTT-111N (3kHz)

STEP

SET

MODULATION

FREQUENCY

Head Azimuth

Wow/Flutter

Tape Speed

AC VOLTMETER

Fig. 4

OUTPUT

INDICATOR

VOLTMETER

Wow/Flutter Meter

Tape Speed Drift Meter

WOW/FLUTTER METER

(with drift meter)

REMARKS

Align azimuth (on Head) for maximum output 10 kHz as well as baiance on 1 kHz between Left and Right channel output.

Check the display less than 0.3% (JIS/WRMS).

Check the display within -1% and +3%.

— 10 —

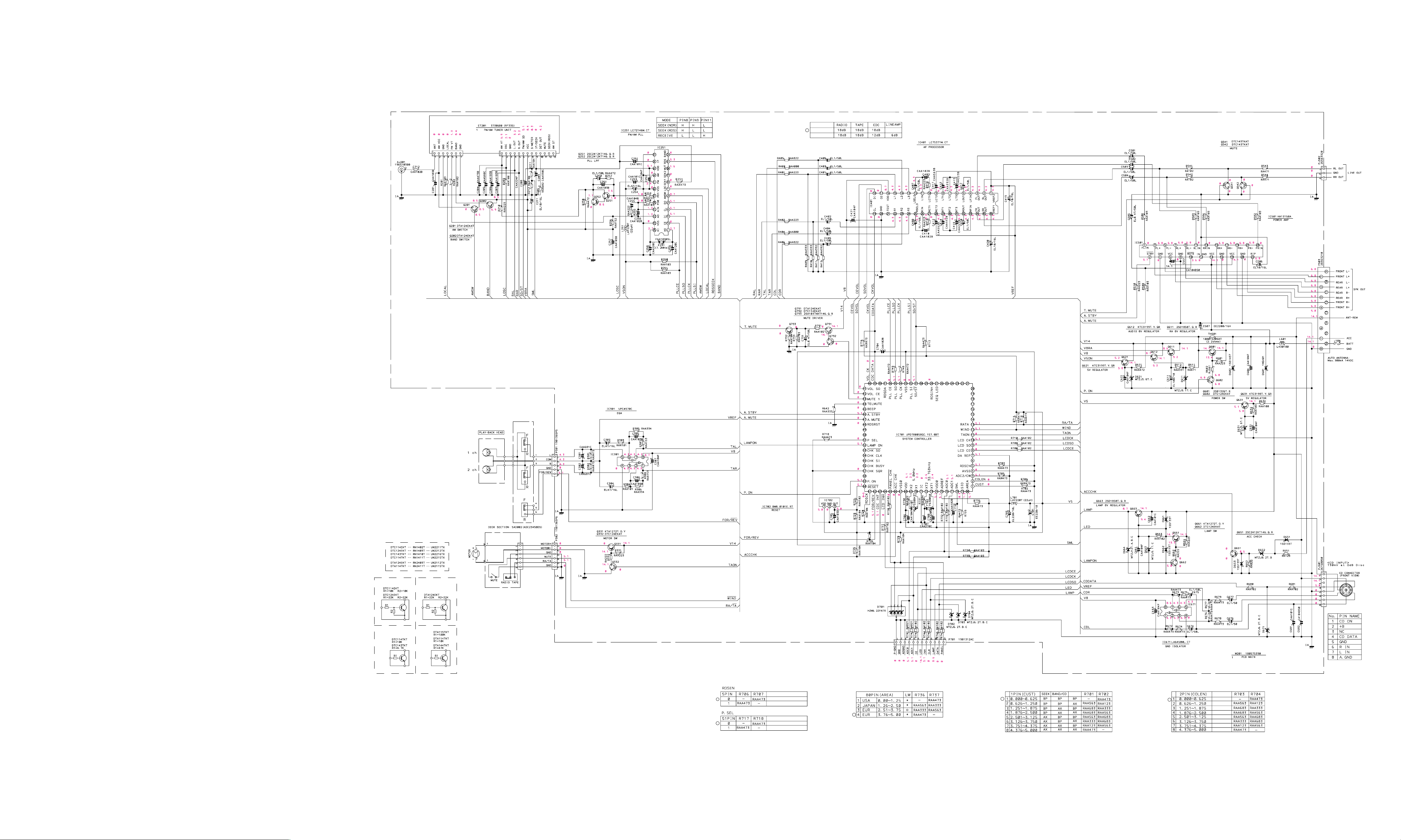

BLOCK DIAGRAM

: FXC-750GD only used

FOR FXR-725GD, FXR-730GD FXC-750GD

— 11 —

: FXC-755RDS/XE only used

: FXC-755RDS/A.SS only used

BLOCK DIAGRAM

FOR FXC-755RDS

— 12 —

IC/TRANSISTOR LEAD IDENTIFICATION

TOP VIEW or SIDE VIEW

IC301 : UPC4570C IC280 : KA2272D-1-MF

61 40

80 21

24 13

112 IC251 : LC72146M (FOR FXR-730GD/A.SS, FXC-755RDS/XE)

VDD

OUT

16 9

(FOR FXR-725GD)

IC701 : LC72323N-9931 (FOR FXR-725GD) IC701 : UPD780058GC (FOR FXR-730GD/ASS, FXC-750GD/A.SS, FXC-750GD/A.SS, FXC-755RDS/XE)

14 IC671 : LA6458ML-CT (FOR FXC-750GD/A.SS, FXC-755RDS/XE)

24 13

112 IC151 : BA1450S (FOR FXR-725G)

Q331: Q661:

Q660: KTA1272T(FOR FXR-725GD) Q601:

Q701:

ECB

Q702: Q612:

Q621: Q631:

36 19

IC401 : LC7531M-CT

1 23

KTA1272T(FOR FXC-755RDS/XE)

KTC3199T(FOR FXR-725GD)

KTC3199T(FOR FXR-730GD/A.SS, FXC-750GD/A.SS, FXC-755RDS/XE)

IC501 : HA13153A

G2 G1

Q101: 3SK126T (FOR FXR-725GD)

GND

IC702: BMR-0101E-RT (FOR FXR-730GD/A.SS, FXC-755RDS/XE)

Q100 : 2SA1037AKT Q131 : DTC124EKAT Q133 : DTA114EKAT Q134 : 2SC2412KT Q135 : 2SC3624T

FOR FXR-725GD

Q602 : 2SD1858T Q604 : 2SB1326T

Q601 : 2SB1326T Q611 : 2SD1858T

ECB

Q201 : UN2112TX Q202 : UN2112TX Q251 : 2SC2412KT Q252 : 2SC2412KT Q651 : 2SC2412KT Q332 : UN2212TX Q602 : UN2212TX Q641 : UN2212T X Q662 : UN2212TX Q791 : UN2212TX Q792 : UN2212TX Q541 : DTC143TKAT Q542 : DTC143TKAT Q793 : 2SA1037AKT

(FOR FXR-725GD)

(FOR FXC-755RDS/XE)

FOR FXC-755RDS/XE

Q201 : UN2112TX Q202 : UN2112TX Q662 : UN2112TX Q251 : 2SC2412KT Q252 : 2SC2412KT Q651 : 2SC2412KT Q332 : UN2212TX Q602 : UN2212TX Q791 : UN2212TX Q792 : UN2212TX Q541 : DTC143TKAT Q542 : DTC143TKAT Q793 : 2SA1037AKT

FOR FXR-730GD/A.SS, FXC-750GD/A.SS

— 13 —

CASSETTE DECK MECHANISM EXPLODED VIEW

(MECHANISM #5AD002)

39 40

65 66

69 70

71 72

73 74

11 12 13 14 15 16 17

28 29

3255

24 25

26 27

52 51

76 77

89 88 86 85

84 83

82 81

* When repairing any of the numerous precision parts in the cassette deck mechanism, a high degree of skill is necessory and

the cost of parts may not necessarily be cheaper than for the whole mechanism. In addition, parts from the deck mechanism exploded view and parts list are only for technical reference. These parts may or may not be individually available.

— 14 —

CABINET & CHASSIS EXPLODED VIEW

(FXR-725GD)

SCREW KIT (6PCS)

TK29X12210

BKT (REL)

TK21176780

CABLE ASS'Y

(FOR FXR-725GD/XE)

TK26917002

(FOR FXR-725GD/SS, A.SS)

TK26917170

BRACKET (MOUNT)

TK21176533

SUPPORT BKT

TK2102013

— 15 —

CABINET & CHASSIS EXPLODED VIEW

(FXR-730GD/ASS, FXC-750GD/ASS, FXC-755RDS/XE)

SCREW KIT (6PCS)

TK29X12210

BKT (REL)

TK21176780

— 16 —

CABLE ASS'Y

(For FXR-730GD/A.SS,

FXC-750GD/A.SS)

TK26917170

(For FXC-755RDS/XE)

TK26917280

BRACKET (MOUNT)

TK21176533

SUPPORT BKT

TK2102013

PARTS LIST

CABINET & CHASSIS

Ref. No. Part No. Description

1 TK5AD002 DECK MECHANISM (ADC2345BDS) 2 TK2953310A DPBB-3X10SSA 3 TK21046350 COVER (TOP) 4 TK21102320 DECK BRACKET 5 TK21145031 HEATSINK (MITSUMI) (FXR-725GD/A.SS, SS, XE)

TK21145230 HEATSINK (2P) (FXR-730GD/A.SS)

TK21145240 HEATSINK (2P-CDC) (FXC-750GD/A.SS, FXC-755RDS/XE) 6 TK21035093 CHASSIS ASSY (CST) 7 TK21176550 BRACKET ASSY (DET) 8 TK21291290 PLATE SPRING (REL) 9 TK28061360 INSULATOR (PCB) 10 TK2912304A APPM-3X4SSA 11 TK2952265A DPBS-2.6X5SSA 12 TK2952266A DPBS-2.6X6SSA 13 TK2952266C DPBS-2.6X6SSC 14 TKAKC420G9C FPPART FXR725GD/SSSOP (FXR-725GD/A.SS, FXR-725GD/SS)

TKAKC421G9C FPPART FXR725GD/XESOP (FXR-725GD/XE)

TKAKC401G9C FPPART FXR730GD/ASSSOP (FXR-730GD/A.SS)

TKAKC403G9C FPPART FXC750GD/SSSOP (FXC-750GD/A.SS)

TKAKC422G9C FPPART FXC755RDS/XESOP (FXC-755RDS/XE) 15 TK22331630 FPASSY(A) (FXR-725GD/XE)

TK22331730 FPASSY(A) (FXR-725GD/SS, A.SS)

TK22331341 FPASSY(A) (FXR-730GD/A.SS)

TK22331321 FPASSY(A) (FXC-750GD/A.SS)

TK22331700 FPASSY(A) (FXC-755RDS/XE) 16 TK22240240 FACE PLATE(B) (FXR-725GD/ASS, SS, XE, FXR-730GD/A.SS,

FXC-750GD/A.SS, FXC-755RDS/XE)

17 TK35U95B0 DISP CIRCUIT BOARD (FXR-725GD/A.SS, SS, XE)

TK35U42B0 DISP CIRCUIT BOARD (FXR-730GD/A.SS, FXC-750GD/A.SS)

TK35V01B0 DISP CIRCUIT BOARD (FXC-755RDS/XE) 18 TK29A5208C TPB2-2X8SSC 19 TK35U94A0 MAIN CIRCUIT BOARD (FXR-725GD/A.SS, SS, XE)

TK35V09A0 MAIN CIRCUIT BOARD (FXR-730GD/A.SS)

TK35V10A0 MAIN CIRCUIT BOARD (FXC-750GD/A.SS)

TK35V00A0 MAIN CIRCUIT BOARD (FXC-755RDS/XE)

TK37306B0 BL ASSY RF33S (FXR-730GD/A.SS, FXC-750GD/A.SS)

TK37303B0 BL ASSY RF33R (FXC-755RDS/XE) 20 TK22331640 FPASSY (C) (FXR-725GD/A.SS, SS, XE, FXR-730GD/A.SS)

TK22331750 FPASSY (C) (FXC-750GD/A.SS)

TK22331710 FPASSY (C) (FXC-755RDS/XE) 21 TK21176820 BRACKET (STOPPER) 22 TK2958266A DPSS-2.6X6SSA 23 TK22060460 ESC ADAPTOR (SANYO) (FXR-725GD/XE, FXC-755RDS/XE)

TK22060450 ESC ADAPTOR (E-1.5) (FXR-725GD/SS, A.SS, FXR-730GD/A.SS,

FXC-750GD/A.SS)

— 17 —

ACCESSORIES

Ref. No. Part No. Description

— TK2102013 SUPPORT BKT — TK21176533 BKT (MOUNT) — TK21176780 BKT (REL) — TK22720821 C.CASE ASSY(FXR-725GD/SS, FXR-730GD/A.SS, FXC-750GD/A.SS,

FXC-755RDS/XE)

— TK26917002 CABLE ASSY (FXR-725GD/XE)

TK26917170 CABLE ASSY (E-1) (FXR-725GD/SS, A.SS, FXR-730GD/A.SS,

FXC-750GD/A.SS)

TK26917280 CABLE ASSY FXD-ISO (FXC-755RDS/XE)

— TK28585380 GIFT BOX (FXR-725GD/SS, A.SS)

TK28530930 IN BOX (FXR-725GD/XE)

TK28584910 GIFT BOX (FXR-730GD/A.SS)

TK28584920 GIFT BOX (FXC-750GD/A.SS)

TK28530940 IN BOX (FXC-755RDS/XE) — TK28940610 M.KIT (FXR-725GD/SS, A.SS)

TK28940550 M.KIT(FXR-725GD/XE, FXR-730GD/A.SS, FXC-750GD/A.SS,

FXC-755RDS/XE)

— TK29X12210 SCREW KIT

— 18 —

CASSETTE DECK MECHANISM (5AD002)

Ref. No. Part No. Description

1 TK6107-000323 SPRING-F 2 TKMT75-00047X ASS’Y CASE L/P 3 TK6003-000305 SCREW (M2x4) 4 TK6107-000369 SPRINF L/P 5 TK6107-000339 SPRING E/P 6 TK6031-000446 WASHER(1.6x3.5x0.25T) 7 TKMT70-00439B CASE E/P 8 TKMT72-00027A ARM-C 9 TKMT70-00076A CASE CASSETTE 10 TKMT70-00438T HOLDER-C 11 TKMT90-11011A ASS’Y ARM PLAY 12 TK6031-001032 WASHER (1x3.2x0.25T) 13 TKMT72-00331N GEAR CLUTCH 1 14 TKMT74-00091C FELT CLUTCH 15 TKMT72-00331P GEAR CLUTCH 2 16 TK6107-001021 SPRING CLUTCH 17 TKHT72-00046A CLUTCH BODY 18 TK6031-000575 WASHER (1.2x3.5x0.5T) 19 TKMT72-00331M GEAR CAM 20 TK6031-000431 WASHER (1.2x3x0.25T) 21 TKMT66-00025A GEAR SENSOR 22 TK6031-000431 WASHER (1.2x3x0.25T) 23 TKMT66-00017A GEAR 19.6B 24 TK6031-000433 WASHER (1.2x3.2x0.35T) 25 TKMT72-00379D GEAR REEL 26 TKMT72-00126A SENSOR PULLEY 27 TK6107-000191 SPRING B/T 28 TK6031-000431 WASHER (1.2x3x0.25T) 29 TKMT72-00379C GEAR PLAY-B 30 TKMT72-00331G ARM SENSOR 31 TKMT75-00047K ASS’Y CHASSIS REEL 32 TK6003-000305 SCREW (M2x4) 33 TKMT61-00002A SPRING SWITCH 34 TKMT70-00438Z LEVER SWITCH 35 TK6107-001061 SPRING TRIGGER 36 TK6107-000249 SPRING ARM LOCK 37 TKMT72-00380G ARM LOCK 38 TK6009-000333 SCREW ARM LOCK 39 TKMT72-00104A PULLEY CENTER 40 TK6031-000431 WASHER (1.2x3x0.25T) 41 TK6001-001048 SCREW (M2x2.5) 42 TKMT75-00047U ASS’Y-EJECT A C/K 43 TKMT90-11010N ASS’Y MOTOR 44 TKMT70-00438R LEVER EJECT-B 45 TK6107-001023 SPRING EJECT-B 46 TK6107-001022 SPRING EJECT-A 47 TKMT66-00016A GEAR 18.6B 48 TKMT91-01011K ASS’Y FLYWHEEL 49 TK6602-000106 BELT (120.2)

— 19 —

CASSETTE DECK MECHANISM (5AD002)

Ref. No. Part No. Description

50 TK6031-001082 WASHER (2.1x5x0.5T) 51 TK6107-001028 SPRING LEVER PLAY 52 TKMT70-00438W LEVER PLAY 53 TKMT90-02013J ASS’Y CHASSIS MAIN 54 TKMT91-21013R ASS’Y PCB HEAD 55 TK6003-000322 SCREW (2x3.7) 56 TK6031-000464 WASHER (1.9x3.2x0.25) 57 TK6044-000272 E-RING (ø1.5) 58 TK6031-000486 WASHER (2.1x4x0.4T) 59 TKMT90-11010P ASS’Y ARM C/R 60 TKMT90-15010E ASS’Y PINCH R 61 TKMT90-15010D ASS’Y PINCH F 62 TKMT70-00438P LEVER PRO 63 TK6031-000486 WASHER (2.1x4x0.4T) 64 TK6107-001026 SPRING LEVER PRO 65 TK6031-000430 WASHER (1.2x3.2x0.35T) 66 TKMT70-00438Y LEVER LOCK 67 TK6107-001048 SPRING LEVER LOCK 68 TKMT75-00047V ASS’Y BASE FR C/K 69 TK6031-001082 WASHER (2.1x5x0.5T) 70 TKMT72-00379E STOPPER LEVER 71 TK6003-000305 SCREW (M2x4) 72 TK6107-001054 SPRING FF/REW 73 TKMT70-00487Q LEVER FF 74 TK6107-001054 SPRING FF/REW 75 TKMT70-00487R LEVER REWIND 76 TK6009-000334 SCREW AZIMUTH 77 TK6003-000295 SCREW (M2x5.5) 78 TK6107-000366 SPRING PINCH 79 TK6107-001049 SPRING BASE HEAD 80 TKMT90-02013H ASS’Y BASE HEAD C/K 81 TKMT72-00331K PLATE HEAD-B 82 TKMT72-00056A HOLDER H/B 83 TKMT72-00079A PLATE HEAD-A 84 TK6009-000334 SCREW AZIMUTH 85 TKMT59-00052A HEAD (TC860CPRF) 86 TK6107-000345 SPRING AZIMUTH-R 87 TK6107-000201 SPRING AZIMUTH-F 88 TK6002-001011 SCREW (M2x3) 89 TKMT70-00438A ST OPPER AZIMUTH 90 TKMT61-00007A SPRING EJECT 91 TKMT60-00025A SCREW (Ml.7x2) 92 TKMT70-00487U EJECT STOPPER 93 TKMT41-00160B HEAD CONNETOR ASS’Y 94 TKMT41-00160A MOTOR CONNECTOR ASS’Y 95 TKMT71-00099A NyIon Tube (L-40mm)

— 20 —

MAIN CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

AJ100 TK196510300 ANT JACK ASSY C101, C172 TK15711000J CAPACITOR, CHIP, 10PF 50V C102, C118 TK15711R00J CAPACITOR, CHIP, 1PF 50V C103, C106 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C104, C108 TK15715R00J CAPACITOR, CHIP, 5PF 50V C105, C117 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C107, C137 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C109 TK15713300J CAPACITOR, CHIP, 33PF 50V C110 TK15712R00J CAPACITOR, CHIP, 2PF 50V C111, C113 TK15715R00J CAPACITOR, CHIP, 5PF 50V C112, C309 TK157C1040J CAPACITOR, CHIP, 0.1U C114, C120 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C115, C156 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C116 TK15711800J CAPACITOR, CHIP, 18PF 50V C119 TK15713900J CAPACITOR, CHIP, 39PF 50V C131, C132 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C133, C203 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C134, C141 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C136, C184 TK15715R00J CAPACITOR, CHIP, 5PF 50V C138, C152 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C139 TK15743610E CAPACITOR, CHIP, 360P C140 TK15711500J CAPACITOR, CHIP, 15PF 50V C142, C510 TK155610525 CAPACITOR, ELECTROLYTIC, 1UF 50V C143, C202 TK1553476G6 CAPACITOR, ELECTROLYTIC, 47UF 16V C144, C147 TK157A1040J CAPACITOR, CHIP, 0.1UF 16V C145, C146 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C148 TK157A4730J CAPACITOR, CHIP, 0.047UF 16V C149 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C151 TK1552107K6 CAPACITOR, ELECTROLYTIC, 100UF 10V C153, C162 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C154 TK1556224K6 CAPACITOR, ELECTROLYTIC, 0.22UF 50V C155, C163 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C158 TK157C1050J CAPACITOR, CHIP, 1UF 10V C159 TK157A1230J CAPACITOR, CHIP, 0.012U C160, C603 TK15711010J CAPACITOR, CHIP, 100PF 50V C161 TK1553226K5 CAPACITOR, ELECTROLYTIC, 22UF 16V C164 TK1552107G5 CAPACITOR, ELECTROLYTIC, 100UF 10V C170, C289 TK15713310J CAPACITOR, CHIP, 330PF 50V C171, C296 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C182 TK157A1520J CAPACITOR, CHIP, 1500PF 50V C204, C205 TK157A2730J CAPACITOR, CHIP, 0.027UF 25V C280, C292 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C282, C283 TK15716810J CAPACITOR, CHIP, 680PF 50V C284 TK157A1220J CAPACITOR, CHIP, 1200PF 50V C285 TK15716800J CAPACITOR, CHIP, 68PF 50V C290, C291 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C293 TK15713310J CAPACITOR, CHIP, 330PF 50V C295 TK157A4720J CAPACITOR, CHIP, 4700PF 50V C303, C304 TK15716810J CAPACITOR, CHIP, 680PF 50V

— 21 —

MAIN CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

C306, C350 TK1553476K6 CAPACITOR, ELECTROLYTIC, 47UF 16V C307, C308 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C401, C402 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C403, C408 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C406, C415 TK157A3320J CAPACITOR, CHIP, 3300PF 50V C407, C416 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C409, C418 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C410, C411 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C412, C417 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C419, C602 TK157C1040J CAPACITOR, CHIP, 0.1U C509, C601 TK155310625 CAPACITOR, ELECTROLYTIC, 10UF 16V C511 TK1553228G0 CAPACITOR, ELECTROLYTIC, 2200UF 16V C513, C514 TK157F1040E CAPACITOR, CHIP, 0.1UF 50V C519, C520 TK157F1040E CAPACITOR, CHIP, 0.1UF 50V C531, C532 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C533, C534 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C672, C675 TK15091060J CI-1608CH101J100-CT C673, C703 TK15711010J CAPACITOR, CHIP, 100PF 50V C701, C702 TK15712000J CAPACITOR, CHIP, 20P C704, C708 TK157C1040J CAPACITOR, CHIP, 0.1U C705 TK1553107K6 CAPACITOR, ELECTROLYTIC, 100UF 16V C706, C707 TK15711010J CAPACITOR, CHIP, 100PF 50V C709 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C712 TK1555475K6 CAPACITOR, ELECTROLYTIC, 4.7UF 35V D100 TK13500390B DIODE, 1SV234T-TB D101, D102 TK135006803 DIODE, SVC220T D103 TK135006803 DIODE, SVC220T D131, D132 TK131001901 DIODE, 1SS133T D133, D134 TK135004313 DI-KV1581TRAT-3, 4, 5 D135, D605 TK131001901 DIODE, 1SS133T D601, D603 TK134014511 DIODE, ZENER, MTZJ5.6T-C D602, D608 TK134014611 DIODE, ZENER, MTZJ9.1T-C D604 TK131001801 DIODE, 1SS145T D606, D610 TK131001901 DIODE, 1SS133T D607 TK132014800 DIODE, 1N5401 D609 TK134014731 DIODE, ZENER, MTZJ10T-B D611 TK134016931 DIODE, ZENER, MTZJ4.3-C-RT D701, D704 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C D702, D703 TK131001901 DIODE, 1SS133T D705, D706 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C D707, D708 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C D709, D710 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C F101 TK175206130 CERAMIC FILTER, FFE-1070-MJ10FAL F102, F151 TK175202130 CERAMIC FILTER, FFE-1070-NA(RED) F152 TK175108260 CERAMIC FILTER, PFWLA450KS1B002B0 F701 TK176418805 X'TAL, HQST-3H-04500-14 IC101 TK111616300 IC, LA1177 IC151 TK111807600 IC, BA1450S IC280 TK111594303 IC, LA2110M-CT

— 22 —

MAIN CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

IC301 TK111257100 IC, UPC4570C IC401 TK112311303 IC, LC75371M-CT IC501 TK111766600 IC, HA13153A IC701 TK119516300 IC, LC72323N-9931 J104, J107 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J113, J116 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J134 TK165100006 RESISTOR, CHIP, 0OHM 1/8W L101 TK170024500 COIL, 1R8-6R5SR L102 TK172024034 COIL, EL0305RA-1R0K-FT L103 TK170024900 COIL, 1R9-6R5SR-0.7 L104 TK1710578E0 COIL, FM-MIX L105 TK170025100 COIL, 1R45-5R5SR L131, L132 TK172024434 COIL, EL0305RA-4R7J-FT L133 TK1710577E0 COIL, AM-RF L134 TK1710575E0 COIL, AM-OSC L151 TK1710579E0 COIL, FM-DET L152 TK1710576E0 COIL, AM-IFT L280 TK172021750 COIL, 7132A-153J L601 TK1730060B0 L-14-1123 L701 TK172024834 COIL, EL0305RA-220J-FT N280 TK19139A150 WIRE P301 TK1981365P5 POST-GIL-S-5P-S2T2 P302 TK1981365P6 POST-GIL-S-6P-S2T2 P502 TK26563210 CONNECTOR P701 TK1981312AC POST-TMD-L12X-B1 Q100 TK12110372B TRANSISTOR, 2SA1037AKT146-Q, R Q101 TK128012603 TRANSISTOR, 3SK126T-O, Y Q131, Q605 TK120015503 TRANSISTOR, DTC124EKAT Q132 TK126021221 TRANSISTOR, 2SK212T-E Q133 TK120020603 TRANSISTOR, DTA114EKAT Q134 TK12324121B TRANSISTOR, 2SC2412KT-Q, R Q135 TK123362403 TRANSISTOR, 2SC3624T-17, 18 Q601, Q701 TK120014601 TRANSISTOR, KTC3199T-Y, GR Q602, Q608 TK124185811 TRANSISTOR, 2SD1858T-Q, R Q604 TK122132621 TRANSISTOR, 2SB1326T-R Q606 TK120014401 TRANSISTOR, KTA1272T-O, Y Q607 TK120015503 TRANSISTOR, DTC124EKAT Q702 TK120014601 TRANSISTOR, KTC3199T-Y, GR R101, R106 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R102, R103 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R104 TK165333106 RESISTOR, CHIP, 330OHM 1/16W R105, R203 TK165333006 RESISTOR, CHIP, 33OHM 1/16W R107, R110 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R108 TK165315106 RESISTOR, CHIP, 150OHM 1/16W R109, R209 TK165368206 RESISTOR, CHIP, 6.8KOHM 1/16W R111 TK165311406 RESISTOR, CHIP, 110.0KOHM 1/16W R130, R132 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R131, R133 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R134, R289 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W

— 23 —

MAIN CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

R136, R170 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R137, R305 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R138, R154 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R139 TK165347106 RESISTOR, CHIP, 470OHM 1/16W R140 TK165310506 RESISTOR, CHIP, 1MOHM 1/16W R151 TK165312306 RESISTOR, CHIP, 12KOHM 1/16W R152, R280 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W R153, R155 TK165333206 RESISTOR, CHIP, 3.3KOHM 1/16W R171, R184 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R172, R186 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R1A0 TK169157510 RESISTOR, SEMI-FIXED, KVSF637A-103B R201, R291 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R202, R303 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R204, R301 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R207, R208 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R210 TK165368206 RESISTOR, CHIP, 6.8KOHM 1/16W R281, R282 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W R283 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W R290, R741 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R292 TK165322406 RESISTOR, CHIP, 220KOHM 1/16W R293 TK165368306 RESISTOR, CHIP, 68KOHM 1/16W R294, R714 TK165315206 RESISTOR, CHIP, 1.5KOHM 1/16W R302, R727 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R304 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R306 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R307, R308 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R311, R509 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R312 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R510, R606 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R513, R514 TK16522R206 RESISTOR, CHIP, 2.2OHM 1/10W R519, R520 TK16522R206 RESISTOR, CHIP, 2.2OHM 1/10W R602, R704 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R603 TK165256106 RESISTOR, CHIP, 560OHM 1/10W R605 TK165233306 RESISTOR, CHIP, 33KOHM 1/10W R607 TK161C56108 RESISTOR, CARBON, 560OHM 1/2W R608 TK165222306 RESISTOR, CHIP, 22KOHM 1/10W R609, R702 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R610 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R611, R713 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R612 TK161210008 RESISTOR, CARBON, 10OHM 1/4W R623 TK165256206 RESISTOR, CHIP, 5.6KOHM 1/10W R703 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R706 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R715 TK165333206 RESISTOR, CHIP, 3.3KOHM 1/16W R716 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R717 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R718 TK165318306 RESISTOR, CHIP, 18KOHM 1/16W R724, R725 TK165327206 RESISTOR, CHIP, 2.7KOHM 1/16W R728 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W

— 24 —

MAIN CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

R730, R731 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R732, R733 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R734, R735 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R742 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W TH661 TK100015205 PTC-B59975-C120-A54

TK180575490 PCB MAIN

TK21176010 BRACKET (IC)

TK21235150 S.PLATE (TUN-A)

TK21235160 S.PLATE (TUN-B)

TK26F0002 FUSE 10A AUTO

TK2952266A DPBS-2.6X6SSA

MAIN CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

쑗 : FXR-730GD/A.SS 왕 : FXC-750GD/A.SS

Ref. No. Part No. Description

왕 C406, C407 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V

C408, C417 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C409, C410 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C411, C412 TK157A5630J CI-1608B563K25-CT C413, C414 TK157A3320J CAPACITOR, CHIP, 3300PF 50V C415, C416 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C418, C501 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C420, C506 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C421, C604 TK157C1040J CAPACITOR, CHIP, 0.1U

— 25 —

MAIN CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

쑗 : FXR-730GD/A.SS 왕 : FXC-750GD/A.SS

Ref. No. Part No. Description

C502, C503 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C504, 왕C674 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C505, C791 TK1556474K6 CAPACITOR, ELECTROLYTIC, 0.47UF 50V C507 TK1553228G0 CAPACITOR, ELECTROLYTIC, 2200UF 16V

쑗 C510 TK1553108M4 CAPACITOR, ELECTROLYTIC, 1000UF 16V

C551, 왕C682 TK157F1040E CAPACITOR, CHIP, 0.1UF 50V C611 TK1552107K5 CAPACITOR, ELECTROLYTIC, 100UF 10V C621, C631 TK157C1040J CAPACITOR, CHIP, 0.1U C661, 왕C683 TK157C1040J CAPACITOR, CHIP, 0.1U C662, 왕C681 TK15711010J CAPACITOR, CHIP, 100PF 50V

왕 C675 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V 왕 C676, 왕C677 TK1556105K5 CAPACITOR, ELECTROLYTIC, 1UF 50V 쑗 C682 TK157A1020E CAPACITOR, CHIP, 1000PF 50V

C701 TK1552227G5 CAPACITOR, ELECTROLYTIC, 220UF 10V C703 TK1552227K6 CAPACITOR, ELECTROLYTIC, 220UF 10V

왕 C704, C710 TK157A1020J CAPACITOR, CHIP, 1000PF 50V

C706 TK157C1040J CAPACITOR, CHIP, 0.1U C707 TK15712700J CAPACITOR, CHIP, 27PF 50V D601 TK132014800 DIODE, 1N5401 D602 TK131001801 DIODE, 1SS145T D611, D663 TK134014611 DIODE, ZENER, MTZJ9.1T-C D621, D631 TK134014511 DIODE, ZENER, MTZJ5.6T-C D651, D653 TK131001901 DIODE, 1SS133T D652 TK134018111 DIODE, ZENER, MTZJ8.2T-B D661, D662 TK131001901 DIODE, 1SS133T D664 TK134021931 DIODE, ZENER, MTZJ12T-A, B, C

왕 D671, D702 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C

D701 TK134028703 DIODE, ZENER, HZM6.2ZFA D703, D704 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C ET201 TK37306B0 BL ASSY RF33S F251 TK176418905 HQST-3H-07200-10 F701 TK175308434 CERAMIC FILTER, FCR5.0MC5T-FT F702 TK176300500 X'TAL, 32.768KHZ-10PPM IC251 TK112303303 IC, LC72146M-CT IC301 TK111257100 IC, UPC4570C IC401 TK112311303 IC, LC75371M-CT

왕 IC501 TK111845600 IC, HA13158A 쑗 IC501 TK111766600 IC, HA13153A 왕 IC671 TK111823303 IC, LA6458ML-CT

IC701 TK119517100 IC, UPD780058GC-157-8 IC702 TK111798F07 IC, BMR-0101E-RT J202, J455 TK165300006 RESISTOR, CHIP, 0OHM 1/16W L251, L701 TK172024834 COIL, EL0305RA-220J-FT L601 TK174301800 TRANSFORMER, TT-OL-5047-R2 P301 TK1981365P5 POST-GIL-S-5P-S2T2 P302 TK1981365P6 POST-GIL-S-6P-S2T2 P503 TK26563210 CONNECTOR P701 TK1981312AC POST-TMD-L12X-B1

왕 PJ501 TK26160050 SOCKET TCS5076-18-1511

— 26 —

MAIN CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

쑗 : FXR-730GD/A.SS 왕 : FXC-750GD/A.SS

Ref. No. Part No. Description

PJ502 TK26563320 CONN LPR1250-0800 Q201, Q202 TK120020703 TRANSISTOR, DTA124EKAT Q251, Q252 TK12324121B TRANSISTOR, 2SC2412KT-Q, R Q331, Q661 TK120014401 TRANSISTOR, KTA1272T-O, Y Q332, Q602 TK120015503 TRANSISTOR, DTC124EKAT Q541, Q542 TK120020403 TRANSISTOR, DTC143TKAT Q601 TK122132621 TRANSISTOR, 2SB1326T-R Q611, Q663 TK124185811 TRANSISTOR, 2SD1858T-Q, R Q612, Q621 TK120014601 TRANSISTOR, KTC3199T-Y, GR Q631 TK120014601 TRANSISTOR, KTC3199T-Y, GR Q651 TK12324121B TRANSISTOR, 2SC2412KT-Q, R Q662 TK120015503 TRANSISTOR, DTC124EKAT Q791 TK120020703 TRANSISTOR, DTA124EKAT Q792 TK120020203 TRANSISTOR, DTC114EKAT Q793 TK12110372B TRANSISTOR, 2SA1037AKT146-Q, R R201, R254 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R202, R663 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R203, R631 TK165310006 RESISTOR, CHIP, 10OHM 1/16W R206 TK165368206 RESISTOR, CHIP, 6.8KOHM 1/16W R210, R331 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R211 TK165318406 RESISTOR, CHIP, 180KOHM 1/16W R212, R723 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R251, R301 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R253, R255 TK165322206 RESISTOR, CHIP, 2.2KOHM 1/16W R256 TK165315206 RESISTOR, CHIP, 1.5KOHM 1/16W R257, R258 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R260, R261 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R302, 왕R672 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R303, R304 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R305, R306 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R307, R308 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R332, R662 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R401, R402 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R403, R404 TK165300006 RESISTOR, CHIP, 0OHM 1/16W

왕 R405, 왕R406 TK165382206 RESISTOR, CHIP, 8.2KOHM 1/16W

R409, R410 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W

왕 R411, 왕R412 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W

R413, R414 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R501, R502 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R503, R504 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R509, R632 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R510, R601 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R541, R542 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R543, R544 TK165247106 RESISTOR, CHIP, 470OHM 1/10W R602 TK161C56108 RESISTOR, CARBON, 560OHM 1/2W R611 TK165247106 RESISTOR, CHIP, 470OHM 1/10W R612 TK165333106 RESISTOR, CHIP, 330OHM 1/16W R621, R748 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R642 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W

— 27 —

MAIN CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

쑗 : FXR-730GD/A.SS 왕 : FXC-750GD/A.SS

Ref. No. Part No. Description

R651 TK165212306 RESISTOR, CHIP, 12KOHM 1/10W R652 TK165282206 RESISTOR, CHIP, 8.2KOHM 1/10W R661 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W

왕 R673, 왕R674 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W 왕 R675, 왕R676 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W 왕 R677, 왕R678 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W 왕 R679, R702 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W 왕 R680, 왕R681 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W 쑗 R703 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W 왕 R704, R705 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W

R707, R711 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R708, R709 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R710, R722 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R712, R713 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W

왕 R716, R718 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W

R724, R725 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R726, R729 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R727, R728 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R730 TK165322206 RESISTOR, CHIP, 2.2KOHM 1/16W R731 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R732, R733 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R734, R735 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R736 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R739 TK165247306 RESISTOR, CHIP, 47KOHM 1/10W R741, R742 TK165282106 RESISTOR, CHIP, 820OHM 1/10W R743, R744 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R745, R746 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R747 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R749 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R791 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R792 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R793 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W TH601 TK100015205 PTC-B59975-C120-A54

TK180575390 PCB MAIN TK21176010 BRACKET (IC) TK21176810 BKT (CDC) TK26F0002 FUSE 10A AUTO TK2952266A DPBS-2.6X6SSA

— 28 —

MAIN CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

AJ201 TK196510300 ANT JACK ASSY C201, C257 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C204 TK157A4730J CAPACITOR, CHIP, 0.047UF 16V C205 TK15715R00J CAPACITOR, CHIP, 5PF 50V C206, C207 TK157A1830J CAPACITOR, CHIP, 0.018UF 25V C208, C212 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C209, C786 TK15713300J CAPACITOR, CHIP, 33PF 50V C211, C419 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C251, C253 TK15711010J CAPACITOR, CHIP, 100PF 50V C252, C307 TK157C1040J CAPACITOR, CHIP, 0.1U C254, C303 TK1553476K6 CAPACITOR, ELECTROLYTIC, 47UF 16V C255 TK157A1040J CAPACITOR, CHIP, 0.1UF 16V C256, C308 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C258, C708 TK15712200J CAPACITOR, CHIP, 22PF 50V C259 TK15711200J CAPACITOR, CHIP, 12PF 50V C260, C401 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C261, C305 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C301, C302 TK15716810J CAPACITOR, CHIP, 680PF 50V C304 TK1553476K6 CAPACITOR, ELECTROLYTIC, 47UF 16V C306, C705 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C402, C403 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C404, C405 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C406, C407 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C408, C417 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C409, C410 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C411, C412 TK157A5630J CI-1608B563K25-CT C413, C414 TK157A3320J CAPACITOR, CHIP, 3300PF 50V C415, C416 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C418, C501 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C420, C506 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C421, C604 TK157C1040J CAPACITOR, CHIP, 0.1U C502, C503 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C504, C674 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C505, C791 TK1556474K6 CAPACITOR, ELECTROLYTIC, 0.47UF 50V C507 TK1553228G0 CAPACITOR, ELECTROLYTIC, 2200UF 16V C508, C509 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C551, C682 TK157F1040E CAPACITOR, CHIP, 0.1UF 50V C611 TK1552107K5 CAPACITOR, ELECTROLYTIC, 100UF 10V C621, C631 TK157C1040J CAPACITOR, CHIP, 0.1U C641, C704 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C661, C683 TK157C1040J CAPACITOR, CHIP, 0.1U C662, C681 TK15711010J CAPACITOR, CHIP, 100PF 50V C675 TK1556105K6 CAPACITOR, ELECTROLYTIC, 1UF 50V C676, C677 TK1556105K5 CAPACITOR, ELECTROLYTIC, 1UF 50V C701 TK1552227G5 CAPACITOR, ELECTROLYTIC, 220UF 10V C703 TK1552227K6 CAPACITOR, ELECTROLYTIC, 220UF 10V C706, C787 TK157C1040J CAPACITOR, CHIP, 0.1U C707 TK15712700J CAPACITOR, CHIP, 27PF 50V C710 TK157A1020J CAPACITOR, CHIP, 1000PF 50V

— 29 —

MAIN CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

C781 TK1553106K6 CAPACITOR, ELECTROLYTIC, 10UF 16V C782 TK15712210J CAPACITOR, CHIP, 220PF 50V C783 TK157A1050J CAPACITOR, CHIP, 1UF 10V C784 TK15715610J CAPACITOR, CHIP, 560PF 50V C785 TK15711800J CAPACITOR, CHIP, 18PF 50V D601 TK132014800 DIODE, 1N5401 D602 TK131001801 DIODE, 1SS145T D611, D663 TK134014611 DIODE, ZENER, MTZJ9.1T-C D621, D631 TK134014511 DIODE, ZENER, MTZJ5.6T-C D641 TK134018121 DIODE, ZENER, MTZJ8.2T-A-B-C D642, D651 TK131001901 DIODE, 1SS133T D652 TK134018111 DIODE, ZENER, MTZJ8.2T-B D653, D661 TK131001901 DIODE, 1SS133T D662 TK131001901 DIODE, 1SS133T D664 TK134021931 DIODE, ZENER, MTZJ12T-A, B, C D671, D702 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C D701 TK134028703 DIODE, ZENER, HZM6.2ZFA D703, D704 TK134015041 DIODE, ZENER, MTZJ6.2T-B, C D751 TK141028200 LED, L-934RS/1ID ET201 TK37303B0 BL ASSY RF33R F251 TK176418905 HQST-3H-07200-10 F701 TK175308434 CERAMIC FILTER, FCR5.0MC5T-FT F702 TK176300500 X'TAL, 32.768KHZ-10PPM F781 TK176419100 X'TAL, HQS-3H3-04332-16 IC251 TK112303303 IC, LC72146M-CT IC301 TK111257100 IC, UPC4570C IC401 TK112311303 IC, LC75371M-CT IC501 TK111845600 IC, HA13158A IC671 TK111823303 IC, LA6458ML-CT IC701 TK119517100 IC, UPD780058GC-157-8 IC702 TK111798F07 IC, BMR-0101E-RT IC781 TK112332303 IC, LC72723M-CT J202, J455 TK165300006 RESISTOR, CHIP, 0OHM 1/16W L251, L701 TK172024834 COIL, EL0305RA-220J-FT L601 TK174301800 TRANSFORMER, TT-OL-5047-R2 L781 TK172025234 COIL, EL0305RA-101J-FT P301 TK1981365P5 POST-GIL-S-5P-S2T2 P302 TK1981365P6 POST-GIL-S-6P-S2T2 P503 TK26563210 CONNECTOR P701 TK1981312AC POST-TMD-L12X-B1 PJ501 TK26160050 SOCKET TCS5076-18-1511 PJ502 TK26563320 CONN LPR1250-0800 Q201, Q202 TK120020703 TRANSISTOR, DTA124EKAT Q251, Q252 TK12324121B TRANSISTOR, 2SC2412KT-Q, R Q331, Q661 TK120014401 TRANSISTOR, KTA1272T-O, Y Q332, Q602 TK120015503 TRANSISTOR, DTC124EKAT Q541, Q542 TK120020403 TRANSISTOR, DTC143TKAT Q601 TK122132621 TRANSISTOR, 2SB1326T-R Q611, Q663 TK124185811 TRANSISTOR, 2SD1858T-Q, R

— 30 —

MAIN CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

Q612, Q621 TK120014601 TRANSISTOR, KTC3199T-Y, GR Q631 TK120014601 TRANSISTOR, KTC3199T-Y, GR Q641, Q791 TK120020703 TRANSISTOR, DTA124EKAT Q651 TK12324121B TRANSISTOR, 2SC2412KT-Q, R Q662 TK120015503 TRANSISTOR, DTC124EKAT Q792 TK120020203 TRANSISTOR, DTC114EKAT Q793 TK12110372B TRANSISTOR, 2SA1037AKT146-Q, R R201, R254 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R202, R663 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R203, R631 TK165310006 RESISTOR, CHIP, 10OHM 1/16W R204 TK1691734D9 RESISTOR, SEMI-FIXED, NVZ6TLT-204B-RT R205 TK165382306 RESISTOR, CHIP, 82KOHM 1/16W R206 TK165368206 RESISTOR, CHIP, 6.8KOHM 1/16W R207, R714 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R208, R411 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W R209, R771 TK165333206 RESISTOR, CHIP, 3.3KOHM 1/16W R210, R331 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R251, R252 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R253, R255 TK165322206 RESISTOR, CHIP, 2.2KOHM 1/16W R256 TK165315206 RESISTOR, CHIP, 1.5KOHM 1/16W R257, R258 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R260, R261 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R301, R302 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R303, R304 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R305, R306 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R307, R308 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R332, R662 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R401, R402 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R403, R404 TK165300006 RESISTOR, CHIP, 0OHM 1/16W R405, R406 TK165382206 RESISTOR, CHIP, 8.2KOHM 1/16W R409, R410 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R412 TK165339206 RESISTOR, CHIP, 3.9KOHM 1/16W R413, R414 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R501, R502 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R503, R504 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R509, R632 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R510, R601 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R512, R513 TK165310506 RESISTOR, CHIP, 1MOHM 1/16W R514, R515 TK165310506 RESISTOR, CHIP, 1MOHM 1/16W R541, R542 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R543, R544 TK165247106 RESISTOR, CHIP, 470OHM 1/10W R602 TK161C56108 RESISTOR, CARBON, 560OHM 1/2W R611 TK165247106 RESISTOR, CHIP, 470OHM 1/10W R612 TK165333106 RESISTOR, CHIP, 330OHM 1/16W R621, R748 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R641 TK165247206 RESISTOR, CHIP, 4.7KOHM 1/10W R642, R672 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R651 TK165212306 RESISTOR, CHIP, 12KOHM 1/10W R652 TK165282206 RESISTOR, CHIP, 8.2KOHM 1/10W

— 31 —

MAIN CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

R661 TK165322306 RESISTOR, CHIP, 22KOHM 1/16W R673, R674 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R675, R676 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R677, R678 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R679, R702 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R680, R681 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R704, R705 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R706, R711 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R708, R709 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R710, R722 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R712, R713 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R715, R723 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R716, R718 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R724, R725 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R726, R729 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R727, R728 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R730 TK165322206 RESISTOR, CHIP, 2.2KOHM 1/16W R731 TK165333406 RESISTOR, CHIP, 330KOHM 1/16W R732, R733 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R734, R735 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R736 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R741, R742 TK165282106 RESISTOR, CHIP, 820OHM 1/10W R743, R744 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R745, R746 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R747 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R749 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R751 TK165339106 RESISTOR, CHIP, 390OHM 1/16W R772, R783 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R781 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R791 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R792 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R793 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W TH601 TK100015205 PTC-B59975-C120-A54

TK180575390 PCB MAIN

TK21176010 BRACKET (IC)

TK21176810 BKT (CDC)

TK26F0002 FUSE 10A AUTO

TK2952266A DPBS-2.6X6SSA

— 32 —

DISPLAY CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

C801 TK15716810E CAPACITOR, CHIP, 680PF 50V C802 TK157B1040E CAPACITOR, CHIP, 0.1UF 25V D801 TK134028703 DIODE, ZENER, HZM6.2ZFA D802 TK134030113 DIODE, ZENER, BZX84-C5V1 D811, D812 TK141026009 LED, MBG3864X-J300K-R D813, D814 TK141026009 LED, MBG3864X-J300K-R D815, D816 TK141026009 LED, MBG3864X-J300K-R D817, D818 TK141026009 LED, MBG3864X-J300K-R D819, D820 TK141026009 LED, MBG3864X-J300K-R D821, D822 TK141026009 LED, MBG3864X-J300K-R D823 TK141026109 LED, SLR-332VRT32-RT D824 TK141028913 LED, HBG1105W-DE-TR-CT H801 TK144027800 LCD, 278 IC801 TK112296300 IC, LC75834W J801, J802 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J803, J804 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J805, J806 TK165200006 RESISTOR, CHIP, 0OHM 1/10W P801 TK1981313AC POST-TMD-L12P-A2 PL801 TK146013700 PILOTLAMP, ASSY 137 G-30 R801, R802 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R803, R804 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R805 TK165247306 RESISTOR, CHIP, 47KOHM 1/10W R806 TK165243306 RESISTOR, CHIP, 43KOHM 1/10W R807 TK165110206 RESISTOR, CHIP, 1KOHM 1/8W R811, R812 TK165233206 RESISTOR, CHIP, 3.3KOHM 1/10W R813, R814 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R815, R816 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R817, R818 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R819 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R820, R821 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R822, R823 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R824, R825 TK165215306 RESISTOR, CHIP, 15KOHM 1/10W R828, R829 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R830, R831 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R832, R833 TK165200006 RESISTOR, CHIP, 0OHM 1/10W R841, R848 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R842, R849 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R843, R850 TK165227206 RESISTOR, CHIP, 2.7KOHM 1/10W R844, R851 TK165233206 RESISTOR, CHIP, 3.3KOHM 1/10W R845, R852 TK165247206 RESISTOR, CHIP, 4.7KOHM 1/10W R846, R853 TK165256206 RESISTOR, CHIP, 5.6KOHM 1/10W R847 TK165282206 RESISTOR, CHIP, 8.2KOHM 1/10W SW801, SW802 TK23A1127 SWITCH (SKQCAC-260G) SW803, SW804 TK23A1127 SWITCH (SKQCAC-260G) SW805, SW806 TK23A1127 SWITCH (SKQCAC-260G) SW807, SW808 TK23A1127 SWITCH (SKQCAC-260G) SW809, SW810 TK23A1127 SWITCH (SKQCAC-260G) SW811, SW814 TK23A1127 SWITCH (SKQCAC-260G) SW812, SW813 TK23A11710 SWITCH SKQNAC-RT

— 33 —

DISPLAY CIRCUIT BOARD FOR FXR-725GD/SS, A.SS, XE

Ref. No. Part No. Description

SW815 TK23A1127 SWITCH (SKQCAC-260G)

TK180574511 PCB DISP

TK21176741 BKT (LCD)

TK22129651 HOLDER ASSY (LCD)

TK28073560 COLOR SHEET (LCD)

TK28073630 COLOR SHEET(LED) 10X10

DISPLAY CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

Ref. No. Part No. Description

C801 TK15786810E CAPACITOR, CHIP, 680PF 50V C802 TK157B1040E CAPACITOR, CHIP, 0.1UF 25V D801 TK134028703 DIODE, ZENER, HZM6.2ZFA D802 TK134024313 DIODE, ZENER, 02CZ5.1T-Y D811, D812 TK141026009 LED, MBG3864X-J300K-R D813, D814 TK141026009 LED, MBG3864X-J300K-R D815, D816 TK141026009 LED, MBG3864X-J300K-R D817, D818 TK141026009 LED, MBG3864X-J300K-R D819, D820 TK141026009 LED, MBG3864X-J300K-R D821, D822 TK141026009 LED, MBG3864X-J300K-R D823 TK141026109 LED, SLR-332VRT32-RT D824 TK141029203 LED, HEB1105W-RR-CT H801 TK144027800 LCD, 278 IC801 TK112296300 IC, LC75834W J801, J802 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J803, J804 TK165100006 RESISTOR, CHIP, 0OHM 1/8W J805, J806 TK165200006 RESISTOR, CHIP, 0OHM 1/10W P801 TK1981313AC POST-TMD-L12P-A2 PL801 TK146013700 PILOTLAMP, ASSY 137 G-30 R801, R802 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R803, R804 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R805 TK165247306 RESISTOR, CHIP, 47KOHM 1/10W R806 TK165243306 RESISTOR, CHIP, 43KOHM 1/10W R807 TK165110206 RESISTOR, CHIP, 1KOHM 1/8W R811, R812 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R813, R814 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R815, R816 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R817, R818 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R819, R843 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R820, R821 TK165239206 RESISTOR, CHIP, 3.9KOHM 1/10W R822, R823 TK165239206 RESISTOR, CHIP, 3.9KOHM 1/10W R824, R825 TK165215306 RESISTOR, CHIP, 15KOHM 1/10W

— 34 —

DISPLAY CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

Ref. No. Part No. Description

R828, R829 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R830, R831 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R832, R833 TK165200006 RESISTOR, CHIP, 0OHM 1/10W R841, R848 TK165282106 RESISTOR, CHIP, 820OHM 1/10W R842, R849 TK165212206 RESISTOR, CHIP, 1.2KOHM 1/10W R844, R851 TK165227206 RESISTOR, CHIP, 2.7KOHM 1/10W R845, R852 TK165247206 RESISTOR, CHIP, 4.7KOHM 1/10W R846, R853 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R847 TK165233306 RESISTOR, CHIP, 33KOHM 1/10W R850 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W SW801, SW802 TK23A1127 SWITCH (SKQCAC-260G) SW803, SW804 TK23A1127 SWITCH (SKQCAC-260G) SW805, SW806 TK23A1127 SWITCH (SKQCAC-260G) SW807, SW808 TK23A1127 SWITCH (SKQCAC-260G) SW809, SW810 TK23A1127 SWITCH (SKQCAC-260G) SW811, SW814 TK23A1127 SWITCH (SKQCAC-260G) SW812, SW813 TK23A11710 SWITCH SKQNAC-RT SW815 TK23A1127 SWITCH (SKQCAC-260G)

TK180574511 PCB DISP

TK21176740 BKT (LCD)

TK22129651 HOLDER ASSY (LCD)

TK28073560 COLOR SHEET (LCD)

DISPLAY CIRCUIT BOARD FOR FXC-755RDS/XE

Ref.No. PartsNo. Description

— 35 —

DISPLAY CIRCUIT BOARD FOR FXC-755RDS/XE

Ref.No. PartsNo. Description

PL801 TK146013700 PILOTLAMP, ASSY 137 G-30 R801, R802 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R803, R804 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R805 TK165247306 RESISTOR, CHIP, 47KOHM 1/10W R806 TK165243306 RESISTOR, CHIP, 43KOHM 1/10W R807 TK165110206 RESISTOR, CHIP, 1KOHM 1/8W R811, R812 TK165233206 RESISTOR, CHIP, 3.3KOHM 1/10W R813, R814 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R815, R816 TK165210206 RESISTOR, CHIP, 1KOHM 1/10W R817, R818 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R819, R843 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W R820, R821 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R822, R823 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R824, R825 TK165215306 RESISTOR, CHIP, 15KOHM 1/10W R828, R829 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R830, R831 TK165222206 RESISTOR, CHIP, 2.2KOHM 1/10W R832, R833 TK165200006 RESISTOR, CHIP, 0OHM 1/10W R841, R848 TK165282106 RESISTOR, CHIP, 820OHM 1/10W R842, R849 TK165212206 RESISTOR, CHIP, 1.2KOHM 1/10W R844, R851 TK165227206 RESISTOR, CHIP, 2.7KOHM 1/10W R845, R852 TK165247206 RESISTOR, CHIP, 4.7KOHM 1/10W R846, R853 TK165210306 RESISTOR, CHIP, 10KOHM 1/10W R847 TK165233306 RESISTOR, CHIP, 33KOHM 1/10W R850 TK165218206 RESISTOR, CHIP, 1.8KOHM 1/10W SW801, SW802 TK23A1127 SWITCH (SKQCAC-260G) SW803, SW804 TK23A1127 SWITCH (SKQCAC-260G) SW805, SW806 TK23A1127 SWITCH (SKQCAC-260G) SW807, SW808 TK23A1127 SWITCH (SKQCAC-260G) SW809, SW810 TK23A1127 SWITCH (SKQCAC-260G) SW811, SW814 TK23A1127 SWITCH (SKQCAC-260G) SW812, SW813 TK23A11710 SWITCH SKQNAC-RT SW815 TK23A1127 SWITCH (SKQCAC-260G)

TK180574511 PCB DISP

TK21176741 BKT (LCD)

TK22129651 HOLDER ASSY (LCD)

TK28073560 COLOR SHEET (LCD)

TK28073630 COLOR SHEET(LED) 10X10

— 36 —

RF33S CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

Ref. No Part No. Description

C100, C103 TK15712700J CAPACITOR, CHIP, 27PF 50V C101, C171 TK15711200J CAPACITOR, CHIP, 12PF 50V C102, C104 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C105 TK15775R00J CAPACITOR, CHIP, 5P C106 TK15711500J CAPACITOR, CHIP, 15PF 50V C107, C122 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C108, C127 TK155310626 CAPACITOR, ELECTROLYTIC, 10UF 16V C110, C116 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C111 TK15712R00J CAPACITOR, CHIP, 2PF 50V C112, C113 TK15774R00J CAPACITOR, CHIP, 4PF 50V C114 TK15711800J CAPACITOR, CHIP, 18PF 50V C115 TK15771200J CAPACITOR, CHIP, 12P C118 TK157A1520J CAPACITOR, CHIP, 1500PF 50V C119 TK172151546 COIL, LK1608-4R7K-CT C120 TK157A6810E CAPACITOR, CHIP, 680PF 50V C121, C154 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C123 TK1552107K6 CAPACITOR, ELECTROLYTIC, 100UF 10V C124, C129 TK15711010J CAPACITOR, CHIP, 100PF 50V C126, C140 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C128, C182 TK157A1040J CAPACITOR, CHIP, 0.1UF 16V C131 TK15716R00J CAPACITOR, CHIP, 6PF 50V C132 TK157A1220J CAPACITOR, CHIP, 1200PF 50V C133, C150 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C134 TK155633526 CAPACITOR, ELECTROLYTIC, 3.3UF 50V C135 TK155622576 CE-SSM2.2M50-LT C136, C143 TK157C1050E CAPACITOR, CHIP, 1UF 16V C137 TK157A4730J CAPACITOR, CHIP, 0.047UF 16V C138 TK157A3920J CAPACITOR, CHIP, 3900PF 50V C141 TK157C1040J CAPACITOR, CHIP, 0.1U C144, C152 TK157C2240E CAPACITOR, CHIP, 0.22UF 25V C145, C151 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C146 TK157A6820J CAPACITOR, CHIP, 6800PF 50V C148, C153 TK157C1050E CAPACITOR, CHIP, 1UF 16V C149 TK155610526 CAPACITOR, ELECTROLYTIC, 1UF 50V C155, C156 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C157 TK157A1230J CAPACITOR, CHIP, 0.012U C158 TK157C4740E CAPACITOR, CHIP, 0.47UF, 16V C159, C162 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C161, C175 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C163 TK15773300E CAPACITOR, CHIP, 33PF 50V C164, C170 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C165, C168 TK157C1050E CAPACITOR, CHIP, 1UF 16V C166 TK15774R00J CAPACITOR, CHIP, 4PF 50V C167 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C172 TK15711200J CAPACITOR, CHIP, 12PF 50V C173, C177 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C183, C187 TK157A2220J CAPACITOR, CHIP, 2200PF 50V C186, C189 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C190 TK15711000J CAPACITOR, CHIP, 10PF 50V

— 37 —

RF33S CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

Ref. No Part No. Description

D101 TK13500390B DIODE, 1SV234T-TB D102, D103 TK135005703 DIODE, SVC219T D104, D108 TK135005703 DIODE, SVC219T D105, D107 TK13200710B DIODE, DA204KT146 D109 TK131002903 DIODE, 1SS355T F101 TK175206130 CERAMIC FILTER, FFE-1070-MJ10FAL F102 TK1751058D0 CERAMIC FILTER, KBF450P-6AS F103, F104 TK175205130 CERAMIC FILTER, FFE-1070-MS10SGL F105 TK1751080D0 CERAMIC FILTER, KBR-912F108 F111 TK1764154B4 X'TAL, HC-49/U-S10.26M-FT IC101 TK111847300 IC, LA1781M J100, R161 TK165300006 RESISTOR, CHIP, 0OHM 1/16W L100 TK170025400 COIL, 1R7-7SR L101 TK170024700 COIL, 2R0-4R5TR L102 TK170024900 COIL, 1R9-6R5SR-0.7 L103 TK170025200 COIL, 1R2-6R5SL L105 TK172025934 COIL, EL0305RA-102J-FT L106 TK172025234 COIL, EL0305RA-101J-FT L107 TK1710583E0 COIL, FM-IFT L108 TK1710569E0 COIL, AM-IFT1 L109 TK172024234 COIL, EL0305RA-2R2J-FT L110 TK1710586E0 COIL, FM-DET L111 TK1710584E0 COIL, AM-IFT2 L112 TK172023634 COIL, EL0305RA-R22K-FT L120 TK1710582E0 COIL, AM-ANT L122 TK172024934 COIL, EL0305RA-330J-FT P100 TK1981327D7 POST-6029B-1-07Z003T P101 TK1981327DA POST-6029B-1-10Z003T Q100 TK128026313 TRANSISTOR, 3SK263T-5 Q105 TK12340812B TRANSISTOR, 2SC4081T106-Q, R Q106 TK120016003 TRANSISTOR, DTC114TKAT Q111 TK120015713 TRANSISTOR, FC18T-F, G R101, R120 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R102, R103 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R104, R118 TK165382306 RESISTOR, CHIP, 82KOHM 1/16W R105 TK165327306 RESISTOR, CHIP, 27KOHM 1/16W R106, R119 TK165322406 RESISTOR, CHIP, 220KOHM 1/16W R107, R130 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R108, R147 TK165356006 RESISTOR, CHIP, 56OHM 1/16W R109, R110 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R111, R116 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R112, R126 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R115 TK165347106 RESISTOR, CHIP, 470OHM 1/16W R117 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R122, R142 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R124, R137 TK169162010 RESISTOR, SEMI-FIXED, KVSF637A-223B R125 TK165333106 RESISTOR, CHIP, 330OHM 1/16W R127 TK165322406 RESISTOR, CHIP, 220KOHM 1/16W R128 TK165368206 RESISTOR, CHIP, 6.8KOHM 1/16W

— 38 —

RF33S CIRCUIT BOARD FOR FXR-730GD/A.SS, FXC-750GD/A.SS

Ref. No Part No. Description

R129 TK169162210 RESISTOR, SEMI-FIXED, KVSF637A-473B R131 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R132 TK165382106 RESISTOR, CHIP, 820OHM 1/16W R134 TK165318206 RESISTOR, CHIP, 1.8KOHM 1/16W R135 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R136 TK165356206 RESISTOR, CHIP, 5.6KOHM 1/16W R138 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R139 TK165368306 RESISTOR, CHIP, 68KOHM 1/16W R140 TK165310506 RESISTOR, CHIP, 1MOHM 1/16W R141 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R146 TK165322106 RESISTOR, CHIP, 220OHM 1/16W R155 TK165318106 RESISTOR, CHIP, 180OHM 1/16W R156 TK169162010 RESISTOR, SEMI-FIXED, KVSF637A-223B R171 TK165300006 RESISTOR, CHIP, 0OHM 1/16W

TK182522710 PCB RF33

TK21235240 SHIELD PLATE

— 39 —

RF33R CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

C100, C103 TK15712700J CAPACITOR, CHIP, 27PF 50V C101, C171 TK15711200J CAPACITOR, CHIP, 12PF 50V C102, C104 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C105 TK15775R00J CAPACITOR, CHIP, 5P C106 TK15711500J CAPACITOR, CHIP, 15PF 50V C107, C122 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C108, C127 TK155310626 CAPACITOR, ELECTROLYTIC, 10UF 16V C110, C116 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C111 TK15712R00J CAPACITOR, CHIP, 2PF 50V C112, C113 TK15774R00J CAPACITOR, CHIP, 4PF 50V C114 TK15711800J CAPACITOR, CHIP, 18PF 50V C115 TK15771200J CAPACITOR, CHIP, 12P C118 TK157A1520J CAPACITOR, CHIP, 1500PF 50V C119 TK172151546 COIL, LK1608-4R7K-CT C120 TK157A6810E CAPACITOR, CHIP, 680PF 50V C121, C154 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C123 TK1552107K6 CAPACITOR, ELECTROLYTIC, 100UF 10V C124, C129 TK15711010J CAPACITOR, CHIP, 100PF 50V C125, C136 TK157C1050E CAPACITOR, CHIP, 1UF 16V C126, C132 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C128, C143 TK157A1040J CAPACITOR, CHIP, 0.1UF 16V C131 TK15713300J CAPACITOR, CHIP, 33PF 50V C133, C150 TK157A2230J CAPACITOR, CHIP, 0.022UF 25V C134 TK155633526 CAPACITOR, ELECTROLYTIC, 3.3UF 50V C135 TK155622576 CE-SSM2.2M50-LT C137 TK157A4730J CAPACITOR, CHIP, 0.047UF 16V C138 TK157A3920J CAPACITOR, CHIP, 3900PF 50V C140, C183 TK157A2220J CAPACITOR, CHIP, 2200PF 50V C141 TK157C1040J CAPACITOR, CHIP, 0.1U C144, C152 TK157C2240E CAPACITOR, CHIP, 0.22UF 25V C145, C151 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C146 TK157A6820J CAPACITOR, CHIP, 6800PF 50V C147, C148 TK157C1050E CAPACITOR, CHIP, 1UF 16V C149 TK155610526 CAPACITOR, ELECTROLYTIC, 1UF 50V C153, C165 TK157C1050E CAPACITOR, CHIP, 1UF 16V C155, C156 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C157 TK157A1230J CAPACITOR, CHIP, 0.012U C158 TK157C4740E CAPACITOR, CHIP, 0.47UF, 16V C159, C162 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C161, C175 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C163 TK15773300E CAPACITOR, CHIP, 33PF 50V C164, C170 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C166 TK15774R00J CAPACITOR, CHIP, 4PF 50V C167, C182 TK157A1040J CAPACITOR, CHIP, 0.1UF 16V C172 TK15711200J CAPACITOR, CHIP, 12PF 50V C173, C177 TK157A1030J CAPACITOR, CHIP, 0.01UF 50V C181, C184 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C186, C189 TK157A1020J CAPACITOR, CHIP, 1000PF 50V C187 TK157A2220J CAPACITOR, CHIP, 2200PF 50V

— 40 —

RF33R CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

C190 TK15711000J CAPACITOR, CHIP, 10PF 50V D101 TK13500390B DIODE, 1SV234T-TB D102, D103 TK135006803 DIODE, SVC220T D104, D108 TK135006803 DIODE, SVC220T D105, D107 TK13200710B DIODE, DA204KT146 D109, D110 TK131002903 DIODE, 1SS355T F101 TK175206130 CERAMIC FILTER, FFE-1070-MJ10FAL F102 TK1751058D0 CERAMIC FILTER, KBF450P-6AS F103, F104 TK175205130 CERAMIC FILTER, FFE-1070-MS10SGL F105 TK1751080D0 CERAMIC FILTER, KBR-912F108 F111 TK1764154B4 X'TAL, HC-49/U-S10.26M-FT IC101 TK111847300 IC, LA1781M L100 TK170025400 COIL, 1R7-7SR L101 TK170024700 COIL, 2R0-4R5TR L102 TK170024900 COIL, 1R9-6R5SR-0.7 L103 TK170025200 COIL, 1R2-6R5SL L105 TK172025934 COIL, EL0305RA-102J-FT L106 TK172025234 COIL, EL0305RA-101J-FT L107 TK1710583E0 COIL, FM-IFT L108 TK1710569E0 COIL, AM-IFT1 L109 TK172024234 COIL, EL0305RA-2R2J-FT L110 TK1710586E0 COIL, FM-DET L11 1 TK1710584E0 COIL, AM-IFT2 L112 TK172023634 COIL, EL0305RA-R22K-FT L120 TK1710582E0 COIL, AM-ANT L122 TK172024934 COIL, EL0305RA-330J-FT P100 TK1981327D7 POST-6029B-1-07Z003T P101 TK1981327DC POST-6029B-1-12Z003T Q100 TK128026313 TRANSISTOR, 3SK263T-5 Q105 TK12340812B TRANSISTOR, 2SC4081T106-Q, R Q106, Q110 TK120016003 TRANSISTOR, DTC114TKAT Q111 TK120015713 TRANSISTOR, FC18T-F, G Q115 TK120020603 TRANSISTOR, DTA114EKAT Q116 TK126030313 TRANSISTOR, 2SK303T-3, 4 Q117 TK120016003 TRANSISTOR, DTC114TKAT R101, R120 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R102, R103 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R104, R118 TK165382306 RESISTOR, CHIP, 82KOHM 1/16W R105 TK165327306 RESISTOR, CHIP, 27KOHM 1/16W R106, R119 TK165322406 RESISTOR, CHIP, 220KOHM 1/16W R107, R130 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R108, R147 TK165356006 RESISTOR, CHIP, 56OHM 1/16W R109, R110 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R111, R116 TK165310406 RESISTOR, CHIP, 100KOHM 1/16W R112, R126 TK165310306 RESISTOR, CHIP, 10KOHM 1/16W R115 TK165347106 RESISTOR, CHIP, 470OHM 1/16W R117 TK165310206 RESISTOR, CHIP, 1KOHM 1/16W R122, R142 TK165310106 RESISTOR, CHIP, 100OHM 1/16W R124, R137 TK169162010 RESISTOR, SEMI-FIXED, KVSF637A-223B

— 41 —

RF33R CIRCUIT BOARD FOR FXC-755RDS/XE

Ref. No. Parts No. Description

R125 TK165333106 RESISTOR, CHIP, 330OHM 1/16W R127 TK165322406 RESISTOR, CHIP, 220KOHM 1/16W R128 TK165318306 RESISTOR, CHIP, 18KOHM 1/16W R129 TK169162210 RESISTOR, SEMI-FIXED, KVSF637A-473B R131 TK165315306 RESISTOR, CHIP, 15KOHM 1/16W R132 TK165382106 RESISTOR, CHIP, 820OHM 1/16W R134 TK165318206 RESISTOR, CHIP, 1.8KOHM 1/16W R135 TK165333306 RESISTOR, CHIP, 33KOHM 1/16W R136 TK165356206 RESISTOR, CHIP, 5.6KOHM 1/16W R138 TK165347206 RESISTOR, CHIP, 4.7KOHM 1/16W R139 TK165368306 RESISTOR, CHIP, 68KOHM 1/16W R140 TK165310506 RESISTOR, CHIP, 1MOHM 1/16W R141 TK165347306 RESISTOR, CHIP, 47KOHM 1/16W R146 TK165322106 RESISTOR, CHIP, 220OHM 1/16W R155 TK165318106 RESISTOR, CHIP, 180OHM 1/16W R156 TK169162010 RESISTOR, SEMI-FIXED, KVSF637A-223B R161, R171 TK165300006 RESISTOR, CHIP, 0OHM 1/16W R191 TK165300006 RESISTOR, CHIP, 0OHM 1/16W

TK182522710 PCB RF33

TK21235240 SHIELD PLATE

— 42 —

SCHEMATIC DIAGRAM - MAIN FOR FXR-725GD/SS, A.SS, XE

SCHEMATIC DIAGRAM - MAIN FOR FXR-730GD/A.SS

Gain Settings

A3 None

Shintom

REMARK

Without RDS

With RDS

REMARK

With Clock

Without Clock

Clock

CDC With With With

With Without Without Without Without

SCHEMATIC DIAGRAM - MAIN FOR FXC-750GD/A.SS

Gain Settings

A3 None

Shintom

REMARK

Without RDS

With RDS

REMARK

With Clock

Without Clock

Clock

CDC With With With

With Without Without Without Without

SCHEMATIC DIAGRAM - MAIN FOR FXC-755RDS/XE

GAIN settings

Shintom

REMARK

without RDS

with RDS

REMARK with Clock

without Clock

Clock

with CDC with CDC with CDC

with CDC without CDC without CDC without CDC without CDC

SCHEMATIC DIAGRAM - DISP FOR FXR-725GD/SS, A.SS, XE

SCHEMATIC DIAGRAM - DISP FOR FXR-730GD/A.SS, FXC-750GD/A.SS SCHEMATIC DIAGRAM - DISP FOR FXR-755RDS/XE

CIRCUIT BOARD PARTS LOCATION - MAIN

FOR FXR-725GD/SS, A.SS, XE

FOR FXR-730GD/A.SS

AM VT

FM VT

AM VT

FM VT

CIRCUIT BOARD PARTS LOCATION - MAIN

AM VT

FM VT

AM VT

FM VT

CIRCUIT BOARD PARTS LOCATION - MAIN

FOR FXC-755RDS/XE

AM VT

FM VT

FOR FXC-750GD/A.SS

AM VT

FM VT

CIRCUIT BOARD PARTS LOCATION - DISPLAY

FOR FXR-725GD/SS, A.SS, XE

FOR FXC-755RDS/XE

CIRCUIT BOARD PARTS LOCATION - DISPLAY

FOR FXR-730GD/A.SS, FXC-750GD/A.SS

FXR-725GD FXR-730GD FXC-750GD

FXC-755RDS

No. 289A2870

Printed in Japan Issue date 05-01

Notice

CORRECTION SERVICE FLASH

CORRECTION

Please add this notice to the Service Manual listed below.

Category : Cassette Player Date : Feb. 2002

Model :

Destination : A.SS, SS, XE Reference No. : SM-7900005 Issue Number : 1

The reason of change. A : Misprint B : Quality Reliabilities C : Standardization D : Design E : F : G :

Prod. Code : FXR-725GD (A.SS) FXR-725GD (SS) FXR-725GD (XE)

In the parts list for cassette deck mechanism, “–” (hyphen) of the part number is taken and a part number is made into 12 figures.

FXR-725GD, FXR-730GD, FXC-750GD, FXC-755RDS

114782847 114782846 114782839 FXR-730GD (A.SS) FXC-750GD (A.SS) FXC-755RDS (XE)

114782842 114782843 114782840

PRODUCTION CHANGE ADD INFORMATION

CORRECTION

FILE NO.

Page & Section Ref. No. Part No. Description Q‘ty Interchangeability Reason

Page & Section

CASSETTE DECK MECHANISM (PAGE 19, 20)

OLD TKXXXX-XXXXXX

NEW TKXXXXXXXXXX C

Feb. / ’02 Printed in Japan

SANYO Electric Co., Ltd

Osaka Japan

(1/4)

REFERENCE No. SM-7900005-01

CASSETTE DECK MECHANISM EXPLODED VIEW

(MECHANISM #5AD002)

39 40

65 66

69 70

71 72

73 74

52 51

53 90

76 77

89 88 86 85

84 83

82 81

(2/4)

11 12 13 14 15

* When repairing any of the numerous precision parts in the cassette deck mechanism, a high degree of skill is necessory and

16 17

28 29

3255

24 25

26 27

CASSETTE DECK MECHANISM (5AD002)

Ref. No. Part No. Description

1 TK6107000323 SPRING-F 2 TKMT7500047X ASS’Y CASE L/P 3 TK6003000305 SCREW (M2x4) 4 TK6107000369 SPRINF L/P 5 TK6107000339 SPRING E/P 6 TK6031000446 WASHER(1.6x3.5x0.25T) 7 TKMT7000439B CASE E/P 8 TKMT7200027A ARM-C 9 TKMT7000076A CASE CASSETTE 10 TKMT7000438T HOLDER-C 11 TKMT9011011A ASS’Y ARM PLAY 12 TK6031001032 WASHER (1x3.2x0.25T) 13 TKMT7200331N GEAR CLUTCH 1 14 TKMT7400091C FELT CLUTCH 15 TKMT7200331P GEAR CLUTCH 2 16 TK6107001021 SPRING CLUTCH 17 TKMT7200046A CLUTCH BODY 18 TK6031000575 WASHER (1.2x3.5x0.5T) 19 TKMT7200331M GEAR CAM 20 TK6031000425 WASHER (1.2x3x0.25T) 21 TKMT6600025A GEAR SENSOR 22 TK6031000425 WASHER (1.2x3x0.25T) 23 TKMT6600017A GEAR 19.6B 24 TK6031000433 WASHER (1.2x3.2x0.35T) 25 TKMT7200379D GEAR REEL 26 TKMT7200126A SENSOR PULLEY 27 TK6107000191 SPRING B/T 28 TK6031000623 WASHER (1.2x3x0.25T) 29 TKMT7200379C GEAR PLAY-B 30 TKMT7200331G ARM SENSOR 31 TKMT7500047K ASS’Y CHASSIS REEL 32 TK6003000305 SCREW (M2x4) 33 TKMT6100002A SPRING SWITCH 34 TKMT7000438Z LEVER SWITCH 35 TK6107001061 SPRING TRIGGER 36 TK6107000249 SPRING ARM LOCK 37 TKMT7200380G ARM LOCK 38 TK6009000333 SCREW ARM LOCK 39 TKMT7200104A PULLEY CENTER 40 TK6031000431 WASHER (1.2x3x0.25T) 41 TK6001001048 SCREW (M2x2.5) 42 TKMT7500059A ASS’Y -EJECT A C/K 43 TKMT9011010N ASS’Y MOTOR 44 TKMT7000438R LEVER EJECT-B 45 TK6107001023 SPRING EJECT-B 46 TK6107001022 SPRING EJECT-A 47 TKMT6600016A GEAR 18.6B 48 TKMT9101011K ASS’Y FLYWHEEL 49 TK6602000106 BELT (120.2) 50 TK6031001082 WASHER (2.1x5x0.5T) 51 TK6107001028 SPRING LEVER PLAY 52 TKMT7000438W LEVER PLAY

(3/4)

CASSETTE DECK MECHANISM (5AD002)

Ref. No. Part No. Description

53 TKMT9002013J ASS’Y CHASSIS MAIN 54 TKMT9121013R ASS’Y PCB HEAD 55 TK6003000322 SCREW (2x3.7) 56 TK6031000464 WASHER (1.9x3.2x0.25T) 57 TK6044000272 E-RING (ø1.5) 58 TK6031000486 WASHER (2.1x4x0.4T) 59 TKMT7500058A ASS’Y ARM C/R 60 TKMT9015010E ASS’Y PINCH R 61 TKMT9015010D ASS’Y PINCH F 62 TKMT7000438P LEVER PRO 63 TK6031000486 WASHER (2.1x4x0.4T) 64 TK6107001026 SPRING LEVER PRO 65 TK6031000430 WASHER (1.2x3.2x0.35T) 66 TKMT7000438Y LEVER LOCK 67 TK6107001048 SPRING LEVER LOCK 68 TKMT7500047V ASS’Y BASE FR C/K 69 TK6031001082 WASHER (2.1x5x0.5T) 70 TKMT7200379E STOPPER LEVER 71 TK6003000305 SCREW (M2x4) 72 TK6107001054 SPRING FF/REW 73 TKMT7000487Q LEVER FF 74 TK6107001054 SPRING FF/REW 75 TKMT7000487R LEVER REWIND 76 TK6009000334 SCREW AZIMUTH 77 TK6003000295 SCREW (M2x5.5) 78 TK6107000366 SPRING PINCH 79 TK6107001049 SPRING BASE HEAD 80 TKMT9002013H ASS’Y BASE HEAD C/K 81 TKMT7200331K PLATE HEAD-B 82 TKMT7200056A HOLDER H/B 83 TKMT7200079A PLATE HEAD-A 84 TK6009000334 SCREW AZIMUTH 85 TKMT5900052A HEAD (TC860CPRF) 86 TK6107000345 SPRING AZIMUTH-R 87 TK6107000201 SPRING AZIMUTH-F 88 TK6002001011 SCREW (M2x3) 89 TKMT7000438A STOPPER AZIMUTH 90 TKMT6100007A SPRING EJECT 91 TKMT6000025A SCREW (Ml.7x2) 92 TKMT7000487U EJECT STOPPER 93 TKMT4100160B HEAD CONNETOR ASS’Y 94 TKMT4100160A MOTOR CONNECTOR ASS’Y 95 TKMT7100012A Nylon Tube (L-40mm)

(4/4)

Sanyo FXR-725-GD, FXR-730-GD, FXR-750-GD, FXR-755-RDS Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
