Sanyo EM-S156AB, EM-S156AW, EM-S156AS User Manual

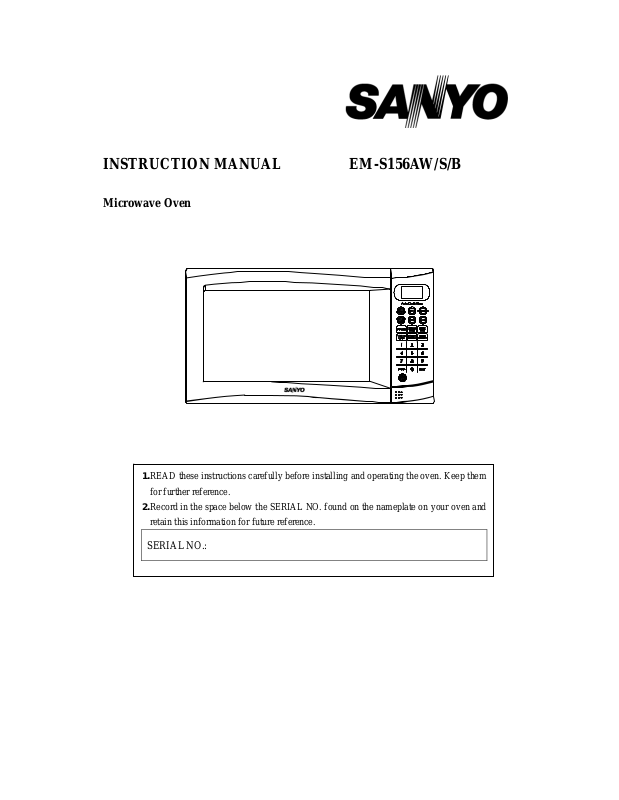

INSTRUCTION MANUAL EM-S156AW/S/B

Microwave Oven

1. READ these instructions carefully before installing and operating the oven. Keep them

for further reference.

2. Record in the space below the SERIAL NO. found on the nameplate on your oven and

retain this information for future reference.

SERIAL NO.:

CONTENTS

Precautions to Avoid Possible Exposure to Excessive Microwave Energy………….…….1 Specifications………………………………...1 Before You Call for Service………………….2 Installation……………………………………2 Radio Interference……………………………3 Important Safety Instructions ………………..3

Microwave Cooking Principles………………5 Utensils Guide…….………………………….5 Part Names……..…………………………….6 Control Panel…………………………………7 Operation Instructions………………………..8

Auto Menu Setting…………….…………....10

Cleaning and Care

…………………………..11

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

properly and that there is no damage to the :

① Door ( bent ), ② Hinges and latches (broken or loosened ), ③ Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

SPECIFICATIONS

Model: Power Source: Power Consumption: Output Microwave: Outside Dimensions: Oven Capacity: Turntable Diameter: Net Weight: The data may be further confirmed or updated.

EM-S156AW/S/B

230-240V 50Hz

1200W 800W 2450MHz (W) 452× (D) 368× (H) 262 mm 20Litres

24.5cm Approx.12kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate: A) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

other

appliance. C) Check to ensure that the control panel is programmed correctly and the timer is set. D) Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.

2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door

seals and sealing surface, broken or loose door hinges and latch es and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest

food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible

materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven,

10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any

hot or sharp surface.

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

10. Please be advised that these Sanyo Microwave Ovens are not to be installed or used within an

enclosed cabinet.

RADIO INTERFERENCE

1. Operation of the microwave oven can cause interference to your radio, TV or similar equipment.

2. When there is interference, it may be reduced or eliminated by taking the following measures: a. Clean door and sealing surface of the oven. b. Reorient the receiving antenna of radio or television. c. Relocate the microwave oven with respect to the receiver. d. Move the microwave oven away from the receiver. e. Plug the microwave oven into a different outlet so that microwave oven and receiver are on

different branch circuit

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Plug into a wall receptacle that is properly

installed and grounded.

2. Read all instructions before using the

appliance.

3. Use this appliance only for its intended use as

described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

4. Operating the microwave oven without food

in it, can result in overheating and damage to the microwave oven unit. Please do not to operate the unit without any food or beverage in it.

5. Do not operate this appliance if it has a

damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

6. WARNING: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. Children should be supervised to ensure that they do not play with the appliance.

7. To reduce the risk of fire in the oven cavity: a. When heating food in plastic or paper

container, keep an eye on the oven due to the possibility of ignition.

b. Remove wire twist-ties from paper or

plastic bags before placing bag in oven.

c. If smoke is observed, switch off or
