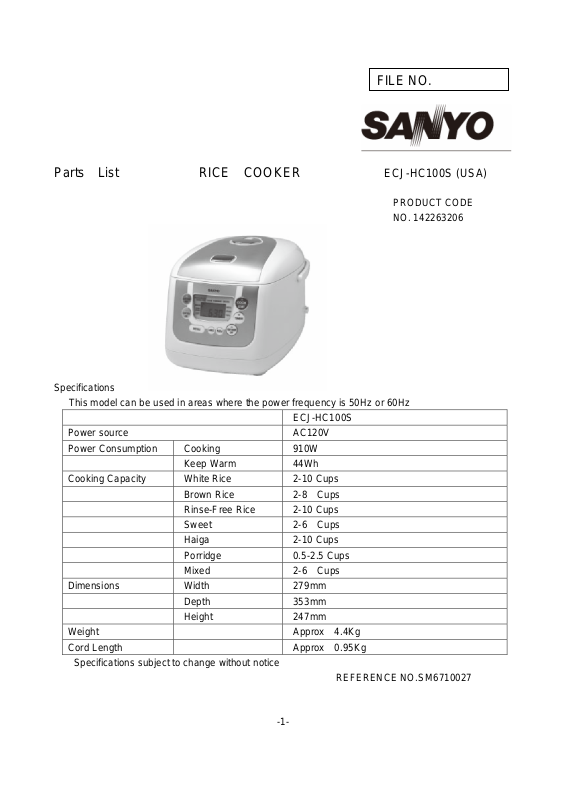

Page 1
FILE NO.
Parts List RICE COOKER
ECJ-HC100S (USA)
Specifications
This model can be used in areas where the power frequency is 50Hz or 60Hz
ECJ-HC100S
Power source AC120V
Power Consumption Cooking 910W
Keep Warm 44Wh
Cooking Capacity White Rice 2-10 Cups
Brown Rice 2-8 Cups
Rinse-Free Rice 2-10 Cups
Sweet 2-6 Cups
Haiga 2-10 Cups
Porridge 0.5-2.5 Cups
Mixed 2-6 Cups
Dimensions Width 279mm
Depth 353mm
Height 247mm
Weight Approx 4.4Kg
Cord Length Approx 0.95Kg
Specifications subject to change without notice
REFERENCE NO.SM6710027
-1-
PRODUCT CODE
NO. 142263206
Page 2
Circuit Diagram（Power）
-2-
Page 3
Circuit Diagram（Power）
-3-
Page 4
Wiring Diagram
-4-
Page 5
Exproded View
-5-
Page 6
Parts List ECJ-HC100S
Key No. Port No. Port Name(English) Quantity
1 MD303509000187 steam ass'y 1
1--1 MD303509000223 steam cap 1
1--2 MD301300101051 steam airproof 1
1--3 MD303401700071 steam sit 1
1--4 MD301300101052 steam lower packing 1
2 MD303500002348 lid ass'y 1
3 MD303501000337 pan cover ass'y 1
4 MD303000000446 inner pot 1
5 MD303400300348 body 1
6 MD301601200358 panel sheet 1
7 MD301207001199 PCB ass'y 1
8 MD303405000242 PCB catch 1
9 MD301809000963 LCD stick 1
10 MD303405000347 PCB nog 1
11 MD303401900401 base 1
12 MD301300100906 rubber feet 2
13 MD303402600019 insulation ring 2
14 MD303402500031 spring cap 1
15 MD303402700327 handle 1
16 MD303401000013 scoop 1
17 MD303401100035 scoop holder 1
18 MD303402600028 heat insulation 4
19 MD303500703070 heating plate ass'y 1
20 MD303000100334 outer pot 1
21 MD303502203312 side heater ass'y 1
22 MD301207100050 power cord and center sensor ass'y 1
-6-
