Sanyo CLT-2435 User Manual

CLT-2435

INSTRUCTION MANUAL

2.4-GHz Digital Spread Spectrum Cordless Telephone with Call Manager Features

IMPORTANT

Charge the handset battery pack for a full 15 hours before using your cordless handset for the first time.

www.sanyocanada.com

CLT2435 ENG-5/28 5/28/01 13:46 Page i

Congratulations on your purchase of the CLT-2435 cordless telephone.

This phone is designed for reliability, long life, and outstanding performance utilizing the latest in 2.4-GHz Digital Spread Spectrum technology.

Note: Some illustrations in this manual may differ from the actual unit for explanation purposes.

● 2.4-GHz Digital Spread Spectrum Technology

● Dual Keypad

● Call Manager Features*: Caller ID, Caller ID on Call Waiting and Call Waiting with Options

*Each feature works with your network service. A subscription required.

● 50-Number Caller ID List

● Programmable Network Service Key

● Voice Mail Waiting Indicator on Base and Handset

● One-Touch Voice Mail Access on the Handset

● 3-Line, 16-Character Backlit Handset Display

● Lighted Handset Keypad and TALK/END Key

● 20-Name/Number Directory on the Handset

● 10-Number Speed Dial on the Base

● Last 3-Number Redial

● HandsFree Speakerphone in the Handset

● 10-Day Standby Battery Life/6-Hour Talk Time

● Out of Range Warning

● 30-Channel Auto/Manual Scan

● Call Time Display

● Pulse/Tone Dialing

● Intercom/Page/Handset Locator

● Handset Earpiece and Speaker Volume Controls

● Ringer Volume Control with Off setting

● Belt Clip and Headset Jack

● Wall-Mountable

● Hearing Aid Compatible

2.4-GHz Digital Spread Spectrum Technology utilizes a “wider frequency band” vs. a “single narrow band” used in standard digital transmissions. The result is the clarity of digital sound, extended range and a secure conversation with virtually no interference from other 2.4-GHz cordless phones or radio transmission devices.

The clearest channel is automatically selected for each transmission. The phone selects one of over 65,000 digital security codes for the handset and base.

These features enhance your phone’s security and also prevent unauthorized calls as a result of your phone being activated by other equipment.

Introduction

Features

CLT2435 ENG-5/28 5/28/01 13:50 Page ii

1. Handset antenna

2. Headset jack cover

3. HandsFree speaker

4. Battery compartment

5. Earpiece speaker

6. LCD display

7. MEMORY key

8. TALK/END key

9. CALL REVIEW/VOLUME (down) key

10. Voice Mail key (1/ )

11.

eft cursor key (TONE/ / )

12. SERVICE MENU key

13. REDIAL/PAUSE key

14. Microphone

15. CALL REVIEW/VOLUME (up) key

16. INTERCOM/SELECT key

17. CID/FLASH key

18. Right cursor key ( )

19. SPEAKER key

20. DELETE/SCAN key

21. Handset charging contacts

16 17

8 9

11 12

Controls and functions

CLT2435 ENG-5/28 5/28/01 13:46 Page iii

37 38 39 40

22. Handset retainer

23. Base charging contacts

24. INTERCOM/PAGE/FIND key

25. FLASH key

26. SPEAKER key

27. REDIAL/PAUSE key

28. MEMORY key

29. CALLERS indicator

30. CHARGE/IN USE indicator

31. INTERCOM indicator

32. SPEAKER indicator

33. VOICE MAIL indicator

34. Base antenna

35. Bottom bracket

36. VOLUME control

37. Ringer Volume switch

38. Pulse-Tone switch

39. DC power input

40. TEL LINE jack

CLT2435 ENG-5/28 5/28/01 13:46 Page iv

Introduction/Features..............................................inside front cover

Controls and Functions ............................................inside front cover

Getting started

Read this first ..........................................................................................E2

Step 1: Checking the package contents.........................................E3

Step 2: Setting up the base unit .......................................................E4

Desktop use .............................................................................E5

Mounting the base unit on a wall ......................................E7

Step 3: Preparing the battery pack ..................................................E9

Basics

Making a call ........................................................................................E11

HandsFree Speakerphone in the Handset ...................................E12

Receiving a call ....................................................................................E14

Call Waiting ..........................................................................................E15

Out of Range ........................................................................................E15

Lighted keypad ....................................................................................E16

Scanning ...............................................................................................E16

Adjusting the ringer and earpiece volume...................................E16

Redialing a call.....................................................................................E17

Directory/speed-dial

Using the handset directory.............................................................E19

Using the base station speed-dial memory .................................E26

Caller ID features

Caller ID .................................................................................................E28

When the telephone rings................................................................E30

Viewing the Caller ID list ...................................................................E31

Deleting information from the Caller ID list .................................E32

Using the Caller ID list .......................................................................E34

Using Caller ID on Call Waiting service.........................................E36

Advanced calling features

List of features .....................................................................................E37

Voice mail access ...............................................................................E38

Call transfer feature............................................................................E40

Intercom feature..................................................................................E41

3-way conference feature ................................................................E42

Accessing calling features ...............................................................E43

Pre-programmed calling features...................................................E44

Adding new features .........................................................................E45

Call Waiting with Options.................................................................E47

Additional Information

Changing the digital security code ................................................E48

Installing the belt clip .........................................................................E49

Headset installation ...........................................................................E49

Note on power source .......................................................................E50

Maintenance ........................................................................................E50

Troubleshooting...............................................................................E51

Technical Information ....................................................................E52

Warranty ...........................................................................................E53

Sanyo-On-Site (SOS) Information ...............................................E54

Getting Started

Basics

Directory/

speed-dial

Caller ID Features

Advanced Calling

Features

CONTENTS

Additional

Information

CLT2435 ENG-5/28 5/28/01 13:46 Page 1

This cordless telephone must be set up before use. Follow these steps:

Step 1 (page E3)

Unpack and check the telephone and accessories.

Step 2 (page E4 to E8)

Choose the best location to set up the base unit.

Base unit

Step 3 (page E9 to E10)

Insert the battery pack into the handset. You must charge the battery pack for a full 15 hours before using the phone.

Handset

About the digital security code

This cordless telephone uses a digital security code to prevent unauthorized access to your base unit. This security code prevents other cordless handsets from making calls through your base unit.

A random security code will be assigned automatically between your base unit and handset when you charge the battery pack for the first time.

If you want to reset the security code, see page E48.

GETTING

STARTED

Read this first

CLT2435 ENG-5/28 5/28/01 13:46 Page 2

Make sure you have received the following items in the package.

• Base unit

• Handset

• AC adaptor (AD-350)

• Rechargeable battery pack

(SANYO 3KR-600AAL)

• Telephone line cord (1)

• Bottom bracket for desktop use

and wall-mounting

• This Owner's Manual

• Belt clip

Checking the package contents

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 3

Avoid places near electrical equipment such as refrigerators, computers, TVs, microwaves or fluorescent lamps. These may cause interference or reduce the operating range of the cordless telephone.

Do the following steps:

• Choose the best location

• Connect the base unit

• Choose the dialing mode

• The location should be close to both a phone jack and a continuous power outlet which is not switchable.

• Be sure there is sufficient space to raise the base antenna fully to a vertical position.

• The base can be placed on a desk, tabletop or mounted on a standard wall plate.

Notes:

Setting up the base unit

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 4

When connecting the power cord, make sure it does not create a trip or fire/electrical hazard. Avoid places where it could become chafed.

Connect the base unit

If you want to install the base unit on the wall, see page E7.

Snap the bottom bracket into the notches on the base.

Connect the AC adaptor to the

DC IN 9V

jack and to a standard 120-V AC wall outlet.

Then raise the antenna to a vertical position.

Connect the telephone line cord to the

TEL LINE

jack and to a telephone outlet.

Note:

Desktop use

GETTING

STARTED

To assure proper handset charging, the bottom bracket must be attached.

Note:

CLT2435 ENG-5/28 5/28/01 13:46 Page 5

To AC outlet

AC adaptor (supplied)

To telephone outlet

Telephone line cord (supplied)

To DC IN 9V

To TEL LINE

Choose the dialing mode

Depending on your dialing system, set the PULSE-TONE switch as follows:

If your dialing system is Set the switch to

Tone TONE

Pulse PULSE

If you are not sure of your dialing system

Make a trial call with the PULSE-TONE switch set to TONE. If the call connects, leave the switch as is; otherwise, set to

PULSE.

• Use only the supplied AD-350 AC adaptor. Do not use any other AC adaptor.

• Connect the AC adaptor to a continuous power supply.

• Place the base unit close to the AC outlet so that you can unplug the AC adaptor easily.

• If your telephone outlet is not modular, contact your telephone company for assistance.

Notes:

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 6

PULSE

TONE

Standard wall plate mounting

This phone can be mounted on any standard telephone wall plate.

Attach the bottom bracket to the base as shown. Make sure all tabs snap into the notches on the base.

Plug the telephone line cord to the

TEL LINE

jack and the small plug of

AC adaptor to the

DC IN 9V

jack.

Plug the telephone line cord into the telephone outlet.

Fit the AC adaptor cord into the molded groove. Then wrap the cord around the strain relief notch.

Plug the AC adaptor into a standard 120-V AC wall outlet.

Raise the antenna to a vertical position.

Align the mounting slots on the base with the mounting posts on the wall. Push in and down until the phone is firmly seated.

2 - 7

Mounting the base unit on a wall

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 7

TOP

1/8 in.

3-15/16 in.

(3 mm)

(100 mm)

Direct wall-mounting

If you do not have a standard wall plate, you can still mount your phone directly to the wall. Before doing this, consider the following:

• Avoid electrical cables, pipes, or other items behind the mounting location, that could cause a hazard when inserting screws into the wall.

• Try to mount your phone within 10 –15 feet (3 – 4.5 m) of a working phone jack to avoid excessive cord lengths.

• Make sure the wall material is capable of supporting the weight of the base and handset.

• Use

#10 screws with anchoring devices suitable for the wall material where the base

unit will be placed.

Insert two mounting screws with a minimum length of 1-3/8 inches (35.5 mm) into the wall, 3-15/16 inches (100 mm) apart. Allow about 1/8 of an inch (3 mm) between the wall and screwheads for mounting the phone.

Refer to steps 1 through 9 on pages E7 and E8 to mount the telephone.

On the base unit, pull the handset retainer out of the slot. Rotate it clockwise 180 degrees.

Flip the retainer. Slide it back into the slot so that the lip of the retainer is up and the points down. The retainer holds the handset in place.

When the phone is mounted on the wall, the handset belt clip must be attached to hold the handset in the charging position. Do not place the handset with the display facing inside.

Note:

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 8

Handset retainer

Charge the battery pack for a full 15 hours before you start using your phone.

Press on the battery cover and slide the cover down until it comes off.

Plug in the battery pack connector with the correct polarity (black and red wires), then insert the battery pack into the battery compartment.

Slide the battery cover on until it snaps into place.

Place the handset on the base.

Make sure that the

CHARGE/IN USE

indicator lights. If the indicator does not light, check to see that the AC adaptor is plugged in and that the handset makes good contact with the base charging contacts.

CHARGE/IN USE

Use only the battery pack supplied or the specified Sanyo types with your phone. Type: SANYO 3KR-600AAL or SANYO/GE GES-PCF01

Note:

Preparing the battery pack

GETTING

STARTED

CLT2435 ENG-5/28 5/28/01 13:46 Page 9

E10

Battery use time (per charge)

With a fully charged battery:

• Six hours continuous use.

• Ten days when the handset is in the standby mode.

Cleaning the battery contacts

To maintain a good charge, it is important to clean the battery contacts with a dry cloth on the handset and base unit about once a month.

Do not use any liquids or solvents.

GETTING

STARTED

Note:

Repeated short chargings may cause memory effect in the battery pack, which reduces use time of the battery. It is recommended not to replace the handset to the base unit after each call.

When the battery charge level becomes low

When the voltage of the battery pack in the handset is very low and needs to be charged, the phone is programmed to stop functioning in order to save power.

If the phone is not in use,

Low Battery

flashes and none of the keys will operate. If

the phone is in use,

Low Battery

flashes and the handset beeps. Complete your

conversation as quickly as possible and return the handset to the base unit for charging.

Note:

While Voice Mail is displayed the battery discharges faster than in normal standby mode. To conserve the battery charge check your messages regularly to clear the display. (See page E39)

CLT2435 ENG-5/28 5/28/01 13:46 Page 10

Low Battery

Other Operations

When you want to: Do this:

Adjust the earpiece volume Press or during the call.

Temporarily switch to tone dialing Press . The subsequent numbers (When the base is set to pulse mode) dialed will be sent as tone dialing.

Enter a pause in the dialing sequence Press

REDIAL/PAUSE.

Improve reception Press

DELETE/SCAN.

The number is dialed. The call time display appears about 5 seconds after line connection.

To hang up, press

TALK/END

SPEAKER

(or place the handset on the base).

The call time display remains for about 5 seconds after disconnection.

E11

Dialing from standby mode

Enter the phone number. (Up to 32 digits.)

Example

: Enter 9057609944

Press

TALK/END

SPEAKER

Talk

flashes in the

display.

The volume setting is displayed. For example, if the volume is set to high, the display shows:

BASICS

• Press DELETE/SCAN if you enter a wrong number at step 1.

• Press and hold DELETE/SCAN to delete all numbers at once.

• You must press a key within 20 seconds or the phone will return to standby mode.

Notes:

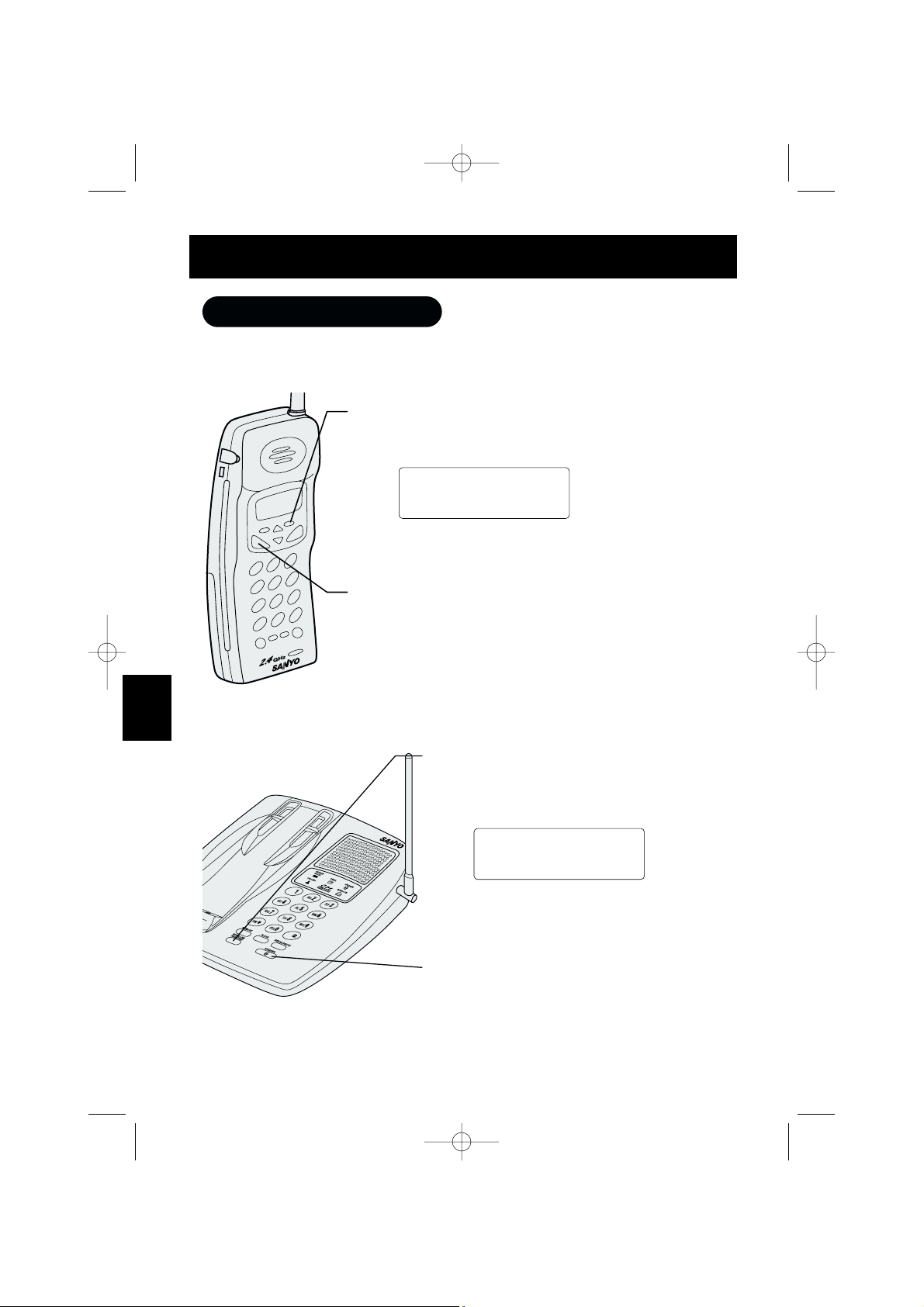

Making a call

With the handset

Press TALK/END

Press SPEAKER

Talk 9057609944

Talk <High>

Talk 0:17 9057609944

CLT2435 ENG-5/28 5/28/01 13:46 Page 11

9057609944

Talk 9057609944

Talk <High>

Talk 0:00 9057609944

5:15

E12

• Press SPEAKER during a call to switch to HandsFree conversation using the handset speakerphone.

• Press

SPEAKER again to end the call.

• Press

TALK/END to return to normal conversation using

the earpiece speaker.

BASICS

HandsFree Speakerphone in the Handset

Dialing from talk mode

Press

TALK/END orSPEAKER

Talk

flashes on the display.

The volume setting is displayed. For example, if the volume is set to high, the display shows:

The call-time display appears.

Dial the phone number.

Example

: Enter 9057609944

To hang up, press

TALK/END

SPEAKER

(or place the

handset in the base)

The call time display remains for about

5 seconds after disconnection.

Talk

Talk <High>

Talk 0:17 9057609944

10:03

Talk

Talk <High>

Talk 0:17 9057609944

Press TALK/END

Press SPEAKER

CLT2435 ENG-5/28 5/28/01 13:46 Page 12

With the base

E13

BASICS

Press

SPEAKER

on the base. The

SPEAKER

indicator lights.

Dial the number on the keypad.

When you finish the call, press

SPEAKER

on the

base to hang up.

CLT2435 ENG-5/28 5/28/01 13:46 Page 13

E14

The phone rings.

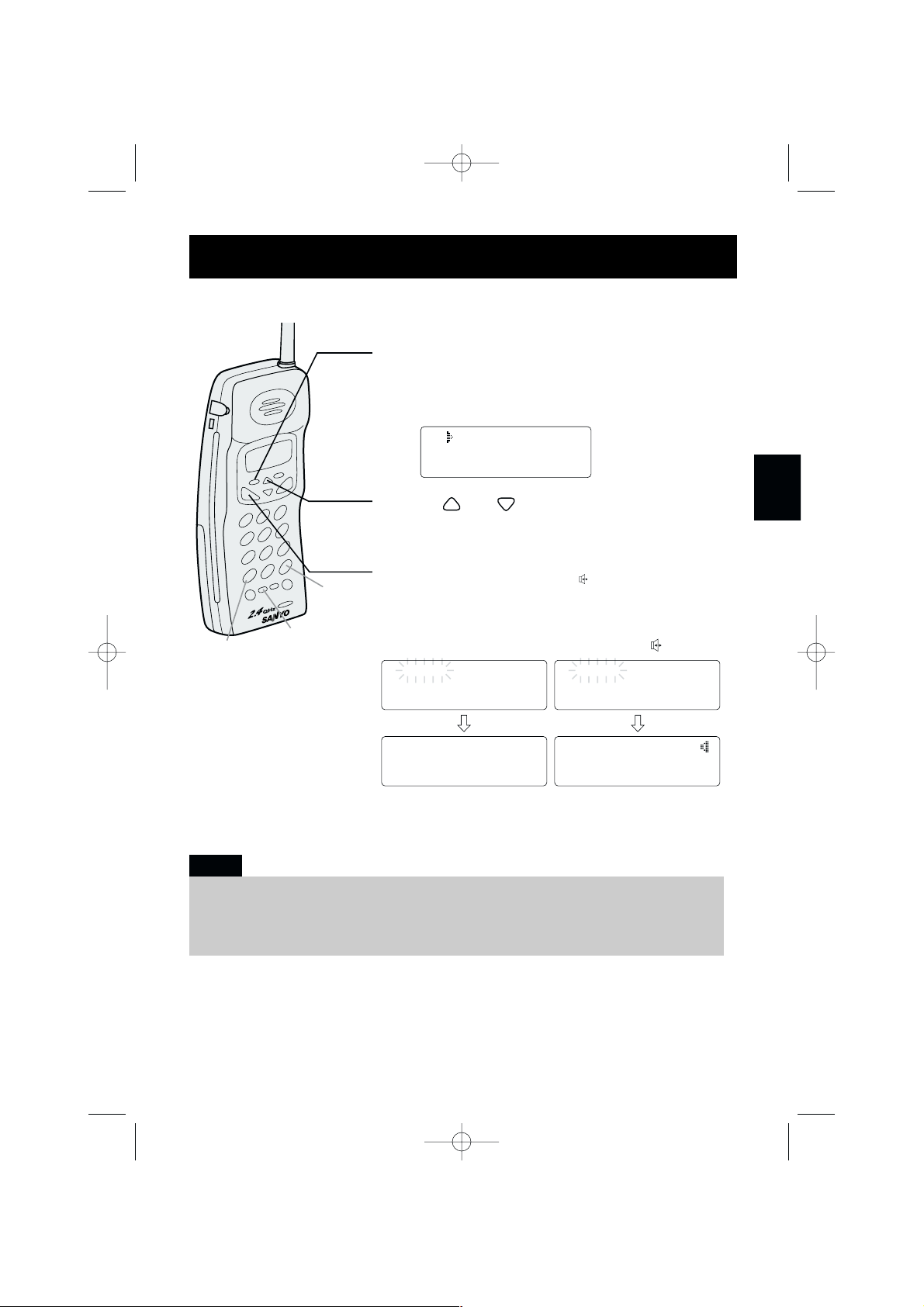

Incoming call

appears.

Press

TALK/END

SPEAKER

Talk

, the call time display and the volume setting appear. You can also press

SPEAKER

on the handset to answer the

call.

If you subscribe to Caller ID service, the display may show the caller’s name/number. (See page E30)

Talk with the caller.

To hang up, press

TALK/END

SPEAKER

. The call time display remains for about 5 seconds after disconnection.

Incoming Call

Talk 0:02

Talk 0:00

5:15

Any key answer when ringing

When the handset is off the base, press any handset key to answer the incoming call.

AutoTalk when ringing

When the AutoTalk setting is on, you can simply lift the handset from the base to answer the call. See “Setting Caller ID options” on page E28 for more details.

Receiving a call

BASICS

With the handset

Press TALK/END

Press SPEAKER

Talk 0:00

Talk 0:02

CLT2435 ENG-5/28 5/28/01 13:46 Page 14

+ 42 hidden pages
