SANYO CE29KF8R Service Manual

SERVICE MANUAL Colour Television

FILE NO.

-/--

Original Version

Chassis Series: FC3-G2

C5DTH

Model No. CE29KF8R

(Russia)

Give complete “SERVICE REF. NO.” for parts order or servicing. It is shown on the rating plate at the cabinet back of the unit.

This T.V. receiver will not work properly in foreign countries where the television transmission system and power source differ from the design specifications. Refer to the specification table.

Service Ref. No. CE29KF8R-50

Product Code: 111363315

Specifications

Power Source . . . . . . . . . . AC110-240V, 50Hz/60Hz.

Colour System . . . . . . . . . PAL/SECAM/NTSC4.43/NTSC/PAL-60Hz

Television System . . . . . . B/G, I, D/KK’, MM

Channel Coverage . . . . . VHF: E2 - E12,R1 - R12,K1 - K9,J1 - J12,A2 - A13

UHF: 21 - 69, A14 - A69, J13 - J62

CATV: S1-S41, X, Y, Z, Z+1, Z+2

Video IF . . . . . . . . . . . . . . 38.0MHz

Aerial Input Impedance . . 75Ω Ext. Terminals

Video inputs: Phono jack x 2 (1Vp - p, 75Ω) S-Video inputs: Din 4 pin x 1 (Separate Y/C signal input) Audio inputs: Phono jack (L/R) x 2 (436mVrms, more than 40KΩ) Video monitor outputs: Phono jack x 1 (1Vp - p, 75Ω) Audio monitor outputs: Phono jack (L/R) x 1 (436mVrms, less than 600Ω) Headphone jack: Mini stereo jack x 1

Sound Output (RMS) . . . . 10W + 10W

Speaker . . . . . . . . . . . . . 8 cm  13 cm  2

Dimensions . . . . . . . . . . . . 515.8 (W)  582.8 (H)  503.8 (D)mm

Weight . . . . . . . . . . . . . . . . approx. 47.2 Kg

Specifications subject to change without notice.

(Software: AC5-G2)

REFERENCE NO. SM3010003

TV/AV

MENU

+

-

CH

TV/AV

P

TIMER

MENU

-/--

CH

CH SCAN

SWAP SOUND

A•B

SURROUND


BASS

S.SYS C.SYS

JXMRM

Contents

-2-

Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Service Adjustments with replacing Memory IC (IC802) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

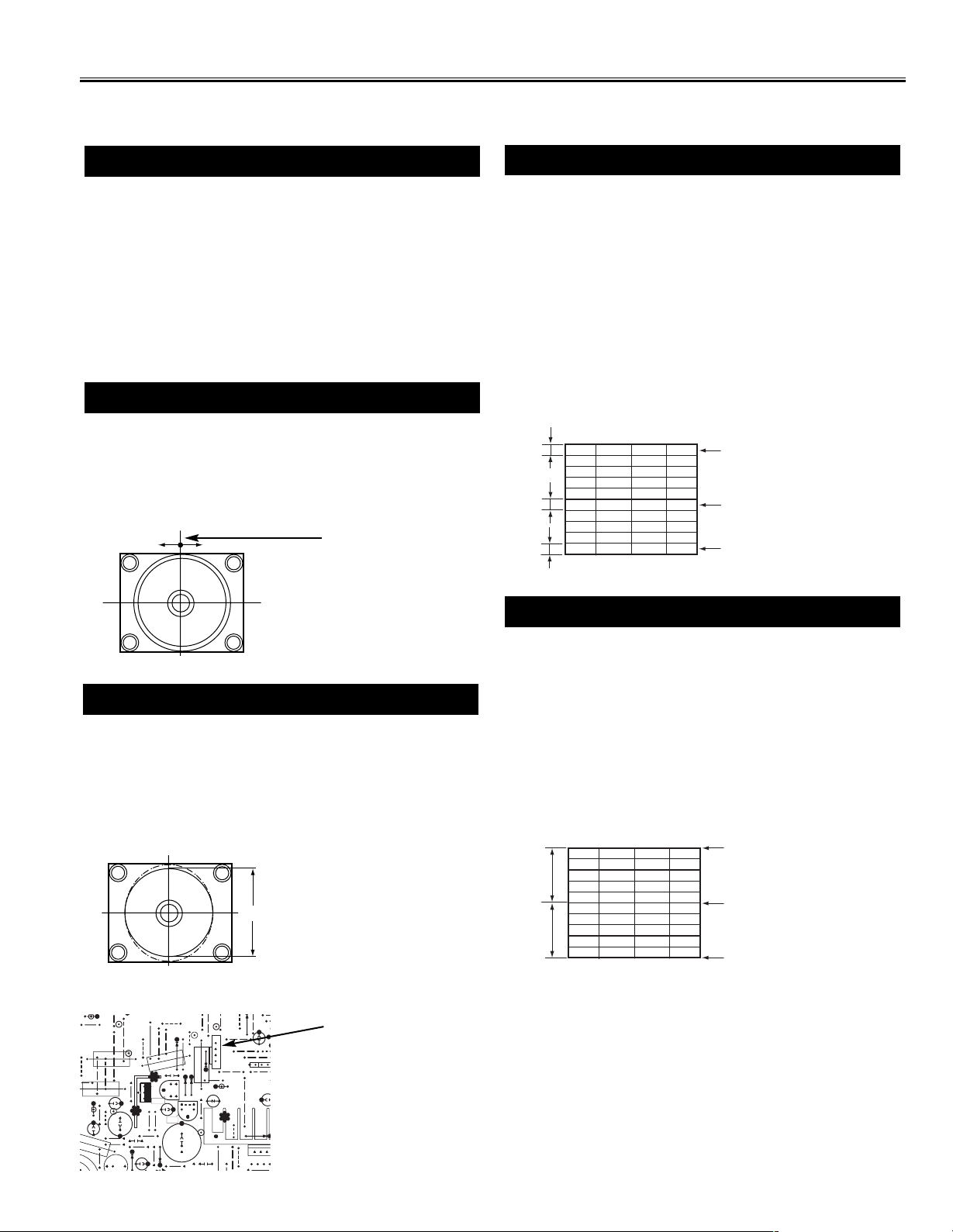

Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-29

Safety Notice

SAFETY PRECAUTIONS

1: An isolation transformer should be connected in the

power line between the receiver and the AC line when a service is performed on the primary of the converter transformer of the set.

2: Comply with all caution and safety-related notes pro-

vided on the cabinet back, inside the cabinet, on the chassis or the picture tube.

3: When replacing a chassis in the cabinet, always be

certain that all the protective devices are installed properly, such as, control knobs, adjustment covers or shields, barriers, isolation resistor-capacitor networks etc.. Before returning any television to the customer, the service technician must be sure that it is completely safe to operate without danger of electrical shock.

X-RADIATION PRECAUTION

The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially constructed to limit X-RADIA TION emissions. For continued X-RADIATION protection, the replacement tube must be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X

- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high voltage check to maintain the high voltage within the specified limits.

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement is made in any area of a receiver. Components indicated by mark in the parts list and the schematic diagram designate components in which safety can be of special significance. It is particularly recommended that only parts designated on the parts list in this manual be used for component replacement designated by mark . No deviations from resistance

wattage or voltage ratings may be made for replacement items designated by mark .

-3-

Chassis Block Diagrams

MAIN SIGNAL PROCESSING CIRCUIT



 PWB S-Woofer is not equiped.

HV

CRT

DY

L902

5

HEATER

B

G

7

8

2

3

B

G

R-OUT

G-OUT

IF IN

20

19

5/6

Q432

IC501

VERT./DEF.

1

B-OUT

VERT.OUT

21

23

CRT UNIT

SAW

X161

A101

IC701

OUTPUT AMP.

TRIPLE VIDEO

FILTER

TUNER

R

9

1

R

FOCUS

H-OUT

T431

TRANS.

H-DRIVE

Q431

HORIZ.OUT

27

SCREEN

FBT

T471

PCC

CIRCUIT

H-DRIVE

9

B-Y

34

Q461-Q462

IC281

SECAM

7

R-Y

35

HV

From IC3701 pin-21

From IC3701 pin-10

L

R

+

SUPER WOOFER UNIT

VIDEO IN

17

IC1401

IC1402

SUPER

6/7 1

PRE-AMP.

4

8/9

WOOFER AMP .

TUNER

FBT

HORIZ. DEF.

36V

POWER SUPPLY CIRCUIT

25V

140V

SUPER

WOOFER

TV/AV OUT

OUT

15

Y-OUT

4

AV-OUT

Y-OUT

14

MONITOR

SURROUND, AV SW.

VERT. DEF.

MAIN SOUND AMP.

12V

24V

13V

10

AUDIO CTL, IC201

CPU, EEPROM

5V

9V

TV/AV (FROM CPU PIN-24)

IC802

EEPROM

5

SCL

SDA

3

28

RC-IN

RC

A1901A

RECEIVER

6

4

32

ON-TIMER

SDA/SCL

OSD R-OUT

OSD G-OUT

OSD B-OUT

20

19

CPU

IC801

31

POWER

LED

D1910

IC201

CHROMA

SDA/SCL

21

12

KEY-IN

IF/VIDEO/

1/2

11

14

11/12

R-IN

AV1/AV2 OUT

TV/AV OUT

24

26

15

G-IN

IC001

AUDIO AMP.

SW1901 ~

SW1906

S-VIDEO IN (FROM S-TERMINAL)

KEYS

FRONT

CONTROL

16

B-IN

R 8

12

R-OUT

SP902

46

VIDEO

OUT (TV)

IC3701

L

6

VIDEO MONITOR OUT

2

L-OUT

SP901

TV

OUT

INT.VIDEO IN

AUDIO 1

42

VIDEO-IN

Y-IN

L-OUT

V

REAR

TV-AUDIO

R-OUT

21

10

5

26

AUDIO MONITOR OUT(LEFT)

AUDIO MONITOR OUT(RIGHT)

L

R

OUT

MONITOR

TERMINAL

(L-TV-L)1/30

2

AV1 L-IN

AV1 R-IN

L

V

AV1

REAR

INPUT

44

29

R

TERMINAL

(C-IN)

AUDIO

CONTROL/

SURROUND

AV2 L-IN

V

AV2

FRONT

3

L

IC1501

VIDEO MONITOR OUT

VIDEO SELECTOR

2

1

TV IN

AV IN

13/14

28

AV2 R-IN

VIDEO

IC1401

R

INPUT

TERMINAL

(FROM CPU)

SDA/SCL

SELECTOR

9

1

AV1 VIDEO IN

AV2 VIDEO IN

5

3

TV IN

AV,Y IN

+

6

C-IN

S-TERMINAL

13

12

AV-IN

AV OUT 4

7

Y-IN

AV1/AV2

8

3

9 11

S-INPUT

Y-IN

C-IN

(FROM CPU PIN-25)

AV2/S-INPUT

-4-

Chassis Block Diagrams

SYSTEM CONTROL

&

IC3701

SURROUND

AUDIO CONTROL

14 13

A101

F/S TUNER 5

4

SCL

SDA

12 11

CIRCUIT

DEFLECTION

IC201

etc.

KEY

SWITCH

KEY SWITCH IN

12

50/60Hz OUTPUT (60Hz+LOW, 50Hz=HIGH)

25

IC801

29

S-TERMINAL INPUT (S-IN=LOW)

11

SCL

2

POWER ON/OFF

SDA

1

CPU

QXXAVC305P

26

24

13

IF/VIDEO / CHROMA/DEF.

PHOTO COUPLE

AFT SIGNAL INPUT

OSD RED OUT(Active=High)

(ON=HIGH, OFF=LOW)

31

9

33

OSD BLK OUT(Active=High)

22

10

28

19

OSD BLUE OUT(Active=High)

OSD GREEN OUT(Active=High)

211817

20

32

POWER CIRCUIT

HORIZ. SYNC IN (ACTIVE=LOW)

VERT. SYNC IN (ACTIVE=LOW)

POWER PROTECT IN

27

SDA SCL

56

IC802

34

7

6

(POWER ERROR=LOW)

MEMORY

(MUTE ON=HIGH)

SOUND MUTE OUT

(AV1+LOW, AV2=HIGH)

AV1/AV2 SWITCH

5

IC001

IC1401

AUDIO AMP.

(TV=LOW, AV=HIGH)

TV/AV SWITCH

8

IC1501

VIDEO SWITCH

RESET INPUT (RESET=LOW)

9/10

VIDEO SWITCH

(ON TIMER ON=Low)

RC SIGNAL IN

(ACTIVE=HIGH)

ON-TIMER LED OUT

SECAM KILLER INPUT (HIGH=SECAM)

VIF-M OUTPUT (HIGH=NTSC, LOW=OTHER)

RC PRE-AMP.

LED

CPU OSC OUT

CPU OSC IN

OSC

X801

32.768KHz

-5-

IC Block Diagrams

IC201 < IF/Video/Chroma/Def. > LA76818A

Audio Output

FM Output/Selected  Audio Output

PIF AGC

RF AGC Output

PIF Input1

PIF Input 2

IF Ground

IF Vcc

FM Filter

AFT Output

Bus Data

Bus Clock

ABL

Red Input

Green Input

Blue Input

Fast Blanking Input

RGB Vcc

Red Output

Green Output

Blue Output

fsc output or C Sync output

Vertical Output

Ramp ALC Filter

Horizontal/BUS Vcc

Horizontal AFC Filter

Horizontal Output

VOL

DC

1

2

3

AGC

RF

4

56

7

VCC 5V

IF

8

9

10

11

BUS

12

ABL

13

14

CLAMP

15

16

17

18

VCC

19 20

DRIVE/OUT-OFF

21

SYNC SW

VCC

H

FSC/

RAMP

VER

HOR

VCC

HOR

OUT

22

23

24

25

26 27

SW

AGC

IF

VIF

CONTRAST

BRIGHT

OSD

SW

VER

C/D

SHIFTER

PHASE

VER

SEP

AFC2

CORING

STRETCH

REST

BRIGHT

MATRIX

DET

FM

PEAKING

LINE

SYNC

BLACK

SEP

DC

CONTRAST

RGB

AFC1

VIDEO

DET

AFT

DELAY

ACC

DEMO

CLAMP

C/D

AMP

LIM

TRAP

ON/OFF

SW

CLAMP

SW

COLOR

HOR

BPF

TRAP

SW

BPF

PAL

+

ALC

LPF

1/256

IDENT

IF

VIDEO 

SW

APC1

TINT

VCO

HOR

VCO

SPLL

VIDEO

AMP

APC2

DC ADS.

1H DELAY

VXO

DDS

BPF

A2C

PLL

CLMP

CLAMP

FBP

SIF Input

SIF APC Filter

525354

SIF Output

51

Ext. Audio Input

APC Filter

4950

VCO Coil 1

48

VCO Coil 2

47

VCO Filter

46

Video Output

Black Level Detector

4445

Internal Video Input (S-C IN)

V/C VCC

43

5V

Video/Vertical Vcc

42

External Video Input(Y-IN)

41

Video/Vertical/BUS Ground

40

Selected Video Output

39

Chroma APC1 Filter

38

4.43 MHz Crystal

Clamp Filter

Chroma APC2 Filter

353637

SECAM R-Y Input  (Cr Input)

34

SECAM B-Y Input  (Cb Input)

33

CCD/Horizontal Ground

32

CCD Filter

31

VCC

CCD Vcc

1H

30

Clock (4MHz) Outupt

VCO IREF

2829

Flyback Pulse Input

IC Block Diagrams

-6-

IC201 <IF System Block Diagram> LA76818A

11

12



BUS

Interface

SAW

5

6

4

8

7

PIF

In1

PIF

In2

IF In

9V

30K

RF AGC

Out

120K

IF VCC

IF

GND

VIF AMP

VIF 1

VIF 2

VIF 3

IF AGC 

Drive

RF

AGC

2ndIF

AGC

RF AGC

Delay

6bit

IF AGC

Def

1bit

+

-

(6 Vcc)/7

To

BUS

3

0.022u

PIF

AGC

IF

AGC

Data

Clock

APC

Det

+π/4



-π/4



Snd

Det

Amp

52

SIF.Out

Sound

Trap

Video

Det

Buzz

Canceller

50

APC

Filter

330

0.47u

+

PLL Pull-in SW

To

BUS

Lock

Det

Video.Level 

3bit

Amp

54

10p

SIF.In

Sound

BPF

VCO.Coil

VCO

COIL1

VCO

COIL2

48

49

VIF

VCO

Chroma

Counter

B/N

INV

IF

Ident

OSC

C/D

Amp

SIF. Sys

2bit

pre-

scaller

SIF

VCO

500K

BPF

SIF

APC

Filter

1K

0.01u

1000p

53

LIM

AMP

FM

Det

FM.Level

5bit

Chroma

C/D

APC

Det

500K

Det

To

BUS

Chroma

VCO

VIF

Counter

Reset

Pulse

VCO

Ident

VIF.Sys

2bit

Phase

Detector

A.MUTE

1bit

VOLUME

D/A

VOLUME

Filter

A.SW

1bit

Input

Select

VOLUME

(ATT)

-

+

-

+

2.5V

Amp

FM Gain

1bit

Deem-TC

1bit

De-

emph

FM Mute

1 bit

2

9

46

51

1

A.Fil.Def

1bit

VOLUME

7bit

47

VCO

Alignment

AFT

10

AFT

Vcc

100K

0.1u

VCO

Filter

+

0.47u

Audio.out

+

Audio in

10u

Video 

Out

FM

Filter

+

1u

FM

Out

0.01u

+

to BUS Line

+

-7-

IC Block Diagrams

1

IN 3

2

Vcc

3

SW1

4

OUT

5

GND6IN1-Y

7

IN1-C

8

SW29IN 2

SW

6dB

(-6dB)

CLAMP

BIAS

6dB

SW

15K

SW1

SW2

OUT

L

H

-

L IN 1 L

H

IN 2 IN 3

IC1401 < VIDEO Switch > MM1188XS

IC701 < Triple Video Output Amplifier. > TDA6103Q

IC001 < Audio AMP .> AN17820B

IC501 < Vertical Output > TDA9302H/LA78040N

Thermal

Protection

-

+

AMP

Pump

Up

1

INVERTING 

INPUT

2

Vcc

3

PUMP UP

OUT

4

GND

5

Ver. OUTPUT

6

OUTPUT 

ST A GE Vcc

7

NON INV.

INPUT

3x

VDD

MIRROR 2

VDD

6

bias

V

MIRROR 3

DIFFERENTIAL

STAGE

Cathode

Output

(3x)

Inverting

Input

(3x)

FLASHDIODE

9,8,7

VOC

1,2,3

Vi

Note: One amplifier shown.

1x

LEVEL-

SHIFTER 1

+

+-

-

LEVEL-

SHIFTER 2

MIRROR 1

CURRENT SOURCES

PROTECTION

4

GND

THERMAL

Non-inverting

5

Vip

+

Input

-

+

-

12

VCC

OUT1

(+)

34

Output

GND

OUT1

(-)

5

Standby

6

IN1 IN2

7

Input

8

GND

9

Vol.

10

OUT2

(-)

11 12

Output

GND

OUT2

(+)

-8-

Service Information

This TV set has a built-in power supply protection circuit. It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs during TV reception, the TV set goes to the stand-by mode.

When an abnormality occurs during TV reception, it causes pin 27 of the CPU to go continually Low for about one second. The CPU detects that this has occurred and outputs the signal from pin 31 to switch off the power supply lines.

Releasing the protective circuit and restoring power supply

To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again via either the main power switch or the ON-OFF button on the remote control. This will work only if the power supply trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and the circuit will have to be repaired.

 Protection Circuit

IC3701 < Audio Control & Surround > NJW1142M

IC Block Diagrams

IC281 < Secam Decoder > LA7642NM-TLM-E

SR-FIL

6

NJRC

ORIGINAL

SURROUND

&

SIMULATED

STEREO

IN 1a IN 2a IN 3a IN 4a

IN 1b IN 2b IN 3b IN 4b

30 29 28 27

MONa

5

-2dB

AGC

20

1

2

SEL

VOL 1

3 4

AGC

SEL

-2dB

VOL 1

26

MONb

N.C.

VccEQU-Adj

20

Video In

1819

17

Kil-Out

16

AV/SECAM

4.43MHz In

15

14

TONE Ha

TONE Hb

N.C.

13

7

TONE

24

SC-In

TONE La

8

23

TONE Lb

12

4MHz In

11

VOL 2

OUT a

10

21

OUT b

LINEa

9

22

LINEb

+4.5 dB

IIC BUS

INTERFACE

BIAS

17

VREF

13 14

11 12

19 18

15 16

25

SDA

SCL

CVa CVb

CTH

CTL

CSR

GND V+

Bell/EQU

Adj

1

F0-Fil Kil-Fil

2

N.C.

ID-Fil

System

SW1

LIM

ID

5

F0 Adj

6

4M-DC

PLL DET

R-Y Out

SW2

7

Filter

VCO

Clamp

SW/ALC

8

N.C.

ACC

3

SW3

Bell/EQU

Filter

ID-KIL

4

4.43DC

KILLER

9 10

B-Y Out

Pulse 

DET

Pulse

I/F

GND

Service Adjustments with Replacing Memory IC(IC802)

Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each

circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to obtain the best performance. The necessary service adjustments are carried out by using the RC handset. Please set up the TV set with following steps [1] to [2].

[1] Initializing Procedure

1. Put a new memory IC.

2. Turn on the TV set.

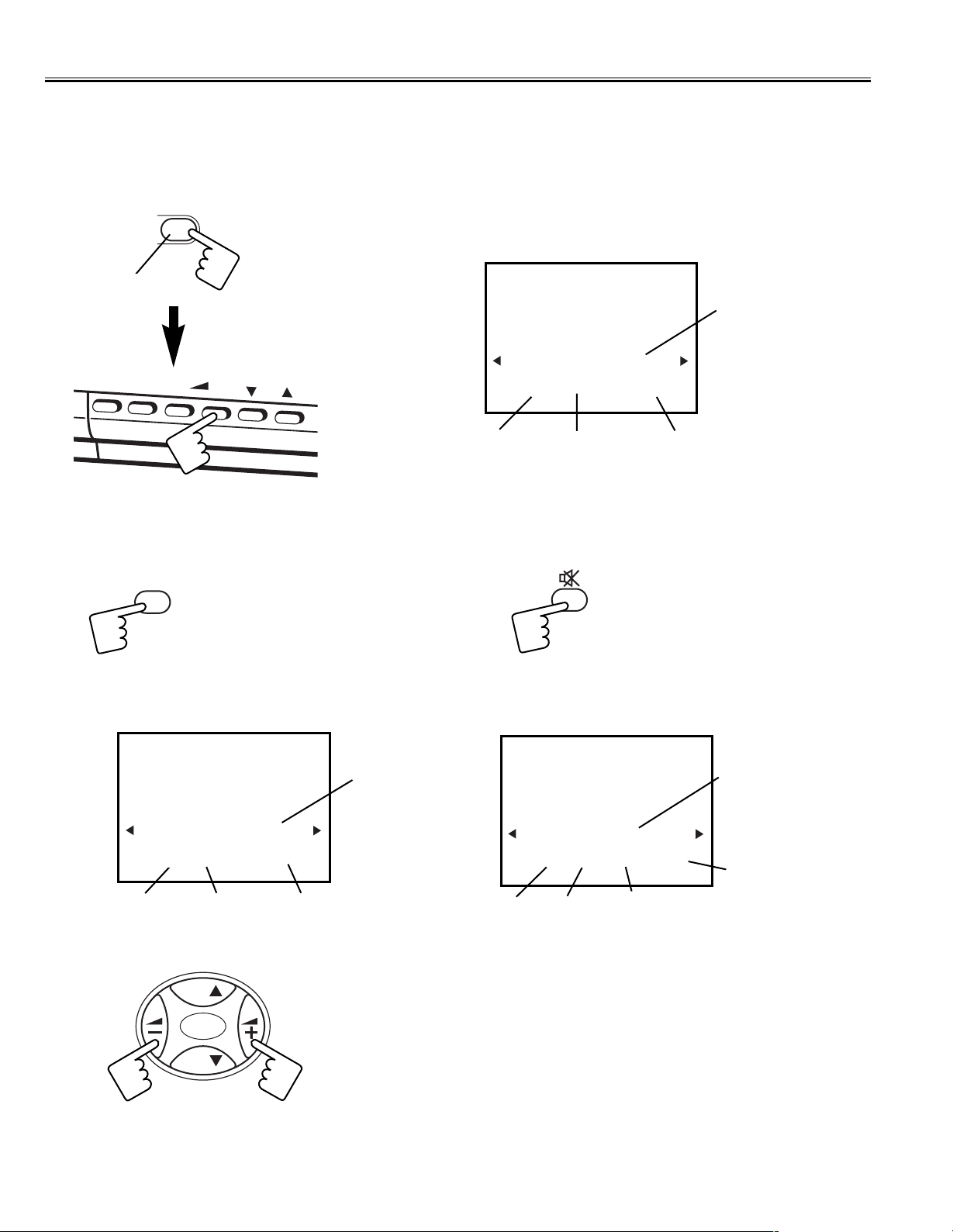

3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the

screen.

4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following

picture appears on the screen.

This completes the initialization of memory IC. Following shows the initialized contents of memory data by this procedure.

- Plug & Play : No executed

- Inhibit Data : Cancelled

- Ch Skip Data : Cancelled

- Sound Volume Data : 10/63 steps.

- Volume Lock : OFF

- Tuning Lock : OFF

- Music Mode : OFF

- A V Start : OFF

- Colour System : AUTO

1

CLR

[2] Required Service Adjustments

Readjust the following service adjustments.

Adjustments Service Mode No. & Item

RF AGC Item 01, RF AGC Horizontal centre Item 02, H-PHA Vertical size Item 04, V-SIZ Vertical-S correction Item 05, V-SCO Vertical linearity Item 06, V-LIN Gray scale Item 14-17, 19-21

Further adjustment please refer to page 12 and 13.

-9-

TV/AV Selector

PROGRAMME UP

TV/AV

MENU

+

-

CH

TV/AV

MENU

+

-

CH

-10-

Service Adjustments with Replacing Memory IC(IC802)

DATA INITIAL

No. ITEM RANGE SETUP DESCRIPTION

DATA

01 RFAGC 0~63 30 RF AGC Adj. 02 H-PHA 0~31 12 H-Phase (H-Centering) Adj. (50Hz) 03 V-POS 0~63 40

V-Position (V-Centering) Adj. (50Hz)Fixed. 04 V-SIZ 0~127 39 V-Size Adj. (50Hz) 05 V-SCO 0~31 21 V-S Correction (50Hz) 06 V-LIN 0~31 20 V-Linearity Adj. (50Hz) 07 H-P60

-16~+15

+3 H-PHASE Adj. (60Hz)

08 V-S60 -

64~+32

0V-Size Adj. (60Hz) 09 OSDHP 0~255 36 OSD H-Position Adj. 10 OSDC 0~127 45 OSD Contrast Adj. 11 V-SCP 0~7 7 Correction of the V-size

accompanying brightness change.

12 H-SCP 0~7 7 Correction of the H-size

accompanying brightness change. 13 SBIAS 0~127 105 Sub Bias Adj. (Do not change) 14 RBIAS 0~255 0 Red Bias Adj. 15 GBIAS 0~255 0 Green Bias Adj. 16 BBIAS 0~255 0 Blue Bias Adj. 17 RDRIV 0~127 64 Red Drive Adj. 18 GDRIV 0~15 8 Green Drive Adj. 19 BDRIV 00~127 64 Blue Drive Adj. 20 1-LINE APPEAR White Balance Adj. 21 DRV White Balance Adj. 22 B-YD 0~15 9 B-Y DC level Adj. 23 R-YD 0~15 10 R-Y DC level Adj. 24 B-YDN -

16~+15

0 NTSC B-Y DC level Adj.

25 R-YDN -

16~+15

0 NTSC R-Y DC level Adj.

26 SBDC -

16~+15

−8 SECAM B-Y DC level Adj.

27 SRDC -

16~+15

−5 SECAM R-Y DC level Adj. 28 G-YA 0,1 0 G-Y angle Adj. 29 RBGB 0~15 8

R-Y, B-Y Gain Blance Adj. (Do not change.)

30 RBAG 0~15 8

R-Y, B-Y Angle Adj. (Do not change.) 31 G-YAN 0,1 0 NTSC G-Y Angle Adj. 32 RBGBN -

16~+15

0 NTSC R-Y, B-Y Gain Balance Adj.

33 RBAGN -

16~+15

0 NTSC G-Y, B-Y Angle Adj. 34 COGV 0~3 0 Coring Gain Adj. 35 BLKS 0~3 3 Setting of Black stretch start. 36 BLKG 0~3 3 Setting of Black stretch gain. 37 BRTA 0,1 0 On and off of ABL. 38 BRST 0,1 0 Setting of ABL. 39 BRTH 0~7 0 Setting of ABL. 40 WPL 0~3 3 White peak limitter. 41 YGAM 0~3 0 Y Gamma setting. 42 PORW 0,1 0 Switching of Pre-shoot and

Over shoot in AV mode.

Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.

Service mode adjustments table in CPU ROM

DATA INITIAL

No. ITEM RANGE SETUP SCRIPTION

DATA

43 PORS 0~3 2

Pre-shoot/Over shoot Adj. in AV mode. 44 RFCO 0~3 3 RF Coring Gain Adj. 45 PORWN 0,1 0

Switching of RF Pre-shoot and Over shoot. 46 PORSN 0~3 0 RF Pre-shoot/Over shoot Adj. 47 TINT -16~+15 0 RF Tint Adj. 48 TINT443 -16~+15 -12 NTSC 4.43 Tint Adj. 49 SHRF -32~+31 0 RF Sharpness Adj. 50 TEXTC -128~+127

0 OSD TEXT Contrast. 51 VOLUM 0~255 127 Volume Control Adj. 52 DEEM 0~1 0 De emphasis TC. 53 VIFSW 0~3 0 VIF System Switch. 54 SIFSW 0~3 1 SIF System Switch. 55 V-LVL 0~7 4 Video Level Adj. 56 FMLVL 0~31 16 FM Level Adj. 57 IFOM-S 0,1 0 Over Modulation Switch 58 IFMN-S 0,1 1 Audio Monitor Switch 59

IFTRAPS

0,1 1 SIF Trap Switch ON/OFF 60 IFMLVL 0~255 136 Video Level & Modulation 61 TRAP-T 0~7 4 Trap Test 62 H-FRQ 0~63 34 Horizontal Frequency 63 FBTS 0,1 0 FBT Blanking Switch 64 COOP 0~7 7 Color Killer Option 65 HBLKL 0∼7 7 H-Blanking Control. (Left) 66 HBLKR 0∼7 3 H-Blanking Control. (Right) 67 AFCRF 0,1 0 RF AFC gain & Gate Adj. 68 VSRF 0,1 0 RF Vert. Sync. Separation Adj. 69 CDMRF 0~7 0 RF Vert. Count-Down Circuit Adj. 70 AFCAV 0,1 1 AV AFC Gain & Gate Adj. 71 VSUAV 0,1 0 AV Vert Sync. Separation Adj. 72 CDMAV 0~7 0 AV Vert Count-Down Circuit Adj. 73 HLVDRF 0,1 1 H Lock, V Detect RF 74 HLVDAV 0,1 1 H Lock, V Detect AV 75

VCO-SW

0,1 0 C-VCO Adj. Switch 76

VCO-ADJ

0~3 3 C-VCO Adj.

77

CROSS-BW

0~3 0 Output Pattern Picture

78

AVNCON

0~127 64 AV Blue Back Signal Contrast 79 AVNBRI 0~127 64 AV Blue Back Signal Brightness 80 POMT 0~127 25 Power Mute Time Adj. 81 CHMT 0~31 10 Channel Change Mute time Agj. 82 SYST 0~15 5

The number of times that a colour system AUTO is judged.

83 S-STE 0~3 2 Stereo/Mono Option. 0=MONO,

1=SIMPLE AV STEREO, 2,3=AV STEREO 84 VOLTBL 0~1 1 Volume Table 85 MPP 0,1 0

Multi Personal Preference function on/off

o=without M.P.P., 1=with M.P.P.

( /JE0110A)
