INSTRUCTION MANUAL
Micro Component System
3
1
2
456
789
0
MODE
FM
TUNER
/REPEAT
/BAND
L
6
R
R
-M
C
E
0
O
L
B
R
R
E
T
M
O
N
O
T
C
E
R
AWM-660
CONTENTS
Warranty ............................................................................... E1
Accessories .......................................................................... E2
Safety certification ................................................................ E3
Connections.......................................................................... E3
For safe and efficient operation ........................................... E5
Controls ................................................................................ E5
Remote control ..................................................................... E6

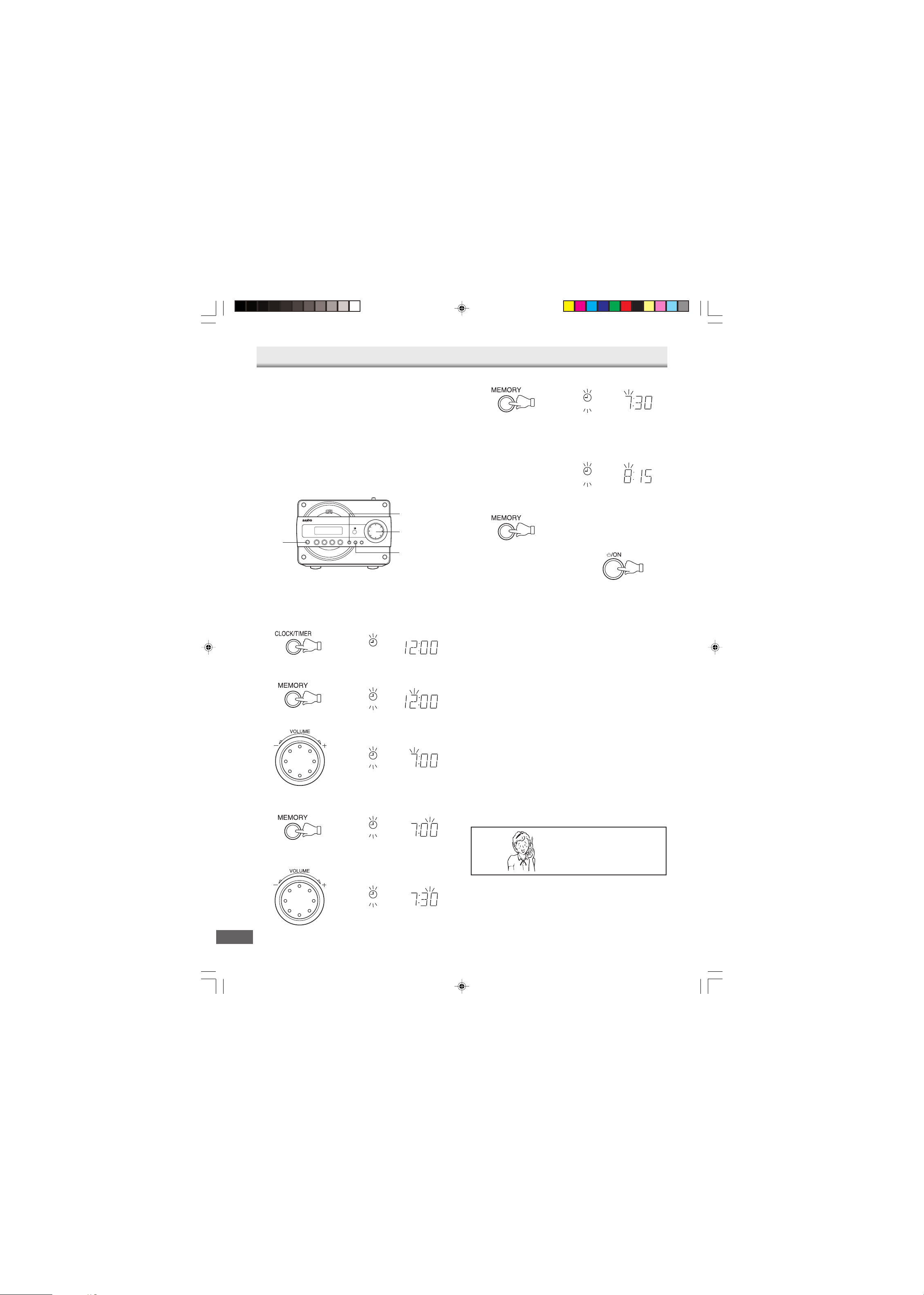

Adjusting the clock ............................................................... E7
Before operation ................................................................... E7
Listening to the radio ............................................................ E10
Listening to the tapes ........................................................... E11
Before recording ................................................................... E12
Recording ............................................................................. E12
Timer operation .................................................................... E13
Remote control operation..................................................... E1 4
Troubleshooting guide.......................................................... E15
Maintenance ......................................................................... E15
Specifications ....................................................................... E16
Compact disc preparations .................................................. E8
CD play ................................................................................. E8
SANYO’S HELP-LINE
Call the toll-free number below if you have any difficulties operating this product.
1-800-813-3435 (Weekdays: 7:30 AM - 4:00 PM Central Time)
1AD6P1P1925-HB
AWM-660, Issue Number 3
English
AWM-660/US Eng page 4/16/04, 5:40 PM1
For assistance in obtaining repairs and operational information, please contact the following
Toll Free Number:
DIAL TOLL FREE: 1-800-813-3435
Weekdays: 7:30 AM - 4:00 PM Central Time
Also, you may write to SANYO Manufacturing Corporation, 3333 Sanyo Road, Forrest City, Arkansas
72335.
Limited Warranty
LABOR 1 YEAR PARTS 1 YEAR CARRY-IN ONLY
THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED FROM A WAL-MART STORE
AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING HAWAII AND ALL U.S. TERRITORIES AND
PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER AND DOES
NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE.
Subject to the OBLIGATIONS and EXCLUSIONS below, SANYO Manufacturing Corporation (“SANYO”)
warrants this SANYO product against defects in materials and workmanship for the periods of LABOR and PARTS
specified above. SANYO will repair or replace (at its option) the product and any of its parts which fail to conform to
this warranty with new or refurbished products or parts. The warranty period commences on the date the product was
first purchased at retail from a Wal-Mart Store.
OBLIGATIONS
In order to obtain warranty service, the product must be delivered to and picked up from a Wal-Mart Store at the
original retail purchaser’s expense. The original dated bill of sale, or sales slip from a Wal-Mart Store must be submitted
to a Wal-Mart Store at the time warranty service is requested.
EXCLUSIONS
1. This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s
instruction manual, or (B) the repair of any product whose serial number has been altered, defaced or removed.
2. This warranty shall not apply to the cabinet or cosmetic parts, broken or damaged video heads, batteries or routine
maintenance.
3. This warranty does not apply to uncrating, setup, installation, removal of the product for repair or reinstallation of the
product after repair.
4. This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SANYO
including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or
parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification
or repair by user or any third party, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of
God, or normal wear and tear.
The foregoing is in lieu of all other express warranties and SANYO does not assume or authorize any party to assume
for it any other obligation or liability.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SANYO OR THE
MANUFACTURER OF THE PRODUCT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS
UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS
MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIAL LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE
TO STATE.
R03/12/18 (M)
For your protection in the event of theft or loss of this product, please keep the following information with a sales receipt in a safe
place.
Model No. Serial No. Date of Purchase
Purchase Price Where Purchased
SANYO Manufacturing Corporation
-E1-
AWM-660/US Eng page 4/16/04, 5:40 PM2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit.
CAUTION: TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZ-
ARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
ACCESSORIES
This symbol Indicates that there are important operating and maintenance instructions
in the literature accompanying this unit.
WARNING: UNAUTHORIZED RECORDING OF
COPYRIGHTED MATERIAL MAY VIOLATE APPLICABLE COPYRIGHT LAWS. THE MANUFACTURER
ASSUMES NO RESPONSIBILITY FOR UNAUTHORIZED DUPLICA TION, USE OR OTHER ACTS WHICH
INFRINGE UPON THE RIGHTS OF COPYRIGHT
OWNERS.
1
3
2
456
789
0
FM
M
O
D
E
TUNER
EPEAT
/R
/BAND
6
R
0
T
O
M
O
E
E
C
R
C
T
-M
L
O
N
R
L
B
R
R
E
RB-MCR60 wireless remote control
AM loop antenna
Need help? Call
1-800-813-3435
AWM-660/US Eng page 4/16/04, 5:40 PM3
-E2-
SAFETY CERTIFICATION
This unit is made and tested to meet exacting safety standards. It
meets UL, CSA and FCC requirements and complies with safety
performance standards of the U.S. Department of Health and
Human Services.
CAUTION - USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
FCC INFORMATION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by Sanyo may
void the user’s authority to operate this equipment.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
CONNECTIONS
Antennas
FM antenna
The FM indoor antenna lead wire (see the back of the unit) is sufficient to receive most local FM broadcasts.
Unwind the antenna lead wire, then extend it as straight as possible
and, while listening to the sound from the system, secure it in a
position where the best FM reception is found.
SPEAKERS
(4ΩMIN.)
RL
AM
FM
LOOP
ANT
PHONES
EXT.ANT
SPEAKERS
(4ΩMIN.)
RL
PHONES
AM
FM
LOOP
ANT
EXT.ANT
AM antenna
The AM loop antenna is sufficient to
receive most local AM broadcasts. Assemble the loop antenna.
Unwind the antenna wires, then connect them to the AM LOOP terminals.
Place the loop antenna in a position
which yields the best AM reception, or
attach it to a wall or other surface as
shown.
1
1
3
2
Screws (not supplied)
2
AWM-660/US Eng page 4/16/04, 5:40 PM4
NOTE:
To minimize noise...
• Keep the speaker wires, power cord and all other system connection cables away from the loop antenna.
• Do not place the antenna close to the speaker.
-E3-
To an AC 120V outlet
R ch speaker
L ch speaker
SPEAKERS
(4Ω MIN.)
PHONES
RL
FM antenna
AM
FM
LOOP
ANT
EXT.ANT
AM loop antenna
Speakers terminals (SPEAKERS)
To achieve proper stereo reproduction, identical connections must
be made at the speakers and this unit.
Connect the connector of the left speaker cable to the SPEAKERS
L jack.
Connect the connector of the right speaker cable to the SPEAKERS R jack.
If you have difficulty inserting the speaker cable connector, turn it
over and reinsert it.
Headphones jack (PHONES)
Connect a pair of stereo headphones with miniplug (not available
from SANYO) to the PHONES jack (the back of the unit) for monitoring or for private listening. The speakers are automatically disconnected when headphones are connected.
Power supply
Connect the power cord to a 120V AC 60Hz outlet. This unit is
equipped with a polarized plug. If you have difficulty inserting the
plug, turn it over and reinsert it. If the unit will not be used for a long
time, disconnect the AC plug from the AC outlet.
NOTES:
• Before plugging the power cord into an AC outlet, make sure
that all the connections have been made.
• The system is not disconnected from the AC power unless the
power cord is unplugged from the AC outlet.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU’ AU FOND.
Need help? Call
1-800-813-3435
AWM-660/US Eng page 4/16/04, 5:40 PM5
-E4-
FOR SAFE AND EFFICIENT OPERATION
• Do not damage the power cord.
• When not in use, disconnect the power cord from the outlet.
Grasp the plug, not the cord, when disconnecting the unit.
• If water should enter the unit, electrical shock or a malfunction
may result. Use in an area where there is low humidity and little
dust.
• Do not disassemble or alter the unit in any way.
• Do not use the unit in areas where extremes in temperature
occur (below 40˚F or exceeding 95˚F), or where it may be exposed to direct sunlight.
• Because of the CD player’s extremely low noise and wide dynamic range, there is a tendency to set the volume on the amplifier higher than necessary. Doing so may produce an excessively high output from the amplifier which can cause damage
to your speakers. Please be careful in this regard.
• Sudden changes in the surrounding temperature can cause dew
to form on the optical pickup lens inside the unit. Under this
condition the unit may be unable to operate properly. If this
should occur, remove the disc and allow the CD player to adjust
to the surrounding temperature.
CONTROLS
4567 89
MA
3
2
1
19
DC
K
10
11
12
13
WHAT TO DO IF ...
If the operation of the unit or display is not normal even
though the appropriate buttons have been pressed.
1. Press [z/ON] to turn the power off.
2. While pressing [ N ] on the unit, press [ I ] on the unit for
at least 1 second.
3. Press [z/ON] to turn the power on.
NOTE:
If the unit still does not operate correctly, please contact your
nearest SANYO Authorized Service Center.
1. Power button (z/ON)
2. Display
3. CD compartment
4. Record button (REC)
5. Play button (PLAY)
6. Rewind button (REW)
7. Fast forward button (FFWD)
8. Stop/Eject button (STOP/EJECT)
9. Pause button (PAUSE)
10.Cassette door/Cassette holder
11.Open button for CD door (CD DOOR OPEN)
12.Volume control (VOLUME)
13.Remote sensor (IR)
14.Function button (FUNCTION)
15.Memory button (MEMORY)
16.Clock/Timer button (CLOCK/TIMER)
17.Stop button (N)
18.Skip/Search/Tuning buttons (F/TUNING -, E/TUNING +)
19.Play/Pause button (I)
18
AWM-660/US Eng page 4/16/04, 5:40 PM6
17
14
15
16
Need help? Call
1-800-813-3435
-E5-
REMOTE CONTROL
Controls
15
14
13
12
11
10
Inserting batteries
1. 2.
1
2
3
4
5
6
Two “AAA” batteries
1
456
789
0
FM MODE
9
/REPEAT
3
2
7
NOTE:
Remove the batteries if the remote control is not to be used for a
month or more. Batteries left in the unit may leak and cause damage.
TUNER
/BAND
8
IMPORTANT NOTE:
SPENT OR DISCHARGED BATTERIES MUST BE RECYCLED
REMOTE CONTROLLER RB-MCR60
OR DISPOSED OF PROPERLY IN COMPLIANCE WITH ALL APPLICABLE LAWS.
FOR DETAILED INFORMATION, CONTACT YOUR LOCAL
COUNTY SOLID WASTE AUTHORITY.
(not supplied)
1. Power button (z/ON)
2. Sleep button (SLEEP)
3. Sound preset button (SOUND PRESET)
4. Preset tuning button(TU PRESET)
5. Volume buttons (VOL -, VOL +)
6. Memory button (MEMORY)
7. Number buttons (1-9, 0)
8. Tuner function/Band select button (TUNER/BAND)
9. FM mode/Repeat button (FM MODE/REPEAT)
10. Surround button (SURROUND)
11. Stop button (N)
12. Play/Pause button (I)
13. Skip/Search/Tuning buttons (F/TUNING -, E/TUNING +)
14. Function button (FUNCTION)
15. Bass expander button (BASS)
Number buttons ( 1-9, 0)
These buttons are used to select the track numbers on a disc or
preset radio stations.
If the function is “CD”, the buttons select the track numbers on a
disc.
If the function is “TUNER”, the buttons select preset radio stations.
With any other function, the buttons will not function.
• Two buttons must always be pressed.
Example:
To select No. 3, press [0], then [3].
To select No. 10, press [1], then [0].
To select No. 25, press [2], then [5].
Remote control range
Remote sensor
Within approx.
23 feet
3
1
2
456
789
0
FMMODE
TUNER
/REPEAT
/BAND
REMOTECONTROLLER RB-MCR60
Operation
By using the remote control, you can operate the system in the same
way as with the controls on the main unit.
AWM-660/US Eng page 4/16/04, 5:40 PM7
-E6-
ADJUSTING THE CLOCK
NOTE:
When the unit is first connected to the AC power line, the clock
display blinks on the display.
Example: To Set “PM 6:30”
Use the main unit for this operation.
1. First, press [z/ON] to turn the power off. Only the clock display
blinks.
2. Press [CLOCK/TIMER] for at least 2 seconds.
“0” blinks on the display.
AM
3. Press [MEMORY].
The “hours” display blinks.
AM
4. Turn [VOLUME] to set the “hours”.
PM
5. Press [MEMORY].
The “minutes” display blinks.
PM
6. Turn [VOLUME] to set the “minutes”.
PM
7. Press [MEMORY]. The clock starts.
PM
• The time can be set accurately by pressing [MEMORY]
when a time signal is heard.
• To display the clock during operation, press [CLOCK/TIMER]
briefly. After a few seconds, the original display returns.
• If a power failure occurs or the power cord is disconnected, the
clock display blinks. Reset the clock again.
BEFORE OPERATION
Turning the power on and off
Press [z/ON]. The display lights.
To turn the power off, press [z/ON]
again. The clock display remains lit.
• When the power cord is connected
to the AC outlet, the unit will
respond to commands from the
remote control.
If the following buttons are pressed when the power is turned off,
the unit turns on automatically and the selected function is
activated.
CD section I
Remote control I, TUNER/BAND
Selecting the function
Press [FUNCTION] to select the desired
function. Each time the button is
pressed, the display changes as follows:
Cd v Tuner (FM) v Tuner (AM) v TAPE v Cd v . .
.
The function is automatically selected when CD play is started or
when [TUNER/BAND] on the remote control has been pressed
(except during recording).
• When the function selection is changed, CD play is automatically stopped.
Adjusting the volume
Turn [VOLUME], or press [VOL +] or [VOL
–] on the remote control. The volume level
appears by numbers (VOL 0 ~ VOL 24) on
the display.
Bass expander system
(Remote control only)
Press [BASS] to enhance the bass sound.
“BASS” appears on the display.
Surround sound system
(Remote control only)
Press [SURROUND]. “SURR” appears
on the display and a “Wide” effect is
created.
Selecting the sound mode
(Remote control only)
Press [SOUND PRESET] to select the
sound mode matching the music to be
listened to. Each time the button is
pressed, the display changes as shown
below.
POP: Pops, etc.
CLAS: Classical music, etc.
ROCK: Rock music, etc.
JAZZ: Jazz, etc.
AWM-660/US Eng page 4/16/04, 5:40 PM8
-E7-
COMPACT DISC PREPARATIONS
• This unit is designed to play compact discs bearing the identification logo below. Discs that do not carry this logo may
not conform to the CD standard and may not play properly.
• Fingerprints and dust should be carefully wiped from the signal
surface of the disc (glossy side) with a soft cloth. Wipe in a
straight motion from the center to the outside of the disc.
• Never use chemicals such as record cleaning sprays, antistatic
sprays or fluids, benzene or thinner to clean compact discs.
These chemicals will permanently damage the plastic surface
of the disc.
• Always place the compact disc on the disc turntable with the
label facing toward you. Compact discs can be played on only
one side.
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the
edges.
CD PLAY
NOTES:
• Never place anything except a compact disc on the disc
turntable. Foreign objects can damage the unit.
• Discs must be placed on the disc turntable one at a time.
• Discs should be returned to their cases after use to protect them
from dust and scratches.
• To prevent warping the disc, do not expose it to direct sunlight,
high humidity or high temperatures for extended periods of time.
• Do not apply paper or write anything on either side of the compact disc. Sharp writing instruments, or the inks used in some
felt-tip pens, may damage the surfaces of the disc.
• This unit can play back the CD-R/RW that have recorded music
data as well. However, some CD-R/RWs can not be played back
depending on the recording conditions.
IMPORTANT INFORMATION
Sanyo CD players have built-in error compensation circuits to correct for minor manufacturing defects in a disc, There are limits,
however, to the amount of correction possible.
In some cases, the CD player may skip some tracks on a disc during play. This problem may be caused by defects (such as scratches)
in the disc being played, which are too large for the error compensation circuits to handle. If you encounter this problem, check the
operation of the CD player as follows, before having the unit serviced.
Play a new disc. If the CD player operates normally, the skipping problem is most likely due to a defective disc.
3. Place the disc with the label facing toward you on the disc
turntable.
(Place only one disc at a time.)
If a disc is loaded, you can turn the unit on and begin play immediately by pressing [I].
BASIC CD PLAY
2
3
5
1
6
1. Press [FUNCTION] to select the “CD” function.
2. Press [CD DOOR OPEN], “OPEN” appears. The CD door opens.
For 5-inch (12cm) or 3-inch (8cm) CD
4. Push the CD door back into position until it “clicks” into place.
The total number of tracks and total playing time on the disc
appear.
NOTE:
If the disc is loaded with the label facing toward the unit, or if a
badly scratched disc is loaded, “Cd” appears. If this occurs, load
the disc correctly or replace the damaged disc.
5. Press [ I ]. Play starts from the first track.
The current track number and elapsed playing time are
displayed.
CAUTION:
Please do not place anything in front of the unit. In such a case,
the object in front of the unit may fall over or be knocked down.
AWM-660/US Eng page 4/16/04, 5:40 PM9
6. Press [ N ] to end disc play.
When the last track has been played, the player stops
automatically.
-E8-
F
E
I
N
IMPORTANT NOTE:
Opening the CD door while a disc is playing could scratch the
disc. Always press [ N ] and wait for the disc to stop rotating before opening the CD door.
To start play from the desired track
Select the track by using [ E ] or [ F ], then press [ I ].
Using the remote control
Press two number buttons within 2 seconds to select the track.
(Example: press [0], then [3].)
Temporarily stopping play
Press [ I ]. “ a ” blinks on the display. To resume play, press the
button again.
Skip play
Example:
To skip to track 6 while track 3 is playing, press [ E ] repeatedly
until “6” appears (in the track section) on the display. To skip back to
track 3 while track 6 is playing, press [ F ] repeatedly until “3”
appears.
• The number buttons on the remote control can also be used for
skip play. To skip to track 6 while one track is playing, press [0],
then [6].
PROGRAMMED PLAY
Up to 20 tracks on a disc can be programmed for play in any order.
• First, select the “CD” function and load a disc that you want to
program.
• The tracks must be programmed in the stop mode.
• The same track can be programmed more than once.
1. Press [MEMORY].
2. Select a track by using [ E ] or [ F ].
• The number buttons on the remote control can also be used.
- TUNING +
3. Press [MEMORY].
4. Repeat steps 2 - 3 to program additional tracks.
5. Press [ I ] to start programmed play.
- TUNING +
Search (forward/reverse)
If [ E ] or [ F ] is pressed during play, the player will search at
high speed in the forward or reverse direction while the button is
being pressed. When the button is released, normal play will
continue.
Repeat play (Remote control only)
Press [FM MODE/REPEAT] on the remote
control before or during play.
The player will play all the tracks or all the
programmed tracks repeatedly. “
pears on the display.
To cancel repeat play, press [FM MODE/
REPEAT] again. “ ” disappears.
” ap-
FM MODE
/REPEAT
Need help? Call
1-800-813-3435
When all programmed tracks have been played, the player stops
automatically. “0.00” appears on the display.
• The program contents are retained in memory.
• The maximum number of selections that can be programmed is
20. If you try to enter more selections, “FULL” appears on the
display.
• The program contents are retained even if the function selection is changed.
• To cancel programmed play, press [ N ] twice.
Checking the program
Each time [MEMORY] is pressed in the stop mode, the programmed
details sequentially appear on the display.
Changing a program
To add a new track to a program:
1. In the stop mode, press [MEMORY] repeatedly until “- -.- - - -” is
displayed.
2. Select a track as explained above.
3. Press [MEMORY].
To change a track:
1. In the stop mode, press [MEMORY] repeatedly until the selection to be replaced is displayed.
2. Select a track as explained above.
3. Press [MEMORY].
NOTE:
Programmed tracks cannot be deleted individually.
AWM-660/US Eng page 4/16/04, 5:40 PM10
-E9-
LISTENING TO THE RADIO
FREQUENCY UP/DOWN TUNING
Automatic tuning
1
2
1. Press [FUNCTION] (or [TUNER/BAND] on the remote control)
to select AM or FM. The radio frequency appears.
or
2. Press [TUNING +] or [TUNING -] for at least 1 second to tune in
a station. The unit will scan up or down the band and receive
the next receivable station. Press the button again to continue.
• The [TUNING +] or [TUNING -] on the remote control can
also be used.
TUNER
/BAND
3
1
2
456
789
0
FM
M
O
DE
TUNER
TO PRESET STATIONS (Remote control only)
Up to 20 FM and 12 AM stations can be preset.
3
2
1
2
456
789
0
FM
M
O
D
E
TUNER
EPE
/R
AT
1
1. Tune in the station to be preset as described above.
2. Press [MEMORY].
3. Press [TU PRESET] to select the channel number to be preset.
/BAND
2,4
3
- TUNING +
Manual tuning
1. Press [FUNCTION] to select AM or FM.
2. Press [TUNING +] or [TUNING -] continuously until you are close
to the desired frequency, then press it briefly until the desired
frequency is displayed. Each time the button is pressed, the
frequency changes in 200 kHz steps for FM and 10 kHz steps
for AM.
Need help? Call
1-800-813-3435
• The number buttons on the remote control can also be used.
Two buttons must always be pressed.
Example:
To select No. 9, press [0], then [9].
To select No. 10, press [1], then [0].
4. Press [MEMORY].
• If using the number buttons on the remote control, this step is
not necessary.
• In this example, “103.1 MHz” FM station is preset on FM channel number 9.
NOTE:
If the next step is not taken within 10 seconds while performing
steps 2 - 4. “PROG.” disappears and the preset operation is
cancelled. Press [MEMORY] to continue.
5. Repeat the steps above to add more preset stations.
• When presetting a new station, the previously preset station on
the same program number of the same band is cleared.
• The preset stations will be retained in the memory even if the
unit is turned off.
• If the memory contents are lost due to a power failure or other
condition, program the stations again.
AWM-660/US Eng page 4/16/04, 5:40 PM11
-E10-
LISTENING TO PRESET STATIONS
Program stations as described in “TO PRESET STATIONS”.
Preset tuning (Remote control only)
1. Press [TUNER/BAND] to select AM or FM.
TUNER
/BAND
2. Press [TU PRESET] to select the desired program number.
The selected channel number appears.
NOTES:
• To receive an FM stereo broadcast, make sure that “MONO” is
not displayed. If “MONO” appears, press [FM MODE/REPEAT]
on the remote control to turn the “MONO” indication off. “ ST ”
appears when an FM stereo broadcast is received.
• If the signal from an FM stereo stations is weak and reception is
poor, press [FM MODE/REPEAT] on the remote control to
change to monaural reception. (“ ST ” is replaced by “MONO” in
the display.)
Changing the reception frequencies
It is not necessary to perform this procedure in the U.S. and
Canada.
1. Select the band to be changed.
2. While pressing [ N ] on the front panel, press [TUNING -] on
the front panel for at least 1 second.
• The number buttons on the remote control can also be used.
Press two buttons within 2 seconds.
Preset scan tuning (Remote control only)
1. Press [TUNER/BAND] to select AM or FM.
2. Press and hold down [TU PRESET] for at least 1 second.
• The preset stations are selected in sequence for approxi-
mately five seconds each.
3. Press [TU PRESET] when the desired station has been selected.
Preset scanning will stop.
LISTENING TO THE TAPES
5 3,6
MA
DC
K
2
AM: 520 ~ 1710 kHz (10 kHz steps)
FM: 87.9 ~ 107.9 kHz (200 kHz steps)
3. Press [STOP/EJECT] to open the cassette holder.
4. Load the cassette.
v
v
522 ~ 1710 kHz (9 kHz steps)
v
v
87.5 ~ 108.0 MHz (50 kHz steps)
STOP/EJECT
After loading the cassette, press the cassette holder back into
position.
• Don’t push the cassette door forward before pressing the
cassette holder down.
1. Press [FUNCTION] to select “TAPE”.
2. Slide the cassette door backward to operate the cassette buttons.
AWM-660/US Eng page 4/16/04, 5:40 PM12
1
5. Press [PLAY] to begin playback.
PLAY
A
6. Press [STOP/EJECT] to stop playback at any time.
When the end of the tape has been reached, automatic stop will
be activated.
-E11-
NOTES:
• Always close the cassette door if the cassette isn’t be used for a
long time.
• Use normal tapes (TYPE 1).
• Endless tapes cannot be used.
• Do not use C-100 (or longer) tapes. They may jam in the
mechanism.
Fast forward and Rewind
Press [FFWD] or [REW]. When the desired location has been
reached, press [STOP/EJECT].
The tape stops automatically at the end of the tape.
REW FFWD
Pause
Press [PAUSE] to temporarily stop playback or recording. Press it
again to resume operation.
PAUSE
K
BEFORE RECORDING
Accidental erasure prevention tabs
(for protecting valuable recordings)
Accidental erasure can be prevented by breaking out the tabs on
the end of the cassette tape (where the tape is not exposed) using
a screwdriver or similar implement.
If a tab is broken out in error and you wish to re-record the tape,
simply block the tab hole using adhesive tape and the tape can be
used for recording again.
RECORDING
Preparation
Load a blank cassette into the cassette holder.
Recording compact discs (Synchronous recording)
45
MA
DC
K
CD
Break out tab A for side A.
Break out tab B for side B.
Side A
Side B
• When you want to record music as you listen, press
[REC]. Recording starts automatically from the beginning
of the track.
5. Press [STOP/EJECT] at any time to stop recording.
When the end of the tape is reached, the CD player and deck
stop automatically.
Recording from the tuner
1. Tune in the radio station to be recorded.
2. Press [REC] to start recording.
3. Press [STOP/EJECT] at any time to stop recording.
2
3
1. Select the “CD” function.
2. Load the disc to be recorded.
• For programmed recording, program the material in
advance (as described under “PROGRAMMED PLAY”).
3. Select the track number to be recorded if required.
• For programmed recording, this step is unnecessary.
4. Press [REC]. CD recording starts.
REC
M
When beat is heard
Beat (a high-pitched noise) may sometimes be heard during the
recording of radio broadcasts. If this occurs, while pressing
[MEMORY] down, press [TUNING +] for at least 1 second to select “bc-1” or “bc-2”. Select the setting that gives the best result.
1
MEMORY
TUNING +
-E12-
AWM-660/US Eng page 4/16/04, 5:40 PM13
TIMER OPERATION
Before setting the timer, make sure that the clock is set to the
present time. See “ADJUSTING THE CLOCK”.
Use the main unit for timer operation.
USING THE WAKE UP TIMER
Set the wake-up time, source to be heard and volume level. At the
set time, the selected source will be heard. The sound will be gradually increased from minimum to the selected volume setting (fadein). The wake up timer will function every day unless it is released.
Example:
Waking up 7:30 AM every day and listening to music until
8:15 AM
2
4,6
10
3,5,7,9
1. Load a compact disc or select “TUNER”.
• If “TUNER” is selected, select the desired station first.
• Adjust the volume level as desired.
2. Press [CLOCK/TIMER] for at least 2 seconds.
The previous wake-up time setting appears.
AM
ON
7. Press [MEMORY].
AM
OFF
This completes the setting of the ON time.
“0 OFF” and “hour” display blink.
8. Set the OFF time by following steps 4 to 6 above.
AM
OFF
9. Press [MEMORY].
10. Press [z/ON] to turn the power off.
The present time display remains.
“0” remains lit.
When the timer ON time arrives, the power is turned on automatically and the unit starts playing with the preset function selected.
The volume fades in from minimum to the preset volume level.
•“0” blinks while timer operation is engaged.
• When the timer OFF time arrives, the power furns off and the
timer is set to the standby mode. Timer operation repeats this
cycle every day.
• If [z/ON] is pressed during timer operation, the power is turned
off and the timer is set to the standby mode.
3. Press [MEMORY] within 10 seconds.
“0 ON” and “hour” display blink.
AM
ON
4. Turn [VOLUME] to set the “hour” display.
AM
ON
5. Press [MEMORY].
“0 ON” and “minute” display blink.
AM
ON
6. Turn [VOLUME] to set the “minute” display.
AM
ON
To release the timer
After turning the power on, press [CLOCK/TIMER] twice, “0”
disappears.
To set the timer again with the same setting
1. Press [CLOCK/TIMER] repeatedly to display “0”.
2. Press [z/ON] to turn the power off.
NOTE:
The timer operation is released if a power failure occurs.
Need help? Call
1-800-813-3435
AWM-660/US Eng page 4/16/04, 5:41 PM14
-E13-
USING THE SLEEP TIMER (Remote control only)
This timer automatically switches off the power after a preset time
has elapsed. The volume will gradually be reduced (fade-out) during the 1-minute period before the unit turns off. There are 12 time
periods available: 120, 110, 100, 90, 80, 70, 60, 50, 40, 30, 20, and
10 minutes.
Press [ SLEEP ] to select the desired sleep time. “SLEEP” blinks
and the selected time appears on the display. After several seconds,
the original display returns. “SLEEP” blinks.
To check the remaining sleep time
Press [ SLEEP ] only once. The remaining time is displayed. After
several seconds, the original display returns.
To release the sleep timer while in operation
Press [ SLEEP ] repeatedly until “SLEEP” disappears. The timer is
also released if the power is switched off.
Timer priorities
The SLEEP timer has priority over the WAKE UP timer. The power
is switched off by the SLEEP timer.
REMOTE CONTROL OPERATION
NOTE:
The buttons on the remote control perfom similar functions to similarly marked buttons on the front panel.
Operation
(Common section)
Power On/Off z/ON
Select function FUNCTION
Adjust volume VOL - or VOL +
Set surround sound SURROUND
Enhance bass BASS
Select sound presets SOUND PRESET
Set/ Check sleep time SLEEP
(Tuner section)
Select TUNER and/ or Select band TUNER/BAND
Tune in a station TUNING - or TUNING +
Preset stations
TUNER/BAND v MEMORY v TU PRESET (or Number buttons) v MEMORY
Select preset station In TUNE mode TU PRESET or Number buttons
Select FM mode FM MODE/REPEAT
(CD player section)
Start play I
Select the desired track In CD mode F or E (or Number buttons)
Programmed play
In CD mode MEMORY vFor E (or Number buttons) v MEMORY
Temporarily stop play During play I
Skip play During play F or E (press once) or Number buttons
Search During play F or E (press continuously)
Repeat play FM MODE/REPEAT
Stop N
1
3
2
456
789
0
FM
M
O
D
E
TUNER
/R
EPEAT
/BAND
AWM-660/US Eng page 4/16/04, 5:41 PM15
-E14-
M
T
O
E
R
E
T
N
O
L
C
O
R
6
R
L
R
C
-M
0
E
B
R
TROUBLESHOOTING GUIDE
If you have followed the instructions and are having difficulty operation the unit, locate the SYMPTOM in the left column below. Check the
corresponding POSSIBLE CAUSE and CORRECTIVE ACTION columns to locate and remedy the problem.
SYMPTOM
No power when [ z/ON ] is set to on.
No sound.
No sound from any function.
The CD player will not operate.
The sound from the CD player skips.
Abnormal CD or display operation with
the correct button settings.
Incorrect FM frequency.
Flickering “ST”.
POSSIBLE CAUSE
No power plug connection at the AC outlet.
Volume control is set to minimum.
The wrong function is selected.
Faulty speaker connections.
The disc is loaded with the label toward the unit.
The compact disc is dirty.
The compact disc is scratched.
The memory must be reset.
Incorrect reception frequency setting.
Weak signal.
CORRECTIVE ACTION
Insert the power plug into the AC outlet.
(See page E4.)
Turn up the volume. (See page E7.)
Select the correct function.
Connect the connector firmly to the speaker
terminals. (See page E4.)
Load the disc on the disc tray with the label
facing toward you. (See pages E8.)
Clean the disc. (See page E8.)
Replace the disc. (See page E8.)
1. Press [z/ON] to turn the power off.
2. While pressing [N] on the unit, press [I]
on the unit for at least 1 second.
3. Press [z/ON] to turn the power on.
(See page E5.)
Change the reception frequency setting.
(See page E11.)
Press [FM MODE/REPEAT] to display
“MONO”. (See page E11.)
Reorient the FM antenna lead wire or install
an outodoor FM antenna. (See pages E3)
Poor sound quality during playback.
Record mode does not operate.
SERVICING:
Should this product require service, refer to the SANYO audio limited warranty.
If you do not have a convenient SANYO service station nearby, contact the SANYO dealer where you purchased the unit. Be sure to give the
model number and explain the problem. The dealer will advise you how to obtain service.
Dirty heads, pinch roller or capstan.
The guard tabs have been removed from the cas-
sette.
Clean the tape path. (See page E15.)
Place tape over the guard tabs. (See page
E12.)
MAINTENANCE
FOR YOUR PERSONAL SAFETY, BE SURE TO DISCONNECT
THE AC POWER CORD BEFORE PROCEEDING WITH ANY
MAINTENANCE OR CLEANING.
Cleaning the cabinet
Use a clean soft cloth moistened with plain lukewarm water and
wrung dry. Never use benzol, benzene or other strong chemical
cleaners since these could damage the finish of your unit. It is important that no liquid reaches the inside of the unit.
Cleaning the CD player lens
The lens should never be touched. If dust is on the lens, blow it off
using a camera lens blower. (Consult your dealer.)
WARNING:
Cleaning the tape heads and tape path
To ensure continued high performance, use a cleaning tape
(availabel from your local audio dealer) to clean the head block of
the deck after every 10 hours of use.
AWM-660/US Eng page 4/16/04, 5:41 PM16
-E15-
AMPLIFIER SECTION
Sound preset:
Bass expander:
PHONES:
TUNER SECTION
(FM)
Frequency range:
Usable sensitivity:
(AM)
Frequency range:
Sensitivity:
SPECIFICATIONS
4 electronic presets
+9 dB (70 Hz)
8 ~ 32 ohms
87.9 MHz- 107.9 MHz (200 kHz steps)
13.2 dBf (mono)
520 kHz - 1710 kHz (10 kHz steps)
500 µ V/m (AM Loop antenna)
CASSETTE DECK SECTION
Track system:
Frequency response:
Signal to noise ratio:
Wow and flutter:
Tape speed:
Fast forward and Rewind time:
CD PLAYER SECTION
Channels:
Sampling frequency:
Pick-up:
Frequency response:
Signal to noise ratio:
Wow and flutter:
GENERAL
Power requirements:
Power consumption:
Dimensions (W x H x D):
Weight:
RB-MCR60 WIRELESS REMOTE CONTROL
Power requirements:
Dimensions (W x H x D):
Weight:
AWM-660SP SPEAKER SYSTEM
Type:
Drivers:
Maximum power-handing capacity:
Nominal impedance:
Dimensions (W x H X D):
Weight:
4-track, 2-channel stereo
60 Hz - 13.5 kHz (Normal tape)
40 dB
0.15% (WRMS)
1-7/8 i.p.s. (4.75 cm/sec)
Approx.110 sec. (C-60)
2-channel stereo
44.1 kHz
Optical 3-beam semiconductor laser
20 Hz - 20 kHz
90 dB
Below measureable limits
120 V AC, 60 Hz
18 Watts
Approx. 8.2" x 6.6" x 8.5"
Approx. 5.3 lbs.
2 “AAA” batteries
Approx. 1.8" x 4.6" x 0.8"
Approx. 1.4oz. (without batteries)
Bass reflex
Full range
6 Watts (peak)
4 ohms
Approx. 5.6" x 10" x 6.4"
Approx. 2.8 lbs./speaker
IMPORTANT INFORMATION
Because its products are subject to continuous improvement, SANYO reserves the right to modify product designs and specifications
without notice and without incurring any obligation.
AWM-660/US Eng page 4/16/04, 5:41 PM17
-E16-
AWM-660/US Eng page 4/16/04, 5:41 PM18
SANYO Electric Co., Ltd.
Printed in china
-E17-
Loading...
