Sanyo 52 inch Instruction Manual

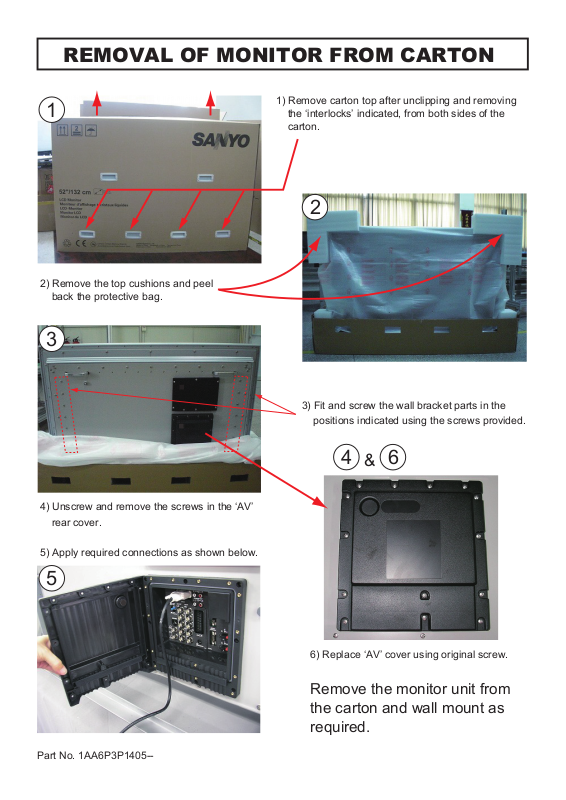

REMOVAL OF MONITOR FROM CARTON

1

2)Remove the top cushions and peel back the protective bag.

3

1)Remove carton top after unclipping and removing the ‘interlocks’ indicated, from both sides of the carton.

2

3)Fit and screw the wall bracket parts in the positions indicated using the screws provided.

4 & 6

4) Unscrew and remove the screws in the ‘AV’ rear cover.

5) Apply required connections as shown below.

5

6) Replace ‘AV’ cover using original screw.

Remove the monitor unit from the carton and wall mount as required.

Part No. 1AA6P3P1405--
