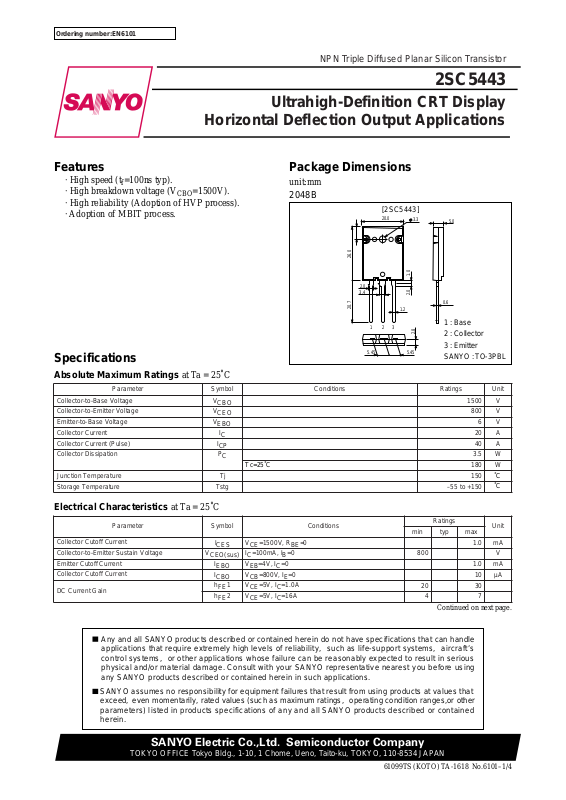

Sanyo 2SC5443 Specifications

Ordering number:EN6101

NPN Triple Diffused Planar Silicon Transistor

2SC5443

Ultrahigh-Definition CRT Display

Horizontal Deflection Output Applications

Features

· High speed (t=100ns typ). f

· High breakdown voltage (V =1500V).

CBO

·High reliability (Adoption of HVP process).

·Adoption of MBIT process.

Specifications

Absolute Maximum Ratings at Ta = 25˚C

Package Dimensions

unit:mm

2048B

[2SC5443]

	20.0		3.3
26.0
			1.0
2.0			2.0
3.4
20.7			1.2
1	2	3	2.8
5.45			5.45

5.0

0.6

1 : Base

2 : Collector

3 : Emitter

SANYO : TO-3PBL

Parameter	Symbol	Conditions	Ratings	Unit
Collector-to-Base Voltage	VCBO		1500	V
Collector-to-Emitter Voltage	VCEO		800	V
Emitter-to-Base Voltage	VEBO		6	V
Collector Current	IC		20	A
Collector Current (Pulse)	ICP		40	A
Collector Dissipation	PC		3.5	W
		Tc=25˚C	180	W
Junction Temperature	Tj		150	˚C
Storage Temperature	Tstg		–55 to +150	˚C

Electrical Characteristics at Ta = 25˚C

Parameter	Symbol		Conditions		Ratings		Unit
				min	typ	max
Collector Cutoff Current	ICES	VCE=1500V, RBE=0				1.0	mA
Collector-to-Emitter Sustain Voltage	VCEO(sus)	IC=100mA, IB=0		800			V
Emitter Cutoff Current	IEBO	VEB=4V, IC=0				1.0	mA
Collector Cutoff Current	ICBO	VCB=800V, IE=0				10	µA
DC Current Gain	hFE1	VCE=5V, IC=1.0A		20		30
	hFE2	VCE=5V, IC=16A		4		7

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

61099TS (KOTO) TA-1618 No.6101–1/4

2SC5443

Continued from preceding page.

Parameter

Symbol

Conditions

Ratings

Unit

min

typ

max

Collector-to-Emitter Saturation Voltage

VCE(sat)

IC=16A, IB=4A

5

V

Base-to-Emitter Saturation Voltage

VBE(sat)

IC=16A, IB=4A

1.5

V

Storage Time

tstg

IC=12A, IB1=2.4A, IB2=–4.8A

3.0

µs

Fall Time

tf

IC=12A, IB1=2.4A, IB2=–4.8A

0.2

µs

Switching Time Test Circuit

PW=20µs

D.C.≤ 1%

IB1

I NPUT

IB 2

OUTPUT

50Ω

VR

RB

RL=16.7Ω

++

100µF 470µF

VBE=-2V

VCC=200V

Collector Current, IC – A

DC Current Gain, hFE

20							IC - VCE
18				5.0A														3.0A
16																		2.5A
																		2.0A
14
																		1.5A
12
																		1.0A
10
																		0.5A
8
6
								4.5A		4.0A		3.5A
4
2
																	I	B	= 0
0
0	1		2		3		4		5		6	7		8		9			10
			Collector-to-Emitter Voltage, VCE											–		V
7							hFE		-		IC
																	VCE = 5V
5
					°C
			Ta=120
3
					°C
2					25
					°C
10				–40
7
5
3
2

1.0

7

7

0.1

2

3

5

7

1.0

2

3

5

7

10

2

3

Collector Current, IC – A

	22					IC - VBE
	20													VCE = 5V
A	18
	16
–
C	14
I
Current,	12
Collector	10
	8
							°	C	C		C
	6					Ta=120			°		°
									25		40
	4										–
	2
	0
	0	0.2		0.4		0.6				0.8		1.0		1.2		1.4

Base-to-Emitter Voltage, VBE – V

		7	IC /IB=5			VCE(sat)			-		IC
		5
	V	3
	–
		2
	CE(sat)
		1.0
Collector-to-Emitter	Saturation Voltage, V	7
		5
		3
		2
		0.1	Ta=–40°C
		7	120°C			°C
		5				25
		3
		7	0.1	2	3	5	7	1.0	2	3		5	7	10	2	3
						Collector Current, IC					–	A

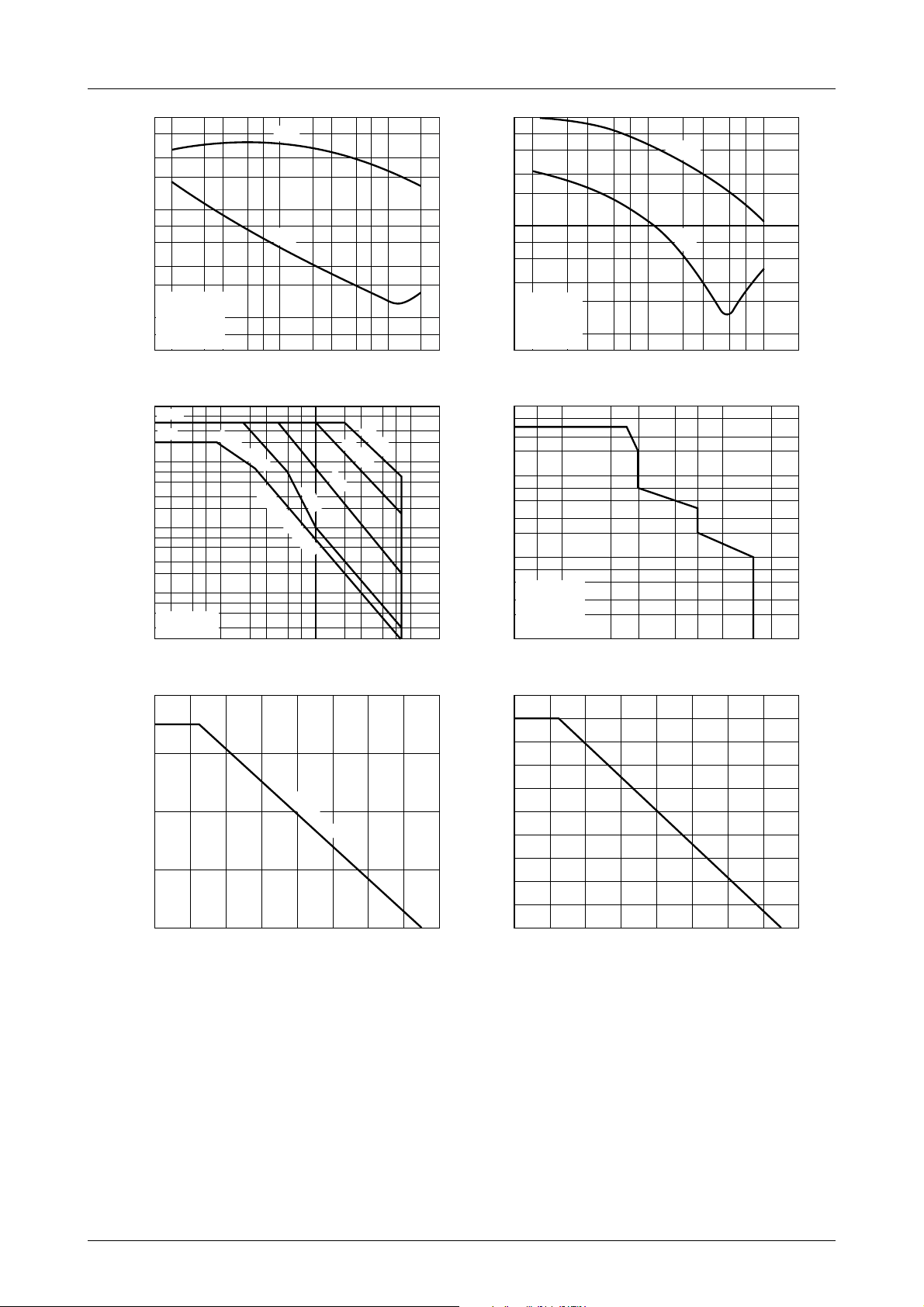

															No.6101–2/4
