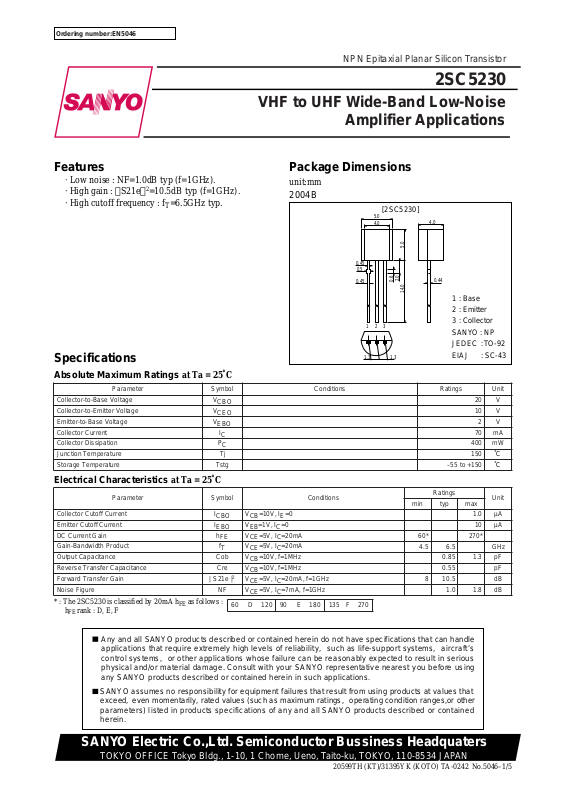

Ordering number:EN5046
NPN Epitaxial Planar Silicon Transistor
2SC5230
VHF to UHF Wide-Band Low-Noise
Amplifier Applications
Features |
Package Dimensions |
·Low noise : NF=1.0dB typ (f=1GHz).
·High gain : S21e 2=10.5dB typ (f=1GHz).
·High cutoff frequency :Tf=6.5GHz typ.
Specifications
unit:mm
2004B
|
5.0 |
[2SC5230] |
|
|
|
|
|
4.0 |
|
|
4.0 |
|
|
|
|
|
|
5.0 |
|
0.45 |
|
|
|
|
0.5 |
|
|
|
|
0.45 |
|
0.6 |
2.0 |
0.44 |
|
|
14.0 |
||
|
|
|
|
|
1 |
2 |
3 |
|
|
1.31.3
1 : Base
2 : Emitter
3 : Collector
SANYO : NP JEDEC : TO-92 EIAJ : SC-43
Absolute Maximum Ratings at Ta = 25˚C
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
|
|
|
|
Collector-to-Base Voltage |
VCBO |
|
20 |
V |
Collector-to-Emitter Voltage |
VCEO |
|
10 |
V |
Emitter-to-Base Voltage |
VEBO |
|
2 |
V |
Collector Current |
IC |
|
70 |
mA |
Collector Dissipation |
PC |
|
400 |
mW |
Junction Temperature |
Tj |
|
150 |
˚C |
|
|
|
|
|
Storage Temperature |
Tstg |
|
–55 to +150 |
˚C |
|
|
|
|
|
Electrical Characteristics at Ta = 25˚C
Parameter |
Symbol |
|
Conditions |
|
|
|
Ratings |
|
Unit |
||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
min |
typ |
max |
|
|
|
|
|
|
|
|
|
|
|
|
|
Collector Cutoff Current |
ICBO |
VCB=10V, IE=0 |
|
|
|
|
1.0 |
µA |
|||
Emitter Cutoff Current |
IEBO |
VEB=1V, IC=0 |
|
|
|
|
10 |
µA |
|||
DC Current Gain |
hFE |
VCE=5V, IC=20mA |
|
|
60* |
|
270* |
|
|||
Gain-Bandwidth Product |
fT |
VCE=5V, IC=20mA |
|
|
4.5 |
6.5 |
|
GHz |
|||
Output Capacitance |
Cob |
VCB=10V, f=1MHz |
|
|
|
0.85 |
1.3 |
pF |
|||
Reverse Transfer Capacitance |
Cre |
VCB=10V, f=1MHz |
|
|
|
0.55 |
|
pF |
|||
Forward Transfer Gain |
| S21e |2 |
VCE=5V, IC=20mA, f=1GHz |
|
|
8 |
10.5 |
|
dB |
|||
Noise Figure |
NF |
VCE=5V, IC=7mA, f=1GHz |
|
|
|
1.0 |
1.8 |
dB |
|||
* : The 2SC5230 is classified by 20mA hFE as follows : |
|
|
|
|
|
|
|
|
|
|
|
60 |
D 120 |
90 E 180 |
135 F |
270 |
|
|
|
|
|
||
hFE rank : D, E, F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
20599TH (KT)/31395YK (KOTO) TA-0242 No.5046–1/5
2SC5230
