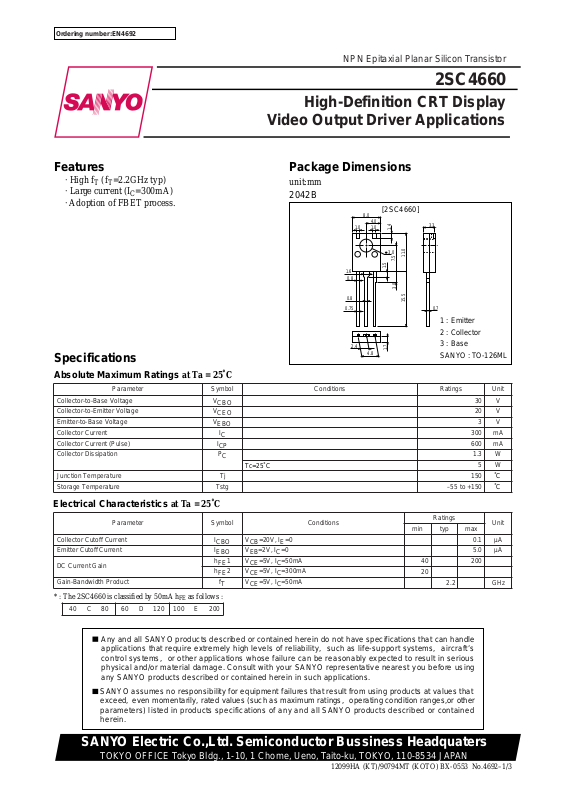

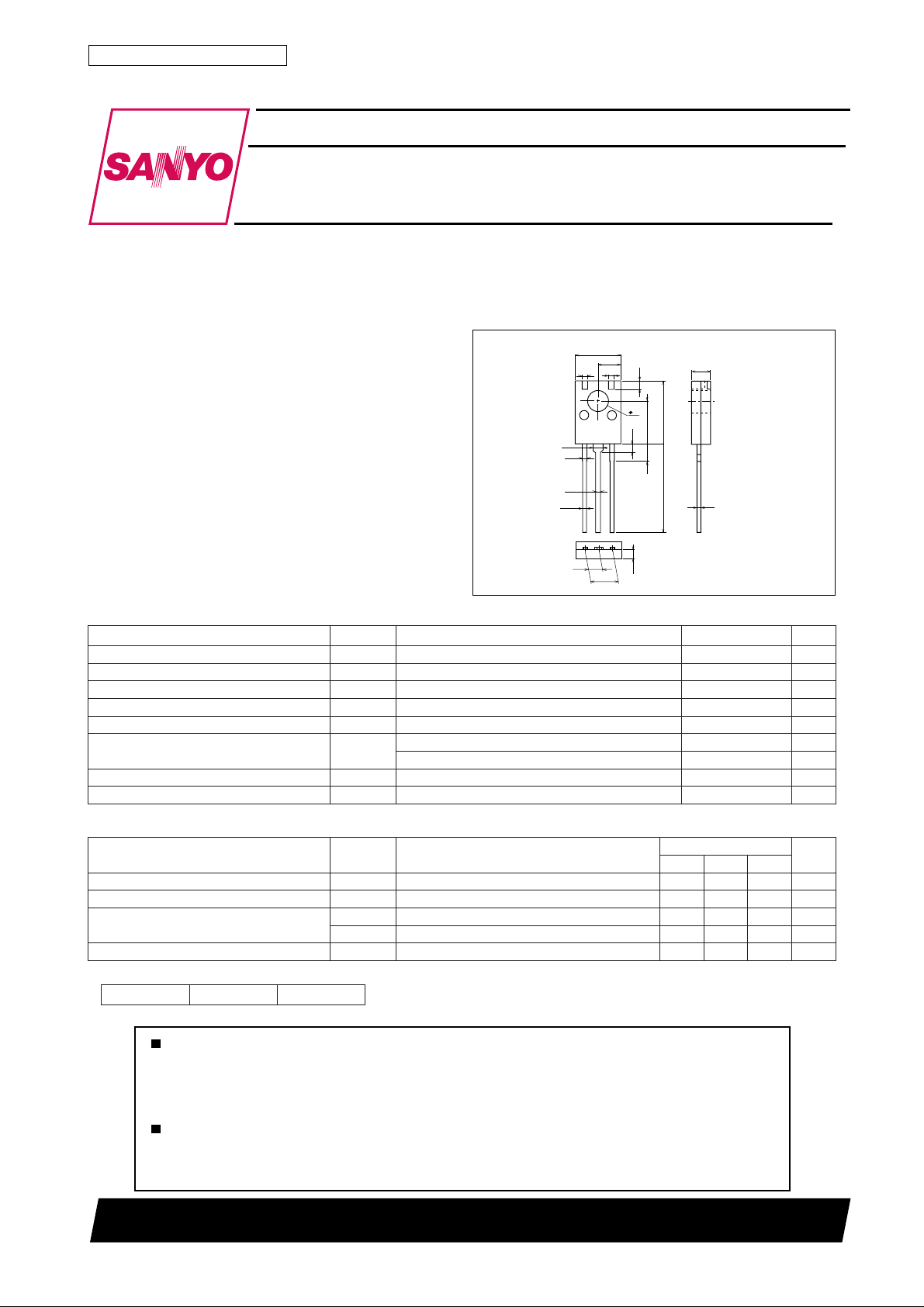

Sanyo 2SC4660 Specifications
Ordering number:EN4692
NPN Epitaxial Planar Silicon Transistor
2SC4660
High-Definition CRT Display
Video Output Driver Applications
Features |
Package Dimensions |
· HighTf (fT=2.2GHz typ) |
unit:mm |
· Large current (I=300mA) |
2042B |
C |
· Adoption of FBET process.
|
8.0 |
[2SC4660] |
||
|
|
|
||
|
4.0 |
1.4 |
3.3 |
|
1.0 |
1.0 |
|||
|
||||
|
|
7.5 |
11.0 |
|
|
|
3.0 |
|
|
1.6 |
|
1.5 |
|
|
|
|
|
||
0.8 |
|
|
|
|
|
|
3.0 |
|
|
0.8 |
|
|
15.5 |
|
0.75 |
|
|
0.7 |
|
|
|
|
1 : Emitter |
|
|
|
|
2 : Collector |
|
2.4 |
|
1.7 |
3 : Base |
|
Specifications |
4.8 |
SANYO : TO-126ML |
||
|
||||
|
|
|||
|
|
|
||
Absolute Maximum Ratings at Ta = 25˚C
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
|
|
|
|
|
Collector-to-Base Voltage |
VCBO |
|
30 |
V |
Collector-to-Emitter Voltage |
VCEO |
|
20 |
V |
Emitter-to-Base Voltage |
VEBO |
|
3 |
V |
Collector Current |
IC |
|
300 |
mA |
Collector Current (Pulse) |
ICP |
|
600 |
mA |
Collector Dissipation |
PC |
|
1.3 |
W |
|
|
Tc=25˚C |
5 |
W |
|
|
|
|
|
Junction Temperature |
Tj |
|
150 |
˚C |
|
|
|
|
|
Storage Temperature |
Tstg |
|
–55 to +150 |
˚C |
|
|
|
|
|
Electrical Characteristics at Ta = 25˚C
Parameter |
Symbol |
Conditions |
|
Ratings |
|
Unit |
|
|
|
||||
|
|
|
min |
typ |
max |
|
|
|
|
|
|
|
|
Collector Cutoff Current |
ICBO |
VCB=20V, IE=0 |
|
|
0.1 |
µA |
Emitter Cutoff Current |
IEBO |
VEB=2V, IC=0 |
|
|
5.0 |
µA |
DC Current Gain |
hFE1 |
VCE=5V, IC=50mA |
40 |
|
200 |
|
hFE2 |
VCE=5V, IC=300mA |
20 |
|
|
|
|
|
|
|
|
|||
Gain-Bandwidth Product |
fT |
VCE=5V, IC=50mA |
|
2.2 |
|
GHz |
* : The 2SC4660 is classified by 50mA hFE as follows :
40 C 80 60 D 120 100 E 200
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
12099HA (KT)/90794MT (KOTO) BX-0553 No.4692–1/3

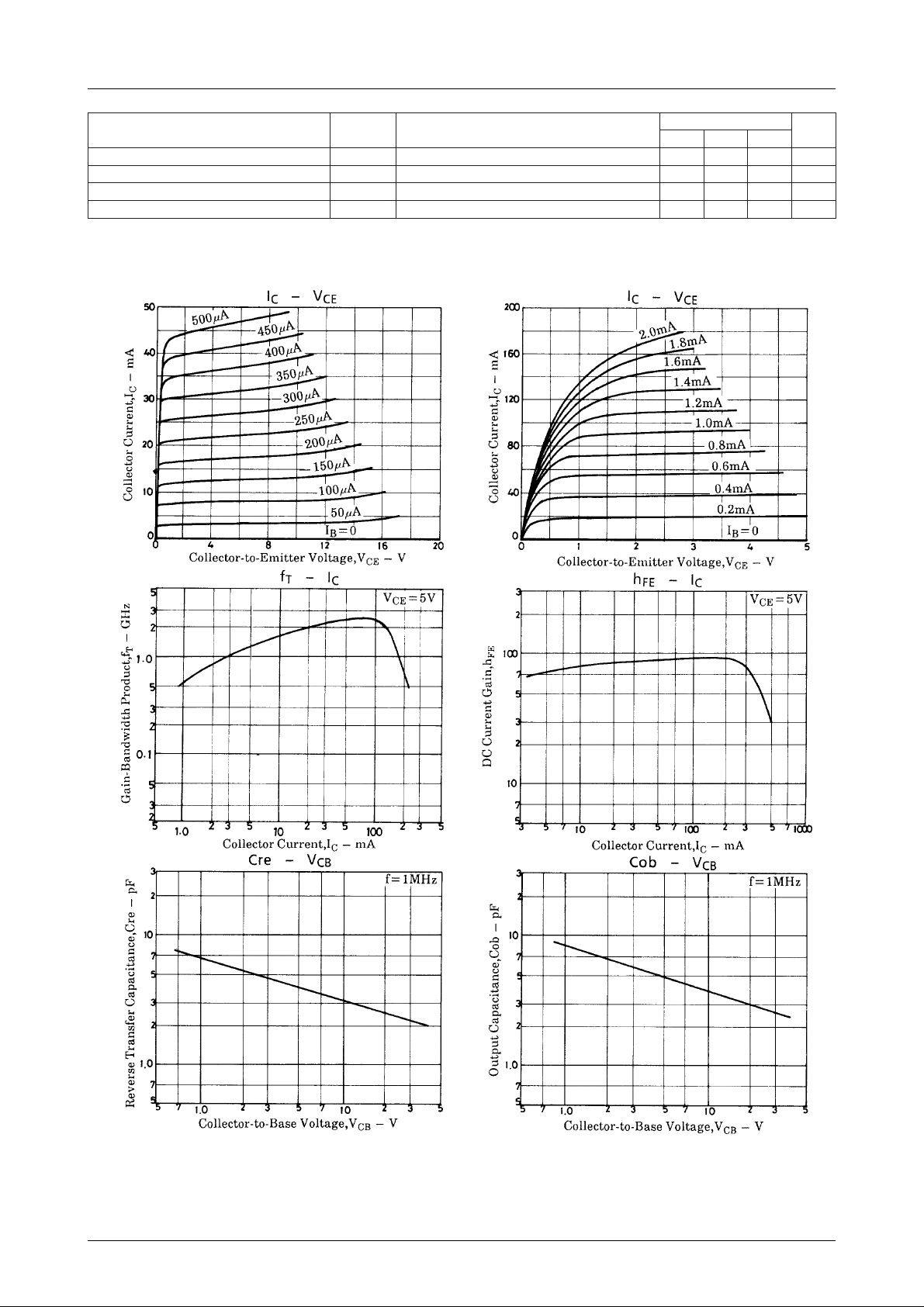

2SC4660
Parameter |
Symbol |
Conditions |
|
Ratings |
|
Unit |
|
|
|
||||
|
|
|
min |
typ |
max |
|
|
|
|
|
|
|
|
Output Capacitance |
Cob |
VCB=10V, f=1MHz |
|
3.9 |
|
pF |
Reverse Transfer Capacitance |
Cre |
VCB=10V, f=1MHz |
|
3.2 |
|
pF |
Collector-to-Emitter Saturation Voltage |
VCE(sat) |
IC=100mA, IB=10mA |
|
0.2 |
0.6 |
V |
Base-to-Emitter Saturation Voltage |
VBE(sat) |
IC=100mA, IB=10mA |
|
0.9 |
1.2 |
V |

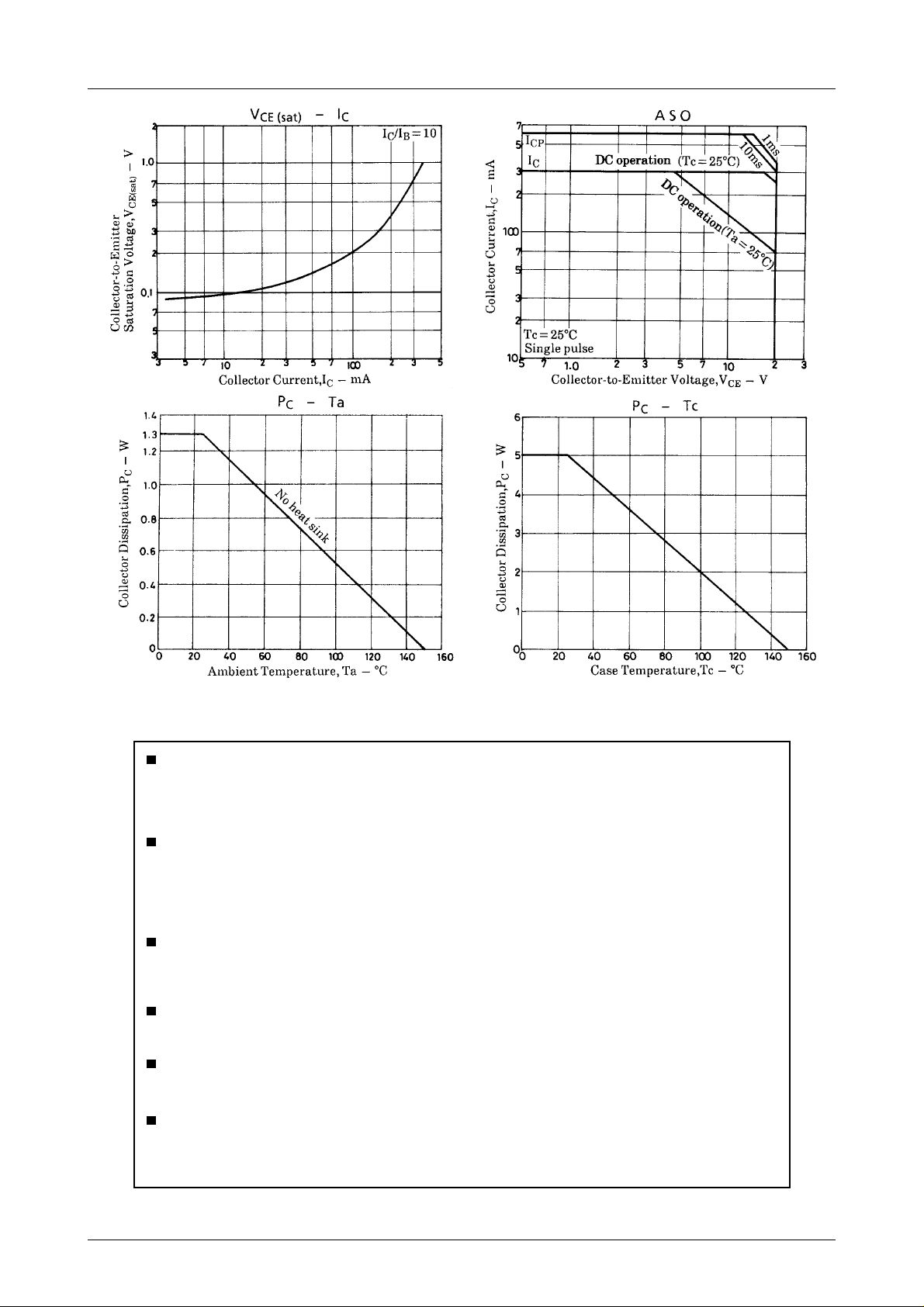

No.4692–2/3
