Assembly Instructions for Model: EFVS-II
Thank you for choosing the Sanus Systems Model EFVS-II. Every effort has
been made to ensure that your Sanus Systems furniture is perfect. If you have
questions or feel that there is a problem of any kind, please contact us at
800-359-5520 or at www.sanus.com. We can quickly help with any issues
regarding assembly or missing parts. Replacement parts for Sanus systems
products purchased through authorized dealers will be shipped directly to you.
Supplied Parts List: (Threaded fasteners are shown full size)
8˝ Pillar - A
Qty 5
Video Shelf - B
Qty. 1
Shelf Connector - C
Qty. 5
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 2.07.06 (000014)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Wire Bushing - D
Qty. 2
NOTE: Step 1 is necessary only if the EFAV-II assembly has been previously completed.

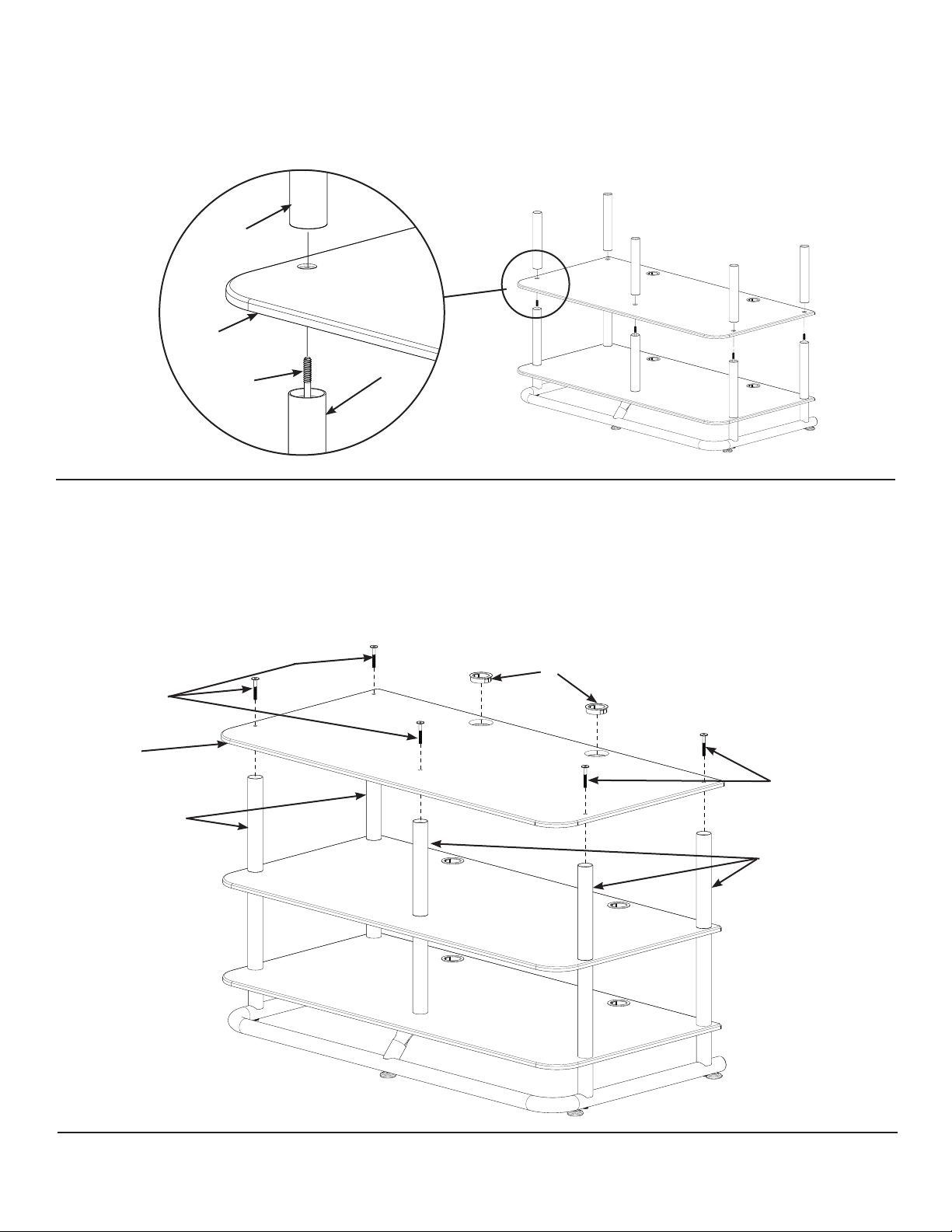

Step 1 - Remove existing Top Video Shelf
Remove the fi ve Top Bolts and Top Video Shelf. Place the Video Shelf on a smooth soft surface, such a carpeted fl oor.
Top Bolt
Diagram 1
Top Video Shelf
Top Bolt
Step 2 - Install Shelf Connectors
Thread a Shelf Connector (C) securely into the fi ve 8˝ Pillars.
Diagram 2
C
C
8˝ Pillar
8˝ Pillar
C
8˝ Pillar
