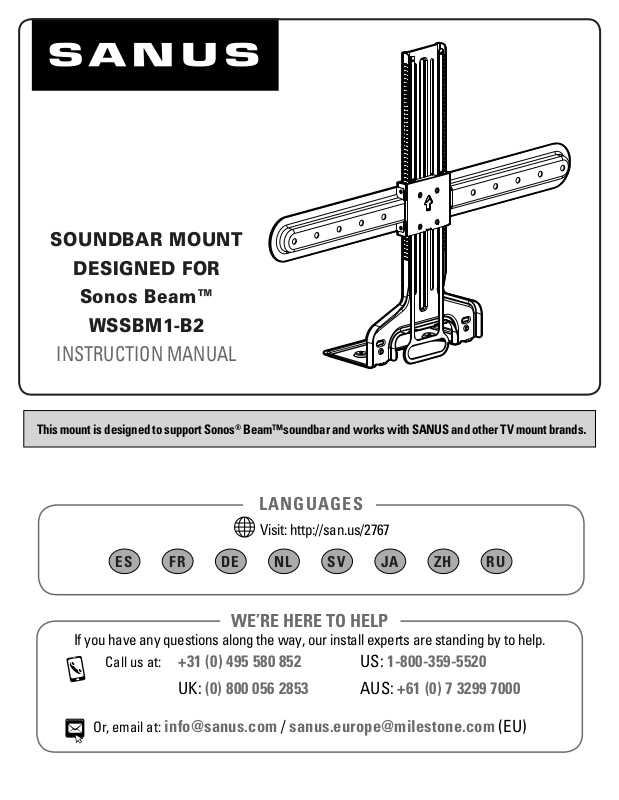

SOUNDBAR MOUNT
DESIGNED FOR
Sonos Beam™
WSSBM1-B2
INSTRUCTION MANUAL
This mount is designed to support Sonos® Beam™ soundbar and works with SANUS and other TV mount brands.
LANGUAGES
Visit: http://san.us/2767
ES
FR
DE
NL
SV
JA
ZH
RU
WE’RE HERE TO HELP
If you have any questions along the way, our install experts are standing by to help.
Call us at: +31 (0) 495 580 852 US: 1-800-359-5520
Or, email at: [email protected] / [email protected] (EU)
UK: (0) 800 056 2853 AUS: +61 (0) 7 3299 7000
Page 2
IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO USE. SAVE THESE INSTRUCTIONS
TV MOUNT
Before getting started, let’s make sure this product is perfect for you!
CAUTION: To avoid potential personal injuries and property damage:
This soundbar mount is only designed for use with TV wall mounts that meet third party safety certifications.
•
This soundbar mount is ONLY designed to mount below the television
•
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
•
Do not use this product for any purpose not explicitly specified by manufacturer.
•
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
•
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
•
contact Customer Service.
Tools
Needed
Screwdriver
TV Mount Manual
Beam™ Weight Limit
DO NOT EXCEED
7 lbs.
(3.2 kg)
SUPPLIED PARTS AND HARDWARE
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,
DO NOT return the damaged item to your dealer; contact Sanus (see back page). Never use damaged parts!
WARNING:
NOTE: Not all hardware included in this kit will be used.

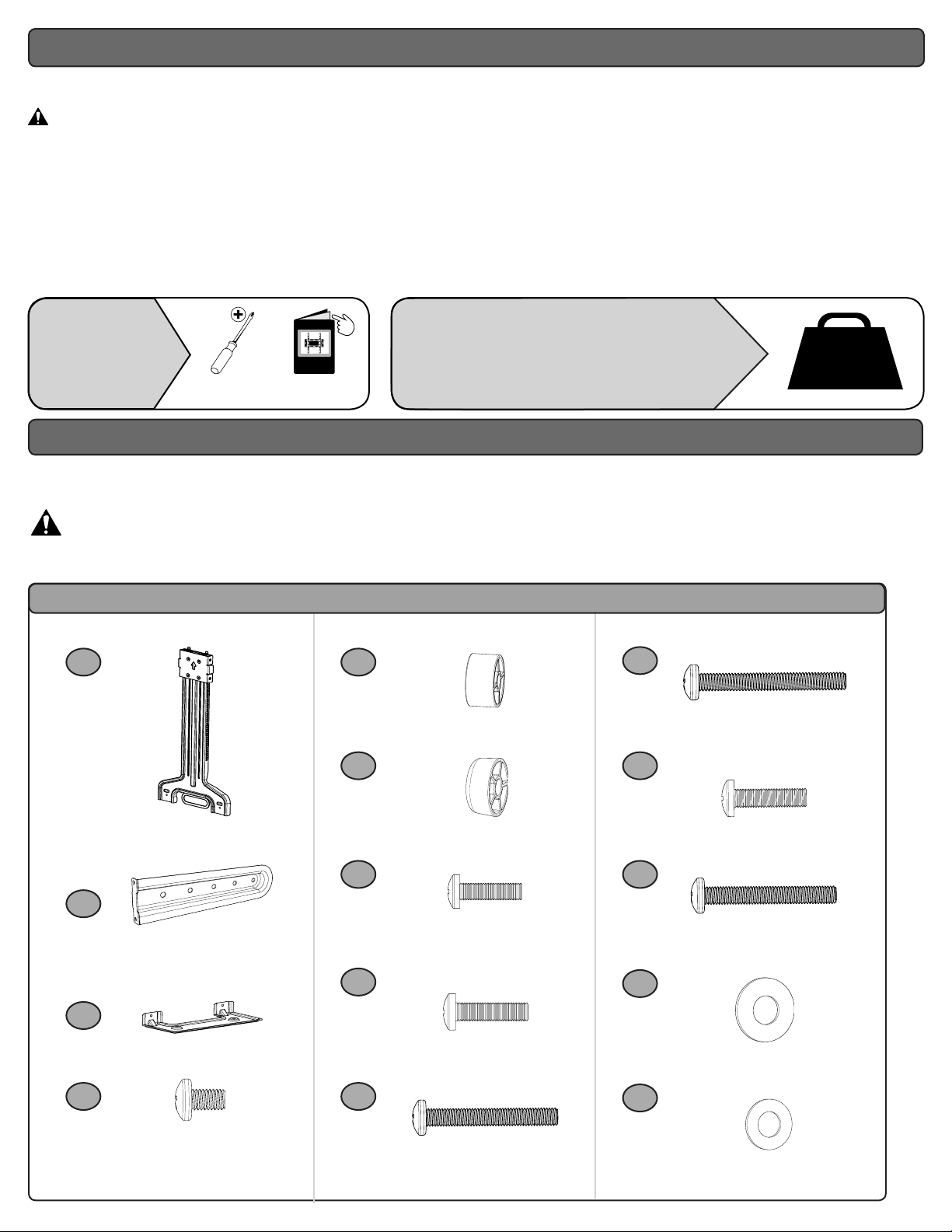

INCLUDED IN BOX
1
CHOKING HAZARD — This product contains small items that could be a choking hazard if swallowed.
5
2 - Mount Spacers
6
10
4 - M6 x 65 mm Screws
11
1 - Vertical Assembly
2
2 - Extension Arms
3
1 - Shelf Bracket
4
8 - M5 x 8 mm Screws
2 - Extension Arm Spacers
7
4 - M6 x 30 mm Screws
8
4 - M6 x 40 mm Screws
9
4 - M6 x 55 mm Screws
12
13
14
4 - M8 x 35 mm Screws
4 - M8 x 55 mm Screws
4 -
Large
M8/M6 Washers
4 - M8/M6 Washers
Page 3
19.37
492.1
26.39
670.3
4.78
121.4
4.78
121.4
26.39
670.3
7.33
186.2
4.60
116.7
4.60
116.7
14.76
375.0
2.76
70.2
FRONT VIEW - EXTENDED
SIDE VIEW - EXTENDED
FRONT VIEW - RETRACTED
SIDE VIEW - RETRACTEDSIDE VIEW - RETRACTED
SIDE VIEW - EXTENDED

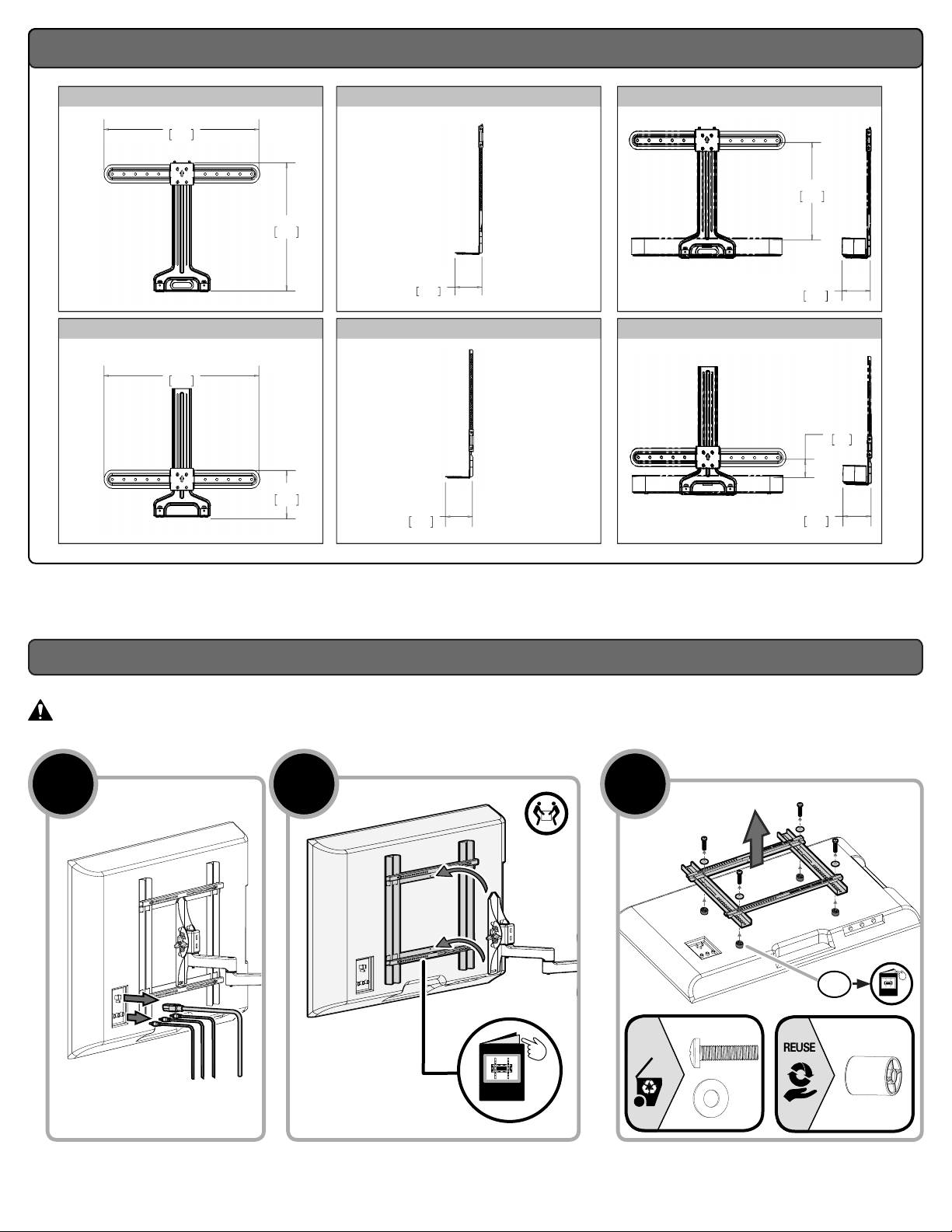

DIMENSIONS
TV MOUNT
TV MOUNT
PREPARE YOUR TV (IF MOUNTED)
CAUTION: Follow your TV mount’s manual for instructions on how to safely remove your TV and TV bracket.
Unplug Dismount Remove TV Mount
1 2 3
S
TOSS
REUSE
6901-602268-00
Page 4
ASSEMBLE AND ATTACH SOUNDBAR MOUNT
TV MOUNT

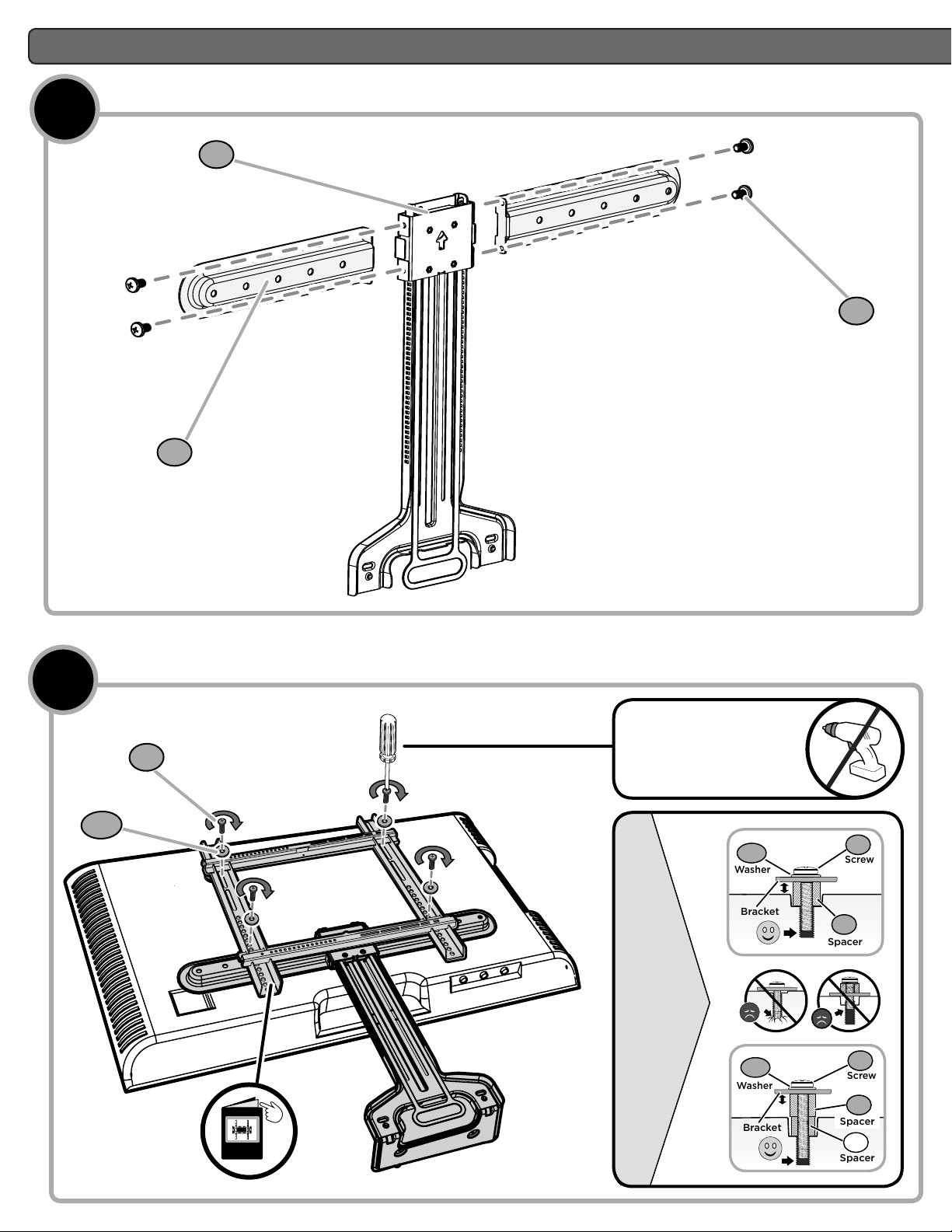

Assemble the soundbar brackets with 4 screws
4
1
2
4
6
Secure TV mount bracket and soundbar mount to TV
7-12
13/14
DO NOT OVERTIGHTEN
COULD DAMAGE
MONITOR OR HARDWARE
13/14
Washer
Bracket
Ideal Setup
Select
Screws
13/14
Washer
Bracket
7-12
Screw
5/6
Spacer
7-12
Screw
5/6
Spacer
S
Spacer
Page 5
5
TV MOUNT

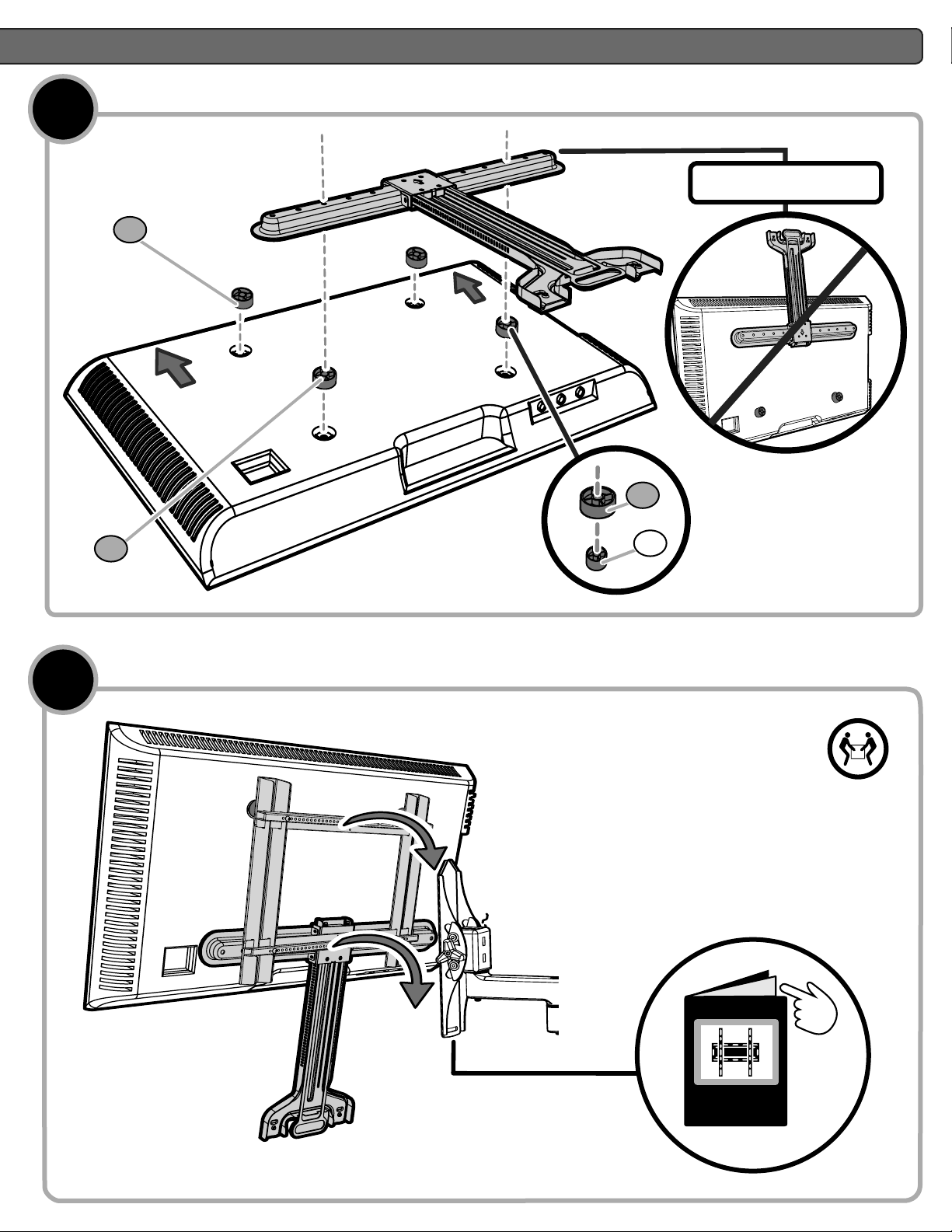

Line up soundbar bracket and spacers with TVs prethreaded mounting holes
DO NOT ATTACH MOUNT
TO TOP OF TELEVISION.
5
OR
6
7
6
Mount TV
S
6901-602268-00
Page 6

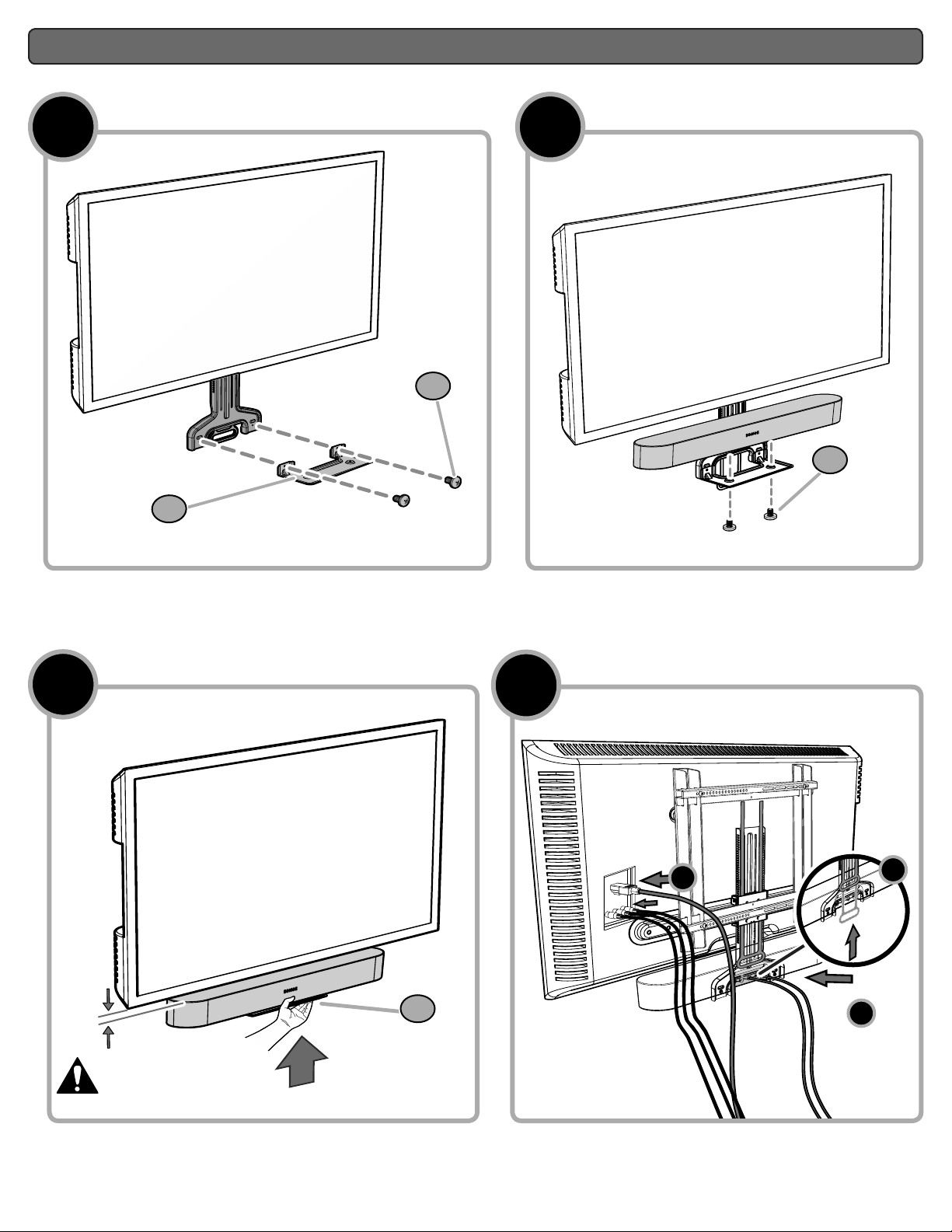

ATTACH SOUNDBAR TO MOUNT
(Optional) Leave 1/2”(1.27 cm)
to 1”(2.54 cm) gap for
microphone performance
8
Attach shelf bracket to vertical assembly
3
Attach soundbar to shelf bracket
9
4
4
10
Push soundbar bracket up to lock into place
6
11
Slide up release handle and attach cables
b
b
a
Page 7

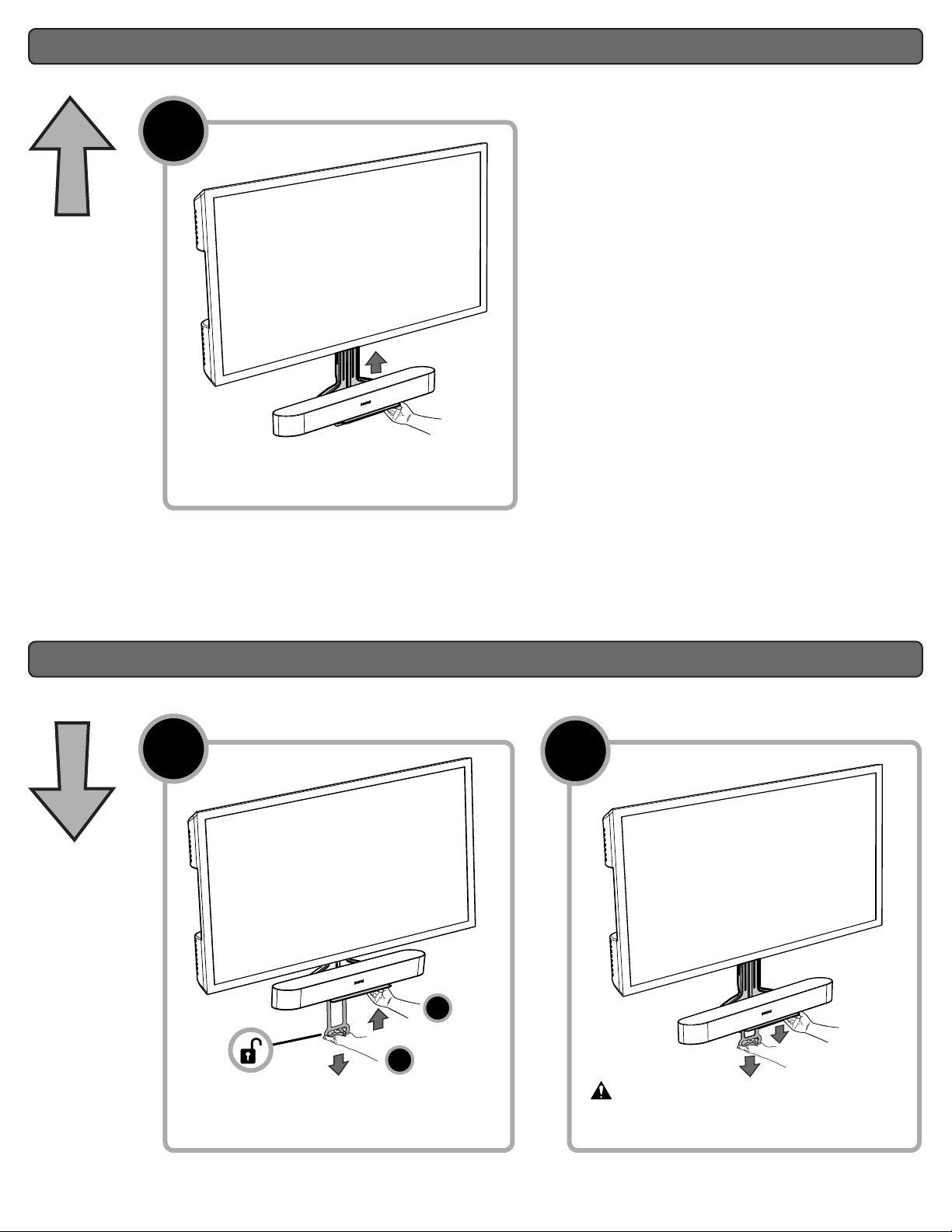

ADJUST SOUNDBAR SHELF UP
1
ADJUST SOUNDBAR SHELF DOWN
1
NOTE: YOU MUST PUSH UP ON THE
BOTTOM OF SOUNDBAR BRACKET TO
UNLOCK THE MOUNT.
2
a
b
CAUTION! SUPPORT THE SOUNDBAR
AS YOU PULL ON THE RELEASE HANDLE
AND LOWER THE SOUNDBAR BRACKET.
6901-602268-00
Page 8
STILL NEED HELP?
If you have any questions along the way, our install experts are standing by to help.
Call us at: +31 (0) 495 580 852 US: 1-800-359-5520
UK: (0) 800 056 2853 AUS: +61 (0) 7 3299 7000
Or, email at: [email protected] / [email protected] (EU)
Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete.
However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible
contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or
obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no
responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Milestone Global Headquarters
6436 City West Parkway
Eden Prairie, MN 55344 USA
©2018 Milestone AV Technologies. All rights reserved.
Sanus is a division of Milestone. All other brand names or marks are used
for identification purposes and are trademarks of their respective owners.
6901-602268-00
