Sanus VisionMount LF228 Instruction Manual

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [e-mail]
Europe, Middle East, and Africa: + 31 40 2324700 • [e-mail]
Asia Pacic: 86 755 8996 9226 • [e-mail]

SANUS • 2221 Hwy 36 West • Saint Paul, MN 55113 USA

©2011 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone.
All other brand names or marks are used for identication purposes and are trademarks of their respective owners.

sanus.com

We are here to help!

Please contact Customer Service with any questions.

(6901-002114 <01>)

LF228 Instruction Manual

Installation

video

available at

sanus.com

6901-002114<01>

2

English - How to use this manual

For best results, reference both the text and illustrations.

OR

Select one item or the other.

OPT

This item is optional

English Text Pages 3-13

Français - Utilisation de ce guide

Pour obtenir de meilleurs résultats, reportez-vous à la fois au texte
et aux illustrations. Couper le long de la ligne pointillée pour faire
correspondre les illustrations à votre langue de préférence.

OR

Sélectionnez un article ou l’autre.

OPT

Cet article est facultatif.

Texte français page 14-15

Svenska - Så här använder du denna bruksanvisning

För bästa resultat, hänvisa till både text och bilder när du använder
denna bruksanvisning. Klipp längs de streckade linjerna för att
matcha ditt språk med bilderna.

OR

Välj ett objekt eller det andra.

OPT

Detta objekt är valfritt.

Svensk text sida 28-29

Deutsch - Verwendung dieses Handbuchs

Die Montage ist am einfachsten, wenn Sie den Text und die
Abbildungen zusammen verwenden. Schneiden Sie daher den Text
in Ihrer Sprache aus (gestrichelte Linien), um ihn den Abbildungen
gegenüberstellen zu können.

OR

Sie haben die Wahl zwischen einem Element oder einem anderen.

OPT

Dieses Element ist optional.

Deutscher Text Seite 16-17

Русский - Как пользоваться данной инструкцией

Для получения наилучшего результата ориентируйтесь

как на текст, так и на иллюстрации, приведенные в данном
руководстве. Отрежьте по пунктирной линии, чтобы совместить
нужный язык с иллюстрациями.

OR

Выберите один из вариантов.

OPT

Эта деталь может не входить в комплект поставки.

Русский текст: стр. 30-31

Español - Cómo usar este manual

Para obtener mejores resultados, consulte el texto y las ilustraciones.
Corte por las líneas discontinuas para hacer coincidir su idioma con
las ilustraciones.

OR

Seleccione uno de los elementos.

OPT

Este elemento es opcional.

Texto en español página 18-19

Polski - Jak używać tej instrukcji

W celu uzyskania najlepszych rezultatów, korzystając z tej instrukcji,
należy zwrócić uwagę zarówno na tekst, jak i na ilustracje. Przeciąć
wzdłuż przerywanych linii w celu dopasowania języka do ilustracji.

OR

Wybrać jedną pozycję lub drugą.

OPT

Ta pozycja jest opcjonalna.

Tekst w języku polskim na stronach 32-33

Português -Como usar este manual

Para obter melhores resultados, consulte o texto e as ilustrações.
Recorte nas linhas tracejadas para combinar seu idioma com as
ilustrações.

OR

Selecione um item ou o outro.

OPT

Este item é opcional.

Texto em português Página 20-21

Česky - Jak používat tuto příručku

Nejlepších výsledků dosáhnete, budete-li při používání této příručky
srovnávat text s ilustracemi. Odstřihněte podél čárkované čáry, aby
bylo možno české instrukce přiřadit k ilustracím.

OR

Vyberte si jednu nebo druhou položku.

OPT

Tato položka je volitelná.

Český text se nachází na straně 34-35

Nederlands - Gebruik van deze handleiding

Voor de beste resultaten moet u zowel de tekst als de illustraties
raadplegen. Gebruik de stippellijnen om uw taal bij de illustraties
te plaatsen.

OR

Selecteer een van beide items.

OPT

Dit item is optioneel.

Nederlandse tekst op pagina 22-23

Italiano - Uso del manuale

Per risultati ottimali, fare riferimento sia al testo che alle illustrazioni
di questo manuale. Tagliare lungo le linee tratteggiate per abbinare
il testo nella propria lingua alle illustrazioni.

OR

Selezionare uno o l’altro elemento.

OPT

Questo elemento è opzionale.

Testo in italiano alle pagine 24-25

日本語 - このマニュアルの使い方

組み立てをうまく行うためには、説明文とイラストの両方を参照してくださ
い。 点線 に沿って 切り取ると、ご使 用の 言語とイラストが一 致します。

OR

どちらか片方の品目を選択してください。

OPT

この品目は 、オプションです。

日本語は

36-37

ページ

中文 - 如何使用本说明书

请同时参阅文字说明和插图以获得最佳阅读效果。请沿着虚线裁剪，
将您的语言与插图匹配起来。

OR

选择一项或另一项。

OPT

此项可选。

中文文字说明请参见第 38-39 页

Suomi - Oppaan käyttäminen

Saavutat parhaan tuloksen tutustumalla sekä tekstiin että kuviin.
Leikkaa katkoviivaa pitkin ja yhdistä kuvat ja suomenkielinen teksti.

OR

Valitse toinen vaihtoehdoista.

OPT

Tämä vaihtoehto on valinnainen.

Suomenkielinen teksti on sivulla 26-27

6901-002114 <01>

3

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Specifications

Ù Weight capacity-DO NOT EXCEED: 61 kg (135 lb.) includes TV and any accessories
Ù Swivel: ±90°
Ù Tilt: +5° to –15°
Ù Level: ±5°

CAUTION: Avoid potential personal injuries and property damage!

Ù Do not use this product for any purpose not explicitly specified by manufacturer.
Ù The wall must be capable of supporting five times the weight of the monitor and mount combined.
Ù This product is not designed for use in metal stud walls!
Ù If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service or call a qualified contractor.

Ù Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Technical Specications

English

5

Level

19.281

489.75

31.050

788.67

11.560

293.62

16.000

406.40

16.000

406.40

24.000

609.60

33.465

850.00

MAX WIDTH

21.625

549.28

3.269

83.04

21.625

549.28

19.281

489.75

31.050

788.67

11.560

293.62

15.600

396.24

16.000

406.40

16.000

406.40

24.000

609.60

31.050

788.67

75

3.5" to 28"

-15

TILT
+5

19.281

489.75

31.050

788.67

11.560

293.62

15.600

396.24

16.000

406.40

16.000

406.40

24.000

609.60

3.5" to 28"

-15

TILT
+5

6901-002114<01>

4

M4 / M5 M6 / M8

M8 x 45mm

M4 x 20mm

M5 x 20mm

M6 x 25mm M6 x 40mm

M6 x 55mm

M5 x 30mm M5 x 40mm

M4 x 30mm M4 x 40mm

M8 x 25mm

M8 x 60mm

4mm 7mm 14mm 24mm 38mm

5/16-18 x 1.0 in.

5/16 x 3.5 in.

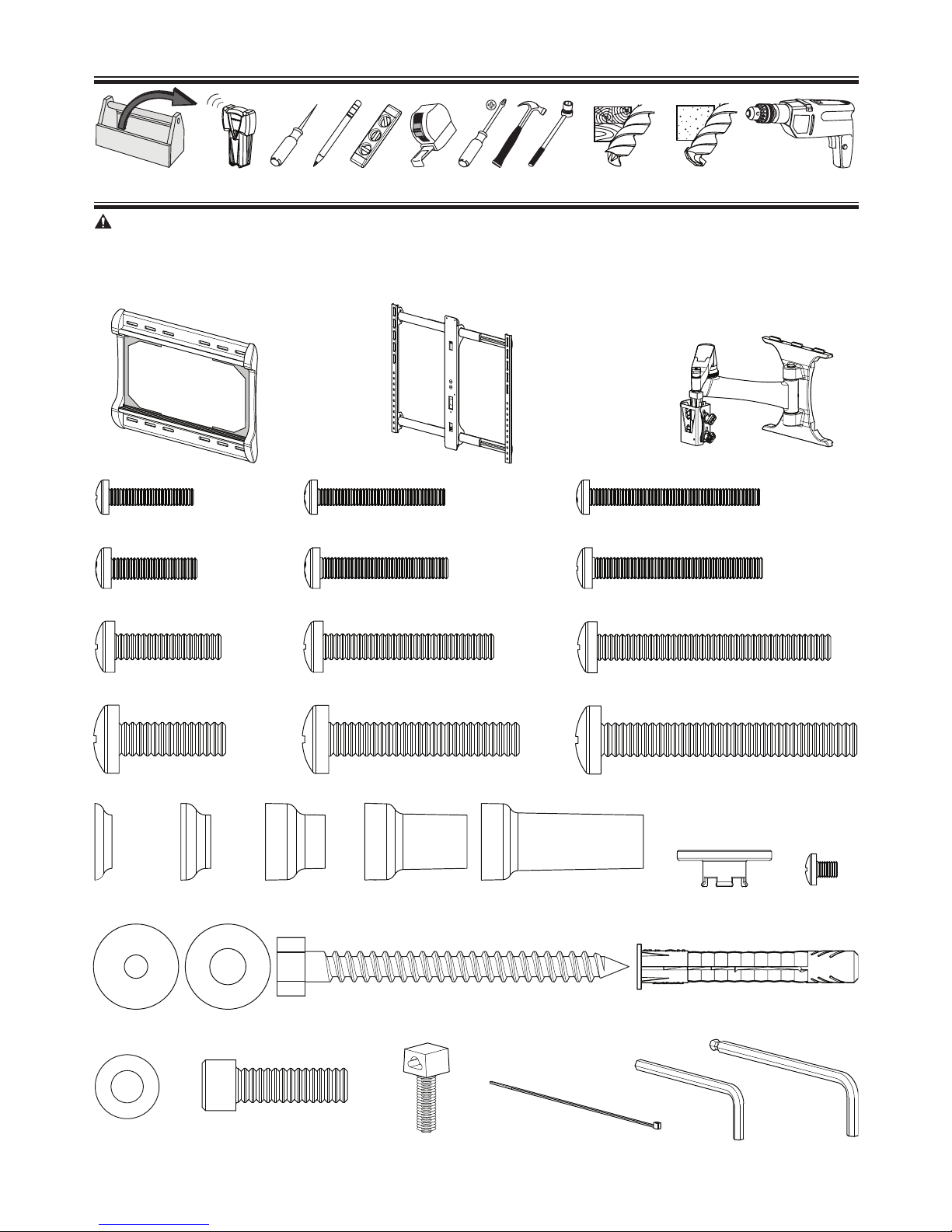

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged
item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: M4, M5, M6, or M8 describes the diameter, mm describes the length of screws that are labeled M# X ##mm. Not all hardware
included will be used.

Required Tools

10 mm

(3/8 in.)

5.5mm

(7/32 in.)

13 mm

(1/2 in.)

[01] x 1 [02] x 1 [03] x 1

[04] x 4 [05] x 4 [06] x 4

[07] x 4 [08] x 4

[12] x 4[11] x 4[10] x 4

[09] x 4

[22] x 1

[29] x 3

[13] x 4 [14] x 4 [15] x 4

[16] x 4

[17] x 4 [18] x 4 [19] x 4 [20] x 4

[23] x 4 [24] x 4

[25] x 4

[26] x 4

[21] x 4

[28] x 4

[27] x 4

[30] x 4

[31] x 1

6.5 mm
1/4 in.

4 mm

5/32 in.

[32] x 1

6901-002114 <01>

5

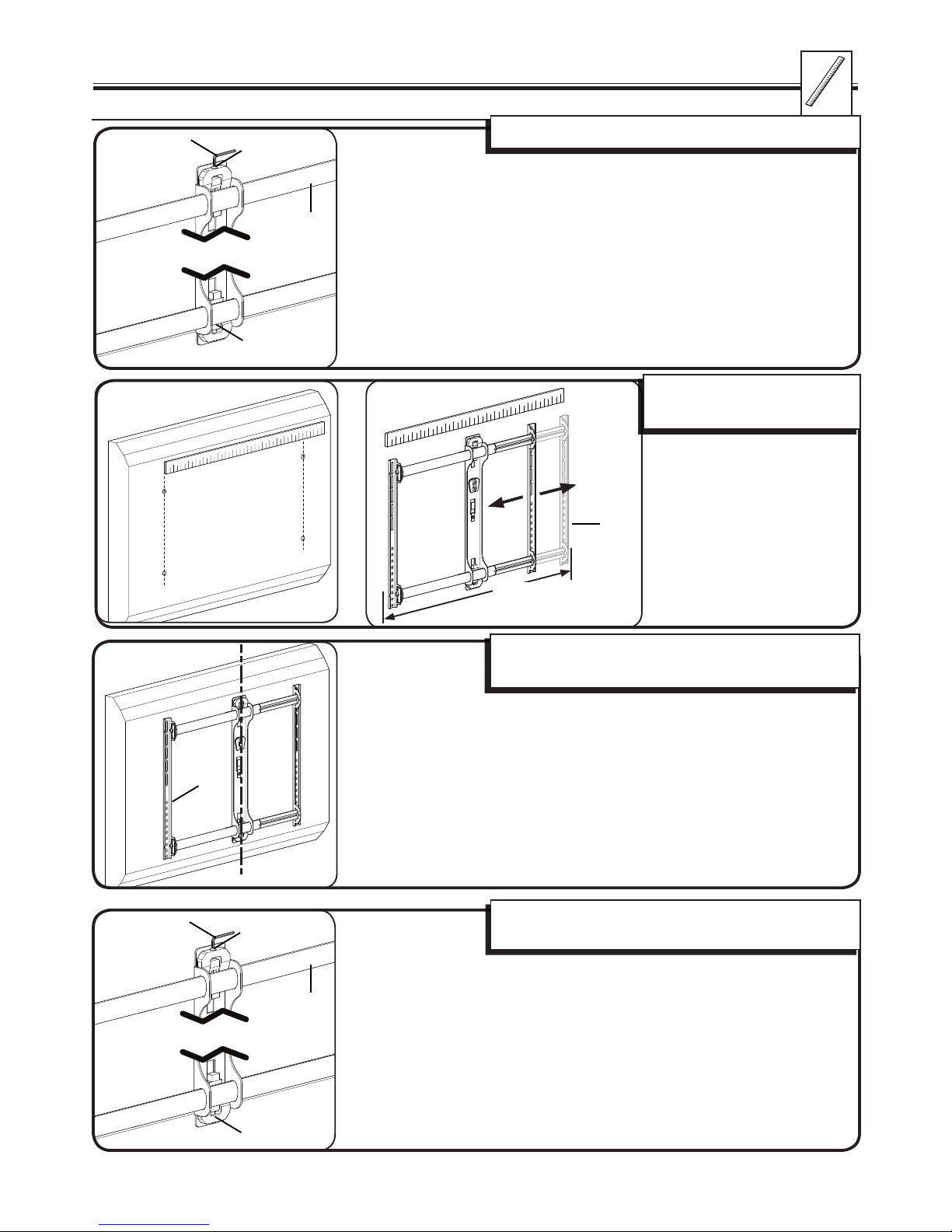

1 Attach Brackets to TV

1-1 Determine TV hole pattern

41 - 61 cm

(16 - 24 in.)

002545.eps
LF228-Center column

002545.eps
LF228-Center column

[02]

[31]

(B)

(A)

002545.eps
LF228-Center column

[31]

(B)

(A)

Adjust the monitor plate [02] to fit
the hole pattern of your TV.

Be sure that the center column is aligned with the center of your
TV.

Tighten the upper (A) and lower (B) fasteners. Do not
overtighten.

Loosen the upper (A) and lower (B) fasteners.

[02]

[02]

[02]

6901-002114<01>

6

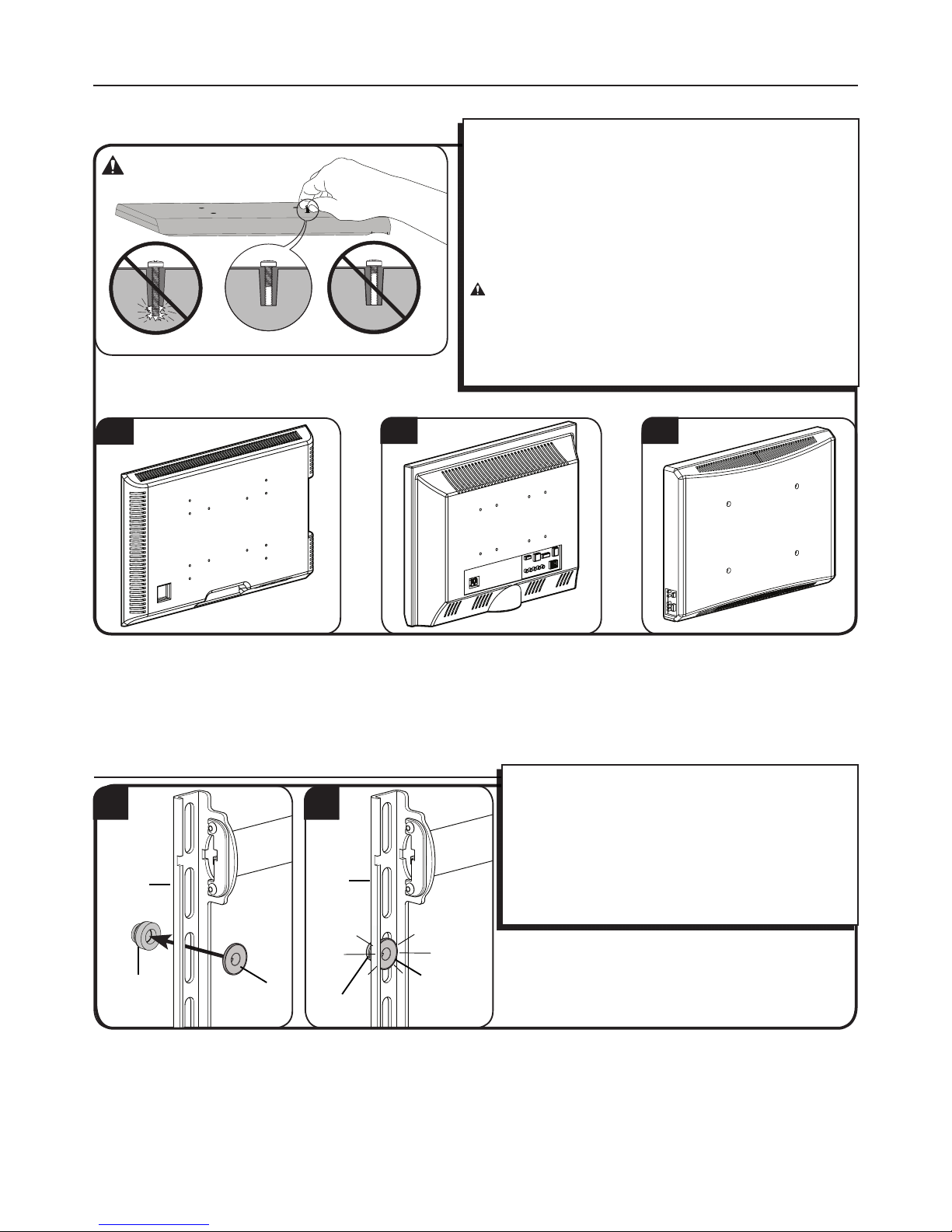

Your TV type will help you determine which hardware configuration to
use. Match your type of TV to the suggested hardware configuration
on the next page.

A. Installation option using 4 or 7mm spacers (TVs with flat backs)
B. Installation option using 14mm spacers (TVs with irregular backs)
C. Installation option using 24 or 38mm spacers (For TVs with irregular

backs that require more length than the 14mm spacer provides.)
Hand thread screws into the threaded inserts on the back of your TV

to determine the correct screw diameter (M4, M5, M6, or M8).

CAUTION: Avoid potential personal injuries and property

damage! Verify that there are adequate threads to secure the brackets
to the monitor. If you encounter resistance, stop immediately
and contact customer service. Use the shortest screw and spacer
combination to accommodate your needs. Using hardware that is too
long may damage your TV.

B C

1-2 Select the hardware diameter and length

A

A

[02]

[16, 17, 18,
19, 20.]

[21]

B

[02]

[21]

1-3 Attach spacers to brackets

1. Push the shoulder washer [21] through the appropriate
openings of the brackets [02].

2. Snap shoulder washer [21] into the spacer you selected in
step 1-2.

If your TV has a at back, use either the 4mm or 7mm spacer
[16 or 17].

If your TV has a curved or obstructed back, or if you need more
room for cables, recesses, or protrusions, use either the 14mm,
24mm, or 38mm spacer [18, 19, or 20].

[16, 17, 18,
19, 20.]

6901-002114 <01>

7

002538.eps
6801-000121 hardware options

002538.eps
6801-000121 hardware options

M4/M5/M6/M8

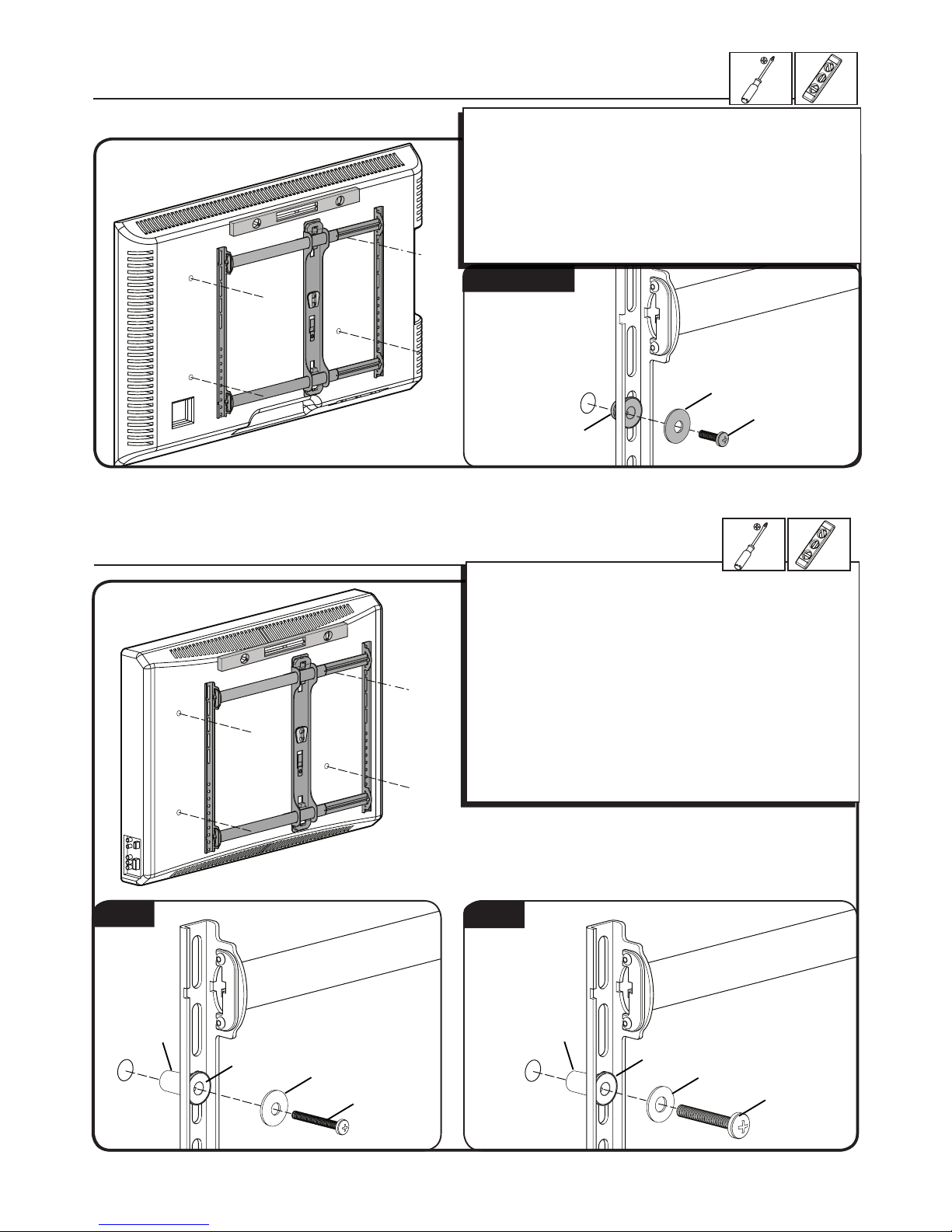

1-4 Attach brackets to a TV with a at back

M6/M8

1-4 Attach brackets to a TV with an irregular back

[04, 07, 10, 13]

[23, 24]

In step 1-2, If you selected the:
M4 x 20mm [04] or M5 x 20mm [07] bolt, use the M4/M5 washer [23]

and spacer [16].
M6 x 25mm bolt [10] use the M6/M8 washer [24] and spacer [17].
M8 x 25mm diameter bolt [13] use the M6/M8 washer [24] and spacer

[16].

Conrm that the brackets are level on the back of the TV.
If you require additional space for cables, recesses, or protrusions,

choose one of the congurations below.

[21]

[05, 06, 08, 09]

M4/M5

[23]

[18, 19]

[21]

[11, 12, 14, 15]

[24]

[19, 20]

[16, 17]

In step 1-2, If you selected the:
M4 x 30mm [05] or M5 x 30mm [08] bolt, use the M4/M5 washer [23]

and spacer [18].
M4 x 40mm [06] or M5 x 40mm [09] bolt, use the M4/M5 washer [23]

and spacer [19].
M6 x 40mm [11] or M8 x 45mm bolt [14], use the M6/M8 washer [24]

and spacer [19].
M6 x 55 [12] or M8 x 60mm bolt [15], use the M6/M8 washer [24] and

spacer [20].
Conrm that the brackets are level on the back of the TV.
Standard congurations are shown. For special applications, or if

you are uncertain about your hardware selection, contact Customer
Service.

6901-002114<01>

8

[01]

41 - 61 cm

(16 - 24 in.)

< 16 mm

(5/8 in.)

2 Wall Mounting Wood stud

5.5mm

(7/32 in.)

13 mm

(1/2 in.)

2-1 Locate studs

2-2 Mark the wall

For assistance in determining wall plate location, see Height
Finder at sanus.com.

Verify the center of the stud(s) using an awl, a thin nail, or an
edge to edge stud finder.

CAUTION: Avoid potential personal injuries and property

damage!

Ù Any material covering the wall must not exceed 16 mm (5/8

in.).

Ù Minimum wood stud size: common 2 x 4 in (nominal 1.5 x

3.5 in).

Level the wall plate [01] and mark the hole locations.

2-3 Drill pilot holes

2-4 Tighten lag bolts

CAUTION:

Avoid potential injuries or property damage!

Pilot holes MUST be drilled to a depth of 89 mm (3.5 in.), using a

5.5 mm (7/32 in.) diameter drill bit.

89 mm

(3.5 in.)

CAUTION:

Avoid potential injuries or property damage!

Improper use could reduce the holding power of the lag bolt. To
avoid potential injuries or property damage:

Ù DO NOT over-tighten the lag bolts [25].
Ù Tighten the lag bolts [25] only until the washers [27] are

pulled firmly against the wall plate [01].

[01]

[25]

[27]

6901-002114 <01>

9

2 Wall Mounting

Solid concrete or concrete block

2-1 Mark the wall

2-2 Drill pilot holes

2-3 Insert anchors and lag bolts

001439.eps
Attach Plate to Wall

13 mm

(1/2 in.)

10 mm

(3/8 in.)

89 mm

(3.5 in.)

Drill pilot holes as illustrated.

CAUTION:

Avoid potential injuries or property damage! :

Ù Pilot holes MUST be drilled to a depth of 89 mm (3.5 in.) using a

10 mm (3/8 in.) diameter drill bit.

Ù Never drill into the mortar between blocks.

Insert lag bolt anchors [26]. Then insert lag bolts [25] through the
wall plate [01] and into the anchors.

CAUTION:

Avoid potential injuries or property damage!

Improper use could reduce the holding power of the lag bolt. To
avoid potential injuries or property damage:

ÙBe sure the anchors [26] seat

flush with the concrete
surface.

ÙTighten the lag bolts [25]

only until the washers [27]
are pulled firmly against
the wall plate [01].

ÙDO NOT over-tighten the lag

bolts [25].

For assistance in determining wall plate location, see Height Finder at
sanus.com.

Level the wall plate [01] and mark the hole locations.

CAUTION:

Avoid potential injuries or property damage!

Ù Mount the wall plate [01] directly onto the concrete surface.
Ù Minimum solid concrete thickness: 8 in.
Ù Minimum concrete block size: 8 x 8 x 16 in.

[26]

[26]

[01]

[25]

[27]

[01]

6901-002114<01>

10

3 Attach Arm to Wall Plate

[01]

[28]

[03]

[01]

[31]

[32]

[28]

3-1 Align the holes

3-2 Secure the arm

Align the holes at the top and bottom of the arm [03] to the
holes in the wall plate [01].

Secure the arm assembly [03] to the wall plate [01] using bolt

[28]. Tighten with allen key [32].

4 Attach your TV to the Arm

[03]

(T)

[01]

[02]

[03]

(L)

[03]

4-1 Position the arm

Position arm [03] so the elbow is pressed against the wall.
Tighten the tension adjustment (T) to prevent the arms from
moving while installing the TV bracket.

4-2 Attach the bracket

Attach the TV bracket [02] to the arm assembly [03]. There is an
audible click when the parts are correctly assembled.

[01]

6901-002114 <01>

11

5 Adjustments

[02]

[03]

5-2 Adjust left/right swivel tension

5-1 Remove wall plate inserts

4-3 Secure the arm

[22][22]

TILT TV UPWARD. Install and tighten locking screw [22].

6901-002114<01>

12

[03]

[01]

[31]

[32]

5-4 Adjust arm tension

001452.eps
FPM70-Extend / Retract Arm

[03]

5-3 Adjust up/down tilt tension

5-5 Adjust height

[32]

[03]

5-6 Adjust level

[32]

[03]

Loosen screws. Adjust level. Re-tighten. screws
