Assembly Instructions for Sanus Systems T20/20
Thank you for choosing Sanus Systems furniture. Sanus Systems turntables are functional, beautiful, and economical. The textured black painted fi nish is both durable and attractive. The T20/20 is designed to swivel up to a 20” television. Please check carefully to make sure there are no missing or defective parts. Never use defective parts. Improper assembly may cause damage or serious injury. If you have any questions regarding this product, contact Sanus at 800.359.5520 or visit www.sanus.com. Our customer service representatives can quickly assist you with missing or damaged parts. Replacement parts for Sanus products purchased through authorized dealers can be shipped directly to you. Please call Sanus Systems before returning products to the point of purchase
Required Tools: Philips screw driver, hammer
Supplied Parts
(1) Base Shelf - a |
(2) Support Pillar - b |
(4) Plastic Dowel - c |
(4) Base Bolt - d |
(1) Top Shelf - e
To use the T20/20 as just a television swivel, follow the instructions in the note below. To use the complete assembly, skip ahead to Step 1.
NOTE For use without the component storage remove the plastic swivel from under the Base Shelf (a). This is done by removing the Philips head screw in the center. Next, reattach the plastic swivel to the pilot hole on the bottom side of the Top Shelf (e)
Diagram 1
Philips Head Screw
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 6.06.04 Customer Service: 800.359.5520. See complimentary Sanus products at www.sanus.com

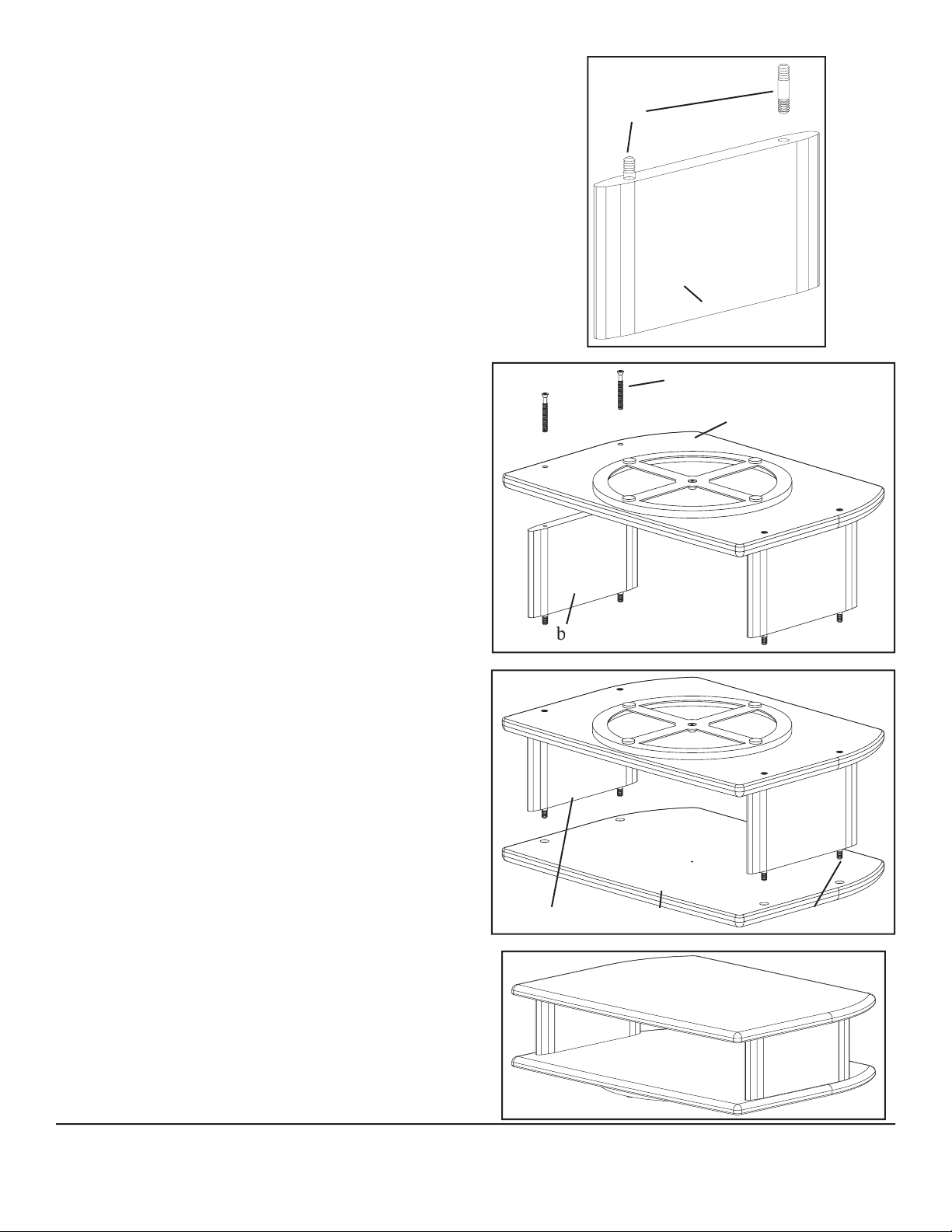

Diagram 2
Step 1 The Support Pillars (b) each have two smaller holes in the top and two larger holes in the bottom. Gently tap 2 Plastic Dowels (c) into the larger holes in each of the Support Pillars with a hammer as shown in Diagram 2
b
Diagram 3 |
d |
Step 2 Notice that the two holes in the other side of the |
|
Support Pillars (b) line up with the holes that pass through |
|
the Base Shelf (a). Attach the Support pillars to the Base |
|
Shelf by placing a Base Bolt (d) through each hole in the |
|
Base Shelf and threading them into the open holes in the |
|
Support Pillars. Tighten the Base Bolts with a philips |
|
screw driver as shown in Diagram 3 |
|
Diagram 4
Step 3 The Top Shelf (e) will have 4 holes that do not pass all the way through the shelf. Make sure the Top Shelf and the Base Shelf (a) are oriented the same way, both of the angled sides should face the same direction. Next, line up the holes in the Top Shelf with the Plastic Dowels (c). Finally, press the Top Shelf and the Support Pillars (b) together as shown in Diagram 4
b
Step 4 Turn the unit over so that it sits on the Protective Feet attached to the bottom of the plastic swivel.You may now place your television on top of the turntable, a component in your storage area, and enjoy the convenience of a perfect viewing angle anywhere in the room
