STATUS 状态:
JV 02/23/2016 - RELEASED ON ECO: 500013270
TV INTERFACE
200mm
7.87in
430mm
16.93in
WALL PLATE
600mm
23.62in
609.6mm
24.00in
406.4mm
16.00in
3-D
600mm
23.62in

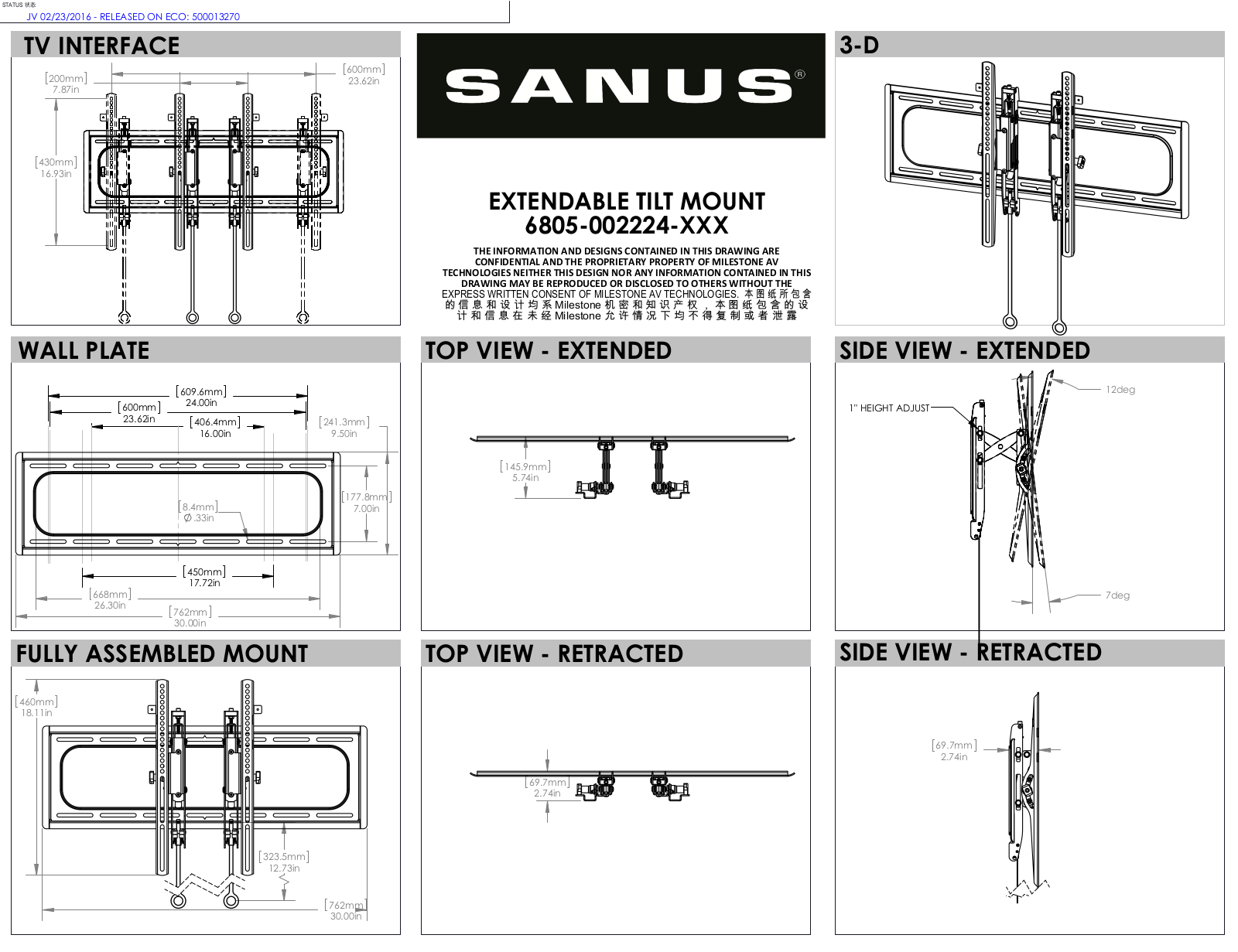

EXTENDABLE TILT MOUNT
6805-002224-XXX
THE INFORMATION AND DESIGNS CONTAINED IN THIS DRAWING ARE
CONFIDENTIAL AND THE PROPRIETARY PROPERTY OF MILESTONE AV
TECHNOLOGIES NEITHER THIS DESIGN NOR ANY INFORMATION CONTAINED IN THIS
DRAWING MAY BE REPRODUCED OR DISCLOSED TO OTHERS WITHOUT THE
EXPRESS WRITTEN CONSENT OF MILESTONE AV TECHNOLOGIES. 本 图 纸 所 包 含
的 信 息 和 设 计 均 系 Milestone 机 密 和 知 识 产 权 ， 本 图 纸 包 含 的 设
计 和 信 息 在 未 经 Milestone 允 许 情 况 下 均 不 得 复 制 或 者 泄 露
TOP VIEW - EXTENDED
241.3mm
9.50in
SIDE VIEW - EXTENDED
12deg
1" HEIGHT ADJUST
8.4mm
.33in
450mm
668mm
26.30in
17.72in
762mm
30.00in
FULLY ASSEMBLED MOUNT
460mm
18.11in
177.8mm
7.00in
145.9mm
5.74in
TOP VIEW - RETRACTED
69.7mm
2.74in
SIDE VIEW - RETRACTED
69.7mm
2.74in
7deg
323.5mm
12.73in
762mm
30.00in
