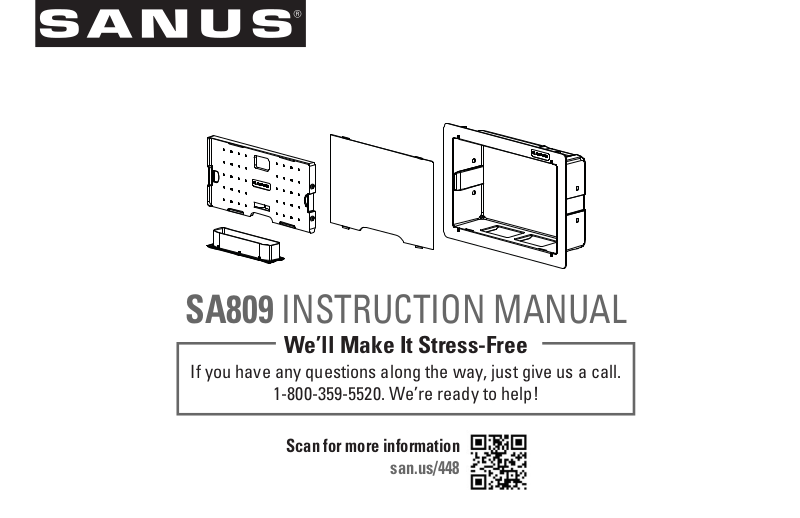

SA809 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, just give us a call. 1-800-359-5520. We’re ready to help!
Scan for more information san.us/448
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let’s make sure this product is perfect for you!
1Will your accessories weigh more than 30 lb (13.6 kg)?
30 lb |
No — Perfect! |
(13.6 kg) |
Yes — This product is NOT compatible. Visit Sanus.com or call 1-800-359-5520 [UK: 0800 056 2853] to find a compatible product. |
2 |
What is your wall made of? |
|
|
Drywall with |
|
? Unsure? Call 1-800-359-5520 [UK: 0800 056 2853] |
|
|
Perfect! |
||
|
wood studs |
3Do you have all of the tools needed?
4Ready to begin?
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
|
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact |
|
Customer Service at 1-800-359-5520 [UK: 0800 056 2853]. |
|
CAUTION: Avoid potential personal injuries and property damage! |
|
● Do not use this product outdoors |
|
● This in-wall system is for use with ITE or Audio/Video equipment only |
|
● The maximum specified ambient temperature of the cabinet system is 40o - 120oF (4o - 49oC) |
|
● Do not use this product for any purpose not explicitly specified by manufacturer |
2 |
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use |
|
Supplied Parts
WARNING! This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
STEP 1 Parts |
STEP 2 Parts |
STEP 3 Parts |
|
|
Housing |
ECO-Mini Bracket |
Elastic-Velcro Strap |
Template |
|
||
|
|
|
|
|
|
03 |
05 (2) |
|
|
Component Panel |
Cover |
01 |
02 |
04
06
3
STEP 1 Cut Hole for Housing
CAUTION: Avoid potential personal injuries and property damage!
●Drywall covering the wall must not exceed 16 mm (5/8 in.).
●Box must be mounted between studs that are at least 406 mm (16 in.) apart. After installation there will not be enough space between the SA809 and the studs for electrical wires/cables, plumbing, ductwork, or insulation. Choose your SA809 location carefully.
1.Locate the studs using an edge-to- edge stud finder. Verify the edges of the studs using an awl or thin nail. Mark the edges of the studs with pencil.
2.Center the template 01 between the two studs. Level the template 01 and use a pencil to mark the open area of the template 01 .
1 |
2 |
≤ 16 mm (5/8 in.)
01
4
STEP 1 Cut Hole for Housing cont.
3.Use a drywall saw or similar tool to cut the drywall where marked. Remove cut section of drywall.
WARNING! ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL WIRES OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of electrical wires and cables before cutting, drilling, or installing fasteners.
WARNING! EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! Always make certain the area behind mounting surfaces is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.
4.Install wires and cables.
3 |
4 |
5
STEP 2 Install Housing
1.Break out the sections of the housing 02 . Optionally, install a UL Listed 120 VAC electrical outlet box (not included) capable of attaching to the SA809 housing 02 following the instructions included with the outlet box.
NOTE: Knockouts are provided for ease of installation. Any unused knockouts that have been punched are to be closed up with a metal plug.
2.Carefully fit the housing 02 into the cutout section of the wall.
1 |
2 |
02 |
02 |
|
6
