INSTRUCTIONS FOR NFPM PLASMAMOUNT

Long Vertical Rails (2)	Short Horizontal Rails (2)
3" Tubes (8)	Metal Washers (8)
Plastic Washers – small holes (12)	Plastic Washers – large holes (4)
4.5" Bolts (4)	2.5" Bolts (4)
Allen Wrench (1)	Edge Guard (2)

1] This product works with Sanus NF203 and NF213 Television stands. Remove the Top Glass, Wire Covers and Wire Straps from each Wood Rear Support. Remove the middle Allen Bolt from the top and bottom of each Wood Rear Support; make sure the left and right Allen Bolt are very tight.

2] Mount a Long Vertical Rail to each Wood Rear Support. Each Vertical Rail mounts using two 3" Steel Tubes with a Plastic Washer (Use the Plastic Washers with the smaller holes) positioned on each end of the Tube. Put a Small Steel Washer over each 4.5" Bolt; slide the bolt through the Vertical Rail and 3" Tube into the middle bolt position at the top and bottom of the Wood Rear Support. The 4.5" Bolts will actually thread in to the middle Cross Tubes of the Natural Furniture. Snap an Edge Guard on to the bottom of the Vertical Rail. Tighten the 4.5" Bolts ﬁrmly.

3] Notice that the ShoryHorizontal Rails have threaded inserts attached to them. The outside inserts are used for the NF213 and the inside inserts are used on the NF203. Attach the Horizontal Rails to the Vertical Rails. Each Horizontal Rail mounts using two 3" Steel Tubes with a Plastic Washer positioned on each end of the Tube. Use the Plastic Washers with the larger holes on the side of the 3" Tube that faces the Horizontal Rail; use the Plastic Washers with the smaller holes on the side that faces the Vertical Rail. Put a Small Steel Washer over each 2.5" Bolt; slide the bolt through the Vertical Rail, through the 3" Tube into the threaded inserts in the Horizontal Rail. Once the required height of each Horizontal Rail is determined, tighten ﬁrmly.

4] Consult your Hardware or AV Profesional to mount the Plasma Television to the Horizontal Rails. The Horizontal Rails may be repositioned at any height along the slot in the Vertical Rails so that slots in the Horizontal Rails line up with mounting locations in the Plasma Television.

Each Television requires different mounting hardware. Use bolts provided with, or recommended by the television manufacturer. A washer should be used over the chosen bolt head to prevent it from pulling through the slots in the Horizontal Rails.

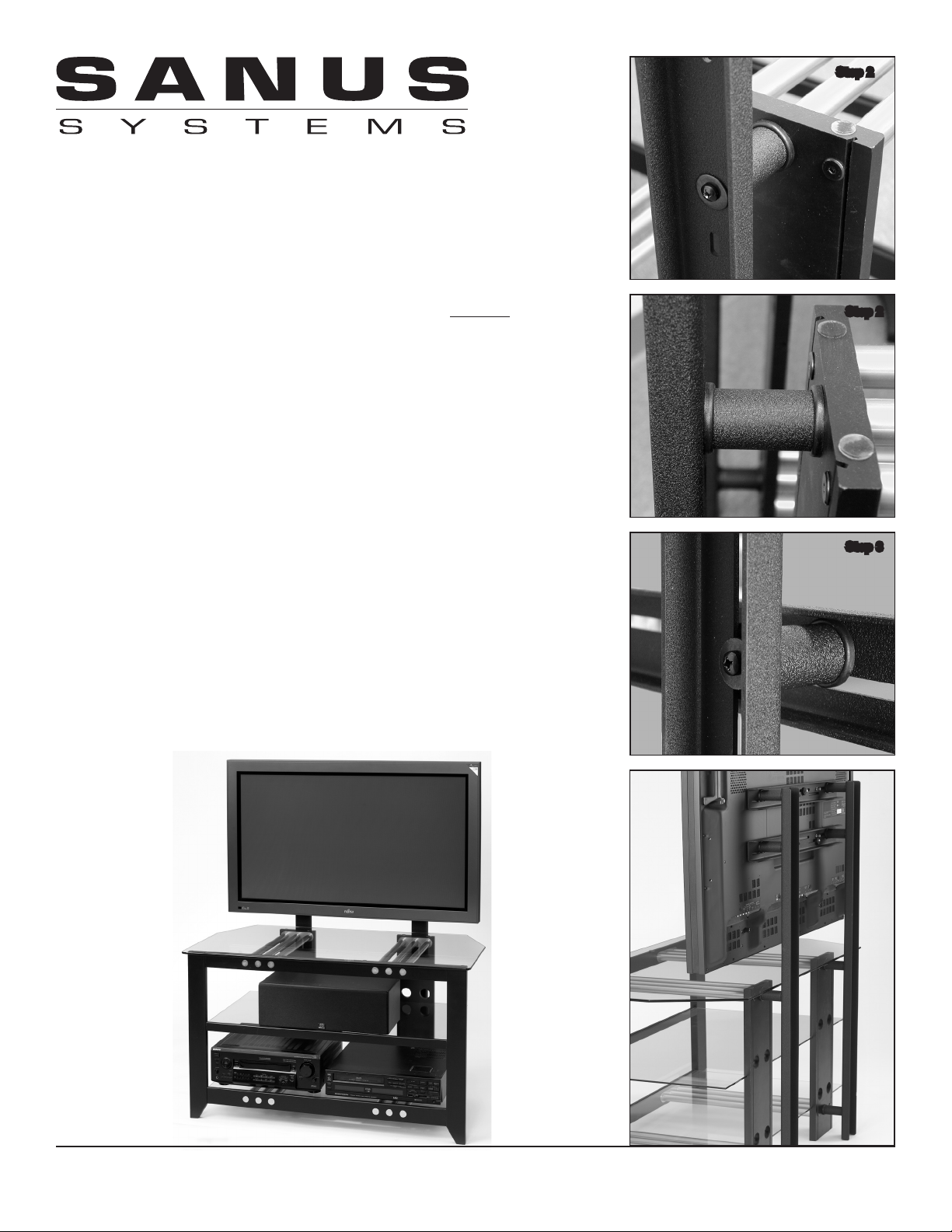

Step 2

Step 3

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.19.04 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
