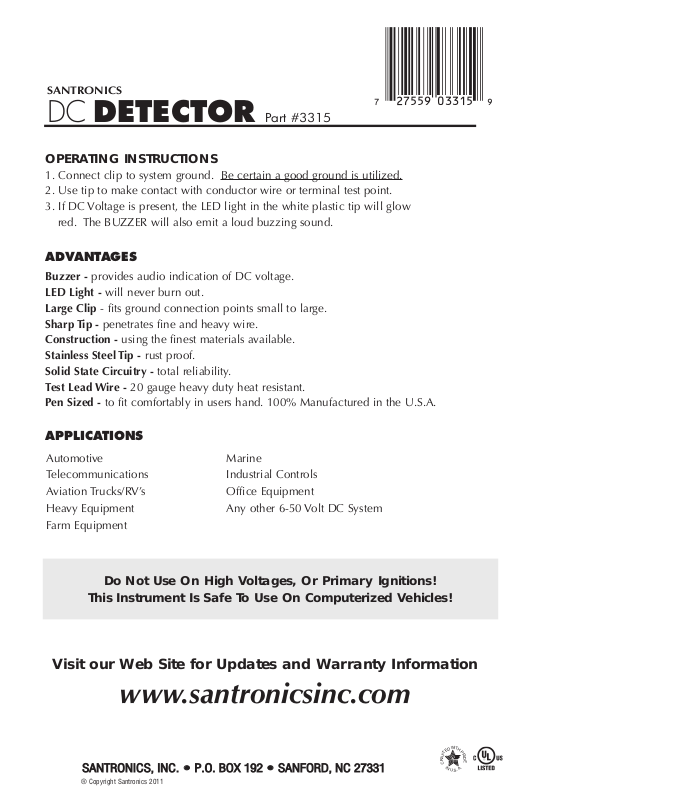

Santronics DC Detector User Manual

SANTRONICS

DC DETECTOR

Part #3315

® Copyright Santronics 2011

SSAANNTTRROONNIICCSS,, IINNCC.. •• PP..OO.. BBOOXX 119922 •• SSAANNFFOORRDD,, NNCC 2277333311

*27559!ADDBFj

I

N

U

.

S

.

A

.

C

R

A

F

T

E

D

W

I

T

H

P

R

I

D

E

OPERATING INSTRUCTIONS

1. Connect clip to system ground. Be certain a good ground is utilized.

2. Use tip to make contact with conductor wire or terminal test point.

3. If DC Voltage is present, the LED light in the white plastic tip will glow
red. The BUZZER will also emit a loud buzzing sound.

ADVANTAGES

Buzzer - provides audio indication of DC voltage.
LED Light - will never burn out.
Large Clip - fits ground connection points small to large.
Sharp Tip - penetrates fine and heavy wire.
Construction - using the finest materials available.
Stainless Steel Tip - rust proof.
Solid State Circuitry - total reliability.
Test Lead Wire - 20 gauge heavy duty heat resistant.
Pen Sized - to fit comfortably in users hand. 100% Manufactured in the U.S.A.

APPLICATIONS

Automotive
Telecommunications
Aviation Trucks/RV’s
Heavy Equipment
Farm Equipment

Marine
Industrial Controls
Office Equipment
Any other 6-50 Volt DC System

Do Not Use On High Voltages, Or Primary Ignitions!

This Instrument Is Safe To Use On Computerized Vehicles!
