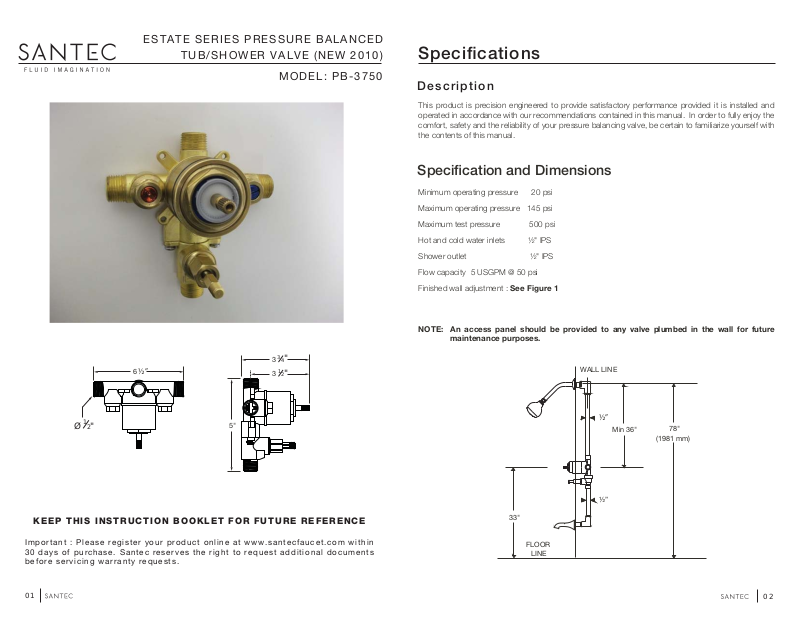

Santec PB-3750 User Manual
ESTATE SERIES PRESSURE BALANCED
TUB/SHOWER VALVE (NEW 2010)
MODEL: PB-3750
Specications
Description
This product is precision engineered to provide satisfactory performance provided it is installed and
operated in accordance with our recommendations contained in this manual. In order to fully enjoy the
comfort, safety and the reliability of your pressure balancing valve, be certain to familiarize yourself with
the contents of this manual.
Specication and Dimensions
Minimum operating pressure 20 psi
Maximum operating pressure 145 psi
Maximum test pressure 500 psi
Hot and cold water inlets ½" IPS
Shower outlet ½" IPS
Flow capacity 5 USGPM @ 50 psi
Finished wall adjustment : See Figure 1
3
"
4
3
1
"
3
2
Ø
½”
6
1
2
"
5"
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
Important : Please register your product online at www.santecfaucet.com within
30 days of purchase. Santec reserves the right to request additional documents
before servicing warranty requests.
01
NOTE:
An access panel should be provided to any valve plumbed in the wall for future
maintenance purposes.
WALL LINE
½”
Min 36"
½”
33"
FLOOR
LINE
78"
(1981 mm)
02
Parts Breakdown
Pressure Balanced Shower Valve
The spare parts list is valid for the valves purchased after Febr ua ry 1 , 20 10 .
*
#
PART
DESCRI P T I O N
1
Service Stop
2
Service Stop
Rubber Washer
3
4
Diverter Cartridge
5
Cartridge
6
Screw PB Valve Estate
7
Metal Lock Washer
8
Valve Body
9
Diverter Body
10
Valve Lock Nut
11
Extension
12
Diverter Rod Extension
13
Valve Cartridge Stem Extension
8
3
9
7
6
2
4
PART #
PB-3600-C
PB-3600-H
PB-3600-2
PB-002
PB40R
PB-3600-3
PB-3600-4
P00086
PM-1090
SA200
1
5
10
11
Extension Kit for
Diverter Cartridge
PAR T # PB-01 5
12
13
14
1. R ou g h- in & Va lv e I ns ta ll a t i on
NOTE: Failure to follow these instructions may cause damage or improper operations and nullify the
warranty.
Make sure the water supplies are off.
1.
Rough valve body into wall, connecting piping to 1/2” female copper sockets or 1/2“ male I.P. nipples.
2.
IMPORTANT: NOTE “UP” & “DOWN” MARKINGS ON BACK OF VALVE.
The depth of rough-in should account for thickness of wall materials to be used (combined thinckness
3.
see Figure 1).
Anchor installation to bracing between studs (ears on the valve body can be used for this by removing
4.
the plastic guard) - otherwise, anchor the connecting pipe.
Valve should be pressurized and tested for leaks at the connections.
5.
6.
trim arrives to be installed.
FIGURE 1
1 5 /8” - 2 .0”
Center
of inlet
The distance between the center inlet of the valve and
” and 2
FLUSH
Plastic guard
Finished wall
0 3
0 4
