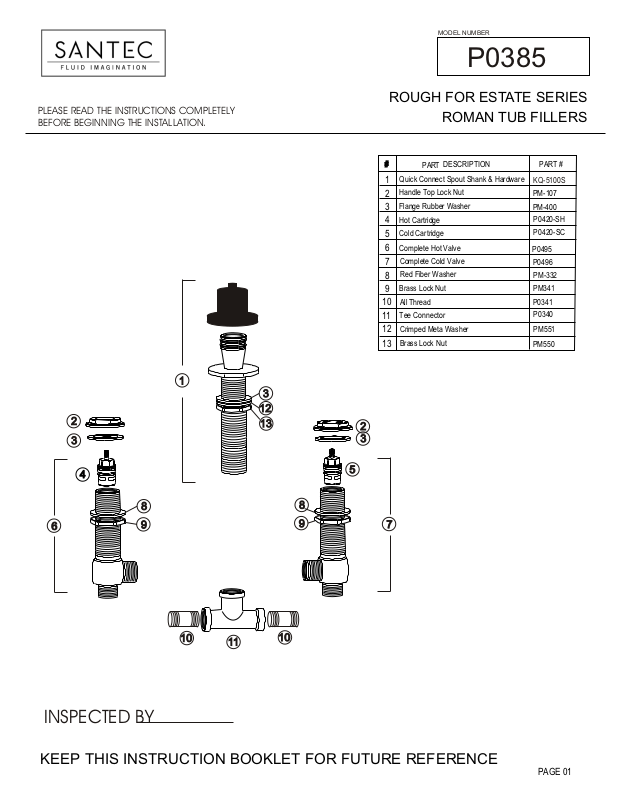

PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
MODEL NUMBER
P0385
ROUGH FOR ESTATE SERIES
ROMAN TUB FILLERS
##
Quick Connect Spout Shank & Hardware
1
Handle Top Lock Nut
2
Flange Rubber Washer
3
Hot Cartridge
4
Cold Cartridge
5
6
Complete Hot Valve
Complete Cold Valve
7
Red Fiber Washer
8
Brass Lock Nut
9
All Thread
10
Tee Connector
11
12
Crimped Meta Washer
Brass Lock Nut
13
PART
DESCRIPTION
PART #
KQ-5100S
PM-107
PM-400
P0420-SH
P0420-SC
P0495
P0496
PM-332
PM341
P0341
P0340
PM551
PM550
11
33
1212
22
33
1313
22
33
44
88
66
99
1010
1111
88
99
1010
55
77
INSPECTED BY
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
PAGE 01
INSTALLATION INSTRUCTIONS
DO NOT SEAL THE TUB OR CLOSE THE ACCESS PANEL BEFORE INSTALLING THE TRIMS.
MINIMUM HOLE SIZE FOR SPOUT AND HANDLE TRIM IS 1 1/4” AND MAXIMUM IS 1 1/2”
ROUGH INSTALLATION
DO NOT DISCARD THE SPOUT PROTECTANT HOOD PRIOR TO THE TRIM INSTALLATION
1
- Remove the Quick Connect Spout Shank and Mounting Hardware (1) from the box.
- Remove the mounting hardware (rubber washer, crimped metal washer and brass
lock nut) from the Quick Connect Shank.
- From the top of the deck, insert the quick Connect shank through the assigned
spout hole.
- Secure the quick connect shank by putting the rubber washer, crimped metal washer
and locknut back onto the shank.
- Tighten the lock nut firmly.
2
- Unscrew top lock nuts(2) and rubber washers(3) from the valve bodies (6) and (7).
- Slip the valve bodies (6) or (7) up from the under of the tub through the appropriate
hole next to the spout. From tub top, insert the rubber washers (3) and screw the top
lock nuts (3) back onto the valve bodies.
- Position the valve body side outlet towards the tee connector (11) for easier pipe
connection.
- Hand tighten the valve body lock nut (9).
Rubber Protectant Hood
Brass plate
Metal washer
Brass lock nut
Upper Lock Nut
rubber washer
Fiber Washer
Brass lock nut
P0385
DO NOT FIRMLY TIGHTEN THE VALVE BODY LOCK NUTS UNTIL THE TRIMS ARE INSTALLED.
MAKE SURE THAT THE VALVE BODY HEIGHT CAN BE ADJUSTED LATER WHEN TRIM ARRIVES
Note: for better installation it is advisable to place Silicone caulking around all holes
on the top of the deck
- Connect the water supply lines to the bottom inlets of the valve bodies. **
- Connect the valve body side outlet to the tee connector (11). **
** The spout, handle valve bodies and tee connector can be connected with flex hoses (not provided by Santec) or copper pipe
soldering. Please note that when soldering connections are to be made, do not use excessive heat. Excessive heat can
damage the valve body joints and this increases possibility of leakage.
Hot ValveHot Valve
Cold ValveCold Valve
HOT WATER
HOT WATER
SUPPLY
SUPPLY
COLD WATER
COLD WATER
SUPPLY
SUPPLY
PAGE 02
