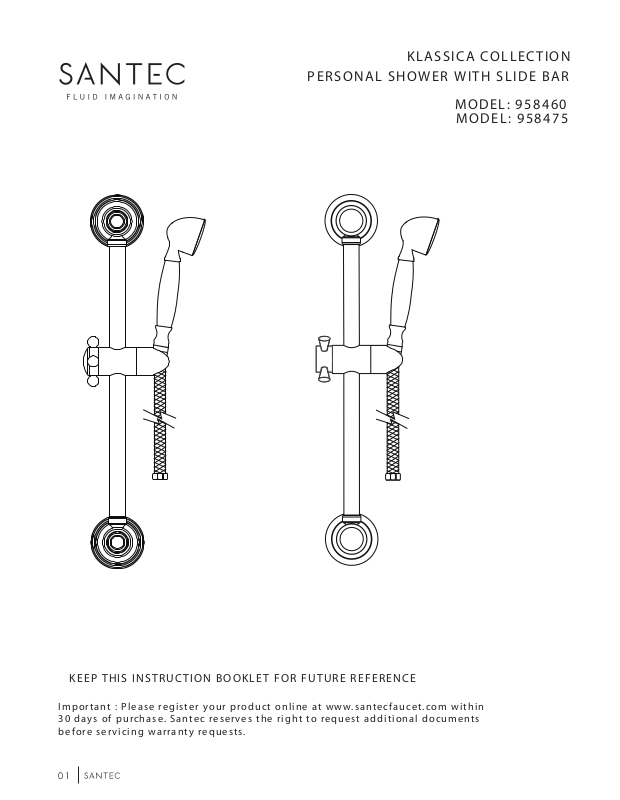

KLASSICA COLLECTION
PERSONAL SHOWER WITH SLIDE BAR
MODEL: 958460
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
Important : Please register your product online at www.santecfaucet.com within
30 days of purchase. Santec reserves the right to request additional documents
before servicing warranty requests.
0 1
MODEL: 958475
0 2
958460/958475
PA R TS BRE AK DOWN
B a r p o sts wi t h set screws( 2 )
Slid i n g bar
A d j u stable brack e t
M o untin g post
S c r e ws (8 )
S p r a y asse mbly w i t h h ose
A n c h ors
S U PPLY EL BOW NOT I N CLUDE D
1
2
3
4
5
6
7
#
PA R T DE SCRIPTI O N
7
6
3
1
2
54
3
*Illustration may not depict actual products
0 3
958460/958475
Sli de Bar
Installing Into Wooden Surface
For wood en surface, t he Mou nting Hardware P osts can be secured b y
screwing the Screws directly in to the w ood back ing.
Installing Into Dr ywall
Using a drill, pre-drill holes for the Toggles. Fold the Toggle’s legs and
insert into the wall. The Mountin g H ardware Posts can be secured by
screwing the Screws into th e Toggles.
Installing Into Solid/Hard Surface
Using a drill, pre-drill the holes. Inser t Anchors into the wall. S ecure the
Mounting Ha rdware Posts by tightening the Screw s in to the Anchors.
