Santec 9570KT User Manual

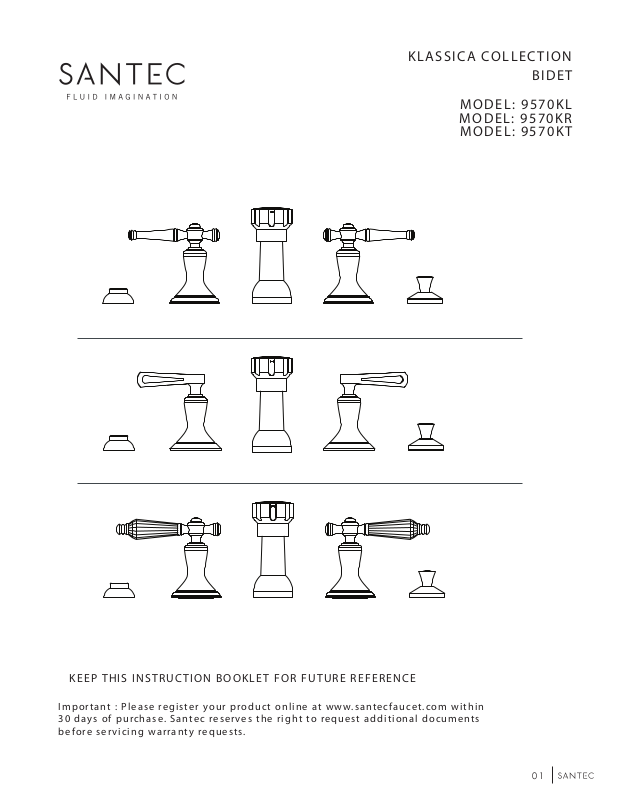

KLASSICA COLLECTION

MODEL: 9570KL

KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Important : Please register your product online at www.santecfaucet.com within
30 days of purchase. Santec reserves the right to request additional documents
before servicing warranty requests.

0 1

MODEL: 9570KR
MODEL: 9570KT

BIDET

02

Vacuum Br eaker

NOTE: See diagram on next pa ge for r emoving and reinstalling the
complet e trim.

Remove the co mple te trim from the Vac uum Breaker valve.

Inser t Vacuum B reaker valve up from below and reinstall com plet e trim
except for the handle cap. Make sure to install the black p lastic lock
nut in the position shown in the diagram on the next page. Snugly
tigh ten down the bla ck plastic l ock nut an d trim cylind er by hand
tightenin g only.

unti l it stops. Pop t he handle cap into the hand le with the “sp ritzer”
icon facing frontw ards or at the 6 o’clock p osit ion (see handle cap
diagram below).

supply lines.

Hole size for the spout and Handle Trim is a min imum of 1-1/ 4” and a
maximum o f 1-1/2”.

Vacuum Breaker Installation

6

1 2

3

9

Spritzer

Handle Cap

9570 KL, KR, KT _ _

03

9570 KL, KR, KT _ _

Black plastic lock nut

Trim Cylinder

Handle

Screw

Handle Cap

Black Soft Seating China Seals

Black Soft Seating China Seals

White Nylon Slip Washer

Vacuum Breaker Valve

Elbow

Wye

Complete Trim

04

9570KL, KR, KT _ _

Han dle Tr i m

Remove the Valve Body Mounting Hardw are from the va lve b ody. Slip

appropriate hole next t o the vacuum break e r (HOT-left & COLD-right).

Apply a rin g of silicone c aulki ng around the handle hole on the bidet
top. DO NOT USE PLUM BER’S PUTTY, WHICH CAN DAMAGE FINISH.

Connec t i ng Hoses tow a rd Wye Connector.

For proper handle tur n ing direction, install t he handle w ith t he “COLD”
blue label at the right side o f the sink (front view) a n d the handle with
the “HOT” red label at the left side of the sink .

HANDLE TRIM IS READY F O R DROP-IN I NSTALLATIO N. DO NOT

DISASSEMBLE HAND L E TRIM .

Handle Trim Installation (1)

Valve Body
Mounting Hardware

Washer

Bra ss Lock N ut

Wye c o nnecting hoses
