Sansui CD-D201-V Owners Manual

CDD201V

Compact Disc Player

User Guide

Dear Customer

Thank you for deciding to purchase this Sansui product. This instruction manual will give you a general idea of how this device

operates, as well as providing you with information on safety procedures and cleaning. In order to maintain this product in

good condition, and to ensure it’s safe operation, please take a few minutes to read and carefully follow all the safety and

operating instructions found in this manual.

Please retain this instruction manual for future reference and pass it along with the device if handed over to a third party.

Should you have any additional questions regarding the operation or installation of this device, or should any problems arise

from its use, then please contact a specialized dealer or our service team for further information.

We assume no liability for any damage incurred as a result of improper use resulting from failure to comply with the safety

instructions found in this manual. Under such circumstances all claims under warranty will become null & void. We assume no

liability for any consequential damage!

This product is EMV certified and complies with all European and National guideline requirements. A declaration of CE

conformity has been established for this product. Certification has been documented and entrusted to the manufacturer

Table of Contents

1. INTENDED USE.................................................................................................................................................. 5

XPLANATION OF SYMBOLS............................................................................................................................... ................... 5

E

2. SAFETY INFORMATION..............................................................................................................

3. ACCESSORIES ......................................................................................................................

4. DESCRIPTION OF PARTS ............................................................................................................

F

RONT PANEL............................................................................................................................... .................................... 8

EAR PANEL............................................................................................................................... ...................................... 8

R

ISPLAY ............................................................................................................................... ........................................... 9

D

ANSUI RM200 REMOTE CONTROL HANDSET ........................................................................................................................ 9

S

5. OPERATION ........................................................................................................................

D

ISC TYPES ............................................................................................................................... ..................................... 11

ISC HANDLING ............................................................................................................................... ............................... 11

D

6. TROUBLESHOOTING AND ERROR MESSAGES ...............................................................................................

7. MAINTENANCE AND HANDLING.........................................................................................................

RANSPORTING OR SENDING THE DEVICE .............................................................................................................................. 13

T

EEPING THE EXTERNAL CASE CLEAN ............................................................................................................................... ..... 13

K
C

LEANING THE DE VICE ............................................................................................................................... ....................... 13

8. SPECIFICATIONS..................................................................................................................

........................ 6

.............................. 7

........................ 8

............................ 11

............. 13

............................ 15

.... 12

Before use

Please read this instruction manual thoroughly before operating this device and retain it for further reference. Following and
heeding all the information found in this instruction manual will maintain this product in good condition and ensure its safe
operation. This instruction manual contains information on how to operate and maintain this device. Should a component
require maintenance, servicing or repair, then please consult a qualified dealer or service technician.

1. Intended Use

This device is a stereo compact disc player designed to play a number of different CD audio discs including CD data
discs containing MP3 files.

Please adhere to all of the safety information and instructions found in this instruction manual.

Explanation of symbols

An exclamation mark is intended to inform the
user of important information operation or
maintenance instructions or that special
attention is required.

This symbol is intended to alert you to the
presence of unprotected live parts or
components found within the product’s
enclosure or of dangerous connections that
upon contact may be of sufficient magnitude
to constitute a risk of electric shock. Cables
intended for such connections should only be
connected by qualified personnel or you
should only use ready to connect cables.
There are no user serviceable parts found
inside the device therefore the device need
never be opened.

Page | 5 © Sansui UK 2012 CDD201 V IB Ver 1.0 Rev 0.0

2. Safety Information

The following safety and hazard warnings are not only
for the protection of your device, but also serve as a
protection against potential health hazards. Please
take time to read the following instructions carefully.

We assume no liability for personal or property
damage resulting from the failure to comply
with the safety instructions, or from improper
operation or handling. Under such
circumstances, all claims under warranty will
become void

- For safety and licensing (CE) reasons any
unauthorized modification and/or changes to
the device is prohibited and will void the
warranty and all warranty claims.

- Any persons operating ins talling setting up or
servicing this device must be trained and
qualified accordingly and observe these
operating instructions.

- Ensure that the device has been set up correctly
by following all the instructions found in the
instruction manual

- This is a protection class II device. Make sure that
the voltage supply of the power outlet used
meets the required voltage specifications
230V/~50 Hz.

- Power supply cables should be routed so that
they are not likely to be walked on squashed or
pinched by items placed upon or against them.
Pay particular attention to cords at plugs power
outlets and at the point at which they exit from
the device. Avoid exposing the cable to
extreme heat or cold. Ignoring the above
mentioned instructions could result in cable
damage and present the danger of an electric
shock.

- Should any obvious damage be seen on the
device or on the connection cables do not
contact them in any way. Switch of the
corresponding circuit breaker in the power
distribution panel first before carefully
unplugging the power plug from the wall outlet.
Do not operate the device further! Please
contact or take it to a qualified service
technician or specialty workshop.

- In order to completely cut off the power supply
to the device unplug the power plug from the
wall outlet. Merely turning the device off with the
ON/OFF button is not sufficient. Also make sure
that power outlets are easily accessible.

- Always pull on the plug’s grips and never on the
cable to remove it from a wall outlet. Unplug the
device from the power outlet if not in use for a
longer period of time.

- For safety reasons always unplug the device
from the power outlet during thunder storms.

- Eliminate potential tripping hazards by routing
cables in such a way that no one can trip or
stumble over them.

- Never use the device if the power cable or
device is damaged.

- Keep packaging and protective foil away from
children at all times to avoid the danger of
suffocation.

- The device should never come into contact with
water or moisture.

- To prevent the risk of fire or electric shock make
sure that liquids such as dripping or splashing
water rain or moisture do not come in contact
with the device and power supply plug

- Operate this device in a moderate climate and
never expose it to extreme temperatures such
as high humidity.

- Condensation can build up suddenly if the
device is brought from a colder area into a
warmer area (e.g. when transporting). Should
t

his happen allow the device to warm up to

room temperature first before using.

- Care should be taken so that liquids do not
come in contact with the interior this is why
containers containing li quids e.g. buckets vases
or plants should never be placed anywhere near
this product including the power supply plug.
This could not only damage the device but also
present a fire hazard.

- It is imperative to avoid contact with moisture
e.g. never operate in the bathroom.

- Make sure the device is properly ventilated
during operation and never operate it in
constricted areas such as for example in a
bookcase or shelf. Never block ventilation
openings with magazines tablecloths curtains
or similar.

- Make sure the device is placed on a firm and
stable surface.

- Never place any sources of fire on top of or near
the device and power supply plug (e.g. lighted
candle).

- Please note that excessive sound pressure
created when listening to loud volume levels
with earphones or headphones can lead to
permanent hearing damage.

- Please adhere to the additional safety
information found in the individual chapters of
this instruction manual.

- When connecting other devices please refer to
the safety and operati ng instructi ons found in
the literature accompanying the device.

- Please contact our technical hotline or a service
technician for further information should you be
in doubt about device operation safety or when
making connections or if any questions arise
that are not explained within this manual.

- Contribute to a better environment by using a
designated recycling site for the disposal of
packaging material.

Page | 6 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

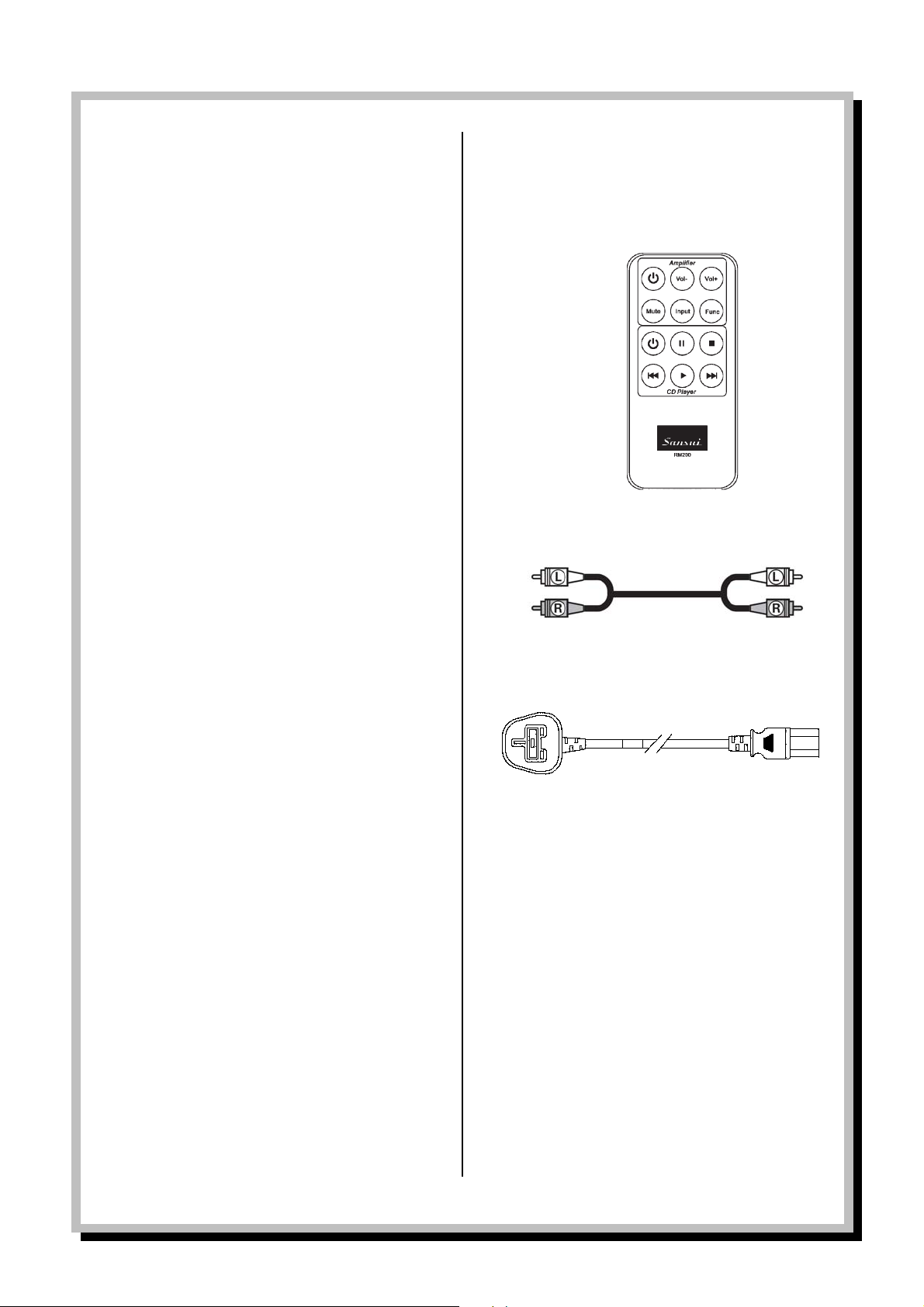

3. Accessories

The following accessories are supplied with the system.
Please check all these parts are present before
proceeding. Please inform your dealer if any part is
missing or damaged.

1 x Remote control handset

1 x stereo left and right Phono to Phono cable for

connecting to amplifier

1 x mains power cable

Page | 7 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

4. Description of parts

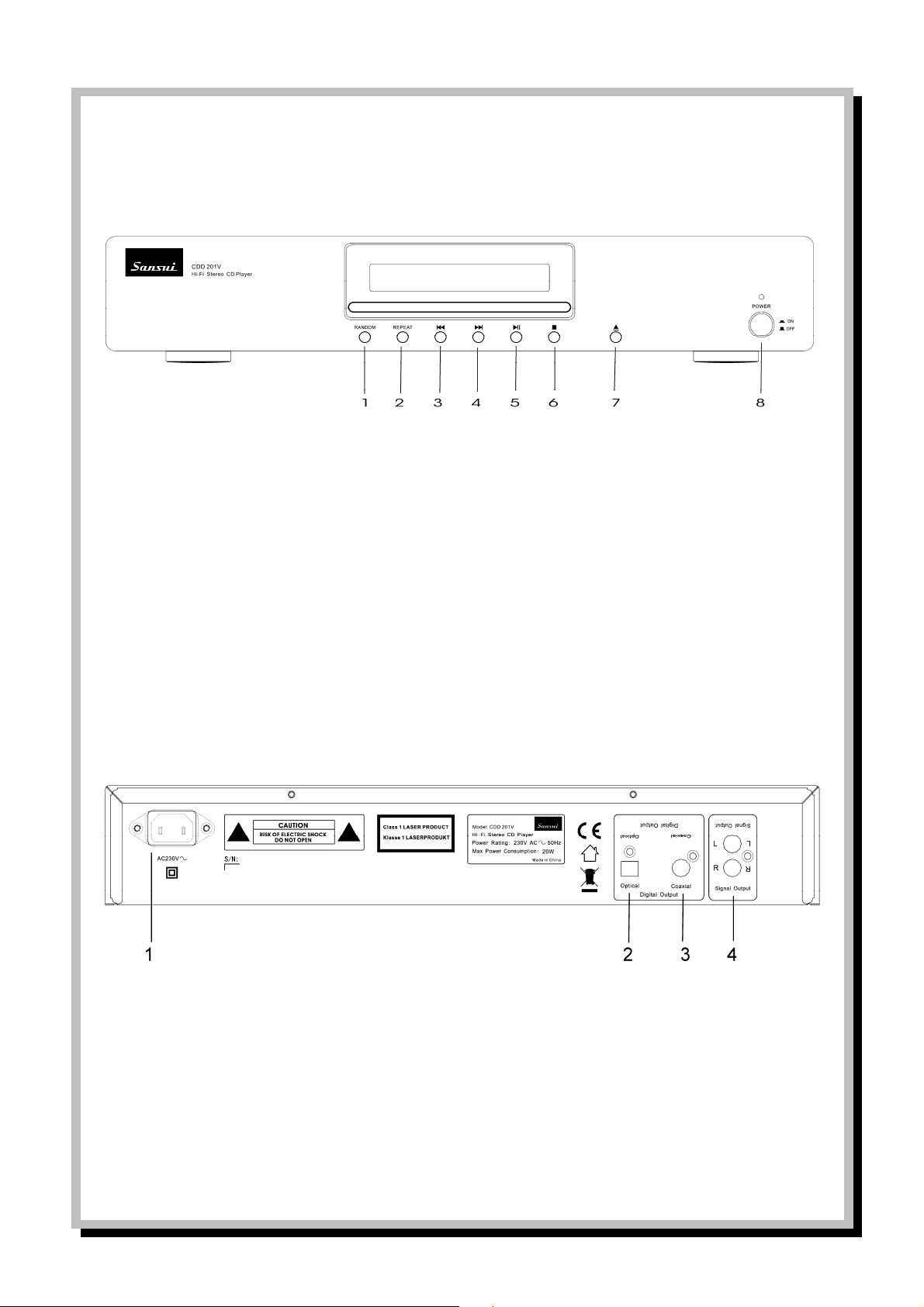

Front Panel

1 Random Play Button. Select to play tracks from CD in random order.

2 Repeat Play Button. Press to repeat track or entire CD.

3 Press to skip to previous track.

4 Press to skip to next track.

5 Play/Pause Button. Press to play and again to pause playback.

6 Stop button. Press to stop playback.

7 Eject button. Press to release CD tray. Press again to close.

8 Power Button. Depress to turn on power. Indicator lamp glows blue. Indicator lamp turns red if put into standby mode from

remote control handset.

Rear Panel

1. Power cable inlet: Plug in the supplied power cable here.

2. Digital Optical output. Connect an optical cable (not supplied) to connect to a digital input such as the optical input on
the Sansui SAP201V or SAV601 amplifiers.

3. Digital Coaxial S/PDIF output. Connect a COAX cable (not supplied) to connect to a digital input such as the coaxial input
on the Sansui SAP201V or SAV601 amplifiers.

4.

RCA /phono stereo output connections. Connect supplied RCA to RCA stereo pair cable ensuring the red connector on
the cable is connected to the red connector on both the CDD201V and your amplifier.

Page | 8

© Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

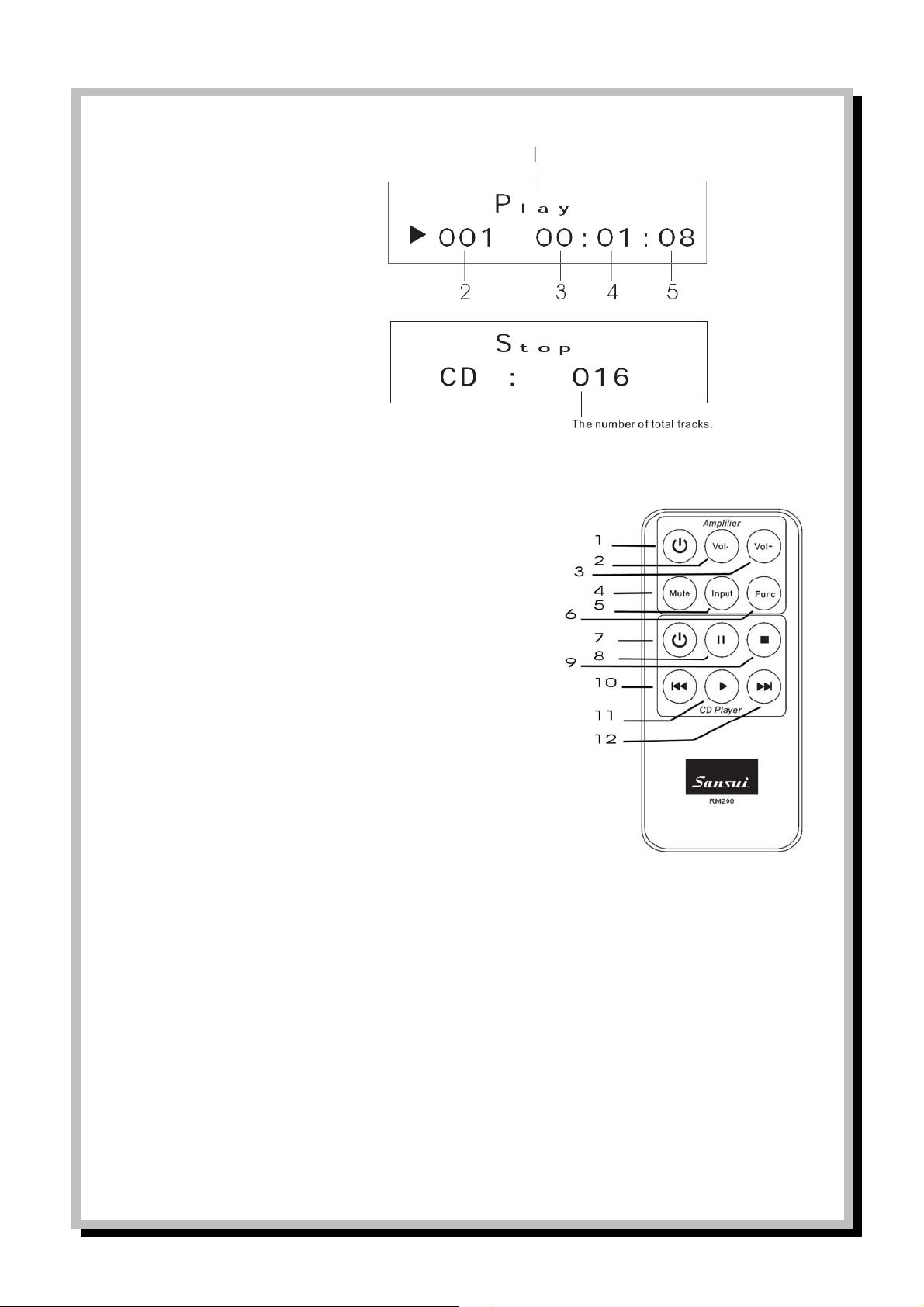

Display

1. Mode Display

2. Track number

3. Hour

4. Minute

5. Seconds

Sansui RM200 Remote Control Handset

Buttons 1 6 are for controlling the Sansui SAP201V amplifier

1 Switch amp power to Standby or power on from Standby

2 Reduce Volume

3 Increase Volume

4 Mute Volume

5 Scroll through the Input functions on amp

6 Scroll through the Tone functions on amp

Buttons 7 11 are for controlling the Sansui CDD201V CD Player

7 Switch CD Player power to Standby or power on from Standby

8 Pause control

9 Stop button

10 Press to skip to previous track.

11 Play button

12 Press to skip to next track.

a. Play
b. Random
c. Intro
d. Repeat one
e. Repeat all

Page | 9 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

Inserting/changing batteries

Remove the battery compartment lid carefully. Remove

the used batteries. Insert new batteries, observing the

correct polarity as displayed inside the remote. Replace

the battery lid carefully.

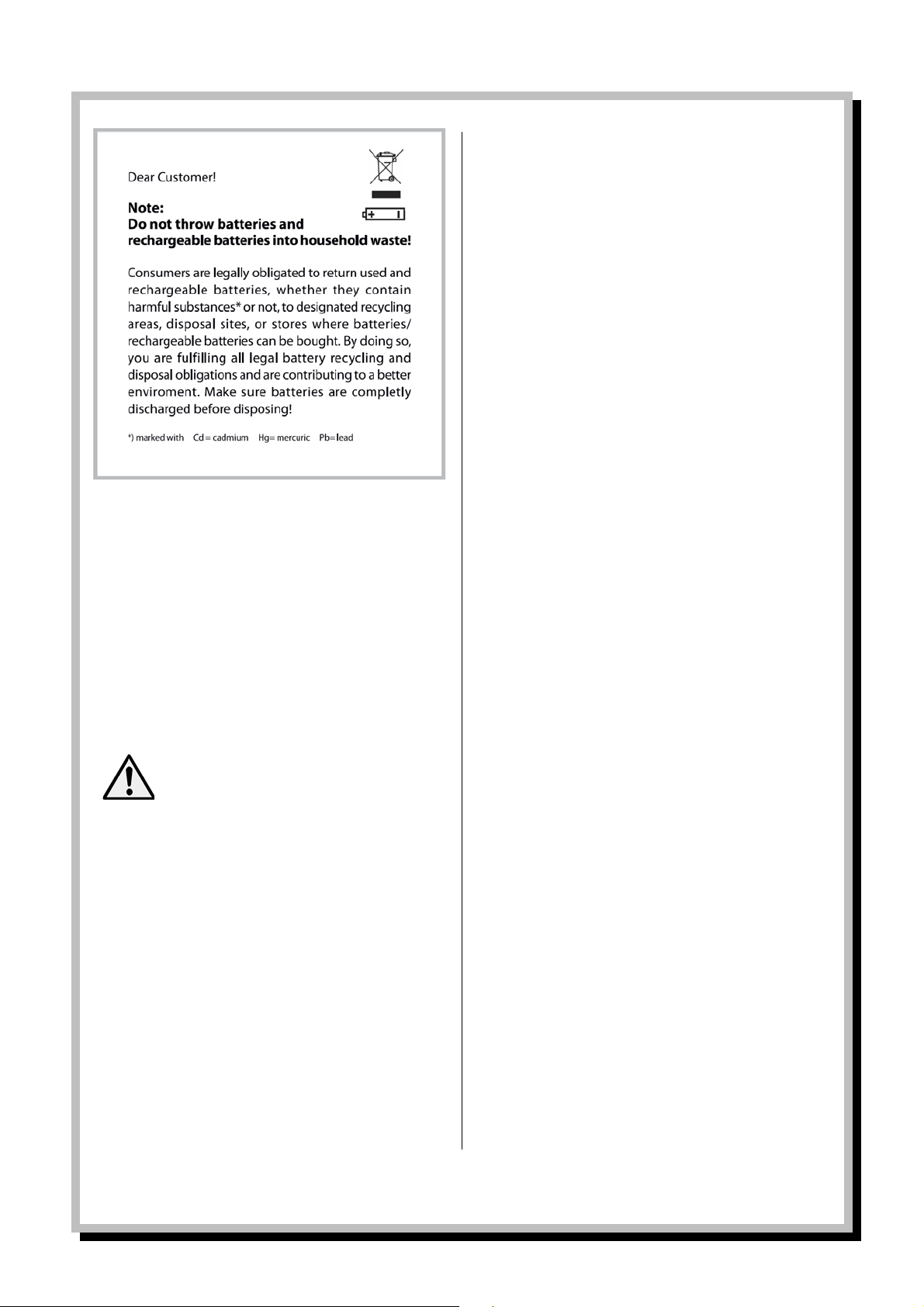

Information on handling batteries and rechargeable

batteries

Please adhere to the following information when handling

batteries and rechargeable batteries.

- Keep batteries out of children’s reach.

- Batteries are hazardous and do not

belong in household waste.

- Ensure correct polarity when inserting
batteries.

- Always remove batteries when the remote
control is not in use for long periods of
time.

- Never leave batteries lying around
unsupervised. If swallowed these could
pose a choking hazard to children and
pets. Seek emergency medical care
immediately, should this happen.

- Never expose batteries to extreme
temperatures, such as sunlight, fire, ovens,
etc. there is a risk of explosion!

- Make sure that batteries are not
dismantled, short circuited or are thrown
into fire. Never re charge non
rechargeable batteries. There is a risk of
explosion!

- Always follow the manufacturer's
instructions when recharging
rechargeable batteries.

- Touching leaking or damaged batteries
could cause skin burns. Use protective
gloves suitable for handling such batteries.

- Always ensure that the device has been
turned off after use.

- Always change/replace all batteries at
the same time.

- If required clean battery and device
contacts before inserting,

Page | 10

© Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

5. Operation

Disc types

This CD player is capable of playing any pre record compact disc bearing the following logo

In addition the following disc types maybe played:

CD, CD R/W, CD R , CD R+

The player will also playback MP3 or WMA files contained on a data CD of any above type.

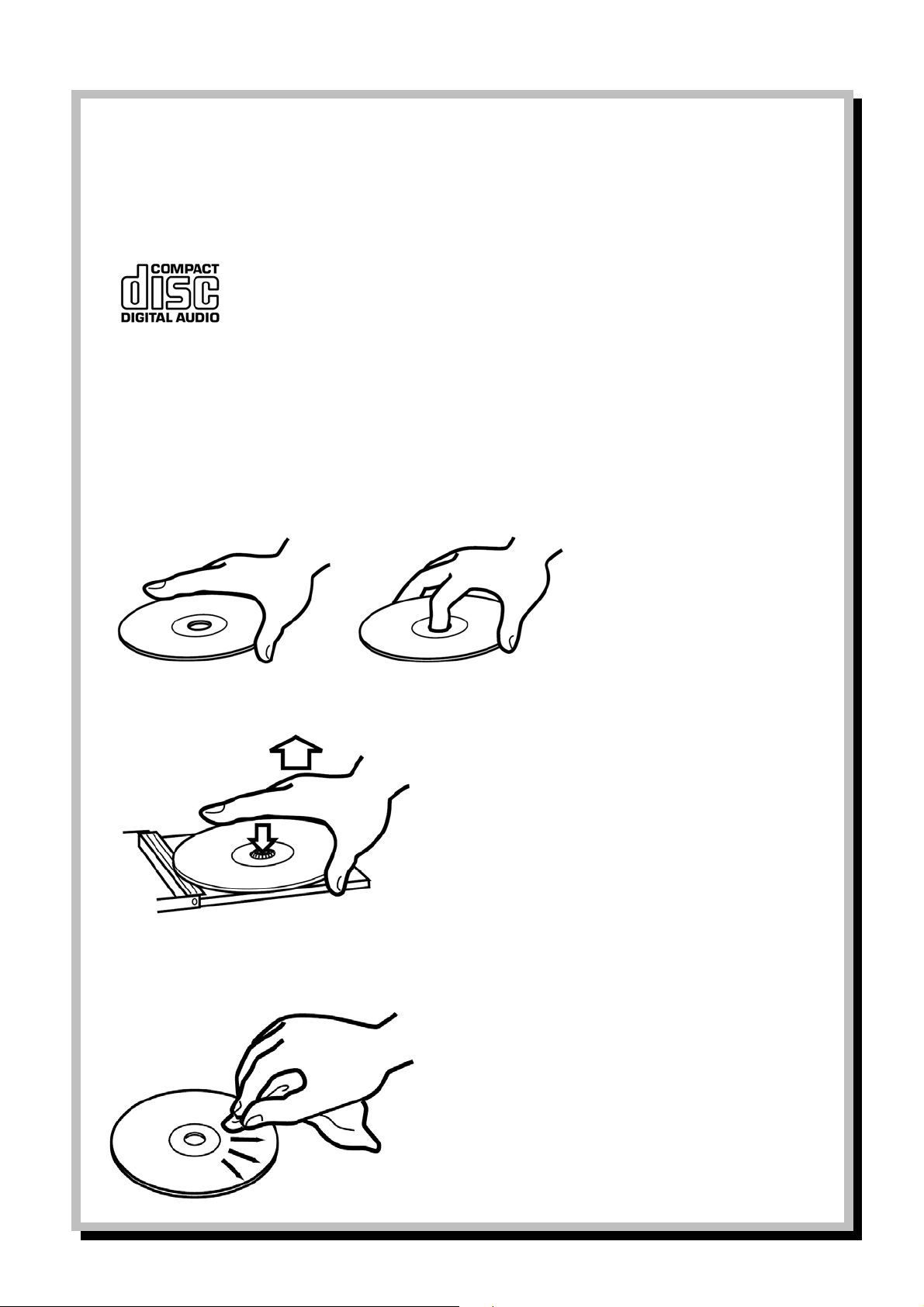

Correct disc handling

Always ensure you handle any CD media with care and avoid touching the underside.

Take care when removing a CD from its case. Press the centre of the CD holder to release the disc and remove by holding the
edges

Always ensure the surface is clean and free from dust or dirt. Wipe the surface using a dry lint free cloth moving from the
middle of the CD to the edge.

Page | 11

© Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

6. Troubleshooting and error messages

The CDD201V is equipped with state of the art technology and is safe to operate. Nevertheless, problems or malfunctions
may occur. Before contacting Sansui customer support, refer to the following for possible solutions.

PROBLEM POSSIBLE SOLUTION

No power when switched on - Mains socket not switched on or faulty

- Plug not fully inserted into wall socket

- Internal mains fuse has blown inside the unit,

this will need to be replaced by a qualified service

technician

- Power cord has become damaged, this should be

replaced immediately by a qualified technician

No sound - Power not turned on

- Volume setting low

- Loudspeaker cables not connected

- No input audio equipment is connected or is faulty

- Correct audio input source not selected on front panel

No sound in one channel - Audio source input cables connected incorrectly or

damaged

- Audio input source faulty

Loudspeaker cables connected incorrectly or

damaged

- Loudspeakers are faulty

Loud buzz or hum - Audio input cables damaged or not correctly

connected

- CD player sited too close to TV

Weak bass, diffused stereo image - Speaker connections out of phase check + and terminals

are connected to corresponding terminals on both

amplifier and loudspeakers

Distorted sound - Frayed wires may be touching on speaker terminals

causing distortion

- Bass and treble controls may be too high for

loudspeaker specification.

- Volume control may be set too high

Audio input source switches not

working

Remote control not working

Buttons do not function (on the CDD201

and/or remote control)

- Internal fault would need servicing by a qualified service

technician.

- Check if the batteries have been inserted correctly.

- If batteries are empty, replace them with new ones.

- Remove any objects found between the remote control

and the remote sensor.

- Make sure the distance between the remote control and

the device does not exceed 8 m

- Turn the CDD201 off and then on again.

- As an alternative, turn the CDD201 off, unplug it from the

power outlet and plug in again.

Any repairs other than those mentioned above are to be carried out solely by an authorised technician.

Page | 12 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

7. Maintenance and handling

Live parts may be exposed, if the covering is opened or parts are removed.

Carry out a technical safety inspection on a regular basis, e.g. check if the power cable or housing has not been
damaged.
If there is reason to believe that the device can no longer be operated safely, then disconnect it immediately from the
power supply and secure it against any unintentional operation. Carefully remove the power cable plug from the wall
outlet and where applicable switch off the corresponding circuit breaker first.

It can be assumed that safe operation is no longer possible, if:

- there is visible damage to the device or power cable,

- the device has become wet or water has been able to get inside.

- it has been stored for a long period of time under unfavorable conditions

- Dropped, exposed to rigorous transport conditions or otherwise damaged.

Always adhere to the following safety instructions before cleaning and maintenance:

- The device must be disconnected from the power supply source prior to service, maintenance
or repairs.

- Repairs are only to be carried out by qualified personnel, who are familiar with the hazards involved
and the relevant regulations.

Transporting or sending the device

Please retain the original box and the packaging material in case you need to transport or send the device out for
maintenance at a later date. Please note that the device should be repacked in the original packaging. The box and
packaging have been especially developed for this device in order to protect it during transport and against damage.
Retain this instruction manual for future reference and where required pass it along with the device if handed over to a
third party. It contains important information on initial operation and handling.

Keeping the external case clean

Never use volatile fluids near the device, as for example insect spray. Avoid letting the device come in contact with
rubber or plastic products for longer periods of time. These could otherwise leave marks behind.

Cleaning the device

Unplug the power cable before cleaning. Always use a soft and dry cloth to clean the unit’s exterior. If the device is
extremely dirty you can use a soft cloth, dampened with water or a mild cleaning solution to clean. Never use any
abrasive or harsh cleaning agents (e.g. alcohol, benzene or thinners) as these could damage the controls, casing or any
markings and labels found on the device.

Page | 13 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

Important Notice

Please note that electrical and electronic devices must never be disposed of in regular household waste!

Consumers are legally obligated and responsible for the proper disposal of electronic devices by returning them
to collection sites designated for the recycling of electrical and electronic equipment waste after the useful life
of the device has come to an end. For more information concerning collection sites and correct disposal please
contact your local authority or waste management company. The presence of the above symbol on a device,
or its packaging or within the instruction manual indicates that the item must not be disposed of in normal
unsorted municipal waste.
In doing so you are fulfilling all recycling and disposal obligations and are optimising and contributing to a better
environment. These disposal regulations apply to batteries and rechargeable battery disposals as well. Most
batteries contain hazardous chemicals which can contaminate the environment and human health if they are
discarded in ordinary household waste. According to legislation batteries are to be returned to the place of
purchase or disposed of at a designated recycling site

Page | 14 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

8. Specifications

- Output Level : 1.8V +/ 2dB @ 1KHz 0dB

- S/N Ratio (A): >80dB

- Power Supply : AC 230V ~ 50Hz

- Max Power Consumption: 20Watts

NOTE: Specifications and design are subject to possible modificati ons without notic e

Page | 15 © Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0

www.sansui.co.uk

© Sansui UK 2012 CDD201V IB Ver 1.0 Rev 0.0
