Page 1

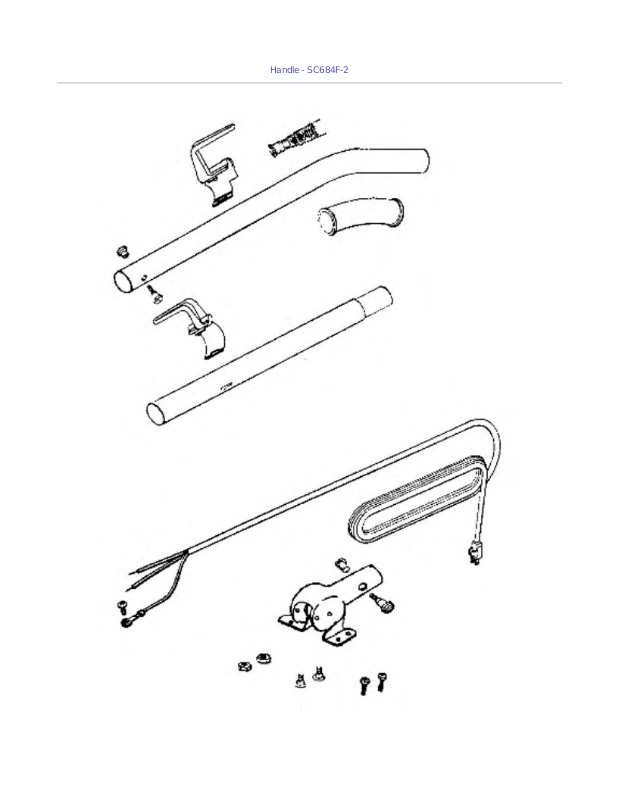

Han
dle - SC684F-2
Page 2
Han
dle - SC684F-2
Ref # P
1 12637-8 TUBE - HANDLE (LOWER)
2 25329-44SV HANDLE ASSEMBLY (UPPER)
3 35293-22 GRIP - HANDLE
4 38183-1 HANDLE SOCKET ASSY
5 38495 SPRING - STRAIN RELIEF PK
6 52370-18 CORD & TERMINAL ASSY 50'1
7 53145 BOLT PACKAGE (10)
8 53198-1 HANDLE SCREW ASSY PACKAGE
9 53213-5 NUTS - PACKAGE 10
10 53228-2 SCREWS - PACKAGE 10
11 53238-13 SCREW PACKAGE
12 53574-5
art Description Comments Qty
Page 3
Base & Ho
od Assembly - SC684F-2
Page 4
Base & Ho
od Assembly - SC684F-2
Ref # P
1 14660-1 BUTTON - SWITCH
2 24834A-1 Discontinued, use 24834A-3
3 24964A CAM (RIGHT)
4 24965A CAM (LEFT)
5 30517 GASKET - MOTOR SEAL
6 36263 COVER - WHEEL
7 37034 SPRING - ADAPT RETAINER
8 37989 CLIP - SWITCH
9 38053-2 KNOB ASSEMBLY
10 38067 SEPARATOR ASSEMBLY
11 38218-1 BRACKET - BUSHING
12 53097 SPRING - FOOT PEDAL PKG (
13 53118 RIVET - SHOULDER PACKAGE
14 53122 STRAIN RELIEF BUSHING - P
15 53133 STL WASHERS-PKG (48495 (NLA)
16 53140 CLAMP & SCREW ASSY PKG
17 53143 SCREW PACKAGE (10)
18 53214-1 WIRE NUTS/PKG 10
19 53215-4 SCREW PACKAGE
20 53238-11 SCREW PACKAGE
21 53238-13 SCREW PACKAGE
22 53238-14 SCREW PACKAGE
23 54151-2 Discontinued, use 13738-5
24 54177 WIRE & TERMINAL ASSY
25 54314-2 HOOD & GRAPHICS ASSY
26 54352-3 MOTOR CHANGE KIT (7AMP)27 57900-2 BASE ASSY 12" - CARTONED
art Description Comments Qty
Page 5
Fu
rniture Guard & Brushroll - SC684F-2
Page 6
Fu
rniture Guard & Brushroll - SC684F-2
Ref # P
1 13236-3 TUBE - DISTURBULATOR
2 25922-1 BOTTOM PLATE ASSEMBLY
3 25937 SHAFT - DISTURBULATOR
4 26057A CAP - DISTURBULATOR
5 26059A CAP - COVER
6 26242-1 REAR WHEEL use 26242-119N
7 26296-9 Discontinued, use 27564-1
8 35859A-1 WHEEL - FRONT
9 35947A AXLE - FRONT
10 37183 AXLE - REAR
11 37234-1 WHEEL & AXLE ASSY
12 46538 TAPE-FOAM (use 46538-4)
13 49899 WASHER - FELT
14 30563B BELT - DRIVE (STYLE RD)
15 52282-4 BRISTLE STRIP PACKAGE
16 53076-2 SPRING & AXLE PACKAGE (6)
17 53110 WASHER - WHEEL PACKAGE (1
18 53121 PUSH NUT PACKAGE (10)
19 53158 LOCK NUT PACKAGE
20 53184 KLIPRING PACKAGE
21 53201 AXLE CLAMP - PACKAGED
22 53238-11 SCREW PACKAGE
24 54256 BRG & RET ASSY
art Description Comments Qty
53270 DISTURBULATOR ASSEMBLY
Page 7
Bag Asse
mbly - SC684F-2
Page 8
Bag Asse
mbly - SC684F-2
Ref # P
1 54582-4 BAG ASSEMBLY - PACKAGED
2 47722 SPRING - BAG
3 30599D-10 CLIP - BAG
4 48748 WASHER
5 48282 GASKET - BAG ADAPTER
6 54174-1 ADAPTER - BAG
7 49461B HARDWARE PKG - COMM UPRIG
art Description Comments Qty
Page 9
Mo
tor - SC684F-2
Page 10
Mo
y
tor - SC684F-2
Ref # P
1 12988 FAN BLOWER - MOTOR
2 20217E RETAINER - UPPER BEARING
3 30474A FAN - MOTOR COOLING
4 30478 MOTOR BRUSH ASSEMBLY
5 37012-2 PULLEY - MOTOR DRIVE
6 42875 BEARING RETAINER ASSY-W/L
7 53088-1 BALL BEARING - PACKAGE
8 53138 SCREWS - PACKAGE 10
9 53142 SCREW PACKAGE (10)
10 53148 WASHER - FAN PACKAGE (10)
11 53187-1 RIVET PACKAGE
12 53188-1 WASHER PACKAGE
13 53213-4 NUTS - PACKAGE 10
14 53219-2 SCREWS - PACKAGE 10
15 53222-3 LOCKWASHERS - PACKAGE 10
16 53441-2 FIELD ASSY
17 54169-1 MOTOR BASE ASSY
18 54395-4 ARMATURE KIT
19 54396 MOTOR COVER ASSEMBLY - LA
20 56802-2 TIE - CABLE (PURCHASED)
art Description Comments Qty
sembl
